TW130 Grandeur Tech - Wristwatch TW Steel - Free user manual and instructions

Product Type	Wristwatch
Brand	TW Steel
Model	TW130 Grandeur Tech
Movement Type	Quartz
Case Diameter	45 mm
Case Thickness	12 mm
Band Width	22 mm
Band Material	Stainless steel or genuine leather
Case Material	Stainless steel
Crystal Material	Mineral crystal
Water Resistance	100 meters (10 ATM)
Power Source	Battery (SR626SW or equivalent)
Battery Life	Approximately 2 years
Display Type	Analog
Functions	Hour, minute, second hands; date display; chronograph
Clasp Type	Deployment buckle or butterfly clasp
Weight	Approximately 150 g
Care Instructions	Wipe with a soft, dry cloth; avoid contact with chemicals, extreme temperatures, and magnetic fields.
Safety Precautions	Keep away from children under 3 years due to small parts. Do not wear during diving or high-impact activities beyond water resistance rating.
Spare Parts Availability	Genuine parts available through authorized TW Steel service centers.
Warranty	2 years international warranty against manufacturing defects.

Frequently Asked Questions - TW130 Grandeur Tech TW Steel

How do I set the time and date on my TW130 Grandeur Tech?

To set the time, pull the crown out to position 2 (second click). Turn the crown clockwise to adjust the time. For the date, pull the crown to position 1 (first click) and turn clockwise until the correct date appears. Push the crown back fully when done. Avoid changing the date between 9 PM and 3 AM to prevent damage to the movement.

Is the TW130 Grandeur Tech water-resistant? Can I swim with it?

Yes, it is water-resistant up to 100 meters (10 ATM). It is suitable for swimming and snorkeling but not for scuba diving. Ensure the crown is fully pressed in before exposure to water.

What type of battery does the watch use and how do I replace it?

The watch uses a SR626SW or equivalent battery. We recommend having the battery replaced by a professional watch technician to maintain water resistance. Battery life is approximately 2 years.

How do I use the chronograph function?

Press the top pusher (start/stop) to start and stop the chronograph. Press the bottom pusher (reset) to reset the chronograph hand to zero. Do not press the reset while the chronograph is running.

The watch is not running; what should I do?

First, check if the crown is fully pushed in. If not, push it in. If the watch still doesn't run, the battery may be dead. Replace the battery at an authorized service center. If issues persist, contact TW Steel customer service.

How do I clean and maintain my TW Steel watch?

Wipe the watch with a soft, lint-free cloth. For metal bands, use a mild soap solution and a soft brush, then dry thoroughly. Avoid using chemicals or abrasives. For leather bands, avoid water and condition with leather care products.

Can I adjust the bracelet length?

Yes, if your watch has a metal bracelet, links can be removed by a jeweler or using the supplied pin removal tool. Leather bands have holes for adjustment. Refer to the manual or a professional for assistance.

Is the watch suitable for left-handed wear?

The crown is on the right side, typical for right-handed wear. However, the watch can be worn on the right wrist if desired. There is no left-handed version available.

What is the warranty period and what does it cover?

The TW130 Grandeur Tech comes with a 2-year international warranty against manufacturing defects. It covers movement, hands, and dial for normal use. It does not cover battery, glass, strap, or damage from misuse or accidents.

Where can I find spare parts or get the watch repaired?

Spare parts and repairs are available through authorized TW Steel service centers. Contact TW Steel customer support for the nearest service location. Do not attempt repairs yourself to avoid voiding the warranty.

USER MANUAL TW130 Grandeur Tech TW Steel

TW STEEL®

BIG IN OVERSIZED WATCHES

MANUAL

INSTRUCTIONS FOR THE USE OF THE TW STEEL MODELS/ CANTEEN STYLE

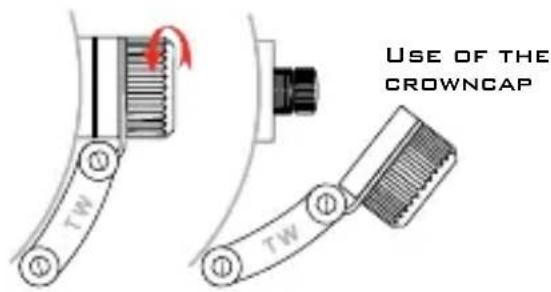

To adjust the time or set the date you first have to unscrew the crowncap anti clockwise. If you have unscrewed it, you will see the [small] crown. Follow the next instructions to adjust the time and date. After adjusting it, screw the crowncap clockwise back.

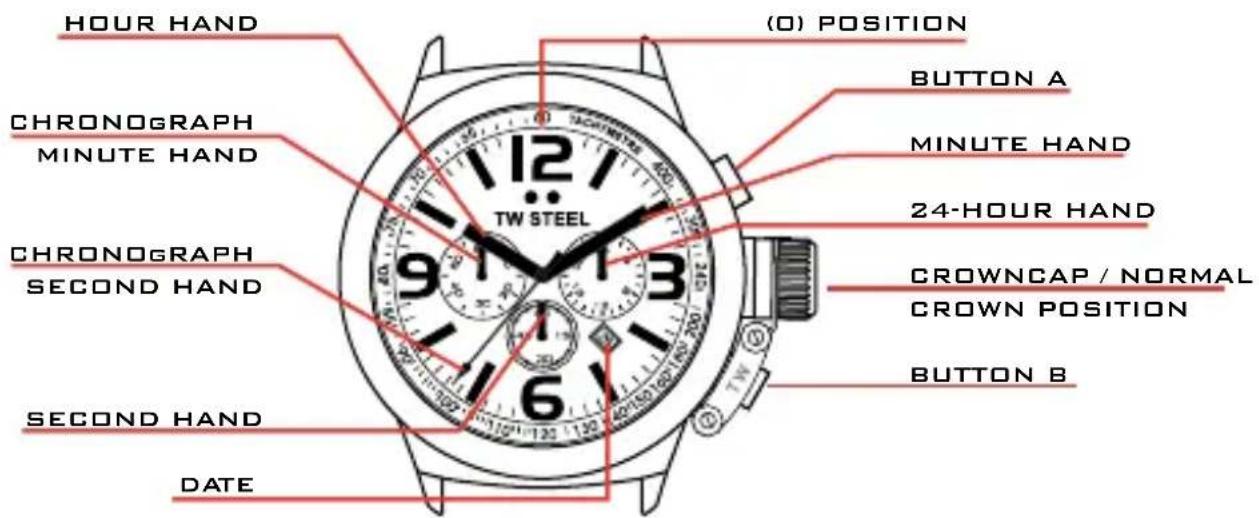

ADJUSTING THE TIME ADJUSTING THE DATE

USING THE CHRONOGRAPH

CHANGING THE TIME

ADJUSTING THE TIME

Pull the crown out to the 2nd click position so that the second hand stops at (O) position. Turn the crown to set the hour and minute hands.

ADJUSTING THE DATE

ADJUSTING THE DATE

Pull the crown out to the 1st position. Turn the crown to the left to set the date. After the date has been set, push the crown back to the normal position.

USING THE CHRONOGRAPH

The chronograph is able to measure and display the time in 1/1 second united up to an maximum of 1 hour. The chronograph can be started and stopped each time button A is pressed. Pressing button B resets the chronograph. All hands return to their (O) position. If the chronograph second hand does not return to the (O) second position after the chronograph has been reset or after replacing the battery, you should do the following: Pull the crown out to the 2nd position. Press button A to set the chronograph second hand to the (O) position. The chronograph hands can be advanced rapidly by continuously pressing button A or B. Once the chronograph second hand has returned to the (O) position, return the crown to its normal position.

NSTRUCTIONS FOR GRANDEUR DIVER / GOLIATHGRANDEUR COLLECTION / TECH COLLECTION

GOLIATH

To set the time and date you can directly pull out the big crown its 1st or 2nd position.

GRANDEUR COLLECTION

If your model has a crowncap, please follow the instructions of the Canteen style. If your model has NO crowncap, you can directly pull out the big crown to its 1st or 2n position to set the time and date.

GRANDEUR DIVER

To set the time and date you first have to unscrew the big crown an clockwise. You can now pull out the crown to its 1st or 2nd position.

For al models follow the instructions of the Canteen Style for the use of the chronograph.

USING THE CHRONOGRAPH OF THE TECH MODELS

TECH COLLECTION

To adjust the time and date of the Tech, you first have to unscrew the big crown anti clockwise. You can now pull out the crown to its 1st or 2nd position. Check the manual of the Canteen Style for further instructions on how to set the time and date.

for 30 seconds after starting and then stops at (o) position. Press button B to change the watch to the chronograph mode. The second hand stops at the (O) position and changes to the chronograph 1/20 second hand. The chronograph can be started and stopped each time button A is pressed. Pressing button B resets the chronograph. the following: Pull the crown out to the 2nd position. Press button A to set the chronograph second hand to the (O) position. Press button B to set the chronograph 1/20 second hand to (O) position. The chronograph hands can be advanced rapidly by continuously pressing button A or B. Once the hands have returned to the (O) position, return the crown to its normal position an screw the crown clockwise back on to the case.

USE OF THE CHRONGRAPH FOR ALL TECH MODELS

The chronograph is able to measure and display the time in 1/20 second united up to a maximum of 59 min and 59 sec. The retrograde chronograph 1/20 second hand keeps running continuously

All hands return to their (O) position. If the chronograph second hand and the chronograph 1/20 second hand do not return to the (O) second position after the chronograph has been reset or after replacing the battery, you should do

CAUTION: IF THE CROWN IS NOT PRESSED IN PROPERLY, THE WATCH IS NO LONGER WATER-PROOF AND THE MOVEMENT CAN BE SERIOUSLY DAMAGED!
