TW121 Grandeur Tech - Wristwatch TW Steel - Free user manual and instructions

Brand	TW Steel
Model	TW121 Grandeur Tech
Product Type	Wristwatch
Case Diameter	48 mm
Case Thickness	15 mm
Weight	180 g
Movement Type	Quartz (battery-powered)
Water Resistance	10 ATM (100 meters)
Crystal Material	Mineral glass
Strap Material	Stainless steel
Functions	Time, date display (3 o'clock), chronograph (subdials)
Battery Type	SR626SW or equivalent
Battery Life	Approximately 2 years
Care & Cleaning	Wipe with a soft cloth; avoid chemicals; rinse after saltwater exposure
Safety Precautions	Do not press buttons underwater; avoid extreme magnetic fields
Spare Parts & Repairability	Available through authorized dealer; battery replacement by jeweler recommended
General Information	TW Steel is known for large-size watches; this model features a multi-layer dial and tachymeter bezel

Frequently Asked Questions - TW121 Grandeur Tech TW Steel

How do I adjust the date on my TW121 Grandeur Tech?

Pull the crown to the first position and turn it clockwise. Avoid adjusting the date between 9 PM and 3 AM to prevent damaging the movement.

What is the water resistance of this watch?

The watch is rated 10 ATM (100 meters). Suitable for swimming and snorkeling, but not for deep-sea diving.

How do I replace the battery?

Take the watch to a professional jeweler. The case back must be opened carefully to avoid damaging the gasket. Use battery type SR626SW.

Can I wear this watch while showering?

Yes, it is safe for showering as it has 10 ATM water resistance. However, avoid hot water and steam which can degrade the seals.

How do I use the chronograph?

Press the top pusher to start/stop the chronograph. Press the bottom pusher to reset. The subdials measure minutes and hours.

Is the strap adjustable?

Yes, the stainless steel strap can be adjusted by removing links. Use a pin pusher or take it to a jeweler.

What should I do if the watch stops?

Check the crown: ensure it is fully pushed in. If still not working, replace the battery. If problem persists, consult an authorized service center.

Does the watch have a warranty?

TW Steel offers a 2-year international warranty covering manufacturing defects. Register your watch online to activate.

How do I clean the watch?

Use a soft, damp cloth to wipe the case and strap. Avoid abrasive cleaners. For leather straps, keep away from water.

Can I wear the watch while playing sports?

Yes, the watch is robust and water-resistant. However, avoid high-impact activities that may scratch the crystal or damage the movement.

USER MANUAL TW121 Grandeur Tech TW Steel

TW STEEL®

BIG IN OVERSIZED WATCHES

MANUAL

INSTRUCTIONS FOR THE USE OF THE TW STEEL MODELS/ CANTEEN STYLE

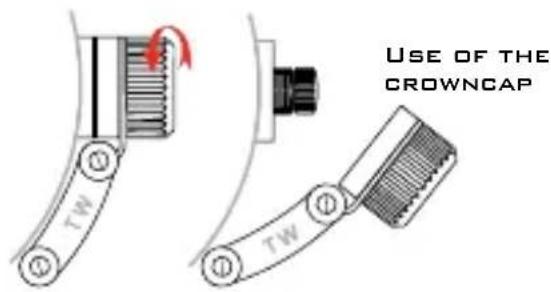

To adjust the time or set the date you first have to unscrew the crowncap anti clockwise. If you have unscrewed it, you will see the [small] crown. Follow the next instructions to adjust the time and date. After adjusting it, screw the crowncap clockwise back.

ADJUSTING THE TIME ADJUSTING THE DATE

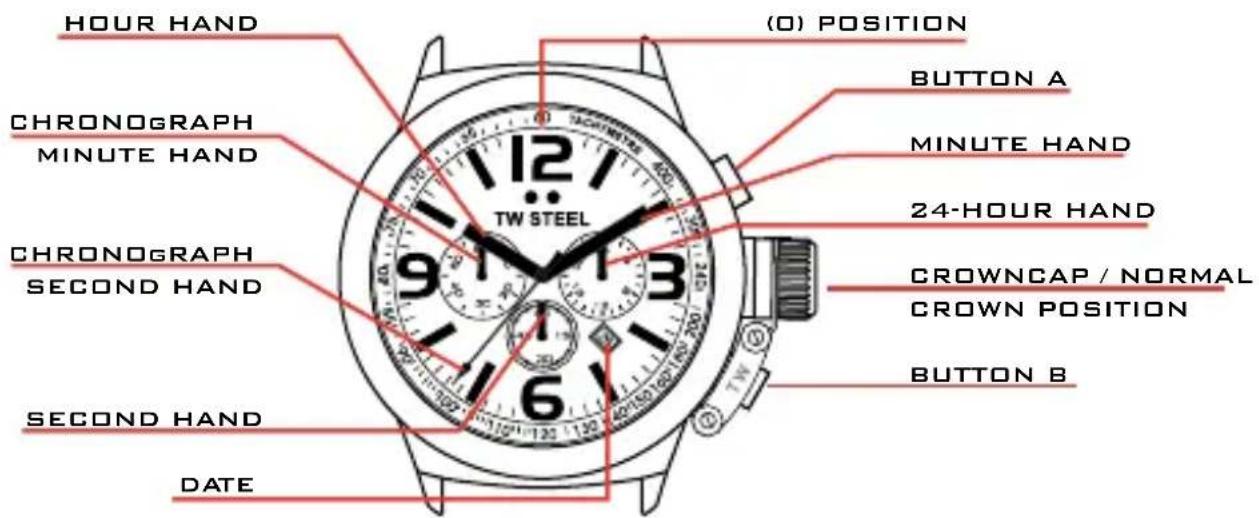

USING THE CHRONOGRAPH

CHANGING THE TIME

ADJUSTING THE TIME

Pull the crown out to the 2nd click position so that the second hand stops at (O) position. Turn the crown to set the hour and minute hands.

ADJUSTING THE DATE

ADJUSTING THE DATE

Pull the crown out to the 1st position. Turn the crown to the left to set the date. After the date has been set, push the crown back to the normal position.

USING THE CHRONOGRAPH

The chronograph is able to measure and display the time in 1/1 second united up to an maximum of 1 hour. The chronograph can be started and stopped each time button A is pressed. Pressing button B resets the chronograph. All hands return to their (O) position. If the chronograph second hand does not return to the (O) second position after the chronograph has been reset or after replacing the battery, you should do the following: Pull the crown out to the 2nd position. Press button A to set the chronograph second hand to the (O) position. The chronograph hands can be advanced rapidly by continuously pressing button A or B. Once the chronograph second hand has returned to the (O) position, return the crown to its normal position.

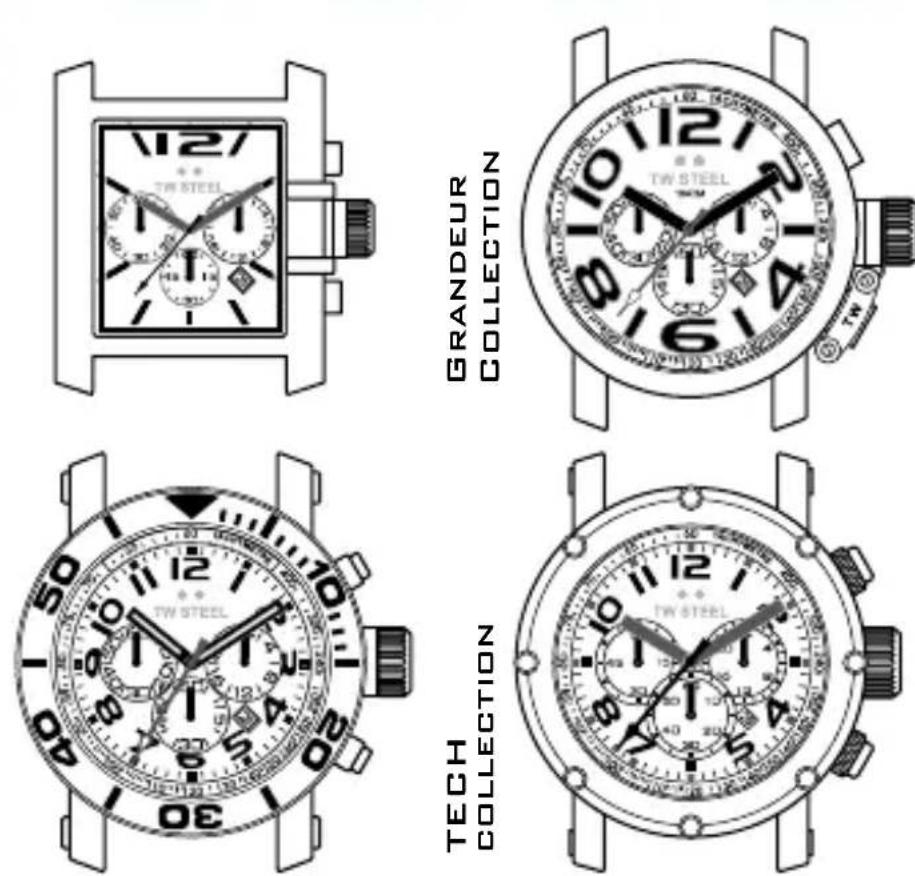

NSTRUCTIONS FOR GRANDEUR DIVER / GOLIATHGRANDEUR COLLECTION / TECH COLLECTION

GOLIATH

To set the time and date you can directly pull out the big crown its 1st or 2nd position.

GRANDEUR COLLECTION

If your model has a crowncap, please follow the instructions of the Canteen style. If your model has NO crowncap, you can directly pull out the big crown to its 1st or 2n position to set the time and date.

GRANDEUR DIVER

To set the time and date you first have to unscrew the big crown an clockwise. You can now pull out the crown to its 1st or 2nd position.

For all models follow the instructions of the Canteen Style for the use of the chronograph.

USING THE CHRONOGRAPH OF THE TECH MODELS

TECH COLLECTION

To adjust the time and date of the Tech, you first have to unscrew the big crown anti clockwise. You can now pull out the crown to its 1st or 2nd position. Check the manual of the Canteen Style for further instructions on how to set the time and date.

for 30 seconds after starting and then stops at (o) position. Press button B to change the watch to the chronograph mode. The second hand stops at the (O) position and changes to the chronograph 1/20 second hand. The chronograph can be started and stopped each time button A is pressed. Pressing button B resets the chronograph. the following: Pull the crown out to the 2nd position. Press button A to set the chronograph second hand to the (O) position. Press button B to set the chronograph 1/20 second hand to (O) position. The chronograph hands can be advanced rapidly by continuously pressing button A or B. Once the hands have returned to the (O) position, return the crown to its normal position an screw the crown clockwise back on to the case.

USE OF THE CHRONGRAPH FOR ALL TECH MODELS

The chronograph is able to measure and display the time in 1/20 second united up to a maximum of 59 min and 59 sec. The retrograde chronograph 1/20 second hand keeps running continuously

All hands return to their (O) position. If the chronograph second hand and the chronograph 1/20 second hand do not return to the (O) second position after the chronograph has been reset or after replacing the battery, you should do

CAUTION: IF THE CROWN IS NOT PRESSED IN PROPERLY, THE WATCH IS NO LONGER WATER-PROOF AND THE MOVEMENT CAN BE SERIOUSLY DAMAGED!
