TW124 Grandeur Tech - Wristwatch TW Steel - Free user manual and instructions

Product Type	Wristwatch
Brand	TW Steel
Model	TW124 Grandeur Tech
Case Diameter	Approx. 50 mm
Case Material	Stainless steel
Band Material	Stainless steel or leather (depends on variant)
Crystal	Mineral glass
Water Resistance	10 ATM (100 meters)
Movement Type	Quartz (battery-powered)
Battery	SR626SW or equivalent, replaceable
Functions	Time, date, chronograph, tachymeter
Weight	Approx. 200 g
Clasp Type	Deployment clasp with push-button
Care Instructions	Rinse with fresh water after exposure to salt water; clean with soft cloth; avoid extreme temperatures
Safety Warnings	Keep away from strong magnetic fields; do not operate pushers underwater
Spare Parts Availability	Batteries, straps, and crystals available from authorized dealers
Repairability	Battery replacement by professional; movement repair by authorized service center
General Information	Large dial design, luminous hands, screw-down crown

Frequently Asked Questions - TW124 Grandeur Tech TW Steel

How do I set the time and date on my TW Steel TW124 Grandeur Tech?

Pull the crown out to position 2 (second click). Turn the crown clockwise to set the time. To set the date, pull the crown to position 1 (first click) and turn counterclockwise. Push the crown back in after setting.

Is the TW124 Grandeur Tech water resistant? Can I swim with it?

Yes, it is water resistant to 10 ATM (100 meters). It is suitable for swimming and snorkeling but not for scuba diving. Avoid operating the pushers or crown underwater.

What type of battery does the watch use and how do I replace it?

The watch uses a SR626SW or equivalent battery. Replacement should be done by a professional watchmaker to maintain water resistance. The battery typically lasts 2-3 years.

How do I use the chronograph (stopwatch) function?

Press the top pusher to start the chronograph, press again to stop. Press the bottom pusher to reset to zero. The subdials show elapsed minutes and hours.

What is the case diameter and is the watch suitable for small wrists?

The case diameter is approximately 50 mm. It is a large watch designed for men. For smaller wrists, the bracelet may not fit well; consider trying it on first.

How do I adjust the bracelet length?

The stainless steel bracelet has removable links. Use a spring bar tool to push out the pins from the links. Remove equal links from both sides for balance. Refer to the manual for detailed instructions.

What is the warranty period for TW Steel watches?

TW Steel offers a 2-year international warranty against manufacturing defects. Warranty does not cover battery, strap, or damage from misuse.

How do I clean and maintain my watch?

Rinse with fresh water after exposure to salt water or chlorine. Clean the case and bracelet with a soft, damp cloth. Avoid using chemicals or abrasives. Service every 3-5 years.

Can I replace the battery myself?

It is not recommended as opening the case back without proper tools can damage the gasket and compromise water resistance. Take it to a professional watchmaker or authorized service center.

What should I do if the watch stops working?

First, check if the battery is dead. If the watch has been dropped or exposed to water, moisture may have entered. Contact an authorized service center for diagnosis and repair.

USER MANUAL TW124 Grandeur Tech TW Steel

TW STEEL®

BIG IN OVERSIZED WATCHES

MANUAL

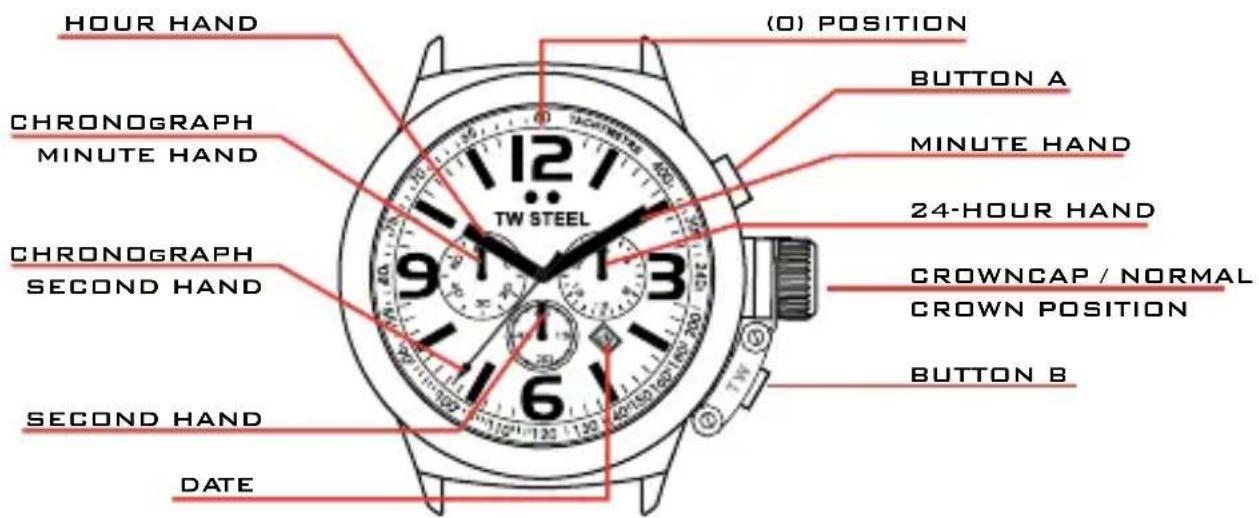

INSTRUCTIONS FOR THE USE OF THE TW STEEL MODELS/ CANTEEN STYLE

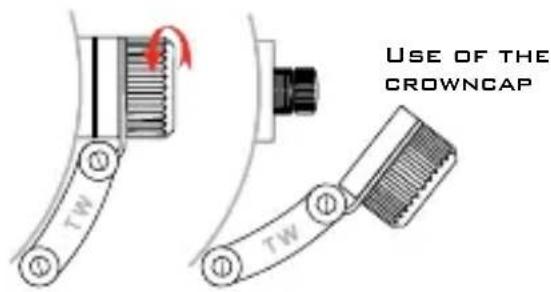

To adjust the time or set the date you first have to unscrew the crowncap anti clockwise. If you have unscrewed it, you will see the [small] crown. Follow the next instructions to adjust the time and date. After adjusting it, screw the crowncap clockwise back.

ADJUSTING THE TIME ADJUSTING THE DATE

USING THE CHRONOGRAPH

CHANGING THE TIME

ADJUSTING THE TIME

Pull the crown out to the 2nd click position so that the second hand stops at (O) position. Turn the crown to set the hour and minute hands.

ADJUSTING THE DATE

ADJUSTING THE DATE

Pull the crown out to the 1st position. Turn the crown to the left to set the date. After the date has been set, push the crown back to the normal position.

USING THE CHRONOGRAPH

The chronograph is able to measure and display the time in 1/1 second united up to an maximum of 1 hour. The chronograph can be started and stopped each time button A is pressed. Pressing button B resets the chronograph. All hands return to their (O) position. If the chronograph second hand does not return to the (O) second position after the chronograph has been reset or after replacing the battery, you should do the following: Pull the crown out to the 2nd position. Press button A to set the chronograph second hand to the (O) position. The chronograph hands can be advanced rapidly by continuously pressing button A or B. Once the chronograph second hand has returned to the (O) position, return the crown to its normal position.

NSTRUCTIONS FOR GRANDEUR DIVER / GOLIATHGRANDEUR COLLECTION / TECH COLLECTION

GOLIATH

To set the time and date you can directly pull out the big crown its 1st or 2nd position.

GRANDEUR COLLECTION

If your model has a crowncap, please follow the instructions of the Canteen style. If your model has NO crowncap, you can directly pull out the big crown to its 1st or 2n position to set the time and date.

GRANDEUR DIVER

To set the time and date you first have to unscrew the big crown an clockwise. You can now pull out the crown to its 1st or 2nd position.

For al models follow the instructions of the Canteen Style for the use of the chronograph.

USING THE CHRONOGRAPH OF THE TECH MODELS

TECH COLLECTION

To adjust the time and date of the Tech, you first have to unscrew the big crown anti clockwise. You can now pull out the crown to its 1st or 2nd position. Check the manual of the Canteen Style for further instructions on how to set the time and date.

for 30 seconds after starting and then stops at (o) position. Press button B to change the watch to the chronograph mode. The second hand stops at the (O) position and changes to the chronograph 1/20 second hand. The chronograph can be started and stopped each time button A is pressed. Pressing button B resets the chronograph. the following: Pull the crown out to the 2nd position. Press button A to set the chronograph second hand to the (O) position. Press button B to set the chronograph 1/20 second hand to (O) position. The chronograph hands can be advanced rapidly by continuously pressing button A or B. Once the hands have returned to the (O) position, return the crown to its normal position an screw the crown clockwise back on to the case.

USE OF THE CHRONGRAPH FOR ALL TECH MODELS

The chronograph is able to measure and display the time in 1/20 second united up to a maximum of 59 min and 59 sec. The retrograde chronograph 1/20 second hand keeps running continuously

All hands return to their (O) position. If the chronograph second hand and the chronograph 1/20 second hand do not return to the (O) second position after the chronograph has been reset or after replacing the battery, you should do

CAUTION: IF THE CROWN IS NOT PRESSED IN PROPERLY, THE WATCH IS NO LONGER WATER-PROOF AND THE MOVEMENT CAN BE SERIOUSLY DAMAGED!
