Product Type	Electric Broom
Brand	Termozeta
Model	My Libera 22
Power Supply	Corded electric
Motor Power	Approx. 400 W
Dust Capacity	0.5 L
Weight	2.5 kg
Dimensions (W x D x H)	25 x 15 x 110 cm
Cord Length	5 m
Filtration	Washable filter
Dusting Brush	Yes
Crevice Tool	Yes
Floor Type Compatibility	Hard floors, low-pile carpets
Maintenance	Empty dust cup and clean filter regularly
Safety Features	Thermal protection, double insulation
Repairability	Replacement parts available

Frequently Asked Questions - My Libera 22 TERMOZETA

What is the recommended way to clean the filter?

Remove the filter and tap it gently to remove dust, or wash it with water and let it dry completely before reuse. Do not use the vacuum without a filter.

Can I use the electric broom on thick carpets?

No, the My Libera 22 is designed for hard floors and low-pile carpets only. Using it on thick carpets may damage the motor.

How do I empty the dust cup?

Press the release button on the dust cup to detach it, then empty the contents into a trash bin. Wash the cup if needed.

What should I do if the broom stops working?

Check if the power cord is properly plugged in and not damaged. Also ensure the dust cup is not full and the filter is clean. If the problem persists, contact Termozeta support.

How long is the power cord?

The power cord is approximately 5 meters long, allowing a good range of movement.

Can I use the broom without the brush roll?

No, the brush roll is essential for effective cleaning. Operating without it may reduce performance and cause damage.

Is the broom suitable for pet hair?

Yes, it can handle pet hair on hard floors and low-pile carpets. However, you may need to clean the brush roll regularly.

How do I store the broom?

Stand it upright or hang it using the wall mount (if included). Store in a dry place away from heat sources.

What accessories come with the My Libera 22?

It typically includes a dusting brush and a crevice tool for versatile cleaning. Check your package for exact contents.

How often should I replace the filter?

The washable filter can be reused many times. Replace it when it becomes damaged or shows visible wear, usually every 6-12 months depending on usage.

USER MANUAL My Libera 22 TERMOZETA

Exterior view of a modern vacuum cleaner (no visible text or symbols)

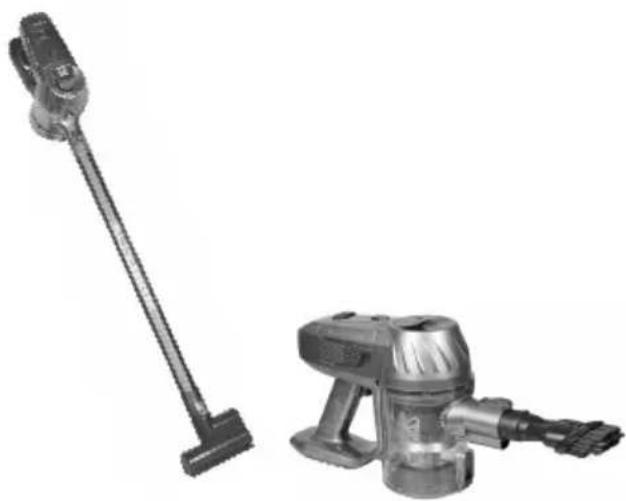

Two different types of vacuum cleaner units shown side by side (no text or symbols visible)

DATI TECNICI TECHNICAL DATA

MYLIBERA 22

1. On-Off / power setting button
2. Dust bin release button
3. Handle
4. Battery charge LED indicators
5. Dust bin
6. Accessory release button
7. Extensible tube
8. Tube release button
9. Motorized brush with LED
10. 2in1 Nozzle with brush for furniture and upholstered
11. Connector for battery charger
12. Wall support
13. Battery charger
14. Crevice tool
15. Motorized mini brush. (provided only with article 72143S)
16. Battery pack removal button
17. Battery pack

Two-step illustration of a spray gun being inserted into a cylindrical component, showing the tool's tip and handle (no text or symbols present)

Two black vacuum cleaner tips with a downward arrow indicating a step, shown from different angles (no text or symbols present)

Hand holding a stainless steel electric shaver (no visible text or symbols)

Three different types of kitchen appliances shown in grayscale, no visible text or labels.

Close-up of a vacuum cleaner with mesh grille and handle (no visible text or symbols)

Cross-sectional diagram of a mechanical device showing internal components (no text or symbols visible)

Mechanical component with a cylindrical assembly and a close-up view of internal components (no visible text or symbols)

Mechanical component with directional arrow indicating rotation or movement (no text or symbols)

Close-up of a mechanical vacuum cleaner with a close-up view showing internal components (no text or symbols visible)

Li-Ion

This manual forms an integral part of your appliance and must be read carefully, as it provides important instructions and warnings regarding safety and the use and maintenance of your appliance. Keep this manual safe.

If you have any doubts, do not rely on guesswork: contact our support centre at the Toll-free Number 800-200899

• After removing the packaging, check the integrity of the appliance. If you have any doubts, do not use the appliance and call our support centre at the Toll-free Number 800-200899
• Do not leave parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within the reach of children or people with reduced mental faculties, as these objects are potential sources of danger.
• Before connecting the battery charger into the electrical socket, ensure that the operating voltage of the appliance corresponds to that of your home. In the case of any doubt, consult a qualified professional.
• Wrong electrical connections could be very dangerous and may lead to irreversible damages and, always, void any guarantee.
• We do not recommend the use of adapters, multiple sockets and extensions. If necessary, use only approved devices that comply with current safety standards, making sure that they are compatible with the power of the appliance.
• Always unplug the charger from the socket outlet once the charge is complete.
  • Always unplug the appliance from socket outlet before cleaning.
• The appliance is intended exclusively for domestic use for cleaning surfaces from dust by vaccum them.
• The appliance can be used only after having read and understood all the instructions and safety requirements contained in this manual.
• The appliance can be used by minors over 8 years of age and / or by people with reduced physical, sensory or mental capacities, only if duly instructed on the safe use of the appliance and under the

ENGLISH

direct supervision of an adult responsible for the their safety.

• This appliance is not a toy and therefore children should never play with the appliance.
• Cleaning and maintenance operations must never be carried out by minors and/or by persons with reduced physical, sensory or mental abilities.
• Keep the appliance, the battery charger and its power cord out of the reach of children and / or people with reduced physical, sensory or mental capabilities, especially when it is connected to the mains.
• Do not use the appliance if it has fallen down or if it shows signs of damage or defects that alter its operation.
• In case of failure and/or malfunctioning of the appliance, turn it off and do not tamper with it; do not disassemble the appliance due to any reason; for any repairs contact our service centre calling toll-free number 800-200899.
• In case of doubt and to avoid dangers, let the product to be inspected by an authorized service centre by calling toll-free number 800-200899.
• Don't use the battery charger if it is damaged. In case of need, please contact an authorized service centre by calling toll-free number 800-200899.
• Only use the supplied battery charger to recharge the batteries. In case of need, contact an authorized center by contacting our toll-free number 800-200899.
• For safety reasons, pay attention to:
• do not use the appliance with bare feet and with wet hands or feet
• do not use the appliance outside the home
• do not leave the device exposed to atmospheric agents (sun, rain, etc.)
• never pull the power cord of the charger to disconnect it from the socket
• never immerse the appliance or the charger in water or other liquids.
• never place the whole appliance under the tap.

ENGLISH

- Keep the appliance away from any gas or easily flammable substances.

- This appliance complies with applicable European safety regulations in force.

- Any installation that does not comply with what is specified can compromise your safety and void the warranty.

- This appliance is intended for domestic use only and NOT for similar applications such as:

- kitchen areas for staff in shops, offices and other work environments;

- farmhouses;

- by customers in hotels, motels and other residential-type environments;

- bed and breakfast type environments.

- At the end of its life cycle, make the appliance inoperative by removing the battery pack. For disposal instruction, follow the regulations in force in your place of residence.

- In case of commercial, or inadequate, or illegitimate, or mistaken, or unreasonable use, non-compliant with the prescriptions and instructions, LANGE DISTRIBUTION cannot be held responsible and all warranties are void.

- LANGE DISTRIBUTION cannot be held responsible for any damage to people, animals or things caused by incorrect installation or resulting from improper, erroneous or unreasonable use.

WARNING!!!

- Do not vacuum up explosive or flammable material, such as lighted cigarettes or ashes produced by combustion (fireplaces or stoves).

- Do not use the appliance on damp or wet surfaces.

- Do not suck up water or other liquid substances.

- Do not obstruct the air outlets located on the side of the appliance body.

- Do not vacuum up sharp objects, such as broken glass and nails.

- Do not vacuum up rubble.

- Keep the product away from hot surfaces, do not let it come into contact with sharp edges and do not slide it on abrasive surfaces.

ENGLISH

• Do not use the appliance on parts of human body or animals.
• To avoid dangerous overheating it is recommended to check that the filters are not clogged and that the suction duct is not clogged
• Do not use the appliance without the filters.
• Before cleaning or maintaining the appliance, make sure that the appliance is disconnected from the power socket.
• Never vacuum near cables, lines and long mops. There is a risk both of damaging the insulation of the cable and that such objects getting caught in the brush roller, damaging the appliance.
• The vacuum cleaner is equipped with a protection thermostat that stops operation in case of motor overheating.

If the thermostat operates, the vacuum cleaner stops; disconnect the vacuum cleaner from the power outlet, check that the filters and / or accessories are not clogged and let it cool.

- If there is insufficient or no suction, empty and clean the dust collection container (5) as indicated in the appropriate paragraph, clean the filters or remove any blockages from the tube.

- Do not recharge the battery when temperatures are below 0^ or above 40^ .

- Do not recharge the battery in direct sunlight or near heat sources.

- Do not recharge the battery for more than 48 consecutive hours

- During the charging phase, the hair clipper may undergo a slight heating

- Rechargeable batteries cannot be replaced. At the end of their life cycle they must not be disposed of in the environment, but must be disposed of in accordance with the environmental regulations in force in your place of residence.

KEEP THIS INSTRUCTION MANUAL SAFE!

Important!

All assembly, disassembly and cleaning operations must be performed when the appliance is turned off, it has cooled down and disconnected from battery charger.

1 - BEFORE USING

• Remove packaging, stickers and any anything else used for the protection of your appliance, and put them in a safe place out of the reach of children.
• Read this entire manual, as it contains important information on safety as well as how to ensure that your appliance has a long and useful life.

2 - ASSEMBLING THE APLIANCE

Assembling the wall support (12)

1. Hold the wall support horizontally parallel to the wall.
2. Mark where the holes are using a pencil.
3. Drill the holes (approx. 6 mm ∅).
4. Place the threaded inserts which come with the product into the holes.
5. Mount the support to the wall using the screws supplied.

NOTE: in order to allow the vacuum cleaner to be docked correctly even when the extensible tube (7) and the motorised brush (9) are attached, the holes must be made at a height of at least 115 cm from the floor.

Extensible tube (7)

The package contains a rigid extensible tube, which allows you to vacuum floors and carpets easily using the motorised brush (9), can reach even the most difficult angles when the crevice nozzle (14) or clear your furniture and upholstered with the 2in1 nozzle (10) or the mini motorised brush (15) are assembled.

ENGLISH

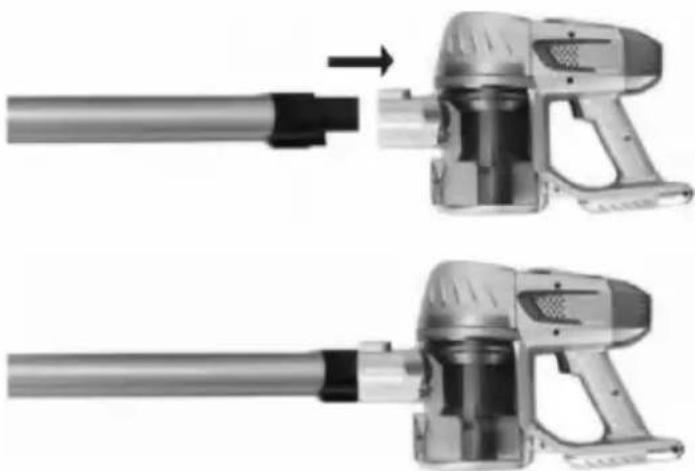

To attach the extensible tube (7), simply insert it into the connection point on the body of the appliance until you hear the “click” made when the lock has engaged.

To remove the tube, just press the accessory release button (6) located on the body of the appliance and extract the tube.

Two-step illustration of a fuel pump tool being inserted into a cylindrical component, showing the process from top to bottom (no text or symbols present)

Motorised brush (9)

The motorised brush allows you to vacuum your floors and carpets efficiently. Moreover, the LED light on the front will help you to spot dirt in dark corners of your house and underneath furniture.

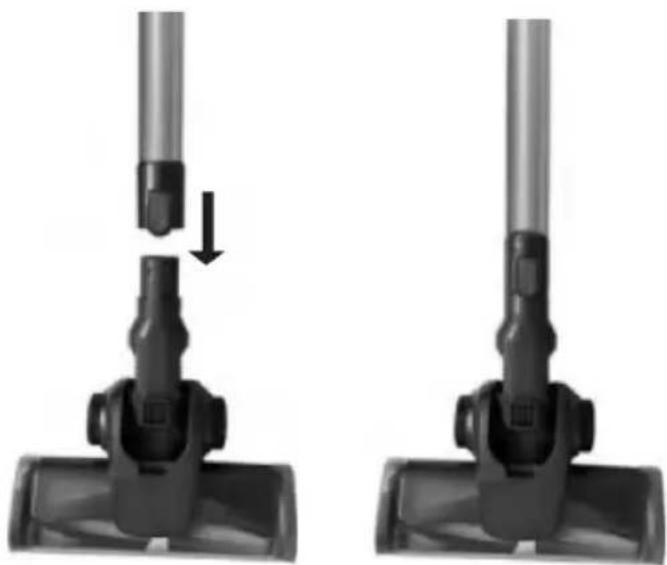

Insert the brush, making sure to match up the electrical terminals located at the bottom of the connector and the brush wand, until you hear the "click" that means the locking system has been engaged. To remove it, press the accessory release button (6) if it is attached directly to the body of the appliance, or the tube release button (8) if it has been attached to the extensible tube.

Attention! Danger of the appliance falling.

Once the appliance has been fitted with the extensible tube (7) and the brush (9), it cannot stand in a vertical position supported by the brush

Two identical black vacuum cleaner tips with a downward arrow indicating a step, shown from different angles (no text or symbols)

2 in 1 Nozzle (10), crevice nozzle (14)

The nozzle attachment with brush head is effective for cleaning crevices or narrow, hard-to-reach areas. The retractable brush will allow you to remove dust and dirt from furniture and fabrics.

ENGLISH

The nozzle can be used either by attaching it directly to the connection point on the body of the appliance, or by connecting it to the end of the extensible tube (7). The nozzle is fully inserted when you hear the “click” that means the locking system has been engaged. To remove it, press the accessory release button (6) if it is attached directly to the body of the appliance, or the tube release button (8) if it has been attached to the extensible tube.

Mini electric brush (15) (provided only with article 72143S)

The mini electric brush will allow you to vacuum sofas, armchairs, mattresses and easily remove the hair of your pets.

3 – CHARGING THE BATTERY

Before connecting the battery charger (13) to the power supply, ensure that the voltage indicated on the rating label located at the bottom of the charger, corresponds to that of your home mains voltage.

This appliance battery can only be recharged using the supplied battery charger.

Attention!

Before using the appliance for the first time, charge it fully for a period of 5 hours.

Insert the cable of the battery charger into the opening (11) on the body of the appliance.

Plug the battery charger into the electrical socket.

The battery charge indicator (4) will light up with a flashing blue colour. When the battery charge indicator remains on without flashing, the battery is fully charged.

Remove the battery charger from the electrical socket.

It takes approximately 5 hours for the battery to charge fully.

4 - HOW TO USE THE APPLIANCE

Ensure that the product has been assembled correctly.

Press the power-on button (1). The appliance will begin to operate at the lowest power setting. To use the appliance at the highest power setting, just press the button (1) again.

To switch the vacuum cleaner off, use the power button (1) again.

Battery status indicator (4)

The battery charge indicator consists of 4 lights to indicate the level of battery charge:

4 blue lights: battery charge > 75%
3 blue lights: battery charge 50%\~75%
2 blue lights: battery charge 25%\~50%
1 blue light: battery charge < 25%

The battery status indicator light will begin to flash when the battery no longer has a sufficient charge.

5 - AFTER USE

Switch the appliance off. Empty the dust bin and clean the filters which are inside it.

It is possible to empty the dust bin quickly and without getting your hands dirty. Hold it over the waste bin and press the release button located at the bottom of the dust container (5). The opening at the bottom of the dust bin will open, allowing its contents to be released.

Hand holding a stainless steel electric shaver (no visible text or symbols)

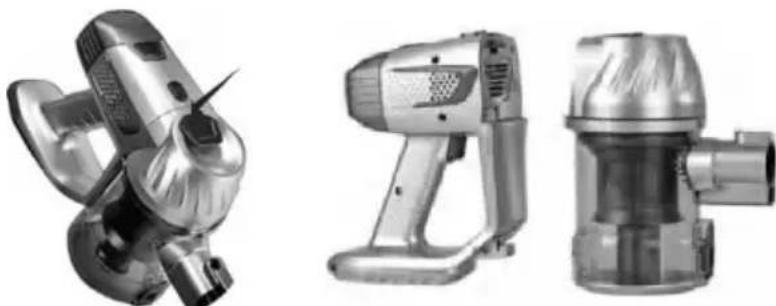

To remove the dust bin (5) from the body of the appliance and clean it fully, proceed as follows:

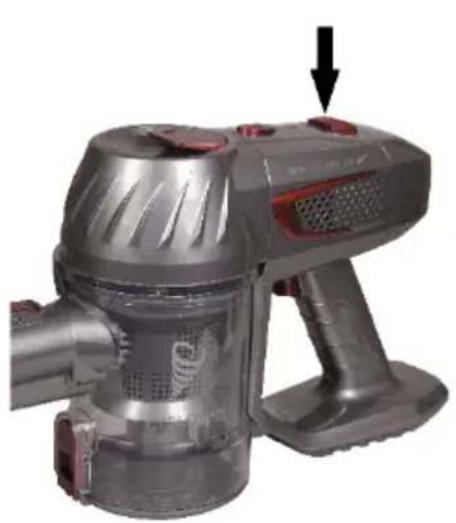

1. Press the release button (2) and remove the dust bin from the motor body of the vacuum cleaner, as shown in the accompanying figure

Three different types of kitchen appliances shown in grayscale, no visible text or labels.

1. Next, twist the upper lid of the dust bin in the direction of the "unlocked" symbol, and remove the lid. Then, remove the dust filter group.

Close-up of a vacuum cleaner with mesh grille and handle (no visible text or symbols)

1. Remove the HEPA filter and plastic cyclone filter by simply lifting them. Then wash the HEPA filter and the plastic cyclone filter with cold water. After the HEPA filter and the plastic cyclone filter have dried completely, place them in the container (5). The insertion of the cyclone filter is unique: make the three tabs in the upper part coincide with the slots on the container (5). Do not wash the dust filter assembly in the washing machine. Do not use a hairdryer to dry it. Dry with cold air only.

Cross-sectional diagram of a mechanical device showing internal components (no text or symbols visible)

NEVER use the vacuum cleaner unless the dust filter group is in place.

1. Put the lid back onto the dust bin and attach the dust bin to the motor body.

6 – TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE CAUSE	POSSIBLE SOLUTION
The vacuum cleaner is not working	1. dead batteries.2. the battery does not keep the charge.3. the connector between the unit and the charger is dirty.4. no power in the electrical outlet that powers the charger.5. the charger is disconnected from the mains socket.6. the charger is broken.	1. Charge the battery.2. Replace the battery pack, spare part art. no. RBAT721433. Clean the dirt off the connector.4. Check the home mains circuit breaker5. Plug the charger into the power socket.6. replace the battery charger, spare part art. no. RCAR72143
There is no suction or weak suction from the vacuum cleaner.	1. The dust bin is full.2. The dust filter is dirty or must be replaced.3. The battery is almost dead.	1. Empty the dust bin.2. Remove the filter group, check for any dirt, and clean it thoroughly or replace it.3. Charge the battery.
Dust is being emitted from the vacuum cleaner	1. The dust bin is full.2. The dust bin is not assembled correctly.3. There are holes in the filter or it has been damaged.	1. Empty the dust bin.2. Check that the dust bin has been attached correctly.3. Change the dust filter
The battery will not charge	1. the charger is disconnected from the socket.2. the charger is broken.3. The battery has reached the end of its life	1. Plug the charger into the mains socket.2. replace the battery charger, spare part art. no. RCAR721433. Replace the battery pack, spare part art. no. RBAT72143
An abnormal noise can be heard when the vacuum cleaner is in use	Check whether the floor brush or the dust filter are obstructed by large bodies of dust, or whether the dust bin is full.	Stop using the vacuum cleaner, clean the dust filter group and the floor brush, empty the dust bin. If the problem persists, call customer services

NOTE: also the following spare parts are available: the motorized brush (9), spare part art. no. RSPA72143, and the brush for removing animal hair, spare part art. no. RSIMB72143. For availability and purchase of the aforementioned spare parts, contact your dealer or dial the toll-free number 800-200899.

7 - CLEANING AND MAINTENANCE

ATTENTION!

Unplug the product from the battery charger and the electrical socket before carrying out any cleaning and/or maintenance operations.

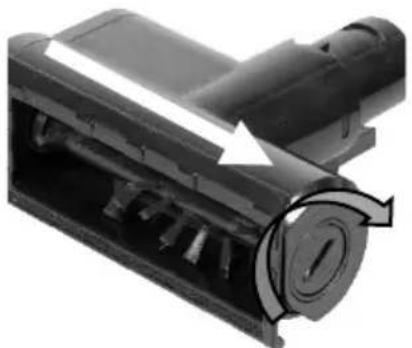

Cleaning the motorised brush (9)

The motorised brush (9) can be cleaned as follows:

1. Detach the brush from the vacuum cleaner.
2. Turn the brush upside-down
3. Move the locking lever outwards.
4. Next, take the brush out and remove any threads or hairs which have become caught in the bristles.
5. Put the rotary brush back in its place, making sure to engage the locking mechanism.

Mechanical component with a threaded part and a close-up view of its internal structure (no text or symbols visible)

Cleaning the mini motorised brush (15) (provided only with article 72143S)

To clean to mini motorised brush (15) it is necessary to proceed as follows:

1. Disconnect the brush from the vacuum cleaner.
2. Turn the lock on the left side of the brush clockwise, as indicated by the arrow.
3. Then pull out the brush and remove an y strands, hair that has become stuck in the bristles.
4. Reposition the rotating brush making sure to activate the lock.

Mechanical component with directional arrow indicating motion or rotation (no text or symbols)

Cleaning the body of the appliance

• Only clean the motor body of the vacuum cleaner with a slightly damp cloth.
• Do not wash any of the accessories in the dishwasher.
• Never immerse the motor body in water or other liquids.
• Do not use chemical or abrasive products.

NOTE: The most frequent faults in vacuum cleaners are caused by obstructions not detected in extensions, heads, crevices and filters! It is therefore recommended to clean your electric broom frequently.

8 – APPLIANCE DISPOSAL PROTECT THE ENVIRONMENT!

This appliance contains many reusable or recyclable materials.

At the end of its life cycle, empty the dust container, remove the battery pack, isolate the contact

area with a piece of adhesive tape and carefully follow what is indicated below.

In order to remove the battery pack (17) from the appliance, simpl y press the release button (16) and pull the battery pack out.

Close-up of a silver vacuum cleaner with red control buttons and a black arrow pointing to the handle (no visible text or symbols)

Li-Ion

Li-Ion Battery recycling: The appliance is equipped with a non-repairable 22.2V 2200mAh lithium battery. Please remove the battery module from the appliance before disposal. The battery must not be thrown in the trash, but given to an authorized collection center so that it can be recycled according to current regulations in force.

For disposal, follow the regulations in force in your place of residence.

INFORMATION FOR USERS

In accordance with European Directive 2012/19/UE on electric and electronic equipment waste disposal.

• The barred symbol of the rubbish bin shown on the equipment indicates that, at the end of its useful life, the product must be collected separately from other waste.
• Therefore, any products that have reached the end of their useful life must be given to waste disposal centres specialising in separate collection of waste electrical and electronic equipment, or given back to the retailer at the time of purchasing new similar equipment, on a one for one basis.
• The adequate separate collection for the subsequent start-up of the equipment sent to be recycled, treated and disposal of in an environmentally compatible way contributes to preventing possible negative effects on the environment and health and optimises the recycling and reuse of components making up the apparatus.
• Abusive disposal of the product by the user involves application of the administrative sanctions according to the laws in force.

Lange Distribution S.r.l. reserves the right to introduce technical and/or aesthetic changes to its products intended to improve performances.

Termozeta is an international trademark. Copyright © 1995. All rights reserved.

Lange Distribution S.r.l. - Via Treviso, 35 - 20127 Milano – Italy

www.termozeta.com

Numero Verde

800 200 899
