Product Type	Chest Freezer
Brand	Heinner
Model	HAF-B6GRY17LG
Capacity	200 L
Energy Class	A+
Voltage	220-240 V
Frequency	50 Hz
Defrost Type	Manual Defrost
Temperature Range	-18°C to -24°C
Noise Level	42 dB
Cooling Type	Static
Number of Baskets	2
Adjustable Thermostat	Yes
Interior Light	No
Door Lock	No
Reversible Door	No (fixed hinge)
Dimensions (H x W x D)	85 x 90 x 65 cm
Weight	35 kg
Climate Class	N-ST
Refrigerant	R600a

Frequently Asked Questions - HAF-B6GRY17LG Heinner

How do I set the temperature on my Heinner HAF-B6GRY17LG freezer?

Use the adjustable thermostat dial inside the freezer. Turn it to a higher number for colder temperatures (e.g., 3-4 for normal freezing, 5-6 for fast freezing).

How often should I defrost the freezer?

Defrost when the ice buildup reaches about 5-7 mm thickness. This is typically every 6-12 months depending on usage and humidity.

Can I change the door opening direction?

No, the door on this model is not reversible. The hinge is fixed on the left side.

What is the ideal temperature for storing frozen food?

The ideal temperature is -18°C (0°F) or lower. Your freezer can reach -24°C for fast freezing.

How do I clean the freezer?

Unplug the freezer, remove all items, and let it defrost. Clean the interior with a mild detergent solution and warm water. Avoid abrasive cleaners. Dry thoroughly before restarting.

Why is my freezer making loud noises?

Normal sounds include a humming from the compressor and occasional clicks from the thermostat. Loud rattling may indicate the freezer is not level or items inside are vibrating.

How much electricity does this freezer consume?

As an A+ energy class appliance, it consumes approximately 200-250 kWh per year, depending on usage and ambient temperature.

Can I use an extension cord with the freezer?

It is not recommended. Use a dedicated outlet to avoid voltage drops and potential fire hazards. If unavoidable, use a heavy-duty cord rated for the freezer's wattage.

What should I do if the freezer stops working?

First, check the power cord and circuit breaker. If the compressor doesn't start, wait 5 minutes before restarting. If it still fails, contact Heinner support.

Is the freezer suitable for garage use?

The climate class N-ST allows operation at ambient temperatures from 16°C to 38°C. In very cold garages (below 10°C), the freezer may not maintain temperature.

USER MANUAL HAF-B6GRY17LG Heinner

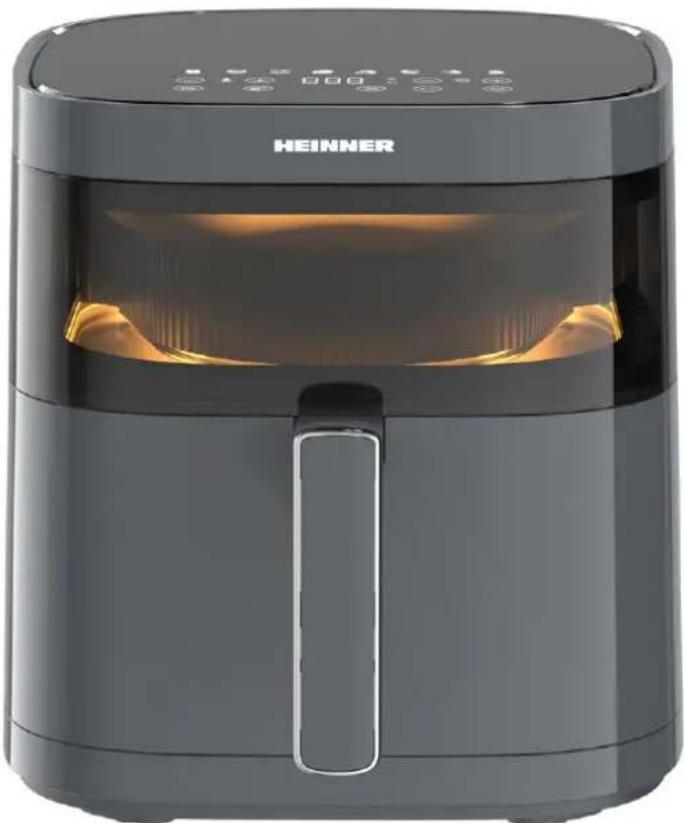

Exterior view of a HEINNER air fryer with black body and gold interior (no visible text or symbols on device)

- Capacity: 5.7L

- Power: 2200 W

• Temperature 80-200C

1. INTRODUCTION

Please read the instructions carefully and keep the manual for future information.

This manual is designed to give all necessary instructions concerning installation, use and maintenance of the unit. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and use.

2. CONTENT OF YOUR PACKAGE

→ Hot air fryer
→ User manual
→ Certificate of warranty
→ Declaration of conformity

3. SAFETY INSTRUCTIONS

GENERAL

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.
2. Do not touch hot surfaces.
3. To protect against electric shock do not immerse cord, plugs, or base in water or other liquid.

4. WARNING: This electrical appliance contains a heating function. Surfaces, also different than the functional surfaces, can develop high temperatures. Since temperatures are differently perceived by different persons, this equipment shall be used with CAUTION. The equipment shall be touched only at intended handles and gripping surfaces and use heat protection like gloves or similar. Surfaces other than intended gripping surfaces shall get sufficiently time to cool down before getting touched.

5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.

6. Type Y: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

8. Do not use outdoors

9. Do not let cord hang over the edge of table or counter or touch hot surfaces.

10. Do not place on or near a hot gas or electric burner, or in a heated oven.

11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

12. Always attach plug to appliance first, then plug cord in the wall outlet. To disconnect, turn any control to "off," then remove plug from wall outlet.

13. Do not use appliance for other than intended use.

14. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision

or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.

1. Keep the appliance and its cord out of reach of children less than 8 years.

2. The appliances are not intended to be operated by means of an external timer or separate remote-control system.

Important

-Children aged 8 years and older, and persons with reduced physical, sensory or mental capacity or lack of experience and knowledge may use the appliance provided that they are supervised or instructed in safe use of the appliance and understand the dangers involved.

-Children are not allowed to play with this appliance. Children are not permitted to clean and use for maintenance unless they are over 8 years old and have a guardian.

-Keep out of reach of children under 8 years old.

-Do not immerse the housing containing the electrical components and heating elements in water and do not rinse them under the tap.

-Do not allow any water or other liquids to enter the appliance to prevent electric shock.

-The ingredients to be cooked must be placed in a fryer or baking pan to prevent contact with the heating element.

-Do not cover the air inlet and outlet vents while the appliance is in operation.

-Do not fill the fryer or baking tray with oil as this may cause a fire hazard.

-Do not touch the inside of the appliance while it is operating.

-When the appliance is operating, the temperature of the accessible surface may be high.

Warnings

-Check that the voltage shown on the appliance matches the local mains voltage.

-Do not use the appliance if there are any damaged plugs, power cords or other components.

-Do not go to any unauthorized person to replace or repair a damaged main power cord.

-Keep the main power cord away from hot surfaces.

-Do not insert the appliance or operate the control panel with wet hands.

-Do not lean the appliance against a wall or other appliance. Leave at least 10 cm of space on the back and sides, and at least 10 cm above the appliance. Do not place anything on top of the appliance.

-Do not use the appliance for any purpose other than that described in this manual.

-Do not leave the appliance running unattended.

-The hot air is released through the outlet in the fryer. Keep your hands and face at a safe distance from the outlet to avoid burns from the hot air and steam released by the outlet. Also be careful of hot air and steam when you remove the fryer, glass lid assembly, and baking pan from the appliance.

-Any accessible surface may become hot during use.

-If you find black smoke coming out, please unplug the power plug immediately. Wait for smoke emissions to stop before removing the fryer basket, glass lid assembly, and baking pan from the appliance. Always use insulated gloves when holding grill, baking pan or glass lid assembly.

Attention

-Ensure that the appliance is placed on a level, even, and stable surface.

-This appliance is intended for domestic use only. It may not be safe for use in staff kitchens, farms, motels, and other non-residential Settings. It is also not intended for use by customers in hotels, motels, and other residential Settings.

-If the appliance is used improperly or for a professional or semi-professional purpose, or is used improperly or not for a professional or semi-professional purpose, or is not used in accordance with the instructions for use, the warranty is void and we may refuse liability for any damage.

-Unplug electrical appliances when not in use.

-Products must be allowed to cool for approximately 30 minutes before handling or cleaning.

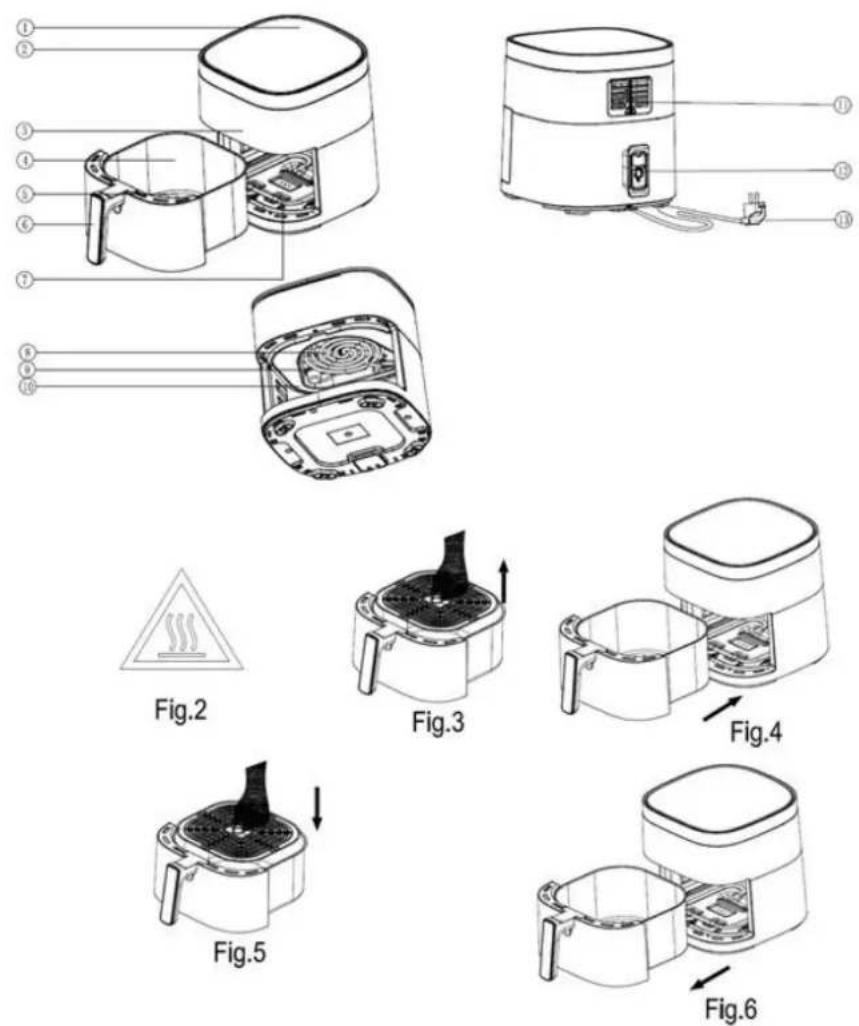

4. PRODUCT DESCRIPTION

1. Control panel
2. Air inlet
3. Top housing
4. Pot
5. Grill for positioning food
6. Basket handle
7. Down heater
8. Top heater
9. Lamp
10. Window glass
11. Air outlet openings
12. Bobbin bracket
13. Power cord

5. USING THE PRODUCT

Before First Use:

1. Remove all packaging materials.
2. Remove any stickers or labels on the appliance.
3. Thoroughly clean the fryer, grill, baking pan, and glass lid assembly with hot water, washing solution, and a non-abrasive sponge.
4. Wipe the inside and outside of the appliance with a wet cloth.
5. Do not fill the fryer or baking pan with oil or fried fat.

Hot air frying:

1. Connect the mains plug into an earthed wall socket.
2. Carefully pull the pan out of the Hot-air fryer (Fig.6)
3. Put the ingredients in the basket. (Fig.5)
4. Slide the pan back into the Hot-air fryer (Fig 4)

Noting to carefully align with the guides in the body of the fryer.

Never use the pan without the basket in it.

Caution: Do not touch the pan during and some time after use, as it gets very hot. Only hold the pan by the handle.

1. Determine the required preparation time for the ingredient
2. Some ingredients require shaking halfway through the preparation time. To shake the ingredients, pull the pan out of the appliance by the handle and shake it. Then slide the pan back into the I fryer.
3. When you hear the buzzer alarm, the set preparation time has elapsed. Pull the pan out of the appliance and place it on the trial framework.
4. Check if the ingredients are ready.

If the ingredients are not ready yet, simply slide the pan back into the appliance and set the timer to a few extra minutes.

1. To remove ingredients (e.g. fries), pull the pan out of the Hot-air fryer and place it on trial framework, and press the basket release button and lift the basket out of the pan.

Do not turn the basket upside down with the pan still attached to it, as any excess oil that has collected on the bottom of the pan will leak onto the ingredients.

The pan and the ingredients are hot and hot fryer. Depending on the type of the ingredients in the I fryer, steam may escape from the pan.

1. Empty the basket into a bowl or onto a plate.

Tip: To remove large or fragile ingredients, lift the ingredients out of the basket by a pair of tongs.

1. When a batch of ingredients is ready, the Hot-air fryer is instantly ready for preparing another batch.

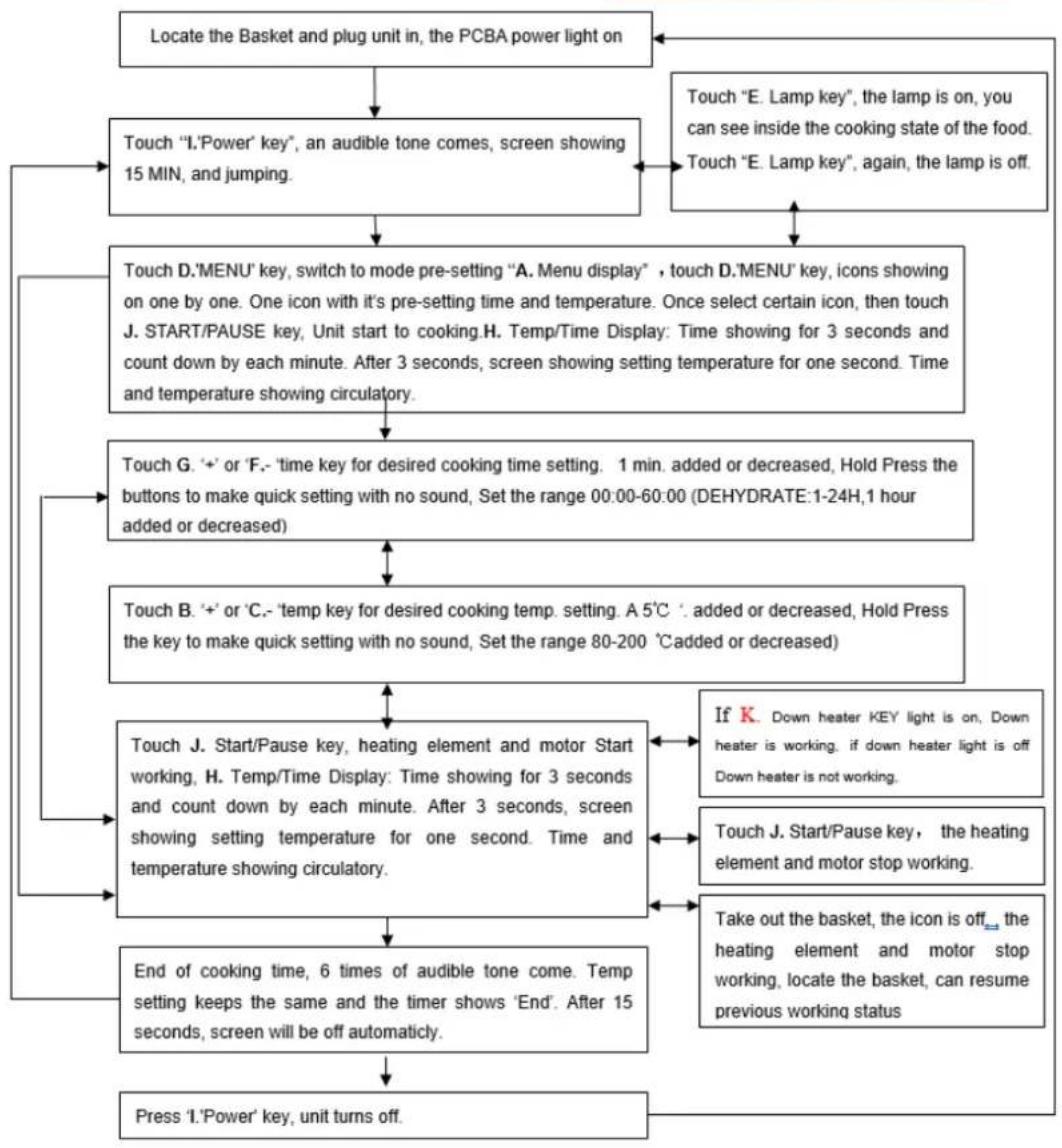

Control panel

Tips

• Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.
• A larger amount of ingredients only requires a slightly longer preparation time, a smaller amount of ingredients only requires a slightly shorter preparation time.
• Shaking smaller ingredients halfway through the preparation time optimizes the result and can help prevent unevenly fried ingredients.
• Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the Hot-air fryer within a few minutes after you add the oil.
• Do not prepare extremely greasy ingredients such as sausages in the Hot-air fryer.
• Snacks that can be prepared in an oven can also be prepared in the Hot air fryer.
• The optimal amount for preparing crispy fries is 500 grams.
• Use pre-made dough to prepare filled snacks quickly and easily. Pre-made dough also requires a shorter preparation time than home-made dough.
  Place a baking tin or oven dish in the Hot-air fryer basket if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients.
• You can also use the Hot-air fryer to reheat ingredients. To reheat ingredients, set the temperature to 150 °C for up to 10 minutes.

	Min-max Amount(g)	Time (min.)	Temperature (°C)	Shake	Extra information
Potato & fries
Thin frozen fries	300-600	18-25	200	Yes
Thick frozen fries	300-600	20-25	200	Yes
Potato gratin	400-600	20-25	200	Yes
Meat & Poultry
Steak	200-600	12-18	180	No
Pork chops	200-600	12-18	180	No
Hamburger	100-600	10-20	180	No
Sausage roll	100-600	13-15	200	No
Drumsticks	100-600	25-30	180	No
Chicken breast	100-600	18-25	180	No
Snacks
Spring rolls	100-600	8-10	200	Yes
Frozen chicken nuggets	100-600	8-12	180	Yes
Frozen fish fingers	100-600	6-10	200	No
Frozen bread crumbed. cheese snacks	100-500	8-10	180	No
Stuffed vegetables	100-500	12-20	160	No
Baking
Cake	500	8-15	180	No
Quiche	500	20-22	180	No
Muffins	500	15-18	200	No
Sweet snacks	500	20	160	No

6. CLEANING

Clean the appliance after every use.

The basket and grill have non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the non-stick coating.

1. Remove the mains plug from the wall socket and let the appliance cool down.

Note: Remove the basket to let the air fryer cool down more quickly.

1. Wipe the outside of the appliance with a moist cloth.

2. Clean the basket and grill with hot water, some washing-up liquid and a non-abrasive sponge.

You can use a degreasing liquid to remove any remaining dirt.

Note: The basket and grill are dishwasher-proof.

Tip: If dirt is stuck to the basket and grill, fill the basket with hot water with some washing-up liquid. Put the grill in the basket and let the basket and the grill soak for approximately 10 minutes.

1. Clean the inside of the appliance with hot water and a non-abrasive sponge.

2. Clean the heating element with a cleaning brush to remove any food residues.

Storage

1. Unplug the appliance and let it cool down.

2. Make sure all parts are clean and dry.

Ordering accessories

If you have any difficulties obtaining accessories for your appliance, please contact the Consumer Care Centre in your country. You find its contact details in the worldwide guaranteed leaflet.

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

1. TROUBLESHOOTING

Problem	Possible cause	Solution
The Hot-air fryer does not work	The appliance is not plugged in.	Put the mains plug in an earthed wall socket.
	You have not set the timer.	Turn the timer knob to the required preparation time to switch on the appliance.
The ingredients fried with the air fryer are not done.	The amount of ingredients in the basket is too big.	Put smaller batches of ingredients in the basket. Smaller batches are fried more evenly.
	The set temperature is too low.	Turn the temperature control knob to the required temperature setting (see section ‘settings’ in chapter ‘Using the appliance’).
	The preparation time is too short.	Turn the timer knob to the required preparation time (see section ‘Settings’ in chapter’ Using the appliance’).
The ingredients are fried unevenly in the air fryer.	Certain types of ingredients need to be shaken halfway through the preparation time.	Ingredients that lie on top of or across each other (e.g. fries) need to be shaken halfway through the preparation time. See section ‘Settings’ in chapter ‘Using the appliance’.
Fried snacks are not crispy when they come out of the air fryer.	You used a type of snacks meant to beprepared in a traditional deep fryer.	Use oven snacks or lightly brush some oil onto the snacks for a crispier result.
I cannot slide the pan into the appliance properly.	There are too many ingredients in the basket.	Do not fill the basket beyond the MAX indication.
	The basket is not placed in the pan correctly.	Push the basket down into the pan until you hear a click.
White smoke comes out of the appliance.	You are preparing greasy ingredients.	When you fry greasy ingredients in the air fryer, a large amount of oil will leak into the pan. The oil produces white smoke and the pan may heat up more than usual. This does not affect the appliance or the end result.
	The pan still contains grease residues from previous use.	White smoke is caused by grease heating up in the pan. Make sure you clean the pan properly after each use.
Fresh fries are fried unevenly in the air fryer.	You did not use the right potato type.	Use fresh potatoes and make sure they stay firm during frying.
	You did not rinse the potato sticks properly before you fried them.	Rinse the potato sticks properly to remove starch from the outside of the sticks.
Fresh fries are not crispy when they come out of the air fryer.	The crispiness of the fries depends on the amount of oil and water in the fries.	Make sure you dry the potato sticks properly before you add the oil.
		Cut the potato sticks smaller for a crispier result.
		Add slightly more oil for a crispier result.

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model and Serial Number.

The information can be found on the rating plate. Subject to change without notice.

TECHNICAL DATA

Voltage	220-240V~50/60Hz
Power	2200 W
Capacity	5.7L
Temperature	80-200C

Thank you for purchasing this product. If you need support with your product, visit our website using the links below.

Get User manuals: https://www.heinner.ro

Get Service information: https://www.heinner.ro

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu Street, 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro

FRITEUZĂ CU AER CALD

Model: DualHeat

HAF-B6GRY17LG

Exterior view of a HEINNER air fryer with black casing and golden interior (no visible text or symbols on device body)

- Capacitate: 5.7L

- Putere: 2200 W

Fig.2

Fig.3

Diagram of a microwave oven with internal components and a directional arrow indicating flow (no text or symbols)

Fig.4

Fig.5

Diagram of a microwave oven with a side arm and internal components (no text or labels)

Fig.6

Exterior view of a HEINNER air fryer with black casing and golden interior (no visible text or symbols on device body)

Fig.2

Fig.3

Diagram of a microwave oven with internal components and a side view showing internal structure (no text or symbols)

Fig.4

Fig.5

Line drawing of a food processor with a side panel and handle (no text or symbols)

Fig.6

Exterior view of a HEINNER air fryer with black casing and digital display (no visible text or symbols on device body)

• Капацитет: 5.7 Л
• Мощност: 2200 W
  • Температура 80-200°C

1. ВЪВЕДЕНИЕ

Fig.2

Fig.3

Line drawing of a microwave oven with a side panel and lid, showing internal components (no text or symbols)

Fig.4

Fig.5

Diagram of a microwave oven with a lid and internal components, showing no text or symbols.

Fig.6
