A-Force - Vacuum Cleaner GORENJE - Free user manual and instructions

Product Type	Upright Vacuum Cleaner
Model	A-Force
Brand	Gorenje
Dimensions (L x W x H)	30 x 25 x 45 cm
Weight	5.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1200 W
Dust Capacity	2 L
Filtration System	Bagless Cyclonic with HEPA Filter
Cord Length	6 m
Noise Level	80 dB
Brush Type	Motorized Roller Brush
Suction Control	Variable Speed Control
Main Functions	Dry Vacuuming on Hard Floors and Carpets
Safety Features	Thermal Overload Protection
Maintenance	Empty Dust Bin, Washable Filters
Spare Parts Available	Filters, Brush Roll, Belts
Warranty	2 Years

Frequently Asked Questions - A-Force GORENJE

How do I empty the dust bin?

Press the release button on the dust bin and pull it out. Open the bottom lid over a trash can to empty the contents. Ensure the filter is clean before reattaching.

How often should I wash the filter?

Wash the HEPA filter every 3-6 months, or when suction decreases. Rinse with cold water and let it air dry completely for 24 hours before reinstalling.

What should I do if the vacuum loses suction?

Check for blockages in the hose, wand, or brush roll. Also empty the dust bin and clean the filter. Verify that the brush roll is not tangled with hair or debris.

Can I use the vacuum on hardwood floors?

Yes, the Gorenje A-Force is safe for hardwood floors. It includes a hard floor mode or you can turn off the brush roll to avoid scratching.

How do I replace the brush roll?

Unplug the vacuum. Use a screwdriver to remove the bottom plate. Slide out the old brush roll, remove hair/debris, and insert the new one. Replace the plate and screws.

Why is the vacuum overheating?

Overheating is often due to a clogged filter or blocked airflow. Turn off the vacuum, unplug it, and check for obstructions. Let it cool for 30 minutes before restarting.

What spare parts are compatible with this model?

Compatible spare parts include filters (HEPA and foam), brush rolls, belts, and dust bags (if applicable). Use only genuine Gorenje parts.

How do I store the vacuum cleaner?

Wrap the cord around the cord hooks. Upright models can stand vertically. Store in a dry place away from direct sunlight. Do not place heavy objects on top.

Is there a warranty on this product?

The Gorenje A-Force comes with a 2-year limited warranty covering manufacturing defects. Register your product online to activate the warranty.

What is the noise level of this vacuum?

The noise level is approximately 80 dB, which is typical for an upright vacuum cleaner. Use on sensitive surfaces or during quiet hours as needed.

USER MANUAL A-Force GORENJE

A·FORCE

SI Navodila za uporabo....8

EN Instruction manual....20

POMEMBNA VARNOSTNA OPOZORILA

IMPORTANT SAFETY INSTRUCTIONS

When using the vacuum cleaner, always observe the following basic safety precautions: Carefully read this instruction manual and only use the appliance in accordance with the instructions herein. Before using the appliance, carefully assemble all of its parts. Only use the appliance with the parts recommended by the manufacturer. Never leave the appliance unattended during use. Before connecting the appliance to the power mains, make sure the specified voltage matches the voltage of the power mains in your home. If the power cord is damaged, replace it with a suitable power cord or a power cord reel assembly. The power cord or the power cord reel assembly may only be replaced by Gorenje, Gorenje's authorized service and repair centre, or an adequately trained professional. Only use and keep the appliance in dry indoor areas and out of reach of children. Do not use the appliance if it has been dropped, if it is damaged, if it has been kept outdoors, or if it has been dropped or immersed in water. Do not use the appliance with an unsuitable attachment or extension. To prevent injury, make sure your hair, loose parts of your garments, fingers or other parts of the body do not come into contact with the vents or moving parts of the appliance. This appliance may be used by children aged 8 years or more, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they are supervised during the use of the appliance or if they have been provided relevant instructions regarding the use of the appliance in a safe way, and they understand the hazards involved. Keep children under supervision while they are using the appliance and make sure they do not play with it. Children should not perform any cleaning or maintenance tasks on the appliance, unless they are at least 8 years old and they do so under supervision. Do not leave the appliance unattended while it is connected to the power mains. After use or during maintenance, put down the appliance, switch it off, and unplug the power cord from the electrical outlet. Never unplug the appliance by pulling on the power cord. The appliance is only intended for household use.

DANGER

Do not immerse the appliance in water or any other liquid, and do not rinse it under running water. Also, do not touch the power cord or the plug with wet hands.

SPECIAL WARNINGS

Always switch off the appliance before attaching or replacing the suction tube, suction hose, or attachments. Never use the vacuum cleaner without a bag or the cyclone dust bin (depending on the vacuum cleaner type), or without inlet and exhaust filters. Keep the vents free from dust, hair, or any other impurities that could clog the vents, decrease the air flow, and reduce suction power. Do not move the vacuum cleaner across the room by pulling the power cord or the suction hose. Protect the power

cord from hot surfaces and any other damage, and avoid kinking it. When using the automatic power cord reel, use your hand to guide the power cord. In case of extended use, unwind at least 2/3 of the power cord to prevent overheating and damage. When using the vacuum cleaner for several hours, completely unwind the power cord. Keep the suction tube, open part of the appliance, and attachments away from your face and body. Never use the vacuum cleaner to clean up embers or filings, cigarette butts, matches, liquids (e.g., carpet cleaning foam), or sharp or pointed objects (broken glass, etc.). Also, do not use the vacuum cleaner to pick up toner dust. Do not use the vacuum cleaner to pick up construction material (such as fine sand, lime, cement powder, etc.). This can cause damage to the appliance. Be extra careful when cleaning stairs.

The appliance complies with the following European directives: 2014/35/EU; 2014/30/EU; 2009/125/ES; 2011/65/EU. 666/2013/EU (EU model)

ENVIRONMENT

After the expiry of its useful life, do not discard the appliance with common household waste. Rather, take it to an authorized recycling centre. This will help preserve the environment.

This equipment is labelled in compliance with the European Directive 2012/19/EC on waste electric and electronic equipment – WEEE. The Directive specifies the requirements for collection and management of waste electric and electronic equipment effective in the entire European Union.

WARRANTY AND REPAIR

For more information or in case of problems, please contact the Gorenje Call Centre in your country (phone number listed in the International Warranty Sheet). If there is no such centre in your country, please contact the local Gorenje dealer or Gorenje's small domestic appliance department.

For personal use only!

GORENJE WISHES YOU A LOT OF PLEASURE USING YOUR VACUUM CLEANER

For easier transport, some appliance parts have been packed separately and placed safely in the main packaging unit. Before first use, read and observe the instructions for assembly and safe use. The appliance is intended for household use, specifically for dry vacuum cleaning.

PARTS

1 Vacuum cleaner 2 Suction tube 3 Telescopic tube 4 Floor brush 5 crevice nozzle 2/1 6 dust nozzle 2/1 7 Bag x2 Additional accessories

ASSEMBLY

To connect the suction hose: insert the suction hose into the opening. To disconnect the suction hose: press the buttons on both sides of the suction hose and pull it out. Connect the tube to the handgrip. Attach the floor brush to the tube.

OPERATING

1 On/Off button 2 Cord rewind button 3 Touch display (digital) for speed regulation. Press on the plus or minus on screen to increase or decrease suction power. Small icons on the top of the screen offer the best performance for each surface.

USE

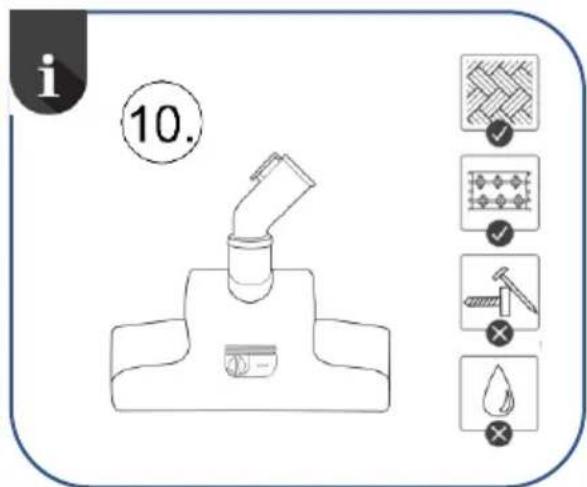

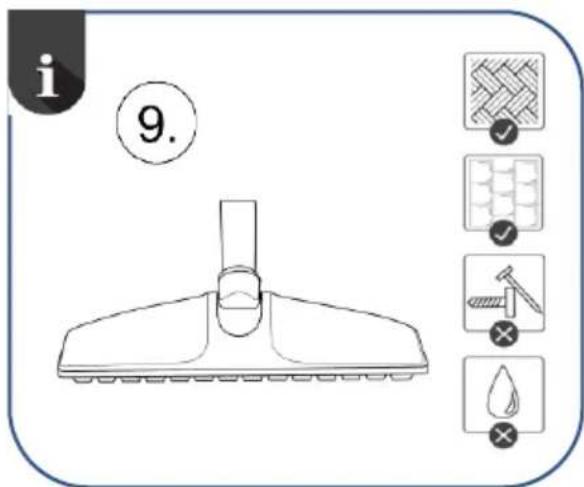

1 Telescopic tube: Press button to increase or decrease length of the tube. 2 Suction regulation: Open or close small sliding button to regulate suction for different floors. 3 Press on the button on the top of the lid. A small cover will open with a small storage space for basic attachments. 4 Universal floor brush suitable for all floor surfaces. Open or close the small sliding button to regulate suction. 5 2-in-1 crevice nozzle. 6 2-in-1 dust nozzle (remove bristle housing). Additional or optional attachments dependent on your model (check contents page). 7 Long crevice nozzle. 8 Small turbo brush, suitable for vacuuming all textile surfaces. Gently remove debris from the roller to avoid damaging the bristles. 9 Parquet brush. 10 Turbo brush.

BAGS, DUST BIN AND FILTERS

1 Replacing bags / Replacing the inlet filter

In the case of dust bags, they should be replaced once full. Open the cover (by pressing the button). Remove the dust bag holder. Remove the full dust bag. Insert the new dust bag into the dust bag holder. Insert the dust bag holder into the lower housing. Close the lid (you will hear a 'click'). Replace the motor protection filter when inserting the first of a new set of dust bags. Note that it is not possible to close the cover if no dust bag has been inserted.

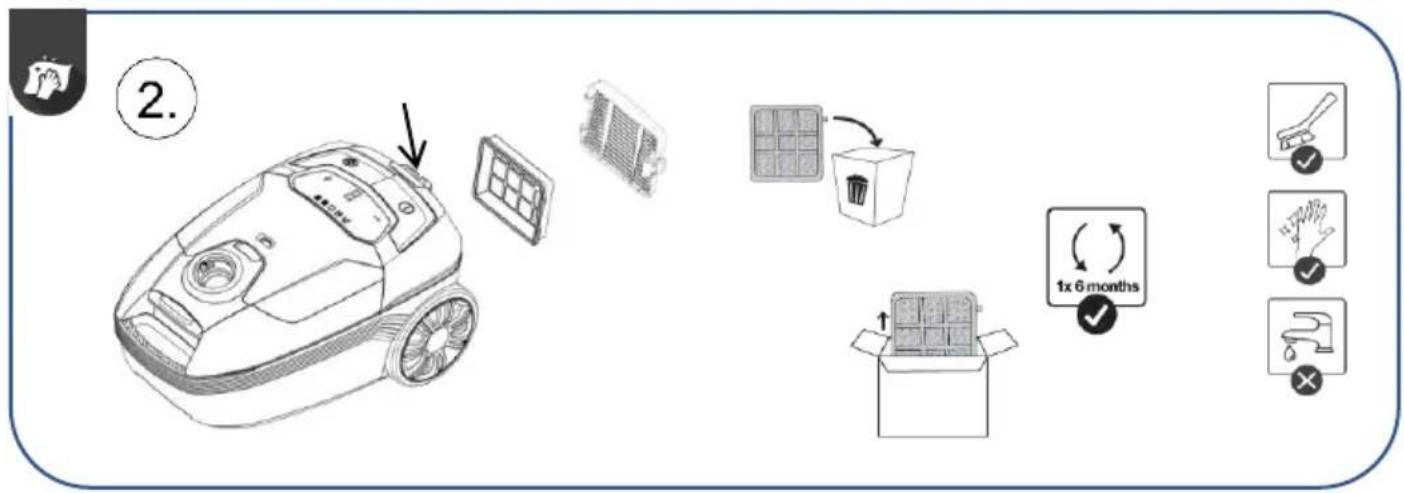

2 Replacing the outlet filter

Remove the holder. Insert the bottom edge of the new filter properly into the ridges of the holder. Close the holder by pressing back into place gently. Make sure that the filter fits completely into the holder.

STORAGE

Switch the appliance off. Remove the mains plug from the wall socket. Rewind the mains cord by pressing the cord rewind button. Attach the lower tube to the vacuum cleaner.

TROUBLESHOOTING

Insufficient suction power?

Check dust bag (or dust container) and empty it. Check if the nozzle, tube, or hose is blocked. Remove any obstructions and let the air flow through the hose and/or tube in the opposite direction.
