Product Type	Access Point
Model	XE3-4TN
Dimensions (W x D x H)	300 x 300 x 80 mm
Weight	2.0 kg
Power Input	PoE+ (802.3at) or 12V DC
Wireless Standard	IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Frequency Bands	2.4 GHz, 5 GHz, 6 GHz (tri-band)
MIMO Configuration	4x4 on 2.4 GHz and 5 GHz; 2x2 on 6 GHz
Maximum Data Rate	Up to 5.4 Gbps aggregate
Antenna Type	Internal omnidirectional
Ethernet Ports	1x 2.5GbE, 1x 1GbE
Security Protocols	WPA3, WPA2, AES, RADIUS
Management Interfaces	Web GUI, CLI, SNMP, cnMaestro Cloud
Operating Temperature	-40°C to +65°C
Ingress Protection	IP67 (dustproof, waterproof)
Mounting Options	Pole, wall, ceiling
Maintenance	Inspect annually; clean with soft dry cloth; avoid liquids
Cleaning	Use a soft, dry cloth. Do not use chemical cleaners.
Safety Notices	Comply with local regulations; mount securely; keep away from water
Spare Parts & Repairability	No user-serviceable parts; contact Cambium Networks for repairs

Frequently Asked Questions - XE3-4TN Cambium Networks

How do I set up the XE3-4TN for the first time?

Connect the access point to your network via PoE+ switch or injector. Power it on and wait for the LED to turn solid green. Use the cnMaestro cloud platform or a web browser to access the default IP and complete the initial configuration.

What type of PoE does the XE3-4TN require?

It requires PoE+ (802.3at) for full operation. A 12V DC adapter is also supported as an alternative power source.

Can I mount the XE3-4TN outdoors?

Yes, the XE3-4TN has an IP67 rating, making it dustproof and waterproof. It can be mounted on poles, walls, or ceilings in outdoor environments.

How do I reset the access point to factory defaults?

Press and hold the reset button on the back panel for about 10 seconds while the device is powered on. The LED will blink, and the settings will revert to factory defaults.

What is the maximum number of simultaneous clients supported?

The XE3-4TN can handle over 500 simultaneous clients under typical enterprise usage, depending on traffic and configuration.

Does it support Wi-Fi 6 (802.11ax)?

Yes, the XE3-4TN is a tri-band Wi-Fi 6 access point, supporting 2.4 GHz, 5 GHz, and 6 GHz bands with high efficiency and throughput.

How do I update the firmware?

Firmware updates can be applied via the cnMaestro cloud portal or through the local web interface. Download the latest firmware from the Cambium Networks support site and upload it.

What security features are available?

The access point supports WPA3, WPA2, AES encryption, and RADIUS authentication. It also includes rogue AP detection and secure management access.

Can I mount external antennas?

No, the XE3-4TN uses internal omnidirectional antennas. For external antenna options, consider other Cambium models.

How do I clean the access point?

Use a soft, dry cloth to gently wipe the exterior. Do not use water, solvents, or abrasive cleaners. Ensure the device is powered off during cleaning.

USER MANUAL XE3-4TN Cambium Networks

Cambium Networks™

USER GUIDE

Enterprise Wi-Fi Access Point

Release 6.6.2.1

Reservation of Rights

Cambium reserves the right to make changes to any products described herein to improve reliability, fund design, and reserves the right to revise this document and to make changes from time to time in core with no obligation to notify any person of revisions or changes. Cambium recommends reviewing the Car Networks website for the latest changes and updates to products. Cambium does not assume any liability out of the application or use of any product, software, or circuit described herein; neither does it convert under its patent rights or the rights of others. It is possible that this publication may contain references information about Cambium products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Cambium intends to announce such Cambium products, programming, or services in your country.

Copyrights

This document, Cambium products, ^rd Party3 software products described in this document may include or describe copyrighted Cambium and ^th Party3 supplied computer programs stored in semiconductor

memories or other media. Laws in the United States and other countries preserve for Cambium, its licer other ^rd Party supplied software certain exclusive rights for copyrighted material, including the exclusive right copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, copyrighted material of Cambium, its licensors, ^rd Party the software supplied material contained in the

Cambium products described in this document may not be copied, reproduced, reverse engineered, distribu merged or modified in any manner without the express written permission of Cambium. Furthermore, the purchase of Cambium products shall not be deemed to grant either directly or by implication, estoppel, otherwise, any license under the copyrights, patents or patent applications of Cambium or other 3rd Party supplied software, except for the normal non-exclusive, royalty free license to use that arises by operation in the sale of a product.

Restrictions

Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system translated into any language or computer language, in any form or by any means, without prior written of Cambium.

License Agreements

The software described in this document is the property of Cambium and its licensors. It is furnished by license agreement only and may be used only in accordance with the terms of such an agreement.

High Risk Materials

Cambium and its supplier(s) specifically disclaim any express or implied warranty of fitness for any high-ri: activities or uses of its products including, but not limited to, the operation of nuclear facilities, aircraft navigation

or aircraft communication systems, air traffic control, life support, or weapons systems ("High Risk Use").

This product is not restricted in the EU. Any High Risk is unauthorized, is made at your own risk an responsible for any and all losses, damage or claims arising out of any High-Risk Use.

Contents ...3

About This User Guide...11

Overview of Enterprise Wi-Fi AP products...11.

Intended audience...11.

Purpose ..11.

Feedback 11

Important regulatory information...12.

Complying with rules for the country of ...operation...12.

Related documents...13

Supported hardware platforms...14.

Premium feature list...15.

Quick Start - Device Access....16.

Powering up the device...16.

PoE switches (802.3af/802.3at/802.3bt) 16

PoE adapter 17

DC power supply 18

Accessing the device 18

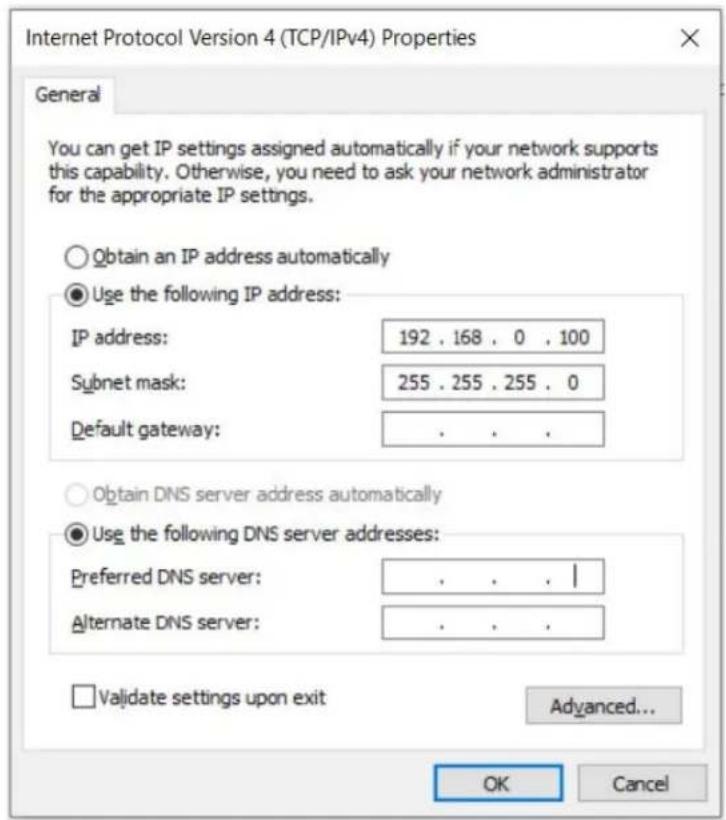

Device access using default or fallback IP 18

Device access using zeroconf IP 20

Device access using DHCP IP address 21

LED status 21

Onboarding the Device 23

Overview 23

Device onboarding and provisioning 23

cnMaestro 23

XMS-Cloud 24

Configuring the System...25

Basic 25

Power over Ethernet (PoE) in 27

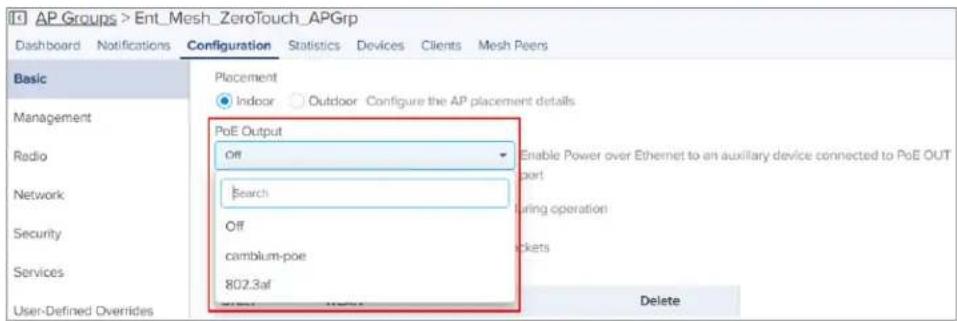

Power over Ethernet (PoE) Out port 30

Link Layer Discovery Protocol (LLDP) 30

Management ..32

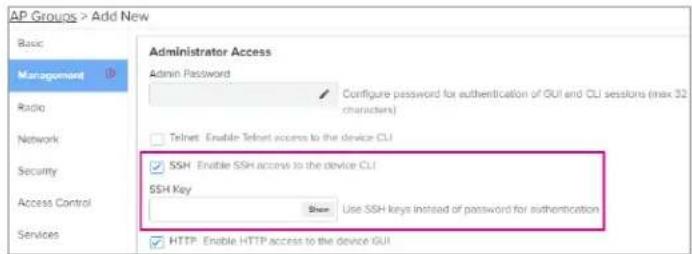

Administrator Access...32

HTTPS Proxy server configuration 33

Time settings...34.

Event logging...35.

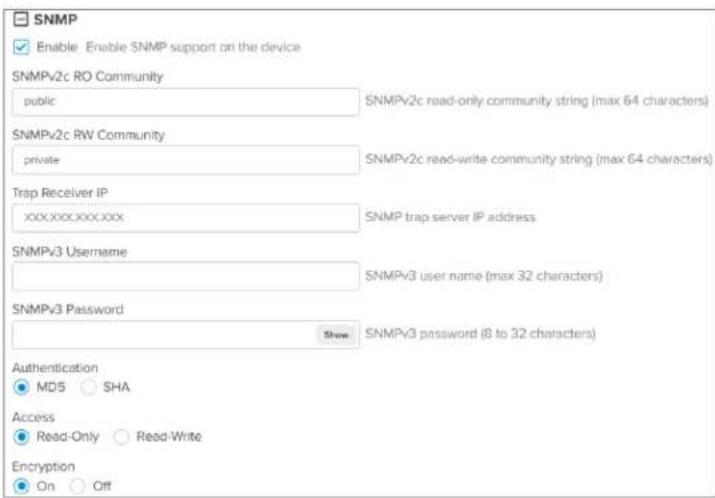

SNMP ..35

Configuring the Radio...37

Overview ..37

Configuring Radio parameters 37

Basic 37

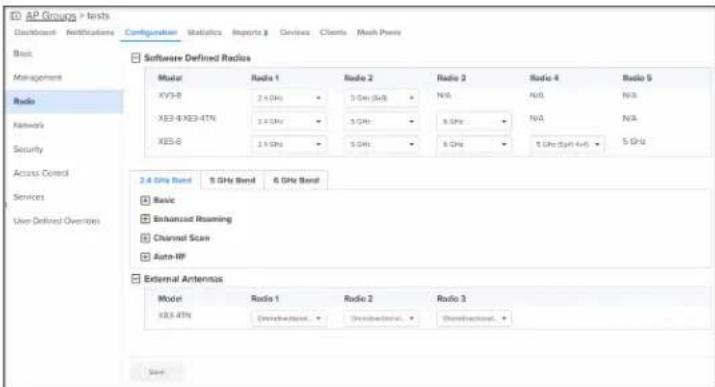

Software-Defined Radio (SDR) capabilities 45

Enhanced Roaming 49

BSS Coloring...50

Target Wake Time (TWT) 50

Receive sensitivity configuration 50

Multicast-snooping and Multicast-to-Unicast conversion 50

Auto-RF 51

Overview 52

Dynamic Channel 52

Dynamic Power 53

Auto-RF behavior on device turn on 53

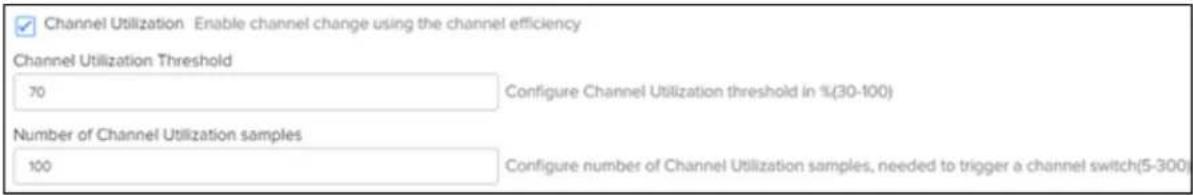

Configuring Dynamic Channel 53

Configuring Dynamic Power 55

Recommended Configuration...56

Configuring the Wireless LAN 58

Overview 58

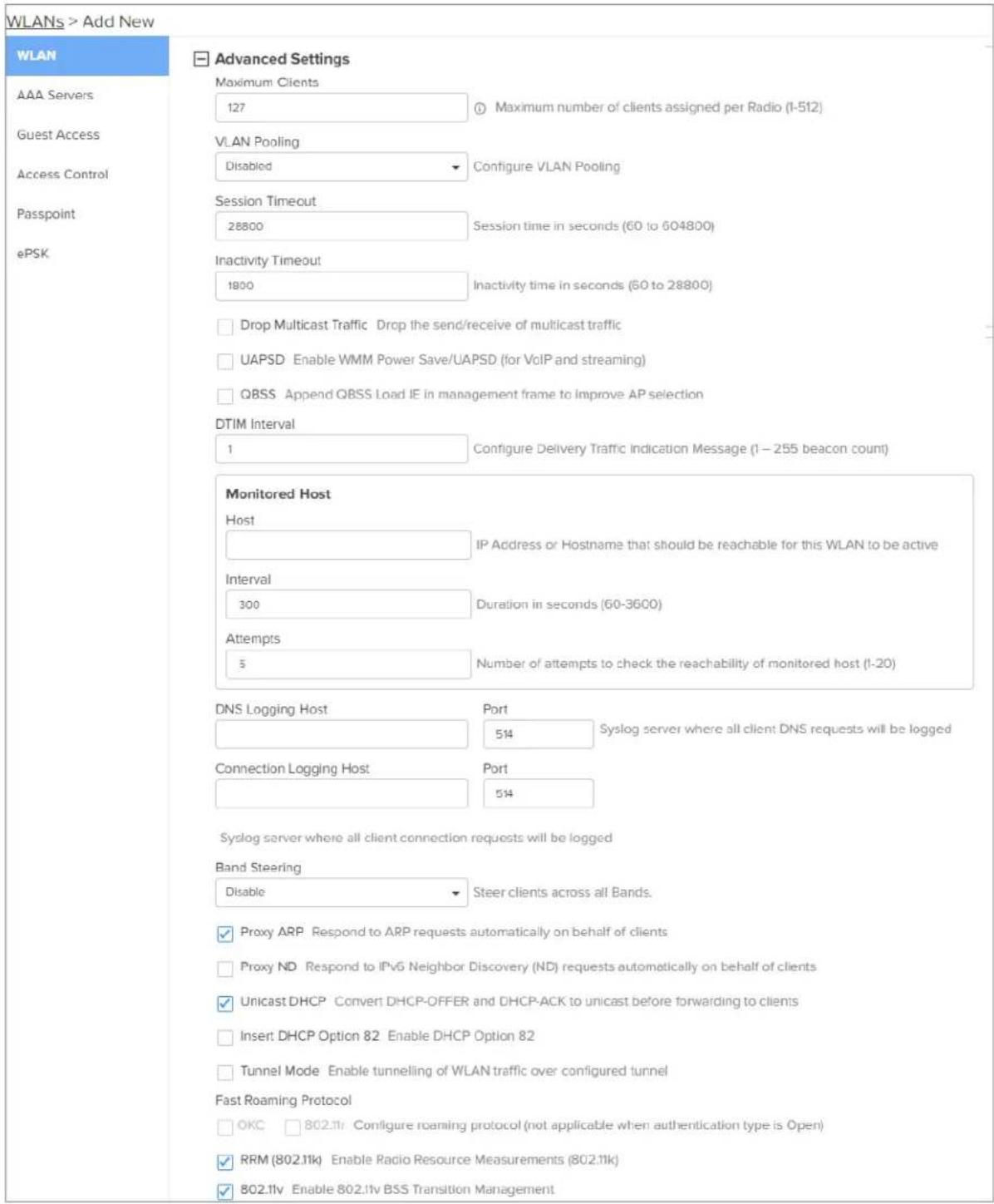

Configuring the WLAN parameters...58

Basic 59

WLAN VLAN allowed list 72

ICMPv6 Router advertisement (RA) unicast conversion...72

802.11k/v 72

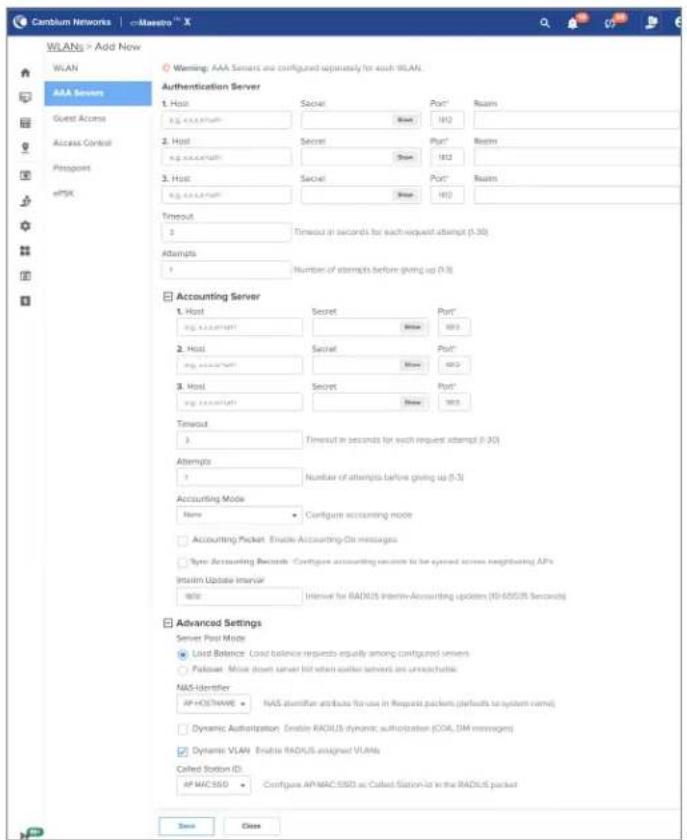

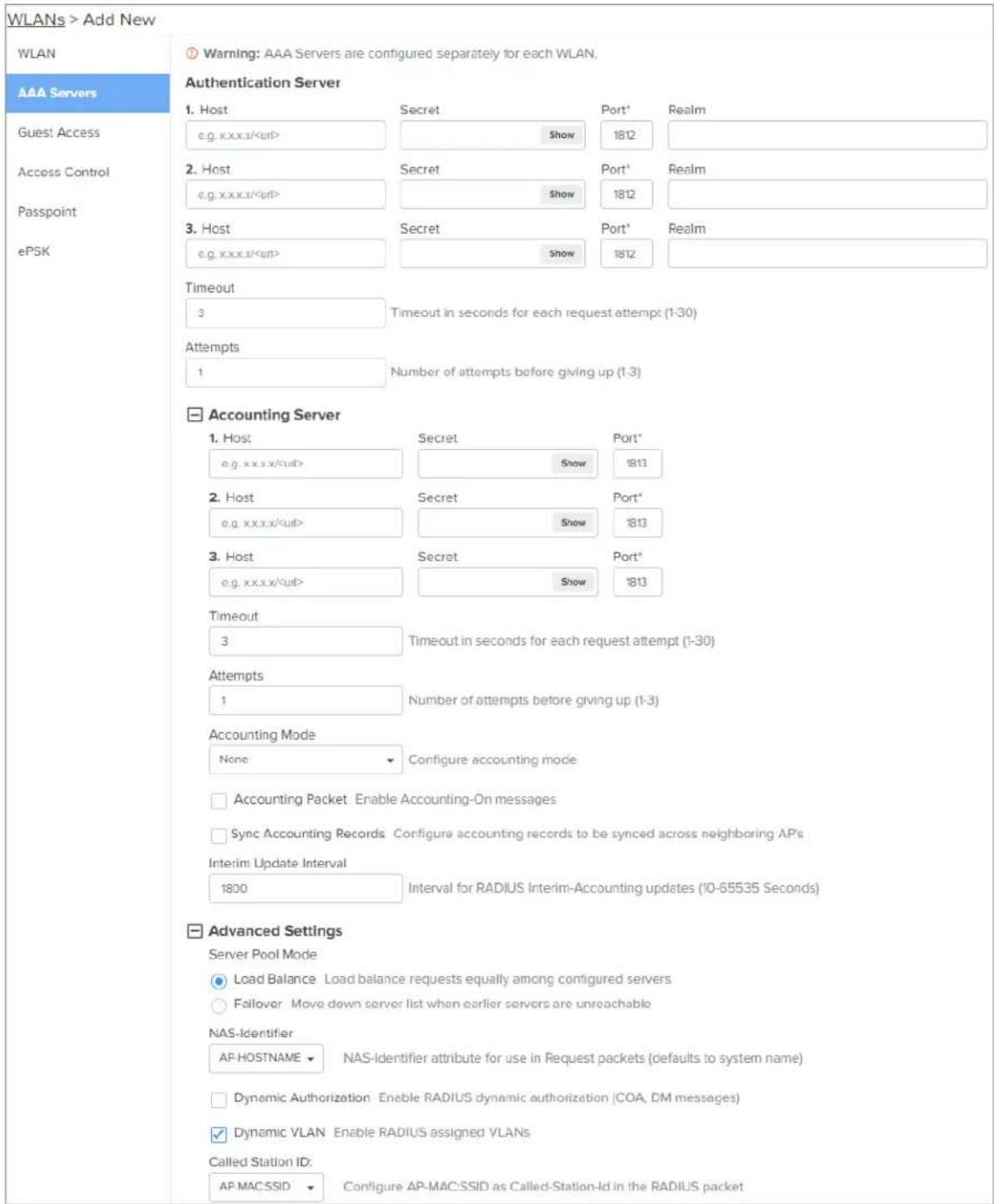

RADIUS server...73.

Guest Access...77

Usage Limits...89

Scheduled Access...90

Access ..92.

Passpoint 95

RADIUS attributes 97

Enterprise PSK (ePSK) 99

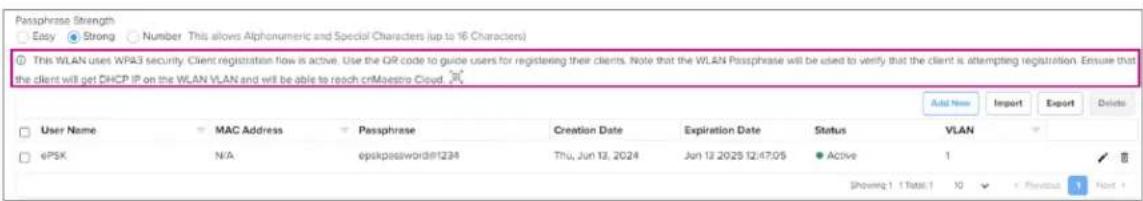

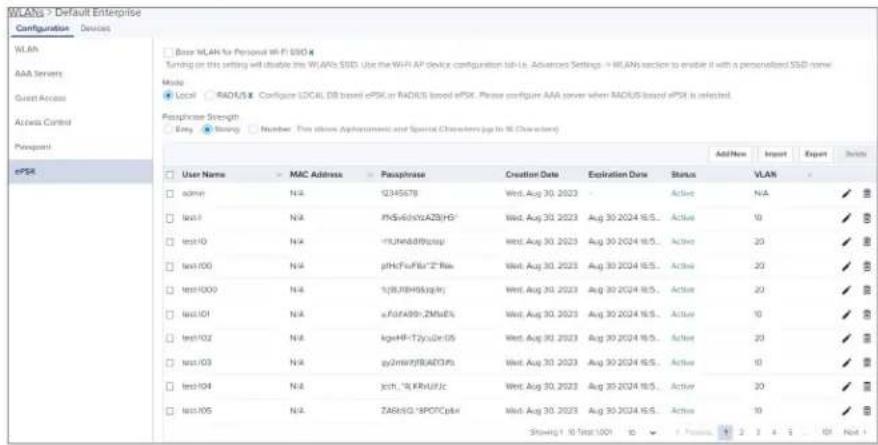

Configuring ePSKs 99

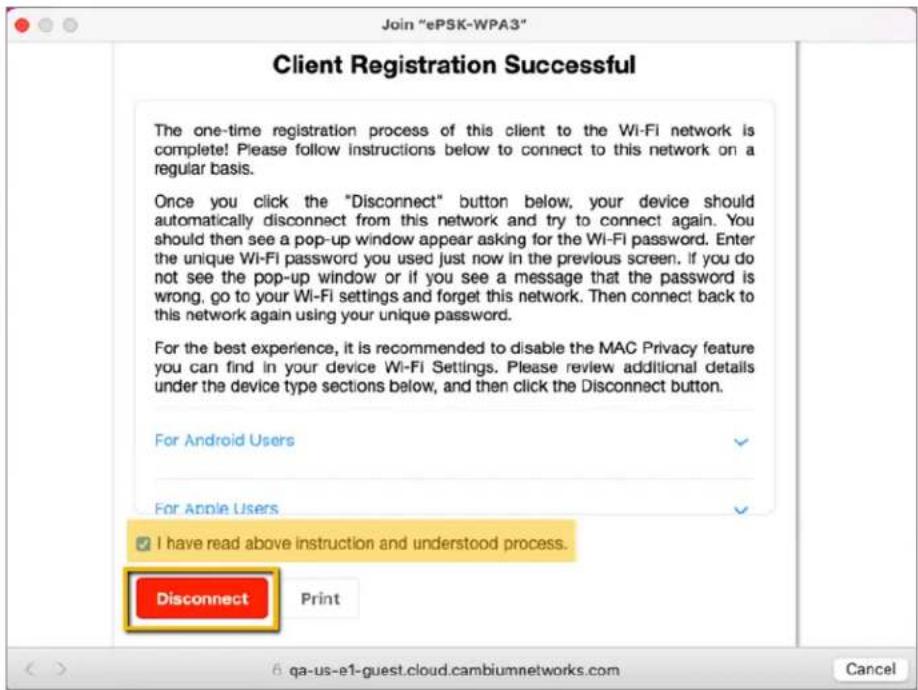

ePSK registration for WPA3 clients 102

Creating a Personal Wi-Fi ePSK 110

RADIUS-based ePSK Premium feature 111

Configuring RADIUS-based ePSK 111

Groupwise Transient Key (GTK) per VLAN 113

Configuring the Network 114

Overview 114

Configuring Network parameters 114

IPv4 network parameters 114

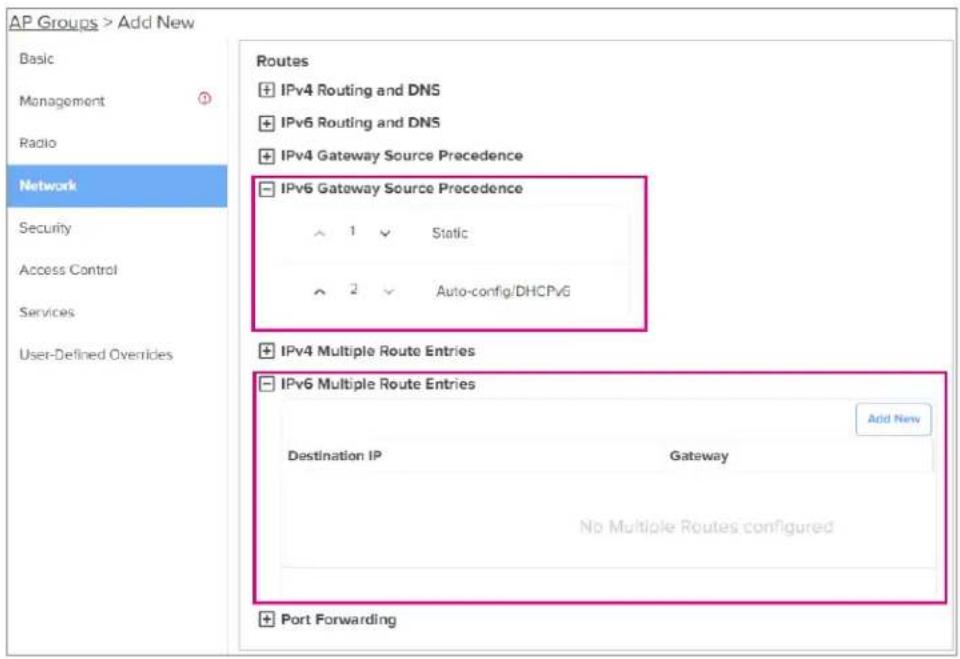

Routes 120

IPv6 network parameters 121

General network parameters...124.

Ethernet Ports...125

DHCP 128

Tunnel ..129.

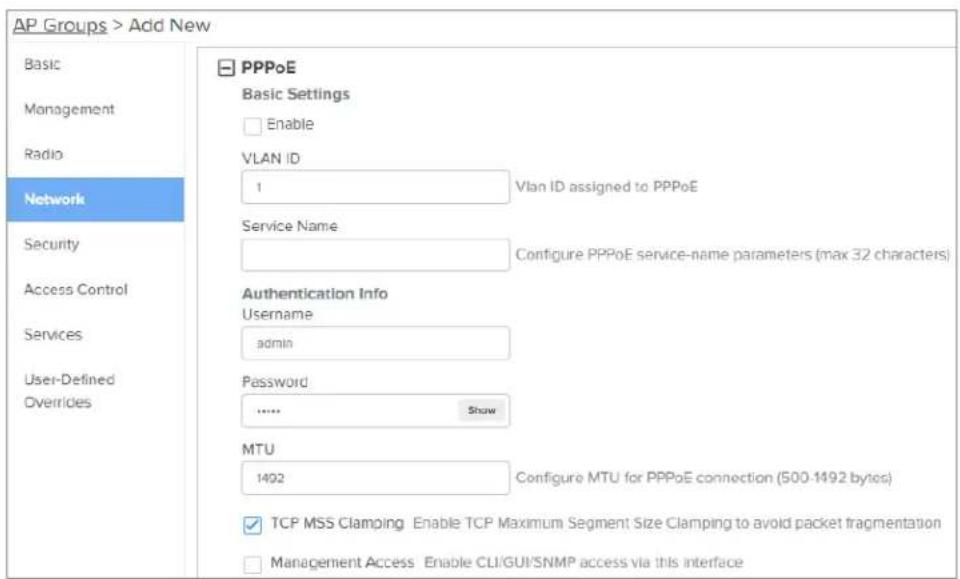

Point-to-Point Protocol over Ethernet (PPPoE) 132

VLAN Pool...133

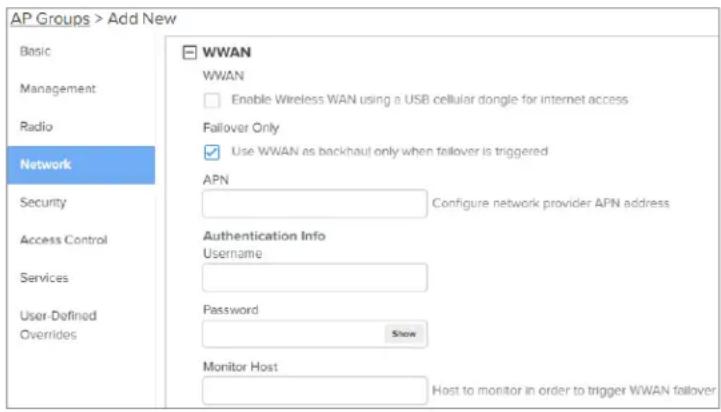

Wireless Wide Area Network (WWAN) 134

Configuring Access Control 136

Enabling Access Control Policy...136

User Group Policy 137

Device Policy...138

Managing Filters...140

Overview ..140

Filter list 140

Filters 140

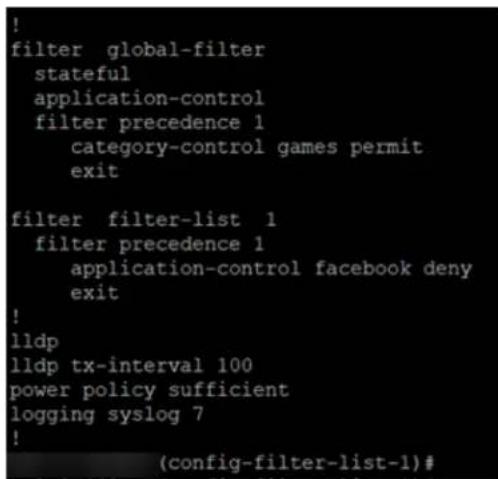

Configuring filter CLI 141

Device class filter 145

Wi-Fi Calling support 146

Air cleaner 146

Application control Premium feature 148

Deep Packet Inspection (DPI) 149

Custom Applications X 162

WIDS/WIPSPremium feature 165

Wireless Intrusion Detection Systems (WIDS) 165

Wireless flood detection 165

Neighbor AP detection 166

Rogue APs 166

Honeypot APs 166

Ad Hoc network detection 166

Wired Devices 167

Configuring WIDS 167

Wireless Intrusion Prevention System (WIPS) 168

Configuring Services...170

Overview 170

Configuring services 170

Lightweight Directory Access Protocol (LDAP) 170

NAT Logging 171

User Groups Premium feature 173

Real-Time Location System (RTLS) 174

Speed Test 178

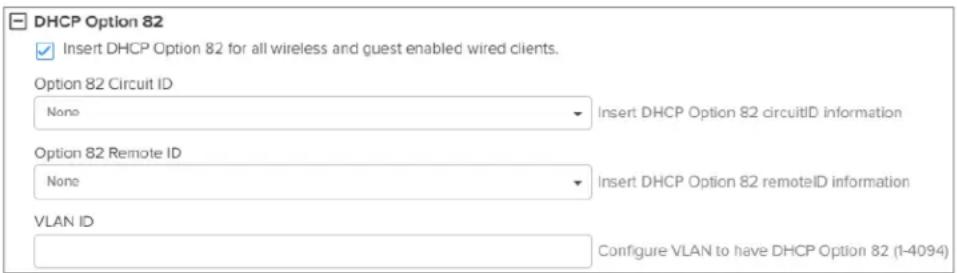

DHCP Option-82 179

Bonjour Gateway 180

Link Aggregation Control Protocol (LACP) 182

Operations 184

Overview 184

Firmware upgrade 184

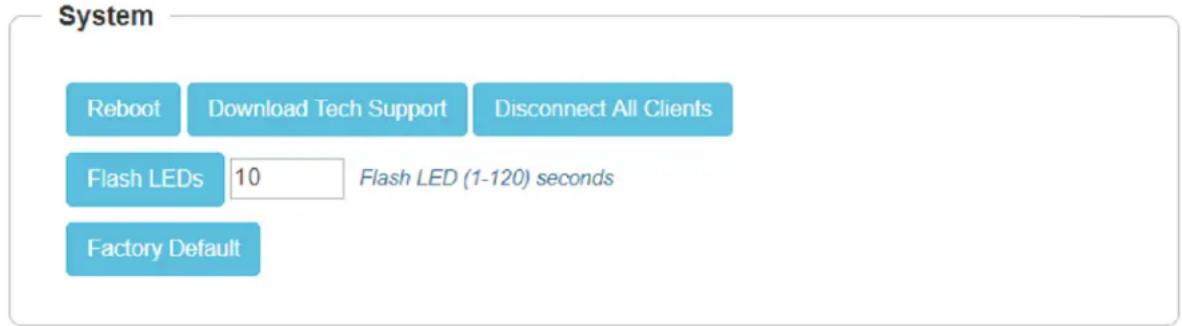

System 185

LED Test flashing pattern 186

Troubleshoot 188

Overview 188

Logging 188

Events 188

Debug Logs 189

Radio Frequency (RF) 190

Wi-Fi Analyzer 190

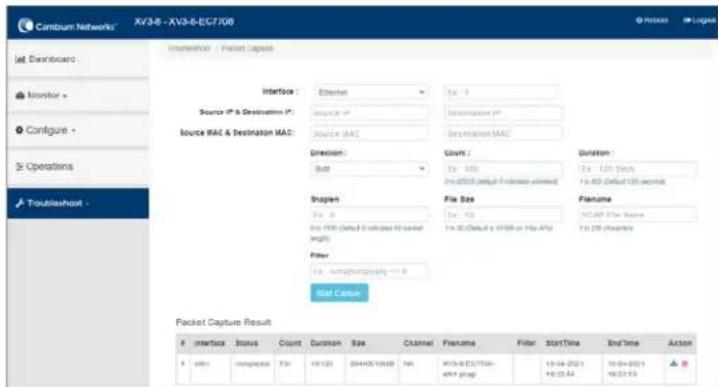

Packet capture 191

Performance 192

Speedtest on Access Point 192

Network Connectivity 193

XIRCON tool support 194

XIRCON tool support for Linux 1.0.0.40..195....

Management Access 196

Local authentication 196

Device configuration 196

SSH Key authentication 196

Device configuration 196

SSH Key generation 197

RADIUS authentication 199

Device configuration 200

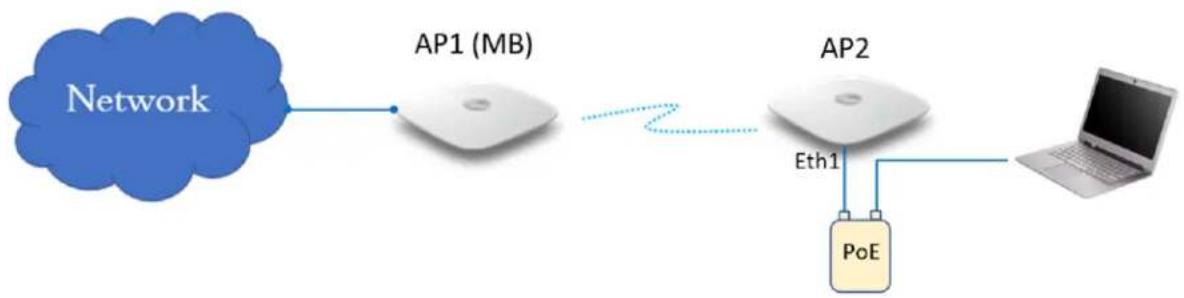

Mesh 201

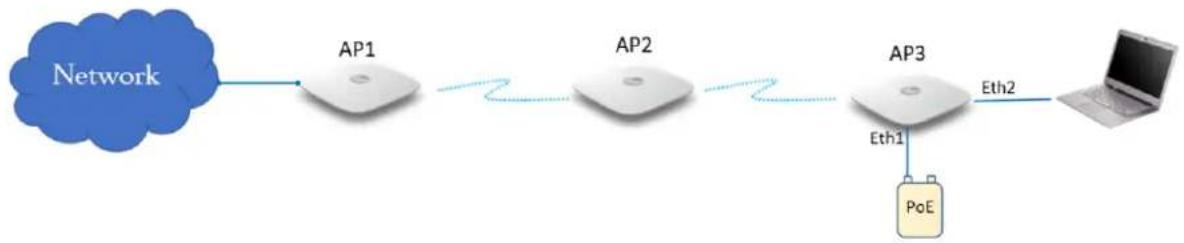

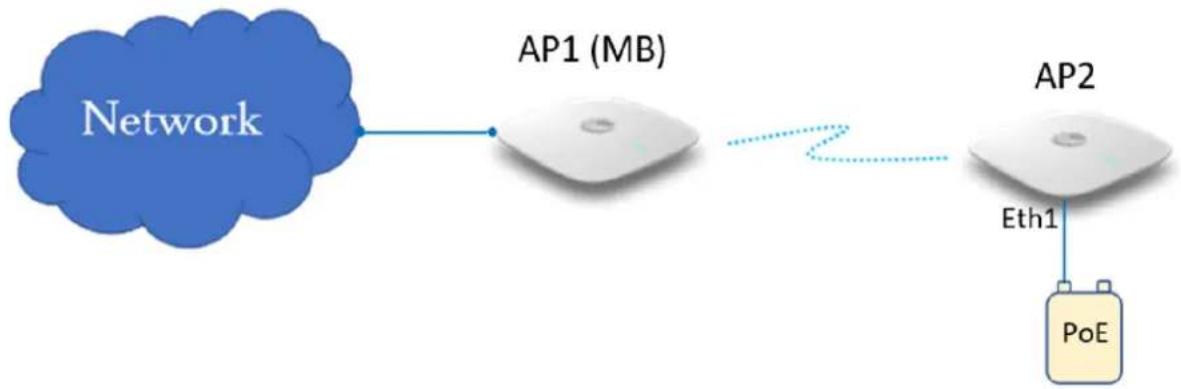

Deployment scenarios 201

Mesh configurable parameters 203

Order of Mesh profile configuration 205

Mesh Auto Detect Backhaul 212

Scenario 1 212

Scenario 2 213

Scenario 3 213

Mesh Muti-Hop 216

Mesh Roaming 217

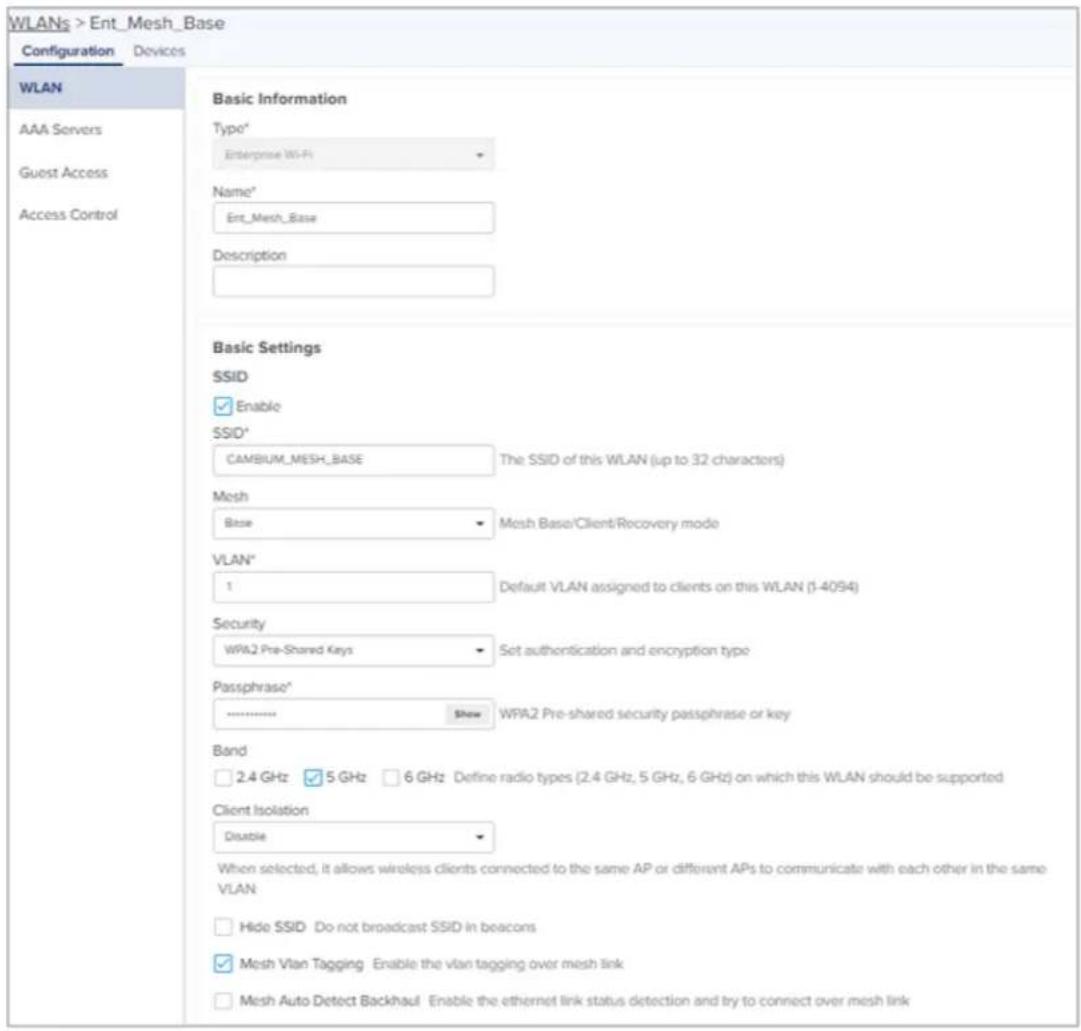

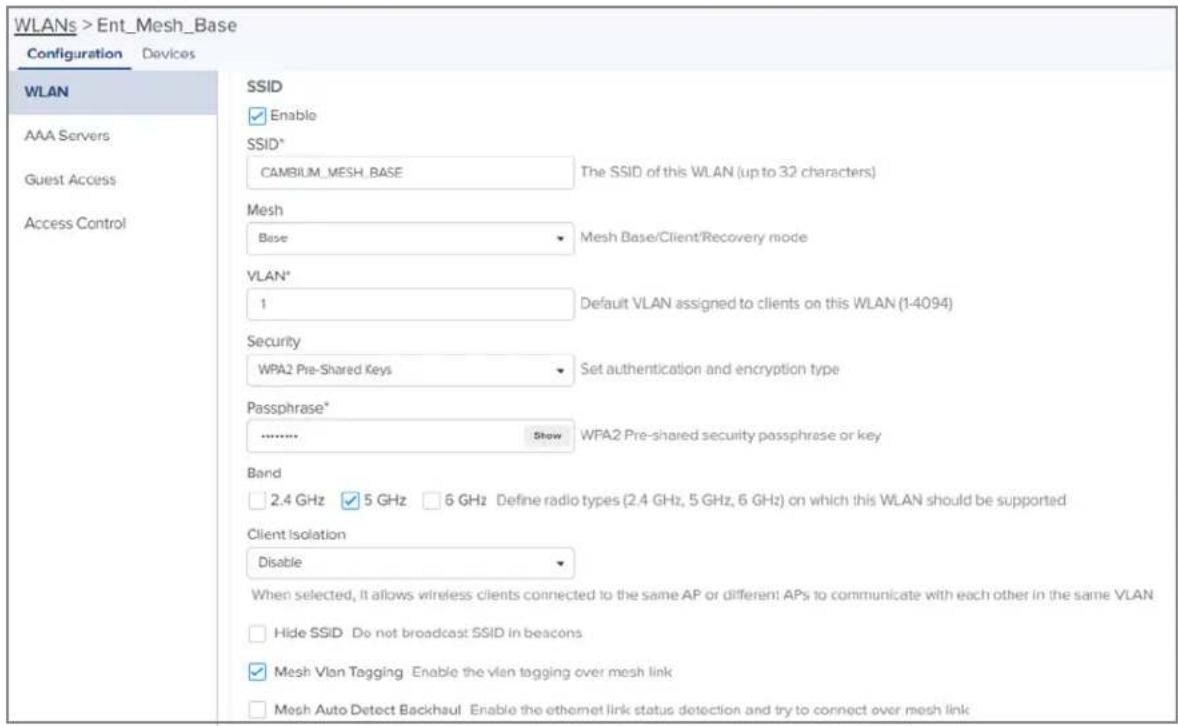

Mesh Base configuration 217

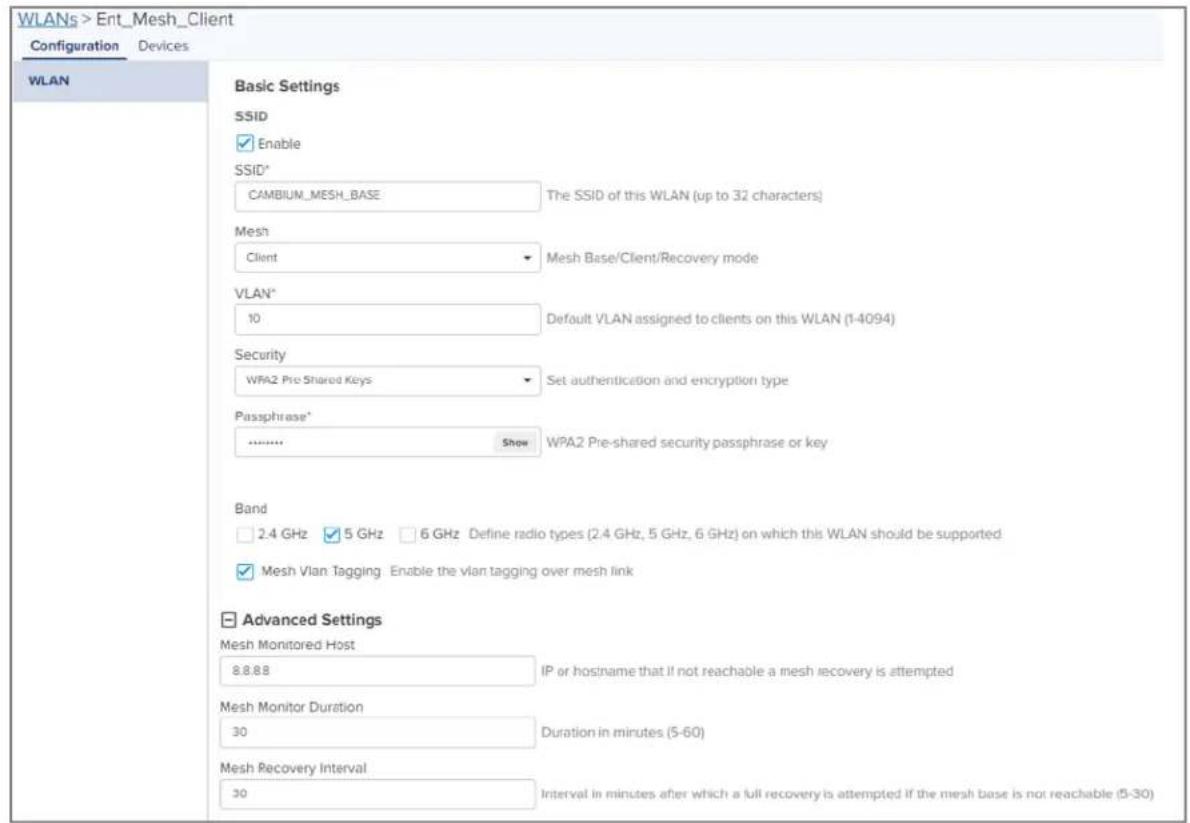

Mesh Client configuration 218

Mesh link-Sample configuration 219

VLAN 1 as the management interface 219

Non-VLAN 1 as the management interface 223

Typical use-cases 227

Additional mesh topology supported 228

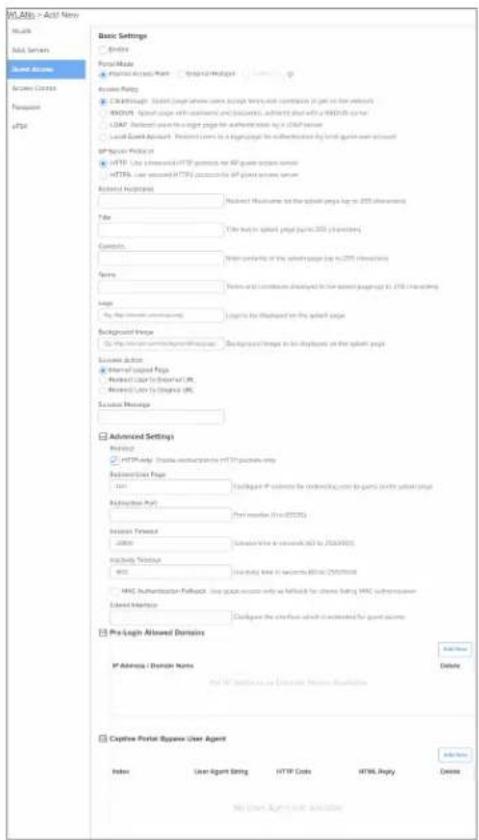

Guest Access Portal - Internal...229

Introduction 229

Configurable parameters 230

Access policy 231

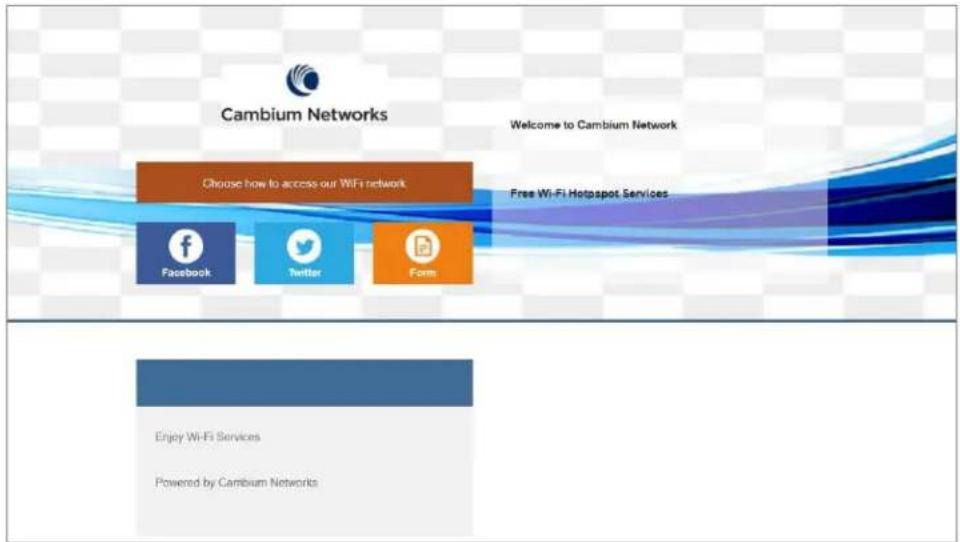

Splash page 231

Redirect parameters 232

Success message 233

Timeout 233

Whitelist 233

Configuration examples 233

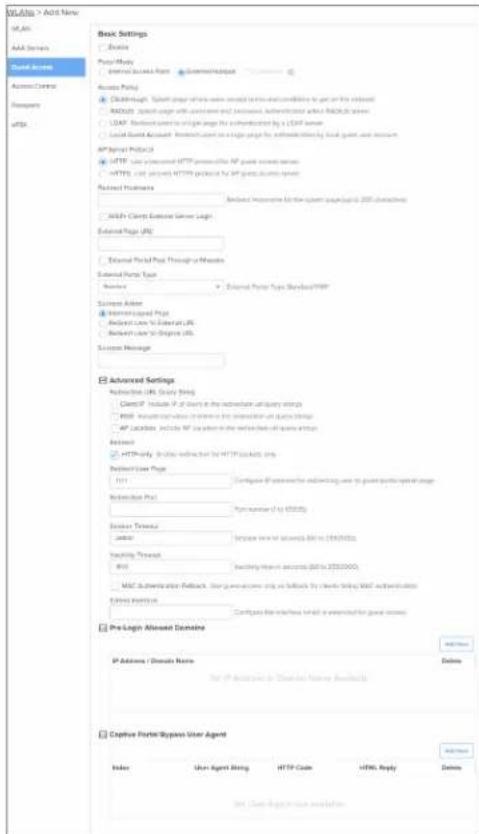

Guest Access Portal - External 235

Introduction 235

Configurable parameters 235

Access policy 236

WISPr 236

External portal post through cnMaestro 236

External portal type 236

Redirect parameters 236

Success message 237

Timeout 237

Whitelist 237

Configuration examples 237

Guest Access - cnMaestro 239

Auto VLAN 240

Device Recovery Methods 241

Factory reset via 'RESET' button 241

Boot partition change via power cycle 241

Disable factory Reset Button 242

Command-Line Interface (CLI) 243

Show commands 243

Service commands 246

Service show 246

Service system 247

cnMaestro X Assurance 249

MarketApps 250

Target audience 250

Benefits 250

Glossary 251

Appendix ..253

Supported RADIUS Attributes 254

WISPr VSAs (Vendor ID: 14122) 254

Cambium VSAs (Vendor ID: 17713) 255

Standard RADIUS attributes 258

RADIUS attributes in authentication and accounting packets with WPA2-Enterprise security ..261

Supported CoA messages 263

Supported DFS channels 265

Supported 6 GHz countries 266

Priority order for parameters 269

Best practices for wireless clients seamless roaming across APs 270

External network recommendations 270

AP WLAN profile configuration recommendations 271

AP group configuration recommendations 273

Cambium Networks 275

This section describes the following topics:

• Overview of Enterprise Wi-Fi AP products
• Intended audience
- Purpose
- Feedback
• Important regulatory information
- Related documents
• Supported hardware platforms
- Premium Feature List

Overview of Enterprise Wi-Fi AP products

This User Guide describes the features supported by Enterprise Wi-Fi Access Point (AP), and provides detailed instructions for setting up and configuring Enterprise Wi-Fi AP.

Intended audience

This guide is intended for use by the system designer, system installer, and system administrator.

Purpose

Cambium Network's Enterprise Wi-Fi AP documents are intended to instruct and assist personnel in operation, installation, and maintenance of Cambium's equipment and ancillary devices. It is recommended that all personnel engaged in such activities be properly trained.

Cambium disclaims all liability whatsoever, implied or expressed, for any risk of damage, loss, or re system performance arising directly or indirectly out of the failure of the customer, or anyone acting customer's behalf, to abide by the instructions, system parameters, or recommendations made in this document.

Feedback

We appreciate feedback from the users of our documents. This includes feedback on the structure, accuracy,

or completeness of our documents. To provide feedback, visit our support website: https://support.cambiumnetworks.com.

Important regulatory information

Complying with rules for the country of operation

USA specific information

Caution

This device complies with Part 15 of the Federal Communications Commission (FCC) Rules Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired operation of the device.

Note

This equipment has been tested and found to comply with the limits for a Class B di pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Canada specific information

Caution

This device complies with Innovation, Science and Economic Development Canada (ISEDC) licenseexempt RSSs. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation of the device.

Caution

Europe specific information

Cambium Networks Enterprise Wi-Fi AP products are compliant with applicable European Directives required for CE marking:

• 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the harmonizati laws of the Member States relating to the making available on the market of radio equipment repealing Directive 1999/5/EC; Radio Equipment Directive (RED).
  • 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of certain hazardous substances in electrical and electronic equipment (RoHS Directive).
• Cambium Networks complies with the European Regulation 2023/988 of 10 May 2023 on General Product Safety. EU Authorized Representative: Cambium Networks Europe B.V., Muiderstraat 1, 1011P Amsterdam, Netherlands. Contact Information: [e-mail].

Related documents

Table 1 provides details of related documents for Enterprise Wi-Fi AP.

Table 1 Related documents

Document Name Location
Enterprise Wi-Fi AP product details https://www.cambiumnetworks.com/products/wifi/
Enterprise Wi-Fi AP Hardware and Installations//support.cambiumnetworks.com/filesGuide
Enterprise Wi-Fi AP User Guide (This document) https://support.cambiumnetworks.com/files
Enterprise Wi-Fi AP Release Notes https://support.cambiumnetworks.com/files
Enterprise Wi-Fi AP Command-Line Interfachttps://support.cambiumnetworks.com/filesReference Guide
Software Resources https://support.cambiumnetworks.com/files
Community http://community.cambiumnetworks.com/
Support https://www.cambiumnetworks.com/support/contact-support/
Warranty https://www.cambiumnetworks.com/support/warranty/
Feedback [e-mail]

Supported hardware platforms

Table 2 lists the existing hardware platforms in Enterprise Wi-Fi Access Points:

Warning

Release 6.x is no longer supported on Wi-Fi 5 APs. It was provided for the Wi-Fi 5 BETA release only. Any issues on these APs running release 6.x will not be supported Cambium Support team.

Table 2 Existing hardware platforms

Hardware Platform Description
XV3-8 8x8:8, 4x4:4 802.11a/b/g/n/ac wave 2/ax Tri-Radio Indoor Access Point with BLE IoT radio
XV2-2 2x2:2, 2x2:2 802.11a/b/g/n/ac wave 2/ax Dual-Radio Indoor Access Point
XV2-2T0 2x2:2, 2x2:2 802.11a/b/g/n/ac wave 2/ax Dual-Radio Outdoor Access Point, Omni antenna, PoE out with BLE IoT radio
XV2-2T1 2x2:2, 2x2:2 802.11a/b/g/n/ac wave 2/ax Dual-Radio Outdoor Access Point, Sector antenna, PoE out with BLE IoT radio
XV2-22H	2x2:2, 2x2:2 802.11a/b/g/n/ac wave 2/ax Dual-Radio Indoor Wi-Fi 6 Wall-Plate Access Point with BLE/Zigbee IoT radio
XV2-21X	2x2:2, 2x2:2 802.11a/b/g/n/ac wave 2/ax Dual-Radio Indoor Wi-Fi 6 Access Point
XV2-23T	2x2:2, 2x2:2 802.11a/b/g/n/ac wave 2/ax Dual-Radio Outdoor Wi-Fi 6 Access Point
XE3-4	4x4:4; 2x2:2; 2x2:2 802.11a/b/g/n/ac wave 2/ax Tri-Radio Indoor Wi-Fi 6e Access Point with BLE IoT radio
XE3-4TN	4x4:4, 2x2:2, 2x2:2 802.11b/g/n/ac wave 2/ax Tri-Radio Outdoor Wi-Fi 6e Access point with BLE IoT radio
XE5-8	8x8:8, 4x4:4, 4x4:4, 4x4:4 802.11a/b/g/n/ac wave 2/ax Tri-Band multi-radio SDR with BLE IoT radio

Premium feature list

Release 6.0 and later releases of Enterprise Wi-Fi AP firmware support certain advanced features that available only through a paid subscription to cnMaestro X or XMS-Cloud management. These features identified with the label Premium feature in the documentation. With Release 6.5 and later releases, end

users can access these features without a management subscription on a free trial basis and for time. As Cambium Networks releases new versions, restrictions will be enforced on the use of these premium features only in conjunction with a current cnMaestro X or XMS-Cloud subscription. If the does not have a current subscription at that time, the APs will stop enabling configurations, including premium features.

Table 3 Premium feature list

Feature Name Release Details
Wireless Intrusion Detection Systems (WIDS) Release 6.4.2
RADIUS-based ePSK Release 6.4

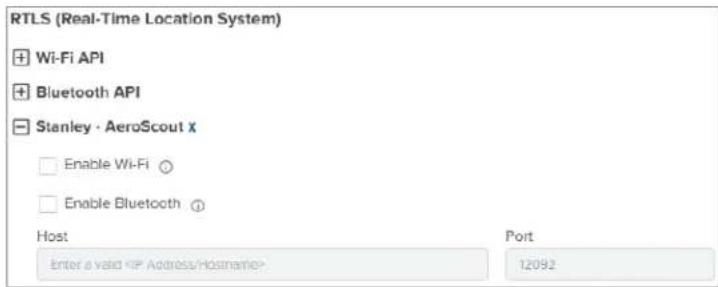

Stanley AeroScout Location Engine Release 6.3
User Groups Release 6.2
Advanced Filters (QoS, DSCP, Schedule, and Rate limit) Release 6.0
Application Control Release 6.0

Quick Start - Device Access

This chapter describes the following topics:

• Powering up the device
- Accessing the device
- LED status

Powering up the device

This section includes the following topics:

• PoE switches (802.3af/802.3at/802.3bt)
- PoE adapter
• DC power supply

Enterprise Wi-Fi AP product family can be powered using an Ethernet PoE Switch or a PoE midsp. Note that some APs can be powered by 802.3af, while others may require 802.3at or 802.3bt. And some APs can be powered with an external power supply. Refer to the related product datasheet determine the options available.

PoE switches (802.3af/802.3at/802.3bt)

Enterprise Wi-Fi APs negotiate the power via the LLDP mechanism. Figure 1 represents the Enterprise Wi-Fi AP Eth1 port connecting to a switch (PoE PSE Port).

Figure 1 Installation of Enterprise Wi-Fi AP to PSE port

Table 4 provides detailed information on the AP modules that are enabled based on power negotiated via LLDP.

Table 4 Power management policy

Platform	IEEE 802.3af(12.95W @ PD)	IEEE 802.3at(25.5W @PD)	IEEE 802.3btClass - 0/1/2/3/(40W @ PD)	IEEE 802.3bClass - 5/6 (5@ PD)	IEEE 802.3b ClassW 7/8 (64W @ PD)
XV3-8	√ √	√
XV2-2	√	√
XV2-2T0	√ √	√ √
XV2-2T1	√ √	√ √
XV2-22H	√	√
XV2-21X	√	√
XV2-23T	√	√
XE3-4	√ √	√
XE3-4TN	√ √	√ √ √
XE5-8		√ √	√ √

PoE adapter

To power up the device using a PoE adapter, perform the following steps:

1. Connect the Ethernet cable from the Eth1/PoE-IN port of the device to the 5 Gigabit Data + the PoE adapter.
2. Connect an Ethernet cable from your LAN or computer to the 5 Gigabit Data port of the Po

Figure 2 Installation of Enterprise Wi-Fi AP to a PoE adapter

1. Connect the power cord to the adapter, and then plug the power cord into a power outlet Figure 3. Once powered ON, the Power LED should illuminate continuously on the PoE adapter.

Figure 3 Connecting PoE adapter to a power outlet

DC power supply

The Enterprise Wi-Fi AP XV3-8 has an option to power via a DC power adapter through the bar. If the device is connected to both the DC power adapter and the PoE adapter, then the DC po takes precedence.

Accessing the device

This section includes the following topics:

• Device access using default or fallback IP
• Device access using zeroconf IP
• Device access using DHCP IP address

Once the device is powered up, ensure it is operational by checking the LED status. The power AP should turn green, which indicates that the device is ready for access.

Device access using default or fallback IP

To configure the computer to access the device using the default or fallback IP, perform the follo

1. Open Local Area Connection Properties by performing one of the following steps:

2. In computers running Windows 7 operating system, go to Control Panel > Network and Internet >
   Network Connections > Local Area Connection > Properties (in the Local Area Connection Status window).

3. In computers running Windows 10 operating system, go to Control Panel > Network and Internet > Network and Sharing Center > Local Area Connection > Properties (in the Local Area Connection Status window).

The AP obtains its IP address from a DHCP server. A default IP address of 192.168.0.1/24 is address is not obtained from the DHCP server.

1. Select Internet Protocol Version 4 (TCP/IPv4) and click Properties.

The Internet Protocol Version 4 (TCP/IPv4) Properties dialog box appears, as shown below:

1. In the Use the following IP address section, ensure that an appropriate IP address and a subnet address are provided.
2. Click OK.
3. Ensure that your computer is set up to communicate with the required range of IP addresses.
4. Open a web browser and type the URL - http://192.168.0.1 - to access the device UI. The Si appears.

5. Type an appropriate username and password.

6. Default username: admin

7. Default password: admin

8. Click Sign In.

Device access using zeroconf IP

To configure the computer to access the device using the zeroconf IP, complete the following step

1. Convert the last two bytes of ESN of the device to decimal. If ESN is 58:C1:CC:DD:AA:BB, last of this ESN is AA:BB. Decimal equivalent of AA:BB is 170:187. Zeroconf IP of the device with 58:C1:CC:DD:AA:BB is 169.254.170.187.
2. Configure Management PC with 169.254.100.100/16, as described below:

1. Access the device UI using http://169.254.170.187 with default credentials as below:

2. Username: admin

3. Password: admin

Device access using DHCP IP address

To access the device using DHCP IP address, follow the below steps:

1. Plugin the device to the network.
2. Obtain the IP address of the device from the system administrator.

3. Access the device UI using http:// and default credentials, as listed below:

4. Username: admin

5. Password: admin

LED status

The Enterprise Wi-Fi AP features a single-color LED. The power LED glows amber when AP is turni turns green once the AP has successfully turned on. The network or status LED glows green if t connection to XMS or cnMaestro controller or manager is down. It turns blue once the AP is con successfully to XMS or cnMaestro.

Table 5 Enterprise Wi-Fi AP LED status

LED Color Status	Indication
	The device is turning on.[ZYSC]	Note:If the LEDs remain amber for more than five minutes, it the device has failed to turn on.
	• The device is successfully up and accessible.• Wi-Fi services are up, if configured.
	• XMS or cnMaestro connection is successful.

Onboarding the Device

This chapter describes the following topics:

Overview
• Device Onboarding and Provisioning

Overview

By default, support is available for all the devices at https://cloud.cambiumnetworks.com, no user action is required to direct devices to contact either cnMaestro Cloud or XMS-Cloud. You can onboard and devices without any additional setup.

If you are using cnMaestro On-Premises, you must direct the devices to connect to the cnMaestro using DHCP options or static URL configuration. For more information, refer to the cnMaestro On-Premises User Guide.

Device onboarding and provisioning

Enterprise Wi-Fi APs support the following onboarding methods:

• cnMaestro
• XMS-Cloud

cnMaestro

cnMaestro is a simple next-generation network management system for Cambium Networks wireless ar wired solutions.

For onboarding devices to cnMaestro, refer to the cnMaestro User Guide.

Supported devices and minimum version

The following table lists the minimum release version of every Enterprise Wi-Fi APs that is required managed by cnMaestro Cloud and On-Premises. It also lists the minimum version of cnMaestro Clou On-Premises required to manage the respective APs.

Note

• The AP version is the minimum version required to manage the APs using cnMaestro Cloud, On-Premises, or XMS-Cloud.
• Similarly, the cnMaestro Cloud, On-Premises, and XMS-Cloud versions are the minimum versions required to manage the APs.

Table 6 Supported minimum AP and cnMaestro versions

AP Model	Supported	Minimum	AP Version	Supported	Minimum	cnMaestro / XMS-Cloud Version
	cnMaestro Cloud		cnMaestro On-Premises	XMS-Cloud	cnMaestro Cloud	cnMaestro On-Premises	XMS-Cloud
XV3-8	6.6.0	3	6.6.0.3	6.6.0.3	Current	2.4.1	Current
XV2-2	6.6.0	3	6.6.0.3	6.6.0.3	Current	2.4.1	Current
XV2-2T0	6.	6.0.3	6.6.0.3	6.6.0.3	Current	3.1.0	Current
XV2-2T1	6.	6.0.3	6.6.0.3	6.6.0.3	Current	3.1.1	Current
XV2-22H		6.6.0.3	6.6.	0.3	6.6.0.3	Current	3.1.1	Current
XV2-21X		6.6.0.3	6.6.	0.3	NA	Current	3.1.1	NA
XV2-23T		6.6.0.3	6.6.	0.3	NA	Current	3.1.1	NA
XE3-4		6.6.0.3	6.6.	0.3	6.6.0.3	Current	3.1.0	Current
XE3-4TN		6.6.0.3		6.6.0.3	NA	Current	3.2.0	CurrentNote: AFC and 6 GHz operation are not supported
XE5-8		6.6.0.3	6.6.	0.3	6.6.0.3	Current	3.1.1	Current

XMS-Cloud

XMS-Cloud makes it easy to manage networks from a single, powerful dashboard. Zero-touch provisioning and centralized, multi-tenant network orchestration simplifies network management functions. XMS-Cloud helps manage Cambium Enterprise Wi-Fi devices.

For onboarding devices to XMS-Cloud, refer to https://www.youtube.com/watch?v=qD-nPsdRc4Y.

Configuring the System

This chapter describes the following topics:

• Basic
• Management
• Time settings
• Event Logging
  SNMP

Basic

To configure the basic parameters for the AP, complete the following steps:

1. Navigate to Configuration > Wi-Fi Profiles > AP Groups page.

2. Click Add New and select Enterprise Wi-Fi (E-Series, XE/XV/X7-Series) from the Type drop-down list.

By default, the Basic tab is displayed.

Note

• The following special characters are supported when creating the AP Group and WLAN passwords:
• By default, the password is not configured. You must configure the password for Groups.
  You can also rename the password after creating it.

a - zA - Z _ -* \ amp; % # @! lt; gt;. () [] ^ 1 2 3 4 5 6 7 8 9 0.

Table 7 lists the configurable parameters that are available in the Basic tab in the cnMaestro UI.
Table 7 Basic parameters

Parameter Description Range Default
Name Hostname	of the device.Supported maximum length of the hostname: 64 characters	- EnterpriseWi-Fi AP ModelNumber-Last 3 Byt of ESN
Location Location	where the device is placed.Supported maximum length of location: 64 characters	-	-
Contact Contact	information for the device. - -
Country Country	of operation of the device.To be set by the administrator only.The allowed operating channels and the respective power levels depend on the country of operation. countries supported depends on the SKU of the device (FCC and ROW).Note: Radios remain disabled unless this parameter is configured.	-transmitThe list of device (FCC)
Placement Enterprise	prise Wi-Fi AP device supports both Indoor and Outdoor deployments. Based on deployment user can configure it as follows:Indoor: Only indoor channels for configured country code will be available and operational.Outdoor: Only outdoor channels for configured country code will be available and operational.	Outdoor
PoE Output Enable power over Ethernet to an auxiliary device connected to PoE OUT port.
Dual 5 GHz radio Enable Dual 5 GHz radio.This parameter provides the flexibility of splitting 8x8 5 GHzradio into two 4x4 5 GHz radios.		- Disabled
LED When enabled, turns on the device LEDs during operation. -		Enabled
LLDP Advertises device capabilities and information in the L2 network.		- Enabled
Recommended Channel Distribution	Allows unique distribution of channels across radios multiple radios are configured with same frequencyNote: This option is available only as a CLI-based configuration. Use the channels-distribution command.	when enabled band.
Default Power Policy	Provision to configure current power policy.		- Sufficient
Power Force Type	Provision to configure power force type.		- None

Figure 4 The System page

Power over Ethernet (PoE) in

Enterprise Wi-Fi APs first attempt to detect the type and classification of the Power Source (PS) using standard hardware handshake and control logic. Some PS devices, like the Cambium PoE power injer are passive and cannot be detected by the AP. Therefore, the APs also use LLDP power negotiation

request a specific amount of PoE power from the PS. This feature in the Enterprise Wi-Fi APs is power request and it is enabled by default.

The following table lists the PoE power requirements for the Enterprise Wi-Fi APs:

Caution

Although APs may operate in accordance with the power requirements mentioned in the Hardware Power Requirement column, caution is advised as the results may be unexpected

Table 8 PoE power requirements for APs

Device PoE	Out Hardware	Power Requirement	Maximum Power Draw (Watts)	Minimum Power Required to boot (Watts)
XE3-4TN Yes	(Max 30W)	802.3at 64 15
XV2-2 No 8	02.3at 21 7.6
XV2-2T0 Yes	(Max 30W)	802.3at 51 13.3
XV2-2T1 Yes	(Max 30W)	802.3at 51 13.3
XV2-21X No	802.3af 12.95 8
XV2-22H Yes	(Max 10W)	802.3af 22.95 8
XV2-23T No	802.3af 12.95 8
XV3-8	No 802.3bt	35 22.9
XE3-4	No 802.3bt	32 15.6
XE5-8	No 802.3bt	60	32.9

Note

Accurate time on the AP is critical for features such as WLAN Scheduled

Access and !

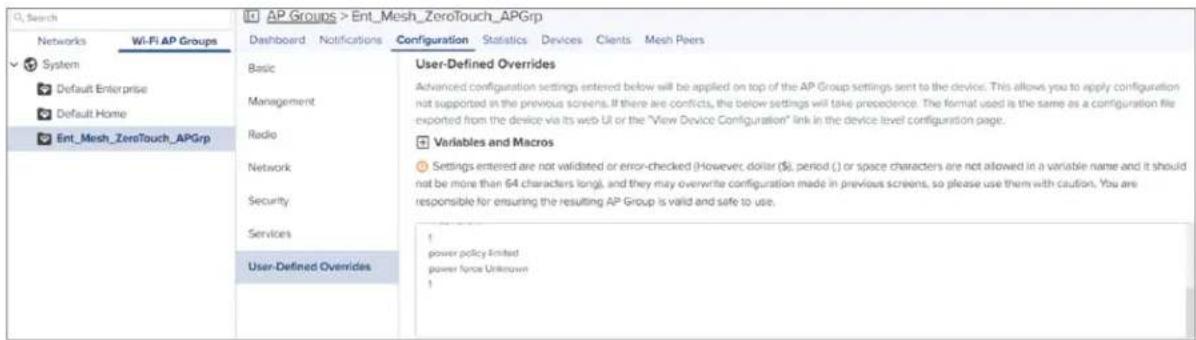

Figure 5 Power policy configuration

Table 9 lists the Cambium PoE injectors and cnMatrix models supported on the APs.

Table 9 Supported Cambium PoE Injectors and cnMatrix models

AP Model	Cambium PoE Injector cnMatrix	Recommended Model
XE3-4TN N000000L142A EX3028R-P / EX3052R-P		/ EX2016M-P
XV2-2 N000000L142A EX3028R-P / EX3052R-P		/ EX2016M-P
XV2-2T0 N000000L142A EX3028R-P / EX3052R-P		/ EX2016M-P
XV2-2T1 N000000L142A EX3028R-P / EX3052R-P		/ EX2016M-P
XV2-21X N000000L142A / N000000L034B / N000900L017A		EX3028R-P / EX3052R-P / EX2016M-P / EX2052-P / EX2052R-P / EX2028-P / P / EX1028-P / EX1010-P
XV2-22H N000000L142A / N000000L034B EX3028R-P / EX3052R-P / EX2016M-P / EX2052-P / EX2052R-P / EX2028-P / P / EX1028-P / EX1010-P		EX2010-
XV2-23T N000000L142A / N000000L034B / N000900L017A		EX3028R-P / EX3052R-P / EX2016M-P / EX2052-P / EX2052R-P / EX2028-P / P / EX1028-P / EX101O-P
XV3-8 N000000L142A EX3028R-P / EX3052R-P		/ EX2016M-P
XE3-4 N000000L142A EX3028R-P / EX3052R-P		/ EX2016M-P
XE5-8 N000000L142A EX3028R-P / EX3052R-P		/ EX2016M-P

Attention

Configure Power policy and power force type based on the input power source.

Power over Ethernet (PoE) Out port

PoE out provision is provided to power on devices that are compatible with IEEE 802.3 af/at PoE power consumption or Cambium 30V POE as shown in the below table.

Table 10 PoE-out capabilities

AP

Model

10W

48V

@

15W

48V

@

30W

30V

@

30W

Default

State

Figure 6 PoE Output cnMaestro configuration

Link Layer Discovery Protocol (LLDP)

LLDP is a Layer 2 network protocol used to share information, such as the device manufacturer, I network capabilities, and IP address with other directly connected network devices. APs can both act their presence by sending LLDP announcements and can also collect and display information sent by neighbors.

LLDP settings are enabled by default on the AP. This implies that the power negotiation is also LLDP when an AP is powered by a Power over Ethernet (PoE) PSE switch port.

This window allows you to establish your LLDP settings.

Power negotiation

LLDP discovers a device port (connected to a PoE PSE switch, for example) that supplies power t. The AP checks that the port can supply the maximum power that is required by the AP model. the required maximum power (in watts) via LLDP frames to the PoE source and expects the PoE reply with the amount of power that can be allocated.

• If the AP receives a response confirming that the power allocated by the PoE PSE source is greater than the maximum power requested, the AP enables radios and other Model Specific peripherals (for example, USB port, Bluetooth).

• If the AP receives a power allocation that is less than the maximum but more than the minimum to keep the radios operational, the AP issues a Syslog message and shuts down the other port (for example, USB port, Bluetooth).

• If the AP receives less than the minimum power required for the radios to operate, the radios down for five minutes. During this time, LLDP power negotiation continues to monitor the available power to ensure it meets the minimum requirement for the AP radios to function.

• Click to check power status: show power

This provides a more graceful way of handling an underpowered situation on a Wi-Fi device. When radios are turned off, XMS can notify you so that you don't have to hunt down an intermittent

CLI Configuration

Consider the following tasks to configure the CLI:

To enable:

ap(config)# lldp
ap(config)#

To disable:

ap(config)# no lldp
ap(config)#

To list LLDP configuration:

show lldp configuration
show lldp interfaces

Request power

To enable/disable power negotiation via LLDP:

ap(config)# lldp
request-power : Enable power negotiation (default:enabled)
tx-hold : Set transmit hold multiplier (default:4, used to calculate the time-to-live (tx-interval * tx-hold))
tx-interval : Set LLDP packet transmit delay (in Sec, default:30 sec)
ap(config)# lldp request-power
<ENTER>
ap(config)# lldp request-power

Transmit hold

It is used to compute the Time To Live (TTL) value. This is the time during which the receiving maintains information before the validity of information expires.

ap(config)# lldp
request-power : Enable power negotiation (default:enabled)
tx-hold : Set transmit hold multiplier (default:4, used to calculate the time-to-live (tx-interval * tx-hold))
tx-interval : Set LLDP packet transmit delay (in Sec, default:30 sec)
ap(config)# lldp tx-hold

Specify transmit hold multiplier value (max 65535)

Transmit interval

It is the time interval between two regular LLDP packets transmissions. The AP sends out LLDP announcements, advertising its presence at this interval. The default value is 120 seconds.

ap(config)# lldp

request-power : Enable power negotiation (default:enabled)

tx-hold : Set transmit hold multiplier (default:4, used to calculate the time-to-live (tx-interval * tx-hold))

tx-interval : Set LLDP packet transmit delay (in Sec, default:30 sec)

ap(config)# lldp tx-interval

Specify LLDP transmit delay in sec (max 65535)

Management

Administrator Access

To configure Administrator access parameters, complete the following steps:

1. Navigate to Configuration > Wi-Fi Profiles > AP Groups page.

2. Click Add New and select Enterprise Wi-Fi (E-Series, XE/XV/X7-Series) from the Type drop-down list.

3. Click Management tab > Administrator Access section.

Table 11 lists configurable fields that are displayed in the Administrator Access section.

Table 11 Administrator Access parameters

Parameter	Description Range Default
Admin Password	Password for authentication of UI and CLI sessions. - admin
Telnet Enables	Telenet access to the device CLI. - Disabled
SSH Enables	SSH access to the device CLI. - Enabled
SSH Key	Provision to login to device using SSH Keys. The user is disabled to add Public Key in this section. If configured, the user has to log to public key using Private Keys. This is applicable for both CLI and GUI.
HTTP	Enables HTTP access to the device UI.		- Enabled
HTTP Port	Provision to configure HTTP port number to access device UI.	1-65535	80
HTTPS	Enables HTTPS access to the device UI.		- Enabled
HTTPS Port	Provision to configure HTTPS port number to access device UI.	1-65535	443
RADIUS Mgmt Auth	User has provision to control login to AP using RADIUS- Disabled authentication. If enabled, every credential that is provided by the user undergo RADIUS authentication. If successful, allowed to login to UI of the device. This is applicable for both CLI and GUI.
RADIUS Server	Provision to configure RADIUS IPv4 server for Management Authentication.		-
RADIUS Secret	Provision to configure RADIUS shared secret for Management authentication.		-

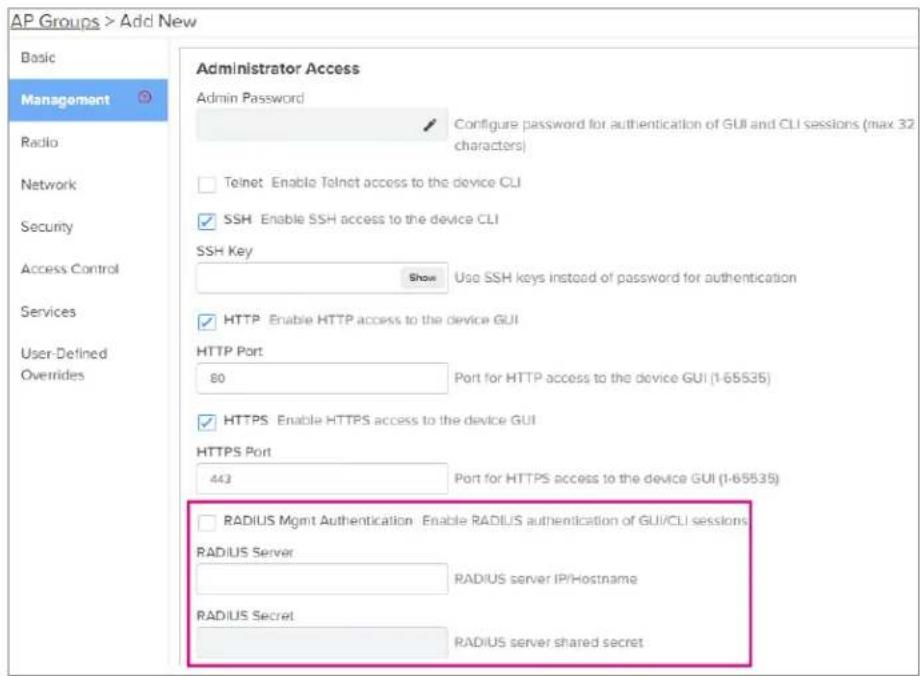

Figure 7 Administrator Access page

HTTPS Proxy server configuration

The proxy management service is established in the AP to proxy management of traffic for remote management services originating from the AP.

For zero-touch configuration, refer to DHCP Option 43 - Zero-touch onboarding.

CLI Configuration:

ap(config)# management proxy
https : Enable HTTPS proxy support
ap(config)# management proxy https
host : Configure HTTPS proxy host

password : Configure HTTPS proxy password
port : Configure HTTPS proxy port
username : Configure HTTPS proxy username

Time settings

Users can configure up to two NTP servers. These servers are used by the AP to set its intern respective time zones configured on the device. Upon turning on, the AP's clock resets to the de resynchronizes the time, as the Enterprise Wi-Fi AP does not have battery backup. The servers car specified as an IPv4 address or a hostname (for example, pool.ntp.org).

To configure time parameters, complete the following steps:

1. Navigate to Configuration >Wi-Fi Profiles >AP Groups page.

2. Click Add New and select Enterprise Wi-Fi (E-Series, XE/XV/X7-Series) from the Type drop-down list.

3. Click Management tab > Time Settings section.

Table 11 lists configurable fields that are displayed in the Time Settings section.

Table 12 Time Setting parameters

Parameter Description Range Default
Time zone The time zone can be set according to the location where the time zone is installed. Selecting the appropriate time zone from down list ensures that the device clock is synced with the clock time.	NoteAccurate time on the AP is critical for features such as WLAN Scheduled Access and Syslogs.		-AP
NTP Server 1	Name or IPv4 address of a Network Time Protocol	server 1.	- -
NTP Server 2	Name or IPv4 address of a Network Time Protocol	server 2.	-

Figure 8 Time setting page

Event logging

The Enterprise Wi-Fi AP devices support multiple troubleshooting methods. Event logging or Syslog is one of the standard troubleshooting processes. If you have a Syslog server in your network, you can enable it on an Enterprise Wi-Fi AP device. A maximum of two Syslog servers can be configured on an Enterprise Wi-Fi AP device. Events are sent to both configured Syslog servers if they are up and running.

To configure event logging, complete the following steps:

1. Navigate to Configuration > Wi-Fi Profiles > AP Groups page.
2. Click Add New and select Enterprise Wi-Fi (E-Series, XE/XV/X7-Series) from the Type drop-down list.
3. Click Management tab > Event Logging section.

Table 13 lists configurable fields that are displayed in the Event Logging section.

Table 13 Event logging parameters

Parameter	Description Range Default
Syslog Server 1	Hostname or IPv4 address of the Syslog server and respective port number.	-514
Syslog Server 2	Hostname or IPv4 address of the Syslog server and respective port number.	-514
Syslog Severity	Provision to configure severity of Logs that must be forwarded to the server. The Log levels supported are as per RFC.	-Debug

Figure 9 Event logging page

SNMP

To configure SNMP, complete the following steps:

1. Navigate to Configuration > Wi-Fi Profiles > AP Groups page.
2. Click Add New and select Enterprise Wi-Fi (E-Series, XE/XV/X7-Series) from the Type drop-down list.
3. Click Management tab > SNMP section.

Table 13 lists configurable fields that are displayed in the SNMP section.

Table 14 SNMP parameters

Parameter Description Range Default
Enable Provision	to enable SNMPv2 or SNMPv3 support on the device - -
SNMPv2c RO community	SNMP v2c read-only community string. - public
SNMPv2c RW community	SNMP v2c read-write community string. - private
Trap Receiver IP Provision to configure SNMP trap receiver IPv4 server. - -
SNMPv3 Username	Enter the username for SNMPv3. - -
SNMPv3 Password	Enter the password for SNMPv3. - -
Authentication Provision to choose the authentication type as MD5 or SHA. - MD5
Access	Provision to choose Access type as read-only or read-write.	-	RO
Encryption	Choose ON or OFF. APs use the AES algorithm for encryption.	-	ON

Note

The AP uses the AES algorithm for encryption. It uses the SNMPv3 password configuration parameter for encryption and authentication.

Figure 10 SNMP parameters

Configuring the Radio

This chapter describes the following topics:

• Overview
• Configuring Radio parameters
• BSS coloring
  • Target Wake Time (TWT)
• Receive sensitivity configuration

• Multicast-snooping and Multicast-to-Unicast conversion

Overview

Enterprise Wi-Fi AP devices support numerous configurable radio parameters to enhance the quality of service according to the deployment.

Configuring Radio parameters

The XV3-8 Tri-Band Indoor Wi-Fi 6 AP can operate in either Dual Band Simultaneous (DBS) or Sir Simultaneous (SBS). This feature provides the flexibility of splitting 5 GHz radio into two independent configurable and operational radios. In DBS mode, 5 GHz radio operates as single radio with an 8 configuration. In SBS mode, 5 GHz Radio operates as split radio with each 4x4 configuration. Confir parameters under the Radio profile are listed below.

• Basic
  • Software-Defined Radio (SDR) capabilities
  • Enhanced Roaming

Basic

To configure radio parameters, complete the following steps:

1. Navigate to Configuration > Wi-Fi Profiles > AP Groups page.
2. Click Add New and select Enterprise Wi-Fi (E-Series, XE/XV/X7-Series) from the Type drop-down list.
3. Click Radio tab > Basic section.
   Table 15 lists the configurable fields that are displayed in the Radio > Basic section.

Table 15 Configure Radio parameters

Parameter	Description Range Default
Radio
Enable Enables the operation of radio. - Enabled
Band Select the appropriate radio band, if the radio supports multiple bands.		-	-
Channel Select the channel from the drop-down list. Channels drop-down list are populated based on the country configured.		Wi-Fith 6/6E AP Auto2.4 GHz: 1-145 GHz: 36-1736 GHz: 1233	-
Channel Width	Specifies the channel widths for the operation. The following widths are supported:For 2.4 GHz: Only 20 MHz channel width is supported.For 5 GHz: 20 MHz, 40 MHz, 80 MHz, and channel widths are supported.For 6 GHz: 20 MHz, 40 MHz, 80 MHz, 160 widths are supported.		2.4 GHz: 20 MHz5 GHz: 40 MHz6 GHz: 80 MHz
Transmit Power	Total conducted transmit power, in decibel-milliwatt each radio based on coverage and SLA. The maximum transmit power of Enterprise Wi-Fi AP devices varies on model number.Details of transmit power supported by each Enterprise Wi-Fi AP device are available at https://www.cambiumnetworks.com/products/wifi/. Transmit power varies as per the country where the AP is The default value is AUTO, which means radio transmit power is configured to the maximum as per the configured.		Auto
Beacon Interval	Specifies the time duration (in milliseconds) between consecutive Beacons.	50two - 3400ms.	100
Minimum Unicast rate	Specifies the coverage area of the Enterprise Wi-Fi device. The higher the rate selected, the lesser You can configure this value based on the SLA deployment. The drop-down list contains all values advertised by Enterprise Wi-Fi AP devices, including legacy, HE, HT, and VHT rates.	Standard 802.11age and 802.11g data rates	1Mbps
Candidate Channels	Specifies selective channels based on user require Options vary based on a band of operation and follows:For 2.4 GHz:AllSpecificFor 5 GHz:AllSpecificPrefer Non-DFSPrefer DFSFor 6 GHz:AllSpecific	WiFi 6/6E APall are as• 2.4 GHz: 1-14• 5 GHz: 36-173• 6 GHz: 1-233	-
Mode All	Enterprise Wi-Fi AP devices support either 802.11ax, 802.11ac Wave 1, or 802.11ac Wave 2. Some legacy clients might not work as expected; therefore, this parameter can be tuned for backward compatibility based on wireless	WiFi 6/6E APall modeacy clients• 2.4 GHz: can be tuned for backward compatibility based on wireless• 5 GHz: a/n/ac/ax	-
Short Guard Interval	Standard 802.11 parameter to increase the throughput Enabled Enterprise Wi-Fi AP device.	Enabled
Off Channel Scan (OCS)
Enable Provision to enable OCS on a device to capture neighbor clients and APs.			-
Dwell-time	Configure the time period to spend scanning of Wi-Fi-30 devices on a channel.	WISU-30 devices
Auto-RF (Dynamic Power)
Enable Enable or disable dynamic power management. - -
Mode Select	the required dynamic power modes. Two modes supported:By-ChannelBy-Band	-ar By-	Channel
Minimum Transmit Power	The minimum transmit power that the AP can assist when adjusting automatic cell sizes	5g15 to Bmadi8	dBm
Minimum Neighbour Threshold	The minimum number of neighbors to consider for reduction by automatic cell logic.	1-10Power
Cellsize Overlap Threshold	Cell overlap will be allowed when the AP is determining automatic cell sizes.	0-100% 50% automatic cell sizes.
Auto-RF (Dynamic Channel)
Enable Enable or disable the Dynamic Channel auto-RF functionality.			Disa
Packet Error Rate	Enable channel change using unsuccessful packet transmissions by the AP.
Packet Error Rate Threshold	Specifies the packet error rate threshold in percentage (%). 10-90% 30
Number of Packet Error Rate samples	Specifies the number of packet error rate samples 1-12 needed to trigger a channel switch.	1-12 needed to trigger a channel switch.	40
Channel Utilization	Enable channel change using the channel efficiency.
Channel Utilization Threshold	Specifies the channel utilization threshold in percentage (%). 30-100% 70
Number of Channel Utilization samples	Specifies the number of channel utilization samples to trigger a channel switch.	5-300d100
Noise Enable channel change with higher noise.
Noise Threshold	Specifies the noise threshold in dBm. -70 to -90	dBm -70
Number of Noise samples	Specifies the number of noise samples needed to channel switch.	5-120g40a
Auto-RF Iterations	Specifies the number of times the Auto-RF channel function must run, at the configured frequency, before stopping.The iteration count resets when the AP restarts or when the radio resets.The default value is 0. It indicates that the Auto-RF channel change function will run at the frequency configured in either of the following parameters without stopping:Enable time range for Auto-RFChannel Hold TimeNoteWhen the AP exceeds the configured iteration count, the Dynamic Channel Selection (DCS) method of channel selection takes over.For more information on Auto-RF, see Auto-RF.
Samples Specificities the minimum number of samples required to 1-20n 3 the channel selection.
Enable time range for Auto-RF	Specifies the time range (in the 24 hour format) Auto-RF channel change function must run everyday.When enabled, select the start and end time.	at which the
Channel Hold Time	Specifies the time (in minutes) for which the AP channel.	must 1-4320 the minutes for APs running version 6.6.0.1 and later• 1-4320 minutes for APs running versions earlier than 6.6.0.1.	1440

To configure Auto-RF (Dynamic Channel) using the CLI, execute the following commands:

ap(config-radio-1)# auto-rf dynamic-channel
acceptance-per-threshold : Configure Acceptance Packet Error Rate (PER) threshold
channel-hold-time : specifies how much time AP needs to hold the channel. Default is 1440 mins
cmbnbr-minsnr : Configure the cambium neighbour minimum SNR to consider as part of autorf cambium neighbour factor
congestion-channel-switch : Enable / Disable Congestion based channel switch, disabled by default
congestion-threshold : Configure Congestion threshold
count : Configure number of times autorf need to run; '0' disables this feature
dcs-monitor-interval : Configure dcs monitor interval in minutes.
dcs-trigger-threshold : Configure dcs trigger threshold percentage
per-channel-switch : Enable / Disable PER based channel switch, disabled by default
samples : Configure the minimum number of samples required to run the channel selection
schedule-time : Configure time range (24 hour format) at which autorf algorithm need to run everyday
weightage-map-index : Configure weightage map index

To configure Auto-RF (Dynamic Power) using the CLI, execute the following commands:

ap(config-radio-1)# auto-rf dynamic-power
cellsize-overlap-threshold : Cell overlap that will be allowed when the AP is determining automatic cell sizes
maximum-transmit-power : Maximum transmit power that the AP can assign to a radio when adjusting automatic cell sizes
minimum-neighbor-threshold : The Minimum number of neighbors to consider for power reduction by autocell logic
minimum-transmit-power : Minimum transmit power that the AP can assign to a radio when adjusting automatic cell sizes
mode : Set dynamic power mode by-channel/by-band

Figure 11 Radio parameters in the Basic page

Figure 12 Channel Scan - Off Channel Scan option

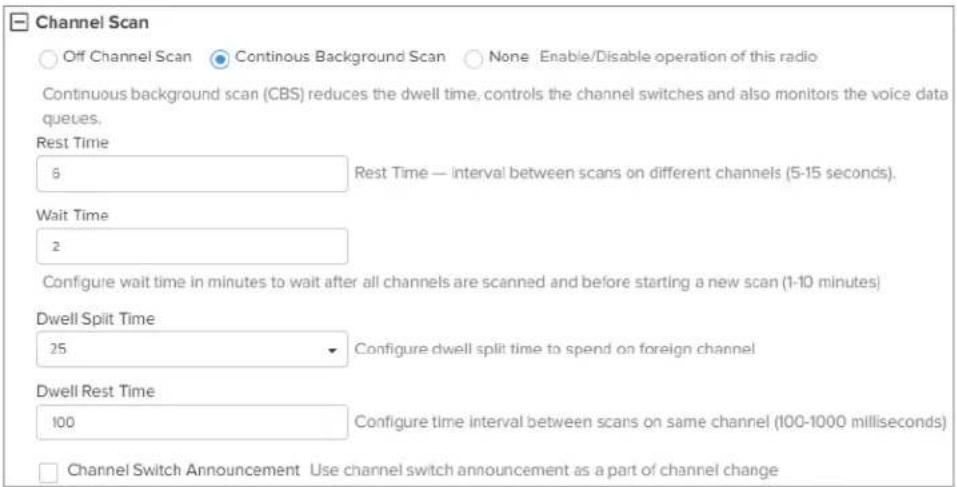

Figure 13 Channel Scan - Continuous Background Scan option

Figure 14 Auto-RF - Dynamic Channel

Figure 15 Auto-RF - Dynamic Power

Software-Defined Radio (SDR) capabilities

Note

• In XV3-8, radio 3 is available only in the SBS mode.
- In XE5-8, radio 5 is available only in the SBS mode.

Table 16 Supported radios

Access Point Model	Radio 1 (2.4 GHz)	Radio 2 Radio 3 Radio 4				(5 GHz)	Radio 5 (5 GHz)
XV3-8	√	√(DBS)		√(SBS)
XV2-2	√	√
XV2-2T0	√	√
XV2-2T1	√	√
XE3-4	√ √	√ √
XE3-4TN	√ √	√ √
XE5-8	√ √	√ √ √	√			(DBS)	√(SBS)

GHz 6 GI

Access Point Model	Radio 1 (2.4 GHz)	Radio 2 Radio 3 Radio 4				(5 GHz)	Radio 5 (5 GHz)
XV2-21X	√	√
XV2-23T	√	√
XV2-22H	√	√

GHz 6 GI

Table 17 Factory reset behavior of multi-radio APs

Access Point Model	Radio 1 (2.4 GHz)	Radio 2 Radio		3 Radio 4		(5 GHz)	Radio 5(5 GHz)
XV3-8	ON	ON	NA	OFF	NA	-	-
XE3-4	ON	ON	NA	OFF	ON	-	-
XE3-4TN	ON	ON	NA	OFF	ON	-	-
XE5-8	ON	ON	OFF	OFF	ON	ON4x4 SBS	ON4x4 SBS

GHz 6 GI

The Radio page allows the user to enable or disable the Software-Defined Radio (SDR) operations. It allows to configure Software Defined Radios, Basic, Enhanced Roaming, Off Channel Scan, Auto-RF, and External Antennas.

Note

The software-defined radio creation and channel listing are populated based on the country-specific restrictions, device type, and release version.

Software-Defined Radio

Software-Defined Radio (SDR) allows you to configure radio parameters for XV3-8, XE3-4, XE3-4TN, and XE5-8 device models. By default these device models are configured for radio bands as shown in the above

figure. The other radio bands for which the devices can be configured are as shown in Table 18
Table 18 Supported Radio bands for Enterprise Wi-Fi Series (XE, XV-Series)

Models	Radios Supported	Radio Bands	Channel Specification
			Channel width	Default Channel width	Supported channel list
XV3-8	Radio 1 2.4 GHz	20/40 20 1 to 13
	Radio 2 5	GHz (8x8 - single radio) or 5 GHz(Split 4x4 dual radio)	20 / 40	/ 80 40	100 to 36 to 165165 in in 8x8 - Split 4x4 single dual radio
	Radio 3 20	/ 40 / 80 40	36 to 64		in Split4x4 dualradio
XE3-4	Radio 1 2.4 GHz	20/40 20 1 to 13
	Radio 2	5 GHz	20 / 40	/ 80 40	36 to 64
	Radio 3	5 GHz	20 / 40/ 160	/ 480	100 to 165
		6 GHz		160	Any 6 GHz channel
XE3-4TN	Radio 1	2.4 GHz	20/40	20	1 to 13
	Radio 2	5 GHz	20 / 40 / 80	40	36 to 64
	Radio 3	5 GHz	20 / 40/ 160	/ 480	100 to 165
		6 GHz		160	Any 6 GHz channel
XE5-8	Radio 1 2.4	GHz 20/40 20	1 to 13
	Radio 2	5 GHz or 6	GHz 20/ 160	/ 24080** 80	Refer to Table 19 for supported channel list in 5 GHz and 6 GHz.
	Radio 3	5 GHz or 6	GHz 20/ 160	/ 24080** 80
	Radio 4 5	GHz (8x8 - single radio) or 5 GHz(Split 4x4 dual radio)	20 / 40/ 160	/ 80 20
	Radio 5 20
* 5 GHz **6 GHz

Note:

Split 4x4 is applicable only for 8x8 spatial streams supported devices. (Supported dev models are XV3-8 and XE5-8).

Dual 5 GHz Radio (Only supported for XV3-8 and XE5-8 Access Points) Splits 8x8 radio into two 4x4 5 GHz radios.

Table 19 Supported Channel list 5 GHz or 6 GHz in XE5-8

Radio Index Radio 1 Radio				radio 2 Radio 3 Radio			4	Radio 5
8x8 mode of operation: Radio 4 & 5 as single radio with 8x8
Radio 2	Radio 3	Radio 4 and 5
5 GHz	5 GHz 5	GHz NA 100 to		128 149	to 165 36 channel	to 64
6 GHz	5 GHz 5	GHz NA Any		6 GHz		100 to 165 channel	5	36 to 64
5 GHz	6 GHz 5	GHz NA 100 to		165 Any	6 GHz		36 to 64
6 GHz	6 GHz 5	GHz NA * 1		to 93	** 97 to	233 / 65 to	36 to 165 93
Split 4x4 mode of operation: Radio 4 and 5 as individual radio with 4x4
Radio 2	Radio 3	Radio 4	Radio	5
5 GHz	5 GHz	5 GHz	5 GHz	NA	60 to 64	100 to 128	149 to 165	36 to 40
6 GHz	5 GHz	5 GHz	5 GHz	NA	Any 6 GHz channel	100 to 128	8 149 165	to 36 to 64
5 GHz	6 GHz	5 GHz	5 GHz	NA	100 to 128	Any 6 GHz channel	149 to 165	36 to 64
6 GHz	6 GHz	5 GHz	5 GHz	NA	* 1 to 93	** 97 to 233	100 to 165	36 to 64
Note: *FCC SKU 6GHz UNII-5 or 6 (1 - 93) EU SKU UNII-5 low (1 - 61)**FCC SKU 6GHz UNII-7 or 8 (97 - 233) EU SKU UNII-5 High (65 - 93)

Note

You can use the no channels-distribution global configuration CLI command for all multi-radio platforms, such as XE3-4, XE3-4TN, and XE5-8 APs. When configured on device, default channel list can be overridden.

Off Channel Scan (OCS)

The following figure illustrates how to configure Off Channel Scan using the CLI:

ap(config)# wireless radio 2
ap(config-radio-2)# off-channel-scan

dwell-time : Configure Off-Channel-Scan dwelltime
interval : Configure Off-Channel-Scan interval
type : Configure active/passive Off-Channel-Scan

ap(config-radio-2)# off-channel-scan type
active : active off channel scan
passive : passive off channel scan

Table 20 lists the fields that are required for configuring Off Channel Scan:

Table 20 Configuring Off Channel Scan

Parameter	Description Range Default
dwell time	Provision to configure Off Channel Scan dwell time. Need 100 or more than 100+ ms for supporting passive scan	50-300ch method.	50ges

Enhanced Roaming

Table 21 lists configurable fields that are displayed in the Radio > Enhanced Roaming tab.
Table 21 Configuring Radio >Enhanced Roaming parameters

Parameter	Description Range Default
Enhanced Roaming
Enable Provision to enable enhanced roaming on device. - Disabled
Roam SNR threshold	Enterprise Wi-Fi AP device triggers de-authentication of the 10-wiredB station when the wireless station is seen at configured below.	SNR level or

BSS Coloring

Multiple APs operate on a shared channel by mitigating co-channel interference. This is achieved that spatial reuse technique known as BSS Coloring, which enables devices in one BSS to ignore frame other BSSs on the same channel that are typically some distance away.

Target Wake Time (TWT)

The Target Wake Time (TWT) feature, included in the IEEE 802.11ax amendment, provides a mechan schedule transmissions at a specific time or set of times for individual STAs to wake to exchange AP. Using TWT, each STA negotiates awake periods with the AP to transmit and receive data packet allowing the STA to go to doze mode to minimize energy consumption and reduce contention with basic service set (BSS).

Note

By default, BSS coloring and TWT are enabled.

Receive sensitivity configuration

This feature allows users to configure the receiver sensitivity per radio. The configuration hooks are exposed from both CLI and XMS-Cloud. cnMaestro does not expose any hooks for configuring receiver configuration. Receiver configuration determines the signal power required at the receiver to achieve targeted or configured bit rate. Every RF receiver comes with a default sensitivity, which may not sufficient for achieving the required RF performance in terms of meeting the bit rate. Therefore, reconfiguration of receiver sensitivity is suggested.

Multicast-snooping and Multicast-to-Unicast conversion

Multicast-to-Unicast conversion heavily depends on multicast (IGMP) snooping. With IGMP snooping enabled, the device monitors IGMP traffic on the network and forwards multicast traffic to only the downstream interfaces that are connected to interested receivers. The device conserves bandwidth by sending multicast traffic only to clients connected to devices that receive the traffic (instead of floor traffic to all the downstream clients in a VLAN).

The functionality to preserve both multicast and unicast MAC addresses during multicast enhancement implementation for packets in APs is introduced. The AP supports Directed Multicast Services (DMS) Multicast Enhancement (ME). ME is a feature provided in APs that allows multicast frames to be set unicast frames to each member of the mentioned multicast group to improve the QoS of the transaction between the STA and the AP. The multicast frame is received at the host WLAN driver as an 8 frame. This frame header contains the destination and source address, which are the multicast group address and client address, respectively. Iteratively, the Ethernet header is replaced with the unicast addresses of the clients present in the multicast group and sent out to the “air”. During this process, multicast group address is completely lost from the frame.

CLI Configuration:

----Bridge Snooping Hash Table -- IPv4----
NUM	GROUP	FDB	PORT	AGE
IPv4	Router Ports: None
----Bridge Snooping Hash Table -- IPv6----
NUM	GROUP	FDB	PORT	AGE
IPv6	Router Ports: None
XV3-8-EC7708(config)# service show mcastsnoop br0 acltbl
IGMP ACL TABLE:
	PATTEN 01:224.000.000.001/255.255.255.255 - 00:00:00:00:00:00:00:00:00:00:00:00 -- SYSTEM WIDE MANAGEMENT
	PATTEN 02:224.000.000.000/255.255.000.000 - 00:00:00:00:00:00:00:00:00:00:00:00:00 -- MANAGEMENT
	PATTEN 03:239.255.000.000/255.255.000.000 - 00:00:00:00:00:00:00:00:00:00:00:00 -- MANAGEMENT
	PATTEN 04:239.255.255.250/255.255.255.255 - 00:00:00:00:00:00:00:00:00:00:00:00 -- NON SNOOPING
	PATTEN 05:224.000.000.251/255.255.255.255 - 00:00:00:00:00:00:00:00:00:00:00:00 -- NON SNOOPING
	PATTEN 06:224.009.252/255.255.255.255 - 01:16:36:36:36:36:36:36:36:36:36:36:36:36:36:36:36:36:36:36:36:36:36:36:36:36:36:36:36:36:36:36:36:36:36:37MULD ACL TABLE : PATTEN 11:ffo1;11:11;11:11;11:11;11:11;11:11;11:11;11:11;11:11;11:11;11:11;11:11;11:11;11:11;11:11;11:11;11:11;11:11;12MILD ACL TABLE : PATTEN 12::ffo2;12::ffo2;12::ffo2;12::ffo2;12::ffo2;12::ffo2;12::ffo2;12::ffo2;12::ffo2;12::ffo2;12::ffo2;12::ffo2;12::ffo2;12::ffo2;12::ffo2;13MILD ACL TABLE : PATTEN 13::ffo3;13::ffo3;13::ffo3;13::ffo3;13::ffo3;13::ffo3;13::ffo3;13::ffo3;13::ffo3;13::ffo3;13::ffo3;14MILD ACL TABLE : PATTEN 14::ffo4;14::ffo4;14::ffo4;14::ffo4;14::ffo4;14::ffo4;14::ffo4;14::ffo4;14::ffo4;14::ffo4;14::ffo4;14::ffo4; 14MILD ACL TABLE : PATTEN 15::ffo5;15::ffo5;15::ffo5;15::ffo5;15::ffo5;15::ffo5;15::ffo5;15::ffo5; 15MILD ACL TABLE : PATTEN 16::ffo6;16::ffo6;16::ffo6;16::ffo6;16::ffo6; 16MILD ACL TABLE : PATTEN 17::ffo7; 17::ffo7; 17::ffo7; 17::ffo7; 17::ffo7; 17::ffo7; 17::ffo7; 17::ffo7; 17::ffo7; 17::ffo7; 17::ffo7; 18MILD ACL TABLE : PATTEN 18::ffo8; 18::ffo8; 18::ffo8; 18::ffo8; 18::ffo8; 18::ffo8; 18::ffo8; 18::ffo8; 18::ffo8; 18::ffo8; 18::ffo8; 18MILD ACL TABLE : PATTEN 19::ffo9; 19::ffo9; 19::ffo9; 19::ffo9; 19::ffo9; 19::ffo9; 19::ffo9; 19::ffo9; 19::ffo9; 19--NON SNOOPING PATTEN 20::ffo9; 20::ffo9; 20::ffo9; 20::ffo9; 20--NON SNOOPING PATTEN 21::ffo9; 21--NON SNOOPING PATTEN 22:-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9- PATTEN 23:-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO PATTEN 24:-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO PATTEN 25:-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO PATTEN 26:-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO PATTEN 27:-FFO9-FFO9-FFO9-FFO9-FFO9-FFO9-FFO PATTEN 28:-FFO9-FFO9-FFO9-FFO PATTEN 29:-FFO9-FFO9-FFO PATTEN 3D:-FFO9-FFO PATTEN 3E:-FFO9-FFO PATTEN 3F:-FFO8 PATTEN 4D:-FFO8 PATTEN 4E:-FFO8 PATTEN 4F:-FFO8 PATTEN 4G:-FFO8 PATTEN 4H:-FFO8 PATTEN 4I:-FFO8 PATTEN 4J:-FFO8 PATTEN 4K:-FFO8 PATTEN 4L:-FFO8 PATTEN 4M:-FFO8 PATTEN 4N:-FFO8 PATTEN 5D:-FFO8 PATTEN 5E:-FFO8 PATTEN 5F:-FFO8 PATTEN 6D:-FFO8 PATTEN 6E:-FFO8 PATTEN 7D:-FFO8 PATTEN 7E:-FFO8 PATTEN 8D:-FFO8 PATTEN 8E:-FFO8 PATTEN 8F:-FFO8 PATTEN 8H:-FFO8 PATTEN 8I:-FFO8 PATTEN 8J:-FFO8 PATTEN 8K:-FFO8 PATTEN 8L:-FFF PATTEN 8M:-FIFCST PATTEN 8N:-FIFCST PATTEN 8U:-FIFCST PATTEN 8V:-FIFCST PATTEN 8W:-FIFCST PATTEN 8X:-FIFCST PATTEN 8Y:-FIFCST PATTEN 8Z:-FIFCST PATTEN 8A:-FIFCST PATTEN 8B:-FIFCST PATTEN 8C:-FIFCST PATTEN 8D:-FIFCST PATTEN 8E:-FIFCST PATTEN 8F:-FIFCST PATTEN 8H:-FIFCST PATTEN 8I:-FIFCST PATTEN 8J:-FIFCST PATTEN 8K:-FIFCST PATTEN 8L:-FIFCST PATTEN 8M:-FIFCST PATTEN 8N:-FIFCST PATTEN 8U:-FIFCST PATTEN 8V:-FIFCST PATTEN 8W:-FIFCST PATTEN 8X:-FIFCST PATTEN 8Y:-FIFCST PATTEN 8Z:-FIFCST PATTLEN - FIFCST - FIFCST - FIFCST - FIFCST - FIFCST - FIFCST - FIFCST - FIFCST - FIFCST - FIFCST - FIFCST - FIFCST - FIFCST - FIFCST - FIFCST - FIFCST - FIFCST - FIFCST - FIFCST - FIFCST - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCPT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCCT - FIFCFT - FIFCFT - FIFCFT - FIFCFT - FIFCFT - FIFCFT - FIFCFT - FIFCFT - FIFCFT - FIFCFT - FIFCFT - FIFCFT - FIFCFT - FIFCFT - FIFCFT - FIFCFT - FIFCFT - FIFCFT - FIFCFT - FIFcFT - FIFcFT - FIFcFT - FIFcFT - FIFcFT - FIFcFT - FIFcFT - FIFcFT - FIFcFT - FIFcFT - FIFcFT - FIFcFT - FIFcFT - FIFcFT - FIFcFT - FIFcFT - FIFcFT - FIFcFT - FIFcFT - FIFTaFT = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) =(IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) = (IP) < img src="boxf"">< img src="boxf">< img src="boxf">< img src="boxf">< img src="boxf">< img src="boxf">< img src="boxf">< img src="boxf">< img src="boxf">< img src="boxf">< img src="boxf">< img src="boxf">< img src="boxf">< img src="boxf">< img src="boxf">< img src="boxf"> < img src="boxf"> < img src="boxf"> < img src="boxf"> < img src="boxf"> < img src="boxf"> < img src="boxf"> < img src="boxf"> < img src="boxf"> < img src="boxf"> < img src="boxf"> < img src="boxf"> < img src="boxf"> < img src="boxf"> < img src="boxf"> < img rct="boxf"> < boxrct="boxf"> < boxrct="boxf"> < boxrct="boxf"> < boxrct="boxf"> < boxrct="boxf"> < boxrct="boxf"> < boxrct="boxf"> < boxrct="boxf"> < boxrct="boxf"> < boxrct="boxf"> < boxrct="boxf"> < boxrct="boxf"> < boxrct="box f"> < boxrct="box f"> < boxrct="box f"> < boxrct="box f"> < boxrct="box f"> < boxrct="box f"> < boxrct="box f"> < boxrct="box f"> < boxrct="box f"> < boxrct="box f"> < boxrct="box f"> < boxrct="box f"> < boxrct="box f"> < box rct="box f"> < box rct="box f"> < box rct="box f"> < box rct="box f"> < box rct="box f"> < box rct="box f"> < box rct="box f"> < box rct="box f"> < box rct="box f"> < box rct="box f"> < box rct="box f"> < box rct="box f"> < box rct="box l"> < box rct="box l"> < box rct="box l"> < box rct="box l"> < box rct="box l"> < box rct="box l"> < box rct="box l"> < box rct="box l"> < box rct="box l"> < box rct="box l"> < box rct="box l"> < box rct="box l"> < box rct="box l"> < box lct="box l"> < box lct="box l"> < box lct="box l"> < box lct="box l"> < box lct="box l"> < box lct="box l"> < box lct="box l"> < box lct="box l"> < box lct="box l"> < box lct="box l"> < box lct="box l"> < box lct="box l"> < box lct="boxl">

ap(config)# multicast-snoop
ap(config)# no multicast-snoop
ap(config)# save
ap(config)# wireless radio 1
ap(config-radio-1)# multicast-to-unicast
ap(config-radio-1)# multicast-to-unicast mode 802.3
ap(config-radio-1)# multicast-to-unicast mode amsdu
ap(config-radio-1)# multicast-to-unicast exclude-list 224.0.0.1
ap(config-radio-1)# show wireless radios multicast-to-unicast

====================

RADIO BAND MC2UC MC2UC-MODE EXCLUDE-LIST

====================

radio1 2.4GHz NO amsdu
radio2 5GHz YES amsdu
ap(config-radio-1)#

Auto-RF

This topic contains the following sections:

• Overview
  • Dynamic Channel
  • Dynamic Power

• Auto-RF
- Configuring Dynamic Channel
- Configuring Dynamic Power
• Recommended Configuration

Overview

Auto-RF allows APs to obtain various RF statistics and utilize them to provide wireless clients with environment by choosing the proper channel and transmitting power to each radio. This results in application performance and improved quality of calls for the end user.

Auto-RF consists of the following two functionalities:

• Dynamic Channel—Enables radios to choose the best channel both at device turn on and subsequently if the channel or RF conditions change.
• Dynamic Power—Aids radios in determining the proper transmit power to deal with coverage gaps and reduce RF interference.

Dynamic Channel

Channel selection by APs can involve any of the following methods:

• Auto Channel Selection (ACS)
• Dynamic Channel Selection (DCS)

Auto Channel Selection (ACS)

Auto-RF runs independently on each device in a deployment. You can enable the feature in all the (2.4 GHz, 5 GHz, and 6 GHz (if AP supports). In 2.4 GHz, channels 1, 6, and 11 are considered selection. AP continuously executes the Continuous Background Scan (CBS) to collect samples and fe them to the ACS to choose the best channel based on the channel score. The packet queue is the RF is monitored continuously to ensure that high priority traffic is delivered before starting the is performed so that the device avoids background scan while voice and video traffic is transmitted scan is split into multiple slots to avoid diverting from the operating channel for a longer duration affect the performance of the AP.

Dynamic Channel Selection (DCS)

If the environment has lot of Wi-Fi interference or high packet error rate, Dynamic Channel Selectic takes over and initiates Packet Error Rate (PER) and Channel Utilization (CU) based channel switch. The AP monitors the error rate and Wi-Fi interference to see whether the threshold is crossed to channel switch. The AP sends the channel switch announcement in a beacon before any channel ch occurs.

Dynamic Power

In multi-AP deployments, APs must automatically determine the cell size (coverage area), that is, increase transmit power to ensure the following:

• There are no coverage gaps—Increase transmit power
• There is no interference because of overlapping APs. Overlapping of APs creates interference and clients roam between multiple APs if they see more than one AP with a good transmit power Decrease transmit power

Packets and scan results from CBS are parsed and neighbor entries are created which contains data their transmission power and their neighbors. Periodically this data is processed and categorized to how neighbors have seen their SNR.

Auto-RF behavior on device turn on

When the AP turns on the first time, it performs an initial scan (for about 0-300 seconds) to se operating channel. During this scan, CBS collects samples. The AP remains on the selected channel one of the following scenarios occur:

• channel hold time expires
- configuration changes
- the radio restarts

After the hold time expires, the AP reinitiates the Automatic Channel Selection (ACS) algorithm to r and choose a new channel based on collected samples. If the current channel still has the highest retained. In cases of configuration changes or radio restarts, the collected samples are reset, but h data remains, allowing CBS to automatically collect fresh samples.

Configuring Dynamic Channel

Dynamic channel configuration is achieved by the following methods:

• ACS method
• DCS method

ACS method

In the ACS method, to enable auto-RF Dynamic Channel in the cnMaestro UI, complete the followir

1. Go to Configuration > Wi-Fi Profiles > AP Groups page.
2. Click Add New.
3. Associate an existing WLAN and configure other AP group parameters.

4. Click Radio on the left menu.

5. In the required radio band tab, expand the Auto-RF section.

6. In the Dynamic Channel tab, select the Enable check box.

Once Auto-RF Dynamic Channel is enabled, ACS runs at regular intervals based on the Samples and Channel Hold Time, or the Enable time range for Auto-RF configuration parameters. For information on these parameters, see Configuring the Radio.

DCS method

DCS configuration helps in avoiding instances when there is a spike in packet error rate (PER) or Busy. The following are the default configuration parameters and their values:

• DCS trigger threshold—80%

CLI command—auto-rf dynamic-channel dcs-trigger-threshold

• DCS monitor interval—10 minutes

CLI command—auto-rf dynamic-channel dcs-monitor-interval

Both these parameters are available only as CLI commands that you can configure in the AP Groups > User Overrides section in cnMaestro.

Consider a scenario where the device detects that the PER or Congestion threshold is exceeded for period in a day. If the threshold breach occurred because of a spike in PER or Congestion, the change the channel. You can avoid this scenario by configuring the DCS threshold and monitor into. When configured, the AP switches to a different channel if the PER or Congestion threshold is broken continuously for the DCS duration and if the percentage of the breach exceeds the DCS threshold. enabled if either Channel Utilization (CU) or Packet Error Rate (PER) parameter is enabled.

Packet Error Rate (PER)

Consider a scenario where an AP must switch channels if the PER is more than 30% in a 10 mi. The AP monitors the PER, and if it exceeds 30% (default threshold) for 80% of the samples in a interval, it will initiate a channel switch. However, when the PER threshold is breached, other config such as sampling, channel hold time, and intervals are overridden. With the default DCS threshold

interval configured, Auto-RF manages the channel switch when the above conditions are met. Hence, AP changes channels if the PER remains consistently high (above 30%) for most of a 10-minute period

Packet Error Rate Threshold
30	Configure packet error rate threshold in %(10-90)
Number of Packet Error Rate samples
40	Configure number of packet error rate samples, needed to trigger a channel switch (1-120)

Congestion channel switch

Consider a scenario where an AP must switch channels if the channel utilization exceeds a threshold (default) in a 10-minute interval. The AP monitors channel utilization, and if it exceeds 70% (default for 80% of the samples in a 10-minute interval, it will initiate a channel switch. However, when the threshold is breached, other configurations, such as sampling, channel hold time, and intervals are overridden. With the default DCS threshold and interval configured, Auto-RF will handle the channel when the above conditions are met. Hence, the AP changes channels if channel utilization remains consistently high (above 70%) for most of a 10-minute period.

Configuring Dynamic Power

To enable auto-RF Dynamic Power in the cnMaestro UI, complete the following steps:

1. Go to Configuration > Wi-Fi Profiles > AP Groups page.
2. Click Add New.
3. Associate an existing WLAN and configure other AP group parameters.
4. Click Radio on the left menu.
5. In the required radio band tab, expand the Auto-RF section.
6. In the Dynamic Power tab, select the Enable check box.

Dynamic Power can be configured in the following two modes:

- By-Band: Considers neighbor APs across all channels of same band for operating Auto-RF dynam transmit power.

This is the default option in the Dynamic Power configuration.

- By-Channel: Considers only operating channel neighbor APs (that also within the same AP group) for operating Auto-RF dynamic transmit power.

When Auto-RF Dynamic Power is enabled, by default, CBS runs in the background with a 50% ov threshold between APs. The default minimum transmit power is set to 8 dBm. The dynamic-power cannot reduce the transmit power below this level, even if there is overlap in AP signals. The Minimum

Neighbor Threshold parameter defines the minimum number of neighboring APs required to enable dynamic power selection.

With Auto-RF Dynamic Power enabled, the system manages transmit power while maintaining a minimum level and considering AP overlap and neighbor requirements.

Recommended Configuration

For Auto-RF feature to function correctly, the following configuration is recommended:

• Basic section
  • Channel Scan section

Basic section

Configure the following parameters in the Radio > Basic section with the recommended values:

• Channel—Auto
  • Transmit Power—Auto
• Channel Width—20, 40, 80, or 160 MHz based on the deployment
  • Candidates Channel—All.

If you want to restrict the APs to operate on specific channels, you must configure the required channels.

Channel Scan section

Configure the following parameters in the Radio > Channel Scan section with the recommended values:

• Select the Continuous Background Scan (CBS) option—Selected by default.
• Wait Time in minutes
  • Rest Time, Dwell Split Time, and Dwell Rest Time in milliseconds
• Select the Channel Switch Announcement check box to enable the AP to send notifications before any channel change.

Configuring the Wireless LAN

This chapter describes the following topics:

• Overview
• Configuring the WLAN parameters
• Link Aggregation Control Protocol (LACP)
• RADIUS attributes
  • Enterprise PSK (ePSK)
• Configuring ePSKs
  ePSK registration for WPA3 clients
• Creating a Personal Wi-Fi ePSK
  • RADIUS-based ePSK

Overview

Enterprise Wi-Fi AP devices support up to 16 unique WLANs. Each of these WLANs can be config the customer requirement and type of wireless station.

Configuring the WLAN parameters

To configure WLAN parameters, complete the following steps:

1. Navigate to Configuration > Wi-Fi Profiles > WLANs page.

2. Click Add and select Enterprise Wi-Fi from the Type drop-down list.

Following are the configurable parameters under the WLAN profile:

• Basic
• Radius Server
• Guest Access
• Internal Access Point
  External Hotspot
  。 cnMaestro

• Usage Limits

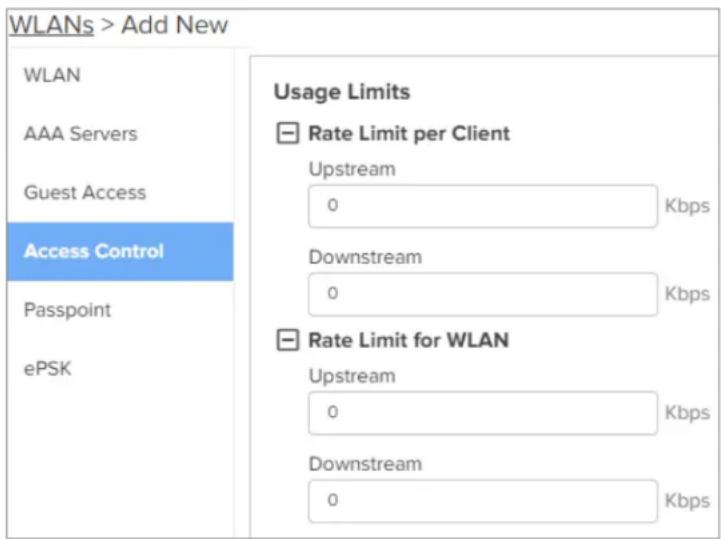

• Scheduled Access

• Access
• Passport

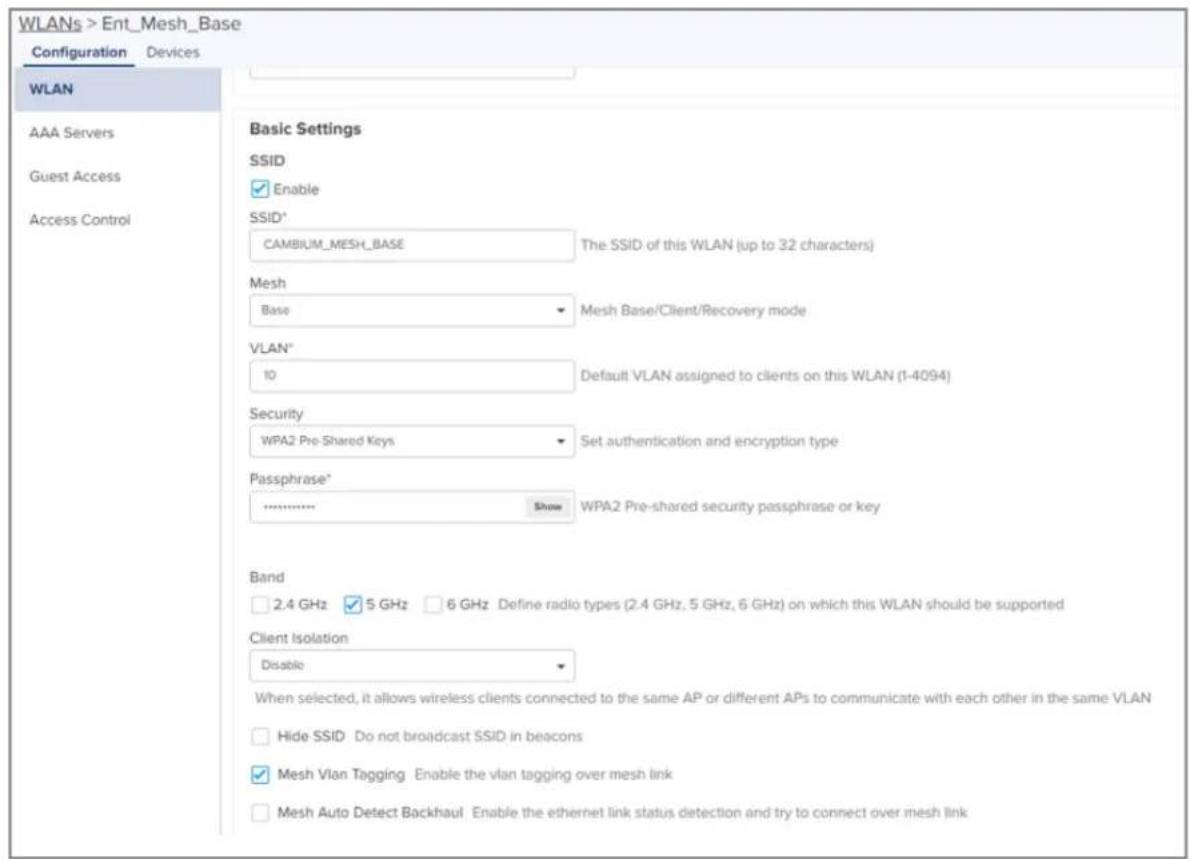

Basic

Table 22 lists configurable fields that are displayed in the WLANs > Basic Settings section.
Table 22 Basic parameters

Parameters	Description Range Default
WLAN > Basic Settings
Enable Enables a WLAN profile. Once enabled, a Beacon is broadcasted with the SSID and the corresponding parameters configured in WLAN profile.		casted in	- a
SSID Unique	network name that wireless stations scan and associate. - -
Mesh This	parameter is required when a WDS connection is established with Enterprise Wi-Fi devices. This parameter supports following options:Base:A WLAN profile configured with a mesh-base will operate as a normal AP. Its radio will beacon on startup SSID can be seen by radios configured as mesh-clients.Client:A WLAN profile configured with mesh-client will scan all available channels on startup, looking for a mesh-base to connect.Recovery:WLAN profile configured as mesh-recovery will broadcast a pre-configured SSID upon detection of mesh link failure after a successful connection. This needs to be exclusively configured on a mesh-base device. Mesh client will auto scan for mesh-recovery SSID upon failure of mesh link.Off:Mesh support disabled on WLAN profile.		(Access Profile Mode) so its AP
VLAN Segregates wireless station traffic from AP traffic in the network Wireless stations obtain an IP address from the subnet configured in the VLAN field of the WLAN profile.		1094	1
Security	Determines key values that are encrypted based on the algorithm. Following security methods are supported:Open

Parameters	Description Range Default
	This method is preferred when Layer 2 authentication is built into the network. With this configured on an Enterprise Wi-Fi AP device, any wireless station will be able to connect.OWEThis method ensures the communication between each pair of endpoints is protected from other endpoints.OsenThis method is extensively used when Passport 2.0 is enabled on Enterprise Wi-Fi AP devices. If Passport 2.0 is disabled, this security plays no role in wireless station association.>WPA2-Pre-Shared KeysThis mode is supported with AES and TKIP encryption. WPA-TKIP can be enabled from the CLI with the allow-tkip CLI option.WPA2 EnterpriseThis security type uses 802.1x authentication to associate wireless stations. This is a centralized system of authentication methods.WPA2/WPA3 Pre-shared KeysWPA3 comes with a transition mode where WPA2-only capable clients can connect to SSID. WPA2-only capable clients connect using the older PSK method while WPA3 capable clients connect using a more secure Simultaneous Authentication of Equals (SAE) method.WPA3 Pre-shared KeysWPA3 replaces the Pre-Shared Key (PSK) exchange with SAE of Equals, which is more secure and provides forward-secrecy as well as resistance to offline dictionary attack.NoteWhen you select WPA2/WPA3 Pre-sharedKeys or WPA3 Pre-shared Keys, you can enable registration flow for WPA3 clients.To enable the registration flow, you must create an ePSK passphrase and follow the procedure for the clients to undergo the registration flow. For more information, see ePSK registration for WPA3 clients.
	WPA3 EnterpriseWPA3 also introduces Enterprise AES CCMP encryption. This level of security provides consistent cryptography and eliminates the mixing and matching of security protocols that are defined in the 802.11 standards.WPA3 Enterprise CNSAWPA3 also introduces a 192-bit cryptographic security suite. This level of security provides consistent cryptography and eliminates the mixing and matching of security protocols that are defined in the 802.11 standards. This security suite is aligned with the recommendations from the Commercial National Security Algorithm (CNSA) Suite and is commonly used in high-security Wi-Fi networks in government, defense, Finance, and industrial verticals.User Pre-shared keysThe U-PSK (User-PSK) Authentication settings are only used in conjunction with XMS Cloud's EasyPass Onboarding Portals. The Cloud automatically configures this setting for an WLAN when you create an Onboarding portal and you assign that WLAN to the portal. Thus, you should not normally change this setting manually. Note that the User-PSK settings are only available on the WLAN profile.
Band Each	SSID can be configured to be transmitted as per the deployment requirement. For a regular access profile, options are available to configure transmit mode of SSID:2.4 GHz5 GHz6 GHz		- all
Client Isolation	Enable this feature when there is a need for restriction of wireless station-to-station communication across the network or on an AP.NoteFor client isolation to work correctly, it is recommended that clients obtain their IP addresses through DHCP.You must manually update the default gateway addresses in the IP configuration of clients that are using static IP addresses.If the gateway MAC address changes due to hardware replacement or any other reason, you must restart the AP for the AP to learn the new gateway MAC address and to make sure the client isolation functions correctly.The following options are available to configure based on requirement:DisableThis option when selected disables the client isolation feature. i.e. any wireless station can communicate to other wireless stations.LocalThis options when selected enable the client isolation feature. This option prevents wireless station communications connected to the same AP.Network WideThis options when selected enable the client isolation feature. It prevents wireless stations communications connected to different AP deployed in the same L2 network.NoteNetwork-wide mode is not supported when Redundancy Gateway protocol is used on deployment.In the Redundancy Gateway case, Network-wide static can be used to provide a list of Gateway MAC addresses.Network Wide Static		L2 network.
	This option when configured enables client isolation across the network. Wireless stations can communicate only to statically added MAC list. Communication to rest other MAC addresses are blocked. NoteWhen Network Wide and Network Wide are selected, the user has the provision to add the whitelist MAC addresses to allow the communication. A maximum of 64 MAC addresses can be added.		feature Static to add	-
cnMaestro Managed Roaming	Provision to enable centralized management of roaming wireless clients through cnMaestro.		- for	-
Hide SSID	This is the basic security mode of a Wi-Fi device. This disabler when enabled, will not broadcast SSID.		Disabler	-
Session Timeout	This field applies to all wireless clients connected to When a wireless station connects, a session timer is Once session time expires, the wireless station must either re-authentication or re-association based on the the wireless station. By default, it is enabled. NoteFollowing priority takes precedence for the timeout:a. Configured from the RADIUS serverb. Configured from the AP		0e SSID.28800 triggered. undergo state of session	28800
Inactivity Timeout	Inactivity timer triggers whenever there is no communication between Enterprise Wi-Fi AP device and wireless station associated to Enterprise Wi-Fi AP device. Once the timer reaches the configured Inactivity timeout value, APs send a de-authentication to that wireless station. By default, it is enabled. - NoteFollowing priority takes precedence for the timeout:a. Configured from the RADIUS serverb. Configured from the AP		on 28800 timer reaches enabled.inactivity	1800

Figure 16 Basic parameters

Table 23 WLAN (Max clients) parameters

Number of clients	2.4 GHz 5	GHz 6 GHz	Concurrent
XV3-8 512 1024* NA	1536
XE5-8 512 1024* 10	24** 2560
XV2-2 512 512 NA	1024
XV2-2T0 512 512 NA	1024
XV2-2T1 512 512 NA	1024
XE3-4 512 512 512	1536
XE3-4TN	512 512 512	1536
XV2-21X	128 128 NA	256
XV2-23T	128 128 NA	256
XV2-22H	128 128 NA	256
e410/e430 and e510	256	256	NA 256
e600 and e700	512 512	NA 512

* Two 5 GHz radios are available in Single Band Simultaneous (SBS) mode.

** Two 6 GHz radios are available in XE5-8 platform.

Maximum wireless client

At present, the WLAN profile provides an option to configure the maximum wireless clients associati. This configuration limits the maximum number of clients per SSID per radio. For example, if a use the maximum wireless client as 10, on a device capable of 2.4 GHz and 5 GHz radios, the total clients that can be associated is 10 across each radio. This has been enhanced in Release 6.5 t maximum clients limit per SSID irrespective of the number of radios to which SSID has been map

Maximum clients per device

Most customers commonly use more than a single SSID. They prefer to set the maximum number clients connection per device, i.e. irrespective of the number of WLAN profiles and the number of maximum number of clients that can be associated is equivalent to the value configured for the p max-clients. This is a global configuration.

CLI configuration:

ap(config)# max-clients
0|<1-1536> '0' disables max client per device

Maximum clients per SSID

This option helps to limit the number of wireless clients connected to a WLAN profile (SSID) irresp the number of radios. This configuration is supported at the WLAN level. This can be enabled as

CLI configuration:

ap(config)# wireless wlan 1
ap(config-wlan-1)# enforce-max-clients-per-ssid

Maximum clients per SSID per radio

This is the default configuration of the device. This configuration limits the maximum number of clie SSID per radio. For example, if a user configures the maximum wireless client as 20, on a device 2.4 GHz and 5 GHz radios, the total number of clients that can be associated is 20 across each configuration is supported at the WLAN level.

CLI configuration:

ap(config)# wireless wlan 1
ap(config-wlan-1)# max-associated-clients
<1-1536>

The default priority order can be:

1. Per device (Global limit)
2. Per SSID and (enforce at SSID level)
3. Per SSID per radio basis (present default option)

To keep backward compatibility with the existing deployments, the default option can be Per SSID basis.

Opportunistic Wireless Encryption (OWE)

OWE is a Wi-Fi standard, which ensures that the communication between each pair of endpoints is protected from other endpoints. The OWE transition mode allows OWE-capable STAs to access the in OWE authentication mode. The OWE transition mode is implemented as follows:

You must create two WLANs on an AP.

For example,

1. WLAN-1:

open authentication

owe-transition-ssid: Provides WLAN-2 owe security SSID

2. WLAN-2:

owe authentication

owe-transition-ssid: Provides WLAN-1 open security SSID

CLI configuration:

ap(config-wlan-1)# owe-transition-ssid
owe-transition-ssid : Configure the matching open/owe transition ssid

Note

The OWE transition mode SSIDs do not apply to 6 GHz radios.

Table 24 Advanced parameters

Parameters	Description Range Default
WLAN > Advanced

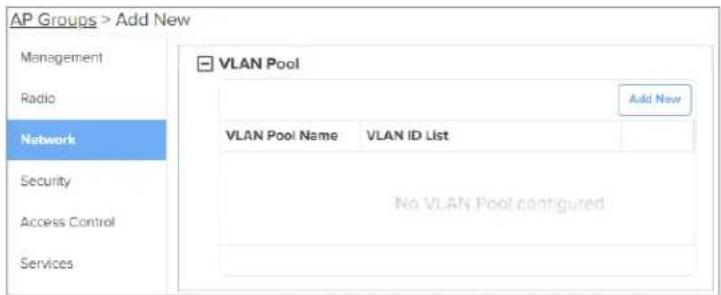

VLAN Pooling	This parameter is required when a user requires to distribute across multiple subnets. Different modes of VLAN pooling is supported by Enterprise Wi-Fi AP devices, based on infrastructure available at the deployment site. Modes supported are Disabled	Disabilities infrastructure as follows:
	This feature is disabled for this WLAN.• Radius BasedThe user is expected to configure WPA2 Enterprise mode to support. During the association phase, AP pool name from RADIUS transaction and based on distribution of wireless station across VLANs, AP selects appropriate VLAN and wireless station requests an IP address from the VLAN selected by Enterprise Wi-Fi AP device.• StaticFor this mode to support, the user requires to configure Pool details available under Configure > Network > VLAN pool. During the association phase, AP obtains pool, and based on the present distribution of wireless station across VLANs, AP selects appropriate VLAN and wireless station requests an IPv4 address from the VLAN selected by the Enterprise Wi-Fi AP device.	for this obtains the present	VLAN
Max Clients	This specifies the maximum number of wireless stations associated with a WLAN profile. This varies based on Wi-Fi AP device model number. Refer to Table 23 for [512] (ReferEnterprise)	1-56e	256e
UAPSD When	enabled, Enterprise Wi-Fi AP devices support WMM Power/Disabled Save / UAPSD. This is required where applications such as VOIP Calls, Live Video streaming are in use. This feature helps to prioritize traffic. Below is the default traffic priority followed by Enterprise Wi-Fi AP device.	the	the
QBSS When	enabled, appends QBSS IE in Management frames. This - IEDisabled provides information on channel usage by AP, so that wireless stations can decide better AP for connectivity. count, Channel utilization, and Available admission capacity information available in this IE.	smart Station are the	disabled
DTIM interval	This parameter plays a key role when power save supported mobile stations are part of the infrastructure. This field enabled controls the transmission of Broadcast and Multicast frames.	suppted when
Monitored Host
Host This feature is required where there is an interrupted backbone network. Enterprise Wi-Fi AP device monitors the reachability of hostname/IP configured in this parameter and modifies the state of WLAN.		Disabled	of
Interval The frequency of monitoring the network health based on status of the keep-alive mechanism w.r.t configured monitorsec.		300
Attempts The number of packets in the keep-alive mechanism to determine the status.		2011
DNS Logging Host	By enabling this feature, the Administrator can monitor websites accessed by wireless stations connected to WLAN profile.		the Disabled
Connection Logging Host	When enabled provides information of all IP connections by a wireless station that is associated with WLAN and logs the connection data seamlessly onto an external syslog server.		accessible
Band Steering	This feature when enabled steers wireless stations to connect 5GHz. There are three modes supported by Enterprise devices. The mode can be selected based on either wireless station type. Below is the order of modes, which forces the wireless station to connect to the 5 GHz band.LowNormalAggressive		connectedWi-Fi deployment or
Proxy ARP	Provision to avoid ARP flood in a wireless network. When Enabled, AP responds to ARP requests for the wireless stations that AP. This is for IPv4 infrastructure.		connected to
Proxy ND When enabled, AP responds to IPv6 Neighbor Discovery (ND) requests for the wireless stations connected to that AP.
Unicast DHCP	Provision to transmit DHCP offer and ACK/NACK packets- enabled Unicast packets to wireless stations.		Enabled
Insert DHCP Option 82	When enabled, DHCP packets generated from wireless parameters. that are associated with APs are appended with Option 82 options and Remote ID. Following parameters can be selected Circuit ID and Remote ID:HostnameAP MACBSSIDSSIDVLAN IDSITEIDCustomAll[ c8cx ]NoteIn case DHCP Option 82 is configured at the device-, WLAN profile-, and L3 interface-levels, the following priority order is considered:Device-level configurationWLAN profile-level configurationL3 interface-level configuration	stationDisabled Circuit ID in both
Tunnel Mode	This option is enabled when user traffic is tunneled to network either using L2TP or L2GRE.	to Disabled DMZ
Fast-Roaming Protocol	One of the important aspects to support voice applications in Wi-Fi network (apart from QoS) is how quickly a client can move its connection from one AP to another. This should be less than 150 ms to avoid any call drop. This is easily achievable when the WPA2-PSK security mechanism is in use. However, in enterprise environments, there is a need for more robust security (the one provided by WPA2-Enterprise). With WPA2-Enterprise, the client exchanges multiple frames with the AAA server, and hence depending on the location of the AAA server the roaming time will be above 700 ms.Select any one of the following:OKCThis roaming method is a Cambium Networks proprietary solution to share the client authentication information with other Cambium Networks APs on the same network by sending encrypted information on wire on SSID VLAN. This information sharing does not require cnMaestro so even in cases where AP is not connected to cloud, the roaming will be seamless.802.11rFast transition (FT) is an IEEE standard to permit continuous connectivity aboard wireless devices in motion, with fast and secure client transitions from one Basic Service Set (abbreviated BSS, and also known as a base station or more colloquially, an access point) to another, performed in a nearly seamless manner. The terms handoff and roaming are often used, although 802.11 transition is not a true handoff/roaming process in the cellular sense, where the process is coordinated by the base station and is generally uninterrupted.	Disabled Wi-Fi network (apart from QoS) is how quickly a client can move its connection from one AP to another. This should be less than 150 ms to avoid any call drop. This is easily achievable when the WPA2-PSK security mechanism is in use. However, in enterprise environments, there is a need for more robust security (the one provided by WPA2-Enterprise). With WPA2-Enterprise, the client exchanges multiple frames with the AAA Server, and hence depending on the location of the AAA server the roaming time will be above 700 ms.	150
RRM (802.11k)	AP sends the SSID name of the neighbor APs (SSID-Disfected on multiple APs) to 802.11k clients.The following parameter must be enabled:Enable RRM
802.11v Provision to enable 802.11v BSS Transition Management. - Disabled
PMF(802.11w)	802.11w also termed as Protected Management Frames (PMF)Service, defines encryption for management frames. Unencrypted management frames make wireless connection vulnerable attacks as well as they cannot protect important information exchanged using management frames from eavesdroppers
SA QueryRetry Time	The legitimate 802.11w client must respond with a Security 100-500 Association (SA) Query Response frame within a pre-defined amount of time (milliseconds) called the SA Query Retry time.		100ms
Association ComebackTime	This value is included in the Association Response as an Association Comeback Time information element. AP will deny association for the configured interval.	1-20 1	Sec

Figure 17 Advanced parameters

Band steering also supports client load balancing based on the below CLI configuration:

ap(config)# wireless wlan 1
ap(config-wlan-1)# band-steer-load-balancing
client-counts : client counts for band steer to consider clients load balancing
client-percentage : Client percentage for band steer to consider clients load balancing

WLAN VLAN allowed list

This is an optional CLI to configure the allowed VLAN list upfront. It is needed in multiple VLAN such as Dynamic VLAN, ePSK-based VLAN, and RADIUS VLAN.

CLI configuration:

ap(config)# wireless wlan 1
ap(config-wlan-1)# vlans-allowed
(vlan_list) <e.g 1-10,15,100>
ap(config-wlan-1)# vlans-allowed 1-10

ICMPv6 Router advertisement (RA) unicast conversion

Convert ICMPv6 RA Multicast packets to Unicast for all stations. ICMPv6 RA unicast conversion is r multiple VLAN scenarios such as Dynamic VLAN, ePSK-based VLAN, and RADIUS-based VLANs.

This CLI configuration allows to configure the VLANs where ICMPv6 RA unicast conversion is neede

CLI configuration:

ap(config)# wireless wlan 1
ap(config-wlan-1)# ipv6-router-advertisement-unicast
vlans : Configure vlans where IPV6 Router Advertisement unicast conversion needed
ap(config-wlan-1)# ipv6-router-advertisement-unicast vlans
{vlan_list} <e.g 1-10,15,100>
ap(config-wlan-1)# ipv6-router-advertisement-unicast vlans 1-10

802.11k/v

802.11k

Radio Resource Measurement (RRM) defines and exposes radio and network information to facilitate t management and maintenance of a wireless network. 802.11k is intended to improve the way traffic distributed within the network.

The client can request a neighbor report from the AP using the neighbor_report_req management in The client may request neighbors with matching SSID or request for all neighbors in the vicinity. The AP

collects the neighbor information using proprietary methods and provides the list of neighbors to the in the neighbor_report_rsp message.

802.11v

802.11v is deployed on the APs to govern the wireless networking transmission methods. It allows us and APs to exchange information regarding the network topology, and RF environment. This facilitates wireless devices to be RF-aware for participating in network-assisted power savings and network-assisted roaming methods.

The client may send solicited BSS Transition Management messages to AP before making roaming decisions. The idea is to identify the best APs to roam. The AP, after receiving the message from expected to respond with the best APs in the vicinity to assist the client in roaming. The neighbor information is collected using proprietary methods.

RADIUS server

To configure a RADIUS server, complete the following steps:

1. Navigate to Configuration > Wi-Fi Profiles WLAN tab, select Radius Server tab and provide the details as given in Table 25:

Table 25 RADIUS Server parameters

Parameters Description Range Default
Authentication Server	Provision to configure RADIUS Authentication server such as Hostname/IPv4, Shared Secret, Port Number Realm. A maximum of three RADIUS servers can be configured.NoteThe Realm parameter can be left blank, you would like to use this server only usernames where the network domain is included.For example, [e-mail] or/ , the realms @cambium.com and /, and this server will be selected only if the has the appropriate realm.	detDisabled and unless for certain username
Accounting Server	Provision to configure Accounting server details such - aDisabled Hostname/IPv4, Shared Secret, Port Number. A maximum of three RADIUS servers can be configured.	- aDisabled 3
Timeout This field indicates wait time period for a response from AAA server.		1-80e 3
Attempts Parameter to configure many attempts that a device should be 1 send AAA request to server if no response is received within the configured timeout period.
Accounting Mode	This field is enabled based on customer requirements. Disabled accounting packet is transmitted based on the mode selected.Start-StopAccounting packets are transmitted by AP to the AAA server when a wireless station is connected and then disconnects.Start-Interim-StopAccounting packets are transmitted by AP to the AAA server when a wireless station connects and then at regular intervals of configured Interim Update Interval and then when it disconnects.NoneThe accounting mode will be disabled.
Accounting Packet	When enabled, Accounting-On is sent for every client Disabled connected.
Sync Accounting Records	Provision to configure accounting records to be synced across neighboring APs.
Server Pool Mode	Users can configure multiple Authorization and Accounting Failover servers. Based on a number of wireless stations, the user can choose Failover mode.Load Balance—AP communicates with multiple servers and ensures that authorization and accounting are equally shared across configured servers.Failover—AP selects the RADIUS server which is up and running based on the order of configuration.
NAS-Identifier	This is a configurable parameter and is appended in the hostname/RADIUS request packet.		System Name
Dynamic Authorization	This option is required, where there is CoA request Disabled AAA/RADIUS server.
Dynamic VLAN	When enabled, AP honors the VLAN information provided by the RADIUS transaction. Wireless station requests IP from the same VLAN learned through RADIUS.	Eable address
Called Station ID	The following information can be communicated to RADIUS server:AP-MACAP-MAC: SITE-NAMEAP-MAC: SSIDAP-MAC: SSID-SITE-NAMEAP-NAMEAP-NAME: SITE-NAMEAP-NAME: SSIDSITE-NAMESSIDCUSTOM	the AP-MAC: SSID

Figure 18 The RADIUS Server parameters

Proxy Through Controller

cnMaestro On-Premises can act as a proxy server for a AAA request coming from Enterprise Wi-Fi Points. In this scenario, cnMaestro acts as Network Access Server (NAS) for the AAA server.

The AP sends AAA packets to cnMaestro On-Premises, and cnMaestro forwards them to the AAA s When the Proxy Through Controller feature is enabled, CoA is supported other than AAA requests.

CLI configuration:

ap(config-wlan-1)# radius-server through-controller

Note: Applicable only with On-Premises controller

For activating Proxy Through Controller feature in cnMaestro On-Premises:

1. Go to Administration > Settings.
2. Enable RADIUS Proxy checkbox as shown in below figure.

Figure 19 RADIUS proxy

EAP-FAST support

EAP-FAST authentication occurs in two phases. In the first phase, EAP-FAST employs the TLS hands provide an authenticated key exchange and to establish a protected tunnel. Once the tunnel is est the second phase begins with the peer and server engaging in further conversations to establish the required authentication and authorization policies.

Guest Access

Internal Access Point

Below table lists configurable fields that are displayed in the WLANs > Guest Access > Internal Access Point page.

Table 26 Internal Access Point parameters

Parameters Description Range Default
WLAN > Guest Access > Internal Access Point

Parameters Description Range Default
Enable Enables	the Guest Access feature. - Disabled
Access Policy	There are four types of access types provided user:1. ClickthroughThis mode allows the users to get access data without any authentication mechanism. User can access the internet as soon as he is connected and accepts Terms and Conditions2. RADIUSThis mode when selected, the user has to provide a username and password, which is then redirected to the RADIUS server authentication. If successful, the user is provided with data access.3. Local Guest AccountUsers must configure username and password on the device, which has to be provided on the redirection page for successful authentication and data access.	Clickthrough
Redirect Mode	This option helps the user to configure the HTTPS mode of redirection URL.1. HTTPAP sends an HTTP POSTURL to the associated client, in the http://format.2. HTTPSPA sends HTTPS POSTURL to the success associated client, in the https://format.	HTTP
Redirect Hostname	Users can configure a friendly hostname, which is added to the DNS server and is resolvable to Enterprise Wi-Fi AP IP address. This parameter once configured will be replaced with an IP address in the redirection URL provided to wireless stations.		-

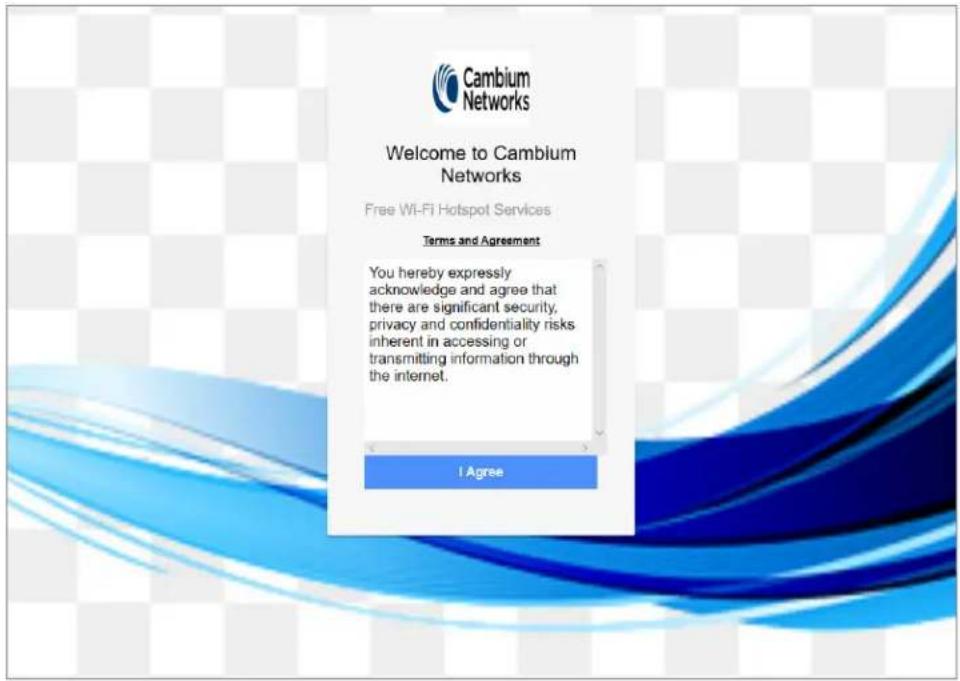

Title Users can	configure a Title to the splash page.Configured text in this parameter will be displayed in the redirection page. This text is usually Bold.	Up to 255 characters	Welcome To Cambium Powered Hotspot
Contents Users	can configure the contents of the Splash page using this field. Displays the text configured under the title section of the redirection page.	Up to 255 characters	Enter username and password to get Web Access
Terms Splash	page displays the text configured when the user accepts the Terms and Agreement.	up to 255 characters	-
Logo Displays	the logo image updated in URL http (s)://logo.png. Either PNG or JPEG format of the logo is supported.	-	-
Background Image	Displays the background image updated in URL - http (s)://backgroundimage.png. Either PNG or JPEG format of the logo is supported.	-	-
Success Action	Provision to configure redirection URL after successful login to captive portal services. Users can configure three modes of redirection URL:1. Internal Logout PageAfter successful login, the wireless client is redirected to the logout page hosted on AP.2. Redirect user to External URLHere users will be redirected to the URL which is configured on the device in Redirection URL configurable parameter.3. Redirect user to Original URLHere users will be redirected to the URL that is accessed by the user before successful captive portal authentication.	Logout page
Redirect user External URL	Provision to configure re-direction URL after successful login and additional information of AP and wireless station information can be appended in the URLPREFIX Query Strings in Redirect URLThis option is selected by default. The following information is appended in the redirection URL:SSIDAP MACNAS IDAP IPClient MACRedirection URLUsers can provide either HTTP or HTTPS URL	-
Redirection user to Original URL	Users will be redirected to the URL that is accessed by the user before successful captive portal authentication.There are additional parameter Prefix Query Strings in Redirection URL that is enabled by default and details given below:Prefix Query Strings in Redirect URLThis option is selected by default. The following information is appended in the redirection URL:SSIDAP MACNAS ID		-
Success message	Provision to configure the text to display upon - successful Guest Access authentication. This is applicable only when Success Action mode is Logout Page.	Internal	-
Redirect	If enabled, only HTTP URLs will be redirected, enabled the Guest Access login page.If disabled, both HTTP and HTTPS URLs will be redirected to the Guest Access login page.
Redirect User Page	IPv4 address configured in this field is used URL for Guest Access sessions.	as 1log but
Proxy Redirection Port	The proxy port can be configured with which server is enabled. This allows URLs accessedport to be redirected to the login page.	1proxy65535 with proxy	-
Session Timeout	This is the duration of time, the client will access the internet if quota persists, after which sends de-authentication. The wireless station has to undergo Guest Access authentication after session timeout.NoteFollowing priority takes precedence for the session timeout:a. Configured from the RADIUS serverb. Configured from the AP	60- allowed2592000	28800
Inactivity Timeout	Provision to configure timeout period to disconnect wireless stations that are associated but have traffic. AP starts a timer when there is no data received from a wireless station and disconnects when reaches zero.NoteFollowing priority takes precedence for the inactivity timeout:a. Configured from the RADIUS serverb. Configured from the AP	60-2592000data received the timer	1800
MAC Authentication Fallback	It is a mechanism in which wireless stations redirected to the Guest Access login page after any supported type of MAC address authentication	will Disabled fails.
Whitelist Provision	on to configure either IPv4 or URLs to bypass-traffic, therefore user can access those IPs or without Guest Access authentication.	URLs	-

Figure 20 The Internal Access Point parameters

External Hotspot

Below table lists the configurable fields that are displayed in the WLANs > Guest Access > External Hotspot tab.

Table 27 External Hotspot parameters

Parameters Description Range Default
WLAN > Guest Access > External Hotspot
Access Policy There are four types of access types provided end user:1. ClickthroughThis mode allows users to get access data without any authentication mechanism. The user can access the internet as soon as he is connected accepts the Terms and Conditions.	for Clickthroughand

Parameters Description	Range Default
	2. RADIUSThe user has to provide a username and password, which is then redirected to a RADIUS server for authentication. If successful, the user is provided with data access.3. Local Guest AccountThe user has to configure username and password on the device, which has to be provided on the redirection page for successful authentication and data access.
Redirect Mode Provision to configure the HTTP or HTTPS mode http redirection URL.1. HTTPAP sends an HTTP POSTURL to the associated client, in the http://format.2. HTTPSAP sends an HTTPS POSTURL to the associated client, in the http://format.
Redirect Hostname	Users can configure a friendly hostname, which is added to the DNS server and is resolvable to Enterprise Wi-Fi AP IP address. This parameter once configured will be replaced with an IP address in the redirection URL provided to wireless stations.	-
External Page URL	Users can configure a landing/login page that is posted to wireless stations that are not Guest Access authenticated.	-
External Portal Post Through cnMaestro	This is required when HTTPS is only supported disabled external guest access portal. This option when enabled minimizes certification. The certificate is required to install only in cnMaestro On-Premises.	-
External Portal Type	Enterprise Wi-Fi AP products are supported by standard mode configuration.• StandardThis mode is selected, for all third-party vendors whose Guest Access services are certified and integrated with Enterprise Wi-Fi AP products.	-
Success Action Provision to configure redirection URL after successful login to captive portal services. User can configure three modes of redirection URL:1. Internal Logout PageAfter successful login, the wireless client is redirected to the logout page hosted on AP.2. Redirect user to External URLHere users will be redirected to the URL which is configured on a device in Redirection URL configurable parameter.3. Redirect user to Original URLHere users will be redirected to a URL that is accessed by the user before successful portal authentication.	- Internal User can	-	Logout Page
Redirect user to External URL	Provision to configure re-direction URL after successful login and additional information of wireless station information can be appended URL.- Prefix Query Strings in Redirect URLThis option is selected by default. The following information is appended in the redirection URL:○ SSID○ AP MAC○ NAS ID○ AP IP○ Client MAC○ RedirectionURL○ Users can provide either HTTP or HTTPS URLs.	-AP and in the	-
Redirection user to Original URL	Users will be redirected to the URL that is- accessed by the user before successful captive portal authentication. There are additional parameter Prefix Query Strings in Redirection URL that is enabled by default and details given below:Prefix Query Strings in Redirect URLThis option is selected by default. The following information is appended in the redirection URL:SSIDAP MACNAS IDAP IPClient MAC	-
Success message	Provision to configure the text to display upon successful Guest Access authentication. This is applicable only when Success Action mode is Internal Logout Page.		-
Redirection URLQuery String	The following information is appended in the- Disabled redirection URL, if Prefix Query Strings in URL is enabled.Client IPRSSIAP Location	Redirect
Redirect •	If enabled, only HTTP URLs will be redirected Enable the Guest Access login page.If disabled, both HTTP and HTTPS URLs will be redirected to the Guest Access login page.
Redirect User Page	The IP address configured in this field is - used as logout/disconnect/redirect to captive portal URL for Guest Access sessions. The IP address configured should not be reachable to the internet.	-
Proxy Redirection Port	The proxy port can be configured with which -pr6535 server is enabled. This allows URLs accessed with proxy port to be redirected to the login page.	-

Parameters Description	Range Default
Session Timeout	This is the duration of time, the client will to access the internet if quota persists, after sends de-authentication. The wireless station undergo Guest Access authentication after session timeout.	NoteFollowing priority takes precedence for the session timeout:a. Configured from the RADIUSb. Configured from the AP	60 - allowed2592000 APhas to sessionserver	28800
Inactivity Timeout	Provision to configure timeout period to disconnect wireless stations that are associated but have traffic. AP starts a timer when there is no received from a wireless station and disconnects when the timer reaches zero.	NoteFollowing priority takes precedence for the inactivity timeout:a. Configured from the RADIUSb. Configured from the AP	60ect2592000 data data server	1800
MAC Authentication Fallback	It is a mechanism in which wireless stations- w/lsabled redirected to the Guest Access login page supported type of MAC address authentication failures.		- w/lsabled after any failures.
Extend Interface P	Provision to support the Guest Access on the Ethernet interface.		- Disabled

Figure 21 External Hotspot parameters

cnMaestro

The following table lists configurable fields that are displayed in the WLANs > Guest Access > cnMaestro page:

Table 28 The cnMaestro parameters

Parameters	Description Range Default
WLAN > Guest Access > cnMaestro
Guest Portal Name	Provision to configure the name of the Guest Access which is hosted on CnMaestro.		-profile	-
Redirect •	If enabled, only HTTP URLs will be redirected to Access login page.If disabled, both HTTP and HTTPS URLs will be Guest Access login page.		- then ignored redirected to	-
Redirect User Page	The IP address configured in this field is used as Guest Access sessions. The IP address configured should be not		a-log but URL for not	-
	reachable to the internet.
Proxy Redirection Port	The proxy port can be configured with which proxy enabled. This allows URLs accessed with proxy port redirected to the login page.		server65535 to be	-
Inactivity Timeout	Provision to configure timeout period to disconnect wireless stations that are associated but have no data traffic. 25920000s timer when there is no data received from a wireless station disconnects when the timer reaches zero.		1800a and
	NoteFollowing priority takes precedence for the inactivity timeout:a. Configured from the RADIUS serverb. Configured from the AP
Whitelist Provision to configure either IPs or URLs to bypass traffic, such that user can access those IPs or URLs without Guest Access authentication.			-

Figure 22 cnMaestro parameters

Usage Limits

Below table lists configurable fields that are displayed in the WLANs > Access Control > Usage Limits section.

Table 29 Usage Limits parameters

Parameters	Description Range Default
Rate Limit Client	Provision to limit throughput per client. Default allowed – 0 throughput per client is unlimited. i.e., maximum allowed by 802.11 protocols. The traffic from/to each client on an rate-limited in either direction by configuring the client available in usage limits inside the WLAN Configuration. This is useful in deployments like public hotspots where the limited and the network administrator would like to ensure that one client does not monopolize all available bandwidth.	- 0 SSID can be rate limit	[Unlimited]
Rate Limit WLAN	Provision to limit throughout across WLAN irrespective number of associated wireless stations to WLAN. All upstream/downstream traffic on an SSID (aggregated across all wireless clients) can be rate-limited in either direction by configuring usage limits inside the WLAN configuration the GUI. This is useful in cases where multiple SSIDs are being used and say one is for corporate use, and another. The network administrator can ensure that the guest is always throttled, so it will not affect the corporate	of a cross all by section of VLAN traffic WLAN.	[Unlimited] of being guests.

Figure 23 The Usage Limits parameters

Scheduled Access

Below table lists configurable fields that are displayed in the WLANs > Access Control > Scheduled Access section.

Table 30 The Scheduled Access parameters

Parameters	Description Range Default
Scheduled Access	Provision to configure the availability of Wi-Fi services selected time duration. Enterprise Wi-Fi AP has the cap-figuring the availability of Wi-Fi services on all days day (s) of a week. The time format is in Hours.		00:00ability - of 28:59a Hrs.	Disabled specific
		Note
Parameters	Description	Range Default
		From release version 6.3 onwards, users are to configure up to a maximum of 12 scheduled rules per day on a particular WLAN instead per day.	allowed uled access of one rule

Figure 24 The Scheduled Access parameters

CLI Configuration:

ap(config)# wireless wlan 1
ap(config-wlan-1)# scheduled-access
all : all
friday : friday
monday : monday
saturday : saturday
sunday : sunday
thursday : thursday
tuesday : tuesday
wednesday : wednesday
weekday : weekday
weekend : weekend
ap(config-wlan-1)# scheduled-access all
Time period in HH:MM-HH:MM,HH:MM-HH:MM format

Access

Below table lists configurable fields that are displayed in the WLANs > Access Control tab.

Table 31 The Access parameters

Parameters Description Range Default
DNS-ACL
Precedence Provision to configure index of ACL rule. Packets are validated and processed based on the Precedence value configured.		1
Action Provision to configure whether to allow or deny traffic. - Deny
Domain Provision to configure domain names and rules are applied on Action configured.		based	-
MAC Authentication
MAC Authentication Policy	Enterprise Wi-Fi AP supports multiple methods of MAC authentication. Following are the details of each mode1. PermitWireless station MAC addresses listed will be allowed to associate to AP.2. DenyWhen the user configures a MAC address, those wireless stations shall be denied to associate and the non-listed MAC address will be allowed.3. RADIUSFor every wireless authentication, AP sends a RADIUS request and if RADIUS acceptance is received, then the wireless station is allowed to associate.In case authentication fails, you can enable AP to assign the default WLAN VLAN to the clients. For this, you must configure the failed-allow-traffic CLI command. For more information, see Fallback to WLAN VLAN when RADIUS-based MAC authentication fails.4. cnMaestroThis option is preferable when the administrator prefers a centralized MAC authentication policy. For every wireless authentication, AP a sends query to cnMaestro if it is allowed or disallowed to connect. Based on the configuration, wireless stations are either allowed or denied.	- Deny

To configure DNS ACL:

1. Select Precedence from the drop-down list.
2. Select type of action from Action drop-down list.
3. Enter a domain name in the Domain textbox.
4. Click Save.

To configure MAC Authentication:

1. Select MAC Authentication Policy from the drop-down list.
2. Enter MAC in the textbox.
3. Enter Description in the textbox.
4. Click Save.

Figure 25 The Access parameters

Sample DNS-ACL configuration

If any user wants to block Facebook or Youtube traffic and allow the rest of the traffic, the cor shown in below figure:

Figure 26 Sample DNS-ACL configuration

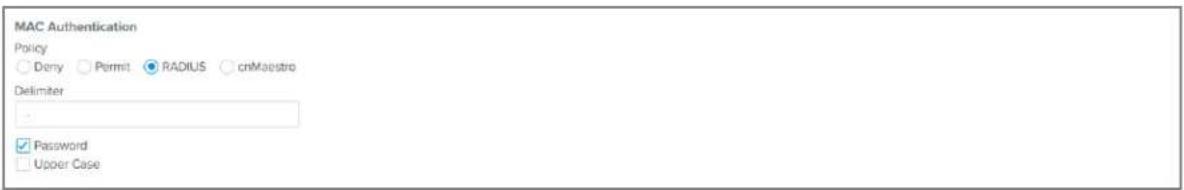

Fallback to WLAN VLAN when RADIUS-based MAC authentication fails

When a client passes RADIUS-based MAC authentication, the RADIUS server assigns the configured \ However, if clients fail the authentication, you can configure the AP to assign the default WLAN v enables the AP to allow limited access to clients, or redirects the clients to a captive portal page available in the RADIUS MAC authentication list. Once the captive portal authentication is successful, RADIUS server dynamically disconnects the client and assigns the RADIUS VLAN when the clients tr connect later.

To assign the default WLAN VLAN to such clients, you must include the mac-authentication radius failed-allow-traffic CLI command in the AP Groups > User Overrides section in cnMaestro.

This feature is only available for RADIUS-based MAC authentication. The use case for this feature i provide limited access to clients not included in the approved RADIUS MAC authentication list, such granting access to a walled garden, the internet, or redirecting the clients to go through the capti authentication.

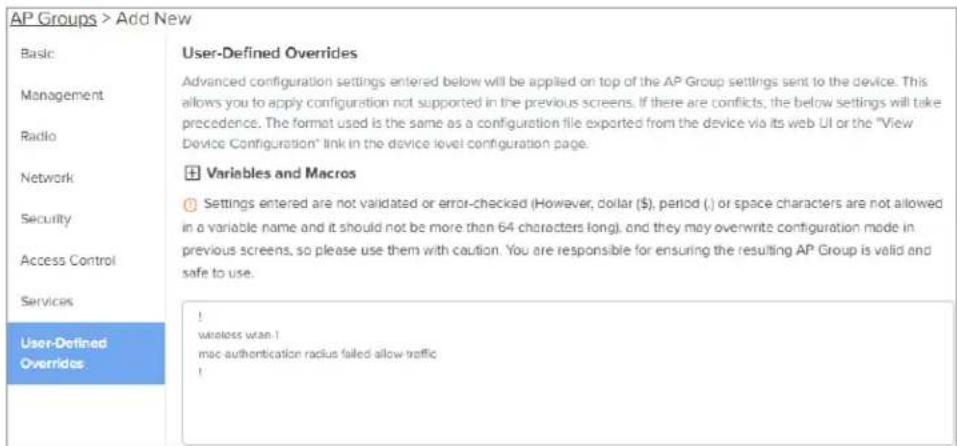

Figure 27 failed-allow-traffic in RADIUS-based MAC authentication

Passpoint

Below table lists configurable fields that are displayed in the WLANs > Passpoint tab.

Table 32 Passpoint parameters

Parameters	Description Range Default
Passpoint parameters
Enable Passpoint (Release 2) enables secure hotspot network access, online sign-up, and policy provisioning.		- Disabled
DGAF Downstream Group Addressed Forwarding when enabled the WLAN does not transmit any multicast and broadcast packets.		- Disabled
ANQP Domain ID	ANQP domain identifier is included when the HS 2.0 element is in Beacon and Probe Response frames.	Indication 65535	0
Comeback Delay	Comeback Delay in milliseconds. 100-	2000	0
Access Network Type	The configured Access Network Type is advertised to Following are the different network types supported:PrivateChargeable PublicEmergency ServicesFree PublicPersonal DevicePrivate with GuestTestWildcard	STAS Private
ASRA This	indicates that the network requires a further step for access. -	Disabled
Internet The	network provides connectivity to the Internet if not specified. -	Disabled
HESSID Configures the desired specific HESSID network identifier or wildcard network identifier.		the	-
Venue Info	Configure venue group and venue type. - -
Roaming Consortium	The roaming consortium and/or SSP whose security credentials can be used to authenticate with the AP.
ANQP Elements	Select any one of the following:3GPP Cellular Network InformationConnection CapabilityDomain Name ListIconsIP Address Type informationNAI Realm ListNetwork Authentication TypeOperating Class IndicationOperator Friendly NamesOSU Provider ListVenue Name InformationWAN Metrics	-	-

Figure 28 Passpoint parameters

RADIUS attributes

The table below shows the RADIUS attributes describes their interpretation.

Table 33 Radius attributes parameters

Type Attribute	Name	Attribute Number	Purpose
Standard Acct-Interim-Interval		85 Specifies the interval between accounting interim updates
Standard Acct-Session-Id 44	Session identification (RFC 5176)
Standard Calling-Station-Id	31 Session	identification (RFC 5176)
Standard Class 25 Accounting classification
Standard Event-Timestamp	55 Replay	protection (RFC 5176)
Standard Filter-ID 11		Assign station to a user group• Re-assign station to a different user group 5176)
Standard Framed-IP-Address	8 Session	identification (RFC 5176)
Standard Idle-Timeout 28 Specifies the amount of time a station may remain idle before its session is terminated
Standard NAS-IP-Address	4 NAS identification (RFC 5176)
Standard NAS-Identifier 32 NAS identification (RFC 5176)
Standard Session-Timeout	27 Specifies the interval at which session is terminated
Standard Termination-Action	29 Specifies the action to take when the session is terminated
Standard Tunnel-Type 64 Dynamic VLAN assignment (1 of 3 required), should be set to VLAN (Integer = 13)
Standard Tunnel-Medium-Type	65 Dynamic VLAN assignment (2 of 3 required), should set to 802 (Integer = 6)
Standard Tunnel-Private-Group-ID	81 Dynamic VLAN assignment (3 of 3 required), should set to the VLAN ID or name
Standard User-Name 1		• Station username update• Session identification (RFC 5176)
Microsoft Vendor-Specific MS-MPPE-Send-Key	16	Session key distribution
Microsoft Vendor-Specific MS-MPPE-Recv-Key	17	Session key distribution
Cambium Cambium-Vlan-	157	Radius based VLAN pool

(RFC

be

be

Type Attribute	Name	Attribute Number	Purpose
Vendor-Specific	Pool-Id
Nas Port ID	NAS-Port-Id 87	NAS identif	ication (RFC 5176)

Enterprise PSK (ePSK)

By using the ePSK feature, users can configure and support individual PSKs for different clients. The can be configured under a given WLAN configuration in cnMaestro UI. For on devices, only CLI is available.

This feature also supports individual VLAN assignments for a given key which helps to put client different VLANs for limiting broadcast traffic.

Note:

• Maximum key limit for cnMaestro Essentials: 300 per account
• Maximum key limit for cnMaestro X: 2000 per WLAN and 50000 per account

Configuring ePSKs

To create an ePSK, complete the following steps:

1. Navigate to Configuration > Wi-Fi Profiles.
2. Select WLAN tab and click Add.
3. Select Enterprise Wi-Fi from the Type drop-down list and enter details in the Basic Information section.
4. In the Basic Settings section, ensure the WPA2 Pre-Shared Keys option is selected in the Security drop-down list.
5. Click Save.
6. Click the ePSK tab and select the Local option in the Mode field.

7. Select the type of Passphrase Strength as one of the following options:

8. Easy—Supports a maximum of eight alphanumeric characters
   • Strong—Supports a maximum of 16 alphanumeric and special characters
   • Number—Supports a maximum of eight integers

9. Click Add New.

The Add ePSK window is displayed.

1. Select Mode type as one of the following options and configure the corresponding parameters:

- Single mode—Only one entry is created in this mode

Note:

The Passphrase field is optional and is automatically generated based on the selected Passphrase Strength.

- Bulk mode—Multiple entries are created in this mode depending on the count configured

1. To automatically expire ePSK details after a specific duration. The following options are available

Note:

This feature is available from cnMaestro 4.1.0 and later versions only.

• None—ePSK details never expire. Select None to never expire the ePSK credentials.
• Date and Time— ePSK expires after the specified date and time (in dd/mm/yyyy hh:mm AM format)

Supported minimum time is 12 A.M. on the next day and the maximum is five years.

- Duration—ePSK expires after the specified (in hours, days, months, or years) in the Expiry by drop-down.

Supported minimum duration is one hour and the maximum is five years. No decimal values supported, for example, 1.5 hours.

Note:

- The configured expiry time appears in the Expiration Date column on the WLANs > page.

- The Status column on the WLANs > page displays the status of the ePSK details—Active, Expired, or None. None is displayed only when older ePSK keys are imported to cnMaestro.

- Expired ePSK details are deleted from the AP only when the next configuration functionality is initiated or when there is a configuration change in the AP.

ePSK registration for WPA3 clients

For the ePSK feature, when you configure WPA3-WPA2 (mixed mode)-PSK or WPA3-PSK as the WLAN security, the clients connection in the WPA3 mode must go through an additional registration phase. different from the flow when you configure WPA2-PSK as the WLAN security, where users can authe by using only a passphrase.

When clients use WPA3-PSK security, Simultaneous Authentication of Equals (SAE) is the authentication mechanism where an extra authentication is added, which is more secure than WPA2. For WPA2-PSK clients, the passphrase is matched against a database to identify the user. However, this is not possible for WPA3-PSK clients because of the extra authentication in WPA3-SAE. When WPA2-PSK security is used by Pairwise Master Key (PMK) is the same for every connection made by the client. This is due to weaknesses in WPA2-PSK, which make it easier to validate the passphrase. In contrast, when WPA3-PSK security is used, a new PMK is generated each time a client joins the network. Therefore, registration help us to know the passphrase upfront when a client tries to connect. This mandates the users themselves with the ePSK passphrase to bind the client MAC with the passphrase to successfully do the Wi-Fi network.

For WPA3 clients to connect to the network using ePSK flow:

1. First connect to the WLAN with the WLAN passphrase.

A simple password is recommended to be configured, for example, signmeup, or any other appropriate passphrase.

1. Register themselves with the WPA3-ePSK unique passphrase.

After the MAC binding is complete, users can use the WPA3-ePSK unique passphrase for subse WLAN connections.

This section describes the following topics:

• ePSK with WPA3 feature recommendations
- Scenarios while registering clients
- Enabling ePSK registration flow using the AP CLI
- Configuring ePSK registration for WPA3 clients
- Registration flow screenshots
• Recommended best practices

ePSK with WPA3 feature recommendations

The following are the recommendations for this feature:

• This feature is supported only on cnMaestro Cloud 5.1.0 onwards.
  • Supported AP firmware version is 6.6.1 or 7.0 and above.
  • Security mode must be configured to either WPA2/WPA3 Pre-shared Keys or WPA3 Pre-shared Keys.
• APs must be managed from cnMaestro Cloud for client registration.
• The WLAN VLAN must be able to provide DHCP to clients and must have internet connectivity
• This feature is not supported on Enterprise Wi-Fi 5 APs and Xirrus APs.

Scenarios while registering clients

When a client connects to the WLAN, the following scenarios are possible:

• When a client connects for the first time using WPA2 security and ePSK passphrase (either on or 5 GHz radios), the AP performs an ePSK lookup. The following are the outcome:
  ° If a match is found, the MAC binding is created with the respective ePSK key. AP shares this MAC binding information with the other APs in the network.
• If a match is not found, the connection fails.
• If the WPA2 client is connected using the WLAN passphrase, client registration steps are performed by bind the passphrase to the client.

• When a client connects for the first time using WPA3 security, the following two possibilities m

• If MAC binding is not available for the client on the AP, the following procedure must be for successful registration of clients:

a. User must authenticate using the configured WLAN passphrase, for example, signmeup.

If the user tries to sign in with some other password other than the configured WLAN (signmeup), the connection fails.

b. If the connection with the configured password (signmeup) is successful, the AP redirects the client to the registration page.

This is the only traffic allowed for the client with this WLAN passphrase.

c. User must now enter the configured ePSK passphrase and register.

The AP redirects the client to the registration page with instructions.

d. Users must select the checkbox after reading the instructions (provided for different clients such as Android, Windows, and iOS), and then disconnect from the network.
e. User must forget the WLAN/SSID and reconfigure using the ePSK passphrase.

User then reconnects with ePSK passphrase and gets authenticated.

For a more detailed information, see Registration flow screenshots.

1. When MAC binding is available for the client on the AP, users can authenticate the client passphrase present in the MAC binding, that is the ePSK passphrase.

Figure 29 Client registration flow for WPA3 clients

Enabling ePSK registration flow using the AP CLI

To enable ePSK registration for WPA3 clients in the AP CLI, execute the following commands:

ap(config)# wireless wlan 1
ap(config-wlan-1)# epsk-registration-flow

Configuring ePSK registration for WPA3 clients

To enable WPA3-ePSK registration, you must create a WLAN profile and add ePSK entries in the To create WLAN profile and add ePSK entries, complete the following steps:

1. Navigate to Configuration > Wi-Fi Profiles page.
2. Select WLANs tab and click Add.
3. Select Enterprise Wi-Fi from the Type drop-down list and configure the WLAN parameters.
4. In the Basic Settings section, ensure either the WPA2/WPA3 Pre-shared Keys or WPA3 Pre-shared Keys option is selected in the Security drop-down list.
5. Enter the WLAN passphrase.
6. Click Save.

- When ePSK passphrase is not configured in the WLANs > ePSK page, the following message is displayed explaining the registration flow.

Figure 30 Message on the ePSK page when no ePSK entries are added

- For existing WLANs where ePSK entries are present and when WPA2/WPA3 Pre-shared Keys WPA3 Pre-shared Keys option is selected in the Security drop-down list, the following messages appear respectively

Figure 31 When WPA3 Pre-shared Keys option is selected

Figure 32 When WPA2/WPA3 Pre-shared Keys option is selected

1. Click the ePSK tab and add the passphrase.

After the ePSK passphrase is added, the following message is displayed explaining the registration flow.

Figure 33 Message on the ePSK page when ePSK entries are added

Registration flow screenshots

To register the clients to the network using the ePSK passphrase, users must complete the following

1. Connect the client to the network using the WLAN passphrase.

Figure 34 Using WLAN passphrase for connecting to network

1. Click Join.

Clients are redirected to the Client Registration page for providing the ePSK passphrase.

1. Enter the ePSK passphrase in the Passphrase field and click Register.

Figure 35 Using ePSK passphrase for client registration

The registration success page is displayed along with a set of instructions.

1. Read the instructions (provided for different devices, such as Android, Windows, and iOS) and s checkbox for confirmation.

The instructions provide details of the next steps for different devices.

The Disconnect button is enabled.

Figure 36 Registration success page with instructions

5. Click Disconnect.

The client is disconnected and a disconnect success message is displayed.

Figure 37 Disconnect success page

6. Reconnect to the network using the ePSK passphrase that you provided in the Client Registration page earlier.

The client connects to the network with the mapped VLAN.

Figure 38 Using ePSK passphrase for connecting to network

Recommended best practices

Following are some of the best practices you can follow while configuring ePSK registration for WF clients:

- WPA3 PSK is not recommended for unmanaged (BYOD) clients (For example, multi-dwelling unit (hospitality, and educational institutions).

In MDUs, with IoT clients, making WPA3 mandatory with a single SSID may not be a success deployment.

- WPA2/WPA3 PSK is recommended for unmanaged clients and to transition from the current (WPA PSK).

- Most of the WPA3-capable clients favor WPA3 PSK when available. This behavior is different am other clients, where some fallback to WPA2 and some which do not.

- When the SSID is mapped to 2.4 GHz and 5 GHz radios, WPA2 PSK or WPA2/WPA3 PSK is recommended.

- When the SSID is mapped to 2.4 GHz, 5 GHz, and 6 GHz radios, or only the 6 GHz radii PSK security is recommended.

Creating a Personal Wi-Fi ePSK

Note

This feature is available from cnMaestro 4.1.0 and later versions only.

In Multiple Dwelling Units (MDU), personal Wi-Fi allows a user to connect all the personal devices SSID associated with a VLAN.

To configure personal W-Fi on the AP, complete the following steps in the cnMaestro UI:

1. Add and enable the SSID details (to be used as personal Wi-Fi) in the WLANs tab, under Manage and Operation > Networks > > Configuration > Device Configuration > Advanced Settings section.

a. Select the Enable SSID checkbox.

b. In the Passphrase field, configure the passphrase.

c. Configure the VLAN with which the SSID must be associated.

1. Enable personal Wi-Fi on the ePSK page for the WLAN profile by selecting the Base Personal SSID checkbox.

By default, this feature is disabled. Once enabled, the Enable checkbox (under WLANs > WLAN > Basic Settings > SSID) is cleared. Also, the local and RADIUS ePSKs are disabled.

For more information on configuring personal Wi-Fi, refer to the cnMaestro User Guide.

RADIUS-based ePSK Premium feature

Cambium Networks ePSK feature is an extension of WPA2 PSK where multiple passphrases can be assigned to a single SSID. The Wi-Fi clients can have unique passphrases that can be used by using this feature. The same feature has been now extended to RADIUS.

The RADIUS server can provide the matching PMK for a given client, and corresponding standard I attributes can be enforced for a client session. This requires custom development on the RADIUS s

Note

ePSK feature is not supported with WPA3.

Configuring RADIUS-based ePSK

To configure RADIUS-based ePSK, complete the following steps:

1. Navigate to Configuration > Wi-Fi Profiles.
2. Select WLAN tab and click Add.
3. Select Enterprise Wi-Fi from the Type drop-down list and enter details in the Basic Information section.
4. In the Basic Settings section, ensure the WPA2 Pre-Shared Keys option is selected in the Security drop-down list.
5. Click Save.
6. Click the ePSK tab and select theopradius the Mode field.

You must configure AAA servers when configuring RADIUS-based ePSK. See cnMaestro User Guide f information on configuring AAA servers.

Groupwise Transient Key (GTK) per VLAN

The APs support dynamic VLAN via ePSK/RADIUS based/VLAN-pool feature on a given WLAN profile. client traffic is tagged as per the VLAN assigned dynamically. The unicast traffic works fine as each generates a unique PTK. However, the AP provides common GTK for all the clients associated with WLAN profile irrespective of the VLAN that belongs to. This causes all clients irrespective of the V assigned can receive broadcast/multicast data traffic of other VLAN traffic.

The solution is to generate the GTK per VLAN and forward it to clients as part of the WPA2 I that the broadcast/multicast data traffic is encrypted using GTK based on the VLAN tag of the packet maximum number of GTKs supported is 127 per radio. By default it is disabled.

cnMaestro configuration:

Configuring the Network

This chapter describes the following topics

Overview
- Configuring Network parameters

Overview

This chapter gives an overview of the Enterprise Wi-Fi AP configuration parameters related to LAN, Routes, DHCP server, ACL, and Firewall.

Configuring Network parameters

Enterprise Wi-Fi AP network configuration parameters are segregated into the following sections:

• VLAN
- Routes
- Ethernet Ports
- Port Control—802.1X Authentication
DHCP
- Tunnel
- PPPoE
• VLAN Pool
• Wireless Wide Area Network (WWAN)

IPv4 network parameters

VLAN

Note

By default, the XRP messages are sent through the native VLAN. From release version onwards, a new CLI command (roam management-vlan) is added to enable XRP messages to be sent through any VLAN other than the native VLAN. When configured, the roaming must have an L3 interface on the AP.

To configure network parameters, complete the following steps:

1. Navigate to Configuration > Wi-Fi Profiles > AP Groups page.

2. Click Add New and select Enterprise Wi-Fi (E-Series, XE/XV/X7-Series) from the Type drop-down list.

3. Click Network tab > VLANs section.

Figure 39 Network > VLANs section

1. Click Add New and configure the IPv4 parameters described in the following table.

Table 34 VLAN IPv4 parameters

Parameters	Description Range Default
VLAN > IPv4
Address Provision to configure the mode of IPv4 address configuration DHCP an interface selected. Two modes are supported:DHCP—This is the default mode in which the Enterprise Wi-Fi AP device tries to obtain an IPv4 address from the DHCP server.Static IP—Users must explicitly configure the IPv4 address and Netmask for a VLAN selected.		DHCP
NAT This option enables wireless traffic gets NAT'ed with APs respective uplink interface IP. This option is recommended when DHCP pools are configured in AP.		- Disabled
Zeroconf IP	Zeroconf IP is recommended to be enabled. This interface enabled available only in the VLAN1 configuration section. If VLAN 1 is not allowed in Ethernet interfaces, this IP will not be accessible.
DHCP Relay Agent	This option is enabled when DHCP server is hosted on DISVLAN which is not same as client that is requesting the DHCP IP. Enabling this appends Option 82 in the DHCP packets. Following information is allowed to configure:DHCP Option 82 Circuit IDConfigurable parameters under this option are as follows:HostnameAPMACBSSIDSSID		DISVLAN
	CustomDHCP Option 82 Remote IDConfigurable parameters under this option are as follows:HostnameAPMACBSSIDSSIDCustomNoteIn case DHCP Option 82 is configured at the device-,WLAN profile-, and L3 interface-levels, the following priority order is considered:Device-level configurationWLAN profile-level configurationL3 interface-level configuration	Follows:
RequestOption All	This configuration decides the interface on which Enterprise AP will learn the following:IPv4 default gatewayDHCP client options like Option 43 and Option 15 (Controller discovery like controller host name / IPv4 address)DNS ServersDomain Name	Enactedon VLAN1

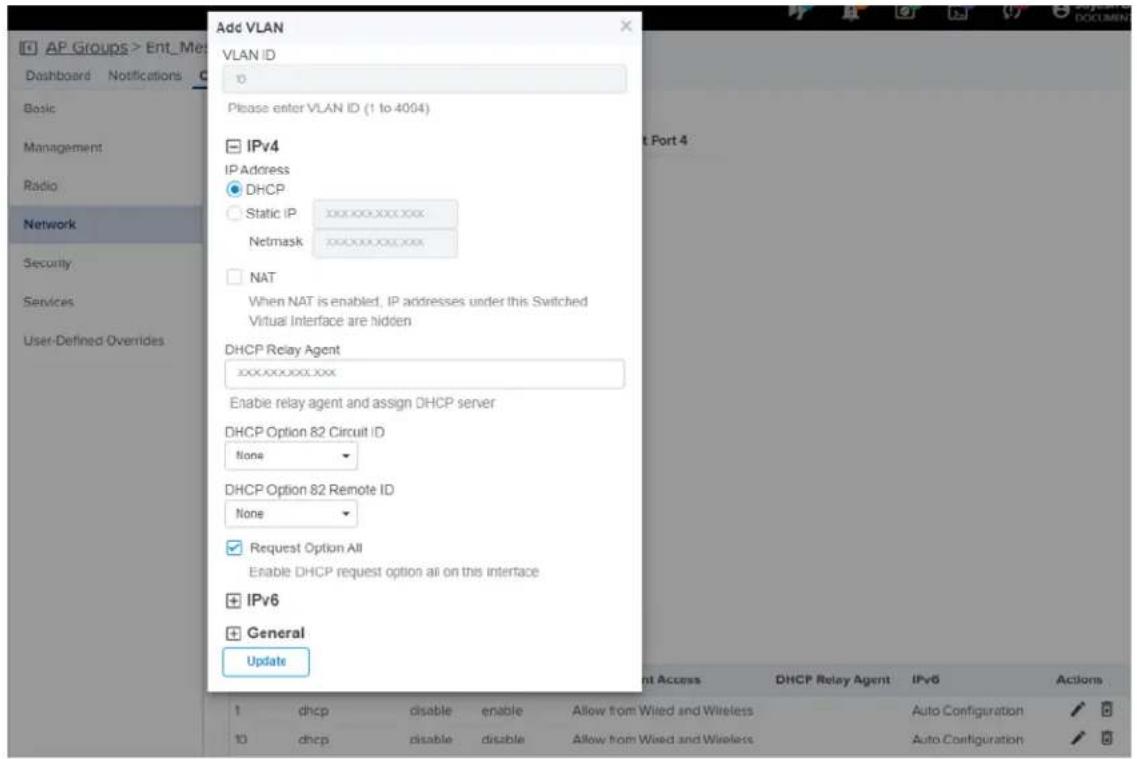

Figure 40 VLAN IPv4 parameters

DHCP Client Options

Enterprise Wi-Fi AP devices learn multiple DHCP options for all VLAN interfaces configured on the Based on configured criteria, values of these options are used by the system. The below table lis different DHCP options.

Table 35 DHCP Options

Options	Description Usage Reference		CLI
Option 1	The subnet mask option specifies client's subnet mask as per RF	Based on the state of “Request Option All”, the device chooses a subnet mask from the respective VLAN interface.	show ip route a
Option 3	This option specifies a list of addresses for routers on the subnet.	Based on the state of “Request Option All”, the device chooses a route learned from the respective VLAN interface. The only first route is honored.	show ip route a
Option 6	The domain name server option specifies a list of Domain Name System (STD 13, RFC 1035) name servers available to the client. SHOULD be listed in order of preference.	Based on the state of “Request Option All”, the device chooses subnet mask from the respective VLAN interface. the top two DNS servers are honored by Enterprise Wi-Fi AP devices.	show ip name-server
Option 15	This option specifies the domain that the client should use when resolving hostnames via the Domain Name System.	More details are provided in Option 15.	show ip dhcp-client info
Option 26	This option specifies MTU size network.	More details are provided in Configuring the Network.	show ip dhcp-client info
Option 28	This option specifies the broadcast address that the client should address that the client should use LAN interfaces are used respectively as per standards	At broadcast address learned for all DHCP server while a request to get an IP address the DHCP server.	show ip dhcp-client-info
Option 43	This option is used to help the obtaining the cnMaestro IP address from the DHCP server while a request to get an IP address the DHCP server.	More details are provided in Option 43 (cnMaestro On-Premises 2.4.0 DHCP Guide). is sent to	show ip dhcp-client info
Option 51	This option is used in a client to allow the client to request time for the IP address. In a reply, a DHCP server uses this to specify the lease time it is offer.	Enterprise Wi-Fi AP renew leases for all VLAN interfaces configured serve lease time that has been from the DHCP server. willing to	show ip dhcp-based learned
Option 54	DHCP clients use the contents server identifier field as the destination address for any DHCP messages unicast to the DHCP	Enterprise Wi-Fi AP learns DHCP server IP for all VLAN interfaces configured. server.	show ip dhcp-client info
Option 60	This option is used by DHCP optionally identify the vendor type configuration of a DHCP client.	Enterprise Wi-Fi AP device, is updated as Cambium-Wi-Fi-AP.	show ip dhcp-client info

DHCP Option 43—Zero-touch onboarding

This option is used to help the AP in obtaining the cnMaestro/XMS IP address from the DHCP s DHCP request to get an IP address is sent to the DHCP server.

This option is used to learn HTTPS proxy server address from the DHCP server as well.

DHCP Option 43 format

If HTTP proxy needs to be configured, then the following format must be used:

The cnMaestro/XMS URL and HTTPS proxy URL can be packed into Option 43 payload in a key-separated by ',' like . Key and its value are separated by '=' character.

For example,

0=CMBM;1=cloud.cambiumnetworks.com;2=http://user:userpass@IP/URL:port, where identifiers are listed below:

• 0 is for header CMBM - Mandatory

• 1 is for the server's URL

• 2 is for HTTP proxy URL

Note

If only cnMaestro URL configuration is needed then Option 43 payload can contain only too without key-value format as described above.

Routing and DNS

Table 36 AP Groups > Network > VLAN > Routes > IPv4 Routing and DNS parameters

Parameters	Description Range Default
Default Gateway	Provision to configure the default gateway. If this is provided, Enterprise Wi-Fi AP device installs this gateway as this highest priority.	provided, is the	-
DNS Server	Provision to configure Static DNS server on Enterprise device. A maximum of two DNS servers can be configured.	Wi-Fi AP	-
Domain Name	Provision to configure Domain Name. If this is provided,- Enterprise Wi-Fi AP device installs this Domain Name as this is priority.	the highest	-
DNS Proxy	Enterprise Wi-Fi AP device can act as DNS proxy server parameter is enabled.NoteDNS Proxy is allowed only when NAT mode is enabled for the WLAN.	Disabled	this

Figure 41 IPv4 Routing and DNS parameters

Routes

Below table lists the fields that are displayed in Configure > Network > Routes tab:

Table 37 IPv4 Gateway Source Precedence, Route entries, and Port forwarding parameters

Parameters	Description Range Default
Gateway Source Precedence	Provision to prioritize default gateway and DNS servers when Enterprise Wi-Fi AP device has learned from multiple ways. Default order is Static and DHCP.	- Static
Add Multiple Route Entries	The user has provision to configure static Routes. Parameters that are required to configure static Routes are as follows:Destination IPMaskGateway	-	-
Port Forwarding	This feature is required when wireless stations are behind NAT. Users can access the services hosted on wireless stations using this feature. Following configurable parameters are required to gain access to services hosted on wireless stations which are behind:PortIP AddressType	-	-

Figure 42 IPv4 Gateway Source Precedence, Route entries, and Port forwarding parameters

IPv6 network parameters

VLAN

Table 38 VLAN IPv6 parameters

Parameters	Description Range Default
Address Provision to configure the mode of IPv6 address configuration for an interface selected. Five modes are supported:DisabledAutoConfigStaticStateless DHCPv6Stateful DHCPv6		AutoConfig
Request Option All	This configuration decides the interface on which AP will learn the following:IPv6 default gateway	- Enabled on VLAN1
	DHCP client options like Option 52 and Option 24(Controller discovery like controller hostname / IPv6 address)DNS ServersDomain Name

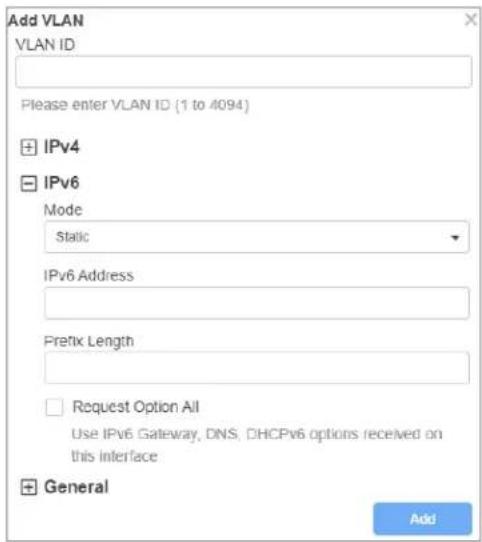

Figure 43 VLAN IPv6 parameters

Routing & DNS

Table 39 IPv6 Routing and DNS parameters

Parameters	Description Range Default
Default Gateway	Provision to configure the default gateway. If this is provided, Enterprise Wi-Fi AP device installs this gateway as this is the highest priority.	–
DNS Server	Provision to configure Static DNS server on Enterprise device. A maximum of two DNS servers can be configured.	Wi-Fi AP –
Domain Name	Provision to configure Domain Name. If this is provided,- Enterprise Wi-Fi AP device installs this Domain Name as this is the highest priority.
IPv6 Preference	When enabled, IPv6 is preferred over IPv4 based on response.	DNSDisabled

Figure 44 IPv6 Routing and DNS parameters

Routes

Table 40 IPv6 Gateway Source Precedence and Multiple Route Entries parameters

Parameters	Description Range Default
Gateway Source Precedence	Provision to prioritize default gateway and DNS servers Enterprise Wi-Fi AP device has learned from multiple ways. Default order is Static and AUTO-CONFIG/DHCPC.	whestatic
Add Multiple Route Entries	The user has provision to configure static Routes. Parameters that are required to configure static Routes are as follows:Destination IP/prefixGateway

Figure 45 IPv6 Gateway Source Precedence and Multiple Route Entries parameters

General network parameters

Table 41 VLAN - General parameters

Parameters	Description Range Default
Management Access	Provision to restrict the access of devices in all (Telnet, SSH), GUI (HTTP, HTTPS), and SNMP. Users can configure restriction of device access as follows:BlockAllow from WiredAllow from both Wired and Wireless	modAllowers can	Clfrom both Wired and Wireless

Select Management Access to configure restriction of the device from the drop-down list.

Figure 46 VLAN - General parameters

Ethernet Ports

Below table lists the fields that are displayed in AP Groups > Network > Ethernet Ports tab.

Table 42 Ethernet Ports 1 to 4 parameters

Parameters	Description Range Default
Ethernet Port<1-4>	Enterprise Wi-Fi AP devices Ethernet port is provisioned to operate in the following modes:Access Single VLAN—Single VLAN traffic is allowed in this mode.Trunk Multiple VLANs—Multiple VLANs are supported in this mode.	Access Single VLAN—Single VLAN traffic is allowed in this mode.Trunk Multiple VLANs—Multiple VLANs are supported in this mode.	Single VLAN
VLAN VLAN	ID to be associated with the Ethernet port. 1 to	4094	1
Port Speed	Specifies the port speed in Mbps.Following values are supported:Auto10 Mbps100 Mbps1000 Mbps2500 Mbps5000 Mbps	– Auto
Port Duplex	Specifies the type of duplex communication configured– Full the port.Following values are supported:Full DuplexHalf Duplex	– Full the port.	Duplex
Tunnel Mode	Only applicable for Ethernet ports 2, 3, and 4.Specifies whether tunneling of wired traffic is enabled or not.

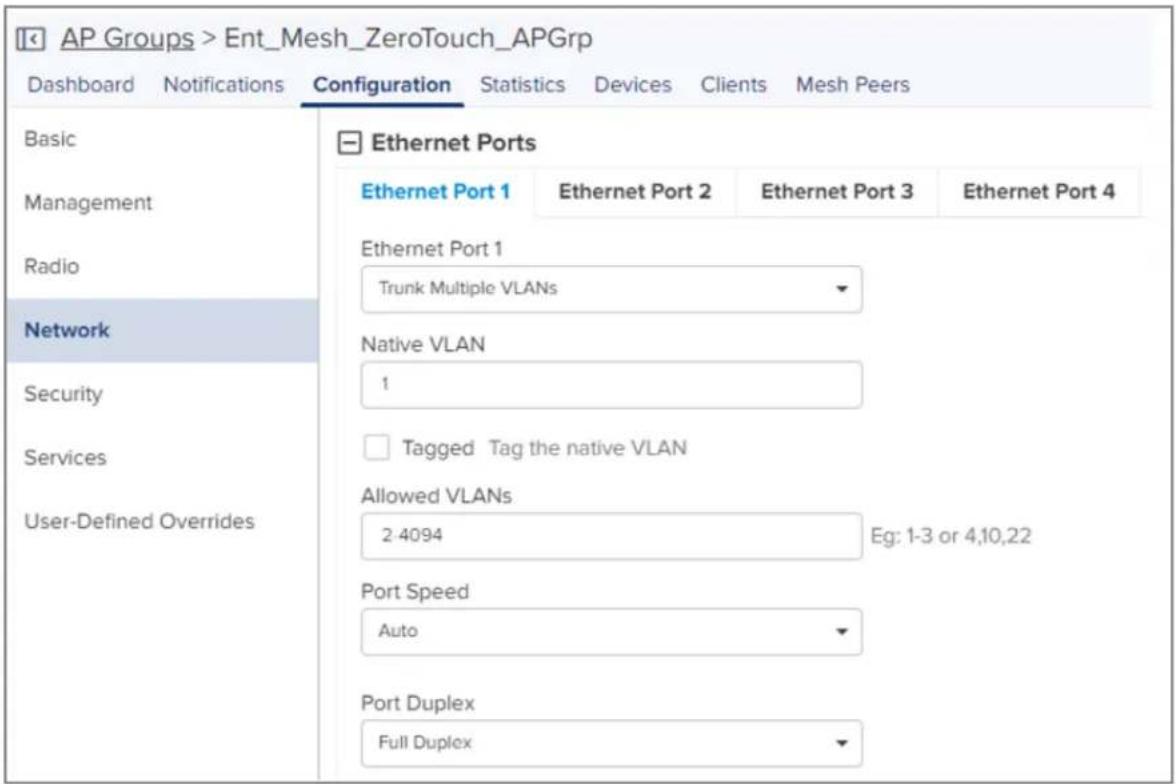

Figure 47 Ethernet Ports parameters

Port Control—802.1X Authentication

802.1X authentication on Ethernet ports enhance the network security of the AP. The AP supports port-based authentication in the single-host authentication mode. In this mode, only one client is allowed to access the network after successful 802.1X port-based authentication. After successful authentication, the port VLAN is assigned based on RADIUS assigned VLAN.

Note

- 802.1X port-based authentication does not support CoA messages.

802.1X port-based authentication requires a RADIUS AAA server for authentication and accounting.

The following table lists the parameters for configuring the RADIUS AAA server on Ethernet ports and on the AP Groups > Network > Ethernet Ports > RADIUS Server page.

Table 43 RADIUS Server parameters

Parameters Description Range Default
Authentication Server	Specifies the authentication server details, such as:Host—IPv4 or IPv6 address or hostname of theSecret—Text string that is used to encrypt data packets shared between the AP and the sever.Text stringPort—Port number of the authentication server. Default—1812A maximum of three RADIUS authentication servers configured.	- Disabled server in RADIUS Format—default—can be
Accounting Server	Specifies the accounting server details, such as:Host—IPv4 or IPv6 address or hostname of theSecret-Text string that is used to encrypt data packets shared between the AP and the sever. Text stringPort-Port number of the accounting server. Default-1813A maximum of three RADIUS accounting servers can be configured.	- Disabled serverin RADFormat-US
Timeout Time	(in seconds) to wait for a response from the RADIUS server.	US-30 3
Attempts Number of retry attempts for contacting the RADIUS server.		1-3 1
Accounting Mode	Specifies the accounting mode to be used. The following modes are supported:Start-Stop-Accounting packets are transmitted by the AAA server when a wireless client is connected and when the client disconnects.Start-Interim-Stop-Accounting packets are transmitted by APs to the AAA server when a wireless client connects, then at regular intervals (configured in the Interim Update Interval field) and also when the client disconnects.None-Disables the accounting mode. This is the default mode.	None(Disabled)
Server Pool Mode	Users can configure multiple Authorization and Accounting Failover servers. Based on a number of wireless stations, the user choose Failover mode.Load Balance-AP equally distributes the requests between the configured RADIUS servers,Failover-AP selects the RADIUS server that is functional based on the order of configuration.	Functional
Interim update interval	Time (in seconds) to wait for sending RADIUS interim accounting update packets.Note: This interval is applicable only when you select the Start-Interim-Stop option in the Accounting Mode parameter.	m0-65535	1800
Dynamic Authorization	This option is required, where there is CoA request- disabled AAA/RADIUS server.	Disabled

Figure 48 RADIUS Server parameters

DHCP

Below table lists the fields that are displayed in the AP Groups > Network > DHCP page.

Figure 49 DHCP Pool parameters

Table 44 DHCP parameters

Parameters	Description Range Default
DHCP Pool	Specifies the DHCP pool ID. 1 to 16 -
Address Range	Indicates the start and end addresses for the DHCP Pool. - -
Default Router	Specifies the default router IP address. - -
Domain Name	Specifies the domain name for the DHCP pool. - -
DNS Address	Specifies the primary and secondary addresses of the for a DHCP pool.	DNS server
Network Specifies	ifies the network IP address and subnet mask for the DHCP pool.	-	-
Lease Duration	(in days, hours, and minutes) for which the IP address be leased to the client.	-	-
Add Bind List
	For every DHCP pool configured, the user can bind MAC and the address pool defined, so that the wireless station gets the IP address every time they connect. Following parameters are required to bind IP address:MAC AddressIP Address	-	IP from same

Figure 50 Add DHCP window

Tunnel

The following table lists the fields that are displayed in AP Groups > Network > Tunnel page.

Figure 51 Tunnel - L2TP parameters

Figure 52 Tunnel - L2GRE parameters

Table 45 Tunnel parameters

Parameters Description	Range Default
Tunnel Encapsulation	Provision to enable tunnelFollowing tunnel types aresupported by Enterprise Wi-Fi devices:L2TPL2GREOFF	typeOFFAP
L2TP
Remote IP Configure	L2TP end point. IPv4address or Primary hostname ofthe endpoint is supported.	-	-
Username andPassword	Credentials required for L2TP authentication.	-admin/admin
Authentication Type	Provision to select the PPP authentication method.Following are the options available:DEFAULTCHAPMS-CHAPMS-CHAPv2PAP	- DEFAULT
TCP MSS TCP Maximum Segment Size (MSS) in bytes.		422- 1410 1400
PMTU Discovery Provision to enable to discover PMTU in network.		- Enabled
L2GRE-1You can configure a maximum of two L2GRE tunnels. Configure L2GRE-1 tunnel by parameters in the AP Groups > Network > Tunnel tab. However, configuring L2GRE-2 tunnel is allowed only using the device CLI. The following parameters for L2GRE-1 are also applicable
Parameters Description Range Default
Remote IP Configure L2GRE endpoint. IPv4 address or primary hostname of an endpoint is supported.		-	-
DSCP Users can configure priority of GRE packets.		-0
TCP MSS TCP Maxiimum Segment Size (MSS) in bytes.		472-1460 1410
PMTU Discovery Provision to enable to discover PMTU in a network.		-	-
MTU Maximum Transmission Unit in bytes.		850-1460 1460
GRE in UDP GRE	protocol is designed to establish a tunnel between third-party vendor which complies with RFC 8086.	- Disabled any

Point-to-Point Protocol over Ethernet (PPPoE)

PPPoE provides the ability to establish a connection to ISP with user authentication. Below table lists fields that are displayed in AP Groups > Network > PPPoE page.

Figure 53 PPPoE parameters

Table 46 PPPoE parameters

Parameters Description Range Default
Enable Provision to enable PPPoE client. - Disabled
VLAN ID Users can configure VLAN ID where PPPoE clients should obtain an IP address.		ould	-
Service Name	Configure PPPoE service name. - -
Authentication Info	Provision to configure credentials required for PPPoE authentication.	admin/admin
MTU Maximum	Transmission Unit. 500-	1492	1492
TCP-MSS Clamping	Configure PPPoE endpoint. Either IP or hostname endpoint is supported.	of Enabled
Management Access	If enabled, the user can access the device either - disabled or SSH with PPPoE IP.	- disabled or

VLAN Pool

The following table lists the fields that are displayed in AP Groups > Network > VLAN Pool page.

Table 47 The VLAN Pool parameters

Parameters	Description	Range	Default
VLAN Pool Name	Name for the VLAN pool.	-	-
VLAN ID List	List of VLAN IDs for the VLAN pool.You can configure either a single VLAN ID or multipleMultiple VLAN IDs can be configured either separated by hyphen. For example, 2-7, 45, 67.	-VLANIDs.comma or

Figure 54 The VLAN Pool parameters

Wireless Wide Area Network (WWAN)

The following table lists the fields that are displayed in Configure > Network > WWAN tab.

Note

This feature is supported in XV2-2, XV3-8, XE3-4, and XE5-8 platforms only.

Table 48 WWAN parameters

Parameters Description Range Default
WWAN Provision to enable wireless WAN using a USB cellular dongle for internet access.		-	-
Failover Only	Failover only can be configured in two modes:Enabled: Ethernet will be the primary connection and WWAN will be backup.Disabled: 3G/4G (WWAN) will be the only working connection.Note: Cellular link can be configured as backupEthernet connection.	- Enabledonly to
APN Provision	to configure network provider APN address. - -
Authentication Info	Provision to configure credentials required for WWAN authentication.	WAN admin/admin
Monitor Host	Running a check in the background that constantly-a user configured IP address (example: 8.8.8.8) for reachability through ping.	-monitors-

Figure 55 WWAN parameters

Supported hardware

Cambium Networks currently support the following models, where local laws permit:

- Huawei

E8372

° E3372

- Alcatel

° Link Key 4G IK40V (recommended)

• ZTE

MF833V

Configuring Access Control

The Access Control page allows the users to enable or assign access control policies and configur group policies and device policies. It offers visibility into the configured rules, ensuring efficient and network management.

Figure 56 Access Control page

Note

If an Access Control Policy is assigned at the AP group level, it does not appear unc Group or Device Group policies.

This chapter describes the following topics

• Enabling Access Control Policy
- User Group Policy
• Device Policy

Enabling Access Control Policy

Users have the provision to enable or disable access control policies under Access Control tab.

Figure 57 Enabling Access Control Policy

Users can select the available access control policies listed in the Wi-Fi profiles in the Access Control Policy drop-down list. They can also view the configured rules associated with these policies by clicking View Rules. This provides a comprehensive view of the policies and rules within the network.

Figure 58 Access Control Policy Rules

User Group Policy

User group policies allow you to categorize users into specific roles with customized access permissions and restrictions, facilitating a fine-tuned control over network access.

To add a new to User Group Policy, perform the following steps:

1. Navigate to Configuration > Wi-Fi Profiles > AP Groups > Access Control page.
2. Click Add to create a new AP group.
3. Click the Access Control tab in the Add New page.
4. Click Add New in the User Group Policy section.

Figure 59 User Group Policy

1. Complete the details in the Add User Group window.

Figure 60 Add User Group

Note

- The user must assign an Access Control Policy or VLAN to create a User Group

• A maximum of 64 User Group Policies are supported.

- Users can select Access Control Policies with non-MAC filters only from the Access Control Policy drop-down list.

- Mapping an Access Control Policy to a User Group Policy enables its use for the group, and vice versa. However, the same Access Control Policy cannot be shared between the User Group Policy and the AP group. You can apply it either to the Group Policy or to the AP group only.

Device Policy

Device Policy allows users to apply specific rules and access control policies based on the type a characteristics of devices, offering customized control over device behavior within the network.

To add a new Device Policy, perform the following steps:

1. Navigate to Configuration > Wi-Fi Profiles > AP Groups tab.
2. Click Add to create a new AP group.
3. Click the Access Control tab in the Add New page.
4. Click Add New in the Device Policy section.

Figure 61 Device Policy

1. Complete the details in the Add Device Policy window.

Figure 62 Add Device Policy

Note

• A maximum of 64 Device Policies are supported.
- Users can select Access Control Policies with non-MAC filters only from the Access Control Policy drop-down list.

Managing Filters

This chapter describes the following topics:

• Overview
• Filter list
  • Device class filter
  • Wi-Fi Calling support
• Air cleaner

• Application control Premium feature

Overview

Filters are used to define the rules used for blocking or passing traffic and also to change QoS/ rate-limiting for selected traffic.

The Wireless AP's integrated firewall uses stateful inspection to accelerate the decision of whether t or deny traffic user connections managed by the firewall are maintained statefully. Once user flow established through the AP, it is recognized and passes through without the application of all defin filtering rules. Stateful inspection runs automatically on the AP.

Filter list

Filters are organized in groups, called filter lists. A filter list allows users to apply a uniform set SSIDs. AP supports 16 filter lists and each filter list supports 50 filter rules in precedence order.

Filters

These settings create and manage filters with precedence that belong to the current filter list, base filter criteria you specify.

Filters can be configured in Layer 2 and Layer 3 or application/category control (Layer 7). Layer 2 high precedence over Layer 3 application control and Layer 2 supports MAC/IP/protocol-based rules.

Filters are an especially powerful feature when combined with the intelligence provided by the Application Control Windows.

Based on Application Control's analysis of your wireless traffic, you can create filters to enhance w usage for your business needs:

1. Usage of non-productive and risky applications like BitTorrent can be restricted.

2. Traffic for mission-critical applications like VoIP and WebEx may be given higher priority (QoS).

3. Non critical traffic from applications like YouTube may be given lower priority (QoS) or bandwidth allowed may be capped per station or for all stations.

Configuring filter CLI

By configuring the filter CLI, the user can define ACL rules for blocking or passing traffic, DSCP/G modifying packets, and rate-limiting for selected traffic.

1. Create filter list/filter profile using global filter command (Filter: configure filter parameters).

ap(config)# filter
filter-list : Configure filter list
global-filter : Configure Global filter parameters

1. Global-filter is for global rules in AP. Global-filter includes the below options:

ap(config-global-filter)#
air-cleaner : Configure Preset air cleaner filters
application-control : Enable application control
clear : Clear command
disable : Disable filter list
filter : Configure filter rules in precedence order
stateful : Enable stateful filtering
apply : Apply configuration that has just been set
exit : Exit from filter list configuration
no : Delete/disable filter list parameters
save : Save configuration to Flash so it persists across reboots
show : Show command

• Stateful filtering : Stateful operation of the integrated firewall can be Enabled or Disabled. By default, it is enabled.
• Application Control Premium feature: Operation of the Application Control feature may be Enabled or Disabled.

• Disable: Disable or enable filter list.

• Each filter list includes below options:

clear : Clear command
disable : Disable filter list
filter : Configure filter rules in precedence order
name : Name of filter list

apply : Apply configuration that has just been set
exit : Exit from filter list configuration
no : Delete/disable filter list parameters
save : Save configuration to Flash so it persists across reboots
show : Show command

Note

Global-filter rules will take precedence over filter-list rules

- Global filter and filter-list can include 50 filter rules with precedence order.

ap(config-filter-list-1)# filter precedence {1-50}

1. Then create filter rule from precedence level (1 to 50).

(config-list-1-filter-precedence-1)# exit
(config-filter-list-1)# filter precedence 1
(config-list-1-filter-precedence-1)#

application-control : Configure application control filters
category-control : Configure application category control filters
clear : Clear command
disable : Disable filter
layer2-filter : Configure Layer2 filter
layer3-filter : Configure Layer3 filter
logging : Enable filter logging
rate-limit : Set traffic limit for this filter
schedule : Schedule Layer3 rules
wlan-to-wlan : Restrict 'in' direction rule's egress direction as wlan

apply : Apply configuration that has just been set
exit : Exit from custom filter configuration
no : Disable the filter options
save : Save configuration to Flash so it persists across reboots
show : Show command

Note

The filter type is either Layer 2 or Layer 3 or application control can be added in o precedence level.

1. Layer 3 filter has the below provisions.

(config-list-1-filter-precedence-1)# layer3-filter

deny : Drop packet matching the rule
permit : Allow packet matching the rule
set-dscp : Set DSCP value to packet matching the rule
set-qos : Set QOS value (0-3) to packet matching the rule

• QoS Premium feature: Set packets QoS level (0 to 3). Level 0 has the lowest priority; level 3 highest priority
• DSCP Premium feature Differentiated Services Code Point or DiffServ (DSCP). DSCP level (0 to 63. Level 0 has the lowest priority and level 63 has the highest priority.
• Rate limit Premium feature: Filters support rate limiting per station or all stations and support Kbps/Mbps/pps.
• Schedule Premium feature: Filter support scheduling the activation of the layer3 /application control rules based on the day and local time selected.
• Disable: Each filter and filter list can be turned on/off.

Note:

Application Control, QoS, DSCP, Schedule and Rate limit are Premium features.

1. Each layer 3 rule category has below types

(config-list-1-filter-precedence-1)# layer3-filter set-dscp
ip : IPV4 address based rule
ip6 : IPV6 address based rule
proto : Protocol based rule
proto6 : IPv6 Protocol based rule

1. For proto or port number-based rule, select proto.

(config-list-1-filter-precedence-1)# layer3-filter set-dscp proto
layer3-filter set-dscp proto (tcp|udp|icmp|igmp|srp|sctp|any) (SOURCE-IP{//mask|prefix-length}|any) (SOURCE-PORT|any) (DESTINATION-IP{//mask|prefix-length}|any) (DESTINATION-PORT|any) (in|out|any) (DSCP{0-63}) <(optional)//Filter_name>

Note

All fields are mandatory. If no parameter to configure, give 'any'. Direction is the direction of the rule. if it is 'in', the rule is applicable for traffic from the wireless sid. If it is 'out', the rule is applies for traffic to wireless.

1. For non-proto or port number-based rules, select IP.

(config-list-1-filter-precedence-1)# layer3-filter set-dscp ip
layer3-filter set-dscp ip (SOURCE-IP{//mask|prefix-length}|any) (DESTINATION-IP{//mask|/prefix-length}|any) (in|out|any) (DSCP{0-63}) <(optional)//Filter_name>

1. Layer 2 filter has below options:

(config-list-1-filter-precedence-11)# layer2-filter
deny : Drop packet matching the rule
permit : Allow packet matching the rule

1. Each layer 2 rule category has below two cases.

(config-list-1-filter-precedence-11)# layer2-filter permit
mac : Mac or IP based Rule with out Protocol
proto : Mac or IP based rule with Protocol

Layer 2 rule supports IP, MAC, Port, or Protocol-based rules.

1. ap(config-list-1-filter-precedence-1) # layer2-filter permit mac

(config-list-1-filter-precedence-1)# layer2-filter permit mac
layer2-filter permit mac (SOURCE-MAC/IPv4/IPv6{(optional)/{mask|prefix-length}}|any)(DESTINATION-MAC/IPv4/IPv6{(optional)/{mask|prefix-length}}|any) (in|out|any) <(optional)//Filter_name>

Example:

e.g. layer2-filter permit mac 00-01-02-03-04-05 00-01-02-09-08-07 any //filter_to_allow_guest
'!!' for not e.g. layer2-filter permit mac 00-01-02-03-04-05 !00-01-02-09-08-07 out
layer2-filter permit mac !1.1.1.1/8 any any

1. ap(config-list-1-filter-precedence-1) # layer2-filter permit proto

(config-list-1-filter-precedence-1)# layer2-filter permit proto
layer2-filter permit proto (tcp|udp|arp|icmp|igmp|srp|sctp|any) (SOURCE-MAC/IPv4/IPv6/{mask|prefix-length})|any) (SOURCE-PORT|any) (DESTINATION-MAC/IPv4/IPv6/{mask|prefix-length})|any) (DESTINATION-PORT|any) (in|out|any) <(optional)//Filter_name>

Example:

e.g layer2-filter permit proto tcp any any 10000 any //filter_permit_guest
'!! for not e.g layer2-filter permit proto tcp any any !00-00-11-11-11-11 10000 out
layer2-filter permit proto tcp 1.1.1.1 1000 00:11:22:33:44:44/ff-ff-ff-00-00-00 5000 any

Sample configuration

filter global-filter
stateful
application-control

filter filter-list 1
    filter precedence 1
    layer3-filter set-qos ip any 9.9.9.9 in 2
    rate-limit all Mbps 500
    exit
    filter precedence 2
    layer3-filter deny ip 5.5.5.5 6.6.6.6 any
    exit
    filter precedence 3
    layer3-filter permit ip any any any
    exit
    filter precedence 4
    layer3-filter permit ip 9.9.9.9 any any
    exit

1. To attach the filter list into the WLAN profile, filter-list < filter-list ID>.

wireless wlan 1
ssid cambium-guest
no shutdown
vlan 1
filter-list 1

1. To show filter statistics:

(config)# show filter-statistics
Filter ID | global

Device class filter

This feature applies wireless policies to the client-based device class (notebook, phone, tablet, and its type (Windows, Mac, and Android).

CLI configuration:

ap(config)# device-class-filter 1
ap(config-device-class-filter-1)# class
ap : Configure filter rules for the AP device class
appliance : Configure filter rules for the appliance device class
desktop : Configure filter rules for the desktop device class
game : Configure filter rules for the game device class
notebook : Configure filter rules for the notebook device class

phone : Configure filter rules for the phone device class
player : Configure filter rules for the player device class
tablet : Configure filter rules for the tablet device class
ap(config-device-class-filter-1)# class notebook
all : Configure filter rules for all notebook device classes
chrome : Configure filter rules for the Chrome-OS device type
linux : Configure filter rules for the Linux device type
mac : Configure filter rules for the Mac device type
windows : Configure filter rules for the Windows device type
ap(config-device-class-filter-1)# class notebook linux
ap(config-device-class-filter-1)# filter-list
Filter list ID <1-16> or Name

Wi-Fi Calling support

Cambium Networks Access Point has the inbuilt application visibility engine, which can detect Wi-Fi and provide better call quality by reducing the latency, jitter, and roaming delays for voice calls of

When the Access Point detects the Wi-Fi calling traffic, it classifies and puts the traffic in the voi queue for achieving better call quality.

CLI configuration:

filter precedence 5 application-control wificall set-gos 3

Note

Filter precedence can be from 1 to 50.

Air cleaner

The Air Cleaner feature offers several predetermined filter rules that eliminate a great deal of unne wireless traffic.

Configuration CLI:

ap(config)# filter global-filter
ap(config-global-filter)# air-cleaner
all : All air cleaner filters
arp : Eliminate station to station ARPs over the air
broadcast : Eliminate broadcast traffic from the air
dhcp : Eliminate stations serving DHCP addresses from the air
multicast : Eliminate chatty multicast traffic from the air

When we configure the Air Cleaner rule, pre-defined filter rules will get populated automatically a shown below:
ap(config-global-filter)# air-cleaner all
ap(config-global-filter)# show config filter
!
!
filter global-filter
stateful
application-control
air-cleaner all
filter precedence 1
layer2-filter deny proto arp any any in //Air-cleaner-Arp.1
wlan-to-wlan
exit
filter precedence 2
layer2-filter deny proto udp any any FF:FF:FF:FF:FF:FF 67 out //Air-cleaner-Dhcp.1
exit
filter precedence 3
layer2-filter deny proto udp any any FF:FF:FF:FF:FF:FF 68 in //Air-cleaner-Dhcp.2
exit
filter precedence 4
layer2-filter permit proto arp any FF:FF:FF:FF:FF:FF any //Air-cleaner-Bcast.1
exit
filter precedence 5
layer2-filter permit proto udp any any FF:FF:FF:FF:FF:FF 67 any //Air-cleaner-Bcast.2
exit
filter precedence 6
layer2-filter permit proto udp any any FF:FF:FF:FF:FF:FF 68 any //Air-cleaner-Bcast.3
exit
filter precedence 7
layer2-filter permit proto udp any any FF:FF:FF:FF:FF:FF 22610 any //Air-cleaner-Bcast.4
exit
filter precedence 8
layer2-filter deny mac any FF:FF:FF:FF:FF:FF any //Air-cleaner-Bcast.5

exit
filter precedence 9
layer2-filter permit mac any 01:00:5E:00:00:FB any //Air-cleaner-mDNS.1
exit
filter precedence 10
layer2-filter deny mac any multicast any //Air-cleaner-Mcast.1
exit

Note

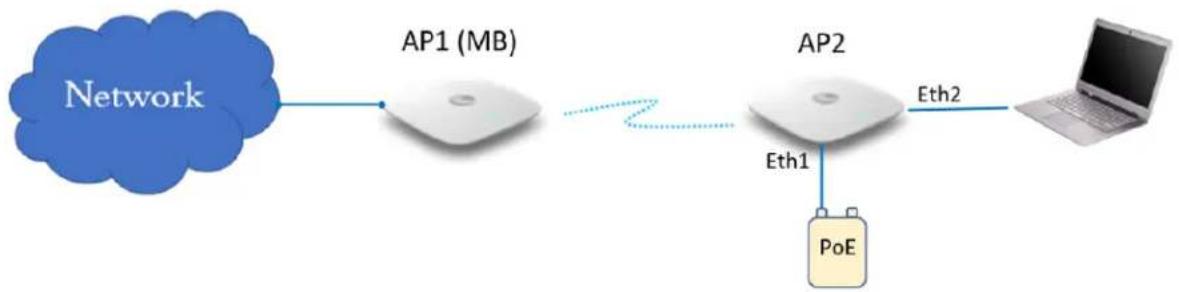

In Mesh link configuration, the Air Cleaner rules need customization like disabling Precedence 2 and Precedence 3 (DHCP rules).

Application control Premium feature

The Application Control feature provides real-time visibility of application usage by users across the network. Network usage has changed enormously in the last few years, with the increase in smart tablet usage stressing networks. Increasing traffic from legitimate business needs such as cloud- and based applications, streaming media, and VoIP must be handled with an adequate quality of experie achieve this purpose Application Control filters are used to define the rules used for blocking or change QoS/DSCP and rate-limiting for the specific Application or a specific category of application. more details, refer to the Application Control Filters section in the user guide

Application Control can track application usage over time to monitor trends. Usage may be tracked VLAN, or station. Many hundreds of applications are recognized and grouped into a number of cat. The distributed architecture of Cambium Enterprise APs allows Application Control to scale naturally a grow the network.

This topic describes the following content:

• Deep Packet Inspection (DPI)

• Application control policy

Risk and productivity

Selection criteria

- DPI CLI configuration

- Global application policy

- SSID application policy

- Custom Applications X

Deep Packet Inspection (DPI)

The AP uses Deep Packet Inspection (DPI) to determine what applications are being used and by how much bandwidth they are consuming. These applications are rated by their degree of risk and productiveness. Filters can be used to implement per-application policies that keep network usage focus on productive uses.

Application control policy

When you find risky or unproductive applications consuming bandwidth on the network, you can ease create Filters to control them. You may use filters to:

• Block problematic traffic, such as BitTorrent or Y8.
• Prioritize mission-critical traffic: By increasing the QoS assigned to the traffic, applications like Vol WebEx may be given higher priority (QoS).
• Lower the priority of less productive traffic: Use filters to decrease the QoS assigned to traffic applications like YouTube and Facebook.
• A nonproductive specific application can be rate-limited to avoid impact on the productive application (for example, YouTube streaming can be rate-limited to avoid impact on applications like VoIP)

Risk and productivity

Application control ranks applications in terms of their levels of risk and productivity.

Productivity: Indicates how appropriate an application is useful for business purposes. The higher the number, the more business-oriented an application is:

1. Primarily recreational
2. Mostly recreational
3. Combination of business and recreational purposes
4. Mainly used for business
5. Primarily used for business

Risk: indicates how likely an application is to pose a threat to the security of your network. The rating number, the riskier of an application is:

1. No threat
2. Minimal threat
3. Some risk: maybe misused
4. High risk: maybe malware or allow data leaks
5. Very high risk: threat circumvents firewalls or avoids detection

Selection criteria

From the AP CLI, the below options are available to view the Application Statistics:

• Application: This gives detailed information about the application seen from the wireless traffic.
• Category: This gives the combined statistics of the application which belongs to a particular category (for example, Games, Network monitor).

Config)# show application-statistics by-application
Applications Count = 24
Application Statistics for All Applications
Protocol or Application	Productivity Index & Risk		TX Packets	TX Bytes	RX Packets	RX Bytes
Ad Analytics	4	1	4	220	3	231
Amazon	2	1	75	31437	69	8337
Bonjour	4	1	15	1737	14	1664
Doubleclick	1	1	84	30190	65	12228
Google Ads	3	1	103	47136	78	12223
Google Analytics	4	1	13	3750	15	1711
Google APIs	3	1	4713	6288091	892	153251
Google	3	1	2544	3248915	568	48664
Google Play	3	1	350	396456	181	15261
Mozilla	3	1	54	44708	48	5854
NetBIOS NS	1	3	0	0	12	936
NTP	1	3	2	152	2	152
OCSP	3	1	63	6404	71	5247
OpenX	1	1	32	8374	27	3507
Quantcast	1	1	14	4733	17	2341
Rapleaf	3	1	19	6745	19	2288
Reddit	3	1	1227	1477596	752	74695
Scorecard Research	1	1	26	5876	27	2748
SSDP	4	1	329	146086	20	4000
SSL	3	3	226	136435	176	22509
TCP	3	1	2376	1617471	1665	330377
Twitter	3	4	79	53301	68	7532
Wikipedia	3	3	19	3126	28	3873
YouTube	1	4	95	26393	99	12233

ap(config)# show application-statistics by-category Application Categroy Statistics for All Applications

Application Productivity TX TX RX RX category Index & Risk Packets Bytes Packets Bytes

File-Transfer 1 1 81 17881 0 0 Mail 3 1 1351 1057897 1318 155897 Messaging 2 2 633 245164 558 68508 Network-Monitoring 3 4 43 2580 1 60 Networking 3 1 51911 4422799 2524 1488418 Proxy 2 2 8637 7892737 6454 1008520 Social-Networking 2 3 52038 68131289 19772 2285979 Streaming-Media 2 3 15030 18700791 9156 1366044

Web-Services 2 2 38872 26757562 32219 7094216

- SSID: This gives the application list seen on a particular SSID. The SSID number is the BSS index configured.

ap(config)# show application-statistics by-application ssid 1
Applications Count = 79
Application Statistics for wlan index 1

================

Protocol or Productivity TX TX RX RX
Application Index & Risk Packets Bytes Packets Bytes

================

Ad Analytics 4 1 221 113639 204 27874
Admeta 4 1 20 8577 17 3470
Aggregate Knowledge 4 1 72 25718 67 11423
Amazon 2 1 1245 773227 1307 413188
Amazon Web Services 1 2 2102 2543236 1522 111343
Amp 4 1 163 144673 157 16258
AOL Ads 3 1 21 11459 24 3769
Appier 4 1 39 13552 26 5046
AppNexus 1 1 172 72763 167 62363
Bing 3 1 17 8140 12 1175
Bluekai 1 1 35 13127 23 2856
Bonjour 4 1 0 0 1067 332560
Casale 3 1 97 36559 85 12244
CloudFlare 3 2 31 12537 20 2286
Captive Network Ass 2 1 18 1194 10 918
Connexity 3 1 22 13348 27 3954
Contextweb 4 1 81 41240 100 20963
Criteo 4 1 376 171618 396 60013
Crashlytics 1 1 74 29571 82 10660
Doubleclick 1 1 3549 2691946 2587 759544
DHCP 4 1 52 17212 0 0
Dotomi 4 1 59 21308 64 8324
Drawbridge 4 1 28 6164 23 4780
Facebook 2 1 6053 5188935 4732 1217723

Facebook Messages 2 2 202 71996 150 18393
Facebook Video 2 3 44585 61497202 14049 941942
Flurry 3 1 17 5694 27 15624
Font Awesome 4 1 94 98415 88 5341
gmail 3 1 1351 1057897 1318 155897
Google Ads 3 1 1356 903620 1066 123597
Google Analytics 4 1 475 165753 407 91298
Google APIs 3 1 5437 2829186 4775 1605169
GoogleDuo 4 1 84 22238 82 23226
Google 3 1 5381 3955811 4385 799374
Google Play 3 1 980 242763 880 254459
Google Video 2 2 0 0 20 23771
hotstar 1 4 100 64443 82 21328
HTTP 3 1 1184 371037 1100 173347
HTTP 2.0 3 1 1410 360603 1271 232993
HTTP VIDEO 3 2 3801 5360601 1841 105901
HWCDN 3 1 213 259756 200 12745
ICICI Bank 2 2 29 33613 21 2025
ICMP 3 4 5 300 1 60
Instagram 1 1 322 330979 242 33346
Krux 1 1 71 31719 53 6993
Lotame 1 1 109 63865 84 10168
MDNS 3 1 0 0 86 21324
Media Innovation Gr 3 1 45 14819 40 5662
Media Math 1 1 25 5413 8 1034
Mixpanel 3 1 451 139375 496 275463
NrData 4 1 371 56753 341 108525
NTP 1 3 1 76 1 76
OpenX 1 1 113 20680 86 12298
Outbrain 3 1 34 16363 46 6344
OwnerIQ 3 1 38 8977 29 5783
Paytm 2 3 2015 2201287 1177 146483
Psiphon 2 2 8562 7869967 6392 983509
PubMatic 3 1 331 103338 262 57072
Quantcast 1 1 47 23413 47 9495
Quic 3 1 0 0 817 1052805
Rapleaf 3 1 66 28602 65 8000
Rubicon Project I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I

Scorecard Research 1 1 96 35762 90 12758
Smart AdServer 3 2 35 13345 45 6116
SpotXchange 3 2 59 14418 49 14522
SSDP 4 1 0 0 287 43911
SSL 3 3 6029 4347809 5173 1029629
Taboola 3 2 2177 2715316 1082 123164
TCP 3 1 169 37436 194 26160
The Trade Desk 3 1 101 67145 67 13168
Turn 1 1 71 31424 81 9438
Twitter 3 4 867 1040706 593 73816
UDP 3 1 0 0 62 10664
Ultrasurf 2 2 31 10286 19 1848
WhatsApp Media Mess 2 2 145 167080 135 10680
WhatsApp [phone] 34602
Xiaomi 3 1 1244 718018 1376 285219
Yahoo 3 3 204 77608 251 48694
YouTube 1 4 11031 13254451 7129 1156065

- Display for Station: This gives detailed information about a particular station. Provide the station MAC address the user wants to check for statistics.

- Tx means downlink traffic concerning AP and Rx mean uplink traffic with respect to AP.

(config)# show application-statistics by-application station D4-6A-6A-E7-D0-15Applications Count = 24Application Statistics for station D4-6A-6A-E7-D0-15
Protocol or Application	Productivity Index & Risk		TX Packets	TX Bytes	RX Packets	RX Bytes
Ad Analytics	4	1	4	220	3	231
Amazon	2	1	75	31437	69	8337
Bonjour	4	1	0	0	15	1810
Doubleclick	1	1	84	30190	65	12228
Google Ads	3	1	103	47136	78	12223
Google Analytics	4	1	13	3750	15	1711
Google APIs	3	1	4713	6288091	892	153251
Google	3	1	2544	3248915	568	48664
Google Play	3	1	387	404916	215	20326
Mozilla	3	1	117	67446	104	12051
NetBIOS NS	1	3	0	0	12	936
NTP	1	3	2	152	2	152
OCSP	3	1	63	6404	71	5247
OpenX	1	1	32	8374	27	3507
Quantcast	1	1	14	4733	17	2341
Rapleaf	3	1	19	6745	19	2288
Reddit	3	1	1235	1478487	761	77186
Scorecard Research	1	1	26	5876	27	2748
SSDP	4	1	0	0	28	5600
SSL	3	3	226	136435	176	22509
TCP	3	1	2770	1675214	2075	424531
Twitter	3	4	79	53301	68	7532
Wikipedia	3	3	19	3126	28	3873
YouTube	1	4	113	32330	116	15918

Below CLI command gives a list of stations present along with station count per VLAN.

ap(config)# show application-statistics debug
==================Station Count 3==================
MAC IP VLAN SSID
9A-FD-AA-B4-9C-8E 0.0.0.0 0
FC-D9-08-A4-D4-55 0.0.0.0 0
52-78-93-70-38-35 0.0.0.0 0
=================vlan count 1==================
VLAN STA_COUNT

- Display for VLAN: This gives information about the particular VLANs.

Config)# show application-statistics by-application vlan 1Applications Count = 24Application Statistics for VLAN 1
Protocol or Application	Productivity Index & Risk		TX Packets	TX Bytes	RX Packets	RX Bytes
Ad Analytics	4	1	4	220	3	231
Amazon	2	1	75	31437	69	8337
Bonjour	4	1	0	0	15	1810
Doubleclick	1	1	84	30190	65	12228
Google Ads	3	1	103	47136	78	12223
Google Analytics	4	1	13	3750	15	1711
Google APIs	3	1	4713	6288091	892	153251
Google	3	1	2544	3248915	568	48664
Google Play	3	1	393	405374	221	20638
Mozilla	3	1	117	67446	104	12051
NetBIOS NS	1	3	0	0	12	936
NTP	1	3	3	228	3	228
OCSP	3	1	63	6404	71	5247
OpenX	1	1	32	8374	27	3507
Quantcast	1	1	14	4733	17	2341
Rapleaf	3	1	19	6745	19	2288
Reddit	3	1	1249	1481150	779	79476
Scorecard Research	1	1	26	5876	27	2748
SSDP	4	1	0	0	32	6400
SSL	3	3	226	136435	176	22509
TCP	3	1	2910	1694616	2219	455285
Twitter	3	4	79	53301	68	7532
Wikipedia	3	3	19	3126	28	3873
YouTube	1	4	115	32434	119	16137

ap(config)# show application-statistics by-application vlan 1

Applications Count = 79

Application Statistics for VLAN 1

Protocol or Productivity TX TX RX RX

Application Index & Risk Packets Bytes Packets Bytes

Ad Analytics 4 1 221 113639 204 27874

Admeta 4 1 20 8577 17 3470

Aggregate Knowledge 4 1 72 25718 67 11423

Amazon 2 1 1245 773227 1307 413188

Amazon Web Services 1 2 2102 2543236 1522 111343

Amp 4 1 163 144673 157 16258
AOL Ads 3 1 21 11459 24 3769
Appier 4 1 39 13552 26 5046
AppNexus 1 1 172 72763 167 62363
Bing 3 1 17 8140 12 1175
Bluekai 1 1 35 13127 23 2856
Bonjour 4 1 0 0 1067 332560
Casale 3 1 97 36559 85 12244
CloudFlare 3 2 31 12537 20 2286
Captive Network Ass 2 1 18 1194 10 918
Connexity 3 1 22 13348 27 3954
Contextweb 4 1 81 41240 100 20963
Criteo 4 1 376 171618 396 60013
Crashlytics 1 1 74 29571 82 10660
Doubleclick 1 1 3549 2691946 2587 759544
DHCP 4 1 52 17212 0 0
Dotomi 4 1 59 21308 64 8324
Drawbridge 4 1 28 6164 23 4780
Facebook 2 1 6053 5188935 4732 1217723
Facebook Messages 2 2 202 71996 150 18393
Facebook Video 2 3 44585 61497202 14049 941942
Flurry 3 1 17 5694 27 15624
Font Awesome 4 1 94 98415 88 5341
gmail 3 1 1351 1057897 1318 155897
Google Ads 3 1 1356 903620 1066 123597
Google Analytics 4 1 475 165753 407 91298
Google APIs 3 1 5437 2829186 4775 1605169
GoogleDuo 4 1 84 22238 82 23226
Google 3 1 5381 3955811 4385 799374
Google Play 3 1 980 242763 880 254459
Google Video 2 2 0 0 20 23771
hotstar 1 4 100 64443 82 21328
HTTP 3 1 1184 371037 1100 173347
HTTP 2.0 3 1 1410 360603 1271 232993
HTTP VIDEO 3 2 3801 5360601 1841 105901
HWCDN 3 1 213 259756 200 12745
ICICI Bank 2 2 29 33613 21 2025
ICMP 3  4  5  300  1  60

Instagram 1 1 322 330979 242 33346
Krux 1 1 71 31719 53 6993
Lotame 1 1 109 63865 84 10168
MDNS 3 1 0 0 86 21324
Media Innovation Gr 3 1 45 14819 40 5662
Media Math 1 1 25 5413 8 1034
Mixpanel 3 1 451 139375 496 275463
NrData 4 1 371 56753 341 108525
NTP 1 3 1 76 1 76
OpenX 1 1 113 20680 86 12298
Outbrain 3 1 34 16363 46 6344
OwnerIQ 3 1 38 8977 29 5783
Paytm 2 3 2015 2201287 1177 146483
Psiphon 2 2 8562 7869967 6392 983509
PubMatic 3 1 331 103338 262 57072
Quantcast 1 1 47 23413 47 9495
Quic 3 1 0 0 817 1052805
Rapleaf 3 1 66 28602 65 8000
Rubicon Project 1 1 17 9524 24 7846
Scorecard Research 1 1 96 35762 90 12758
Smart AdServer 3 2 35 13345 45 6116
SpotXchange 3 2 59 14418 49 14522
SSDP 4 1 0 0 287 43911
SSL 3 3 6029 4347809 5173 1029629
Taboola 3 2 2177 2715316 1082 123164
TCP 3 1 169 37436 194 26160
The Trade Desk 3 1 101 67145 67 13168
Turn 1 1 71 31424 81 9438
Twitter 3 4 867 1040706 593 73816
UDP 3 1 0 0 62 10664
Ultrasurf 2 2 31 10286 19 1848
WhatsApp Media Mess 2 2 145 167080 135 10680
WhatsApp [phone] 34602
Xiaomi 3 1 1244 718018 1376 285219
Yahoo 3 3 204 77608 251 48694
YouTube 1 4 11031 13254451 7129 1156065

• Time frame: This gives information about the application seen in last the duration (for example, 1 day).

- For low-risk numbers, the productivity is high and vice versa. (example, for GitHub (shown in the figure) the risk index number is 1 and the productive index is 4, this means the application i more productive).

Config)# show application-statistics by-application time-frame 86000Applications Count = 24Application Statistics for All Applications
Protocol or Application	Productivity Index & Risk		TX Packets	TX Bytes	RX Packets	RX Bytes
Ad Analytics	4	1	4	220	3	231
Amazon	2	1	75	31437	69	8337
Bonjour	4	1	17	1956	15	1810
Doubleclick	1	1	84	30190	65	12228
Google Ads	3	1	103	47136	78	12223
Google Analytics	4	1	13	3750	15	1711
Google APIs	3	1	4713	6288091	892	153251
Google	3	1	2544	3248915	568	48664
Google Play	3	1	393	405374	221	20638
Mozilla	3	1	117	67446	104	12051
NetBIOS NS	1	3	0	0	12	936
NTP	1	3	3	228	3	228
OCSP	3	1	63	6404	71	5247
OpenX	1	1	32	8374	27	3507
Quantcast	1	1	14	4733	17	2341
Rapleaf	3	1	19	6745	19	2288
Reddit	3	1	1262	1482390	795	82476
Scorecard Research	1	1	26	5876	27	2748
SSDP	4	1	585	259542	36	7200
SSL	3	3	226	136435	176	22509
TCP	3	1	3006	1709704	2311	467655
Twitter	3	4	79	53301	68	7532
Wikipedia	3	3	19	3126	28	3873
YouTube	1	4	128	38033	130	19369

ap(config)# show application-statistics by-application time-frame 86000

Applications Count = 6

Application Statistics for All Applications

Protocol or Productivity TX TX RX RX

Application Index & Risk Packets Bytes Packets Bytes

Bonjour 4 1 3599 704477 1067 332560

DHCP 4 1 76 25156 0 0

ICMP 3 4 43 2580 1 60

MDNS 3 1 4414 633504 86 21324

NetBIOS NS 1 3 4785 376002 0 0

UDP 3 1 38944 2648192 62 10664

ap(config)#

DPI CLI configuration

Users can enable Application Control globally by using the below commands:

To enable DPI support:

ap(config)# filter global-filter
ap(config-global-filter)# application-control
ap(config-global-filter)#

To disable DPI support:

ap(config)# filter global-filter
ap(config-global-filter)# no application-control
ap(config-global-filter)#

Global application policy

Per application policy

(config)# filter global-filter
(config-global-filter)# filter precedence 1
(config-global-filter-precedence-1)# application-control

050plus : 050Plus
12306cn : 12306.cn
123movie : 123movies
126com : 126.com
17173 : 17173.com
1fichier : 1fichier
2345com : 2345.com
247inc : [24]7 Inc.
247media : 24/7 Media
2channel : 2channel
33across : 33Across
360antiv : 360 AntiVirus
39net : 39.net
3comtsmx : 3COM-TSMUX
3pc : 3PC
4399com : 4399.com
4chan : 4chan
4shared : 4Shared
51com : 51.com
56com : 56.com
58com : 58.com.cn
914cg : 914CG
9gag : 9GAG
about : about.com
abscbn : ABS-CBN
acas : ACA Services
accweath : accuweather.com

XV3-8-441BCC(config-global-filter-precedence-1)# application-control youtube

deny : Block this application
permit : Allow this Application
set-dscp : set dscp priority
set-qos : set qos priority

XV3-8-441BCC(config-global-filter-precedence-1)# ication-control youtube permit

permit : Allow this Application

Set per category policy

ap(config-global-filter-precedence-1)# category-control

collab : Collaboration
database : Database
filexfer : File-Transfer
games : Games
mail : Mail
message : Messaging
monitor : Network-Monitoring
network : Networking
other : Other
proxy : Proxy
remote : Remote-Access
social : Social-Networking
stream : Streaming-Media
vpn_tun : VPN-Tunneling
web_srvc : Web-Services
ap(config-global-filter-precedence-1)# category-control games permit
ap(config-global-filter-precedence-1)#

SSID application policy

ap(config)# filter filter-list 1
ap(config-filter-list-1)# filter precedence 1
ap(config-list-1-filter-precedence-1)# application-control facebook deny
ap(config-list-1-filter-precedence-1)#
ap(config-list-1-filter-precedence-1)# wireless wlan 1
ap(config-wlan-1)# filter-list 1
ap(config-wlan-1)#

CLI Configuration

Custom Applications X

Custom applications allow you to configure applications with a specific IP address or a domain name apply filter rules, such as enable or disable traffic from these applications. By default, these applica applied on the devices along with the AP group configuration.

After creating the custom application, when you click Apply, cnMaestro creates a job for devices in the

AP group that has auto sync enabled. Devices in AP groups that do not have auto sync enabled, as Not in Sync, and users must manually apply the configuration on to the devices.

To disable cnMaestro from applying the custom application configuration on the devices, clear the Enable Custom Application check box from the AP Groups > Services tab > Application Visibility X section.

To add a new custom application, complete the following steps:

1. Navigate to Configuration > Wi-Fi Profiles > Custom Applications X.

1. Click Add New on the Custom Applications X page.

The Add Custom Application(s) window is displayed.

Configure the following parameters:

Table 49 Custom Application Parameters

Parameter Description
Name Specifies	the name for the custom application.Supports a maximum of 20 characters.
Scope Specifies	the availability of the custom application across managed accounts.The following values are supported:Base Infrastructure—Custom application is available only for the global account. It is not shared with other managed accounts.Shared—Custom application is shared across all managed accounts. It can be mapped to devices in the managed account, but it cannot be modified.To modify the configuration, it must be copied into the managed account and then updated.Managed Account—Custom application is available only for that specific managed account.
	NoteOnce the scope has been configured on a custom application, it cannot be modified.
Category Specifies	the category to which the application must belong.Select the appropriate category from the drop-down list.
FQDN/IP Address	Specifies the IPv4 address or the domain name of the custom application.
Productivity Index	Indicates how appropriate an application is useful for business purposes. The higher the rating number, the more business-oriented an application is.

Table 49 Custom Application Parameters

Parameter Description

Risk Index Indicates how likely an application is to pose a threat to the security of your network. The higher the rating number, the riskier of an application is.

Enable Select the check box to enable this custom application.

1. Click Add.
2. To apply this configuration on the AP, click Save and Apply.

Note

WIDS and WIPS are beta features.

This section describes the following topics:

• Wireless Intrusion Detection Systems (WIDS)
- Wireless flood detection
- Neighbor AP detection
Rogue APs
Honeypot APs
- Ad Hoc network detection
- Wired Devices
Configuring WIDS
• Wireless Intrusion Prevention System (WIPS)

Wireless Intrusion Detection Systems (WIDS)

Wireless Intrusion Detection Systems (WIDS) is a powerful feature within cnMaestro that helps adminis monitor and protect their wireless networks from unauthorized access and potential security threats. Works by continuously scanning the wireless spectrum to detect and mitigate potential intrusions, ensure the integrity and security of your network infrastructure.

Wireless flood detection

Wireless flood detection helps in identifying and mitigating flood attacks in wireless networks. A flood occurs when a rogue client sends a large number of packets of a specific type to the AP to a normal working of the AP. This feature can detect the following types of flood attacks:

• Association
• Authentication
• Disassociation
• Deauthentication
• Extensible Authentication Protocol over LAN (EAPoL)

CLI configuration:

ap(config)# wids
association-flood : Detect floods of client associations from clients
authentication-flood : Detect floods of client authentication from clients
deauthentication-flood : Detect floods of clients deauthentications from clients
disassociation-flood : Detect floods of client disassociations from clients
eap-flood : Detect floods of EAP messages from clients
num-of-minutes : Configure time duration for flood detection
num-of-packets : Configure threshold of flood packets

Neighbor AP detection

The AP can detect all neighbor APs. By default, all neighbors in the home channel are detected. Neighbors in all channels, go to Radio > Basic > Off Channel Scan and select the Enable check box.

Note

Off Channel Scan is not required for XV3-8 platforms because they have inbuilt radio from monitoring.

Rogue APs

Rogue APs are unauthorized APs that are not onboarded to cnMaestro, which may include Cambium Cambium devices causing interference. The authorized or onboarded APs scan all available channels collect details about neighboring APs. They send this information to cnMaestro for monitoring and management.

CLI configuration:

To enable rogue AP detection:

ap(config)# wids
rogue-ap-detection : Enable unsanctioned AP detection

Honeypot APs

Honeypot APs are unauthorized APs that advertise the same SSID as managed or onboarded APs. Detecting and monitoring these APs is crucial to prevent threats to the network infrastructure.

Ad Hoc network detection

A wireless Ad Hoc network is a type of Local Area Network (LAN) that is built spontaneously to more wireless devices to be connected to each other without requiring typical network infrastructure equipment, such as a wireless router or AP.

CLI configuration:

To enable ad hoc network detection:

ap(config)# wids
ad-hoc-detection : Detect ad-hoc networks

To display ad hoc networks:

ap(config)# show wids adhoc-networks

Wired Devices

The Wired Devices section within cnMaestro provides administrators with insights into the wired device connected to the network infrastructure. This feature allows administrators to monitor and manage wir devices effectively to ensure optimal network performance and security.

CLI configuration:

To enable wired devices discovery:

ap(config)# wids
wired-neighbour-discovery : Enable wired neighbour discovery

Configuring WIDS

To enable WIDS feature perform the following steps on the cnMaestro UI:

1. Navigate to Configuration > Wi-Fi Profiles > AP Groups tab.
2. Select the AP Group and navigate to the Security page.
3. Select the Enable Wireless Intrusion Detection System (WIDS) checkbox.

Figure 63 Configuring WIDS

1. In the Wireless Flood Detection section, configure the number of packets and duration from the Packets and Per Minutes drop-down lists.

This indicates the number of flood attack packets that cnMaestro must detect in the specified to identify and report the type of attack.

1. Select the type of flood attack detection types that you want to configure in the Wireless Flood Detection section.

Table 50 Wireless Flood Detection parameters

Field Description
Association Detect floods of client associations from clients.
Authentication Detect floods of client authentication from clients.
Deauthentication Detect floods of client deauthentications from clients.
Disassociation Detect floods of client disassociations from clients.
EAP Detect floods of	EAP messages from clients.

Wireless Intrusion Prevention System (WIPS)

WIPS is a critical feature within cnMaestro designed to enhance the security of wireless networks. ¹ enabled, WIPS triggers Wi-Fi devices to deauthenticate rogue APs and clients by sending spoofed

deauthentication messages to the rogue APs and clients. You can also trigger Wi-Fi devices to deauthenticate honeypot APs and clients by enabling this feature.

CLI configuration:

To configure AP to detect honeypot and rogue APs, and send deauth requests to respective connect clients:

ap(config)# wips
deauth-honeypot-clients : Detect honeypot APs and send deauth to respective clients
deauth-rogue-ap-clients : Detect rogue APs and send deauth to respective clients

Configuring Services

This chapter describes the following topics:

Overview
- Configuring services

Overview

This chapter gives an overview of Enterprise Wi-Fi AP configurable parameters related to User Group Location API, Speed Test, BT Location API, Bonjour Gateway, LACP, and RTLS.

Configuring services

This section provides information on how to configure the following services on Enterprise Wi-Fi AP.

To configure the services for the AP, complete the following steps:

1. Navigate to Configuration > Wi-Fi Profiles > AP Groups page.
2. Click Add New and select Enterprise Wi-Fi (E-Series, XE/XV/X7-Series) from the Type drop-down list.
3. Click Services tab and configure the following services:

• Lightweight Directory Access Protocol (LDAP)

- NAT Logging

- User Groups

- Wi-Fi API

- Bluetooth API

- Speed Test

- DHCP Option 82

- Bonjour Gateway

- Link Aggregation Control Protocol (LACP)

• Real-Time Location System (RTLS)

Lightweight Directory Access Protocol (LDAP)

The following table lists the fields that are displayed in the AP Groups > Services > Network > LDAP page.

Table 51 LDAP parameters

Parameters	Description Range Default
Server Host	IP address or hostname of the LDAP server.	AP server.	- -
Server Port	Port number of the LDAP server.	-	-

To configure the above parameter, navigate to the Configure > Services > LDAP tab and provide the details as given below:

1. Enter the IP address of the LDAP server in the Server Host text box.
2. Enter the Port address of the LDAP server in the Server Port text box.
3. Click Save.

Figure 64 LDAP parameters

LDAP

Server Host

Server Port

Configure LDAP server IP address

Configure LDAP server port address

NAT Logging

NAT logging is same as the internet access log that is generated when NAT is enabled on AP. access log PDU consists of one or more internet access log data in TLV format. The packet for internet access log PDU is defined as below:

Table 52 PDU type code: 0x82

Type	Mandatory Length			Default Value
0x01	N	32	Bytes	Includes	IPv4	internet	access	log	data structure.

Type 0x01 TLV includes the internet access log data structure as below:

Table 53 NAT Logging packet structure

Length	Description
4 Bytes	NAT records UNIX time stamp which generates time in seconds from 1970-01-01 (00:00:00 GMT until now).
6 Bytes	The MAC address of the client.
1 Bytes	Reserved for future use.
1 Bytes	The protocol type. The supported protocol types are:0x06 TCP0x11 UDP
2 Bytes	The VLAN ID where the client is connected. If there is no VLAN ID, the value will be
4 Bytes	The client internal or the private IP address.
2 Bytes	The internal port of the client.
4 Bytes	The Internet IP address which is translated by NAT.
2 Bytes	The Internet port which is translated by NAT.
4 Bytes	The IP address of the visited server.
2 Bytes	The port address of the visited server.

Below table lists the fields that are displayed in AP Groups > Services > Network > NAT Logging page.

Table 54 NAT Logging parameters

Parameters	Description Range Default
Enable Provision to enable/disable NAT logging services. - -
Server IP Provision to configure IP/Hostname of NAT logging server.		- -
Server Port Provision to configure custom port number for NAT Logging services.			-
Interval Provision to configure frequency of logging.		5-360	0 5

Figure 65 NAT Logging parameters

User Groups Premium feature

Some policies, like VLAN, require many RADIUS attributes to be sent by the RADIUS server and by the AP. Some wireless network administrators do not have administrative access to the RADIUS so making changes to wireless policies would require waiting for the RADIUS administrator to make changes.

To simplify wireless administration and streamline changes, a feature called User Groups is provided allows the wireless administrator to apply a set of wireless policies to a user based on a single attribute. This eliminates the need for administrative rights on the RADIUS server and simplifies application complex policies to end-user stations.

A user group can also be assigned to a station based on the device type. This approach is de accuracy and completeness of device identification functionality, which is not guaranteed to be accurate exhaustive.

The User Group feature is natively supported by XMS Cloud.

Figure 66 User Groups interaction
User Groups Interaction

CLI Configuration:

ap(config)# group

Specify user group number <1-16>

ap(config)# group 1

ap(config-group-1)#

clear : Clear command

filter-list : Filter list selection for this user group

radius-id : Radius Filter-ID (Attribute Type 11) mapped to this user group

shutdown : Disable the user group

vlan : Set the vlan id for client traffic on this user group

apply : Apply configuration that has just been set

exit : Exit from user group configuration

no : Disable user group parameters

save : Save configuration to Flash so it persists across reboots

show : Show command

ap(config-group-1)#

Example:

User group properties and actions

A user group supports the following properties and actions:

Command Description
shutdown Disable this User Group
radius-id Radius Filter-ID (Attribute Type 11) mapped to this User Group
no shutdown Enable this User Group
no groupDelete User Group

User group policies

The policies available in a user group configuration are a subset of those for an SSID. The most used policies are filter-list and VLAN.

Policy Description
filter-listFilter List	setting for this User Group
vlan VLAN associated with	this User Group

Real-Time Location System (RTLS)

RTLS is a method to send the discovered (probed) clients list to a specified server address. The sent as HTTP Post to the HTTP server every interval. The discovered client entries are deleted from the entry is aged out. The client aging timeout is 2 times of location API interval configured. If

new probe requests from the client within 2 x location API interval time, then the client entry will from the list.

The following RTLS systems are available:

• Wi-Fi API
- Bluetooth API
• Stanley AeroScout Premium feature

Wi-Fi API

Below table lists the fields that are displayed in the AP Groups > Services Network > RTLS (Real-Time Location System) > Wi-Fi API page.

Table 55 Wi-Fi API parameters

Parameters Description Range Default
Enable Provision	to enable or disable Wi-Fi API services. - -
Server URL Provision	sion to configure HTTP or HTTPS server to send with the port number.	a- report	-
Interval Provision	to configure the custom frequency of information to be shared on server.	2-3600	5
Ignore Anonymized MACs	Avoid populating locally administrated MAC addresses Wi-Fi API client list.	- in the	-

Figure 67 Wi-Fi API parameters

Note

For further details about this feature and sample reference output, go to https://support.cambiumnetworks.com/files/cnpilot-tech-ref/ and download Wireless client Presence and Locationing API document.

Bluetooth API

XV3-8/XV2-2T APs with an integrated Bluetooth Low Energy (BLE) radio can detect and locate near devices. This data is then provided via API to third-party applications. Examples of such devices include smartwatches, battery-based beacons, Apple iBeacons, fitness monitors, and remote sensors.

Organizations can create use cases for indoor wayfinding and mapping, asset tracking, and more.

Below table lists the fields that are displayed in the AP Groups > Services Network > RTLS (Real-Time Location System) >Bluetooth API page..

Figure 68 Bluetooth API

Table 56 Bluetooth API parameters

Parameters Description Range Default
Enable Enable or disable Bluetooth API services. - -
Server URL and Port	Configure HTTP or HTTPS server and the port number, to send a report.
Interval Configure	the custom frequency of information to be shared server.	28600	5

Sending report

After enabling BLE Scanning on AP it will start processing:

1. Convert the scanned data to a JSON array.
2. Send that data in one single HTTP/HTTPS POST.

To configure the BT Location-API in the CLI:

ap(config)# location-api
ignore-anonymized-mac : Ignore MAC addresses that are anonymized
interval : Configure reporting interval in secs
server : HTTP/HTTPS server to send report to with the port number

To disable the BT Location-API:

ap(config)# no location-bt-api

Table 57 Bluetooth API data elements

Parameters Description
apMac MAC address of the	observing AP.
API Version API Version applied for particular data format.
AP Name Host name of the	observing AP.
Timestamp Observation time	in seconds seen by AP.
BT MAC BLE device MAC	seen by AP.
UUID BLE device UUID seen by AP.
RSSI BLE device RSSI as	seen by AP.

HTTP POST body format:

{
    u'ap_mac': '00-04-56-A5-5A-EC',
    'version': '2.2',
    'ap_name': 'XV3-8-EC7708',
    'ble_discoverd_clients': {Array of 0-250 devices}
}

Bluetooth API Data Format
{
    bt_rssi': u' -80 dBm ',
    bt_mac': 14-8F-21-FD-37-18', u
    'bt_uuids': Garmin International, Inc. (0xfelf)\n',
    'bt_timestamp': u' 1.811127'
}

Stanley AeroScout Premium feature

The Location Engine delivers accurate and reliable location data for assets and customers with STAN Healthcare Wi-Fi tags. It is an integral component of STANLEY Healthcare's AeroScout RTLS solutions AeroScout Location Engine determines location using signal strength measurements (RSSI) collected by Cambium Wi-Fi Access Points, that can simultaneously serve location sensors and provide network ac AeroScout utilizes a location engine to determine the position of Wi-Fi tags.

CLI Configuration:

ap(config)#rtls aeroscout
ble-tag : Enable Aeroscout BLE Tag
server : Configure Aeroscout Server IP or FQDN

server-port : Configure Aeroscout Server Port (Default port:12092)
wifi-tag : Enable Aeroscout WiFi Tag

Below table lists the fields that are displayed in the AP Groups > Services Network > RTLS (Real-Time Location System) > Stanley AeroScout page..

Figure 69 Stanley AeroScout

Table 58 Stanley AeroScout parameters

Parameters Description Range Default
Enable Wi-Fi Enable Bluetooth	Enable or disable Wi-Fi or Bluetooth Stanley Aero services.	Seout	-
Server URL and Port	Configure HTTP or HTTPS server and the port number send a report.	Port: 12092

Speed Test

Wi-Fiperf is a speed test service available on Enterprise Wi-Fi AP devices. This tool is interoperable open source zapwireless tool (https://code.google.com/archive/p/zapwireless/).

The Wi-Fiperf speed test can be triggered by using zapwireless tool between two Enterprise Wi-Fi between Enterprise Wi-Fi APs and other third-party devices (or PC) that is having zapwireless endpo running.

Refer to https://code.google.com/archive/p/zapwireless/ to download the zap wireless tool to generate zapwireless endpoint for third party device (or PC) and zap CLI to perform the test.

In this case, Wi-Fiperf endpoint should be enabled in Enterprise Wi-Fi AP through UI shown below. To configure the above parameter, navigate to the AP Groups > Services > Network > Speed Test page.

Select the Wi-Fiperf checkbox to enable the speed test.

Figure 70 Speed Test parameters

DHCP Option-82

DHCP Option 82 parameter enabled at the device level with VLAN IDs inserts the Option 82 paran all the DHCP client packets leaving the configured VLAN interfaces. This device-level configuration precedes the DHCP Option 82 configuration at the WLAN profile or the L3 interface levels.

In case DHCP Option 82 is configured at the device-, WLAN profile-, and L3 interface-levels, the fo priority order is considered:

1. Device-level configuration
2. WLAN profile-level configuration
3. L3 interface-level configuration

The device-level configuration is recommended when it is desired to insert the DHCP Option 82 for following options:

• Guest access enabled wired traffic
• Guest and without guest access enabled wireless DHCP client traffic

To configure the above parameter, navigate to the AP Groups > Services > Network page and provide the details in the DHCP Option 82 section:

1. Select the Enable checkbox.
2. Select the circuit ID from the Option 82 Circuit ID drop-down list.

Following are the supported values:

• None
  • All
• Hostname
• APMAC

• SSID
  • VLANID

• SITEID

• Custom

• Select the remote ID from the Option 82 Remote ID drop-down list.

Following are the supported values:

• None
• Hostname
• APMAC
• SSID
• VLANID
• SITEID

• Custom

• Enter the VLAN ID in the VLAN ID text box.

• Click Save.

Figure 71 DHCP Option 82 parameter

Bonjour Gateway

Bonjour enables the automatic discovery of devices such as printers, file servers, and other clients. Services on a local network. Bonjour Gateway feature on Wi-Fi AP extends the scope of Bonjour: beyond the local network by forwarding Bonjour Multicast DNS (mDNS) packet across different VLANs make Bonjour services and devices available between the different wireless and local networks.

Below table lists the fields that are displayed in the AP Groups > Services > Bonjour page.

Parameters Description	Range Default
Enable Bonjour Gateway	Provision to enable or disable Bonjour Gateway services.	-
Service Name Provision for user-defined Bonjour rule name. -		-
Proto Select the required mDNS protocol. - -
From VLAN VLAN	in which mDNS/Bonjour service is running.	- -
To VLAN VLAN in	which clients are listening. - -

CLI Configuration:

1. Enable Bonjour Gateway on AP.

1. To control mDNS repeated packet to WAN side.

ap(config)# bonjour-fw bonjour-forward-to-wan
all : Forward all bonjour mdns packets queries and response repeated with vlan to WAN side
queries : Forward bonjour mdns Query packets repeated with vlan to WAN side
responses : Forward bonjour mdns Response packets repeated with vlan to WAN side

Note

1. By default, mDNS repeated will not send to the WAN side.
2. WAN side indicates Eth 1 interface, Mesh client interface in case of mesh client mc tunnel interfaces like L2GRE, and L2TP.

Link Aggregation Control Protocol (LACP)

LACP provides the ability to group multiple physical ports as a logical port. This logical port is re port-channel and supported only on XV3-8 devices. LACP is a dynamic protocol used to form and the Link aggregation between two LACP supported devices.

LACP provides the following benefits:

• Increased Bandwidth: traffic may be balanced across the member ports to provide increased agg throughput.
• Link redundancy: the LACP bundle can survive the loss of one or more member links.

Configuration:

To add Ethernet to port channels:

ap(config)# interface portchannel 1
ap(config-portchannel-1)# exit
ap(config)# interface eth 1
ap(config-eth-1)# channel-group 1
ap(config-eth-1)# exit
ap(config)# interface eth 2
ap(config-eth-2)# channel-group 1
ap(config-eth-2)#

Port-channel configuration:

ap(config)# interface portchannel 1
ap(config-portchannel-1)#
advertise : Ethernet link speed advertisement
channel-group : Ethernet member channel group
clear : Clear command
duplex : Ethernet link duplex
shutdown : Shutdown interface
speed : Ethernet link speed
switchport : Configure switch port
tunnel-mode : Enable tunnelling of wired traffic over configured tunnel
apply : Apply configuration that has just been set
exit : Exit from interface configuration
no : Disable parameters
save : Save configuration to Flash so it persists across reboots
show : Show command

Syntax:

ap(config)# interface portchannel 1
ap(config-portchannel-1)# switchport mode trunk
ap(config-portchannel-1)# switchport trunk allowed vlan 1
ap(config-portchannel-1)# switchport trunk native vlan 1
ap(config-portchannel-1)#

Operations

This chapter describes the following topics:

• Overview
• Firmware upgrade
• System
• Configuration

Overview

This chapter gives an overview of Enterprise Wi-Fi AP administrative functionalities, such as firmware update, System, and Configuration.

Firmware upgrade

The running software on the Cambium Enterprise Wi-Fi AP can be upgraded to newer firmware. WI upgrading from the UI, the user can upload the firmware file from the browser. The same process followed to downgrade the AP to a previous firmware version if required. Configuration is maintained the firmware upgrade process.

Note

Once a firmware upgrade has been initiated, you must not restart the AP or power cycle until the process completes, as this might leave the AP inoperable.

To initiate a firmware update on the AP, complete the following steps:

1. Navigate to Monitor and Manage > System > Software Update.
2. Select Enterprise Wi-Fi (XE/XV/X7-Series) from the Device Type drop-down list.
3. Select the appropriate firmware version from the Versions drop-down list.
4. From the list of devices, select the devices for which you want to update the firmware.
5. Select the time when you want to perform the update from the Update section.
6. Select the appropriate options from the Job Options section.
7. If you select multiple devices, specify how many devices must be updated simultaneously in the box.

A maximum of 500 devices can be updated simultaneously.

1. Click Add Software Job to devices.

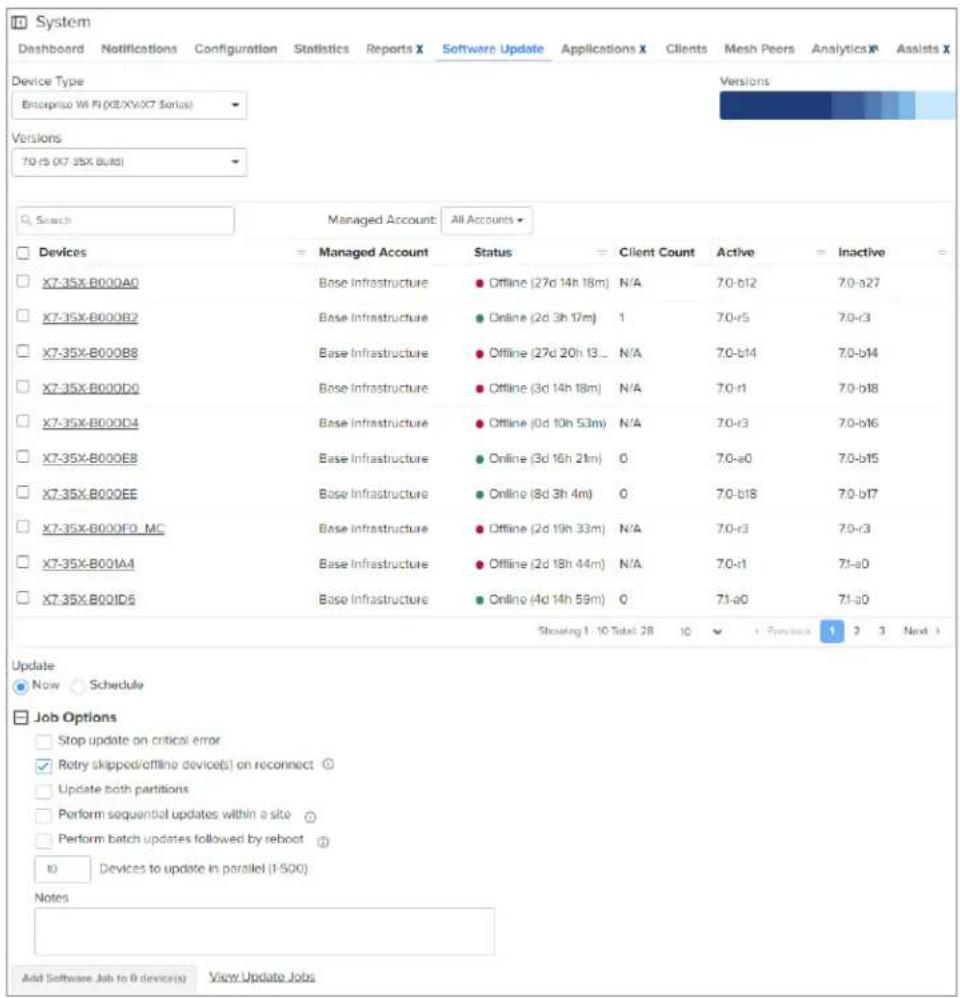

Figure 74 Software update

System

This section provides multiple troubleshooting tools provided by Enterprise Wi-Fi AP.

Table 60 lists the fields that are displayed in the Operations > System tab:
Table 60 System parameters

Parameters	Description Range Default
Reboot Users	will be prompted with a Reboot pop-up requesting a yes, the device will go for a reboot.	+reboot.	If-
Download Tech Support	Users will be prompted with permission to download tech support from AP. If yes, the file will be saved in your default configuration on your system.	- download path
Disconnect All Clients	All clients connected to both the radios will be terminated by sending a de-authentication packet to each client connected to the radios.	ted by the	-
Flash LEDs	LEDs on the device will toggle for the configured time seconds).	120od10	(in
Factory Default	A pop-up window appears requesting confirmation for factory defaults. If yes, the device will delete all configurations reset and reboot.	to factory	-

To configure the above parameter, navigate to the Operations > System tab and provide the details as given below:

1. Click Reboot for rebooting the device.
2. Click Download Tech Support to generate tech support from the device and save it locally.
3. Click Disconnect All Clients to disconnect all wireless clients.
4. Select Flash LEDs value from the drop-down list to flash LEDs for the given duration of time.
5. Click Factory Default to delete all configurations on the device.

Figure 75 System parameters

LED Test flashing pattern

The LED test flashing pattern for the Enterprise Wi-Fi AP is as follows:

Flashing pattern (For, XV3-8, XV2-2, XV2-2T0, XV2-2T1, XE5-8, and XE3-4): Yellow -> Green -> Amber -> Blue

Flashing pattern (For XV2-21X, XV2-23T, and XV2-22H): Green -> Amber -> Blue

CLI commands:

ap(config)# service flash-leds

Number of seconds to flash <1-120> (optional: default 10sec) ap(config)# service test leds

Overview

This chapter provides detailed information about troubleshooting methods supported by Enterprise Wi-Fi APs. Troubleshooting methods supported by Enterprise Wi-Fi AP devices are categorized as below:

• Logging
  Debug Logs
  Events
  • Radio Frequency (RF)
  Wi-Fi Analyzer
• Packet capture
• Performance
  Connectivity
  • XIRCON tool support

Speedtest on Access Point

- XIRCON tool support for Linux 1.0.0.40

Logging

Enterprise Wi-Fi AP devices support multi-level logging, which will ease debug issues.

Events

Enterprise Wi-Fi AP devices generate events that are necessary for troubleshooting across various mo Below is the list of modules, Enterprise Wi-Fi AP device generates events for troubleshooting.

• Wireless station
• Connectivity
• Configuration updates
• RADIUS
• Authentication
• Accounting

CoA
- Roaming
- Enhanced roaming
- Auto-RF
° Channel change
- Reboot
- Guest Access

Events are available at Troubleshoot > Logs > Events.

Figure 76 Events parameters

Debug Logs

Enterprise Wi-Fi AP provisions enhanced debugging of each module as events generated by system scope of debugging is limited. Debug logs can be triggered when the user clicks Start Logs and can be terminated when clicked on Stop Logs. By default, debug logs auto terminate after 1 minute when Start Logs.

Debug logs are available at Troubleshoot > Logs > Debug Logs tab.

Figure 77 Debug Logs parameters

Radio Frequency (RF)

Wi-Fi Analyzer

This tool provisions customers to scan the channels supported as per regulatory domain and provide information related to AP's presence in each channel. Wi-Fi analyzer graphs are available in two m

- Interference

This tool shares more information about each channel as below:

• Noise
  • Interference measured in RSSI
  • List of top 64 neighbor APs
  • Number of APs

This tool shares more information about each channel as below:

• Noise
  • Number of neighbor APs
  • List of top 64 neighbor APs

Channel analyzer is available at Troubleshoot > Wi-Fi Analyzer > Interference Mode.

Figure 78 Interference Mode

Channel analyzer is available at Troubleshoot > Wi-Fi Analyzer > Number of APs Mode:

Figure 79 Troubleshoot > Wi-Fi Analyzer > Number of APs Mode

Packet capture

Allows the administrator to capture packets from the APs UI, cnMaestro UI, or XMS-Cloud. The adn can filter the packets being captured by specifying a particular MAC address, IP address, and port. The user can trigger packet capture on one or more interfaces, simultaneously view the progress of capture. The user can also download the captured pcap file on completion.

Enterprise Wi-Fi AP device allows packet capture on the following interfaces:

• Ethernet
• Radio
• Wireless LAN
• VLAN
• SSID
• Tunnel
• Bridge

Multiple options of filtering are provided and are available at Troubleshoot > Packet Capture page.

Figure 80 Packet Capture page

Performance

Speedtest on Access Point

Speedtest can be used to measure speed across the WAN to Cambium hosted servers. The CLI displays uplink and downlink speed in Mbps. You can also host your server in your data center bandwidth to it using the ETSI option and specifying the URL. The server software can be obtained. LibreSpeed project https://github.com/librespeed/speedtest.

Configuration:

Syntax:

ap(config)# speedtest etsi

[simultaneous connections] [mbps]

Example:

XV3-8-EC7708(config)# speedtest etsi 10.110.211.19:9000 200 200
Your IP is 10.110.240.202 - private IPv4 access
Latency: 14.5ms Jitter: 1.3ms
Download: 169.53Mbps Upload: 93.93Mbps

Network Connectivity

This tool helps to check the accessibility of remote hosts from Enterprise Wi-Fi AP devices. The tools are supported:

• Ping
• DNS Lookup
• Traceroute

Table 61 Troubleshoot: Connectivity

Parameters Description Range Default
Ping
IP Address or Hostname	Provide IPv4 address or Hostname to validate the address of the destined Host.	reachability	-
Number of Packets	Provide a number of request packets that are required to be transmitted to validate the reachability of the destined Host.	re 10 to be	-
Buffer Size Configure ICMP packet size. 1-65507 56
Ping Result Displays the ICMP results. - -
DNS Lookup
Host Name Provide Hostname whose IP must be resolved. - -
DNS Test Result Displays the IPs that are associated with configured Hostname. - -
Traceroute
IP Address or Hostname	Provide IPv4 address or Hostname to validate the address of the destined Host.	reachability	-
Fragmentation Provision to allow or deny fragment packets.		-	Off
Trace Method	Provision to configure payload mechanism to check reachability of destined IPv4/Hostname.	-theCMP	Echo
Display TTL	Provision to customize TTL display.	-	On
Verbose	Provision to display the output of traceroute.		- On
Traceroute Result	Displays the output of the traceroute command.		- -

To configure the above parameter, navigate to the Troubleshoot > Connectivity tab and provide the details as given below:

To configure Ping:

1. Select Test type from the drop-down list.
2. Enter IP address or Hostname in the text box.
3. Enter the Number of Packets in the text box.
4. Select Buffer Size value from the drop-down list.
5. Click Start Ping.

To configure DNS Lookup:

1. Enter the Hostname in the text box.

2. Click DNS Test.

To configure Traceroute:

1. Enter IP address or Hostname in the text box.
2. Click Fragmentation to ON/Off.
3. Select Trace Method to either ICMP Echo/UDP.
4. Click Display TTL to ON/Off.
5. Click Verbose to ON/Off.
6. Click Start Traceroute.

Figure 81 Ping parameters

Figure 82 DNS Lookup parameters

Figure 83 Traceroute parameters

XIRCON tool support

The Xirrus console (Xircon) is a necessary tool for daily management, troubleshooting, and testing. X customers and field engineers used them for initial configuration, troubleshooting individual AP problem changing IP addresses, and recovering units that would not boot. Since Cambium Networks acquired and we expect the XV series APs to be deployed along with legacy Xirrus APs, limited Xircon s added to the XV series APs.

The name "Xircon" refers to the feature in general, including the AP functionality, the communication protocol, and the client software used for discovering and controlling Xirrus APs.

• Xircon detects APs by listening for Xircon beacon packets. These packets are sent via UDP to port and multicast address. These are the existing Multicast beacons sent by AOS.

• Control is established over unicast UDP on a different port from discovery. Only one client dev control an AP at any given time.

• Individual packets are RC4 encrypted. The payload includes a hash to ensure that any tamperin packet corruption is detected, and the packet discarded.

• Starting with Release 6.2, Enterprise Wi-Fi APs can be detected by Xirrus AOS APs and the client. It is not possible to establish a Xircon console connection to XV series APs – for that IP address from Xircon and use standard SSH to connect.

XIRCON tool support for Linux 1.0.0.40

XIRCON tool support for Linux 1.0.0.40 has been added which is used to discover APs in the next IP address is not known.

Management Access

This chapter describes different methods of authenticating users to access device UI. Following are authentication methods supported by Enterprise Wi-Fi AP devices:

• Local authentication
• SSH Key authentication
  • RADIUS authentication

Local authentication

This is the default authentication mode enabled on the device. Only one username is supported w admin. The default password for the admin username is admin. The user has a provision to configure or update password.

Device configuration

The below figure shows how to configure or update the default password of the admin user.

1. Navigate to AP Groups > Management section.
2. Enter the administrator password in the Admin Password field.
3. Click Save.

Figure 84 Configure/update default password of the admin user

SSH Key authentication

SSH keys are also used to connect remote machines securely. They are based on the SSH crypto network protocol, which is responsible for the encryption of the information stream between two ma. Ultimately, using SSH keys users can connect to remote devices without even entering a password much more securely too. SSH works based on “public-key cryptography”. For simplicity, let us consider SSH keys come in pairs. There is a private key, that is safely stored to the home machine of the public key, which is stored to any remote machine (AP) the user wants to connect. So, whenever initiates an SSH connection with a remote machine, SSH first checks if the user has a private key matches any of the public keys in the remote machine and if not, it prompts the user for a pa

Device configuration

SSH Key-based access method can be configured on the device from cnMaestro. Navigate to AP Groups > Management section and complete the following steps.

1. Select the SSH checkbox.

2. Provide the public key generated from the steps described in the SSH Key generation section.

Figure 85 Management parameters

SSH Key generation

Windows

You may use a tool, such as PUTTY to generate both public and private keys. Below is a sample demonstration of configuring Enterprise Wi-Fi AP device and logging using SSH key via UI.

1. Generate a key pair in PUTTY Key Generator as shown in .

Figure 86 Generating public/private Key

1. Save the Public key and Private key once the key pair is generated as shown in .

Figure 87 Public and Private Key

1. Save the Public key generated in the step above as described in Device configuration section.
2. Login to device using private key generated above with username as admin.

Linux

If using a Linux PC and SSH from the Linux host, then you can generate the keys with the fo

1. Generate key pair executing below command on Linux console as shown in Figure 88.

Figure 88 Public Key location path

pk@ubuntu:~$ ssh-keygen -t rsa
Generating public/private rsa key pair.
Enter file in which to save the key (/home/pk/.ssh/id_rsa):
Created directory '/home/pk/.ssh'.
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /home/pk/.ssh/id_rsa.
Your public key has been saved in /home/pk/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:0qt4vJduO4uvpdptPkNzQ9uor1H7ydwE9fiEXOh0Kao pk@ubuntu
The key's randomart image is:
+----[RSA 2048]----
|    |
|    ..|
|    .+.o|
|    . ..=.* |
|    . S..=. = o|
|    .oo*... o |
|    ..+E.. . |
| oo*X. + +
| ooBXOO. = .
+----[SHA256]----
pk@ubuntu:~$

1. The public key is now located in PATH as mentioned in Figure 88.

PATH = "Enter the file to which to save the key"

1. The private key (identification) is now saved in PATH as mentioned in Figure 89.

PATH = "Your identification has saved in <>"

Figure 89 Private Key saved path

pk@ubuntu:~$ cat /home/pk/.ssh/id_rsa.pub
ssh-rsa AAAAB3NzaClyc2EAAAADAQABAAABAQDfZq+gc13qG8D1ckyfU2JqyW5pI9q8P0MrVtrM9Vu5P851kbIiCtsTmPm6Ewrfq/nhWWsn6k4p20pTZ/laX/Ww9BWf4jjw8nOqNY95zlJUD9mV48gqrOY8qbXv5gybXLZ+A0LarSgDaeoasM34xiJEqL+/GWkJW9/ckyueliSwAeX8ki++zJeIOQZrJWcJ6mlYHZfd4Yyb1LRg78L+q4YbHZAdkooUkTNXJ0kaBwR2i3OJjHxD1D+SRE3DrP9xAAD11cB5MvgQNWeBJ4ale4rwkphPQetH/lisY/DI9nkr8Hwul2JEDeMq5yII7Fdh6ALJb+b2mtZnbGBxdsM4HrTt pk@ubuntu
pk@ubuntu:~$
pk@ubuntu:~$

1. Save the public key generated in step above as described in the Device configuration section.

2. Login to device using private key generated above with username as admin.

RADIUS authentication

Device management access using RADIUS authentication allows multiple users to access using unique credentials and is secured.

Device configuration

Management access using the RADIUS authentication method can be configured on the device from cnMaestro. Navigate to AP Groups > Management and configure the following:

1. Select the RADIUS Mgmt Authentication check box.

2. Configure RADIUS IPv4/Hostname and shared secret in the RADIUS Server and RADIUS Secret parameters respectively.

3. Click Save.

Figure 90 RADIUS Server and RADIUS Secret parameters

Mesh

From Release 6.4 onwards, Enterprise Wi-Fi Access Points support mesh connections between radios. suggested maximum hops are two. Mesh links can form between radios of the same band of open GHz, 5 GHz, and 6 GHz), but the two peers of the mesh link do not have to be of the same example, a link between Wi-Fi 6 XV2-2 and XV3-8 is supported. Given the larger set of available and typically cleaner RF environment, Cambium Networks recommends using the 6 GHz radio for m-backhaul if the AP is 6 GHz-capable, else use the 5 GHz band.

A mesh link can be created between two radios by configuring one of them as a Base and the Client on the first WLAN of the AP. Typically, the wired connectivity AP would be configured as (MB). The radio setup for the MB selects a channel and starts transmitting beacons as soon as t up. The Mesh Client (MC) radio setup scans all available channels, looking for an MB radio to cc The SSID in the mesh WLAN is how the client and base radios of a mesh link identify each c SSID should be configured on the MB WLAN as well as the MC WLAN.

In addition to a simple topology between a base and a client, a star or hub-and-spoke mesh top supported; practically a mesh radio can service up to 10-12 Mesh Clients connected to it. When a configured with a mesh WLAN, on that WLAN other clients are allowed to connect, and the radio clients on other WLANs mapped to it. Note that a client radio starts rescanning all available channels as it loses connectivity to the base. Other WLANs mapped to it are not operational during this s

The mesh link can also be secured with WPA2/WPA3-Preshared-Keys (PSK). The same passphrase sh be configured on both the MB as well as the MC. Standard 802.11 security handshakes and AES-0 encryption are then used on the mesh link.

For WPA2-PSK, the maximum number of allowed characters is 64 whereas for WPA3-PSK, it is 63.

Deployment scenarios

Enterprise Wi-Fi APs support single and multi-hop mesh connections, although single hop mesh is hi advisable.

Enterprise Wi-Fi APs support the following deployment scenarios:

• Between Wi-Fi 6 APs
• Mixed deployment (between Wi-Fi 6 APs and Wi-Fi 5 APs)
• With third-party APs - TP-Link, MikroTik, and LigoWave

The following figures illustrate the working scenario of a wireless mesh network.

Figure 91 Single hop mesh connection in 5 GHz with two Mesh Clients

Figure 92 Single hop mesh connection in 5 GHz with two Mesh Clients and 2.4 GHz and 5 GHz as access

Figure 93 Single hop mesh Connection in 6 GHz with two Mesh Clients

For a stable mesh link to be established, Enterprise Wi-Fi mesh is configurable in the following th

- Mesh Base (MB)

Enterprise Wi-Fi device that operates in MB mode is the key to Mesh topology. MB is usually to the wired network. The radio setup for MB selects a channel and starts transmitting beacon as the AP comes up.

- Mesh Client (MC)

Enterprise Wi-Fi device that operates in MC mode, scans all available channels supported as per regulatory domain and establishes a link with MB.

- Mesh Recovery (MR)

When enabled, this mode helps maintain the mesh link if there is a disruption in the backhaul established with MB and MC. Mesh link disruption can cause due to PSK mismatch or due to asynchronous configurations on MB and MC. This mode needs to be exclusively enabled on ME devices.

This mode can also help in the Zero Touch Configuration of the Enterprise Wi-Fi device.

Mesh configurable parameters

The below table lists the configurable parameters that are exclusive to mesh:

Table 62 Mesh configurable parameters

Parameter	Description Range Default
Mesh This	parameter is required when a mesh connection is established with Enterprise Wi-Fi devices. Four options are available under parameter:1. Base: A WLAN profile configured with a Mesh Base operates like a normal AP. Its radio beacon is on startup so its SSID can be seen by radios configured as Mesh Clients.2. Client: A WLAN profile configured with a Mesh Client scans all available channels on startup, looking for a mesh-based AP to connect.3. Recovery: A WLAN profile configured as mesh-recovery broadcast pre-configured SSID upon detection of mesh link failure after a successful connection. This needs to be exclusively configured on the mesh-base device. Mesh Client auto-scan for mesh-recovery SSID upon failure of mesh link.	this
SSID SSID	is the unique network name to which MC connects and establishes mesh links.		-
VLAN Management	VLAN to access all devices in a mesh topology. 1-4094 1
Security For	configurable parameters, refer to Chapter 6: Security section. -	Open
Passphrase	A string that is a key value to generate keys based method configured.	-on12345678
Radios Each	SSID can be configured to be transmitted as per the 2.4 GHz deployment requirement. For a mesh WLAN profile, options available to configure the band:• 2.4 GHz• 5 GHz• 6 GHz
Hide SSID	This is the basic security mode of a Wi-Fi device. when enabled, will not broadcast SSID.	ThisDisplacetheter
SNR-threshold	Mesh Clients trigger a disconnect when SNR is below value. This is the applicable configuration on the MB.	1-4094678Disabled
Mesh Recovery Interval	Configure the interval for the consecutive ping loss se which the mesh link is considered to be down and attempted. One can configure the duration and interval same, in which case the first ping losses trigger the	5-30after mirreconnect is to be reconnect.	30
Mesh Auto Detect Backhaul	1. Single HopBoth Mesh Client and MB profiles are configured on the devices. When enabled, this feature triggers when an MB losses Ethernet connectivity. Mesh Client profile automatically gets enabled and establishes a mesh link with the nearest MB. For the MB profile to get auto-disabled, uncheck Mesh Multi-Hop.2. Multi-HopConsider Mesh Client AP is connected to an MB AP which has an Ethernet backhaul connection. In case MB which has the backhaul connection loses the Ethernet connectivity, both APs disconnect from the network. When Auto detected Backhaul is enabled on the MB, it automatically enables the MC profile and connects to the nearest MB ensuring the connectivity for self as well as the client behind. Mesh Multi-Hop check should be enabled for this feature to be active.3. Mesh Monitored HostThis parameter is exclusive to Mesh Client devices when Auto-Detect Backhaul is enabled with an extended network via the Ethernet of the device. Configure IP or Hostname to check the link status.	- Disabledonthe network. When Auto detected Backhaul is enabled on the MB, it automatically enables the MC profile and connects to the nearest MB ensuring the connectivity for self as well as the client behind. Mesh Multi-Hop check should be enabled for this feature to be active.3. Mesh Monitored HostThis parameter is exclusive to Mesh Client devices when Auto-Detect Backhaul is enabled with an extended network via the Ethernet of the device. Configure IP or Hostname to check the link status.
Mesh Client Monitor	1. Duration Duration in minutes of ping failure after connectivity is re-established.2. Host Configure a server to monitor with ping to connectivity needs to be re-established.	which meshdecide if mesh
Mesh Vlan Tagging	Enable the VLAN tagging over the mesh link. This applied to the Cambium mesh topology.	Enabled to

Order of Mesh profile configuration

If a device is configured as Mesh Base/client/recovery, the recommended order of WLAN configuration should be as follows:

• WLAN profile 1: Mesh Base
• WLAN profile 2: Mesh Client

- WLAN profile 3: Mesh Recovery

Mesh Base (MB)

To configure the MB:

cnMaestro configuration:

CLI configuration:

ap(config-wlan-1)# Mesh Base
ap(config-wlan-1)# ssid CAMBIUM_MESH_BASE
ap(config-wlan-1)# security wpa2-psk
ap(config-wlan-1)# passphrase 12345678
ap(config-wlan-1)# VLAN 1

ap(config-wlan-1)# band 5GHz

Mesh Client (MC)

To configure the MC:

cnMaestro configuration:

CLI configuration:

ap(config)# wireless wlan 1
ap(config-wlan-1)# mesh client
ap(config-wlan-1)# ssid CAMBIUM_MESH_BASE
ap(config-wlan-1)# vlan 1
ap(config-wlan-1)# security wpa2-psk
ap(config-wlan-1)# passphrase 12345678
ap(config-wlan-1)# band 5GHz
ap(config-wlan-1)# mesh-recovery-interval 30
ap(config-wlan-1)# mesh-client-monitor duration 5
ap(config-wlan-1)# mesh-client-monitor host 8.8.8.8

Mesh Recovery (MR)

To support plug and play Mesh deployment model, suggest configuring the MR profile on the MB result, factory reset APs/New APs can establish a mesh connection to the MB right away (out of

A recovery profile is also useful when an MC loses connectivity to a base due to misconfiguration connection that causes frequent drops.

To configure the MR:

cnMaestro configuration:

CLI configuration:

ap(config-wlan-1)# mesh recovery
ap(config-wlan-1)# vlan 1
ap(config-wlan-1)# band 5GHz

Please refer to the Cambium Zero touch White paper on mesh for more information on Zero touch Mesh.

Mesh SNR-threshold

SNR-threshold configuration parameter is supported via CLI and can also be provisioned via cnMaestr the MB WLAN profile. This parameter helps in maintaining the quality of the mesh link by denying has a low SNR value than the configured threshold.

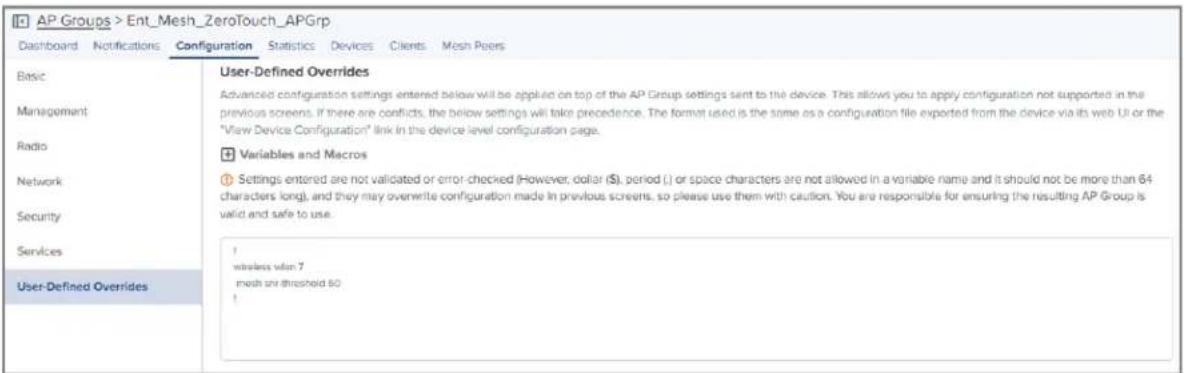

cnMaestro configuration:

CLI configuration:

ap(config-wlan-1)# mesh snr-threshold 60

Mesh Mode

Enterprise Wi-Fi APs support multi-radio, and by default channel distribution, is enabled. When channel distribution is enabled, each radio is mapped with a group of channels that it can operate.

When a device operates in MC, it will scan channels that are supported by the radio. Hence, the possibility that MC will never connect to MB. Mesh mode configuration is supported at the RADIO maintain the consistent link, the user has provision exclusively to configure mode on the radio to Mesh Clients are always connected to the network. To configure the Mesh mode:

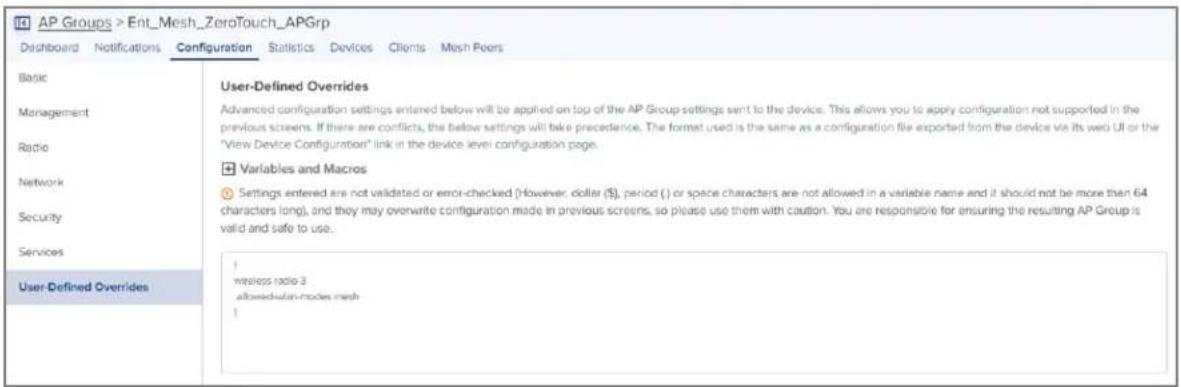

cnMaestro configuration:

CLI configuration:

ap(config-radio-1)# allowed-wlan-modes mesh

Mesh ACL

ACL can be used to make sure that the Mesh Client connecting to the base AP is a known A Client radio MAC address can be added to the Mesh Base AP to achieve this.

Following are the various modes of MAC authentication supported by Enterprise Wi-Fi APs:

- Allow

To enable this mode, add the list of MAC addresses either to be allowed or denied under "mac authentication list " and configure the device as below:

cnMaestro configuration:

CLI configuration:

ap(config-wlan-1)# mac-authentication policy allow

- Deny

To enable this mode, add the list of MAC addresses either to be allowed or denied under "mac authentication list " and configure the device as below:

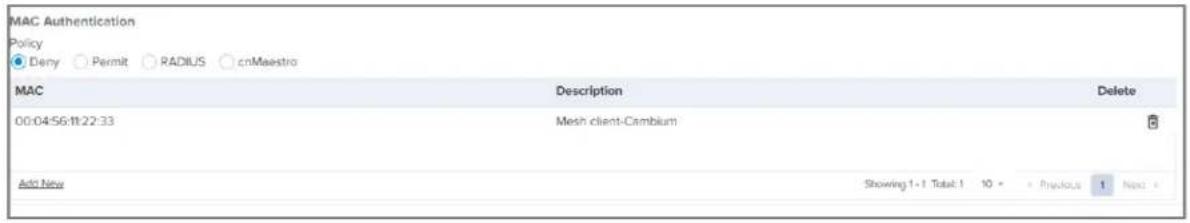

cnMaestro configuration:

CLI configuration:

ap(config-wlan-1)# mac-authentication policy deny

- RADIUS

To enable this mode, configure the device (described in Chapter 7: Radius server section) on the MB WLAN profile as below:

cnMaestro configuration:

CLI configuration:

ap(config-wlan-1)# mac-authentication policy radius

- cnMaestro

To enable this mode, define the MAC addresses allowed or denied as described in the cnMaestro Premises User Guide Association ACL section and configure the device on the MB WLAN profile as

cnMaestro configuration:

MAC Authentication

Policy

CLI configuration:

ap(config-wlan-1)# mac-authentication policy cnMaestro

Mesh Auto Detect Backhaul

Mesh Auto Detect backhaul is a mechanism to enable MB or MC WLAN profile based on the state ethernet of a device that is operating in mesh mode. Enterprise Wi-Fi APs are multi-radio and multi-supported, hence there are multiple ways of configuring this feature based on the number of ether of a device.

In general, customers use a single AP group to configure any mesh devices in a network. When is enabled, the device is intelligent enough to decide whether it has to operate in MB or MC n are different scenarios (AP2), where this feature can trigger a change in the mesh mode of the

Scenario 1

When a single AP Group is used for both MB and MC, AP2 can decide its mesh mode based eth2 connections. To auto-trigger, the type of mesh mode below configuration needs to be pushed APs in the mesh link.

Based on eth1 and eth2 physical link and reachability to 8.8.8.8 determines the state of mesh mo Below is a matrix that explains AP2 behavior:

Eth 1 Eth 2	8.8.8.8	Reachability	MB MC
ConnectedNo data enabled	Connected with no network reachability	No Disabled Enabled
ConnectedNo data enabled	Connected with network reachability	Yes Enabled Disabled
ConnectedData-enabled	Connected with no network reachability	No Disabled Enabled
ConnectedData-enabled	Connected with no network reachability	Yes Enabled Disabled
ConnectedData-enabled	Connected with network reachability	Yes Enabled Disabled

Figure 94 Deployment Scenario 1

Scenario 2

When a single AP Group is used for both MB and MC, AP2 can decide its mesh mode based connections. To auto-trigger, the type of mesh mode below configuration needs to be pushed on at the mesh link.

Eth 1 8.8.8.8 Reachability MB MC
• Connected• No data enabled	No Disabled Enabled
• Connected• Data-enabled	No Disabled Enabled
• Connected• Data-enabled	Yes Enabled Disabled

Figure 95 Deployment Scenario 2

Scenario 3

When a single AP Group is used for both MB and MC, AP2 can decide its mesh mode based connections. To auto-trigger, the type of mesh mode below configuration needs to be pushed on at the mesh link.

Eth 1 8.8.8.8 Reachability MB MC
Connected No Disabled Enabled

Figure 96 Deployment Scenario 3

To enable this configuration either from cnMaestro or CLI, follow the below guidelines:

cnMaestro configuration:

Mesh Client

Mesh Base

CLI configuration:

Mesh Client

Mesh 215

ap(config-wlan-1)# mesh client
ap(config-wlan-1)# ssid CAMBIUM_MESH_BASE
ap(config-wlan-1)# vlan 1
ap(config-wlan-1)# security wpa2-psk
ap(config-wlan-1)# passphrase 12345678
ap(config-wlan-1)# band 5GHz
ap(config-wlan-1)# mesh-client-monitor duration 5
ap(config-wlan-1)# mesh-client-monitor host 8.8.8.8

Mesh Base

ap(config-wlan-7)# mesh base
ap(config-wlan-7)# ssid CAMBIUM_MESH_BASE
ap(config-wlan-7)# vlan 1
ap(config-wlan-7)# security wpa2-psk
ap(config-wlan-7)# passphrase 12345678
ap(config-wlan-7)# band 5GHz
ap(config-wlan-7)# mesh-auto-detect-backhaul
ap(config-wlan-7)# mesh-auto-detect-backhaul monitor-host

Mesh Muti-Hop

This topology is not a recommended solution but can be deployed in foreseen situations. In this deployment, intermediate devices (AP2) in mesh links require both MB and MC to be enabled.

Figure 97 Multi-Hop deployment Scenario

cnMaestro configuration:

CLI configuration:

ap(config-wlan-7)# mesh base
ap(config-wlan-7)# ssid CAMBIUM_MESH_BASE
ap(config-wlan-7)# vlan 1
ap(config-wlan-7)# security wpa2-psk
ap(config-wlan-7)# passphrase 12345678
ap(config-wlan-7)# band 5GHz
ap(config-wlan-7)# mesh-auto-detect-backhaul
ap(config-wlan-7)# mesh-auto-detect-backhaul monitor-host
ap(config-wlan-7)# mesh-auto-detect-backhaul multi-hop

Mesh Roaming

From Release 6.4 onwards Enterprise Wi-Fi APs support mesh roaming. For this functionality to be enable the below parameters (MB and MC) on mesh devices.

Mesh Base configuration

Enable 802.11r on the MB WLAN profile to support MC roaming.

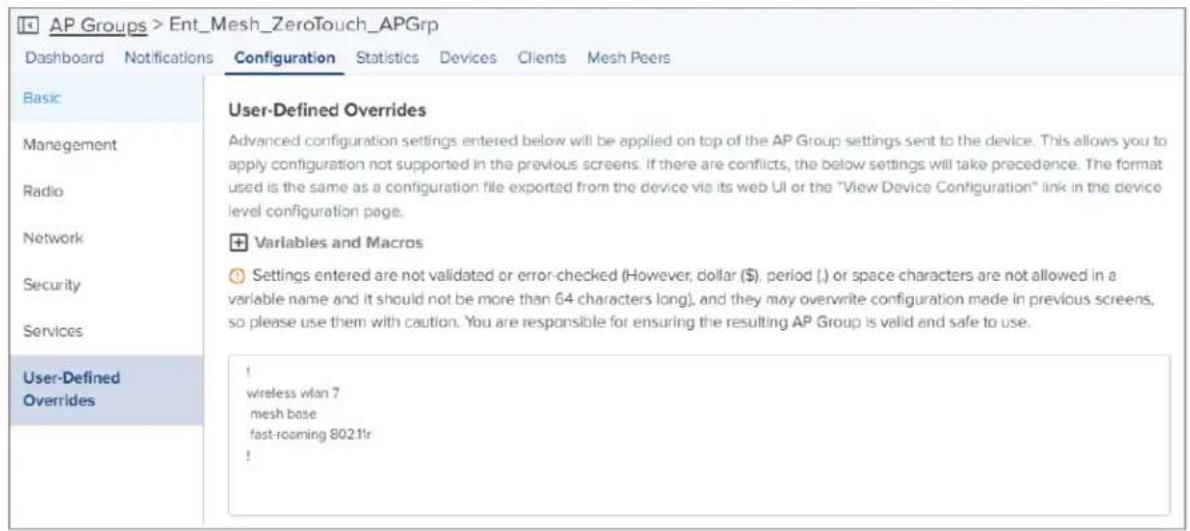

cnMaestro configuration:

CLI configuration:

ap(config-wlan-1)# fast-roaming 802.11r

Mesh Client configuration

For Mesh Client roaming to be operational, enable or configure the below parameters on the radio the mesh client is enabled.

Table 63 Mesh Client configuration parameter

Parameters Description	Range Default
mesh-client-bgscan	Provision to enable the Mesh Client background	scan. -	Disabled
mesh-client-bgscan channel-list	The list of channels the Mesh Client needs to look for AP.	to scan to -
mesh-client-bgscan long-interval	Once APs RSSI goes above this value, scan every configured interval.	in 300s and 800 seconds	800
mesh-client-bgscan roaming-rssi-threshold	APs RSSI threshold to initiate a scan and roam. -100-0 dBm	dBm	-65
mesh-client-bgscan short-interval	Once AP's RSSI drops below this value, the scan will be triggered and follows the scan	in 300diate seconds	60

cnMaestro configuration:

CLI configuration:

ap(config-radio-2)# mesh-client-bgscan
ap(config-radio-2)# mesh-client-bgscan channel-list all-channels
ap(config-radio-2)# mesh-client-bgscan roaming-rssi-threshold -65
ap(config-radio-2)# mesh-client-bgscan long-interval 300
ap(config-radio-2)# mesh-client-bgscan short-interval 60

Mesh link-Sample configuration

This section briefs about the configuration of the device to get a mesh link established with different deployment scenarios.

VLAN 1 as the management interface

Follow the below CLI commands to establish a mesh link with VLAN 1 as the management interfa

1. To configure MB and MR, following are the commands:

- WLAN MB profile

cnMaestro configuration:

CLI configuration:

ap(config-wlan-1)# mesh base
ap(config-wlan-1)# ssid CAMBIUM_MESH_BASE
ap(config-wlan-1)# security wpa2-psk
ap(config-wlan-1)# passphrase 12345678
ap(config-wlan-1)# VLAN 1
ap(config-wlan-1)# band 5GHz

- WLAN MR profile

cnMaestro configuration:

CLI configuration:

ap(config-wlan-1)# mesh recovery
ap(config-wlan-1)# vlan 1
ap(config-wlan-1)# band 5GHz

1. To configure MC, following are the commands:

cnMaestro configuration:

CLI configuration:

ap(config-wlan-1)# mesh client
ap(config-wlan-1)# ssid CAMBIUM_MESH_BASE
ap(config-wlan-1)# vlan 1
ap(config-wlan-1)# security wpa2-psk
ap(config-wlan-1)# passphrase 12345678
ap(config-wlan-1)# band 5GHz
ap(config-wlan-1)# mesh-recovery-interval
ap(config-wlan-1)# mesh-recovery-interval 30
ap(config-wlan-1)# mesh-client-monitor
ap(config-wlan-1)# mesh-client-monitor duration 5
ap(config-wlan-1)# mesh-client-monitor host 8.8.8.8

1. To configure the Management VLAN interface, following are the commands:

cnMaestro configuration:

CLI configuration:

ap(config)# interface vlan 1
ap(config-vlan-1)# ip address dhcp
ap(config-vlan-1)# exit
ap(config)# interface eth 1
ap(config-eth-1)# switchport mode trunk
ap(config-eth-1)# switchport trunk native vlan 1
ap(config-eth-1)# switchport trunk allowed vlan 2-4094

Non-VLAN 1 as the management interface

Follow the below CLI commands to establish a mesh link with non-VLAN 1 as the management in

1. To configure MB and MR, following are the commands:

- WLAN MB profile

cnMaestro configuration:

CLI configuration:

ap(config-wlan-1)# mesh base
ap(config-wlan-1)# ssid CAMBIUM_MESH_BASE
ap(config-wlan-1)# security wpa2-psk
ap(config-wlan-1)# passphrase 12345678
ap(config-wlan-1)# VLAN 10
ap(config-wlan-1)# band 5GHz

- WLAN MR profile

cnMaestro configuration:

CLI configuration:

ap(config-wlan-1)# mesh recovery
ap(config-wlan-1)# vlan 10
ap(config-wlan-1)# band 5GHz

1. To configure MC, following are the commands:

cnMaestro configuration:

CLI configuration:

ap(config-wlan-1)# mesh client
ap(config-wlan-1)# ssid CAMBIUM_MESH_BASE
ap(config-wlan-1)# vlan 10
ap(config-wlan-1)# security wpa2-psk
ap(config-wlan-1)# passphrase 12345678
ap(config-wlan-1)# band 5GHz
ap(config-wlan-1)# mesh-recovery-interval
ap(config-wlan-1)# mesh-recovery-interval 30
ap(config-wlan-1)# mesh-client-monitor
ap(config-wlan-1)# mesh-client-monitor duration 5
ap(config-wlan-1)# mesh-client-monitor host 8.8.8.8

1. To configure the Management non-VLAN interface, the following are the commands: cnMaestro configuration:

CLI configuration:

ap(config)# interface vlan 10
ap(config-vlan-10)# ip address dhcp
ap(config-vlan-10)# ip dhcp request-option-all
ap(config)# interface eth 1
ap(config-eth-1)# switchport mode trunk
ap(config-eth-1)# switchport trunk native vlan 1
ap(config-eth-1)# switchport trunk allowed vlan 2-4094

Typical use-cases

• Wi-Fi access in areas with no cable run

- Add an AP indoor/outdoor APs for the areas that are difficult to reach

- Small retail location with one AP near an Ethernet outlet, and another in the middle of the I no easy cable run.

- Resolving coverage issues.

- Plug coverage holes

- Extend range outdoors

° An XV2-2T Hotspot in a parking lot outside a building, with XV2-2s providing Wi-Fi within th

Additional mesh topology supported

Note

The following topology supports zero touch provisioning and single AP group configuration.

Wired devices behind mesh client AP

In this scenario, when wired devices are connected to the mesh client AP (AP2), the AP will sup touch provisioning and both base and client APs will have the same configuration (AP group). Mesh have the capability to connect a separate LAN segment (containing wired devices) to the WLAN.

When an AP, with factory default configuration, is connected in the above scenario, the device wait seconds to obtain the IP address from the wired side. If the device does not receive any IP ad wired side, then mesh recovery is triggered. If the device restarts, the device waits for 360 seconds the IP address from the wired side. If the device does not receive any IP address from the wired mesh recovery is triggered.

Guest Access Portal - Internal

Introduction

Guest Access Portal services offer a simple way to provide secure access to the internet for user devices using a standard web browser. Guest access portal allows enterprises to offer authenticated to the network by capturing and re-directing a web browser's session to a captive portal login pa the user must enter valid credentials to be granted access to the network.

Modes of Captive Portal Services supported by Enterprise Wi-Fi AP devices:

• Internal Access: Captive Portal server is hosted on the access point and is local to the AP.
• External Access: Enterprise Wi-Fi AP is integrated with multiple third-party Captive Portal services vendors. Based on the vendor, the device needs to be configured. For more information, see Guest Access Portal - External.
• cnMaestro: Captive Portal services are hosted on cnMaestro where various features like Social login, Voucher login, SMS login, and Paid login are supported. For more information, see Guest Access – cnMaestro.
• EasyPass: EasyPass Access Services enable you to easily provide secure and controlled access to users and visitors on your Wi-Fi network.

This chapter describes about Internal Captive Portal services supported by Enterprise Wi-Fi APs. The following figure displays the basic topology of testing the Internal Captive Portal Service.

Figure 98 Topology

Configurable parameters

The below figure displays multiple configurable parameters supported for Internal Guest Access hosted AP. Access Policy – Clickthrough.

Figure 99 Guest Access Internal Access Point parameter

Access policy

Click through

When this policy is selected, the user will get a login page to accept Terms and Conditions to get access to the network. No additional authentication is required.

Splash page

Title

You can configure the contents of the splash page using this field. Contents should not exceed n 255 characters.

Contents

You can configure the contents of the splash page using this field. Contents should not exceed n 255 characters.

Terms and conditions

Terms and conditions to be displayed on the splash page can be configured using this field. Terr conditions should not exceed more than 255 characters.

Logo

Displays the logo image updated in URL http(s)://. Either PNG or JPEG format is supported.

Background image

Displays the background image updated in URL http(s)://background>/. Either PNG or JPEG format of logo is supported.

Redirect parameters

Redirect hostname

Users can configure a friendly hostname, which is added to the DNS server and is resolvable to Wi-Fi AP IP address. This parameter once configured will be replaced with an IP address in the URL provided to wireless stations.

Success action

Provision to configure redirection URL after successful login to captive portal services. Users can co three modes of redirection URL:

- Internal logout Page

After successful login, the wireless client is redirected to the logout page hosted on AP.

- Redirect users to external URL

Here users will be redirected to the URL which we configured on a device as below:

- Redirect users to the Original URL

Here users will be redirected to a URL that is accessed by the user before successful captive authentication.

Redirect

By default, captive portal redirection is triggered when the user accesses either HTTP or HTTPS W enabled, redirection to Captive Portal Splash Page is triggered when an HTTP WWW is accessed by user.

Redirect Mode

There are two redirect modes available:

- HTTP Mode

When enabled, AP sends an HTTP POSTURL to the client.

- HTTP(s) Mode

When enabled, AP sends HTTPS POST URL to the client

Success message

This we can configure so that we can display success message on the splash page after success authentication

Timeout

Session

This is the duration of time which wireless clients will be allowed internet after guest access auth Inactivity

This is the duration of time after which wireless clients will be requested for re-login.

Whitelist

Provision to configure either lps or URLs to bypass traffic, therefore users can access those IPs or without Guest Access authentication.

Configuration examples

This section briefs about configuring different methods of Internal Guest Access captive portal service hosted on AP.

Access Policy - Clickthrough

Figure 100 Authentication – redirected splash page

Figure 101 Successful login - redirected splash page

Guest Access Portal - External

Introduction

Guest access WLAN is designed specifically for BYOD (Bring Your Own Device) setup, where large organizations have both staff and guests running on the same WLAN or similar WLANs. Cambium provides different options to the customers to achieve this based on where the captive portal page and who will be validating and performing the authentication process.

External Hotspot is a smart Guest Access provision supported by Enterprise Wi-Fi AP devices. This of Guest Access provides the flexibility of integrating an external 3rd party Web/Cloud hosted captiv fully customized. More details on third-party vendors who are integrated and certified with Cambium listed in the URL https://www.cambiumnetworks.com/wifi_partners/.

Configurable parameters

Figure 102 displays multiple configurable parameters supported for External Guest Access hosted on AP.

Figure 102 External Hotspot parameter

Access policy

Clickthrough

When this policy is selected, the user will get a login page to accept Terms and Conditions to get access to the network. No additional authentication is required.

WISPr

WISPr clients external server login

Provision to enable re-direction of guest access portal URL obtained through WISPr.

External portal post through cnMaestro

This is required when HTTPS is only supported by an external guest access portal. This option will be enabled minimizes certification. The certificate is required to install only in cnMaestro.

External portal type

Only standard mode configuration is supported by Enterprise Wi-Fi AP products.

Standard

This mode is selected, for all third-party vendors whose Guest Access services is certified and inte with Enterprise Wi-Fi AP products.

Redirect parameters

Success action

Provision to configure redirection URL after successful login to captive portal services. Users can co three modes of redirection URL:

- Internal logout Page

After successful login, the wireless client is redirected to the logout page hosted on AP.

- Redirect users to external URL

Here users will be redirected to the URL which we configured on the device as below:

- Redirect users to the original URL

Here users will be redirected to a URL that is accessed by the user before successful captive authentication.

Redirect

By default, captive portal redirection is triggered when the user accesses either HTTP or HTTPS W enabled, redirection to Captive Portal Splash Page is triggered when an HTTP WWW is accessed by user.

Redirect mode

There are two redirect modes available:

- HTTP Mode

When enabled, AP sends an HTTP POSTURL to the client.

- HTTP(s) Mode

When enabled, AP sends HTTPS POST URL to the client

Success message

This we can configure so that we can display success message on the splash page after success authentication

Timeout

Session

This is the duration of time which wireless clients will be allowed internet after guest access auth

Inactivity

This is the duration of time after which wireless clients will be requested for re-login.

Whitelist

Provision to configure either lps or URLs to bypass traffic, therefore users can access those IPs or without Guest Access authentication.

Configuration examples

This section briefs about configuring different methods of External Guest Access captive portal service hosted on AP.

Access Policy - Clickthrough

Figure 103 Authentication – redirected splash page

Figure 104 Successful Login - redirected splash page

Guest Access - cnMaestro

Cambium supports end-to-end Guest Access Portal services with a combination of Enterprise Wi-Fi AF cnMaestro. cnMaestro supports various types of authentication mechanisms for wireless clients to obtain Internet access. For further information about Guest Access Portal:

• For On-Premises, go to https://support.cambiumnetworks.com/files/cnmaestro/ and download the latest cnMaestro On-Premises User Guide.
• For cnMaestro Cloud, refer to the cnMaestro Cloud User Guide.

The Auto VLAN is intended to support zero-touch detection and configuration for connected Enterpris Fi APs. New Cambium vendor-specific LLDP TLVs are introduced starting with cnMatrix Release 3.1 t support “pushing” PBA policy data from Enterprise Wi-Fi APs to cnMatrix. The new PBA TLVs are implemented as an extension to the LLDP standard, using its flexible extension mechanism.

From a functional perspective, cnMatrix, acting as the upstream device, includes the PBA authentication in the regularly generated LLDPDUs for a port. The downstream device receives the PBA authentica TLV, and, if policy action data (for example VLANs) is present to be pushed to cnMatrix, a PBA settings TLV is constructed and added to the LLDPDU for the port.

The below table lists the fields that are required for configuring Auto-VLAN:

Table 64 Configuring Auto-VLAN parameters

Parameters	Description Range Default
Ildp pba New PBA TLVs is shared with cnMatrix switch. - Enabled
Ildp pba-auth-key	The shared private key used during PBA TLV authenticbe updated or reset from its default value (by using	cation-enabledthe ‘no’woption).default key

Note

lldp pba-auth-key default value cannot be shared due to security concerns.

CLI configuration:

Syntax:

ap(config)# lldp

ap(config)# lldp pba-auth-key

Example:

ap(config)# lldp pba
ap(config)# lldp pba-auth-key 123456789

Factory reset via 'RESET' button

Table 65 Factory reset via RESET button

Access Point	Procedure LED Indication
XV3-8 Press	and hold the Reset button for 15 seconds	Both LEDs will be OFF and turned Amber
XE5-8 Press	and hold the Reset button for 15 seconds	Both LEDs will be OFF and turned Amber
XV2-2 Press	and hold the Reset button for 15 seconds	Both LEDs will be OFF and turned Amber
XV2-2T0 Press	and hold the Reset button for 15 seconds	Both LEDs will be OFF and turned Amber
XV2-2T1 Press	and hold the Reset button for 15 seconds	Both LEDs will be OFF and turned Amber
XE3-4 Press	and hold the Reset button for 15 seconds	Both LEDs will be OFF and turned Amber
XE3-4TN Press	and hold the Reset button for 15 seconds	Both LEDs will be OFF and turned Amber
XV2-21X Press	and hold the Reset button for 15 seconds	Both LEDs will be OFF and turned Amber
XV2-23T Press	and hold the Reset button for 15 seconds	Both LEDs will be OFF and turned Amber
XV2-22H Press	and hold the Reset button for 15 seconds	Both LEDs will be OFF and turned Amber

Boot partition change via power cycle

Table 66 Boot partition change via power cycle

Access Point Procedure
XV3-8	Follow power ON and off 9 times with an interval of 120 Sec
XE5-8	Follow power ON and off 9 times with an interval of 120 Sec
XV2-2	Follow power ON and off 9 times with an interval of 120 Sec

(ON) and 5 Sec (O

(ON) and 5 Sec (O

(ON) and 5 Sec (O

Access Point Procedure

XV2-2T0 Follow power ON and off 9 times with an interval of 120 Sec (ON) and 5 Sec (OFF)

XV2-2T1 Follow power ON and off 9 times with an interval of 120 Sec (ON) and 5 Sec (OFF)

XE3-4 Follow power ON and off 9 times with an interval of 120 Sec (ON) and 5 Sec (OFF)

XE3-4TN Follow power ON and off 9 times with an interval of 120 Sec (ON) and 5 Sec (OFF)

XV2-21X Follow power ON and off 9 times with an interval of 120 Sec (ON) and 5 Sec (OFF)

XV2-23T Follow power ON and off 9 times with an interval of 120 Sec (ON) and 5 Sec (OFF)

XV2-22H Follow power ON and off 9 times with an interval of 120 Sec (ON) and 5 Sec (OFF)

Disable factory Reset Button

User can disable the physical Reset Button on the device by using the below CLI command:

ap(config)# no system hw-reset

Warning

The Reset Button is a key recovery option in situations when an AP gets misconfigured you are unable to connect to the AP.

By disabling the Reset Button, you lose the ability to recover the AP in such scenario:

Command-Line Interface (CLI)

The Enterprise Wi-Fi products support Command-Line Interface (CLI) which helps in configuring as we monitoring the devices.

Show commands

The below table provides Show commands supported in Enterprise Wi-Fi AP:

Table 67 Show commands supported in Enterprise Wi-Fi AP

SL No	CLI Command Description
Deep Packet Inspection (DPI)
1	show application-statistics by-application	Displays statistics of each application that is accessed by the station connected to the AP.
2	show application-statistics by-category	Displays statistics of application category that is accessed by the station connected to the AP.
Network Information
3	show arp	Displays list of ARP entries learned by AP.
4	show conntrack	Displays current connection track entries along with application ID Mapping.
5	show route	Displays IP route information.
6	show dhcp-pool	Displays the DHCP pool configuration.
7	show interface brief	Displays interface details such as IP, Netmask, and traffic statistics.
8	show ip dhcp-client-info	Displays the DHCP options learned by device across all interfaces.
9	show ip domain-name	Displays learned domain name information.
10	show ip gw-source-precedence	Displays the Precedence of gateway sources.
11	show ip interface	Displays IP interface parameters.
12	show ip name-server	Displays DNS server information.
13	show ip neighbour	Displays IPv4 neighbour entries.
14	show ip route	Displays IP route information.
15	show ipv6 dhcp-client-info	Displays learned DHCPv6 client information.
16	show ipv6 domain-name	Displays learned domain name information.
17	show ipv6 gw-source-precedence	Displays the precedence of gateway sources.
18	show ipv6 interface brief	Displays IPv6 interface parameters.
19	show ipv6 name-server	Displays DNS server information.
20	show ipv6 neighbour	Displays neighbour entries.
21	show ipv6 route	Displays IP route information.
Radio Information
22	show auto-rf channel-info	Displays Auto-RF channel information.
23	show auto-rf history	Displays Auto-RF history.
24	show wireless band-steer client-cache	Displays band steered client cache.
25	show wireless mesh ipv6	Displays IPv6 address of associated mesh clients
26	show wireless mesh-xtnded-list	Displays mesh extended device list for 2.4 GHz mesh-xtnded-dev-list is enabled.
27	show wireless neighbors 2.4GHz	Displays 2.4 GHz wireless neighbors.
28	show wireless neighbors 5GHz	Displays 5G Hz wireless neighbors.
29	show wireless neighbors 6GHz	Displays 6 GHz wireless neighbors.
30	show wireless neighbors autocell	Displays Auto-cell neighbors.
31	show wireless radios channels	Displays supported channels.
32	show wireless radios mu-mimo-statistics	Displays MU-MIMO statistics of Radios.
33	show wireless radios multicast-to-unicast	Displays multicast-to-unicast configuration.
34	show wireless radios ofdma-statistics	Displays OFDMA statistics of Radios.
35	show wireless radios rf-statistics	Displays statistics of Radios.
36	show wireless radios statistics	Displays statistics of Radios.
37	show wireless wlans aggregate-statistics	Displays aggregate statistics of wireless LANs.
38	show wireless wlans interface	Displays wireless WLAN interface details.
39	show wireless wlans monitor-host	Displays monitor host information for wireless LANs.
40	show wireless wlans statistics	Displays statistics of wireless LANs.
Bonjour Information
41	show bonjour-services	Displays Bonjour services available.
42	show bonjour-statistics	Displays Bonjour rule statistics.
System Information
43	show upgrade-status	Displays last upgrade status.
44	show version	Displays device firmware information.
45	show timezones	Displays list of timezone locations.
46	show management details	Displays management status in detail.
47	show mfgrom	Displays manufacturing ROM details.
48	show country-codes	Displays a list of supported countries and corresponding country codes.
49	show boot	Displays device firmware active-backup versions.
50	show cambium-id	Displays configured Cambium-ID (if any).
51	show clock	Displays system time.
52	show config all	Displays current configuration including defaults.
53	show config dhcp-pools all	Displays DHCP pools configuration including defaults.
54	show config filter	Displays Filter configuration.
55	show config wireless all	Displays wireless configuration including defaults.
56	show config system all	Displays infra configuration including defaults.
57	show config system interfaces	Displays network interface configuration.
58	show events	Displays recent event messages.
Guest Access
59	show ext-guest clients	Displays information of ext-guest clients.
Filters
60	show filter-statistics	Displays filter statistics.
LLDP
61	show lldp chassis	Displays local chassis data.
62	show lldp configuration	Displays configuration.
63	show lldp interfaces	Displays interfaces data.
64	show lldp neighbors	Displays neighbors data.
65	show lldp statistics	Displays statistics.
66	show power	Displays power conditions.
67	show packet-capture status	Displays status of packet capture.
Real-Time Location System
68	show rtls aeroscout ble-tag-summary	Displays AeroScout BLE-tag summary.
69	show rtls aeroscout configuration	Displays AeroScout Wi-Fi-tag configuration.
70	show rtls aeroscout wifi-tag-summary	Displays AeroScout Wi-Fi-tag summary.
Tunnel
71	show tunnel-statistics	Displays tunnel statistics.
72	show tunnel-status details	Displays tunnel parameters.
73	show ip pppoe-client-info	Displays learned PPPoE client information.
74	show pppoe-status	Displays PPPoE status.

Service commands

Service show

The below table provides Service show commands supported in Enterprise Wi-Fi AP:

Table 68 Service show commands supported in Enterprise Wi-Fi AP

SL No	CLI Command Description
1	service show bridge	Displays AP bridge table entries.
2	service show client-cache	Displays current client status and history of clients connected and respective parameters.
3	service show config	Displays configuration from data base.
4	service show cores	Displays process cores (if any).
5	service show debug-logs	Displays debug logs of various processes.
6	service show df	Displays flash status.
7	service show dmesg	Displays system kernel logs.
8	service show epsk	Displays ePSK information.
9	service show ethtool	Displays information and statistics w.r.t Ethernet interfac
10	service show guest-portal whitelist wlan	Displays whitelist entries either configured or auto-sele device in a guest portal WLAN profile.
11	service show ifconfig	Displays status and statistics of all interfaces configur supported on the device.
12	service show iperfd-logs	Display IPERF logs when iperfd daemon is enabled
13	service show iwconfig	Displays status and statistics of all Wireless interfaces configured on the device.
14	service show last-reboot-reason	Displays the reason for the last reboot of the AP.
15	service show last-reboot-state watchdog	Displays if the last reboot reason is due to watched
16	service show mcastsnoop	Displays multicast-snoop tables.
17	service show mdnsd-statistics	Displays mDNS packet stats on mdnsd.
18	service show memory	Displays memory information.
19	service show netstat	Displays network socket connections.
20	service show ps	Displays a list of processes.
21	service show ps-restart-history	Displays history of process restart on the AP.
22	service show route	Displays routing table.
23	service show top	Displays process activity status.

Service system

The below table provides Service system commands supported in Enterprise Wi-Fi AP:

Table 69 Service system commands supported in Enterprise Wi-Fi AP

SL No	CLI Command Description
1	service boot backup-firmware	Helps to boot to other partition.
2	service clear-cores	Clear system core files (if any).
3	service clear-dhcp-pool	Clear DHCP pool allocated addresses.
4	service debuglogging-level	Commands to enable debugging of processes at various logging levels.
5	service flash-leds	Flash system LEDs help identify this device visually.
6	service radio apstats	Displays aggregate statistics of all wireless interfaces.
7	service radio athstats	Displays aggregate Radio traffic statistics.
8	service radio iwpriv	Displays supported iwpriv commands.
9	service radio thermaltool	Displays radio current operating temperature.
10	service schedule reload	Reboot AP at the specified time.
11	service ssh host add	Add a host and key to the known hosts list.
12	service ssh host del	Delete a host and key from the known hosts list.
13	service system-trace	Start a trace session for troubleshooting.
14	service test leds	Displays test LEDs.
15	service test radio	Displays status and configured Radio.

Note

This feature is available from cnMaestro 4.1.0 and later versions only.

The cnMaestro X Assurance feature provides enhanced visibility into the health of Wi-Fi client connect including root cause analysis of failures with possible recommended actions. It also provides analytics aggregated data that can help to improve clients connectivity in the Wi-Fi network.

Note

This feature is currently available as a free trial to all cnMaestro X customers. In future feature will require a separate paid subscription.

The cnMaestro X Assurance feature analyzes the Wi-Fi client connection events and helps to troubles common network connectivity and performance issues such as the following:

• Connectivity—Association, authentication, and network connectivity services, such as DHCP and DNS transaction failures.
• Poor Performance—Low RSSI, low data rate, AAA, DHCP, DNS transaction latency.

For more information, refer to the cnMaestro User Guide.

MarketApps

The MarketApps feature in cnMaestro offers customized solutions for efficiently managing Wi-Fi service residential settings, such as multi-dwelling units (MDUs) and apartment complexes. It provides specialized tools (applications or Apps) that enhance operational efficiency and cater to the distinct requirements both property managers and residents.

Target audience

• Property managers—The MarketApps feature empowers property managers to centrally administer Wi-Fi access across their properties. They can set up community-wide Wi-Fi networks and manage personal Wi-Fi networks for local residents.
• Residents—Residents can set up and manage their own Wi-Fi networks within the community, ensuring personalized and secure Internet access.
• Solution providers—Solution providers can utilize MarketApps to offer tailored Wi-Fi solutions, enhancing network performance and user satisfaction in multi-dwelling units and apartment complex

Benefits

• Centralized management—Property managers can oversee and control Wi-Fi access across multiple units or buildings from cnMaestro.
• Customization—Residents can set up personal Wi-Fi networks with customized SSIDs and password enhancing their user experience.

To access MarketApps, navigate to Network Services > MarketApps in cnMaestro.

For more information on configuring and viewing MarketApps, refer to the cnMaestro User Guide.

CLI configuration

To enable MarketApps using AP CLI, execute the following command:

ap(config)# wireless wlan 2
ap(config)# epsk cnMaestro

Glossary

Term Definition
AP Access	Point Module. One module that distributes network or Internet services to modules.
API Application	Program Interface
ARP Address	Resolution Protocol. A protocol defined in RFC 826 to allow a network correlate a host IP address to the Ethernet address of the host.
BT Bluetooth
DFS See	Dynamic Frequency Selection
DHCP Dynamic Host Configuration Protocol defined in RFC 2131. The protocol that enables a device to be assigned a new IP address and TCP/IP parameters, including a default gateway, whenever the device reboots. Thus, DHCP reduces configuration time, conserves IP addresses, and allows modules to be moved to a different network within the system.
Ethernet Protocol	Any of several IEEE standards that define the contents of frames that are transferred from network element to another through Ethernet connections.
FCC Federal Communications Commission of the U.S.A.
GPS Global Positioning System. A network of satellites that provides absolute time to earth, which use the time signal to synchronize transmission and reception cycles (to avoid interference) and to provide reference for troubleshooting activities.
UI User	interface.
HTTP Hypertext Transfer Protocol, used to make the Internet resources available on the World Wide Web.
HTTPS Hypertext Transfer Protocol Secure
HT High	Throughput
IP Address	The 32-bit binary number identifies a network element by both network and Subnet Mask.
IPv4 The	traditional version of Internet Protocol, defines 32-bit fields for data transmission.
LLDP Link	Layer Discovery Protocol
MAC Address	Media Access Control address. The hardware address that the factory assigns to the mode for identification in the Data Link layer interface of the Open Systems Interconnection system. This address serves as an electronic serial number.
MIB Management Information Base. Space that allows a program (agent) in the network to relay information to a network monitor about the status of defined variables (objects).
MIR See	Maximum Information Rate.
PPPoE Point to Point Protocol over Ethernet. Supported on SMs for operators who use PPPoE in other parts of their network operators who want to deploy PPPoE to realize per-subscribe authentication, metrics, and usage control.
Proxy Server	Network computer that isolates another from the Internet. The proxy server communicates the other computer, and sends replies to only the appropriate computer which has an II address that is not unique or not registered.
PoE Power over Ethernet.
SLA Service Level Agreement
VLAN Virtual local area network. An association of devices through software that contains broadcast traffic, as routers would, but in the switch-level protocol.
VPN A virtual private network for communication over a public network. One typical use is to connect remote employees, who are at home or in a different city, to their corporate r over the Internet. Any of several VPN implementation schemes are possible. SMs support L2TP over IPSec (Level 2 Tunneling Protocol over IP Security) VPNs and PPTP (Point to Tunneling Protocol) VPNs, regardless of whether the Network Address Translation (NAT) feature enabled.

This appendix contains the following topics:

• Supported RADIUS Attributes
• Supported DFS channels
• Supported 6 GHz countries
• Priority order for parameters

• Best practices for wireless clients seamless roaming across APs

Supported RADIUS Attributes

This topic lists the following RADIUS override attributes that are supported on Enterprise Wi-Fi APs:

• WISPr VSAs (Vendor ID: 14122)

• Cambium VSAs (Vendor ID: 17713)

• Standard RADIUS attributes

• RADIUS attributes in authentication and accounting packets with WPA2-Enterprise security

• Supported CoA messages

WISPr VSAs (Vendor ID: 14122)

Table 70 lists the WISPr vendor-specific attributes (VSAs) supported on Enterprise Wi-Fi APs.

Table 70 WISPr VSAs

Attribute Value	Attribute Description	Attribute Type	RADIUS Message Types Accounting			ng Messages WPA2 /			WPA3 - Enterprise Authentication Support	Guest Access Support
			Request	Response / Challenge	Accept	Start	Interim Stop
2	WISPr-Location-Name	string Yes	-NA- No	Yes Yes Yes	Yes			Yes
7	WISPr-Bandwidth-Max-Up	integer	No	No	Yes	No	No	No	Yes	Yes
8	WISPr-Bandwidth-Max-Down	integer	No	No	Yes	No	No	No	Yes	Yes
9	WISPr-Session-Terminate-Time	string	No	No	Yes	No	No	No	Yes	Yes

Table 71 lists the WISPr VSAs supported on Enterprise Wi-Fi APs with CoA support.

Table 71 WISPr VSAs with CoA

Attribute Value	Attribute Description	Attribute Type	RADIUS Message Types Accounting Messages CoA Support with Guest Access						CoA Support with WPA2 / - Enterprise Authentication
			Request	Response / Challenge	Accept	Start	Interim Stop
2	WISPr-Location-Name	string Yes	-NA- No	Yes Yes Yes	-NA-	-NA-
7	WISPr-Bandwidth-Max-Up	integer	No	No	Yes	No	No	No	Yes
8	WISPr-Bandwidth-Max-Down	integer	No	No	Yes	No	No	No	Yes
9	WISPr-Session-Terminate-Time	string	No	No	Yes	No	No	No	Yes

Cambium VSAs (Vendor ID: 17713)

Table 72 lists the Cambium Networks VSAs supported on Enterprise Wi-Fi APs.

Table 72 Cambium VSAs

Attribute Value	Attribute Description	Attribute Type	RADIUS Message Types			Accounting Messages			WPA2 / WPA3 - Enterp	Guest Access Support
			Request	Response / Challenge	Accept	Start	Interim Stop
151	Cambium-Wi-Fi-Quota-Up	integer	No	No	Yes	No	No	No	-NA-	Yes
152	Cambium-Wi-Fi-Quota-Down	integer	No	No	Yes	No	No	No	-NA-	Yes
155	Cambium-Wi-Fi-Quota-Total	integer	No	No	Yes	No	No	No	-NA-	Yes
153	Cambium-Wi-Fi-Quota-Up-Gigaword	integer64	No	No	Yes	No	No	No	-NA-	Yes

Attribute Value	Attribute Description Attribute Type	RADIUS Message Types Accounting Messages WPA2 /						WPA3 - Enterprise Authentication Support	Guest Access Support
		Request	Response / Challenge	Accept	Start	Interim Stop
154	Cambium-Wi-Fi-Quota-Down-Gigaword	integer64	No No Yes	No No No	-NA-	Yes
156	Cambium-Wi-Fi-Quota-Total-Gigaword	integer64	No No Yes	No No No	-NA-	Yes
157	Cambium-VLAN-Pool-ID	string No	No Yes	No No No	Yes No
159	Cambium-Traffic-Classes-Acct	TLV
159.2	Cambium-Acct-Input-Octets	integer No	No No	No Yes	Yes
159.3	Cambium-Acct-Output-Octets	integer No	No No	No Yes	Yes
159.4	Cambium-Acct-Input-Packets	integer No	No No	No Yes	Yes
159.5	Cambium-Acct-Output-Packets	integer No	No No	No Yes	Yes
161	Cambium-ePSK	TLV						-NA- Yes
161.1	Cambium-ePSK-Anonce	octet	Yes	-NA-	No				-NA-
161.2	Cambium-ePSK-M2	octet	Yes	-NA-	No				-NA-
161.3	Cambium-ePSK-BSSID	octet	Yes	-NA-	No				-NA-
161.4	Cambium-ePSK-AP-MAC	octet	Yes	-NA-	No				-NA-
161.5	Cambium-ePSK-SSID	string Yes	-NA-	No				-NA-	Yes
161.6	Cambium-ePSK-PMK	string No	-NA-	Yes			-NA- Yes

Table 73 lists the Cambium Networks VSAs supported on Enterprise Wi-Fi APs with CoA.

Table 73 Cambium VSAs with CoA

Attribute Value	Attribute Description	Attribute Type	RADIUS	Message Types	Accounting	Messages CoA			Support with Guest Access	CoA Support with WPA2 / WPA3 - Enterprise Authentication
			Request	Response / Challenge	Accept	Start	Interim Stop
151	Cambium-Wi-Fi-Quota-Up	integer No	No Yes	No No No	Yes
152	Cambium-Wi-Fi-Quota-Down	integer No	No Yes	No No No	Yes
155	Cambium-Wi-Fi-Quota-Total	integer No	No Yes	No No No	Yes
153	Cambium-Wi-Fi-Quota-Up-Gigaword	integer64	No No Yes	No No No	Yes
154	Cambium-Wi-Fi-Quota-Down-Gigaword	integer64	No No Yes	No No No	Yes
156	Cambium-Wi-Fi-Quota-Total-Gigaword	integer64	No No Yes	No No No	Yes
157	Cambium-VLAN-Pool-ID	string No	No Yes	No No No
159	Cambium-Traffic-Classes-Acct	TLV
159.2	Cambium-Acct-Input-Octets	integer No	No No	No Yes Yes
159.3	Cambium-Acct-Output-Octets	integer No	No No	No Yes Yes
159.4	Cambium-Acct-Input-Packets	integer No	No No	No Yes Yes
159.5	Cambium-Acct-Output-Packets	integer No	No No	No Yes Yes
161	Cambium-ePSK	TLV -NA-	-NA-
161.1	Cambium-ePSK-Anonce	octet Yes	-NA- No				-NA- -NA-
161.2	Cambium-ePSK-M2	octet Yes	-NA- No				-NA- -NA-
161.3	Cambium-ePSK-BSSID	octet Yes	-NA- No				-NA- -NA-
161.4	Cambium-ePSK-AP-MAC	octet Yes	-NA- No				-NA- -NA-
161.5	Cambium-ePSK-SSID	string	Yes -NA-	No				-NA-	-NA-
161.6	Cambium-ePSK-PMK	string	No -NA-	Yes				-NA-	-NA-

Standard RADIUS attributes

Table 74 lists the standard RADIUS attributes supported on Enterprise Wi-Fi APs.

Table 74 Standard RADIUS attributes

Attribute Value	Attribute Description	Attribute Type	RADIUS Message Types			Accounting Messages			WPA2 / WPA3 - Enterprise Authentication Support	Guest Access Support
			Request	Response / Challenge	Accept	Start	Interim Stop
11	Filter-Id (text) - Group-ID	text	No	-NA-	Yes	No	No	No	Yes
24	State	string	Yes	Yes	No				Yes	-NA-
25	Class	string	No	-NA-	Yes	Yes	No	No	Yes	Yes
27	Session-Timeout	integer	No	-NA-	Yes	No	No	No	Yes	Yes
Attribute Value	Attribute Description	Attribute Type	RADIUS Message Types Accounting			ng Messages WPA2 /			WPA3 - Enterprise Authentication Support	Guest Access Support
			Request	Response / Challenge	Accept	Start	Interim Stop
28	Idle-Timeout	integer No	-NA- Yes	No No No	Yes
64	Tunnel-Type	enum No	-NA- Yes	No No No	Yes Yes
65	Tunnel-Medium-Type	enum No	-NA- Yes	No No No	Yes Yes
81	Tunnel-Private-Group-Id	text No	-NA- Yes	No No No Yes	Yes
85	Acct-Interim-Interval	integer No	-NA- Yes	No No No	Yes Yes
	Disconnect		RADIUS packet
40	Disconnect-Request	-	RADIUS packet	-NA-	-NA-	-NA-	-NA-	-NA-	-NA-	-NA-
41	Disconnect-ACK	-	RADIUS packet	-NA- -NA-	-NA- -NA-	-NA-	-NA-
42	Disconnect-NAK	-	RADIUS packet	-NA- -NA-	-NA- -NA-	-NA-	-NA-
43	CoA-Request	-	RADIUS packet	-NA- -NA-	-NA- -NA-	-NA-	-NA-
44	CoA-ACK	-	RADIUS packet	-NA- -NA-	-NA- -NA-	-NA-	-NA-
45	CoA-NAK	-	RADIUS packet	-NA- -NA-	-NA- -NA-	-NA-	-NA-

Table 75 lists the standard RADIUS attributes supported on Enterprise Wi-Fi APs with CoA support.

Table 75 Standard RADIUS attributes with CoA

Attribute Value	Attribute Description	Attribute Type	RADIUS Message Types Accounting Messages CoA Support with Guest Access							CoA Support with WPA2 / - Enterprise Authentication
			Request	Response / Challenge	Accept	Start	Interim Stop
11	Filter-Id (text) - Group-ID	text No	-NA- Yes	No No No	Yes Yes
24	State	string Yes	Yes	No					Yes
25	Class	string No	-NA- Yes	Yes No	No -NA-		-NA-
27	Session-Timeout	integer	No -NA-	Yes No No	No -NA-		-NA-
28	Idle-Timeout	integer	No -NA-	Yes No No	No -NA-		-NA-
64	Tunnel-Type	enum	No -NA-	Yes No No	No -NA-		-NA-
65	Tunnel-Medium-Type	enum	No -NA-	Yes No No	No -NA-		-NA-
81	Tunnel-Private-Group-Id	text No	-NA- Yes	No No No	No		Yes
85	Acct-Interim-Interval	integer	No -NA-	Yes No No	No
	Disconnect		RADIUS packet
40	Disconnect-Request	-	RADIUS packet	-NA-	-NA-	-NA-	-NA-	-NA-	Yes	Yes
41	Disconnect-ACK	-	RADIUS packet	-NA-	-NA-	-NA-	-NA-	-NA-	Yes	Yes
42	Disconnect-NAK	-	RADIUS packet	-NA-	-NA-	-NA-	-NA-	-NA-	Yes	Yes

Attribute Value	Attribute Description	Attribute Type	RADIUS Message Types Accounting Messages CoA Support with Guest Access						CoA Support with WPA2 / - Enterprise Authentication
			Request	Response / Challenge	Accept	Start	Interim Stop
43	CoA-Request	- RADIUS	packet	-NA- -NA-	-NA- -NA-	-NA-	Yes Yes
44	CoA-ACK	- RADIUS	packet	-NA- -NA-	-NA- -NA-	-NA-	Yes Yes
45	CoA-NAK	- RADIUS	packet	-NA- -NA-	-NA- -NA-	-NA-	Yes Yes

RADIUS attributes in authentication and accounting packets with WPA2-Enterprise security

Table 76 lists the RADIUS attributes supported in authentication and accounting packets with WPA2-Enterprise security.

Table 76 RADIUS attributes in authentication and accounting packets with WPA2-Enterprise security

Attribute Value	Attribute Description	Attribute Type	Access-Request	Access-Challenge	Access-Accept	Accounting-Start	Accounting-Interim	Accounting-Stop
1	User-Name	string	Yes	No	Yes	Yes	Yes	Yes
2	User-Password	string Yes	No	No	No No	No
4	NAS-IP-Address	ipv4addr	Yes	No	No	Yes	Yes	Yes
5	NAS-Port	integer	Yes	No	No	Yes	Yes	Yes
6	Service-Type	enum	Yes	No	No	Yes	Yes	Yes
8	Framed-IP-Address	ipv4addr	No	No	No	Yes	Yes	Yes
12	Framed-MTU	integer	Yes	No	No	Yes	Yes	Yes
24	State	string Yes	Yes	No	No No	No
25	Class	string No	No Yes Yes	Yes Yes
27	Session-Timeout	integer No	No Yes No	No No
28	Idle-Timeout	integer No	No Yes No	No No
30	Called-Station-Id	string Yes	No No Yes	Yes Yes
31	Calling-Station-Id	text Yes No	No Yes Yes	Yes Yes
32	NAS-Identifier	string Yes	No No Yes	Yes Yes
40	Acct-Status-Type	enum No	No No Yes	Yes Yes
41	Acct-Delay-Time	integer No	No No Yes	Yes Yes
42	Acct-Input-Octets	integer No	No No No	Yes Yes
43	Acct-Output-Octets	integer No	No No No	Yes Yes
44	Acct-Session-Id	text Yes No	No Yes Yes	Yes Yes
45	Acct-Authentic	enum No	No No Yes	Yes Yes
46	Acct-Session-Time	integer No	No No No	Yes Yes
49	Acct-Terminate-Cause	enum No	No No No	No Yes
50	Acct-Multi-Session-Id	text Yes (Empty) No No		Yes Yes Yes
52	Acct-Input-Gigawords	integer No	No No No	No No
53	Acct-Output-Gigawords	integer No	No No No	No No
55	Event-Timestamp	time No No	No Yes Yes	Yes
61	NAS-Port-Type	integer Yes	No No Yes	Yes Yes
77	Connect-Info	text Yes No	No Yes Yes	Yes
79	EAP-Message	concat Yes	Yes Yes No	No No
80	Message-Authenticator	string	Yes Yes Yes	No No No
85	Acct-Interim-Interval	integer No	No Yes No	No No
87	NAS-Port-Id	text Yes No	No Yes Yes	Yes

Supported CoA messages

Table 77 lists the supported CoA messages.

Table 77 CoA messages

CoA Message	Supported by MAB (Wired Clients)	Supported by the AP
Disconnect client	Yes	Yes
Update VLAN	Yes	Yes
CoA Message Supported	by MAB (Wired Clients) Supported	by the AP
Session Timeout	No Yes
Accounting Interval	Yes Yes
Quota Limit	No Yes

Note

Following are the mandatory parameters to be included in the CoA message:

• When sent through cnMaestro—User-Name, Calling-Station-Id, and Session ID
• When sent directly through the AP—User-Name, Calling-Station-Id, and NAS-Identifier

Supported DFS channels

Table 78 lists the DFS channel support for various platforms in conformance with FCC standards.

Table 78 DFS channel support for FCC

AP Model	5250-5350 MHz (U-NII-2A)	5470-5725 MHz (U-NII-2C)	5725-5850 MHz (U-NII-3)
XE3-4TN	Yes Yes Yes
XV2-22H	Yes Yes Yes
XV2-21X	Yes Yes Yes
XV2-23T	Yes Yes Yes
XE3-4 Yes Yes Yes
XE5-8 Yes Yes Yes
XV2-2 Yes Yes Yes
XV3-8 Yes Yes Yes
XV2-2T0 Yes Yes Yes
XV2-2T1 Yes Yes Yes

Table 79 lists the DFS channel support for various platforms in conformance with IC standards.

Table 79 DFS channel support for IC

AP Model	5250-5350 MHz (U-NII-2A)	5470-5725 MHz (U-NII-2C)	5725-5850 MHz (U-NII-3)
XE3-4TN	Yes Yes Yes
XV2-22H	Yes Yes Yes
XV2-21X	Yes Yes Yes
XV2-23T	Yes Yes Yes
XE3-4 Yes Yes Yes
XE5-8 Yes Yes Yes
XV2-2 Yes Yes Yes
XV3-8 Yes Yes Yes
XV2-2T0	Yes Yes Yes
XV2-2T1	Yes Yes Yes

Table 80 lists the DFS channel support for various platforms in conformance with CE standards.

Table 80 DFS channel support for CE

AP Model	5250-5350 MHz (U-NII-2A)	5470-5725 MHz (U-NII-2C)	5725-5850 MHz (U-NII-3
XE3-4TN	Yes Yes Yes
XV2-22H	Yes Yes Yes
XV2-21X	Yes Yes Yes
XV2-23T	Yes Yes Yes
XE3-4 Yes Yes Yes
XE5-8 Yes Yes Yes
XV2-2 Yes Yes No
XV3-8 No Yes No
XV2-2T0 Yes Yes Yes
XV2-2T1 Yes Yes Yes

Supported 6 GHz countries

Table 81 lists the countries where 6 GHz band is available and the frequencies supported.

Note

Availability of these channels is subjected to respective country regulations.

6 GHz frequency is supported only on the following Enterprise Wi-Fi APs:

• XE3-4
• XE3-4TN
• XE5-8

Table 81 List of countries where 6 GHz band is supported

Country XE3-4 XE5-8
			Frequencies Supported	Channels Supported	Channels Supported (No Channel Distribution)	Channels Supported (With Channel Distribution Enabled)
						Radio 2 Radio 3
Australia (AU)	5945-6425 MHz	1-93 5945-6	425 MHz	1-93 1-61 65-93
Brazil (BR)	5945-7125 MHz	1-233 5945-	7125 MHz	1-233 1-93 129-233
Canada (CA)	5945-7125 MHz	1-233 5945-	7125 MHz	1-233 1-93 97-233
Colombia (CO)	5945-7125 MHz	1-233 5945-	7125 MHz	1-233 1-93 129-233
France (FR)	5945-6425 MHz	1-93 5945-6	425 MHz	1-93 1-61 65-93
Germany (DE)	5945-6425 MHz	1-93 5945-6	425 MHz	1-93 1-61 65-93
Ireland (IE)	5945-6425 MHz	1-93 5945-6	425 MHz	1-93 1-61 65-93
Italy (IT)	5945-6425 MHz	1-93 5945-6	425 MHz	1-93 1-61 65-93
Jordan (JO)	5945-6425 MHz	1-93 5945-6	425 MHz	1-93 1-61 65-93
South Korea (KR)	5945-7125 MHz	1-233 5945-	7125 MHz	1-233 1-93 97-233
Netherlands (NL)	5945-6425 MHz	1-93 5945-6	425 MHz	1-93 1-61 65-93
New Zealand (NZ)	5945-6425 MHz	1-93 5945-6	425 MHz	1-93 1-61 65-93
South Africa (ZA)	5945-6425 MHz	1-93 5945-6	425 MHz	1-93 1-61 65-93
Spain (ES)	5945-6425 MHz	1-93 5945-6	425 MHz	1-93 1-61 65-93
Sweden (SE)	5945-6425 MHz	1-93 5945-6	425 MHz	1-93 1-61 65-93
United Kingdom (GB)	5945-6425 MHz	1-93 5945-6	425 MHz	1-93 1-61 65-93
United States (US)	5945-7125 MHz	1-233 5945-	7125 MHz	1-233 1-93 129-233

Priority order for parameters

This section provides information on the order of priority for the following parameters:

- Session timeout and inactivity timeout—Following priority is considered when configuring session timeout and inactivity timeout:

a. Configured from the RADIUS server
b. Configured from the AP

Note

• Inactivity timeout is triggered when there is no data packets from the client to
• A five minute static idle time is configured from the driver, which is triggered with there are no wireless packets from the client.

- VLAN assignment—Following priority is considered when assigning VLANs to clients:

a. RADIUS dynamic VLAN for guest access clients
b. RADIUS dynamic VLAN (Filter-ID/RADIUS-ID)
c. RADIUS dynamic VLAN
d. RADIUS-based ePSK
e. RADIUS-based dynamic VLAN Pool
f. Local ePSK VLAN setting
g. VLAN pool (Static)
h. SSID/WLAN profile VLAN

- User group filter—Following priority is considered for assigning policy:

a. Global policy
b. User Group policy
c. Device Group policy
d. SSID/WLAN policy

Best practices for wireless clients seamless roaming across APs

Note

• Inactivity timeout is triggered when there is no data packets from the client to the
• A five minute static idle time is configured from the driver, which is triggered when are no wireless packets from the client.

This appendix explains the recommended configuration for Cambium Networks APs and external network to facilitate a seamless roaming across the APs for the wireless clients. Additionally, this appendix is the recommended network best practices for minimizing broadcast and multicast packets processing.

This appendix contains the following topics:

• External network recommendation
• AP WLAN profile configuration recommendations
• AP group configuration recommendations

External network recommendations

The Cambium APs work in the distributed architecture mode and it is important to facilitate AP-to-A communication for the wireless clients seamless roaming. The APs uses the Cambium propriety XRP protocol to exchange clients information with the neighboring APs.

Following are the recommendations:

- The intermediate network switches, to which the APs are connected, must not block the following messages:

XRP message packet information

Source MAC—APs ethernet MAC
° Destination MAC—Ethernet broadcast
Source IP Address—APs exit interface IP address
° Destination IP Address—255.255.255.255 Broadcast IP address
° Protocol—UDP with a random source port and a fixed destination port
A sample pcap capture of the XRP message is displayed in Figure 105.

Figure 105 Sample XRP message

• APs send the XRP messages on the ethernet port's native VLAN.
• All the APs must be part of the same native VLAN.

• Make sure that the APs have the L3 interface for the native VLAN with a valid IP address.

AP WLAN profile configuration recommendations

If the WLAN profile is configured with WPA2 and WPA3 security, it is recommended to enable the

• 802.11r fast roaming
- OKC

Note

A few clients use 802.11k and 802.11v protocols for fast roaming. We can enable th

Figure 106 Enabling OKC and 802.11r

- Enable client isolation with the Network Wide option to prevent clients communicating with other clients on the same L2 network.

Figure 107 Enabling Client Isolation

Note

From AP version 6.6.0.2 onwards, the AP drops the ARP packets when the client is feature is enabled. To enable this in APs running firmware version lesser than 6.6.0.: execute the client-isolation dynamic drop-arp CLI command from the AP group User-Defined Overrides section.

Figure 108 Enabling Client Isolation in User-Defined Overrides

AP group configuration recommendations

- In large public Wi-Fi and campus deployments, it is common to see large number of network protocols, such as mDNS, LLMNR, SSDP and other service discovery packets coming from the v clients.

Disable these packets using Access Control Policy.

• If IPv6 is not required, disable IPv6 packets from the wireless clients using Access Control Policy.
  • Use Air Cleaner Rules to:

• prevent unauthorized rogue DHCP server from wireless clients
- prevent unwanted DHCP client packets from wired network side
- drop L2 broadcast packets
- drop IPv4 and IPv6 multicast packets
- drop ARP discovery packets from one SSID to another SSID interface
- disable mDNS packets in the default Air Cleaner rules

Note Allow the mDNS packet to enable bonjour discovery service to work.

• Sample AP group policy with Air Cleaner Rules.

Figure 109 Sample AP group policy with Air Cleaner Rules

Sample user-defined rule for blocking IPv6 traffic and allowing the rest of the traffic.

!
filter global-filter
filter precedence 14
enable
layer3-filter deny proto6 any any any any any any //BLOCK IPv6 TRAFFIC
exit
filter precedence 15
enable
layer3-filter permit ip any/any any/any any //ALLOW TRAFFIC
exit
!

Cambium Networks delivers wireless communications that work for businesses, communities, and cities worldwide. Millions of our radios are deployed to connect people, places, and things with a unified fabric that spans multiple standards and frequencies of fixed wireless and Wi-Fi, all managed central the cloud. Our multi-gigabit wireless fabric offers a compelling value proposition over traditional fiber alternative wireless solutions. We work with our Cambium certified Connected Partners to deliver purp built networks for service provider, enterprise, industrial, and government connectivity solutions in urban suburban, and rural environments, with wireless that just works.

Support website https://support.cambiumnetworks.com
Support enquiries
Technical training https://learning.cambiumnetworks.com/learn
Main website http://www.cambiumnetworks.com
Sales enquiries [e-mail]
Warranty https://www.cambiumnetworks.com/support/standard-warranty/
Telephone number list http://www.cambiumnetworks.com/contact-us/
User Guides http://www.cambiumnetworks.com/guides
Address Cambium Networks Limited,Unit B2, Linhay Business Park, Eastern Road, Ashburton,Devon, TQ13 7UPUnited Kingdom

Cambium Networks™

www.cambiumnetworks.com

Cambium Networks and the stylized circular logo are trademarks of Cambium Networks, Ltd. All other trademarks are the property of their respective owners.

Copyright © 2025 Cambium Networks, Ltd. All rights reserved.
