Brand	Imarflex
Model	MO-BS30D
Product Type	Microwave Oven
Power Consumption	1400 W (Microwave)
Rated Microwave Output	900 W
Operation Frequency	2450 MHz
Outside Dimensions (H×W×D)	305 mm × 525 mm × 478 mm
Oven Cavity Dimensions (H×W×D)	219 mm × 350 mm × 384 mm
Oven Capacity	30 Liters
Turntable Diameter	314 mm
Net Weight	Approx. 16.9 kg
Cooking Uniformity	Turntable system
Power Levels	10 levels (10% to 100%)
Clock Type	12-hour digital
Express Cooking	Yes, preset times via Express button
Weight Defrost	Yes, for meat, poultry, seafood
Jet Defrost	Yes, custom time defrost
Multi-Stage Cooking	Yes, up to 3 stages (incl. defrost)
Pre-Set Cooking	Yes, delayed start up to 12 hours
Safety Lock (Child Lock)	Yes, press 5 and 7 simultaneously
Cleaning and Care	Unplug before cleaning; use damp cloth; avoid harsh cleaners
Power Supply	220 V a.c. 60 Hz
Grounding	Required (grounded plug)
Warranty / Service	Refer to authorized service technician

Frequently Asked Questions - MO-BS30D Imarflex

How do I set the clock on my Imarflex MO-BS30D microwave?

Press CLOCK, then use number pads to enter time (require at least 3 digits: hour and minutes). Press CLOCK again to confirm. The clock is 12-hour format.

What are the power levels available and how do I set them?

There are 10 power levels (10% to 100%). Press POWER then enter a number from 1 to 9 (9=90%, 8=80%, ...1=10%). Skip power setting for 100% power.

How do I defrost food using weight defrost?

Press WEIGHT DEFROST repeatedly to select category: d1 (meat, max 2300g), d2 (poultry, max 4000g), d3 (seafood, max 900g). Enter weight in grams using number pads, then press START. The oven will beep to remind you to turn food.

Can I cook in multiple stages?

Yes. First press CANCEL, then set a defrost program (Jet or Weight). Press MEMORY, set a microwave cooking program, press MEMORY again for another stage, then press START. Defrost must precede cooking stages.

How do I use the Express cooking feature?

Press EXPRESS repeatedly: one press = 15 seconds, two = 30s, three = 1 min, four = 2 min. Then press START. Cooking is at full power (100%).

How do I set a delayed start (Pre-Set cooking)?

Place food in oven. Press PRE-SET, enter the start time (e.g., 2:00 as 200). Then set a cooking program and press START. The oven will begin at the specified time.

How do I activate the child safety lock?

Press and hold number pads 5 and 7 simultaneously until a beep sounds and LOCK appears on display. To unlock, press and hold 5 and 7 again.

What cookware can I use in this microwave?

Use microwave-safe materials: heat-resistant glass, ceramics, microwave-safe plastic, kitchen paper. Do not use metal, aluminum foil, or recycled paper products (may cause sparks).

How do I clean the microwave?

Unplug before cleaning. Use a damp cloth for the interior and door. Clean the glass turntable and roller ring with soap and water. Avoid harsh cleaners or letting water seep into vents.

Why does my microwave not start?

Check that the oven is plugged in securely, the door is properly closed, and the control panel is programmed correctly. Also check for a blown fuse or tripped circuit breaker. If problems persist, contact an authorized service center.

USER MANUAL MO-BS30D Imarflex

Line drawing of a microwave oven with control panel and buttons (no text or symbols)

Microwave Oven

Owner's Manual

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not place any object between the door safety lock system or allow small solid particles or cleaner residue to accumulate on sealing surfaces.
2. Do not operate the oven if it is damaged. It is important that the oven is properly closed and there are no damages like:
   a. Bent doors
   b. Broken or loosened hinges and latches
   c. Leaks on door seals and sealing surfaces
3. The oven should not be adjusted or repaired by anyone aside from an authorized lmarflex service technician.
4. Do not tamper the safety interlocks.

CONTENTS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE

ENERGY 0

SPECIFICATIONS 2

BEFORE YOU CALL FOR SERVICE ----Error! Bookmark not defined.

INSTALLATION 2

GROUNDING INSTRUCTIONS 3

RADIO INTERFERENCE 3

IMPORTANT SAFETY INSTRUCTIONS 3

MICROWAVE COOKING PRINCIPLES 4

UTENSILS GUIDE 5

PART NAMES----Error! Bookmark not defined.

CONTROL PANEL 5

HOW TO SET THE OVEN CONTROLS 6

Setting the clock 7

Setting cooking time and power----7

Multi-stage cooking 7

Pre-Set cooking 8

Express cooking 8

Weight defrost 8

Jet Defrost 9

Setting timer----9

Safety lock----9

To Stop the Oven During Operation----Error! Bookmark not defined.

CLEANING AND CARE 3

SPECIFICATIONS

Power Consumption	220V a.c. 60Hz, 1400W(Microwave)
Rated microwave power output:	900W
Operation Frequency:	2450MHz
Outside Dimensions:	305mm(H)×525mm(W)×478mm(D)
Oven Cavity Dimensions:	219mm(H)×350mm(W)×384mm(D)
Oven Capacity:	30Litres
Cooking Uniformity:	Turntable System{Φ314mm}
Net Weight:	Approx.16.9kg

*All data subject to verification with available data on the nameplate of the oven.

1. Check to ensure that the oven is plugged in securely. If not, unplug the unit, wait for 10 seconds and plug it again.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If there's no problem with the supply of electricity, test the outlet with another appliance.
3. Check to ensure that the control panel is programmed correctly.
4. Check to ensure that the door is properly closed.

INSTALLATION

1. Remove all packaging materials
2. WARNING: Check for any damages, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches. If there is any damages do not use the oven.
3. The oven should be placed on a flat, stable surface to hold its weight.
4. Do not place near gas stove, electric burner or a heated oven.
5. The oven must have sufficient airflow, allow 20cm of space above the oven, 10cm at the back and 5cm on both sides. Do not cover or block any openings of the oven. Do not remove the stand.
6. Do not use the oven without the turntable, roller ring and shaft in their proper positions.
7. The socket should be accessible so that it can be easily unplugged in case of emergency.
8. Do not use the oven outdoors.
9. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
10. The socket must be readily accessible so that it can be easily unplugged in an emergency.
11. Do not use the oven outdoors.

GROUNDING INSTRUCTIONS

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING Improper use of the grounding plug can result in a risk of electric shock.

Note

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

RADIO INTERFERENCE

1. Operation of microwave oven can cause interference to radio, TV or similar appliance.
2. When there is interference, it may be eliminated by:

a. Cleaning the door and sealing surface of the oven
b. Plugging the oven into a different outlet so that the oven and receiver are on different branch circuit

IMPORTANT SAFETY INSTRUCTIONS

When using this oven, basic safety precaution should be followed, including the following:

1. Read all instructions carefully.
2. Use the oven only for its intended use or as described in this manual. Do not use corrosive chemicals. This oven is not designed for industrial and laboratory use.
3. Do not operate the oven if empty.
4. Do not use the oven if the cord or plug is damaged, it should be replaced with the same type and size or bring the unit to the nearest authorized service center.
5. Close supervision is necessary when any appliance is used by or near children.
6. To reduce the risk of fire in the oven cavity:

a. When heating food in plastic or paper containers, check the oven frequently for possible ignition.

b. Remove wire twist-ties from paper or plastic bags before placing the bag in the oven.
c. If smoke is observed, switch off or unplug the oven and keep the door closed in order to stifle any fumes.
d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

1. Do not use sealed containers since they may burst, use only microwave containers.
2. Contents of feeding bottles and baby food jars are to be stirred or shaken and check the temperature before consumption, in order to avoid burns.
3. Heat from the food may transfer to the container, use path holders to avoid burns.
4. Cookware/containers should be checked to ensure that they are suitable for microwave use.

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully, place thickest areas toward outside of dish.
2. Watch cooking time, cook for the shortest amount of time indicated and add more time as needed.
3. Slightly cover foods before cooking, covers prevent spattering and help foods to cook evenly.
4. Check recipe for suggestions on proper use of paper towels, microwave plastic wrap or a lid.
5. Stir foods from outside to center of dish once or twice during cooking, foods such as chicken, hamburgers or steaks should be turned over once during cooking.
6. Rearrange foods, like meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.
7. After cooking ensure adequate standing time, heated liquid or beverage may result in delayed eruptive boiling. Remove food from oven and stir if possible. Covered food during standing time allows the food to finish cooking without overcooking.
8. Check for the doneness, look for signs indicating that cooking temperature has been reached.

Doneness signs include:

-Food steams throughout, not just at edge.
-Poultry thigh joints move easily.
-Pork and poultry show no pinkness.
-Fish is opaque and flakes easily with fork.

1. When using microwave safe plastic wrap as cover for cooking food with high fat content, do not allow the wrap touch the food as it may melt. Some microwave safe plastic cookware are not suitable for cooking foods with high fat and sugar content.

2. Potatoes, sausage must be pierced or peeled before cooking.

COOKWARE GUIDE

1. Ideal material should be transparent to microwave. Use clear or plain white cookware. It allows energy to pass through the container and heat food.
2. Do not use reflective materials such as stainless steel, aluminum foil, etc.
3. Do not use recycled paper products as they may contain small metals that can cause sparks or fire.
4. Use round containers rather than oblong and square containers because food in corners tend to be overcooked.
5. Use the table below as reference.

The list below is a general guide to help you select the correct cookware.

COOKWARE
Heat-Resistant Glass	Yes
Non Heat-Resistant Glass	No
Heat-Resistant Ceramics	Yes
Microwave-Safe Plastic Dish	Yes
Kitchen Paper	Yes
Metal Tray	No
Metal Rack	No
Aluminum Foil & Foil Containers	No

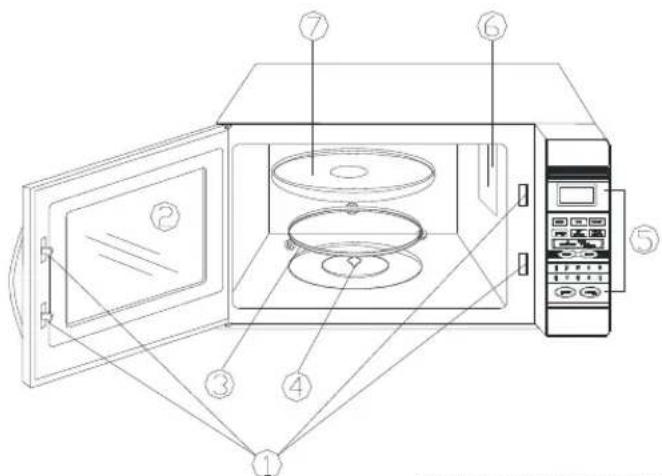

DESCRIPTION OF PARTS

1. Door Safety Lock System
2. Glass Window
3. Oven Air Vent
4. Shaft
5. Roller Ring
6. Glass Turntable
7. Control Panel

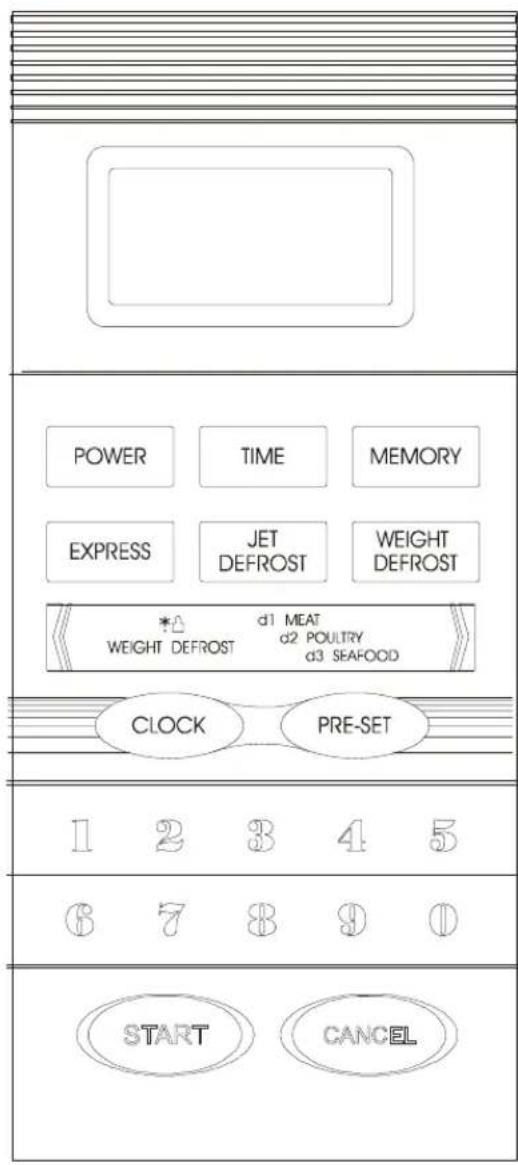

CONTROL PANEL

● LED DISPLAY

Power light indicator displays the cooking program and present time.

● NUMBER PADS

To enter time, power level and food weight.

POWER

Set power level from 10% to 100% power output

TIME

Initially press this button then press the number pads to set the cooking time up to 99min. 99sec.

WEIGHT DEFROST

Automatically sets proper defrosting cycle once you have entered the weight of the food to be thawed.

- JET DEFROST

To customize defrosting time for food not include in the weight defrost categories.

● EXPRESS

Start the oven quickly at full microwave power, you can press this button a number of times to indicate cooking time.

PRE-SET

Allows you to put the food into the oven and program it to start cooking at a set time.

● MEMORY

To set a multistage cooking program.

● CLOCK

To set the time of day. The time of day will be displayed at all times except when the oven is in use. In the event of a power failure or if the oven is unplugged, the clock will have to be reset.

● CANCEL

To clear current setting or to reset the setting.

START

To start a cooking or defrosting program.

HOW TO SET THE OVEN CONTROLS

Each time a button is pressed, a beep will sound to acknowledge the setting.

SETTING THE CLOCK

To set the time,

1. Press CLOCK button.
2. Press CANCEL button.
3. Use the number pads to enter time. You must press at least 3 numbers to set the clock (one for hour, and two for minutes).
4. Press CLOCK button again to confirm.

This is a 12-hour clock. Default setting is 1:01 when the oven is plugged in.

You can check the clock time when cooking is in progress by touching the CLOCK button.

SETTING COOKING TIME AND POWER

1. Press TIME button.
2. Use the number pads to set a cooking time.

You can set a cooking time from one second to 99 minutes and 99 seconds. If you are setting time greater than one minute, you must enter numbers for both minutes and seconds. For example, to set 20 minutes, enter 2,0,0,0.

1. If you want to set a power level instead of 100% power level, press POWER button
2. Use the number pads to enter the desired power level. You can set the power level from 1 to 9. (Please check the table bellow).
3. Press START to start cooking.

You can skip steps 3-4 if you are to cook with full power.

Microwave Power Level

Press Number pad	Power Level
9	90%
8	80%
7	70%
6	60%
5	50%
4	40%
3	30%
2	20%
1	10%

MULTI-STAGE COOKING

Some recipes may require a multi-stage program involving defrosting, and different power levels. The following example shows the steps in setting up such a program.

1. Press CANCEL button to reset the system.

2. Input jet-defrost program.

3. Press MEMORY button.

4. Input microwave-cooking program.
5. Press MEMORY button again
6. Input another microwave cooking program with lower power level settings.
7. Press START button.

NOTE

Logically, JET DEFROST or WEIGHT DEFROST must proceed any cooking function in a multistage cooking program.

The respective sign will appear to indicate the present cooking stage. 3 beep sound will be heard, once the cooking process ends.

PRE-SET COOKING

You can put food in the oven, and program the oven to start up in a later time within the oven's clock cycle (12 hours).

Suppose you want to set the oven to start at 2 o'clock.

1. Place food in the oven
2. Press PRE-SET button.
3. Press number buttons 2,0,0.
4. Set a cooking program.
5. Press START button.

EXPRESS COOKING

Every press of the EXPRESS button, the oven is programmed at full power level for:

Touch Once	15 seconds
Touch Twice	30 seconds
Touch 3 Times	1 minute
Touch 4 Times	2 minutes

Suppose you want to set the oven to microwave for 1 minute at 100% power level.

1. Press the EXPRESS button 3 times, "1:00" will appear in the display.
2. Press START button.

WEIGHT DEFROST

Automatically sets defrosting cycle once you have entered the weight of the food to be thawed. Maximum allowable weight for each category is shown below.

FOOD CATEGORY	MAXIMUM WEIGHT	DISPLAY
Meat	2300g	d1
Poultry	4000g	d2
Seafood	900g	d3

Suppose you want to defrost 600g shrimp.

1. Pres WEIGHT DEFROST button 3 times. "d3" will appear in the display.
2. Press number pads 6,0,0.
3. Press START button.

NOTE

While defrosting, two beep sound will be heard to remind you to open the oven door and rearrange or turn over the food for better defrosting performance.

The oven will not start if you happen to enter weight in excess of the maximum recommended.

For food exceeding these maximum weights, use the JET DEFROST program.

To serve as a reminder, after a cooking or defrosting function has completed, the oven will beep every two minutes until the door is opened or the CANCEL button is pressed.

JET DEFROST

JET DEFROST lets you customize defrosting time, you can use it to defrost food not covered, or its weight exceeds the max. Allowable by weight defrost.

Suppose you want to set the oven to JET DEFROST for 5 minutes and 30 seconds.

1. Press JET DEFROST button.
2. Press number buttons 5,3,0.
3. Press START button.

SETTING THE CLOCK

1. Press TIME button.
2. Use number pads to input time.
3. Press POWER button.
4. Press number button 0.
5. Press START button.

SAFETY LOCK

The safety lock prevents unsupervised operation by children. To set, press and hold number pads 5 and 7 at the same time, a beep sounds and LOCK indicator will appear. To cancel, press and hold number pads 5 and 7 at the same time, a beep sounds and LOCK indicator goes off.

CLEANING AND CARE

1. Unplug the oven from the wall socket before cleaning.
2. Do not allow food splatters or spilled liquids adhere to oven walls. Baking soda may be used if the oven gets very dirty. Avoid using spray and other harsh cleaners as this may stain, streak, or dull the door surface.
3. Use damp cloth in cleaning the glass window and the surface of the oven.
4. Do not allow water to seep into the ventilation openings to avoid damages on the operating parts.
5. Do not allow the control panel to become wet.
6. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
7. If the steam accumulates inside or around the oven door, dry it using soft cloth. This may occur when the oven is operated under high humid conditions, but this is normal.
8. If the glass turntable becomes dirty, remove it and wash it with soap and water.
9. The roller rest and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom part of the oven with mild detergent. The roller ring can be washed with soap and water. If the roller rest is removed from the oven, be sure to return it properly.
