WPKW2200W - Coffee maker Witt - Free user manual and instructions

Product Type	Coffee Maker
Brand	Witt
Model	WPKW2200W
Dimensions (approx.)	25 x 20 x 35 cm
Weight	2.2 kg
Power Consumption	1000 W
Voltage	220-240 V, 50/60 Hz
Water Tank Capacity	1.5 L
Carafe Capacity	12 cups
Built-in Filtration	Yes, permanent filter
Brewing Temperature	90-96 °C
Anti-Drip System	Yes
Auto Shut-Off	After 2 hours of inactivity
Pause & Serve Function	Yes
Programmable Timer	No
Keep Warm Plate	Yes, automatic
Water Level Indicator	Yes, transparent tank
Cleaning and Descaling	Descale every 3 months; clean with mild detergent
Safety Features	Overheat protection, boil-dry protection
Spare Parts Available	Carafe, filter basket, descaling kit
Reparability Index	7/10

Frequently Asked Questions - WPKW2200W Witt

How do I descale the coffee maker?

Mix descaling solution or white vinegar with water (1:3 ratio) and run a brew cycle without coffee. Then run two cycles with fresh water to rinse. Repeat every 3 months.

Why is my coffee maker not brewing?

Check if the water tank is empty, the carafe is correctly placed on the hot plate, and the power cord is plugged in. If the machine is still not working, check for blockage in the filter basket.

Can I use ground coffee instead of pods?

Yes, the WPKW2200W uses a permanent filter basket suitable for ground coffee. Use medium grind for best results.

How do I clean the carafe and filter basket?

Wash the carafe and filter basket with warm soapy water. Do not use abrasive cleaners. Rinse thoroughly before next use.

What does the auto shut-off feature do?

The coffee maker automatically turns off after 2 hours of inactivity to save energy and prevent overheating.

How many cups can I brew at once?

The water tank capacity is 1.5 L, allowing you to brew up to 12 cups (150 ml each) per cycle.

Why does my coffee taste bitter?

Bitter taste may be due to over-extraction or using too fine a grind. Try using a coarser grind and ensure the water temperature is not too high. Also, descale regularly.

Can I use the pause & serve function?

Yes, during brewing, you can remove the carafe for up to 30 seconds to pour a cup. The anti-drip system stops the flow to prevent spills.

How do I replace the permanent filter?

The permanent filter is built-in but can be removed and cleaned. If damaged, contact Witt spare parts. Replacement filters are available as accessories.

The machine is leaking water. What should I do?

Check if the water tank is correctly fitted, the lid is closed, and the carafe is not overfilled. Also, inspect the filter basket for excess coffee grounds. If leakage persists, contact support.

USER MANUAL WPKW2200W Witt

Two modern witt water heaters side by side, one black and one white, with wooden handles and branding visible (no text or symbols on the main objects)

Brugsanvisning DK: 2 - 9

Instructions EN: 10 - 17

Bruksanvisning NO: 18 - 25

Bruksanvisning SE: 26 - 33

IMPORTANT SAFETY INSTRUCTIONS....11

OVERVIEW OF THE DEVICE....13

USING THE DEVICE....14

CLEANING....14

DESCALING 15

STORAGE....15

SPECIFICATIONS....15

WARRANTY....16

SERVICE....17

SAFETY INSTRUCTIONS

EN

• Please read these instructions carefully before using the device.
• Save these instructions for future reference.
• Make sure that your main power supply matches the specifications of the device.
• Only use the device for household purposes and household use.
• Never use this device near a bath tub, shower, sink or other containers with water in them.
• Never use this device near water sources.
• Never use this device with wet hands.
• If the device should ever get wet, disconnect it from the socket immediately.
• Inform any other potential users about these instructions.
• Never leave the device unsupervised when it is in use.
• The device must only be used for its intended purpose. No liability is accepted for any damage caused by incorrect use or inappropriate handling.
• This device is not intended to be used by anyone (including children) with reduced physical, sensory or mental capacities or by people who lack knowledge and experience unless they are being supervised or have been instructed in how to correctly use the device by a person responsible for their safety.
• This device is not a toy - do not let small children or people with disabilities play with it.
• To ensure the safety of children, keep all packaging (plastic bags, boxes, Styrofoam, etc.) out of their reach.
• Careful! Do not let small children play with the foil: THEY CAN CHOKE ON IT!
• Inspect the power cord for damage at regular intervals. Never use the device if the cord or device show signs of damage.
• Never lower the device in water or any other kinds of fluid.
• Do not place the device near the dishwasher.
• Never use the device on hot surfaces.
• If the power cord is damaged, it must be replaced by either the manufacturer, its service agent or a similarly qualified person to avoid danger.

• Unplug the device before cleaning it or performing maintenance work on it.

• Never use this device outdoors and always place it in a dry environment.

• Do not use accessories that are not recommended by the manufacturer as they may pose a danger to the user and risk damaging the device.
• Only use the plug that is included with the device.
• Never move the device by pulling on the cord. Make sure that the cord cannot get stuck in any way.
• Do not wrap the cord around the device or bend the cord.
• Make sure that the cord does not come into contact with the hot parts of this device.
• Let the device cool down before cleaning and/or storing it.
• Do not let the device touch flammable materials such as curtains or dishcloths. Make sure that the cord and plug never come into contact with water.
  • Always unplug the device when it is not in use.
• When using an extension cord, make sure that the cable is completely rolled out. Only use CE-approved extension cords with input power of at least 16A, 250V or 3000W.
• An incorrect operation or use of this product may damage it and cause injury to the user.
• This device complies with applicable standards for this type of product.

(*) A competent and qualified person: Service staff from the manufacturer or importer or any person who is qualified, approved and competent to carry out these types of repairs.

SPECIAL SAFETY MEASURES FOR THIS KETTLE

• Place the device on a table or a flat surface.
• The device is only intended for indoors use.
• Do not store the device near hot ovens or other heat sources.
• Some parts of the device may become hot. Do not touch them as it may cause burns.
• Never make any modifications of any kind to this device.
• Only use cold water when filling the device.
• The water level must be between the MIN and MAX markers.
• Turn off the kettle before removing it from the base.
• Make sure that the lid is always tightly closed.
• The base and exterior of the kettle may not become wet.
• The kettle must match the base.
• Only use cold water to fill the kettle.

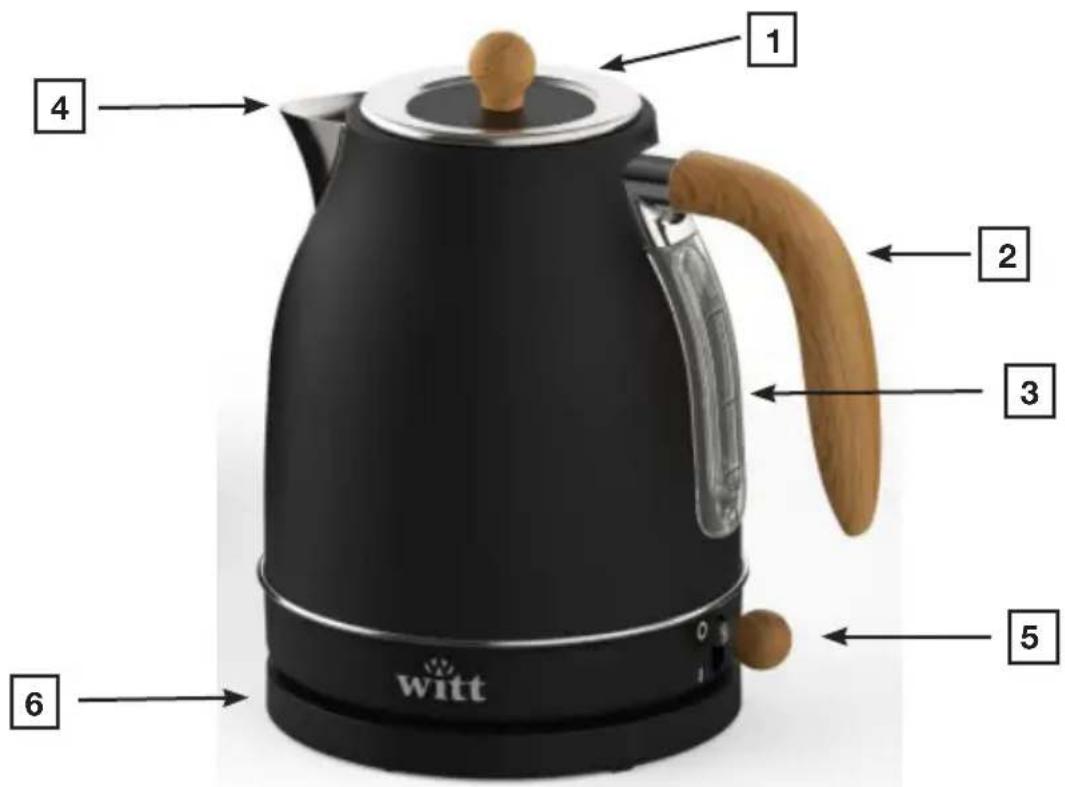

Overview of the device

EN

1. Lid
2. Handle
3. Water window
4. Nozzle
5. On/off button
6. Base

Using the device

Before using it for the first time:

Flush the interior of the kettle with water before using the device for the first time.

1. Fill half of the tank with fresh clean water (without additives).
2. Set the switch to the ON position. The light will turn on and this indicates that the water is starting to be heated.
3. Once the water is boiling, the device will shut down automatically.
4. Carefully lift the kettle and empty the water into a sink and be careful not to splash any water (there is a risk of scalding).
5. The device is ready to use.

Using the device:

1. Place the base on an even surface.
2. Fill the kettle with fresh water (without additives).

Please note: Do not overfill it! Use the water level indicator.

1. Put the lid on.
2. Place the kettle on the base.
3. Only connect the device to a correct 220V\~240V 50/60Hz socket. (Make sure that the voltage matches the device's voltage. You can find this information on the sticker located on the base.)
4. Set the device to position 1. The control indicator on the kettle will show that the water is heating up.
5. Once the water is boiling, the device will shut down automatically.
6. Now pour the water into a cup. Please be careful to avoid scalding. Do not press down on the lid when pouring.

Cleaning

First read the "SAFETY INSTRUCTIONS" section.

• Always remove the plug from the socket before cleaning the device.
• The device must be completely cooled down before you start cleaning it.
• Empty the electric kettle, and clean the exterior surface with a clean moist rag to avoid damaging the polish. Then dry with a soft rag.
• Do not use strong/abrasive cleaning agents on either the interior or exterior of the device.
• Only use a dry rag to wipe off the base.
• Avoid spilling water on the electric components of the device.
• Do not lower the electric kettle or the base in water or any other kinds of fluids. Ensure that the base is kept dry.

Descaling

You can descale an electric kettle by dissolving approximately 1.5 tablespoon of lemon juice in 1 litre of cold water. Turn on the electric kettle and let the mixture boil out completely. Then use the electric kettle with regular cold water at least three times to be sure that it is completely free of the lemon juice.

Storage

Make sure that the device is completely cooled down and dry.

Only wrap the wire around the base of the device to avoid causing damage.

Store the device in a cool and dry place.

Specifications

Power supply: AC 220-240V\~ 50/60Hz

Power: 1850-2200W

Energy class: Class I

With reservations for changes without prior notice.

The device is equipped with a grounded plug and must be connected to a grounded socket.

Please note: If you have questions about grounding or how to connect to a power source, please consult qualified personnel. In the event of a short circuit, the grounding will reduce the risk of getting an electric shock by allowing the power to be diverted through the grounding wire.

Always disconnect the device before cleaning it, performing maintenance work on it or attaching accessories.

CAREUL: If the power cord is damaged, it must be replaced by the manufacturer, its after sales service agents or people with similar qualifications to avoid hazardous situations. To minimise the risk of electric shock, when the device is broken do not open it up - contact a qualified electrician for repairs.

This device complies with the EC directives and has been controlled pursued to all applicable European directives such as for EM compatibility (EMC) and low voltage (LVD).

This device is designed and manufactured in accordance with the latest safety rules and technical specifications.

The symbol means that the product should not be disposed of with ordinary household waste but instead delivered to an authorised recycling station intended for this purpose or to a distributor offering disposal services.

Contact your municipality if you need more information.

WARRANTY AND SERVICE

There is a 2-year warranty period if your new product stops working due to manufacturing or material faults which begins from the documented date of purchase. The warranty covers materials and the cost of labour. When inquiring about service, please state the product name and serial number. You can find this information on the type plate. You can write down the information here in these instructions so that you have them at hand. This makes it easier for the service technician to find the correct spare parts.

The warranty does not cover:

• Faults and damage that are not due to manufacturing or material issues
• Damage caused by failure to properly maintain the device - including failing to clean it
• Fire and/or water damage or moisture damage on the product
• Damage caused during transport if the product was transported without proper packaging
• Damage caused by the use of unoriginal spare parts
• Damage resulting from failing to follow the instructions on how to use the device
• If the device has not been set up/assembled as specified in the instructions
• If non-professionals have installed or repaired the product
• Batteries or any other parts subject to normal wear and tear

Damage during transport

If the product is damaged during transport and this is discovered when the retailer delivers the product to the customer, this is exclusively a matter between the customer and the retailer. In cases where customers have handled the transport of the product themselves, the supplier shall not be liable for any potential damage during transport. Any damage caused during transport must be reported immediately and no later than 24 hours after the product has been delivered. If not, the customer's claim will be rejected.

Unnecessary service

If the product is sent in to be serviced and it turns out that the fault could have been fixed independently by following the product's instruction manual, the customer will need to pay the service fee.

Commercial purchases

Commercial purchases are all purchases of devices that are not intended to be used in private households but instead intended to be used for commercial purposes (in restaurants, cafés, canteens, etc.) or intended to be rented out or otherwise used by multiple users in turn.

There is no warranty offered for commercial purchases, as this product is only intended for regular household use.

SERVICE

For service and spare parts in England and Ireland please call below-mentioned number and you will be directed accordingly or send us an email.

Witt UK & Ireland Ltd.

(44) 148 351 6633 / [e-mail]

We accept no liability for printing errors.

The manufacturer/distributor cannot be held liable for damage to products or individuals if the safety instructions were not followed. The warranty shall not cover cases where the instructions have not been followed.
