LFH9398 - Dictaphone PHILIPS - Free user manual and instructions

Product type	Digital voice recorder
Brand	PHILIPS
Model	LFH9398
Category	Dictaphone
Power supply	2 AAA batteries (Ni-MH rechargeable LFH9154 included or alkaline)
Battery life	Up to 23 hours in SP mode
Recording formats	DSS (SP and QP)
Recording capacity	Up to 349 hours (SP) / 170 hours (QP) with 2 GB card
Microphone	Built-in, mono
Speaker	Built-in dynamic (30 mm, 200 mW)
Connectivity	USB 2.0 high speed, 3.5 mm microphone jack, 3.5 mm headphone jack, docking station connector
Display	1.7 inch LCD (44 mm) with white backlight
Memory card	SD / SDHC up to 32 GB
Software	Philips SpeechExec Dictate
Main functions	Recording, playback, insert/overwrite, EOL marking, index, voice activation, microphone sensitivity, playback speed, partial/full deletion, lock, author settings
Safety	Do not expose to water or excessive heat; hearing safety; do not use while driving
Care and cleaning	Clean with a dry cloth; avoid moisture
Included accessories	Pocket Memo, CD-ROM, SD memory card, 2 rechargeable batteries, case, quick start guide

Frequently Asked Questions - LFH9398 PHILIPS

How to insert the batteries?

Open the battery compartment on the back, insert two AAA batteries respecting polarity, then close the cover until it clicks. Use either two LFH9154 rechargeable batteries or two standard alkaline batteries.

How to recharge the batteries?

Connect the Pocket Memo to a PC via the provided USB cable; the batteries charge automatically. A full charge takes about 2.5 hours on a high-power USB port. You can also use the docking station or the power adapter (optional).

How to insert a memory card?

Locate the slot on the top back, insert the SD/SDHC card in the indicated direction until it clicks. To eject, press it until it clicks again then release.

How to format a new memory card?

Insert the unformatted card; the Pocket Memo asks if you want to format. Press OK to confirm. Note: formatting erases all data. The card must not be read-only.

How to set the language and date/time?

When first turning on, select the language with the +/– buttons and confirm with OK. Then set the year, month, day, and time with the same buttons. Use the ▶ button to move to the next field.

How to record a dictation?

Turn on the device, press NEW, then press REC and slide the 4-position switch to REC. Speak about 10 cm from the microphone. To pause, set to PAUSE. To stop, set to PAUSE and press REC.

How to use voice activation?

Go to Menu > Setup > Voice activation, enable it. Recording starts automatically when you speak and stops after 3 seconds of silence. You can adjust the threshold with the +/– buttons.

How to mark a dictation as completed?

Select the dictation in STOP position, then press the EOL button. The √ symbol appears. To mark it as priority, press EOL again within half a second (symbol !). To change, press EOL again.

How to delete a dictation?

In STOP position, select the dictation with +/–, press MENU, choose Delete dictation, then OK to confirm. The dictation must not be locked (nor marked EOL).

How to transfer recordings to a PC?

Connect the Pocket Memo to the PC via USB. Launch the SpeechExec Dictate software. Files are automatically downloaded and moved to the Completed dictations folder. You can also configure the download in settings.

USER MANUAL LFH9398 PHILIPS

EN User manual 3

2.2 What's in the box 3

2.3 Overview 4

2.3.1 Controls and connections 4

2.3.2 Display indicators and symbols 5

3 Get started 6

3.1 Install the batteries 6

3.2 Use rechargeable batteries 6

3.3 Insert and eject the memory card 7

3.4 Format a new memory card 7

3.5 Activate the Pocket Memo 8

3.5.1 Set the language 8

3.5.2 Set the date and time 8

3.6 Power-save mode 9

4 Use your Pocket Memo 10

4.1 Recording 10

4.1.1 Create a recording 10

4.1.2 Add to a recording (insert/overwrite) 11

4.1.3 Finish (lock) a recording 12

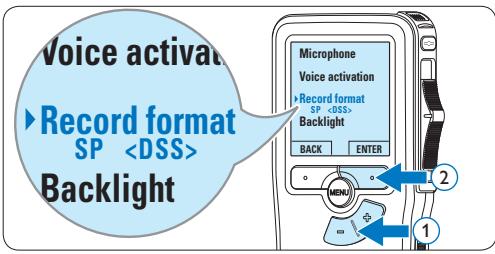

4.1.4 Change the recording format 13

4.1.5 Adjust the microphone sensitivity 14

4.2 Playback 15

4.2.1 Overview of playback functions 16

4.3 Delete 16

4.3.1 Delete a file 16

4.3.2 Delete part of a recording 17

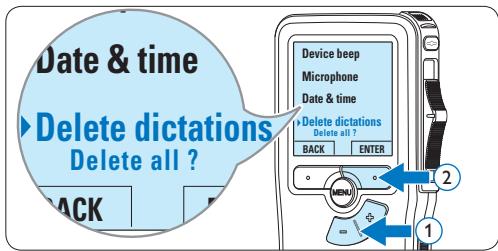

4.3.3 Delete all dictations 18

5 Use more of your Pocket Memo 19

5.1 Use Philips SpeechExec software 19

5.1.1 Advanced configuration 19

5.1.2 Download recordings to the PC 19

5.2 Menu settings 20

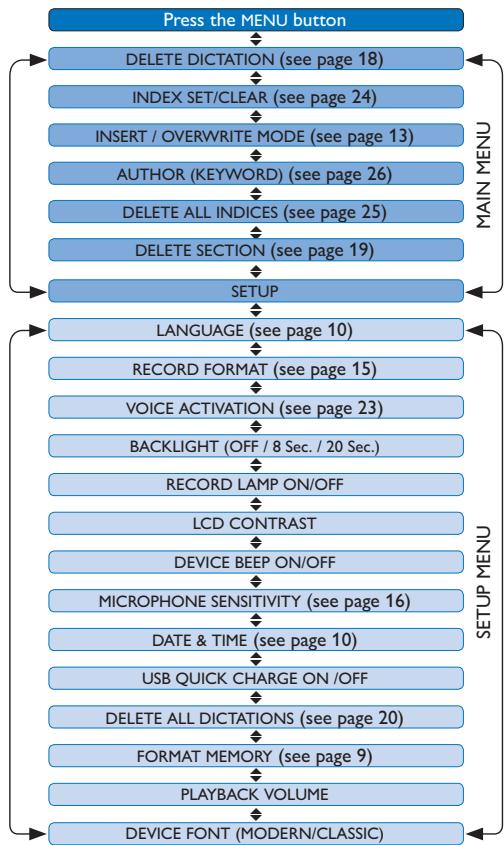

5.2.1 Menu list 20

5.3 Use voice-activated recording 21

5.4 Work with index marks 22

5.4.1 Insert an index mark 22

5.4.2 Delete an index mark 23

5.4.3 Delete all index marks 23

5.5 Assign an author's name 24

6 Technical data 25

1 Important

Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

The material in this manual is believed adequate for the intended use of the system. If the product, or its individual modules or procedures, are used for purposes other than those specified herein, confirmation of their validity and suitability must be obtained.

Safety

• To avoid a short circuit, do not expose the product to rain or water.
• Do not expose the device to excessive heat caused by heating equipment or direct sunlight.
• Protect the cables from being pinched, particularly at plugs and the point where they exit from the unit.
• Back up your files. Philips is not responsible for any loss of data.

Hearing safety

Observe the following guidelines when using your headphones:

• Listen at reasonable volumes for reasonable periods of time.
• Be careful not to adjust the volume higher as your hearing adapts.
• Do not turn up the volume so high that you can't hear what's around you.
• You should use caution or temporarily discontinue use in potentially hazardous situations.
• Do not use headphones while operating a motorized vehicle, cycling, or skateboarding, etc. It may create a traffic hazard and is illegal in many areas.

Important (for models supplied with headphones):

Philips guarantees compliance with the maximum sound power of its audio players as determined by relevant regulatory bodies, but only with the original model of provided headphones. If these headphones need replacement, we recommend that you contact your retailer to order a Philips model identical to that of the original.

Small children

Your device and its enhancements may contain small parts. Keep them out of the reach of small children.

Disposal of your old product

• Your product is designed and manufactured with high quality materials and components that can be recycled and re-used.
• When this crossed-out wheeled bin symbol is attached to a product, it indicates that the product is covered by the European Directive 2002/96/EC.
• Become informed about your local separate collection system for electrical and electronic products.
• Act according to your local rules and do not dispose of old products with normal household waste. The correct disposal of old products will help prevent potential negative consequences for the environment and human health.
• Batteries (including built-in rechargeable batteries) contain substances that may pollute the environment. All batteries should be disposed of at an official collection point.

2 Your Pocket Memo

Congratulations on your purchase and welcome to Philips!

To fully benefit from the service that Philips offers, visit our Website for support information such as user manuals, software downloads, warranty information and more: www.philips.com/support.

2.1 Product highlights

• The Pocket Memo's asymmetrical and ergonomic design delivers unparalleled user-friendly operation. All buttons are within the sweep-angle of the thumb.
• Two smart buttons let you scroll through menu options and quickly make selections.
• A large graphical display lets you view all file information, such as keywords (author name), length of dictation, position within the file, and other vital information at a glance. A backlit display shows all information, even in poor lighting conditions.
• The .dss file format is the international standard for professional speech processing. Offering excellent audio quality for recorded voice, .dss files allow a high compression rate, reduced file sizes, network traffic and required storage capacity.

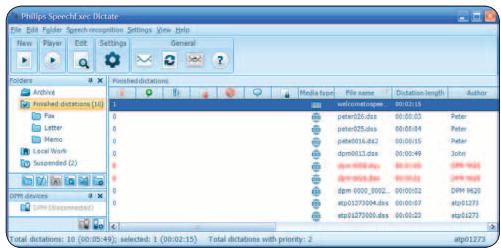

• SpeechExec Dictate is the perfect download software to manage voice files. The intuitive user interface makes job retrieval simple and fast, and the job status information allows the tracking of all the work in progress.

2.2 What's in the box

Pocket Memo

Simple concentric circle diagram with no text or symbols

CD-ROM containing software and user manual

Memory card

Rechargeable batteries

Pouch

Coiled cable with two connectors (no text or symbols visible)

USB cable

Quick start guide

2.3 Overview

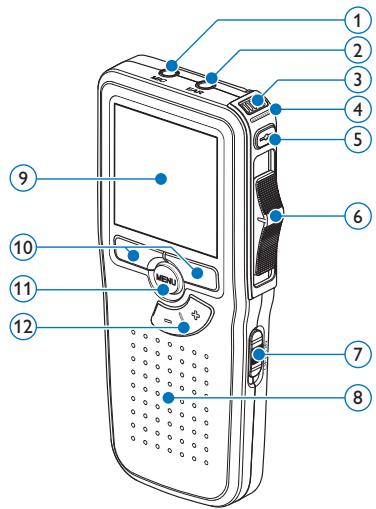

2.3.1 Controls and connections

① Microphone socket
② Headphone socket
③ Built-in microphone
④ Status LED
⑤ Record button
⑥ Slide switch
⑦ On/off switch
⑧ Speaker
⑨ Display
10 Smart buttons
⑪ Menu button
⑫ +/-, menu navigation and volume control

⑬ Memory card slot
⑭ EOL (end-of-letter) button

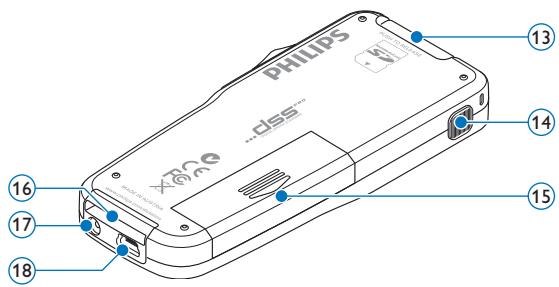

15 Battery compartment
16 Docking station connection slot
⑰ Power supply socket
18 USB connection slot

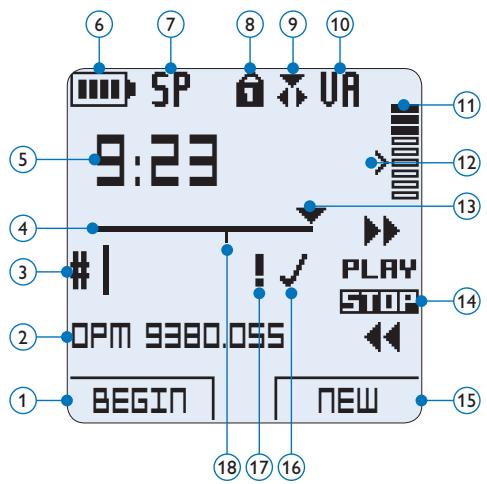

2.3.2 Display indicators and symbols

① Current function of the left smart button
② File name
③ Recording number
④ Position bar
⑤ Recording / playback time
⑥ Battery level indicator
⑦ Recording format
⑧ Memory card is write-protected (locked)
⑨ Insert recording mode is activated
⑩ Voice-activated recording in progress

⑪ Recording level meter
⑫ Sensitivity level for voice-activated recording
⑬ Current position in the recording
14 Positions of the slide switch
15 Current function of the right smart button
16 Recording is marked finished (EOL) and locked
17 Recording is marked priority
18 Recording contains index mark

3 Get started

3.1 Install the batteries

The Pocket Memo can be operated with the two AAA rechargeable batteries LFH9154 delivered with the product. Standard (non-rechargeable) AAA alkaline batteries may also be used.

1 The on/off switch of the Pocket Memo must be in the OFF position.

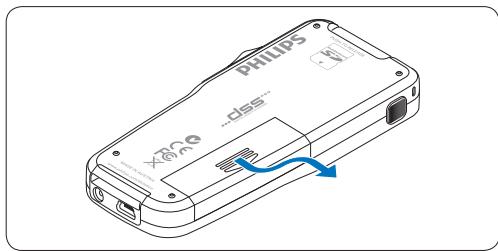

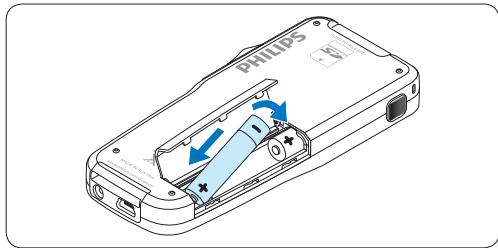

2 Open the battery compartment on the back side of the Pocket Memo by sliding it outwards then folding it up.

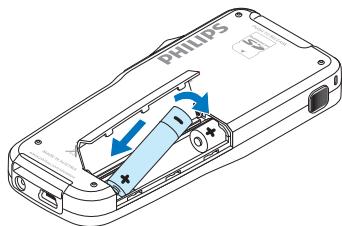

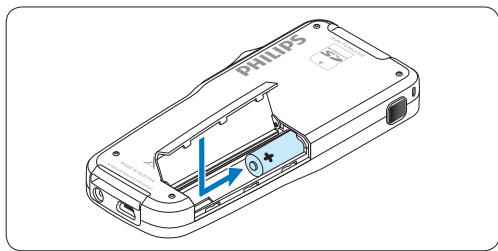

3 Insert the two AAA batteries. The correct polarity is indicated on the inside of the battery compartment cover.

Line drawing of a Philips 3.0 microcontroller with visible battery and LED (no text or symbols)

4 Close the battery compartment by folding it down and sliding the battery compartment cover inward until it clicks.

Note

Do not mix battery types! Use two rechargeable batteries (Philips LFH9154) or two non-rechargeable alkaline batteries.

3.2 Charge the batteries

The Pocket Memo can be operated with Philips rechargeable batteries LFH9154. To recharge these batteries, use USB cable. Optionally, the Philips Power Supply 9146 or the USB Docking Station 9120 may also be used.

When the Pocket Memo is connected to a PC or notebook computer with the supplied USB cable, the rechargeable batteries are automatically recharged. If the USB port on the computer is high powered, a complete recharge cycle takes about 2.5 hours.

Note

The PC must be ON when charging battery via the USB cable connection. The Pocket Memo may become warm during fast recharging.

Important

If the USB port of the computer does not supply enough power capacity (500 mA), disable the USB quick charge function in the menu of the Pocket Memo and recharge.

3.3 Insert and eject the memory card

The Pocket Memo operates with a SD (SecureDigital) memory card and supports SDHC cards with storage capacities of up to 32 GB.

To insert a memory card:

1 Locate the memory card slot on the top back side of the Pocket Memo.

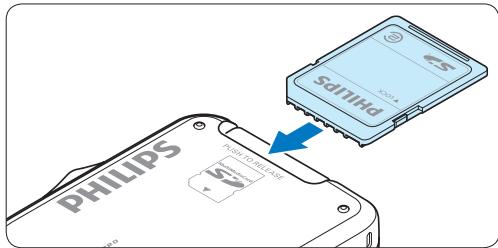

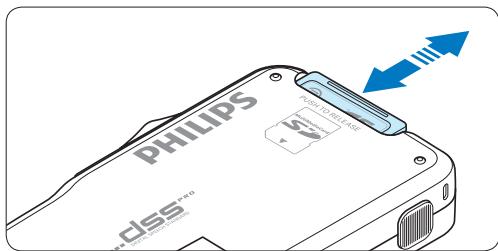

2 Slide the memory card into the slot. A small illustration under the memory card slot indicates the correct orientation.
3 Push the memory card in until it clicks.

To eject the memory card:

1 Locate the memory card slot on the top back side of the Pocket Memo.
2 Press the memory card into the Pocket Memo until it clicks.
3 Release the memory card. It will slightly emerge from the memory card slot. Simply slide it out.

Note

If the Pocket Memo is turned to the ON position and there is no memory card inserted, a warning screen is displayed.

3.4 Format a new memory card

When a new, unformatted memory card (or a memory card that was formatted with a non-Pocket Memo device) is inserted, the Pocket Memo will display a prompt to format the memory card.

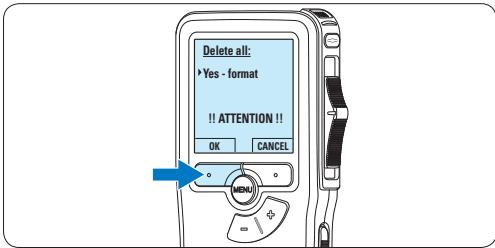

1 To confirm and start the formatting process, press the OK smart button.

2 To cancel the formatting process, remove the memory card or press the CANCEL smart button.

Note

Formatting is not possible if the memory card is in read-only mode (locked).

3.5 Activate the Pocket Memo

The Pocket Memo is turned on and off by sliding the ON/OFF switch. When using it for the first time, you will be prompted to set the language, date and time.

3.5.1 Set the language

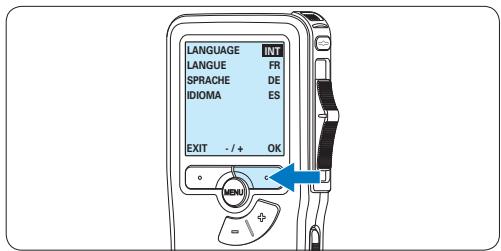

When using the Pocket Memo for the first time, you will be prompted to set the language.

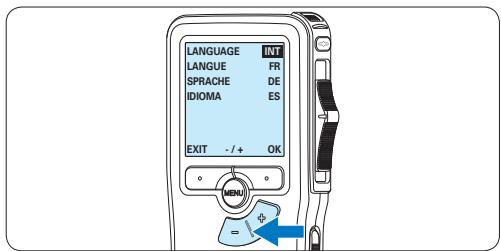

1 Press the + or - button on the Pocket Memo to select a language.

2 Press the OK smart button to confirm the selection. The selected language will be displayed.

Note

It is possible to change the language later using the menu. See 5.2 Menu settings on page 22 for more information.

3.5.2 Set the date and time

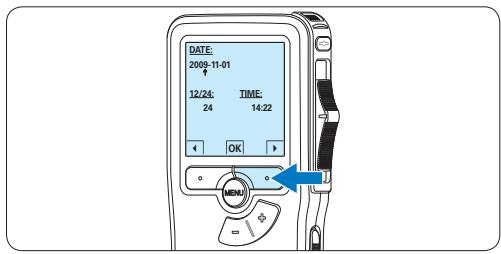

When using the Pocket Memo for the first time, you will be prompted to set the current date and time.

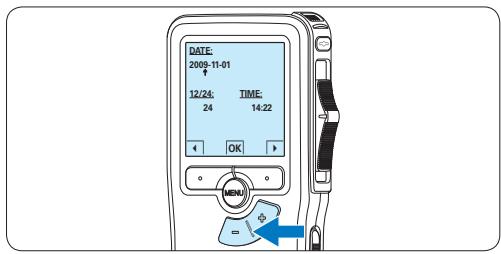

1 Press the + or - button to change the value for the year, month or day.

2 Press the ➤ smart button to advance the arrow (↑) to the next entry. After setting the day, press the ➤ smart button to advance the settings to the correct time.

3 Press the + or – button to select a 12-hour or 24-hour clock, AM or PM (if a 12-hour clock is selected), and to change the value of the hour and minute settings.

4 Press the ➤ smart button to confirm the date and time.

The Pocket Memo is now ready to function.

Note

If a mistake is made in setting the date/time, use the ◀ smart button any time during the procedure to step back to make corrections. It is also possible to change the date and time later using the menu. See 5.2 Menu settings on page 22 for more information.

3.6 Power-save mode

After sixty minutes of inactivity, the Pocket Memo automatically goes into power-save mode and the LCD screen will display the date and time. Press any button to reactivate it. If the Pocket Memo is not used for more than two hours, it turns off completely. Turn the unit on by moving the On/Off switch to the OFF position and then back to the ON position.

4

Use your Pocket Memo

4.1 Recording

4.1.1 Create a recording

Follow these steps to create a recording with the Pocket Memo:

1 A memory card must be inserted into the memory card slot. See 3.3 Insert and eject the memory card on page 9 for more information.
2 Slide the On/Off switch to the ON position to switch on the Pocket Memo.

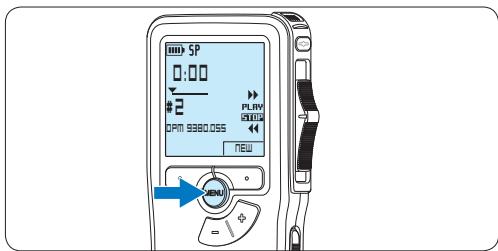

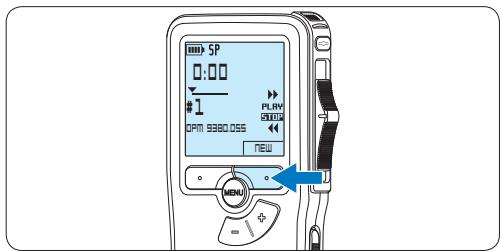

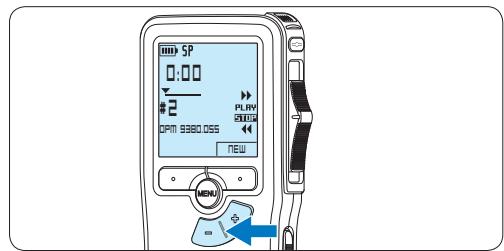

3 Press the NEW smart button to create a new recording.

Note

The NEW smart button is not displayed if the current recording is empty.

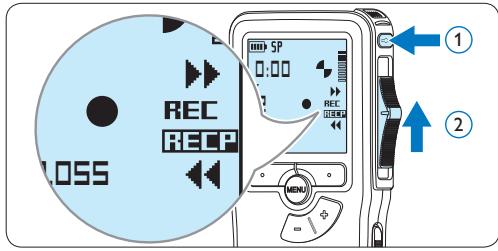

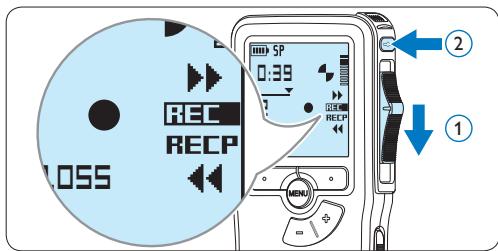

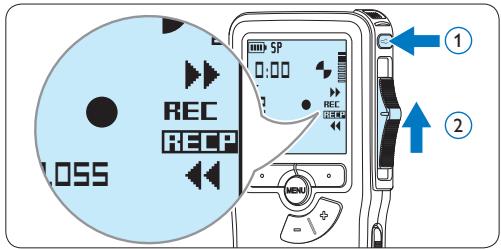

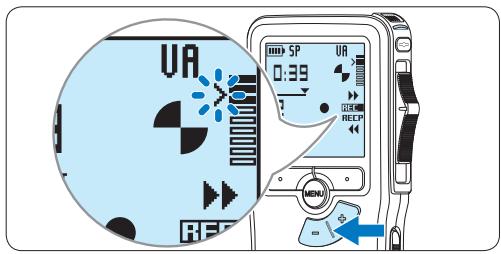

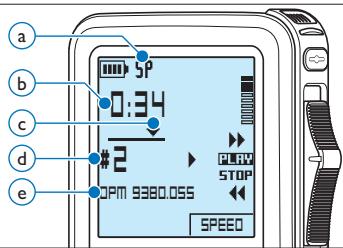

4 To start recording, press the RECORD button, move the slide switch to the REC position and start speaking.

- The status LED glows in red (in overwrite mode) or green (in insert mode) while recording. - The following information is displayed:

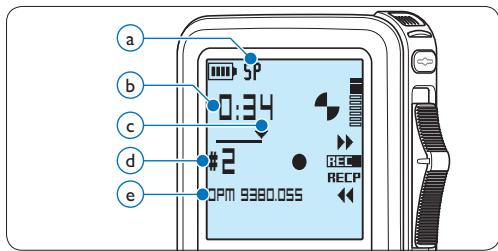

a Recording format
b Recording time
© Current position in the recording
d File number
e File name

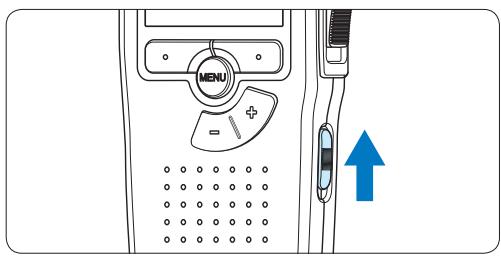

5 For short pauses, move the slide switch to the RECP position. To continue recording, move the slide switch back to the REC position.

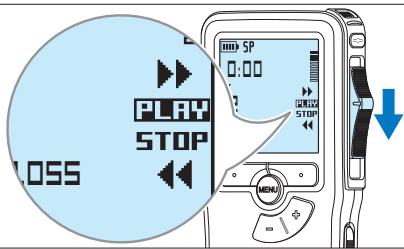

6 To stop recording, move the slide switch to the RECP position and press the RECORD button.

Note

For best results, speak clearly and keep the microphone about four inches (ten centimeters) away from your mouth.

4.1.2 Add to a recording (insert/ overwrite)

Files are recorded in overwrite mode by default. Follow these steps to switch to insert mode to make additions to a recording:

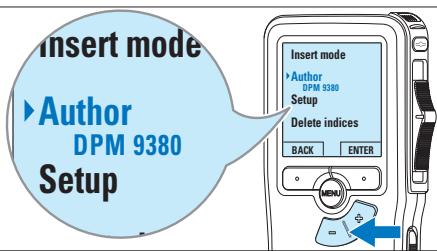

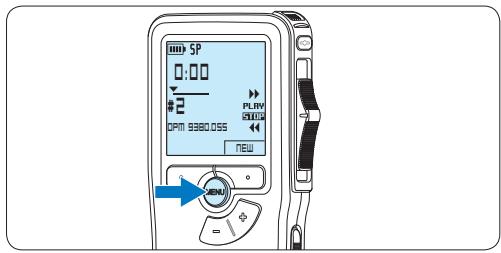

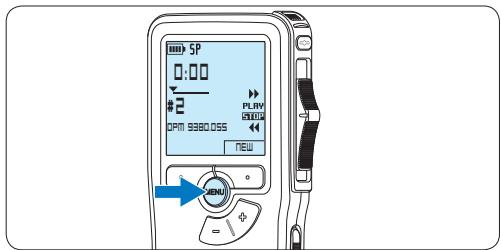

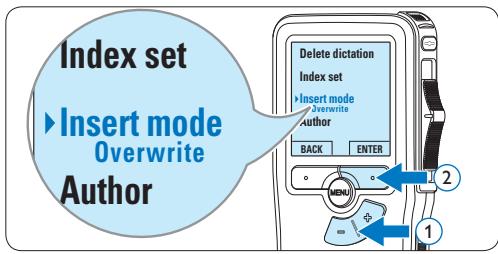

1 Press the MENU button while in the stop position to open the menu.

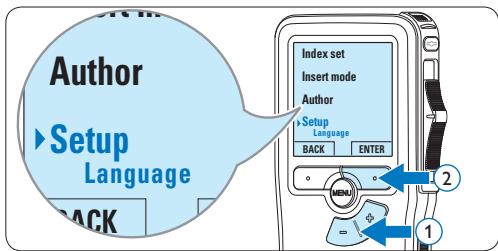

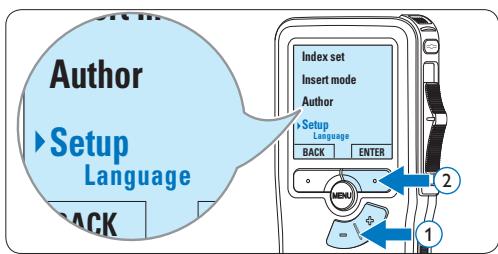

2 Press the + or – button to select the Insert mode menu and press the ENTER smart button to enter the submenu.

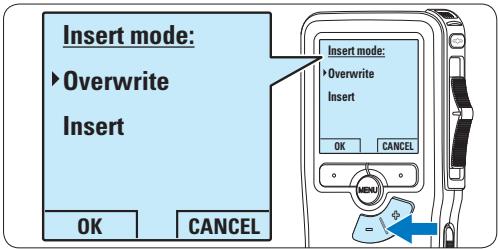

3 Press the + or - button to choose between Insert or Overwrite mode.

• In insert mode, the record position of the slide switch reads iREC and the status LED glows in green while recording.
• In overwrite mode, the record position of the slide switch reads REC and the status LED glows in red while recording.

4 Press the OK smart button to save the setting or press the CANCEL smart button to exit the sub-menu without changing the setting.

5 Press the + or - button to select the file into which the insertion should be made.

6 Play, forward or rewind to the position where the insertion should be made.

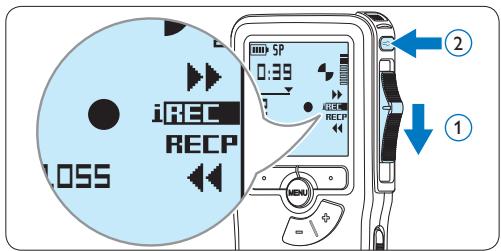

7 To insert an additional recording, press the RECORD button, move the slide switch to the REC position and start speaking. The insertion will not overwrite the recording.

8 To end the inserted recording, move the slide switch to the RECP position and press the RECORD button.

9 If the recording is not finished, simply fast forward to the end of the file and continue recording.
10 Repeat from step 1 to return to overwrite recording mode.

4.1.3 Finish (lock) a recording

When a recording is finished and no additional changes will be made, follow these steps to mark it as finished and protect it from being accidentally deleted:

1 Press the + or – button while in the stop position to select the recording to be marked finished.

2 Press the end-of-letter (EOL) button to lock the file and mark it as finished. The √ symbol is displayed.

3 To assign priority status to the recording, press the EOL button again within half a second.

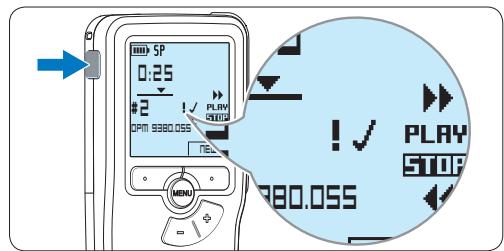

The ! symbol is displayed, indicating that the file has priority status.
4 To make changes to the recording, press the EOL button again to remove the finished mark.

Tip

Philips SpeechExec software can be configured to download only those files from the Pocket Memo to the PC that are marked finished.

Caution

Locked files are deleted when the memory card is formatted or the delete-all-dictations function is used.

4.1.4 Change the recording format

The recording format determines the audio quality of recordings and affects the number of audio files that can fit on the memory card. The Pocket Memo supports the following recording formats:

• Standard Play (SP) requires 1 megabyte for 10 minutes of recording.
• Quality Play (QP) requires 1 megabyte for 5 minutes of recording.

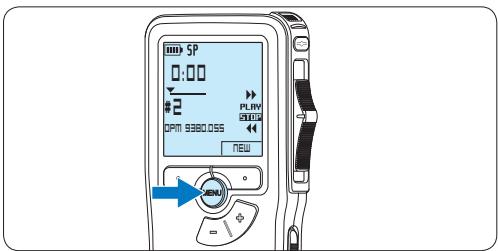

1 Press the MENU button while in the stop position to open the menu.

2 Press the + or - button to select the Setup menu item and press the ENTER smart button.

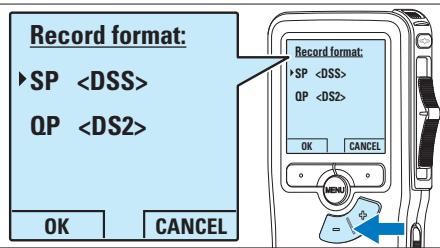

3 Press the + or – button to select the Record format menu item and press the ENTER smart button.

4 Press the + or - button to choose between SP and QP.

5 Press the OK smart button to save the setting or press the CANCEL smart button to exit the sub-menu without changing the setting.

4.1.5 Adjust the microphone sensitivity Set the microphone sensitivity for the environment and your recording preferences.

1 Press the MENU button while in the stop position to open the menu.

2 Press the + or – button to select the Setup menu item and press the ENTER smart button.

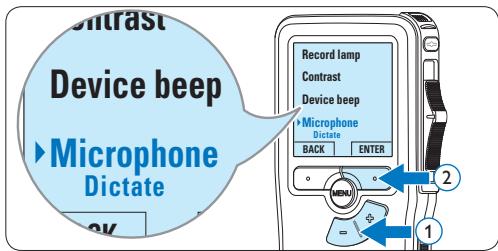

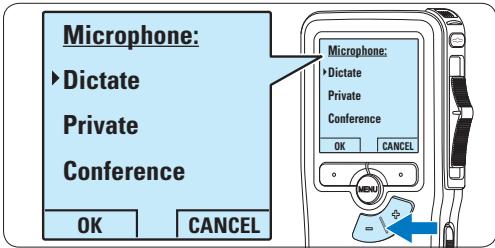

3 Press the + or – button to select the Microphone menu item and press the ENTER smart button.

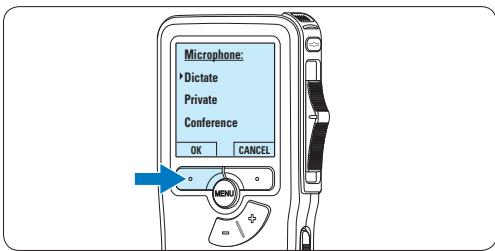

4 Press the + or – button to choose the microphone sensitivity: Private (low), Dictate (medium) and Conference (high).

5 Press the OK smart button to save the setting or press the CANCEL smart button to exit the sub-menu without changing the setting.

4.2 Playback

1 Press the + or - button while in the stop position to select the file to play and locate the beginning of the recording.

2 Move the slide switch to the PLAY position to start playback.

The following information is displayed:

(a) Recording format
b Playback position (minutes : seconds)
© Current position in the recording
(d) File number
e File name

3 Press the + or – button to adjust the playback volume during playback.

4 Press the SPEED smart button to adjust faster or slower file playback.

5 Move the slide switch to the STOP position to stop playback.

4.2.1 Overview of playback functions

File selection	Press the + button once while in the stop position to skip to the end of a file. Press the + button again to skip to the beginning of the next file. Press the – button once while in the stop position to skip to the beginning of a file. Press the – button again to skip to the end of the previous file.
Fast rewind	Move the slide switch to the ← position. Move the slide switch to the STOP position to stop rewinding or the PLAY position to stop rewinding and begin playback.
Fast forward	Move the slide switch to the ▶ position. Move the slide switch to the STOP position to stop forwarding or the PLAY position to stop forwarding and begin playback.
Playback speed	Press the SPEED smart button during playback to adjust faster or slower file playback.

4.3 Delete

Note

Before deleting a file, make sure that it is not marked finished and that the memory card is not set to read-only (locked). If the file is marked finished, unlock it by pressing the EOL button once.

4.3.1 Delete a file

Follow these steps to delete a file entirely:

1 Press the + or - button while in the stop position to select the file to be deleted.

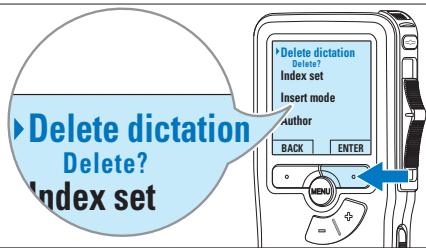

2 Press the MENU button to open the menu. The Delete dictation menu item is selected.

3 Press the ENTER smart button to enter the sub menu.

4 Press the OK smart button to delete the file permanently. Press the CANCEL smart button to cancel the operation and leave the recording intact.

4.3.2 Delete part of a recording

Follow these steps to delete a section from a recording:

1 Press the MENU button while in the stop position to open the menu.

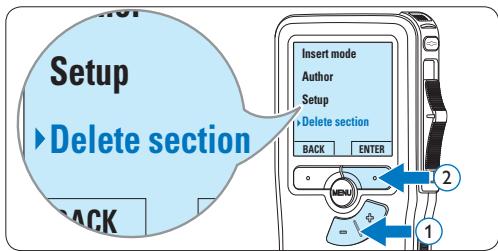

2 Press the + or – button to select the Delete section menu item and press the OK smart button.

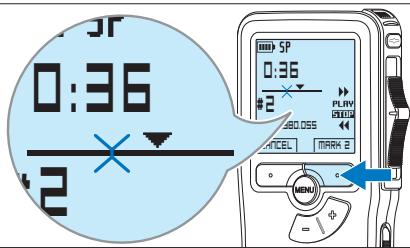

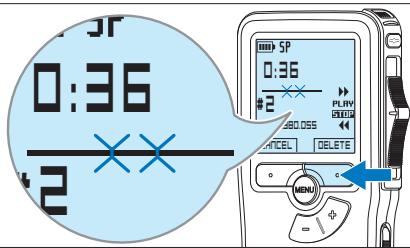

3 Using the play, forward or rewind functions, navigate to the beginning of the section to be deleted. Press the MARK 1 smart button. A cross symbol appears on the screen.

4 Navigate to the second mark position using playback, forward or rewind. Press the MARK 2 smart button. The second cross appears.

5 Press the DELETE smart button and the OK smart button to confirm the deletion of the marked section, or press the CANCEL smart button to exit without deleting.

4.3.3 Delete all dictations

Caution

Files marked finished (EOL) are deleted when the delete-all-dictations function is used.

Follow these steps to delete all recordings:

1 Press the MENU button while in the stop position to open the menu.

2 Press the + or - button to select the Setup menu item and press the ENTER smart button.

3 Press the + or – button to select the Delete dictations menu item and press the ENTER smart button.

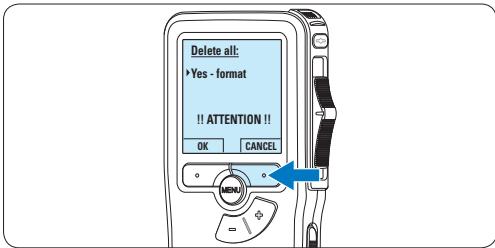

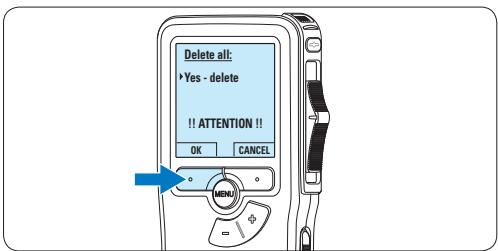

4 Press the ENTER smart button and the OK smart button to confirm the deletion, or press the CANCEL smart button to exit without deleting.

5 Use more of your Pocket Memo

5.1 Use Philips SpeechExec software

Philips SpeechExec software can be used for advanced configuration of the Pocket Memo and automatic download, conversion and routing of dictation files.

Note

For detailed information about SpeechExec software, refer to the SpeechExec user manual.

5.1.1 Advanced configuration

The Pocket Memo Configuration Wizard is part of the Philips SpeechExec Dictate software and guides users through the device configurations and settings of their Pocket Memo. The wizard assists users in configuring the time format, sound feedback, voice-activated recording, display appearance (standard or advanced display mode), the recording format, microphone sensitivity, author names, and file download to the PC.

1 Connect the Pocket Memo to the PC using a USB cable.
2 Start Philips SpeechExec Dictate software.
3 Click Settings > General Settings on the menu bar of SpeechExec to open the settings menu and select DPM/DT Configuration > DPM Wizard from the list on the left side.
4 Click the Start Wizard... button to open the

wizard. Follow the on-screen instructions to customize the Pocket Memo.

5 Click the Finish button to close the wizard and confirm the transfer of the new settings to the Pocket Memo.

Note

When the Pocket Memo is connected to the PC for the first time, Windows detects the new hardware and automatically installs the required drivers. When the installation is complete, Windows may prompt you to restart the PC.

5.1.2 Download recordings to the PC

With USB mass storage support, the Pocket Memo is automatically displayed as an external drive when it is connected to the computer. It can then be accessed easily with any Microsoft Windows program as a regular drive.

Use Philips SpeechExec software for automatic download, conversion and routing of files.

1 Make a recording with the Pocket Memo.
2 Start Philips SpeechExec Dictate software.
3 Connect the Pocket Memo to the PC using the USB cable or the optional USB docking station.
4 By default, the recordings on the Pocket Memo will be downloaded automatically to the PC and moved to the Finished dictations folder of the worklist.

Note

How and which files are downloaded after a Pocket Memo is connected can be configured in the settings menu of SpeechExec or with the Configuration Wizard.

5.2 Menu settings

To access the Pocket Memo menu:

1 Press the MENU button while stopped to open the Pocket Memo menu.

2 Press the + or – button to select the next/previous menu item.

3 Press the ENTER smart button or the MENU button to enter a submenu.

4 Press the BACK smart button to exit the menu.

5 Press the + or - button to select a function.
6 Press the OK smart button to confirm a selection or the CANCEL smart button to exit a sub-menu without changing a setting.

5.2.1 Menu list

Note

• Some settings, such as defining author names or switching to the simple display mode, are available only through Philips SpeechExec Dictate. See 5.1.1 Advanced configuration on page 21 for more information.
• Press and hold the MENU button for a few seconds to access additional information about files, the device, and the memory card.

5.3 Use voice-activated recording

Voice-activated recording is a convenience feature for hands-free recording. When voice-activated recording is enabled, recording will start when you begin speaking. When you stop speaking, the Pocket Memo will automatically pause recording after three seconds of silence, and resume only when you begin speaking again.

1 Press the MENU button while in the stop position to open the menu.

2 Press the + or – button to select the Setup menu item and press the ENTER smart button.

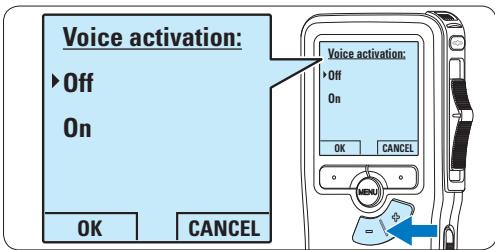

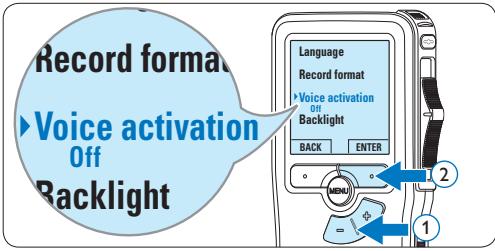

3 Press the + or – button to select the Voice activation menu item and press the ENTER smart button.

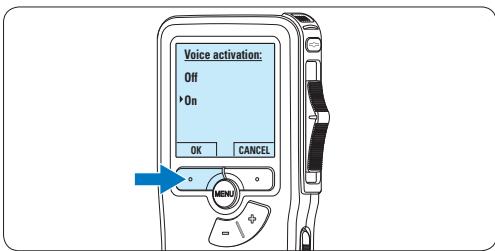

4 Press the + or - button to choose Off or On.

5 Press the OK smart button to save the setting or press the CANCEL smart button to exit the sub-menu without changing the setting.

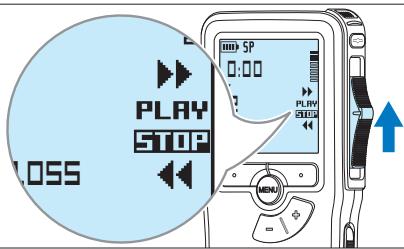

6 To start recording, press the RECORD button, move the slide switch to the REC position and start speaking.

The status LED glows in red (in overwrite mode) or green (in insert mode) while recording. When the sound level drops below the threshold sound level, recording pauses after three seconds and the status LED flashes.

7 Press the + or – button to adjust the threshold sound level while recording.

8 To stop recording, move the slide switch to the RECP position and press the RECORD button.

5.4 Work with index marks

Index marks can be used to mark certain points in a recording as points of reference. A point of reference may be the beginning of a major section, or a part of the recording that you may want to revise later or access quickly.

5.4.1 Insert an index mark

1 Play back, fast forward or fast rewind to the position where the index mark should be set.
2 Press the MENU button while in the stop position to open the menu.

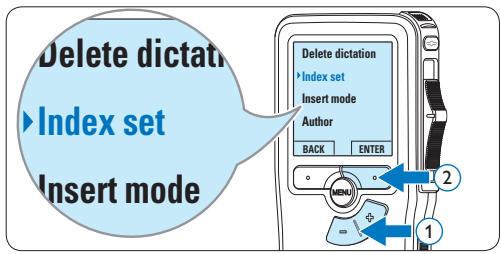

3 Press the + or - button to select the Index set menu and press the OK smart button.

5.4.2 Delete an index mark

1 Play back, fast forward or fast rewind to the index mark to be deleted.
2 Press the MENU button while in the stop position to open the menu.

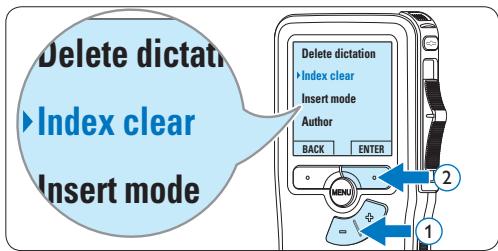

3 Press the + or – button to select the Index clear menu and press the OK smart button.

5.4.3 Delete all index marks

1 Press the MENU button while in the stop position to open the menu.

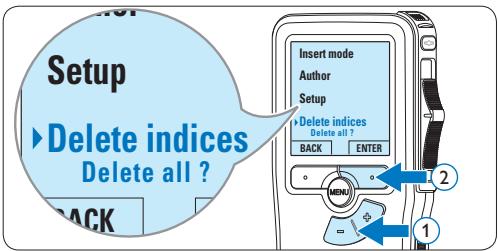

2 Press the + or – button to select the Delete indices menu item and press the ENTER smart button.

3 Press the ENTER smart button and the OK smart button to confirm the deletion, or press the CANCEL smart button to exit without deleting.

Note

The Delete Indices menu item is available only if the current file has at least one index mark.

5.5 Assign an author's name

A keyword, such as the author's name can be assigned to every recording. The keyword can be used to identify recordings and automatic file routing in Philips SpeechExec software.

Note

Author names must first be set up with Philips SpeechExec software. See 5.1.1 Advanced configuration on page 21 for more information. By default, the keyword category AUTHOR with the keywords 'DPM 9380' and '-' (empty = default) is available on the Pocket Memo.

To assign an author's name to a recording:

1 Press the MENU button while in the stop position to open the menu.

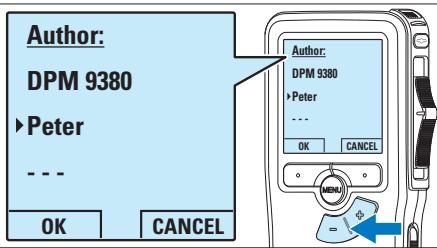

2 Press the + or – button to select the Author menu item.

3 Press the ENTER smart button to display the list of names.

4 Press the + or - button to select a name.

5 Press the OK smart button to confirm or the CANCEL smart button to exit without assigning a name.

6 Technical data

Connectivity

• Headphones: 3.5 mm
- Microphone: 3.5 mm
• USB: High-speed USB 2.0
- Docking connector
- Memory card slot

Display

• Type: LCD
• Diagonal screen size: 44 mm/1.7 in.
• Backlight: white

Storage media

• Exchangeable memory card
- Memory card types: Secure Digital (SD), Secure Digital (SDHC)
• Mass storage class compliant

Audio recording

• Recording formats: Digital speech standard (DSS)
  • Built-in microphone: mono
• Recording modes: QP (DSS/mono), SP (DSS/mono)
• Bit rate: 13.5, 27 kbps
• Recording time (2 GB card): 349 hours (SP), 170 hours (QP)
  • Sample rate: 16 kHz (QP), 12 kHz (SP)

Sound

• Speaker type: built-in round dynamic speaker
• Speaker diameter: 30 mm
• Speaker output power: 200 mW
• Frequency response: 300–7,000 Hz (QP), 300–5,700 Hz (SP) Hz

Convenience

• Professional editing functions
- Multiple language support: 4 languages (EN, FR, DE, ES)
- 2 smart buttons
• Author ID setting
• Control via slide switch

• File lock
  • One-thumb operation
• Priority setting
  • Voice-activated recording
  • Automatic software updates

Power

• Battery type: AAA/LR03 Alkaline, Philips AAA Ni-MH LFH9154
  • Number of batteries: 2
• Rechargeable: yes, via USB
• Battery lifetime: up to 23 hours in SP recording mode
• Batteries included

System requirements

• Processor: Pentium III 1GHz, Pentium IV recommended
  • RAM memory: 512 MB (1 GB recommended)
• Hard disk space: 100 MB for SpeechExec, 250MB for Microsoft .NET
  • Headphone output or speakers
• Operating system: Windows 7/Vista/XP
• Free USB port
• DVD-ROM drive
• Sound card

Green specifications

• Compliant to 2002/95/EC (RoHS)
- Lead-free soldered product

Accessories

• SpeechExec Dictate software
• USB cable
• Secure Digital memory card
• Pouch
• Quick start guide
• 2 × AAA batteries

Design and finishing

• Color(s): silver/black
• Material: full metal body

Benutzerhandbuch

1 Wichtig 30

Simple diagram of two concentric circles with no text or symbols

Coiled cable with two connectors (no text or symbols visible)

USB-Kabel

Quick start guide

2.3 Übersicht

Hinweis

Hinweis

Simple concentric circle diagram with no text or symbols

Coiled cable with two connectors (no text or symbols visible)

Câble USB

Line drawing of a Philips smartphone case with internal components and a blue lightning bolt (no text or symbols)

Note

3.6 Mode économique

Note

Supports de stockage

Simple concentric circle diagram with no text or symbols

Coiled cable with two connectors (no text or symbols visible)

Cable USB

Line drawing of a Philips 3.0-inch handheld device showing internal components and directional arrows (no text or symbols)

Nota

Nota

Simple diagram of two concentric circles with no text or symbols

Line drawing of a broadband cable with two connectors (no text or symbols)

Cavo USB

Nota

Nota

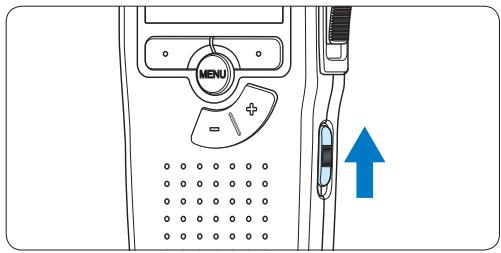

4.2 Riproduzione

Nota

Nota

6 Dati tecnici

Connettività

Simple diagram of two concentric circles with no text or symbols

Coiled cable with two connectors (no text or symbols visible)

USB-kabel

Snelle startgids

2.3 Overzicht

Line drawing of a Philips 3.0-inch handheld device showing internal components and directional arrows (no text or symbols)

Opmerking

Opmerking

Opmerking

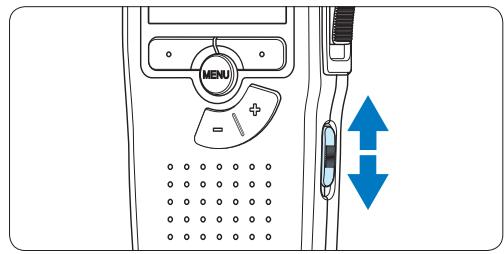

4.2 Afspelen

Opmerking

Opmerking

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio or television technician for help.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Philips may void the user's authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Canadian notice

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Avis Canadien

Declaration of Conformity

Model Number:	LFH9380
Trade Name:	Philips Pocket Memo
Responsible Party:	Philips Speech Processing
Address:	64 Perimeter Center East, Atlanta, GA 30346, USA
Telephone number:	888-260-6261
Website:	www.philips.com/dictation

LFH9380

Tested to comply with FCC standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation.

CE Declaration of Conformity

Philips confirms that the product corresponds to the relevant guidelines of the European Union.
