Product Type	Range Hood
Brand	Cylinda
Model	Eris SF180SVA
Width	90 cm
Depth	50 cm (typical)
Height (min-max)	60-120 cm (adjustable)
Weight	Approx. 15 kg
Power Supply	230 V, 50 Hz
Maximum Power Consumption	200 W
Motor Type	Single motor, 220 W
Maximum Extraction Rate	650 m³/h
Noise Level (max)	65 dB(A)
Lighting	2 x 3 W LED
Filter Type	Aluminum grease filter
Control Type	Touch buttons
Speed Levels	3 + intensive
Installation Type	Wall-mounted (chimney)
Energy Class	A+
Grease Filter Efficiency	Class A
Annual Energy Consumption	50 kWh/year

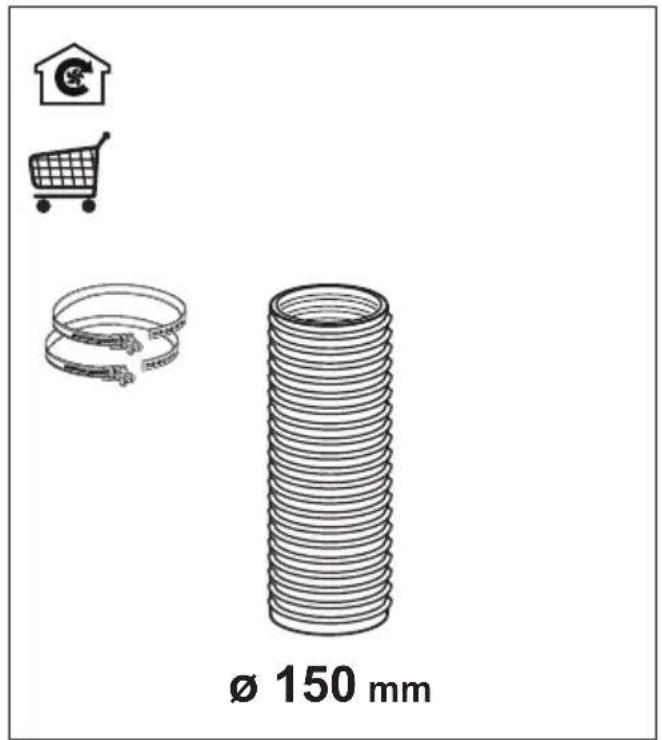

Duct Diameter	150 mm
Warranty	2 years

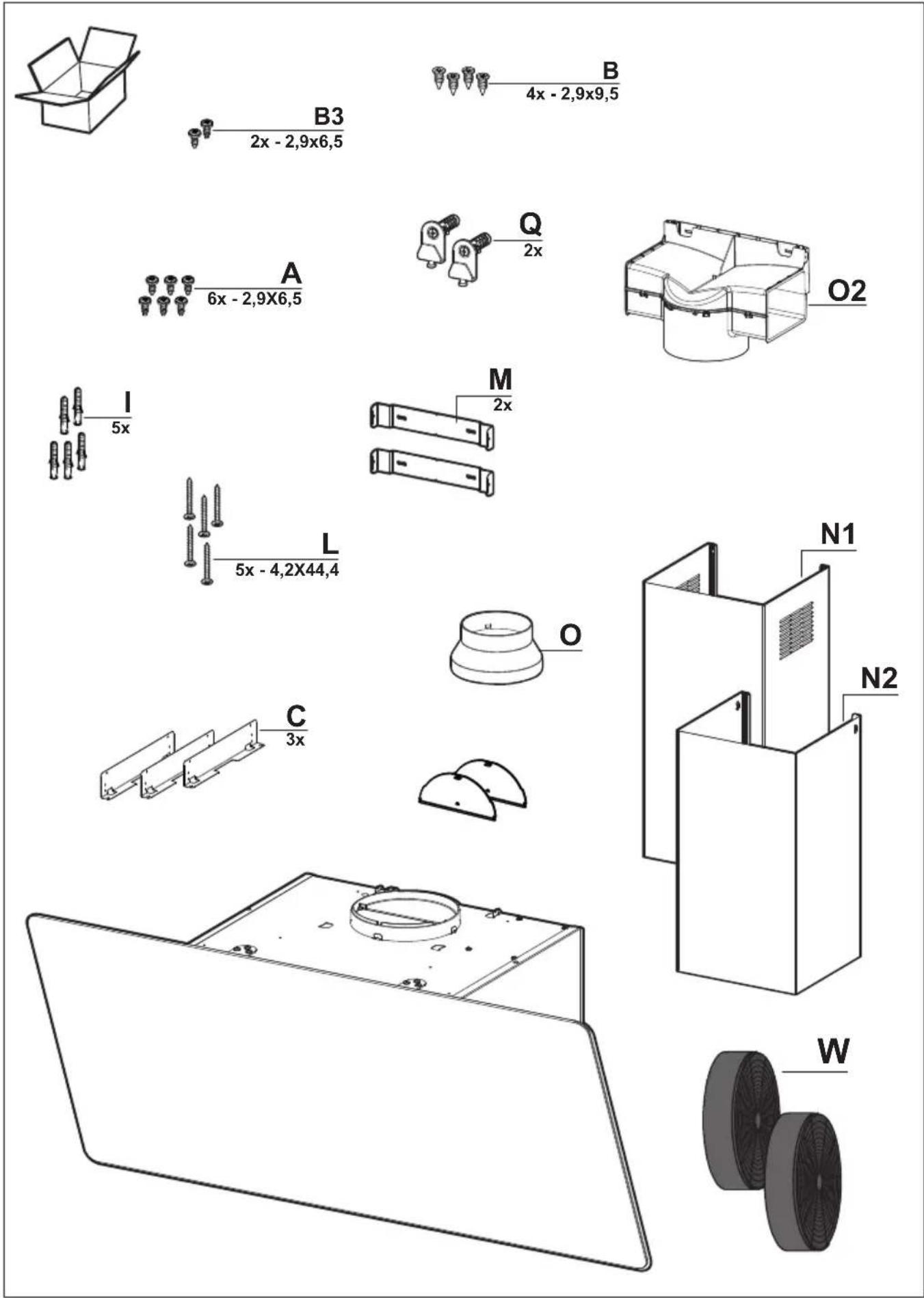

Included Accessories	Grease filter, chimney, mounting kit

Frequently Asked Questions - Eris SF180SVA Cylinda

How do I clean the grease filter?

The aluminum grease filter can be cleaned in the dishwasher or by hand with warm soapy water. Allow it to dry completely before reinstalling.

How often should the charcoal filter be replaced?

If your hood is recirculating, replace the charcoal filter every 3-6 months depending on usage.

Why is my range hood noisy?

Noise can be due to loose parts, a dirty filter, or improper installation. Check that the hood is securely mounted and filters are clean.

Can I install the hood in recirculation mode?

Yes, the Eris SF180SVA can be used in recirculation mode with the appropriate charcoal filter (not included).

How do I adjust the chimney height?

The telescopic chimney can be extended by pulling the upper part upward. Secure it with screws provided.

What is the recommended installation height above the cooktop?

For electric cooktops, 65-75 cm; for gas cooktops, 75-85 cm.

How do I change the LED lights?

LED lights are built-in and must be replaced by a qualified technician if faulty.

Does the hood have a remote control?

No, the Eris SF180SVA is controlled via touch buttons on the front panel.

What does the intensive speed do?

The intensive speed runs the motor at maximum power for 10 minutes, then automatically returns to the previous setting.

Can I use the hood without filters?

No, the hood must always be used with the grease filter installed to protect the motor from grease buildup.

USER MANUAL Eris SF180SVA Cylinda

Simple grayscale icon depicting a kitchen setup with a chimney, oven, and washing machine (no text or symbols)

Eris SF160SVA

Eris SF180SVA

EN 3
NO 7
DA 11
FI 15
SV 19

EN

1. SAFETY INFORMATION

For your own safety and to ensure proper operation of the appliance, please read this manual carefully before installation and operation. Keep these instructions together with the appliance, even if it is sold or transferred to third parties. It is important that users know all the appliance's operating and safety characteristics.

The cables must be connected by a trained technician.

• The manufacturer shall not be considered responsible for any injury or damage caused by improper installation or use.

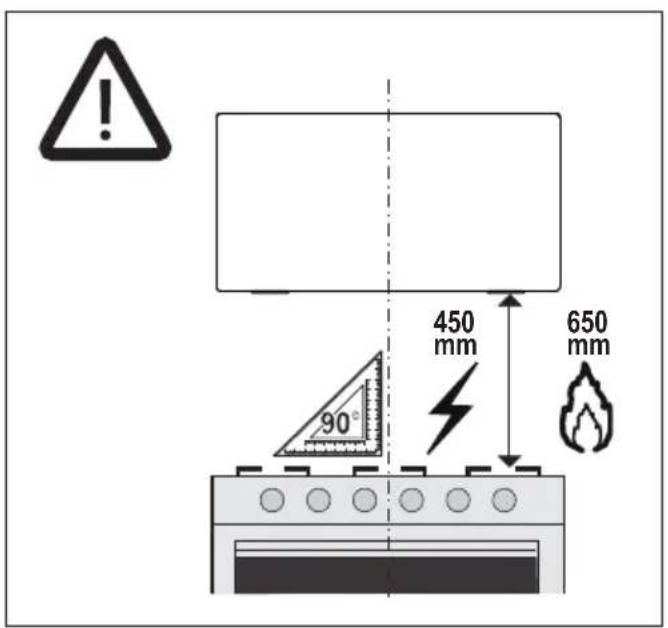

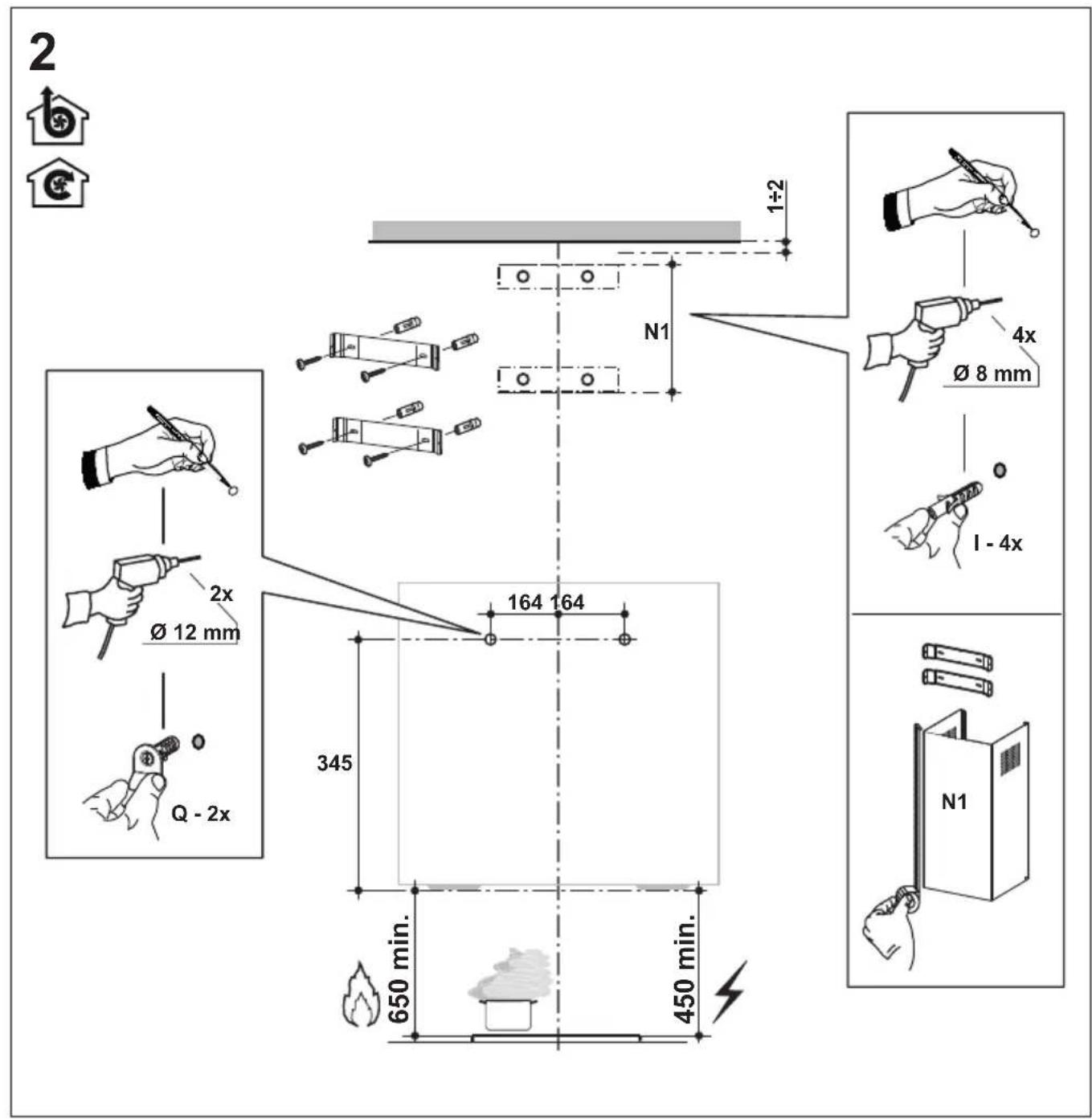

• The minimum safety distance between the hob and the suction hood is 650 mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
• If the instructions for installation of the gas hob specify a distance greater than the one indicated, this must be taken into account.
• Check that the mains power supply corresponds to the one indicated on the data plate affixed inside the hood.

• The cut-out devices must be installed in the fixed system according to wiring system regulations.

• For Class I appliances, check that the domestic power supply is adequately earthed.

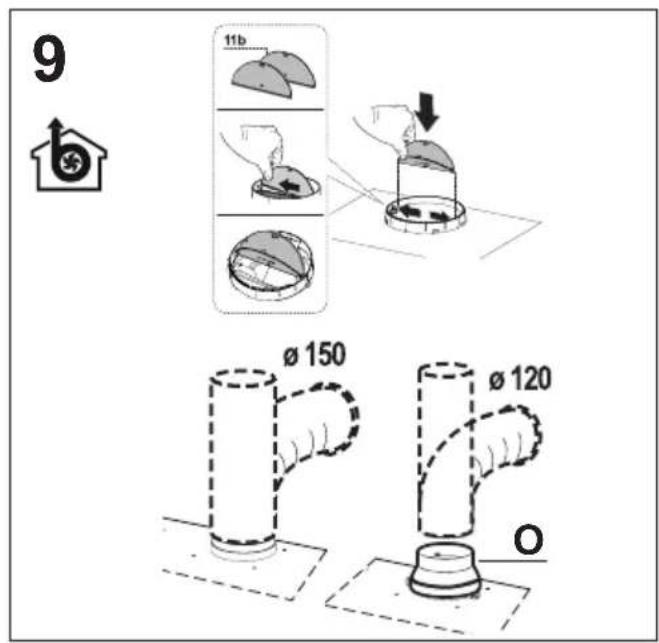

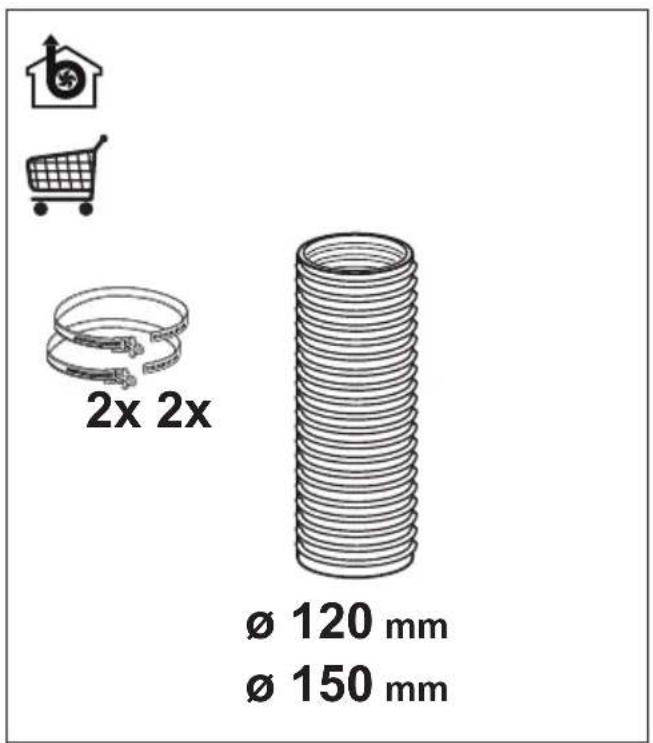

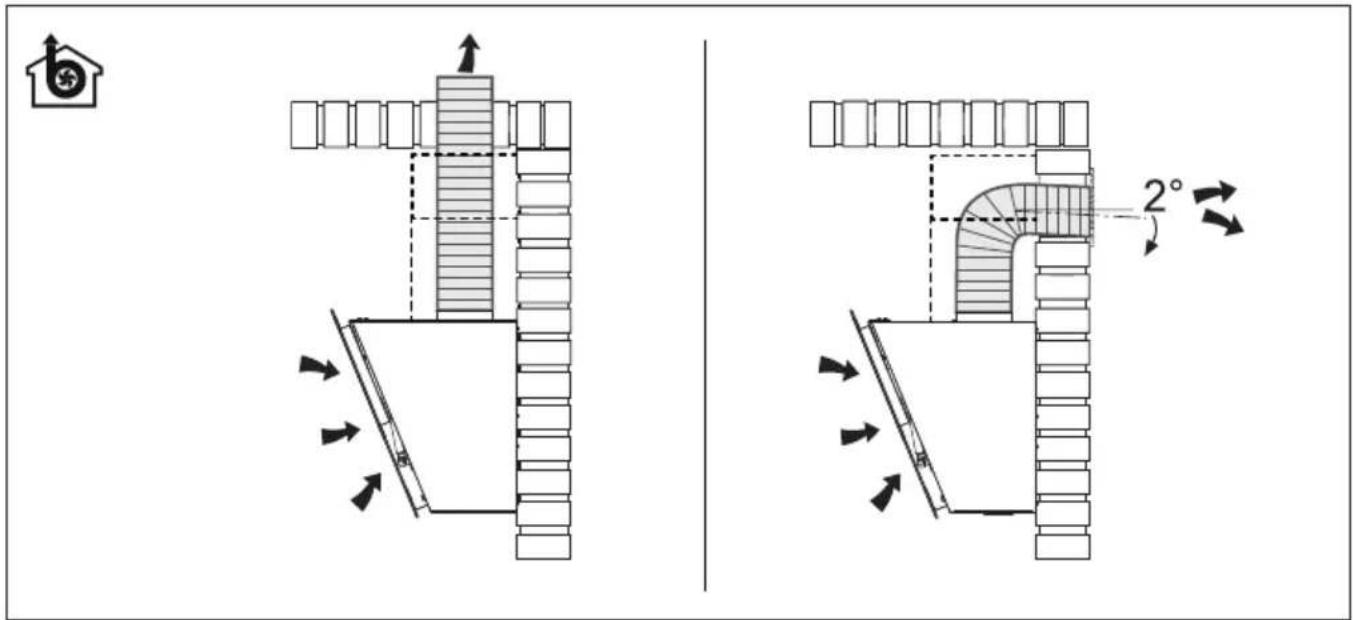

• Connect the hood to the flue using a pipe with a minimum diameter of 120 mm. The fumes must travel the shortest distance possible.
• All the air venting regulations must be complied with.
• Do not connect the ducting hood to flues that also carry combustion fumes (e.g. boilers, chimneys, etc.).
• If the hood is used in combination with non electric appliances (e.g. gas appliances), a sufficient level of ventilation must be guaranteed in the room to prevent any exhaust backflow. If the kitchen hood is used in combination with appliances that are not electrically powered, the negative pressure in the room must not exceed 0.04 mbar to avoid any risk of the fumes being sucked back into the room by the hood.
• The air must not be extracted through a flue that is also used as an exhaust flue for fumes from gas or other fuel powered combustion devices.
• If it is damaged, the power cable must be replaced by the manufacturer or by a service technician.
• Connect the plug to a socket that complies with current regulations and is in an accessible position.

- As regards the technical and safety measures to be taken for exhausting of fumes, it is important that the regulations set by local authorities be complied with scrupulously.

CAUTION: remove the protective films before installing the hood.

- Only use screws and hardware of a sort suitable for the hood.

CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambé food under the hood: you might cause a fire.

- This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves. Make sure that children are not allowed to play with the appliance. Cleaning and maintenance to be performed by the user must not be carried out by children, unless they are under supervision.

- Supervise children, to make sure they do not play with the appliance.

- The appliance must not be used by persons (including children) with limited psycho-physical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and instructed.

Accessible parts may become extremely hot during the use of cooking appliances

- Clean and/or replace the fil- ters after the period of time in- dicated (danger of fire). See the paragraph on Mainten- ance and cleaning.

- The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).

- The symbol ☒ on the product or on its packaging indicates that the product must not be disposed of with the normal domestic waste. The product must be disposed of at a specialist re-cycling centre for electrical and electronic components. By making sure that this product is disposed of properly, you will help prevent possible negative consequences for the environment and for health that might result from its improper disposal. For more detailed in-

formation on how to re-cycle this product, please contact your local municipal offices, local waste disposal service or the shop in which the product was purchased.

2. USE

• The suction hood has been designed exclusively for domestic use, to eliminate kitchen odours.
• Never use the hood for purposes other than those for which it was designed.
• Never leave high flames under the hood when it is in operation.
• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not wrap around the sides.
• Deep-fryers must be kept under constant supervision when in use: the oil may catch fire if it gets too hot.

3. CLEANING AND MAINTENANCE

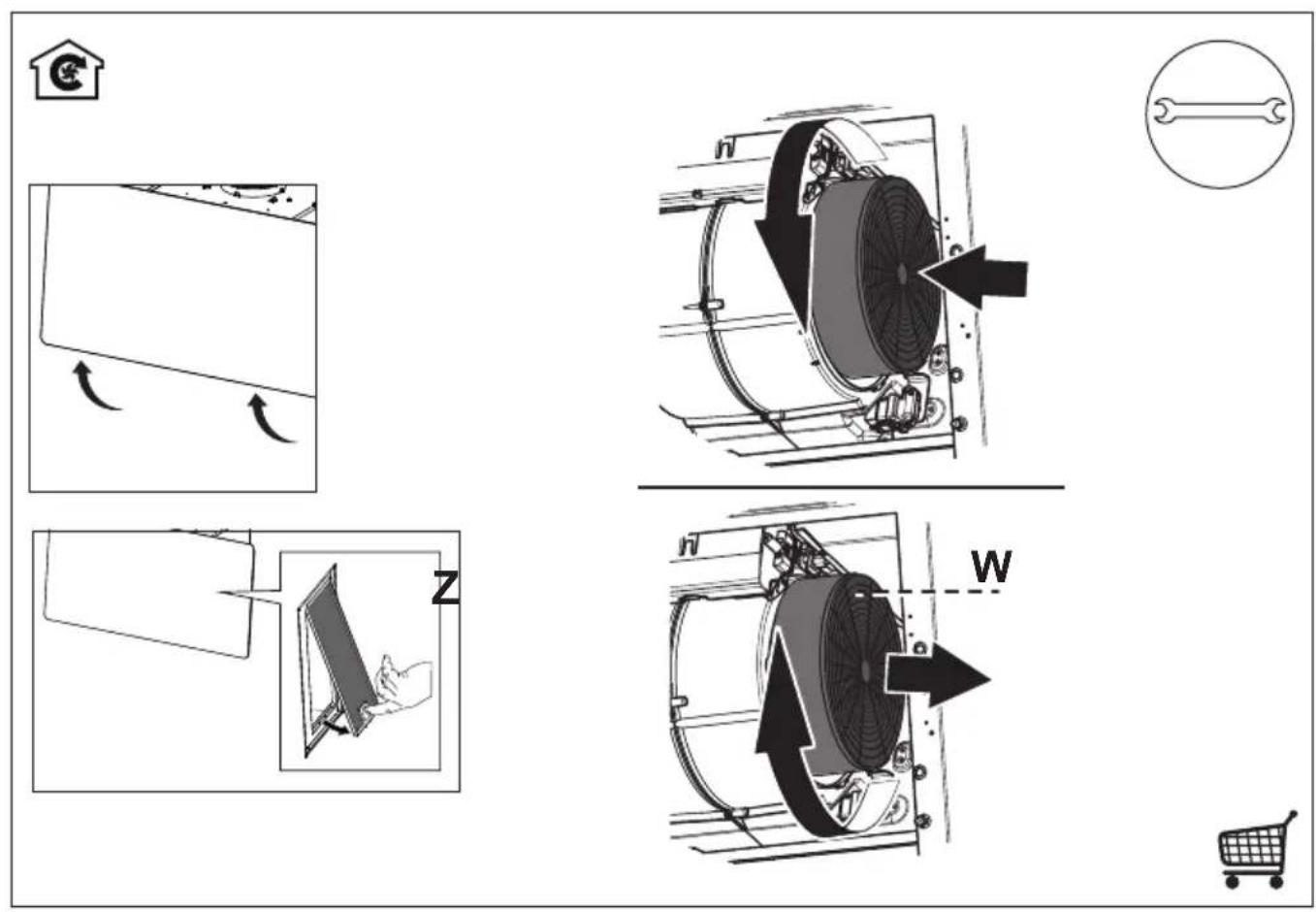

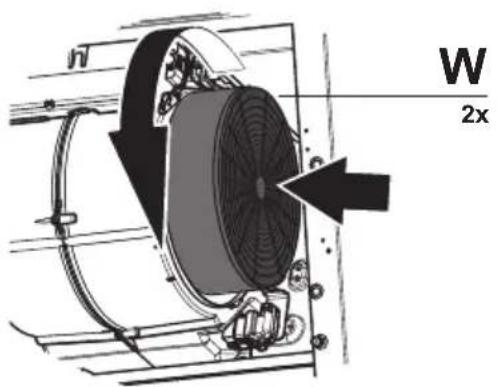

• The activated charcoal filter cannot be washed or regenerated, and must be changed approximately every 4

months of operation, or more frequently in the case of particularly intensive use (W).

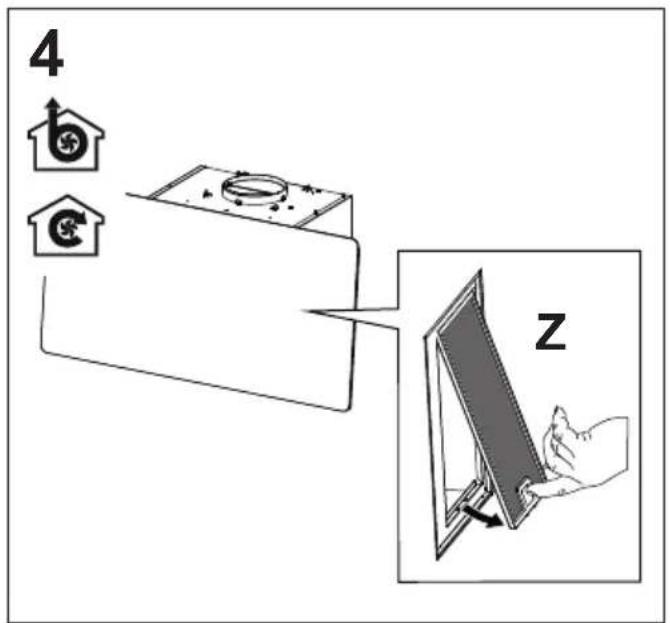

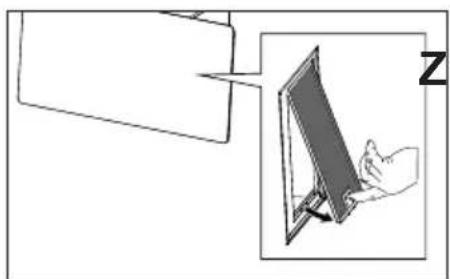

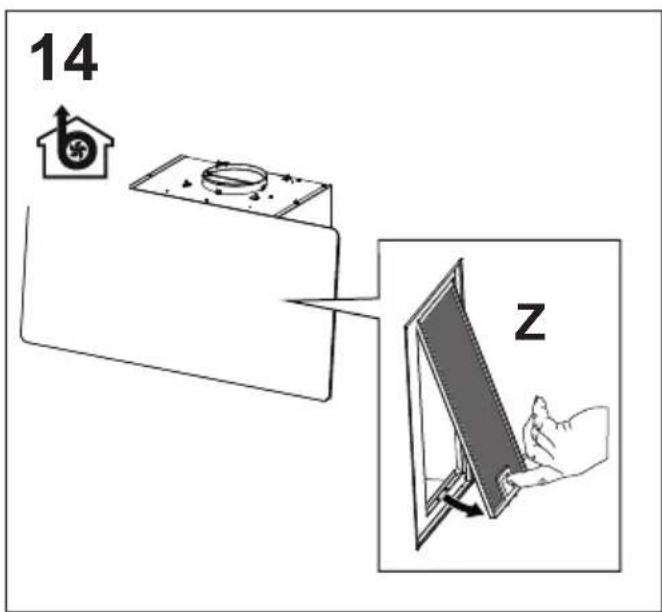

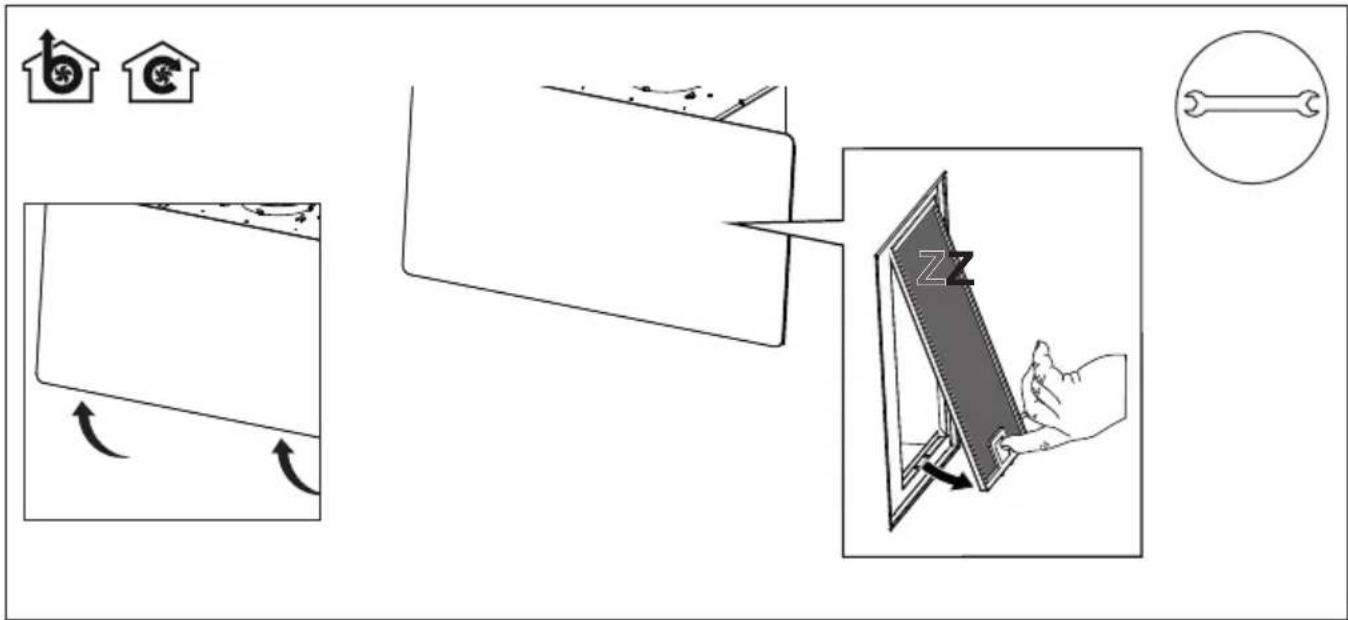

- The grease filters must be cleaned every 2 months of operation, or more frequently in the case of particularly intensive use. They can be washed in a dishwasher (Z).

Illustration of a hand holding a smartphone with a finger pointing at it, no text or symbols present

• Clean the hood using a damp cloth and neutral liquid detergent.
• For external and internal cleaning of the hood avoid alcoholic or silicone products.

If the product or one of its parts is made of stainless steel, use specific non-ab-rasive products for cleaning and follow the lines of the satin finish during cleaning.

4. CONTROLS

A	B	C	D	E	F
To activate the keyboard and its functions, press key A. All the LEDs light up at half intensity.If it remains unused for approximately 15 seconds, it returns to stand-by.
Key	Key Press	Functions			LED
A	Short	Turns off the motor.			-
B	Short	Turns the motor on at the first speed.			A+B on
	Long	Keypad Lock FunctionActivates/deactivates the keypad lock for hood cleaning.It turns off automatically after 2 minutes.			All LEDs flash.
C	Short	Turns the motor on at the second speed.			A+C on
D	Short	Turns the motor on at the third speed.			A+D on
E	Short	Activates/Deactivates the motor at Intensive speed.This speed is timed for 6 minutes. At the end of this time, the system automatically returns to the previously selected speed.It is deactivated by pressing any speed button or by switching off the motor.			A on + E flashing.
F	Short	Delay FunctionActivates/Deactivates the Delay function, the automatic delayed shut-down of the motor and lighting system after 30 minutes.Cannot be activated if the Intensive or 24h function is active.It is deactivated by pressing the same key or by switching off the motor.			F on + the selected speed LED.
	Long	24h FunctionIt activates/deactivates the motor in 24h Air Exchange mode. This function sets the motor to the first speed which allows suction with an interval of 10 minutes on and 50 minutes off.It is deactivated by pressing the same key or by switching off the motor	F flashes.
G	Short Turns the lights	on/off at maximum intensity. On/Off.
	Long Switches the lights	on/off at medium intensity. On/Off.
H	Short	The Filter saturation alarm is reset.			All LEDs flash 3 times.
	Long	Activates/Deactivates the Activated Carbon Filters alarm.	Alarm activated: all the LEDs flash twice.Alarm deactivated: all the LEDs flash once.
	- Signals the saturated	d Metal Grease Filters alarm and the need to wash them. The alarm is activated after 100 hours of effective hood operation.	LEDs H and C flash.
	-	Signals the Activated Carbon Odour Filter saturation alarm. The alarm is activated after 200 hours of effective hood operation.	LEDs H and D flash.

5. LIGHTING

- Please contact the Service Department to change it ("Please contact the service department to purchase it").

NO

1. SIKKERHETSINFORMA SJON

Illustration of a hand holding a smartphone with a finger, showing a finger pointing at the screen (no text or symbols present)

Illustration of a hand holding a smartphone with a finger, showing a stylized 'Z' on its screen (no text or symbols beyond the character)

Illustration of a hand holding a smartphone with a 'Z' symbol on its screen (no text or symbols on the device itself)

Illustration of a hand holding a smartphone with a finger, showing a stylized 'Z' on its screen (no text or symbols beyond the letter)

Simple line drawing of a wrench and screwdriver crossed over it (no text or symbols)

EN Warning! Before proceeding with installation, read the safety information in the User Manual.
NO Advarsel! Les sikkerhetsinstruksjonene i bruksveiledningen før apparatet installe-res.
DA Advarsel! Læs sikkerhedsreglerne i brugsanvisningen inden installation.
FI Varoitus! Ennen laitteen asentamista lue käyttöoppaassa olevat turvallisuustiedot.
SV Varning! Läs säkerhetsföreskrifterna i bruksanvisningen innan apparaten installeras.

Diagram of a mechanical or architectural component with directional arrows indicating movement or force, no text or symbols present.

15

Illustration of a hand holding a tablet device with a magnified view showing the screen (no text or symbols)

NO

Service: Nationwide service in

Sweden

Visit www.cylinda.se

Call 0771-25 25 00

Declare: Model code, Serial number, Purchase date, Problem description, Name and address, Phone number
