Leo SF190BIA - Range hood Cylinda - Free user manual and instructions

Product Type	Range hood
Brand	Cylinda
Model	Leo SF190BIA
Number of Speeds	4 (including boost)
Lighting	Yes, LED lamps
Grease Filter	Washable (can be cleaned in dishwasher)
Carbon Filter	Replaceable every 4 months
Minimum Distance to Hob	650 mm
Duct Diameter	Minimum 120 mm
Power Supply	220-240 V ~ 50 Hz
Installation	Must be performed by a trained technician
Customer Service	Nationwide in Sweden: 0771-25-25-00, www.cylinda.se

Frequently Asked Questions - Leo SF190BIA Cylinda

How do I clean the grease filters?

The grease filters should be cleaned every 2 months (or more frequently with heavy use). They can be washed in a dishwasher or by hand with a mild detergent. Ensure they are completely dry before reinstalling.

How often should the carbon filter be replaced?

The active carbon filter cannot be washed or regenerated. It must be replaced every 4 months of operation, or more often if the hood is used intensively.

What is the minimum installation height above the hob?

The minimum safety distance between the hob and the hood is 650 mm. If the gas hob instructions specify a greater distance, that higher value must be followed.

How do I activate the boost (fourth speed) function?

Press the T3 button for 2 seconds. This activates the highest speed for 6 minutes, after which the hood returns to the previously set speed. Ideal for dealing with intense cooking fumes.

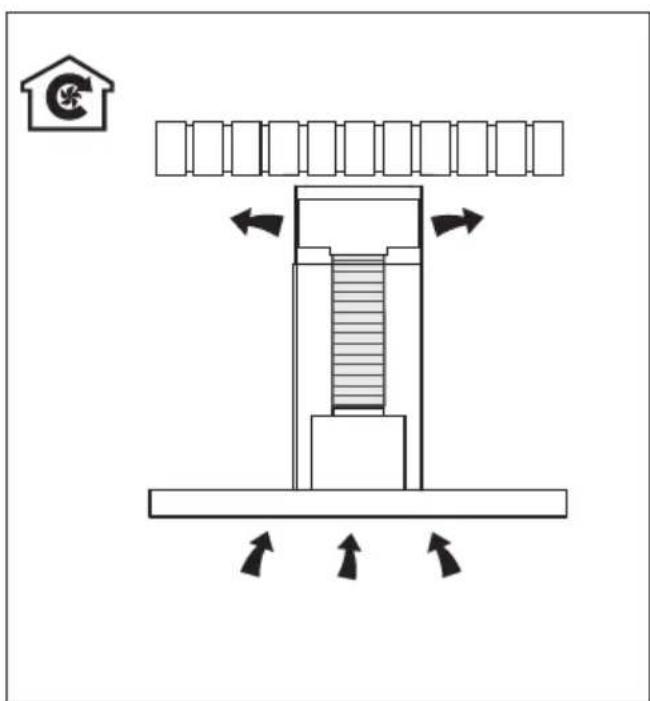

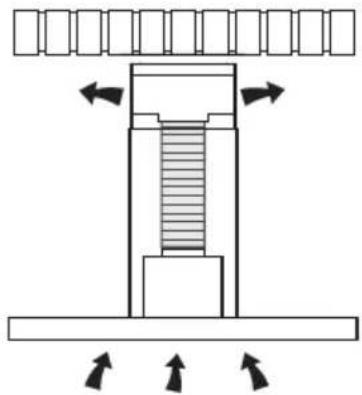

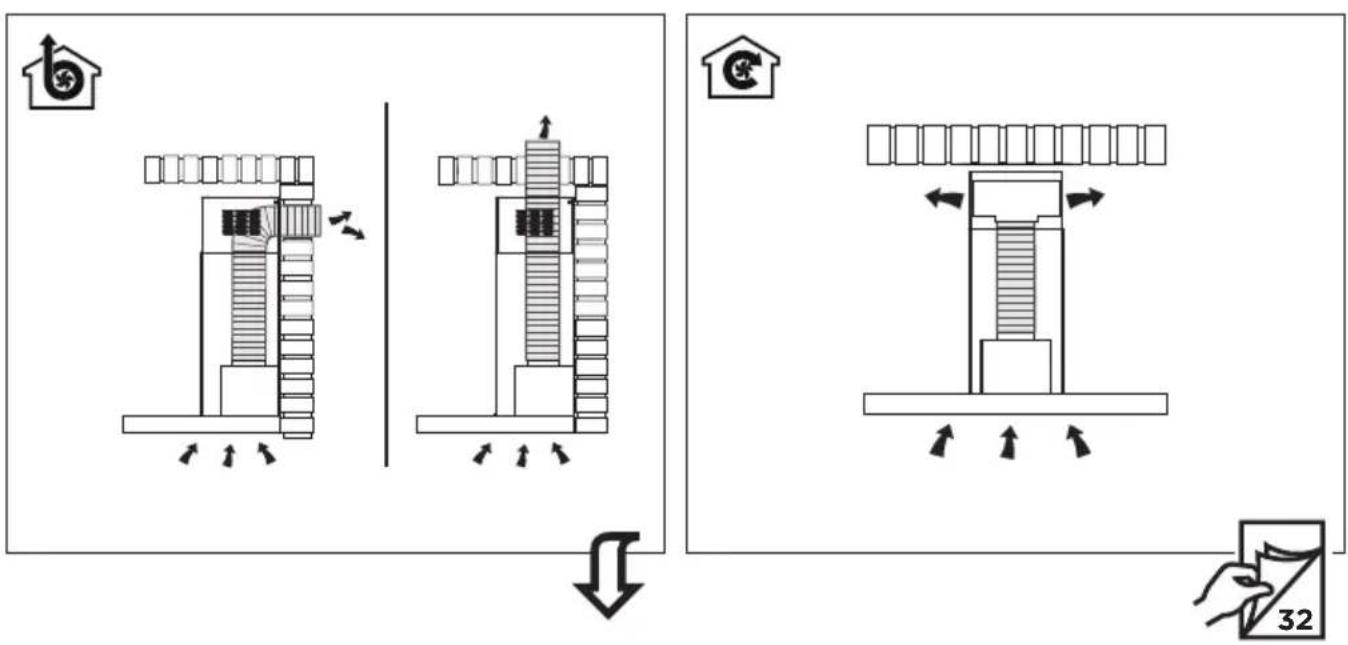

Can the hood be used in recirculation mode?

Yes, the hood can be used in recirculation mode with the installation of a carbon filter. The carbon filter absorbs odors and must be replaced regularly.

What should I do if the hood does not turn on?

First, check that the power supply is connected and the circuit breaker is on. Ensure the mains voltage matches the rating on the data plate. If the problem persists, contact a trained technician or Cylinda service.

Is the hood suitable for use with a gas hob?

Yes, but adequate ventilation must be provided. The negative pressure in the room must not exceed 0.04 mbar to prevent exhaust backflow. Follow all local regulations.

How do I change the light bulb?

The lighting system uses lamps in risk group 1. To change the lamp, contact the service department for purchase and replacement, as it requires technical expertise.

What is the warranty period for this hood?

Warranty details are provided by the manufacturer. For specific information, refer to the purchase receipt or visit www.cylinda.se. Standard warranty terms apply.

How can I contact Cylinda customer service?

For nationwide service in Sweden, call 0771-25-25-00 or visit www.cylinda.se. Have your model code, serial number, and purchase date ready.

USER MANUAL Leo SF190BIA Cylinda

Simple grayscale icon depicting a kitchen scene with oven, refrigerator, and washing machine (no text or symbols)

Leo SF190BIA

EN 3
NO 7
DA 11
FI 15
SV 19

EN

1. SAFETY INFORMATION

For your own safety and to ensure proper operation of the appliance, please read this manual carefully before installation and operation. Keep these instructions together with the appliance, even if it is sold or transferred to third parties. It is important that users know all the appliance's operating and safety characteristics.

The cables must be connected by a trained technician.

• The manufacturer shall not be considered responsible for any injury or damage caused by improper installation or use.

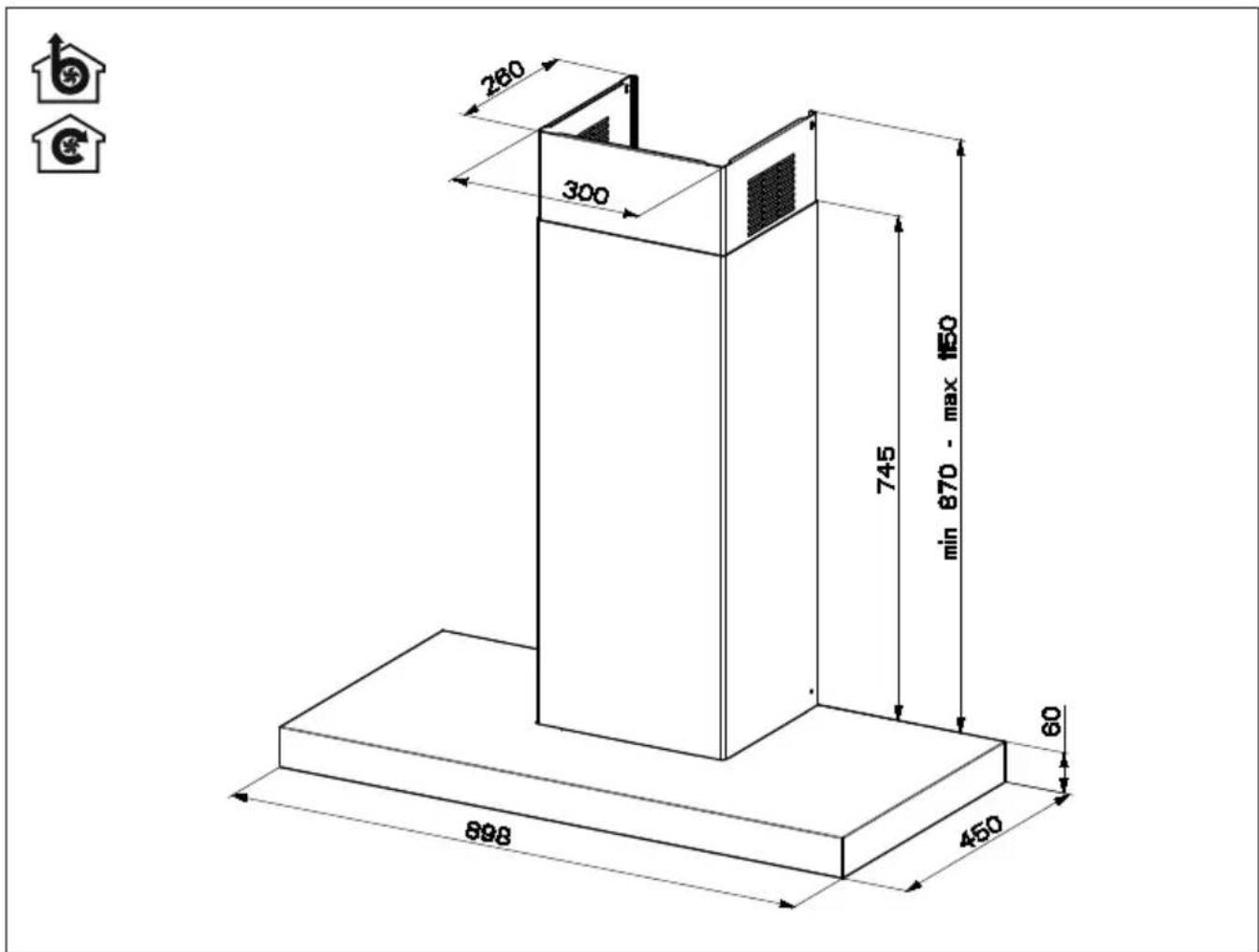

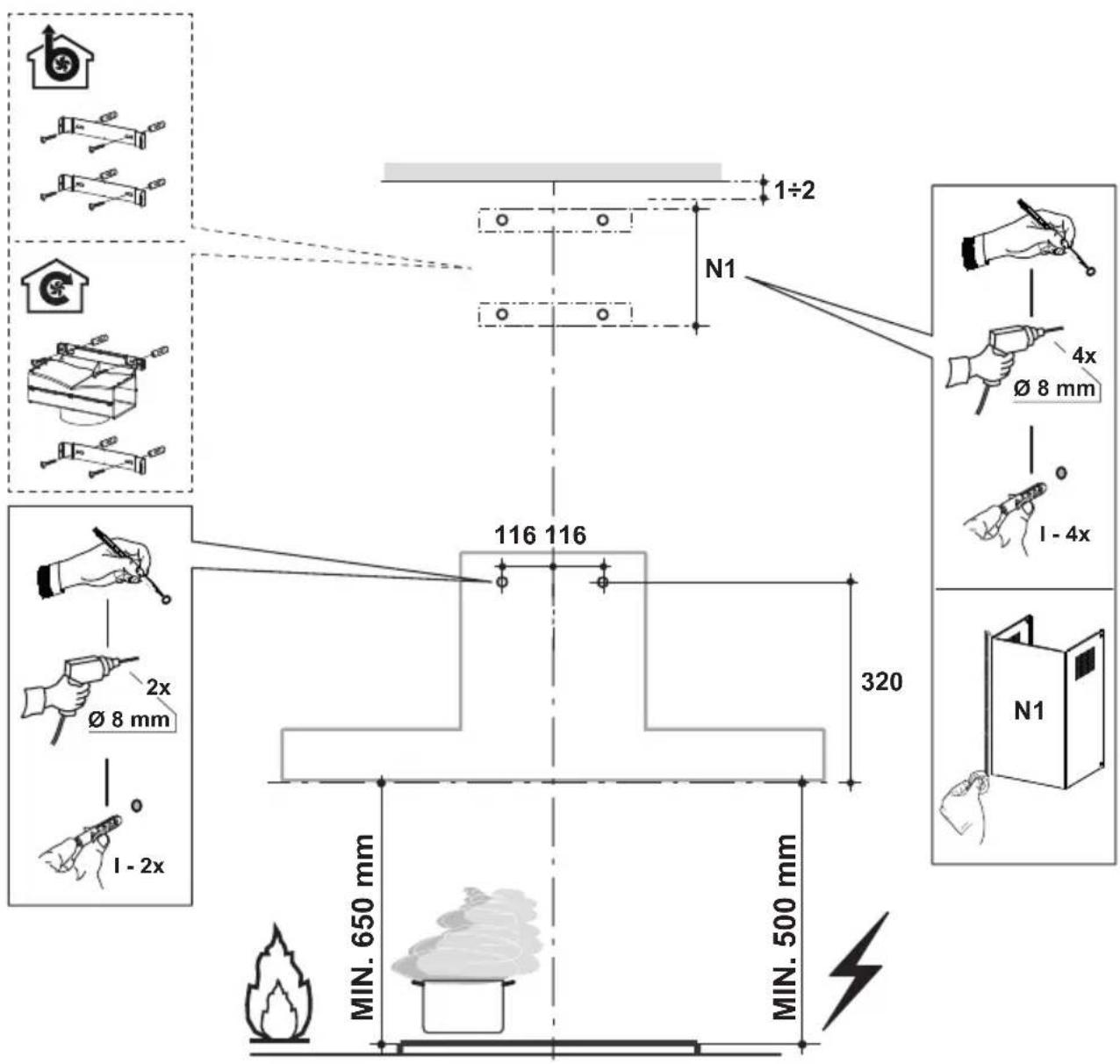

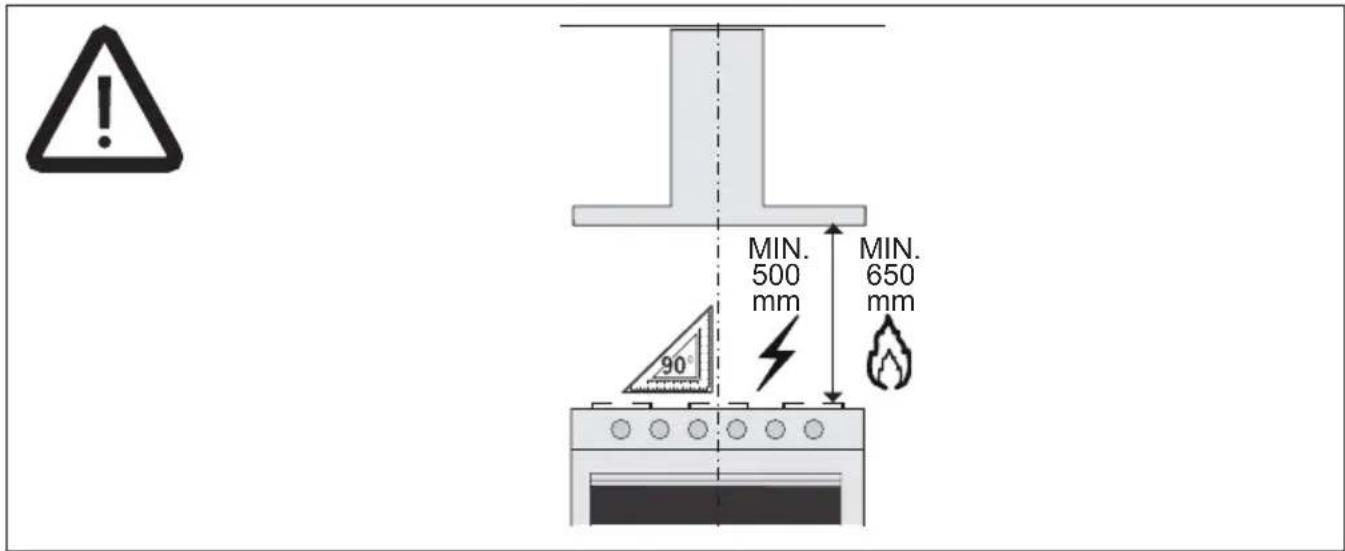

• The minimum safety distance between the hob and the suction hood is 650 mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
• If the instructions for installation of the gas hob specify a distance greater than the one indicated, this must be taken into account.
• Check that the mains power supply corresponds to the one indicated on the data plate affixed inside the hood.

• The cut-out devices must be installed in the fixed system according to wiring system regulations.

• For Class I appliances, check that the domestic power supply is adequately earthed.

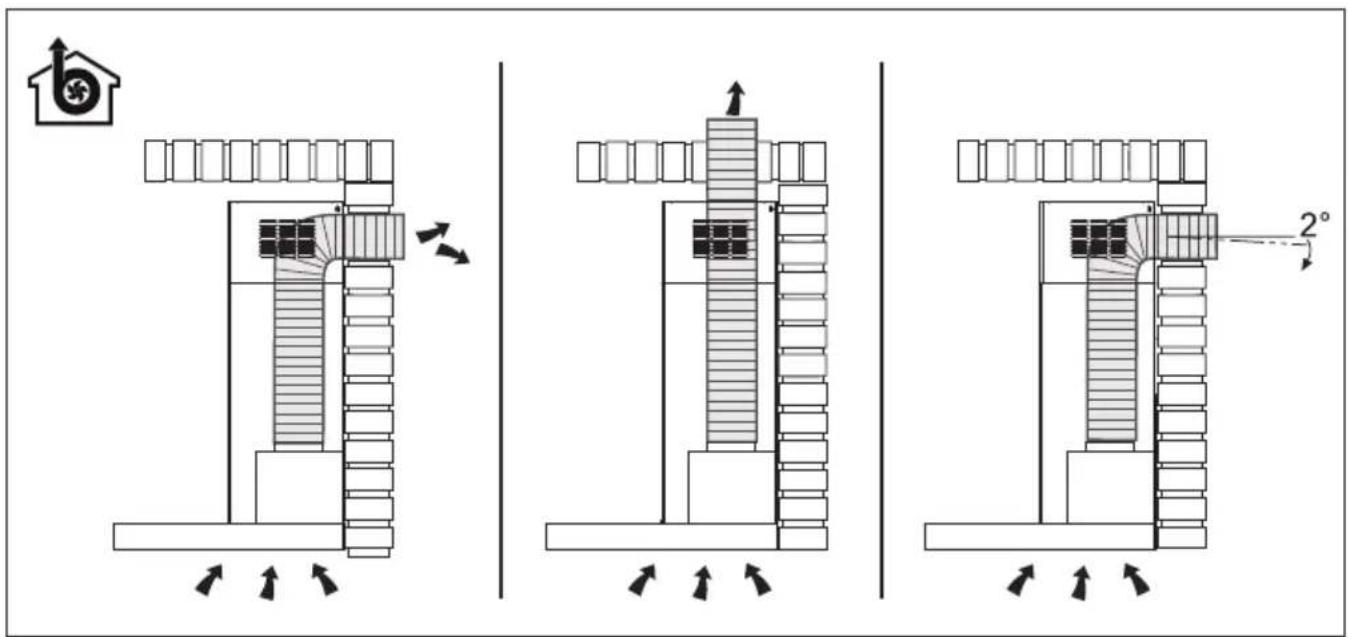

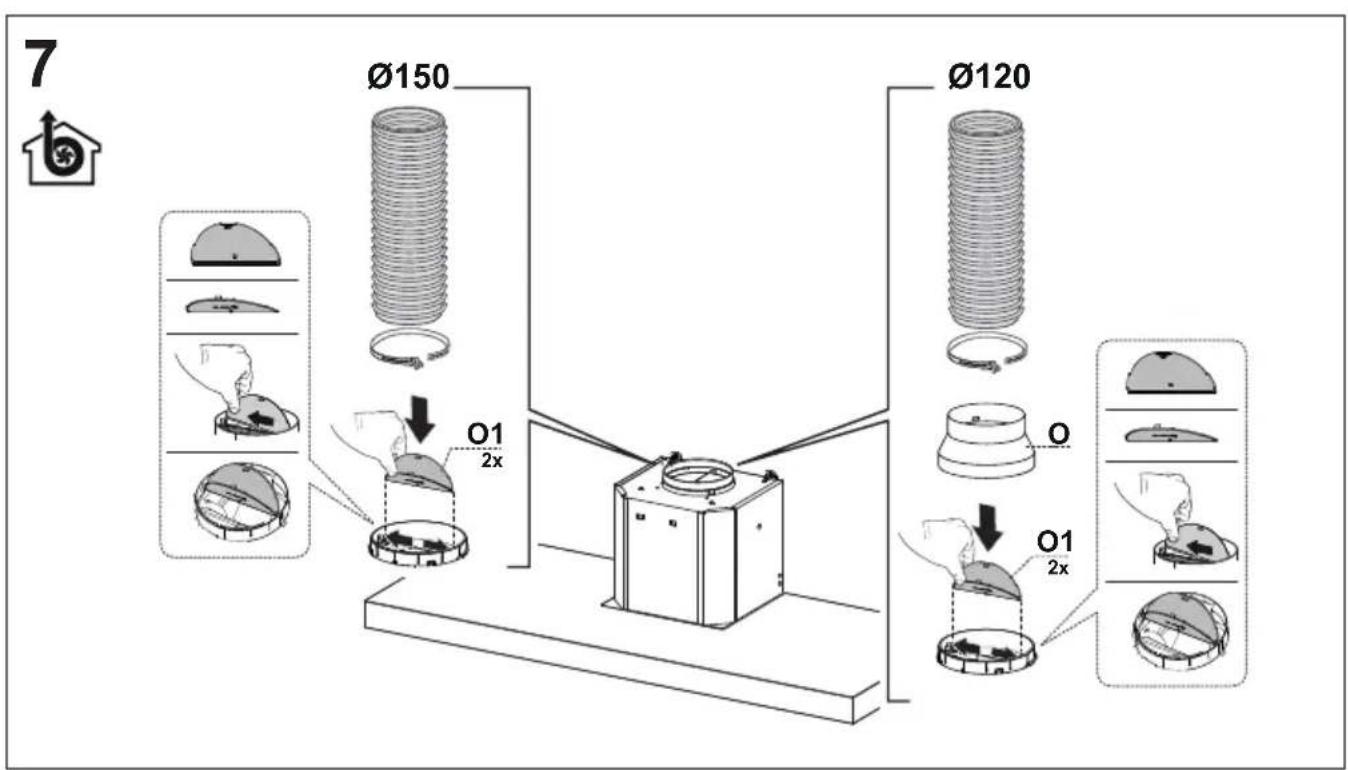

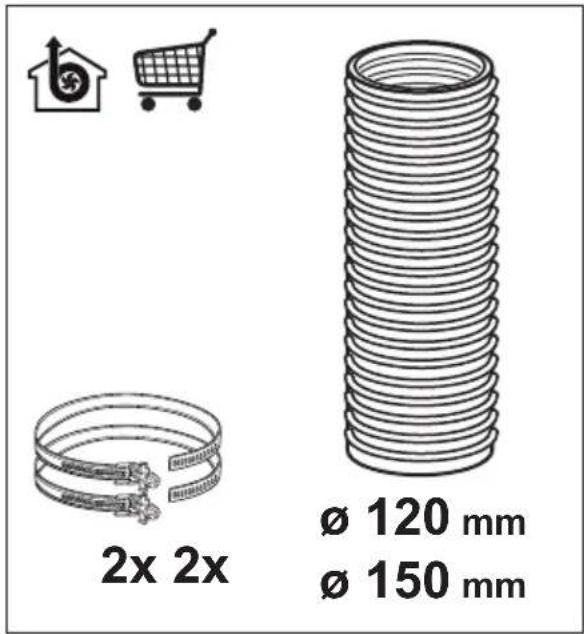

• Connect the hood to the flue using a pipe with a minimum diameter of 120 mm. The fumes must travel the shortest distance possible.
• All the air venting regulations must be complied with.
• Do not connect the ducting hood to flues that also carry combustion fumes (e.g. boilers, chimneys, etc.).
• If the hood is used in combination with non electric appliances (e.g. gas appliances), a sufficient level of ventilation must be guaranteed in the room to prevent any exhaust backflow. If the kitchen hood is used in combination with appliances that are not electrically powered, the negative pressure in the room must not exceed 0.04 mbar to avoid any risk of the fumes being sucked back into the room by the hood.
• The air must not be extracted through a flue that is also used as an exhaust flue for fumes from gas or other fuel powered combustion devices.
• If it is damaged, the power cable must be replaced by the manufacturer or by a service technician.
• Connect the plug to a socket that complies with current regulations and is in an accessible position.

- As regards the technical and safety measures to be taken for exhausting of fumes, it is important that the regulations set by local authorities be complied with scrupulously.

CAUTION: remove the protective films before installing the hood.

- Only use screws and hardware of a sort suitable for the hood.

CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambé food under the hood: you might cause a fire.

- This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves. Make sure that children are not allowed to play with the appliance. Cleaning and maintenance to be performed by the user must not be carried out by children, unless they are under supervision.

- Supervise children, to make sure they do not play with the appliance.

- The appliance must not be used by persons (including children) with limited psychophysical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and instructed.

Accessible parts may become extremely hot during the use of cooking appliances

- Clean and/or replace the fil- ters after the period of time in- dicated (danger of fire). See the paragraph on Mainten- ance and cleaning.

- The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).

- The symbol 📄 on the product or on its packaging indicates that the product must not be disposed of with the normal domestic waste. The product must be disposed of at a specialist re-cycling centre for electrical and electronic components. By making sure that this product is disposed of properly, you will help prevent possible negative consequences for the environment and for health that might result from its improper disposal. For more detailed in-

formation on how to re-cycle this product, please contact your local municipal offices, local waste disposal service or the shop in which the product was purchased.

2. USE

• The suction hood has been designed exclusively for domestic use, to eliminate kitchen odours.
• Never use the hood for purposes other than those for which it was designed.
• Never leave high flames under the hood when it is in operation.
• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not wrap around the sides.
• Deep-fryers must be kept under constant supervision when in use: the oil may catch fire if it gets too hot.

3. CLEANING AND MAINTENANCE

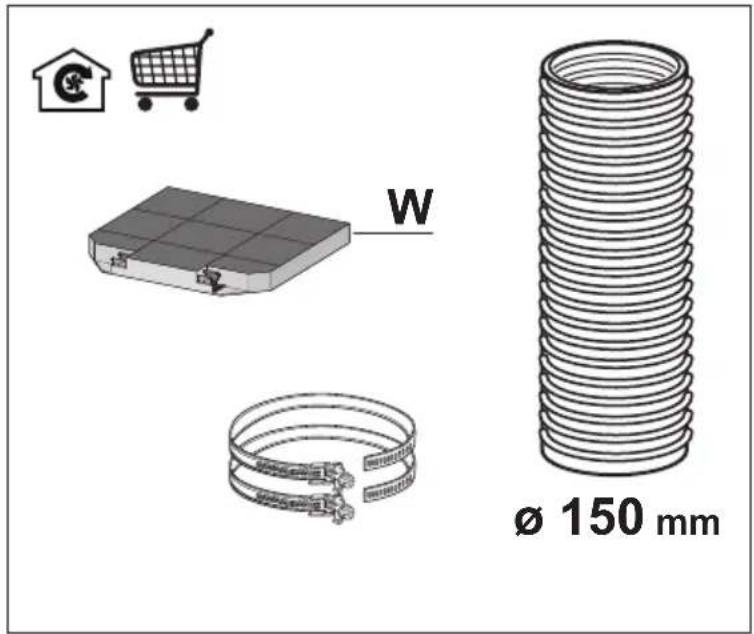

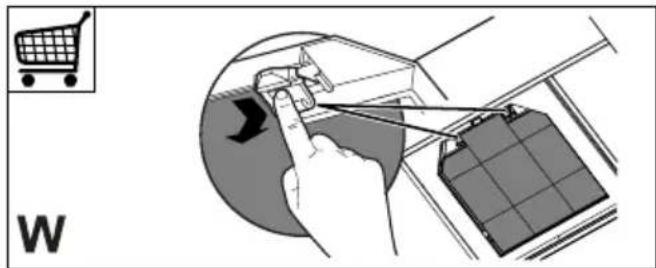

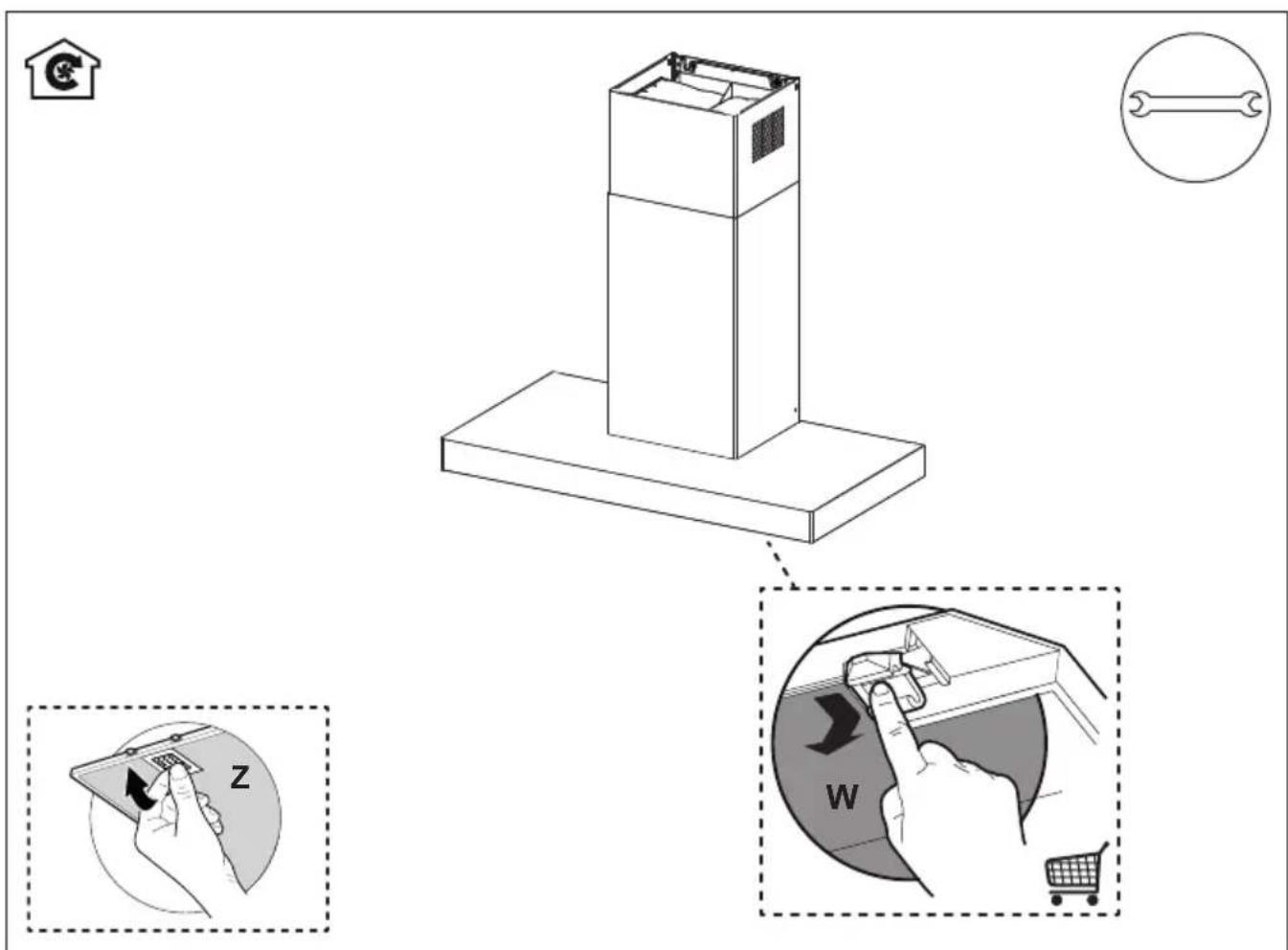

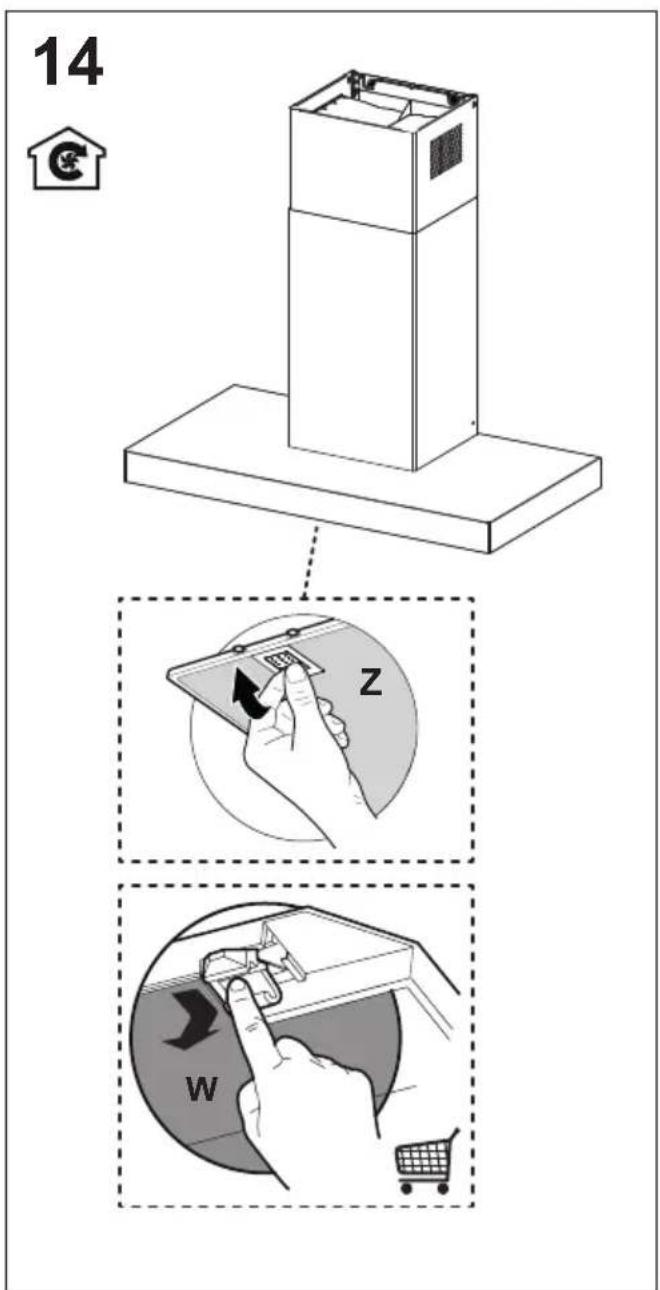

- The active carbon filter cannot be washed or regenerated and must be replaced after every 4 months of operation or, more frequently, in case of very intense use (W).

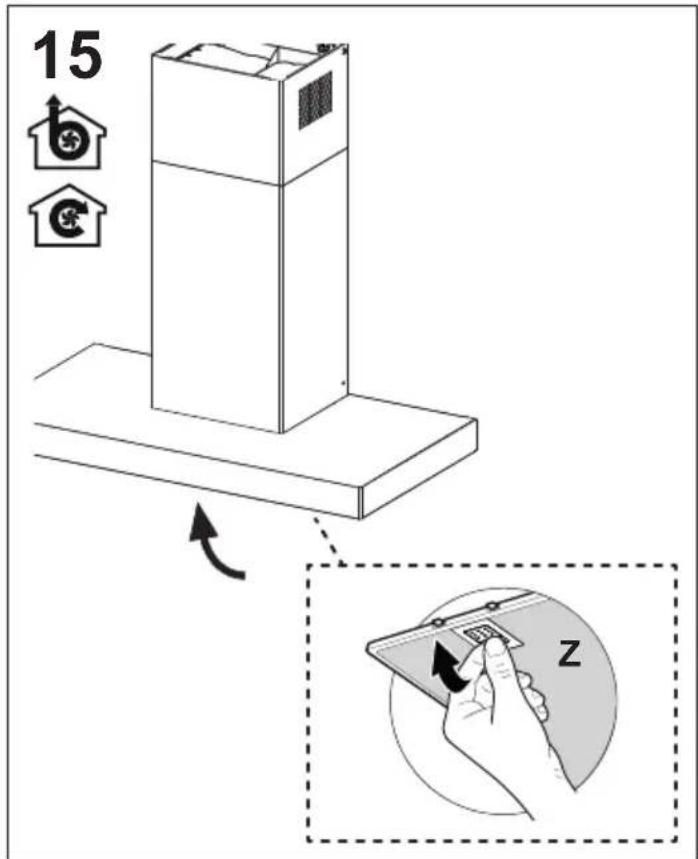

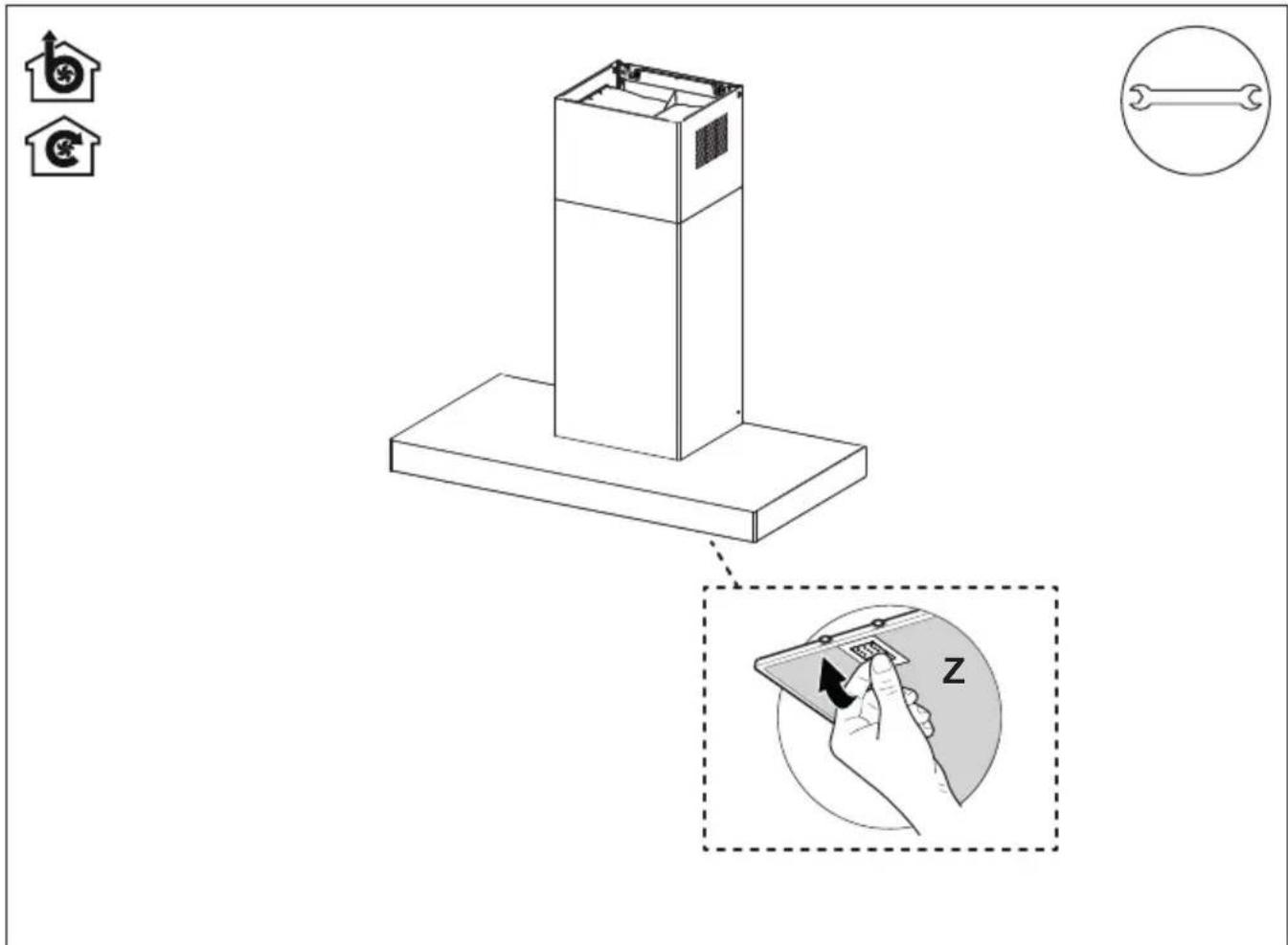

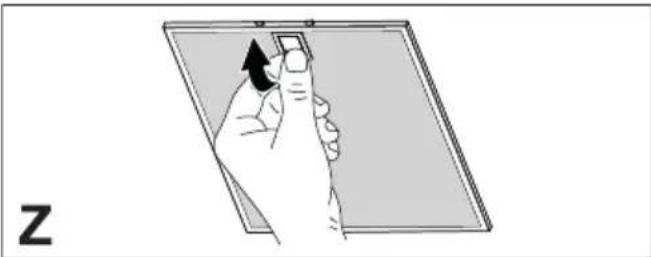

- The grease filters must be cleaned every 2 months of operation or more frequently in case of very intense use and can be washed in a dishwasher (Z).

Illustration of a hand holding a smartphone with an arrow indicating the tip, against a plain background (no text or symbols)

• Clean the hood using a damp cloth and a neutral liquid detergent.
• For external and internal cleaning of the hood avoid alcoholic or silicone products.

If the product or one of its parts is made of stainless steel, use specific non-ab-rasive products for cleaning and follow the lines of the satin finish during cleaning.

4. CONTROLS

	T1	T2	T3	L
Button Functions LED
T1Speed	Starts the motor at first speed. On
	Stops the motor. -
T2Speed	Starts the motor at second speed. On
T3Speed	Pressed briefly starts the motor at third speed. Fixed
	Pressed for 2 seconds. Activates the fourth speed for 6 minutes, at the end of which it returns to the previously set speed. Suitable for dealing with peaks of cooking fume emissions.			Blinking
LLight	Turns the lighting system on and off. -
Warning: Button T1 always switching to first speed before stopping the motor.

5. LIGHTING

• Please contact the Service Department to change it ("Please contact the service department to purchase it").
• Lamps in risk group 1 under IEC/EN62471 at a distance of 20cm and in exempt from risk group under IEC/EN62471 at a distance of 30cm.

NO

1. SIKKERHETSINFORMA SJON

Illustration of a hand holding a tablet device with an arrow indicating the touch point (no text or symbols present)

Illustration of a hand pressing down on a tablet screen with an arrow indicating the press (no text or symbols present)

Illustration of a hand holding a tablet device with an arrow indicating the touch point (no text or symbols present)

Illustration of a hand holding a small object on a flat surface, with an arrow indicating the motion direction (no text or symbols)

Simple line drawing of a wrench and screwdriver (no text or symbols)

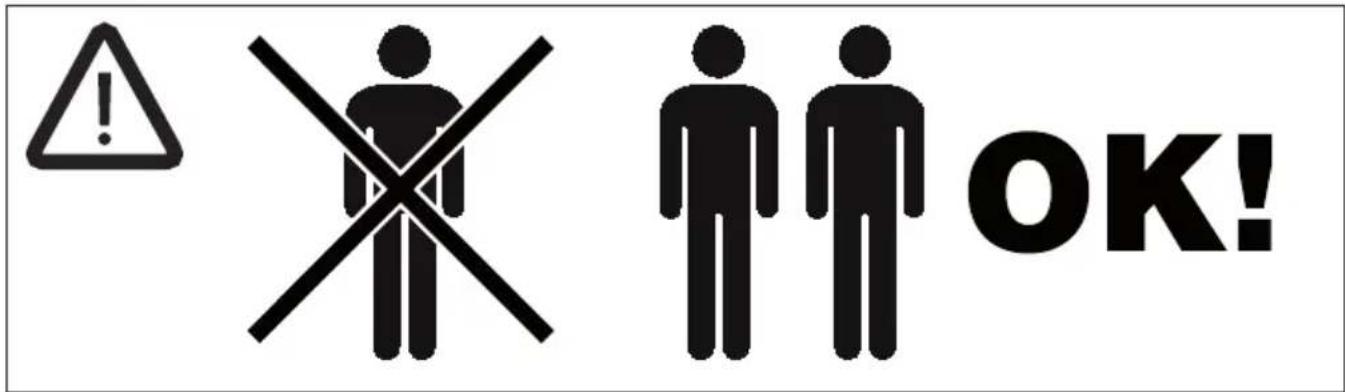

EN Warning! Before proceeding with installation, read the safety information in the User Manual.
NO Advarsel! Les sikkerhetsinstruksjonene i bruksveiledningen før apparatet installe-res.
DA Advarsel! Læs sikkerhedsreglerne i brugsanvisningen inden installation.
FI Varoitus! Ennen laitteen asentamista lue käyttöoppaassa olevat turvallisuustiedot.
SV Varning! Läs säkerhetsföreskrifterna i bruksanvisningen innan apparaten installeras.

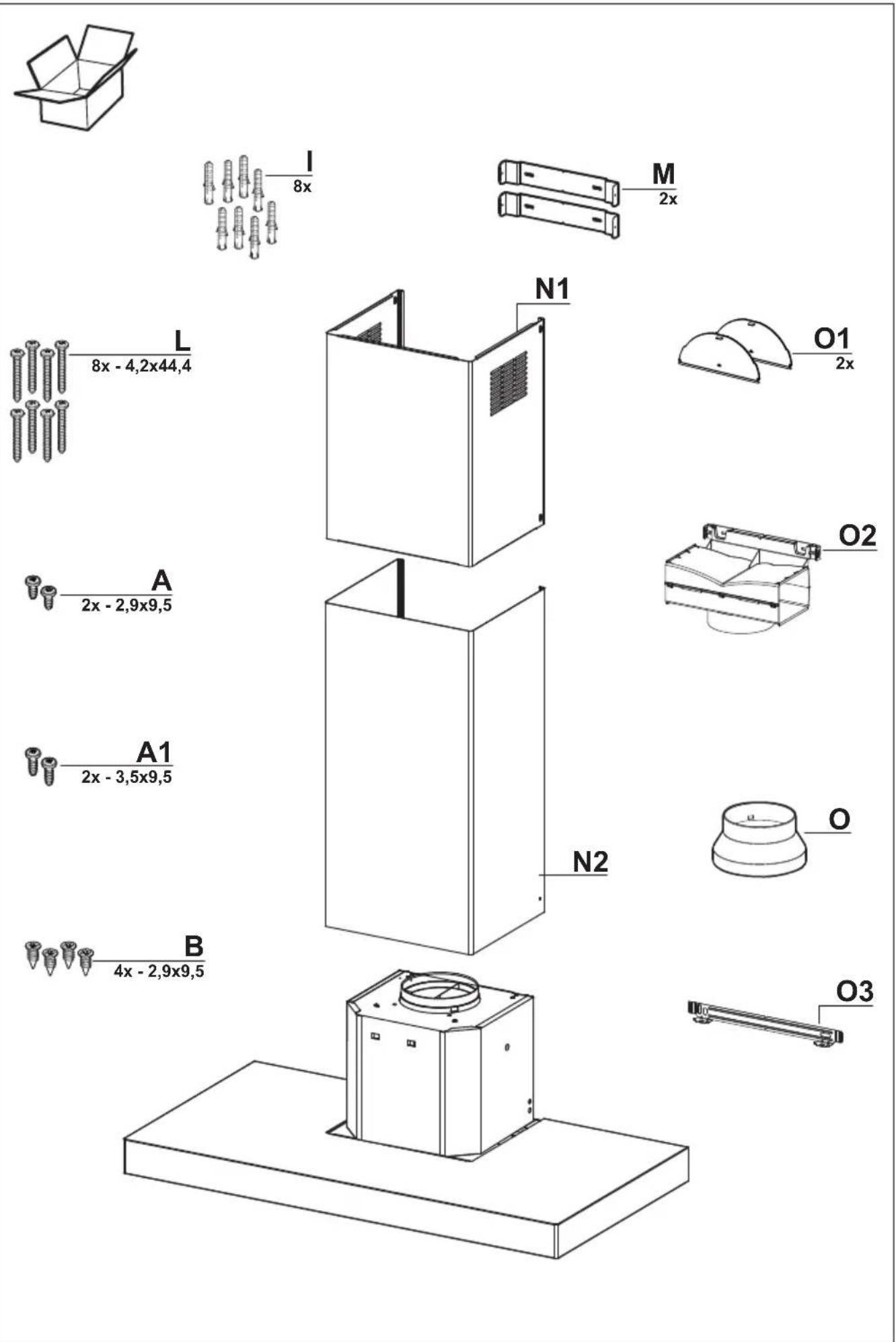

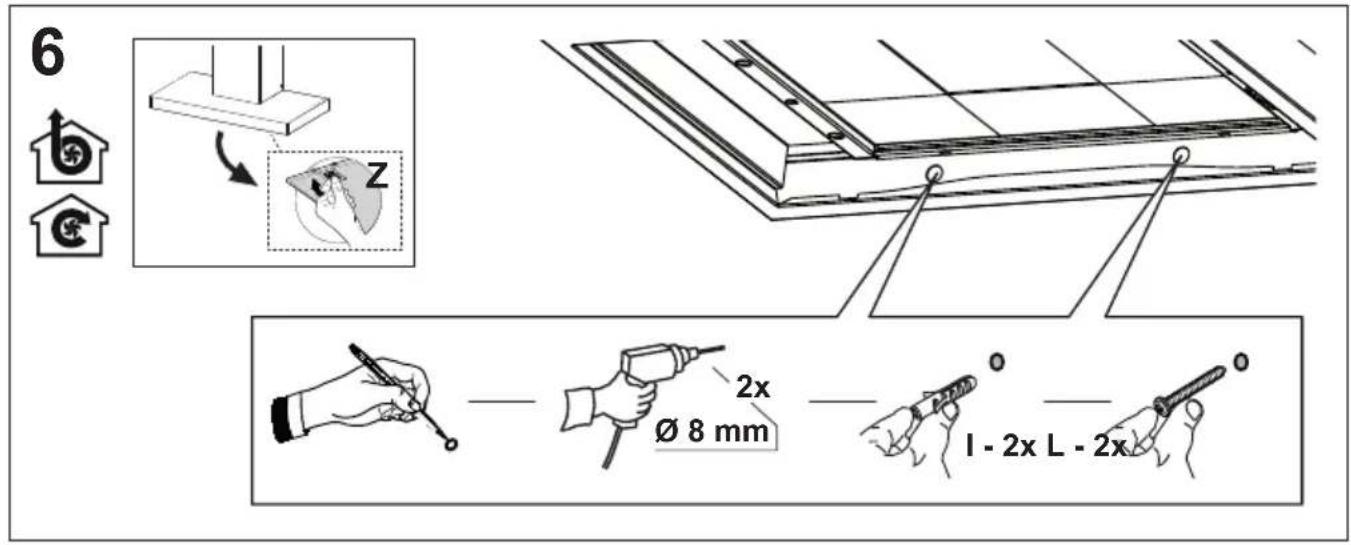

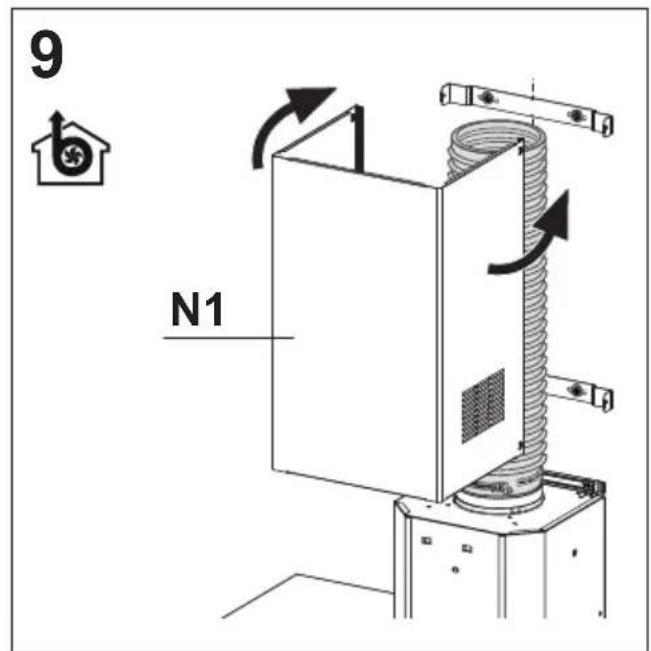

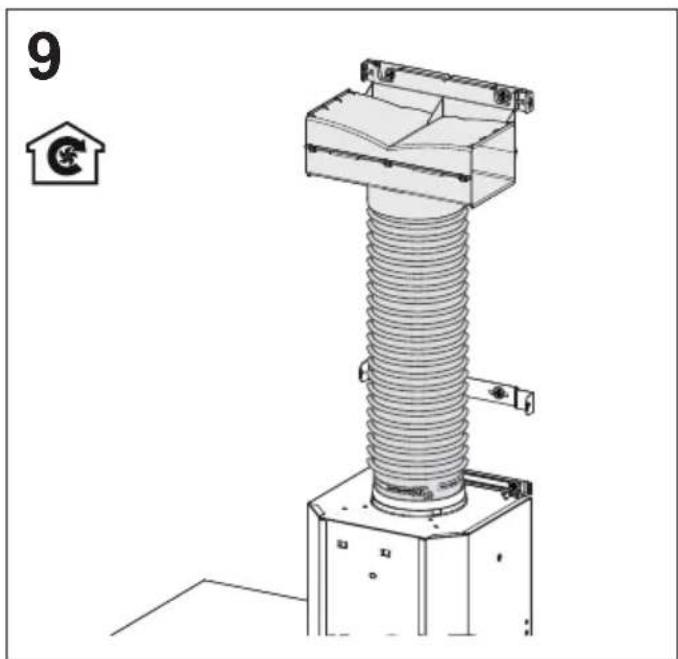

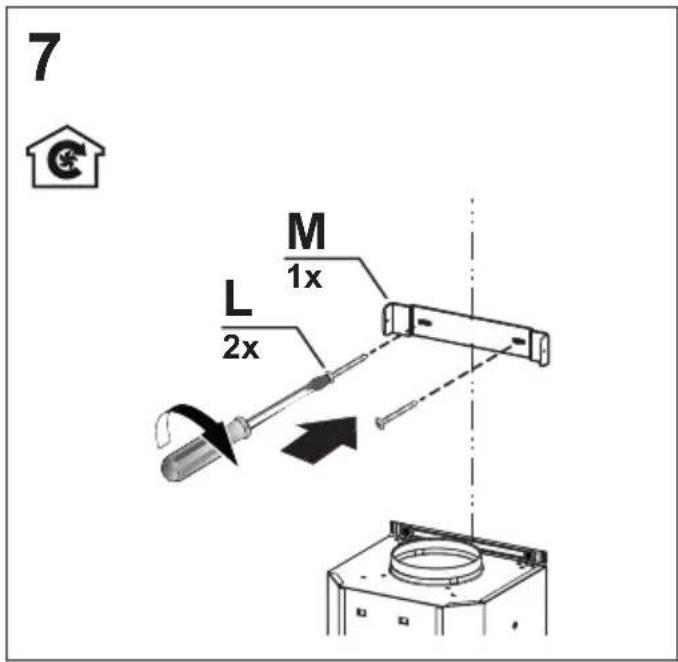

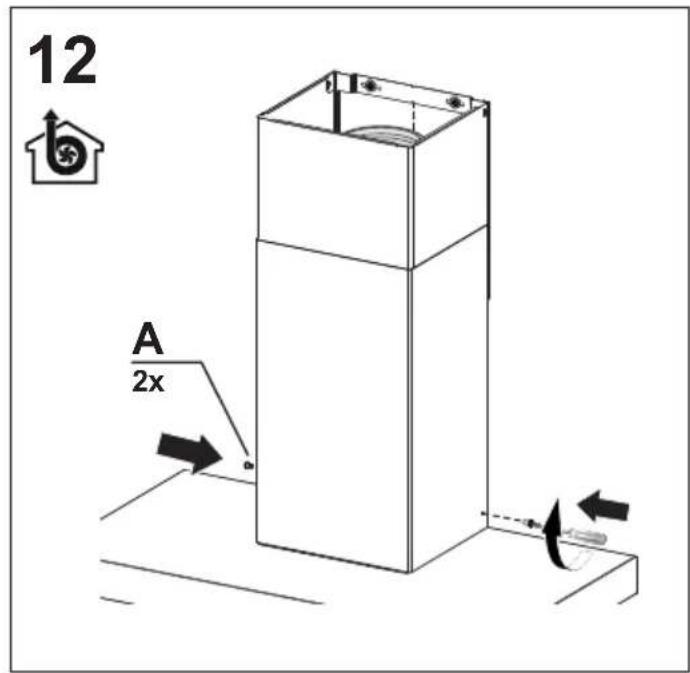

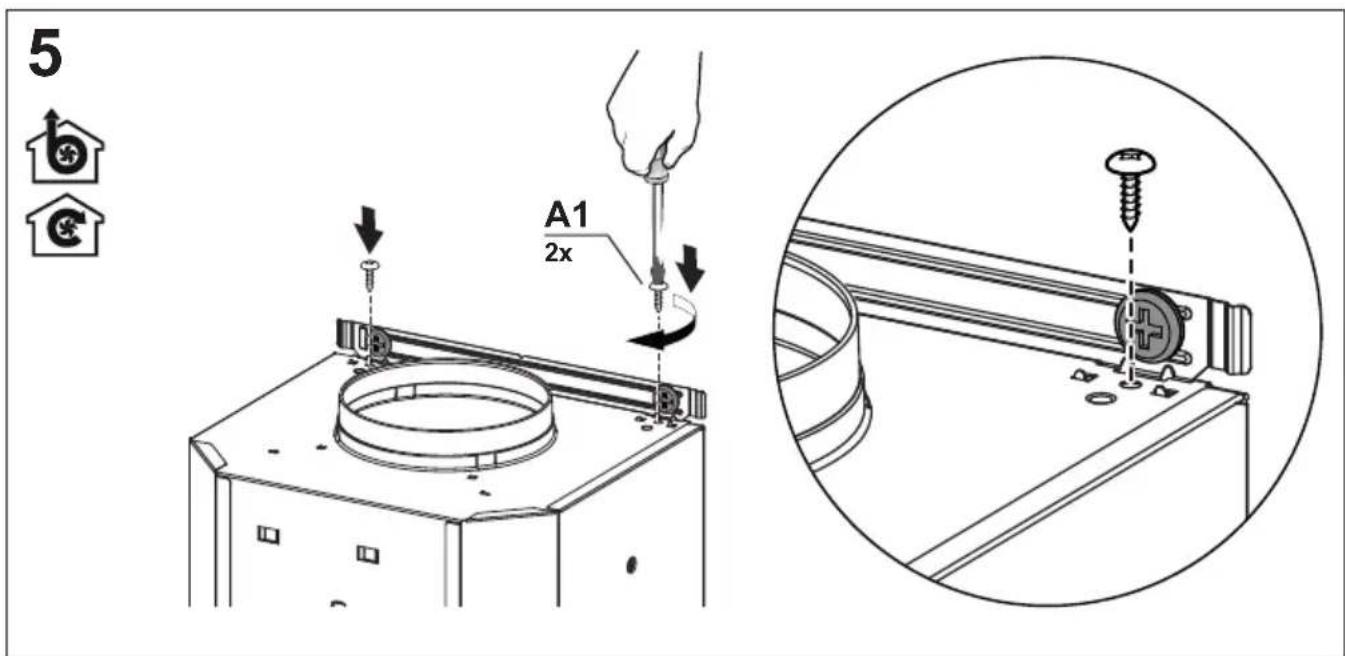

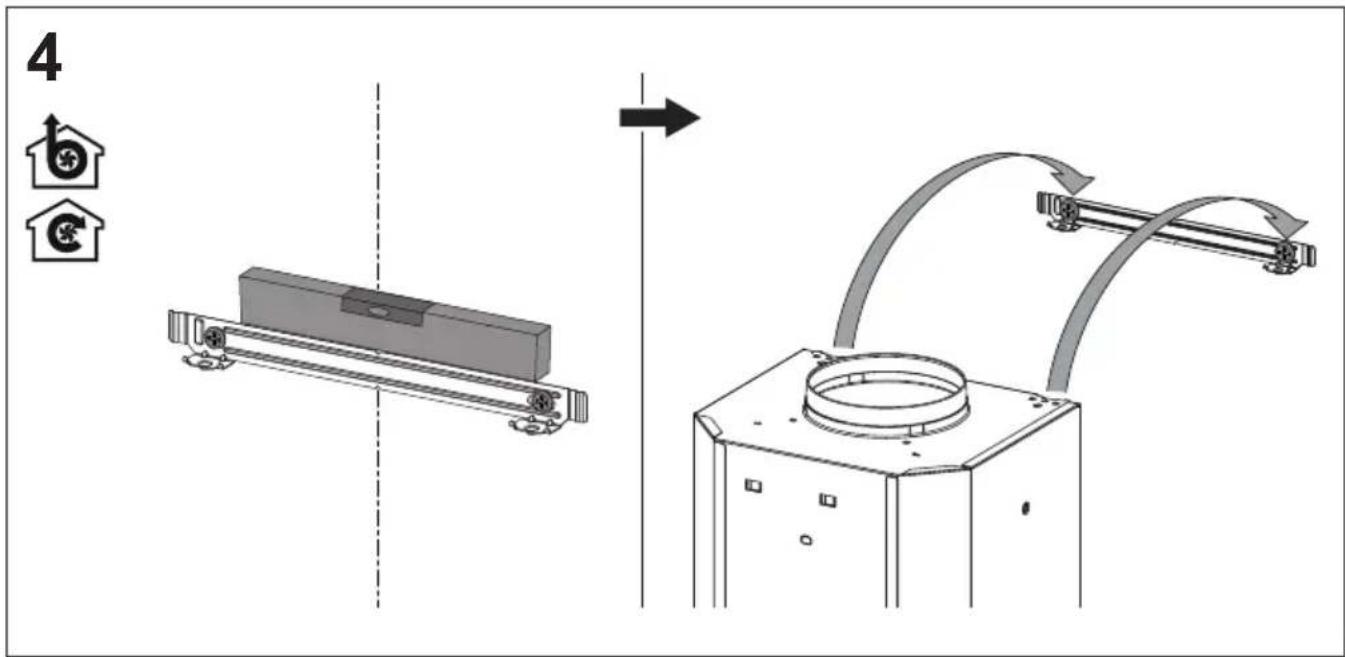

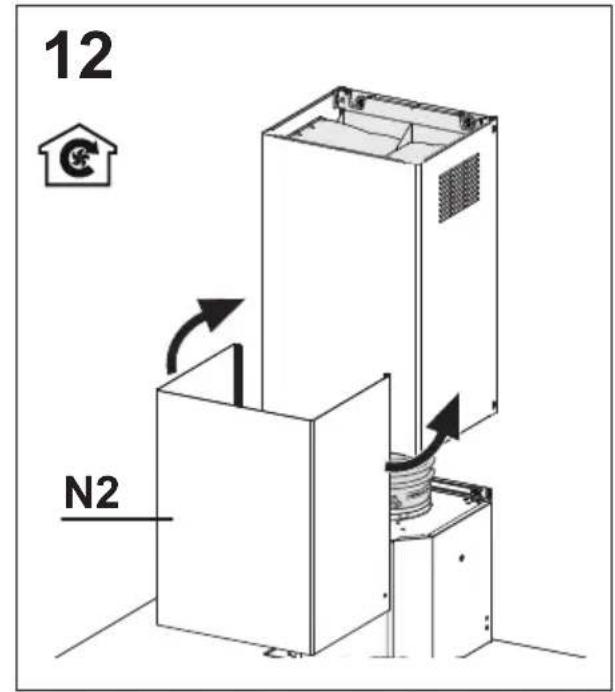

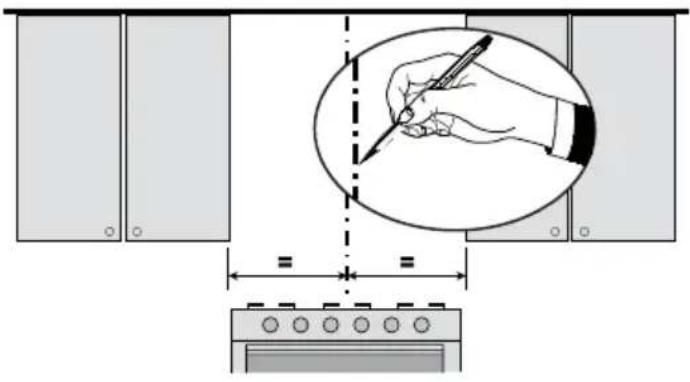

1

2

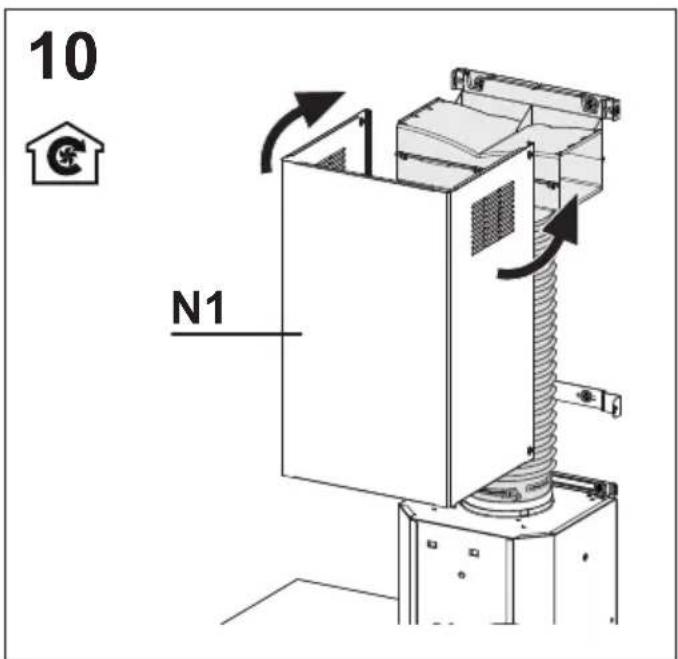

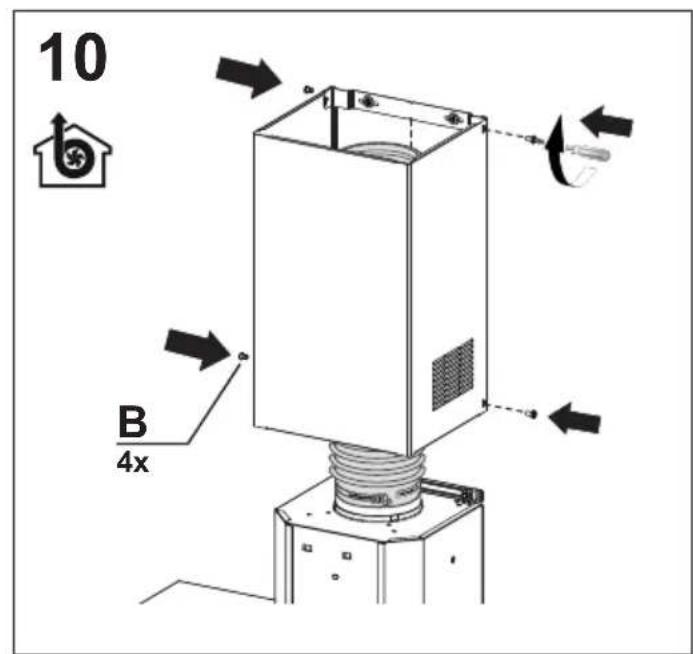

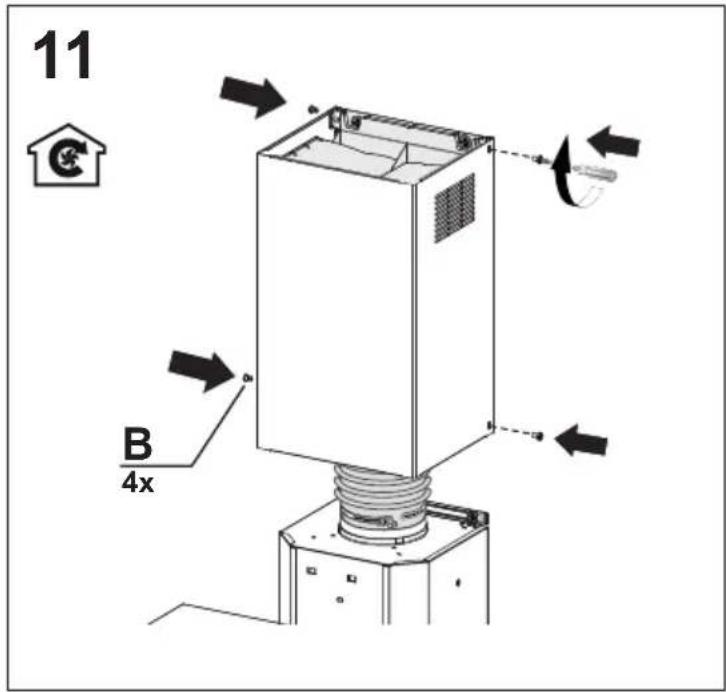

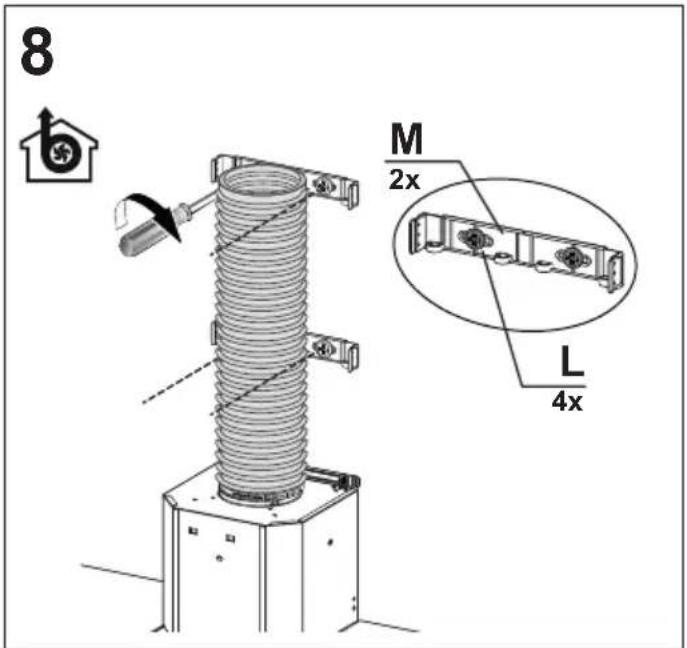

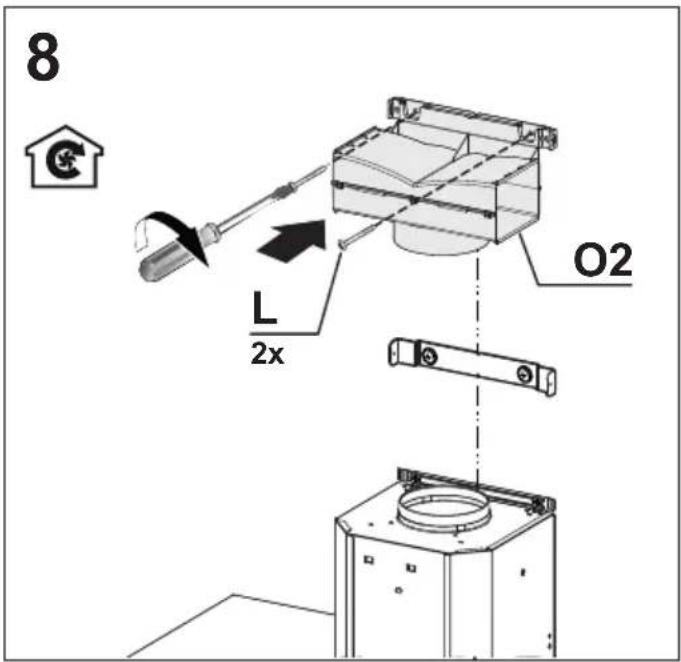

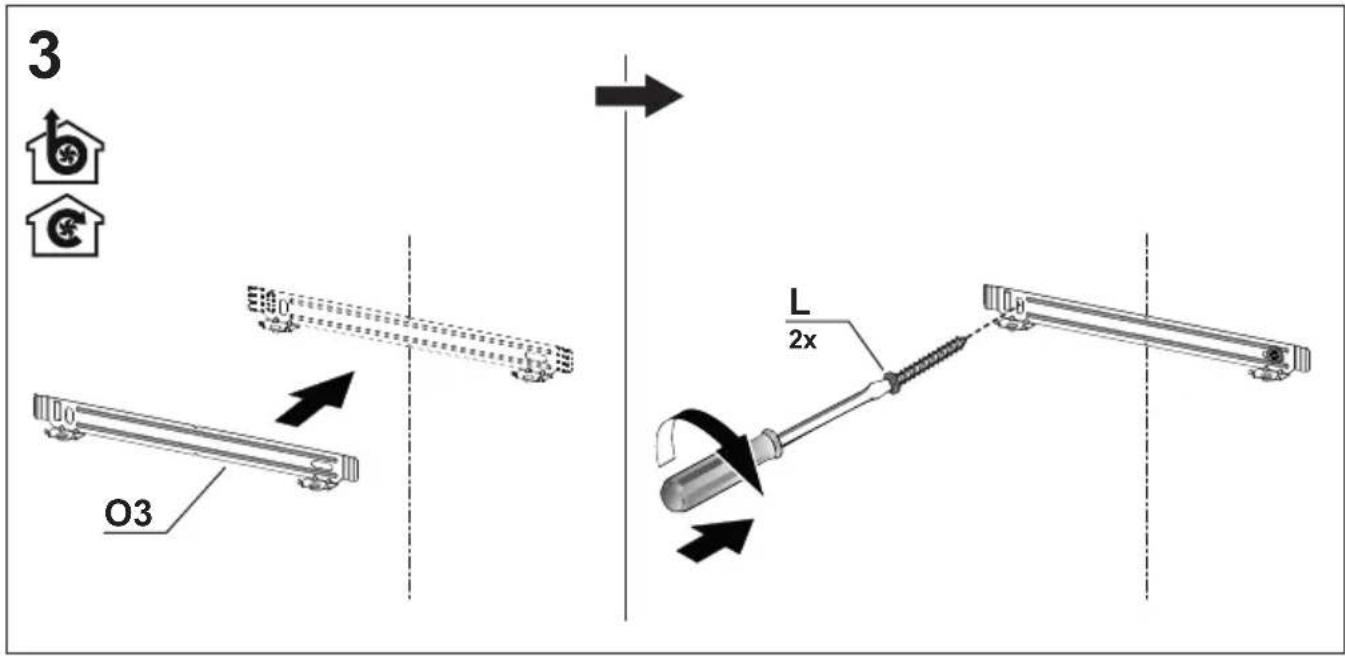

Pure mechanical diagram showing a piston-cranked piston assembly with directional arrows indicating force or motion (no text or symbols)

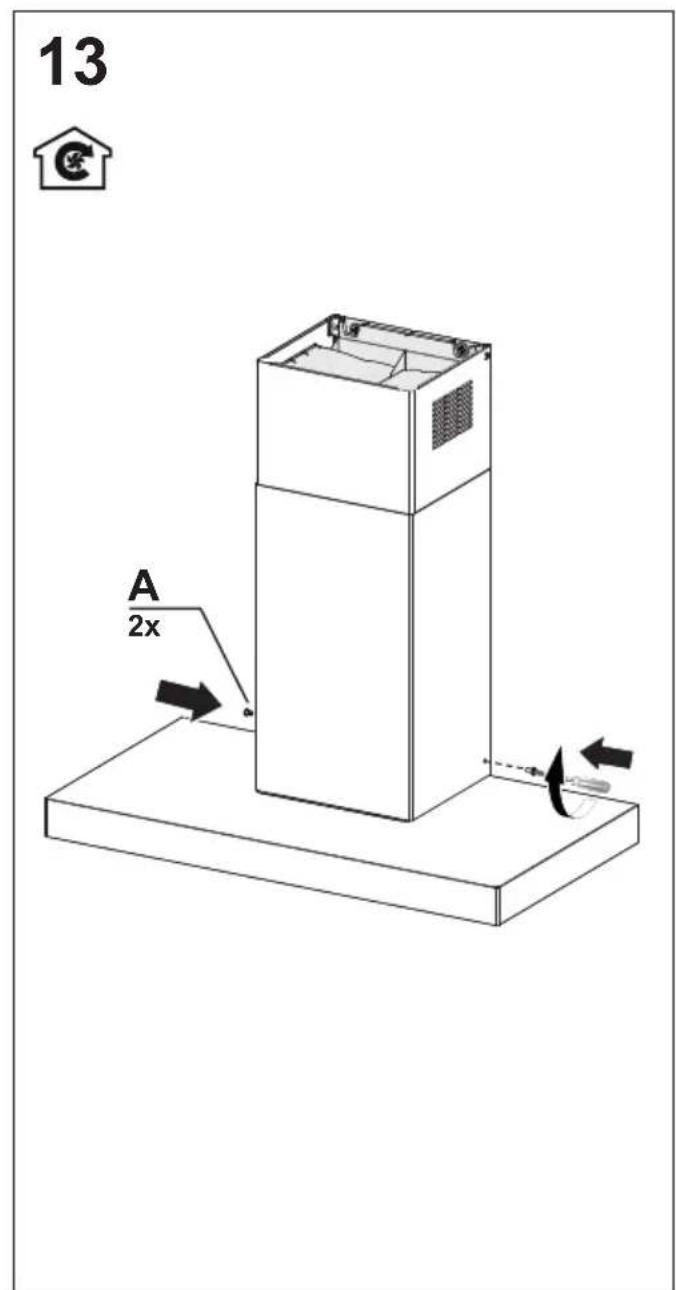

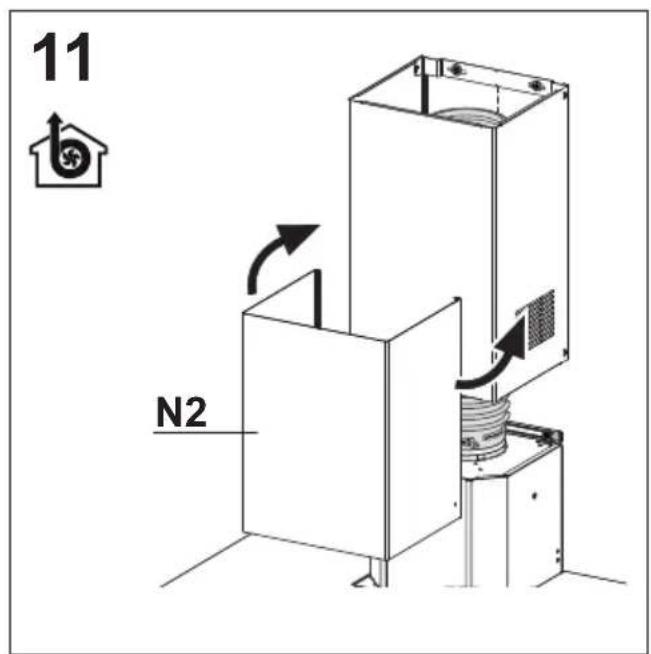

Technical line drawing of a mechanical assembly with a coiled spring mounted on a base, no text or symbols present.

NO

Service: Nationwide service in

Sweden

Visit www.cylinda.se

Call 0771-25 25 00

Declare: Model code, Serial number, Purchase date, Problem description, Name and address, Phone number
