Product Type	Digital Bathroom Scale
Brand	Witt
Model	WPS200W
Color	White
Capacity	8 - 200 kg (440 lb)
Minimum Weight	8 kg (17.6 lb)
Sensor Type	High Precision Strain Gauge
Platform Material	Tempered Safety Glass (6 mm)
Display Type	Digital LCD
Power Source	Battery-Free (Dynamo) - No batteries required
Auto Power Off	Yes, after 1 minute of inactivity
Auto Zero Reset	Yes
Overload Indication	Yes, displays "Err"
Low Battery Indication	Yes, battery symbol appears then auto off
Unit Switching	Yes, between kg and lb (button on back)
Intended Use	Domestic household only
Warranty	2 years against manufacturing defects
Cleaning Instructions	Wipe with damp cloth; avoid water inside and chemicals

Frequently Asked Questions - WPS200W Witt

How do I turn on the scale?

Place the scale on a hard, flat surface, then quickly stamp on the center of the platform. This generates power via the dynamo. Wait until 0.0 appears before stepping on.

What is the maximum weight capacity?

The scale can measure weights from 8 kg up to 200 kg (440 lb). If you exceed 200 kg, the display will show Err.

How can I switch between kilograms and pounds?

Locate the unit key on the back of the scale. Press it to toggle between kg and lb. This must be done before stepping on the scale; it cannot be changed during weighing.

What does 'Err' on the display mean?

The Err indication means the scale is overloaded (weight exceeds 200 kg). Remove the excess weight immediately to avoid damaging the sensor.

How do I clean the scale?

Use a damp cloth to wipe the surface. Do not allow water to enter the inside of the scale, and do not use chemical cleaners. This ensures durability.

What should I do if the low battery symbol appears?

The low battery symbol indicates the dynamo needs to be re-energized. Simply stamp on the scale once to generate power again. The scale will then function normally.

Why does the scale turn off automatically?

The scale features auto power off after approximately one minute of inactivity to save energy. Step on it again to reactivate.

Can I use the scale on carpet?

For accurate results, place the scale on a hard, flat surface. Carpet or uneven floors can affect measurement accuracy.

How long is the warranty?

The scale comes with a 2-year warranty covering manufacturing and material defects, valid from the purchase date. It does not cover misuse or commercial use.

What should I avoid to prevent damage?

Do not drop, jump on, or stamp on the scale except for the initial power-on stamp. Avoid using it on wet floors, storing it upright, or placing heavy items on it when not in use.

USER MANUAL WPS200W Witt

Witt Personal Scale White WPS200W

White digital kitchen scale with a digital display showing 685°F, no visible text or symbols on the device itself.

Batterifri teknologi / Paristotonta teknologiaa

SPESIFIKASJONER....8

VIKTIGE SIKKERHETSANVISNINGER 9

GENERELT 9

BETJENING....10

FUNKSJONER....10

RENGJ∅RING OG VEDLIKEHOLD 11

REKLAMASJON 12

SERVICE....13

SPESIFIKASJONER

INNEHÅLLSFÖRTECKNING

SPECIFICATIONER....14

VIKTIGA SÄKERHETSANVISNINGAR....15

GENERELLT 15

ANVÄNDNING 16

FUNKTIONER.... 16

RENGÖRING OCH UNDERHÅLL....17

REKLAMATION....18

SERVICE....19

SPECIFICATIONER

For proper use and maintenance, please read this manual carefully

SPECIFICATIONS

• High precision strain gauge sensor system
• Capacity: 8 - 200 kg (440lb)
• 6 mm tempered safety glass platform
• Auto zero resetting / Auto power off
• Low power / Over-load indication
• Unit:kg-lb
• Battery-free technology

SAFETY AND USAGE INFORMATION

1. For accurate results, place scale on a flat surface.
2. Static pressure is effective, do not drop it or strike the scale, otherwise the scale is easy to damage.
3. In weighing, please keep balance. Do not allow water to get inside scale.
4. Please use a damp cloth to clean the scale. Do not allow water to get inside scale.
5. Do not use chemicals to clean the scale.
6. To ensure the life of the scale, do not put the scale under wet & hot condition.
7. Do not use for legal trade.
8. Do not overload, otherwise the sensor will be damaged.
9. Do not put heavy things on the scale when not use.
10. Do not store the scale in an upright position.
11. Due to the continuous improvements, this product is subject to change without notice.
12. Please do not jump or stamp on the scale and avoid dropping it, as the scale is highly precise electronic instrument.
13. Do not use it on the wet and slippery floor, do not stand on at the edge of scale to avoid any falling down.

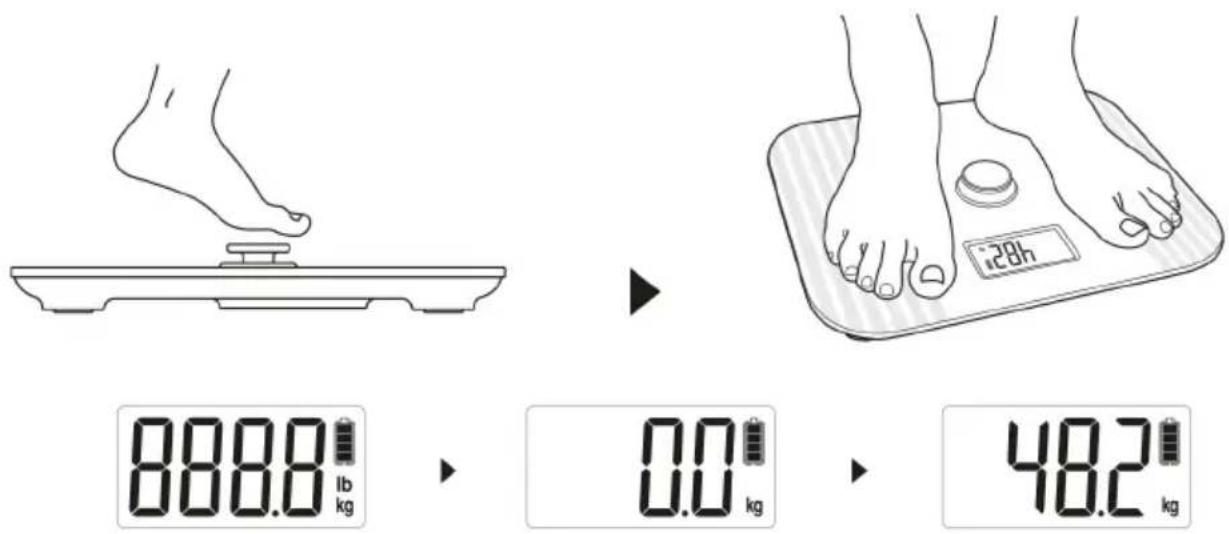

OPERATING INSTRUCTIONS

• Put the scale on a hard & flat surface.
• One quick stamping on the Dynamo button will generate power for weighing, please wait until "0.0" appears.
• The scale powers off automatically after one minute.

NOTE: Do not step on the scale until "0.0" appears.

FUNCTIONS

ERROR INDICATION

Err

Over-load Indication

When the scale is over-loaded [more than 200 kg], the screen will appear "Err".

0.0 kg

Low battery indication

When the screen indicates ", it will turn off automatically after few seconds. Simply reload it by stamping on the dynamo button!

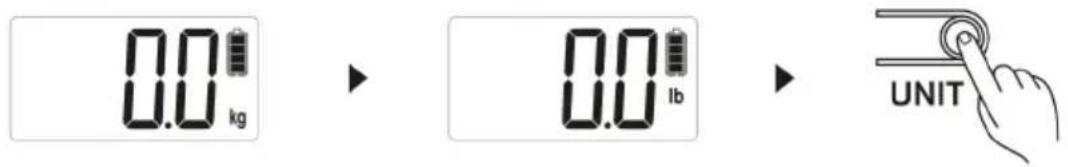

UNIT EXCHANGE (kg/lb)

Under weight mode, press the unit key to choose the unit, the key is on the back of the scale.

Note: Please set the unit before weighing. It could not change the unit while weighing.

CLEANING AND MAINTENANCE

• Please use a damp cloth to clean the scale. Do not allow water to get inside scale.
• Do not use chemicals to clean the scale.

Please dispose of it at your local community waste collection / recycling centre or contact your dealer for advice. Ensure that it presents no danger to children while being stored for disposal.

WARRANTY

A two year guarantee on manufacture and material defects is granted on your new appliance valid from the documented purchase date. The guarantee includes materials, salary and transport. When contacting service please state the appliance model and serial number.

The guarantee does not cover:

• Defects and damages which are not caused by manufacture and material defects.
• If original spare parts have not been used.
• If the instructions in the manual have not been carried out.
• If the installation has not been carried out according to this manual.
• If unauthorized personnel has carried out installation or repair word.

Transport damages

A transport damage observed when the dealer delivers the appliance at the customer is solely a matter between the customer and the dealer. If the customer has carried out the transport alone the manufacture / supplier cannot be held responsible for transport damages. All transport damages must be reported no later than 24 hours after delivery otherwise all claims will be rejected.

Unnecessary service visits

If a service technician is called out to a defect and the customer could have corrected the defect without help e.g. by following the instructions within this manual or by changing a fuse the customer will be charged all service costs – even under guarantee.

Commercial purchase

Commercial purchases are any purchase of appliances not used in a domestic household but instead are used for commercial purposes e.g. in a restaurant, café etc. or used to rent out or used for any other purpose including several users. In case of commercial purchase no guarantee is granted on this appliance since this is only meant for domestic household use.

SERVICE

For service and spare parts in England and Ireland please call below-mentioned number and you will be directed accordingly or send us an email.

Witt UK & Ireland Ltd.

(44) 148 351 6633 / [e-mail]

RoHS
