MS23B3614AW - Microwave SAMSUNG - Free user manual and instructions
Find the device manual for free MS23B3614AW SAMSUNG in PDF.
| Product Type | Microwave Oven |
| Brand | Samsung |
| Model | MS23B3614AW |
| Capacity | 23 Liters |
| Outside Dimensions (WxHxD) | 489 x 275 x 374 mm (including handle) |
| Cavity Dimensions (WxHxD) | 330 x 211 x 324 mm |
| Net Weight | Approx. 12.0 kg |
| Power Source | 230 V ~50 Hz AC |
| Power Consumption | 1150 W |
| Output Power | 100 W / 800 W (6 levels, IEC-705) |
| Operating Frequency | 2450 MHz |
| Turntable | Glass turntable with roller ring |
| Control Panel | Dial controls for time/weight and power, clock button |
| Power Levels | HIGH (800 W), REHEAT (700 W), MEDIUM HIGH (600 W), MEDIUM (450 W), MEDIUM LOW (300 W), AUTO DEFROST (180 W), LOW (100 W) |
| Auto Defrost | Programs for meat, poultry, fish (200-1500 g) |
| Clock Setting | 12-hour or 24-hour format |
| Safety Features | Child lock, auto shut-off (empty operation), door interlocks |
| Installation Clearance | 20 cm above, 10 cm behind, 10 cm sides, 85 cm from floor |
| Cleaning | Mild detergent and soft cloth; do not use abrasive cleaners or steam cleaners |
| Warranty | Limited warranty; service calls for explanation not covered |
| Included Accessories | Roller ring, turntable, user manual |
Frequently Asked Questions - MS23B3614AW SAMSUNG
User questions about MS23B3614AW SAMSUNG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Microwave in PDF format for free! Find your manual MS23B3614AW - SAMSUNG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MS23B3614AW by SAMSUNG.
USER MANUAL MS23B3614AW SAMSUNG
Illustration of a microwave oven with a chicken inside (no text or symbols)natural_image
Simple line drawing of a circular mechanical component with a central hub and two arrows indicating direction (no text or symbols)Fjern alt emballasjemateriale inne i mikrobalgeovnen. Installer den roterende ringen og tallerkenen. Kontroller at tallerkenen roterer fritt.
8 Norsk
Vedlikehold
Rengjøring
Simple line drawing of a circular object with a central lid and two arrows indicating direction (no text or symbols)natural_image
Illustration of a microwave oven with a roasted chicken inside (no text or symbols)KYSYMYKSET JA KOMMENTIT
| MAA SOITA TAI KAY OSDITTEESSA | ||
| UK | 0333 000 0313 www.samsung.com/sk/support | |
| IRELAND (EIRE) 0815 717100 | www.samsung.com/ie/support | |
| CERMANY 06 096 77 555 77 www.samsung.com/de/support | ||
| FRANCE 01 18 63 00 00 www.samsung.com/tr/support | ||
| SPAIN 91 175 00 15 www.samsung.com/es/support | ||
| PORTUGAL | 210 508 098 Chamada para a rede fixa nacional B as limits due 9h as 20h | www.samsung.com/pt/support |
| LUKEVINBURC 281 03 7'10 www.samsung.com/be 7/support | ||
| NETHERLANDS | 088 90 90 100 | www.samsung.com/nt/support |
| BELGIUM 02 201 24 18 | www.samsung.com/be/support (Dutch) www.samsung.com/be_tr/support (French) | |
| NORWAY 21629099 www.samsung.com/ny/support | ||
| DENMARK | 707 019 70 | www.samsung.com/c4/support |
| FINLAND C30 6227 515 www.samsung.com/7/support | ||
| SWEDEN 0771-400 300 www.samsung.com/se/support | ||
| AUSTRIA | 0600 72 67 664 (0600-SAMSUNG) | www.samsung.com/at/support |
| SWITZERLAND | 0800 725 785 | www.samsung.com/ch/support (Cermann www.samsung.com/ch_tr/support (French)) |
| IUNICARY | 0680SAVSUNG (0680-726-7864) | www.samsung.com/tu/support |
| CZECH | 800 - SAMSUNG (800-726786) | www.samsung.com/cz/support |
| SLOVAKIA | 0600 - SAVSUNG (0600-726 786) | www.samsung.com/sk/support |
| MAA SOITA | TAI KAY OSO | TTEESSA |
| CROATIA | 072 726 786 | www.samsung.com/hr/support |
| BOSNIA | 055 233 999 | www.samsung.com/ba/support |
| North Macedonia | 023 207 777 | www.samsung.com/mk/support |
| MONTENECIO | 020 405 888 | www.samsung.com/support |
| SLOVENIA | 080 697 267 [brcap afna Stcvllkat] | www.samsung.com/s/support |
| SIRIBIA | 011 321 5898 | www.samsung.com/rs/support |
| Krebro | 038 40 30 90 | www.samsung.com/support |
| ALBANIA | 045 620 202 | www.samsung.com/al/support |
| BULICARIA | 0800 111 31 - be###t##n za###ni op#rato## *3000 - ### na e##i r#p#ki pa#s#or ##c ####pe# tar#bata na mob#n##t op#rato# 0000 do 1800 Ponedelink od Petyk | www.samsung.com/og/support |
| ROMANIA | 0800572675 - Acel gratuit *8000 Apel lari#al in rceje Program Cal Center Luni - Vineri 9 AM - 6 PM | www.samsung.com/p/support |
| ITALIA | 800-SAMSUNG (800.7267864) | www.samsung.com/t/support |
| CYPRUS | 8009 4000 only from lancline, toll free | www.samsung.com/gr/support |
| GREECE | 80111 SAMSUNG (80111 726 7864) only from land line (+30; 210-6597651 from moole and land line | |
| POLAND | 801 172 678" Uo +48 22 607 03 33" (toplate wodlug lanyfy operators) | http://www.samsung.com/c/support/ |
| LITHUANIA 8 800 77777 www.samsung.com/lt/support | ||
| LATVIA | 8000-7267 | www.samsung.com/lv/support |
| ESTONIA 800 7267 www.samsung.com/ee/support | ||
DE68-04547Z-00
Mikrobølgeovn
Brugervejledning
MS23B3614A*
MS23B3611AS EE DE68 01517Z 00 DA.indd 1
13/4/2023 5:49:28 PM
Indhold
8 Dansk
Vedligeholdelse
Rengøring
24-timers visning
12-timers visning
Safety instructions 3
Important safety instructions 3
General safety 5
Microwave operation precautions 6
Limited warranty 6
Product group definition 7
Correct Disposal of This Product (Waste Electrical & Electronic Equipment) 7
Installation 8
Accessories 8
Installation site 8
Turntable 8
Maintenance 9
Cleaning 9
Replacement (repair) 9
Care against an extended period of disuse 9
Oven features 10
Oven 10
Control panel 10
Oven use 11
How a microwave oven works 11
Cooking/Reheating 11
Setting the time 12
Power levels and time variations 12
Adjusting the cooking time 13
Stopping the cooking 13
Auto energy saving function 13
Using the Auto Defrost features 13
Cookware guide 14
Cooking guide 15
Troubleshooting 17
Troubleshooting 17
Technical specifications 19
2 English
Safety instructions
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.
WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
This appliance is intended to be used in household only and it is not intended to be used such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses;
- by clients in hotels, motels and other residential environments;
• bed and breakfast type environments.
Only use utensils that are suitable for use in microwave ovens. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
Do not use this appliance for other purposes than cooking. Drying of clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. Use this appliance only for its intended use as described in the manual. Do not put corrosive chemicals or vapors in or on this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. If smoke is observed (emitted), switch off or unplug the appliance and keep the door closed in order to stifle any flames.
Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after
English 3
Safety instructions
microwave heating has ended.
The oven should be cleaned regularly and any food deposits removed.
Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
The microwave oven is intended to be used on the counter top (freestanding) use only, the microwave oven shall not be placed in a cabinet.
Metallic containers for food and beverages are not allowed during microwave cooking.
The care should be taken not to displace the turntable when removing containers from the appliance.
The appliance shall not be cleaned with a steam cleaner.
The appliance should not be cleaned with a water jet.
The appliance is not intended for installing in road vehicles, caravans and similar vehicles etc.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
This oven should be positioned proper direction and height permitting easy access to cavity and control area.
Before using the your oven first time, oven should be operated with the water during 10 minute and then used.
If the oven generates a strange noise, a burning smell, or smoke is emitted, unplug the power plug immediately and contact your nearest service center.
The microwave oven has to be positioned so that plug is accessible.
General safety
Any modifications or repairs must be performed by qualified personnel only. Do not heat food or liquids sealed in containers for the microwave function. Do not use benzene, thinner, alcohol, or steam or high-pressure cleaners to clean the oven.
Do not install the oven: near a heater or flammable material; locations that are humid, oily, dusty or exposed to direct sunlight or water; or where gas may leak; or an uneven surface.
This oven must be properly grounded in accordance with local and national codes. Regularly use a dry cloth to remove foreign substances from the power plug terminals and contacts.
Do not pull, excessively bend, or place heavy objects on the power cord. If there is a gas leak (propane, LP, etc) ventilate immediately. Do not touch the power cord.
Do not touch the power cord with wet hands.
While the oven is operating, do not turn it off by unplugging the power cord. Do not insert fingers or foreign substances. If foreign substances enter the oven, unplug the power cord and contact a local Samsung service centre.
Do not apply excessive pressure or impact to the oven.
Do not place the oven over fragile objects.
Ensure the power voltage, frequency, and current matches the product specifications.
Firmly plug the power plug into the wall socket. Do not use multiple plug adapters, extension cords, or electric transformers.
Do not hook the power cord on metal objects. Make sure the cord is between objects or behind the oven.
Do not use a damaged power plug, power cord, or loose wall socket. For damaged power plugs or cords, contact a local Samsung service centre.
Do not pour or directly spray water onto the oven.
Do not place objects on the oven, inside, or on the oven door.
Do not spray volatile materials such as insecticide on the oven.
Do not store flammable materials in the oven. Because alcohol vapours can contact hot parts of the oven, use caution when heating food or drinks containing alcohol.
Children may bump themselves or catch their fingers on the door. When opening/closing the door, keep children away.
Microwave warning
Microwave heating of beverages may result in delayed eruptive boiling: always use caution when handling the container. Always allow beverages to stand at least 20 seconds before handling. If necessary, stir during heating. Always stir after heating.
In the event of scalding, follow these First Aid instructions:
-
Immerse the scalded area in cold water for at least 10 minutes.
-
Cover with a clean, dry dressing.
-
Do not apply any creams, oils, or lotions.
To avoid damaging the tray or rack, do not put the tray or rack in water shortly after cooking.
Do not use the oven for deep fat frying because the oil temperature cannot be controlled. This could result in a sudden boil over of hot oils.
Microwave oven precautions
Only use microwave-safe utensils. Do not use metallic containers, gold or silver trimmed dinnerware, skewers, etc.
Remove wire twist ties. Electric arcing may occur.
Do not use the oven to dry papers or clothes.
Use shorter times for small amounts of food to prevent overheating or burning. Keep the power cord and power plug away from water and heat sources.
To avoid the risk of explosion, do not heat eggs with shells or hard-boiled eggs. Do not heat airtight or vacuum-sealed containers, nuts, tomatoes, etc.
Do not cover the ventilation slots with cloth or paper. This is a fire hazard. The oven may overheat and turn off automatically and will remain off until it cools sufficiently.
Always use oven mitts when removing a dish.
Stir liquids halfway during heating or after heating ends and allow the liquid stand at least 20 seconds after heating to prevent eruptive boiling.
Stand at arms length from the oven when opening the door to avoid getting scalded by escaping hot air or steam.
English 5
Safety instructions
Do not operate the oven when it is empty. The oven will automatically shut down for 30 minutes for safety purposes. We recommend placing a glass of water inside the oven at all times to absorb microwave energy in case the oven is started accidentally.
Install the oven in compliance with the clearances in this manual. (See Installing your microwave oven.)
Use caution when connecting other electrical appliances to sockets near the oven.
Microwave operation precautions
Failure to observe the following safety precautions may result in harmful exposure to microwave energy.
- Do not operate the oven with the door open. Do not tamper with the safety interlocks (door latches). Do not insert anything into the safety interlock holes.
- Do not place any object between the oven door and front face or allow food or cleaner residue to accumulate on sealing surfaces. Keep the door and door sealing surfaces clean by wiping with a damp cloth and then with a soft, dry cloth after each use.
- Do not operate the oven if it is damaged. Only operate after it has been repaired by a qualified technician.
Important: the oven door must close properly. The door must not be bent; the door hinges must not be broken or loose; the door seals and sealing surfaces must not be damaged.
- All adjustments or repairs must be done by a qualified technician.
Limited warranty
Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the damage to the unit or accessory was caused by the customer. Items this stipulation covers include:
- Door, handles, out-panel, or control panel that are dented, scratched, or broken.
- A broken or missing tray, guide roller, coupler, or wire rack. Use this oven only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your oven.
Because these following operating instructions cover various models, the characteristics of your microwave oven may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact a local Samsung service centre or find help and information online at www.samsung.com.
Use this oven for heating food only. It is intended for domestic use only. Do not heat any type of textiles or cushions filled with grains. The manufacturer cannot be held liable for damage caused by improper or incorrect use of the oven. To avoid deterioration of the oven surface and hazardous situations, always keep the oven clean and well maintained.
Product group definition
This product is a Group 2 Class B ISM equipment. The definition of group 2 which contains all ISM equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment.
For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
For information on Samsung's environmental commitments and product-specific regulatory obligations, e.g. REACH, WEEE, Batteries, visit: www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/
English 7
Installation
Accessories
Depending on the model that you have purchased, you are supplied with several accessories that can be used in a variety of ways.
01 Roller ring, to be placed in the centre of the oven.
The roller ring supports the turntable.
02 Turntable, to be placed on the roller ring with the centre fitting to the coupler.
The turntable serves as the main cooking surface; it can be easily removed for cleaning.
CAUTION
DO NOT operate the microwave oven without the roller ring and turntable.
Installation site
A. 20 cm above
B. 10 cm behind
C. 10 cm on the side
D. 85 cm of the floor
- Select a flat, level surface approx. 85 cm above the floor. The surface must support the weight of the oven.
- Secure room for ventilation, at least 10 cm from the rear wall and both sides, and 20 cm from above.
- Do not install the oven in hot or damp surroundings, such as next to other microwave ovens or radiators.
- Conform to the power supply specifications of this oven. Use only approved extension cables if you need to use.
- Wipe the interior and the door seal with a damp cloth before using your oven for the first time.
Turntable
8 English
Maintenance
Cleaning
Clean the oven regularly to prevent impurities from building up on or inside the oven. Also pay special attention to the door, door sealing, and turntable and roller ring (applicable models only).
If the door won't open or close smoothly, first check if the door seals have built up impurities. Use a soft cloth in soapy water to clean both the inner and outer sides of the oven. Rinse and dry well.
To remove stubborn impurities with bad smells from inside the oven
-
With an empty oven, put a cup of diluted lemon juice on the centre of the turntable.
-
Heat the oven for 10 minutes at max power.
-
When the cycle is complete, wait until the oven cools down. Then, open the door and clean the cooking chamber.
To clean inside swing-heater models
To clean the upper area of the cooking chamber, lower the top heating element by 45° as shown. This will help clean the upper area. When done, reposition the top heating element.
CAUTION
- Keep the door and door sealing clean and ensure the door opens and closes smoothly. Otherwise, the oven's lifecycle may be shortened.
• Take caution not to spill water into the oven vents. - Do not use any abrasive or chemical substances for cleaning.
• After each use of the oven, use a mild detergent to clean the cooking chamber after waiting for the oven to cool down.
Replacement (repair)
WARNING
This oven has no user removable parts inside. Do not try to replace or repair the oven yourself.
- If you encounter a problem with hinges, sealing, and/or the door, contact a qualified technician or a local Samsung service centre for technical assistance.
- If you want to replace the light bulb, contact a local Samsung service centre. Do not replace it yourself.
- If you encounter a problem with the outer housing of the oven, first unplug the power cord from the power source, and then contact a local Samsung service centre.
Care against an extended period of disuse
- If you don't use the oven for an extended period of time, unplug the power cord and move the oven to a dry, dust free location. Dust and moisture that builds up inside the oven may affect the performance of the oven.
Oven features
Oven
01 Door handle
02 Door
03 Ventilation holes
04 Light
05 Door latches
06 Turntable
07 Coupler
08 Roller ring
09 Safety interlock holes
10 Control panel

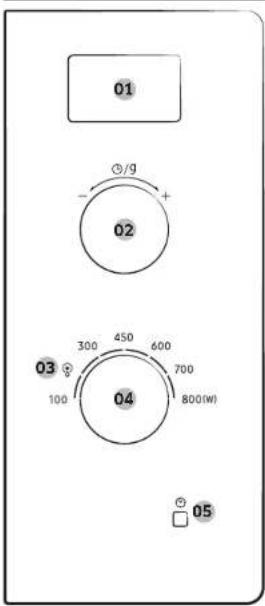

Control panel
01 Display
02 Time/Weight Dial
03 Auto Defrost
04 Variable Cooking Power Control Dial
05 Clock Setting Button
10 English
Oven use
How a microwave oven works
Microwaves are high-frequency electromagnetic waves; the energy released enables food to be cooked or reheated without changing either the form or the colour.
You can use your microwave oven to:
- Defrost
- Reheat
• Cook
Cooking principle.
- The microwaves are absorbed by the food up to a depth of about 1 inch (2.5 cm). Cooking then continues as the heat is dissipated within the food.
- Cooking times vary according to the container used and the properties of the food:
• Quantity and density
- Water content
- Initial temperature (refrigerated or not)
CAUTION
As the centre of the food is cooked by heat dissipation, cooking continues even when you have taken the food out of the oven. Standing times specified in recipes and in this booklet must therefore be respected to ensure:
• Even cooking of the food right to the centre.
• The same temperature throughout the food.
Cooking/Reheating
The following procedure explains how to cook or reheat food.
CAUTION
ALWAYS check your cooking settings before leaving the oven unattended. Never turn the microwave oven on when it is empty.
Open the door. Place the food in the centre of the turntable. Close the door.
- Set the power level to maximum by turning Variable Cooking Power Control Dial.
(Maximum power : 800 W) - Set the time by turning Time/Weight Dial (⑨/9
The oven light comes on and the turntable starts rotating.
1) Cooking starts and when it has finished the oven beeps 4 times
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.
NOTE
You can change the power level during cooking by turning the Variable Cooking Power Control Dial.
English 11
Oven use
Setting the time
When power is supplied, "88:68" and then "12:00" is automatically displayed on the display.
Please set the current time. The time can be displayed in either the 24-hour or 12-hour notation. You must set the clock:
- When you first install your microwave oven
• After a power failure
NOTE
Do not forget to reset the clock when you switch to and from summer and winter time.
- To display the time in the...
24 hour notation
12 hour notation
Press the Clock Setting Button (Once
or twice
- Turn the Time/Weight Dial (5/9) to set hour.
- Press the Clock Setting Button 🕒️.
- Turn the Time/Weight Dial Ⓤ/9 to set minute.
- Press the Clock Setting Button 🕒️.
The time is displayed whenever you are not using the microwave oven.
Power levels and time variations
The power level function enables you to adapt the amount of energy dissipated and thus the time required to cook or reheat your food, according to its type and quantity.
| Power level Output | |
| HIGH 600 W | |
| REHEAT 700 W | |
| MEDIUM HIGH 600 W | |
| MEDIUM 450 W | |
| MEDIUM LOW 300 W | |
| AUTO DEFROST (8) | 180 W |
| LOW 100 W |
The cooking times given in recipes and in this booklet correspond to the specific power level indicated.
| If you select a... Then the cooking time must be... | |
| Higher power levelLower power level | DecreasedIncreased |
12 English
Adjusting the cooking time
Adjust the remaining cooking time by rotating the Time/Weight Dial Ⓤ/g. Turn the dial right to increase the cooking time of your food during the cooking process.
Stopping the cooking
You can stop cooking at any time so that you can:
- Check the food
• Turn the food over or stir it
- Leave it to stand
| To stop the cooking... Then... | |
| Temporarily • Open the door. Cooking stops. To resume cooking, close the door again and then it will be automatically started. | |
| Completely | • Turn the Time/Weight Dial (9/9) to the left. Cooking stops and "Current time" will be displayed. |
Auto energy saving function
If you do not select any function when appliance is in the middle of setting or operating with temporary stop condition, function is canceled and clock will be displayed after 25 minutes.
Oven Lamp will be turned off after 5 minutes with door open condition.
Using the Auto Defrost features
The Auto Defrost features enable you to defrost meat, poultry and fish.
CAUTION
Use only containers that are microwave-safe
Open the door. Place the frozen food on a ceramic in the centre of the turntable. Close the door.
- Turn the Variable Cooking Power Control Dial to the Auto Defrost (💡)
- Turn the Time/Weight Dial (5/9) select the appropriate weight.
The oven light comes on and the turntable starts rotating.
1) Cooking starts and when it has finished the oven beeps 4 times
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.
English 13
Oven use
The following table presents the various Auto Defrost programmes, serving size, standing times and appropriate instructions. Remove all kind of package material before defrosting. Place meat, poultry and fish on a flat glass dish or ceramic plate.
| Food Serving size Instructions | |
| Meat 200-1500 g Shield the edges with aluminium foil.Turn the food over when the oven beeps.Stand for 20-60 minutes. | |
| Poultry 200-1500 g Shield the edges with aluminium foil.Turn the food over when the oven beeps.Stand for 20-60 minutes. | |
| Fish 200-1500 g Shield the edges with aluminium foil.Turn the food over when the oven beeps.Stand for 20-50 minutes. |
Cookware guide
To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry. The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven.
| Cookware | Microwave-safe | Comments |
| Aluminum foil | √× | Can be used in small quantities to protect areas against overcooking. Arcing can occur if the foil is too close to the oven wall or if too much foil is used. |
| Crust plate | √ | Do not preheat for more than 8 minutes. |
| China and earthenware | √ | Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless decorated with a metal trim. |
| Disposable polyester cardboard dishes | √ | Some frozen foods are packaged in these dishes. |
| Fast-food packaging• Polystyrene cups containers• Paper bags or newspaper• Recycled paper or metal trims | √×× | Can be used to warm food. Overheating may cause the polystyrene to melt.May catch fire.May cause arcing. |
| Glassware• Oven-to-tableware• Fine glassware | √√ | Can be used, unless decorated with a metal trim.Can be used to warm foods or liquids. Delicate glass may break or crack if heated suddenly. |
Cooking guide
| Cookware | Microwave-safe | Comments |
| Glass jars | √ | Must remove the lid. Suitable for warming only. |
| MetalDishesFreezer bag twist ties | ✗✗ | May cause arcing or fire. |
| PaperPlates, cups, napkins and kitchen paperRecycled paper | √✗ | For short cooking times and warming. Also to absorb excess moisture.May cause arcing. |
| PlasticContainersCling filmFreezer bags | √√√✗ | Particularly if heat-resistant thermoplastic. Some other plastics may warp or discolour at high temperatures. Do not use Melamine plastic.Can be used to retain moisture. Should not touch the food. Take care when removing the film as hot steam will escape.Only if boilable or oven-proof. Should not be airtight. Prick with a fork, if necessary. |
| Wax or grease-proof paper | √ | Can be used to retain moisture and prevent spattering. |
√ : Recommended
√x : Use caution
x : Unsafe
Microwaves
Microwave energy actually penetrates food, attracted and absorbed by its water, fat and sugar content.
The microwaves cause the molecules in the food to move rapidly. The rapid movement of these molecules creates friction and the resulting heat cooks the food.
Cooking
Cookware for microwave cooking:
Cookware must allow microwave energy to pass through it for maximum efficiency. Microwaves are reflected by metal, such as stainless steel, aluminium and copper, but they can penetrate through ceramic, glass, porcelain and plastic as well as paper and wood. So food must never be cooked in metal containers.
Food suitable for microwave cooking:
Many kinds of food are suitable for microwave cooking, including fresh or frozen vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard, soups, steamed puddings, preserves, and chutncys can also be cooked in a microwave oven. Generally speaking, microwave cooking is ideal for any food that would normally be prepared on a hob. Melting butter or chocolate, for example (see the chapter with tips, techniques and hints).
Covering during cooking
To cover the food during cooking is very important, as the evaporated water rises as steam and contributes to cooking process. Food can be covered in different ways: e.g. with a ceramic plate, plastic cover or microwave suitable cling film.
Standing times
After cooking is over food the standing time is important to allow the temperature to even out within the food.
English 15
Cooking guide
Reheating liquids and food
Use the power levels and times in this table as a guide lines for reheating.
| Food Serving | Size Power Time (min.) | ||
| Drinks(Coffee, Tea and Water) | 150 ml (1 cup)250 ml (1 mug) | 800 W 1-1 12 | 1 12 -2 |
| InstructionsPour into cup and reheat uncovered. Put cup/ mug in the centre of turntable. Keep in microwave oven during standing time and stir well. Stand for 1-2 minutes. | |||
| Soup (Chilled) 250 g | 800 W 3-3 12 | ||
| InstructionsPour into a deep ceramic plate. Cover with plastic lid. Stir well after reheating. Stir again before serving. Stand for 2-3 minutes. | |||
| Stew (Chilled) 350 g | 600 W 5 12 -6 12 | ||
| InstructionsPut stew in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving. Stand for 2-3 minutes. | |||
| Pasta with Sauce(Chilled) | 350 g 600 W | 4 12 -5 12 | |
| InstructionsPut pasta (e.g. spaghetti or egg noodles) on a flat ceramic plate. Cover with microwave cling film. Stir before serving. Stand for 3 minutes. | |||
| Food Serving | Size Power Time (min.) | ||
| Filled Pasta with Sauce (Chilled) | 350 g 600 W | 5-6 | |
| InstructionsPut filled pasta (e.g. ravioli, tortellini) in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving. Stand for 3 minutes. | |||
| Plated Meal (Chilled) | 350 g 600 W | 51⁄2-61⁄2 | |
| InstructionsPlate a meal of 2-3 chilled components on a ceramic dish.Cover with microwave cling-film. Stand for 3 minutes. | |||
| Pasta (Frozen)(Cannelloni, Macaroni, Lasagne) | 400 g 450 W | 16-161⁄2 | |
| InstructionsPut frozen pasta into a small flat rectangular glass pyrex dish. Put the dish directly on the turntable. Stand for 2 3 minutes. | |||
16 English
Troubleshooting
Troubleshooting
If you have any of the problems listed below try the solutions given.
| Problem Cause | Action | |
| General | ||
| The buttons cannot be pressed properly. | Foreign matter may be caught between the buttons. | Remove the foreign matter and try again. |
| For touch models: Moisture is on the exterior. | Wipe the moisture from the exterior. | |
| Child lock is activated. Dactivate Child lock. | ||
| The oven does not work. | Power is not supplied. Make sure power is supplied. | |
| The door is open. Close the door and try again. | ||
| The door open safety mechanisms are covered in foreign matter. | Remove the foreign matter and try again. | |
| The oven stops while in operation. | The user has opened the door to turn food over. | After turning over the food, close the door again to start operation. |
| Problem Cause | Action | |
| The power turns off during operation. | The oven has been cooking for an extended period of time. | After cooking for an extended period of time, let the oven cool. |
| The cooling fan is not working. | Listen for the sound of the cooling fan. | |
| Trying to operate the oven without food inside. | Put food in the oven. | |
| There is not sufficient ventilation space for the oven. | There are intake/exhaust outlets on the front and rear of the oven for ventilation.Keep the gaps specified in the product installation guide. | |
| Several power plugs are being used in the same socket. | Designate only one socket to be used for the oven. | |
| There is a popping sound during operation, and the oven doesn't work. | Cooking sealed food or using a container with a lid may causes popping sounds. | Do not use sealed containers as they may burst during cooking due to expansion of the contents. |
| The oven exterior is too hot during operation. | There is not sufficient ventilation space for the oven. | There are intake/exhaust outlets on the front and rear of the oven for ventilation.Keep the gaps specified in the product installation guide. |
| Objects are on top of the oven. | Remove all objects on the top of the oven. | |
| The door cannot be opened properly. | Food residue is stuck between the door and oven interior. | Clean the oven and then open the door. |
Troubleshooting
| Problem Cause | Action | |
| Heating including the Warm function does not work properly. | The oven may not work, too much food is being cooked, or improper cookware is being used. | Put one cup of water in a microwave safe container and run the microwave for 1-2 minutes to check whether the water is heated. Reduce the amount of food and start the function again. Use a cooking container with a flat bottom. |
| The thaw function does not work. | Too much food is being cooked. | Reduce the amount of food and start the function again. |
| The interior light is dim or does not turn on. | The door has been left open for a long time. | The interior light may automatically turn off when the Eco function operates. Close and reopen the door. |
| The interior light is covered by foreign matter. | Clean the inside of the oven and check again. | |
| A beeping sound occurs during cooking. | If the Auto Cook function is being used, this beeping sound means it's time to turn over the food during thawing. | After turning over the food, close the door again to restart operation. |
| The oven is not level. | The oven is installed on an uneven surface. | Make sure the oven is installed on flat, stable surface. |
| There are sparks during cooking. | Metal containers are used during the oven/thawing functions. | Do not use metal containers. |
| Problem Cause | Action | |
| When power is connected, the oven immediately starts to work. | The door is not properly closed. | Close the door and check again. |
| There is electricity coming from the oven. | The power or power socket is not properly grounded. | Make sure the power and power socket are properly grounded. |
| 1. Water drips.2. Steam emits through a door crack.3. Water remains in the oven. | There may be water or steam in some cases depending on the food. This is not an oven malfunction. | Let the oven cool and then wipe with a dry dish towel. |
| The brightness inside the oven varies. | Brightness changes depending on power output changes according to function. | Power output changes during cooking are not malfunctions. This is not an oven malfunction. |
| Cooking is finished, but the cooling fan is still running. | To ventilate the oven, the cooling fan continues to run for about 3 minutes after cooking is complete. | This is not an oven malfunction. |
Technical specifications
| Problem Cause | Action | |
| Turntable | ||
| While turning, the turntable comes out of place or stops turning. | There is no roller ring, or the roller ring is not properly in place. | Install the roller ring and then try again. |
| The turn table drags while turning. | The roller ring is not properly in place, there is too much food, or the container is too large and touches the inside of the microwave. | Adjust the amount of food and do not use containers that are too large. |
| The turn table rattles while turning and is noisy. | Food residue is stuck to the bottom of the oven. | Remove any food residue stuck to the bottom of the oven. |
NOTE
If the suggested solution does not solve the problem, contact your local SAMSUNG Customer Care Centre.
SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice.
| Model MS23B3614A a | |
| Power source 230 V | ~50 Hz AC |
| Power consumption Microwave 1150 W | |
| Output power 100 W / 800 W - 6 levels (EC-705) | |
| Operating frequency 2450 MHz | |
| Dimensions (W x H x D) Outside (Include Handle) Oven cavity | 489 x 275 x 374 mm330 x 211 x 324 mm |
| Volume 23 liter | |
| Weight Net 12.0 kg approx. | |
* This product contains a light source of energy efficiency class
English 19
SAMSUNG
Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance.
QUESTIONS OR COMMENTS?
| COUNTRY CALL OR VISIT US ONLINE AT | ||
| UK 0333 000 0333 www.samsung.com/uk/support | ||
| IRELAND (EIRL) 0818 717100 | www.samsung.com/e/support | |
| CHERMANY 08798 77 555 77 www.samsung.com/de/support | ||
| FRANCE 01 48 63 00 00 www.samsung.com/fr/support | ||
| SPAIN 91 175 00 15 www.samsung.com/es/support | ||
| PORTUGAL | 210 608 098Chamada para a rede fixa nacionalDias ureis das 9h as 20h | www.samsung.com/pt/support |
| LUXEMBURG 261 03 710 www.samsung.com/bc_fr/support | ||
| NETHERLANDS | 068 90 90 100 | www.samsung.com/n/support |
| BELGIUM 02-201-24-19 | www.samsung.com/be/support (Durch)www.samsung.com/be fr/support (French) | |
| NORWAY 71679099 www.samsung.com/no/support | ||
| DENMARK | 707 019 70 | www.samsung.com/dk/support |
| FINLAND 039 5227 515 www.samsung.com/fi/support | ||
| SWEDEN | 0771-400 300 www.samsung.com/se/support | |
| AUSTRIA | 0800 72 67 864 (0800 SAMSUNG) | www.samsung.com/at/support |
| SWITZERLAND 0800 726 785 | www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French) | |
| RUNGARY | 06B0SAMSUNG (0580-726-7854) | www.samsung.com/hu/support |
| CZECH | 800 - SAMSUNG (900 726796) | www.samsung.com/cz/support |
| SLOVAKIA | 0800 - SAMSUNG (0800-726 786) | www.samsung.com/sk/support |
| COUNTRY CALL OR VISIT US ONLINE AT | ||
| DRATIA | 072 728 786 | www.samsung.com/hr/support |
| BOSNIA. 055 233 999 www.samsung.com/ba/support | ||
| North Macedonia | 023 207 777 | www.samsung.com/mk/support |
| MONTENEGRO | 020 405 888 | www.samsung.com/support |
| SLOVENIA | 080 697 267 (brezpacna stevilka) | www.samsung.com/s/support |
| SERBIA | 011 321 6899 | www.samsung.com/rs/support |
| Kosovo | 038 40 30 90 | www.samsung.com/support |
| ALBANIA | 045 620 202 | www.samsung.com/a/support |
| BULCARIA | 0800 111 31 Белилітен за вичинки оператори '32000' Цена на единградски разговор или според тарифата на мобінатним оператор 09:00 до 16:00 - Понседник до Лістък | www.samsung.com/bq/support |
| ROMANIA | 0800872678 - Apel gratuit *8000 - Apel tarifat In repea Program Call Center Luni - Vinert: 9 AM - 6 PM | www.samsung.com/ro/support |
| ITALIA | 800-SAMSUNG (800 7287854) | www.samsung.com/it/support |
| CYPRUS | 8009 4000 only from landline, toll free | www.samsung.com/gr/support |
| GREECE | 90111-SAMSUNG (80111 726 7864) only from land line (+30) 210 5897691 from mobile and land line | |
| POLAND | 801 172 678' lub - 48 22 607 95 32' (teplato wedrug taryly operator) | http://www.samsung.com/pl/support/ |
| LITHUANIA 8-800-77777 www.samsung.com/it/support | ||
| LATVIA | 8000 7267 | www.samsung.com/v/support |
| ESTONIA 800-7257 www.samsung.com/ee/support | ||
DE68-045472-00
- Vedlikehold
- Rengjøring
- Mikrobølgeovn
- Indhold
- Vedligeholdelse
- Rengøring
- Safety instructions 3
- Installation 8
- Maintenance 9
- Oven features 10
- Oven use 11
- Cookware guide 14
- Cooking guide 15
- Troubleshooting 17
- Technical specifications 19
- Safety instructions
- IMPORTANT SAFETY INSTRUCTIONS
- General safety
- Microwave warning
- Microwave oven precautions
- Microwave operation precautions
- Limited warranty
- Product group definition
- Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
- Installation
- Accessories
- CAUTION
- Installation site
- Turntable
- Maintenance
- Cleaning
- To remove stubborn impurities with bad smells from inside the oven
- To clean inside swing-heater models
- Replacement (repair)
- WARNING
- Care against an extended period of disuse
- Oven features
- Oven use
- How a microwave oven works
- Cooking/Reheating
- NOTE
- Setting the time
- Power levels and time variations
- Stopping the cooking
- Auto energy saving function
- Using the Auto Defrost features
- Cookware guide
- Cooking guide
- Microwaves
- Cooking
- Cookware for microwave cooking:
- Food suitable for microwave cooking:
- Covering during cooking
- Standing times
- Reheating liquids and food
- Troubleshooting
- Technical specifications
- SAMSUNG
Brand : SAMSUNG
Model : MS23B3614AW
Category : Microwave
