GKN17928FW - Fridge GRUNDIG - Free user manual and instructions

Product Type	Fridge with freezer compartment
Brand	Grundig
Model	GKN17928FW
Total Net Capacity	315 L (approx.)
Fridge Capacity	220 L (approx.)
Freezer Capacity	95 L (approx.)
Energy Efficiency Class	A+
Annual Energy Consumption	290 kWh (approx.)
Climate Class	N-ST
Noise Level	42 dB (approx.)
Cooling System	NoFrost (frost-free)
Air Flow System	MultiAirFlow
Interior Lighting	LED
Shelves Material	Safety glass
Number of Shelves	4 adjustable
Door Balcony	3 pieces
Freezer Drawers	3
Ice Maker	No (manual ice tray)
Reversible Door	Yes
Dimensions (H x W x D)	1800 x 595 x 650 mm (approx.)
Weight	70 kg (approx.)
Power Supply	220-240 V, 50 Hz
Cleaning	Removable glass shelves and door balconies for easy cleaning
Safety Features	Hinge brake, door open alarm
Spare Parts Availability	Yes, via Grundig service network

Frequently Asked Questions - GKN17928FW GRUNDIG

How do I set the temperature on my Grundig GKN17928FW fridge?

Use the electronic control panel located inside the fridge. Press the Fridge or Freezer button repeatedly to cycle through temperature settings. The recommended fridge temperature is 4°C and freezer -18°C.

Why is my fridge making a buzzing noise?

A low humming sound is normal from the compressor. If the noise is loud or irregular, ensure the fridge is level and not touching walls. If persists, contact Grundig service.

How do I reverse the door on my Grundig fridge?

Door reversal is possible. Unscrew the hinge brackets, transfer the door handles and hinges to the opposite side. Refer to the user manual for exact steps.

How often should I defrost the freezer?

This model has NoFrost technology, so manual defrosting is not required. However, clean the interior periodically.

What does the 'Eco' mode do?

Eco mode optimizes cooling to save energy. It adjusts the thermostat to a slightly higher but still safe temperature for food storage.

How do I change the bulb in my fridge?

This model uses LED lighting which is not user-replaceable. If it fails, contact Grundig service.

Why is water pooling inside my fridge?

Check if the drain hole at the back is clogged. Clean it with a pipe cleaner or warm water. Also ensure the door is properly closed.

Can I store hot food in the fridge?

Allow hot food to cool to room temperature before placing it in the fridge to avoid raising the internal temperature and excessive energy use.

How do I clean the condenser coils?

The condenser coils are located at the back. Use a vacuum cleaner or a brush to remove dust. Clean every 6-12 months to maintain efficiency.

What should I do if the fridge door doesn't close properly?

Check if shelves or food items are blocking the door. Ensure the fridge is level. Adjust the feet if needed. If the gasket is damaged, replace it via Grundig service.

USER MANUAL GKN17928FW GRUNDIG

Simple line drawing of a pear and a carrot (no text or symbols)

GKN17928FW

CE

Contents

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

3.4 Strømtislutning

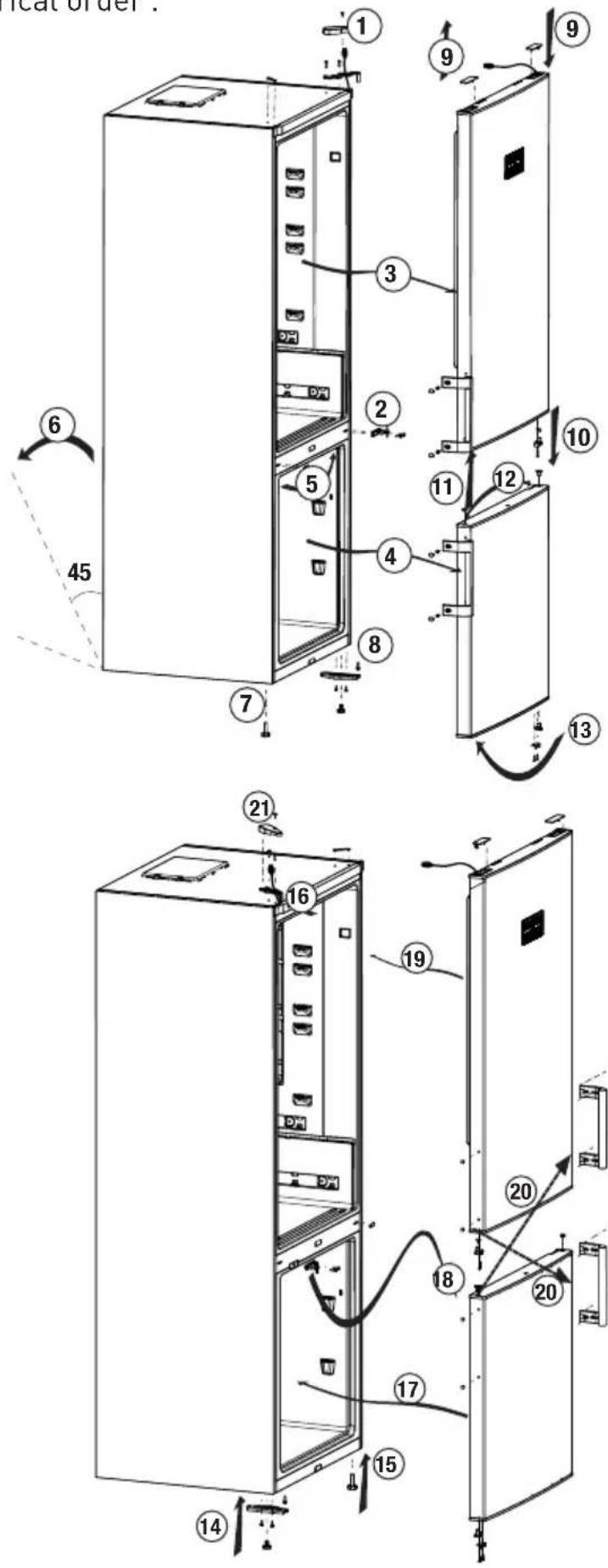

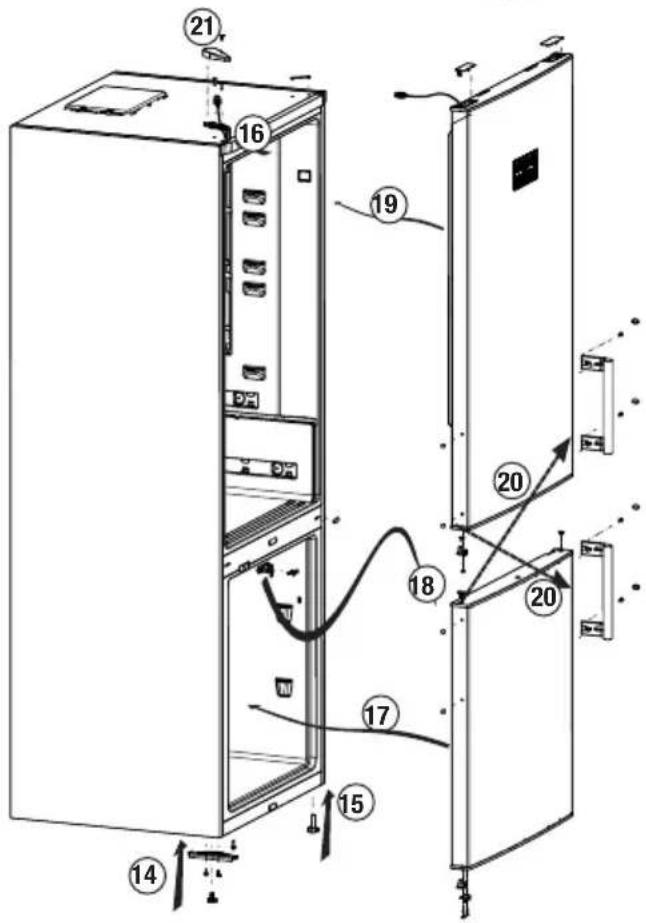

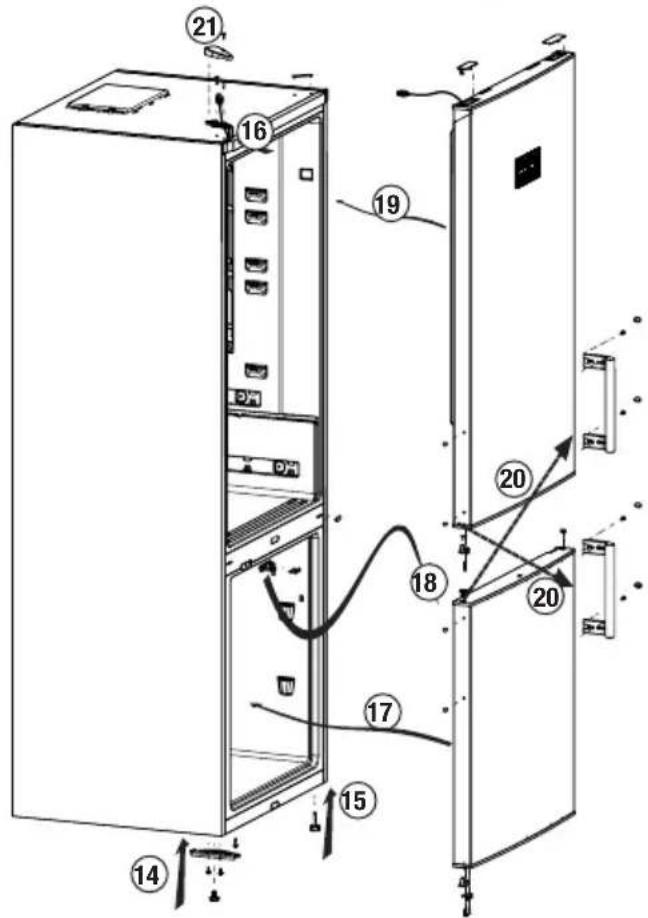

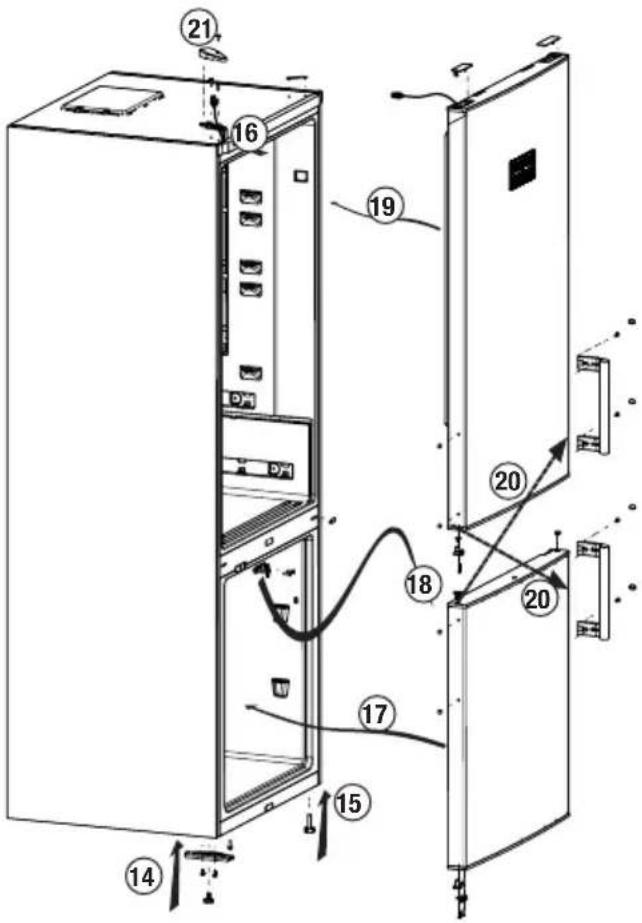

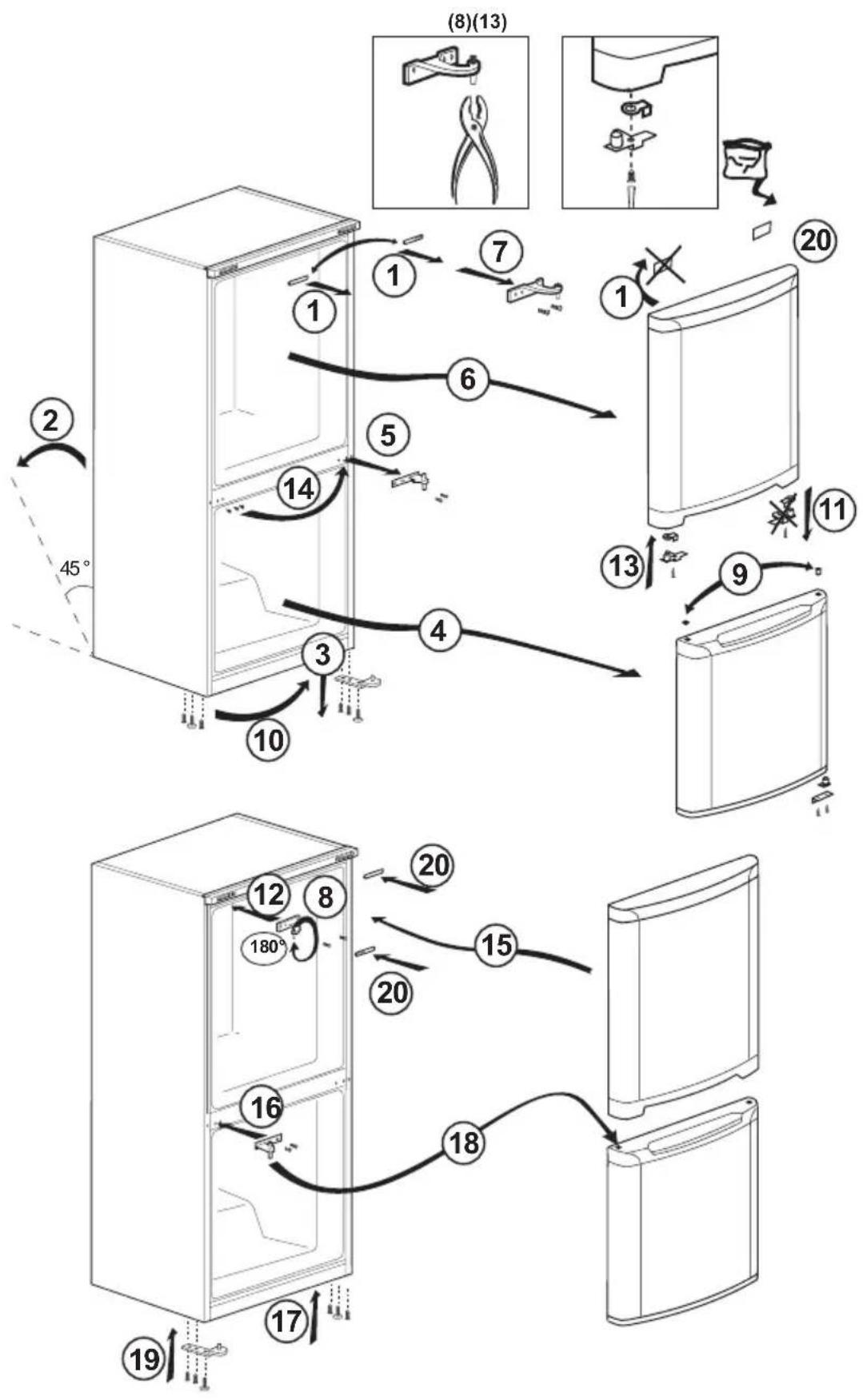

3.6 Vende dørene

Line drawing of a hand inserting a card into a cabinet (no text or symbols)

4.2 Førstegangsbrug

Line drawing of a hand pressing down on a circular device with numbered parts (no text or symbols)

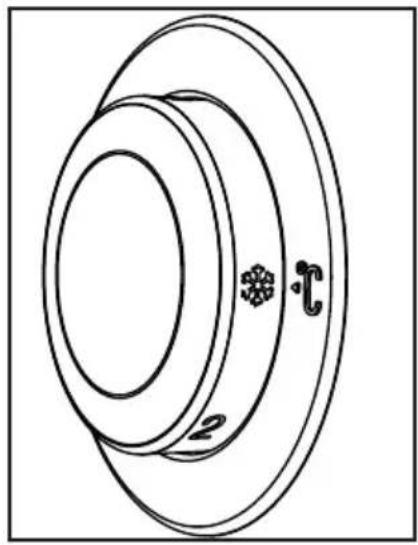

5.2 Hurtig frysning

Technical line drawing of a mechanical component with concentric rings and labeled features (no text or symbols)

Abstract concentric oval shapes with a small 'r' mark in the center (no text or symbols beyond the label)

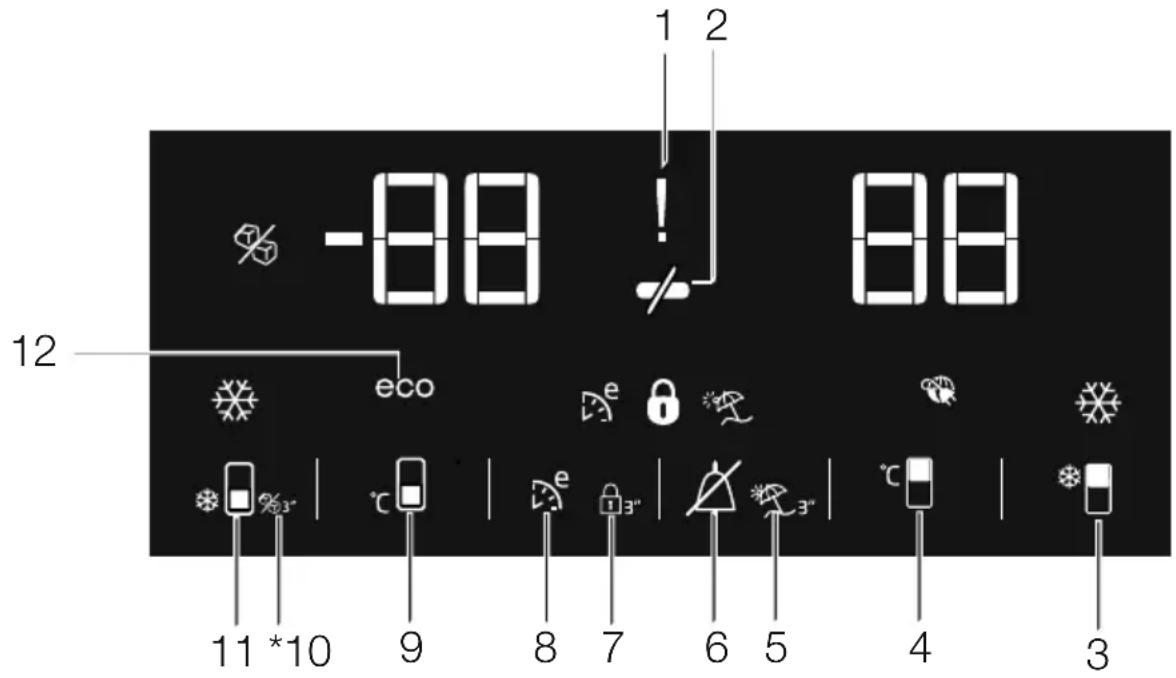

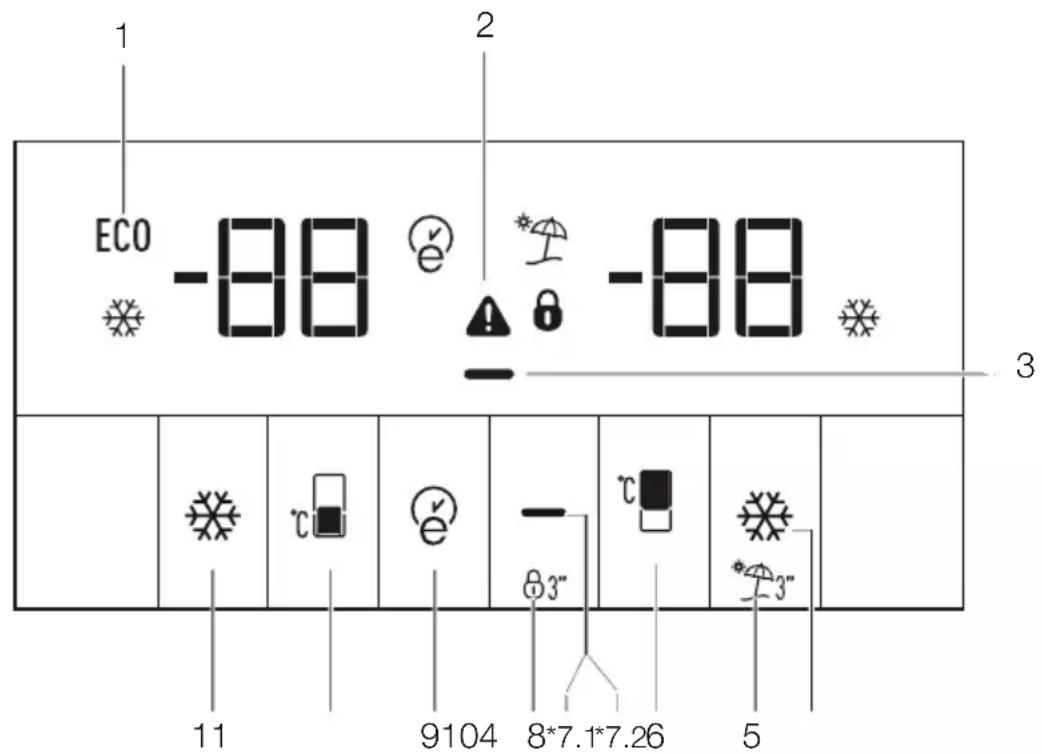

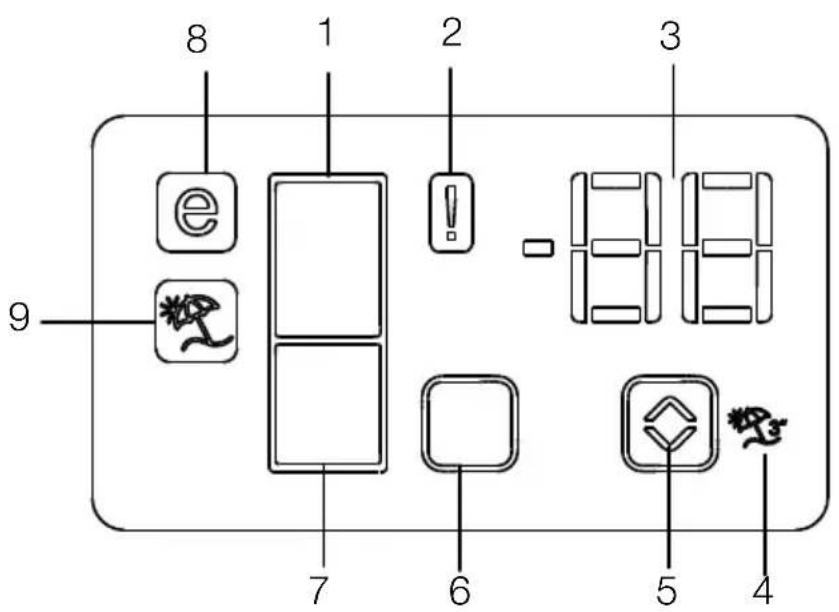

5.5 Indikatorpanel

Lyspaneler varierer i henhold til hvilken model det er.

Line drawing of a cabinet or enclosure with a central square opening and a circular vent (no text or symbols)

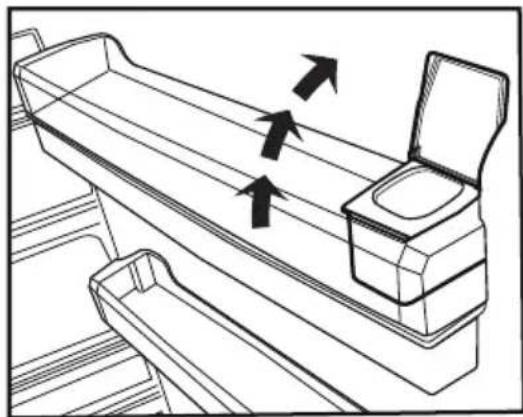

5.11 Grøntsagsskuffe

(Tilvalg)

Line drawing of two hands holding a blank rectangular object, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

5.14 Glidende opbevaringsskuffe

(Tilvalg)

Mechanical assembly diagram showing a component being inserted into a housing (no text or symbols visible)

Technical line drawing of a mechanical assembly with two arrows indicating direction (no text or symbols)

Line drawing of a hand using a portable device to lift a cylindrical container (no text or symbols)

Illustration of a hand pressing a button on a keyboard (no text or symbols)

Simple line drawing of a test tube submerged in a container (no text or symbols)

Line drawing of a wooden shelf with two compartments and a side shelf (no text or symbols)

Line drawing of a mechanical device with two arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

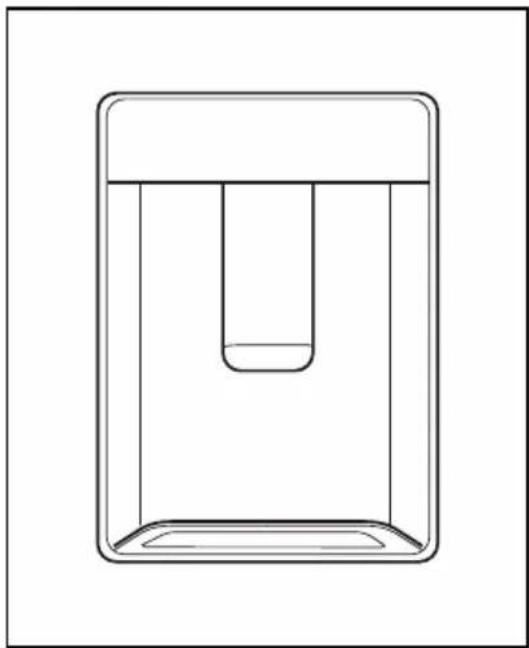

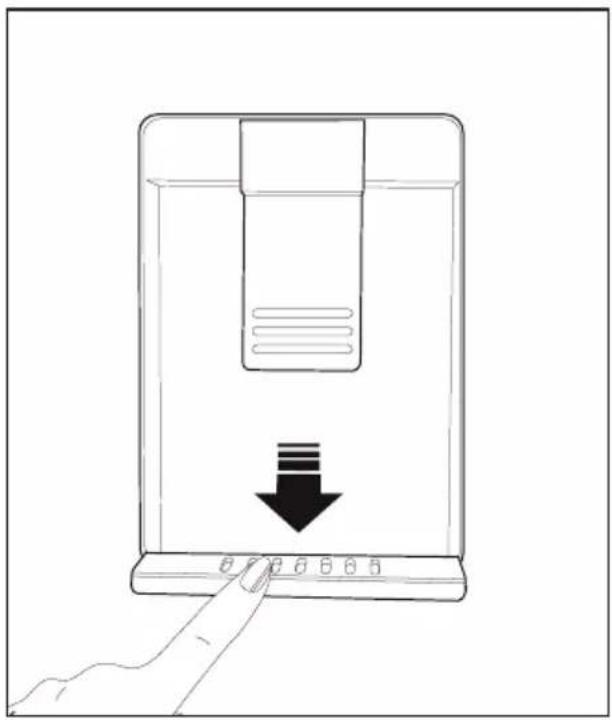

5.21 Drypbakke

Vand, der drypper mens vanddispenseren anvendes, samles i drypbakken.

Line drawing of a device with a hand pressing a button and a downward arrow indicating action (no text or symbols)

5.22 HerbBox/HerbFresh

Fjern filmbeholderen fra HerbBox/HerbFresh+

Technical line drawings of mechanical components, including a rectangular frame, internal compartments, and an open housing (no text or symbols)

Li (Litium), Na (Natrium), K (Kalium), Rb (Rubidium), Cs (Cæsium) og kunstige samt radioaktive Fr (Fan-sium) metaller kaldes ALKALIMETALLER.

7. Fejlfinding

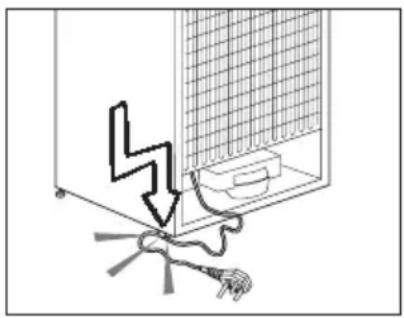

Diagram showing a device with a lightning bolt and cable, no text or symbols present

1.1.1 HC-varning

Pure electrical circuit lines without any symbols

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

3.4 Elanslutning

3.6 Byte av dörrar

Line drawing of a hand interacting with a wall-mounted device (no text or symbols)

Line drawing of a hand pressing down on a circular device with numbered parts (no text or symbols)

5.2 Snabbfrysning

Technical line drawing of a mechanical component with concentric rings and a central star-like feature (no text or symbols)

Abstract concentric oval shapes with a small 'r' mark in the center (no text or symbols beyond the label)

5.4 Indikatorpanel

Line drawing of a rectangular room with a central square and side panel (no text or symbols)

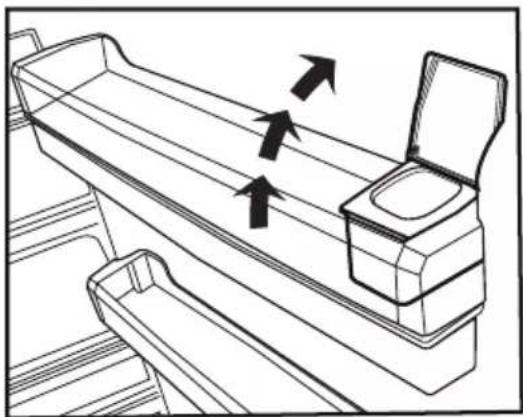

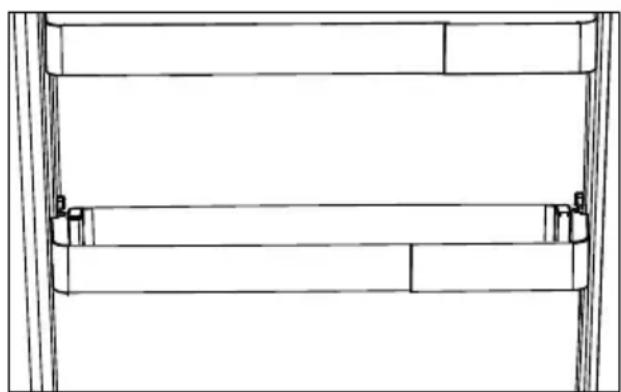

5.10 Grönsakslåda

(Tillbehör)

Line drawing of two hands holding a blank rectangular object, no text or symbols present

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

5.12 Grönsakslåda

(Tillbehör)

Diagram of a mechanical component with arrows indicating force or movement, no visible text or symbols

5.15 Grönsakslåda med fuktkontroll

(Tillbehör)

Technical line drawing of a mechanical assembly with two arrows indicating direction (no text or symbols)

Line drawing of a hand using a device to lift a bag into a box (no text or symbols)

Illustration of a hand holding a computer mouse with two circular objects in the background (no text or symbols)

Simple line drawing of a test tube submerged in a container (no text or symbols)

Technical line drawing of a mechanical component with two rectangular parts and a base, no text or symbols present.

Line drawing of a mechanical device with two boxes and an open lid, showing directional arrows (no text or symbols)

Line drawing of a hand pressing down on a mechanical component with an upward arrow symbol (no text or labels)

Line drawing of hands gripping a mechanical component with an upward arrow (no text or symbols)

Line drawing of a hand operating a mechanical device with a bracket and adjustment knob (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

5.21 Spillbricka

Line drawing of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols)

5.22 HerbBox/HerbFresh

Technical line drawings of mechanical components, including a rectangular housing, internal compartments, and a folded housing (no text or symbols present)

Simple line drawing of a pear and a carrot (no text or symbols)

GKN17928FW

Diagram showing a lightning bolt striking a component inside a container with wiring and a plug (no text or symbols)

1.1.1 HC-advarsel

Pure electrical circuit lines without any symbols

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional movement, no text or symbols present.

3.4 Strømtilkobling

Line drawing of a hand inserting a small rectangular component into a cabinet (no text or symbols)

Line drawing of a hand pressing down on a circular device with numbered parts (no text or symbols)

5.2 Rask frying

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

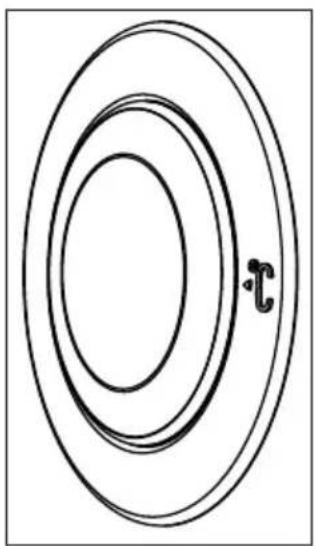

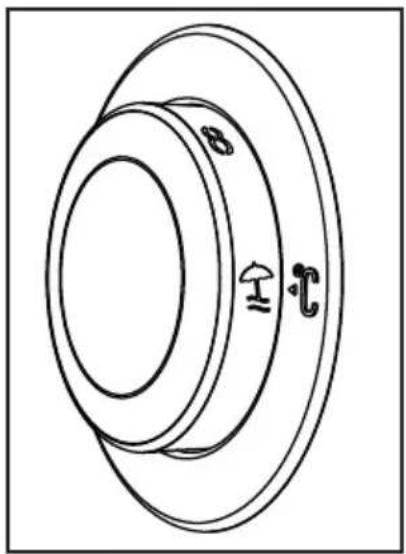

5.3 Feriefunksjon

Technical line drawing of a mechanical component with concentric rings and labeled features (no text or symbols)

Simple concentric oval diagram with a small 'r' mark at the center (no text or symbols beyond the label)

5.4 Indikatorpanel

Line drawing of a cabinet or enclosure with a square vent and circular door (no text or symbols)

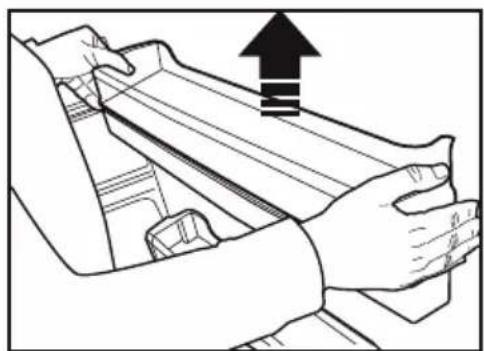

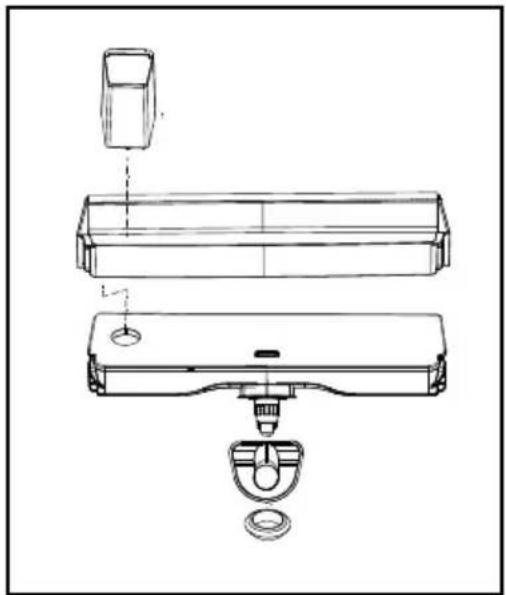

5.10 Grønnsaksskuff

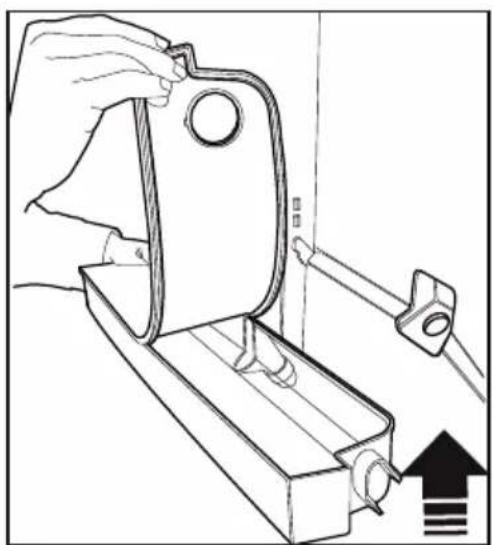

(tilleggsutstyr)

Technical line drawing of two identical views of a cabinet or shelf with handles, no text or symbols present

Mechanical assembly diagram showing a hand pressing down on a component with arrows indicating motion (no text or symbols present)

Technical line drawing of a mechanical assembly with two arrows indicating direction (no text or symbols)

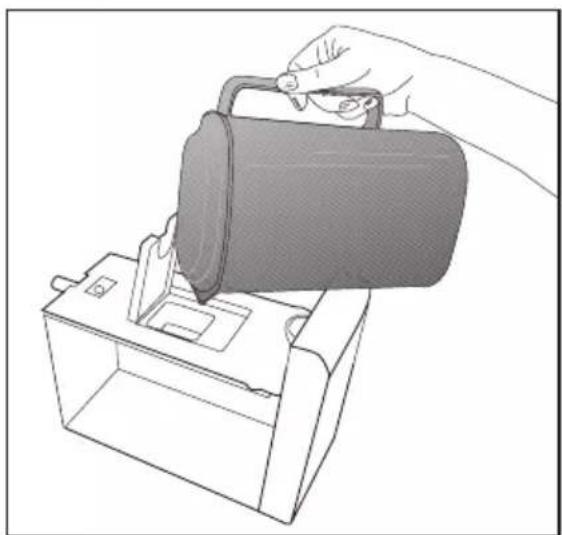

Line drawing of a hand pouring liquid into a container using a bag (no text or symbols)

Illustration of a hand pressing a button on a piano keyboard (no text or symbols)

Simple line drawing of a container with a submerged object inside (no text or symbols)

Etter å ha fylt koppen opp til det nivået du ønsker, slipper du spaken.

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

Line drawing of a toilet with directional arrows indicating flow or movement (no text or symbols)

Line drawing of a hand pressing down on stacked boxes with an upward arrow symbol (no text or labels)

Line drawing of hands operating a mechanical component with an upward arrow indicating motion (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component, with an upward arrow and striped pattern (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

5.20 Spillbrett

Line drawing of a device with a downward arrow and finger pointing to its base (no text or symbols)

5.21 HerbBox/HerbFresh

Technical line drawings of mechanical components, including a rectangular housing, internal compartments, and a folded housing (no text or symbols present)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

1.1.1 HC-varoitus

Pure electrical circuit lines without any symbols

Diagram showing directional arrows and curved arrows around a rectangular structure (no text or symbols)

3.4 Virtaliitäntä

Line drawing of a hand holding a small rectangular object against a shelf (no text or symbols)

Line drawing of a hand pressing down on a circular device with numbered parts (no text or symbols)

5.2 Pikapakastus

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

Line drawing of a cabinet interior with handle, vent, and door (no text or symbols)

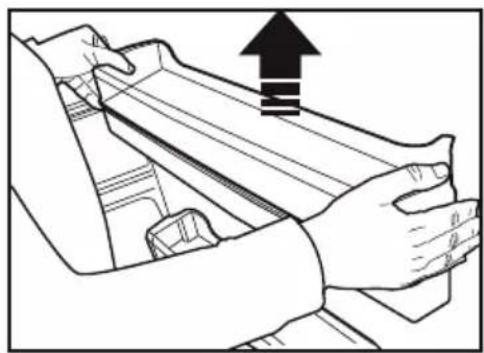

5.9 Vihanneslokero

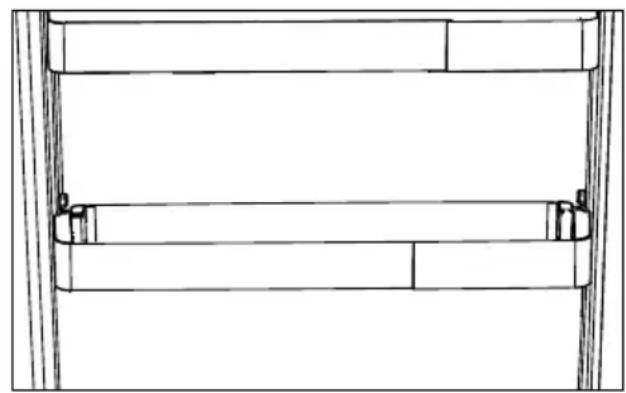

(Vaihtoehtoinen)

Line drawing of two hands holding a rectangular object, no text or symbols present

Technical line drawing of a mechanical frame or enclosure with no visible text or symbols

Technical line drawing of a mechanical assembly with two arrows indicating direction (no text or symbols)

Line drawing of a hand pouring liquid into a container using a bag (no text or symbols)

Illustration of a hand pressing a button on a keyboard (no text or symbols visible)

Simple line drawing of a rectangular container with a U-shaped tube inside, no text or symbols present.

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

Line drawing of a toilet with arrows indicating flow direction (no text or symbols)

Line drawing of a hand pressing down on a mechanical component with an upward arrow (no text or symbols)

Line drawing of hands operating a mechanical component with an upward arrow indicating motion (no text or symbols)

Line drawing of a hand operating a mechanical device with a bracket and adjustment knob (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

5.19 Valumisastia

Line drawing of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols)

5.20 HerbBox/HerbFresh

Technical line drawings of mechanical components, including a rectangular housing, internal compartments, and a folded housing (no text or symbols present)

Simple line drawing of a pear and a carrot (no text or symbols)

GKN17928FW

OBSAH

Technical line drawing of a mechanical component with a labeled section (1), no text or symbols present.

Diagram of a refrigerator interior with a lightning bolt and cable, no text or symbols present

1.1.1 Varování HC

Pure electrical circuit lines without any symbols

Diagram showing directional arrows and curved arrows around a rectangular structure (no text or symbols)

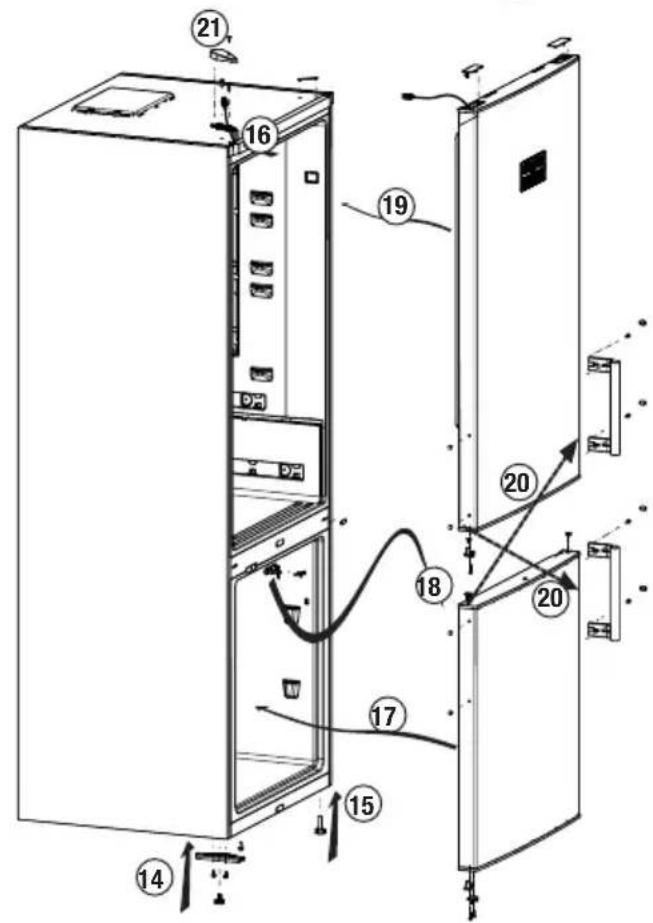

3.6 Obrácení dveří

Line drawing of a hand interacting with a wall-mounted device (no text or symbols)

Line drawing of a hand pressing down on a circular device with numbered parts (no text or symbols)

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

5.3 Funkce Dovolená

Simple concentric oval diagram with a small 'r' mark at the center (no text or symbols beyond the label)

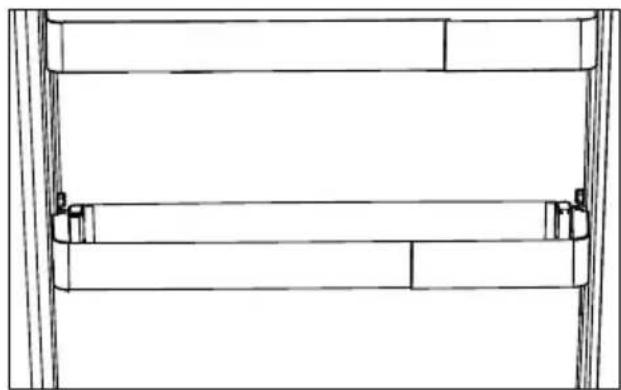

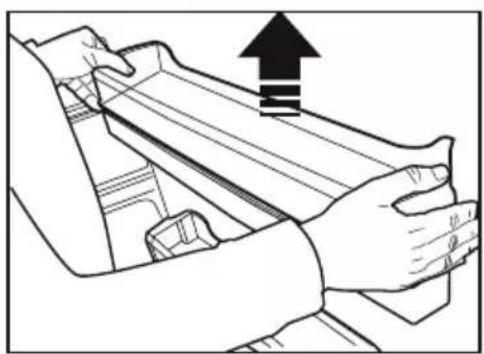

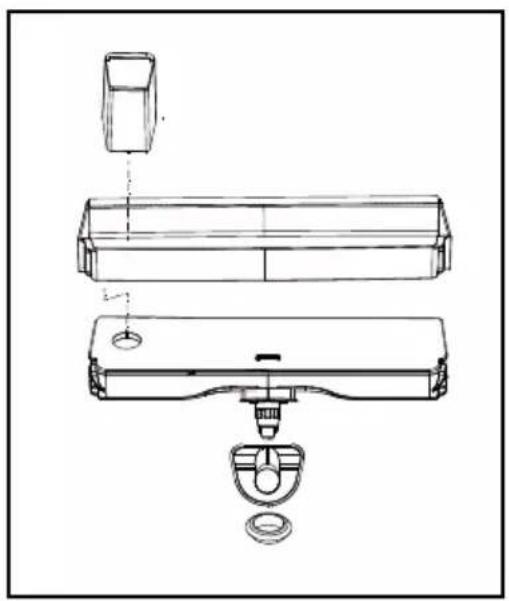

5.4 Indikační panel

Line drawing of a rectangular room with a central square and side panel (no text or symbols)

Technical line drawings of mechanical components, including a rectangular housing, internal compartments, and a folded housing (no text or symbols present)

Line drawing of two hands holding a rectangular object, viewed from above (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical component with arrows indicating force or movement, no visible text or symbols

Technical line drawing of a mechanical assembly with two arrows indicating direction (no text or symbols)

Line drawing of a hand using a device to lift a cylindrical container (no text or symbols)

Illustration of a hand pressing a button on a striped surface with two circular buttons (no text or symbols)

Simple line drawing of a container with a submerged object inside (no text or symbols)

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

Line drawing of a toilet with open lid and side drawer, showing airflow direction arrows (no text or symbols)

Line drawing of a hand gripping a tray with an upward arrow above (no text or symbols)

Line drawing of hands operating a mechanical device with an upward arrow indicating motion (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

Line drawing of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols)

1. Safety and environment

instructions 3

2. Your Refrigerator 7

3 Installation 8

3.1 Appropriate installation location ....8
3.2 Installing the plastic wedges .8
3.3 Adjusting the feet 8
3.4 Electrical connection .....9
3.5 Reversing the doors .....10
3.6 Reversing the doors .....11

4 Preparation 12

4.1 Things to be done for energy saving ....12

4.2 Initial use ......13

5 Operating the product 14

5.1 Temperature setting button .14
5.2 Fast freeze 14
5.3 Vacation function .....15
5.4 Indicator panel 16
5.5 Indicator panel 18
5.6 Indicator panel 21
5.7 Ice bucket 23
(This feature is optional)......23
5.8 Egg holder....23
5.9 Fan....24
5.10 Vegetable bin 24
(This feature is optional)......24
5.11 Zero degree compartment .24
(This feature is optional)......24
5.12 HerbBox/HerbFresh ......24
5.13 Moving door rack 25
5.14 Sliding storage box 25
(This feature is optional)......25
5.15 Moisture controlled vegetable bin 25
(This feature is optional)......25
5.16 Automatic ice machine .....26

(This feature is optional)......26

5.17 Icematic and ice storage container 27

5.18 Using the water dispenser .27

5.19 Filling the water dispenser's tank ....28

5.20 Cleaning the water tank ...28

5.21 Drip tray 29

5.22 Freezing fresh food .....30

5.23 Recommendations forpreserving the frozen food ......31

5.24 Deep-freeze information ....31

5.25 Placing the food .....31

5.26 Door open warning .....32

5.27 Illumination lamp ......32

6. Maintenance and cleaning 33

6.1 Avoiding bad odours......33

6.2 Protecting the plastic surfaces 34

6.3 Door Glasses ....34

7. Troubleshooting 35

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

The user manual will help you use the product in a fast and safe way.

Will help you use your appliance in a fast and safe way.

Read the manual before installing and operating your product.

Follow the instructions, especially those for safety.

Keep the manual in an easily accessible place as you may need it later.

Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

	Important information or useful usage tips.
	Warning against dangerous conditions for life and property.
	Warning against electric voltage.
	Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

1. Safety and environment instructions

This section provides the safety instructions necessary to prevent the risk of injury and material damage. Failure to observe these instructions will invalidate all types of product warranty.

Intended use

	WARNING:Keep ventilation openings, in the appliance enclosure or in the built-instructure, clear of obstruction.
	WARNING:Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
	WARNING:Do not damage the refrigerant circuit.
	WARNING:Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

This appliance is intended to be used in household and similar applications such as – staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; - catering and similar non-retail applications.

1.1. General safety

- This product should not be used by persons with physical, sensory and mental disabilities, without sufficient knowledge and experience or by children. The device can only be used by such persons under supervision and instruction of a person responsible for their safety. Children should not be allowed to play with this device.

• In case of malfunction, unplug the device.
• After unplugging, wait at least 5 minutes before plugging in again.
- Unplug the product when not in use.
- Do not touch the plug with wet hands! Do not pull the cable to plug off, always hold the plug.
- Do not plug in the refrigerator if the socket is loose.
- Unplug the product during installation, maintenance, cleaning and repair.
- If the product will not be used for a while, unplug the product and remove any food inside.

- Do not use the product when the compartment with circuit cards located on the upper back part of the product (electrical card box cover) (1) is open.

Simple line drawing of a rectangular frame with a numbered label '1' and a small symbol inside (no text or symbols beyond the label)

Simple line drawing of a mechanical component with a base and top view, no text or symbols present

• Do not use steam or steamed cleaning materials for cleaning the refrigerator and melting the ice inside. Steam may contact the electrified areas and cause short circuit or electric shock!
• Do not wash the product by spraying or pouring water on it! Danger of electric shock!
• In case of malfunction, do not use the product, as it may cause electric shock. Contact the authorised service before doing anything.
• Plug the product into an earthed socket. Earthing must be done by a qualified electrician.

• If the product has LED type lighting, contact the authorised service for replacing or in case of any problem.

• Do not touch frozen food with wet hands! It may adhere to your hands!

• Do not place liquids in bottles and cans into the freezer compartment. They may explode.
• Place liquids in upright position after tightly closing the lid.
• Do not spray flammable substances near the product, as it may burn or explode.
• Do not keep flammable materials and products with flammable gas (sprays, etc.) in the refrigerator.
• Do not place containers holding liquids on top of the product. Splashing water on an electrified part may cause electric shock and risk of fire.
• Exposing the product to rain, snow, sunlight and wind will cause electrical danger. When relocating the product, do not pull by holding the door handle. The handle may come off.
  • Take care to avoid trapping any part of your hands or body in any of the moving parts inside the product.
• Do not step or lean on the door, drawers and similar parts of the refrigerator. This will cause the product to fall down and cause damage to the parts.
  • Take care not to trap the power cable.

Diagram showing a lightning bolt striking down on a wall, with a plug inserted (no text or symbols present)

1.1.1 HC warning

If the product comprises a cooling system using R600a gas, take care to avoid damaging the cooling system and its pipe while using and moving the product. This gas is flammable. If the cooling system is damaged, keep the product away from sources of fire and ventilate the room immediately.

The label on the inner left side indicates the type of gas used in the product.

1.1.2 For models with water dispenser

• Pressure for cold water inlet shall be maximum 90 psi (6.2 bar). If your water pressure exceeds 80 psi (5.5 bar), use a pressure limiting valve in your mains system. If you do not know how to check your water pressure, ask for the help of a professional plumber.
• If there is risk of water hammer effect in your installation, always use a water hammer prevention equipment in

your installation. Consult Professional plumbers if you are not sure that there is no water hammer effect in your installation.

• Do not install on the hot water inlet. Take precautions against of the risk of freezing of the hoses. Water temperature operating interval shall be 33^ F ( 0.6^ C) minimum and 100^ F ( 38^ C) maximum.
  • Use drinking water only.

1.2. Intended use

• This product is designed for home use. It is not intended for commercial use.
• The product should be used to store food and beverages only.
• Do not keep sensitive products requiring controlled temperatures (vaccines, heat sensitive medication, medical supplies, etc.) in the refrigerator.
• The manufacturer assumes no responsibility for any damage due to misuse or mishandling.
• Original spare parts will be provided for 10 years, following the product purchasing date.

1.3. Child safety

• Keep packaging materials out of children's reach.
• Do not allow the children to play with the product.

- If the product's door comprises a lock, keep the key out of children's reach.

1.4. Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Pure electrical circuit lines without any symbols

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.5. Compliance with RoHS Directive

- This product complies with EU WEEE Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.6. Package information

- Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2. Your Refrigerator

1. Cooler compartment door shelf
2. Water dispenser filling tank
3. Egg section
4. Water dispenser reservoir
5. Bottle shelf
6. Sliding storage containers
7. Adjustable legs

8. Deep freezer compartment

9. Quick freeze compartment

10. Ice cube tray & Ice bank
11. Vegetable bin
12. Zero degree compartment
13. Interior light
14. Cooler compartment glass shelf
15. Temperature adjustment button
16. Cooler compartment
17. Freezer compartment

* optional: Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

3 Installation

3.1 Appropriate installation location

Contact an Authorized Service for the installation of the product. In order to prepare the product for use, refer the information in the user manual and ensure that electrical installation and water installation are appropriate. If not, call a qualified electrician and technician to have any necessary arrangements carried out.

	WARNING:Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
	WARNING: Product must not be plugged in during installation. Otherwise, there is the risk of death or serious injury!
	WARNING: If the door clearance of the room where the product shall be place is so tight to prevent passing of the product, remove the door of the room and pass the product through the door by turning it to its side; if this does not work, contact the authorized service.

• Place the product on an even floor surface to prevent jolts.

• Install the product at least 30 cm away from heat sources such as hobs, heater cores and stoves and at least 5 cm away from electrical ovens.

• Product must not be subjected to direct sun light and kept in humid places.

• Appropriate air ventilation must be provided around your product in order to achieve an efficient operation. If the product is to be placed in a recess in the wall, pay attention to leave at least 5 cm distance with the ceiling and side walls.
• Do not install the product in places where the temperature falls below -5°C.

3.2 Installing the plastic wedges

Plastic wedges supplied with the product are used to create the distance for the air circulation between the product and the rear wall.

1. To install the wedges, remove the screws on the product and use the screws supplied together with the wedges.
2. Insert the 2 plastic wedges onto the rear ventilation cover as illustrated in the figure.

3.3 Adjusting the feet

If the product stands unbalanced after installation, adjust the feet on the front by rotating them to the right or left.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional movement, no text or symbols present.

3.4 Electrical connection

	WARNING:Do not make connections via extension cables or multi-plugs.
	WARNING: Damaged power cable must be replaced by the Authorized Service Agent.
	If two coolers are to be installed side by side, there should be at least 4 cm distance between them.

• Our company shall not be liable for any damages that will arise when the product is used without grounding and electrical connection in accordance with the national regulations.
• Power cable plug must be within easy reach after installation.
• Do not extension cords or cordless multiple outlets between your product and the wall outlet.

Hot Surface Warning! Side walls of your product is equipped with refrigerant pipes to improve the cooling system. Refrigerant with high temperatures may flow through these areas, resulting in hot surfaces on the side walls. This is normal and does not need any servicing. Please pay attention while touching these areas.

3.5 Reversing the doors

Proceed in numerical order.

3.6 Reversing the doors

Proceed in numerical order.

4 Preparation

4.1 Things to be done for energy saving

Connecting the product to electronic energy-saving systems is harmful, as it may damage the product.

• Do not keep the refrigerator doors open for long periods.
• Do not place hot food or beverages into the refrigerator.
• Do not overfill the refrigerator; blocking the internal air flow will reduce cooling capacity.
• In order to store the maximum amount of food into the cooler compartment of your refrigerator, you should take out the upper drawers and place it onto the glass rack. The declared energy consumption of your refrigerator was determined by taking out the cooler, ice tray and upper drawers in a way that will enable maximum storage. Using the below drawer when storing is strongly recommended. Energy saving function should be activated for best energy consumption.

- You should not block the airflow by putting food in front of the cooler fan. A space of minimum 3cm must be left in front of the protective fan wire when placing food.

- Depending on the product's features; defrosting frozen foods in the cooler compartment will ensure energy saving and preserve food quality.

- Food should be stored using the drawers in the cooler compartment in order to ensure energy saving and protect food in better conditions.

- Food packages should not be in direct contact with the heat sensor located in the cooler compartment. If they are in contact with the sensor, energy consumption of the appliance might increase.

- Make sure the foods are not in contact with the cooler compartment temperature sensor described below.

Line drawing of a hand inserting a small rectangular object into a cabinet (no text or symbols)

4.2 Initial use

Before using your refrigerator, make sure the necessary preparations are made in line with the instructions in “Safety and environment instructions” and “Installation” sections.

- Keep the product running with no food inside for 6 and do not open the door, unless absolutely necessary.

A sound will be heard when the compressor is engaged. It is normal to hear sound even when the compressor is inactive, due to the compressed liquids and gasses in the cooling system.

Front edges of the product might heat up. This is normal. These areas are designed to warm up in order to prevent condensation.

In some models indicator panel turns off automatically 5 minutes after the door closes. It will be reactivated when the door is open or any button is pressed.

5 Operating the product

5.1 Temperature setting button

The interior temperature of your refrigerator changes for the following reasons;

• Seasonal temperatures,
- Frequent opening of the door and leaving the door open for long periods,
- Food put into the refrigerator without cooling down to the room temperature,
- The location of the refrigerator in the room (e.g. exposing to sunlight).
- You may adjust the varying interior temperature due to such reasons by using the setting button.

• The numbers around the control knob indicate the temperature values in “°C”.
• If the ambient temperature is 25^ C, we recommend you to use the temperature control knob of your refrigerator at 4^ C. This value may be increased or decreased as required in other ambient temperatures.

Line drawing of a hand holding a circular device with numbered parts (no text or symbols)

5.2 Fast freeze

If large amounts of fresh food are going to be frozen, adjust the temperature control knob to

( ) max. 24 hours before putting the fresh food in the fast freeze compartment.

It is strongly recommended to keep the knob at this position at least 24 hours to freeze maximum amount of fresh food declared as freezing capacity. Take special care not to mix frozen food and fresh food.

Remember to turn the temperature control knob back to its previous position once food has frozen.

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

5.3 Vacation function

If the doors of the product are not opened for 12 hours after the temperature control knob is switched to the hottest position, then the vacation function will be activated automatically.

Technical line drawing of a mechanical component with concentric rings and labeled features (no text or symbols)

To cancel the function, change the knob setting.

It is not recommended to store food in cooler compartment when the vacation function is active.

Simple concentric oval diagram with a small 'r' mark at the center (no text or symbols beyond the label)

- When the setting operation is completed, you may press the temperature control knob and have it hidden.

5.4 Indicator panel

Indicator panels may vary according to the product model.

Audio – visual functions on the indicator panel helps you in using your product.

1. Fridge Compartment Indicator
2. Error status indicator
3. Temperature indicator
4. Vacation function button
5. Temperature setting button
6. Compartment selection button
7. Freezer compartment indicator
8. Economy mode indicator
9. Vacation function indicator

*optional

Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

1. Fridge compartment indicator

Fridge compartment light is illuminated while the fridge compartment temperature is set.

2. Error status indicator

If your refrigerator does not perform enough cooling or in case of a sensor fault, this indicator is activated. When this indicator is activated, "E" is displayed on the freezer compartment temperature indicator, and numbers such as "1,2,3..." are displayed on the fridge compartment temperature indicator. These numbers on the indicator inform service personnel about the error.

3. Temperature indicator

Indicates freezer, fridge compartment temperature.

4. Vacation function button

Press on Vacation Button for 3 seconds to activate this function. When the vacation function is activated, “- -” is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep the food in the fridge compartment when this function is activated. Other compartments shall be continued to be cooled as per their set temperature.

To cancel this function press

Vacation button again.

5. Temperature setting button

Changes the temperature of the relevant compartment between -24^ ... -18^ and 8^ ... 1^ .

6. Compartment selection button

Selection button: Press compartment selection button to switch between fridge and freezer compartments.

7. Freezer compartment indicator

Fridge compartment light is illuminated while the freezer compartment temperature is set.

8. Economy mode indicator

Indicates that the refrigerator operates in energy saving mode. This display shall be activated if the freezer compartment temperature is set to -18^ .

1. Vacation function indicator Indicates that vacation is activated.

5.5 Indicator panel

Indicator panel allows you to set the temperature and control the other functions related to the product without opening the door of the product. Just press the inscriptions on relevant buttons for function settings.

1. Power failure/High temperature / error warning indicator

This indicator (☐) illuminates during power failure, high temperature failures and error warnings. During sustained power failures, the highest temperature that the freezer compartment reaches will flash on the digital display. After checking the food located in the freezer compartment (✗) press the alarm off button to clear the warning.

2. Energy saving function (display off)

If the product doors are kept closed for a long time energy saving function is automatically activated and energy saving symbol is illuminated. (✗)

When energy saving function is activated, all symbols on the display other than energy saving symbol will turn off. When the Energy Saving function is activated, if any button is pressed or the door is opened, energy saving function will be canceled and the symbols on display will return to normal.

Energy saving function is activated during delivery from factory and cannot be canceled.

3. Quick fridge function

The button has two functions. To activate or deactivate the quick cool function press it briefly. Quick

Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

Cool indicator will turn off and the product will return to its normal settings. [☐]

Use quick cooling function when you want to quickly cool the food placed in the fridge compartment. If you want to cool large amounts of fresh food, activate this function before putting the food into the product.

If you do not cancel it, quick cooling will cancel itself automatically after 8 hours or when the fridge compartment reaches to the required temperature.

If you press the quick cooling button repeatedly with short intervals, the electronic circuit protection will be activated and the compressor will not start up immediately.

This function is not recalled when power restores after a power failure.

4. Fridge compartment temperature setting button

Press this button to set the temperature of the fridge compartment to 8, 7,6, 5,4,3, 2, 8... respectively. Press this button to set the fridge compartment temperature to the desired value.

5. Vacation Function

In order to activate vacation function, press the this button ( ) for 3 seconds, and the vacation mode

indicator (*) will be activated. When the vacation function is activated, “- -” is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep the food in the fridge compartment when this function is activated. Other compartments shall be continued to be cooled as per their set temperature.

To cancel this function press

Vacation function button again.

6. Alarm off warning

In case of power failure/high temperature alarm, after checking the food located in the freezer compartment press the alarm off button (✗) to clear the warning.

7. Key lock

Press key lock button (3" simultaneously for 3 seconds. Key lock symbol

(⚠️ will light up and key lock mode will be activated. Buttons will not function if the Key lock mode is active. Press key lock button simultaneously for 3 seconds again. Key lock symbol will turn off and the key lock mode will be exited.

Press the key lock button if you want to prevent changing of the temperature setting of the refrigerator (83"

8. Eco fuzzy

Press and hold eco fuzzy button for 1 seconds to activate eco fuzzy function. Refrigerator will start operating in

the most economic mode at least 6 hours later and the economic usage indicator will turn on when the function is active ( ). Press and hold eco fuzzy function button for 3 seconds to deactivate eco fuzzy function.

This indicator is illuminated after 6 hours when eco fuzzy is activated.

9. Freezer compartment temperature setting button

Press this button to set the temperature of the freezer compartment to -18,-19,-20,-21, -22, -23,-24, -18... respectively. Press this button to set the freezer compartment temperature to the desired value.(☐)

10. Icematic off indicator

Indicates whether the icematic is on or off. On, then the icematic is not operating. To operate the icematic again press and hold the On-Off button for 3 seconds.

Water flow from water tank will stop when this function is selected. However, ice made previously can be taken from the icematic.

11. Quick freeze function button/icematic on-off button

Press this button to activate or deactivate the quick freezing function. When you activate the function, the freezer compartment will be cooled to a temperature lower than the set value. ( )

To turn on and off the icematic press and hold it for 3 seconds.

Use the quick freeze function when you want to quickly freeze the food placed in fridge compartment. If you want to freeze large amounts of fresh food, activate this function before putting the food into the product.

If you do not cancel it, Quick Freeze will cancel itself automatically after 4 hours or when the fridge compartment reaches to the required temperature.

This function is not recalled when power restores after a power failure.

12. Economic usage indicator

Indicates that the product is running in energy-efficient mode. (This indicator will be active if the Freezer Compartment temperature is set to -18 or the energy efficient cooling is being performed due to Eco-Extra function.

Economic usage indicator is turned off when quick cooling or quick freeze functions are selected.

5.6 Indicator panel

Indicator panel allows you to set the temperature and control the other functions related to the product without opening the door of the product. Just press the inscriptions on relevant buttons for function settings.

1. Economy

This symbol is illuminated when the freezer compartment is set to -18°C'ye as the most economical setting value (ECO). Economy indicator is turned off when quick cooling or quick freeze functions are selected.

2. Power failure/High temperature / error warning indicator

This indicator (A) illuminates during power failure, high temperature failures and error warnings. During sustained power failures, the highest temperature that the freezer compartment

reaches will flash on the digital display. After checking the food located in the freezer compartment (_) press the alarm off button to clear the warning.

3. Energy saving function (display off)

If the product doors are kept closed for a long time energy saving function is automatically activated and energy saving symbol is illuminated. When energy saving function is activated, all symbols on the display other than energy saving symbol will turn off. When the Energy Saving function is

Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

activated, if any button is pressed or the door is opened, energy saving function will be canceled and the symbols on display will return to normal.

4. Quick cool

Quick cooling indicator (※) is illuminated when quick cooling function is activated and fridge compartment temperature indicator value is displayed as 1. To cancel this function press Quick cooling button again. Quick cooling indicator will turn off and refrigerator will return to its normal settings. Quick cooling function is canceled automatically in 1 hour if you do not cancel it before. If you want to cool large amounts of fresh food, press the Quick cooling button before putting the food into the fridge compartment.

5. Vacation function

In order to activate vacation function, press the button no. (4) ( ) for 3 seconds, and the vacation mode indicator activates. When the vacation function is activated, “- -” is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep the food in the fridge compartment when this function is activated. Other compartments shall be continued to be cooled as per their set temperature. To cancel this function press Vacation function button again.

6. Fridge compartment temperature setting

When the button no. (5) is pressed, you may set the temperature of the fridge compartment to 8,7,6,5,4,3,2 and 1 respectively (☐).

7.1. Energy saving function (display off):

Energy saving symbol (☐) is illuminated and Energy saving function is activated when you press this button (☐). When energy saving function is activated, all symbols on the display other than energy saving symbol will turn off. When the Energy Saving function is activated, if any button is pressed or the door is opened, energy saving function will be canceled and the symbols on display will return to normal. Energy saving symbol is turned off and energy saving function is deactivated when you press this button (☐) again.

7.2. Alarm off warning:

In case of power failure/high temperature alarm, after checking the food located in the freezer compartment press the alarm off button to clear the warning.

8. Key lock

Press key lock button (83) simultaneously for 3 seconds. Key lock symbol (9) will light up and key lock mode will be activated. Buttons will not function if the Key lock mode is active. Press key lock button simultaneously for 3 seconds again. Key lock symbol will turn off and the key lock mode will be exited.

Press the key lock button if you want to prevent changing of the temperature setting of the refrigerator (3).

9. Eco fuzzy

Press and hold eco fuzzy button for 1 seconds to activate eco fuzzy function. Refrigerator will start operating in the most economic mode at least 6 hours later and the economic usage indicator will turn on when the function is active (e). Press and hold eco fuzzy function button for 3 seconds to deactivate eco fuzzy function.

This indicator is illuminated after 6 hours when eco fuzzy is activated.

10. Freezer compartment temperature setting

Temperature setting for freezer compartment is performed here. When button no. 9 is pressed, you may set the temperature of the freezer compartment to -18, -19, -20, -21, -22, -23 and -24 respectively.

11. Fast freeze

Press button no. (10) for fast freeze operation, quick freeze indicator

(❄️) shall be activated. Quick freeze indicator is illuminated when quick freeze function is activated and fridge compartment temperature indicator is displayed as -27. To cancel this function press quick freeze button (❄️) again.

Quick freeze indicator will turn off and refrigerator will return to its normal settings. Quick freeze function is canceled automatically in 24 hour if you do not cancel it before. If you want to freeze large amounts of fresh food, press the quick freeze button before putting the food into the freezer compartment.

5.7 Ice bucket

(This feature is optional)

• Take the ice bucket from the freezer compartment.
• Fill the ice bucket with water.
- Place the ice bucket into the freezer compartment.
- The ice will be ready after approximately two hours. Take the ice bucket from the freezer compartment and bend in sightly over the holder that you are going to serve. Ice will easily pour into the serving holder.

Technical line drawings of two electronic component enclosures (no text or symbols)

5.8 Egg holder

You can put the eggholder on the door or body rack of your choice. If you decide to put it on the body rack, it is recommended to prefer the shelves below as they are colder.

Do not put the eggholder into the freezer compartment.

5.9 Fan

Fan was designed to distribute circulate the cold air inside your refrigerator homogeneously. Operating time of the fan might vary depending the features of your product.

While in some products fan only operates with compressor, in others control system determines the operating time based on the need for cooling.

Line drawing of a simple room interior with a window and door (no text or symbols)

5.10 Vegetable bin

(This feature is optional)

- Product's vegetable bin is designed to keep vegetables fresh by preserving humidity. For this purpose, the overall cold air circulation is intensified in the vegetable bin.

5.11 Zero degree compartment

(This feature is optional)

Use this compartment to keep delicatessen at lower temperatures or meat products for immediate consumption. Zero degree compartment is the coolest place where foods such as dairy products, meat, fish and chicken can be stored in ideal storage conditions. Vegetables and/or fruits should not be stored in this compartment.

5.12 HerbBox/HerbFresh

Remove the film container from HerbBox/HerbFresh+

Take the film out of the bag and put it into the film container as shown in the image.

Seal the container again and replace it into HerbBox/HerbFresh+ unit.

HerbBox-HerbFresh+ sections are especially ideal for storage of various herbs that are supposed to be kept in delicate conditions. You can store your unbagged herbs (parsley, dill, etc.) in this section horizontally and keep them fresh for a much longer period.

The film shall be replaced in every six months.

Technical line drawings of mechanical components, including a rectangular housing, internal compartments, and a folded housing (no text or symbols present)

(This feature is optional)

Moving door rack can be fixed in 3 different positions.

In order to move the rack, push the buttons on the side evenly. Rack will be movable.

Move the rack up or down.

When the rack is in the position that you want, release the buttons. Rack will be fixed again in the position where you have released the buttons.

5.14 Sliding storage box

(This feature is optional)

This accessory has been designed to increase the usage volume of the door racks.

Thanks to its ability to move sideways, it enables you to easily place long bottle, jar or boxes that you put in the bottle rack below.

Diagram of a mechanical component with arrows indicating force or movement, no visible text or symbols

5.15 Moisture controlled vegetable bin

(This feature is optional)

With moisture control feature, moisture rates of vegetables and fruits are kept under control and ensures a longer freshness period for foods.

It is recommended to store leafed vegetables such as lettuce and spinach and similar vegetables prone to moisture loss not on their roots but in horizontal position into the vegetable bin as much as possible.

When placing the vegetables, place heavy and hard vegetables at the bottom and light and soft ones on the top, taking into account the specific weights of vegetables.

Do not leave vegetables in the vegetable bin in plastic bags.

Leaving them in plastic bags causes vegetables to rot in a short time. In situations where contact with other vegetables is not preferred, use packaging materials such as paper that has a certain porosity in terms of hygiene.

Do not put fruits that have a high ethylene gas production such as pear, apricot, peach and particularly apple in the same vegetable bin with other vegetables and fruits. The ethylene gas coming out of these fruits might cause other vegetables and fruits to mature faster and rot in a shorter period of time.

5.16 Automatic ice machine

(This feature is optional)

Automatic ice machine enables you to easily make ice in your refrigerator. In order to obtain ice from the ice machine, take out the water tank in the cooler compartment, fill it with water and fix it back.

First ice will be ready in about 2 hours in the ice machine drawer in the cooler compartment.

After placing the full water tank, you can obtain about 60-70 cubes of ice until it is fully empty.

If the water in the tank has waited for 2-3 weeks, it should be changed.

In products with automatic ice machine, you might hear a sound when pouring the ice. This sound is normal and is not a sign of failure.

Technical line drawing of a mechanical assembly with two arrows indicating direction (no text or symbols)

Line drawing of a hand pouring liquid into a container using a bag (no text or symbols)

5.17 Icematic and ice storage container

\*optional

Using the Icematic

Fill the Icematic with water and place it into its seat. Your ice will be ready approximately in two hours. Do not remove the Icematic from its seating to take ice.

Turn the knobs on the ice reservoirs clockwise by 90 degrees.

Ice cubes in the reservoirs will fall down into the ice storage container below.

You may take out the ice storage container and serve the ice cubes.

If you wish, you may keep the ice cubes in the ice storage container.

Ice storage container

Ice storage container is only intended for accumulating the ice cubes. Do not put water in it. Otherwise, it will break.

Illustration of a hand holding a button with two circular buttons above, against a striped background (no text or symbols)

5.18 Using the water dispenser

\*optional

It is normal for the first few glasses of water taken from the dispenser to be warm.

If the water dispenser is not used for a long period of time, dispose of first few glasses of water to obtain fresh water.

1. Push in the lever of the water dispenser with your glass. If you are using a soft plastic cup, pushing the lever with your hand will be easier.

2. After filling the cup up to the level you want, release the lever.

Please note, how much water flows from the dispenser depends on how far you depress the lever. As the level of water in your cup / glass rises, gently reduce the amount of pressure on the lever to avoid overflow. If you slightly press the arm, the water will drip; this is quite normal and not a failure.

Simple line drawing of a container with a submerged object inside (no text or symbols)

5.19 Filling the water dispenser's tank

Water tank filling reservoir is located inside the door rack.

1. Open the cover of the tank.
2. Fill the tank with fresh drinking water.
3. Close the cover.

Do not fill the water tank with any other liquid except for water such as fruit juices, carbonated beverages or alcoholic drinks which are not suitable to use in the water dispenser. Water dispenser will be irreparably damaged if these kinds of liquids are used. Warranty does not cover such usages. Some chemical substances and additives contained in these kinds of drinks/liquids may damage the water tank.

Use clean drinking water only.

Capacity of the water tank is 3 litres; do not overfill.

Line drawing of a wooden shelf with two compartments and a side shelf (no text or symbols)

Line drawing of a mechanical device with two arrows indicating direction (no text or symbols)

5.20 Cleaning the water tank

1. Remove the water filling reservoir inside the door rack.
2. Remove the door rack by holding from both sides.
3. Grab the water tank from both sides and remove it with an angle of 45^ C.
4. Remove the cover of the water tank and clean the tank.

Components of the water tank and water dispenser should not be washed in dishwasher.

Line drawing of a hand using a tool to lift a box, with an upward arrow and striped lines indicating motion (no text or symbols)

Illustration of hands operating a mechanical component with an upward arrow indicating motion (no text or symbols present)

Line drawing of a hand operating a mechanical device with a ruler and bracket (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

5.21 Drip tray

Water that dripped while using the water dispenser accumulates in the spillage tray.

Remove the plastic filter as shown in the figure.

With a clean and dry cloth, remove the water that has accumulated.

Line drawing of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols)

5.22 Freezing fresh food

• In order to preserve the quality of the food, it shall be frozen as quickly as possible when it is placed in the freezer compartment, use the fast freezing feature for this purpose.
• You may store the food longer in freezer compartment when you freeze them while they are fresh.
• Pack the food to be frozen and close the packing so that it would not allow entrance of air.
• Ensure that you pack your food before putting them in the freezer. Use freezer containers, foils and moisture-proof papers, plastic bags and other packing materials instead of traditional packing papers.

- Label each pack of food by adding the date before freezing. You may distinguish the freshness of each food pack in this way when you open your freezer each time. Store the food frozen before in the front side of compartment to ensure that they are used first.

The freezer compartment defrosts automatically.

• Frozen food must be used immediately after they are thawed and they should not be re-frozen.
• Do not freeze too large quantities of food at one time.

Freezer Compartment Setting	Fridge compartment Setting	Remarks
-18°C 4°C This is the normal recommended setting.
-20,-22 or -24°C	4°C	These settings are recommended when the ambient temperature exceeds 30°C.
Quick Freeze 4°C		Use when you wish to freeze your food in a short time. Your product will return to its previous mode when the process is over.
-18°C or colder 2°C		Use these settings if you think that your fridge compartment is not cold enough because of the hot ambient conditions or frequent opening and closing of the door.

5.23 Recommendations for preserving the frozen food

Compartment shall be set to -18^ at least.

1. Put packages in the freezer as quickly as possible after purchase without allowing the to thaw.
2. Check whether the "Use By" and "Best Before" dates on the packaging are expired or not before freezing it.
3. Ensure that the package of the food is not damaged.

5.24 Deep-freeze information

According to IEC 62552 standards, the product shall freeze at least 4.5 kg of food at 25^ C ambient temperature to -18^ C or lower within 24 hours for every 100-litres of freezer volume.

It is possible to preserve the food for a long time only at -18^ C or lower temperatures.

You can keep the freshness of food for many months (at -18^ C or lower temperatures in the deep freeze).

Foods to be frozen should not be allowed to come in contact with the previously frozen items to prevent them from getting thawed partially. Boil the vegetables and drain their water in order to store vegetables for a longer time as frozen. After draining their water, put them in air-proof packages and place them inside the freezer. Food such as bananas, tomatoes, lettuce, celery, boiled eggs, potatoes are not suitable for freezing. When these foods are frozen, only their nutritional value and taste shall be affected negatively. They shall not be spoiled so that they would create a risk for human health.

5.25 Placing the food

Freezer compartment shelves	Various frozen food such as meat, fish, ice cream, vegetables and etc.
Refrigerator compartment shelves	Food in pans, covered plates and closed containers, eggs (in closed container)
Door shelves of fridge compartment	Small and packaged food or beverage
Crisper	Vegetables and fruits
Fresh zone compartment	Delicatessen (breakfast food, meat products that shall be consumed in a short time)

5.26 Door open warning

(This feature is optional)

Door open warning is given to user both visually and acoustically. If the warning continues for 10 minutes, interior lights will be turned off.

5.27 Illumination lamp

LED lamps are used as illumination lamps. Contact authorized service in case of any problem with this type of light. The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way.

6. Maintenance and cleaning

Service life of the product extends and frequently faced problems decrease if cleaned at regular intervals.

WARNING: Unplug the product before cleaning it.

• Never use gasoline, benzene or similar substances for cleaning purposes.
• Never use any sharp and abrasive tools, soap, household cleaners, detergent and wax polish for cleaning.
• Dissolve one teaspoon of carbonate in half litre of water. Soak a cloth with the solution and wrung it thoroughly. Wipe the interior of the refrigerator with this cloth and the dry thoroughly.
• Make sure that no water enters the lamp housing and other electrical items.
• If you will not use the refrigerator for a long period of time, unplug it, remove all food inside, clean it and leave the door ajar.
• Check regularly that the door gaskets are clean. If not, clean them.
• To remove door and body shelves, remove all of its contents.
• Remove the door shelves by pulling them up. After cleaning, slide them from top to bottom to install.
• Never use cleaning agents or water that contain chlorine to

clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces

• Do not use sharp, abrasive tools, soap, household cleaning agents, detergents, kerosene, fuel oil, varnish etc. to prevent removal and deformation of the prints on the plastic part. Use lukewarm water and a soft cloth for cleaning and then wipe it dry.

6.1 Avoiding bad odours

Materials that may cause odour are not used in the production of our refrigerators. However, due to inappropriate food preserving conditions and not cleaning the inner surface of the refrigerator as required can bring forth the problem of odour. Pay attention to following to avoid this problem:

• Keeping the refrigerator clean is important. Food residuals, stains, etc. can cause odour. Therefore, clean the refrigerator with carbonate dissolved in water every 15 days. Never use detergents or soap.
• Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odours.
• Never keep the food that have expired best before dates and spoiled in the refrigerator.

6.2 Protecting the plastic surfaces

Do not put liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of the refrigerator. If oil is spilled or smeared onto the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

6.3 Door Glasses

Remove the protective foil on the glasses.

There is a coating on the surface of the glasses. This coating minimizes the stain build-up and helps to remove the possible stains and dirt easily. Glasses that are not protected with such a coating may be subject to persistent binding of air or water based organic or inorganic dirt such as limescale, mineral salts, unburned hydrocarbons, metal oxides and silicones that can easily and quickly cause stains or material damage. Keeping the glass clean becomes too difficult despite the regular cleaning. Consequently, the appearance and the transparency of the glass deteriorates. Harsh and corrosive cleaning methods and compounds will intensify these defects and speed up the deterioration process.

Water-based cleaning products that are not alkaline and corrosive must be used for regular cleaning purposes.

Non-alkaline and non-corrosive materials must be used for cleaning so that the service life of this coating lasts for a long time.

These glasses are tempered to increase their durability against impacts and breaking.

A safety film is also applied to their rear surfaces as an extra safety measure in order to prevent them from causing damage to their surrounding in case of a breakage.

*Alkali is a base that forms hydroxide ions (OH ^- ) when it is dissolved in water.

Li (Lithium), Na (Sodium), K (Potassium) Rb (Rubidium), Cs (Cesium) and artificial and radioactive Fr (Fan-sium) metals are called ALKALI METALS.

7. Troubleshooting

Check this list before contacting the service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product.

The refrigerator is not working.

• The power plug is not fully settled. >>> Plug it in to settle completely into the socket.
• The fuse connected to the socket powering the product or the main fuse is blown. >>> Check the fuses.

Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE).

• The door is opened too frequently >>> Take care not to open the product's door too frequently.
• The environment is too humid. >>> Do not install the product in humid environments.
• Foods containing liquids are kept in unsealed holders. >>> Keep the foods containing liquids in sealed holders.
• The product's door is left open. >>> Do not keep the product's door open for long periods.
• The thermostat is set to too low temperature. >>> Set the thermostat to appropriate temperature.

Compressor is not working.

- In case of sudden power failure or pulling the power plug off and putting back on, the gas pressure in the product's

cooling system is not balanced, which triggers the compressor thermic safeguard. The product will restart after approximately 6 minutes. If the product does not restart after this period, contact the service.

• Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is carried out periodically.
• The product is not plugged in. >>> Make sure the power cord is plugged in.
• The temperature setting is incorrect. >>> Select the appropriate temperature setting.
• The power is out. >>> The product will continue to operate normally once the power is restored.

The refrigerator's operating noise is increasing while in use.

- The product's operating performance may vary depending on the ambient temperature variations. This is normal and not a malfunction.

The refrigerator runs too often or for too long.

• The new product may be larger than the previous one. Larger products will run for longer periods.
• The room temperature may be high. >>> The product will normally run for long periods in higher room temperature.
• The product may have been recently plugged in or a new food item is placed inside. >>> The product will take longer to reach the set temperature when

recently plugged in or a new food item is placed inside. This is normal.

• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.
• The doors were opened frequently or kept open for long periods. >>> The warm air moving inside will cause the product to run longer. Do not open the doors too frequently.
• The freezer or cooler door may be ajar. >>> Check that the doors are fully closed.
• The product may be set to temperature too low. >>> Set the temperature to a higher degree and wait for the product to reach the adjusted temperature.
• The cooler or freezer door washer may be dirty, worn out, broken or not properly settled. >>> Clean or replace the washer. Damaged / torn door washer will cause the product to run for longer periods to preserve the current temperature.

The freezer temperature is very low, but the cooler temperature is adequate.

- The freezer compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The cooler temperature is very low, but the freezer temperature is adequate.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The food items kept in cooler compartment drawers are frozen.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The temperature in the cooler or the freezer is too high.

• The cooler compartment temperature is set to a very high degree. >>> Temperature setting of the cooler compartment has an effect on the temperature in the freezer compartment. Wait until the temperature of relevant parts reach the sufficient level by changing the temperature of cooler or freezer compartments.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently.
• The door may be ajar. >>> Fully close the door.
• The product may have been recently plugged in or a new food item is placed inside. >>> This is normal. The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.

Shaking or noise.

- The ground is not level or durable. >>> If the product is shaking when moved slowly, adjust the stands to balance the product. Also make sure the ground is sufficiently durable to bear the product.

- Any items placed on the product may cause noise. >>> Remove any items placed on the product.

The product is making noise of liquid flowing, spraying etc.

- The product's operating principles involve liquid and gas flows. >>> This is normal and not a malfunction.

There is sound of wind blowing coming from the product.

- The product uses a fan for the cooling process. This is normal and not a malfunction.

There is condensation on the product's internal walls.

• Hot or humid weather will increase icing and condensation. This is normal and not a malfunction.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently; if open, close the door.
• The door may be ajar. >>> Fully close the door.

There is condensation on the product's exterior or between the doors.

- The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation will dissipate when the humidity is reduced.

The interior smells bad.

• The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and carbonated water.
• Certain holders and packaging materials may cause odour.

  Use holders and packaging materials without free of odour.

- The foods were placed in unsealed holders. >>> Keep the foods in sealed holders. Micro-organisms may spread out of unsealed food items and cause malodour. Remove any expired or spoilt foods from the product.

The door is not closing.

• Food packages may be blocking the door. >>> Relocate any items blocking the doors.
• The product is not standing in full upright position on the ground. >>> Adjust the stands to balance the product.
• The ground is not level or durable. >>> Make sure the ground is level and sufficiently durable to bear the product.

The vegetable bin is jammed.

- The food items may be in contact with the upper section of the drawer. >>> Reorganize the food items in the drawer.

If The Surface Of The Product Is Hot.

- High temperatures may be observed between the two doors, on the side panels and at the rear grill while the product is operating. This is normal and does not require service maintenance! Be careful when touching these areas.

WARNING:

If the problem persists after following the instructions in this section, contact your vendor or an Authorised Service. Do not try to repair the product.

Notes

Notes
