Product Type	Freestanding Refrigerator-Freezer
Brand	Grundig
Model	GSBS13320FX
Total Net Capacity	330 L
Refrigerator Capacity	230 L
Freezer Capacity	100 L
Energy Class	E
Annual Energy Consumption	260 kWh
Noise Level	40 dB(A)
Climate Class	SN-ST
Dimensions (H x W x D)	1850 x 700 x 650 mm
Weight	72 kg
Power Supply	220-240 V, 50/60 Hz
Cooling Technology	No Frost (Frost-Free)
Control Type	Electronic Touch
Interior Lighting	LED
Shelves Material	Safety Glass
Door Hinge	Right, Reversible
Defrosting	Automatic (Fridge), Manual (Freezer)
Adjustable Feet	Yes, Front
Coolant	R600a
Care Instructions	Clean with mild soap and soft cloth
Spare Parts Availability	Contact Grundig Service

Frequently Asked Questions - GSBS13320FX GRUNDIG

How do I adjust the temperature on my Grundig GSBS13320FX fridge?

Use the electronic control panel inside the fridge compartment. Press the '+' or '-' buttons to set the desired temperature for both fridge and freezer. Typical settings: fridge 4°C, freezer -18°C.

Why is my fridge making unusual noises?

Normal operating sounds include compressor humming, gas flow hissing, or ice cracking. If noise is excessive, check if the fridge is level and not touching walls. If persists, contact service.

How often should I defrost the freezer?

This model features automatic defrost in the fridge and manual defrost in the freezer. Defrost the freezer when ice build-up exceeds 3-5 mm for optimal efficiency.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual: remove hinges, swap door handles, and reattach hinges on the opposite side. Be careful with water line if present.

What should I do if the display shows an error code?

Refer to the user manual for specific error codes. Common codes like E1 or E2 indicate sensor issues. Try resetting the appliance by unplugging for 10 minutes. If persists, call Grundig support.

Why is there water pooling inside the fridge?

Check if the drain hole at the back is blocked. Clean it with a pipe cleaner or soft brush. Also ensure the door seals are clean and closing properly.

How do I change the interior LED light bulb?

The LED lighting is integrated and not user-replaceable. If it fails, contact an authorized Grundig technician for replacement.

What is the recommended temperature for the freezer?

Set the freezer to -18°C or colder for safe long-term storage. Use the control panel to adjust; a lower temperature may increase energy consumption.

How do I clean the No Frost system?

The No Frost system requires no cleaning. However, periodically vacuum the condenser coils at the back (if accessible) to maintain efficiency.

Where can I find spare parts or the user manual?

Visit Grundig's official website or contact their service center. The user manual is available for free download on notice-facile.com in PDF format.

USER MANUAL GSBS13320FX GRUNDIG

Simple line drawing of a pear and a carrot (no text or symbols)

GSBS13320FX-GSBS 11130 X

Contents

1. Safety and environment instructions 3

2. Your Freezer 7

3. Installation 8

3.1 Right place for installation.....8
3.2 Attaching the plastic wedges .8
3.3 Adjusting the stands......8
3.4 Power connection....9
3.5 Water connection ..... 9
3.6 Connecting water hose to the product....10
3.7 Connecting to water mains ..10

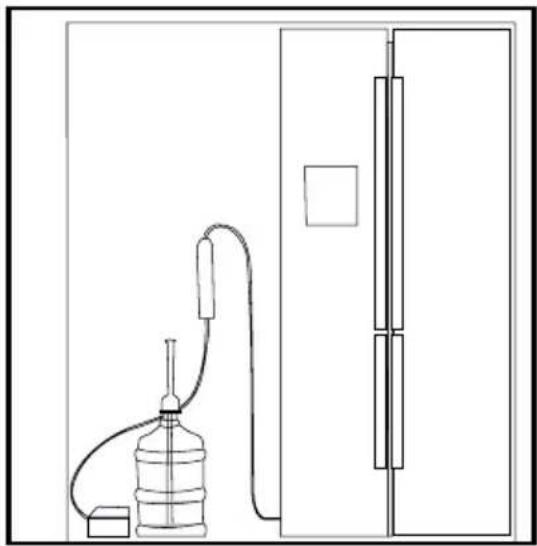

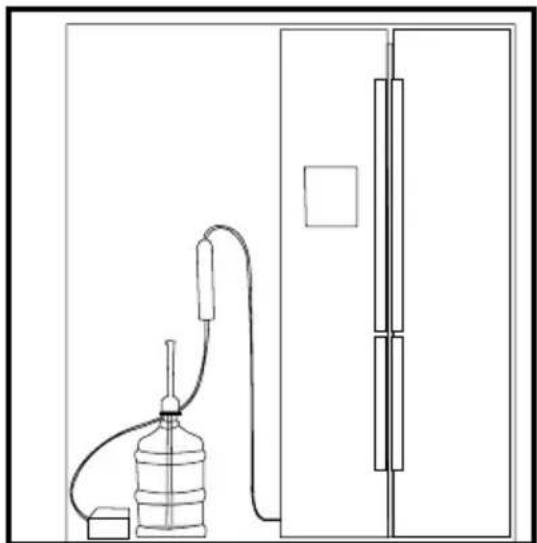

3.8. For products using water carboy ....11
3.9 Water filter....12

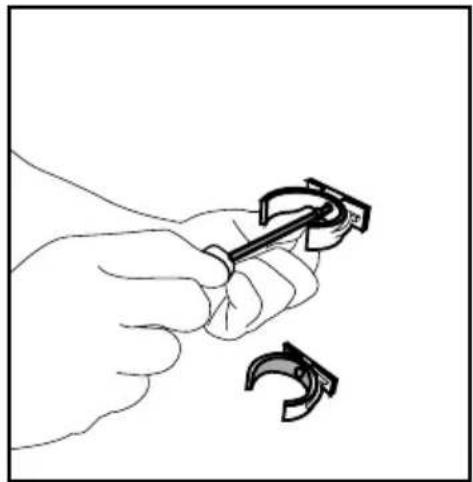

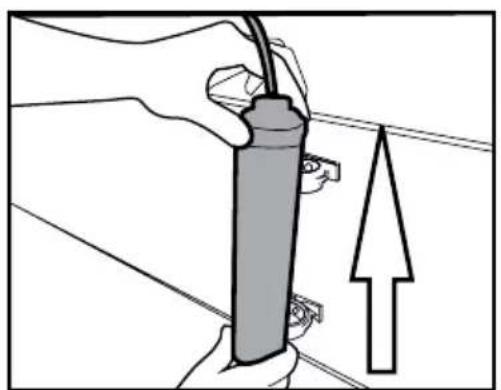

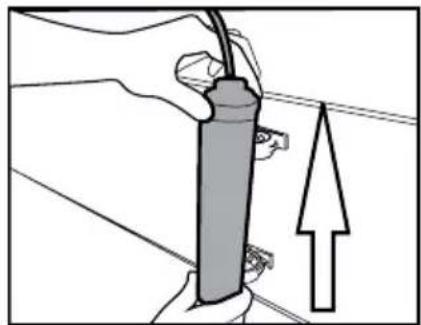

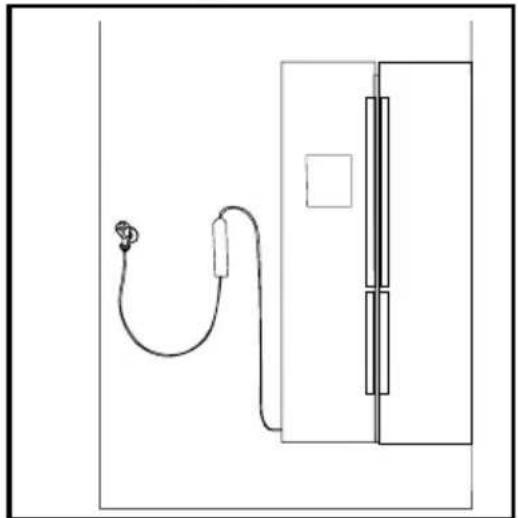

3.9.1.Fixing external filter on the wall (Optional)....12

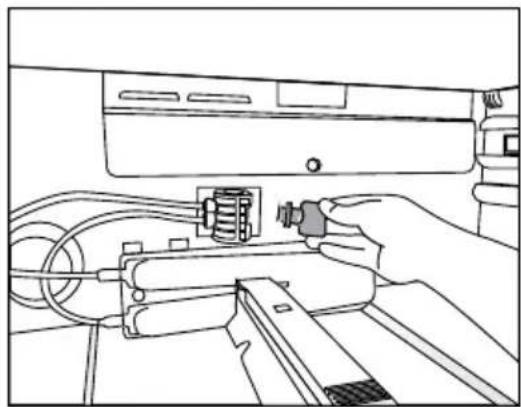

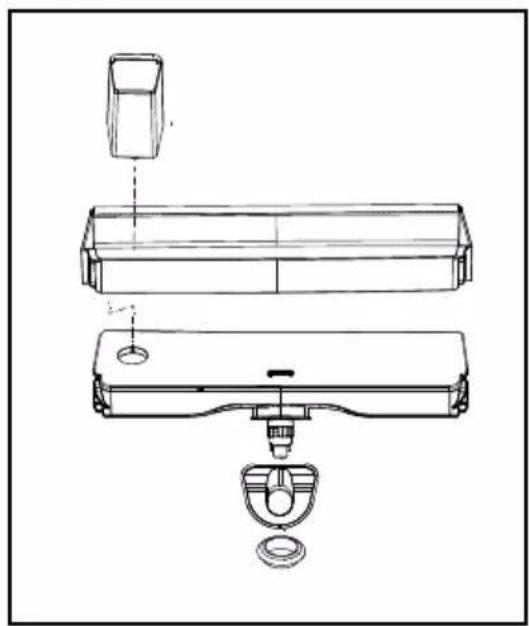

3.9.2. Internal filter....14

4. Preparation 16

4.1 What to do for energy saving....16
4.2 First Use....16

5. Operating the product 18

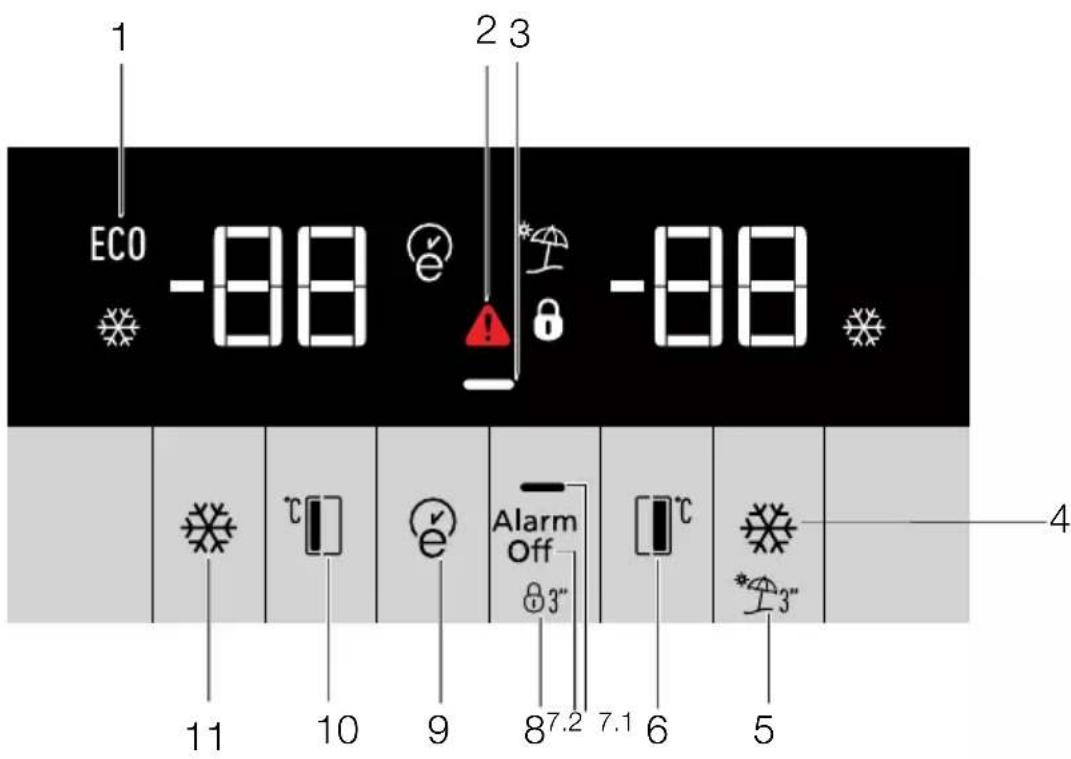

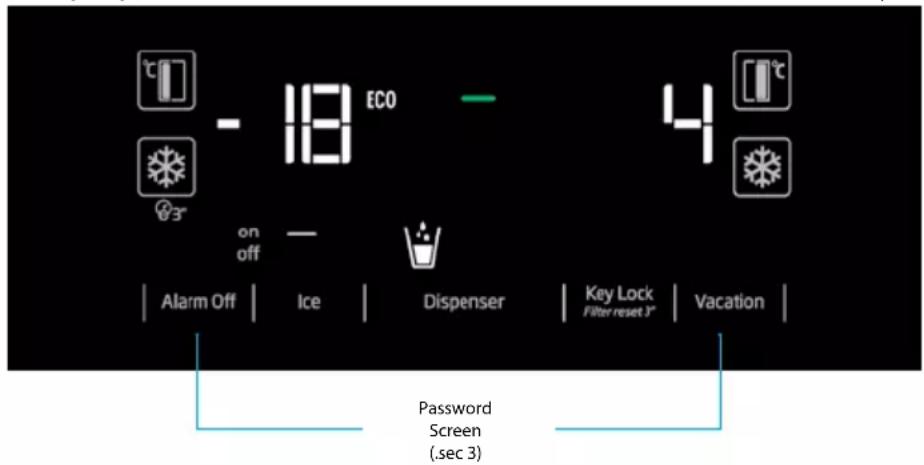

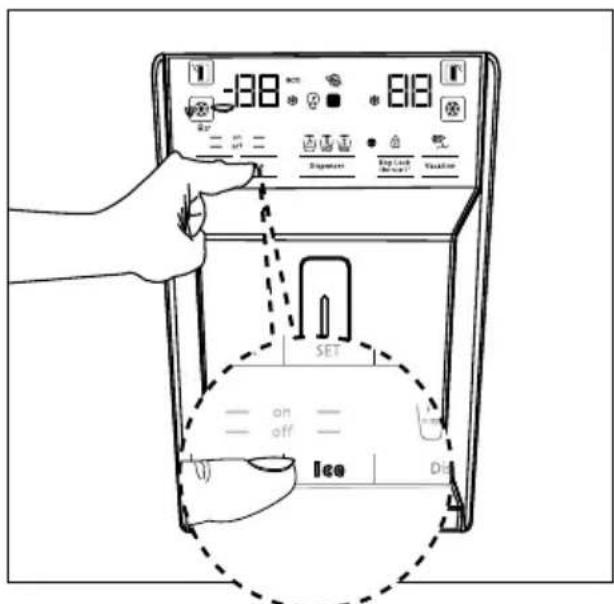

5.1 Indicator panel......18

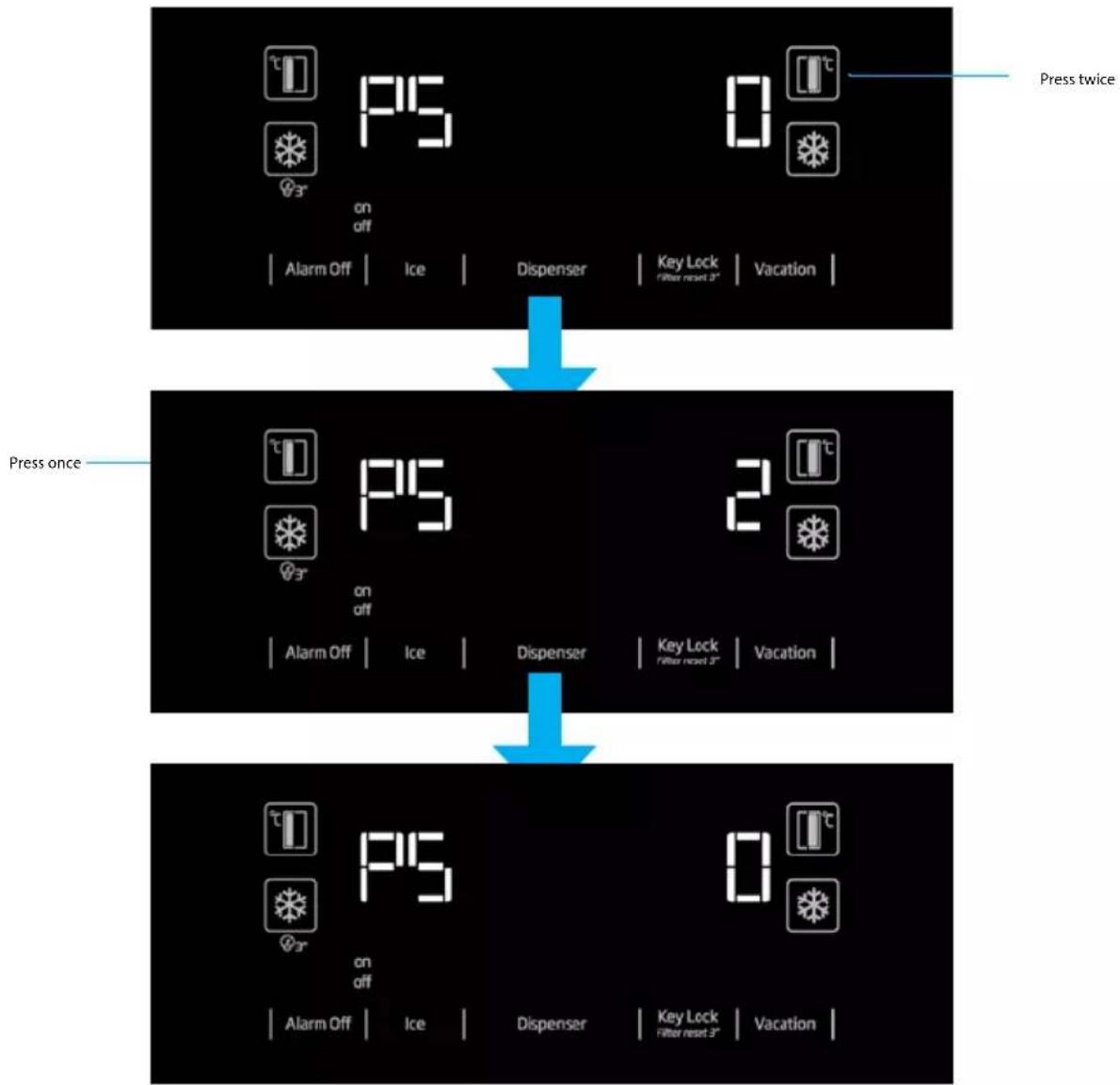

5.2 Activating water filter change warning 26
5.3 Humidity controlled crisper .28
5.4 Using the water fountain ..... 29
5.5 Filling the fountain water tank....29
5.6 Cleaning the water tank .....30

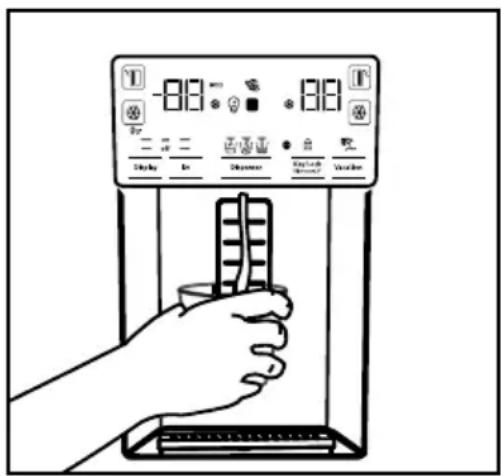

5.7 Taking ice / water .....31
5.8 Drip tray 32
5.9 Zero degree compartment...32
5.10 Vegetable bin ....32
5.11 Blue light....32
5.12 Ionizer ....33
5.13 Minibar 33
5.14 Odour filter 33
5.15 Icematic and ice storage box ....33
5.16 Ice-maker 34
5.17 Freezing fresh food......36
5.18 Deep freezer details .....36
5.19 Placing the food 37
5.20 Door open alert ....38
5.21 Interior light 38

6. Maintenance and cleaning 39

6.1 Avoiding bad odours .....39
6.2 Protecting the plastic surfaces ....39

1. Troubleshooting 40

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

The user manual will help you use the product in a fast and safe way.

Will help you use your appliance in a fast and safe way.

Read the manual before installing and operating your product.

Follow the instructions, especially those for safety.

Keep the manual in an easily accessible place as you may need it later.

Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

	Important information or useful usage tips.
	Warning against dangerous conditions for life and property.
	Warning against electric voltage.
	Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

1. Safety and environment instructions

This section provides the safety instructions necessary to prevent the risk of injury and material damage. Failure to observe these instructions will invalidate all types of product warranty.

Intended use

	WARNING:Keep ventilation openings, in the appliance enclosure or in the built-instructure, clear of obstruction.
	WARNING:Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
	WARNING:Do not damage the refrigerant circuit.
	WARNING:Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

This appliance is intended to be used in household and similar applications such as – staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; - catering and similar non-retail applications.

1.1. General safety

- This product should not be used by persons with physical, sensory and mental disabilities, without sufficient knowledge and experience or by children. The device can only be used by such persons under supervision and instruction of a person responsible for their safety. Children should not be allowed to play with this device.

• In case of malfunction, unplug the device.
• After unplugging, wait at least 5 minutes before plugging in again.
- Unplug the product when not in use.
- Do not touch the plug with wet hands! Do not pull the cable to plug off, always hold the plug.
- Do not plug in the refrigerator if the socket is loose.
- Unplug the product during installation, maintenance, cleaning and repair.
- If the product will not be used for a while, unplug the product and remove any food inside.

- Do not use the product when the compartment with circuit cards located on the upper back part of the product (electrical card box cover) (1) is open.

Simple line drawing of a rectangular frame with a small circular cutout labeled '1' and a small letter 'a' inside (no text or symbols beyond labels)

Simple line drawing of a rectangular structure with a central platform and an arrow pointing to it (no text or symbols)

• Do not use steam or steamed cleaning materials for
  cleaning the refrigerator and melting the ice inside. Steam may contact the electrified areas and cause short circuit or electric shock!
• Do not wash the product by spraying or pouring water on it! Danger of electric shock!
• In case of malfunction, do not use the product, as it may cause electric shock. Contact the authorised service before doing anything.
• Plug the product into an earthed socket. Earthing must be done by a qualified electrician.

• If the product has LED type lighting, contact the authorised service for replacing or in case of any problem.

• Do not touch frozen food with wet hands! It may adhere to your hands!

• Do not place liquids in bottles and cans into the freezer compartment. They may explode.
• Place liquids in upright position after tightly closing the lid.
• Do not spray flammable substances near the product, as it may burn or explode.
• Do not keep flammable materials and products with flammable gas (sprays, etc.) in the refrigerator.
• Do not place containers holding liquids on top of the product. Splashing water on an electrified part may cause electric shock and risk of fire.
• Exposing the product to rain, snow, sunlight and wind will cause electrical danger. When relocating the product, do not pull by holding the door handle. The handle may come off.
  • Take care to avoid trapping any part of your hands or body in any of the moving parts inside the product.
• Do not step or lean on the door, drawers and similar parts of the refrigerator. This will cause the product to fall down and cause damage to the parts.
  • Take care not to trap the power cable.

Diagram showing a lightning bolt striking a wall-mounted device with a cable and cable attachment (no text or symbols)

1.1.1 HC warning

If the product comprises a cooling system using R600a gas, take care to avoid damaging the cooling system and its pipe while using and moving the product. This gas is flammable. If the cooling system is damaged, keep the product away from sources of fire and ventilate the room immediately.

The label on the inner left side indicates the type of gas used in the product.

1.1.2 For models with water dispenser

• Pressure for cold water inlet shall be maximum 90 psi (620 kPa). If your water pressure exceeds 80 psi (550 kPa), use a pressure limiting valve in your mains system. If you do not know how to check your water pressure, ask for the help of a professional plumber.
• If there is risk of water hammer effect in your installation, always use a water hammer prevention equipment in

your installation. Consult Professional plumbers if you are not sure that there is no water hammer effect in your installation.

• Do not install on the hot water inlet. Take precautions against of the risk of freezing of the hoses. Water temperature operating interval shall be 33^ F ( 0.6^ C) minimum and 100^ F ( 38^ C) maximum.
  • Use drinking water only.

1.2. Intended use

• This product is designed for home use. It is not intended for commercial use.
• The product should be used to store food and beverages only.
• Do not keep sensitive products requiring controlled temperatures (vaccines, heat sensitive medication, medical supplies, etc.) in the refrigerator.
• The manufacturer assumes no responsibility for any damage due to misuse or mishandling.
• Original spare parts will be provided for 10 years, following the product purchasing date.

1.3. Child safety

- Keep packaging materials out of children's reach.

• Do not allow the children to play with the product.
• If the product's door comprises a lock, keep the key out of children's reach.

1.4. Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Pure electrical circuit lines without any symbols

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.5. Compliance with RoHS Directive

- This product complies with EU WEEE Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.6. Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

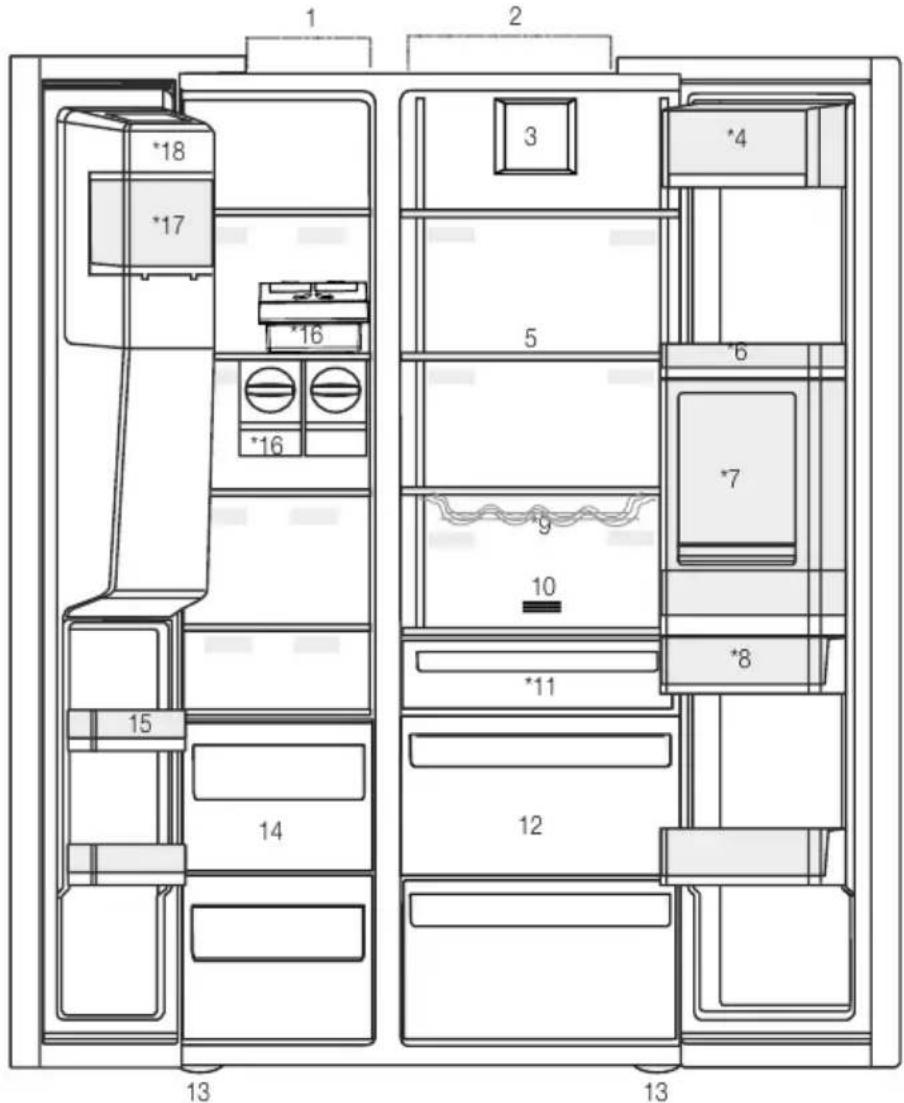

2. Your Freezer

1. Freezer compartment
2. Cooler compartment
3. Fan
4. Butter-cheese compartment
5. Glass shelves
6. Cooler compartment door shelves
7. Minibar accessory
8. Water tank
9. Bottle shelf
10. Odour filter

11. Zero degree compartment

12. Vegetable bins

13. Adjustable stands
14. Frozen food storing compartments
15. Freezer compartment door shelves
16. Icematics
17. Ice storage box
18. Ice-maker decorative lid *Optional

Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

3. Installation

3.1 Right place for installation

Contact the Authorized Service for the product's installation. To ready the product for installation, see the information in the user guide and make sure the electric and water utilities are as required. If not, call an electrician and plumber to arrange the utilities as necessary.

	WARNING: The manufacturer assumes no responsibility for any damage caused by the work carried out by unauthorized persons.
	WARNING: The product's power cable must be unplugged during installation. Failure to do so may result in death or serious injuries!
	WARNING: If the door span is too narrow for the product to pass, remove the door and turn the product sideways; if this does not work, contact the authorized service.

3.2 Attaching the plastic wedges

Use the plastic wedges in the provided with the product to provide sufficient space for air circulation between the product and the wall.

1. To attach the wedges, remove the screws on the product and use the screws provided with the wedges.

Line drawing of a hand inserting a screwdriver into a device panel (no text or symbols)

1. Attach 2 plastic wedges on the ventilation cover shown as j in the figure.

Line drawing of a hand using a screwdriver to adjust or install a device panel (no text or symbols visible)

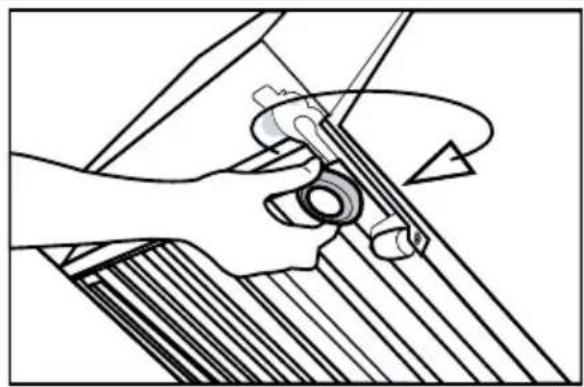

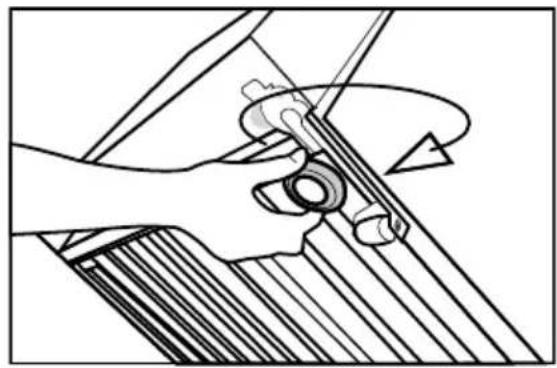

3.3 Adjusting the stands

If the product is not in balanced position, adjust the front adjustable stands by rotating right or left.

Simple line drawing of a two-decker cabinet with two doors and two wheels (no text or symbols)

Mechanical diagram showing a hand operating a tool with a rotating arrow (no text or symbols)

3.4 Power connection

	WARNING: Do not use extension or multi sockets in power connection.
	WARNING: Damaged power cable must be replaced by Authorized Service.
	When placing two coolers in adjacent position, leave at least 4 cm distance between the two units.

• Our firm will not assume responsibility for any damages due to usage without earthing and power connection in compliance with national regulations.
• The power cable plug must be easily accessible after installation.

- Do not use multi-group plug with or without extension cable between the wall socket and the refrigerator.

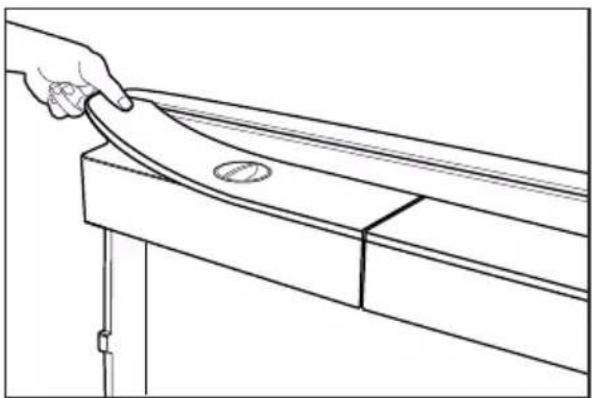

3.5 Water connection

(Optional)

WARNING: Unplug the product and the water pump (if available) during connection.

The product's water mains, filter and carboy connections must be rendered by authorizer service. The product can be connected to a carboy or directly to the water mains, depending on the model. To establish the connection, the water hose must first be connected to the product.

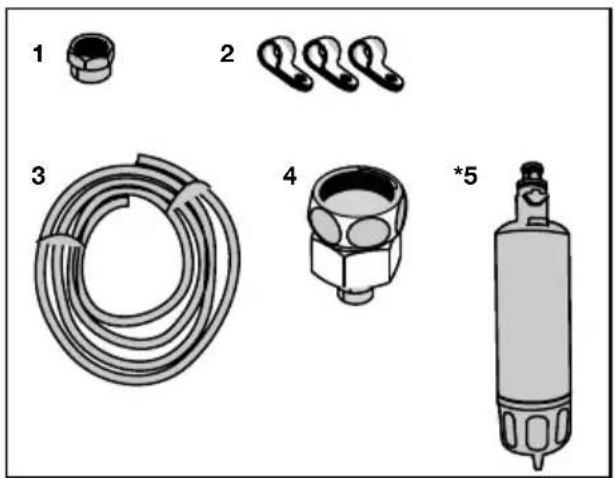

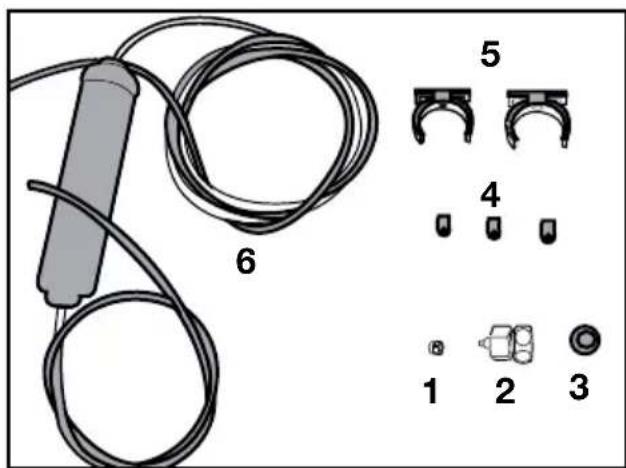

Check to see the following parts are supplied with your product's model:

1. Connector (1 piece): Used to attach the water hose to the rear of the product.

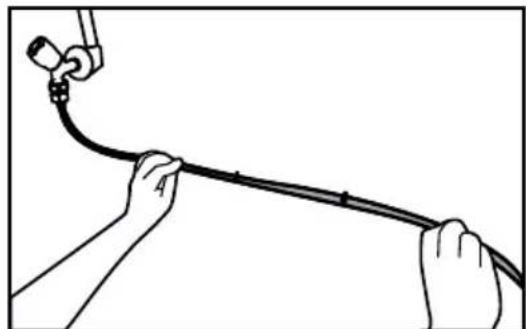

2. Hose clip (3 pieces): Used to fix the water hose on the wall.
3. Water hose (1 piece, 5 meter diameter 1/4 inches): Used for the water connection.

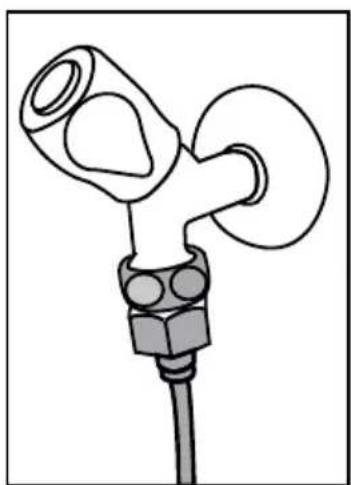

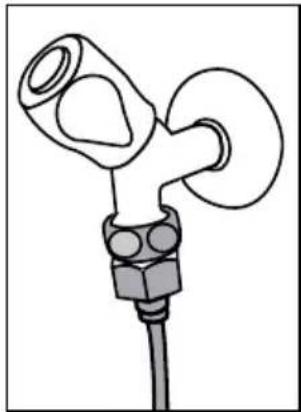

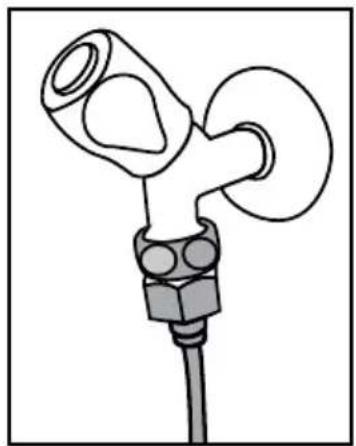

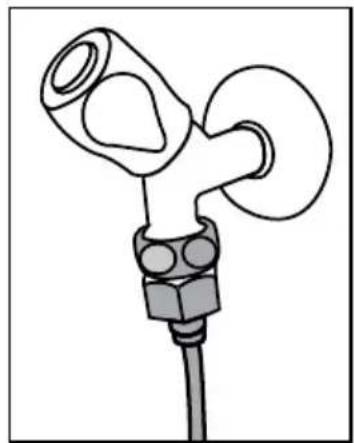

4. Faucet adapter (1 piece): Comprises a porous filter, used for connection to the cold water mains.
5. Water filter (1 piece *Optional): Used to connect the mains water to the product. Water filter is not required if carboy connection is available.

3.6 Connecting water hose to the product

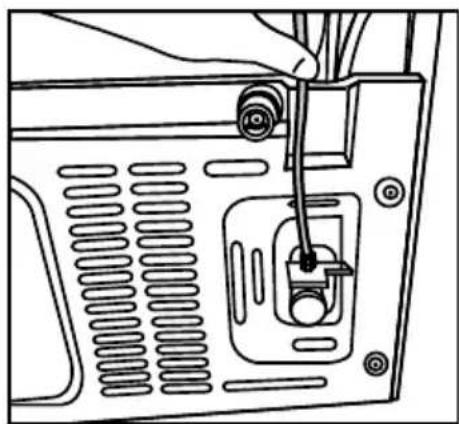

To connect the water hose to the product, follow the instructions below.

1. Remove the connector on the hose nozzle adaptor in the back of the product and run the hose through the connector.
2. Push the water hose down tightly and connect to the hose nozzle adaptor.

Hand inserting a small component into a device panel (no text or symbols visible)

Illustration of a hand holding a small object, possibly a tool or component, with no visible text or symbols.

1. Tighten the connector manually to fix on the hose nozzle adaptor. You may also tighten the connector using a pipe wrench or pliers.

Line drawing of a computer monitor rear panel with ventilation slots and a cable inserted (no text or symbols)

1. Connect the other end of the hose to the water mains (See Section 3.7) or, to use carboy, to the water pump (See Section 3.8).

Line drawing of a hand adjusting a mechanical component with no visible text or symbols

3.7 Connecting to water mains

(Optional)

To use the product by connecting to the cold water mains, a standard 1/2" valve connector must be installed to the cold water mains in your home. If the connector is not available or if you are unsure, consult a qualified plumber.

1. Detach the connector (1) from the faucet adaptor (2).

Three mechanical components labeled 1, 2, and 3, shown in grayscale without any text or symbols.

1. Connect the faucet adaptor to the water mains valve.

Simple line drawing of a mechanical device with no text or symbols

1. Attach the connector around the water hose.

Line drawing of a hand holding a small object near a vertical line (no text or symbols)

1. Attach the connector into the faucet adaptor and tighten by hand / tool.

Simple line drawing of a mechanical component with no text or symbols

1. To avoid damaging, shifting or accidentally disconnecting the hose, use the clips provided to fix the water hose appropriately.

Illustration of hands holding a cable with a connector attached (no text or symbols)

WARNING: After turning the faucet on, make sure there is no water leak on either end of the water hose. In case of leakage, turn the valve off and tighten all connections using a pipe wrench or pliers.

3.8. For products using water carboy

(Optional)

To use a carboy for the product's water connection, the water pump recommended by the authorized service must be used.

1. Connect one end of the water hose provided with the pump to the product (see 3.6) and follow the instructions below.

Line drawing of a hand inserting a cable into a device panel (no text or symbols)

1. Connect the other end of the water hose to the water pump by pushing the hose into the pump's hose inlet.

Illustration of a hand holding a cable connected to a tablet device (no text or symbols visible)

1. Place and fasten the pump hose inside the carboy.

Line drawing of a gas cylinder connected to a valve and tubing (no text or symbols)

1. Once the connection is established, plug in and start the water pump.

	Please wait 2-3 minutes after starting the pump to achieve the desired efficiency.
	See also the pump's user guide for water connection.
	When using carboy, water filter is not required.

3.9 Water filter

(Optional)

The product may have internal or external filter, depending on the model. To attach the water filter, follow the instructions below.

3.9.1.Fixing external filter on the wall (Optional)

WARNING: Do not fix the filter on the product.

Check to see the following parts are supplied with your product's model:

1. Connector (1 piece): Used to attach the water hose to the rear of the product.
2. Faucet adapter (1 piece): Used for connection to the cold water mains.
3. Porous filter (1 piece)
4. Hose clip (3 pieces): Used to fix the water hose on the wall.
5. Filter connecting apparatus (2 pieces): Used to fix the filter on the wall.
6. Water filter (1 piece): Used to connect the product to the water mains. Water filter is not necessary when using carboy connection.
7. Connect the faucet adaptor to the water mains valve.
8. Determine the location to fix the external filter. Fix the filter's connecting apparatus (5) on the wall.
9. Attach the filter in upright position on the filter connecting apparatus, as indicated on the label. (6)

Pure mechanical component diagram without any text, numbers, or symbols

1. Attach the water hose extending from the top of the filter to the product's water connection adaptor, (see 3.6.)

Line drawing of a hand holding a tool with a hook, no text or symbols present

After the connection is established, it should look like the figure below.

Illustration of a hand holding a cylindrical device with wires, next to an upward arrow (no text or symbols)

Simple line drawing of a door with an arrow pointing to the side panel (no text or symbols)

3.9.2. Internal filter

The internal filter provided with the product is not installed upon delivery; please follow the instructions below to install the filter.

Line drawing of a hand inserting a cable into a device panel (no text or symbols)

Water line:

Simple line drawing of a device with a cable and connector, next to a door (no text or symbols)

Carboy line:

Line drawing of a water pump connected to a vertical panel, no text or symbols present

1. "Ice Off" indicator must be active while installing the filter. Switch the ON-OFF indicator using the "Ice" button on the screen.

1. Remove the vegetable bin (a) to access the water filter.

Architectural floor plan of a refrigerator with labeled storage compartments (no text or symbols beyond label 'a')

1. Remove the water filter bypass cover by pulling.

A few drops of water may flow out after removing the cover; this is normal.

Line drawing of a hand operating a device with cables and a switch (no text or symbols)

1. Place the water filter cover into the mechanism and push to lock in place.

Line drawing of a hand inserting a USB into a device (no text or symbols visible)

1. Push the "Ice" button on the screen again to cancel the "Ice Off" mode.

	The water filter will clear certain foreign particles in the water. It will not clear the microorganisms in the water.
	See section 5.2 for activating the filter replacing period.

4. Preparation

4.1 What to do for energy saving

Connecting the product to electric energy saving systems is risky as it may cause damage on the product.

• Do not keep the refrigerator doors open for long periods.
• Do not place hot food or beverages into the refrigerator.
• Do not overfill the refrigerator; blocking the internal air flow will reduce cooling capacity.
• The energy consumption value specified for the refrigerator was measured with the freezer compartment's upper shelf removed, other shelves and the lowest drawers in place and under maximum load. The top glass shelf can be used, depending on the shape and size of food to be frozen.
• Depending on the product's features; defrosting frozen foods in the cooler compartment will ensure energy saving and preserve food quality.

• Since hot and humid air will not directly penetrate into your product when the doors are not opened, your product will optimize itself in conditions sufficient to protect your food. Functions and components such as compressor, fan, heater, defrost, lighting, display and so on will operate according to the needs to consume minimum energy under these circumstances.

• The baskets/drawers that are provided with the chill compartment must always be in use for low energy consumption and for better storage conditions.

• Food contact with the temperature sensor in the freezer compartment may increase energy consumption of the appliance. Thus any contact with the sensor(s) must be avoided.

Line drawing of a hand inserting a small card into a cabinet (no text or symbols)

- Make sure the foods are not in contact with the cooler compartment temperature sensor described below.

4.2 First Use

Before using your refrigerator, make sure the necessary preparations are made in line with the instructions in “Safety and environment instructions” and “Installation” sections.

- Keep the product running with no food inside for 6 and do not open the door, unless absolutely necessary.

i	A sound will be heard when the compressor is engaged. It is normal to hear sound even when the compressor is inactive, due to the compressed liquids and gasses in the cooling system.
i	It is normal for the front edges of the refrigerator to be warm. These areas are designed to warm up in order to prevent condensation.

In some models, the instrument panel automatically turns off 5 minutes after the door has closed. It will be reactivated when the door has opened or pressed on any key.

5. Operating the product

5.1 Indicator panel

Indicator panels may vary depending on the model of your product. Audial and visual functions of the indicator panel will assist in using the refrigerator.

1. Cooler compartment indicator
2. Error status indicator
3. Temperature indicator
4. Vacation function button
5. Temperature adjustment button
6. Compartment selection button
7. Cooler compartment indicator
8. Economy mode indicator
9. Vacation function indicator

*optional

Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

1. Cooler compartment indicator

The cooler compartment light will turn on when adjusting the cooler compartment temperature.

2. Error status indicator

This sensor will activate if the refrigerator is not cooling adequately or in case of sensor fault. When this indicator is active, the freezer compartment temperature indicator will display "E" and the cooler compartment temperature indicator will display "1, 2, 3..." etc. numbers. The numbers on the indicator serve to inform the service personnel about the fault.

3. Temperature indicator

Indicates the temperature of the freezer and cooler compartments.

4. Vacation function button

To activate this function, press and hold the Vacation button for 3 seconds. When the Vacation function is active, the cooler compartment temperature indicator displays the inscription "- - " and no cooling process will be active in the cooling compartment. This function is not suitable to keep food in the cooler compartment. Other compartments will remain cooled with the respective temperature set for each compartment.

Push the Vacation button ( ^28 ) again to cancel this function.

5. Temperature adjustment button

Respective compartment's temperature varies in -24°C.....-18°C and 8°C...1°C ranges.

6. Compartment selection button

Use the refrigerator compartment selection button to toggle between the cooler and freezer compartments.

7. Cooler compartment indicator

The freezer compartment light will turn on when adjusting the cooler compartment temperature.

8. Economy mode indicator

Indicates the refrigerator is running on energy-saving mode. This indicator will be active when the temperature in the freezer compartment is set to -18^ C.

9. Vacation function indicator

Indicates the vacation function is active.

1. Economic use
2. High temperature / fault alert
3. Energy saving function (display off)
4. Rapid cooling
5. Vacation function
6. Cooler compartment temperature setting
7. Energy saving (display off) / Alarm off warning
8. Keypad lock
9. Eco-fuzzy
10. Freezer compartment temperature setting
11. Rapid freezing

Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

1. Economic use

This sign will light up when the freezer compartment is set to -18^' , the most economical setting. (ECO) Economic use indicator will turn off when rapid cooling or rapid freezing function is selected.

2. Power failure/High temperature / error warning indicator

This indicator (⚠️) will light up in case of temperature faults or fault alerts. This indicator illuminates during power failure, high temperature failures and error warnings. During sustained power failures, the highest temperature that the freezer compartment reaches will flash on the digital display. After checking the food located in the freezer compartment press the alarm off button to clear the warning.

3. Energy saving function (display off)

If the product doors are kept closed for a long time energy saving function is automatically activated and energy saving symbol is illuminated. When energy saving function is activated, all symbols on the display other than energy saving symbol will turn off. When the Energy Saving function is activated, if any button is pressed or the door is opened, energy saving function will be canceled and the symbols on display will return to normal.

Energy saving function is activated during delivery from factory and cannot be canceled.

4. Rapid cooling

When the rapid cooling function is turned on, the rapid cool indicator will light up (※) and the cooler compartment temperature indicator will display the value 1. Push the Rapid cool button again to cancel this function. The Rapid cool indicator will turn off and return to normal setting. The rapid cooling function will be automatically cancelled after 1 hour, unless cancelled by the user. Too cool a large amount of fresh food, press the rapid cool button before placing the food in the cooler compartment.

5. Vacation function

To activate the Vacation function, press the quick fridge button for 3 seconds; this will activate the vacation mode indicator (💡). When the Vacation function is active, the cooler compartment temperature indicator displays the inscription "-" and no cooling process will be active in the cooling compartment. This function is not suitable to keep food in the cooler compartment. Other compartments will remain cooled with the respective temperature set for each compartment. Push the vacation function button again to cancel this function.

6. Cooler compartment temperature setting

After pressing the button, the cooler compartment temperature can be set to 8,7,6,5,4,3,2 and 1 respectively.

7. 1 Energy saving (display off)

Pressing this button (—) will light up the energy-saving sign (—) and the Energy-saving function will activate. Activating the energy-saving function will turn off all other signs on the display. When the energy-saving function is active, pressing any button or opening the door will deactivate the energy-saving function and the display signals will return to normal. Pressing this button (—) again will turn off the energy-saving sign and deactivate the energy-saving function.

7.2 Alarm off warning

In case of power failure/high temperature alarm, after checking the food located in the freezer compartment press the alarm off button to clear the warning.

8. Keypad lock

Press the display off button, simultaneously for 3 seconds. The keypad lock sign will light up and the keypad lock will be activated; the buttons will be inactive when the Keypad lock is activated.

Press the Display off button again simultaneously for 3 seconds. The keypad lock sign will turn off and the keypad lock mode will be disengaged. Press the Display off button to prevent changing the refrigerator's tempeture settings.

9. Eco-fuzzy

To activate the eco-fuzzy function, press and hold the eco-fuzzy button for 1 second. When this function is active, the freezer will switch to the economic mode

after at least 6 hours and the economic use indicator will light up. To deactivate the (eco-fuzzy function, press and hold the eco-fuzzy function button for 3 seconds. The indicator will light up after 6 hours when the eco-fuzzy function is active.

10. Freezer compartment temperature setting

The temperature in the freezer compartment is adjustable.

Pressing the button will enable the freezer compartment temperature to be set at -18,-19,-20,-21,-22,-23 and -24.

11. Rapid freezing

For rapid freezing, press the button; this will activate the rapid freezing indicator (✿).

When the rapid freezing function is turned on, the rapid freeze indicator will light up and the freezer compartment temperature indicator will display the value -27. Press the Rapid freeze button (※) again to cancel this function. The Rapid freeze indicator will turn off and return to normal setting. The rapid freezing function will be automatically cancelled after 24 hours, unless cancelled by the user. To freeze a large amount of fresh food, press the rapid freeze button before placing the food in the freezer compartment.

1. Freezer compartment temperature setting
2. Economy mode
3. Energy saving function (display off)
4. Power failure/High temperature / error warning indicator
5. Cooler compartment temperature setting
6. Rapid cooling
7. Vacation function
8. Keypad lock / filter replacing alert cancellation
9. Water, fragmented ice, ice cubes selection
10. Ice making on/off
11. Display on/of/Alarm off warning
12. Autoeco
13. Rapid freezing

Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

1. Freezer compartment temperature setting

Pressing the button (☐) will enable the freezer compartment temperature to be set at -18,-19,-20,-21,-22,-23,-24,-18...

2. Economy mode

Indicates the refrigerator is running on energy-saving mode. This indicator will be active when the freezer compartment temperature is set at -18 or the energy-saving cooling is engaged by eco-extra function. (ECO)

3. Energy saving function (display off)

If the product doors are kept closed for a long time energy saving function is automatically activated and energy saving symbol is illuminated. When energy saving function is activated, all symbols on the display other than energy saving symbol will turn off. When the Energy Saving function is activated, if any button is pressed or the door is opened, energy saving function will be canceled and the symbols on display will return to normal.

Energy saving function is activated during delivery from factory and cannot be canceled.

4. Power failure/High temperature / error warning indicator

This indicator (⚠️) will light up in case of temperature faults or fault alerts. This indicator illuminates during power failure, high temperature failures and error warnings. During sustained power failures, the highest temperature that the freezer compartment reaches will flash on the digital display. After checking the food located in the freezer compartment press the alarm off button to clear the warning.

5. Cooler compartment temperature setting

After pressing the button (☐), the cooler compartment temperature can be set to 8,7,6,5,4,3,2.. respectively.

6. Rapid cooling

For rapid cooling, press the button; this will activate the rapid cooling indicator (✿).

Press this button again to deactivate this function.

Use this function when placing fresh foods into the cooler compartment or to rapidly cool the food items.

When this function is activated, the refrigerator will be engaged for 1 hour.

7. Vacation function

When the Vacation function (**) is active, the cooler compartment temperature indicator displays the inscription "-" and no cooling process will be active in the cooling compartment. This function is not suitable to keep food in the cooler compartment. Other compartments will remain cooled with the respective temperature set for each compartment.

Press the vacation function button again to cancel this function. (*#)

8. Keypad lock / Keypad lock / filter replacing alert cancellation

Press keypad lock button (i) to activate the keypad lock. You may also use this function to prevent

changing the refrigerator's temperature settings. The refrigerator's filter must be replaced every 6 months. If you follow the instructions in the section 5.2, the refrigerator will automatically calculate the remaining period and the filter replacing alert indicator (⚙️) will light up when filter expires. Press and hold the button (⚙️) for 3 seconds to turn off the filter alert light. 9. Water, fragmented ice, ice cubes selection Navigate the water (💡), ice cube (💡) and fragmented ice (💡) selections using the button number 8. The active indicator will remain lit.

10. Ice making on/off

Press the button (7) to cancel (off —) or activate (once—making.

11.1 Display on/off

Press the button (— off) to cancel (XX) or activate (— on) display on/off.

11.2 Alarm off warning

In case of power failure/high temperature alarm, after checking the food located in the freezer compartment press the alarm off button to clear the warning.

12. Autoeco

Press the auto eco button (©3"), for 3 seconds to activate this function. If the door remains closed for a long time when this function is activated, the cooler section will switch to economic mode. Press the button again to deactivate this function.

The indicator will light up after 6 hours when the auto eco function is active. ('e')

13. Rapid freezing

Press the button (✗) for rapid freezing. Press the button again to deactivate the function.

5.2 Activating water filter change warning

(For products connected to the mains water line and equipped with filter)

Water filter change warning is activated as follows:

Automatic filter usage time calculation is not enabled ex factory.

It must be enabled in products equipped with a filter.

The S4 display board we use in the refrigerator has a nine-key system.

Set values are shown in the display.

\*(pressing 3 seconds)

.Afterenergising,pressAlarmOffandVacationbuttonsfor3secondstoenterthepasswordentryscreen

"Upon seeing PS 0 screen, de-energise the refrigerator and energise it again. This way, the filter counter will be activated. The filter warning LED will be active on the display in 130 days. After replacing the filter with a new one, press the Key Lock button for 3 seconds to make the filter counter to count down from 130 days. Repeat the steps given above to cancel this function."

5.3 Humidity controlled crisper

(FreSHelf)

(This feature is optional)

Humidity rates of the vegetables and fruit are kept under control with the feature of humidity-controlled crisper and the food is ensured to stay fresh for longer. We recommend you to place the leafy vegetables such as lettuce, spinach and the vegetables which are sensitive to humidity loss, in a horizontal manner as much as possible inside the crisper, not on their roots in a vertical position. While the vegetables are being placed, specific gravity of the vegetables should be taken into consideration. Heavy and hard vegetables should be put at the bottom of the crisper and the lightweight and soft vegetables should be placed over.

Never leave the vegetables inside the crisper in their bags. If the vegetables are left inside their bags, this will cause them to decompose in a short period of time. In case contacting with other vegetables is not preferred for hygiene concerns, use a perforated paper and other similar packaging materials instead of a bag.

Do not place together the pear, apricot, peach, etc. and apple in particular which have a high level of generation of ethylene gas in the same crisper with the other vegetables and fruit. The ethylene gas which is emitted by these fruit may cause the other fruit to ripen faster and decompose in a shorter time.

5.4 Using the water fountain (for certain models)

	The first few glasses of water taken from the fountain will normally be warm.
	If the water fountain is not used for a long time, dispose of the first few glasses of water to get clean water.

You must wait approximately 12 hours to get cold water after first operating.

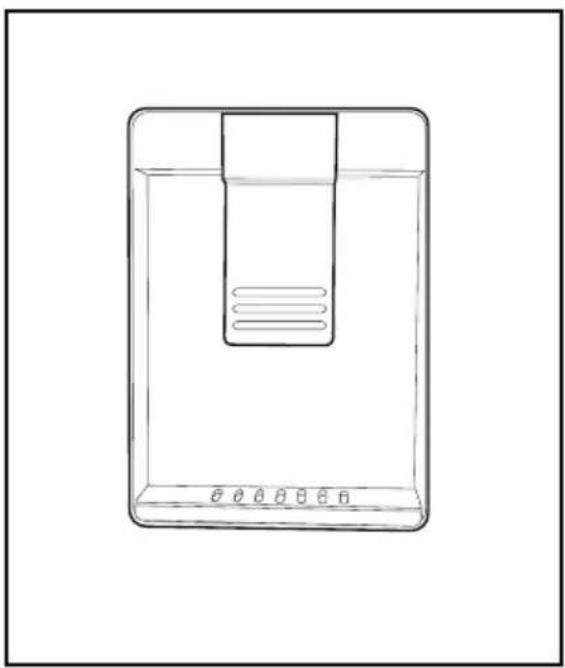

Line drawing of a rectangular device with a lid and internal structure, no text or symbols present

Use the display to select the water option, then pull the trigger to get water. Remove the glass shortly after pulling the trigger.

5.5 Filling the fountain water tank

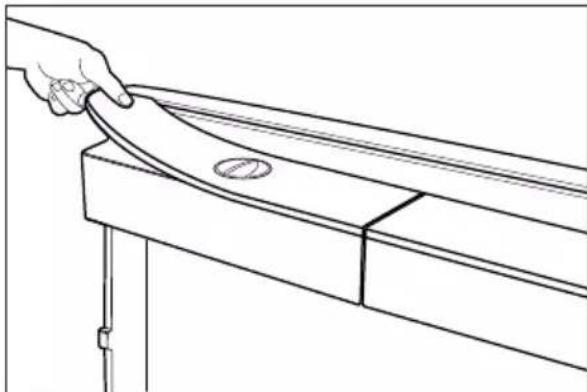

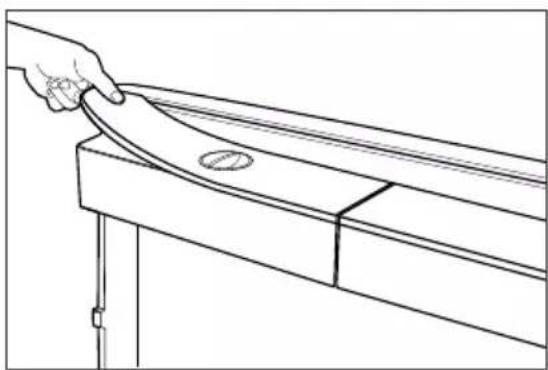

Open the water tank's lid, as shown in the figure. Fill in pure and clean drinking water. Close the lid.

Illustration of hands pouring liquid from a container into a small bowl on a table (no text or symbols)

5.6 Cleaning the water tank

Remove the water filling reservoir inside the door shelf.

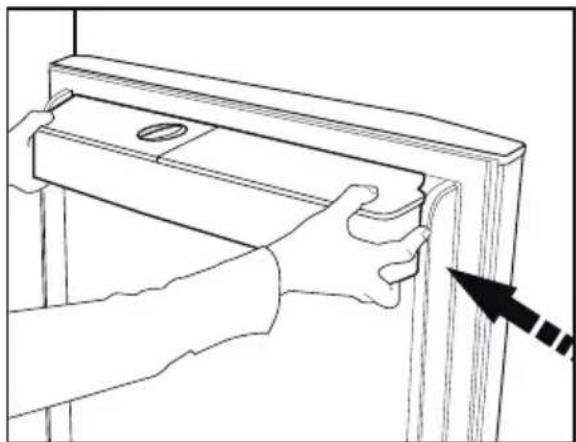

Detach by holding both sides of the door

shelf.

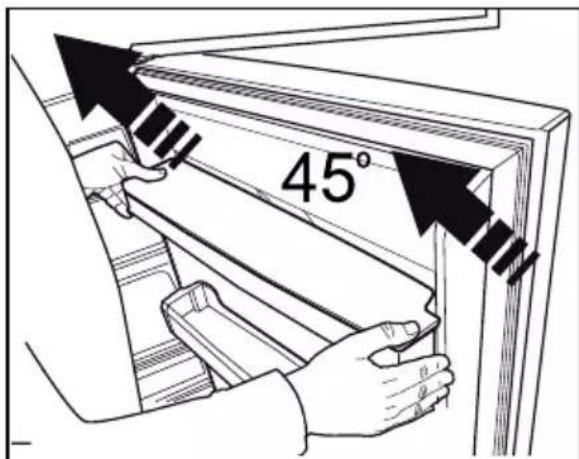

Hold both sides of the water tank and remove at 45^ angle.

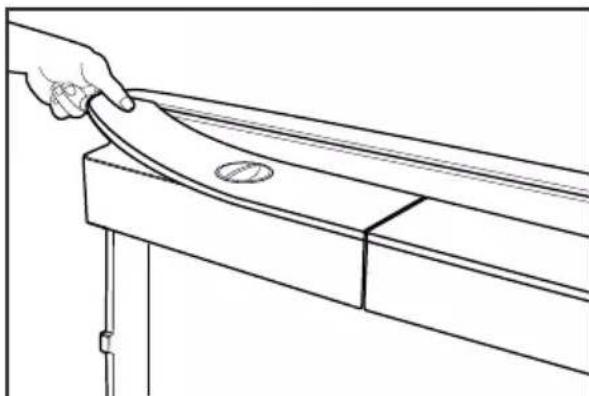

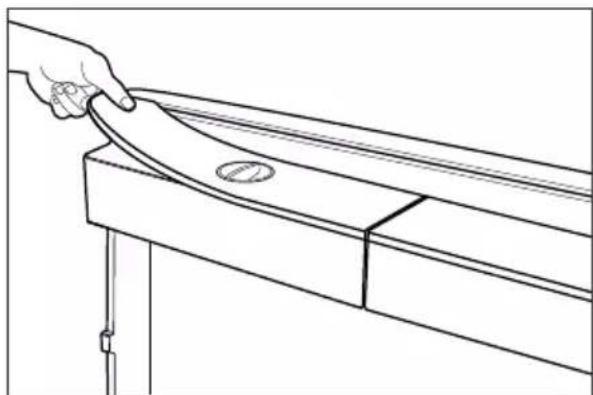

Remove and clean the water tank lid.

Do not fill the water tank with fruit juice, fizzy beverages, alcoholic beverages or any other liquids incompatible for use in the water fountain. Using such liquids will cause malfunction and irreparable damage in the water fountain. Using the fountain in this way is not within the scope of warranty. Such certain chemicals and additives in the beverages / liquids may cause material damage to the water tank.

Line drawing of hands installing or adjusting a wooden door panel (no text or symbols)

Line drawing of a hand holding a curved object on a wooden beam, with no text or symbols present.

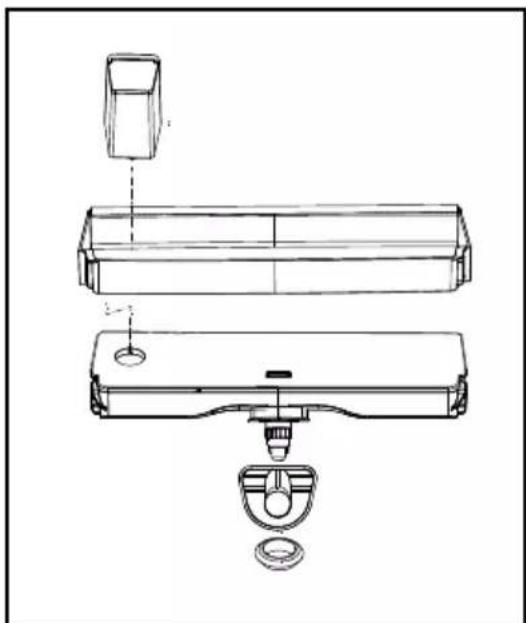

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

5.7 Taking ice / water

(Optional)

To take water 🎨 / ice cube 🎨 ] / fragmented ice 🎨 ), use the display to select the respective option. Take water/ice by pushing the trigger on the water fountain forward. When switching between ice cube 🎨] / fragmented ice 🎨 options, the previous ice type may be discharged a few more times.

• You must wait approximately 12 hours before taking ice from the ice / water fountain for the first time. The fountain may not discharge ice if there is insufficient ice in the ice box.
• The 30 pieces of ice cubes (3-4 Litres) taken after first operating should not be used.
• In case of power blackout or temporary malfunction, the ice may partly melt and re-freeze. This will cause the ice pieces to merge with each other. In case of extended power blackouts or malfunction, the ice may melt and leak out. If you experience this problem, remove the ice in the ice box and clean the box.

WARNING: The product's water system should be connected to cold water line only. Do not connect to hot water line.

• The product may not discharge water during first operation. This is caused by the air in the system. The air in the system must be discharged. To do this, push the water fountain trigger for 1-2 minutes until the fountain discharges water. The initial water flow may be irregular. The water will flow normally once the air in the system is discharged.

- The water may be cloudy during first use of the filter; do not consume the first 10 glasses of water.

- You must wait approximately 12 hours to get cold water after first installation.

- The product's water system is designed for clean water only. Do not use any other beverages.

- It is recommended to disconnect the water supply if the product will not be used for long periods during vacation etc.

- If the water fountain is not used for a long time, the first 1-2 glasses of water received may be warm.

5.8 Drip tray

(optional)

The water dripping from the water fountain accumulates on the drip tray; no water drainage is available. Pull the drip tray out or push on the edges to remove the tray. You may then discharge the water inside the drip tray.

5.9 Zero degree compartment

(Optional)

Use this compartment to keep delicatessen at lower temperatures or meat products for immediate consumption. Do not place fruits and vegetables in this compartment. You can expand the product's internal volume by removing any of the zero degree compartments. To remove the compartment, simply pull forth, lift up and pull out.

5.10 Vegetable bin

The refrigerator's vegetable bin is designed to keep vegetables fresh by preserving humidity. For this purpose, the overall cold air circulation is intensified in the vegetable bin. Keep fruits and vegetables in this compartment. Keep the green-leaved vegetables and fruits separately to prolong their life.

5.11 Blue light

(Optional)

The product's vegetable bins comprise blue light. The vegetables in the bin will continue photosynthesize under the blue light's wavelength effect and remain live and fresh.

5.12 Ionizer

(Optional)

The ionizer system in the cooler compartment's air duct serves to ionize the air. The negative ion emissions will eliminate bacteria and other molecules causing odour in the air.

5.13 Minibar

(Optional)

The refrigerator's minibar door shelf can be accessed without opening the door. This will allow you to easily take frequently consumed food and beverages from the refrigerator. To open the minibar cover, push with your hand and pull towards yourself.

WARNING: Do not sit, hang or place heavy objects on the minibar cover. This may damage the product or cause you to be injured.

To close this compartment, simply push forward from the upper section of the cover.

5.14 Odour filter

(optional)

The odour filter in the cooler compartment's air duct will prevent undesirable odour formation.

5.15 Icematic and ice storage box

(Optional)

Fill the icematic with water and put in place. The ice will be ready after approximately two hours. Do not remove the icematic to take the ice. Turn the buttons on the ice chambers right-hand side by 90°; the ice will fall to the ice storage box below. You may then remove the ice storage box and serve the ice.

The ice storage box is intended for storing ice only. Do not fill with water. Doing so will cause it to break.

Technical line drawing of two identical rectangular panels with circular cutouts, no text or symbols present

Line drawing of a front-mounted air conditioner unit with two vented slots and directional arrows indicating airflow (no text or symbols)

5.16 Ice-maker

(Optional)

Ice maker is located on the upper section of the freezer cover.

Hold the handles on the sides of the ice stock reservoir and move up to remove.

Remove the ice-maker decorative lid by moving up.

OPERATION

To remove the ice reservoir

Hold the ice stock reservoir from the handles, then move up and pull the ice stock reservoir. (Figure 1)

To reinstall the ice reservoir

Hold the ice stock reservoir from the handles, move up with an angle to fit the sides of the reservoir to their slot and make sure that the ice selector pin is mounted properly. (Figure 2)

Push downwards firmly, until there is no space left between the reservoir and the door plastic. (Figure 2)

If you have difficulty in refitting the reservoir, turn the rotary gear 90° and reinstall it as shown in the figure3.

Any sound you hear when the ice drops into the reservoir is a part of normal operation.

When the ice dispenser does not work properly

If you do not remove ice cubes for a long time, they will cause formation of ice chunks. In this case, please remove the ice stock reservoir in accordance with the instructions given above, separate the ice chunks, discard the inseparable ice and put the ice cubes back into the ice stock reservoir. (Figure 4)

When ice does not come out, check for any ice stuck in the canal and remove it. Regularly check the ice canal to clear the obstacles as shown in the figure 5.

Line drawing of a hand using a tool to interact with a device in a control panel (no text or symbols)

When using your refrigerator for the first time or when not using it for an extended period of time Ice cubes may be small due to air in the pipe after connection, any air will be purged during normal use. Discard the ice produced for approximately one day since the water pipe may contain the contaminants.

Caution!

Do not insert the hand or any other object into the ice canal and blade since it may damage the parts or hurt the hand.

Do not let the children hang on the ice dispenser or the ice maker since it may cause an injury To prevent dropping the ice stock reservoir use both hands when removing it.

If you close the door hard, it may cause water spilling over the ice stock reservoir.

Do not dismount the ice stock reservoir unless it is necessary. If there is a lockout (ice does not come from the refrigerator) while taking broken ice, try to take cubed ice.

Then it will be suitable for taking broken ice again.

While taking broken Ice, cubed ice may come first. There is a case of coming cubed ice while taking broken ice.

Operating the product Freezer door on front of the ice machine can create a light snow and film layer. This is normal, it is recommended to clean without waiting for a long time.

The water is filled with water over time in the lower zone of the water dispenser. It is recommended to clean the water within this zone periodically.

While the ice falls from the ice storage reservoir, the sound is normal and does not indicate that the product is problematic.

The blade mechanism inside the ice bank is sharp and can cut your hand.

If the ice dispenser does not provide ice, the ice may be stuck together, remove the tank and clean it again.

Ice type cannot be changed on the display when the ice trigger is pressed to obtain ice. Release the trigger, change the ice type on the display and obtain ice again.

5.17 Freezing fresh food

• To preserve food quality, the food items placed in the freezer compartment must be frozen as quickly as possible, use the rapid freezing for this.
• Freezing the food items when fresh will extend the storage time in the freezer compartment.
• Pack the food items in air-tight packs and seal tightly.
• Make sure the food items are packed before putting in the freezer. Use freezer holders, tinfoil and damp-proof paper, plastic bag or similar packaging materials instead of traditional packaging paper.
• Mark each food pack by writing the date on the package before freezing. This will allow you to determine the freshness of each pack every time the freezer is opened. Keep the earlier food items in the front to ensure they are used first.
• Frozen food items must be used immediately after defrosting and should not be frozen again.
• Do not free large quantities of food at once.

5.18 Deep freezer details

As per the IEC 62552 standards, the freezer must have the capacity to freeze 4,5 kg of food items at -18°C or lower temperatures in 24 hours for each 100 litres of freezer compartment volume. Food items can only be preserved for extended periods at or below temperature of -18°C. You can keep the foods fresh for months (in deep freezer at or below temperatures of 18°C). The food items to be frozen must not contact the already-frozen food inside to avoid partial defrosting. Boil the vegetables and filter the water to extend the frozen storage time. Place the food in air-tight packages after filtering and place in the freezer. Bananas, tomatoes, lettuce, celery, boiled eggs, potatoes and similar food items should not be frozen. Freezing these food items will simply reduce the nutritional value and food quality, as well as possible spoiling which is harmful to health.

Freezer Compartment Setting	Cooler Compartment Setting	Descriptions
-18°C 4°C		This is the default, recommended setting.
-20,-22 or -24°C	4°C	These settings are recommended for ambient temperatures exceeding 30°C.
Rapid Freeze 4°C		Use this to freeze food items in a short time, the product will reset to previous settings when the process is completed.
-18°C or colder	2°C	Use these settings if you believe the cooler compartment is not cold enough due to ambient temperature or frequently opening the door.

5.19 Placing the food

Freezer compartment shelves	Various frozen goods including meat, fish, ice cream, vegetables etc.
Cooler compartment shelves	Food items inside pots, capped plate and capped cases, eggs (in capped case)
Cooler compartment door shelves	Small and packed food or beverages
Vegetable bin	Fruits and vegetables
Fresh food compartment	Delicatessen (breakfast food, meat products to be consumed in short notice)

5.20 Door open alert

(Optional)

An audible alert will be heard if the product's door remains open for 1 minute. The audible alert will stop when the door is closed or any button on the display (if available) is pressed.

5.21 Interior light

Interior light uses a LED type lamp. Contact the authorized service for any problems with this lamp. The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way.

6. Maintenance and cleaning

Cleaning your fridge at regular intervals will extend the service life of the product.

WARNING:

Unplug the product before cleaning it.

• Never use gasoline, benzene or similar substances for cleaning purposes.
• Never use any sharp and abrasive tools, soap, household cleaners, detergent and wax polish for cleaning.
• For non-No Frost products, water drops and frosting up to a fingerbreadth occur on the rear wall of the Fridge compartment. Do not clean it; never apply oil or similar agents on it.
• Only use slightly damp microfiber cloths to clean the outer surface of the product. Sponges and other types of cleaning cloths may scratch the surface
• Dissolve one teaspoon of bicarbonate in half litre of water. Soak a cloth with the solution and wrung it thoroughly. Wipe the interior of the refrigerator with this cloth and the dry thoroughly.
• Make sure that no water enters the lamp housing and other electrical items.
• If you will not use the refrigerator for a long period of time, unplug it, remove all food inside, clean it and leave the door ajar.
• Check regularly that the door gaskets are clean. If not, clean them.

• To remove door and body shelves, remove all of its contents.

• Remove the door shelves by pulling them up. After cleaning, slide them from top to bottom to install.

• Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.

6.1 Avoiding bad odours

• Materials that may cause odour are not used in the production of our refrigerators. However, due to inappropriate food preserving conditions and not cleaning the inner surface of the refrigerator as required can bring forth the problem of odour. Pay attention to following to avoid this problem:
• Keeping the refrigerator clean is important. Food residuals, stains, etc. can cause odour. Therefore, clean the refrigerator with bi-carbonate dissolved in water every few months. Never use detergents or soap.
• Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odours.
• Never keep the food that have passed best before dates and spoiled in the refrigerator.

6.2 Protecting the plastic surfaces

Do not put liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of the refrigerator. If oil is spilled or smeared onto the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7. Troubleshooting

Check this list before contacting the service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product.

The refrigerator is not working.

• The power plug is not fully settled. >>> Plug it in to settle completely into the socket.
• The fuse connected to the socket powering the product or the main fuse is blown. >>> Check the fuses.

Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE).

• The door is opened too frequently >>> Take care not to open the product's door too frequently.
• The environment is too humid. >>> Do not install the product in humid environments.
• Foods containing liquids are kept in unsealed holders. >>> Keep the foods containing liquids in sealed holders.
• The product's door is left open. >>> Do not keep the product's door open for long periods.
• The thermostat is set to too low temperature. >>> Set the thermostat to appropriate temperature.

Compressor is not working.

- In case of sudden power failure or pulling the power plug off and putting back on, the gas pressure in the product's cooling system is not balanced, which triggers the compressor thermic safeguard. The product

will restart after approximately 6 minutes. If the product does not restart after this period, contact the service.

• Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is carried out periodically.
• The product is not plugged in.

  Make sure the power cord is plugged in.

• The temperature setting is incorrect. >>> Select the appropriate temperature setting.
• The power is out. >>> The product will continue to operate normally once the power is restored.

The refrigerator's operating noise is increasing while in use.

- The product's operating performance may vary depending on the ambient temperature variations. This is normal and not a malfunction.

The refrigerator runs too often or for too long.

• The new product may be larger than the previous one. Larger products will run for longer periods.
• The room temperature may be high. >>> The product will normally run for long periods in higher room temperature.
• The product may have been recently plugged in or a new food item is placed inside. >>> The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal.

• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.

• The doors were opened frequently or kept open for long periods. >>> The warm air moving inside will cause the product to run longer. Do not open the doors too frequently.

• The freezer or cooler door may be ajar. >>> Check that the doors are fully closed.
• The product may be set to temperature too low. >>> Set the temperature to a higher degree and wait for the product to reach the adjusted temperature.
• The cooler or freezer door washer may be dirty, worn out, broken or not properly settled. >>> Clean or replace the washer. Damaged / torn door washer will cause the product to run for longer periods to preserve the current temperature.

The freezer temperature is very low, but the cooler temperature is adequate.

- The freezer compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The cooler temperature is very low, but the freezer temperature is adequate.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The food items kept in cooler compartment drawers are frozen.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The temperature in the cooler or the freezer is too high.

- The cooler compartment temperature is set to a very high degree. >>> Temperature setting of the cooler compartment has an effect on the temperature in the freezer compartment. Wait until the temperature of relevant parts reach the sufficient level by changing the temperature of cooler or freezer compartments.

- The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently.

- The door may be ajar. >>> Fully close the door.

- The product may have been recently plugged in or a new food item is placed inside. >>> This is normal. The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside.

- Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.

Shaking or noise.

• The ground is not level or durable. >>> If the product is shaking when moved slowly, adjust the stands to balance the product. Also make sure the ground is sufficiently durable to bear the product.
• Any items placed on the product may cause noise. >>> Remove any items placed on the product.

The product is making noise of liquid flowing, spraying etc.

- The product's operating principles involve liquid and gas flows. >>> This is normal and not a malfunction.

There is sound of wind blowing coming from the product.

- The product uses a fan for the cooling process. This is normal and not a malfunction.

There is condensation on the product's internal walls.

• Hot or humid weather will increase icing and condensation. This is normal and not a malfunction.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently; if open, close the door.
• The door may be ajar. >>> Fully close the door.

There is condensation on the product's exterior or between the doors.

- The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation will dissipate when the humidity is reduced.

The interior smells bad.

• The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and carbonated water.
• Certain holders and packaging materials may cause odour.

  Use holders and packaging materials without free of odour.

• The foods were placed in unsealed holders. >>> Keep the foods in sealed holders. Micro-organisms may spread out of unsealed food items and cause malodour. Remove any expired or spoilt foods from the product.

The door is not closing.

• Food packages may be blocking the door. >>> Relocate any items blocking the doors.
• The product is not standing in full upright position on the ground. >>> Adjust the stands to balance the product.

- The ground is not level or durable. >>> Make sure the ground is level and sufficiently durable to bear the product.

The vegetable bin is jammed.

- The food items may be in contact with the upper section of the drawer. >>> Reorganize the food items in the drawer.

If The Surface Of The Product Is Hot.

- High temperatures may be observed between the two doors, on the side panels and at the rear grill while the product is operating. This is normal and does not require service maintenance! Be careful when touching these areas.

WARNING:

If the problem persists after following the instructions in this section, contact your vendor or an Authorised Service. Do not try to repair the product.

Simple line drawing of a rectangular object with a labeled section '1' (no text or symbols on the object itself)

Diagram showing a mechanical or electrical component with a zigzag line and a base, no text or symbols present.

Pure electrical circuit lines without any symbols

Line drawing of a hand inserting a screwdriver into a device panel (no text or symbols)

Line drawing of a hand using a screwdriver to adjust or install a device panel (no text or symbols visible)

Simple line drawing of a two-panel cabinet or enclosure with mounting feet (no text or symbols)

Mechanical diagram showing a hand operating a tool with a curved arrow indicating rotation (no text or symbols present)

Illustration of five different types of industrial equipment or connectors, including a coiled hose, coiled fittings, a pressure regulator, and a cylindrical device (no text or symbols present)

Illustration showing a hand inserting a screw into a device component, with no visible text or symbols.

Line drawing of a computer monitor rear panel with a hand inserting a cable (no text or symbols)

Line drawing of a hand adjusting a mechanical component with no visible text or symbols

Three mechanical components labeled 1, 2, and 3, shown in grayscale without any text or symbols on the parts themselves.

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand holding a small object, possibly a tool or component, with no visible text or symbols.

Simple line drawing of a mechanical component with no text or symbols

Illustration of hands holding a cable with a connector attached (no text or symbols)

Line drawing of a hand inserting a USB into a device panel (no text or symbols visible)

Illustration of a hand holding a tool next to a device with cables (no text or symbols visible)

Line drawing of a gas washing bottle connected to a pipe and tubing (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Line drawing of a hand holding a tool with a hook, next to a separate hook (no text or symbols)

Illustration showing a hand holding a cylindrical device with an upward arrow and a separate close-up of a tool (no text or symbols)

3.9.2. Interne Filter

Line drawing of a computer monitor with a hand inserting a cable to the right panel (no text or symbols)

Wasserleitung:

Simple line drawing of a cable and door assembly (no text or symbols)

Gallonen-Leitung:

Line drawing of a water pump connected to a door, no text or symbols present

Architectural floor plan of a refrigerator showing front and interior compartments with no text or symbols

Line drawing of a hand inserting a USB into a device (no text or symbols visible)

Line drawing of a hand operating a mechanical device with cables and a switch (no text or symbols)

Line drawing of a hand inserting a small rectangular object into a cabinet (no text or symbols)

Line drawing of a rectangular electronic device with a central screen and indicator lights (no text or symbols)

Line drawing of hands pouring liquid from a pitcher into a container on a tray (no text or symbols)

Line drawing of a person using a tool to adjust or install a wooden shelf panel (no text or symbols)

Line drawing of a hand holding a curved object on a wooden table, with no text or symbols present.

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

Line drawing of a hand using a tool to interact with a device, labeled Figure 5 (no text or symbols on the diagram itself)

Simple line drawing of a pear and a carrot (no text or symbols)

GSBS13320FX-GSBS 11130 X

CZ/GR

577080 0000/AK - 2/4-CZ-GR

Technical line drawing of a mechanical component with a labeled section (1), no text or symbols present.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Line drawing of a hand using a screwdriver to adjust or install a device panel (no text or symbols visible)

Line drawing of a hand inserting a screwdriver into a device panel (no text or symbols)

Simple line drawing of a two-panel cabinet or enclosure with mounting feet (no text or symbols)

Mechanical assembly diagram showing hands operating a tool with a curved handle (no text or symbols)

Nastavení stojanů

Připojení napájení

Circular diagram with intersecting lines and a numbered label '3' (no text or symbols within the diagram itself)

4

*5

Hand inserting a small mechanical component into a device panel (no text or symbols visible)

Illustration of a hand holding a pen tip, with no text or symbols present

Line drawing of a computer monitor rear panel with a hand inserting a cable (no text or symbols)

Line drawing of a hand adjusting a mechanical component with no visible text or symbols

Technical illustration of three mechanical components: a bolt, a hexagonal nut, and a separate nut (no text or symbols)

Simple line drawing of a mechanical or electrical component with no text or symbols

Line drawing of a hand holding a nail with a small object inserted (no text or symbols)

Simple line drawing of a mechanical or electrical component with no text or symbols

Illustration of hands holding a cable with a connector attached (no text or symbols)

Line drawing of a hand inserting a plug into a device panel (no text or symbols)

Illustration of a hand holding a cable inserted into a tablet device (no text or symbols visible)

Line drawing of a gas cylinder connected to a valve and tubing (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Line drawing of a hand holding a tool with a hook, no text or symbols present

Illustration of a hand holding a cylindrical device with wires, next to an upward arrow (no text or symbols)

Simple line drawing of a door with an arrow pointing to the side panel (no text or symbols)

3.9.2.Vnitřní filtr

Line drawing of a computer monitor with a hand inserting a cable to the right panel (no text or symbols)

Připojení vodovodu:

Simple line drawing of a medical device with a cable and adjacent door (no text or symbols)

Line drawing of a water pump connected to a vertical door, no text or symbols present

Architectural floor plan of a refrigerator showing internal compartments and fixtures (no text or labels)

Line drawing of a hand inserting a component into a device (no text or symbols visible)

Line drawing of a hand inserting a USB into a device (no text or symbols visible)

Line drawing of a hand holding a small object above a shelf (no text or symbols)

Line drawing of a rectangular device with a vertical slot and base, no text or symbols present

Line drawing of hands pouring liquid from a container into a tank on a tray (no text or symbols)

Line drawing of hands installing or adjusting a wooden door panel (no text or symbols)

Line drawing of a hand holding a curved object on a wooden beam, with no visible text or symbols

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

Technical line drawing of two identical rectangular panels with circular cutouts, no text or symbols present

Line drawing of a front view of a rectangular appliance with two side panels and directional arrows indicating flow or movement (no text or symbols)

5.16 Výrobník ledu

(volitelné)

Line drawing of a hand using a tool to interact with a device, labeled Figure 5 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with a labeled part (1), no text or symbols present.

Simple line drawing of a rectangular frame with a numbered label '1' inside (no text or symbols beyond the number)

Diagram showing a lightning bolt striking a wall-mounted device with a cable and power plug (no text or symbols)

Pure electrical circuit lines without any symbols

Line drawing of a hand inserting a screwdriver into a device panel (no text or symbols)

Line drawing of a hand using a screwdriver to adjust or install a device panel (no text or symbols visible)

Simple line drawing of a two-panel cabinet or enclosure with two side doors and two base feet (no text or symbols)

Mechanical assembly diagram showing a hand operating a tool with a rotating wheel (no text or symbols)

Illustration of five different types of hair connectors and tubing, including a coiled tube, plastic cup, and cylindrical device (no text or symbols)

Illustration showing a hand inserting a component into a device, with no visible text or symbols

Line drawing of a computer monitor rear panel with a hand inserting a cable to the right panel (no text or symbols)

Line drawing of a hand adjusting a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Three mechanical components labeled 1, 2, and 3, shown in grayscale without any text or symbols.

Simple line drawing of a mechanical component with no text or symbols

Line drawing of a hand holding a pen tip, with no text or symbols present

Illustration of hands holding a cable with a connector attached (no text or symbols)

Line drawing of a hand inserting a cable into a device panel (no text or symbols visible)

Illustration of a hand holding a cable inserted into a device with cables (no text or symbols visible)

Line drawing of a mechanical device with a cylindrical component and connecting rod (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Line drawing of a hand holding a tool with a curved clip, no text or symbols present

Illustration of a hand holding a cylindrical tool with a cable, next to an upward arrow (no text or symbols)

Simple line drawing of a door with a pointing arrow (no text or symbols)

Line drawing of a computer monitor with a hand inserting a cable to the right panel (no text or symbols)

Γραμμή νερού:

Simple line drawing of a medical or laboratory setup with a probe connected to a door (no text or symbols)

Simple line drawing of a water pump connected to a door, no text or symbols present

Architectural floor plan of a double refrigerator with labeled compartments and doors (no text or symbols beyond label 'a')

Line drawing of a hand holding a connector to a device with cables and a switch (no text or symbols)

Line drawing of a hand holding a device with cables and a connector (no text or symbols)

Line drawing of a hand holding a small object above a shelf (no text or symbols)

4.2 Прώτη хрήση

Line drawing of a rectangular electronic device with a vertical screen and base, no text or symbols present

Illustration of hands pouring liquid from a container into a sink (no text or symbols)

Line drawing of hands installing or adjusting a wooden shelf panel (no text or symbols)

Line drawing of a hand holding a curved object on a wooden beam, with no text or symbols present.

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

Technical line drawing of two identical mechanical components with circular cutouts and internal ribs (no text or symbols)

Line drawing of a double-door refrigerator with two side panels and directional arrows indicating airflow or movement (no text or symbols)

Line drawing of a hand using a tool to press or press a device on a desk, labeled 'Figure 5' (no text or symbols on the diagram itself)

Simple line drawing of a pear and a carrot (no text or symbols)

GSBS13320FX-GSBS 11130 X

DK/SV

577080 0000/AK-3/4-DK-SV

- bed and breakfast miljøer;

Simple line drawing of a laptop with a screen and a triangular display (no text or symbols)

Diagram of a refrigerator interior with a lightning bolt and cable, no text or symbols present

Pure electrical circuit lines without any symbols

Line drawing of a hand inserting a screwdriver into a device panel (no text or symbols)

Line drawing of a hand using a screwdriver to adjust or install a device panel (no text or symbols visible)

3.3 Justering af benene

Simple line drawing of a two-panel cabinet or enclosure with mounting feet (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

3.4 Strømtislutning

Illustration of five different types of hair connectors and tubing, including a coiled tube, plastic cup, and cylindrical device (no text or symbols)

Illustration showing a hand inserting a screw into a device, with no text or symbols present.

1. Skub vandslangen stramt ned og forbind slangedysens adapter.

Line drawing of a computer monitor rear panel with a hand inserting a cable (no text or symbols)

Line drawing of a hand adjusting a mechanical component with no visible text or symbols

Three mechanical components labeled 1, 2, and 3, shown in grayscale without any text or symbols.

1. Tilslut vandhanens adapter til vandledningens ventil.

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a small object, possibly a tool or component, with no visible text or symbols.

Simple line drawing of a mechanical or electrical component with no text or symbols

Illustration of hands holding a flexible cable or wire with a connector attached (no text or symbols)

Line drawing of a hand inserting cables into a device panel (no text or symbols)

Illustration of a hand holding a device with wires, no text or symbols present

Line drawing of a laboratory gas collection setup with a round-bottom flask, tubing, and a vertical tube (no text or labels)

Pure mechanical component diagram without any text, numbers, or symbols

Line drawing of a hand holding a tool with a hook, next to a separate curved object (no text or symbols)

Illustration of a hand holding a cylindrical device with an upward arrow, next to a separate view showing a downward arrow (no text or symbols present)

Line drawing of a computer monitor with a hand inserting a cable to the right panel (no text or symbols)

Vandledning:

Simple line drawing of a medical or laboratory setup with a probe connected to a vertical panel (no text or symbols)

Simple line drawing of a water pump connected to a vertical panel, no text or symbols present

Architectural floor plan of a double refrigerator with labeled compartments and doors (no text or symbols beyond label 'a')

Line drawing of a hand operating a mechanical device with cables and a connector (no text or symbols)

1. Anbring vandfilteret dæksel i mekanismen, og tryk for at låse det på plads.

Line drawing of a hand inserting a component into a device (no text or symbols visible)

1. Tryk på "Ice"-knappen på skærmen igen for at annullere "Ice Off"-tilstand.

Line drawing of a hand holding a small object above a shelf (no text or symbols)

Line drawing of a rectangular electronic device with a central screen and base, no text or symbols present.

Illustration of hands pouring liquid from a container into a tank on a tray (no text or symbols)

Line drawing of hands installing or adjusting a wooden door panel (no text or symbols)

Line drawing of a hand holding a curved object on a wooden beam, with no text or symbols present.

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

5.9 Nulgraders-rum

(Tilvalg)

Technical line drawing of two identical rectangular panels with circular cutouts, no text or symbols present

Line drawing of a refrigerator with two doors and directional arrows indicating airflow or movement (no text or symbols)

Line drawing of a hand using a computer to press or interact with a device, labeled 'Figure 5' (no text on diagram itself)

Diagram showing a lightning bolt striking a component inside a device (no text or symbols)

Pure electrical circuit lines without any symbols

Line drawing of a hand inserting a screwdriver into a device panel (no text or symbols)

Line drawing of a hand using a screwdriver to adjust or install a device panel (no text or symbols visible)

Technical illustration showing two steps of a mechanical assembly: top-down view of a cabinet with a handle, bottom-down view of a hand holding a tool with a circular component (no text or symbols)

3.4 Elanslutning

Illustration of five different types of industrial equipment or connectors, including a coiled hose, flanged pipe, and a cylindrical device (no text or symbols present)

Two-step diagram showing hand tool application on a device, with no visible text or symbols

Line drawing of a computer rear panel with a hand inserting a cable into the socket (no text or symbols)

Line drawing of a hand adjusting a mechanical component with no visible text or symbols

Three mechanical components labeled 1, 2, and 3, shown in grayscale without any text or symbols.

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand holding a pen tip, no text or symbols present

Simple line drawing of a mechanical or electrical component with no text or symbols

Illustration of hands holding a cable with a connector attached (no text or symbols)

Line drawing of a hand inserting a cable into a device panel (no text or symbols)

Illustration of a hand holding a cable inserted into a tablet device (no text or symbols visible)

Line drawing of a gas cylinder connected to a valve and tubing (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Line drawing of a hand holding a tool with a hook and a separate curved object (no text or symbols)

Illustration of a hand holding a cylindrical device with wires, next to an upward arrow (no text or symbols)

Simple line drawing of a door with a handle and arrow pointing to the side (no text or symbols)

3.9.2.Internfilter

Line drawing of a hand inserting a cable into a device panel (no text or symbols)

Vattenlinje:

Simple line drawing of a cable and door assembly (no text or symbols)

Carboy-linje:

Simple line drawing of a water pump connected to a vertical panel, no text or symbols present

Architectural floor plan of a refrigerator with labeled compartments and fixtures (no text or symbols beyond label 'a')

Line drawing of a hand holding a connector to a device with cables and a switch (no text or symbols)

Line drawing of a hand operating a mechanical device with cables and a connector (no text or symbols)

Line drawing of a hand holding a small object near a shelf (no text or symbols)

Line drawing of a rectangular device with a vertical slot and control buttons at the bottom (no text or symbols)

5.7 Ta is/vatten

(valfritt)

Line drawing of hands pouring liquid from a container into a sink (no text or symbols)

Line drawing of a person using a tool to adjust or install a wooden shelf panel (no text or symbols present)

Line drawing of a hand holding a curved object over a wooden beam, with no text or symbols present.

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

Line drawing of a hand operating a device in a control panel, labeled Figure 5 (no text or symbols on the diagram itself)

går åt först.

Simple line drawing of a pear and a carrot (no text or symbols)

GSBS13320FX-GSBS 11130 X

NO/Fi

577080 0000/AK - 4/4-NO-Fi

Technical line drawing of a mechanical component with a labeled part (1), no text or symbols present

Simple line drawing of a rectangular frame with a numbered label '1' inside (no text or symbols beyond the label)

Diagram showing a lightning bolt striking a wall-mounted device with wires and cables (no text or symbols)

Pure electrical circuit lines without any symbols

1. Fryserdel
2. Kjøleskapsdel
3. Vifte
4. Rom for smør/ost
5. Glasshyller
6. Dørhyller for kjøleskapsdel
7. Minibartilbehør
8. Vanntank
9. Flaskehylle

10. Luktfilter

11. Rom med null grader

12. Grønnsaksskuffer
13. Justerbare stativer
14. Lagringsrom for frossen mat
15. Dørhyller for fryserdel
16. Icematic
17. Islagringsboks
18. Dekorativt lokk for ismaskin *Tilleggsutstyr

Line drawing of a hand inserting a screwdriver into a device panel (no text or symbols)

Line drawing of a hand inserting a screwdriver into a device panel (no text or symbols)

Simple line drawing of a two-panel cabinet or enclosure with two side posts and a vertical divider (no text or symbols)

Mechanical diagram showing a hand operating a tool with a rotating arrow (no text or symbols)

3.4 Strømtilkobling

Illustration of five different types of hair connectors and tubing, including a coiled tube, a connector, a pressure vessel, and a cylindrical device (no text or symbols present)

Illustration showing a hand inserting a screw into a device, with no text or symbols present.

Line drawing of a computer monitor rear panel with ventilation slots and a screwdriver inserted (no text or symbols)

Line drawing of a hand adjusting a mechanical component with no visible text or symbols

Three mechanical components labeled 1, 2, and 3, shown in grayscale without any text or symbols.

1. Koble kranadapteren til vannledningsventilen.

Simple line drawing of a mechanical component with no text or symbols

Line drawing of a hand holding a pen, no text or symbols present

Simple line drawing of a mechanical device with no text or symbols

Illustration of hands holding a cable with a connector attached (no text or symbols)

Line drawing of a hand inserting a cable into a device panel (no text or symbols)

Illustration of a hand holding a cable connected to a device with cables (no text or symbols visible)

1. Sett og fest pumpeslangen i vannbeholderen.

Line drawing of a gas collection apparatus with a cylindrical tank and tubing (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Line drawing of a hand holding a tool with a hook and a separate curved object (no text or symbols)

Etter at tilkoblingen er ferdig, skal det endelige resultatet ligne på figuren nedenfor.

Illustration of a hand holding a spray gun with an upward arrow, no text or symbols present

Simple line drawing of a door with an arrow pointing to the side (no text or symbols)

Line drawing of a hand inserting a cable into a device panel (no text or symbols)

Vannledning:

Simple line drawing of a medical or electrical device with a cable and door (no text or symbols)

Vannbeholderledning:

Line drawing of a water pump connected to a door via tubing (no text or symbols)

Architectural floor plan of a refrigerator showing front and interior compartments with no text or symbols

Line drawing of a hand inserting a USB into a device (no text or symbols visible)

Line drawing of a hand operating a mechanical device with cables and a spring component (no text or symbols)

Line drawing of a hand holding a small object near a shelf (no text or symbols)

Line drawing of a rectangular device with internal components and a base, no text or symbols present

Illustration of hands pouring liquid from a container into a sink (no text or symbols)

Line drawing of hands installing or adjusting a wooden door panel (no text or symbols)

Line drawing of a hand holding a curved object on a wooden table, with no text or symbols present.

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

5.7 Ta is/ vann

(valgfritt)

Technical line drawing of two identical rectangular panels with circular cutouts and internal channels (no text or symbols)

Line drawing of a double-door refrigerator with two side panels and directional arrows indicating airflow or movement (no text or symbols)

5.16 Ismaskin

(tilleggsutstyr)

Line drawing of a hand using a tool to interact with a device, labeled Figure 5 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with labeled part '1' (no text or symbols beyond label)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

1.1.1 HC-varoitus

Pure electrical circuit lines without any symbols

Line drawing of a hand inserting a screwdriver into a device panel (no text or symbols)

Line drawing of a hand inserting a screwdriver into a device panel (no text or symbols)

Simple line drawing of a two-panel cabinet or enclosure with mounting feet (no text or symbols)

Mechanical diagram showing a hand operating a tool with a circular component, no text or symbols present

3.4 Virtaliitäntä

VAROITUS: Älä

Illustration of five different types of hair connectors and tubing, including a coiled hose, a cylindrical connector, a pressure vessel, and a gas cylinder (no text or symbols present)

Two-step diagram showing hand tool application on a device, one being inserted and the other holding a screwdriver (no text or symbols present)

Line drawing of a computer monitor rear panel with a hand inserting a cable to the screen (no text or symbols)

Line drawing of a hand adjusting a mechanical component with no visible text or symbols

Three mechanical components labeled 1, 2, and 3, shown in grayscale without any text or symbols.

Simple line drawing of a mechanical or electrical component with no text or symbols

Line drawing of a hand holding a small object near a vertical rod (no text or symbols)

Simple line drawing of a mechanical or electrical component with no text or symbols

Illustration of hands holding a cable with a connector attached (no text or symbols)

Line drawing of a hand inserting a cable into a device panel (no text or symbols)

Illustration of a hand holding a cable connected to a tablet device (no text or symbols visible)

Line drawing of a gas stove with a bulb and tubing (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Line drawing of a hand holding a tool with a hook, no text or symbols present

Illustration showing a hand holding a cylindrical device with an upward arrow, and a close-up of a device with a downward arrow (no text or symbols)

Line drawing of a computer monitor with a hand inserting a cable to the right panel (no text or symbols)

Vesijohto:

Simple line drawing of a medical device with a stethoscope and adjacent door (no text or symbols)

Pullojohto:

Line drawing of a water pump connected to a vertical door, no text or symbols present

Architectural floor plan of a refrigerator showing internal compartments and storage areas (no text or labels)

Line drawing of a hand inserting a component into a device (no text or symbols)

Line drawing of a hand inserting a USB into a device (no text or symbols visible)

Line drawing of a hand inserting a small rectangular object into a cabinet (no text or symbols)

Line drawing of a rectangular device with internal components and a base, no text or symbols present

Illustration of hands pouring liquid from a container onto a sink (no text or symbols)

Line drawing of hands installing or adjusting a wooden door panel (no text or symbols)

Line drawing of a hand holding a curved object on a wooden beam, with no text or symbols present.

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

Technical line drawing of a two-panel air conditioner unit with ventilation grilles and airflow indicators (no text or symbols)

5.16 Jääkone

(Vaihtoehtoinen)

Line drawing of a hand using a tool to press or install electronic components on a device (no text or symbols)

Varoitus!
