Product Type	Fully Automatic Washing Machine (Household Use)
Brand	Panasonic
Model	NA-FD11AR1
Dimensions (W x D x H)	639 mm x 724 mm x 1049 mm
Weight	40 kg
Rated Voltage	220-240 V ~ 50 Hz
Power Consumption	390 W
Maximum Capacity (Dry Cloth)	11.5 kg
Standard Water Amount	75 L
Water Pressure Range	0.01 - 1 MPa
Wash Programs	Normal, Speedy, Delicate, Baby Care, Water Save, Blanket, Soak, Stain Master, Air Dry (90 min)
Additional Functions	Tangle Care, Preset Timer, Child Lock, Auto Tub Clean, End Buzzer Cancellation
Safety Features	Child Lock, Lid Open Detection, Automatic Power Off, Ground Prong
Maintenance	Lint filter cleaning, Detergent drawer cleaning, Tub Hygiene cycle, Water supply filter cleaning
Included Accessories	Water supply hose (1), External drain water hose (1), Bottom cover with screw (1), Water tap adaptor (1)

Frequently Asked Questions - NA-FD11AR1 PANASONIC

What is the maximum dry cloth capacity of the NA-FD11AR1?

The maximum capacity for dry cloth is 11.5 kg.

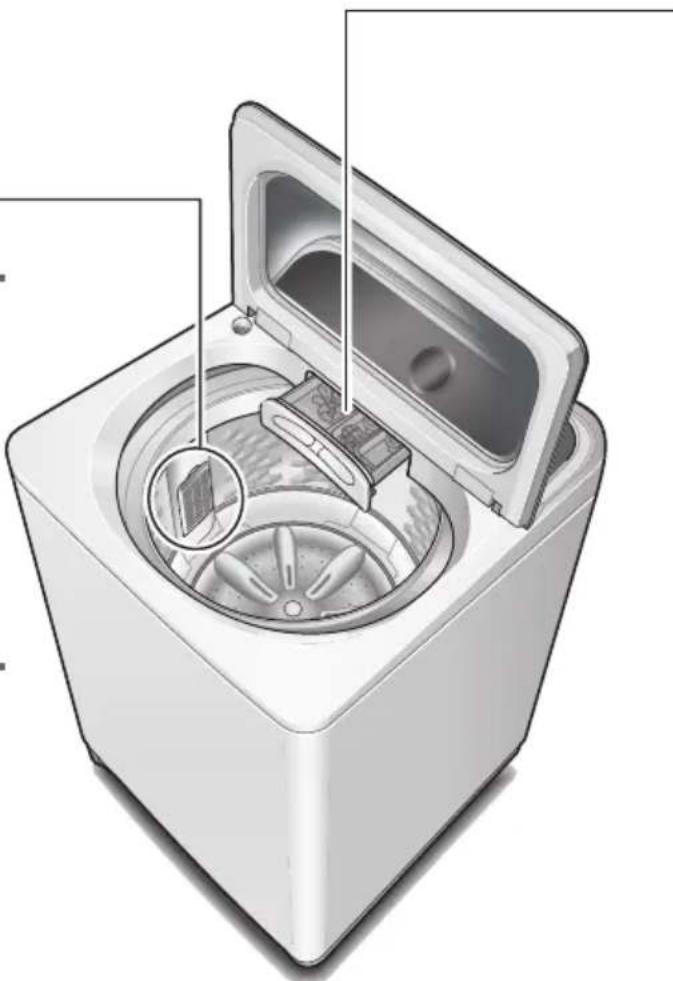

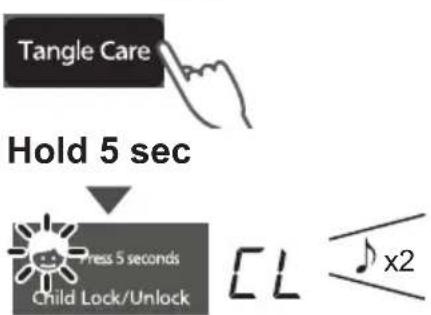

How do I set the Child Lock?

To set the Child Lock, press and hold the Tangle Care button for 5 seconds until the indicator lights up. Repeat the same procedure to cancel.

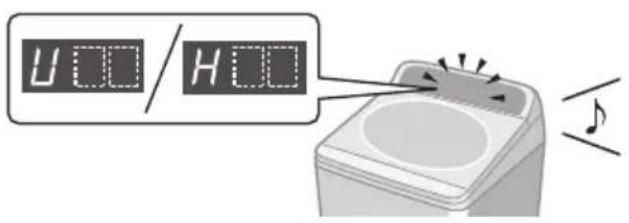

What should I do if an error code appears on the display?

First, cancel the Child Lock if set. Then check the displayed error: e.g., water cannot drain (clean filter), lid is open (close lid), or machine is unstable (level the machine). Refer to the Error Display section in the manual.

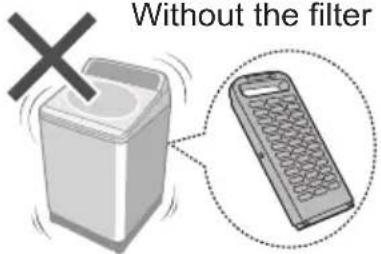

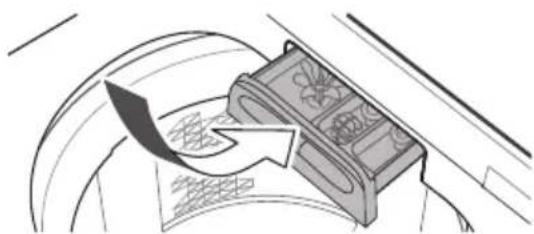

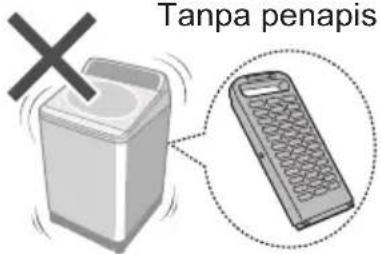

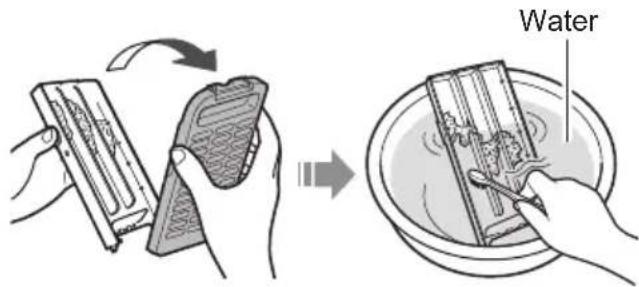

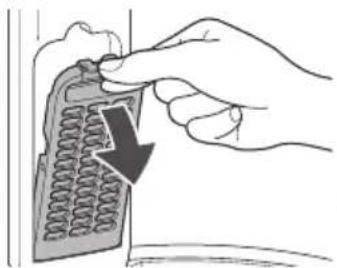

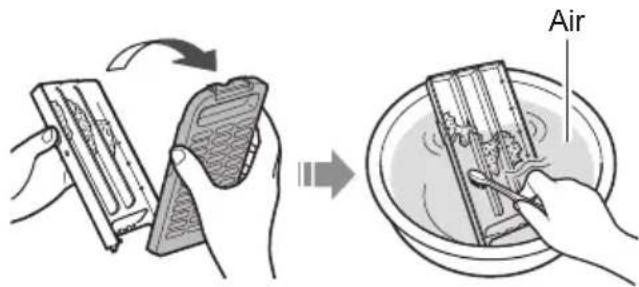

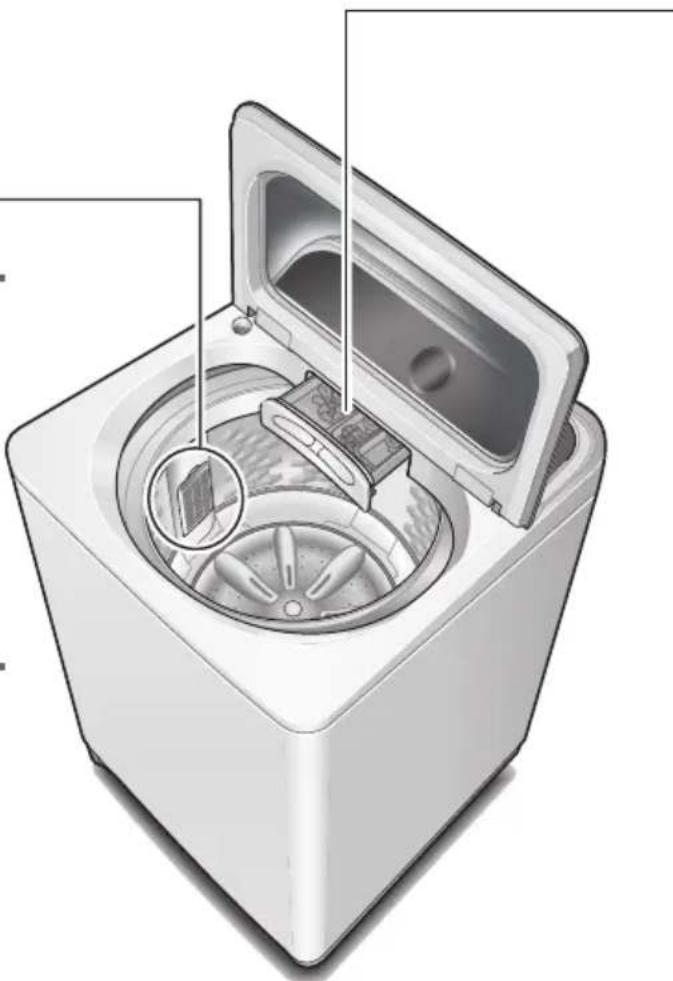

How do I clean the lint filter?

After each operation, remove the lint filter, rinse it under running water, and reinstall it. If difficult to remove, turn the tub by hand (see manual). Do not operate without the filter.

Can I wash a blanket in this machine?

Yes, use the Blanket program. Ensure the blanket has a machine-washable tag. Maximum capacity for blankets is 4.2 kg.

How does the Stain Master program work?

The Stain Master program treats specific stains (sweat, mud, soya/sauce). Pre-treat heavily stained areas (see manual) and select the stain type. Maximum capacity is 5.0 kg and water amount is 65 L.

What is the Air Dry (90 min) function?

The Air Dry function uses tub rotation to blow air and remove water from synthetic fibre clothes (max 2.0 kg). It does not use a heater, so clothes may be cold and half dry.

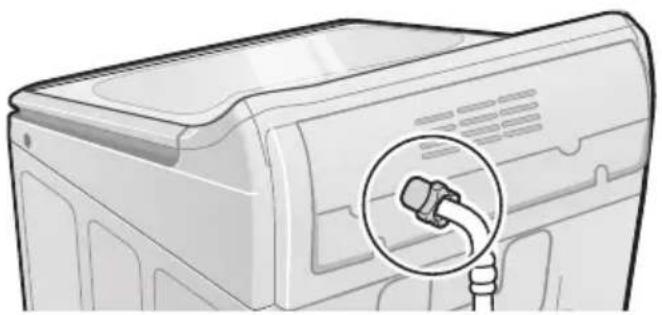

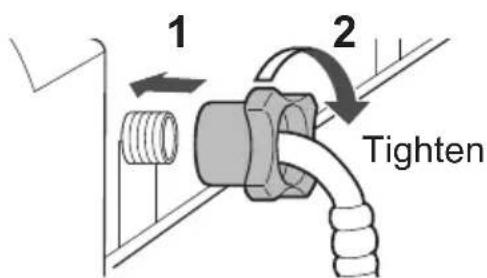

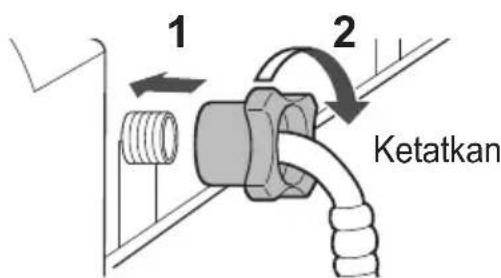

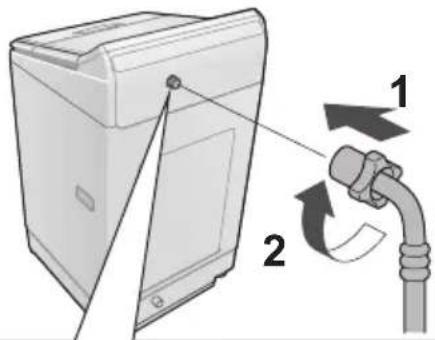

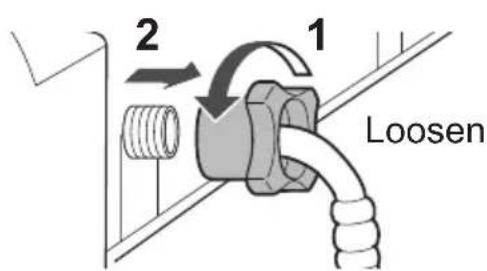

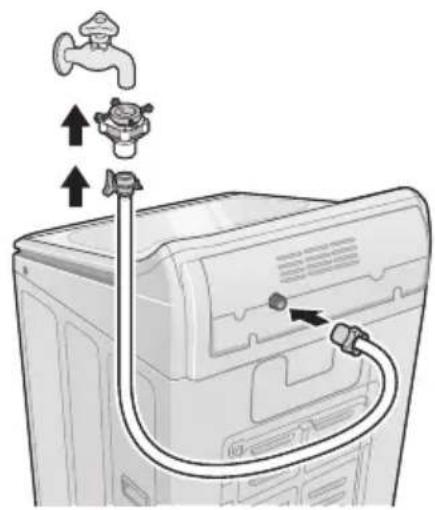

How do I connect the water supply hose?

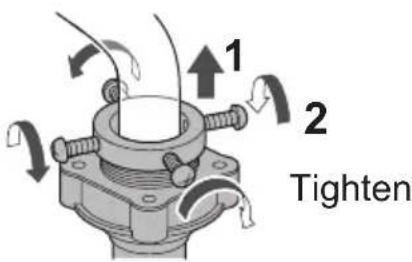

Attach the water tap adaptor to the faucet, then connect the hose. Tighten the nut firmly. Do not twist, squash, modify or cut the hose. Use new hose-sets supplied.

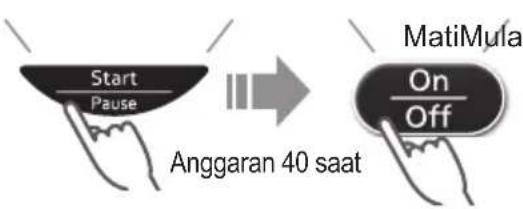

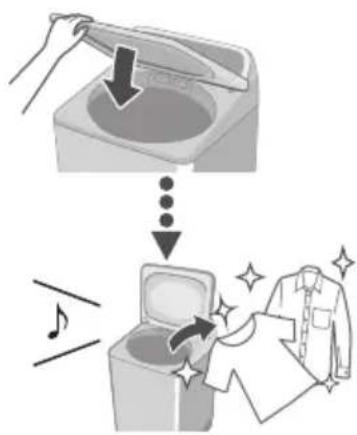

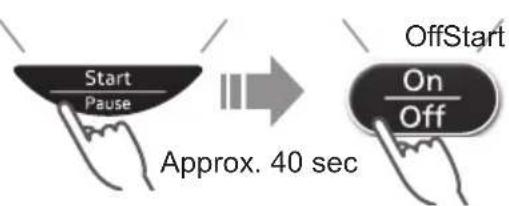

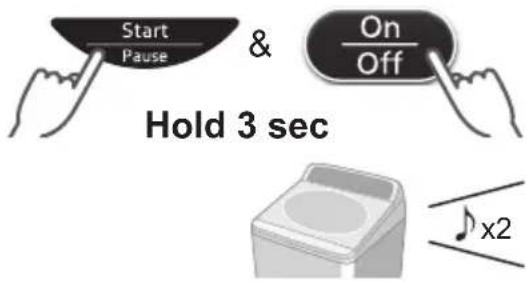

How can I cancel the end buzzer?

To cancel the end buzzer, press and hold the Start/Pause button for 3 seconds while the machine is off. Repeat to reactivate.

What happens during a power failure?

If a power failure occurs, the machine will resume operation from where it stopped when power is restored. Also, the machine has an Auto Power Off function if no button is pressed for 10 minutes after power-on.

USER MANUAL NA-FD11AR1 PANASONIC

Operating & Installation Instructions

Fully Automatic Washing Machine (Household Use)

Model No. NA-FD13AR1

NA-FD11AR1

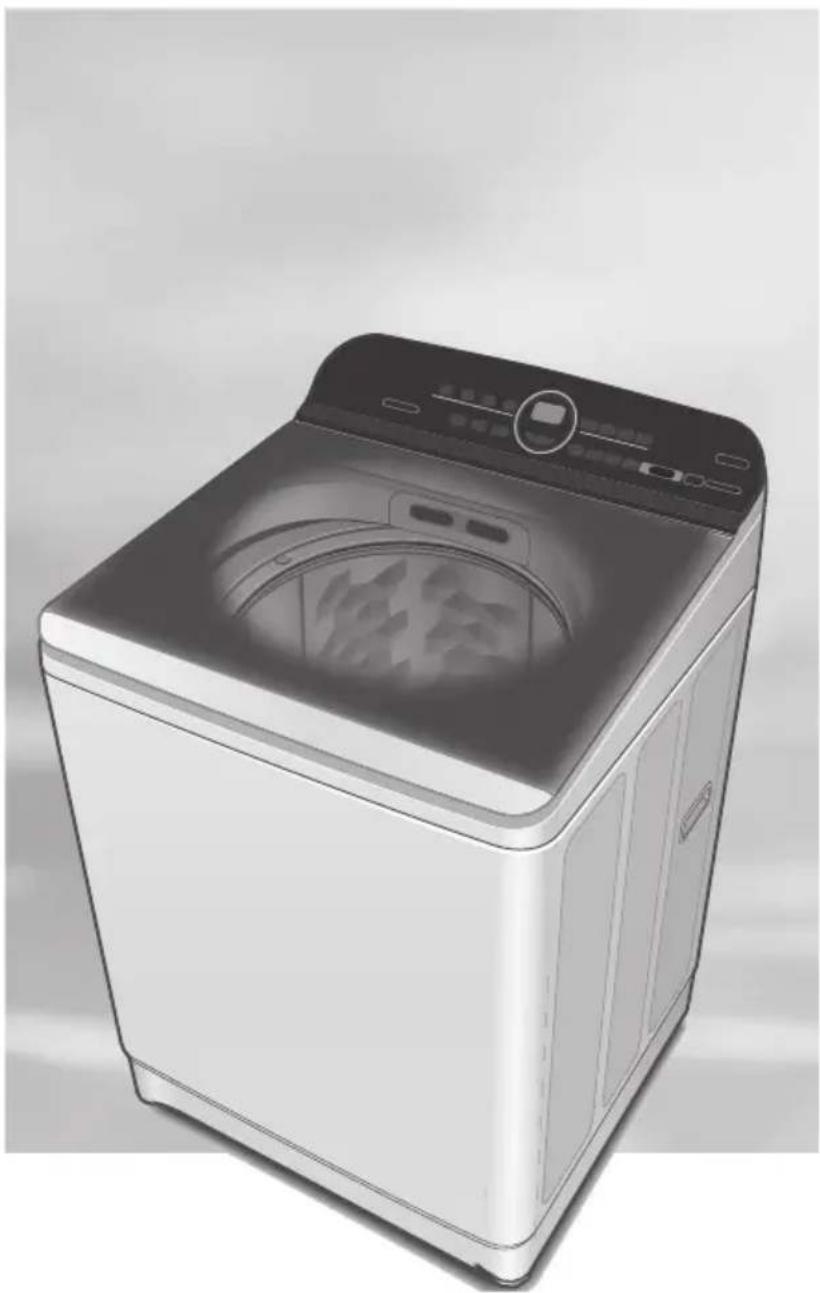

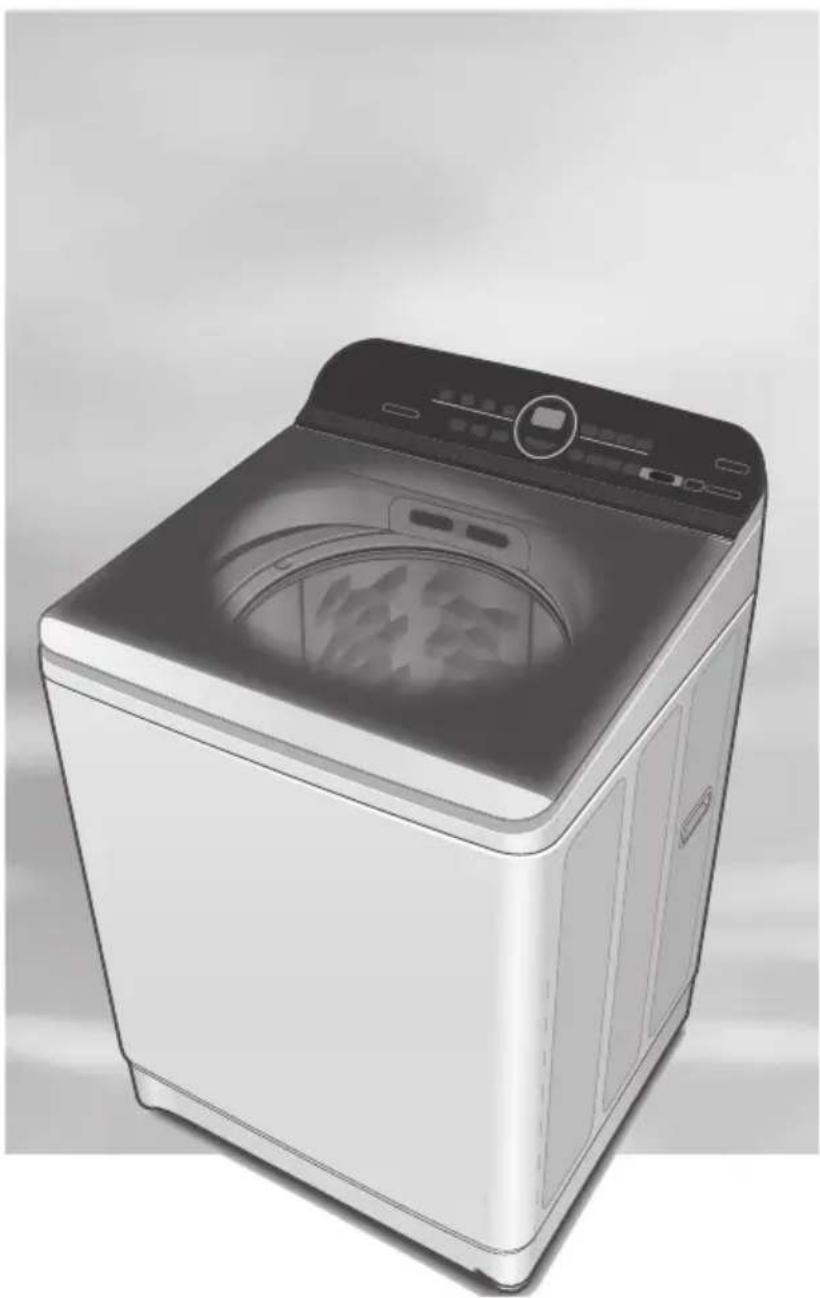

Illustration of a modern single-washing washing machine with front panel and side door (no text or symbols visible)

Thank you for purchasing this product.

• Read these instructions carefully for optimum performance and safety before use.
• Keep this manual for future reference.

Contents

Safety Precautions	2
Part Names / Accessories	6
Before Washing	7
Operation Panel	8
Washing	9
Variety of Programs	10
Detergent / Softener / Bleach	12
Washing Options	14
• Preset
• Wash / Rinse / Spin
• Delicate
• Blanket
• Stain Master
• Air Dry (90 min)
Convenient Functions	18
Contents of Programs	19
Maintenance	20
Installation	24
Error Display	28
Troubleshooting	30
Specifications	32

AWW9901C71C0-0C5

A0620-0(M)

Printed in Vietnam

06-2020

Safety Precautions

WARNING

May cause serious injury or death.

Children must not use it alone.

Illustration of a child washing clothes inside a washing machine with a 'X' symbol (no text or labels)

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

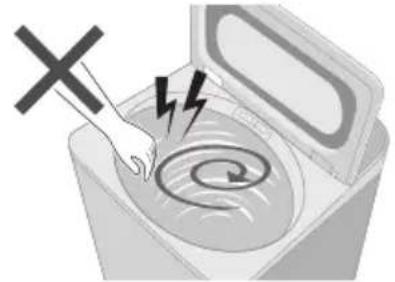

Do not touch the tub until it stops.

Illustration of a hand pressing a circular object with a lightning bolt and spiral motion, no text or symbols present

- If the tub does not stop within 15 sec:

May cause fire or electric shock.

Do not touch it with wet hands.

Illustration of a hand holding a fish with water droplets and a 'X' symbol above (no text or labels)

Do not hold or pull on the cord.

Hand holding a plug inserted into a socket, with a 'X' symbol indicating no change or failure (no text or symbols present)

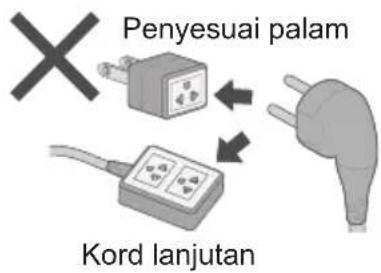

Do not use.

Fully insert it. Do not use.

Two identical illustrations of a plug with a cross mark above, showing the same shape and a checkmark (no text or symbols present)

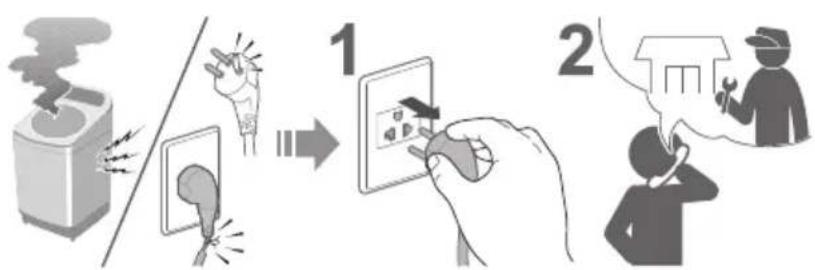

- If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

In case of failure or damaged power cord, stop use and ask the service centre.


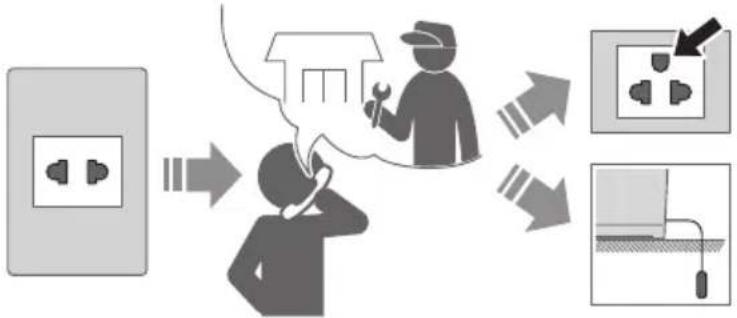

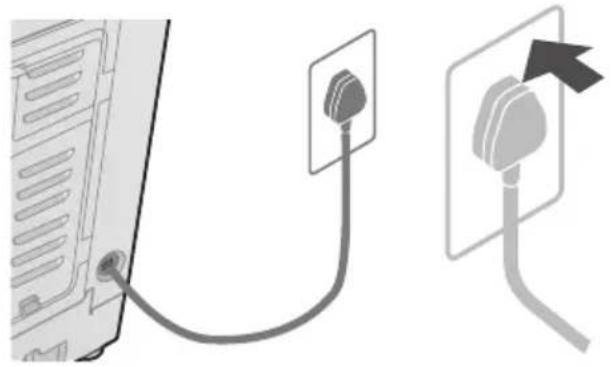

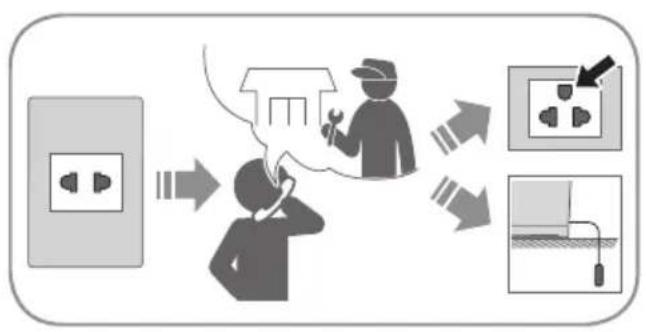

Securely insert the ground prong. Call your local dealer for a new socket.


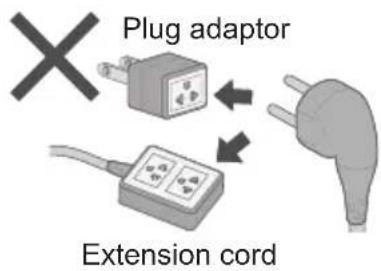

Use a socket appropriate for this appliance.

- The plug shape, socket shape and rating requirement varies with the region.

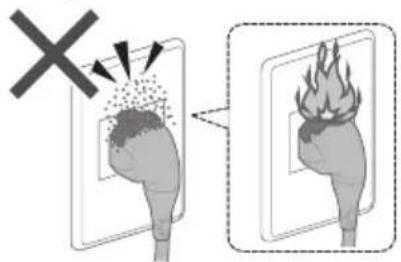

Accumulated dust may cause fire.

Wipe the power plug periodically.

Illustration of two hands performing a medical or cosmetic procedure with sparkles (no text or symbols)

Keep away from flammable materials.

May cause failure.

Never disassemble, repair or modify it by yourself.

Illustration of a washing machine with a cross symbol, a person holding a tool, and scattered items (no text or symbols)

Safety Precautions (continued)

CAUTION

May cause injury.

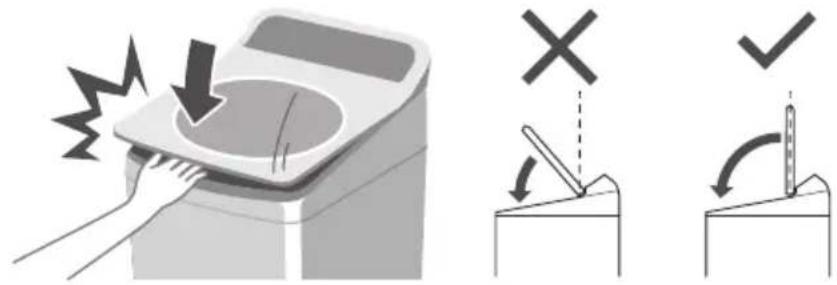

Be careful not to get your fingers caught.

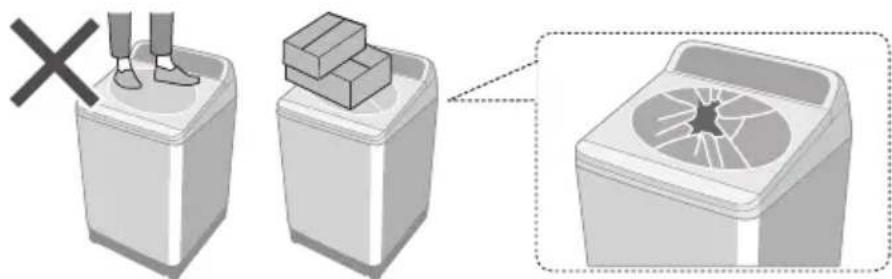

Do not climb or put objects on the appliance.

Illustration of a washing machine with a hand using a tool to press or install a box, showing a close-up view of the lid (no text or symbols present)

- If the lid is broken, immediately stop using.

Be careful of your hands and feet.

Illustration of two hands holding a large 3D block with a 'X' symbol above, no text or symbols present

May cause water leakage.

Turn off the water faucet. Use new hose-sets.

Illustration of a washing machine with a T-shirt and a faucet, showing a water tap being removed (no text or symbols)

Illustration of a flexible hose with sparkles and decorative elements (no text or symbols)

● New hose-sets supplied with the appliance are to be used and old hose-sets should not be reused.

■ For maximum dry cloth and tap water pressure, see Page 32.

May cause failure.

Keep away from heat and direct sunlight.

Illustration of a washing machine with a sun symbol and a 'X' mark, no text or symbols present

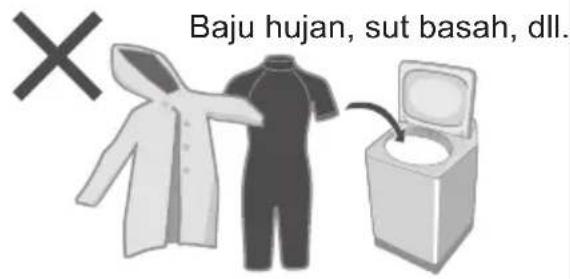

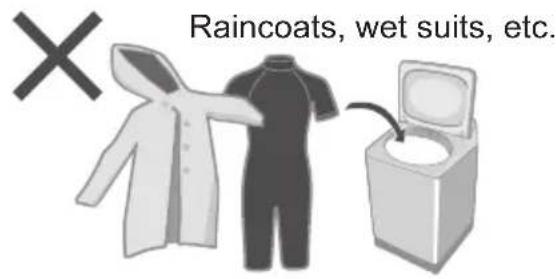

Do not wash waterproof items.

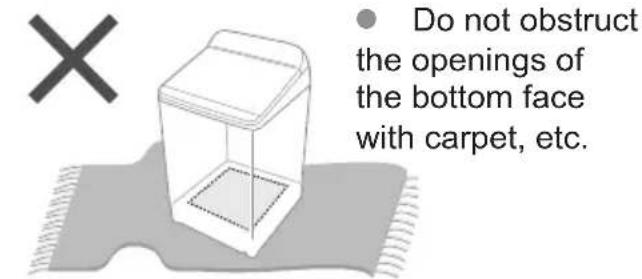

Do not obstruct. Do not use hot water.

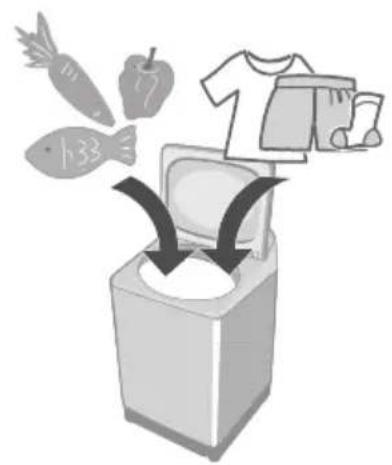

For Machine-washable items only.

• This appliance is intended to be used in household. This appliance is not intended to be used in applications such as:
• Staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• areas for communal use in blocks of flats or in launderettes.

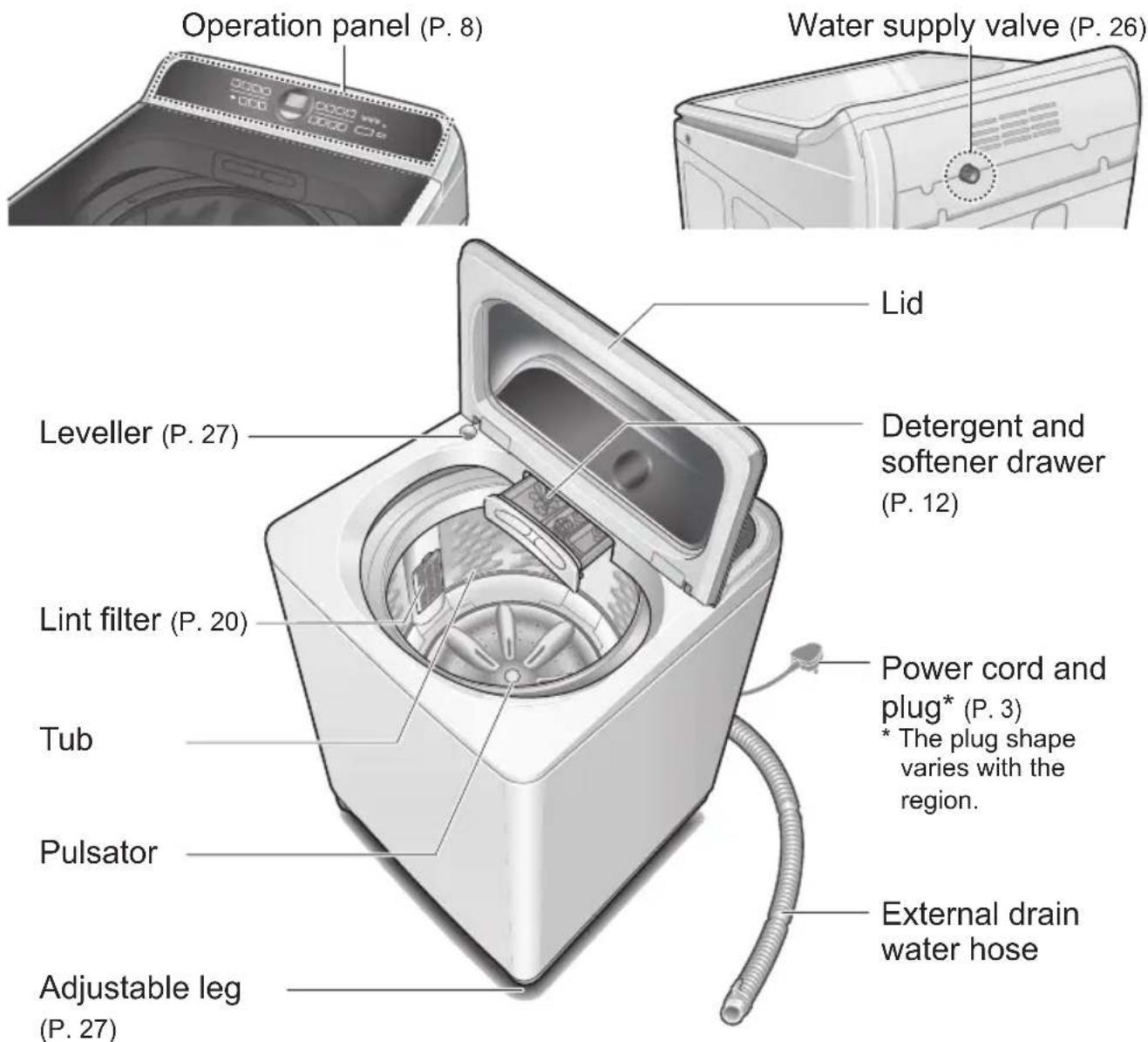

Part Names / Accessories

Part names

Accessories

□ Water supply hose (1) (P. 26)

Simple line drawing of a coiled tube with two connectors and a labeled length of 1.0 m (no text or symbols on the diagram itself)

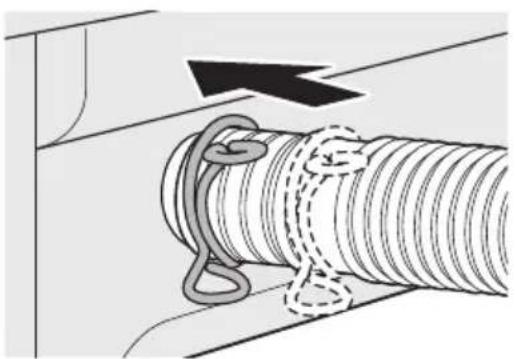

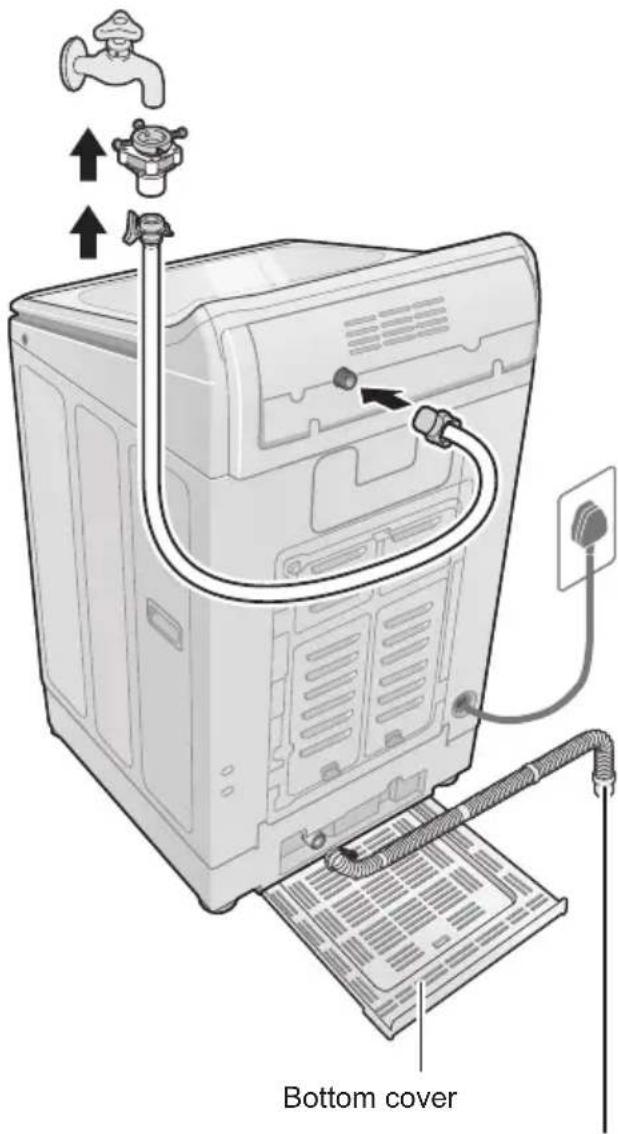

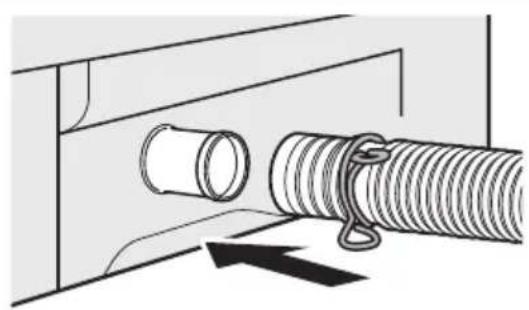

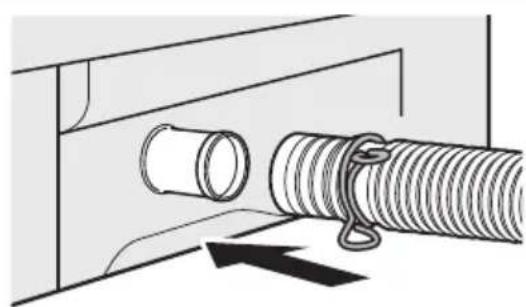

□ External drain water hose (1) (P. 25)

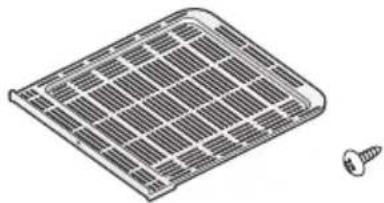

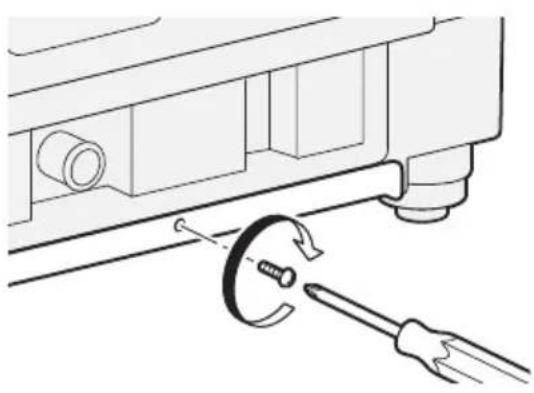

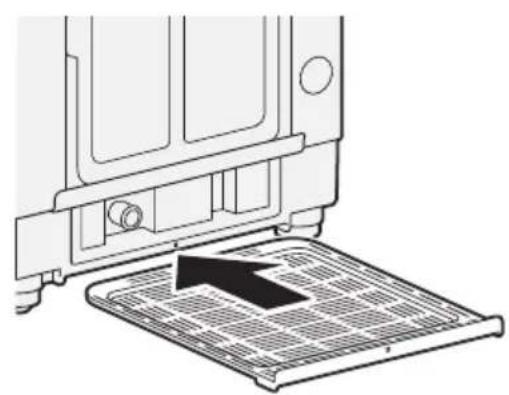

☐ Bottom cover (1) /Screw (1) (P. 25)

Illustration of a solar panel with grid lines and a screw, no text or symbols present

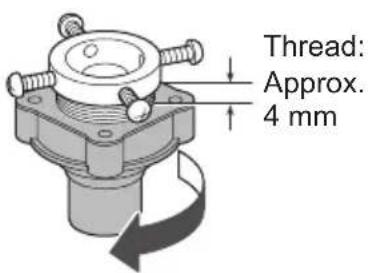

□ Water tap adaptor (1) (P 26)

Before Washing

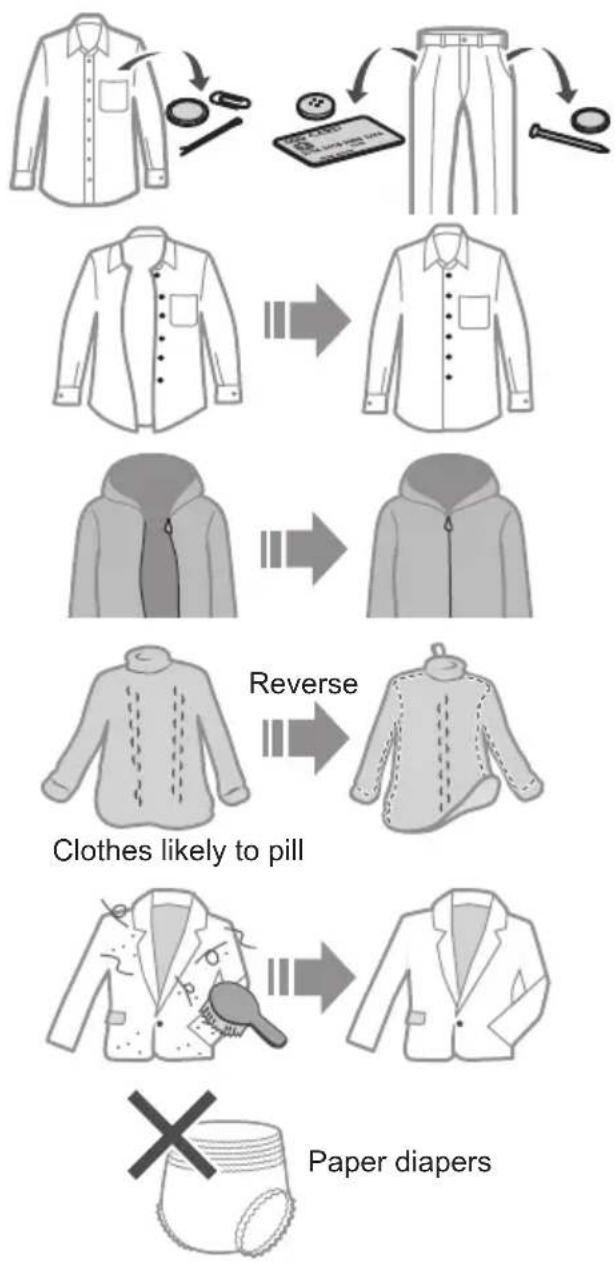

Laundry preparation and check

Pre-laundry check


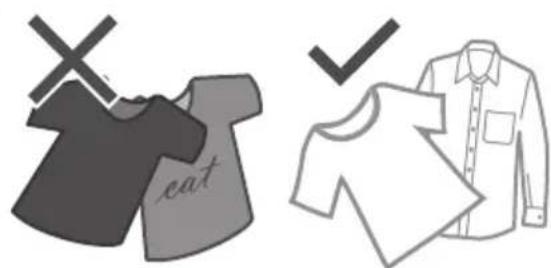

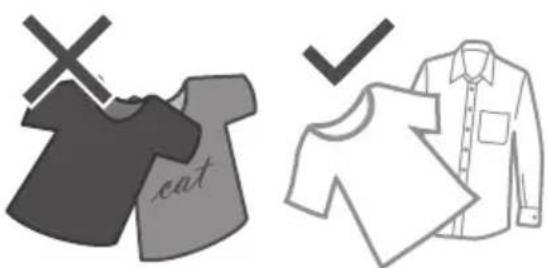

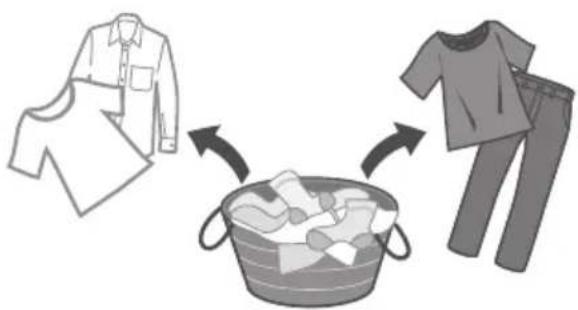

To prevent colour staining

Illustration showing clothing items including a shirt, jeans, and a box with arrows indicating direction (no text or symbols)

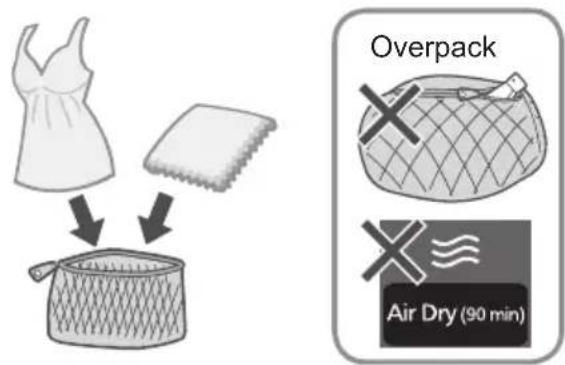

Use laundry nets for delicates

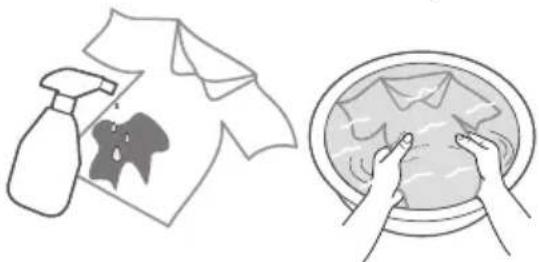

For "Stain Master" (P. 16)

- Pretreatments for heavily stains

Illustration showing a spray bottle cleaning a shirt and a hand washing clothes in a bowl (no text or symbols)

- Observe the clothes' care labels

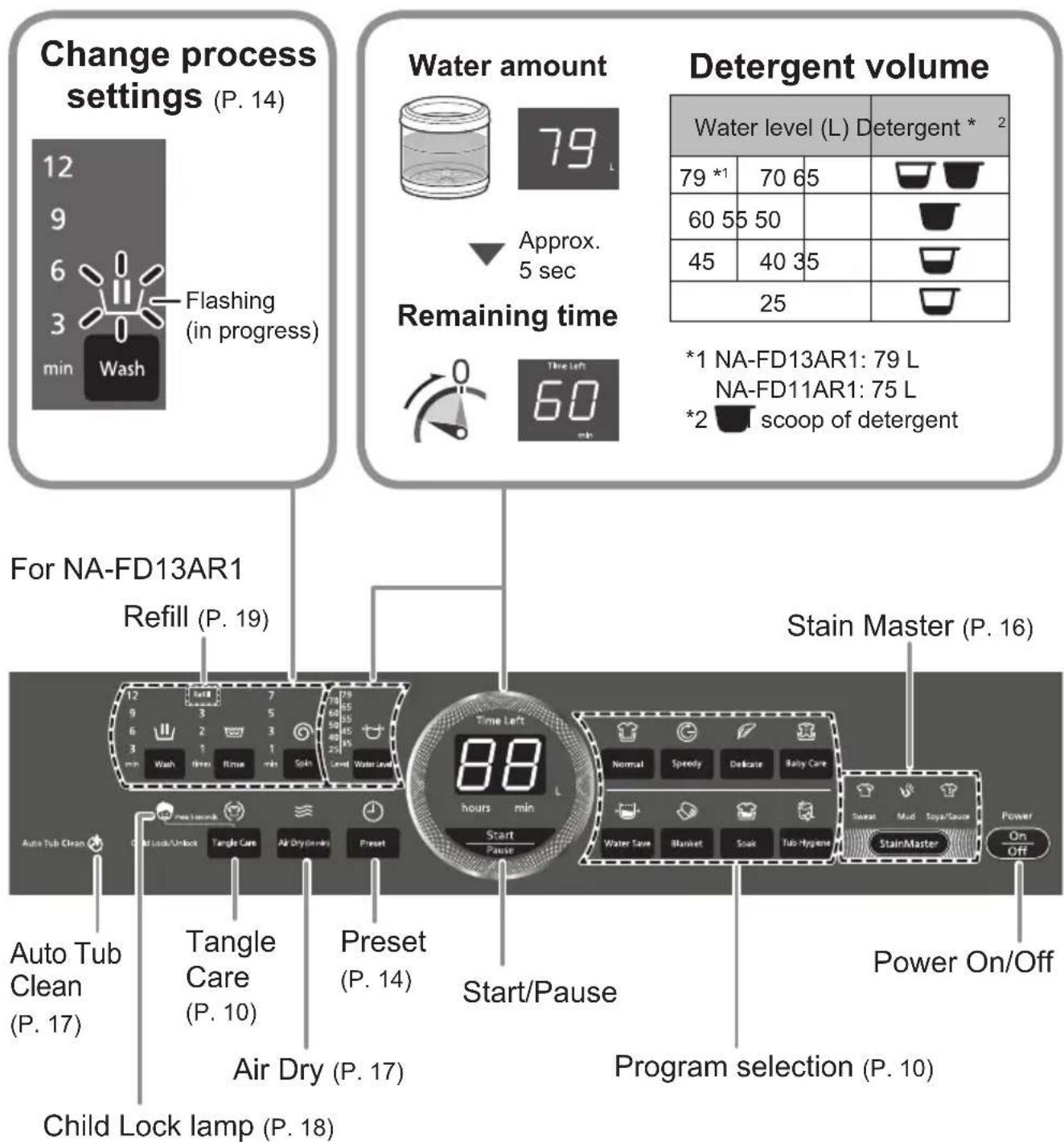

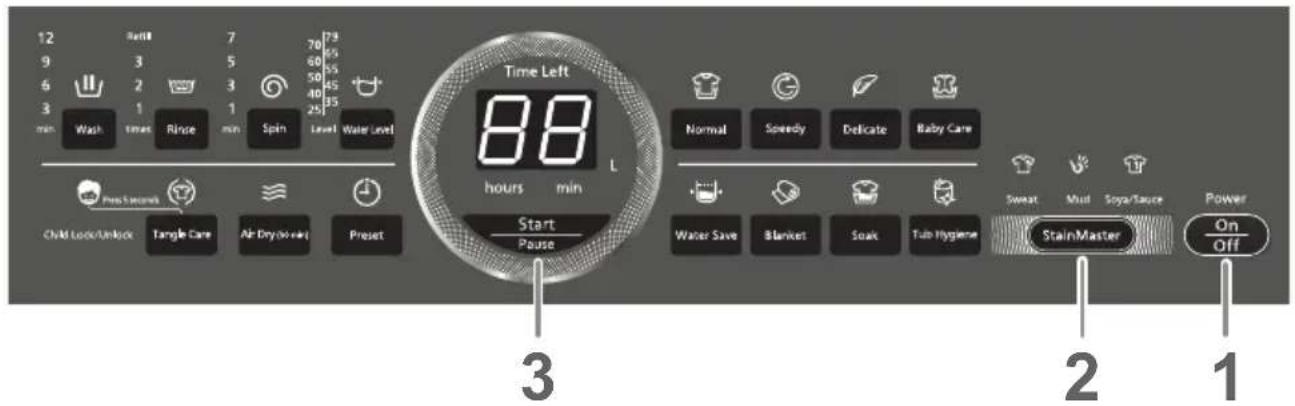

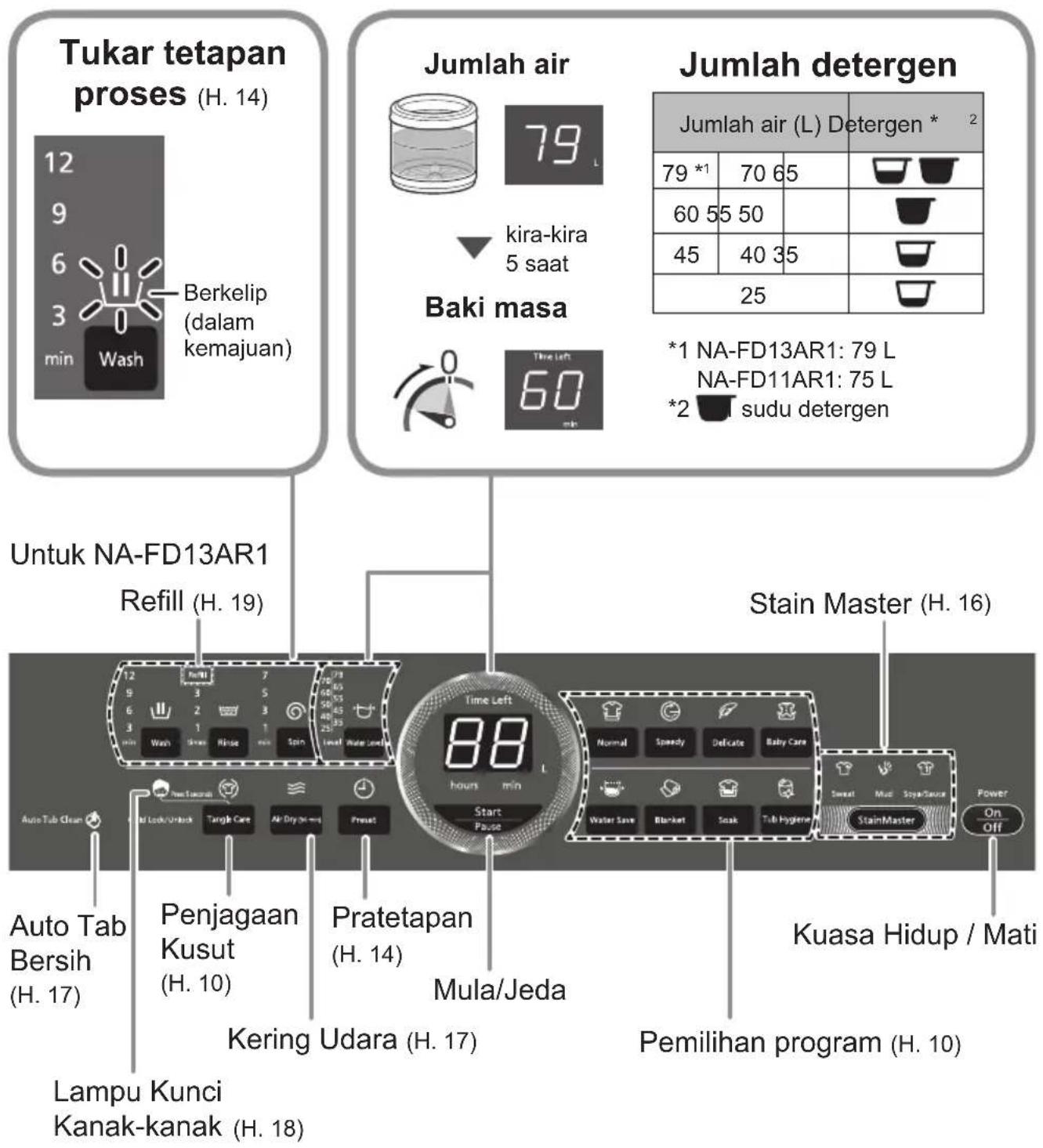

Operation Panel

NOTE

In case of a power failure.
Operation will resume from where it stopped when the power recovers.

- If you do not press Start Pause within 10 minutes after power-on.

Auto power off.

- The wash process setting of the “Stain Master” and “Soak” programs cannot be changed.

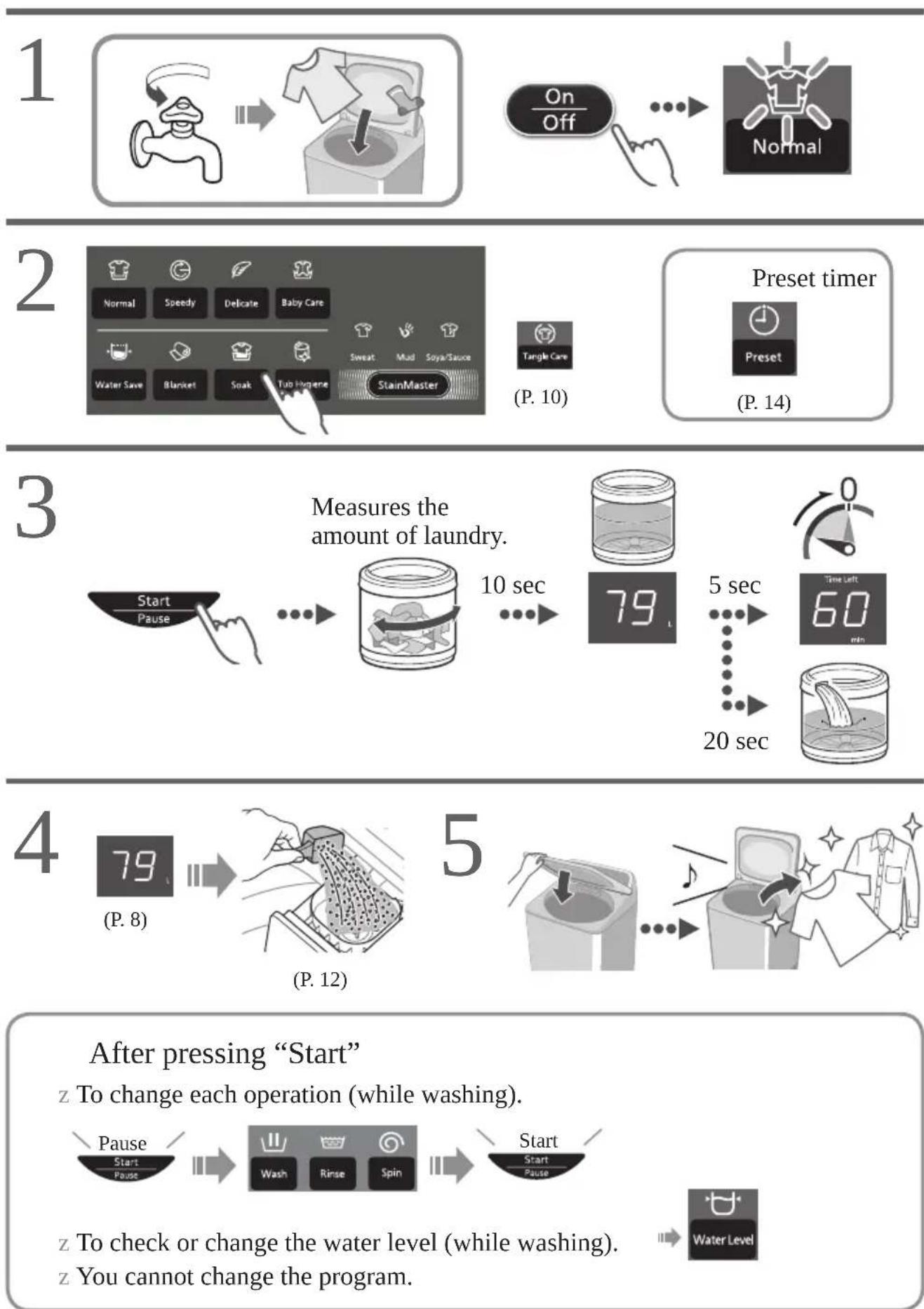

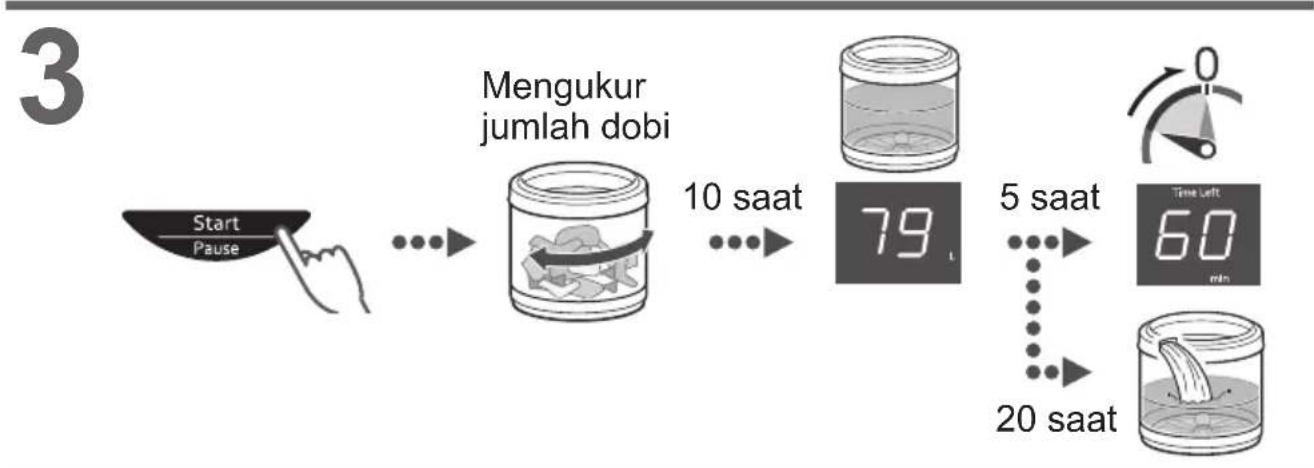

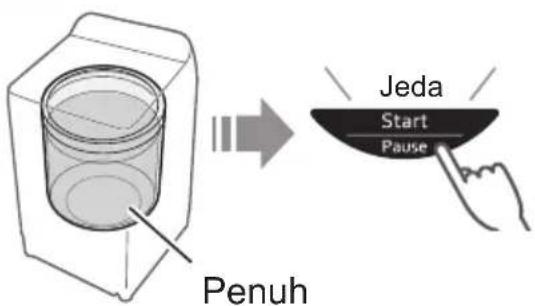

Washing

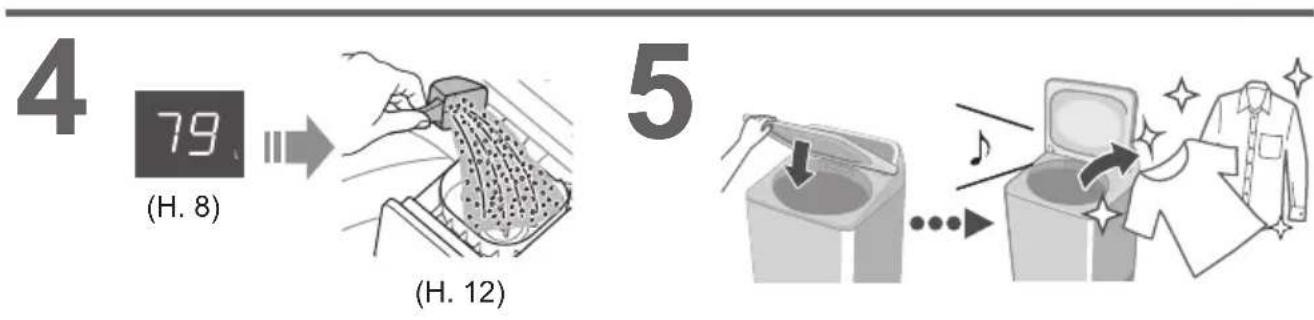

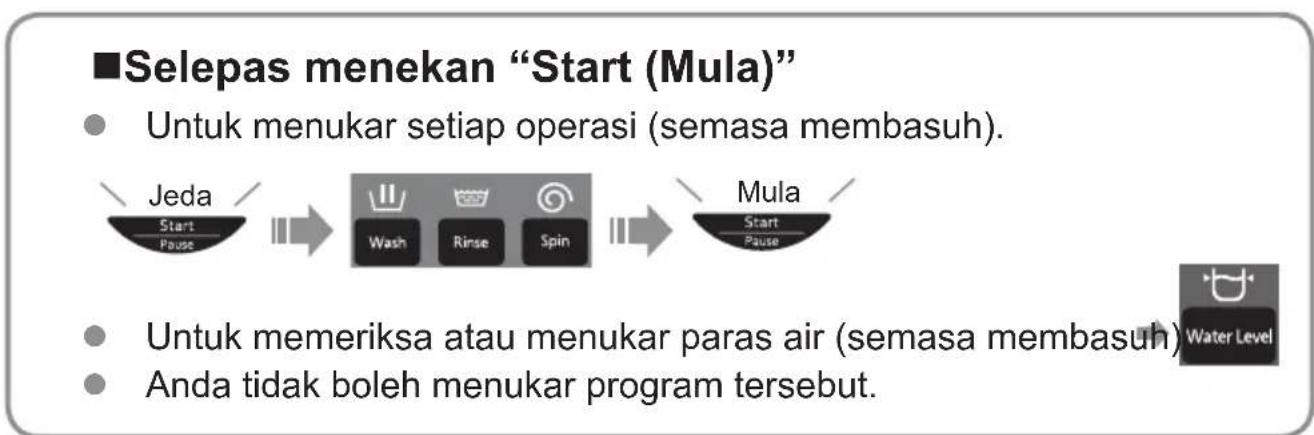

After pressing "Start"

z To change each operation (while washing).

z To check or change the water level (while washing).
z You cannot change the program.

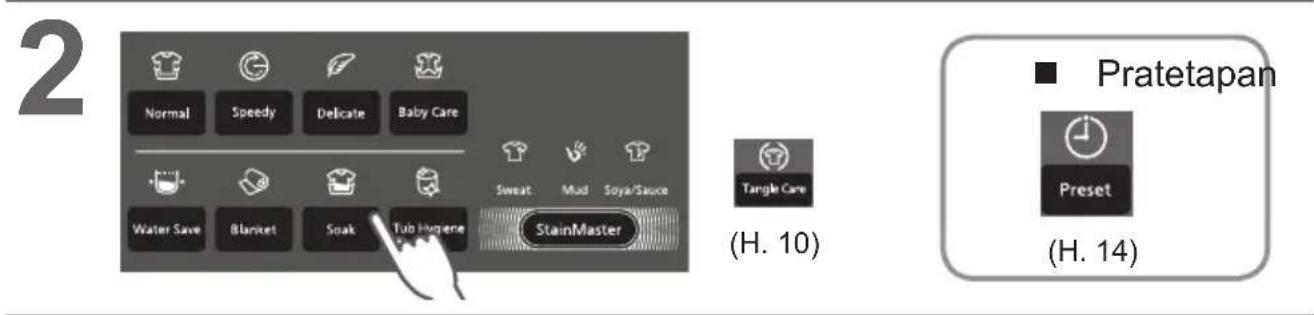

Variety of Programs

	Program Purpose		Max. capacity * (kg)
Wash	Normal (P. 9)	Everyday clothes	13.511.5
	Tangle Care (P. 9)	Anti-tanglingWashing more gently than “Normal” to reduce tangle.Disentangling clothes after spin: 6 kg or less.
	Speedy (P. 9)	For light soil	13.511.5
	Delicate (P. 15)	Washing gently	4.2
	Baby Care (P. 9)	Clothes for babies & sensitive skinRinsing thoroughly	13.511.5
	Water Save (P. 9)	Saving water	13.511.5
	Blanket (P. 15)	Comforters and blankets With a machine-washable tag	4.2

* Top: NA-FD13AR1 / Bottom: NA-FD11AR1

	Program Purpose			Max. capacity * (kg)
Wash	Soak (P. 9)		For heavy soil Presoaking to wash	13.511.5
	(P. 16)		For the following stains	5.0
	Light	Sweat
		Mud
		Soya/Sauce
Dry	Air Dry (90 min) (P. 17)		Drying synthetic fibre clothes	2.0
Maintenance			Tub drying —

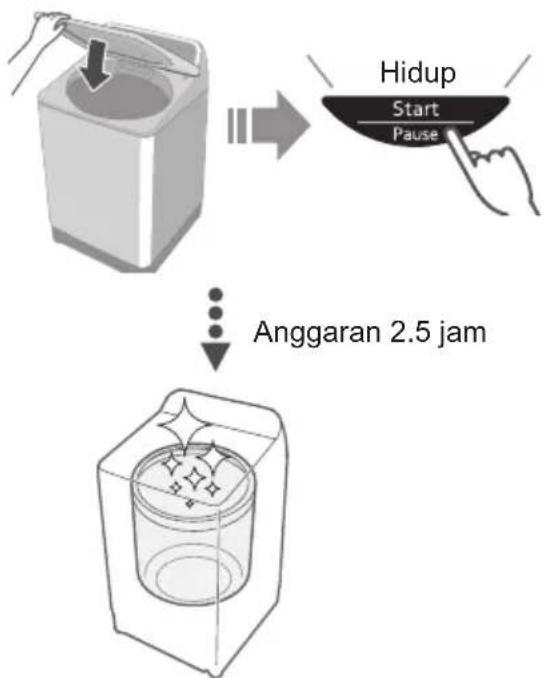

	Tub Hygiene (P. 23)		Tub cleaningRemoving black mould and smell	—

NOTE

- “Normal” program and “Water Save” program are recommended for a normally soiled load at the rated capacity of this washing machine.

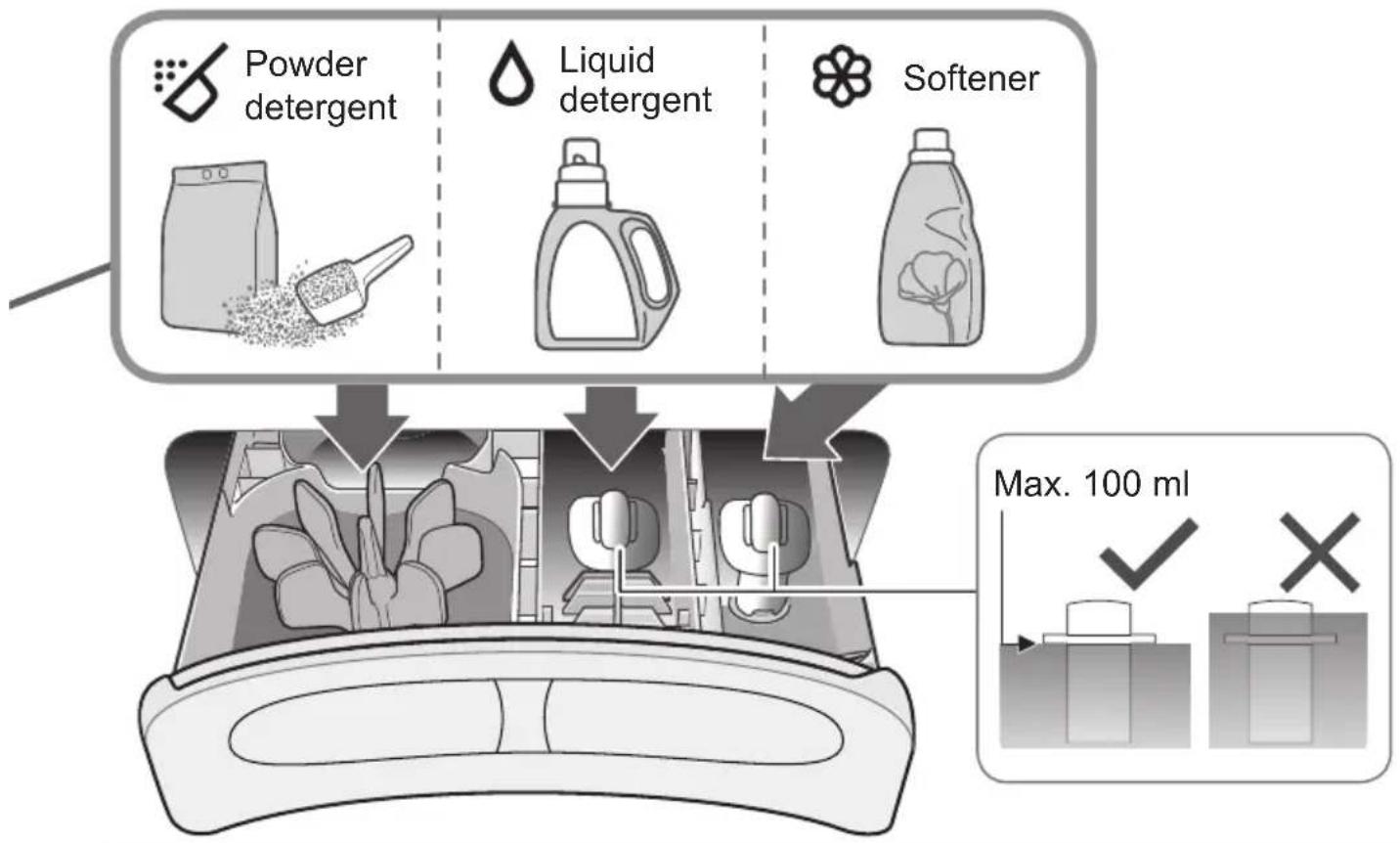

Detergent / Softener / Bleach

• Follow the instructions on each package.

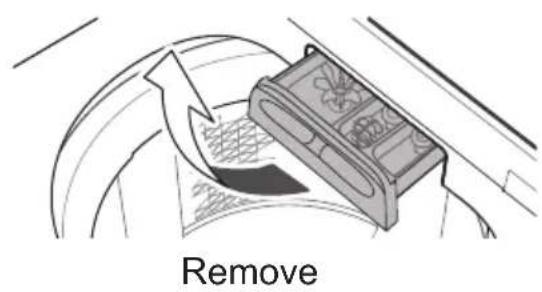

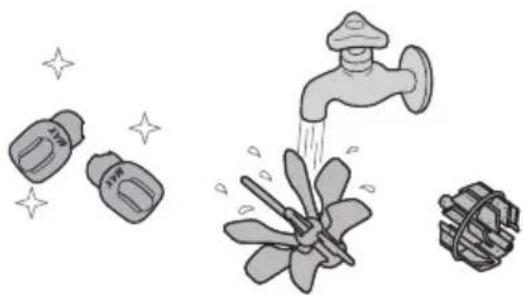

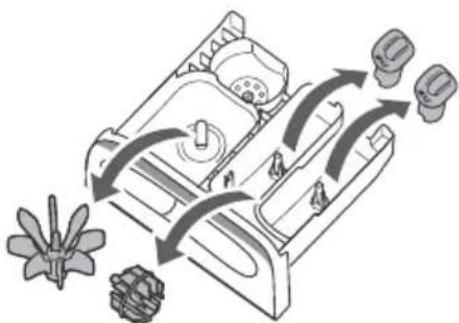

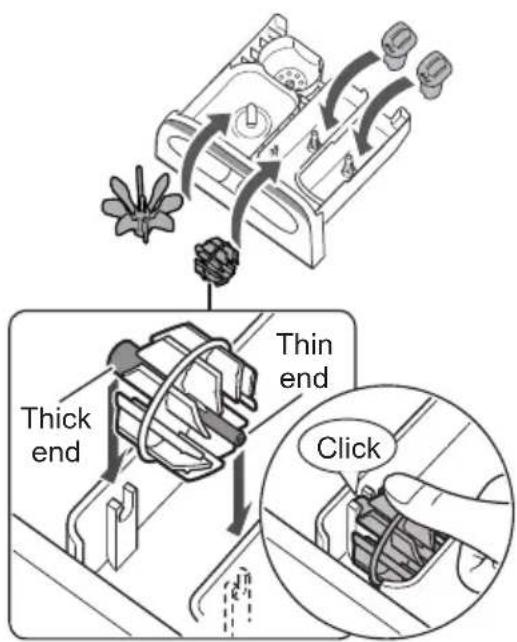

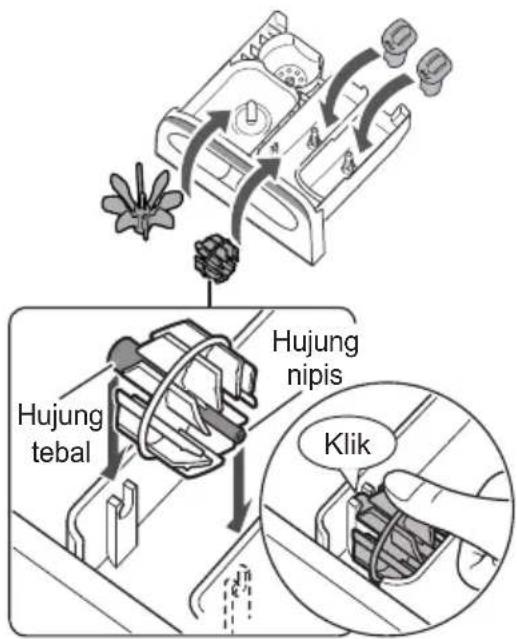

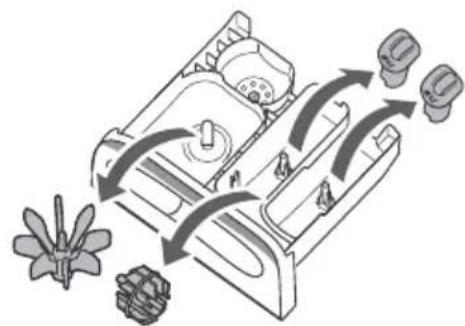

  For cleaning (P. 21)

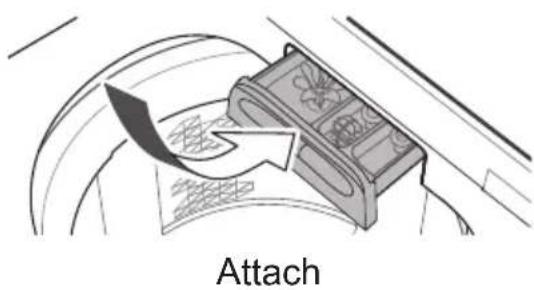

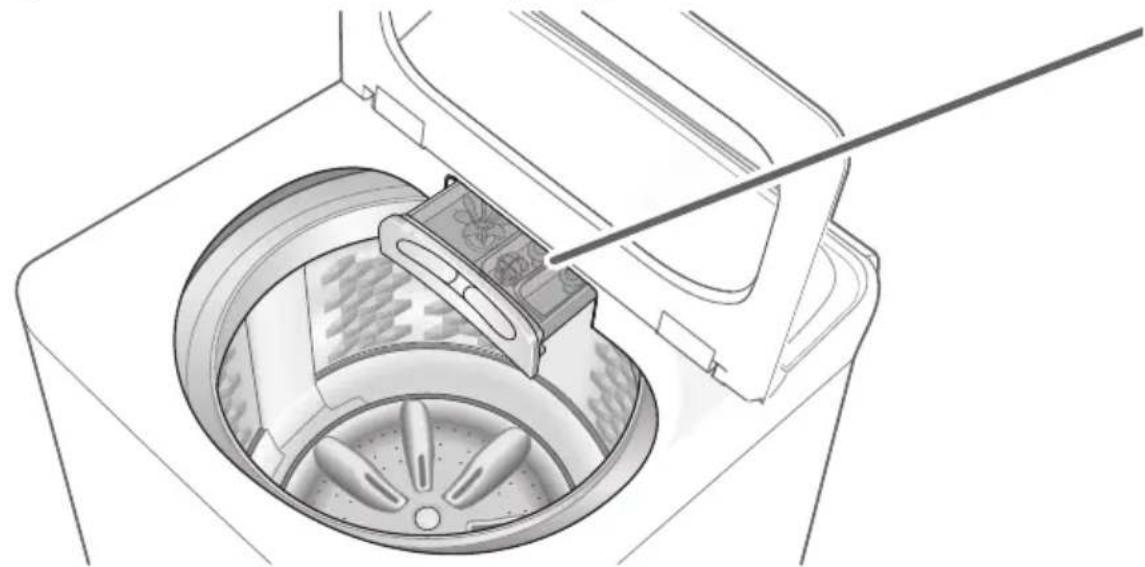

• Close detergent and softener drawer completely before use.

Diagram of a washing machine with a handle and fan, showing internal components without any text or symbols.

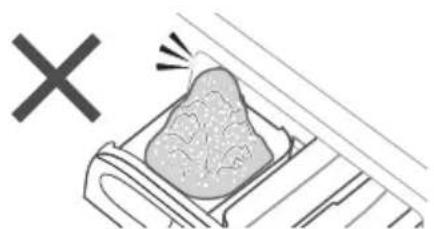

Detergent

Illustration of a hand holding a device with a cross symbol, no text or symbols present

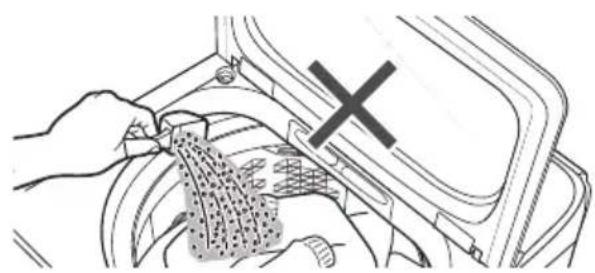

• Do not pour detergent directly into the tub.
  ● The level of foaming depends on the load size, soil, detergent, and water hardness.

Simple line drawing of a rock inside a container with a 'X' symbol above, no text or labels present.

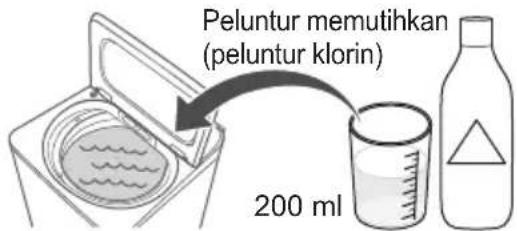

Bleach

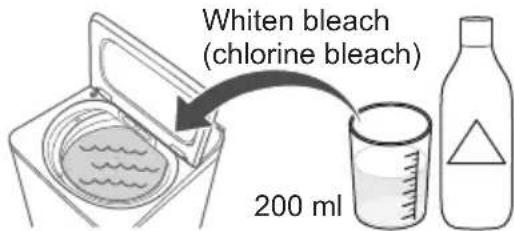

Whiten bleach (chlorine bleach)

- To use bleach, put bleach in the powder detergent case (if bleach is in powder form) or liquid detergent case (if it is liquid bleach).


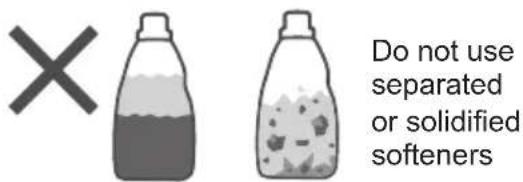

Softener

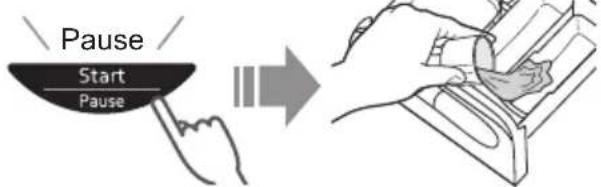

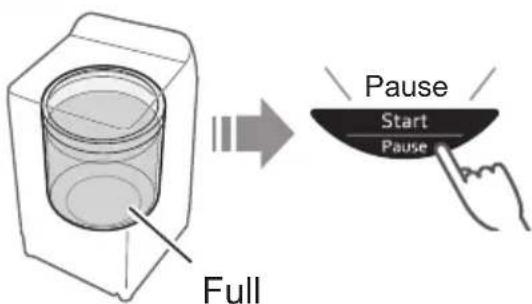

- To put softener while the machine is operating:

Water

- Softener cannot be used with the "Water Save" program.

Washing Options

Preset

Set how many hours later to finish operation.

1

2

All other indications turn off.

Normal	2 - 24
Speedy	1 - 24
Delicate	-
Baby Care	2 - 24
Water Save	2 - 24
Blanket	-
Soak	3 - 24
StainMaster	2 - 24
Air Dry (90 min)	-
Tub Hygiene	-

■ To confirm

■ To cancel or change

Wash / Rinse / Spin

1

2

3

NOTE

- Not available for "Tangle Care".

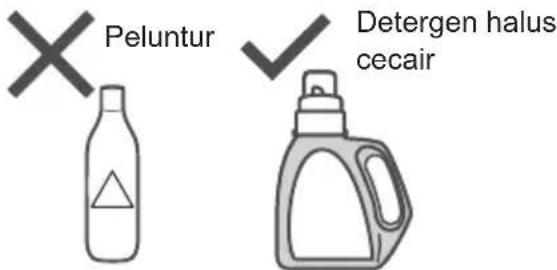

Delicate

65 L 4.2 kg
55 L 3.0 kg

NOTE

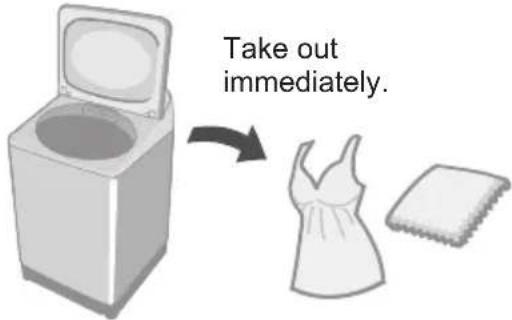

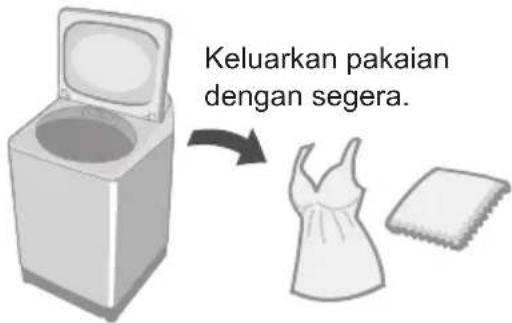

■ After operation ends

Blanket

Max.water amount *

4.2 kg100 % synthetic fibre100 % cotton

* NA-FD13AR1: 79 L / NA-FD11AR1: 75 L

Illustration of a washing machine with a lid and downward arrow indicating airflow or discharge (no text or symbols)

NOTE

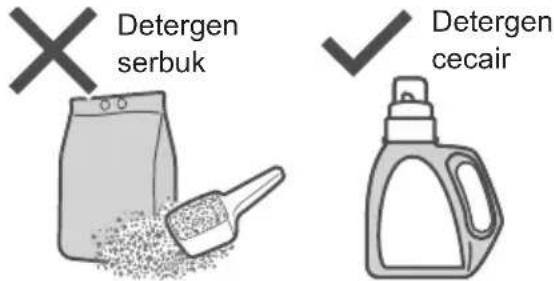

Powder detergent

Illustration of a bag with granular powder and a hand holding a paintbrush (no text or symbols)

Liquid detergent

NOTE

- The water amount indication shows the maximum and cannot be changed.

Washing Options (continued)

Stain Master

Preparation: (P. 7)
For NA-FD13AR1

1

2

■ Timer preset (hours)40P.

3

4

5

NOTE

Max. 5.0 ~kg

• Max. water amount: 65 L
- You cannot change the wash process setting of this program.

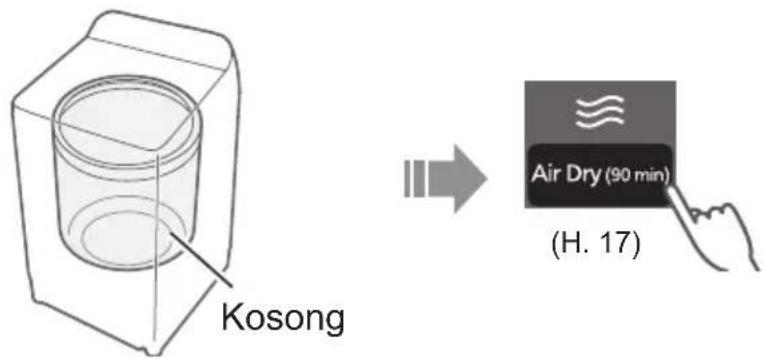

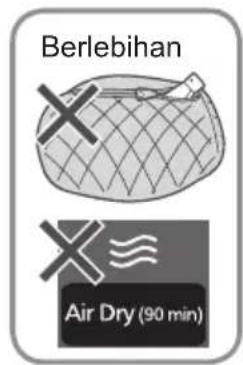

Air Dry (90 min)

The air blown from the tub rotation removes water from clothes.

- Dryable clothes: Synthetic fibre (Max. 2.0 kg)

1

2

3

NOTE

Clothes may not be sufficiently dried (depends on amount and type of clothes, and the temperature).
- This function does not use a heater. Clothes may be cold and half dry.

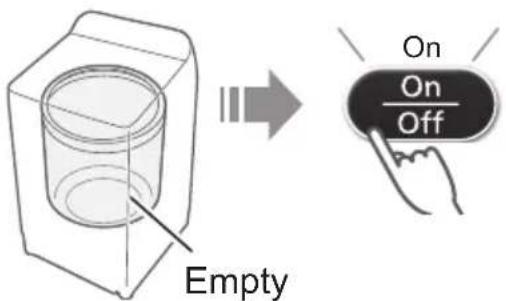

Setting Auto Tub Clean

Preventing black mould, available with all programs except "Water Save" and "Air Dry".

■ Lamp indications

Detecting

Function enabled

Function disabled

■ To turn on/off

1

2

3

Hold 3 sec

4

to select

5

Convenient Functions

Cancelling end buzzer

1

■ To reset: same procedure

Turning the tub by hand

Diagram of a mechanical component with rotating parts and directional arrows (no text or symbols)

Setting Child Lock

* This function does not lock the lid and button operations.

1

2

■ To cancel: same procedurex4

Contents of Programs

Program		Total time*1(min)	Wash(min)	Rinse*2(times)	Spin(min)
	Normal	65 10 2 7
	Speedy	45 3 2 5
	Delicate	50 9 2 1
	Baby Care	70 10 2 7
	Water Save	85 12 4 5
	Blanket	70 12 2 5
	Soak	125 *2	71 (Soak 59) 2 7
Stain Master	Sweat	65 13 2 7
	Mud	85 32 2 7
	Soya/Sauce	105 *2	54 (Soak 29) 2 7
	Tub Hygiene	150 *2	65 (Soak 62) 2 30

*1 Total time is approximate (When the standard water supply rate is 15 L / min and the water temperature is 28 °C).
*2 Remaining time of 99 minutes or less will be displayed. --→99

- “Refill”: to fill the tub with water and rinse while supplying water.

Maintenance

Lint filter

After each operation

1

Hand inserting a calculator into a device (no text or symbols visible)

2

3

Illustration of hands holding a device with a grid pattern, no text or symbols present

Illustration of hands holding a handheld device with a lightning bolt (no text or symbols)

Cross-sectional diagram of a microwave oven with internal components and ventilation slots (no text or labels)

NOTE

Without the filter

If it is difficult to remove the filter (P. 18)

Diagram of a mechanical device with rotating components and a handle, no visible text or symbols

If the filter is broken

Detergent and softener drawer

If stained with detergent or softener

1

4

2

5

3

Illustration of four different household appliances: a faucet, a water pump, a water dispenser, and a washing machine (no text or symbols present)

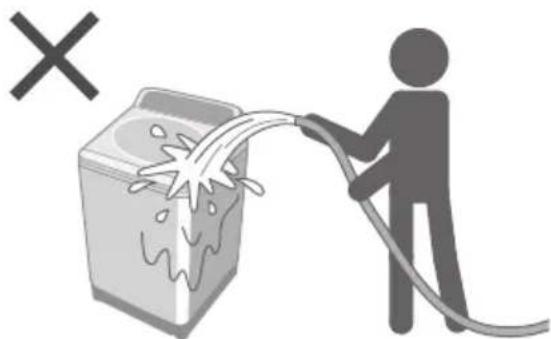

Main unit, lid

Illustration of a hand cleaning a washing machine with sparkles around (no text or symbols)

For heavy soil

Neutral kitchen detergent

Illustration of a bottle with liquid dripping, showing droplets (no text or symbols)

Illustration of a person spraying water from a washing machine with a hose, no text or symbols present

Maintenance (continued)

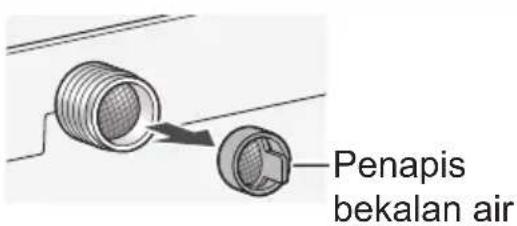

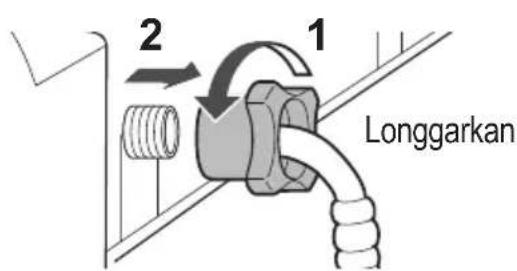

Water supply filter

If water does not flow smoothly

Illustration of a device with a magnified inset showing a cable being inserted (no text or symbols present)

1

2

3

4

5

6

Illustration of a hand holding a tool with a curved object inside (no text or symbols)

7

Diagram showing a coiled component being inserted into a separate circular component (no text or symbols present)

8

Tub

Once a week

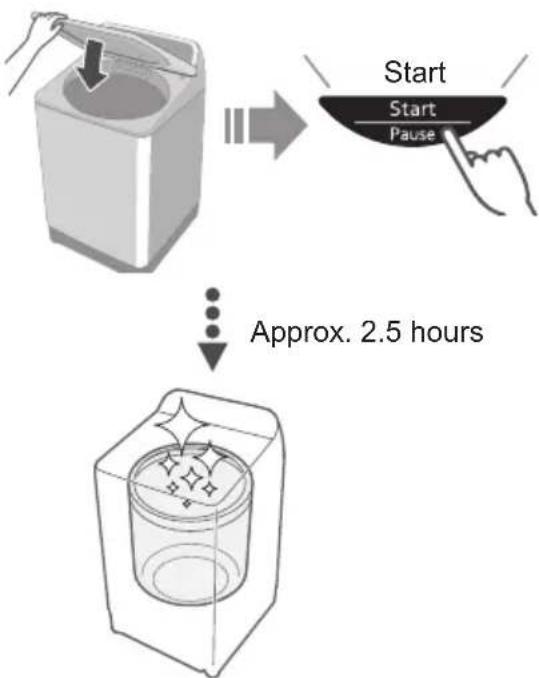

Once a month

1

5

2

6

3

4

Installation

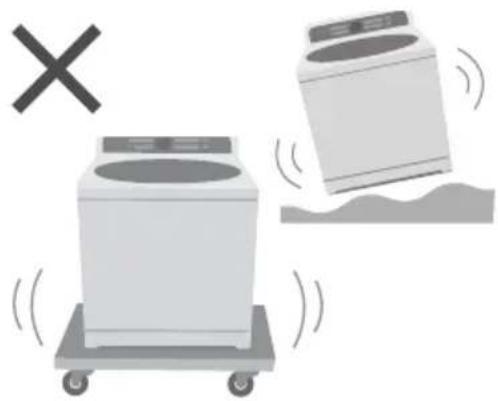

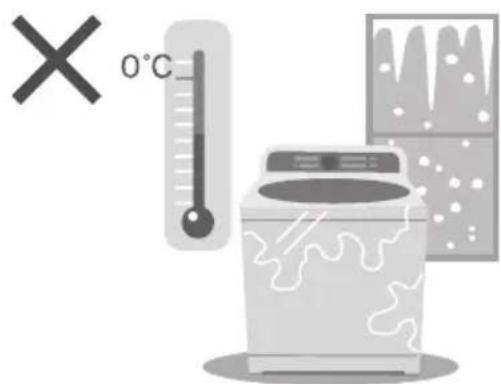

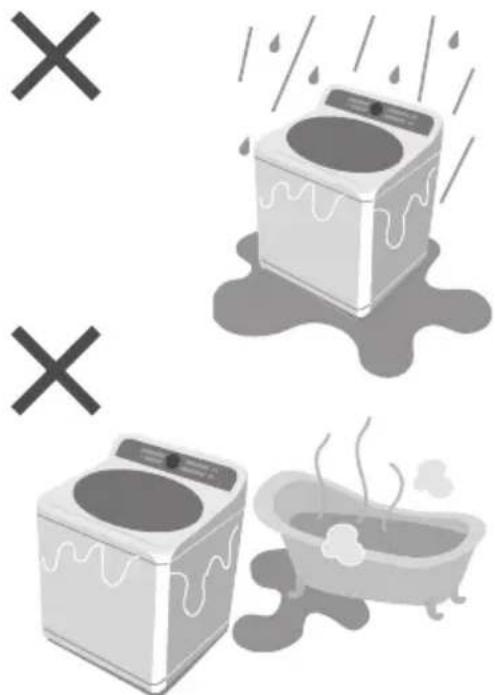

Check the location.

Illustration of two washing machines with steam rising and a bathtub nearby, no text or symbols present

Illustration of two washing machines on a platform with a 'X' symbol and sound waves, no text or symbols present.

Make sure to ask a service person for installation.

Silhouette of a house with tools and a worker (no text or symbols)

■ Do not install by yourself.
■ Follow this installation method.
If you do not, Panasonic will not be liable for any accident or damage.

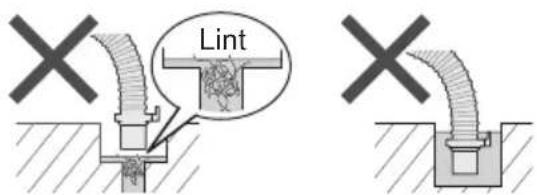

External drain water hose

Attach the bottom cover

1

Diagram of a device with a black arrow pointing to a grid-patterned base (no text or symbols)

2

Technical line drawing of a mechanical assembly with a wrench and screwdriver (no text or symbols)

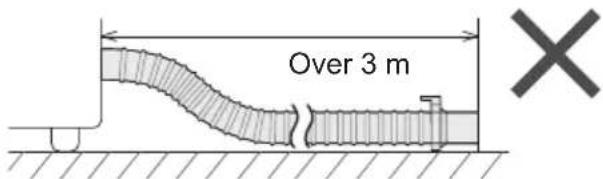

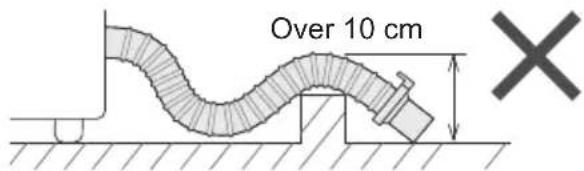

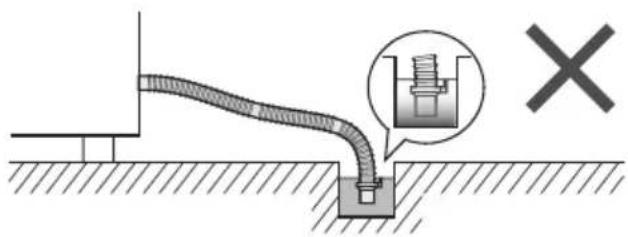

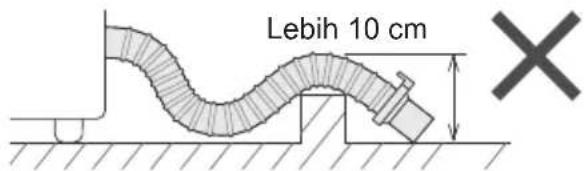

Attach the external drain water hose

1

Diagram of a pipe connection with a coiled hose and directional arrow (no text or symbols)

NOTE

2

Diagram of a mechanical assembly with a coiled spring and rope, showing motion direction (no text or symbols)

Installation (continued)

Connect the water supply hose

Diagram of a washing machine with faucet and hose connections (no text or symbols)

1

2

3

4

5

6

3
Check that the elbow is not loose.

CAUTION

• Tighten the nut firmly.
• Do not twist, squash, modify or cut the hose.

Connect the power plug and grounding

Diagram showing a cable inserted into a socket connected to an outlet, with an arrow indicating direction (no text or symbols present)


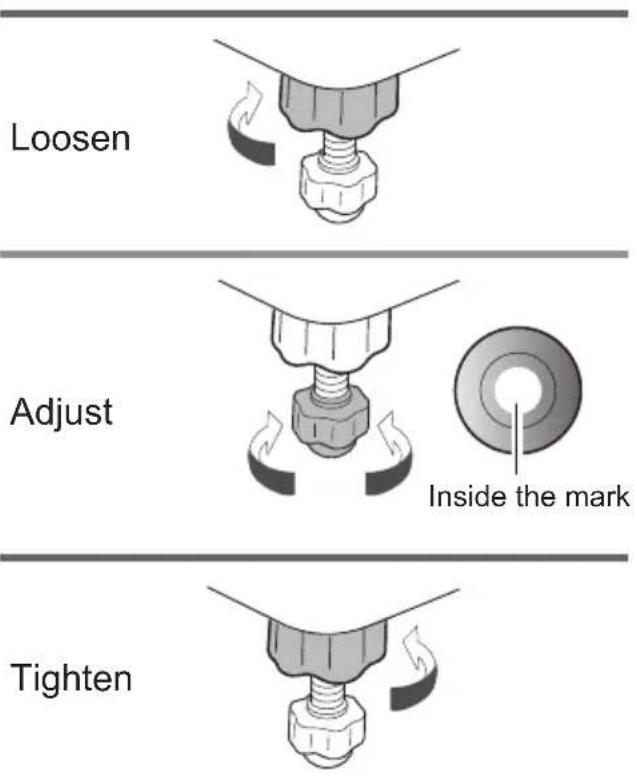

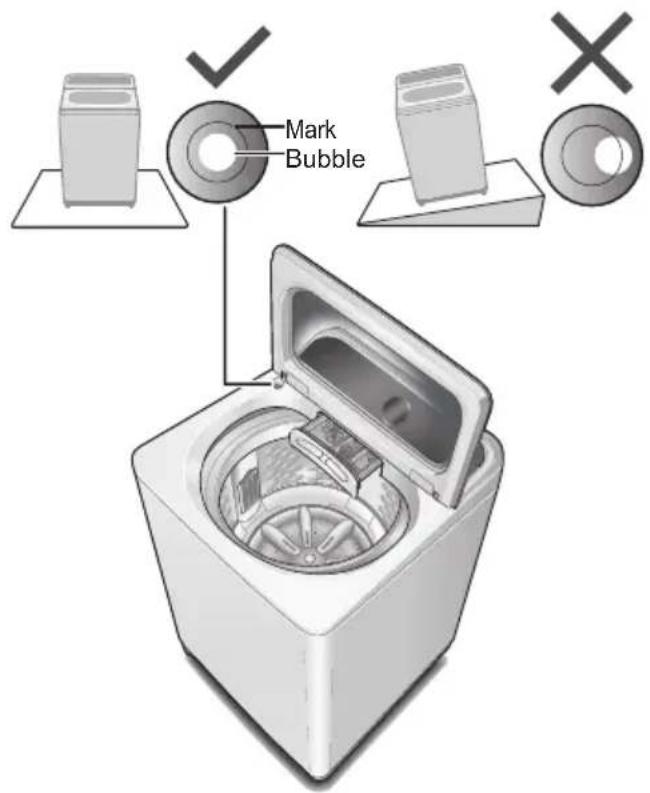

Check that the washing machine is level

■ If the bubble is out of the mark

Trial operation

Illustration of a washing machine with a hand holding a checkmark and a water tap, showing water droplets and drainage pipes (no text or symbols)

Error Display

■ Preparation

Cancel Child Lock (P. 18) if it is set.

Error Display Points to be checked

Water cannot drain.

Illustration of a damaged pipe with a starburst effect and a 'X' symbol (no text or symbols on the diagram itself)

The lid is open.

Illustration of a hand opening a large basin with a downward arrow indicating flow or waste (no text or symbols)

Spin or "Air Dry" is not possible.

Unstable or incline

Simple line drawing of a washing machine on a flat base (no text or symbols)

Simple illustration of a washing machine with the label 'Stable' and number '1' above it, placed on a flat surface (no text or symbols on the machine itself)

Illustration of a hand holding a tool above a square trash bin with an arrow pointing to the cup (no text or symbols)

Error Display Points to be checked
Water cannot be supplied.	1	2

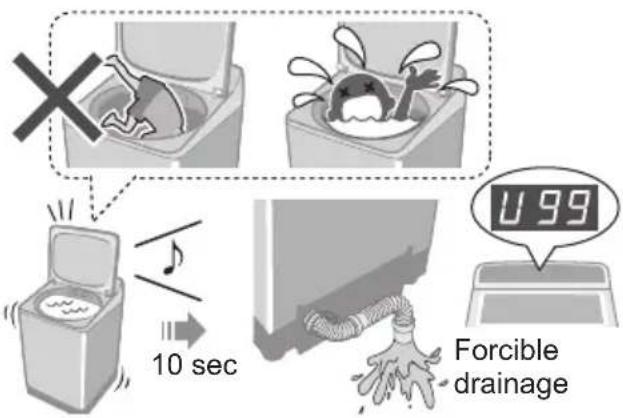

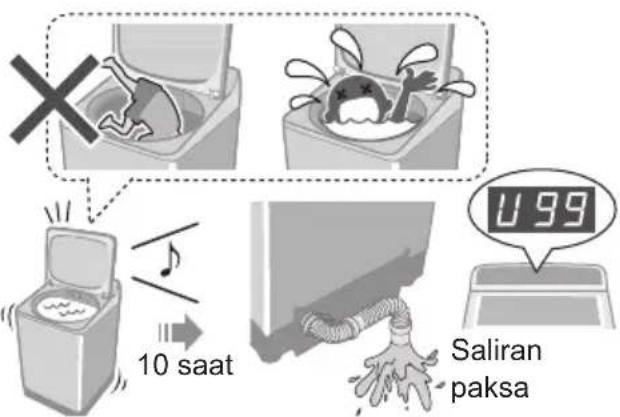

	With Child Lock set		Forcible drainage
Water has been forcibly drained.	1
	1
Inspection is required.

Troubleshooting

	Symptoms Points to be checked
Time	Indication increases or does not decrease.	Time indication is approximate.Remaining time is corrected during operation.

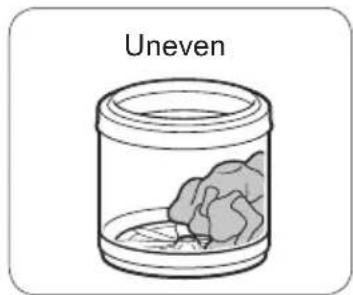

	Longer than the indication.	When clothes are uneven.	When the water drainage is not good. When the water supply is not good.
	Operation passes the preset time.	The operation time may be longer.
Main unit	No operation	CheckPower failure Timer presetTryClose the lid. Turn on. Insert the power plug completely.Press "Start". Turn breaker
	Cannot change process settings (after start).	TryDuring wash process1 2 3 After wash process1 2
Wash	Water is supplied while washing.	When water level drops. When amount of laundry is large.
		Water is added automatically.
	The water leveltoo high	When laundry is wet. When there is water in the tub before operation.
		The water level may be higher
	too low	When clothes are light (synthetic fibre, etc.).
		The water level may be lower.
Rinse	Operation started with rinse, but water is not supplied.	When there is no water in the tub. Water is supplied after spin.When there is water in the tub. Water is supplied after water discharge and spin.
Spin	Spin changes to rinse.Rinse starts instead of spin.	If clothes are uneven, this appliances automatically corrects unevenness by rinse process.
	Irregular rotation	The tub rotation speed is adjusted to reduce vibration.

1
2
3
1
2

Troubleshooting (continued)

	Symptoms Points to be checked
Others	Power failure/Breaker off.		Operation will resume from where it stopped when the power is recovered.
		Off	On
	$ has no effect.		□ Check □ TryUnder 5.0 kg (P. 7) Select according to the stain type. (P. 11)

Specifications

Model No. NA-FD13AR1 NA-FD11AR1
Rated voltage 220 - 240 V
Rated frequency 50 Hz
Rated power consumption 435 W 390 W
Standard water amount 79 L 75 L
Maximum capacity (Dry cloth)	13.5 kg11.5 kg
Product dimensions	639 mm (W) x 724 mm(D) x 1069 mm (H)	639 mm (W) x 724 mm(D) x 1049 mm (H)
Product weight 40 kg
Pressure of tap water 0.01 - 1 MPa

Panasonic®

Arahan Pengendalian & Pemasangan

Mesin Basuh Automatik Sepenuhnya (Kegunaan domestik)

No. Model NA-FD13AR1

NA-FD11AR1

Illustration of a modern single-washing washing machine with lid and front panel (no text or symbols visible)

Kandungan

Langkah Berjaga-jaga Keselamatan	2
Nama Bahagian / Kelengkapan	6
Sebelum Membasuh	7
Panel Operasi	8
Membasuh	9
Pelbagai Program	10
Washing / Softener / Bleach	12
Washing Options	14
• Preset (Pratetapan)
• Wash (Basuh) / Rinse (Bilas) / Spin (Perah)
• Delicate (Halus)
• Blanket (Selimut)
• Stain Master
• Air Dry (90 min)
Convenient Functions	18
Contents of Programs	19
Maintenance	20
Installation	24
Error Display	28
Troubleshooting	30
Specifications	32

Illustration of a child washing clothes inside a washing machine with a 'X' symbol (no text or labels)

Illustration of a hand pressing into a washing machine with a lightning bolt symbol (no text or labels)

Illustration of a hand holding a tool with water droplets, no text or symbols present

Hand holding a plug inserted into an electrical outlet, with a 'X' symbol indicating no text or symbols on the plug (no readable text or labels)

Jangan guna.

Illustration of a hand holding an electrical outlet with a cross mark above (no text or symbols)

Illustration of hands performing a medical procedure with sparkles (no text or symbols)

Illustration of a washing machine with a cross symbol, a person holding a tool, and scattered items (no text or symbols)

Illustration of a washing machine with a hand using a foot switch and a box placed on top, alongside its exterior view showing the lid (no text or symbols present)

Illustration of two hands holding a large gray box with a black 'X' symbol above, no text or symbols present.

Illustration of a washing machine transforming into a faucet with a water tap (no text or symbols)

Illustration of a flexible hose with sparkles and decorative stars (no text or symbols)

Illustration of a washing machine with a sun symbol and a 'X' mark, no text or symbols present

Jangan basuh barang kalis air.

Jangan halang. Jangan gunakan air panas.

Illustration of a washing machine with food items like carrots, fish, and a T-shirt, symbolizing food recycling or disposal (no text or symbols present)

Simple line drawing of a coiled pipe with connectors (no text or symbols)

Panjang: 1.0 m

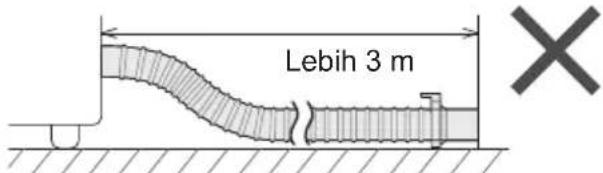

□ Hos air saliran luar (1) (H. 25)

□ Penyesuai pili air (1) (H 26)
□ Penutup bawah (1) / Skru (1) (H. 25)

Illustration of a solar panel with grid lines and a screw, no text or symbols present

Sebelum Membasuh

Illustration showing clothing items including a shirt, a bag, and a t-shirt, with arrows indicating direction of clothing purchase or disposal (no text or symbols)

Illustration of a dress, a patterned blanket, and a woven basket with arrows indicating direction (no text or symbols)

Illustration showing a spray bottle cleaning a shirt and a hand washing clothes in a bowl (no text or symbols)

Mematuhi label penjagaan pakaian

Panel Operasi

NOTA

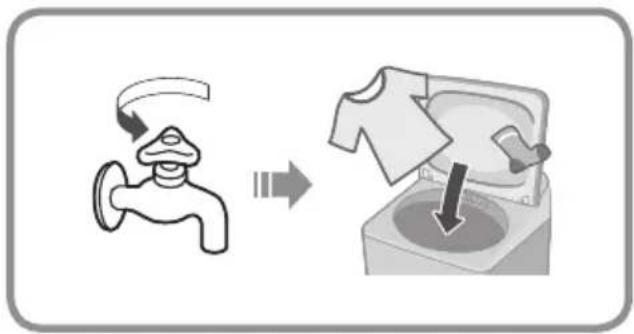


Pelbagai Program

	Program Tujuan			Kapasiti maksimum * (kg)
Basuh		Normal (Biasa) (H. 9)	Pakaian harian	13.511.5
		Tangle Care (Penjagaan Kusut) (H. 9)	Anti-kusutMencuci lebih lembut daripada “Normal” untuk mengurangkan kusut.Melerai kusut pakaian selepas memutar: 6 kg atau lebih rendah.
		Speedy (Cepat) (H. 9)	Untuk kotoran ringan	13.511.5
		Delicate (Halus) (H. 15)	Membasuh dengan lembut	4.2
	[2SZ7]	Baby Care (Penjagaan Bayi) (H. 9)	Pakaian untuk bayi & mereka yang berkulit sensitifMembilas sebersih-bersihnya	13.511.5
		Water Save (Jimat Air) (H. 9)	Menjimatkan air	13.511.5
		Blanket (Selimut) (H. 15)	SelimutDengan tag mesin yang boleh dibasuh	4.2

* Atas: NA-FD13AR1 / Bawah: NA-FD11AR1

Technical line drawing of a washing machine interior with a handle and fan (no text or symbols)

Detergen

Illustration of a hand holding a device with a cross symbol, no text or symbols present

Simple line drawing of a rock inside a container with a 'X' symbol above, no text or labels present.

Peluntur

Peluntur memutihkan (peluntur klorin)

1

2

3

NOTA

- Tidak tersedia untuk "Tangle Care (Penjagaan Kusut)".

Delicate (Halus)

65 L 4.2 kg
55 L 3.0 kg

NOTA

■ Selepas operasi berakhir

Illustration of a washing machine with a downward arrow indicating a drop or discharge (no text or symbols present)

NOTA

NOTA

NOTA

Maks 5.0 ~kg

3

NOTA

Fungsi Menyenangkan

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Menetapkan Child Lock (Kunci Kanak-kanak)

Hand inserting a calculator into a device (no text or symbols visible)

2

3

Illustration of hands holding a device with a magnified view showing internal structure (no text or symbols)

Illustration of hands holding a handheld device with a lightning bolt (no text or symbols)

Cross-sectional diagram of a microwave oven with internal components and lid (no text or labels)

NOTA

Diagram of a washing machine interior with fan and handle (no text or symbols)

Jika penapis rosak

Diagram of a car interior showing airflow or fluid flow around a vehicle component (no text or symbols)

Keluarkan

2

3

Illustration of four different household appliances: a water tap, a fan with a propeller, a pump, and a motor (no text or symbols present)

4

5

Diagram showing a mechanical component being inserted into a curved channel, with no visible text or symbols.

Lampirkan

Unit utama, penutup

Illustration of a hand cleaning a washing machine with sparkles around (no text or symbols)

Untuk kotoran degil

Illustration of a bottle with liquid and droplets, no text or symbols present

Illustration of a person spraying water from a washing machine with a hose, no text or symbols present

Illustration of a device with a magnified inset showing a cable being inserted (no text or symbols present)

1

2

3

4

5

6

Illustration of a hand holding a tool with a curved object inside (no text or symbols)

7

Diagram showing a coiled component being inserted into a larger cylindrical component (no text or symbols present)

8

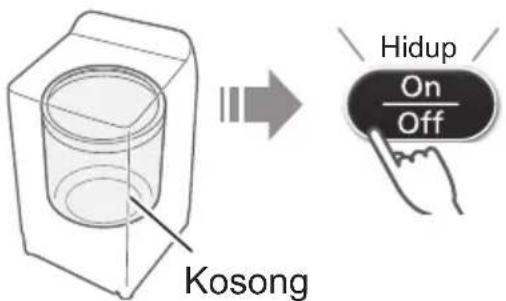

Tab

Sekali seminggu

Sekali sebulan

1

5

2

6

3

4

Pemasangan

Periksa lokasi.

Illustration of two washing machines with steam rising and a bathtub nearby, no text or symbols present

Illustration of two washing machines on a platform with a 'X' symbol and sound waves, no text or symbols present.

Simple line drawing of a house with a wrench and a worker silhouette (no text or symbols)

Diagram of a computer monitor with a grid base and an arrow pointing to the screen area (no text or symbols present)

2

Technical line drawing of a mechanical component with a wrench and screwdriver (no text or symbols)

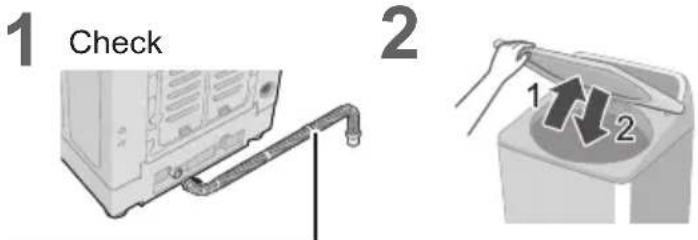

Pasangkan hos air saliran luar

1

Diagram of a mechanical component with a coiled spring attached to a cylindrical pipe, showing an arrow indicating direction (no text or symbols present)

NOTA

2

Diagram of a mechanical assembly with a coiled spring and directional arrow (no text or symbols)

Diagram of a washing machine with faucet and hose connections (no text or symbols)

1

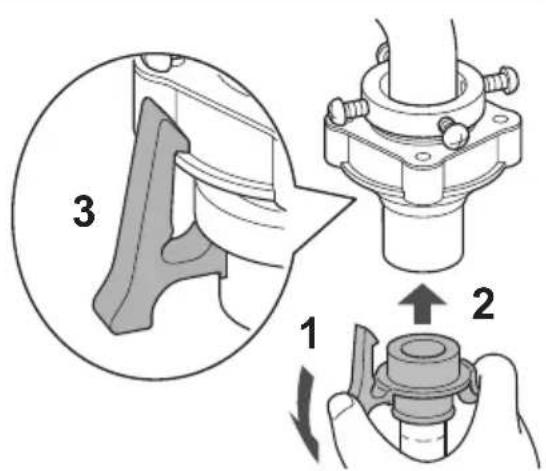

Mechanical component diagram showing a rotating shaft and flange assembly (no text or symbols)

Bebenang: kira-kira 4 mm

2

Mechanical assembly diagram showing a rotating component with multiple arms and a central hub (no text or symbols)

Longgarkan

3

Ketatkan

4

3
Periksa bahawa sikunya tidak longgar.

AWAS

Diagram showing a cable inserted into a socket connected to an outlet, with an arrow indicating the outlet's direction (no text or symbols present)

Illustration of a washing machine with a hand holding a checkmark and a water tap, showing water droplets and drainage pipes (no text or symbols)

Diagram of a pipe connection with a valve, showing internal components and wiring (no text or labels)

2

Illustration of a damaged pipe with a starburst effect and a cross symbol (no text or labels)

Diagram of a pipe connection with a cross symbol (no text or labels)

Penutup terbuka.

Illustration of a hand opening a trash bin with a downward arrow indicating waste (no text or symbols)

Simple line drawing of a jar containing a container with a rock inside (no text or symbols)

1 Sekata

Simple line drawing of a jar with food inside, no text or symbols present

2

Illustration of a trash bin with a hand holding a handle and an arrow pointing to the center (no text or symbols)

Simple 3D illustration of a white cylindrical container placed on a flat base (no text or symbols)

1 Stabil

Simple line drawing of a washing machine on a flat surface (no text or symbols)

2
