Product Type	Light Dimmer
Brand	Hager
Model	WGCXEDR500NB
Dimensions (HxWxD)	85 x 85 x 40 mm
Weight	120 g
Power Supply	230 V AC, 50 Hz
Maximum Load	400 W (resistive), 200 W (LED)
Control Type	Rotary knob
Functions	ON/OFF, dimming, memory function
Connection Type	Screw terminals
Compatible Lamps	Incandescent, halogen, dimmable LED/CFL
Protection Class	Class II
Ingress Protection	IP20
Operating Temperature	-10°C to 35°C
Storage Temperature	-20°C to 60°C
Safety Features	Overload protection, short circuit protection, overheat protection
Maintenance & Cleaning	Wipe with a dry, soft cloth. Do not use chemical cleaners.
Spare Parts & Repairability	Spare parts not available separately. Contact Hager service for repairs.
General Information	Designed for indoor use only. Follow local electrical codes.

Frequently Asked Questions - WGCXEDR500NB HAGER

How do I install the Hager WGCXEDR500NB light dimmer?

Turn off power at the circuit breaker. Connect the wires according to the diagram: L (live) to terminal L, N (neutral) to N, and the load to the remaining terminal. Secure the dimmer into the wall box and attach the knob. Restore power and test.

What type of bulbs are compatible with this dimmer?

It works with traditional incandescent/halogen bulbs and dimmable LED/CFL bulbs. Ensure the total wattage does not exceed the rated load (400W resistive, 200W LED). Non-dimmable LEDs may flicker or be damaged.

Why does my LED bulb flicker when dimmed?

Flickering usually indicates the bulb is not dimmable or the minimum load is not met. Try a dimmable LED bulb and check that the total load exceeds the dimmer's minimum (typically 10-20W). Also ensure the dimmer is compatible with LED.

Can I use this dimmer with a ceiling fan?

This dimmer is designed only for lighting. Using it with a fan may damage both the fan and the dimmer. Use a separate fan speed controller instead.

What is the memory function?

The memory function stores the last dimming level. When you turn the light on again, it returns to that level instead of full brightness.

How do I clean the dimmer?

Clean the surface with a dry, soft cloth. Do not use water, solvents, or abrasive cleaners as they may damage the finish.

Is the dimmer suitable for outdoor use?

No, it has an IP20 rating, meaning it is only protected against dust and not water. Use only indoors in dry locations.

What should I do if the dimmer becomes hot to the touch?

Some heat is normal during operation. If it feels excessively hot (over 60°C), check that the total load is within limits and ventilation around the dimmer is adequate. If the problem persists, replace the dimmer.

Can I use multiple dimmers on the same circuit?

Yes, but each dimmer must control its own load. Avoid wiring dimmers in series, as this can cause erratic behavior. Ensure the total load on the circuit does not exceed the breaker rating.

Where can I find the user manual?

The user manual is available for free download on notice-facile.com in PDF format. You can also request a translated version by selecting your language and providing your email.

USER MANUAL WGCXEDR500NB HAGER

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

Switching and dimming of incandescent lamps, high-voltage halogen lamps as well as dimmable electronic transformers (marked with L, C) with halogen lamps.

Recommendation: Use Osram transformator ET-PARROT 105/220...240 I.

Correct use

• For the flush-mounted installation in standard wall boxes (recommended wall box depth ≥ 35 mm).
• Only suitable for use in indoor areas with no drip and no spray water.

Product characteristics

• Dimming principle: phase cut-on
• Change-over switch in combination with change-over switch possible.
• Short-circuit proof and overload proof

Technical data

Rated voltage: 230 V\~

Frequency: 50/60 Hz

230 V incandescent and halogen lamps: 40 ... 500 W

Electronic transformers (marked with L,C): 40 ... 250 W

Conductor cross-section of screw terminals: max. 3 x 1.5 mm ^4

Distance of fixing holes: 60.3 mm

Operating temperature: -5 ... +45 °C

Relative humidity (without condensation): 5 ... 95 % (at 25 °C)

Standards: BS EN 60669-2-1, IEC 60669-2-1

Mixed operation of 230 V incandescent and halogen lamps as well as electronic transformers (marked with L,C until smallest maximum load possible.

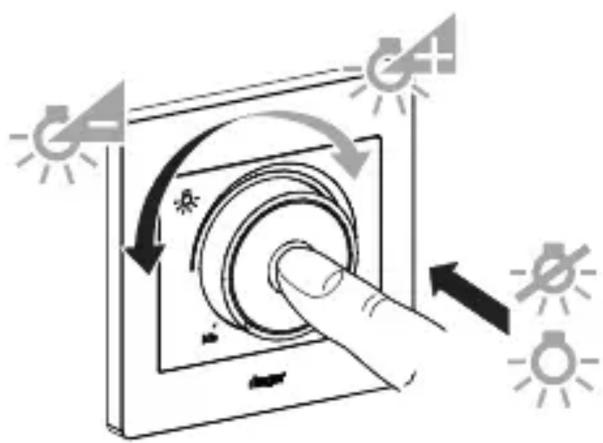

Operating the device

The switch-on brightness level depends on the position of the dimmer.

Information for electricians Installation and electrical connection

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and cover all live parts in the area!

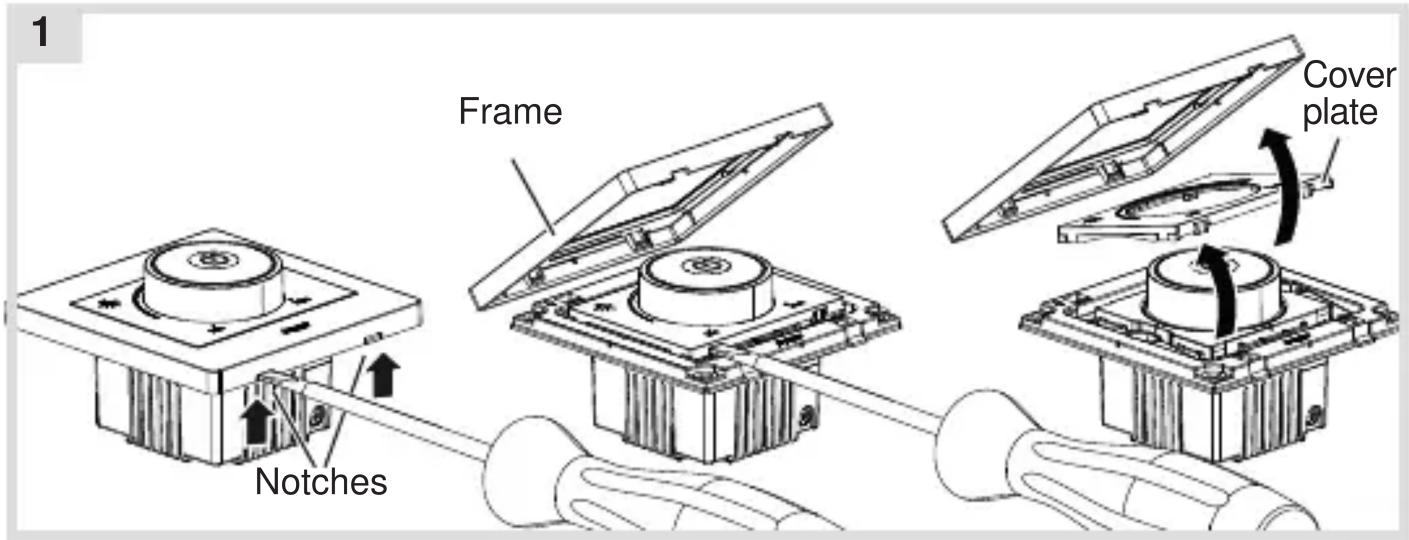

Preparing the device for installation

Carefully loosen the frame on the notches with a flat-blade screwdriver (1).

■ Remove the cover plate.

Connecting the device

2A 2B

• Strip connection cables approx. 11 mm.

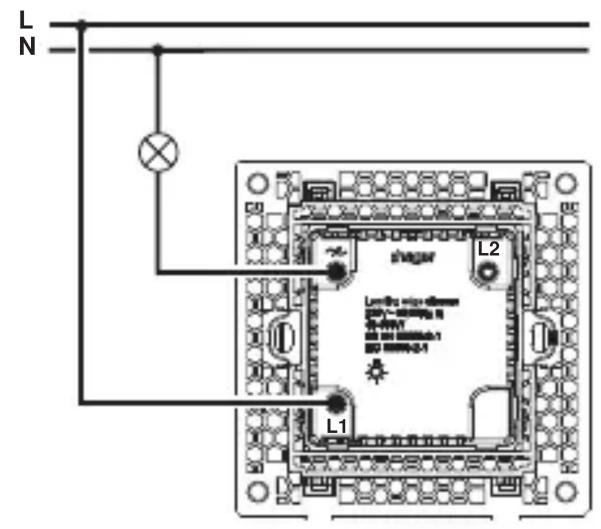

  ■ Wire the dimmer according to the connection diagram (2A). Can be installed alternatively with a change-over switch (2B).

Installing the device into the wall box

3

Technical diagram of a mechanical assembly with a central component and connected wires (no text or symbols)

■ After wiring, fix the device with the two screws attached into the wall box (3).

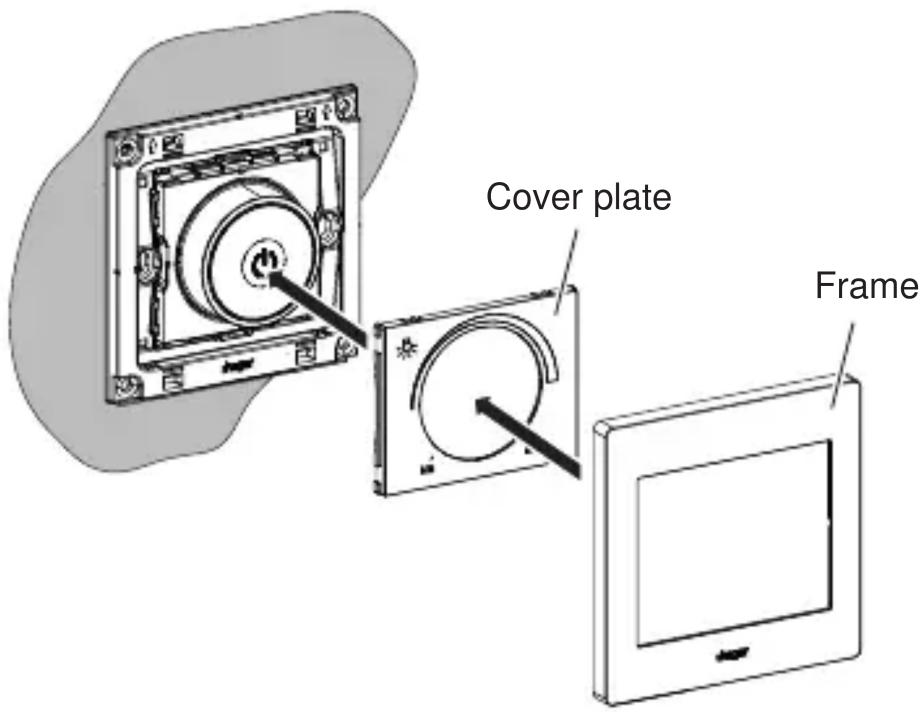

Assembling the cover plate and frame

4

Place the cover plate in the correct position and fix with frame (4).

2-5gang frames are available for multiple combinations.
