Product Type	Light Dimmer
Brand	Hager
Model	WGCEDR500
Dimensions (HxWxD)	80 mm x 80 mm x 40 mm
Weight	0.15 kg
Supply Voltage	230 V AC, 50 Hz
Maximum Load	500 W
Compatible Load Types	Incandescent, halogen, dimmable LED/CFL
Dimming Method	Phase-cut (leading/trailing edge)
Operating Temperature	-10°C to +40°C
Protection Class	IP20
Material	Thermoplastic
Mounting	Flush-mounted with frame
Connection Type	Screw terminals
Warranty	2 years
Functions	On/off, dimming, memory function
Energy Saving	Yes (dimming reduces consumption)
Noise Level	< 25 dB
Certifications	CE, RoHS
Maintenance	Wipe with dry cloth; no solvents
Safety Features	Overload protection, short-circuit protection
Spare Parts	Replacement units only
Repairability	Not user-serviceable; replace device

Frequently Asked Questions - WGCEDR500 HAGER

How to install the WGCEDR500 dimmer?

Turn off the circuit breaker. Connect the live wire to the L terminal, the load wire to the L' terminal, and the neutral wire to the N terminal. Ensure the ground wire is connected if required. Mount the device in a flush box and attach the frame.

Is this dimmer compatible with LED bulbs?

Yes, it is compatible with dimmable LED and CFL bulbs. Check the bulb package for 'dimmable' label. For best performance, use bulbs from the same manufacturer.

What is the maximum load for the WGCEDR500?

The maximum load is 500 W for incandescent/halogen lamps. For LED/CFL, the maximum load is typically 100 W due to capacitive load characteristics.

Can this dimmer be used in a three-way switching setup?

This dimmer is designed for single-pole installation. For three-way switching, you need a compatible three-way dimmer or use a master/slave configuration with additional components.

What happens if the load exceeds the maximum rating?

The dimmer has overload protection. If overloaded, it will either shut off or cycle. Reduce the load to within rated limits and reset by turning off and on.

How to reset the WGCEDR500 dimmer?

To reset, turn off the circuit breaker for 10 seconds, then turn it back on. The dimmer will restore its default settings and memory function.

Does the dimmer have a memory function?

Yes, the WGCEDR500 features a memory function that remembers the last dimming level. When turned on again, it returns to the previously set level.

What is the operating temperature range?

The dimmer operates between -10°C and +40°C. Avoid installation in areas with high humidity or extreme temperatures to prevent malfunction.

How to clean the dimmer?

Clean the surface with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners, as they may damage the device.

Where can I find the manual for the WGCEDR500?

The manual is available for free download in PDF format from the manufacturer's website or from notice-facile.com. Search by model WGCEDR500.

USER MANUAL WGCEDR500 HAGER

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

Switching and dimming of incandescent lamps, high-voltage halogen lamps as well as dimmable electronic transformers (marked with L, C) with halogen lamps.

Recommendation: Use Osram transformator ET-PARROT 105/220...240 I.

Correct use

• For the flush-mounted installation in standard wall boxes (recommended wall box depth ≥ 35 mm).
• Only suitable for use in indoor areas with no drip and no spray water.

Product characteristics

• Dimming principle: phase cut-on
• Change-over switch in combination with change-over switch possible.
• Short-circuit proof and overload proof

Technical data

Rated voltage: 230 V\~

Frequency: 50/60 Hz

230 V incandescent and halogen lamps: 40 ... 500 W

Electronic transformers (marked with L,C): 40 ... 250 W

Conductor cross-section of screw terminals: max. 3 x 1.5 mm ^4

Distance of fixing holes: 60.3 mm

Operating temperature: -5 ... +45 °C

Relative humidity (without condensation): 5 ... 95 % (at 25 °C)

Standards: BS EN 60669-2-1, IEC 60669-2-1

Mixed operation of 230 V incandescent and halogen lamps as well as electronic transformers (marked with L,C until smallest maximum load possible.

Operating the device

The switch-on brightness level depends on the position of the dimmer.

Information for electricians Installation and electrical connection

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and cover all live parts in the area!

Preparing the device for installation

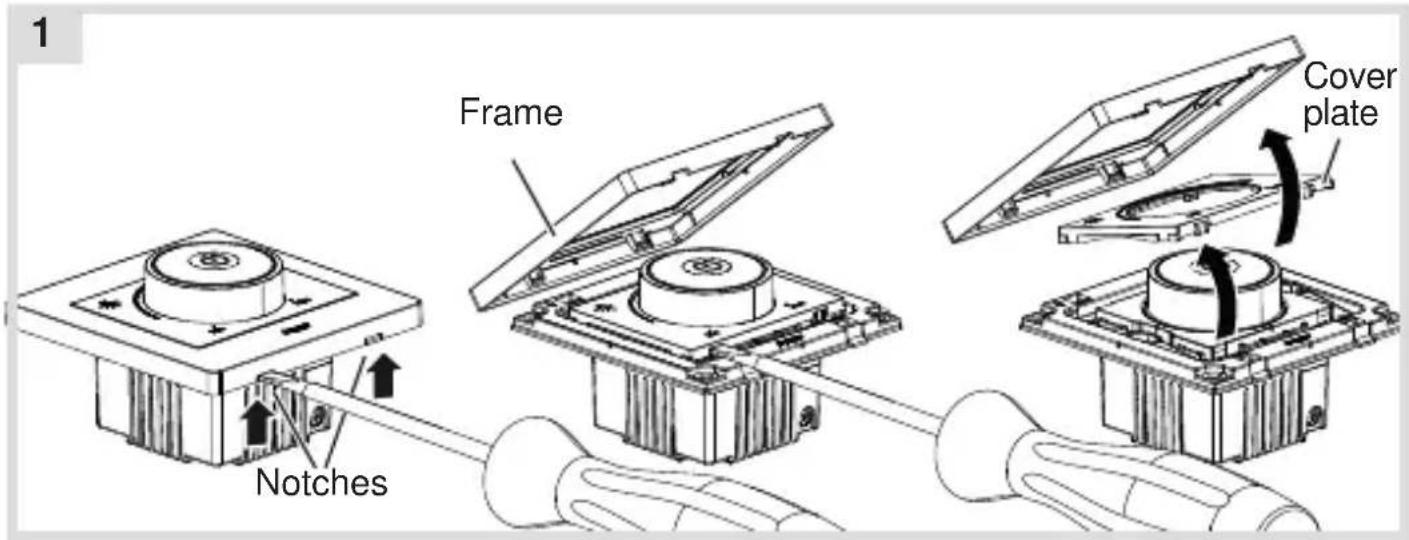

Carefully loosen the frame on the notches with a flat-blade screwdriver (1).

■ Remove the cover plate.

Connecting the device

2A 2B

• Strip connection cables approx. 11 mm.
  ■ Wire the dimmer according to the connection diagram (2A). Can be installed alternatively with a change-over switch (2B).

Installing the device into the wall box

3

Technical diagram of a mechanical assembly with a central component and wiring, showing no text or symbols.

■ After wiring, fix the device with the two screws attached into the wall box (3).

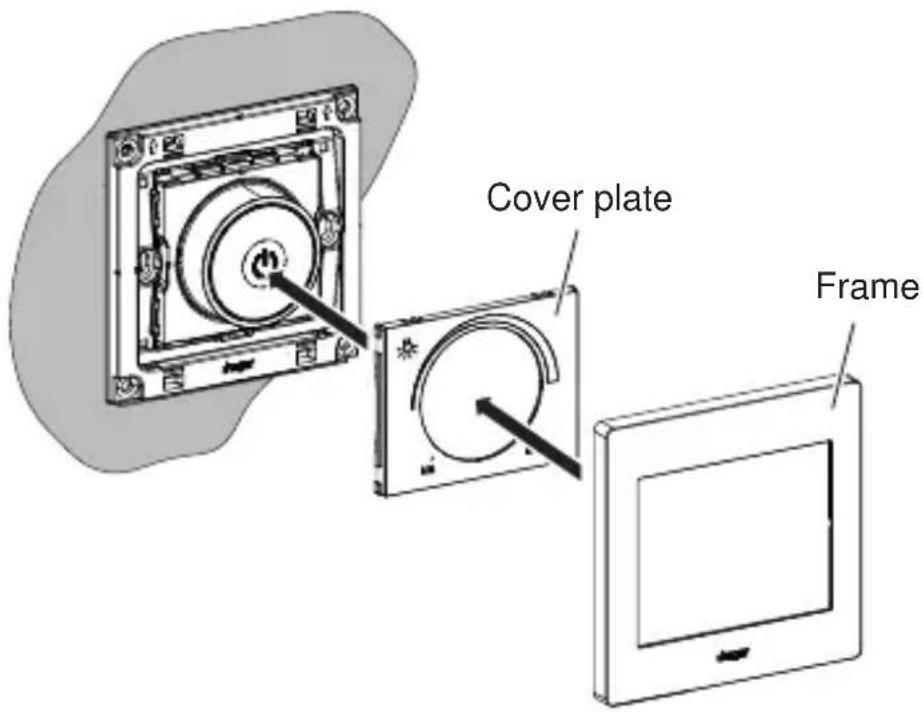

Assembling the cover plate and frame

4

Place the cover plate in the correct position and fix with frame (4).

2-5gang frames are available for multiple combinations.
