Product Type	Light Dimmer
Brand	Hager
Model	WGCXEDR500AS
Dimensions (H x W x D)	86 x 86 x 40 mm
Weight	Approx. 100 g
Power Supply	230 V AC, 50 Hz
Maximum Load	500 W (incandescent), 100 W (LED)
Mounting	Wall box, flush mount
Control Type	Rotary knob or push-button
Functions	On/off, smooth dimming, memory function
Compatible Lamps	Incandescent, halogen, dimmable LED/CFL
Standards	CE, RoHS
Protection Rating	IP20 (indoor use)
Operating Temperature	-10 °C to 40 °C
Installation	By qualified electrician
Maintenance	Clean with dry cloth; no solvents
Safety	Disconnect power before installation/cleaning
Spare Parts	Not available; replace whole unit
Repairability	Non-repairable, sealed unit
Warranty	2 years

Frequently Asked Questions - WGCXEDR500AS HAGER

What types of bulbs are compatible with the Hager WGCXEDR500AS dimmer?

This dimmer works with incandescent, halogen, and dimmable LED/CFL bulbs. For LED bulbs, check compatibility as not all dimmable LEDs work properly.

Can I use the dimmer with standard switches?

No, this dimmer is designed for direct wiring and does not require a separate switch for on/off. It combines both switching and dimming.

What is the maximum load capacity?

For incandescent bulbs, the maximum is 500 W. For LED and CFL, reduce to 100 W to avoid overheating.

How do I install the dimmer?

Installation should be performed by a qualified electrician. Ensure power is off, connect wires according to the wiring diagram, and mount in a standard wall box.

Why does my LED bulb flicker?

Flickering can occur if the bulb is not fully dimmable or the load is too low. Try a different LED bulb or add a bypass resistor if needed.

Does the dimmer have a memory function?

Yes, it remembers the last dimming level when turned off. Upon turning on, the light returns to that level.

What is the operating voltage?

The dimmer operates on 230 V AC at 50 Hz, standard for most European households.

Can I use the dimmer in a bathroom?

No, it has an IP20 rating which means it is not protected against moisture. Use only in dry indoor locations.

How do I clean the dimmer?

Wipe the surface with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners.

Is there a warranty?

Yes, Hager provides a 2-year warranty against manufacturing defects. Keep the receipt as proof of purchase.

USER MANUAL WGCXEDR500AS HAGER

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

Switching and dimming of incandescent lamps, high-voltage halogen lamps as well as dimmable electronic transformers (marked with L, C) with halogen lamps.

Recommendation: Use Osram transformator ET-PARROT 105/220...240 I.

Correct use

• For the flush-mounted installation in standard wall boxes (recommended wall box depth ≥ 35 mm).
• Only suitable for use in indoor areas with no drip and no spray water.

Product characteristics

• Dimming principle: phase cut-on
• Change-over switch in combination with change-over switch possible.
• Short-circuit proof and overload proof

Technical data

Rated voltage: 230 V\~

Frequency: 50/60 Hz

230 V incandescent and halogen lamps: 40 ... 500 W

Electronic transformers (marked with L,C): 40 ... 250 W

Conductor cross-section of screw terminals: max. 3 x 1.5 mm ⁴

Distance of fixing holes: 60.3 mm

Operating temperature: -5 ... +45 °C

Relative humidity (without condensation): 5 ... 95 % (at 25 °C)

Standards: BS EN 60669-2-1, IEC 60669-2-1

Mixed operation of 230 V incandescent and halogen lamps as well as electronic transformers (marked with L,C until smallest maximum load possible.

Operating the device

The switch-on brightness level depends on the position of the dimmer.

Information for electricians Installation and electrical connection

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and cover all live parts in the area!

Preparing the device for installation

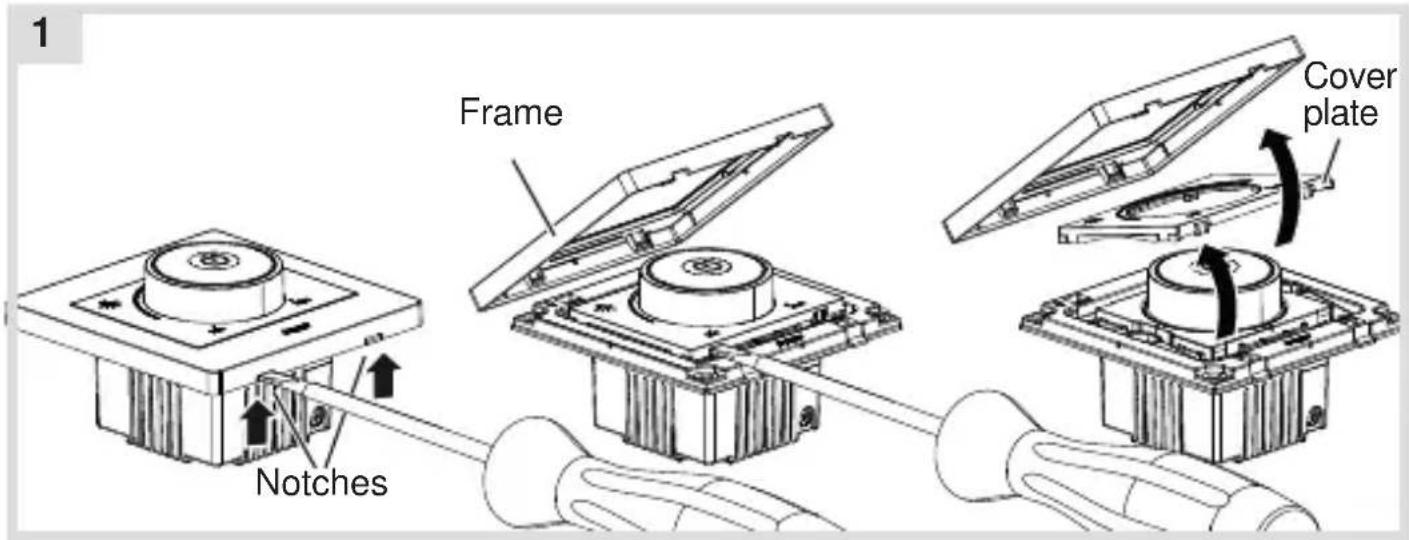

Carefully loosen the frame on the notches with a flat-blade screwdriver (1).

■ Remove the cover plate.

Connecting the device

2A 2B

• Strip connection cables approx. 11 mm.

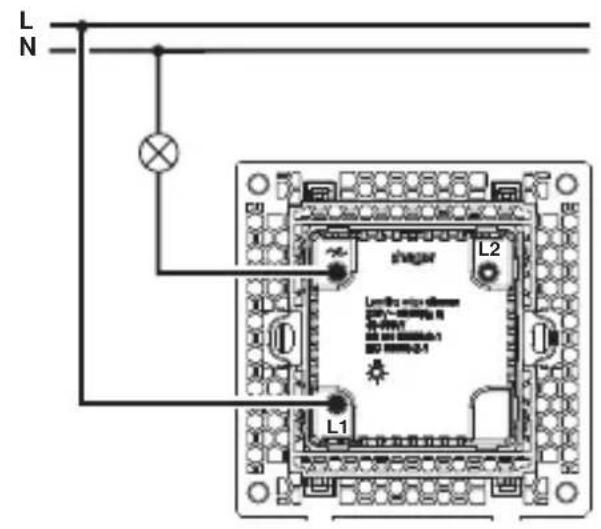

  ■ Wire the dimmer according to the connection diagram (2A). Can be installed alternatively with a change-over switch (2B).

Installing the device into the wall box

3

Technical diagram of a mechanical assembly with a central component and connected wires (no text or symbols)

■ After wiring, fix the device with the two screws attached into the wall box (3).

Assembling the cover plate and frame

4

Place the cover plate in the correct position and fix with frame (4).

2-5gang frames are available for multiple combinations.
