RS-128235 - Beard trimmer Emerio - Free user manual and instructions

Brand	Emerio
Model	RS-128235
Product Type	Beard Trimmer / Electric Shaver
Power Source	DC 5V / 1A USB (rechargeable)
Working Wattage	3W
Charging Time	Approx. 8 hours
Usage Time per Full Charge	Approx. 10 days
Charging Indicator	Red light during charging; green light when operating
Trimmer	Integrated pop-up trimmer for sideburns and moustache
Shaving Heads	3 rotary heads with blades and guards
Protective Cover	Yes, included for travel protection
Cleaning Brush	Included for hair storage chamber and trimmer
USB Cable	Included for charging
Cleaning Method	Rinse shaving unit under hot tap (with shaver off) or use brush
Water Resistance	Not waterproof; keep dry and away from water
Usage Temperature Range	5°C to 35°C
Safety Extra Low Voltage	Yes, SELV compliant
Battery Type	Built-in, non-replaceable
Warranty	2 years
Recommended User Age	8 years and above (with supervision)
Not for Commercial Use	Yes

Frequently Asked Questions - RS-128235 Emerio

How long does the Emerio RS-128235 battery last on a full charge?

After a full charge of about 8 hours, the shaver can run for approximately 10 days of regular use.

Can I use the shaver while it is charging?

No, the shaver must be switched off during charging. Using it while plugged in is not recommended and may be unsafe.

How should I clean the shaver?

Switch off the shaver, open the shaving unit, and rinse the shaving heads and hair storage chamber under hot tap water for 30 seconds. You can also use the included brush for dry cleaning of the chamber. Do not wipe the shaving heads with a towel.

How do I use the pop-up trimmer?

Push the trimmer release slider upwards to open the trimmer on the back of the unit. Then switch on the shaver and trim your sideburns or moustache. After use, close the trimmer and switch off.

What should I do if the shaving unit does not close properly?

Ensure that the shaving heads are inserted correctly and the retaining frame is locked in place. If the unit still doesn't close, check that the heads are properly aligned.

Are replacement blades available for the RS-128235?

Yes, the shaving heads (blades and guards) are consumable parts. You can purchase replacement heads; contact the dealer or Emerio service department for compatible parts.

Can I use the shaver in the shower?

No, the shaver is not waterproof. The manual warns not to use it near bathtubs, showers, or other vessels containing water, and to keep the appliance dry.

How do I store the shaver when traveling?

Always switch off the shaver, close the trimmer, and put on the protective cover to protect the shaving heads during travel.

What does the indicator light mean?

When charging, the indicator light is red. When the shaver is on and working, the light turns green. The light does not change color when fully charged.

Is the Emerio RS-128235 suitable for professional salon use?

No, this appliance is designed for home use only. It is not intended for commercial use.

USER MANUAL RS-128235 Emerio

Black and silver electric shaver with three rotary dials and a green indicator light (no visible text or symbols)

Shaver (EN)

Rakapparat (SE)

Parranajokone (FI)

Barbermaskin (NOR)

Barbermaskine (DK)

CE

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else, make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. This appliance is not designed for commercial use.
5. The unit is to be operated with DC 5V / 1A USB power source. Use the cable provided for power connection.
6. Use the unit only as described in this manual. The use of attachments not recommended by the manufacturer may cause a risk of injury to persons.
7. Do not place the unit near any explosives, heated oven or hot surfaces.
8. Do not submerge the unit under water or other liquids.
9. Do not place the unit near open flames or fire sources.

10. The appliance is equipped with a build-in transformer. After cleaning, please do not charge when the unit is wet to avoid any danger.

11. Only the included USB cable can be used.

12. Make sure to put the protective cover on the shaver to protect the shaver heads when you are travelling.
13. Use, charge and store the appliance at a temperature between 5^ C and 35^ C.
14. Always switch off the shaver before you clean it under the tap.

1. WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
2. This appliance must only be supplied at safety extra low voltage corresponding to the marking on the appliance.
3. This appliance contains batteries that are non-replaceable.
4. WARNING: Keep the appliance dry.

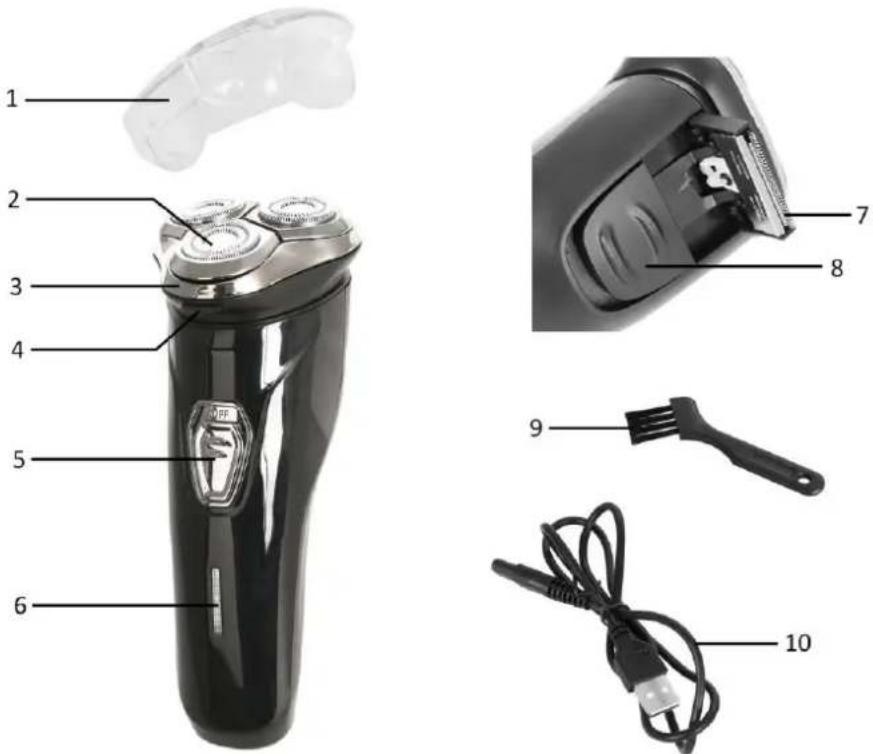

PARTS DESCRIPTION

1. Protective cover
2. Shaving head
3. Shaving unit
4. Shaving unit release button
5. On/off switch
6. Indicator light
7. Trimmer
8. Trimmer release slider
9. Cleaning brush
10. USB cable

CHARGING

When the shaver is underpowered, it needs to be charged. Make sure the shaver is switched off before charging. Insert one end of the USB cable into the bottom socket of the shaver; connect the other end of the USB cable to a proper USB port.

During charging, the indicator light illuminates in red. Fully charge will take approximately 8 hours. The indicator light will not change color or turn off when the appliance is fully charged. It is better for the appliance not to be connected to the power supply for more than 24 hours.

USE

1. Slide the on/off switch to turn on the shaver. The indicator light illuminates in green indicating it is working.
2. Move the shaving heads over your skin. Make circular movements.
3. To use the trimmer on the back of the unit to groom your sideburns or moustache, push the trimmer release slider upwards to open the trimmer. You can now start trimming.
4. After use, close the trimmer and switch off the shaver. Put on the protective cover.

Note: The shaver can run for approximately ten days after a full charge.

CLEANING AND MAINTENANCE

To ensure a better shaving effect, the appliance must be cleaned regularly. Never use abrasive cleaning agents or aggressive liquids to clean the appliance. Clean the appliance after each use for optimal performance.

1. Switch off the shaver.
2. Press the release button to open the shaving unit.
3. Rinse the shaving heads and the hair storeroom under a hot tap for 30 seconds. Be careful with hot water; do not get your hands burnt.
4. Make sure inside and outside of the shaving unit are cleaned thoroughly.
5. Close the shaving unit and shake off the excess water. Do not wipe the shaving heads with a towel or paper tissue, which may cause damage to the shaving heads.
6. Open the shaving unit again and leave it to dry up.

Note: You can also use the brush included to clean the hair storeroom. Here water should not be used.

Line drawing of a handheld electronic device with a circular top and control buttons (no text or symbols)

Illustration of a medical procedure showing a tool injecting into a patient's ear (no text or symbols present)

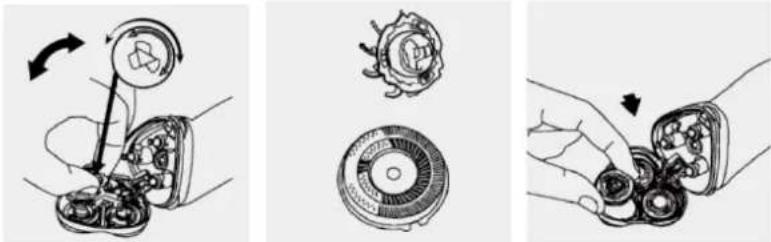

Blades

1. Open the shaving unit. Turn the lock anticlockwise and remove the retaining frame.
2. There are three shaving heads. Each shaving head consists of a blade and a guard. Clean with brush if needed.
3. Put back the shaving heads and the retaining frame. Close the shaving unit.

Three-step illustration showing mechanical assembly steps: rotation, cross-section view, and hand positioning (no text or symbols)

Note: If the shaving unit does not close smoothly, please check if the shaving heads have been inserted properly and if the retaining frame is locked.

Trimmer

Clean the trimmer with the brush included. Brush up and down along the trimmer teeth.

TECHNICAL DATA

USB Power source: DC 5V / 1A

Working wattage: 3W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance, replacement of said parts or shipping and transportation costs to and from any place of repair are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

SÄKERHETSANVISNINGAR

Line drawing of a handheld electronic device with a circular top and three buttons (no text or symbols)

Illustration of a medical procedure showing fluid injection into a patient's hand (no text or symbols)

Knivblad

Diagram of a mechanical device with rotating arm and internal components (no text or symbols)

Two technical line drawings of circular mechanical components, one with a flower-like shape and the other with concentric rings (no text or symbols)

Illustration of hands holding mechanical components with a downward arrow indicating motion (no text or symbols)

Simple line drawing of a stylized object resembling a device or tool with three protrusions (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement (no text or symbols)

Terät

Three-step illustration showing mechanical assembly steps: disassembly, rolling, and rolling (no text or symbols)

Two-step illustration of a hand holding a small object, showing the top view and bottom view (no text or symbols)

Blader

Three-step mechanical assembly diagram showing hand positioning and disassembly of a gear or component (no text or symbols)

Two-panel illustration showing a hand holding an electric toothbrush, with no visible text or symbols.

Barberbladene

Three-step mechanical assembly diagram showing hand positioning and rotation of a gear or component (no text or symbols)
