LS581 - Motion detector Cotech - Free user manual and instructions

Product Type	Motion Detector
Brand	Cotech
Model	LS581
Dimensions (H x W x D)	10.5 cm x 6.2 cm x 4.3 cm
Weight	120 g
Power Source	3 x AA batteries (not included)
Detection Range	Up to 12 meters
Detection Angle	180 degrees
Mounting Type	Wall mount or freestanding
Light Sensitivity	Adjustable (day/night mode)
Time Delay	10 seconds to 5 minutes, adjustable
Operating Temperature	-10°C to 40°C
Maintenance & Cleaning	Wipe with a dry, soft cloth. Do not use abrasive cleaners.
Safety Precautions	Keep away from water and extreme heat. Use only as intended.
Spare Parts & Repairability	Contact Cotech customer service for replacement parts.
General Information	Indoor use only. Suitable for homes and offices.

Frequently Asked Questions - LS581 Cotech

How do I install the Cotech LS581 motion detector?

Mount the detector at a height of 2-2.5 meters using the included screws. Ensure the detection zone is clear of obstacles. Insert 3 AA batteries and adjust settings as needed.

What type of batteries does the LS581 use?

It uses 3 AA alkaline batteries. Rechargeable batteries are not recommended as they may reduce performance.

How can I adjust the detection range?

The LS581 has a sensitivity dial. Turn it clockwise to increase range (up to 12 m) or counterclockwise to decrease.

Why does the detector false trigger?

False triggers can be caused by pets, moving curtains, or temperature changes. Adjust the sensitivity and ensure the detector is not facing heat sources or vents.

Can I use this detector outdoors?

The LS581 is designed for indoor use only. Using it outdoors may cause malfunction due to moisture and temperature extremes.

How do I set the time delay?

Use the time delay dial to set how long the detector stays active after motion stops. Options range from 10 seconds to 5 minutes.

What does the light sensitivity setting do?

It allows the detector to ignore daytime light. Set it to 'night' mode so it only activates in darkness, or '24h' for constant readiness.

My detector doesn't turn on. What should I check?

Ensure batteries are inserted correctly with proper polarity. Check that the power switch is in the 'on' position. Replace old batteries.

How do I clean the motion detector?

Wipe the lens and casing with a dry, soft cloth. Do not use water, solvents, or abrasive cleaners as they may damage the sensor.

Where can I find spare parts for the LS581?

Contact Cotech customer support or visit the official website for replacement brackets, screws, or lens covers.

USER MANUAL LS581 Cotech

Under Bed Light String Light with Motion Sensor

Ljusslinga Under Bed Light med rörelsesensor Lysslynge Under Bed Light med bevegelsessensor Valoketju jossa liiketunnistin Under Bed Light Lichtschlauch Under Bed Light mit Bewegungsmelder

Important

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Illustration of a satellite with signal waves and a human figure walking below (no text or symbols)

Art.no

36-7236

Model

LS581

Ver. 20170420

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Under Bed Light String Light with Motion Sensor

Art.no 36-7236 Model LS581

Please read the entire instruction manual before use and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services.

Safety

Warning:

• Neither the product nor its mains adapter may be dismantled or modified in any way.
• Never use the product if it, the mains lead or the mains adapter is in any way damaged or malfunctioning.
• The product must only be connected to the included mains adapter.
• Never connect several or other types of devices to the mains adapter.
• The mains lead must never be replaced. The product must be discarded if the mains lead is damaged in any way.
• The product must not be installed on a wet or electrically conductive surface.
• Make sure that the cables are not damaged whilst the product is being installed.

Important

• The LEDs cannot be replaced. When the LEDs have reached the end of their service life, the entire product must be discarded.
• This product is designed exclusively for private use.
• Do not look directly at the lights.

This product is intended for indoor use only.

Class II mains adapter.

Class III string light.

This light is not suitable for use with a dimmer or electronic switch.

Product description

• String light for placement wherever you need a night light or light which is motion-activated.
• Consists of two string lights, each with its own motion sensor.
  • Each string light is 1.2 m long but can be shortened in lengths of 10 cm.
• The duration of the lighting time following activation is adjustable from 30 seconds to 5 minutes.

Installation

Important

The string lights must not be bent through any sharp angles such as around a 90^ corner or arc with a short radius.

• The string lights, motion sensors and mounting clips can be attached using double-sided adhesive tape (included). For best adhesion, ensure that the substrate is clean, dry and free of grease.
• Make sure that the motion sensor is mounted where it is not shaded by a blanket or curtain.

Pure electrical circuit lines without any symbols

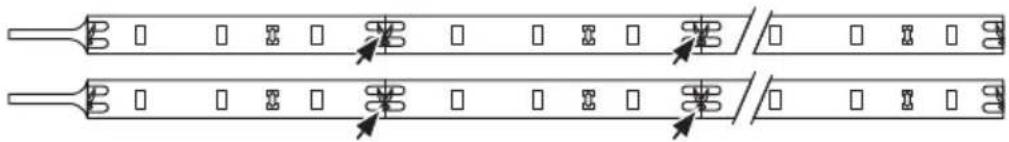

1. If necessary, the length of the string lights (C) can be adapted by cutting them at one of the marks (every 10 cm).

2. Join together the connectors (A) between the motion sensors (B), string lights and the mains adapter (D).

3. Remove the protective film from the sticky tape and mount the string lights, motion sensors and cable clips onto the surface where they are to be located.

Instructions for use

• The motion sensor detects movement and the light only comes on in the dark.

• The lighting time can be set from 30 seconds to 5 minutes.

• Plug the mains adapter into a wall socket.

• Move the motion sensor control to the left to increase the duration of illumination (max 5 mins) and to the right to decrease the lighting time (min 30 sec).

Diagram of a mechanical or electrical component with a dome-shaped top and internal structure, no visible text or symbols.

Care and maintenance

• Unplug the mains lead from the wall socket before cleaning.
• The product should be cleaned using a dry cloth or vacuum cleaner, when necessary.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling the product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Specifications

Input 100–240 V AC, 50/60Hz

Output 12 V DC, 0.5 A, 6 W

Lights LEDs (non-replaceable)

Lighting time 30 sec – 5 min

String light length 2 × 1.2 m (can be shortened in lengths of 10 cm)

Pure electrical circuit lines without any symbols

Användning

Diagram of a mechanical or electrical component with a dome-shaped top and internal structure, no visible text or symbols.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Specifikationer

In 100–240 V AC, 50/60Hz

Ut 12 V DC, 0,5 A, 6 W

Pure schematic diagram of two parallel cylindrical objects with internal compartments and directional arrows, no text or symbols present.

Bruk

Diagram of a mechanical or electrical component with a dome-shaped top and internal structure, no visible text or symbols.

Vedlikehold

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Spesifikasjoner

Inn 100–240 V AC, 50/60 Hz

Ut 12 V DC, 0,5 A, 6 W

Pure electrical circuit lines without any symbols

Käyttö

Diagram of a mechanical or electrical component with a dome-shaped top and internal structure, no visible text or symbols.

Huolto ja ylläpito

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Tekniset tiedot

Tulo 100–240 V AC, 50/60Hz

Pure electrical circuit lines without any symbols

Bedienung

Diagram of a mechanical or electrical component with a dome-shaped top and internal structure, connected by wires (no text or symbols)

Pflege und Wartung

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Technische Daten

Primärspannung 100–240 V AC, 50/60Hz
