Product Type	Vacuum Cleaner
Brand	Coline
Model	CJ063EH-160
Color	White and Blue
Dimensions (L x W x H)	38 cm x 25 cm x 25 cm
Weight	4.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	800 W
Suction Power	200 AW
Dust Capacity	1.5 L
Filter Type	HEPA washable
Noise Level	78 dB
Cord Length	5 m
Operating Radius	8 m
Bagless Design	Yes
Dust Indicator	Yes
Included Accessories	Crevice tool, upholstery brush, floor brush
Maintenance	Washable filter, empty dustbin regularly
Spare Parts Availability	Yes, filters and accessories available
Safety Features	Automatic thermal shut-off

Frequently Asked Questions - CJ063EH-160 Coline

How often should I clean the filter?

Clean the HEPA filter every 2-3 months or when the dust indicator shows full. Wash with water and let it dry completely before reuse.

Can I use the vacuum without the filter?

No, using the vacuum without a filter can damage the motor and release dust. Always ensure the filter is properly installed.

What is the dust capacity of the CJ063EH-160?

The dustbin has a capacity of 1.5 liters. Empty it when it reaches the max fill line for optimal performance.

Is the vacuum suitable for pet hair?

Yes, the included floor brush and upholstery tool work well on pet hair. However, for heavy shedding, consider using a turbo brush (not included).

How do I replace the filter?

Open the filter cover, remove the old filter, and insert a new one. Ensure it clicks into place. Spare filters can be ordered online.

The vacuum loses suction. What should I check?

Check if the dustbin is full, the filter is clogged, or there is a blockage in the hose or brush head. Clean or empty accordingly.

Can I use the vacuum on hardwood floors?

Yes, it is safe for hardwood floors. Use the appropriate floor setting or turn off the rotating brush to avoid scratches.

What type of warranty does Coline offer?

Coline typically offers a 2-year warranty for manufacturing defects. Check your purchase receipt for details.

Is the cord long enough for large rooms?

The cord is 5 meters long, providing an operating radius of 8 meters. For larger rooms, you may need to switch outlets.

How do I empty the dustbin?

Press the release button to remove the dustbin, then open the bottom lid over a trash can. Tap gently to remove debris. Rinse if needed.

USER MANUAL CJ063EH-160 Coline

Illustration of a vacuum cleaner with handle and side arm (no text or symbols)

Art. No.: Model. No:

18-4293 CJ063EH-160-UK

34-4032 CJ063EH-160

English 2

Svenska 8

Norsk 14

Suomi 20

Deutsch 26

Vacuum Cleaner

Art.no 18-4293 Model CJ063EH-160-UK

34-4032

CJ063EH-160

Please read the entire instruction manual before use and save it for future reference. We reserve the right for any errors in text or images and for making any necessary technical changes to this document. If you should have any questions concerning technical problems please contact our Customer Services.

Safety

• The vacuum cleaner should only be used as described in the manual. Only use accessories recommended by the manufacturer.
• Do not expose the vacuum cleaner and its mains lead to moisture, blows or high temperatures.
• Do not use the vacuum cleaner if the mains lead or plug is damaged. Do not use the vacuum cleaner if you have dropped it on the floor, left it outdoors or if it has been in contact with water.
• Do not leave the vacuum cleaner unattended when it is connected to a power point. Pull the plug out when the vacuum cleaner is not in use. Turn off the product and always pull the plug itself when disconnecting it from the wall socket. Do not pull the lead.
• Do not vacuum outdoors or on wet surfaces. Store the vacuum cleaner indoors.
• Do not pull or carry the vacuum by the lead. Do not use the lead as a handle and do not let it fasten in door jambs. Do not pull it around sharp corners, edges or run over the lead.
• Do not insert any item into any opening other than the suction port. Do not vacuum if any opening is clogged. Keep the openings free from dust, fluff, hair and anything that can reduce the airflow.
• Do not vacuum anything that is smoking or burning, e.g. cigarettes, matches or hot ashes. Do not vacuum flammable liquids such as petrol.
• Be extra careful when vacuuming on stairs.
• Do not vacuum if the dust filter is damaged or not positioned correctly. Always use the correct dust filter.
• If the vacuum cleaner is damaged, it must be repaired. Contact Customer Services (see reverse).
• Never use the vacuum cleaner if the mains lead is damaged. Inspect the lead regularly. If the lead is damaged it must be changed by a qualified service technician. Contact Customer Services (see reverse).
• This product must not be used by anyone (including children) suffering from physical or mental impairment. This product should not be used by anyone without sufficient experience or knowledge if they have not been instructed in its use by someone who will take full responsibility for their safety.
  • Never let children play with the product.

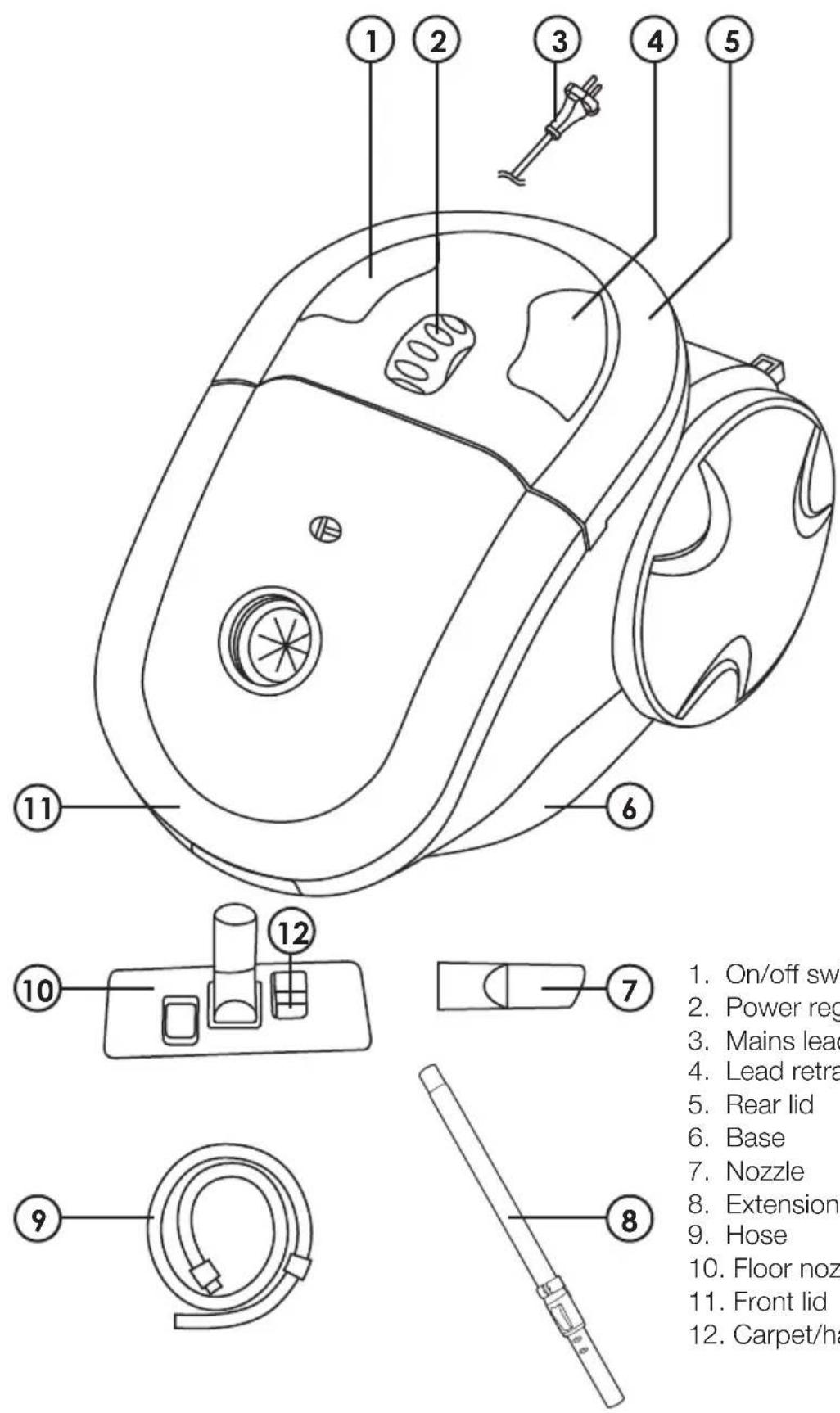

Product description

1. On/off switch
2. Power regulator
3. Mains lead
4. Lead retraction button
5. Rear lid
6. Base
7. Nozzle
8. Extension tube
9. Hose
10. Floor nozzle
11. Front lid
12. Carpet/hardfloor selector

Assembly

Attaching and detaching the suction hose

• Attaching the suction hose: Insert the hose into the suction port on top of the vacuum cleaner. Push it in until you hear a click.
• Detaching the suction hose: Gently press in the scored catches on the hose fixing and detach the hose.

Line drawing of a vacuum cleaner with a tool inserted, showing the nozzle and handle (no text or symbols)

Attaching the suction tube and floor nozzle

Line drawing of hands holding a tool with an arrow indicating upward motion (no text or symbols)

Connect the hose to the handle by pushing them together.

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Press the button on the suction tube to adjust its length.

Diagram showing a mechanical device with an arrow pointing to a cylindrical component (no text or symbols present)

Secure the floor nozzle to the suction tube.

Simple line drawing of a table with three items: a cylinder, two containers, and a labeled circle containing number 12 (no text or symbols on objects)

The floor nozzle can be adjusted to suit carpets or hard floors. This is controlled by a button (12) on top of the floor nozzle.

Use

Before using the vacuum cleaner, first pull out enough lead and then plug it into a wall socket. A yellow mark on the lead indicates a suitable length. Do not pull the lead out past the red mark.

• Push the on/off button on top of the vacuum cleaner to turn it on.
• Adjust the suction power with the slide button on top of the vacuum cleaner.
• To rewind the lead, push the lead retraction button with one hand and allow the lead to run through the fingers of your other hand so that you make sure it doesn't whip around and cause damage.

Care and maintenance

Changing the dust bag

Never use the vacuum cleaner without a dust bag. If you forget to insert a dust bag or insert one incorrectly you will not be able to close the lid of the vacuum cleaner properly.

1. Remove the suction hose from the vacuum cleaner.
2. Open the vacuum cleaner lid.
3. Remove the old dust bag and insert a new one.

Line drawings of a two-part robotic vacuum cleaner with internal components and directional arrows indicating motion (no text or symbols)

1. Close the lid and reattach the suction hose.

Cleaning the air intake filter (internal filter)

Disconnect the plug from the wall socket before cleaning the filter.

The filter should be cleaned at least twice a year or whenever it looks dirty.

Never use the machine without a filter. Using the machine without a filter can result in reduced suction or damage to the motor.

1. Open the vacuum cleaner lid.
2. Remove the air filter by sliding it upwards.

Line drawing of a vacuum cleaner internal component with an arrow indicating assembly direction (no text or symbols)

1. Rinse the filter in lukewarm water and allow it to air dry. Never wash the filter in the washing machine. Do not use a hair dryer or similar to dry it.
2. Replace the filter.

You may also replace the filter with a new one. A universal filter may also be used with this model. Cut the filter to the proper size using the old one as a template.

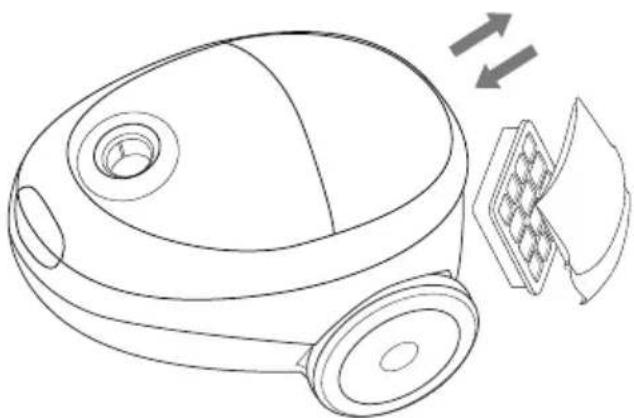

Changing the HEPA filter

1. Open the HEPA filter lid by pressing the latch in.

2. Remove the HEPA filter and replace it with a new one.

3. Replace the lid.

Line drawing of a vacuum cleaner with wheels and a separate close-up showing internal components (no text or symbols)

Troubleshooting

Weak suction

• Make sure that the dust bag is not full.
• Make sure that the hose, suction tube or nozzle is not blocked.

Disposal

Follow local ordinances when disposing of this product. If you are unsure of how to dispose of this product, please contact your local authority.

Specifications

Mains supply 220–240 V AC, 50 Hz

Power output 1600 W

Variable suction Max. 300 W

Mains lead 5 metres

Noise level < 78 dB

Dammsugare

Art.nr 18-4293 Modell CJ063EH-160-UK

34-4032

CJ063EH-160

Line drawing of a vacuum cleaner with a tool inserted, showing internal components and a handle (no text or symbols)

Line drawing of hands holding a tool with an upward arrow, no text or symbols present

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram showing a device being inserted into a pipe, with an arrow indicating the process (no text or symbols present)

Line drawings of two different vacuum cleaner designs showing internal components and mounting features (no text or symbols)

Technical line drawing of a vacuum cleaner internal component (no text or symbols)

Line drawing of a vacuum cleaner with wheels and a close-up of its internal components (no text or symbols)

Felsökning

Dåligt sugeffekt

Simple line drawing of a coiled tube with a numbered label (9) pointing to it, no text or symbols present.

Line drawing of a vacuum cleaner with a tool inserted, showing the nozzle and handle (no text or symbols)

Line drawing of hands holding a tool with an upward arrow, no text or symbols present

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram showing a mechanical component being inserted into a cylindrical rod, with an arrow indicating direction (no text or symbols present)

Fest gulvmunnstykket på støvsugerrøret.

Two line drawings of a vacuum cleaner with internal components and directional arrows indicating motion (no text or symbols)

Line drawing of a vacuum cleaner internal component with an arrow indicating assembly direction (no text or symbols)

1. Skyll filteret i lunkent vann, og la det deretter lufttørke. Filteret må ikke vaskes i vaskemaskin. Bruk heller ikke hårføner eller liknende for å tørke det.
2. Sett filteret tilbake i maskinen.

Line drawing of a vacuum cleaner with wheels and a close-up of its internal components (no text or symbols)

Feilsøking

Dårlig sugeeffekt

Simple line drawing of a coiled tube with a numbered label (9) pointing to it, no text or symbols present.

Line drawing of a vacuum cleaner with a tool inserted, showing the nozzle and handle (no text or symbols)

Line drawing of hands holding a tool with an upward arrow, no text or symbols present

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram showing a mechanical component being inserted into a rod, with an arrow indicating direction (no text or symbols present)

Line drawings of two different vacuum cleaner designs showing internal components and mounting features (no text or symbols)

Line drawing of a vacuum cleaner internal component with an arrow indicating assembly direction (no text or symbols)

Line drawing of a vacuum cleaner with wheels and a close-up of its internal components (no text or symbols)

Vianetsintä

Huono imuteho

Line drawing of a vacuum cleaner with a handle and screwdriver inserted, showing internal components (no text or symbols)

Line drawing of hands holding a tool with an upward arrow, no text or symbols present

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram showing a device being processed with a tool, no text or symbols present

Line drawings of two different vacuum cleaner designs showing internal components and mounting features (no text or symbols)

Line drawing of a vacuum cleaner internal component (no text or symbols)

Line drawing of a vacuum cleaner with wheels and a separate close-up showing internal components (no text or symbols)

Fehlersuche
