Product Type	Refrigerator with freezer compartment, NoFrost
Brand	Vestfrost
Model	VCF 21186 NoFrost
Dimensions (Height x Width x Depth)	186 cm x 60 cm x 60 cm
Net Capacity (Fridge + Freezer)	Approx. 300 L total
Energy Class	A+
Power Supply	220-240 V, 50 Hz
Climate Class	SN-T (subnormal to tropical)
Noise Level	Approx. 42 dB
NoFrost Technology	Automatic defrost, no ice buildup
Temperature Control	Electronic, adjustable
Interior Lighting	LED
Door Reversibility	Yes, reversible hinge
Shelves	Adjustable glass shelves
Door Alarm	Audible if door left open
Annual Energy Consumption	Approx. 240 kWh/year
Refrigerant	R600a (isobutane)
Weight	Approx. 65 kg

Frequently Asked Questions - VCF 21186 NoFrost VESTFROST

How does NoFrost technology work in this refrigerator?

The NoFrost system automatically defrosts the freezer compartment by circulating cold air and removing moisture, preventing ice buildup. You never need to manually defrost.

What should I do if the refrigerator is not cooling properly?

Check if the temperature settings are correct, ensure vents are not blocked, and verify the door is properly closed. If the issue persists, consult the manual for troubleshooting or contact support.

How do I clean the interior of my Vestfrost VCF 21186 NoFrost?

Unplug the appliance, remove all food and shelves, and wipe with a soft cloth dampened with mild detergent and warm water. Avoid abrasive cleaners. Dry thoroughly before restarting.

Can I reverse the door opening direction?

Yes, the door can be reversed. The process is detailed in the manual; it involves removing screws and repositioning the hinge. You may need a screwdriver and assistance.

What is the recommended temperature for the fridge and freezer compartments?

For the fridge, set between +2°C and +8°C (recommended +4°C). For the freezer, -18°C is ideal for long-term storage.

How often should I replace the water filter?

This model does not have a built-in water filter. If you use an external filter, follow the manufacturer's recommendations.

What should I do if the door alarm sounds?

Close the door firmly. The alarm is designed to remind you if the door is left open. If it continues, check for obstructions or a faulty switch.

Is it normal for the refrigerator to make noise?

Some sounds are normal: gurgling from refrigerant, clicks from the thermostat, and fan noise. If you hear loud banging or continuous grinding, contact service.

How can I save energy with this refrigerator?

Place the fridge away from heat sources, allow air circulation around the condenser, keep doors closed, and avoid overfilling. The NoFrost system already improves efficiency.

What spare parts are available for this model?

Common spare parts include shelves, door bins, gaskets, and LED bulbs. Contact Vestfrost authorized service or check the manual for part numbers.

USER MANUAL VCF 21186 NoFrost VESTFROST

Simple line drawing of a refrigerator with two vertical bars on the front panel (no text or symbols)

VCF 21186 NoFrost

VCF 11186 - E NoFrost

INDHOLD

F∅R BRUG AF APPARATET 5

Generelle adversler....5

Sikkerhedsadvarsler 8

APPARATETS DELE OG RUMMENE 27

Mål....28

TEKNISKE DATA....29

OPLYSNINGER TIL TESTINSTITUTIONER.... 29

KUNDEPLEJE OG -SERVICE 29

Illustration of three hands performing a manual cable or wire manipulation technique (no text or symbols present)

Cartoon illustration of an electric plug with a sad face and lightning bolts (no text or symbols)

Cartoon illustration of a person peeking out of a door, with arms and legs bent (no text or symbols)

Simple line drawing of two bottles with splashes and a bottle pouring liquid (no text or symbols)

Cartoon illustration of a distressed container with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

Diagram of two coiled heat exchangers with heating elements (no text or labels)

Diagram of a vehicle air intake system with airflow indicators (no text or labels)

Illustration showing three steps of a robotic arm: pressing a tray, moving a curved path, and holding a tool with a crossed-out black mark (no text or symbols)

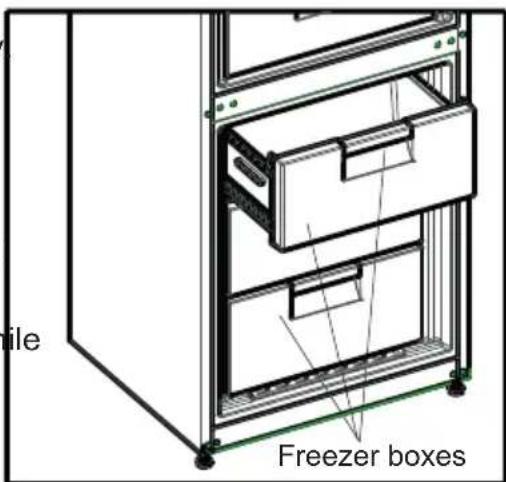

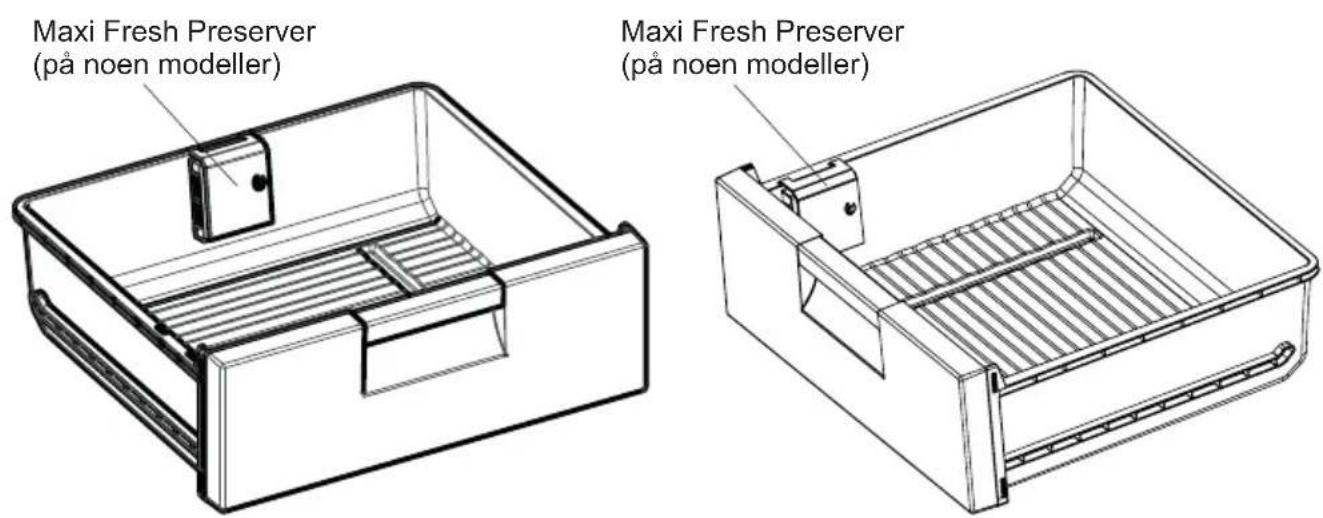

Fryseskuffer

Technical line drawing of a structural bracket or frame (no text or symbols)

Fig. -1

Technical line drawing of a structural frame with vertical and horizontal beams (no text or symbols)

Fig. -2

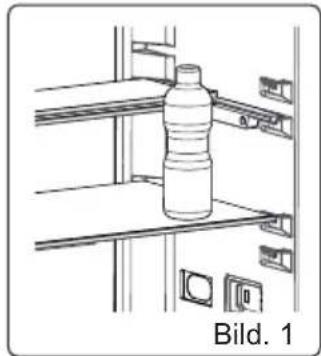

Justerbar glashylde (Ikke i alle modeller)

Line drawing of a bottled water bottle placed on a shelf with attached storage compartments (no text or symbols)

Fig. -1

Diagram of a shelving unit with shelves and doors, showing an upward arrow indicating movement (no text or symbols present)

Fig. -2

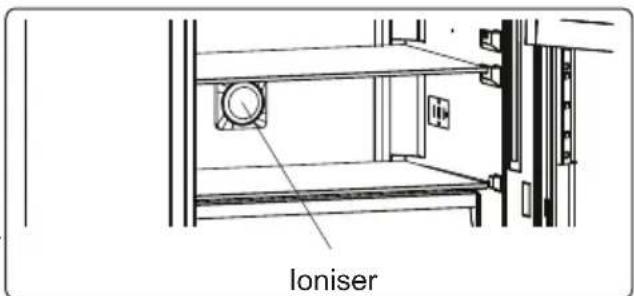

Natural Ion Tech / Jonisator (Ikke i alle modeller)

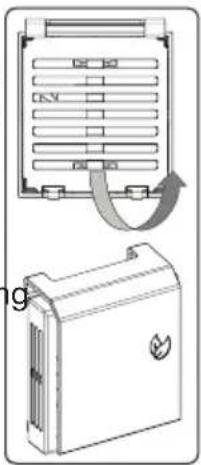

Technical line drawing of a mechanical housing or enclosure with internal compartments and a central slot (no text or symbols)

Technical line drawing of a 3D model of a rectangular device with internal grating and mounting bracket (no text or symbols)

Grøntsagsskuffe

Technical line drawing of a cabinet or storage unit with mounting brackets and a door (no text or symbols)

Cartoon illustration of a smiling rectangular box with two smaller figures beside it (no text or symbols)

Illustration of a hand using a tool to clean or adjust a metal rack (no text or symbols visible)

Technical line drawing of a mechanical device with a grid-patterned panel and base mount (no text or symbols)

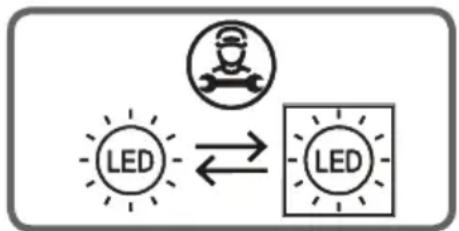


Simple line drawing of two children holding a large rectangular object (no text or symbols)

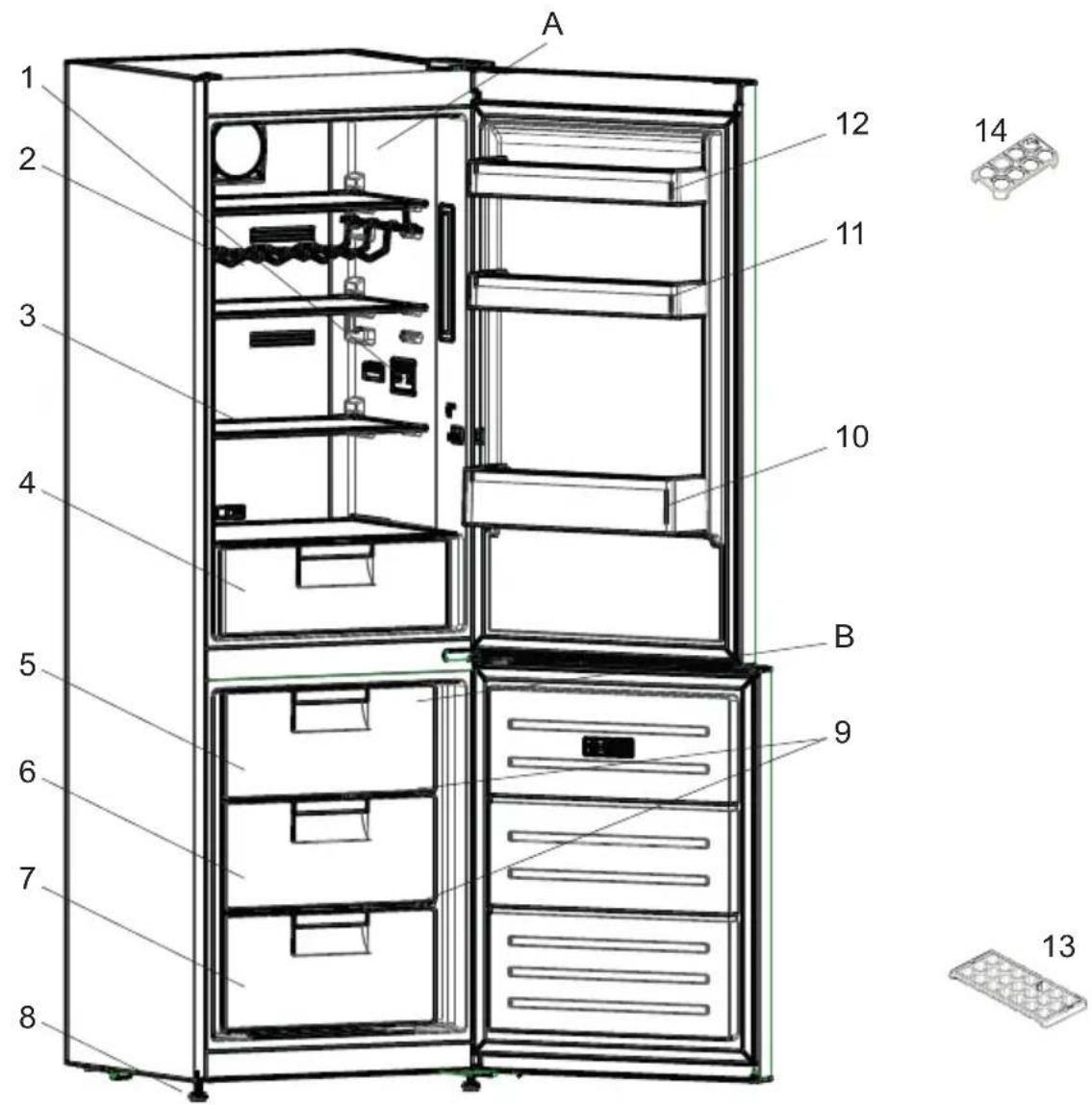

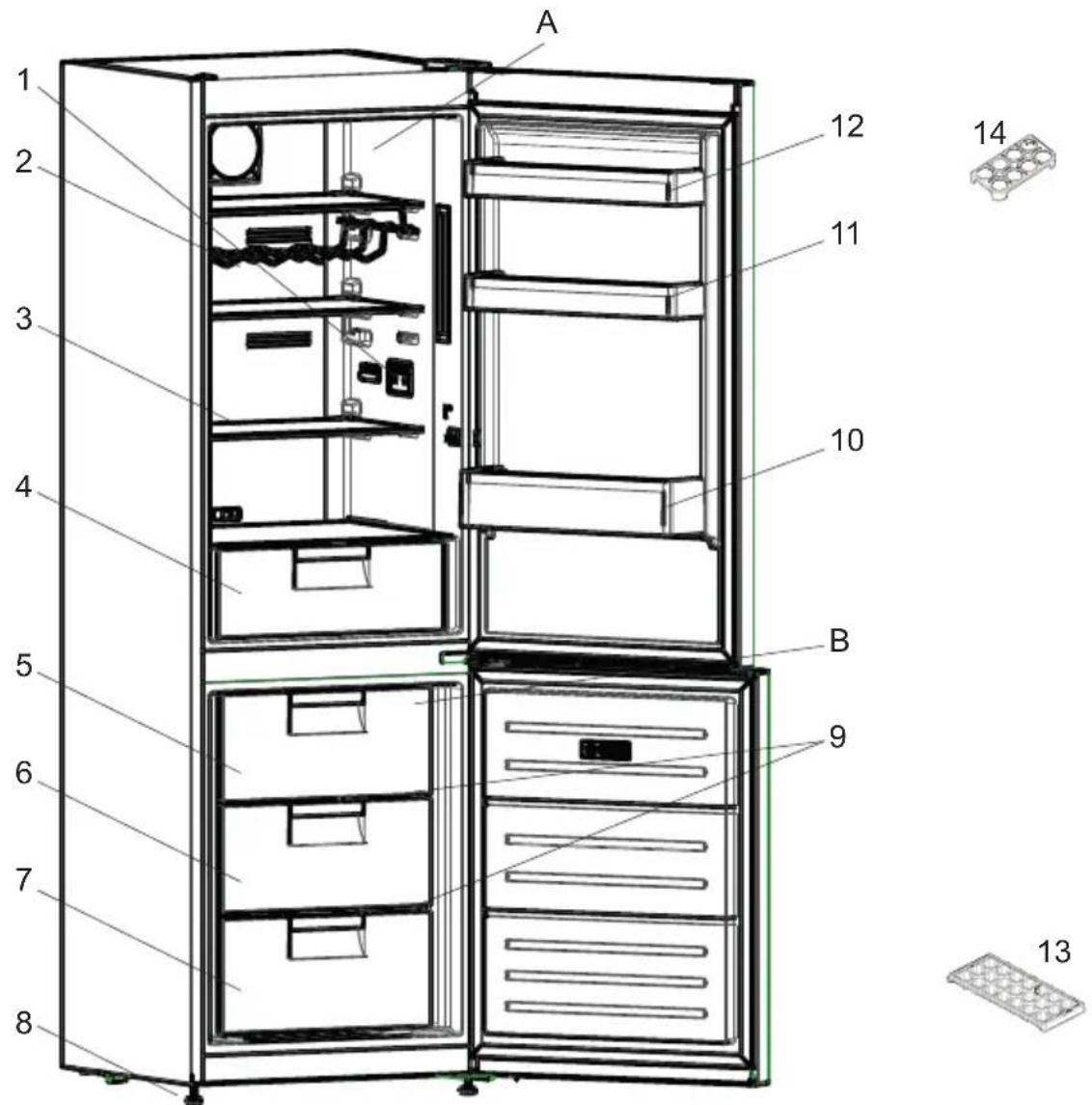

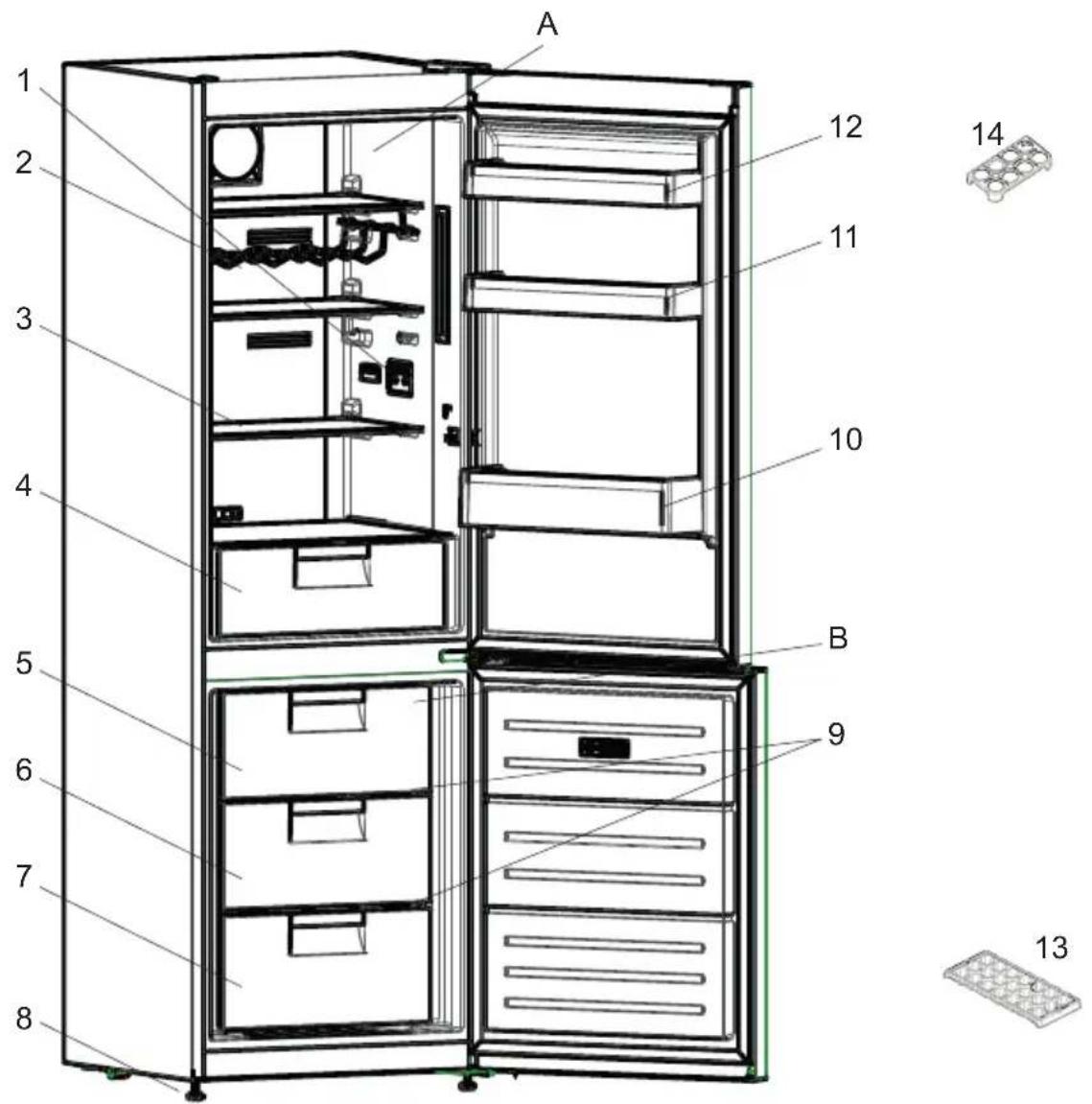

APPARATETS DELE OG RUMMENE

Thank you for choosing this product.

This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance.

Please take the time to read this user manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Warning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT Operating the system correctly

INDEX

BEFORE USING THE APPLIANCE 33

General warnings ...... 33

Safety warnings....36

Installing and operating your fridge-/freezer....37

Before Using your fridge-/freezer 38

THE VARIOUS FUNCTION AND POSSIBILITIES.... 39

Information about New Generation Cooling Technology 39

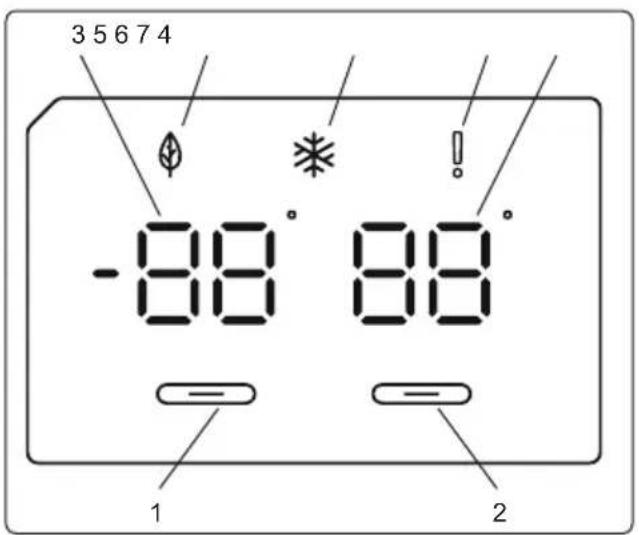

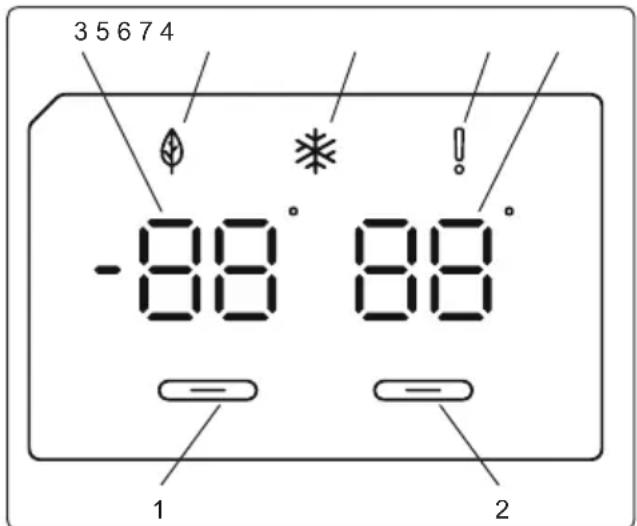

Display and Control Panel....40

Operating your fridge-/freezer 40

Freezer Temperature Settings....40

Cooler Temperature Settings ....40

Super Freeze Mode 40

Display and Control Panel....40

Temperature Adjustment Warnings 41

Accessories 42

Ice cube tray....42

The Freezer Box 42

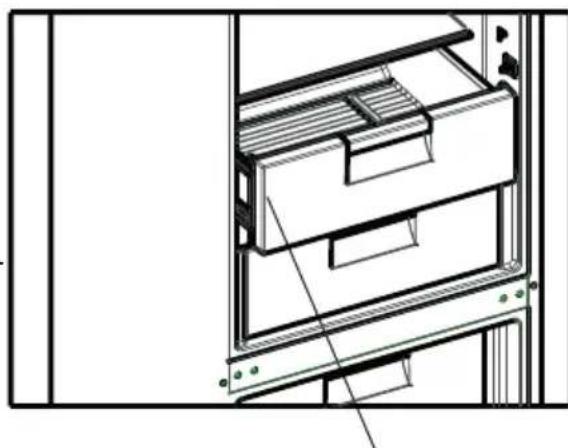

The Chiller Box (In some models)....42

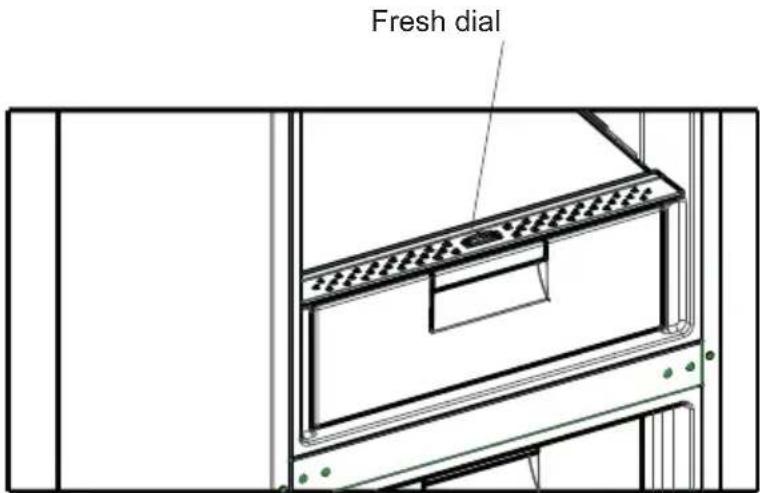

The Fresh Dial (In some models)....43

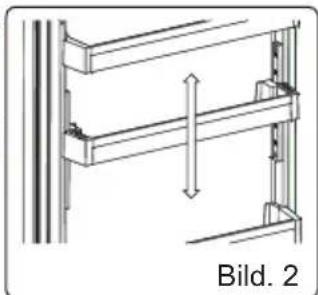

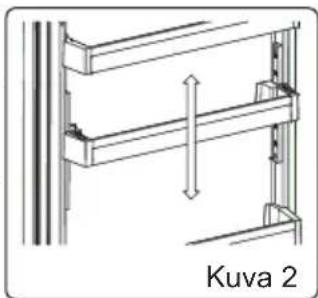

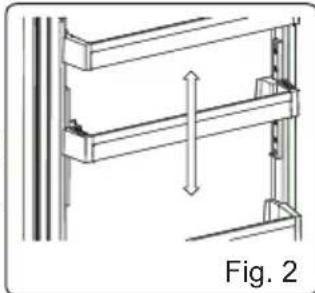

Adjustable Door Shelf (In some models)....43

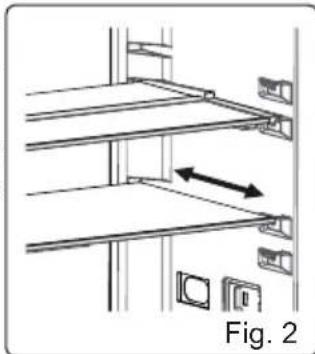

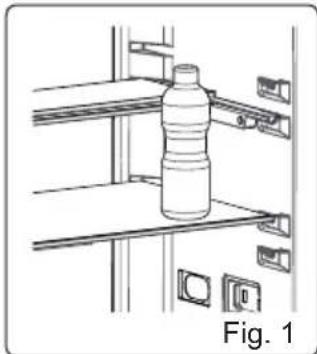

Adjustable Glass Shelf (In some models)....43

Natural Ion Tech (In some models) 43

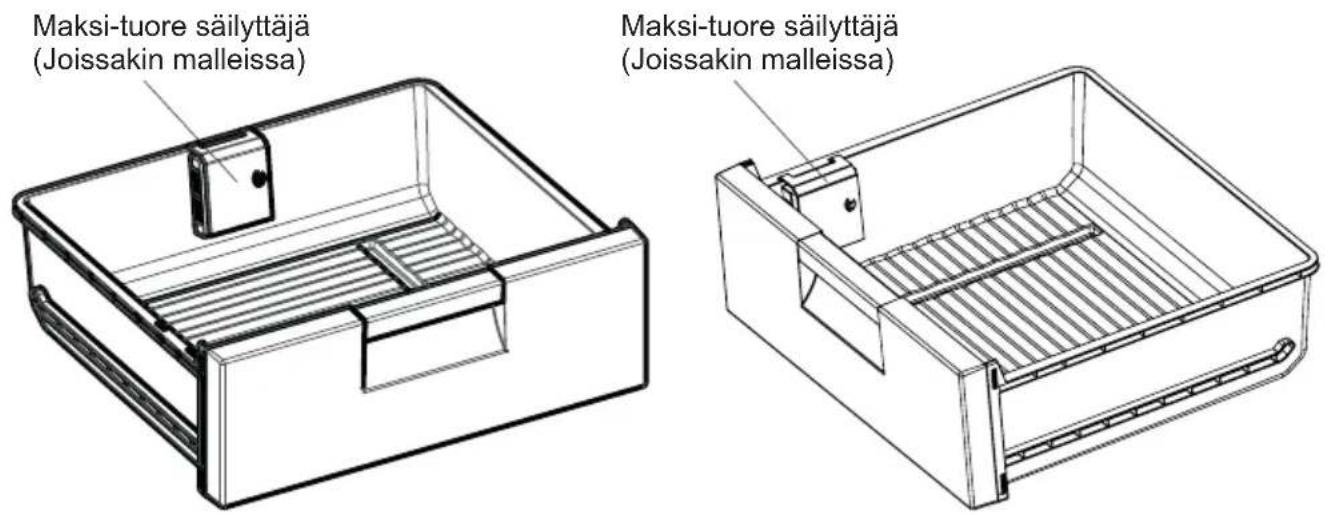

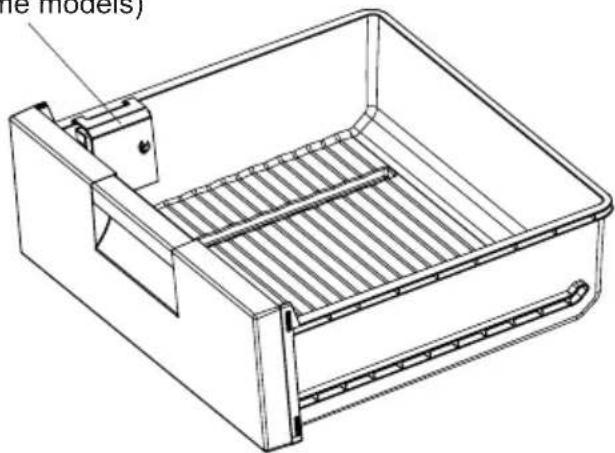

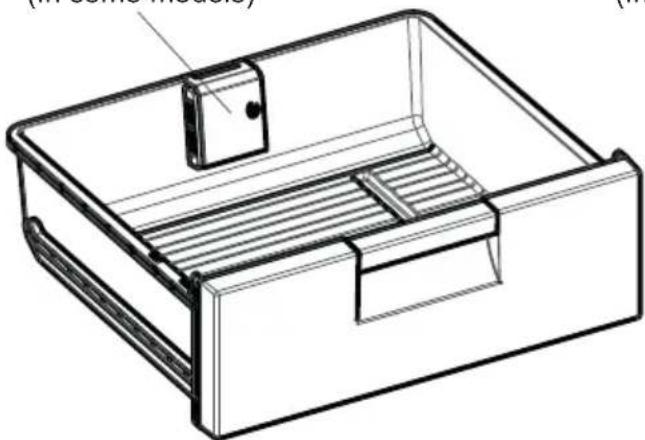

Maxi-fresh preserver (In some models) 44

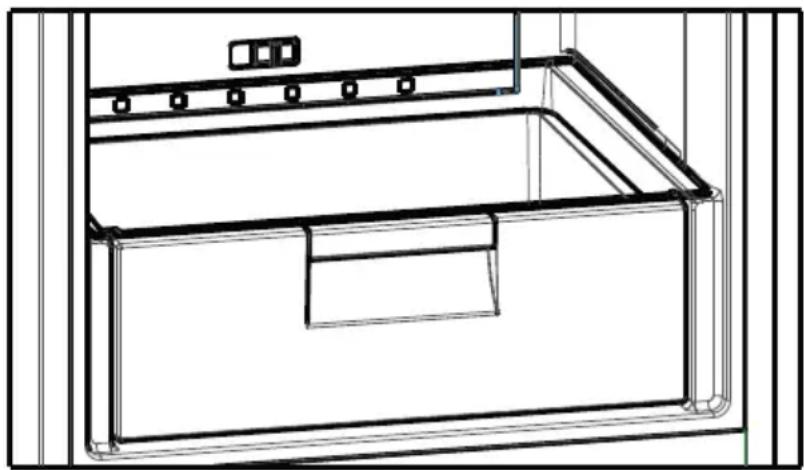

Roller storage box 45

ARRANGING FOOD IN THE APPLIANCE 46

Refrigerator compartment 46

Freezer compartment 47

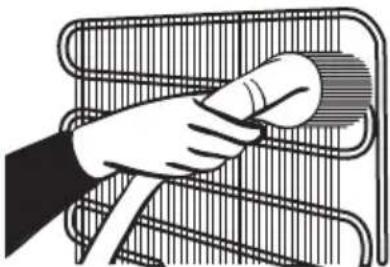

CLEANING AND MAINTENANCE....50

Defrosting....51

TRANSPORTATION AND CHANGING OF INSTALLATION

POSITION 51

Repositioning the doors....51

BEFORE CALLING YOUR AFTER SALES SERVICE .... 52

Hints for Energy Saving....55

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ... 56

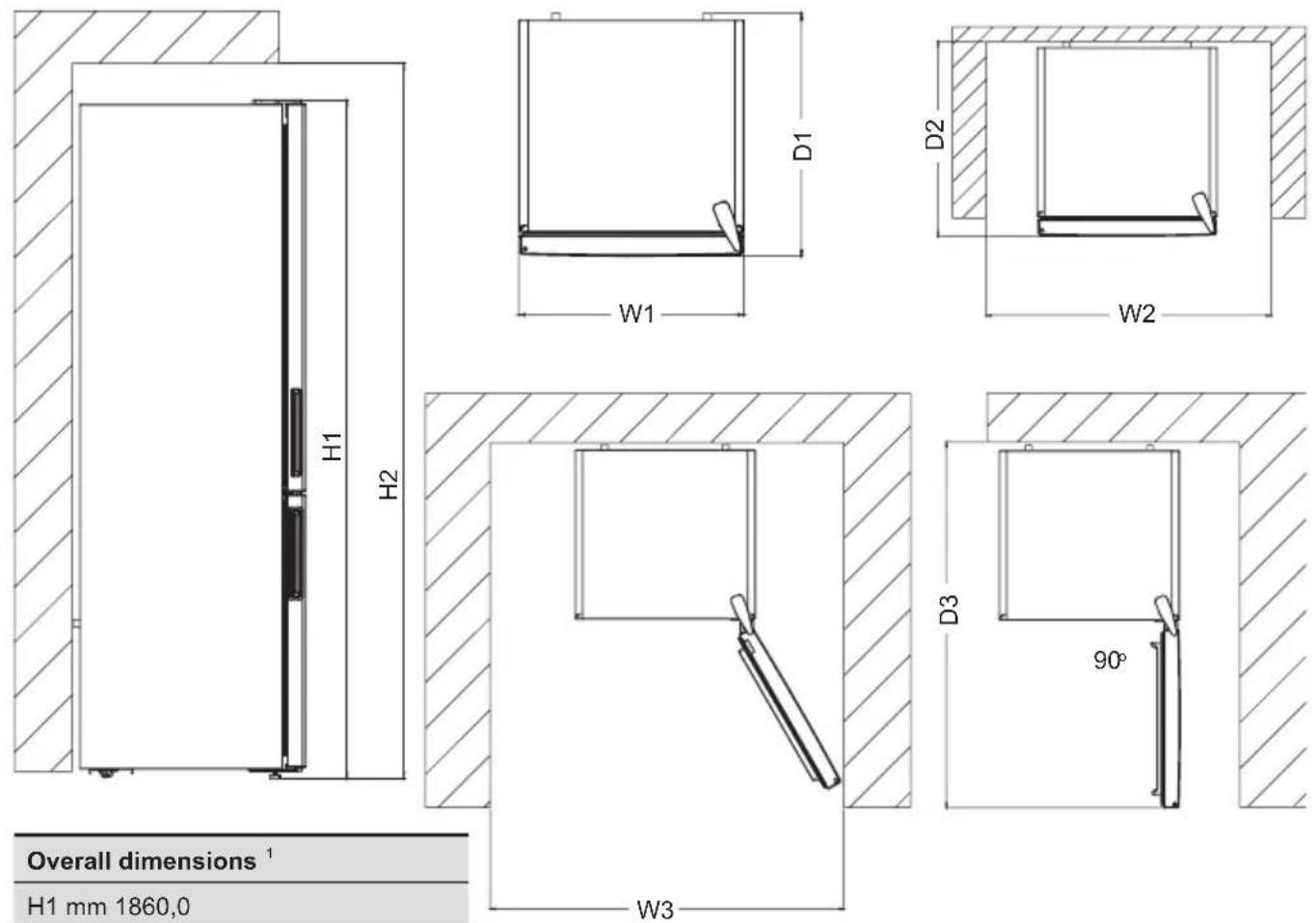

Dimensions....57

TECHNICAL DATA....58

INFORMATION FOR TEST INSTITUTES 58

CUSTOMER CARE AND SERVICE....58

PART - 1. BEFORE USING THE APPLIANCE

General warnings

This appliance is not intended to be used as a built-in appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

⚠ WARNING: Do not damage the refrigerant circuit.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the following instructions:

If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge-/freezer away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

- While carrying and positioning the fridge-/freezer, do not damage the cooler gas circuit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- This appliance is intended to be used in household and domestic applications such as:

• staff kitchen areas in shops, offices and other working environments.
• farm houses and by clients in hotels, motels and other residential type environments.
• bed and breakfast type environments;
• catering and similar non-retail applications.

- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

- A specially grounded plug has been connected to the power cable of your appliance. This plug should be used with a specially grounded socket of 10 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given,

older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Old and out-of-order fridge-/freezer

- If your old fridge-/freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

- Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridge-/freezer.

Disposal of your old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Notes:

- Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

- Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

- This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.

- This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Safety warnings

• Do not connect your fridge-/freezer to the mains electricity supply using an extension lead.
• Do not use damaged, torn or old plugs.
• Do not pull, bend or damage the cord.

Illustration of three hands performing a manual cable or wire manipulation technique (no text or symbols present)

Cartoon illustration of an angry plug with a lightning bolt, no text or symbols present

• Do not use plug adapter.
• This appliance is designed for use by adults. Do not allow children to play with the appliance or hang off the door.
• Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.

Cartoon illustration of a character inside a door, holding a phone to open the door (no text or symbols present)

Illustration of a hand holding a prohibition symbol, a smiling emoji, and a crossed-out hand (no text or labels)

- Do not place glass bottles or cans in the freezer compartment as they will burst when the contents freeze.

Simple line drawing of two bottles and a container with arrows indicating motion (no text or symbols)

- Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure their tops are tightly closed.

- When removing ice from the freezer compartment, do not touch it. Ice may cause frost burns and/or cuts.

- Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after they are removed from the ice-making compartment.

- Do not re-freeze thawed frozen food. This may cause health issues such as food poisoning.

Installing and operating your fridge-/freezer

Before using your fridge-/freezer for the first time, please pay attention to the following points:

- The operating voltage for your fridge-/freezer is 220-240 V at 50Hz.

- The plug must be accessible after installation.

- Your fridge-/freezer may have an odour when it is operated for the first time. This is normal and the odour will fade when your fridge-/freezer starts to cool.

- Before connecting your fridge-/freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.

- Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualified electrician for assistance.

- The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).

• We do not accept responsibility for any damages that occur due to ungrounded usage.

- Place your fridge-/freezer where it will not be exposed to direct sunlight.

- Your fridge-/freezer must never be used outdoors or exposed to rain.

- Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

- If your fridge-/freezer is placed next to a deep freezer, there must be at least 2 cm between them to prevent humidity forming on the outer surface.

- Do not cover the body or top of fridge-/freezer with lace. This will affect the performance of your fridge-/freezer.

- Clearance of at least 5 mm is required at the top of your appliance. Do not place anything on top of your appliance.

- Do not place heavy items on the appliance.

- Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This must be done before placing food in the appliance.

- Clean the appliance thoroughly before use (see Cleaning and Maintenance).

Cartoon illustration of a distressed container with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

- Before using your fridge-/freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the fridge-/freezer after cleaning.

- Install the two plastic distance guides (the parts on the black van -condenser- at the rear) by turning it 90^ (as shown in the figure) to prevent the condenser from touching the wall.

- The distance between the appliance and back wall must be a maximum of 75 mm.

Diagram of two coiled heat exchangers with heat transfer arrows (no text or labels)

Before Using your fridge-/freezer

- When using your fridge-/freezer for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor.

- Your fridge-/freezer may have a smell when it is operated for the first time.

This is normal and the smell will fade away when your fridge-/freezer starts to cool.

General notes:

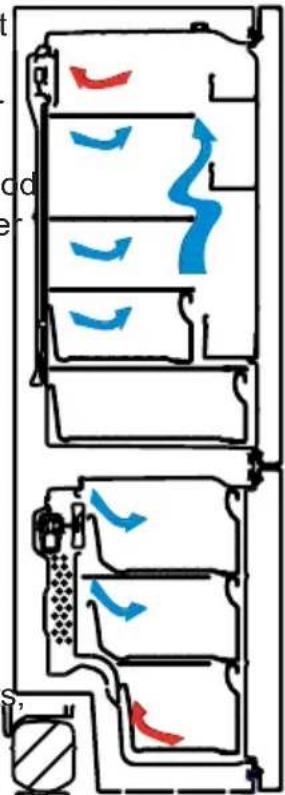

Fresh Food Compartment (Fridge): Most efficient use of energy is ensured in the configuration with the drawers in the bottom part of the appliance, and shelves evenly distributed, position of door bins does not affect energy consumption.

Freezer Compartment (Freezer): Most Efficient use of energy is ensured in the configuration with the drawers and bins are on stock position.

PART - 2. THE VARIOUS FUNCTION AND POSSIBILITIES

Information about New Generation Cooling Technology

Fridge-/freezers with new-generation cooling technology have a different operating system to static fridge-/freezers. Other (static) fridge-/freezers may experience a build up of ice in the freezer compartment due to door openings and humidity in the food. In such freezers, regular defrosting is required; the fridge-/freezer must be switched off, the frozen food moved to a suitable container and the ice which has formed in the freezer compartment removed.

In fridge-/freezers with new-generation cooling technology, a fan blows dry cold air evenly throughout the fridge and freezer compartments. The cold air cools your food evenly and uniformly, preventing humidity and ice build-up.

In the refrigerator compartment, air blown by the fan, located at the top of the refrigerator compartment, is cooled while passing through the gap behind the air duct. At the same time, the air is blown out through the holes in the air duct, evenly spreading cool air throughout the refrigerator compartment.

There is no air passage between the freezer and refrigerator compartments therefore preventing the mixing of odours.

As a result, your fridge, with new-generation cooling technology, provides you with ease of use as well as a huge volume and aesthetic appearance.

Display and Control Panel

Using the Control Panel

1. Enables the setting of the freezer.
2. Enables the setting of the cooler.
3. Freezer set value screen.
4. Cooler set value screen.
5. Economy mode symbol.
6. Super freeze symbol.
7. Alarm symbol.

Operating your fridge-/freezer

Once you have plugged in the product, all symbols

will be displayed for 2 seconds and the initial values will be shown as -18 °C on the freezer adjustment indicator, and +4 °C on the fridge adjustment indicator.

Freezer Temperature Settings

• The initial temperature value for the freezer setting indicator is -18^ .
• Press the freezer set button once.
  When you first press the button, the previous value will blink on the screen.
• Whenever you press this button, temperature will decrease respectively.
• If you continue to press the button, it will restart from -16 °C.

NOTE: Eco mode gets activated automatically when the temperature of the freezer compartment is set to -18^ C.

Cooler Temperature Settings

• The initial temperature value for the cooler setting indicator is +4^ .
• Press the cooler button once.
• Whenever you press this button, temperature will decrease respectively.
• If you continue to press the button, it will restart from +8 °C.

Super Freeze Mode

Purpose

• To freeze a large quantity of food that cannot fit on the fast freeze shelf.
  • To freeze prepared foods.
  • To freeze fresh food quickly to retain freshness.

How to use

To enable the super freeze mode, press and hold the freezer temperature setting button for 3 seconds. Once the super freeze mode has been set, the super freeze symbol on the indicator will be lit and the machine will beep to confirm the mode has been switched on.

During Super Freeze Mode:

• The temperature of the Cooler may be adjusted. In this case, Super Freeze mode will continue.
• Economy mode cannot be selected.
• Super Freeze mode can be cancelled in the same way it is selected.

Recommended Settings for the Freezer and Cooler Compartment Temperature

Freezer Compartment	Cooler Compartment	Remarks
-18 °C	4 °C For regular use and best performance.
-20 °C, -22 °C or -24 °C	4 °C	Recommended when environmental temperature exceeds 30 °C.
Super Freeze mode 4	°C	Must be used when you wish to freeze food in a short period of time.
-18 °C, -20 °C, -22 °C or -24 °C	2 °C	These temperature settings must be used when the environmental temperature is high or if you think the refrigerator compartment is not cool enough because the door is being opened frequently.

Temperature Adjustment Warnings

• It is not recommended that you operate your fridge-/freezer in environments colder than 10^ in terms of its efficiency.
• Do not start another adjustment while you are already making an adjustment.
• Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the fridge-/freezer and the ambient temperature in the location of your fridge-/freezer.
• In order to allow your fridge-/freezer to reach the operating temperature after being connected to mains, do not open the doors frequently or place large quantities of food in the fridge-/freezer. Please note that, depending on the ambient temperature, it may take 24 hours for your fridge-/freezer to reach the operating temperature.
• A 5 minute delay function is applied to prevent damage to the compressor of your fridge-/freezer when connecting or disconnecting to mains, or when an energy breakdown occurs. Your fridge-/freezer will begin to operate normally after 5 minutes.
• Your appliance is designed to operate in the ambient temperature (T/SN = 10°C - 43°C) intervals stated in the standards, according to the climate class displayed on the information label. We do not recommend operating your appliance out of the stated temperature limits in terms of cooling effectiveness.

Climate class and meaning:

T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.

ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.

N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.

SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.

Important installation instructions

This appliance is designed to work in difficult climate conditions (up to 43 degrees C or 110 degrees F) and is powered with 'Freezer Shield' technology which ensures that the frozen food in the freezer will not defrost even if the ambient temperature falls as low as -15 °C. So you may then install your appliance in an unheated room without having to worry about frozen food in the freezer being spoilt. When the ambient temperature returns to normal, you may continue using the appliance as usual.

Lighting (If available)

When the product is plugged in for the first time, the interior lights may turn on 1 minute late due to opening tests.

Accessories

Ice cube tray

• Fill the ice cube tray with water and place in the freezer compartment.
  • After the water has completely frozen, you can twist the tray as shown below to remove the ice cubes.

Illustration showing three different hand positions: a keyboard, a grid device with rotation arrows, and a hand holding a cross (no text or symbols)

The Freezer Box

The freezer box allows food to be accessed more easily

Removing the freezer box:

• Pull the box out as far as possible
• Pull the front of the box up and out

Carry out the opposite of this operation when refitting the sliding compartment.

Always keep hold of the handle of the box while removing it.

The Chiller Box (In some models)

Keeping food in the Chiller compartment, instead of refrigerator compartments, allows food to retain freshness and flavour for longer, while preserving its fresh appearance. When the Chiller tray becomes dirty, remove it and wash with water.

(Water freezes at 0^ C, but food containing salt or sugar freezes at temperatures lower than this).

The Chiller compartment is usually used for storing foods such as raw fish, lightly pickled food, rice, and so on.

Technical line drawing of a refrigerator interior showing drawer, storage compartments, and door frame (no text or labels)

Chiller Box

Do not put food you want to freeze or ice trays (to make ice) in the Chiller compartment.

To remove the Chiller Box:

• Pull the chiller box towards you by sliding it on the rails.
• Pull the chiller box up from the rail and remove it from the fridge.

The Fresh Dial (In some models)

If the crisper is full, the fresh dial located in front of the crisper should be opened. This allows the air in the crisper and the humidity rate to be controlled, to increase the life of food within.

The dial, located behind the shelf, must be opened if any condensation is seen on the glass shelf.

Adjustable Door Shelf (In some models)

Six different height adjustments can be made to provide storage areas that you need by adjustable door shelf.

To change the position of adjustable door shelf ;

Hold the bottom of the shelf and pull the buttons on the side of the door shelf direction of arrow. (Fig.1)

Position door shelf the height you need by moving up and down. After you get the position that you want the door shelf, release the buttons on the side of the door shelf (Fig.2) Before releasing the door shelf, move up down and make sure the door shelf is fixed.

Note: Before adjustable door shelf is loaded, you must hold the shelf by supporting the bottom. Otherwise, door shelf could fall offails due to the weight. So damage may occur on the door shelf or

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a structural frame with vertical supports and a horizontal beam, labeled Fig. 2 (no text or symbols on the diagram itself)

Adjustable Glass Shelf (In some models)

Diagram of a bottled water dispenser on shelves with mounting brackets, labeled Fig. 1 (no text or symbols on the diagram itself)

Adjustable glass shelf mechanism provides higher storage spaces with a simple movement. To cover the glass shelf, push it.

You can load your food as you want in the resulting extra space. To bring the shelf in its original position, pull it toward you.

Diagram of a shelving unit with two shelves and a door, showing directional arrows (no text or symbols)

Natural Ion Tech (In some models)

Natural Ion Tech spreads negative ions which neutralize particles of unpleasant smell and dust in the air.

By removing these particles from the air in the refrigerator, Natural Ion Tech improves air quality and eliminates odours.

• This feature is optional. It may not exist on your product.
• The location of your ioniser device may vary from product to product.

Maxi-fresh preserver (In some models)

Maxi Fresh Preserver technology helps to remove ethylene gas (a bioproduct released naturally from fresh foods) and unpleasant odors from the crisper. In this way, food stays fresh for a longer time.

• Maxi Fresh Preserver must be cleaned once in a year. The filter should be waited for 2 hours at 65^ in a oven.
• To clean the filter, please remove the back cover of the filter box by pulling it in the direction of the arrow.
• The filter should not be washed with water or any detergent.

Maxi Fresh Preserver (In some models)

Technical line drawing of a mechanical housing or enclosure with internal compartments and a labeled component (no text or symbols present)

Maxi Fresh Preserver (In some models)

Technical line drawing of a rectangular device with internal grating and a side-mounted bracket (no text or symbols)

Roller storage box

You can use this compartment for two different functions.

Note: Your fridge is delivered to you with the shown section in the open position. The declared energy consumption and volume are according to this setting.

1. To use for 0 °C Department: If you want to use this compartment as 0 °C box you must take the sliding part (cover, which is indicated in picture) from closed position to open position.

2. To use for Crisper Department: If you want to use this compartment as crisper, you must take the sliding part (cover, which is indicated in picture) from open position to closed position.

3. While this compartment is used as an 0^ compartment, food retains freshness and for longer.

4. Pull the chiller shelf out toward you. The cover will open automatically.

! Please note; this is not a freezer compartment.

Technical line drawing of a cabinet or storage unit with mounting holes and a handle (no text or symbols)

Visual and text descriptions in the accessories section may vary according to the model of your appliance.

PART - 3. ARRANGING FOOD IN THE APPLIANCE

Refrigerator compartment

• To reduce humidity and avoid the consequent formation of frost, always store liquids in sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Make sure no items are in direct contact with the rear wall of the appliance as frost will develop and packaging will stick to it. Do not open the refrigerator door frequently.
• We recommend that meat and clean fish are loosely wrapped and stored on the glass shelf just above the vegetable bin where the air is cooler, as this provides the best storage conditions.
• Store loose fruit and vegetable items in the crisper containers.
• Store loose fruit and vegetables in the crisper.
• Storing fruit and vegetables separately helps prevent ethylene-sensitive vegetables (green leaves, broccoli, carrot, etc.) being affected by ethylene-releaser fruits (banana, peach, apricot, fig etc.).
• Do not put wet vegetables into the refrigerator.
• Storage time for all food products depends on the initial quality of the food and an uninterrupted refrigeration cycle before refrigerator storage.
• To avoid cross-contamination do not store meat products with fruit and vegetables. Water leaking from meat may contaminate other products in the refrigerator. You should package meat products and clean any leakages on the shelves.
• Do not put food in front of the air flow passage.
• Consume packaged foods before the recommended expiry date.

NOTE: Most efficient use of energy is ensured in the configuration with the drawers in the bottom part of the appliance, and shelves evenly distributed, position of door bins is not affect energy consumption.

• For normal working conditions, it will be sufficient to adjust the temperature setting of your refrigerator to +4^ .
• The temperature of the fridge compartment should be in the range of 0-8 °C, fresh foods below 0 °C are iced and rotted, bacterial load increases above 8 °C, and spoils.
• Do not put hot food in the refrigerator immediately, wait for the temperature to pass outside. Hot foods increase the degree of your refrigerator and cause food poisoning and unnecessary spoiling of the food.
• Meat, fish, etc. should be store in the chiller compartment of the food, and the vegetable compartment is preferred for vegetables. (if available)
• To prevent cross contamination, meat products and fruit vegetables are not stored together.
• Foods should be placed in the refrigerator in closed containers or covered to prevent moisture and odors.

NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.

The table below is a quick guide to show you the most efficient way to store the major food groups in your refrigerator compartment.

Food Maximum	storage time How and where to store
Vegetables and fruits 1 week	week Vegetable bin
Meat and fish 2 - 3 Days		Wrap in plastic foil, bags, or in a meat container and store on the glass shelf
Fresh cheese 3 - 4 Days On the designated door shelf
Butter and margarine 1 week	week On the designated door shelf
Bottled products e.g. milk and yoghurt	Until the expiry date recommended by the producer	On the designated door shelf
Eggs 1 month On the designated egg shelf
Cooked food 2 Days All shelves

Freezer compartment

- The freezer is used for storing frozen food, freezing fresh food, and making ice cubes.

- To use the maximum capacity of the freezer compartment, use the glass shelves for the upper and middle section, and use the lower basket for the bottom section.

- Use the fast freezing shelf to freeze home cooking (and any other food which needs to be frozen quickly) more quickly because of the freezing shelf's greater freezing power. Fast freezing shelf is the bottom drawer of the freezer compartment.

- For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn't leak. Special freezer bags, aluminum foil polythene bags and plastic containers are ideal.

- Do not store fresh food next to frozen food as it can thaw the frozen food.

- Before freezing fresh food, divide it into portions that can be consumed in one sitting.

- Consume thawed frozen food within a short period of time after defrosting

- Never place warm food in the freezer compartment as it will thaw the frozen food.

- Always follow the manufacturer's instructions on food packaging when storing frozen food. If no information is provided food, should not be stored for more than 3 months from the date of purchase.

- When purchasing frozen food, make sure that it has been stored under appropriate conditions and that the packaging is not damaged.

- Frozen food should be transported in appropriate containers and placed in the freezer as soon as possible.

- Do not purchase frozen food if the packaging shows signs of humidity and abnormal swelling. It is probable that it has been stored at an unsuitable temperature and that the contents have deteriorated.

- The storage life of frozen food depends on the room temperature, the thermostat setting, how often the door is opened, the type of food, and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the packaging and never exceed the maximum storage life indicated.

- The maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.

NOTE: If you attempt to open the freezer door immediately after closing it, you will find that it will not open easily. This is normal. Once equilibrium has been reached, the door will open easily.

Important note:

• Never refreeze thawed frozen food.
• The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period of time. Therefore, add small amounts of spices to food to be frozen, or the desired spice should be added after the food has thawed.
• The storage time of food is dependent on the type of oil used. Suitable oils are margarine, calf fat, olive oil and butter. Unsuitable oils are peanut oil and pig fat.
• Food in liquid form should be frozen in plastic cups and other food should be frozen in plastic folios or bags.

The table below is a quick guide to show you the most efficient way to store the major food groups in your freezer compartment.

Meat and fish Preparation		Maximum storage time (months)
Steak Wrap in foil 6 - 8
Lamb meat Wrap in foil 6 - 8
Veal roast Wrap in foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat In packaging without using spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/salami	Should be kept packaged even if it has a membrane	1 - 3
Chicken and turkey	Wrap in foil 4 - 6
Goose and duck	Wrap in foil 4 - 6
Deer, rabbit, wild boar	In 2.5 kg portions or as fillets	6 - 8
Freshwater fish (Salmon, Carp, Crane, Catfish)	After cleaning the bowels and scales of the fish, wash and dry it. If necessary, remove the tail and head.	2
Lean fish (Bass, Turbot, Flounder)		4
Fatty fishes (Tuna, Mackerel, Bluefish, Anchovy)		2 - 4
Shellfish	Clean and in a bag	4 - 6
Caviar	In its packaging, or in an aluminium or plastic container	2 - 3
Snails	In salty water, or in an aluminium or plastic container	3
NOTE: Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen.

Vegetables and Fruits	Preparation	Maximum storage time (months)
String beans and beans	Wash, cut into small pieces and boil in water 10	- 13
Beans Hull, wash and boil in water 12
Cabbage Clean and boil in water 6 - 8
Carrot Clean, cut into slices and boil in water 12
Pepper	Cut the stem, cut into two pieces, remove the core and boil in water	8 - 10
Spinach Wash and boil in water 6 - 9
Cauliflower	Remove the leaves, cut the heart into pieces and leave it in water with a little lemon juice for a while	10 - 12
Eggplant Cut into pieces of 2cm after washing 10 - 12
Corn Clean and pack with its stem or as sweet corn	12
Apple and pear	Peel and slice	8 - 10
Apricot and Peach	Cut into two pieces and remove the stone	4 - 6
Strawberry and Blackberry	Wash and hull	8 - 12
Cooked fruits	Add 10 % of sugar to the container	12
Plum, cherry, sourberry	Wash and hull the stems	8 - 12

	Maximum storage time (months)	Thawing time at room temperature (hours)	Thawing time in oven (minutes)
Bread	4 - 6	2 - 3	4-5 (220-225 °C)
Biscuits	3 - 6	1 - 1,5	5-8 (190-200 °C)
Pastry	1 - 3	2 - 3	5-10 (200-225 °C)
Pie	1 - 1,5	3 - 4	5-8 (190-200 °C)
Phyllo dough	2 - 3	1 - 1,5	5-8 (190-200 °C)
Pizza	2 - 3	2 - 4	15-20 (200 °C)
Dairy products Preparation		Maximum storage time (months)	Storage conditions
Packet (Homogenized) Milk	In its own packet 2 - 3		Pure Milk – in its own packet
Cheese - excluding white cheese	In slices 6 - 8		Original packaging may be used for short-term storage. Keep wrapped in foil for longer periods.
Butter, margarine In its	packaging 6

PART - 4. CLEANING AND MAINTENANCE

Disconnect the unit from the power supply before cleaning.

Do not wash your appliance by pouring water on it.

Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the mains supply with dry hands.

Cartoon illustration of a smiling rectangular character with arms and legs, accompanied by two smaller figures (no text or symbols)

- Make sure that no water enters the lamp housing and other electrical components.

- The appliance should be cleaned regularly using a solution of bicarbonate of soda and lukewarm water.

- Clean the accessories separately by hand with soap and water. Do not wash accessories in a dish washer.

- Clean the condenser with a brush at least twice a year. This will help you to save on energy costs and increase productivity.

Illustration of a hand cleaning a metal rack with a circular tool (no text or symbols)

The power supply must be disconnected during cleaning.

Defrosting

Your fridge-/freezer performs automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporisation container behind your refrigerator and evaporates there.

• Make sure you have disconnected the plug of your fridge-/freezer before cleaning the vaporisation container.
• Remove the vaporisation container from its position by removing the screws as indicated. Clean it with soapy water at specific time intervals. This will prevent odours from forming.

Replacing LED Lighting

To replace any of the LEDs, please contact the nearest Authorised Service Centre.

Note: The numbers and location of the LED strips may change according to the model.

If product equipped with LED lamp

This product contains a light source of energy efficiency class .

If product equipped with LED Strip(s) or LED card(s)

This product contains a light source of energy efficiency class .

PART - 5.

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

Transportation and Changing Positioning

• The original packaging and foam may be kept for re-transportation (optional).
• Fasten your appliance with thick packaging, bands or strong cords and follow the instructions for transportation on the packaging.
• Remove all movable parts (shelves, accessories, vegetable bins, and so on) or fix them into the appliance against shocks using bands when re-positioning or transporting.

Always carry your appliance in the upright position.

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Repositioning the doors

• It is not possible to change the opening direction of your appliance doors if door handles are installed on the front surface of the appliance door.
• It is possible to change the opening direction of the doors on models without handles and with handles on the site of the doors.
• If the door-opening direction of your appliance can be changed, contact the nearest Authorised Service Centre to change the opening direction.

PART - 6. BEFORE CALLING YOUR AFTER SALES SERVICE

Errors

Your appliance will warn you if the temperatures for the cooler and freezer are at improper levels or if a problem occurs with the appliance. Warning codes are displayed in the freezer and cooler indicators.

ERROR TYPE MEANING WHY WHAT TO DO
E01	Sensor warning		Call Service for assistance as soon as possible.
E02
E03
E06
E07
E08	Low Voltage Warning	Power supply to the device has dropped to below 170 V.	- This is not a device failure, this error helps to prevent damages to the compressor.- The voltage needs to be increased back to required levelsIf this warning continues an authorised technician needs to be contacted.
E09	Freezer compartment is not cold enough	Likely to occur after long term power failure.	1. Set the freezer temperature to a colder value or set Super Freeze. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.2. Remove any products which have thawed/ defrosted during this error. They can be used within a short period of time.3. Do not add any fresh produce to the freezer compartment until the correct temperature has been reached and the error is no longer.If this warning continues an authorised technician needs to be contacted.
E10	Fridge compartment is not cold enough	Likely to occur after:- Long term power failure.- Hot food has been left in the fridge.	1. Set the fridge temperature to a colder value or set Super Cool. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.2. Please empty the location at the front area of air duct channel holes and avoid putting food close to the sensor.If this warning continues an authorised technician needs to be contacted.
E11	Fridge compartment is too cold	Various	1. Check is Super Cool mode is activated2. Reduce the fridge compartment temperature3. Check to see if vents are clear and not cloggedIf this warning continues an authorised technician needs to be contacted.

If you are experiencing a problem with your fridge-/freezer, please check the following before contacting the after-sales service.

Your fridge-/freezer does not operate

Check if:

• Your fridge-/freezer is plugged in and switched on
• The fuse has blown
  • Is the temperature adjustment right?
• The socket is faulty. To check this, plug another working appliance into the same socket.

Your fridge-/freezer is performing poorly

Check if:

• Is the temperature adjustment right?
- Is the door of your fridge opened frequently and left open for a long while?
• The appliance is overloaded
• The doors are closed properly
- Did you put a dish or food on your fridge so that it contacts the rear wall of your fridge so as to prevent the air circulation?
• Is your fridge filled excessively?

• There is an adequate distance between the appliance and surrounding walls
• Is the ambient temperature within the range of values specified in the operating manual?

Your refrigerator is operating noisily

The following noises can be heard during normal operation of the appliance.

Cracking (ice cracking) noise occurs:

• During automatic defrosting.
- When the appliance is cooled or warmed (due to expansion of appliance material).

Clicking noise occurs: When the thermostat switches the compressor on/off.

Motor noise: Indicates the compressor is operating normally. The compressor may cause more noise for a short time when it is first activated.

Bubbling noise and splashing occurs: Due to the flow of the refrigerant in the tubes of the system.

Water flowing noise occurs: Due to water flowing to the evaporation container. This noise is normal during defrosting.

Air blowing noise occurs: During normal operation of the system due to the circulation of air.

There is a build-up of humidity inside the fridge

Check if:

• All food is packed properly. Containers must be dry before being placed in the fridge.
• The fridge doors are opened frequently. Humidity of the room will enter the fridge each time the doors are opened. Humidity increases faster if the doors are opened frequently, especially if the humidity of the room is high.
• There is a build-up of water droplets on the rear wall. This is normal after automatic defrosting (in Static Models).

The doors are not opening or closing properly

Check if:

• There is food or packaging preventing the door from closing
  • The door compartments, shelves and drawers are placed properly
  • The door gaskets are broken or torn
• Your fridge is level.

The edges of the fridge-/freezer in contact with the door joint are warm

Especially during summer (warm weather), the surfaces in contact with the door joint may become warmer during operation of the compressor. This is normal.

Important Notes:

• In the case of a power failure, or if the appliance is unplugged and plugged in again, the gas in the cooling system of your refrigerator will destabilise, causing the compressor protective thermal element to open. Your refrigerator will start to operate normally after 5 minutes.

• If the appliance will not be used for a long period of time (such as during holidays), disconnect the plug. Defrost and clean the refrigerator, leaving the door open to prevent the formation of mildew and odour.

• If the problem persists after you have followed all the instructions above, please consult the nearest Authorised Service Centre.

• This appliance is designed for domestic use and for the stated purposes only. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with these instructions, we emphasise that the manufacturer and the dealer will not be responsible for any repair or failure within the guarantee period.

Hints for Energy Saving

1. Install the appliance in a cool, well-ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) otherwise an insulating plate should be used.
2. Allow warm food and drinks to cool before placing them inside the appliance.
3. Place thawing food in the refrigerator compartment. The low temperature of the frozen food will help cool the refrigerator compartment while the food is thawing. This will save energy. Frozen food left to thaw outside of the appliance will result in a waste of energy.
4. Drinks or other liquids should be covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping drinks and other liquids covered helps preserve their smell and taste.
5. Avoid keeping the doors open for long periods and opening the doors too frequently as warm air will enter the appliance and cause the compressor to switch on unnecessarily often.
6. Keep the covers of the different temperature compartments (such as the crisper and chiller) closed.
7. The door gasket must be clean and pliable. In case of wear, replace the gasket.

PART - 7.

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

A) Refrigerator compartment
B) Freezer compartment
1) Thermostat box / Interior display
2) Wine rack *
3) Refrigerator shelves
4) Crisper
5) Freezer upper basket
6) Freezer middle basket
7) Freezer bottom basket
8) Levelling feet

9) Freezer glass shelves *
10) Bottle shelf
11) Adjustable door shelf * / door shelf
12) Door shelf
13) Ice cube tray
14) Egg holder

* In some models

Dimensions

Overall dimensions1

H1 mm 1860,0

W1 mm 595,0

D1 mm 600,0

1 the height, width and depth of the appliance without the handle.

Space required in use2

H2 mm 2010,0

W2 mm 695,0

D2 mm 694,1

2 the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air.

Overall space required in use3

W3 mm 981,6

D3 mm 1168,5

^3 the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air, plus the space necessary to allow door opening to the minimum angle permitting removal of all internal equipment.

TECHNICAL DATA

The technical information is situated in the rating plate on the internal side of the appliance and on the energy label.

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.

Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

See the link www.theenergylabel.eu for detailed information about the energy label.

INFORMATION FOR TEST INSTITUTES

Appliance for any EcoDesign verification shall be compliant with EN 62552.

Ventilation requirements, recess dimensions and minimum rear clearances shall be as stated in this User Manual at. Please contact the manufacturer for any other further information, including loading plans.

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, Serial Number and Service Index.

The information can be found on the rating plate. You can find the rating label inside the fridge zone on the left lower side.

The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model.

Visit our website:

www.eico.eu

DELARNA I KYL-/FRYSSKÅPET 85

Dimensioner 86

TEKNISKA DATA 87

INFORMATION FÖR TESTINSTITUT 87

KUNDVÅRD OCH SERVICE 87

INNAN DU ANVÄNDER APPARATEN

Allmänna varningar

Cartoon illustration of an angry plug with a tail, emitting exhaust smoke (no text or symbols)

Illustration of three hands performing a cable or wire manipulation technique (no text or symbols present)

Cartoon illustration of a smiling refrigerator with open door, plus a crossed-out prohibition symbol (no text or labels)

Simple line drawing of a bottle and glass with abstract shapes (no text or symbols)

Diagram of two coiled heat exchangers with heat transfer arrows (no text or labels)

Diagram of a vehicle interior showing airflow patterns with blue and red arrows indicating movement (no text or labels)

Illustration showing three different hand positions: a keyboard, a grid device with rotation arrows, and a hand holding a cross (no text or symbols)

Fryslådan

Technical line drawing of a mechanical assembly with two stacked compartments and a central circular component (no text or symbols)

Jonisator

Justerbar dörrhylla (hos vissa modeller)

Technical line drawing of a structural bracket with mounting holes and a label 'Bild. 1' (no readable text or symbols beyond label)

Technical diagram of a structural frame assembly with no visible text or symbols

Justerbar glashylla (hos vissa modeller)

Diagram of a bottled water bottle mounted on a shelf, labeled 'Bild. 1' (no other text or symbols)

Diagram of a shelving unit with labeled components and directional arrows, no readable text or symbols present.

Maxi-fresh preserver (hos vissa modeller)

Technical line drawing of a cabinet or storage unit with mounting holes and a handle (no text or symbols)

PLACERA MATEN I KYL-/FRYSEN

Kylutrymme

Cartoon illustration of a smiling refrigerator with two baby babies beside it (no text or symbols)

Illustration of a hand cleaning a metal rack with a circular tool (no text or symbols)

Avfrostning

Simple line drawing of two children playing a large rectangular sign (no text or symbols present)

INNAN DU KALLAR PÅ SERVICE EFTER FÖRSÄLJNING

Kolla varningarna;

DELARNA I KYL-/FRYSSKÅPET

ERILAISET TOIMINNOT JA MAHDOLLISUUDET 96

TEKNISET TIEDOT....116

TIETOJA TESTAUSLAITOKSILLE ....116

ASIAKASPALVELU JA HUOLTO 116

ENNEN LAITTEEN KÄYTTÄMISTÄ

Yleisiä varoituksia

Illustration of three hands holding ropes and connecting wires, showing different cable termination states (no text or symbols present)

Cartoon illustration of an electric plug with a sad face and warning symbol (no text or labels)

Cartoon illustration of a character inside a door, holding their head with arms outstretched (no text or symbols)

Illustration of a hand holding a prohibition symbol, a smiling face icon, and a crossed-out hand (no text or labels)

Simple line drawing of two bottles and a container with droplets, no text or symbols present

Cartoon illustration of a distressed container with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

Diagram of two coiled heat exchangers with heat transfer arrows (no text or labels)

Diagram of a vehicle interior layout with airflow indicators (no text or labels)

Illustration showing three different hand positions: a bowl on a tray, a keyboard with rotation arrows, and a hand holding a bowl with a crossed-out black symbol (no text or labels)

Pakastelokero

Technical line drawing of a refrigerator interior showing internal compartments and door frame (no text or symbols)

Jäähdytyshylly

Diagram showing a device with ventilation slots and a battery cover, no text or symbols present

Technical line drawing of a structural bracket with labeled component 'Kuva 1' (no other text or symbols)

Technical line drawing of a structural frame with a vertical double-headed arrow indicating a dimension (no text or symbols present)

Line drawing of a storage shelf with a plastic bottle and attached compartments (no text or symbols)

Diagram of a multi-level storage or rack system with directional arrows indicating movement, labeled 'Kuva 2' (no text or symbols on the diagram itself)

Technical line drawing of a refrigerator interior showing front and side views (no text or symbols)

Cartoon illustration of a refrigerator and a bag with food items, no text or symbols present

Illustration of a hand using a tool to clean or adjust a metal rack (no text or symbols visible)

Sulattaminen

Simple line drawing of two children holding a large rectangular object (no text or symbols)

ORGANISERE MATVARENE I APPARATET 132

VASKING OG VEDLIKEHOLD.... 136

Avising....136

FRAKT OG REPOSISJONERING .... 137

Illustration of three hands holding wires, showing different hand positions (no text or symbols present)

Cartoon illustration of a person charging plug with an angry face and lightning bolts (no text or symbols)

Cartoon illustration of a character inside a computer with arms and legs (no text or symbols)

Simple line drawing of a bottle and glass with abstract shapes (no text or symbols)

Cartoon illustration of a distressed container with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

Diagram of two coiled heat exchangers with cooling fans and a valve, no text or symbols present

Diagram of a vehicle interior layout with colored arrows indicating flow or movement (no text or labels)

Display og kontrollpanel

Illustration showing three steps of a robotic arm: pressing a tray, moving a grid, and removing a hand with a crossed-out object (no text or symbols)

Fryseskuffen

Technical line drawing of a refrigerator interior showing front and side views (no text or symbols)

ORGANISERE MATVARENE I APPARATET

Kjøleskapskammer

VASKING OG VEDLIKEHOLD

Cartoon illustration of a refrigerator with two smaller figures nearby (no text or symbols)

- Du kan vaske inner- og yttersidene med en myk klut eller en svamp med varmt såpevann.

Illustration of a hand using a tool to clean or adjust a metal rack (no text or symbols visible)

Avising

Technical line drawing of a mechanical assembly with a grid-patterned panel and a cylindrical component (no text or symbols)

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Knuselyd (isknusing):

DELENE TIL APPARATET OG KAMMERENE
