E26 P 90 N - Range hood EICO - Free user manual and instructions

Product Type	Range Hood
Brand	EICO
Model	E26 P 90 N
Width	90 cm (from model number)
Installation Type	Wall-mounted, ducted or recirculating
Minimum Distance from Cooking Surface	65 cm (electric, gas, or mixed)
Air Discharge	Upper air exit for external ducting; recirculation with optional charcoal filter
Motor Speeds	4 (including timed last speed)
Maximum Airflow	>650 m³/h (last timed speed activates)
Timer Function	Yes, 5 minutes (press speed button again)
Automatic Function	Yes, via heat sensor (press buttons 1 and 2 simultaneously)
Lighting	LED (integrated, replace by service only)
Grease Filter	Washable metal filter, clean monthly
Grease Filter Saturation Indicator	Yes, flashing after 40 hours of use
Charcoal Filter	Non-washable, replace every 6 months (for recirculation)
Charcoal Filter Saturation Indicator	Yes, flashing after 120 hours of use
Power Supply	220-240 V, 50/60 Hz
Power Cable Length	1250 mm
Safety Features	Child safety (under 8 supervised), no flambé, grille must be fitted
Control Panel	Electronic touch buttons (glass)
Cleaning	Use denatured alcohol or neutral detergents; avoid abrasives
Electrical Protection	Requires 30 mA differential circuit

Frequently Asked Questions - E26 P 90 N EICO

What is the minimum distance required between the hood and the cooking surface?

The hood must be installed at a minimum distance of 65 cm from any electric, gas, or mixed cooktop. If the hob manufacturer specifies a greater distance, follow that instead.

How often should I clean the grease filter?

The grease filter should be cleaned once a month using non-abrasive detergents. It can be washed by hand or in a dishwasher on a low temperature, short cycle.

How do I reset the filter saturation indicator?

Press and hold the 3+i button for at least 5 seconds. This should only be done after cleaning or replacing the filters.

Can I use the hood without the charcoal filter?

Yes, if the hood is connected to an external exhaust duct. The charcoal filter is only needed for recirculation mode to trap odors.

How does the timer function work?

Press the currently active speed button once more; the hood will run for 5 minutes and then automatically stop. This works on all speeds.

What does the automatic function do?

Press buttons 1 and 2 simultaneously to activate the heat sensor. The hood will automatically select the appropriate speed based on the heat detected from the cooktop.

Why are the lights not working?

The LED lights are integrated and not user-serviceable. If they fail, contact the technical service center for replacement.

How do I replace the charcoal filter?

Charcoal filters are non-washable and must be replaced every 6 months (or when the saturation indicator flashes rapidly). Remove the old filter and install a new one following the manual's instructions.

What should I do if the hood is not extracting properly?

Check that the grease filter is clean, that the charcoal filter (if used) is not saturated, and that the ducting is not blocked. Also ensure the hood is set to a suitable speed.

Is the hood suitable for gas cooktops?

Yes, but ensure adequate ventilation in the room. The minimum distance from the cooking surface remains 65 cm for gas or mixed cooktops, unless the hob manual specifies a larger distance.

USER MANUAL E26 P 90 N EICO

Isometric line drawing of a rectangular box mounted on a base plate (no text or symbols)

GB

INSTRUCTIONS ON MOUNTING AND USE

DK

MONTERINGS- OG BRUGSVEJLEDNING

NO

INSTALLASJONS INSTRUKSJONER OG BRUK

SV

MONTERINGS- OCH BRUKSANVISNINGAR

FIN

ASENNUS- JA KÄYTTÖOHJEET

OPTIONAL

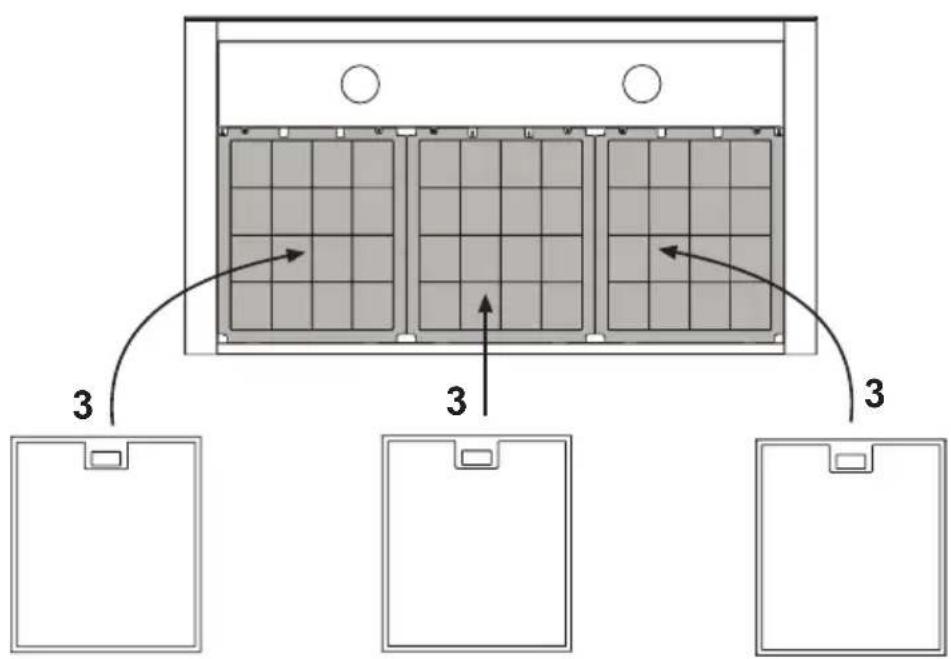

Three identical 3D grid panels arranged horizontally, no text or symbols visible

Simple line drawing of a vertical structure with a horizontal base, no text or symbols present

OPTIONAL

Simple geometric shape: a gray rectangle with a small notch on the right side, no text or symbols present.

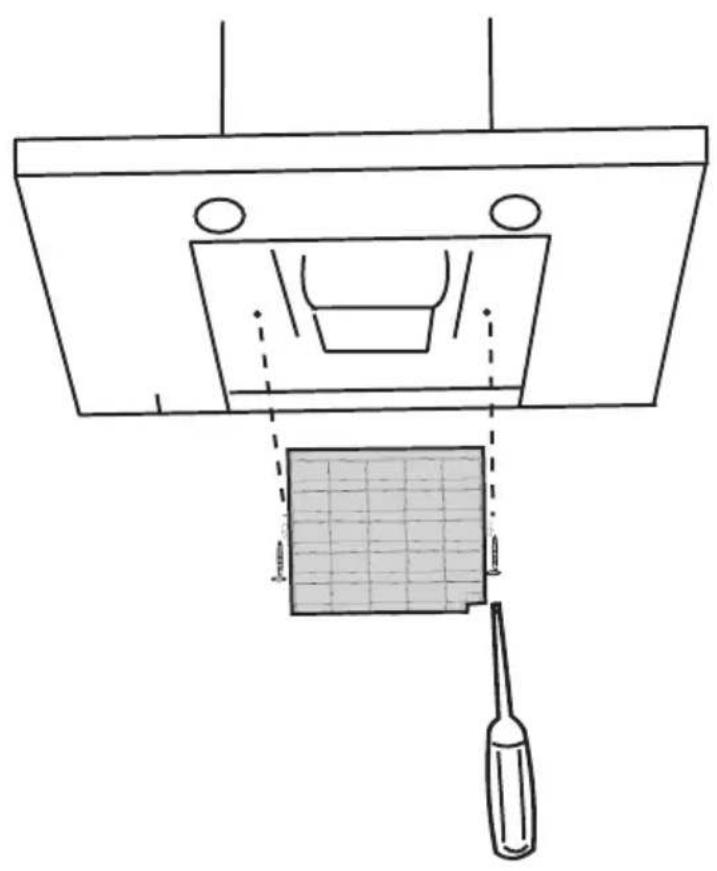

Technical line drawing of a mechanical assembly with a grid-patterned component and tool (no text or symbols)

T6bl3Warnings

The appliance should not be used by children under 8 years of age and by persons with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they are supervised or have received instructions regarding the safe use of the appliance and are aware of the possible risks. Children must not play with the appliance. Any intended cleaning and maintenance by the user should not be carried out by children unless supervised. The hood should never be used without without the grid properly fitted! Never use the hood without the grill properly fitted!

The accessible components can overheat when the cooktop is in use.

The hood must not be connected to the flues of other appliances that run on gas or other fuels. When the hood is used at the same time as other appliances that run on gas or other fuels, provision must be made for an adequate supply of air. No food must be cooked flambé underneath the hood. The use of an unprotected flame could cause damage to the filters and could cause fires, so should be avoided. When frying food, never leave the pan unattended because the cooking oil could flare up. Please comply with the technical and safety provisions set forth by your local competent authorities regarding the ventilation of hoods.

This appliance conforms to European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). Please dispose of this product correctly in the interest of health and the environment.

The symbol 📁 on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. If the power cable is damaged you should, in the interest of safety, contact the manufacturer or the manufacturer's technical assistance service to request a replacement, or ask someone who is similarly qualified.

Check also the drawings on the initial pages with the alphabetical and numerical references in the explanatory text. Closely follow the instructions in this manual. We cannot accept liability for any faults, detriment or fire damage to the appliance due to non-compliance with the manual's instructions.

You should affix the hood to a wall of sufficient weight-bearing capacity, so not to one made of plasterboard.

The cooker hood must be placed at a minimum distance of 65 cm from the cooking plane for electric cookers and 65 cm for gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.

The cooker hood is provided with an upper air exit B for discharging fumes externally for models including chimney flue C (Suction Version A- exhaust pipe not supplied). If cooking fumes and vapours cannot be externally discharged, the cooker hood can be used in the recirculating version F: the installation of 1 active charcoal filter F allows the recirculation of fumes and vapours through the upper grid G.

Make sure that there is a power socket near the hood and that the system has a 30 mA differential. The mains voltage must be the same as that on the label inside the hood. The hood has a 1250 mm power cable with or without plug: if it does have a plug, connect the hood to an accessible approved socket; or if it does not (connection direct to the mains), fit an approved bipolar switch with a minimum contact opening of no less than 3 mm (accessible). This installation and electrical connection must be executed by a qualified technician.

If the cooking top is in use, the cooker hood must always operate.

Product performance test carried out in accordance with standard (EU) No 65/2014-Ref: IEC 61591

Maximum performance is achieved by placing the mobile panels, if any, in the open position.

T6b13

☀	|	()	|	1	|	2	|	3	|	L
A		B		1			23i

General notes: Any function can be activated by pressing softly the button under the symbol.

A. ON/OFF light button: By essing this button the hood's lights switch on.

B. ON/OFF motor button: By pressing this button the extracting motor can be activated/stopped.

1.2.3.i. Speed regulator button: By progressing this button the hood activates the selected extracting speed.

Funzione Timer: By pressing once again the Selectedspeed button, the timer will last for 5 minutes. This function can be applied to all 4 available speeds.

Grease filter saturation: After every 40 hours of use of the hood, the button B or 3+i indicator shows byflashing slowly that the grease filters need to be washed.

Charcoal filter saturation: After every 120 hours of use of the hood, the button B or 3+i indicator by flashing fast shows that the charcoal filters need to be replaced.

Note: By pressing for at least 5 minutes the button 3+i will reset the filters saturation indicator.

Attention! This function should only be used after performing the maintenance of the filters.

Automatic functioning through the heath sensor:

By pressing the button 1 2 at the same time, the hood starts the automatic functioning. The indicators of the 4 speeds will flash in sequence . After more or less 30 seconds the temperature sensor will start the motor choosing the right extracting speed.The speed will change according to the heath coming from the hob.

By pressing B the manual functioning can be restored.

Always clean the glass of the control for a correct functioning.

All hoods with capacities exceeding 650 m3/h have the last timed speed; It lasts for 7 minutes, after which it automatically returns to the last non-timed speed.

Maintenance

Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet.

Cleaning

The hood must be cleaned frequently both inside (apart from the area behind the grease filter) and outside. Use a cloth moistened with denatured alcohol or neutral liquid detergents. Never use products containing abrasives.

Warning

Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions.

Anti-grease Filter

must be cleaned once a month, with non abrasive detergents, by hand or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Charcoal Filter - (only for filter version)

The active charcoal filters F are not washable nor regenerative. It should be changed every 6 months in normal use. The active charcoal filters capture unpleasant cooking odours.

Replacing lightbulbs

Warning! Prior to touching the light bulbs ensure they are cooled down.

Led Light

If the lighting group LED does not work, please contact the technical service center in order to replace the whole group.

Reducing environmental impact:

To reduce energy consumption, we recommend you always use the lowest suction speed among those suitable for the cooking mode currently active, avoid leaving the appliance running for more than 15 minutes after burner shutdown and switch off the lights if you leave the cooking area.
