E26 P 60 N - Range hood EICO - Free user manual and instructions

Brand	Eico
Model	E26 P 60 N
Product Type	Built-in Range Hood
Width	60 cm
Height	14 cm
Depth	50 cm
Weight	10 kg
Power Supply	220-240 V ~ 50 Hz
Motor Power	200 W
Lighting Power	2 x 1.5 W LED
Maximum Airflow	600 m³/h
Noise Level (Max)	55 dB(A)
Extraction Mode	Ducted (external) or recirculation
Number of Speeds	3 + intensive
Controls	Electronic push buttons
Filter Type	Aluminium grease filter
Charcoal Filter	Optional, for recirculation mode
Filter Saturation Indicator	Yes
Energy Class	B
Annual Energy Consumption	45 kWh
Grease Filter Cleaning	Dishwasher safe or hand wash
Charcoal Filter Replacement	Every 3-6 months
Warranty	2 years

Frequently Asked Questions - E26 P 60 N EICO

What is the recommended installation height for the Eico E26 P 60 N range hood?

For optimal performance, the hood should be installed at a height of 65-75 cm above the cooking surface. Ensure that the bottom of the hood is at least 65 cm from the hob for gas cooktops and 50 cm for electric or induction cooktops.

Can the range hood be used in recirculation mode?

Yes, the E26 P 60 N can be used in recirculation mode by adding an optional charcoal filter. The kit is available separately. In recirculation mode, the air is filtered and returned into the kitchen.

How do I clean the grease filters?

The aluminium grease filters can be cleaned in a dishwasher at a low temperature (max 50°C) or by hand using mild detergent. Ensure they are completely dry before reinserting. Clean filters every 2-3 months or as indicated by the filter saturation alert.

How often should the charcoal filter be replaced?

If using the hood in recirculation mode, replace the charcoal filter every 3-6 months depending on usage. The filter saturation indicator will also notify you when it's time to replace.

What does the filter saturation indicator mean?

The indicator light flashes after about 40 hours of motor operation to remind you to clean the grease filters. After cleaning, press and hold the speed button for 3 seconds to reset the indicator. For charcoal filters, the indicator flashes differently after 120 hours.

Why is the hood noisy?

Check if the filters are clean and properly installed. Ensure the ductwork is not blocked or too long. If the noise persists, the motor might be unbalanced or damaged. Contact customer service for assistance.

Can I use the hood without ducting?

Yes, but you must install a charcoal filter for recirculation mode. The hood comes with a non-return flap; ensure it is removed when connecting to a duct. For recirculation, the flap must be kept in place.

How do I reset the filter alarm?

After cleaning or replacing filters, turn on the hood. Press and hold the speed button that corresponds to the filter indicator (usually the first speed button) for about 3 seconds until the indicator stops flashing.

What is the duct diameter required?

The required duct diameter is 150 mm (6 inches). Use rigid or flexible ducting of the same diameter for efficient airflow. Keep the duct length as short as possible with minimal bends.

Does the hood come with a warranty?

Yes, the Eico E26 P 60 N range hood comes with a 2-year manufacturer's warranty covering defects in materials and workmanship. Proof of purchase is required. Consult the manual for warranty conditions.

USER MANUAL E26 P 60 N EICO

Isometric line drawing of a rectangular box placed on a base with a separate flat plate (no text or symbols)

GB

INSTRUCTIONS ON MOUNTING AND USE

DK

MONTERINGS- OG BRUGSVEJLEDNING

NO

INSTALLASJONS INSTRUKSJONER OG BRUK

SV

MONTERINGS- OCH BRUKSANVISNINGAR

FIN

ASENNUS- JA KÄYTTÖOHJEET

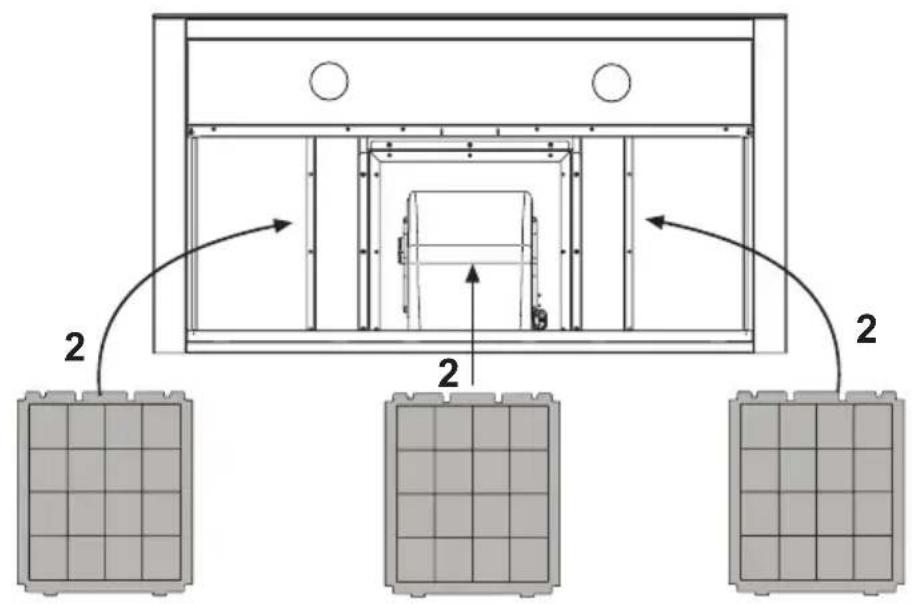

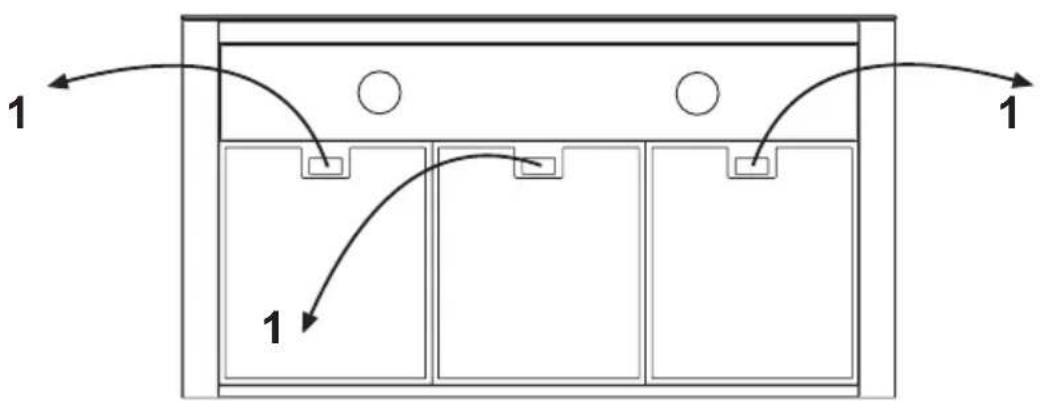

OPTIONAL

Three identical 3D grid panels arranged horizontally, no text or symbols visible

Simple line drawing of a vertical structure with a horizontal base, no text or symbols present


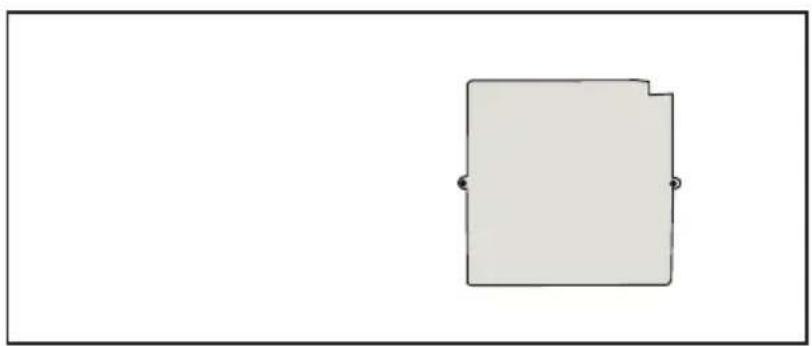

OPTIONAL

Simple geometric shape: a gray rectangle with a small notch on the right side, no text or symbols present.

Line drawing of a mechanical device with a grid-patterned component and a screwdriver inserted (no text or symbols)

T6bl3Warnings

The appliance should not be used by children under 8 years of age and by persons with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they are supervised or have received instructions regarding the safe use of the appliance and are aware of the possible risks. Children must not play with the appliance. Any intended cleaning and maintenance by the user should not be carried out by children unless supervised. The hood should never be used without without the grid properly fitted! Never use the hood without the grill properly fitted!

The accessible components can overheat when the cooktop is in use.

The hood must not be connected to the flues of other appliances that run on gas or other fuels. When the hood is used at the same time as other appliances that run on gas or other fuels, provision must be made for an adequate supply of air. No food must be cooked flambé underneath the hood. The use of an unprotected flame could cause damage to the filters and could cause fires, so should be avoided. When frying food, never leave the pan unattended because the cooking oil could flare up. Please comply with the technical and safety provisions set forth by your local competent authorities regarding the ventilation of hoods.

This appliance conforms to European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). Please dispose of this product correctly in the interest of health and the environment.

The symbol 📁 on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. If the power cable is damaged you should, in the interest of safety, contact the manufacturer or the manufacturer's technical assistance service to request a replacement, or ask someone who is similarly qualified.

Check also the drawings on the initial pages with the alphabetical and numerical references in the explanatory text. Closely follow the instructions in this manual. We cannot accept liability for any faults, detriment or fire damage to the appliance due to non-compliance with the manual's instructions.

You should affix the hood to a wall of sufficient weight-bearing capacity, so not to one made of plasterboard.

The cooker hood must be placed at a minimum distance of 65 cm from the cooking plane for electric cookers and 65 cm for gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.

The cooker hood is provided with an upper air exit B for discharging fumes externally for models including chimney flue C (Suction Version A- exhaust pipe not supplied). If cooking fumes and vapours cannot be externally discharged, the cooker hood can be used in the recirculating version F: the installation of 1 active charcoal filter F allows the recirculation of fumes and vapours through the upper grid G.

Make sure that there is a power socket near the hood and that the system has a 30 mA differential. The mains voltage must be the same as that on the label inside the hood. The hood has a 1250 mm power cable with or without plug: if it does have a plug, connect the hood to an accessible approved socket; or if it does not (connection direct to the mains), fit an approved bipolar switch with a minimum contact opening of no less than 3 mm (accessible). This installation and electrical connection must be executed by a qualified technician.

If the cooking top is in use, the cooker hood must always operate.

Product performance test carried out in accordance with standard (EU) No 65/2014-Ref: IEC 61591

Maximum performance is achieved by placing the mobile panels, if any, in the open position.

T6b13

☀	|	()	|	1	|	2	|	3	|	L
A		B		1			23i

General notes: Any function can be activated by pressing softly the button under the symbol.

A. ON/OFF light button: By essing this button the hood's lights switch on.

B. ON/OFF motor button: By pressing this button the extracting motor can be activated/stopped.

1.2.3.i. Speed regulator button: By progressing this button the hood activates the selected extracting speed.

Funzione Timer: By pressing once again the Selectedspeed button, the timer will last for 5 minutes. This function can be applied to all 4 available speeds.

Grease filter saturation: After every 40 hours of use of the hood, the button B or 3+i indicator shows byflashing slowly that the grease filters need to be washed.

Charcoal filter saturation: After every 120 hours of use of the hood, the button B or 3+i indicator by flashing fast shows that the charcoal filters need to be replaced.

Note: By pressing for at least 5 minutes the button 3+i will reset the filters saturation indicator.

Attention! This function should only be used after performing the maintenance of the filters.

Automatic functioning through the heath sensor:

By pressing the button 1 2 at the same time, the hood starts the automatic functioning. The indicators of the 4 speeds will flash in sequence . After more or less 30 seconds the temperature sensor will start the motor choosing the right extracting speed.The speed will change according to the heath coming from the hob.

By pressing B the manual functioning can be restored.

Always clean the glass of the control for a correct functioning.

All hoods with capacities exceeding 650 m3/h have the last timed speed; It lasts for 7 minutes, after which it automatically returns to the last non-timed speed.

Maintenance

Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet.

Cleaning

The hood must be cleaned frequently both inside (apart from the area behind the grease filter) and outside. Use a cloth moistened with denatured alcohol or neutral liquid detergents. Never use products containing abrasives.

Warning

Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions.

Anti-grease Filter

must be cleaned once a month, with non abrasive detergents, by hand or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Charcoal Filter - (only for filter version)

The active charcoal filters F are not washable nor regenerative. It should be changed every 6 months in normal use. The active charcoal filters capture unpleasant cooking odours.

Replacing lightbulbs

Warning! Prior to touching the light bulbs ensure they are cooled down.

Led Light

If the lighting group LED does not work, please contact the technical service center in order to replace the whole group.

Reducing environmental impact:

To reduce energy consumption, we recommend you always use the lowest suction speed among those suitable for the cooking mode currently active, avoid leaving the appliance running for more than 15 minutes after burner shutdown and switch off the lights if you leave the cooking area.
