Q-BIC P 90 N - Link - Range hood EICO - Free user manual and instructions

Product Type	Range hood
Brand	EICO
Model	Q-BIC P 90 N - Link
Width	90 cm
Installation Type	Wall-mounted / under-cabinet
Maximum Extraction Rate	700 m³/h
Number of Speeds	3 + intensive
Noise Level (max)	65 dB(A)
Lighting	LED (2 x 3 W)
Grease Filter Type	Aluminum, washable
Charcoal Filter	Optional, included
Control Type	Electronic touch + remote
Connectivity	Wi-Fi via EICO Link app
Duct Diameter	150 mm
Energy Efficiency Class	A
Power Consumption	150 W
Voltage	220-240 V ~ 50/60 Hz
Weight	15 kg
Dimensions (W x D x H)	900 x 500 x 600 mm
Includes	Remote control, mounting kit, user manual
Maintenance	Wash grease filters monthly; replace charcoal filter every 6 months
Safety Features	Automatic shut-off, overheat protection
Spare Parts	Grease filters (ref. EGF90), charcoal filter (ref. ECF90), remote (ref. ERM01)

Frequently Asked Questions - Q-BIC P 90 N - Link EICO

How do I install the range hood?

Ensure the hood is mounted at a height of 65-75 cm above electric hobs or 75-85 cm above gas hobs. Use the provided mounting template. Connect the duct to an external vent or install a charcoal filter for recirculation mode. Secure the hood to the wall with appropriate anchors.

How often should I clean the grease filters?

Clean the aluminum grease filters every month or more frequently if cooking heavily. They are dishwasher-safe. Place them in the dishwasher at 65°C or soak in warm soapy water.

How do I replace the charcoal filter?

If using recirculation mode, replace the charcoal filter every 6 months. Open the filter panel, slide out the old filter, insert the new one (model ECF90), and close the panel.

How do I connect the hood to Wi-Fi?

Download the EICO Link app. Power on the hood. In the app, add a new device and follow the pairing instructions. Ensure your smartphone is connected to a 2.4 GHz network.

Why is my hood not turning on?

Check the power plug and circuit breaker. Ensure the remote control has fresh batteries. If the hood has a child lock, deactivate it. If still not working, contact EICO support.

What is the noise level of this hood?

The noise level ranges from 45 dB(A) at low speed to 65 dB(A) at maximum speed. Intensive mode may be slightly louder.

Can I use the hood without ducting?

Yes, you can use it in recirculation mode. Install the included charcoal filter to remove odors. The air is cleaned and returned to the kitchen.

How do I change the LED bulb?

The LED lighting is integrated and not user-replaceable. If the LEDs fail, contact EICO service for replacement.

What is the warranty period?

EICO offers a 2-year warranty on parts and labor from the date of purchase. Register your product on the EICO website for extended warranty coverage.

How do I pair the remote control?

Press and hold the pairing button on the hood (usually under the control panel) for 3 seconds until the LED flashes. Then press any button on the remote. The hood will beep to confirm pairing.

USER MANUAL Q-BIC P 90 N - Link EICO

GB	INSTRUCTIONS ON MOUNTING AND USE
DK	MONTERINGS- OG BRUGSVEJLEDNING
NO	INSTALLASJONS INSTRUKSJONER OG BRUK
SV	MONTERINGS- OCH BRUKSANVISNINGAR
FIN	ASENNUS- JA KÄYTTÖOHJEET

The remote control must be encoded to the hood Husk at fjernbetjeningenen skal kodes til emhætten Husk at fjernkontrollen må være kodet til hetten Kom ihåg att aktivera fjärrkontrollen till fläkten

EN Always wear work gloves for all installation and maintenance operations

Warnings

The appliance should not be used by children under 8 years of age and by persons with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they are supervised or have received instructions regarding the safe use of the appliance and are aware of the possible risks. Children must not play with the appliance. Any intended cleaning and maintenance by the user should not be carried out by children unless supervised. The hood should never be used without without the grid properly fitted! Never use the hood without the grill properly fitted!

The accessible components can overheat when the cooktop is in use.

The hood must not be connected to the flues of other appliances that run on gas or other fuels. When the hood is used at the same time as other appliances that run on gas or other fuels, provision must be made for an adequate supply of air. No food must be cooked flambé underneath the hood. The use of an unprotected flame could cause damage to the filters and could cause fires, so should be avoided. When frying food, never leave the pan unattended because the cooking oil could flare up. Please comply with the technical and safety provisions set forth by your local competent authorities regarding the ventilation of hoods.

This appliance conforms to European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). Please dispose of this product correctly in the interest of health and the environment.

The symbol 📄 on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. If the power cable is damaged you should, in the interest of safety, contact the manufacturer or the manufacturer's technical assistance service to request a replacement, or ask someone who is similarly qualified.

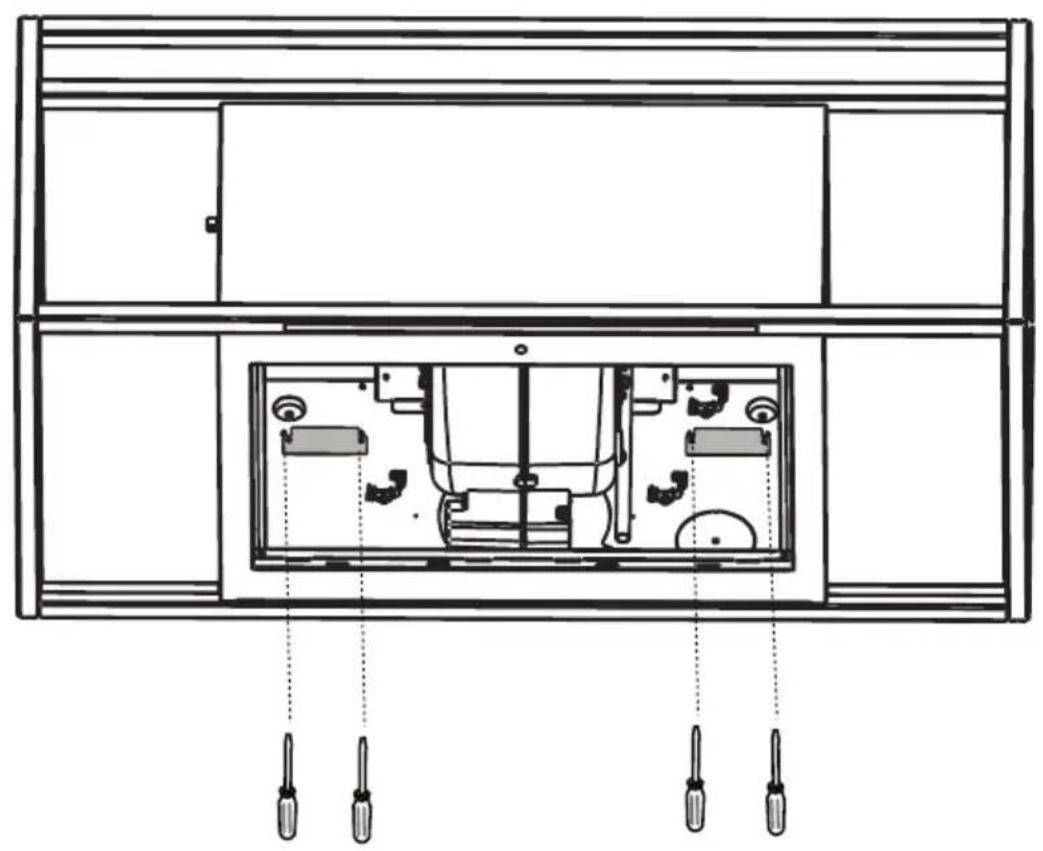

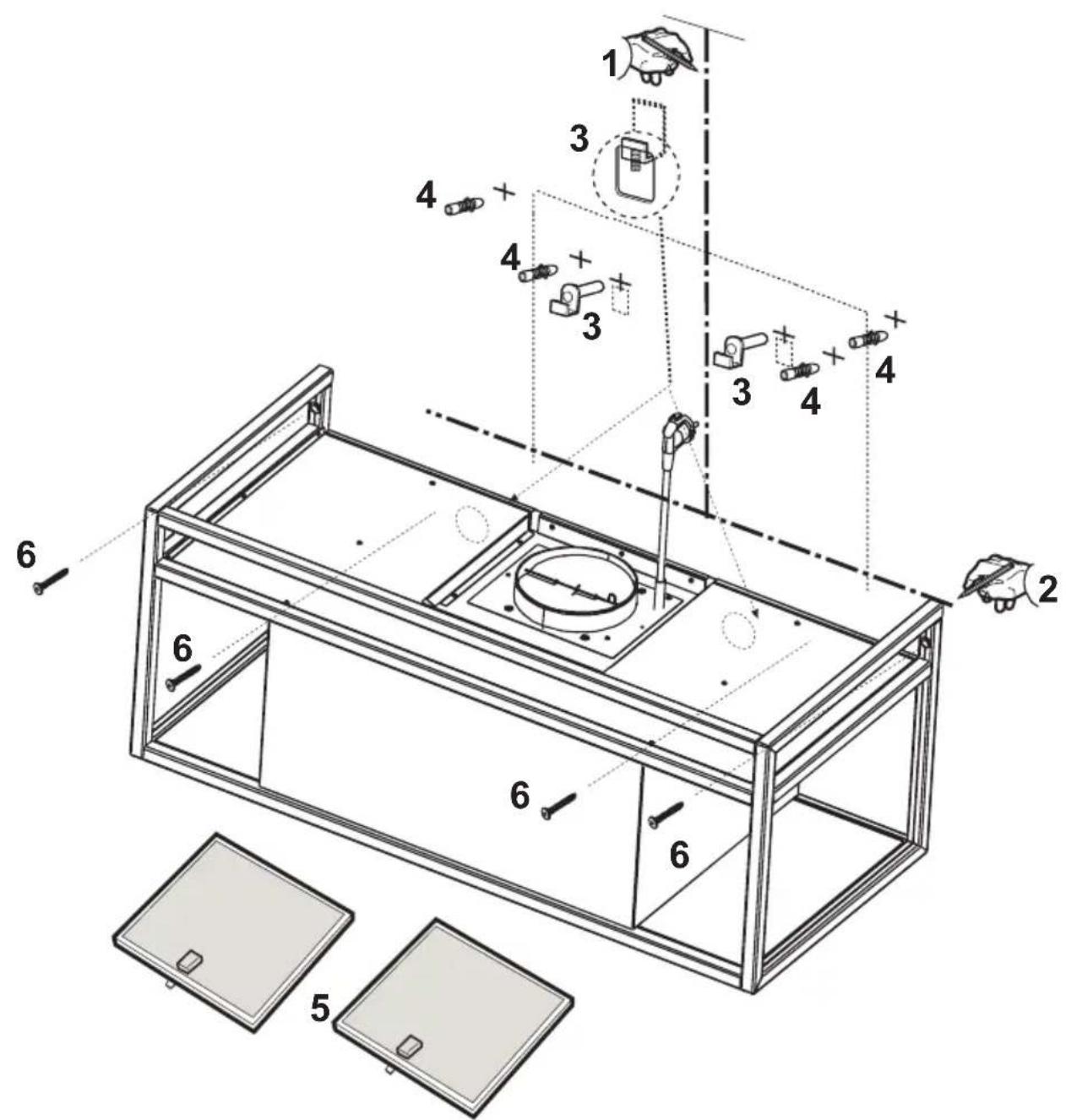

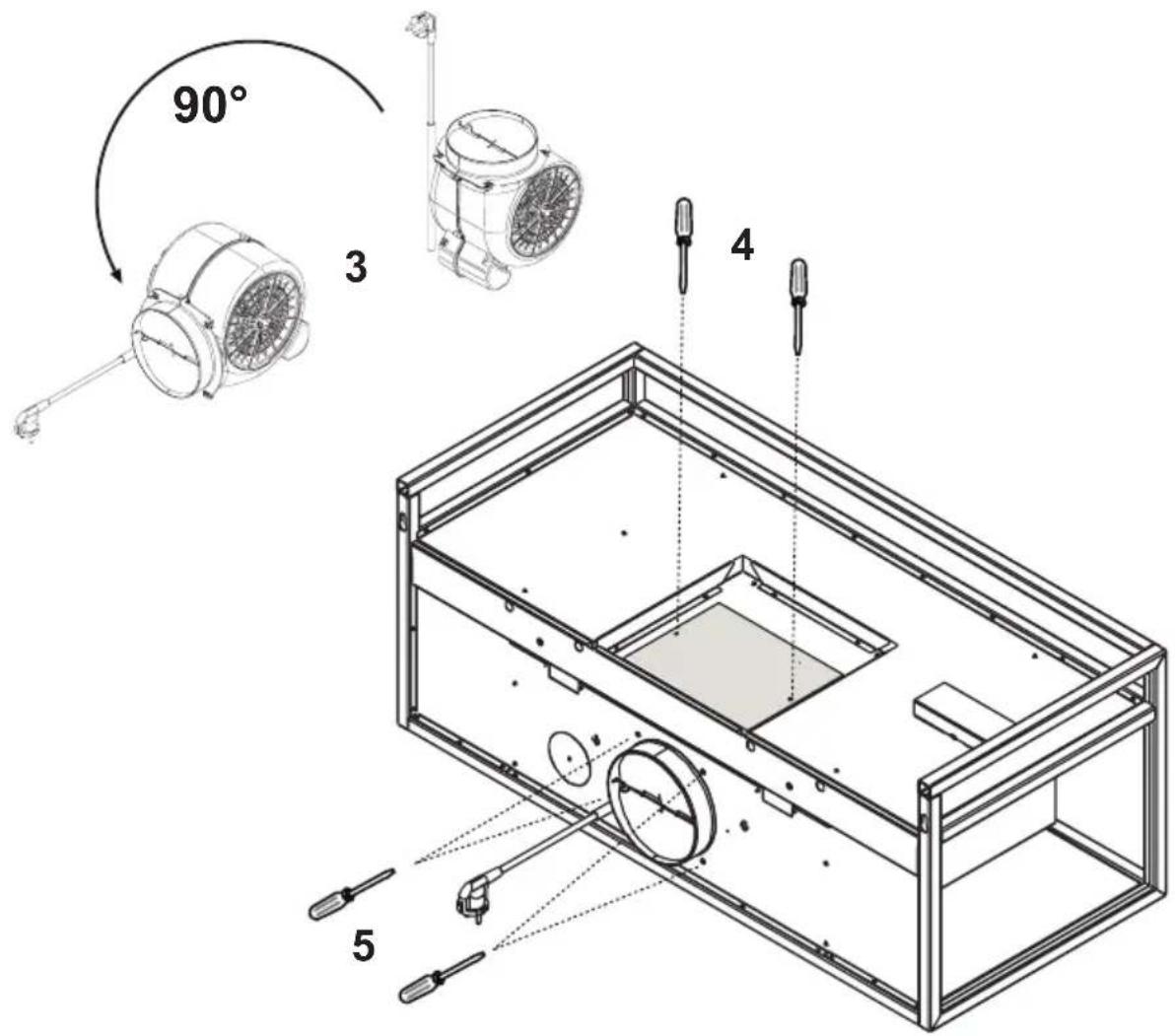

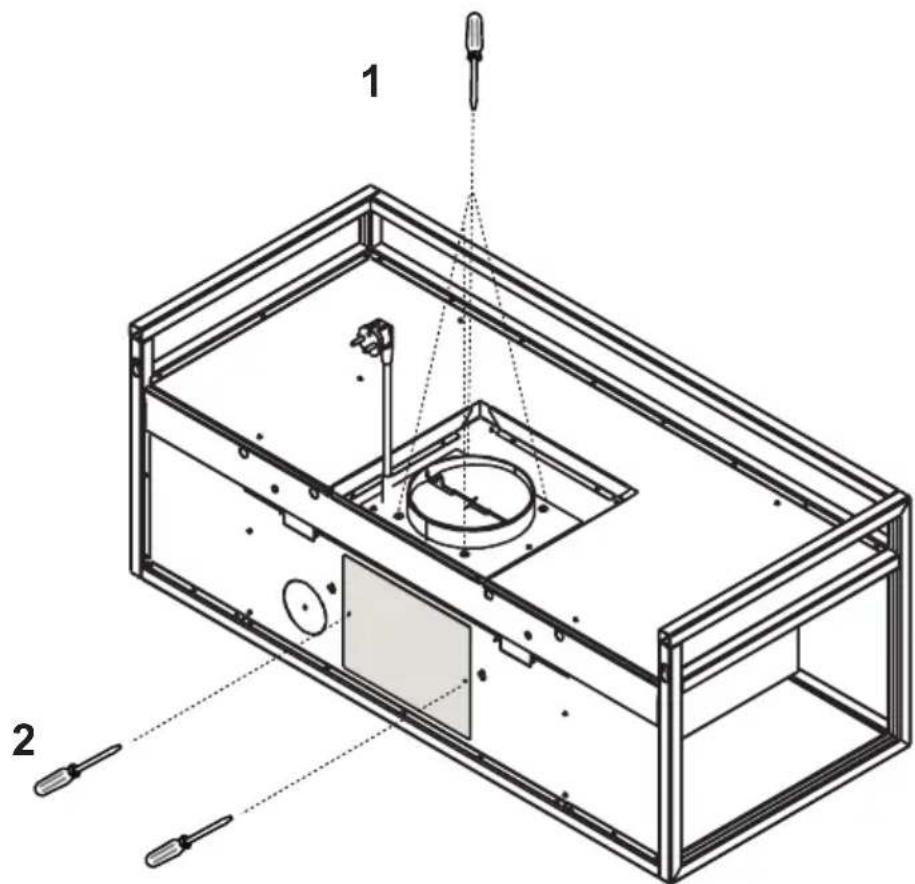

Check also the drawings on the initial pages with the alphabetical and numerical references in the explanatory text. Closely follow the instructions in this manual. We cannot accept liability for any faults, detriment or fire damage to the appliance due to non-compliance with the manual's instructions.

You should affix the hood to a wall of sufficient weight-bearing capacity, so not to one made of plasterboard.

The cooker hood must be placed at a minimum distance of 65 cm from the cooking plane for electric cookers and 65cm for gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.

The cooker hood is provided with an upper air exit B for discharging fumes externally for models including chimney flue C (Suction Version A- exhaust pipe not supplied). If cooking fumes and vapours cannot be externally discharged, the cooker hood can be used in the recirculating version F: the installation of 1 active charcoal filter F allows the recirculation of fumes and vapours through the upper grid G.

Make sure that there is a power socket near the hood and that the system has a 30 mA differential. The mains voltage must be the same as that on the label inside the hood. The hood has a 1250 mm power cable with or without plug: if it does have a plug, connect the hood to an accessible approved socket; or if it does not (connection direct to the mains), fit an approved bipolar switch with a minimum contact opening of no less than 3 mm (accessible). This installation and electrical connection must be executed by a qualified technician.

Product performance test carried out in accordance with standard (EU) No 65/2014-Ref: IEC 61591

Maximum performance is achieved by placing the mobile panels, if any, in the open position.

TLC

1: + motor

2: On/Off motor

3: - motor

4: On/Off light

5: Led

Note: the LED on the hood indicates the various speeds: green 1st speed, orange 2nd speed, red 3rd speed and flashing red 4th speed. All hoods with capacities exceeding 650 m3/h have the last timed speed; It lasts for 7 minutes, after which it automatically returns to the last non-timed speed.

Initialization procedure:

1. Cut off power to the hood
2. Power the hood again
3. Within the first 5 sec, press the light button and release it after the lights turn on (the control must be turned on via key 3)
4. Within 5 sec, press the motor key and release it

Now you have to wait for about 10 seconds – then you can use the hood normally.

Notes: after 4 hours from the last use of a key, the hood turns off automatically.

Should there be interferences with other nearby remote controls, carry out the code change procedure.

Should it be required to replace the radio control, the frequency of the electronic system of the new radio control must be calibrated again via the initialization procedure.

Procedure for generating a new code for the radio control.

The radio control is supplied with default codes. If you want to generate new random codes you need to follow the procedure below: simultaneously press the plus and minus keys for at least 10 seconds; the LED will turn on, then press the two buttons again (within 3 seconds). The LED flashes three times to indicate that the operation has been completed. Once you changed the radio control you must run again the initialization procedure.

Maintenance

Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet.

Cleaning

The hood must be cleaned frequently both inside (apart from the area behind the grease filter) and outside. Use a cloth moistened with denatured alcohol or neutral liquid detergents. Never use products containing abrasives.

Warning

Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions.

Anti-grease Filter

must be cleaned once a month, with non abrasive detergents, by hand or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Charcoal Filter - (only for filter version)

The active charcoal filters F are not washable nor regenerative. It should be changed every 6 months in normal use. The active charcoal filters capture unpleasant cooking odours.

Led Light

If the lighting group LED does not work, please contact the technical service center in order to replace the whole group.

Reducing environmental impact:

To reduce energy consumption, we recommend you always use the lowest suction speed among those suitable for the cooking mode currently active, avoid leaving the appliance running for more than 15 minutes after burner shutdown and switch off the lights if you leave the cooking area.
