Type	Built-in Microwave Oven
Brand	Wolkenstein
Model	WMW800-20GB EB
Volume	20 L
Max Microwave Power	800 W
Max Grill Power	1000 W
Power Levels (Microwave)	6 (P-100, P-80, P-60, P-40, P-20, P-00)
Power Levels (Grill)	1
Power Levels (Combi)	2 (Co-1, Co-2)
Auto Programmes	9
Clock Display	Yes (12/24 h)
Timer	Digital, max 95 min
Child Lock	Yes
Defrost Function	Yes (weight-based)
Quick Start	Yes (1 min steps, up to 10 min)
Multi-step Cooking	Up to 3 steps
Turntable	Yes
Grill Rack	Yes
Power Cord Length	120 cm
Dimensions (H x W x D)	34.2 x 59.5 x 32.8 cm
Net Weight	13.5 kg
Gross Weight	16.0 kg
Voltage / Frequency	230 V AC / 50 Hz
Safety Features	Safety interlock, child lock, automatic shut-off
Warranty	24 months (conditions apply)

Frequently Asked Questions - WMW800-20GB EB Wolkenstein

How do I set the clock on my WMW800-20GB EB?

Press the CLOCK/PRESET button for 3 seconds. The display shows 'Hr 12'. Press again to switch to 24-hour mode. Turn the rotary knob to set the hour, then press CLOCK/PRESET. Turn the knob to set the minutes and press CLOCK/PRESET to confirm.

What power levels are available for microwave cooking?

You can select from 6 microwave power levels: 100% (P-100), 80% (P-80), 60% (P-60), 40% (P-40), 20% (P-20), and 0% (P-00). Press the POWER button repeatedly to cycle through.

How do I use the grill function?

Place food on the grill rack. Press the GRILL button once. Turn the rotary knob to set grilling time (up to 95 minutes). Press START/QUICK START to begin.

Can I use metal containers in the microwave?

No, metal containers or utensils with metal parts can cause sparks and fire. Only use microwave-safe containers made of heat-resistant ceramic, glass, or plastic. Aluminium foil is allowed only in small pieces, at least 2.5 cm away from the oven walls.

How do I activate the child lock?

When the oven is in waiting mode, press and hold STOP/CANCEL for 3 seconds. An acoustic signal confirms activation. To unlock, press and hold the same button for 3 seconds again.

What is the maximum cooking time?

The maximum cooking time for microwave, grill, and timer functions is 95 minutes. For Quick Start, the maximum is 10 minutes (press repeatedly to add 1 minute each time).

How do I defrost food using the oven?

Place the frozen food inside. Turn the TIME/WEIGHT knob anticlockwise to select the weight (e.g., 600 g). Press START/QUICK START. The oven automatically sets time and power. Halfway through, an acoustic signal reminds you to turn the food.

Why does the oven light become dim during operation?

Dimming of the oven light is normal, especially at lower power settings. It does not indicate a malfunction.

What should I do if the oven does not start?

Check if the power cord is properly plugged in. If the fuse in your household box has blown, replace it. Also, test the socket with another appliance. If the door is not closed properly, close it firmly.

How do I clean the turntable and rotating ring?

Remove the turntable and rotating ring. Wash them in warm soapy water, rinse, and dry thoroughly. Reinstall the rotating ring correctly before use. The oven interior can be wiped with a damp cloth and mild detergent if needed.

USER MANUAL WMW800-20GB EB Wolkenstein

Built-in Microwave Oven

WMW800-20GB EB

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety instructions....25

1.1 Signal words....27
1.2 Safety instructions....27

1. Installation....30

2.1 Installation dimensions....30
2.2 Appliance / accessories....31

1. Operation.... 32

3.1 Setting of the clock.... 33
3.2 How to cook food.... 33
3.3 Grill 34
3.4 Combination Microwave-Grill 34
3.5 Timer 35
3.6 Start / Quick Start.... 35
3.7 Defrost 35
3.8 Multi-step operation 36
3.9 Child lock 36
3.10 Stop during operation.... 36

1. Microwave cooking....37

4.1 Basics of microwave cooking .... 37
4.2 Suitable materials for microwave cooking.... 37
4.3 Unsuitable materials for microwave cooking.... 39

1. Cleaning and maintenance .... 39
2. Trouble shooting....40
3. Technical data....41
4. Waste management....42
5. Guarantee conditions....43

Do not dispose of this appliance together with your domestic waste. The appliance must be disposed of at a collecting centre for recyclable electric and electronic appliances. Do not remove the symbol from the appliance.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless, follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

EU - DECLARATION OF CONFORMITY

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

MAKE SURE THAT THIS MANUAL IS AVAILABLE TO ANYONE USING THE APPLIANCE AND MAKE SURE THAT IT HAS BEEN READ AND UNDERSTOOD PRIOR TO USING THE DEVICE.

1. Safety instructions

READ THE SAFETY INFORMATION AND THE SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME.

All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the

technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorised professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.

The appliance is intended for private use only as well as to be used (1) in staff kitchen areas of shops, offices and other working environments; (2) by clients in hotels, motels, B&B and other residential type environments.
i The appliance is intended for cooking only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazard involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY:

1	Do not attempt to operate this appliance with the door open as open-door operating can result in harmful exposure to microwave energy. Do no break or tamper with the safety interlocks.
2	Do not place any object between the front of the appliance and the door or allow soil or cleaner residuals to accumulate on the sealing surfaces.
3	Do not operate the appliance if it is damaged. It is particularly important that the door closes properly and that there is not any damage on the:a door (bent ).b hinges and latches (must not be broken or loosened ).c door seals and sealing surfaces.
4	The appliance should not be adjusted or repaired by anyone except properly qualified service personal.

1.1 Signal words

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

⚠️ CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE! indicates possible damage to the appliance.

1.2 Safety instructions

DANGER!

To reduce the risk of electrocution.

1. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
2. Always check that the power cord is not placed under the appliance or damaged by moving the appliance.
3. Never try to repair the appliance yourself. If the appliance does not operate properly, disconnect it from the mains and contact the shop you purchased the appliance at. Original spare parts should be used only.
4. When the power cord is damaged, it must be replaced by the manufacturer or an authorised aftersales service or a qualified professional only.
5. Never remove the mica-plate which covers the wave guide inside the oven.
6. Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

WARNING!

To reduce the risk of burns, electrocution, fire or injury to persons.

1. Operate the appliance with 220\~240 V AC / 50 Hz only.
2. Connect the appliance to a properly grounded socket only. Use a safety socket to minimize any risk of electric shock.
3. Always check that the power cord is not placed under the appliance or damaged by moving the appliance.

4. Do not use an extension cord or a multiple socket.

5. The technical data of your energy supply must meet the data on the rating label. The main current circuit must be equipped with a safety shut-down device.

6. Any repair or service work including the removal of any cover, which protects from exposure to microwave energy, must be performed by a qualified professional only.

7. Only operate the appliance when the door is closed.

8. Accessible parts may become hot during use. Young children should be kept away. Do not touch the hot parts of the appliance. RISK OF BURNS!

9. Do not use the appliance to dry clothes or wet newspapers etc.

10. Do not use the appliance when it is empty.

11. Unattended cooking with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

12. In order to reduce any risk of fire in the appliance:

a. Check the appliance frequently when you use plastic or paper containers.

b. Remove wire twist-ties from paper or plastic bags before you place such a bag in the appliance.

c. Switch off or unplug the appliance if you notice any smoke. Keep the door closed to stifle any flames.

d. Do not use the appliance to store anything inside.

e. Do not leave any items, e.g. paper, cooking utensils or food, inside the appliance even when it is not running.

1. Do not fry in the appliance. Hot oil can damage parts of the appliance and result in skin-burns.

2. Never heat any food or liquids in sealed containers, because they can explode.

3. The contents of feeding bottles and baby food should be stirred or shaken and their temperature should be checked before serving to avoid burns.

4. Do not use a steam cleaner to clean the appliance. RISK OF ELECTRIC SHOCK!

5. Disconnect the appliance from the mains before cleaning or maintenance.

6. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD!

7. Children must never play with the appliance. Touching the appliance during operation can cause serious burns.

8. Only allow children to use the appliance without supervision, when adequate instructions have been given before so that the child is able to use the appliance in a safe way and understands the risks of improper use.

CAUTION!

1. This appliance complies with the current European safety legislation. We do wish to emphasize that this compliance does not negate the fact that the surfaces of the appliance will become hot while operating and will retain and emit heat even if it has stopped operating.
2. Lead the power cord in such a way that you will not trip on it.
3. Microwave heating of beverages can result in delayed eruptive boiling. Be extremely careful when handling the container.
4. Do not heat eggs in their shell or hard-boiled eggs as they may explode even after microwave heating has ended.
5. Cooking utensils may become hot because of the heat transferred by the heated food. Pot-holders may be needed to handle such utensils.

NOTICE

1. Do not use the door to transport the appliance as you will damage the hinges.
2. Do not connect your appliance to the mains unless all packaging and transit protectors have been removed. Do not use any aggressive detergents to remove the transit protectors.
3. Regularly cleaning and maintenance grants proper operation and optimal performance of your appliance.
4. Check your utensils if they are suitable for use in a microwave appliance.
5. The rating plate must not be removed or made illegible, otherwise all terms of the warranty become invalid!

SAVE THESE INSTRUCTIONS.

★ The manufacturer and distributor are not responsible for any damage or injury in the event of failure to comply with these instructions.

2. Installation

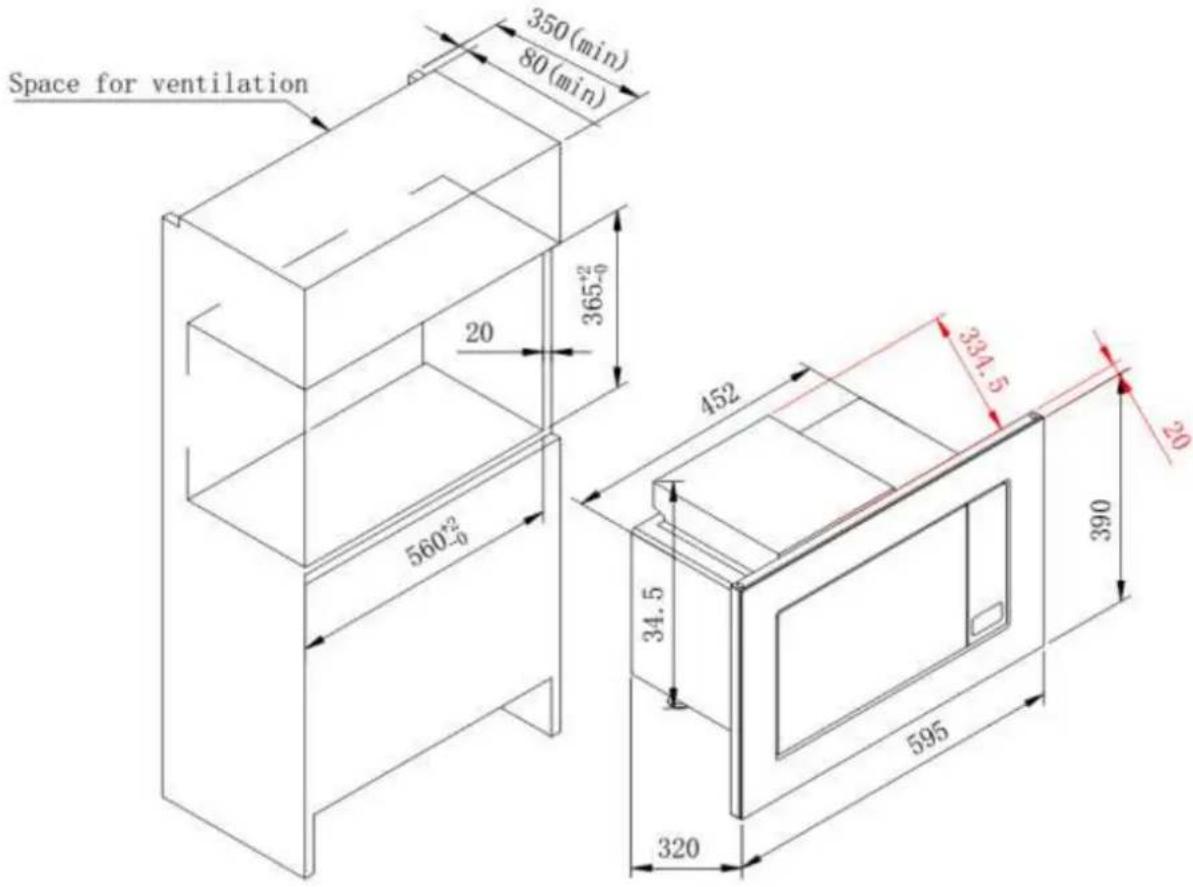

2.1 Installation dimensions

The appliance has to be ventilated properly. Strictly observe the following minimum distances:

▶ Above the appliance: 20 cm.
➢ At the back: 10 cm.
➢ At both sides: 5 cm.

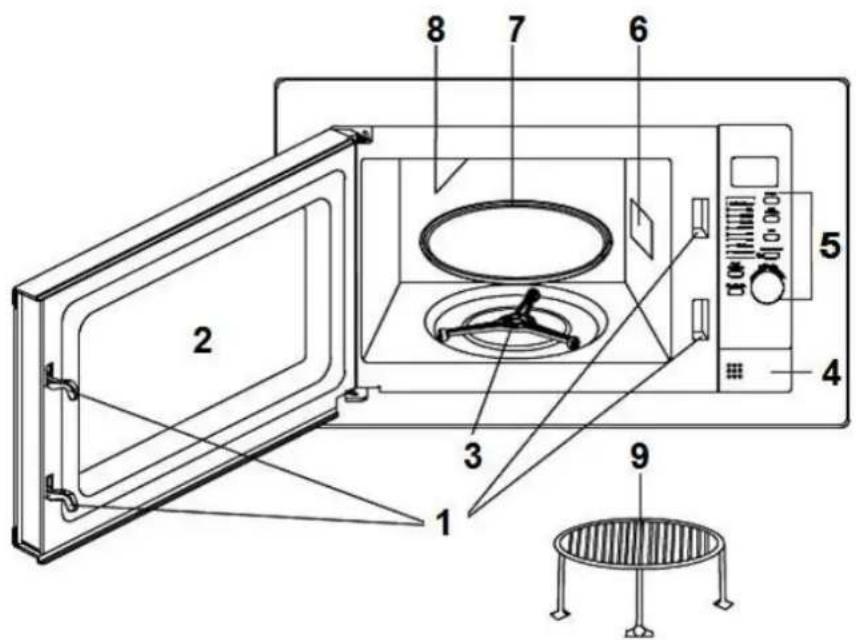

2.2 Appliance / accessories

Remove all packaging materials before installation.

1	Safety interlock	2	Window
3	Rotating ring	4	Door release button
5	Control panel	6	Wave Guide
7	Turntable	8	Heater (Grill)
9	Grill rack. Use for grilling only.

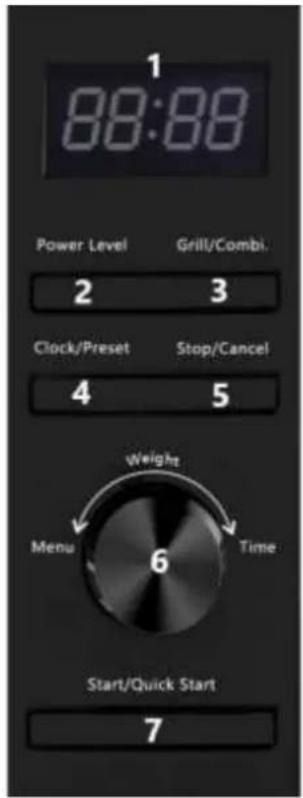

3. Operation

1	Display	Shows Cooking time, power, and clock time
2	Power Level	Press to select microwave energy.
3	Grill	Press to select the grill programme the two Combi-programmes.
4	Clock/Preset	Press to set the clock or the timer.
5	Stop/Cancel	Press to stop operation or to cancel all previous settings before operation.
6	Time/Mcnu	Use the rotary knob to set the cooking time or to select one of the auto-programmes.
7	Start/Quick Start	Press to start operation or to start the Quick Start programme.

3.1 Setting of the clock

The clock has a 12 and a 24 hours sequence. Please follow the information below:

1. Press CLOCK/PRESET (4) for 3 seconds; the display indicates Hr 12. Press again to select the 24 hours sequence.	CLOCK/PRESETHr 12
2. Set the hours using the rotary knob (6).	[5KWS]
3. Press CLOCK/PRESET (4).	CLOCK/PRESET
4. Set the minutes using the rotary knob (6).
5. Press CLOCK/PRESET (4) to confirm.	CLOCK/PRESET

3.2 How to cook food

➢ Press POWER (1) until you have set the desired power level (look also schedule below). The maximum cooking time is 95 minutes.

PRESS	MICROWAVE POWER
1	100 % (P-100)
2	80 % (P-80)
3	60 % (P-60)
4	40 % (P-40)
5	20 % (P-20)
6	0 % (P-00)

Example: Power = 60 %; cooking time = 5 minutes.

1. Open the door and put the food into the oven. Close the door.
2. Press POWER (2) until you have set the desired power level.	POWERP xx
3. Set the cooking time using the rotary knob (6).	5:00

1. Press START/QUICK START7(9) to start operation. Press STOP/CANCEL (5) to cancel all previous settings.

START/QUICK START or STOP/CANCEL

➢ Press POWER (2) to check the power level during operation. When the cooking time has elapsed, an acoustic signal sounds and End is displayed.
Before you start another cooking procedure: Open the door or press any key to restart the system.

3.3 Grill

The maximum grill duration is 95 minutes.

Example: Grill; 12 minutes.

1. Open the door and put the food into the oven. Close the door.
2. Press GRILL (3) once.	GRILL
3. Set the cooking time using the rotary knob (6).	12:00
4. Press START/QUICK START (7) to start operation. Press STOP/CANCEL (5) to cancel all previous settings.	START/QUICK START or STOP/CANCEL

3.4 Combination Microwave-Grill

The maximum cooking time is 95 minutes.

Example: Combi; 25 minutes.

1. Open the door and put the food into the oven. Close the door.
2. Press COMBI (3) once or twice.	COMBI
3. Set the cooking time using the rotary knob (6).	25:00
4. Press START/QUICK START (7) to start operation. Press STOP/CANCEL (5) to cancel all previous settings.	START/QUICK START or STOP/CANCEL

PRESS	COMBI-PROGRAMME	COOKING TIME		USE
		MICROWAVE	GRILL
Once	Co-1	30 %	70 %	Fish, Gratin
Twice	Co-2	55 %	45 %	Pudding, poultry, omelette, baked potato

3.5 Timer

The maximum cooking time is 95 minutes.

→ Example: Timer; 30 minutes.

1. Press CLOCK/PRESET (4) once.	CLOCK/PRESET
2. Set 30 minutes using the rotary knob (6).
3. Press START/QUICK START (7) to confirm.	START/QUICK START

3.6 Start / Quick Start

1. When the appliance is in waiting status, press QUICK START/START (7) to start operation at full microwave power for 1 minute.
2. Each pressing increases the cooking time by 1 minute.
3. The maximum cooking time is 10 minutes.

3.7 Defrost

Your appliance can defrost meat, poultry and seafood. The time and the defrosting power are adjusted automatically as soon as the weight is programmed.

Example: supposed that you want to defrost 600 g of shrimps.

1. Place the frozen shrimps into the appliance.

2. Rotate Time / Weight button anticlockwise to choose a weight of 600 g.

3. Press Start / Quick Start button.

You will hear an acoustic signal in the middle of the cooking time. Turn over your food then.

3.8 Multi-step operation

You can set max. 3 programme steps. The functions AUTO-MENU, DEFROST and QUICK START/START cannot be used.

Example: 1: Power = 100 %; 2: Power = 60 %.

1. Open the door and put the food into the oven. Close the door.
2. Press POWER (1) and set 100%.	POWERP-100
3. Set the cooking time using the rotary knob (7).
4. Press POWER (1) and set 60%.	POWERP 60
5. Set the cooking time using the rotary knob (7).
6. Press START/QUICK START (9) to start operation. Press STOP/CANCEL (8) to cancel all previous settings.	START/QUICK START orSTOP/CANCEL

3.9 Child lock

In waiting status, press CANCEL/STOP for 3 seconds. An acoustic signal sounds.
➢ Unlock: Press CANCEL/STOP for 3 seconds. An acoustic signal sounds.

3.10 Stop during operation

1. Press STOP/CANCEL (5). You can continue operation by pressing START/QUICK START (7). When pressing STOP/CANCEL (5), all previous settings are deleted.
2. Open the door of the appliance. You can start the appliance by pressing START/QUICK START (7).
3. While the door is open, the appliance stops operation.

4.1 Basics of microwave cooking

1. Arrange your food carefully. Place thick pieces at the outer areas of your arrangement.
2. Consider the cooking times. Choose the shortest time available. If needed, add some more cooking time later. Any food, which is cooked too long in a microwave, can begin to fume or catch fire.
3. Cover food while it is cooking. Covering avoids splashes and enhances an even cooking procedure.
4. Turn over your food once while cooking it. Food like chicken or hamburgers will then cook faster. Larger pieces like roasts must be turned over at least once.
5. Rearrange food like meat-balls in the middle of the cooking time from the outer areas to the inner ones (and inversely) and also turn them over.
6. If you use microwave-safe plastic wrap, it must not contact the food as the wrap may melt.
7. Some microwave-safe plastic cookware might not be suitable for cooking food with a high content of fat and sugar. Moreover, the preheating time specified in the dish instruction manual must not be exceeded.

4.2 Suitable materials for microwave cooking

1. Use microwave-safe cookware made of heat-resistant ceramic, glass or plastic only.

2. Do not use metal-made cookware or other metal-made items or plates with metal-made ornaments. Microwave radiation cannot penetrate metal.

3. ⚠ WARNING! Metal can generate sparks. RISK OF FIRE.

MATERIAL	REMARKS
Aluminium foil	Only suitable to protect small parts of the food. You can cover the thin parts of meat or poultry using small parts of aluminium foil as an overcooking-protection. When the parts of the aluminium foil are too close to the walls of the appliance, sparking can occur. The aluminium foil must be at least 2.5 cm away from the walls of the appliance.
Browning dishes	Observe the information given by the relevant manufacturer. The bottom of the browning dish must be at least 5 mm above the turntable. Improper use can break the turntable.
Tableware	Use microwave-safe tableware only. Observe the information given by the relevant manufacturer. Do not use cracked or chipped tableware.
Glass jars	Always remove the lid. Heat-up the food until it is just warm. Most glass jars are not heat-resistant and can break.
Glass tableware	Use heat-resistant glass tableware only. The glass tableware must not contain any metal components. Do not use cracked or chipped glass tableware.
Oven cooking bags	Observe the information given by the relevant manufacturer. Do not close using metal ties. make small openings to allow steam to escape.
Paper plates / cups	Only suitable for short-time cooking or reheating Do not leave the appliance unattended while it is operating.
Paper towel	Only suitable for short-time cooking or reheating Do not leave the appliance unattended while it is operating.
Parchment paper	Use as a cover to prevent splattering or as a cover for steaming.
Plastic	Only use microwave-safe plastic. Observe the information given by the relevant manufacturer. The plastic must be labelled "Microwave-safe". Some plastic containers can melt when the food they contain becomes hot. Boiling bags and tightly closed plastic bags must be equipped with small openings, pierced or vented as described on their packaging.
Plastic wrap	Only use microwave-safe plastic wrap. You can use plastic wrap to cover the food so moisture is retained. The plastic wrap must not touch the food!
Thermometer	Only use microwave-safe thermometers.
Wax paper	You can use wax paper as a cover to protect the appliance from splatters or to retain moisture.

4.3 Unsuitable materials for microwave cooking

MATERIAL	REMARKS
Aluminium trays	Aluminium trays can cause sparking. Transfer the food into a microwave-safe container.
Food carton with metal handle etc.	Food cartons with metal handle etc. can cause sparking. Transfer the food into a microwave-safe container.
Metal-made or metal-trimmed items	Metal shields the food from the microwave energy. Metal components can cause sparking!
Paper bags	Paper bags can catch fire in the appliance. RISK OF FIRE!
Plastic foam	Plastic foam can melt when exposed to high temperatures and/or contaminate the food.
Wood	Wood used in a microwave appliance can dry and/or can get cracks. Wood can catch fire in the appliance. RISK OF FIRE!

5. Cleaning and maintenance

WARNING! Disconnect the appliance from the mains before you clean or maintain it.

1. Keep the inside of your appliance clean. When food splatters or spilled liquids are on the walls of your appliance, clean it with a damp cloth. Mild detergents may be used if the appliance has become very dirty. Avoid the use of sprays and other harsh cleaners as they may stain, streak or dull the door-surface.

2. Clean the outside with a damp cloth. Water should not run into the ventilation-openings to prevent damage to the operating parts inside the appliance.

3. Wipe both sides of the door and the window, the door seals and adjacent parts frequently using a damp cloth to remove any spills or spatters. Do not use abrasive cleaners.

4. The control panel should not become wet. Clean it with a soft and damp cloth. When cleaning the control panel, leave the door open so the appliance cannot be switched on accidentally.

5. If steam accumulates inside or around the outside of the door, wipe it with a soft cloth. This may occur when the appliance runs under high-humidity-conditions. It is a normal occurrence.

6. It is sometimes necessary to remove the turntable and/or rotating ring for cleaning. Wash the turntable/ring in warm soapy water, then rinse and dry

thoroughly. When having removed the rotating ring from the appliance, you must reinstall it in its proper position.

1. ⚠️ WARNING! If it is necessary to remove the internal light ^2 of the appliance, please contact the shop you purchased the appliance at.

6. Trouble shooting

NORMAL OPERATING CONDITIONS
Interference to radio or television reception	Radio and TV reception can be interfered while the appliance is operating, similar to interferences of other electric appliances such as mixers, vacuum cleaners, electric fans etc.
Dim oven light	The oven light may become dim while the appliance is operating in lower power cooking.
Steam accumulation on door/hot air escapes from the air vents	During cooking, steam escapes from the food. Most of the steam is discharged via the ventilation openings. Nevertheless, some steam can accumulate at the cooler parts of the appliance, e.g. the door.
The appliance was accidentally-started without load (food).	WARNING! Never operate the appliance when it is empty.

MALFUNCTION
POSSIBLE CAUSE(S)	POSSIBLE MEASURE(S)
THE APPLIANCE CANNOT BE STARTED.
1. The power cord is not plugged in properly.2. Blown fuse in household fuse box.3. Socket malfunction.	1. Unplug. Plug in again after 10 seconds.2. Check household fuse box.3. Check the socket using another electric appliance.
THE APPLIANCE DOES NOT HEAT.
1. The door of the appliance is not closed properly.	1. Close the door of the appliance properly.

THE TURNTABLE GENERATES UNUSUAL NOISE.

1. The rotating ring or the bottom of the appliance inside is contaminated.

2. Clean the relevant parts (look also chapter CLEANING AND MAINTENANCE).

If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the customer service.

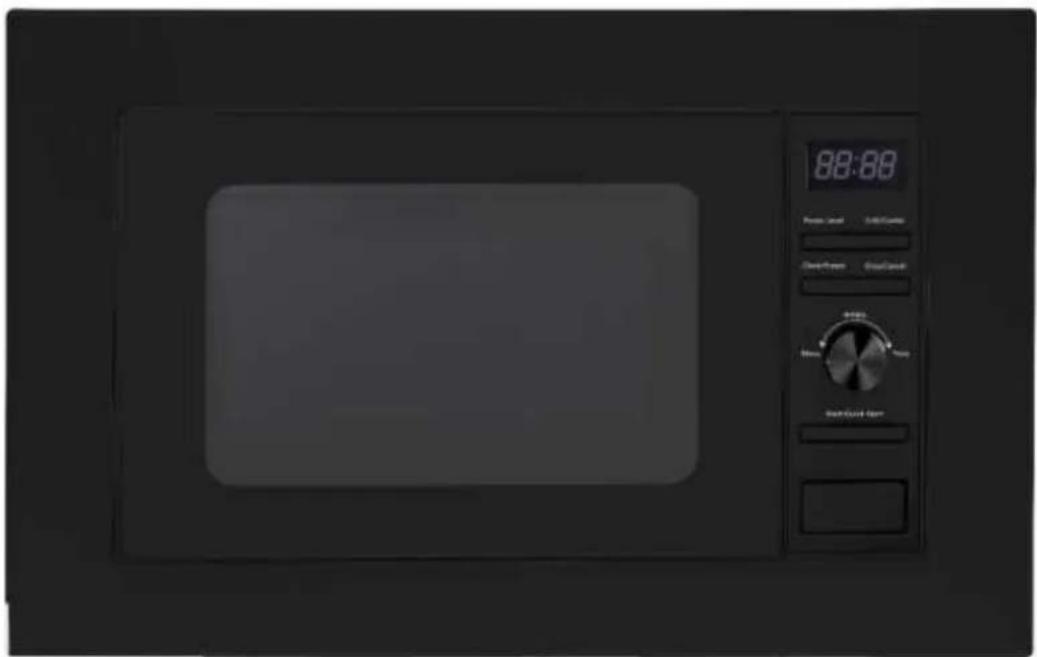

7. Technical data

Type	Built-in microwave oven
Volume	20 l
Max. power/microwave	800W
Max. power/grill	1000W
Voltage/frequency	230V AC/50Hz
Power levels microwave/Grill/Combi	6/1/2
Auto-programmes	9
Display	√
Acoustic end signal	√
Child lock	√
Timer	digital/max. 95 minutes
Turntable/grill rack	√
Length of power cord in cm	120
Dimensions H*W*D	34.20*59.50*32.80 cm
Weight net/gross in kg	13.50/16.00

◆ Technical modifications reserved.

8. Waste management

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
2. Old and unused appliances must be sent for disposal to the responsible recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately.
4. Dispose of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the WOLKENSTEIN-products concerning their authorised condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a WOLKENSTEIN-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeure or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

WOLKENSTEIN

August 2014

Please contact the shop you purchased the appliance at
