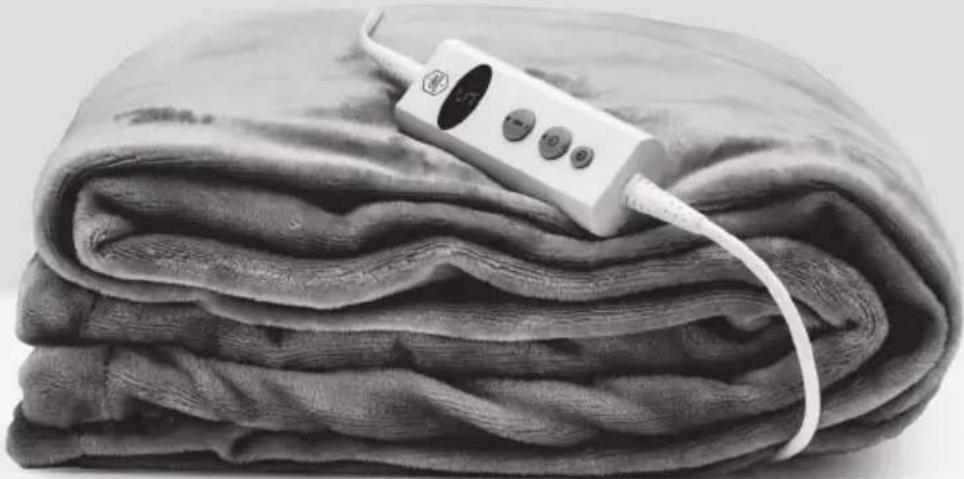

Cosy Hug 4099 - Electric Blanket / Heating Pad OBH NORDICA - Free user manual and instructions

Product Type	Electric Blanket / Heating Cushion
Brand	OBH Nordica
Model	Cosy Hug 4099
Dimensions (approx.)	160 cm x 130 cm (blanket) or 40 cm x 30 cm (cushion)
Weight (approx.)	1.2 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	100 W (blanket) / 60 W (cushion)
Heat Settings	3 temperature levels
Auto-Off Timer	Yes, 3 hours (blanket) / 2 hours (cushion)
Overheat Protection	Yes, with automatic shut-off
Washable Cover	Yes, removable and machine washable at 30°C
Material	Microfiber fleece (blanket) / Polyester (cushion)
Control Type	Detachable controller with digital display
Safety Certification	CE, RoHS, Oeko-Tex
Warranty	2 years
Spare Parts Available	Control unit, power cord, cover
Reparability	Controller replaceable; professional repair recommended for internal faults
Usage	Bed blanket or personal heating cushion
Color Options	Grey, Beige, Blue
Special Feature	Quick heat-up, soft touch fabric

Frequently Asked Questions - Cosy Hug 4099 OBH NORDICA

Can I use the Cosy Hug 4099 for a full-size bed?

Yes, the blanket version measures approximately 160x130 cm, suitable for a single or double bed. The cushion version is for spot heating.

Is the cover removable and washable?

Yes, the cover is removable and machine washable at 30°C. Always disconnect the power before removing.

How do I set the temperature?

Use the detachable controller to select among 3 heat levels: low, medium, high. The display shows the current setting.

Does the blanket have an automatic shut-off?

Yes, it features an auto-off timer after 3 hours (blanket) or 2 hours (cushion) for safety.

What should I do if the blanket stops working?

Check the power connection and controller. If still not working, contact OBH Nordica support. Do not attempt to open the heating elements.

Can I use the cushion on a chair?

Yes, the cushion is designed for use on chairs or sofas. Ensure it is placed on a flat, stable surface.

Is the product safe for people with sensitive skin?

Yes, the fabric is soft and the heating elements are shielded. It carries Oeko-Tex certification for skin safety.

What is the power consumption?

The blanket consumes about 100W, the cushion about 60W. It is energy-efficient with quick heating.

Can I fold the blanket while in use?

No, do not fold or cover the blanket with heavy objects while operating to avoid overheating. Always lay it flat.

Where can I buy a replacement controller?

Replacement controllers are available from OBH Nordica authorized dealers or online. Use only compatible parts.

USER MANUAL Cosy Hug 4099 OBH NORDICA

DESIGNING GOOD LIFE

Heating Plaid COSYP HUG GREY

Keep warm with style

Making good!

Visiting address: Deltapark 37, 3. sal

Phone: [phone]

Direct: [phone]

www.obhnordica.dk

Tekniske data

OBH Nordica 4099

220-240 volt \~

150 watt, 50 Hz

10 varmeindstillinger

Timer: 10-90 minutter

Vaskbar (skånevask 40 °C)

BEGRENSET GARANTI for OBH Nordica

Garantien

IMPORTANT INFORMATION!

- SAVE IT FOR FUTURE USE

1. Read the instruction manual carefully before use and save it for future use.
2. Plug the heat blanket to a household outlet of 220-240 volt AC only and use the blanket only for the intended use.
3. Always unplug the appliance from the mains supply after use.
4. This appliance can be used by children aged 8 years and over and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way by a person responsible for their safety and they understand the hazards involved.
5. Children should be supervised to ensure that they do not play with the appliance. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.
6. Cleaning and maintenance shall not be made by children, unless they are over the age of 8 and supervised.
7. The appliance should only be used under supervision.

8. The heat blanket must never be used by babies, disabled persons or persons who are insensitive to heat.

9. Use over a long period of time at high temperature may cause a risk of skin burns that will show at a later stage.

10. When the heat blanket is not in use, put it back in the original packaging and store it at a dry place.
11. Never pull the cord and do not carry the blanket in the cord.
12. Do not wind up the cord and do not position it on the heat blanket.
13. Do not put the heat blanket between e.g. the mattress and the bedside.
14. Do not use the heat blanket if coiled or folded.
15. Take care not to make any sharp wrinkles in the heat blanket by positioning anything on top of it when not in use, as this may destroy the safety system of the heat blanket.
16. Never put needles or sharp objects into the heat blanket.
17. Check at regular intervals the surface of the heat blanket for possible signs of wear and tear, damages or dark spots. In case of wear and tear, damages or spots, do not use the heat blanket. It should be discarded or handed over to a service agent for repair.
18. No matter how often the blanket has been used, it should be discarded after 10 years from date of purchase for safety reasons and due to normal wear and tear.
19. Never immerse the on/off button and the cord in water or any other liquid.
20. Never use the heat blanket in wet rooms.

21. Clean the heat blanket in accordance with the instructions given in the manual.

22. Never use the heat blanket if humid or wet.

Always wait until the blanket is completely dry.

1. Unplug from the power supply, if:

2. the heat blanket gets uncomfortably warm, even though the temperature is at a low level,

3. the heat blanket gets so warm that certain areas are discoloured,
4. you hear crackling from the switch or you can see visible damage to the switch, the heat blanket or the cord,

5. the heat blanket has not become warm after 10 minutes at maximum temperature level. First, try to plug the switch to another wall outlet.

6. Only use the appliance as a heat blanket.

7. The heat blanket is not made for medical professional use or any other health care use. This means that it should not be used for treatment, alleviation or prevention of diseases, syndromes or other handicaps,

- medical treatment in hospitals, care homes or other institutions,

- medical treatment in the field of professional and commercial care.

1. Because of the consequential risk of personal injury it is strictly prohibited, under any circumstances, to try to separate or repair the heat blanket personally. Without specialist tools is it not possible to guarantee the safety of the product during use.

2. Always examine appliance, cord and plug for damage before use. If the supply cord is damaged, it must be replaced by the manufacturer, his service agent or a similarly qualified person in order to avoid a hazard.

3. For additional protection, we recommend installation of a residual current device (RCD) with a rated residual operating current not exceeding 30 mA. Ask your installer for advice.

4. The appliance is only for private use and should not be used professionally or medically, as the appliance is not covered by the EU directive of electro-medical products.
5. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damage of the product is not covered by the warranty.

This product comprises a safety system that will cut off the power supply within milliseconds in case of a short circuit or an abnormally high power consumption. In such case, it is not possible, for safety reasons, to use the heat blanket. Consequently, the heat blanket should be discarded, see more in section “Disposal of the appliance”.

How to use the appliance

Plug the appliance to a wall outlet, the display shows "8" for a few seconds and afterwards just one point will be displayed. Sit or lie down comfortably with the heat blanket as you want it and keep the switch within reach. Make sure that the cord between the heat blanket and the on/off button is not folded or coiled.

Switch on the heat blanket by pressing the on/off button. The heat blanket starts automatically at temperature setting 4 and the timer setting at 30 minutes.

You can now set the temperature by means of the temperature buttons + and - (the button closest to the display) from 1-10, where 10 is displayed as “H” (1 = lowest temperature, H = highest temperature) depending on how warm you want the blanket to be. Now press the timer button (the button in the middle) + and - if you want to set the time to be off between 10 and 90 minutes with intervals of 10 minutes. The display shows 1 for 10 minutes, 2 for 20 minutes etc. up to 9 for 90 minutes. The chosen setting flashes for a few seconds and will then be on constantly.

The on/off button gets hot during use, which is quite normal. Consequently, never cover the on/off button and do not leave it on the heat blanket during use.

If “E” is displayed check that the switch is properly connected to the outlet on the underside of the heat blanket.

You can also switch off the heat blanket by pressing the switch at the bottom of the control unit. Always unplug after use.

Warning! The heat blanket should not be used by small children, unless the on/off button has been set by a grown-up or if the child has been thoroughly instructed in the use of the on/off button. Never let children use the heat blanket without supervision. Children are not always able to understand potential risks. Teach children a responsible handling of the heat blanket.

Note!

If you use the heat blanket continuously for a long period of time, this might cause skin burns that will show at a later stage. Therefore, never use the heat blanket for more than 90 minutes without a pause! NEVER sleep with the heat blanket on and always switch off the heat blanket if you leave the room.

Cleaning and maintenance

Unplug from the wall outlet and let the heat blanket cool for at least 10 minutes before cleaning.

Always dismantle the removable switch and the cord before cleaning. To do so, press the buttons at both sides of the coupling at the underside of the heat blanket and unplug at the same time. You can hand wash the heat blanket or put it in a washing machine (“sensitive” programme) at 40°C. Only wash the heat blanket if very dirty and not more than 2-3 times a year as all washing will wear out the product. Remove stains and dirt by using a humid sponge and just a little mild detergent. Note that the heat blanket must not be dry-cleaned. Do only wash the heat blanket with similar colours.

IMPORTANT!

Make sure that the on/off button and the switch do not get in contact with water or any other liquid.

If you hand wash the heat blanket, press the blanket carefully into the water with a small amount of detergent to remove the spots. Next, rinse the heat blanket in clean water to remove the detergent. Let the heat blanket drip dry after washing. Never twist the heat blanket or use a tumble dryer. Never mangle or iron the blanket, Never - under any circumstances - switch on the heat blanket in order to dry it. Position the heat blanket on a stable surface for drying. Do not fasten it by means of clothes pegs or similar.

Do not use the heat blanket until it has dried completely. If not, the safety system will go on and the heat blanket will switch off.

After cleaning and prior to the following use, always check the heat blanket in order to locate any possible damages/wear.

Sensitive programme maximum 40°C

Do not use a tumble dryer

Do not dry-clean

Do not bleach

Do not iron

Disposal of the appliance

Legislation requires that all electrical and electronic equipment shall be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

TEFAL - OBH Nordica Group AB

Löfströms Allé 5

172 66 Sundbyberg

Phone [phone]

www.obhnordica.com

Technical data

OBH Nordica 4099

220-240 volt \~

150 watt, 50 Hz

10 heat settings

Timer 10-90 minutes

Washable (sensitive programme 40°C)

Automatic switch-off after 90 minutes.

100% polyester

CE

These instructions are subject to alterations or improvements.
