Attraxion Facial Trimmer Classic 5510 - Beard trimmer OBH NORDICA - Free user manual and instructions

Brand	OBH Nordica
Model	Attraxion Facial Trimmer Classic 5510
Product Type	Beard Trimmer
Dimensions	Approx. 15 x 4 x 4 cm
Weight	Approx. 150 g
Power Source	Cordless, rechargeable battery
Battery Type	Lithium-ion
Charging Time	Approx. 8 hours
Operating Time	Up to 60 minutes
Blade Type	Stainless steel blades
Adjustable Length Settings	Yes, with adjustable comb (1-10 mm)
Waterproof	Not waterproof, suitable for dry use only
Cleaning	Detachable head for rinsing; use brush provided
Maintenance	Oil blades periodically
Safety Features	Protective blade guard, auto shut-off after charging
Accessories Included	Adjustable comb, cleaning brush, charging cable
Warranty	2 years
Usage	Facial hair, neckline, sideburns
Color	Black/silver

Frequently Asked Questions - Attraxion Facial Trimmer Classic 5510 OBH NORDICA

How long does the battery last on a full charge?

The battery provides up to 60 minutes of continuous use after a full charge.

Can I use this trimmer in the shower?

No, the Attraxion Classic 5510 is not waterproof. It is designed for dry use only. Do not submerge or use in wet conditions.

How do I clean the trimmer?

Detach the head and rinse it under running water. Use the included cleaning brush to remove any remaining hair. Dry thoroughly before reassembling.

How do I adjust the cutting length?

Attach the adjustable comb and slide the length selector to your desired setting, ranging from 1 to 10 mm.

What should I do if the blades become dull?

The stainless steel blades are durable but may need replacement after extended use. Contact OBH Nordica customer service for replacement parts.

Can I use the trimmer for body hair?

The trimmer is designed primarily for facial hair, such as beard, mustache, and sideburns. It may not be suitable for thicker body hair.

How long does it take to charge fully?

Charging takes approximately 8 hours. Use only the provided charger.

Is the motor powerful enough for thick beards?

The motor is suitable for most beard types, including thick hair. For best results, trim dry and clean hair.

Does it come with a travel lock?

No, this model does not have a travel lock. Store in a safe place or use the included protective cap when traveling.

Can I replace the blade only, or do I need to replace the whole unit?

The blade assembly is replaceable. You can purchase replacement heads from OBH Nordica.

USER MANUAL Attraxion Facial Trimmer Classic 5510 OBH NORDICA

DESIGNING GOOD LIFE

Isætning af batteri

Apparatets deler

BEGRENSET GARANTI for OBH Nordica

Garantien

1. Read the instruction manual carefully before use, and save it for future use.

2. The appliance must not be immersed into water or other liquids. Should it get wet, it must be wiped off immediately, as liquids contain minerals which may result in rust in the electronic parts or which may totally destroy the electronic parts.

3. If the appliance gets dirty, the dirt can be wiped off with a slightly humid cloth, and then wiped with a dry cloth.

4. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use

of the appliance in a safe way by a person responsible for their safety and they understand the hazards involved.

1. Children should be supervised to ensure that they do not play with the appliance. Children are not always able to understand potential risks. Teach children a responsible handling of electrical/electronic appliances.

2. Cleaning and user maintenance shall not be made by children, unless they are over the age of 8 and supervised.

3. Keep the appliance out of reach of children aged less than 8 years.

4. Do not place the appliance on or near hotplates, open fire or the like.

5. The appliance should only be used under supervision.

6. The appliance is not for outdoor use.

7. The appliance must not be used if it has been dropped on the floor, or if it is clear that the appliance is damaged.
8. The batteries must be removed from the appliance before it is scrapped.
9. In the event of battery leakage, prevent skin contact and dispose batteries according to local law
10. The appliance is for domestic use only.
11. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

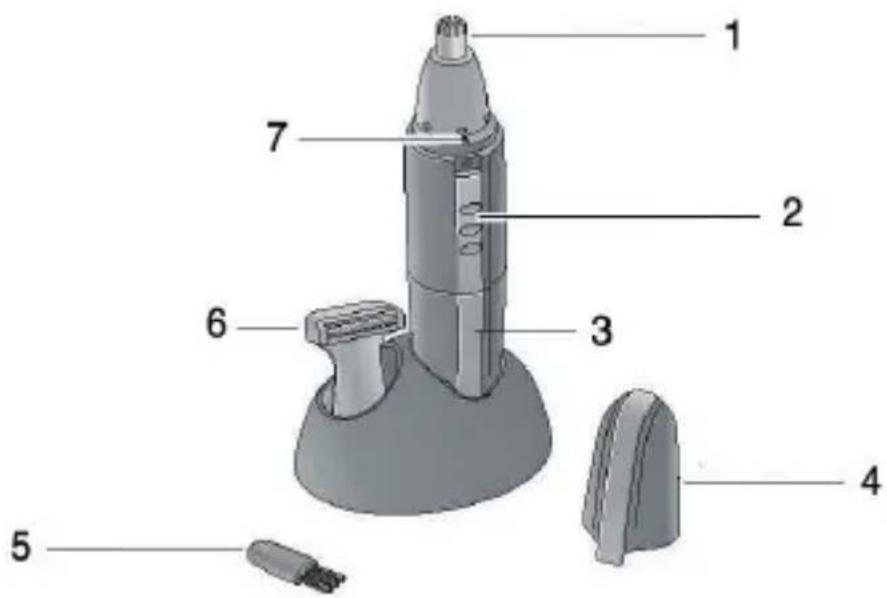

Parts of the appliance

1. Cutting head for nose and ear hair.
2. Switch ON/OFF
3. Battery cover
4. Protection cap
5. Cleaning brush
6. Trimming head for eyebrows, neck hair e.d.
7. Integrated light

Insert/change batteries

• Turn the battery cover anti clockwise until the lines on the cover and unit point to each other. Pull out the battery cover.
• Place 1 AA 1,5 V battery according to the directions in the battery compartment.
• Put the cover back and turn until the line on the battery cover points towards the dot on the unit.
• Change batteries when the appliance works slowly to avoid bad result.

Using the cutting head

- Pull the protection cap upwards and remove it. Screw on the cutting head to the main units driving shaft until it

clicks, if you haven't done that already. Be careful not to accidentally start the appliance while screwing on/off the cutting head.

• Start the appliance with the switch and carefully move the cutting head slowly in circular motions to remove unwanted hair.
• Turn the appliance off after use and crew off the cutting head.

Trimming nasal hair

Make sure that the nostrils are clean. Slowly move the cutting head in and out to remove unwanted hair. Note! Do not stick it too long into the nostril, max 0,5 cm. You will get best result if you place the cutting head closely to the skin and this will also prevent a tickling feeling that may occur.

Trimming ear hair

Clean the outer part of the ear and make sure it is free from earwax. Pull the ear slightly back against the head with one hand and hold the trimmer with the other. Start the trimmer and move the cutting head around the outer part of the ear to remove visible hair. Move the cutting head carefully into the ear (max 0,5 cm) to avoid damaging the inner ear.

Using the trimming head

• Pull the protection cap upwards and remove it. Screw off the cutting head if you haven't done that already and screw the trimming head on to the main units driving shaft. Be careful not to accidentally start the appliance while screwing on/off the trimming head.
• Start the appliance with the switch and move the trimming head somewhat angled to the skin from top to bottom without applying pressure.
• Shut off the appliance after use and remove the trimming head.

Cleaning and maintenance - after each

use

• Shut off the appliance.
• Use the enclosed brush to remove hair and/or rinse the cutting head or trimming head under running warm water.
• Dry with a towel.

Cleaning the cutting system

• Clean the cutting system after every third time of use.
• Shut off the appliance.
• Turn the cutting head/trimming head anti clockwise and take it off, see picture.
• Rinse the driving shaft and the cutting head/trimming head quickly.
• Dry all parts carefully and put the cutting head back on the main unit. Dry the appliance with a towel and put the protection cap back.

Environmental considerations and disposal of batteries

disposing of batteries it is essential to take the environment into consideration. Used batteries must never be disposed of with domestic garbage. Used batteries must be returned to one of the authorized collection points. Batteries must be removed from the appliance before it is disposed of. Also take care that the batteries are not expired or become worn-out since there may then be a risk that the batteries will leak acid. Check the validity date printed on the batteries.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal

wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

These instructions are also available on our website www.obhnordica.com.

TEFAL - OBH Nordica Group AB

Löfströms Allé 5

Phone: [phone]

www.obhnordica.com

Technical data

OBH Nordica 5510

1 AA 1,5V Alkaline battery - not included.

1 cutting head

1 trimming head

Integrated light

Storage stand

With reservation for running changes.
