Product Type	Beard Trimmer
Brand	OBH Nordica
Model	Attraxion Force Control 5592
Dimensions (approx.)	18 x 4 x 4 cm
Weight (approx.)	180 g
Power Source	Rechargeable battery (Ni-MH), USB charging
Charging Time	8 hours
Operating Time	40 minutes
Blade Material	Stainless steel
Cutting Length Settings	0.5 - 10 mm (adjustable via dial)
Number of Length Steps	20
Included Accessories	3 guide combs, cleaning brush, USB cable, charging stand
Wet/Dry Use	Dry use only
Washable	Removable blade unit washable under running water
Maintenance	Oil blades periodically, clean after each use
Safety Features	Auto shut-off after 5 minutes of inactivity, safety lock
Spare Parts Availability	Replacement blades and combs available from OBH Nordica
Repairability Index	7/10 (user-replaceable blade, battery by service center)
Warranty	2 years
Package Contents	Trimmer, 3 combs, charging stand, USB cable, cleaning brush, manual

Frequently Asked Questions - Attraxion Force Control 5592 OBH NORDICA

How do I charge the OBH Nordica Attraxion Force Control 5592?

Connect the USB cable to the charging stand or directly to the trimmer. Plug into a USB power source. The charging indicator will light up. Full charge takes approximately 8 hours.

Can I use the trimmer in the shower?

No, this model is designed for dry use only. Do not immerse in water or use in wet conditions.

How do I clean the trimmer?

Remove the blade unit and rinse under running water. Dry thoroughly. Use the included brush to remove hair from the body. Apply a drop of oil to the blades after cleaning.

What are the cutting length options?

You can adjust the cutting length from 0.5 mm to 10 mm in 0.5 mm steps using the dial. Attach the guide combs for longer lengths.

How long does the battery last?

A full charge provides up to 40 minutes of cordless use. The battery is rechargeable and may degrade over time.

Can I replace the blade?

Yes, the blade unit is replaceable. You can purchase replacement blades from OBH Nordica or authorized dealers.

Why does the trimmer stop working?

It may have an automatic shut-off after 5 minutes of inactivity to save battery. Also, ensure it is charged. If not, clean the blades or contact service.

What accessories are included?

The package includes: 3 guide combs (1-3 mm, 4-6 mm, 7-9 mm), a cleaning brush, a USB charging cable, and a charging stand.

Is the trimmer suitable for sensitive skin?

The stainless steel blades are designed to be gentle, but if you have sensitive skin, use with a low setting and ensure the blades are clean and oiled.

How do I know if the battery is charging?

When connected to power, a red LED indicator will show. It turns off or changes color when fully charged.

USER MANUAL Attraxion Force Control 5592 OBH NORDICA

DESIGNING GOOD LIFE

ATTRAXION

HAIR & BEARD CLIPPER

FORCE

CONTROL

CUT IT, TRIM IT, SHAPE IT

Bruksanvisning - svenska ...... sida 4 - 9
Brugsanvisning - dansk ......side 10 - 15
Bruksanvisning - norsk......side 16 - 21
Käyttöohjeet - suomi ......sivu 22 - 28
Instruction manual - english......page 29 - 35

6

6

6

6

6

Battery voltage: Li-ion 3,7V

Battery voltage: Li-ion 3,7V

CE

BEGRENSET GARANTI for OBH Nordica

Garantien

Battery voltage: Li-ion 3,7V

Battery voltage: Li-ion 3,7V

1. Read the instruction manual carefully before use and save it for future use.
2. Plug the appliance to a household outlet of 100-240 Volt AC only and use the appliance only for the intended use.
3. Always unplug the appliance from the mains supply after use.
4. This appliance can be used by persons (including children from the age of 8) with reduced physical, sensory or mental capabilities or lack of experience with/knowledge about the appliance, if they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety and when they are aware of possible risks.
5. Children should be supervised to ensure that they do not play with the appliance. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.
6. Cleaning and maintenance shall not be made by children under the age of 8 and they shall be supervised.
7. Position the appliance and the cord out of the reach of children under the age of 8.
8. Check that the cord is not hanging free from the edge of the table.
9. Do not place the appliance on or near hotplates, open fire or the like.
10. Do not touch the adapter with humid or wet

hands.

1. WARNING! Keep the appliance dry.
2. The appliance should only be used under supervision.
3. The appliance is not for outdoor use.
4. Only use the delivered adapter.
5. Store the adapter in a dry and frost free place.
6. Remove the batteries from the appliance before disposal of the appliance.
7. Unplug before you remove the batteries from the appliance.
8. In case of battery leakage, avoid any contact with your skin and dispose of the batteries according to current law.
9. Always check the appliance, the cord and the switch before use. If the cord is damaged, it must be replaced by the manufacturer, an authorized service agent or a similarly qualified person in order to avoid any hazard.
10. Extra protection can be obtained by installation of a residual current device of 30 mA. Check with your installer.
11. The appliance is for domestic use only.
12. If the appliance is used for other purposes than intended or not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product as a consequence of the above are not covered by the warranty.

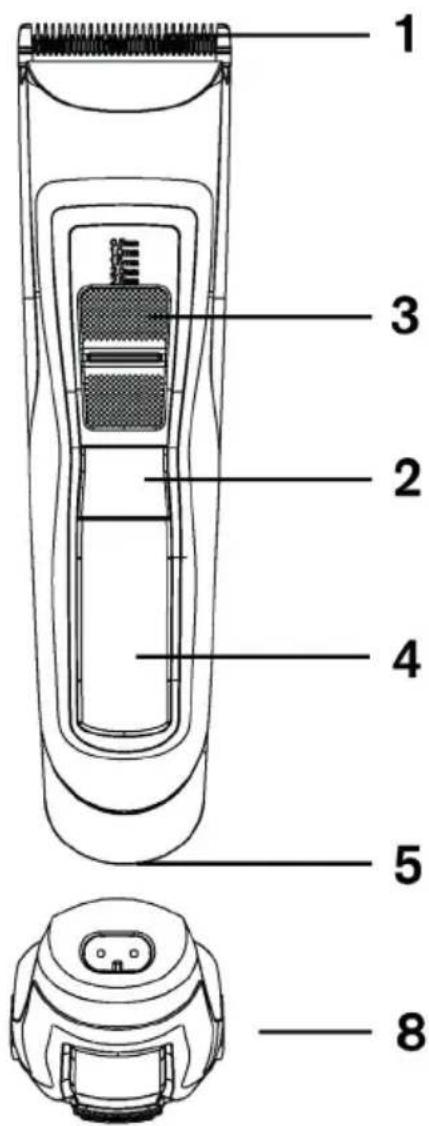

Main components (see image on page 3)

1. Removable trim head
2. Power switch

3. Adjustment knob for setting the cutting length

4. Display that shows the remaining operating time, low battery, charging in progress and full battery level.

5. Mains connection
6. Combs 6 in no. - 4-6 mm, 7-9 mm, 10-12 mm, 16-18 mm, 22-24 mm, 28-30 mm
7. Blade Protection / fine comb
8. Charging Station
9. Adapter
10. Cleaning brush and oil

Before use

Make sure the battery is charged if the clipper is to be used without an adapter.

Charging the battery

1. Ensure that the clipper is turned off during charging.
2. To charge the clipper, insert the adapter's connector in the mains supply at the short end of the clipper. Then connect the adapter plug into a wall socket. Battery charging begins and the charging bars light alternately in the display. You can also set the clipper in the charging station when charging, just remember to connect the plug to the charging stand. When the charge is complete, all charging bars light up with a steady light.

When the battery is fully charged (after 90 minutes), you can cut cordlessly for about 60 minutes (depending on hair type). Battery life is not harmed by charging a short time but it should be avoided to let the battery discharge completely.

Use with adapter

Make sure the appliance is turned off. Insert the adapter's connector into the power port on the clipper and then plug the adapter plug into a wall socket. If the device does not start, the battery must be charged for a while before it can start.

Use

• Make sure the unit is clean, the battery is fully charged or connected to the adapter.
• Hair should be clean, well-groomed and dry (wet hair makes it harder to move the comb through the hair).
• Select the comb which suits your purposes, the comb dimensions are stamped at the bottom of the comb (fine comb is unlabelled).
• The comb is mounted on the trim head by pushing the small notches on the inside of the comb into the slots on clipper's sides. Remove the cam by pulling the comb backwards.

Use with comb accessory

It is recommended to always start with the longest comb so that you do not cut too much.

• Make sure the comb sits firmly (see installation in the section "Use"). The comb length setting can be adjusted by sliding the adjustment button up or down. The hair clipper can also be used without the comb if you want to have a shaved result (see further under "Use without comb accessory").
• Press the switch to start the hair clipper.
• Hold the appliance with the trimming head upwards so that the flat side of the trimmer faces inwards towards the head. Start cutting the neck hair and move the hair clipper with light short movements upwards and outwards. Work your way up until you reach the top of the head and continue with the next hair section. Take your time and check the result occasionally and comb through the hair to remove all loose hair.
• If the hair clipper starts to slow down, this may be because a lot of hair has been caught in the comb / trimmer. Turn off the unit and remove all hair before you start again. It may also be that the battery needs to be charged, if the unit is used without an adapter. If the battery is not sufficiently charged, the haircut can still be completed by inserting the adapter's connector into the power port on the clipper. It may also be time to oil the trimmer head with a few drops of oil. Never turn the clipper off while moving it through the hair.
• For trimming around the ears and at the bottom of the neck, you may need to remove the comb and just use the trimmer head by itself.

Use without comb accessory

If you want a cropped result (less than 4 mm), you can use the device without the comb accessory and use only the trimmer head. Remove the comb from the appliance by pulling the comb backwards. Switch off the appliance by means of the switch. Hold the appliance with the trimming head upwards so that the flat side of the trimmer faces inwards towards the head. Start clipping at the neck and work your way upwards in light movements and continue in the same way all over the head. Be extra careful when cutting around the ears. Turn off the appliance by means of the switch once you have finished cutting.

Cutting by means of fingers / comb

The fingers and / or a comb can be used if hair lengths of over 30 mm are desired.

• Remove the comb from the clipper by pulling the comb backwards.
• Lift up a strand of hair using a comb or hold the hair between your fingers so that the hair which is to be cut sticks out above the fingers.
• Cut the hair with the hair clipper. Continue in this manner until the desired length is reached.
• Comb regularly in order to remove loose hair and to see the results.

Cleaning and maintenance

• Always switch off the hair clipper and unplug the adapter's connector before cleaning.
• Remove any comb from the clipper.
• Use the cleaning brush provided in order to remove hair from the trimmer

head. The trimming head can also be removed by pulling it backwards, then rinse the trimming head with water.

• Oil the trimmer head regularly with some drops of the oil supplied. Wipe off excess oil with a dry cloth.
• Clean the appliance housing and the charging station with a damp cloth. The appliance must not be exposed to water or other liquids.

Environmental considerations regarding disposal of batteries

When replacing batteries it is necessary to consider the environment. Used batteries must never be disposed of together with household waste but must be disposed of at designated collection points. Batteries must be removed before the unit is discarded. You must also make sure that you do not let the batteries get too old and used, as there is a risk of them starting to leak. Check the expiry date for the batteries and remove them before they get too old.

Disposing of the appliance

By law, electrical and electronic equipment must be collected for the recycling of components. Electrical and electronic equipment marked with the waste management symbol must be disposed of at a municipal recycling point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or

mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

These instructions are also available on our website www.obhnordica.com.

TEFAL - OBH Nordica Group AB

Löfströms Allé 5

172 66 Sundbyberg

Phone: [phone]

www.obhnordica.com

Technical Data

OBH Nordica 5592

100-240V, 50-60Hz, 4.5V 1000mA

Battery voltage: Li-ion 3,7V

CE

We reserve the right to make changes without notice.
