Product Type	Hair Dryer
Brand	OBH Nordica
Model	Björn Axén Premium Care NV7470N0
Power	2000 W (estimated)
Voltage	220-240 V (typical)
Airflow (RESPECT mode)	15 m/s
Temperature (RESPECT mode)	65°C
Temperature Settings	3 positions (low, medium, high)
Air Speed Settings	2 speeds
Ionic Technology	Automatic negative ion generation
Coating	Cashmere Keratin ceramic coating on outlet grill
Accessories Included	Concentrator nozzle, Volume Massager diffuser
Cool Shot Button	Yes
RESPECT Button	Yes (constant 65°C and 15 m/s for gentle drying)
Hanging Loop	Yes
Cord Storage	Coiled cord storage feature
Safety Features	Overheat protection, auto shut-off
Cleaning	Unplug and wipe with a damp cloth; do not immerse
Guarantee	2 years limited (Sweden, Norway, Denmark, Finland)
Dimensions (approx.)	25 x 8 x 10 cm
Weight (approx.)	0.5 kg

Frequently Asked Questions - Björn Axén Premium Care NV7470N0 OBH NORDICA

What is the RESPECT function and how does it work?

The RESPECT function is an automatic mode that maintains a constant temperature of 65°C and airflow of 15 m/s to protect hair while drying efficiently. Press the RESPECT button to activate; temperature and speed controls are disabled in this mode.

How do I use the Volume Massager accessory?

Clip the Volume Massager onto the hair dryer. Select temperature setting 1 and use the cool air function during massage. Place on scalp and follow the recommended gesture (see manual). It can also be used as a classic diffuser to boost volume and redefine curls on dry or wet hair.

Does the hair dryer have ionic technology?

Yes, the hair dryer automatically produces negative ions to reduce static electricity, combined with Cashmere Keratin ceramic coating for shiny, easy-to-comb hair.

Can I use this hair dryer in the bathroom?

Yes, but with caution. Always unplug after use because water proximity is a hazard even when switched off. Do not use near bathtubs, showers, or basins containing water. For additional safety, consider installing a residual current device (RCD) in the bathroom circuit.

How do I clean the hair dryer?

Always unplug before cleaning. Use a slightly damp cloth to wipe the exterior and accessories. Remove any hair or impurities from the rear grid. Do not immerse in water or use abrasive cleaners.

What accessories are included with the NV7470N0?

The package includes a concentrator nozzle for precise drying and a Volume Massager diffuser for scalp massage and volume enhancement.

What is the warranty period?

OBH Nordica offers a 2-year limited guarantee covering manufacturing defects in materials and workmanship for products purchased in Sweden, Norway, Denmark, and Finland. Proof of purchase is required.

Why does my hair dryer stop automatically?

The dryer is equipped with a heat-sensitive safety device. If it overheats (e.g., due to blocked rear grill), it will shut off automatically. Contact After-Sales Service if this occurs.

Can I use an extension cord?

No, do not use an electrical extension lead with this appliance to avoid hazard.

How do I store the cord?

The hair dryer features a coiled cord storage mechanism. Refer to the manual for proper winding to keep the cord tidy.

USER MANUAL Björn Axén Premium Care NV7470N0 OBH NORDICA

DESIGNING GOOD LIFE

BJÖRN AXÉN TOOLS HAIR DRYER PREMIUM CARE

OPTIMAL CARE FROM ROOT TO TIPS

looking good!

Bruksanvisning - svenska......sida 6 - 10

Illustration of a person styling hair with a hairdryer, showing a hand holding the brush (no text or symbols present)

Line drawing of a mechanical component with multiple curved elements (no text or symbols)

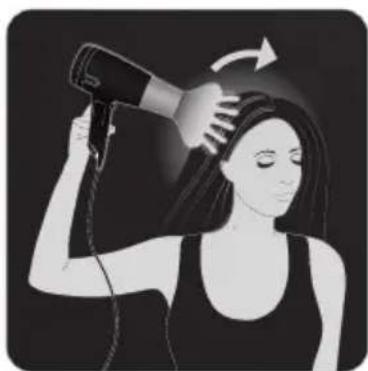

MASSAGE

Illustration of a person using a hairdryer to press her hair (no text or symbols present)

Illustration of a person using a hairdryer (no text or symbols present)

Illustration of a person performing a hand massage or exercise with directional arrows (no text or symbols)

2

Line drawing of a mechanical component with multiple blades and a central hub (no text or symbols)

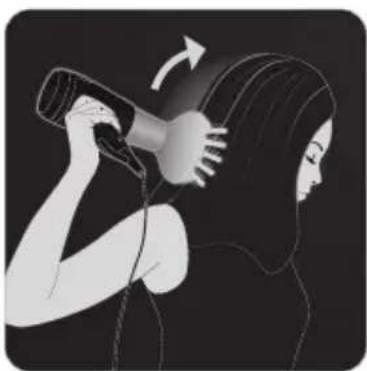

VOLUME

Illustration of a person using a handheld device with an arrow indicating motion (no text or symbols)

Illustration of a person holding a hairdryer, no text or symbols present

Illustration of a woman styling her hair with a hairdryer (no text or symbols)

3

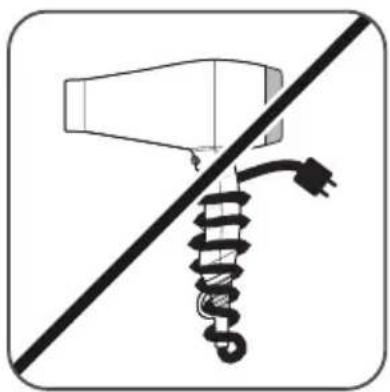

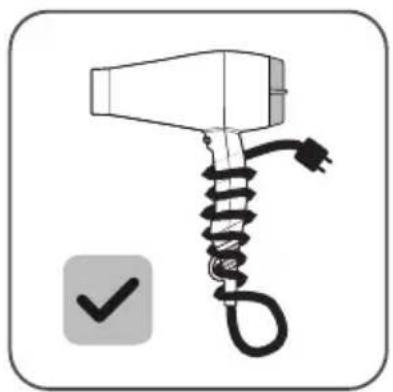

CORD STORAGE

Diagram of a hairdryer with a coiled spring attached, crossed by a diagonal line (no text or symbols)

Illustration of a hair dryer with a coiled spring and plug, no text or symbols present

Visiting address: Deltapark 37, 3. sal

Phone: [phone]

Direct: [phone]

www.obhnordica.dk

BEGRENSET GARANTI for OBH Nordica

Garantien

Read the instructions carefully as well as the safety guidelines before use.

Safety

• For your safety, this appliance complies with the applicable standards and regulations (Low Voltage Directive, Electromagnetic Compatibility, Environmental...).
• The appliance's accessories become very hot during use. Avoid contact with the skin. Make sure that the supply cord never comes into contact with the hot parts of the appliance.

- Check that the voltage of your electricity supply matches the voltage of your appliance. Any error when connecting the appliance can cause irreparable harm, not covered by the guarantee.

- For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask for installer for advice.

- The installation of the appliance and its use must however comply with the standards in force in your country.

- WARNING: do not use this appliance near bathtubs, showers, basins or other vessels containing water.

- When the appliance is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the appliance is switched off.

- When using the appliance in the bathroom, unplug it after use as the presence of water nearby may pose a danger even when the appliance is turned off.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Stop using your appliance and contact an Authorised Service Centre if:

- your appliance has fallen.

- it does not work correctly.

- The appliance is equipped with a heat-sensitive safety device. In the event of overheating (for example if the rear grill is blocked), the dryer will stop automatically: contact the After-Sales Service.

• The appliance must be unplugged:

- before cleaning and maintenance procedures.

- if it is not working correctly.

- as soon as you have finished using it.

- if you leave the room, even momentarily.

- Do not use if the cord is damaged.

• Do not immerse or put under running water, even for cleaning purposes.
• Do not hold with damp hands.
• Do not hold the appliance by the casing, which is hot, but by the handle.
• Do not unplug by pulling on the cord, rather pull out by the plug.
• Do not use an electrical extension lead.
• Do not clean with abrasive or corrosive products.
• Do not use at temperatures below 0^ C and above 35^ C.

Guarantee

Your appliance is designed for use in the home only.

It should not be used for professional purposes.

The guarantee becomes null and void in the case of improper usage.

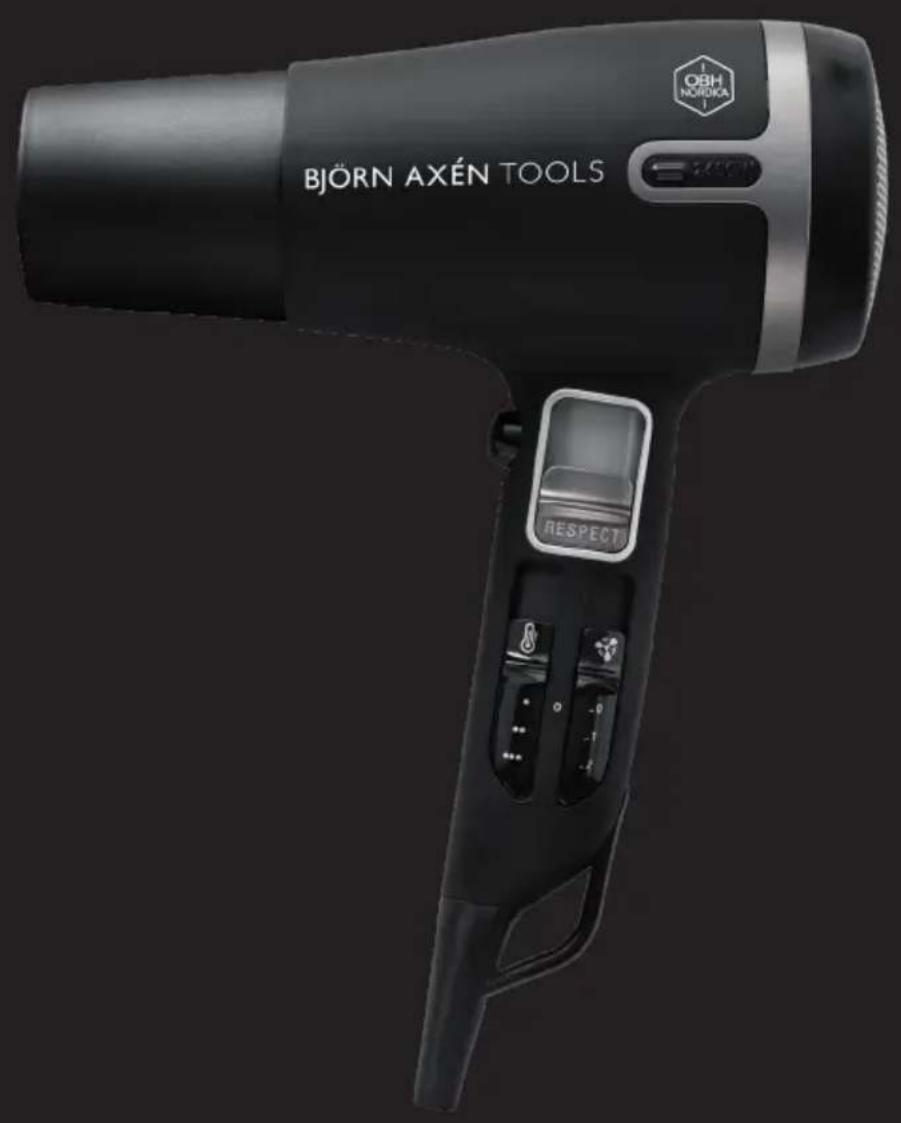

Description

A. Concentrator
B. Volume Massager
C. Automatic ionic function
D. Air outlet grill with Cashmere Keratin ceramic coating
E. Cool air button
F. «RESPECT» button
G. Temperature switch (positions 1-2-3)
H. Air speed switch (positions 0-1-2)
I. Hanging loop

Use

« VOLUME MASSAGER »

Clip the accessory on your hair dryer.

Select the temperature 1 and use the cool air function (E) during the massage.

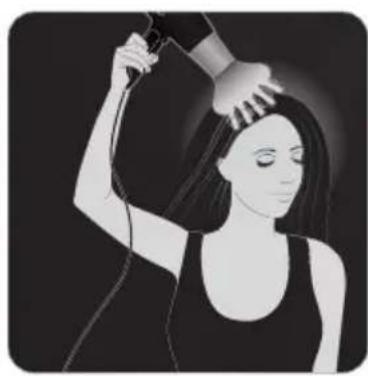

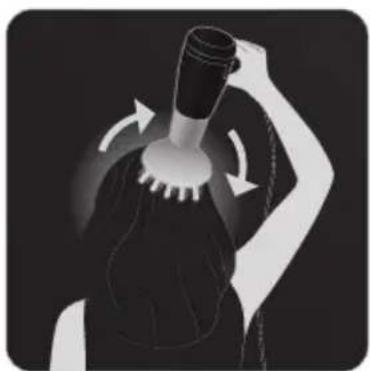

• Place the Volume Massager on the scalp and refer to (2) for recommended gesture.

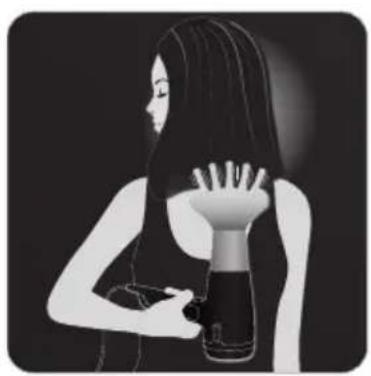

• Use the Volume Massager as a classic diffuser to boost volume and Redefine curls (3).

Use it on dry or wet hair.

"RESPECT" SETTING

Turn on the RESPECT function by pressing the RESPECT switch.

- The screen on your hair dryer will light up and the word RESPECT will appear. You are now in automatic mode. A steady temperature of 65°C and an air flow of 15m/sec protects your hair and dries it efficiently.*

- The temperature and speed controls have no effect in RESPECT mode.

*Test conducted by external laboratory compared with conventional drying at maximum setting (France, April 2010).

« IONIC SYSTEM - CASHMERE KERATIN CERAMIC COATING »

Your hair dryer automatically produces negative ions which reduce static electricity. Combined with the Cashemere Keratin coating, hair is shiny and easy to comb.

Accessories

• Concentrator (1)
  • "Volume Massager" diffuser (2-3)

Cleaning

Warning: always unplug the appliance before cleaning it.

- Your hair dryer requires very little maintenance. You can clean it, as well as the accessories, with a slightly damp cloth to remove any hair or impurities that may be clinging to the rear grid.

Environment protection first!

Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

These instructions are also available on our website www.obhnordica.com.
