Product Type	Blender
Brand	OBH Nordica
Model	Blendforce LH4201S0
Motor Power	700 W
Capacity	1.5 L
Number of Speeds	2 + Pulse
Blade Material	Stainless Steel
Jug Material	Glass
Dishwasher Safe Parts	Jug and Lid
Safety Lock	Yes
Dimensions (H x W x D)	40 x 16 x 16 cm
Weight	1.8 kg
Power Cord Length	1.2 m
Ice Crush Function	Yes
Smoothie Function	Yes
Overheat Protection	Yes
Non-Slip Feet	Yes
Spare Parts Available	Jug, Blades, Seal
Warranty	2 Years
Manual Included	Yes (52 pages)

Frequently Asked Questions - Blendforce LH4201S0 OBH NORDICA

How do I assemble the blender?

Place the jug on the motor base, align the markings, and turn clockwise until it locks. Attach the lid securely before use.

Can I blend hot liquids?

No, allow liquids to cool to room temperature (max 60°C) to avoid pressure buildup and damage.

How do I clean the blender?

Detach the jug and lid. Wash them in warm soapy water or the dishwasher (top rack). Wipe the motor base with a damp cloth. Do not immerse the base in water.

What is the maximum capacity for blending?

Do not exceed the MAX line (1.5 L) to prevent overflow and ensure proper blending.

Why does the blender stop suddenly?

The blender has overheat protection. Allow it to cool for 10-15 minutes before resuming. If the problem persists, check the power connection.

Can I use the blender for grinding coffee beans?

This blender is designed for soft fruits, vegetables, and liquids. For hard items like coffee beans, use a dedicated grinder to avoid blade damage.

How do I replace the blender blade?

Unscrew the blade assembly from the jug base using a coin or tool. Install a new blade and tighten securely. Replacement blades are available from OBH Nordica.

Is the blender BPA-free?

Yes, the jug and lid are made from BPA-free materials for safe food contact.

What is the noise level?

The blender operates at approximately 85 dB. Use on a stable surface and avoid running empty.

Can I purchase spare parts?

Yes, spare parts like jugs, blades, and seals are available through OBH Nordica customer service or authorized dealers.

USER MANUAL Blendforce LH4201S0 OBH NORDICA

DESIGNING GOOD LIFE

Blender BLEND FORCE

Making good!

Bruksanvisning - svenska......sida 5 - 13
Brugsanvisning - dansk......side 14 - 22
Bruksanvisning - norsk......side 23 - 31
Käyttöohjeet - suomi......sivu 32 - 40
Instructions of use - english......page 41 - 49

* SE - Beroende på modell

* EN - According to model

RENG∅RING AF APPARATET

Visiting address: Deltapark 37, 3. sal

Phone: [phone]

Direct: [phone]

www.obhnordica.dk

SIKKERHETSINSTRUKSJONER

BEGRENSET GARANTI for OBH Nordica

Garantien

- Before using your appliance for the first time, carefully read these instructions for use and retain them for future reference: the manufacturer shall not accept liability in the event of any use that does not comply with the instructions.

- Make sure that the voltage that your appliance uses matches that of your electrical supply system. Any error in connection will negate the guarantee.

- This product has been designed for indoor and domestic use only, and at an altitude below 2000m. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

• Always disconnect the appliance from the mains power supply when it is unattended and before assembling, dismantling or cleaning it.

- Remember: you may injure yourself if you use the appliance incorrectly.

- Do not use the appliance if it is not working properly or if it has been damaged. In this case, contact an authorized service centre (see the list in the service booklet).

- All maintenance other than cleaning and everyday upkeep by the customer must be performed by an authorized service centre.

- Do not use this appliance to blend or mix non-food items.

- Never use the blender jug without ingredients or with solid ingredients only.

• Always pour the liquid ingredients into the blender jug first, before adding the solid ingredients.

- Do not use the mixing bowl or accessories (according to model) as containers for preservation, freezing, cooking or sterilisation.

- In order to prevent overflow, do not fill the bowl or jug over the maximum level (if indicated).

• Do not touch any moving parts (blades, etc.).

- Blades are very sharp: to prevent injuries, handle them with care when emptying the blender jug, the bowls (according to model), cleaning, assembling and dismantling the blender jug (according to model) and the accessories (according to model).

- Never place your fingers or any other object not intended for this function in the blender jug when the appliance is running.

- Never remove the lid or the blender jug before the appliance has come to a complete stop.

• Always use the blender jug with the lid.

- Place the appliance on a stable, heat-resistant, clean and dry worktop.

• Do not immerse the appliance, power cord or plug in any liquid.

• Do not leave the power cord hanging within reach of children.

- Do not leave the power cord close to or in contact with the hot parts of the appliance, near a source of heat or a sharp angle or inside the blender jug in contact with the blades.

- Keep moving parts (blades) away from the cord during use.

• Never pull the power cord to disconnect the appliance.

- Do not allow long hair, scarves, ties etc. to hang over the appliance or attachment when either is in use.

- Do not use the appliance if the power cord or plug have been damaged. To avoid all danger, have them replaced by an authorized service centre (see the list in the service booklet).

- For your safety, only use spare parts and accessories that are approved for your appliance.

- Be careful if hot liquid is poured into the blender as it can be ejected out of the appliance as it produces a lot steam.

- Do not pour boiling liquids (over 80°C/176°F) in the bowl or jug (according to model).

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

• Do not allow children to use the appliance without supervision.

- This appliance is designed for domestic use only. It is not intended to be used in the following environments, in which the guarantee shall not apply:

- Kitchen work areas in shops, offices and other working environments.

- In kitchen areas reserved for staff in shops, offices and other professional environments.

-Farmhouses

- By clients in hotels, motels and other residential environments.

- Bed and breakfast type environments.

• Switch off the appliance and unplug it from the electrical power supply before changing accessories or approaching parts that move in use.
• Refer to the instructions to obtain the appropriate operating time and speed settings for each accessory.
• Refer to the instructions for correct fitting and assembly of your accessories.
• Refer to the instructions for initial and regular cleaning of surfaces in contact with foodstuff, and for cleaning and maintenance of your appliance.

EUROPEAN MARKETS ONLY

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
  • Children shall not play with the appliance.
• This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instruction to use the appliance safely and understand the dangers.

Environment protection first!

Your appliance contains valuable materials which can be recovered or recycled. Leave it at a local civic waste collection point.

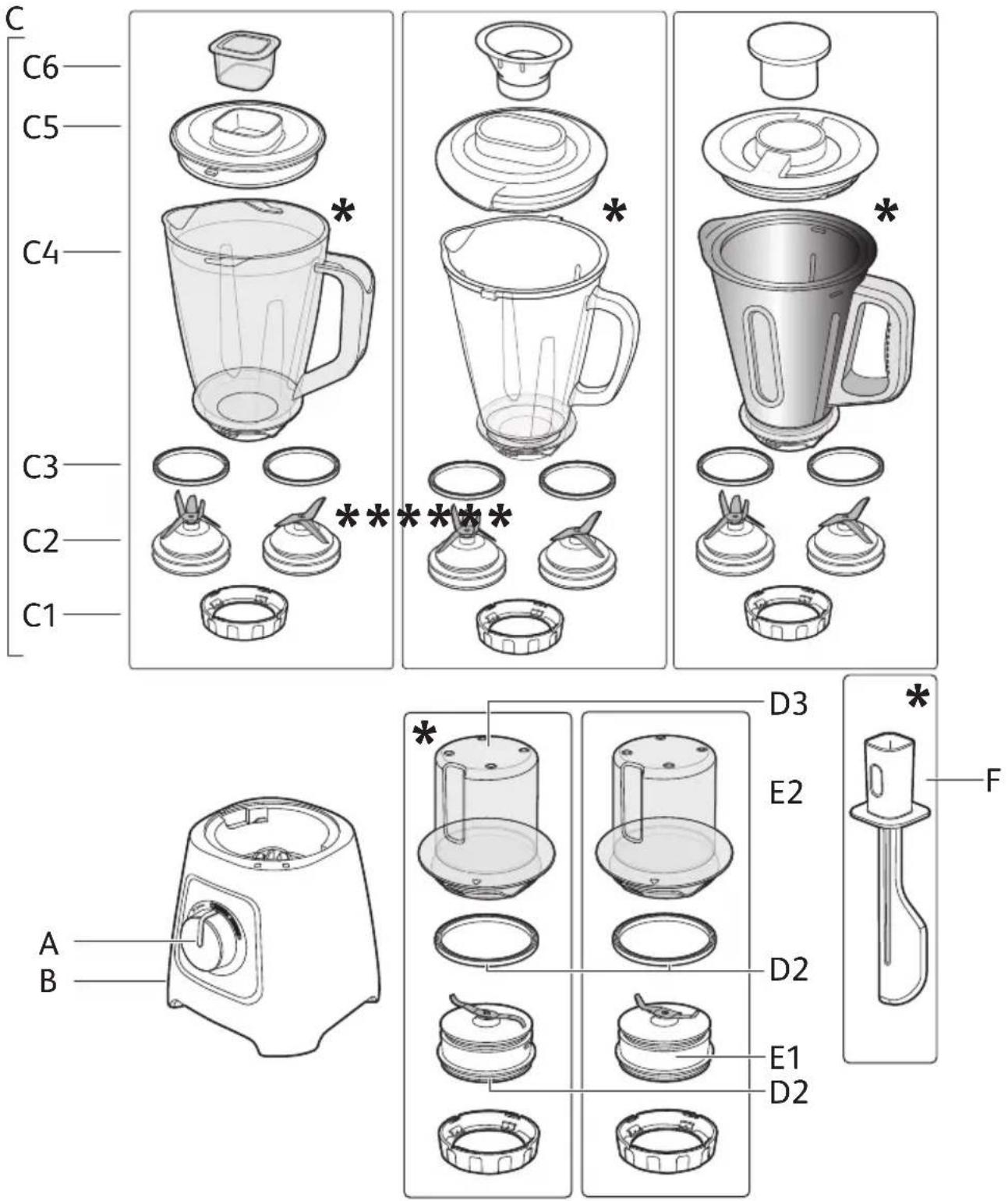

DESCRIPTION

A. Motor unit
B. Speed control dial
C. Blender:
C1. Blade support
C2. Blade
(*depending on model)
C3. Seal
C4. Jug
C5. Lid
C6. Measuring cap

D. Spice mill

(* accessory depending on model)
C1. Blade support
D2. Spice mill blade
D3. Seal
D4. Spice mill bowl

E. Herb chopper

(* accessory depending on model)
C1. Blade support
D2. Seal
E1. Herb chopper blade
E2. Herb chopper bowl

F. Spatula

(* accessory depending on model)

The accessories supplied with the model that you have purchased are shown on the label on the top of the packaging.

WARNING: Read the instructions for use carefully before using your appliance for the first time: the manufacturer shall accept no liability in the event of any use that does not comply with the instructions. Keep them in a safe place so that you can refer to them later.

SAFETY LOCKING

- The appliance can only operate when the jug (C) or the accessories (D or E) are correctly positioned and locked on the motor unit (A).

USING FOR THE FIRST TIME

• Before you use your appliance for the first time, clean all the accessories (C, D, E, F) using hot soapy water, except for the motor unit (A).
• WARNING: The blades are extremely sharp so handle them carefully when using and cleaning the appliance.
• Verify that the packaging has been removed before using the appliance.
• Important note: Turn the speed selector (B) to "O" before placing the blender jug or the accessories on the motor unit.

• The appliance will only start if the jug or the accessory is correctly positioned and locked on the motor unit.

• WARNING: Do not use the blender if the lid is not in place.

• Do not use the blender without ingredients or solid ingredients only.

USING YOUR APPLIANCE

Using the blender (C)

• Correctly position the seal (C3) on the blade (C2) (Fig. 1).

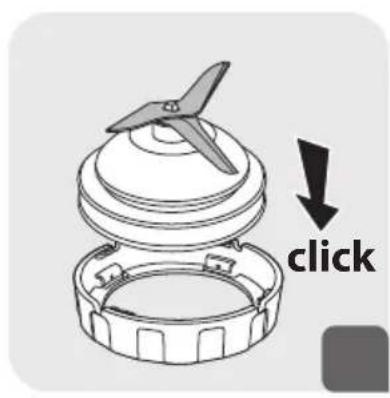

• Clip the blade (C2) on the blade support (C1) (Fig. 2)
• Place the blade assembly (C1, C2, C3) on the jug (C4) and lock it by turning the blade anti-clockwise (Fig. 3).
• Put the ingredients in the assembled jug without exceeding the maximum level indicated:

* 1.25 L for thick preparations

* 1 L for liquid preparations

- Warning: Do not process boiling liquids (over 80°C/176°F) in the blender jug.

• Lock the lid (C5) on the jug. Place the measuring cap (C6) in the lid opening (Fig. 4).
• Place the assembled jug (C) on the motor unit (A). The open lock is aligned with the arrow on the jug (Fig. 5 - position 1).
• Then turn the blender jug (C4) a quarter turn until the closed lock 🔒 is aligned with the arrow of the jug (Fig. 5 - position 2).
• Plug in the unit and turn it on by turning the speed selector to the desired position or apply a few pulses. To stop the blender, return to position 0.
• 2 positions are possible for the jug handle to the right or to the left of the motor unit.
• Do not use the blender (C) continuously for more than three minutes. Wait a few minutes before switching it on again. Do not use one of the blender accessories (D, E) continuously for more than 30 seconds.

Using the herb chopper (E) or spice mill (D)

• The herb chopper (E) allows you to chop ingredients such as herbs, nuts, onions, garlic, and dried fruit in a few seconds and prepare breadcrumbs.
• Do not use the herb chopper (E) for processing hard spices or ice cubes.
• The spice mill (D) allows you to chop of spices in a few seconds: coriander seeds, peppercorns, coffee beans, etc.

• Do not use the spice mill and the herb chopper for liquid preparations (fruit juice, etc.)
  • These accessories come with a bowl (D3, E2) which prevents access to the blades during use.

• Turn the bowl (D3, E2) upside down and add the ingredients.

• Correctly position the seal (D2) on the blade (C1) (Fig. 5).

Clip the blade (D1 or E1) to the blade support (C1) (Fig. 6).

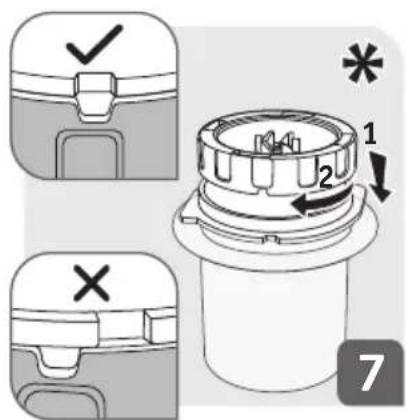

Place the blade assembly (C1, D1 or C1, E2) on the bowl (D3 or E2) and lock it by turning the blade clockwise (Fig. 7).

1. Turn over the assembled accessory (D or E) and position it on the motor unit. The open lock ⏻ is aligned with the arrow on the bowl

(Fig. 8 - position 1).

1. Then turn the assembled accessory (D or E) a quarter turn, anti-clockwise, until the closed lock Ⓐ is aligned with the arrow on the bowl (Fig. 8 - position 2).
2. Connect the appliance and turn the speed selector (B) to the desired position or pulse a few times. Hold the bowl (D3, E2) when the appliance is in operation. To turn off the appliance, turn the speed selector (B) to put it back to position "O".
3. Unlock the accessory by turning it a quarter turn, anti-clockwise, until the closed lock is aligned with the arrow of the bowl. Remove the assembled accessory (D, E) from the motor unit. Put it to the worktop before unlocking the blade (D1, E1) from the bowl (D3, E2) by reversing the order of assembly. The blades are very sharp: handle very carefully to avoid injury. You can then remove the preparation in the bowl.
   * The colour of the bowl can change after the mixing of certain very hard ingredients (cloves, cinnamon, etc.).

Ingredients Quantities (max.) Operating time Accessory
Apricots/Figs *600W_45 g		4 seconds at speed 2	E
Apricots/Figs *700W_80g		4 seconds at speed 2	E
Rusks 1 biscuit 10 pulses E
Onions 60 g 8 pulses E
Shelled almonds/hazelnuts 60 g 20 pulses E
Fresh coriander/parsley 10 g 5 pulses E
Coffee beans	40 g	30 seconds at speed 2	D

CLEANING YOUR APPLIANCE

• Never immerse the motor unit (A) in water and never place it under running water.
  • Unplug the appliance and remove the accessories.
• Handle them with care: the blades of the blender jug and the accessories are sharp.
• Remove the jug (C) or bowl (D3 or E2), then rinse it and its lid under running water.
• Clean the motor unit (A) with a damp cloth. Dry it carefully.
  • To make cleaning easier, wash all removable parts with water and a little washing-up liquid immediately after use.
• To make it easy to clean the blender jug (C4), unlock the blade (C2, D2, E2) by turning it a quarter-turn, anti-clockwise. It is possible to unclip the blade support (C1) to make cleaning easier. Remove the seal (C3) and clean the blade support and blade using running water.
  • After cleaning, remember to correctly fit the seal (C3 or D2) back onto the blade unit. Be careful to avoid any damage to the seal by the blades cutting it.

Note: Incorrectly fitting the seal can result in ingredients leaking from the blender jug, spice mill or herb chopper.

CLEANING THE JUG (PLASTIC, GLASS OR STEEL VERSION DEPENDING ON MODEL) IN A DISHWASHER:

- The plastic, glass or steel jug (C4), the lid (C5), the cap (C6), the spice mill bowl (E2), the herb chopper bowl (D3), as well as the spatula (F) can be cleaned in the upper basket of a dishwasher using the “ECO” or “REDUCED SALT” programme. The blades of the blender jug (C2), the seals (C3 & D2), spice mill (E1) and the herb chopper (D1) must not be cleaned in a dishwasher.

WHAT TO DO IF YOUR APPLIANCE DOES NOT WORK?

Problems Causes	Solutions
The appliance does not work.	The appliance is not properly plugged into the electrical outlet.	Plug the appliance into an electrical outlet and turn it on.
	The jug or the accessory is not correctly positioned or locked on the motor unit.	Check that the jug or the accessory is properly positioned and locked in the motor unit as shown on the images of the Instructions for Use.
Excessive vibrations.	The appliance is not placed on a flat, stable and heat-resistant surface.	Place the appliance on a flat surface.
	The volume of ingredients is too big.	Reduce the quantity of ingredients in the appliance.
There are leaks at the lid.	The volume of ingredients is too big.	Reduce the quantity of ingredients in the appliance.
	The lid is not correctly positioned.	Lock the lid correctly on the blender jug.
There are leaks at the base of the blender jug	The seal of the blender jug (C3) is not correctly positioned or is missing.	Reposition the seal and lock the blade correctly (C2).
There are leaks at the base of the accessories (spice mill or herb mill).	The seal (D2) is not correctly positioned or is missing.	Reposition the seal on the blade support (D1, E1) and lock the assembly correctly on the bowl (D3, E2).
	Making a liquid preparation in the accessory.	Do not use liquid in the accessory because this usage is not possible.
The blades have difficulty turning.	The pieces of food are too large or too hard.	Reduce the quantity or size of ingredients.Add liquid (for blender only).

IS YOUR BLENDER STILL NOT WORKING?

• Contact an authorised repair centre.
• You can customize your blender with the following accessories available from your usual distributor or an authorized service repair: Spice mill accessory (D), herb chopper accessory (E), additional blender jug (C4), spatula (F).

Disposal of the appliance

Legislation requires that all electrical and electronic equipment shall be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)

• damage as a result of lightning or power surges

• damage to any glass or porcelain ware in the product

• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

These instructions are also available on our website www.obhnordica.com.

TEFAL - OBH Nordica Group AB

Löfströms Allé 5 172 66 Sundbyberg Phone [phone] www.obhnordica.com
