Product Type	Blender
Brand	OBH Nordica
Model	Legacy 7749
Dimensions (H x W x D)	40 x 20 x 20 cm
Weight	3.5 kg
Power Consumption	800 W
Voltage	220-240 V, 50/60 Hz
Jug Capacity	1.5 L
Jug Material	BPA-free plastic
Blade Material	Stainless steel
Speed Settings	Variable speed with pulse function
Functions	Ice crushing, smoothie, soup, milkshake
Safety Features	Non-slip feet, lid lock, overload protection
Dishwasher Safe Parts	Jug and lid (top rack)
Cord Length	1.2 m
Color	White/Black
Certifications	CE, RoHS

Frequently Asked Questions - Legacy 7749 OBH NORDICA

How do I clean the blender jug?

The jug and lid are dishwasher safe on the top rack. Alternatively, rinse with warm soapy water and use a brush to remove residue. Do not immerse the motor base in water.

Can I blend hot liquids?

Allow hot liquids to cool to at least 60°C before blending. Always remove the center cap to allow steam to escape. Start at low speed and gradually increase.

What is the maximum capacity for blending?

The maximum capacity is 1.5 liters for blending liquids. For thicker mixtures, do not exceed 1 liter to avoid overloading the motor.

How do I use the pulse function?

Press and hold the pulse button for short bursts. This is ideal for chopping ice or achieving a chunky texture. Release to stop.

Why does my blender stop during operation?

The blender has overload protection. If it stops, unplug and let it cool for 15-20 minutes. Remove some contents if the jug is too full.

Can I crush ice in this blender?

Yes, the Legacy 7749 can crush ice. Add ice cubes, a small amount of liquid, and use the pulse function or start at low speed increasing to high.

Is the blender suitable for grinding dry ingredients?

No, the blender is designed for wet ingredients. Dry grinding may damage the blades. Use a dedicated grinder for coffee beans or spices.

How do I attach the jug correctly?

Place the jug on the motor base and rotate clockwise until it clicks into place. Ensure the lid is securely locked before operation.

What spare parts are available?

You can order a replacement jug, lid, seal ring, and blade assembly from OBH Nordica customer service or authorized dealers.

How long is the warranty on this blender?

The Legacy 7749 comes with a 2-year warranty against manufacturing defects. Register your product online to extend coverage.

USER MANUAL Legacy 7749 OBH NORDICA

DESIGNING GOOD LIFE

LEGACY 1200 W Blender

For quick and efficient blending

Bruksanvisning - svenska......sida 4 - 10

BEGRENSET GARANTI for OBH Nordica

Garantien

1. Read the instruction manual carefully before use and save it for future use.
2. Plug the appliance to a household outlet of 220-240 Volt AC only and use the appliance only for the intended use.
3. Always unplug the appliance from the mains supply in case of a problem, after use, when parts are mounted or removed from the appliance and before cleaning and maintenance.
4. Never immerse the appliance in water or any other liquid.
5. Do not let children use the appliance. Keep the appliance and the cord out of the reach of children.
6. Do not let children carry out cleaning and maintenance. Children should always be supervised in order that they do not play with the appliance.
7. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience with/knowledge about the appliance, if they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety and when they are aware of possible risks.
8. Check that the cord is not hanging free from the edge of the table.
9. Do not place the appliance on or near hotplates, open fire or the like.
10. The appliance should only be used under supervision.
11. Be careful when handling the appliance, as the

blade is extremely sharp! Do not touch the blade during use. Be careful that neither fingers nor tools touch the blade! Always unplug before cleaning.

1. The blender must not be used for more than 3 minutes at a time. Then leave the blender to rest for 1 minute before restarting it (to avoid overheating).
2. Always check the appliance, the cord and the switch before use. If the cord is damaged, it must be replaced by the manufacturer, an authorized service agent or a similarly qualified person in order to avoid a hazard.
3. Extra protection can be obtained by installation of a residual current device of 30 mA. Check with your installer.
4. The appliance is for domestic use only.
5. If the appliance is used for other purposes than intended, or is not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages as a consequence of the above to the product are not covered by the warranty.

Before use

Wash the jug, lid and filler cap in hot soapy water. The blade at the base of the jug is very sharp and must be handled with the utmost care. The blade unit can be removed and washed separately. For more information, see “Cleaning and maintenance”.

Use a damp cloth to clean the motor section.

Main components (see image on page 3)

1. Lid
2. Glass jug
3. Motor section
4. START/STOP button
5. Pulse button
6. Function dial

Use

The blender can be used for blending, chopping, puréeing and mixing e.g. milkshakes, baby food, soups and sauces. You can also crush ice for drinks, etc.

Assemble the blender after cleaning by first turning the glass jug upside down. Then slip the seal onto the blade unit. Position the blade unit in the base of the jug as per the illustration and screw the lock ring tightly onto the jug. Make sure that the lock ring is properly tightened, otherwise the blender will not start, as the lock ring will not activate the safety function. Make sure that the function dial is set to 0 and then place the jug onto the motor section so that the slots in the jug fit into the runners on the motor section. Check to ensure that the jug is straight and stable.

The blender motor moves the blade at high speed in order to guarantee thorough mixing. It is important, therefore, that the blender is always placed on a flat, dry surface before it is started. Also check that the jug is correctly positioned on the motor section, otherwise the blender will not start. Remember to place the lid and filler cap on the jug before starting the blender.

Fill the glass jug with the ingredients to be mixed and then place it onto the motor section. Plug in the blender and turn the function dial to the required programme or speed. Start the mixing process by pressing the START/STOP button. Each function has a programmed process time (see under each function for more details), but the mixing process can also be stopped manually by turning the function dial to 0. The blender also has continuous speed adjustment that can be activated by turning the function dial to the setting of your choice between MIN and MAX. Then press the START/STOP button.

Blender functions:

Ice crushing Add a maximum of 14 ice cubes to the blender jug. The blender operates in pulse intervals of around 33 seconds unless it is turned off manually at the switch or by turning the function dial to 0.

Fruit/vegetables The blender operates at an accelerating speed for around 1 minute unless it is turned off manually at the switch or by turning the function dial to 0.

Smoothies The blender operates at various alternating

speeds for around 1 minute unless it is turned off manually at the switch or by turning the function dial to 0.

Pulse Use pulse mode (P) for short time intervals and

for crushing ice. The pulse button must be kept depressed for the blender to operate. As soon as the button is released, the blender switches off.

Continuous speed MIN-MAX

The blender has continuous speed adjustment. Start at a low speed and gradually increase as required. Turn the function dial to the desired speed and start the mixing process using the START/STOP button. Switch the blender off by turning the function dial back to 0 or pressing the START/STOP button.

Once a programme has ended, turn the blender off and turn the function dial back to 0.

It is recommended that you try various speeds to work out what is best for the ingredients you are mixing. Always keep an eye on the mixing process and switch the appliance off once the required results have been reached. Always unplug the appliance after use.

The blender must not be used for more than 3 minutes at a time. Then leave the blender to rest for 1 minute before restarting it (to avoid overheating).

Never remove the glass jug from the appliance when the motor is running.

NOTE! Please note that the blender must not be started up with only dry ingredients inside (e.g. nuts), as this may break the appliance. Always add a splash of liquid before starting the blender.

Mixing hot liquids

The glass jug can tolerate hot ingredients and liquids/soups. When hot liquids are added to a closed container (e.g. a blender jug with lid), high pressure forms automatically. There is a risk, therefore, that the lid will fly off during use and hot liquid will spray out. To avoid this, do the following:

1. The temperature of the liquid to be added should not exceed 65°C.
2. Fill the jug no more than half full with the desired ingredients (such as vegetables, root vegetables, etc.)
3. Start the blender on the Fruit/vegetable programme and then slowly pour the liquid (hot stock, cream, or similar) through the hole in the lid. Do not

switch the blender off while doing this. If the blender is switched off with hot liquid in it, and is then restarted, pressure may form from the bottom due to the high speed of the motor, causing the lid to fly off and hot liquid to splash out.

If, despite everything, the blender is turned off during the above process and needs to be restarted, keep one hand on the lid – using a towel/pot holder or similar – and watch out for any splashes of hot liquid. It is only hot liquid that must not be mixed because the pressure in the jug gets too high.

IMPORTANT! We do not recommend mixing frozen berries/fruits on their own, as they can easily freeze into a lump and then block the blades.

If you want to add other ingredients or liquid during use, you can, provided the mixing process is stopped before the cap or entire lid is removed. Make sure that the ingredients to be added are not too thick or too heavy for the motor to process. If necessary, add a little liquid through the lid if the motor is struggling or stop the mixing process and scrape the mixture toward the blade using a rubber scraper.

MAKE SURE THAT THE LID AND FILLER CAP ARE BOTH IN PLACE ON THE JUG BEFORE RESTARTING THE BLENDER!

IMPORTANT! Use tepid water to clean the glass jug after mixing ice cubes, as the jug will be chilled and hot water may create stress in the glass and cause cracks.

Overheating

The blender is equipped with a thermostat to ensure that the appliance has a long service life. It is activated if the motor becomes overloaded. If the thermostat is activated, turn off the appliance and unplug it. Wait 30 minutes before restarting the appliance. Clean the parts as instructed in “Cleaning and maintenance”.

Cleaning and maintenance

Always unplug before cleaning. Important! Always clean the blender jug after use. This is to avoid the jug discolouring. All parts of the blender jug are dishwasher-safe apart from the blade unit, which must be washed carefully by hand – note that the blades are very sharp. Carefully dry all the parts before putting them away. Do not use abrasive cleaning products. Remove any stubborn stains by soaking and rubbing with a soft cloth and mild detergent. Use a damp cloth when cleaning the motor section. Dry thoroughly before reusing the appliance or putting it away.

You can also clean the blender jug by pouring around 300 ml of water into the jug along with a few drops of washing-up liquid and then running the ice crushing programme for 30 seconds. Then rinse the jug carefully with clean water.

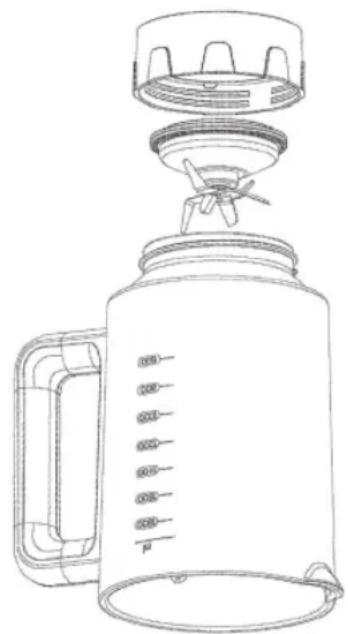

Remove the blade unit from the glass jug and clean it separately as follows: Place the glass jug upside down and twist off the lock ring at the bottom of the jug by turning it anticlockwise. Lift the blade unit out of the glass jug and clean the unit and the seal with care. The blade unit can be washed in a dishwasher. Dry carefully afterwards. Note that the blades are very sharp.

Replace the blade unit and seal in the hole in the glass jug afterwards. Secure them in place by turning the lock ring clockwise. Make sure that you secure the lock ring properly. Then replace the glass jug on the motor section.

IMPORTANT!

THE MOTOR SECTION MUST NEVER BE IMMERSED IN ANY LIQUID!

Disposing of the appliance

By law, electrical and electronic equipment must be collected for the recycling of components. Electrical and electronic equipment marked with the waste management symbol must be disposed of at a municipal recycling point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship for 2 years within Sweden, Norway, Denmark, and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordica's choice, a replacement product may be provided instead of repairing a defective product. OBH Nordica's sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

These instructions are also available on our website www.obhnordica.com.

TEFAL - OBH Nordica Group AB

Löfströms Allé 5

Phone.: [phone]

www.obhnordica.com

Technical Data

OBH Nordica 7749

220-240V ~, 50 Hz

1200 W

Glass jug volume 1.7 litres

We reserve the right to make changes without notice.

SE/JG/7749/240818
