E24 80 W - Range hood EICO - Free user manual and instructions

Product Type	Under-cabinet range hood
Brand	Eico
Model	E24 80 W
Width	80 cm
Depth	50 cm (typical)
Height (min-max)	60-120 cm (adjustable chimney)
Weight	Approx. 20 kg
Power Supply	220-240 V, 50 Hz
Motor Power	80 W
Number of Speeds	4
Maximum Airflow	650 m³/h (timed boost to 7 min)
Lighting Type	LED (non-replaceable individually, whole unit replacement)
Filter Type	Removable aluminum grease filter + optional activated charcoal filter (for recirculation)
Grease Filter Cleaning	Monthly wash by hand or dishwasher (low temp, short cycle)
Charcoal Filter Replacement	Every 6 months (not washable)
Filter Saturation Indication	Grease: 40 hours; Charcoal: 120 hours; reset by pressing 3+4 for 5 sec
Timer Function	5 minutes auto shut-off for any speed
Automatic Mode	Heat sensor adjusts speed automatically
Control Type	Soft-touch buttons on glass panel
Installation Type	Wall-mounted, surface mount only; not to be tiled or grouted
Minimum Distance from Cooktop	60 cm (electric) / 60 cm (gas or mixed)
Exhaust Options	Ducted (external) or recirculating with charcoal filter
Electrical Protection	30 mA differential switch required; plug or direct connection by qualified technician
Auto Shut-Off	After 4 hours of no use; timed speed returns to normal after 7 min
Warranty	Varies by region; refer to manufacturer

Frequently Asked Questions - E24 80 W EICO

What is the minimum installation height above a cooktop?

The minimum distance from the cooking surface to the hood is 60 cm for electric cooktops and also 60 cm for gas or mixed cooktops. If your gas hob manual specifies a greater distance, that must be followed.

How often should I clean the grease filter?

The grease filter should be cleaned once a month. You can wash it by hand with non-abrasive detergent or in a dishwasher on a low temperature, short cycle. Discoloration is normal and does not affect function.

How do I replace the charcoal filter?

The charcoal filter (only for recirculation mode) is not washable and must be replaced every 6 months under normal use. Purchase a compatible filter and follow the manual instructions for installation.

What should I do if the LED lights stop working?

The LED light unit is not user-replaceable. If the lights fail, please contact technical service to replace the entire lighting group. Ensure the bulbs are cool before any handling.

How can I reset the filter saturation indicator?

After cleaning or replacing the filters, press and hold buttons 3+4 for at least 5 seconds. The indicator will stop flashing. This reset should only be done after proper maintenance.

What is the maximum airflow of this hood?

The maximum airflow capacity is 650 m³/h. The highest (4th) speed runs for 7 minutes then automatically returns to the last non-timed speed for energy efficiency.

Can I install this hood over a plasterboard wall?

No. The hood must be affixed to a wall with sufficient weight-bearing capacity. Plasterboard walls are not suitable. Use solid walls (brick, concrete, etc.).

Does the hood have a timer function?

Yes, a 5-minute timer can be activated by pressing the selected speed button again. It works on all 4 speeds. After 5 minutes, the hood automatically turns off.

What is the automatic mode and how does it work?

Automatic mode uses a heat sensor to select the appropriate speed based on the heat rising from the cooktop. To activate, press buttons 1 and 2 together. The motor will adjust speed automatically. Press the motor ON/OFF button (B) to return to manual control.

Is the hood suitable for ductless installation?

Yes, if external ducting is not possible, the hood can be used in recirculating mode with an activated charcoal filter (purchased separately). The air is filtered and recirculated through the upper grille.

USER MANUAL E24 80 W EICO

GB

INSTRUCTIONS ON MOUNTING AND USE

DK

MONTERINGS- OG BRUGSVEJLEDNING

NO

INSTALLASJONS INSTRUKSJONER OG BRUK

SV

MONTERINGS- OCH BRUKSANVISNINGAR

FIN

ASENNUS- JA KÄYTTÖOHJEET

EN Always wear work gloves for all installation and maintenance operations

1- on motor

TitoloWarnings

The appliance should not be used by children under 8 years of age and by persons with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they are supervised or have received instructions regarding the safe use of the appliance and are aware of the possible risks. Children must not play with the appliance. Any intended cleaning and maintenance by the user should not be carried out by children unless supervised. The hood should never be used without without the grid properly fitted! Never use the hood without the grill properly fitted!

The accessible components can overheat when the cooktop is in use.

The hood must not be connected to the flues of other appliances that run on gas or other fuels. When the hood is used at the same time as other appliances that run on gas or other fuels, provision must be made for an adequate supply of air. No food must be cooked flambé underneath the hood. The use of an unprotected flame could cause damage to the filters and could cause fires, so should be avoided. When frying food, never leave the pan unattended because the cooking oil could flare up. Please comply with the technical and safety provisions set forth by your local competent authorities regarding the ventilation of hoods.

This appliance conforms to European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). Please dispose of this product correctly in the interest of health and the environment.

The symbol 📁 on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. If the power cable is damaged you should, in the interest of safety, contact the manufacturer or the manufacturer's technical assistance service to request a replacement, or ask someone who is similarly qualified.

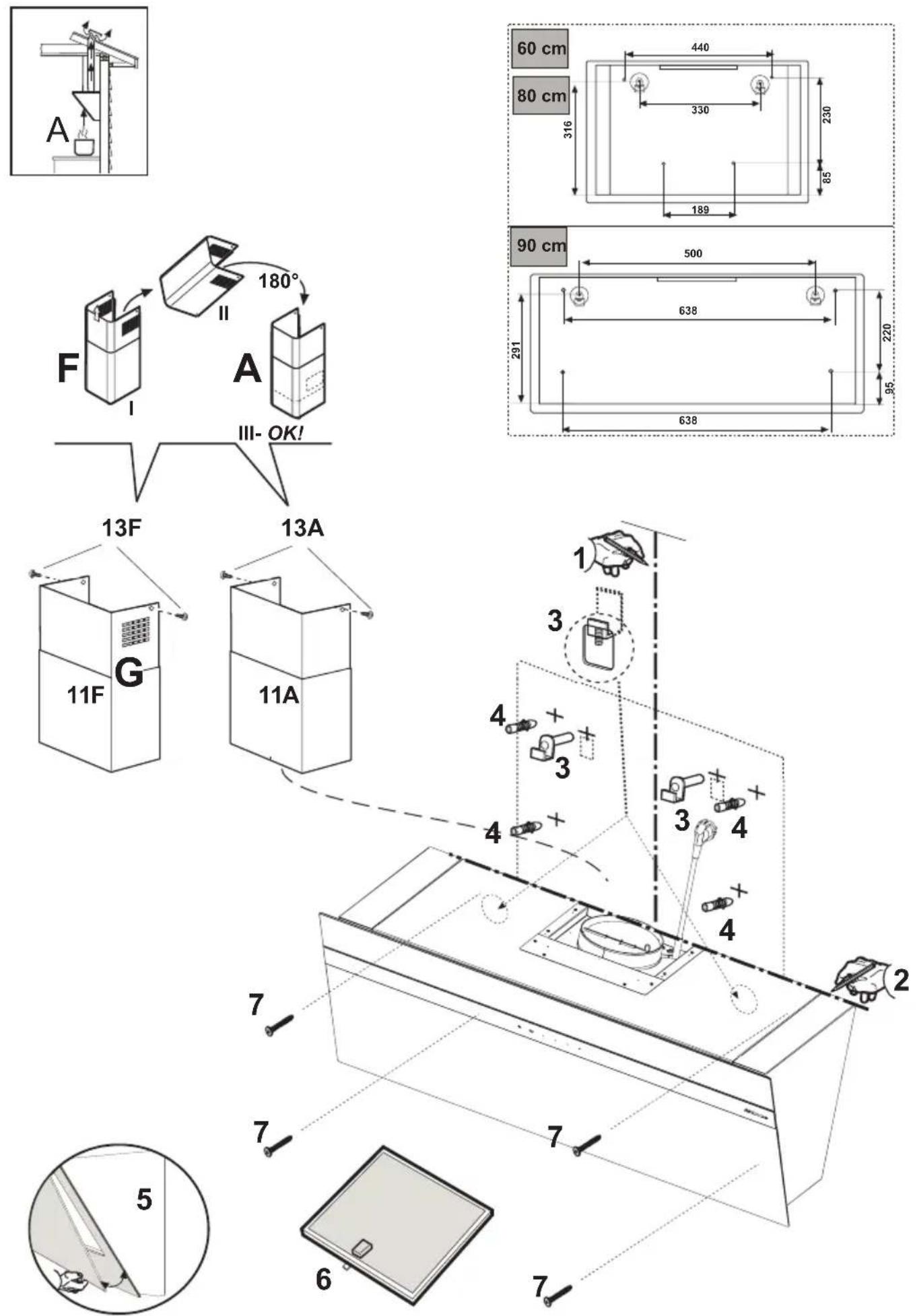

Check also the drawings on the initial pages with the alphabetical and numerical references in the explanatory text. Closely follow the instructions in this manual. We cannot accept liability for any faults, detriment or fire damage to the appliance due to non-compliance with the manual's instructions.

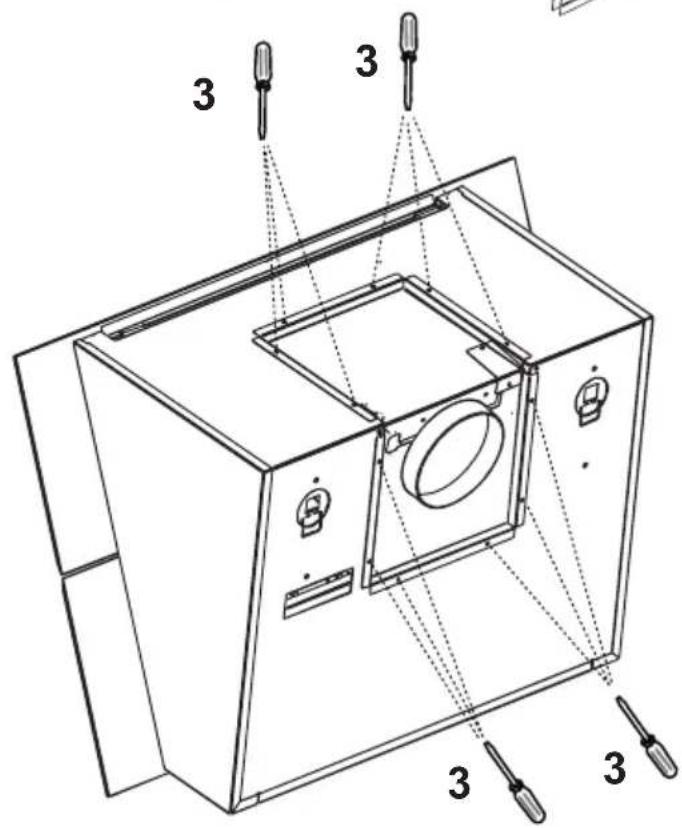

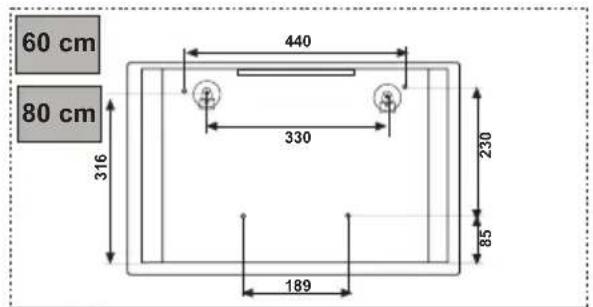

You should affix the hood to a wall of sufficient weight-bearing capacity, so not to one made of plasterboard.

The cooker hood must be placed at a minimum distance of 60 cm from the cooking plane for electric cookers and 60 cm for gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.

The cooker hood is provided with an upper air exit B for discharging fumes externally for models including chimney flue C (Suction Version A- exhaust pipe not supplied). If cooking fumes and vapours cannot be externally discharged, the cooker hood can be used in the recirculating version F: the installation of 1 active charcoal filter F allows the recirculation of fumes and vapours through the upper grid G.

Make sure that there is a power socket near the hood and that the system has a 30 mA differential. The mains voltage must be the same as that on the label inside the hood. The hood has a 1250 mm power cable with or without plug: if it does have a plug, connect the hood to an accessible approved socket; or if it does not (connection direct to the mains), fit an approved bipolar switch with a minimum contact opening of no less than 3 mm (accessible). This installation and electrical connection must be executed by a qualified technician.

If the cooking top is in use, the cooker hood must always operate.

Product performance test carried out in accordance with standard (EU) No 65/2014-Ref: IEC 61591

Maximum performance is achieved by placing the mobile panels, if any, in the open position.

T6b13

A

B

General notes: Any function can be activated by pressing softly the button under the symbol.

A. ON/OFF light button: By essing this button the hood's lights switch on.

B. ON/OFF motor button: By pressing this button the extracting motor can be activated/stopped.

1.2.3.4. Speed regulator button: By progressing this button the hood activates the selected extracting speed.

Funzione Timer: By pressing once again the Selectedspeed button, the timer will last for 5 minutes. This function can be applied to all 4 available speeds.

Grease filter saturation: After every 40 hours of use of the hood, the button B or 3+4 indicator shows byflashing slowly that the grease filters need to be washed.

Charcoal filter saturation: After every 120 hours of use of the hood, the button B or 3+4 indicator by flashing fast shows that the charcoal filters need to be replaced.

Note: By pressing for at least 5 minutes the button 3+4 will reset the filters saturation indicator.

Attention! This function should only be used after performing the maintenance of the filters.

Automatic functioning through the heath sensor:

By pressing the button 1 2 at the same time, the hood starts the automatic functioning. The indicators of the 4 speeds will flash in sequence. After more or less 30 seconds the temperature sensor will start the motor choosing the right extracting speed. The speed will change according to the heath coming from the hob.

By pressing B the manual functioning can be restored.

Always clean the glass of the control for a correct functioning.

All hoods with capacities exceeding 650 m3/h have the last timed speed; It lasts for 7 minutes, after which it automatically returns to the last non-timed speed.

Optional

1: + motor

2: On/Off motor

3: - motor

4: On/Off light

5: Led

Note: the LED on the hood indicates the various speeds: green 1st speed, orange 2nd speed, red 3rd speed and flashing red 4th speed. All hoods with capacities exceeding 650 m3/h have the last timed speed; It lasts for 7 minutes, after which it automatically returns to the last non-timed speed.

Initialization procedure:

1. Cut off power to the hood
2. Power the hood again
3. Within the first 5 sec, press the light button and release it after the lights turn on (the control must be turned on via key 3)
4. Within 5 sec, press the motor key and release it

Now you have to wait for about 10 seconds – then you can use the hood normally.

Notes: after 4 hours from the last use of a key, the hood turns off automatically.

Should there be interferences with other nearby remote controls, carry out the code change procedure.

Should it be required to replace the radio control, the frequency of the electronic system of the new radio control must be calibrated again via the initialization procedure.

Procedure for generating a new code for the radio control.

The radio control is supplied with default codes. If you want to generate new random codes you need to follow the procedure below: simultaneously press the plus and minus keys for at least 10 seconds; the LED will turn on, then press the two buttons again (within 3 seconds). The LED flashes three times to indicate that the operation has been completed. Once you changed the radio control you must run again the initialization procedure.

MaiTiteration

Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet.

Cleaning

The hood must be cleaned frequently both inside (apart from the area behind the grease filter) and outside. Use a cloth moistened with denatured alcohol or neutral liquid detergents. Never use products containing abrasives.

Warning

Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions.

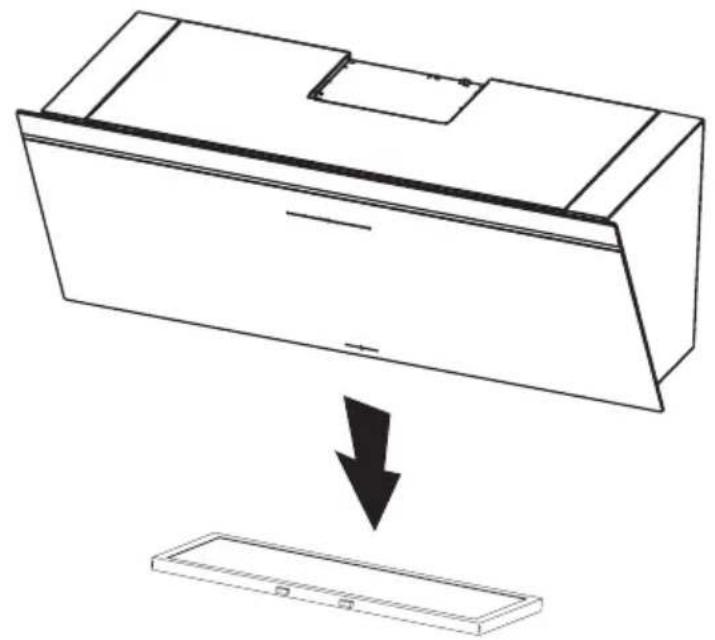

Anti-grease Filter

must be cleaned once a month, with non abrasive detergents, by hand or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

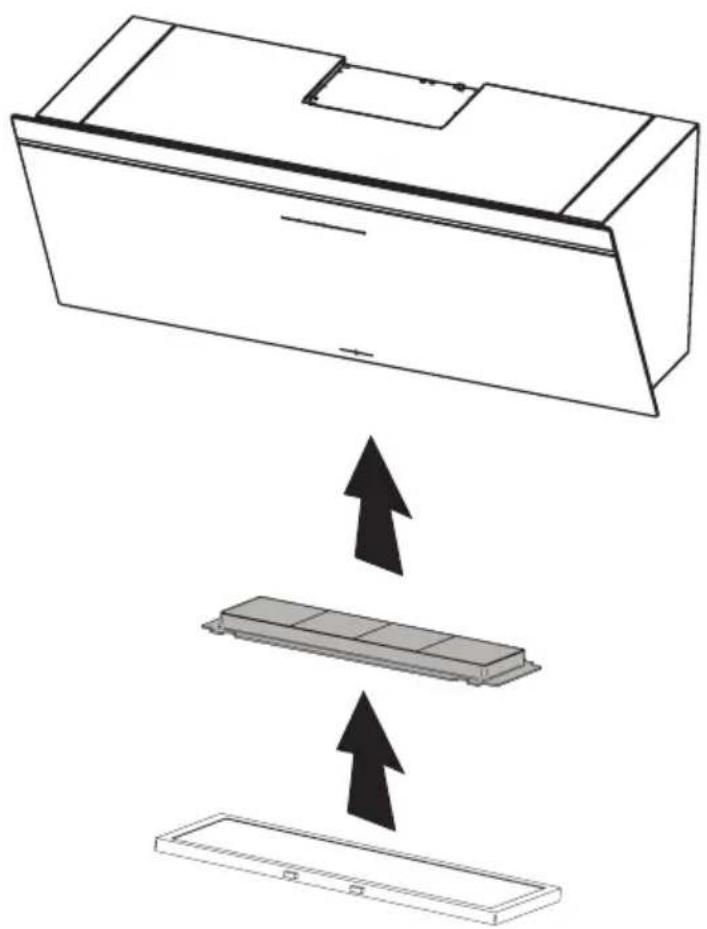

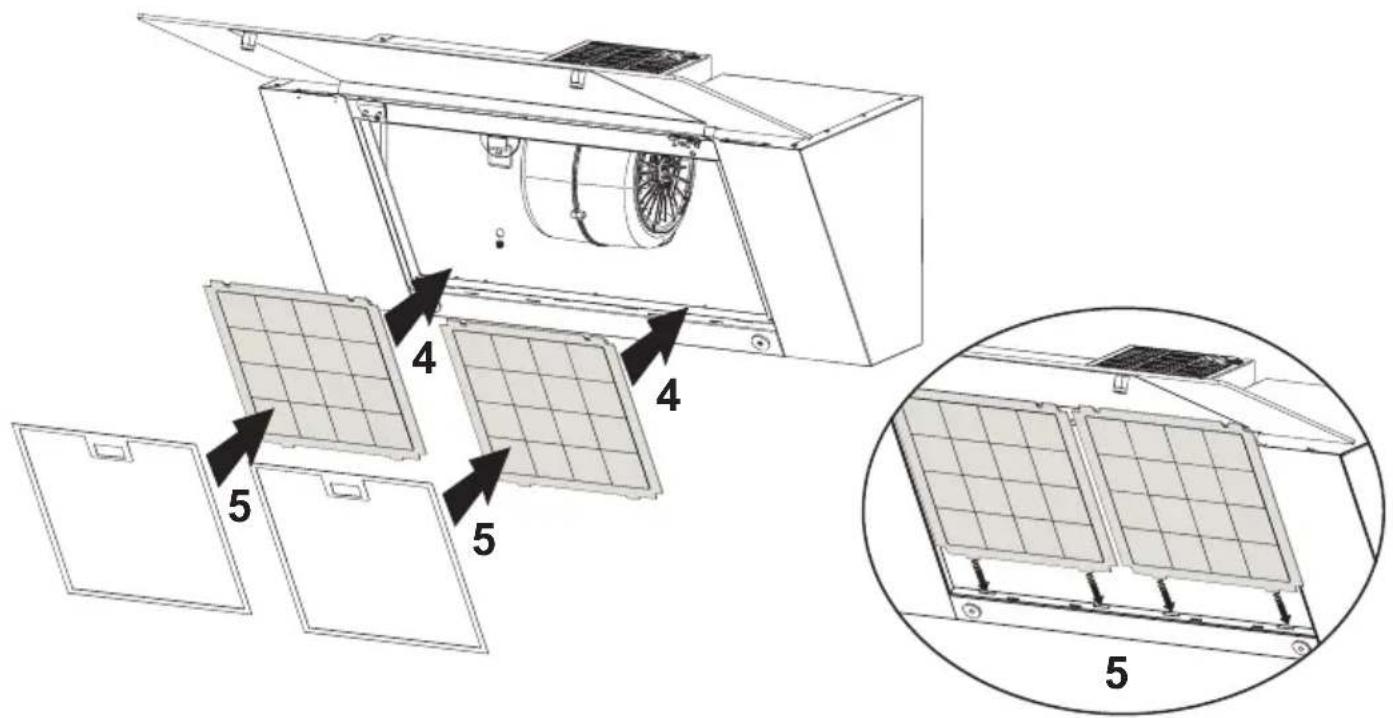

Charcoal Filter - (only for filter version)

The active charcoal filters F are not washable nor regenerative. It should be changed every 6 months in normal use. The active charcoal filters capture unpleasant cooking odours.

Replacing lightbulbs

Warning! Prior to touching the light bulbs ensure they are cooled down.

Led Light

If the lighting group LED does not work, please contact the technical service center in order to replace the whole group.

Reducing environmental impact:

To reduce energy consumption, we recommend you always use the lowest suction speed among those suitable for the cooking mode currently active, avoid leaving the appliance running for more than 15 minutes after burner shutdown and switch off the lights if you leave the cooking area.
