USER MANUAL OTC 95 BE Scancool

Line drawings of three different plastic housing compartments with ventilation grilles (no text or symbols)

Technical line drawing of a two-part mechanical housing with internal grid and mounting bracket (no text or symbols)

The refrigerated and frozen food cabinet described in this operating manual is intended for storing snacks, cold drinks, dairy products and frozen foods or ice cream.

Do not load the cabinet with non- frozen products and do not try to freeze products in the case.

Proper use only means the use as described above, adhering to the specifications on installation, connection, operation, and service. Any other use is regarded as being contrary to specification and is prohibited.

To avoid any damage during the transport or the installation, never tilt the cabinet more than 50^ .

2. Safety regulation

• Warming: Keep ventilation openings in the appliance enclosure or in the structure clear of obstruction.
• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warming: Do not damage the refrigerant circuit.
• If the cabinet is filled with refrigerant Propane (R290) please read carefully the attached Safety Instructions. The type of refrigerant is documented in the cabinet's type plate.
• Refrigerating units operating on Propane (R290) may not be placed in an area with sources of ignition (e.g. Unsealed electrical contacts) or where the refrigerant could gather in the event of a leak. The type of refrigerant is indicated on the cabinet's type plate.

3. Safety regulation

The plug-in refrigerated cabinets as described in this operating manual are designed and manufactured in compliance with the international safety regulations.

Like any electrical appliance, it must be handled with all due care, particularly with consideration to ensuring electrical safety.

To ensure safe operation in all service conditions, the following safety precautions must be observed:

• The device may not be used by persons with limited physical, sensory or mental skills and /or with no experience and /or knowledge.
• Never connect the cabinet to the power supply if it is damaged (in transit or otherwise). When in doubt, contact your Service Organization or dealer.
• Contact your Service Organization if you are in any doubt about electrical connection, working or safety of your plug-in refrigerated cabinet.
• The power plug must be connected in regulation matter and the electrical power supply must be as indicated on the type plate.
• Never work by yourself on electrical equipment.
• Electronic and electrical elements (e.g. damaged cable) may only be replaced by a qualified electrician or person with experience in electrical engineering!

Safety first!

• If any damage occurs to the power cable, pull the plug to disconnect the cabinet. Please make sure that the cabinet can't be switched on again. Call your local Service Organization.
• Damaged fluorescent tubes, starters and/or tube covers must be replaced immediately. Contact your local Service Organization.
• When disconnecting the power plug,

always pull on the plug itself and never the cable.

- Remove the cabinet from use if it is not working properly or exhibits any damage. Disconnect the power plug. Transfer the merchandise to other cabinets or a cold-room and call your local Service Organization.

4. General view

OTC 95 BE/OTF 87 BE

1. Handle

2. Load limit line

3. Air baffle honey comb

4. Evaporator (under base plate)

5. Compressor

6. Thermostat or electronic controller (Dixell)

7. Condenser

8. Lid.

a. Cooling air intake

b. Air outlet

STP1309

1. Handle
2. Load limit line
3. Air baffle honey comb
4. Evaporator (under base plate)
5. Compressor
6. Thermostat or electronic controller (Dixell)
7. Condenser
   A Cooling air intake
   B. Air outlet

5. Installation

Line drawing of two rectangular storage cabinets with ventilation grilles (no text or symbols)

Line drawing of two rectangular containers with internal compartments (no text or symbols)

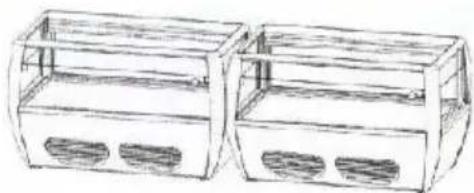

5.1 Single-row line-up

- When cabinets are installed side by side, no distance is required between the end walls of the refrigerated cabinets under normal ambient conditions.

5.2 Group installation, back to back

- When two STP1309 cabinets are installed back-to-back, this can be done without a distance between the rear walls.

5.3 Requirements for electrical connection

• The cabinet is connected by inserting the power plug in a socket.
• The cabinet must not be plugged into a multiple outlet power strip. The socket employed must be firmly installed, properly earthed and separately fuse-protected by a 10A-circuit breaker, type C.
• Supply voltage and frequency of the socket must be in accordance with the data shown on the type of plate of the cabinet. Therefore, the cross-section of the wires must be increased, if necessary, for long wires to the socket. The local utility company's regulations on the power connection (e.g., earth-fault protection, additional equipment bonding, remote control switch etc.) must be observed.
  • If in doubt, consult a qualified electrician.
• Run the power cables so that they are protected from risk of damage and there is no risk of tripping.
• Please don't drill in the outer or inner of the cabinet. This might damage the refrigeration circuit.
• If necessary, put the plugs of electrically operated accessories (e.g. the display superstructure) into separately secured sockets.
• The power cable may not come into contact with parts over 75°C.

6. Starting

6.1 Measures prior to Starting

If the cabinet has been sharply tilted while being sited or for mounting of accessories, it must be left to stand for at least three hours before being started to allow the lubricating oil to settle in the compressor! Failure to do so can cause destruction of the compressor refrigerating system.

6.2 Setting into operation

• Start the cabinet only if it has been installed as described.
  • Plug power plug (1-1) in socket (1-2).
• When selecting the socket, observe the requirements stated in section 4.7. The cabinet must not be plugged into a multiple- outlet power strip.
• Switch on remote control switch if provided.
• Starting is signaled by the low running noise of fans and refrigeration system.
• Customer should close the lids properly. If not, condensation might happen.

7. Setting the storage temperature

7.1 General information on temperature setting

• The temperature inside the cabinet is controlled automatically by a thermostat (Fig.1) or by the electronic temperature controller (Fig.2).
• The controllers have been pre-set in the factory and work automatically. The basic setting has been pre-set to ambient air conditions of 25°C and 60% rel. humidity.
  • Legislation prescribes the following

product temperatures for the different product groups with regard to the storage of food in refrigerated and frozen food cabinets:

Dairy products	+10 ° or colder
Cold drinks	+5 ° C or colder
Frozen food, ice cream	-18 ° or colder

When setting the temperature set point, please note that changes in ambient conditions demand a corresponding adaptation of the set temperature

7.2 Thermostat: setting:

Factory thermostat setting:

Type	Preset
OTC95BE	Position 6
OTF87BE	Position 6
STP1309	Position 6

• Position 7 marks the coldest temperature setting in both thermostats. We recommend making the new setting in small increments, since the cabinet needs time to adjust to the new temperature setting.
• Should a readjustment or reset of the storage temperature be required:

- Turn the setting knob (2-1) to a higher or lower temperature to correct the storage temperature.

- Use the thermometer to check the storage temperature.

7.3 Setting for the electronic controller

• The controller has been pre-set in the factory and works automatically. The basic setting has been pre-set to ambient air conditions of 25°C and 60% rel. humidity
• Should a readjustment or reset of the storage temperature be required:
• When setting the temperature, please observe the following:

- Changes in the ambient conditions demand a corresponding

adaptation of the temperature.

• Only carry out the temperature changes in small steps, as a certain time must elapse before the required storage temperatures are reached.
• After the set key is pressed, >2 sec, the figure displayed on the control electronics is no longer the storage temperature but temperature set point. The storage temperature is only shown again when the temperature set point has been set. (Fig.3).

Lower the storage temperature:

• Press the key (Fig.4-1) until the temperature is lowered to the required figure.
• Press the set key in order to store the new temperature (Fig.3).

Raising the storage temperature:

• Press the button (Fig.4-2) until the temperature is raised to the desired figure.
• Press the setting button to store the new temperature (see fig.3).
• A number of additional parameters can be set on the temperature control. However, modification of these parameters should only be done by authorized service personnel, as it affects the operating performance of the refrigerator.

- The setpoint temperature is factory set. If the temperature displayed on the controller approx. 4 hours after the products are loaded into the cabinet is not between value temperatures, the temperature can be readjusted.

- Should readjustment or resetting of the storage temperature be required, see section 6.

8. Product Loading

8.1 Loading the cabinet with products

• As soon as the cabinet has reached the prescribed storage temperature (see section 6), it can be loaded with products.
• The time required to reach the prescribed storage temperature after the start of the operation depends on the ambient temperature. It is reached approximately 1 hour after it has started.

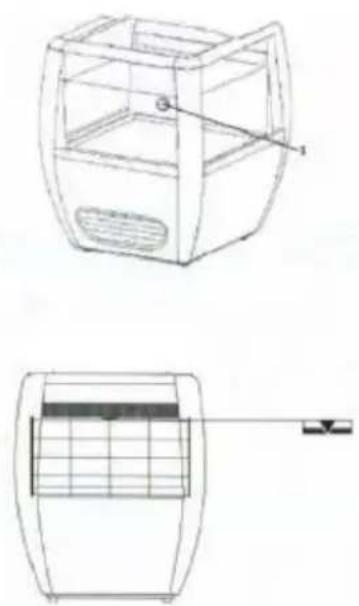

• Check the storage temperature at the thermometer. (Fig.1-1)
• Load the cabinet with items up to max. of the load limit lines. (Fig.2)
• OTC95, STP1309 Do not charge the refrigerator with products that are not refrigerated or use it to cool products.
• OTC95, STP1309 Do not load the cabinet with unfrozen products or try to freeze products in the cabinet. Only products with a temperature of -18 °C or lower can be loaded into the cabinet. An exception to this is formed by the types OTC95 and STP1309 if the cabinets have been switched to temperature range 2. In this case the double temperature cabinet may only be charged with products that have a product temperature of +5 °C or

lower.

- The cabinet must not be loaded above the load boundary lines to ensure that it works correctly and that frozen products can be presented at a safe temperature.

9. Automatic evaporator defrosting

• Defrosting of the evaporator fins and evaporation of the drip water formed during defrosting is performed automatically.
• During automatic defrosting, the temperature in the display compartment may rise slightly.
• Defrost frequency as well as duration and time are factory-set. Defrosting of the case is carried out automatically. For this reason, intervention in the case is not necessary. The drip water formed is automatically evaporated via the waste heat of the refrigeration system.
• The cabinet possesses a maintenance-free, electronic defrost timer with a running reserve for bridging times without a supply of current.
• The defrost timer has been set to the correct time in the factory. Alterations of the programming can only be done by the Service Organization, as the operating behavior of the cabinet can be altered by improper operation.

Manual evaporator defrosting in case of icing (only Dixell)

• Press the button (1-1) for longer than 2 seconds, and the manual defrost will start.
• "DFR" is indicated on the display.

10 Specifications

Type		OTC 95 BE	OTF87 BE	STP 1309
Lenght	(mm)	773	773	925
With	(mm)	833	833	1509
Height	(mm)	930	930	920
Display area	(m2)	0,81	0,81	1
Useful capacity	(L)	103	103	328
Weight	(kg)	83	86	185
Energy consumption	kWh/24t	2.9	8	13.5
Power consumption (refrigeration)	(W)	275	380	600
Fusing (slow)	(A)	10	10	10
Operating voltage	V/Hz	230/50	230/50	230/50
No. of defrosts	Min/24t	6×20min	6×8min	6×20min
Storage temperature	C^o	+2...+8	-15...-18	+2...+8
Refrigerant	R290(kg)	0.07	0.07	0.07
Max. Loading capacity of shelves	(kg)	55	55	95
Noise level	dB(A)	<70	<70	<70

Light

• Replaceable (LED only) light source by a professional.
• This product contains a light source of energy efficiency class F.

CE declaration of conformity

This appliance has been manufactured to the strictest standards and complies with all applicable legislations, Low Volt-

age Directive (LVD) and Electromagnetic Compatibility (EMC).

UKCA declaration of conformity

This appliance has been manufactured to the strictest standards and complies with all applicable legislation.

11. Troubleshooting

Any trouble occurring might be due to a minor problem that you can correct yourself following the instructions below. Do not try any further action if the pointers given cannot solve the problem!

Repairs on the cabinet must be made only by qualified specialists. Incompetent repair work can cause serious personal danger, contract your Service Organization for any repairs needed.

Trouble	Possible cause	Corrective measures
The cabinet does not work (no audible running noise or only fan noise audible.)	Automatic evaporator defrosting active or electronic controller switched off.Power plug not connected or remote control switch (where provided) switched off. Fuse blown, power plug or socket defective.Condenser fins fouled	Nor required, as cooling will switch on automatically again.Insert power plug properly in or switch remote control switch on.Contact your electrician or the Service Organization.Perform maintenance.
Cabinet stops running after short operation	Condenser fins fouled.	Perform maintenance.
Storage temperature is too high.	Automatic evaporator defrosting active.Ambient temperature too high or electronic controller misadjusted.The warm air outlet or another cabinet is directly taken in as air intake.Ventilation slots blocked or covered. Lack of air intake due to obstruction of air intake grill.Condenser fins fouled.	Not required, temporary minor temperature rise during defrosting is normal.Avoid extreme operating environment, readjust storage temperature.Observe single-row line-up and group installation.Keep ventilation slots free.Remove any obstacles in the air intake area.Perform maintenance.
Storage temperature is too low.	Incorrect adjustment	Adjust storage temperature in small increments.
Formation of odor in the cabinet.	Drip water gutter under base plate fouled.	Clean
Condensation on the sliding glass lids.	Wrong close of the sliding lids.	Close the lids properly.

1. Bes-

timmungsgemäße

Verwedung

Line drawings of three different plastic housing compartments with ventilation grilles (no text or symbols)

1. Handtag
2. Lastgränslinje
3. Luftbaffel honungskam
4. Förångare (under basplatta)
5. Kompressor
6. Termostat eller elektronisk styrenhet (Dixell)
7. Kondensor
8. Glas obere und untere Abdeckung
   a. Kylluftintag
   b. Luftuttag

Allmän vy STP1309

Line drawings of three different plastic enclosure units with ventilation grilles (no text or symbols)

Technical line drawing of a two-part mechanical housing with internal grid and mounting bracket (no text or symbols)

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: OTC 95 BE

Aftersales service station list:

Address	Scandomestic A/S
Contact Number	7242 5571
Website	Scandomestic.dk
QR code	422924
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	8 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: OTF 87 BE

Aftersales service station list:

Address	Scandomestic A/S
Contact Number	7242 5571
Website	Scandomestic.dk
QR code	985600
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	8 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE

With regard to energy labelling of refrigerating appliances with a direct sales function

Model identifier:	OTC 95 BE
Supplier's name or trademark	Scancool
Use	Display and sale
Type of refrigerating appliance with a direct sales function:	4. Supermarket cabinet
Cabinet family code, according to the harmonised standards or other reliable, accurate and reproducible methods in accordance with Annex IV.	HC3

Product specific parameters

1. Beverage coolers*
Total volume (dm3 or L)		Ambient conditions for which the appliance is suitable
		Warmest temperature (°C)	Relative humidity (%)

1. Ice-cream freezers with (transparent lid/non-transparent lid):*

Net volume, L	87	Ambient conditions for which the appliance is suitable
		Temperature range (°C)		Relative humidity range (%)
		minimum	maximum	minimum	maximum

1. Gelato-sccoping cabinets*

Total Display Area (m2)

Temperature class

1. [Integral/Remote] [horizontal/vertical (other than semi-vertical)/semi-vertical/combined] supermarket cabinet, roll-in*: [yes/no]:

Total Display Area (m2)

0,81

Temperature class

M1

1. Refrigerated vending machines, ^* (Scandomestic do not carry this type of appliance)

Volume (dm3 or L)		Temperature class
		Category

General source parameters:

Annual energy consumption	1058	Recommended temperature(s) for optimised food storage (°C)	2
EEI	37,4	Energy efficiency class	D

Light source parameters:

Type of light source	LED
Energy efficiency glass (for the light source)	F
Minimum duration of the guarantee offered by the supplier, (month)	12

*(Beverage coolers: fill in point 1, ice-cream freezers: fill in point 2, Gelato-scooping cabinet: fill in point 3, supermarket cabinet: fill in point 4, refrigerated vending machines: fill in point 5. If the refrigerating appliance with a direct sales function contains compartments working at different temperatures, or a compartment that can be set to different temperatures, the lines shall be repeated for each compartment or temperature setting):

Product information sheet

With regard to energy labelling of refrigerating appliances with a direct sales function

Model identifier:	OTF 87 BE
Supplier's name or trademark	Scancool
Use	Display and sale
Type of refrigerating appliance with a direct sales function:	4. Supermarket cabinet
Cabinet family code, according to the harmonised standards or other reliable, accurate and reproducible methods in accordance with Annex IV.	HF5

Product specific parameters

1. Beverage coolers*
Total volume (dm3 or L)		Ambient conditions for which the appliance is suitable
		Warmest temperature (°C)	Relative humidity (%)

1. Ice-cream freezers with (transparent lid/non-transparent lid):*

Net volume, L	102	Ambient conditions for which the appliance is suitable
		Temperature range (°C)		Relative humidity range (%)
		minimum	maximum	minimum	maximum

1. Gelato-sccoping cabinets*

Total Display Area (m2)

Temperature class

4. [Integral/Remote] [horizontal/vertical (other than semi-vertical)/semi-vertical/combined] supermarket cabinet, roll-in*: [yes/no]:			No
Total Display Area (m2)	0,81	Temperature class	L1

1. Refrigerated vending machines, ^* (Scandomestic do not carry this type of appliance)

Volume (dm3 or L)		Temperature class
		Category

General source parameters:

Annual energy consumption	2920	Recommended temperature(s) for optimised food storage (°C)
EEI	58,9	Energy efficiency class	E

Light source parameters:

Type of light source	LED
Energy efficiency glass (for the light source)	F
Minimum duration of the guarantee offered by the supplier, (month)	12

*(Beverage coolers: fill in point 1, ice-cream freezers: fill in point 2, Gelato-scooping cabinet: fill in point 3, supermarket cabinet: fill in point 4, refrigerated vending machines: fill in point 5. If the refrigerating appliance with a direct sales function contains compartments working at different temperatures, or a compartment that can be set to different temperatures, the lines shall be repeated for each compartment or temperature setting):

EU DECLARATION OF CONFORMITY

Ref. Ares In accordance with EN ISO 17050-1:2004

Model number (unique identification of the product):	OTC 95 BE
Name and address of the manufacturer or his authorised representative:	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer):	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
Object of the declaration (identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product)Product: Impulse CoolerBrand: ScancoolColour: Black
The object of the declaration described in point 4 is in conformity with the relevant Union harmonisation legislation:	EN55014-1:2017, EN 55014-2: 2015, EN 61000-3-2:2014, EN61000-3-3:2013/EMC directive (2014/30/EU), EN60335-2-89:2010+A1:2016+A2:2017, EN60335-1:2012+A11:2014+A13:2017, EN62233:2008, Machinery Directive 2006/42/EC, IEC 60335-2-89:2010, AMD1:2012, AMD2:2015, IEC60335-1:2010, AMD1:2013, AMD2:2016, (EU) 2019/2018, (EU) 2019/2024, 2021/341, 2021/340
References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared:	EN 61000-3-2
Additional information:	The appliance is intended exclusively for storing beverages

EU DECLARATION OF CONFORMITY

Ref. Ares In accordance with EN ISO 17050-1:2004

Model number (unique identification of the product):	OTF 87 BE
Name and address of the manufacturer or his authorised representative:	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer):	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
Object of the declaration (identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product)Product: Supermarket FreezerBrand: ScancoolColour: Black
The object of the declaration described in point 4 is in conformity with the relevant Union harmonisation legislation:	IEC 60335-2-89:2019, IEC 60335-1:2010, COR1:2010, COR2:2010, AMD1:2013, COR1:2014, AMD2:2016, COR1:2016, EN IEC 61000-6-3:2021, EN IEC 61000-6-1:2019, EMC 2014/30/EU, EU 2019/2018, 2017/1369, EU 2019/2024, 2009/125/EC, EU 2021/340, EU 2021/341
References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared:	EN 61000-3-2
Additional information:	The appliance is intended exclusively for storing beverages.
