USER MANUAL VM 91 E Scancool

Technical line drawing of two cylindrical electronic devices with labeled components A and B (no text or symbols beyond labels)

A: Kontroller
B: LED kontakt

Placering:

OPERATING AND IN-STRUCTION MANUAL

Before starting the appliance, read the information given in this User's Manual carefully and keep it in a safe place for further reference.

CAUTIONS

Prohibition: Below items with this text is prohibited. Otherwise, it will cause that the appliance to be damaged or user is injured.

Caution: Below items with this text is related with safe use of the appliance and the safety of the user. It must be followed up strictly otherwise, it will cause the appliance to be damaged.

Notice: Below items with this text must be paid more attention to by user. Otherwise, it will cause the appliance to be damaged or other damages by unsuitable operation.

230V/50Hz power source available

Caution

If the voltage fluctuation range is large. (Over 187V\~242V), it may cause refrigerator to be unable to start, thermostat or compressor to be damaged, or even carry out abnormal noise. Then, it is requested to add an automatic voltage regulator with power more than 1000W.

Socket with three holes available

Caution

Please make sure the socket has been connected with ground wire and don't transform the power cord in any situation.

The power cord and plug should keep solid contact with socket, otherwise, it may cause fire.

The plug should be accessible after the appliance positioned.

Never damage the power cord

Prohibition

Never unplug the appliance by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet. Never place the power cord under the appliance or let it be trampled.

Be careful when moving the appliance. Tie up the power cord and never rolling.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person to avoid a hazard.

If you need to lengthen the power cord, the area of section must be no less than 1.0mm2.

Caution

Please close the valve first once gas leakage, then open the window to exhaust ventilation, never pull out the power plug at this moment.

Before disposing an old appliance that goes out of use, please make sure it's inoperative and safe. Unplug the appliance and remove or destroy all the springs, latches, or bolt locks to avoid the risk of child entrapment.

• Never store or use petrol and other explosive substances nearby to avoid fire.
• Never store any explosive substances and strongly corrosion acid-base inside the appliance.
• Do not allow children to play with the appliance. In no case should the children be allowed to sit in the drawers or hang on doors.
• Keep away from water and never rinse the appliance by water.
• Altering the appliance without

permission and destroy the cooling system is strictly prohibited.

• Before cleaning and repairing the appliance or power failure, please pull off the plug. And do not plug in again until 5 minutes later to avoid compressor damaged.
• The appliance is designed for storing packaged foods only. It can't be used to store flowers, medicine, vaccine and so on.

OPERATION INSTRUCTIONS

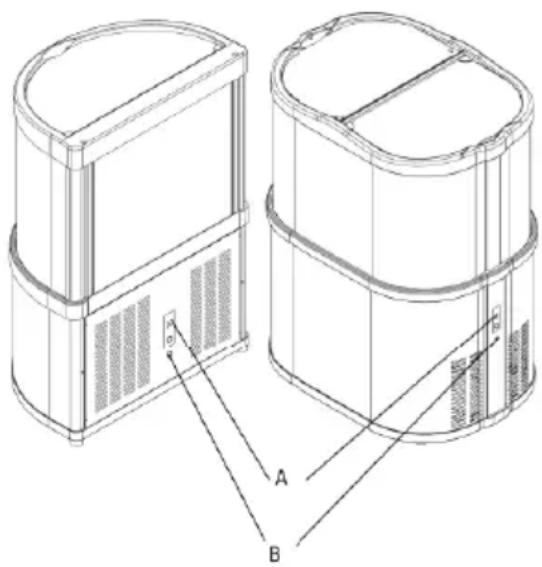

CONTROLLER

Technical line drawing of two cylindrical electronic devices with labeled components A and B (no text or symbols beyond labels)

A: Controller
B: Switch of LED

Location:

• Please take the plug cover off before connecting the power.
• Keep away from water and dry with a soft cloth when it is wet outside.
• Never place it in a too cold environment or use under the rain.
• Do not expose the appliance to direct sunlight or a heat source as cookers, radiators, heaters, etc.

Starting up

• Clean the inner compartment before using.
• Do not connect the power until 30 minutes later when the appliance is finished cleaning.
• Close the door and connect the power cord.

The temperature of refrigerator is regulated by the controller and the temperature is going lower gradually when revolving the controller from "1" to "6" in a clockwise direction.

Front Panel Operation

1. Set temperature (compressor stop temperature) adjustment: twist temperature adjustment knob, the set temperature will be displayed, and then twist temperature adjustment knob clockwise or anticlockwise to change value and store. Press the button once to exit set temperature adjustment state, if you do not adjust the knob, the cold-room temperature will be displayed after 6 seconds.

(Set temperature adjustment range: Parameter E1\~E2).

1. Refrigeration LED: during refrigeration, the LED is turned on; during delay time, the LED flashes.
2. Gear LED: when adjusting set

temperature, corresponding gear LED turns on, the set temperature is divided into 8 gears according to parameter E1\~E2.

1. Turn on/off power: press the knob for 3 seconds, the work mode will be turned off, all the control outputs will be disconnected, “---”will be displayed, and then press the knob once, the measured temperature will be displayed, after delay time it will start normally.

The temperature controller has been set in a suitable position before the refrigerator left the factory. It's not suitable to regulate it frequently. Please check whether the temperature is in a suitable position before using.

The inner temperature may not align with the above data due to different status of using and environment.

The inner temperature is regulated by the controller. “1, 2, 3, 4, 5, 6, 7, 8” doesn’t represent the actual temperature. The inner temperature is higher when the digit is smaller. The inner temperature is lower when the digit is larger.

Note:

Please don't touch the other parts when regulating the temperature controller.

CLEANING & MAINTENANCE

Notice

Unplug or disconnect the appliance before cleaning.

Wash interior parts manually using lukewarm water and some dish detergent. Do not use concentrated detergent, abrasive agents, and chemicals such as acids.

Avoid splashing water on the refrigerator when cleaning. Dry the surface of the refrigerator thoroughly.

Below things will damage the surface of refrigerator:

• Cleanser for kitchen
  • Petrol, diluent alcohol, acid, oil
• Boiling water

Stop using for a long time

If you don't need to use the product for a long time, you should pull out the plug and clean it properly.

Caution

The temperature will increase caused by power failure or other faults and will led to food quality reducing.

Moving the appliance:

Unplug the appliance and turn the power off. Take out all the food.

If an inclination is required, it should not exceed 45 degrees. Otherwise, the appliance may get damaged resulting not only in compromised refrigeration performance.

TROUBLESHOOTING

Unusual noise

• Please make sure the refrigerator is solid positioned.
• Please make sure that the refrigerator doesn't lean against other appliances or walls.
• It's normal that there is noise of refrigerant flowing through the refrigerating system.

No refrigeration

• Electrical connection is loose.
- Fuse is broken.

Compressor keep working for a long time

• It's normal the first time the appliance starts.
• It's normal if the temperature is too high in summer.

If the refrigerator is not cool enough

• Do not open the door more often than necessary to lessen cold air escape.
• Do not put too much food in it at once.

The refrigerator doesn't cool well

• Please regulate the temperature controller.
• The refrigerator is exposed to direct sunlight or there is a heat source nearby. There is warm food inside.
• The food inside is too crowded, and this makes against the circulation of cool air.
• Open the door frequently or did not close the door well.

The actual power consumption is different from the stated value

The stated value on the nameplates is rated power consumption and it's measured according to the country's standard. The actual power consumption is different from the stated value is normal when putting too much food in it or the temperature of the environment is too high or when opening the door frequently.

Technical parameters

Model ...... VM 91 E

Climate type .... ST

Type of protection against electric shock .. I

Volume (L) 90

Voltage (V) 230

Frequency (Hz) 50

Power (W) 190

Consumption (KW.h/24h) 1,7

Refrigerant (g) R290a/60

Weight (Kg)......43

Dimension 690 x 450 x 1050

Model IM 111 E

Climate type .... ST

Type of protection against electric shock .. I

Volume (L).... 110

Voltage (V) 230

Frequency (Hz) 50

Power (W) 190

Consumption (KW.h/24h) 2,5

Refrigerant (g)....R290a/65

Weight (Kg) 45

Dimension 750 x 555 x 1010

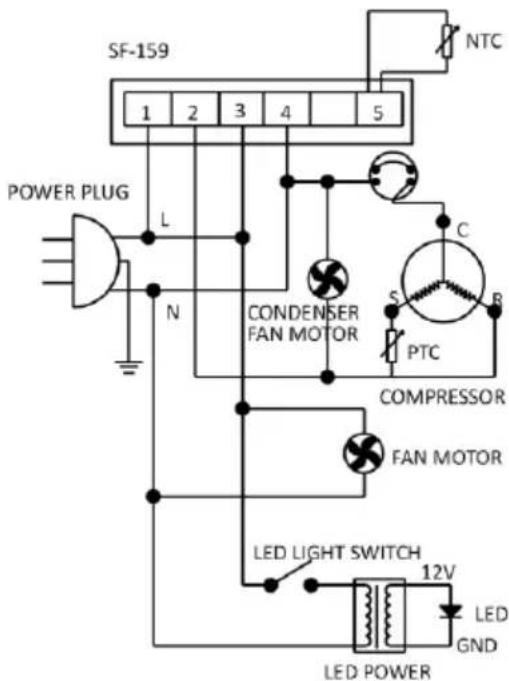

Circuit diagram

The manufacturer reserves the right to improve the design, construction, and technology from time to time without further notice.

Light

• Lamp type: LED-light. Energy efficiency level: N/A
  • Light source in this product is replaceable only by a professional.

Technical line drawing of two cylindrical electronic devices with labeled components A and B (no text or symbols beyond labels)

BETRIEBSANWEISUNGEN

A: Steuerung

B: Schalter der LED

Standort:

Technical line drawing of two cylindrical electronic devices with labeled components A and B (no text or symbols beyond labels)

A: Controller

B: Växel för LED

Plats:

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: VM 91 E

Aftersales service station list:

Address	Scandomestic A/S
Contact Number	7242 5571
Website	Scandomestic.dk
QR code	1279839
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	8 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: IM 111 E

Aftersales service station list:

Address	Scandomestic A/S
Contact Number	7242 5571
Website	Scandomestic.dk
QR code	1279840
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	8 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE

EU DECLARATION OF CONFORMITY

Name and address of the manufacturer or his authorise

Scandomestic A/S

Linåvej 20

8600 Silkeborg

Denmark

This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer):

Scandomestic A/S

Linåvej 20

8600 Silkeborg

Denmark

References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared:

EN ISO 17050-1: 2004

Additional information:

The appliance is intended for professional use

Object of the declaration

(identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product)

Exterior view of a modern glass display stand (no text or symbols visible)

Model number

(unique identification of the product):

VM 91 E

Product:

Impulse Cooler

Brand:

Scancool

Colour:

White

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

EN 55014-1:2017+A11:2020, EN 55014-2:2015, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, 2014/30/EU, 2019/2018, 2019/2024, EN ISO 23953-2:2015, EN 60335-2-89:2010+A1:2016+A2:2017, EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019, EN 62233:2008, 2006/42/EC, EN 55014-1:2017+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013/A1:2019, EN 55014-2:2015, IEC 61000-4-2:2008, IEC 61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-11:2004, IEC 60335-2-89:2010+A1:2012+A2:2015, IEC 60335-1:2010+A1:2013+A2:2016, 2011/65/EU, 1907/2006

EU DECLARATION OF CONFORMITY

Name and address of the manufacturer or his authorise

Scandomestic A/S

Linåvej 20

8600 Silkeborg

Denmark

This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer):

Scandomestic A/S

Linåvej 20

8600 Silkeborg

Denmark

References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared:

EN ISO 17050-1: 2004

Additional information:

The appliance is intended for professional use

Object of the declaration

(identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product)

Exterior view of a modern kitchen appliance with a transparent lid and control panel (no visible text or symbols)

Model number

(unique identification of the product):

IM 111 E

Product:

Impulse Cooler

Brand:

Scancool

Colour:

White

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

EN 55014-1:2017+A11:2020, EN 55014-2:2015, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, 2014/30/EU, 2019/2018, 2019/2024, EN ISO 23953-2:2015, EN 60335-2-89:2010+A1:2016+A2:2017, EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019, EN

62233:2008, 2006/42/EC, EN 55014-1:2017+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013/A1:2019, EN 55014-2:2015, IEC 61000-4-

2:2008, IEC 61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-11:2004, IEC 60335

-2-89:2010+A1:2012+A2:2015, IEC 60335-1:2010+A1:2013+A2:2016, 2011/65/EU, 1907/2006
