USER MANUAL RTW 129 BE Scancool
Original user manual
Thank you for choosing and purchasing our product. Please carefully read the operation instructions before use for a correct application and satisfactory effect.
This appliance compliance with the requirement of directive 2006/42/EC.
General
-
Top brand fully enclosed compressor is used on the desktop refrigerator. The refrigerant R600a or R134a is of an environmentally friendly agent. It features a rational configuration of refrigeration system with blower forced air cooling. The temperature is quite even inside the refrigerator.
-
Double hollow transparent glasses are used on door and body. It features an artistic and elegant appearance, perfect perspective and easy. access.
-
It has a wide application in department store and house as well as the. meeting room and sitting room.
Structure and parts

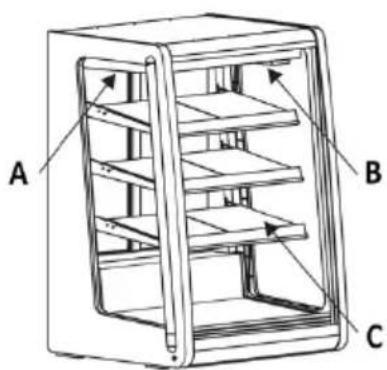

A - Air suction. Never block the suction. Air is sucked in and cold air is circulated inside the refrigerator.
B - Air outlet. Never block the air outlet. Let inside circulating cold air flow out.
C-Glass shelt
A. Power switch
B. Digital controller
C. Glass door
Handle and installation
Handle with care
Unplug the wall socket first. Never tilt it over 45 degree during handling.
Dry place
Always locate the refrigerator at a dry place.
Sufficient space
The distance from both sides and back of refrigerator to wall or other substance must be less than 10cm. The refrigeration capability might be decreased if its surround space is too small to circulate air.
Well ventilated
Always locate the refrigerator at a place with good ventilation. For the first time use, wait for 2 hours after handling and then plug the wall socket and start it.
Far from heat source
Never from place heat the source refrigerator directly under the sunshine
Never locate it nearby the any heat source to prevent capability it from ☐ reducing refrigeration capability.
Do not punch holes
Never make holes on the refrigerator. Never install other matter on the refrigerator.
No heavy load
Never put any heavy load on the top of the refrigerator.
Stable location
Unpacking and locate the refrigerator on a flat and solid place.
Preparation and Power Supply
Exclusive power socket
Normally, the power supply should be 220-240V, 50Hz single phase AC with exclusive single phase two pin receptacle. (250V/10A) and fuse (6A). The power receptable must have a earth connection.
No share on socket
Never let the refrigerator share the common socket with other appliance, otherwise the cable becomes hot and fire might be resulted
Protect cables
Never break or damage the cables otherwise current leakage and fire might be resulted.
No water flushing
Never giver the refrigerator surface a flush otherwise current leakage might be resulted.
No flammables
Prevent from flammables and explosive Never put any flammable or explosive inside the refrigerator such as ether, gasoline, alcohol, adhesive and explosive. Never put dangerous product nearby the refrigerator.
No spray
To spray the flammables such as paint or coating nearby the refrigerator is not allowed, otherwise fire might be resulted.
After power break
After power break or unplugging the refrigerator. Always wait at least 5 minutes and then you may plug the refrigerator and start it again.
No medicine
No medicine is allowed to keep inside the refrigerator.
Use and Caution
Before use:
Plug the refrigerator on 220-240V- exclusive socket.
After the refrigerator running, put hand on the air suction to confirm it is sufficient cold. Then you may put food inside the cold box.
Digital temperature controller
It is a mini-sized and integrated intelligent controller and applicable to the compressor of one Hp.
The main fuctions are:
- Temperature Display
• Temperature Control
• Manual/automatic defrost by turning off - Illumination Control
- Value Storing
- Self Testing
- Parameter Locking.
Front panel operation
1 Set temperature
Press the "set" button, the set temperature is displayed.
Press the "arrow up or down" button to modify and store the displayed value.
Press the "set" button to exit the adjustment and display the cold-room temperature.
2 If no more button is pressed within 10 seconds, the cold-room temperature will be displayed.
3 Illumination: Press the "light" button, it lights; Press again, it stops.
Manual start/stop defrost: Press the "light" button and hold for 6 seconds to defrost or stop defrost.

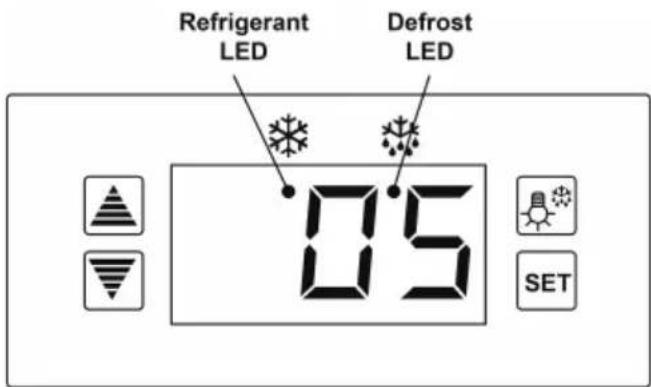

4 Refrigerant LED: During refrigeration, the LED is on; When the cold room temp. is constant, the LED is off; During the delay start, the LED flashes.
5 Defrost LED: during defrosting, the LED is on; When is stops defrosting, the LED is off, During the delay display of defrost, the LED flashes.
6 Digital controller reset
When display shows "Disorder", press "arrow down" button for 2 sec until buzzer rings, quickly press "arrow up" button for 6 sec until buzzer rings again, the display will flash for 3s and it restores factory setting.
Cautions
Shorten the door open time and reduce open frequency is good to keep a cold temperature inside the refrigerator.
Never block the air suction and outlet. Keep air circulation and refrigeration capability.
Do not make food congested as it will influence the cooling effect.
Adjust the rack height for proper food storage.
Cool the hot food down to room temperature before you put it into the refrigerator.
Try to reduce the open times and keep refrigerator inside cold in case the power is cut off.
Only skilled service man is allowed to repair the damaged power cable with special tools.
Never touch compressor to avoid from scald.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
The operation manual is not suitable for the persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
During normal operation, the emission noise level does not exceed 70 dB(A).
The maximum loading of the Shelf does not exceed 18kg.
The climatic class of the appliance is 4, the Units are suggested to be used at 16irc C - 32irc C ambient temperature.
To avoid damages or other problems, this product cannot be put or stored with any corrosive food.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices of other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
ADDITIONAL WARNING
Caution: risk of fire. The height of the triangle in the symbol shall be at least 15mm.
Maintenance
Notice
Often keep the refrigerator clean and periodical maintenance is necessary.
Always unplug the socket before maintenance.
Never use damaged plug or loose socket to prevent from electric shock or short circuit. Never flush the refrigerator. Never use alkali detergent, soap, gasoline, acetone or brush.
Clean outside
Dip soft cloth in neutral detergent (tableware detergent) to clean the outside of the refrigerator and then wipe it with dry soft cloth.
Clean inside
Take rack out for cleaning with water.
Use soft cloth to wipe the box.
Shut down refrigerator for a long time
Take all food out and unplug the wall socket.
Clean both inside and outside of the refrigerator thoroughly and open the door for sufficient dry.
The glass breaks easily. Keep the glass far from children.
Replacement of lamp in the light box
If the LED lamp is damaged, it must be replaced by the manufacturer, its service agent.
Trouble Shooting
| Trouble | Cause and Remedy |
| No refrigeration | Is the plug in socket well?No refrigeration Is the fuse broken?Is there no power? |
| Unsatisfactory refrigeration | Is it under the sunshine? Is there any heat source nearby?Is the surrounding ventilation bad?Does the door close well? Does door open for a long lime?Is the door seal strip deformed or damaged?Is food congested or too much?Does food block the air suction or outlet?Regulate the temperature controller. |
| Much noise | The refrigerator does not level.The refrigerator contacts wall or other matter.There is loose part in refrigerator. |
Contact local service agent for help if simple trouble shooting does not solve the problems.
Note
Following phenomena are not troubles:
The murmur of water is heard when the refrigerator is working. It is a normal phenomenon as the coolant is circulating in the system.
In wet season, condensation might be found on the outside of the refrigerator. It is not a trouble, which is caused by high humidity. Simply use cloth to wipe it.
Principle of Refrigeration System and Electric Circuit Diagram
The principle of compression refrigeration consists of "compression", "condensation", "throttling" and "vaporization". The compression is undertaken by compressor, the condensation is completed by condenser, the throttling valve is executed by capillary and the vaporization is implemented by evaporator. When the coolant is circulating in the closed refrigeration system, the compressor sucks coolant, which has absorbed heat in evaporator, the coolant becomes a high pressure and high temperature gas. In condenser, it dissipates heat in air, while the coolant is reliquefied and throttled in capillary and then enters into evaporator with low pressure. The liquefied coolant quickly boils and vaporizes into gas when the pressure suddenly drops. Meanwhile, it absorbs heat inside the refrigerator. And the compressor sucks the low pressure and low temperature gaseous coolant. It is circulating in this way up to realization of intended refrigeration.
Circuit diagram
Disposal
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
Contact you local government for information regarding the collection systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge.
Access to professional repair, such as internet webpages, addresses, contact details.
Model no: RTW 129 BE
Aftersales service station list:
| Address | Scandomestic A/S |
| Contact Number | 7242 5571 |
| Website | Scandomestic.dk |
| QR code | 708546 |
| Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative; | Scandomestic A/S |
| The minimum period during which spare parts, necessary for the repair of the appliance, are available; | 8 years |
| Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.) | www.scandomestic.dk |
Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.
