USER MANUAL SFS 109 W Scandomestic

-bed and breakfast-steder;

- This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

natural_image Line drawing of a simple rectangular box or container (no text or symbols)

Scandomestic SFS 109 W - 1

Scandomestic SFS 109 W - 2

natural_image Line drawing of a rectangular box with handle and side panel (no text or symbols)

Nederste fryseskuffe ∅verste fryseskuffe

Fryseskabet
Scandomestic SFS 109 W - 3

Scandomestic SFS 109 W - 4

natural_image Line drawing of a refrigerator with a lid and top shelf, no text or symbols present

min. 200 cm2

Scandomestic SFS 109 W - 6

natural_image Line drawing of a cabinet with an open door and directional arrow symbol (no text or labels)

Fordeleved øget ventilation:

natural_image Pure diagram of a rectangular grid pattern with vertical bars, no text or symbols present

Isterningbakke

Note:

Justering af temperaturen

natural_image Illustration of a hand pouring liquid into a container with a small object inside (no text or symbols)

Safety and warning information......18

Unpacking....24

Installation 25

Product Overview....28

Operation 29

Cleaning....31

Maintenance....32

Disposal....32

Scandomestic SFS 109 W - Justering af temperaturen - 1

Safety and warning information

For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life, will be properly informed on its usage and safety notices.

For the safety of life and property, keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Safety for children and others who are vulnerable people

• According to EN standard

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

According to IEC standard

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

  • Keep all packaging away from children as there is risk of suffocation.
  • If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it.
  • If this appliance, featuring a magnetic door seals, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

Scandomestic SFS 109 W - General safety - 1

- WARNING —This appliance is intended to be used in household and similar applications such as

-staff kitchen areas in shops, offices and other working environments;

-farm houses and by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments;

-catering and similar non-retail applications.

- WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- WARNING — Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- WARNING — Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- WARNING — Do not damage the refrigerant circuit.

- WARNING — Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

  • WARNING — The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to flame.
  • WARNING —When positioning the appliance, ensure the supply cord is not trapped or damaged.
  • WARNING —Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Replacing the LED

- WARNING—The LED light must not be replaced by the user! If the LED light is damaged, contact the customer helpline for assistance.

Refrigerant

The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged.

The refrigerant (R600a) is flammable.

- WARNING — Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

Scandomestic SFS 109 W - Refrigerant - 1

WARNING:risk of fire

If the refrigerant circuit should be damaged:

-Avoid opening flames and sources of ignition.

-Thoroughly ventilate the room in which the appliance is situated.

It is dangerous to alter the specifications or modify this product in any way.

Any damage to the cord may cause a shortcircuit, fire, and/or electric shock.

Scandomestic SFS 109 W - WARNING:risk of fire - 1

Electrical safety

  1. The power cord must not be lengthened.
  2. Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.
  3. Make sure that you can access the main plug of the appliance.
  4. Do not pull the main cable.
  5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
  6. You must not operate the appliance without the interior lighting lamp cover.
  7. The fridge is only applied with power supply of single phase alternating current of 220\~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C. Automatic voltage regulator of more than 350W to the fridge. The fridge must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire.

Daily use

  • Do not store flammable gass or liquids in the appliance, There is a risk of an explosion.
  • Do not operate any electrical appliances in the appliance (e.g.electric ice cream makers,mixers etc.).
  • When unplugging always pull the plug from the mains socket, do not pull on the cable.
  • Do not place hot items near the plastic components of this appliance.
  • This refrigerating appliance is not intended to be used as a built-in appliance.

  • Do not place food products directly against the air outlet on the rear wall.

  • Store pre-packed frozen food in accordance with the frozen food manufacture's instructions.
  • The appliances manufactures storage recommendations should be strictly adhered to. Refer to relrelevant instructions for storage.
  • Do not place carbonated or fizzy drinks in the freeze compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
  • Frozen food can cause frost burns if consumed straight from the freezer compartment.
  • Do not place the appliance in direct sunlight.
  • Keep buring candles, lamps and other items with naked flames away from the appliance so that do not set the appliance on fire.
  • The appliance is intended for keeping food stuff and/or beverages in normal household as explained in this instruction booklet The appliance is heavy. Care should be taken when moving it.
  • Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
  • Never use the base, drawers, doors etc. to stand on or as supports.
  • Frozen food must not be refrozen once it has been thawed out.
  • Do not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burn to the mouth and lips.
  • To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers.

caution!

Care and cleaning

  • Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
  • Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers.
  • Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

Installation Important!

  • For electrical connection carefully, follow the instructions given in this manual.
    Unpack the appliance and check if there are damages on it.
  • Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In this case retain packing.
  • It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
  • Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation.
  • Wherever possible the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor, condenser) to prevent the risk of a fire, follow the instructions relevant to installation.
  • The appliance must not be locate close to radiators or cookers.
  • Make sure that the mains plug is accessible after the installation of the appliance.

Service

- Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person.

- This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

1) If the appliance is Frost Free.

2) If the appliance contains freezer compartment.

1) If the appliance is Frost Free. 2) If the appliance contains freezer compartment.

Thank you for purchasing your new product.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Scandomestic SFS 109 W - Unpacking - 1

natural_image Line drawing of a rectangular box or container with a flat top and side margin (no text or symbols)

The Main Unit

Scandomestic SFS 109 W - Unpacking - 2

natural_image Simple line drawing of a rectangular box with a recessed top and side slot (no text or symbols)

Lower Freezer Drawer

Scandomestic SFS 109 W - Unpacking - 3

natural_image Line drawing of a rectangular box with a handle and internal slot (no text or symbols)

Upper Freezer Drawer

Scandomestic SFS 109 W - Unpacking - 4

Scandomestic SFS 109 W - Unpacking - 5
Ice TrayFreezer Flip

Instruction Manual

Instruction Manual

INSTALLATION

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16^ C and 38^ C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is suitable for use in a garage or outbuilding. Do not drape the unit with any covering.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Scandomestic SFS 109 W - Levelling the Unit - 1

Free Space Requirements

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear of the unit and 25 mm at the top of the unit. The door can be opened to the right or the left, depending on which best suits the location.

Please ensure there is more than twice the width and depth distance space of the unit to fully open the door to a maximum angle.

Y mm X mm

If the appliance is placed under a continuous worktop, the appliance lid (if applicable) may be removed and a ventilation grille of at least 200 cm2 (available from DIY shops or specialist retailers) should be installed to the worktop above the rear of the appliance to increase ventilation.

min. 200 cm2

Benefits of increased ventilation:

  • Lowered power consumption • Improved cooling performance
  • Reduce running costs • Prolong product life span

INSTALLATION

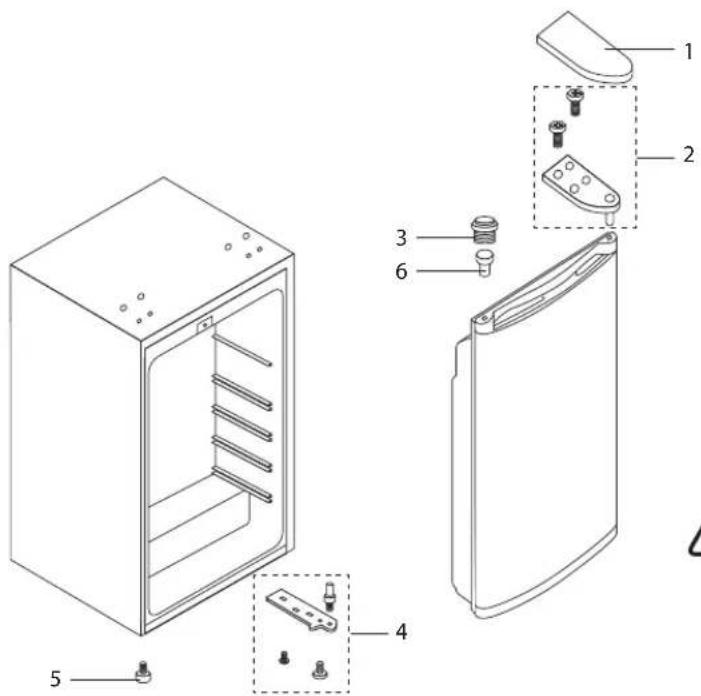

Reversing the Door Swing

Tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

Scandomestic SFS 109 W - Reversing the Door Swing - 1

  • Ensure the unit is unplugged and empty.
  • To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. a chair just below the top panel.
  • All parts removed must be saved to do the reinstallation of the door.
  • Do not lay the unit flat as this may damage the coolant system.
  • We recommend that 2 people handle the unit during assembly.
  • If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

  • Remove the upper hinge cap (1).

  • Remove the two upper screws and hinge bracket (2) from the unit top.
  • Carefully lift the door up and remove it from the unit. Place door on a padded surface to prevent from scratching.
  • Remove the plug (3) and shaft sleeve (6) from the door and reattach them to the corresponding position on the opposite side of the door. Press the plug firmly into the hole.
  • Remove the two lower screws, hinge bracket and levelling leg (4) from the unit bottom.
  • Remove the screw-type levelling front leg (5) from unit bottom and transfer it to the corresponding position on the opposite side of the unit bottom.
  • Reattach the two lower screws, hinge bracket and levelling front leg (4) to the opposite side of the unit bottom. Loosely secure.
  • Carefully set the door back into place, sliding it onto the bottom hinge.
  • Securely reattach the two upper screws and hinge bracket (2) to the unit top on the opposite the side from which it was removed. Ensure that the hinge pin is properly positioned in the bushing (hole) at the top of unit door.
  • Reattach the hinge cap (1) over the top hinge bracket.

INSTALLATION

Exploded view diagram of a refrigerator with numbered parts for identification

1 Upper hinge cap
2 Upper screws & upper hinge bracket
3 Plug
4 Lower screws, levelling front leg & lower hinge bracket
5 Levelling front leg
6 Shaft Sleeve

Scandomestic SFS 109 W - INSTALLATION - 2

* All images are for reference only; please refer to your individual unit for actual item.

  1. With the door closed, check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet as needed.

Scandomestic SFS 109 W - INSTALLATION - 3

natural_image Simple line drawing of a rectangular box (no text or symbols)

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wash the drawers in warm soapy water and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth. If you require more information refer to the Cleaning section.

Scandomestic SFS 109 W - Cleaning Before Use - 1

• Before Plugging in YOU MUST

Check that you have a socket which is compatible with the plug supplied with the unit.

• Before Turning On!

Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

Product Overview

Thermostat Control Dial Freezer Flip Upper Freezer Drawers Lower Freezer Drawers Levelling Feet

Scandomestic SFS 109 W - Product Overview - 2

natural_image Diagram of a rectangular ice tray with triangular lattice patterns, labeled 'Ice Tray' below (no other text or symbols)

Note!

Due to unceasing modification of our products your refrigerator may be slightly different from this manual, but its functions and using methods remain the same.

To get the best energy efficiency of this product, please place all shelves and drawers on their original position as the illustration above.

Operation

Switching On Your Unit

  1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are three settings MIN, NORMAL and MAX.
  2. After the unit has been on for 20 minutes adjust the thermostat control dial to NORMAL. This is the recommended setting when operating at normal room temperature (between 16°C and 38°C).
  3. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the door often.
  4. To ensure that the unit is cool enough to sufficiently chill your food, wait 24 hours before filling it with food.
  5. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops.
    Place the thermometer in the centre of the unit, where it can be read easily. Leave overnight, the temperature in the unit should be -18^ or lower.
    Normally, we advise you select a setting of "Mid" (medium setting); if you want the temperature higher or lower, please turn the knob to a warmer or colder setting accordingly. When you turn the knob to a colder setting, this can lead to the more energy efficiency. Otherwise, it would result the consumption of energy.

Important!

MAX MIN NORMAL

Adjusting the Temperature

The internal temperature of the unit is controlled by a thermostat. The recommended position is between MIN and MAX, but it should be adjusted according to the environment.

Freezing Fresh Food

Place the fresh food on the top freezer shelf. Food may need rearranging to achieve this. During the freezing process the temperature of fresh food should be reduced quickly so that ice crystals are kept as small as possible to prevent damaging the structure of food. If freezing takes place slowly large ice crystals form and these will affect the quality of food once it has defrosted.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Preparations for Freezing

- Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better.

- Leave cooked food to cool completely. Chill food before freezing if possible.

- Consider how you will want to cook the food before freezing it.

- Don't freeze food in metal containers if you may want to microwave it straight from the freezer.

- Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil (heavy duty grade only). If in doubt, double wrap your food. Don't use aluminium foil for acidic foods, e.g. citrus fruits. Don't use thin cling film, glass, or used food containers without cleaning.

- Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging.

- Leave a small amount of air space when freezing liquids to allow expansion.

- You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, e.g. stew) in square blocks. This is known as "Preforming". Pour the liquid into a polythene bag which is inside a square sided container. Freeze it, and then remove it from the container and seal the bag.

- Label your frozen foods as they will look the same when in frozen state. Use special freezer tapes, labels and pens with different colours. This allows you to easily organise and to effectively use the freezer. Write the contents and date; otherwise the frozen food might exceed the storage time and this could cause food poisoning. Please refer to your food packaging for the recommended storage time.

- You may also add the weight and cooking notes, e.g. "defrost first", "cook from frozen" and keep a separate log of what is in each drawer. This will save opening the door and searching around unnecessarily.

Scandomestic SFS 109 W - Preparations for Freezing - 1

natural_image Illustration of a hand pouring liquid from a container into a bag (no text or symbols)

Defrosting Frozen Food

- Take the fr ozen food out from the unit and uncover the frozen food. Let it defrost at room temperature. Don't forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria.

- Drain off and throw away any liquid lost during defrosting.

• Always make sure there are no ice-crystals in the food before cooking, particularly with meat. These crystals indicate that the food has not fully defrosted.

- Cook food as soon as possible after defrosting.

- Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.

Scandomestic SFS 109 W - Defrosting Frozen Food - 1

Never re-freeze anything that has been defrosted unless you cook it again, to kill off harmful bacteria. Never re-freeze defrosted shellfish. Re-seal packs properly after removing items. This prevents drying or freezer-burn and a build up of frost on any remaining food.

Cleaning

Defrosting

Frost might build up in the unit after it has been used for a period of time. Scrape away the frost using a plastic scraper (not included).

Scandomestic SFS 109 W - Defrosting - 1

Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting.

We recommend that defrosting should be carried out when the frost layer builds up to 10mm (\~0.39"). Choose a time when the stock of frozen food is low, follow these procedures:

  1. Take out the food, turn the unit off at the mains supply and leave the door open. Ideally, the frozen food should be put into another freezer. If this is not possible, wrap the food in several sheets of newspaper or large towels and then a thick blanket to keep it cool.
  2. Place a shallow bowl or pan below the unit. Scrape away the frost using a plastic scraper. Defrosting the remaining frost can be speeded up by placing a bowl of hot water inside the unit and closing the door. As the solid frost loosens, scrape it away with the plastic scraper and remove.
  3. When defrosting is complete, clean your unit's interior and exterior.

Cleaning the Interior and the Exterior of the Unit

  • Remove all the dra wers before cleaning.
  • Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe completely dry before replacing the drawers.
  • Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
  • The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Maintenance

Care When Handling / Moving the Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the door as a safeguard.

Scandomestic SFS 109 W - Disposal - 1

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

Sisältö

natural_image Line drawing of a simple rectangular box or container with a lid (no text or symbols)

Scandomestic SFS 109 W - Sisältö - 1

Scandomestic SFS 109 W - Sisältö - 2

natural_image Line drawing of a rectangular box with a handle and internal slot (no text or symbols)
natural_image Line drawing of a refrigerator with a lid and top shelf, no text or symbols present

min. 200 cm2

Scandomestic SFS 109 W - Sisältö - 4

natural_image Line drawing of a cabinet with an open door and directional arrows indicating movement (no text or symbols)
natural_image Pure diagram of a rectangular grid pattern with no text, numbers, or symbols

Jääpalalokero

Huomautus!

natural_image Illustration of a hand pouring liquid into a container with a cartoon face (no text or symbols)

Pakasteiden sulattaminen

natural_image Line drawing of a rectangular box or container with a handle, no text or symbols present

Scandomestic SFS 109 W - Pakasteiden sulattaminen - 1

Scandomestic SFS 109 W - Pakasteiden sulattaminen - 2

natural_image Line drawing of a rectangular box with a handle and internal slot (no text or symbols)
natural_image Line drawing of a refrigerator with a lid and top shelf, no text or symbols present

min. 200 cm2

Scandomestic SFS 109 W - Pakasteiden sulattaminen - 4

natural_image Line drawing of a cabinet with an open door and directional arrows indicating movement (no text or symbols)
natural_image Isbricka grid structure diagram with no text or symbols

Notera!

natural_image Illustration of a hand pouring liquid into a container with a small container inside (no text or symbols)

Tina upp fryst mat

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: SFS 109 W

Aftersales service station list:

AddressScandomestic A/S
Contact Number7242 5571
WebsiteScandomestic.dk
QR code366941
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;7 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Scandomestic

Model : SFS 109 W

Category : Freezer
