Product Type	Upright Freezer
Brand	Scandomestic
Model	SFS 56 W
Dimensions (W x H x D)	55.6 cm x 85.0 cm x 60.0 cm
Net Weight	35 kg
Power Supply	220-240 V, 50 Hz
Energy Class	F
Annual Energy Consumption	180 kWh
Freezer Capacity	100 L
Temperature Range	-18 °C to -24 °C
Defrost Type	Manual
Climate Class	N
Noise Level	42 dB
Number of Drawers	3
Door Reversible	Yes (user installed)
Refrigerant	R600a
Warranty	2 years
Color	White
Control Type	Mechanical thermostat
Interior Light	No
Freezing Capacity	4 kg/24h
Storage Time During Power Failure	12 hours
Installation Type	Freestanding

Frequently Asked Questions - SFS 56 W Scandomestic

How to set the temperature on the Scandomestic SFS 56 W freezer?

The freezer uses a mechanical thermostat. Turn the dial knob inside the freezer compartment: a higher number (e.g., 4-5) means colder temperature. Typically, setting to 3-4 is suitable for normal use.

How to defrost the Scandomestic SFS 56 W freezer?

This model requires manual defrosting. Unplug the unit, remove all food, open the door, and let the ice melt. Place towels to absorb water. Do not use sharp objects to remove ice. Clean and dry before restarting.

Why is my freezer not freezing properly?

Check the thermostat setting (should be on a higher number). Ensure the door is fully closed and the seal is clean. Allow 24 hours after first installation. If problem persists, the refrigerant may be low; contact a technician.

How to reverse the door on the SFS 56 W?

The door is reversible. Remove the screws on the lower hinge, lift the door off, remove the upper hinge bracket, and reattach the door on the opposite side. Use the provided hinge plugs. Refer to the manual for detailed instructions.

What is the energy consumption of the Scandomestic SFS 56 W?

The annual energy consumption is approximately 180 kWh, based on standard test results. Actual consumption depends on usage and environment.

How to clean the freezer interior?

Unplug the freezer. Remove all food. Wash the interior with a mild detergent and warm water. Rinse and dry thoroughly. Do not use abrasive cleaners or solvents. Clean the door seal separately.

What is the noise level of the SFS 56 W?

The noise level is 42 dB, which is similar to a quiet conversation. Some sounds from the compressor and refrigerant flow are normal.

How to transport the Scandomestic SFS 56 W?

Keep the freezer upright during transport. If tilted, allow it to stand upright for at least 24 hours before plugging in. Secure the door with tape and use a trolley for moving.

Where can I find spare parts for the SFS 56 W?

Contact Scandomestic authorized service centers or check online retailers. Common spare parts include door seals, thermostat, and drawers. Use only genuine parts.

What is the warranty period for the Scandomestic SFS 56 W?

The standard warranty is 2 years from the date of purchase. Warranty covers manufacturing defects. Keep the receipt and register the product if required.

USER MANUAL SFS 56 W Scandomestic

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision. To avoid contamination and depravity of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the of the appliance.
• Cleaning regularly surfaces that can come in contact with food and is accessible for drainage systems.
• Clean water tanks if they have not been used for 48 h. or more; Flush the water system connected to a water supply if water has not been drawn for 5 days or more.

- Store raw meat and fish in suitable containers in the refrigerator, so it is not in contact with, or can drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

- One-, two- and three-star compartments are not suitable for the freezing of fresh food.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

- This refrigerating appliance is not intended to be used as a built-in appliance.

- Note: When operating in an environment other than the specified climate type (i.e., beyond the rated ambient temperature range), the appliance may not be able to maintain the desirable compartment temperatures.

- How to use the ice-making box. Place the ice-making box in the upper position of the freezer compartment, so that it ices up as soon as possible.

• Light source in this product is replaceable only by a professional

DEUTSCHE

Line drawing of an open refrigerator with a hand pointing to the side panel (no text or symbols)

Two geometric shapes: a plain square and a tilted square with a cross, both without any text or symbols.

Simple line drawing of a sun, battery, and a box with a speech bubble (no text or symbols)

Illustration of a snowman wearing a hat, holding a snowboard, with a Christmas tree and fireworks in the background (no text or symbols)

Simple line drawing of a window with a faucet and bubbles, no text or symbols present.

FÖRBEREDELSE FÖR ANVÄNDNING

Simple line drawing of a cardboard box, a square, and a flat panel (no text or symbols)

Line drawing of an open stainless steel oven with a grid-patterned lid (no text or symbols)

Simple line drawing of a rectangular object connected to a small electrical component with a clock above (no text or symbols)

DRIFT

1. Switch-on frysen

Simple line drawing of a rectangular object with a cable and a small electrical outlet symbol (no text or labels)

Slå på frysen

2. Temperature justering

Temperaturen i frysen kan justeras med termostatvredet. Vid justering, vrid ratten

INSTRUKTIONER FÖR FRYS

Simple line drawing of a fish inside a transparent container with sparkles, no text or symbols present

Illustration of a pen applying black granular substance to a piece of meat (no text or symbols)

Illustration of a food item with a lid and a side view showing a slice of cheese (no text or symbols)

INSTRUKTIONER FÖR FRYS

Cartoon illustration of two anthropomorphic paper sheets, one smiling and waving, the other holding a pencil (no text or symbols)

Illustration of three food items: a teapot, a bottle, and a glass with a patterned lid, all crossed by a black X (no text or symbols)

INSTRUKTIONER FÖR FRYS

upptining

Illustration of a hand holding a tool next to a small house icon and a blank screen (no text or symbols)

Vid strömavbrott

Simple line drawing of a blank rectangle and a pile of berries with stars, no text or symbols present.

Illustration showing a hand holding a tool next to a small electrical outlet and a paintbrush touching a blank sheet (no text or symbols)

Line drawing of an open refrigerator with a lid and side panel (no text or symbols)

Stänger ner

Simple line drawing of a bottle with bubbles inside a square frame, no text or symbols present

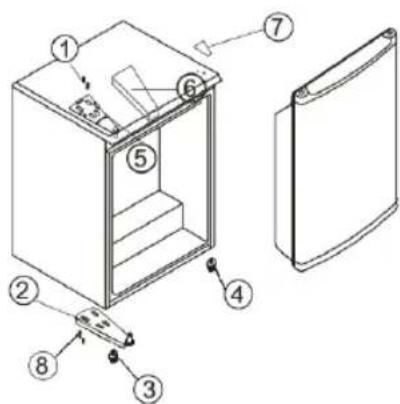

FIGURE 1 Door opening from left side

FIGURE 2 Door opening from right side

Übersichtsbild

Simple line drawing of a cardboard box, a square, and a flat panel (no text or symbols)

Simple line drawing of a square frame with three small star shapes on the sides (no text or symbols)

Simple line drawing of a laptop connected to a wall-mounted device with a clock on top (no text or symbols)

Illustration of a hand holding a tool next to a small house icon and a tablet device (no text or symbols)

Temperatureinstellung

Simple line drawing of a baby inside a transparent container with sparkles, no text or symbols present

Illustration of a pen applying food to meat slices (no text or symbols)

Simple line drawing of apples and a round fruit next to a bag (no text or symbols)

Two cartoon characters, one resembling a rolled document or paper and the other resembling a closed book or document, with expressive faces (no text or symbols present)

Illustration of three food items: a soda can, a glass of milk bottle, and a beer can with a patterned liquid, all crossed out by a diagonal line (no text or symbols)

Abtauen

Simple line drawing of a hand holding a pole next to a small house icon and a blank rectangular panel (no text or symbols)

Illustration showing a hand holding a small square object and a paintbrush touching a blank sheet (no text or symbols)

Illustration of an open refrigerator with a lid and side arm, no text or symbols present

Simple line drawing of a showerhead emerging from a window, with no text or symbols present.

fragen beantworten

FIGURE 1 Door opening from left side

FIGURE 2 Door opening from right side

OVERSIGTSTEGNING

Hylde

Fordamper

Stik

Line drawing of an open refrigerator with a water tap and lid, showing internal compartments and ventilation slots (no text or symbols)

Simple line drawing of a cardboard box, a square, and a separate flat panel (no text or symbols)

Line drawing of an open stainless steel oven with circular vent grilles (no text or symbols)

Simple line drawing of a rectangular object connected to a wall-mounted electrical outlet, with a clock above (no text or symbols)

Simple line drawing of a wall and a plug, no text or symbols present

"1" = Minimum Køling

"7" = Maksimum Køling

Simple line drawing of a cartoon character inside a transparent container with sparkles (no text or symbols)

Illustration of a tool applying sealant to two separate covers (no text or symbols)

Illustration of a food item with a lid and a side view showing a fork (no text or symbols)

Two cartoon characters, one resembling a smiling paper sheet and the other holding a pencil, both waving (no text or symbols present)

Illustration of beverage containers and a glass with a cross symbol (no text or labels)

AFRIMNING. Rengøring OG AFBRYDELSE Af Strømmen

Afrimning

Simple line drawing of a hand holding a tool near a small house icon and a blank screen (no text or symbols)

Simple line drawing of a blank rectangle and a pile of berries with decorative stars (no text or symbols)

Rengøring

Line drawing of an open refrigerator with a small object beside it (no text or symbols)

Simple line drawing of a hand holding a tool near a rectangular box with a cross mark overlay (no text or symbols)

FEJLFINDING

FIGURE 1 Door opening from left side

FIGURE 2 Door opening from right side

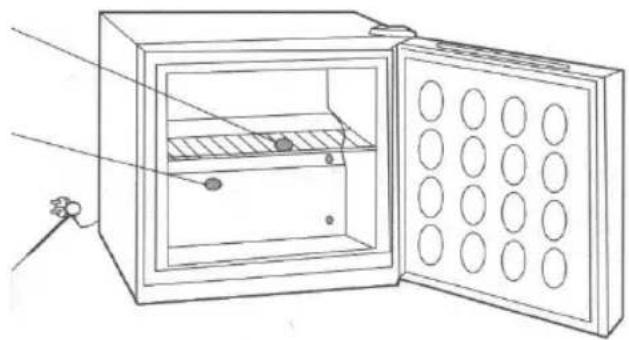

NAME OF PARTS

Shelves

Evaporator

Power Plug

Line drawing of an open refrigerator with a hand pointing to the side panel (no text or symbols)

After installation of the appliance, the plug should be easily accessible.

If the power cable is damaged, anapproved cable provided by a manufacturer or a service agent must be used for replacement.

Warning: Keep the appliance well ventilated; remove any transport supports from cavity.

Warning: Do not use hardobjects to remove frost.

Warning: Ensure the refrigeration pipeline cannot be damaged.

Warning: Do not use electric appliances within the food storage compartment except for models recommended by the manufacturer.

The appliance available may differ from the one described and illustrated in the manual due to continuing improvement. Hence we apologize for it.

SAFETY PRECAUTIONS

SETTING UP

1.The freezer should be placed on a flat and firm floor .If it is neccessory to put something under the freezer to raise it .choose flat and firm pad.Don't use the foam packing under the freezer to raise it.If it is not stable or flat . use a special wrench (or 22mm wrench) to adjust the foot of freezer to make it at horizontal level.
2. Keep a good ventilation, a certain 2. space mus be left around the freezer.Enbart änden 10cm blotta änden 10cm	3. Keep away from heat sources and 3. avoid direct sunlight.
Don't put in it frozen ambient.4.	5. Keep away from place with high 5. moisture or splashes.

Unpack all the packing materials including the 1. foam cushion.

1. Check the accessories and data sheets supplied with the freezer.

Simple line drawing of a cardboard box, a square, and a flat panel (no text or symbols)

Set the freezer on a proper place.3.

It's advisable to clean the freezer before using it 4. (See "cleaning" at page 8)

Line drawing of an open stainless steel oven with circular vent grilles (no text or symbols)

1. Set standstill

Adjust the freezer to a horizontal level and clean it. Don't connet to the mains immediately. but set it stand still for at least 30 minutes and connect to the mains afterward. so as to assure that the freezer can run without faults.

Simple line drawing of a rectangular object connected to a wall-mounted electrical outlet, with a clock above (no text or symbols)

1. If the supply cord is damaged, it must be replaced by a special cord or the manufacturer or its service agent

OPERATION

1. Switch-in the freezer

* Before the freezer is used for the first time, it is advisable clean the interior (for details, see "clean").

Put the mains plug into the socket, then you can use the freezer.

Simple line drawing of a wall and a plug, no text or symbols present

2.Temperature adjustment

The temperature inside the freezer can be adjusted with the thermostat knob. When adjusting, turn the knob

Position "1" = minimum cooling

Position "7" = maximum cooling

For general use. turn it to positions 2-3.

INSTRUCTION FOR FREEZING

To keep food for a long period, the freezer is recommended.

The freezer with a temperature of -18^ or colder can be prevent bacteria from reproducing completely, Hence the food you want to store for a long time should be placed in it. However, the storage period marked on the package of food should be observed.

Simple line drawing of a fish inside a transparent container with sparkles, no text or symbols present

Notes of freezing

- You are advised not to place quantity of fresh food in the freezer than the freezing capacity (see Technical Data at back cover)

- Flot food must be cooled to room temperature before placing them into the freezer.

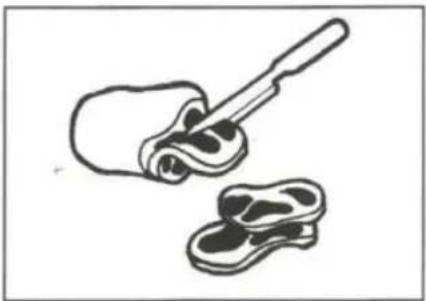

Illustration of a tool interacting with two meat cuts (no text or symbols)

- Pack food in quantities practical for household use, Freezing will take place more quickly will be ensured after thawing and preparation, if the quantities of fruit do not exceed 1 kg and quantities of meal do not exceed 2.5 kg.

Illustration of a gift box with chocolate pieces and a bag (no text or symbols)

INSTRUCTION FOR FREEZING

Pack food before freezing, Keep the packages of food dry to prevent them from freezing together. To prevent other food from picking up different colors and maintain quality, the packing material must be strong, neutral in taste and imprevious to air and liquid. Always note contents and do not exceed the recommended storage periods,

Two cartoon characters, one smiling and pointing, the other holding a pencil (no text or symbols)

- In principle, only remove as much food from the freezer as is immediately required. Food that has thawed out must not be re-frozen again unless it has been used in the preparation of a pre-cooked meal.

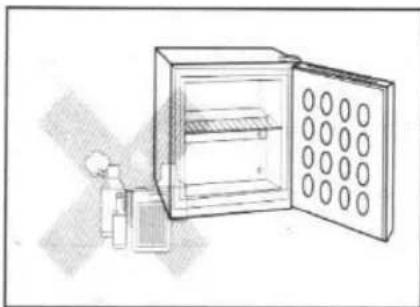

- Never place bottled beer or drinks in the freezer.

Illustration of three food items: a soda can, a glass bottle, and a beer jar with a checkmark (no text or symbols)

DEFROSTING, CLEANING, STOPING

After a period of operational layer of frost ice build up on the chilling plates: Il allowed to become too thick this layer will lead to an increase in energy consumption. Therefore it should be removed with a plastic scraper when the layer become 4-13 mm thick.

Warring: To avoid damage to the freezer, do not use any metal tools to defrost.

When defrosiing, pull the mains plug out, wrap the frozen food with blanks and store it in a cool place. Remove the drawers. Replace them alter delrosting. To accelerate the defrosting process, put a pot with hot water onto a thing plate.

Warring: For defrosting, do not use electrical heating appliance.

Simple line drawing of a hand holding a tool near a small house icon and a blank screen (no text or symbols)

In cast of power failure:The food in freezer can still be kept for several hours without problem even in summer. If you may know that a power failure will occur.then:

• Once a power failure occur, don not open the door.
  -Don't put fresh food any more. Keep the door closed as long as possible.
• Please note that any increase in the interior temperature of the freezer. Caused by power failure or other faults will reduce the sale storage period and Quality of the stored food.

Simple line drawing of a blank rectangle and a pile of berries with decorative stars (no text or symbols)

DEFROSTING, CLEANING, STOPING

Cleaning

The residual of food may give awful odors.so the freezer should be cleaned regularly.

For the sake of safety.clean the freezer after the mains plug is pulled out.

Use a soft towel or a sponge with warm water which contains neutral detergent to clean the freezer. Don't use any stiff brush or metal wired brush, don't use any scouring reagent, paint, thinner, benzene, acid or water either.

Wipe away the water drops on the freezer with soft cloth to avoid rust.

(1) Don't spray on the machine to have a good insulation property of appliance.

(2)Clean the electric parts, such as thennostatswitch,lamp with dry cloth.

Door gasket gets dirty very easily, so pay attention to keeping them clean.

Remove the dust on the back of the freezer to have a better heat dissipation.

Line drawing of an open refrigerator with a lid and side panel (no text or symbols)

Shutting-down

If the freezer is to remain out of use, pull out of mains plug to disconnect it from the power supply. Clean the as described above in case out of use for a long time.

The appliance door should be open while no use, to prevent odours from forming inside.

Notice: In general, do not stop using it, otherwise it will affects its service life.

Simple line drawing of a hand holding a tool near a rectangular box with a cross mark overlay (no text or symbols)

TROUBLE SHOOTING

If the freezer does not be operated properly, please check the below information.

Phenomena	Items to check
The freezer do not run	-Power source is nol connected(Plug.socket, fuse)-The power switch is tumed off-Voltage of power is too low.
Excessive noise	-The floor is not flat or level, the freezer stands not stably.-Parts of the freezer contacts the wall or other objects.
The interior temperature is not low enough	~The thermostat is at wrong setting, set to higher position when needed.-The door has not been closed tightly or door has been opened too often or for too long time.-The freezer is placed in direct sunlight or too close to heat source.-Too many foods have been packed in freezer.-Bad ventilation,the vent grille is covered over or the condenser is too dirty.
Abnormal	-The foods with strong odour are not packed,or there are deteriorated foods.-The interior of freezer needs to be cleaned.

Reversing the Door

This product has the door hinges on the right. If you wish to change the opening direction, follow the instructions below:

1. Remove the upper hinge cover (6) first.
2. Remove the two screws (1) that hold the upper hinge (5) (right side) to the frame. Remove the upper hinge (5).
3. Lift the door and place it on a padded surface to prevent scratching.
4. Remove the two screws (8) that hold the lower hinge (2). Remove the lower hinge (2).
5. Remove the left front leg (4) and transfer it to the right side.
6. Remove the hole cover plate (7) to the right side.
7. Install the lower hinge (2) onto the left side of the lower frame with the two screws through the opposite two holes (8).
8. Set the door in its place making sure it sits on the door seat at the lower hinge (2).
9. While holding the door in a closed position, secure the upper hinge (5) on the top left side with the two screws (1) through the opposite two holes. Do not tighten the two screw (1) until the top of the door is leveled with the countertop.

10. Install the upper hinge cover (6) on the upper hinge.

11. Screw

12. Lower hinge
13. Leveling legs
14. Leveling legs
15. Upper hinge
16. Upper hinge cover
17. Hole cover plate
18. Opposite two holes

FIGURE 1 Door opening from left side

FIGURE 2 Door opening from right side

OSIEN NIMET

Hylly

Höyrystin

Pistoke

Line drawing of an open refrigerator with lid and vent slots (no text or symbols)

Two geometric shapes: a square and a tilted square with a cross mark, both without any text or symbols.

Simple line drawing of a sun, battery, and a box with a speech bubble (no text or symbols)

Illustration of a snowman wearing a Santa hat, with a Christmas tree and snowflake in the background (no text or symbols)

Simple line drawing of a window with a faucet and bubbles, no text or symbols present

KÄYTTÖKUNTOON VALMISTELU

Simple line drawing of a cardboard box, a square, and a flat panel (no text or symbols)

Line drawing of an open refrigerator with a lid and ventilation grille (no text or symbols)

Simple line drawing of a device with a wall clock and electrical plug (no text or symbols)

Simple line drawing of a wall with an electrical plug inserted into the wall (no text or symbols)

2.Lämpötilan säätö

Simple line drawing of a fish inside a transparent container with sparkles (no text or symbols)

Illustration of a tool interacting with two small objects (no text or symbols)

Illustration of a food item with a lid and a cutaway view showing a slice of meat (no text or symbols)

PAKASTUSOHJEET

Two cartoon characters, one smiling and waving, the other holding a pencil (no text or symbols present)

Illustration of three food items: a teapot, a bottle, and a can with a patterned lid, all crossed by a black X (no text or symbols)

JÄÄN POISTAMINEN, PUHDISTUS, SAMMUTTAMINEN

Line drawing showing a hand holding a tool near a small house icon and a blank tablet (no text or symbols)

Simple line drawing of a blank rectangular box next to a tray with a pile of berries and a starburst arrow (no text or symbols)

JÄÄN POISTAMINEN, PUHDISTUS, SAMMUTTAMINEN

Puhdistus

Line drawing of an open refrigerator with a tray and side arm (no text or symbols)

Sammuttaminen

Simple line drawing of a hand washing a small object into a rectangular frame, with no text or symbols present.

FIGURE 1 Door opening from left side

FIGURE 2 Door opening from right side

DELENES NAVN

Hyller

Fordamper

Støpsel

Line drawing of an open refrigerator with internal compartments and a small water outlet (no text or symbols)

Simple line drawing of a cardboard box, its open lid, and its blank square (no text or symbols)

Line drawing of an open stainless steel refrigerator with a grid-patterned lid (no text or symbols)

Simple line drawing of a device with a wall-mounted power outlet and a wall clock (no text or symbols)

1. Hvis strømledningen er skadet, må den skiftes ut av en spesiell ledning eller produsenten eller dens serviceagent.

OPERASJON

1. Slå på fryseren

Simple line drawing of a wall with an electrical plug inserted into the wall (no text or symbols)

1. Temperaturjustering

Simple line drawing of a cartoon character inside a transparent container with sparkles (no text or symbols)

Merknader om frying

- Det anbefales at du ikke plasserer mengden av fersk mat i fryseren enn frysekapasiteten (se tekniske data på baksiden)

- Varm mat må avkjøles til romtemperatur før du legger den i fryseren.

Illustration of a tool applying sealant to a piece of meat (no text or symbols)

Illustration of a food item with a lid and a side view showing a fork (no text or symbols)

INSTRUKSJON FOR FROSNING

Two cartoon characters, one smiling and pointing, the other holding a pencil (no text or symbols present)

Illustration of beverage containers and a glass with a cross mark (no text or symbols)

TINNING, RENGJ∅RING, STOPPING

Illustration of a hand holding a cable with a small house icon above and a blank screen on the right (no text or symbols)

Simple line drawing of a blank rectangular box next to a tray with a pile of round objects and decorative stars (no text or symbols)

TINNING, RENGJ∅RING, STOPPING

Rengjøring

Simple line drawing of an open refrigerator with circular vent slots (no text or symbols)

Slå av

Simple line drawing of a hand holding a small object above a rectangular block, with no text or symbols present.

FEILS∅KING

FIGURE 1 Door opening from left side

FIGURE 2 Door opening from right side

DK

Adgang til professionel reparation, såsom internetsider, adresser, kontaktoplysninger

Model nr: SFS 56 W

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: SFS 56 W

Aftersales service station list:

Address	Scandomestic A/S
Contact Number	7242 5571
Website	Scandomestic.dk
QR code	364035
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	7 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: SFS 56 B

Aftersales service station list:

Address	Nivåvej 208600 SilkeborgDenmark
Contact Number	[phone]
Website	www.scandomestic.dk
QR code	852800
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	8 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

FIN
