Product Type	Canister Vacuum Cleaner
Model	Odyssey ZVC302ST
Power Supply	230 V ~ 16 A
Noise Level	75 dB/A
Dust Bag Type	SAFBAG (2 pieces included)
Inlet Filter	Washable foam filter
Outlet Filter	HEPA H11 (99.5% filtration efficiency)
Suction Power Control	Stepless electronic slider
Cord Rewind	Automatic with button
Suction Hose	With handle (type A)
Suction Tube	Telescopic
Floor Nozzle	Switchable combination brush (hard floor/carpet)
Parquet Brush	Natural bristle brush “BNB” for delicate floors
Turbobrush	Included (type ST)
Electrobrush Socket	Yes (for optional electrobrush)
Accessory Compartment	Integrated on handle
Safety Valve	Auto-opens on blockage or full bag
Dimensions (approx.)	450 x 300 x 260 mm
Weight (approx.)	4.5 kg
Warranty	2 years (subject to terms)

Frequently Asked Questions - Odyssey ZVC302ST Zelmer

How often should I replace the dust bag?

Replace the dust bag when the safety valve activates, suction drops, or the bag appears full. Typically after 6-12 months depending on use. Use only genuine SAFBAG bags.

How do I clean or replace the inlet filter?

Open the front cover, remove the inlet filter, and tap it clean or replace it. It is advised to replace the inlet filter every 4 bag changes. Ensure the filter is properly seated before closing.

How do I maintain the HEPA outlet filter?

The HEPA H11 filter is not washable. Replace when suction drops or after about 1 year of use. To replace, open the accessory compartment, press the filter cover lock, remove the cassette, and insert a new one.

What accessories are included with the Odyssey ZVC302ST?

Includes: telescopic tube, combination brush, parquet brush 'BNB', turbobrush, crevice nozzle, small brush, and small nozzle. Also a SAFBAG dust bag (2 pcs) and HEPA filter.

Can I use an electrobrush with this vacuum?

Yes, the vacuum has an electrobrush socket. Only use genuine ZELMER electrobrushes to avoid damage. The electrobrush is sold separately.

What is the turbobrush used for?

The turbobrush is ideal for removing pet hair, threads, and fibrous dirt from carpets. It uses a rotating brush powered by airflow. It is included with the ST model.

Why does the vacuum make a fluttering noise?

A fluttering noise indicates the safety valve has opened. This can happen if the dust bag is full, the hose is blocked, or the bag pores are clogged. Check and replace the bag or clear blockages.

How do I adjust the suction power?

Use the slider on the handle to adjust suction power steplessly. Move it toward 'max' for higher suction, toward 'min' for lower. Suitable for delicate curtains or thick carpets.

What should I do if the vacuum loses suction?

First, check if the dust bag is full and replace if needed. Also inspect the filters, hose, and nozzle for clogs. Clean or replace filters as necessary. Ensure the safety valve is closed.

Is the vacuum safe for hard floors like wood or tile?

Yes, use the parquet brush 'BNB' with soft natural bristles for hard floors. For other floor types, the combination brush can be switched to hard floor mode by retracting the bristles. Always test in an inconspicuous area first.

USER MANUAL Odyssey ZVC302ST Zelmer

B

E

C

F

D

PL

Szenami Eliand

Срок Electricity Act, 2016

In a pre-studial or prior year, the following results

[Unreadable]

Drav cayzekupuay (yes porkwn)

dataract dianin with paxod production

1. 2017年

to you call for words, while one is around.

10-02-1

the other manufacturer has or not a tax

(2) 1.00% 20,740 (2018)

023 7.3

1947年1月25日，美国100万美分

(1)

The following text in the source image is a non-textual, stylized graphic and does not represent any specific character or punctuation.

www.niuniu.edu

The following table is in Chinese:

Brychka K. 2014

The following table is in English:

In this study, we used to develop a plan for

na kian, wana, da pucuca ka bany

The following table is provided in the image. The text 'in' and 'in' are part of a table format, but there is no specific characters or punctuation.

The following table is provided in the image. The text in the source image is not clearly legible. According to Rule 4 (Edge Noise Strategy), since there is no visible text content, the OCR output must be empty.

[No text detected]

Notes

Dane techniczne

Please read this instruction manual carefully. Pay special attention to important safety instructions. Keep this User Guide for future reference.

Important safety instructions

Connect the vacuum cleaner only to a 230 V mains supply equipped with a 16 A fuse.
Do not unplug by pulling on cord.
Do not operate the appliance if the cord, the housing or the handle is visibly damaged. In such a case, return the appliance to a service center.

If the supply cord is damaged, it must be replaced by the manufacturer, a service agent or a qualified person in order to avoid a hazard.

The appliance can only be repaired by qualified service personnel. Improper servicing may cause a serious hazard to the user. In case of defects please contact a qualified service center.

Do not run the vacuum cleaner or the brushes over the cord, it may cause damage to the cord insulation.
Always unplug the appliance before cleaning, assembling or dismantling.
Turn off the device and unplug it from an outlet before replacing the equipment or approaching moving parts during use.
Do not vacuum without the dust bag and the lters or if they are damaged.
Do not use the vacuum cleaner to clean people of animals, pay special attention to keep the nozzles away from eyes and ears.

Do not pick up: matches, cigarette butts, hot ash. Avoid picking up sharp objects.
- Check the suction hose, the tubes and the nozzles – remove the dirt from the inside.
Do not vacuum line dust such as: our, cement, gypsum, toners for printers and copy machines etc.
Operate the appliance only in indoor spaces and vacuum only dry surfaces. Before vacuuming dry the carpets that were wet cleaned.
Attach only the ZELMER electrobrush to vacuum cleaners equipped with the electrobrush socket.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

Technical parameters

^e The type of the vacuum cleaner and the technical parameters are indicated on the rating label. Mains protection 16 A.

Does not cause interferences with audio/video devices.

Does not require grounding.

ZELMER vacuum cleaners meet the requirements of the applicable norms.

if The appliance is in conformity with the requirements of the directives:

- Low voltage appliance (LVD) - 2006/95/EC. Electromagnetic compatibility (EMC) - 2004/108/EC. - Noise level: 75 dB/A.

The appliance was marked by a CE sign on the rating label.

VACUUM CLEANER 450 TYPES

Workmanship and equipment option Type

Adjustable suction power

Electrobrush socket

Safety valve

Dust bag / amount

Outlet /iter

Suction tube

Suction hose

Combination brush

Small nozzle

Crevice nozzle

Small brush

Possibility to use the electro-brush

Turbo brush

Electro-brush

Parquet brush “BNB”

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

450.0***EH

+

-

-

SAFBAG 2 pieces

ACF Microliter

Segmented

CBS

+

+

+

+

-

-

-

450.0***EK

-

+

-

SAFBAG 2 pieces

ACF Microliter

Telescopic

FLEXI

+

+

+

+

+

-

-

-

450.0***SP

+

+

+

SAFBAG 2 pieces

HEPA H11

Telescopic

FLEXI

+

+

+

+

+

-

-

-

450.0***ST

+

+

+

SAFBAG 2 pieces

HEPA H11

Telescopic

FLEXI

+

+

+

+

+

+

-

-

Appliance elements

1 Electrobrush socket (type 450.0 EK, 450.0 SP, 450.0 ST)
2 ON/OFF button
3 Handle
4 Cord rewind button
5 Combination brush fastening
6 Plug and cord
7 Outlet filter cover
8 Front cover fastening
9 Suction power regulation slider
10 Accessory compartment cover
11 Suction hose. The vacuum cleaner is equipped with one suction hose (A or B)

A Suction hose with a handle (type 450.0 EK, 450.0 SP, 450.0 ST)
B Suction hose (type 450.0 EH)

12 Suction pipe. The vacuum cleaner is equipped with one kind of suction pipe (A or B)

Ⓐ Telescopic suction tube (type 450.0 EK, 450.0 SP, 450.0 ST)
B Segmented suction tubes (type 450.0 EH)

13 SAFBAG dust bag (2 pieces)
14 Outlet filter. The vacuum cleaner is equipped with only one outlet filter (A or B)

A Outlet filter HEPA H11 (type 450.0 SP, 450.0 ST) (installed in the vacuum cleaner)
B "ACF Microfilter" outlet filter (type 450.0 EH, 450.0 EK) (installed in the vacuum cleaner)

15 Inlet filter (installed in the vacuum cleaner)
16 Small nozzle
17 Small brush
18 Crevice nozzle
19 Parquet brush "BNB" (type 450.0 SP, 450.0 ST)

Is used to clean and polish hard, scratch sensitive surfaces such as wooden floors, floor panels, parquet, marble, tiles, etc. Delicate and soft natural bristles ensure maximum vacuum effectiveness and protects against scratching the cleaned surface.

20 Switchable combination brush
21 Turbobrush (type 450.0 ST)
22 Electrobrush (additional equipment – may be bought in retail centers)

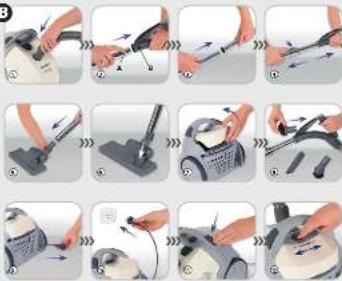

Preparing the vacuum cleaner for operation

① Pull the end of the suction hose into the opening and press lightly.
② Attach the other end of the hose (the handle) to the suction tube. In order to do this, press the lock A in the

telescopic suction tube and put the tube in the handle, so the lock A is fastened in hole B.

③ Join both segments of the suction tube together.
④ In case of the telescopic suction tube adjust the necessary tube length by moving the slider according to the slide in/slide out direction arrow.
⑤ Assemble the appropriate nozzle or brush to the other end of the suction tube.
⑥ To clean hard surfaces – wooden floors, plastic floors, ceramic tiles etc. pull out the brush by pressing the switch on the combination brush according to the figure 📂
⑦ The vacuum cleaner is equipped with an accessory compartment. In order to open it pull the compartment cover (10) up.
⑧ The accessories may be attached to the accessory holder in the suction hose handle. This way they will be available for use at any time (type 450.0 EK, 450.0 SP, 450.0 ST).
⑨ Pull the plug and cord (6) out of the vacuum cleaner.

ATTENTION! While pulling out the cord, pay attention to the yellow stripe which signals the end of the cord. Further attempts (pulling on cord) may result in damaging the cord.

⑩ Plug in the appliance.

Before operation make sure that the SAFBAG bag is installed in the vacuum cleaner chamber and that inlet filter and the outlet filter is installed in the appliance.

⑪ Switch on the vacuum cleaner by pressing the "on/off" button (2).
⑫ The vacuum cleaner is equipped with electronic power regulator allowing a stepless regulation of vacuum cleaner power. The power regulation is performed with a slider. Moving the slider according to its mark (max or min) will increase or reduce the suction power.

Filter disassembly

Before changing the filters make sure that the vacuum cleaner is switched off and unplugged from the mains supply.

INLET FILTER

① Release the catch of front cover (8) and open it.
② Remove the inlet filter (15) out of the housing.
③ Replace it with a new one, paying attention that the outer edge of the filter is placed inside the safety rib.
④ Close the front cover of the vacuum cleaner.

ATTENTION! The damaged inlet filter should be replaced with a new, genuine manufactured product only.

ATTENTION! It is advised to replace the inlet filter every 4 replacements of the SAFBAG dust bag, or even more often, if necessary.

The vacuum cleaners are equipped with an outlet filter ACF Microfilter or H11 Class HEPA (High Efficiency Particulate Air) filter depending on the type of the vacuum cleaner. The HEPA filter is a high-quality filter produced from special fibers which are able to stop almost all dust particles. The H11 Class indicates the permeability of the filter. The H11 HEPA filter stops 95.5% of particles as small as 0.3 micron.

① In order to replace the outlet filter, open the accessory compartment.
② Press firmy the blocking mechanism of the outlet filter cover and remove the cover out of the vacuum cleaner.
③ Remove the outlet filter cassette, replace the used cassette with new one. The HEPA filter assure circa 1 year of effective usage.
④ Place the outlet filter cover back on in such a way that the three cogs on the lower side of the cover fit into the holes in the vacuum cleaner housing. Next press the filter cover until the blocking mechanism closes hut. If you do it right, you will hear a characteristic “click” sound.

- close the accessory compartment.

SAFBAG dust bag disassembly/assembly

① The vacuum cleaner is equipped with safety valve located in chamber of dust container (bag). It opens automatically in case of total stopping of suction hose or total stopping of equipment elements connected thereto, as well as in case of overfill of dust bag. After opening the valve one can hear characteristic “whirr” sound inside the vacuum cleaner.
② Switch off the vacuum cleaner by pressing the on/off button (2).
③ Unplug the appliance.
④ Pull the end of the hose out of the inlet opening of the vacuum cleaner.
⑤ Release the front cover fastening (8) and open the cover.
⑥ Put the vacuum cleaner in a vertical position (it is easier to open and put it on its back wheels, while its second half leans over the front part of the dust container).
⑦ While holding the bag plate, pull it aside towards the inside of the dust container, and then pull the bag up.
⑧ Close the SAFBAG bag cap, as to close the full bag. Throw it out.
⑨ Place the plate in the new bag before the sliders and slide it in along with the screen right down to the bottom of the container. Unfold the bag. The direction is shown by an arrow placed on the bag.
⑩ Close the cover until you hear the characteristic clicking sound – be careful not to catch the bag.

ATTENTION! Do not start cleaning without an installed SAFBAG bag.

ZELMER vacuum cleaners are equipped with SAFBAG dust bags in the amount indicated in the table. It is recommended to replace the dust bag if:

a) the safety valve activates,
b) the vacuum cleaner operates poorly,
c) the dust bag is full.

Special accessories

The following special accessories may be purchased in retail outlets:

Zelmer turbobrush (21)

May be used with all types of ZELMER vacuum cleaners. Is used for an effective vacuuming of carpets and fitted carpets. While using the turbobrush follow the instruction manual.

The use of the turbobrush decidedly increases the effectiveness of removing fibrous dirt such as: animal hair, hair, threads etc. It is practically useful in households with pets (cats, dogs), where removing the animal hair from the carpets and floorings is very onerous.

Zelmer electrobrush (22)

Only the electrobrush manufactured by ZELMER may be used with ZELMER vacuum cleaners. Using other brands of electrobrushes may cause damage to the vacuum cleaner. The electrobrush may be used with all ZELMER vacuum cleaners equipped with the appropriate electrobrush socket. While using the electrobrush follow the instruction manual. The electrobrush is especially helpful in cleaning worn out carpets. Before vacuuming remove all larger elements from the floor such as: remains of cloth, paper etc. in order to prevent blocking of the whirling element of the brush.

End of operation cleaning and maintenance

① Switch off the vacuum cleaner by pressing the "on/off" button (2).
② Unplug the appliance.
③ Wind the cord by pressing the cord rewind button (4). While doing this hold the cord to make sure it is not tangled and the plug does not hit the vacuum cleaner housing.
④ Disconnect the suction tube from the suction nozzle or brush.
⑤ Disconnect the suction tube from the hose. In order to remove the telescopic tube from the hose handle, simultaneously press the lock A and pull the tube in the direction indicated by the arrow.
⑥ Pull the end of the hose out of the inlet opening of the vacuum cleaner.
⑦ The vacuum cleaner may be stored vertically or horizontally. In order to do so, insert the fastening hook of the combination brush to the combination brush fastener. The hose may be attached to the vacuum cleaner, however you have to make sure that it is not excessively bent during storing.
⑧ If necessary wipe the housing and the dust bag container with a damp cloth (it may be soaked with dishwashing liquid) and dry it or wipe until dry.
Do not use abrasive detergents or solvents.

Examples of problems while operating the vacuum cleaner

PROBLEM ACTION
A characteristic “fluttering” of the vacuum cleaner is heard which indicates the opening of the safety valve.	The dust bag may be full – replace the dust bag.Replace the dust bag even if it is not full yet. In unfavorable conditions, fine dust might have clogged the pores on the surface of the dust bag.The suction tube, the hose or the attachment is blocked – remove the cause of the clogging.
The dust bag is damaged.	Remove the dust bag and the filters.
The suction power of the vacuum cleaner is weak.	Replace the dust bag and the filters, check the suction tube, the hose and the nozzle - remove the cause of the clogging.
The electrical installation fuse went out.	Check if other appliances are not plugged to the same electrical circuit as the vacuum cleaner. If the fuse goes out repeatedly, return the vacuum cleaner to a service point.
The vacuum cleaner does not operate; the housing or the cord is damaged.	Return the vacuum cleaner to a service point.

Ecology – Environmental protection

Each user can contribute to protect the environment. It is neither difficult nor expensive. In order to do so:

Return cardboard packages to recycling points.

Throw polyethylene (PE) bags into appropriate containers.

Return a worn out appliance to an appropriate collecting point as the components of the appliance may pose a threat to the environment.

Do not dispose of with household waste!!!

The manufacturer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer reserves his right to modify the product any time in order to adjust it to the regulations, norms, directives or due to construction, trade, aesthetic or other reasons without notifying in advance.

Notes
