ZRC328WO - Refrigerator ZANUSSI - Free user manual and instructions

Product Type	Refrigerator (compressor-based)
Brand	Zanussi
Model	ZRC328WO
Net Volume	275 L
Width	600 mm
Height	1450 mm
Depth	600 mm
Weight	52 kg
Energy Efficiency Class	A (per Directive 94/2 EC)
Energy Consumption	0.46 kWh/24h, 168 kWh/year
Refrigerant	R600a (isobutane)
Number of Compressors	1
Climate Class	N (ambient +16°C to +32°C)
Maximum Humidity	70%
Interior Lamp	15 W, E14 socket
Door Reversible	Yes (instructions provided)
Control Type	Thermostat knob (0-5 scale)
Indicator Lights	Green light (power on)
Defrosting	Manual (clean drain channel monthly)
Cleaning	Warm water with mild detergent; no alcohol
Safety Features	Earth connection required; keep ventilation clear
Guarantee	12 months (EU, conditions apply)
Country of Origin	Not specified, but service centers in UK, Norway, Sweden

Frequently Asked Questions - ZRC328WO ZANUSSI

How do I reverse the door of my Zanussi ZRC328WO refrigerator?

To reverse the door, remove the bottom cover, unscrew the bottom bracket, remove the door, move the axle to the opposite side, and reassemble. Detailed steps are in the manual. Do not lay the appliance on the floor during the process.

What does the green light on the refrigerator indicate?

The green light indicates that the refrigerator is connected to the mains power supply and the electrical system is active.

How do I adjust the temperature in the refrigerator?

Turn the temperature control knob clockwise to lower the temperature (colder) and counterclockwise to raise it. The scale ranges from 0 (off) to 5 (coldest). Start at position 3 and adjust as needed.

What should I do if the refrigerator is too noisy?

Check that the appliance stands level on a smooth, firm base and does not touch other devices or furniture. Ensure the feet are adjusted properly.

How often should I defrost and clean the refrigerator?

Clean the interior at least once a month to avoid odors. Defrost when frost builds up (manual defrost). Use warm water with a little washing-up liquid; do not use alcohol-based cleaners.

The green light does not come on. What could be wrong?

Check if there is power at the socket, test with another device. Check the plug fuse. If the socket is faulty, contact an electrician.

What is the recommended ambient temperature for this refrigerator?

The refrigerator is designed for normal domestic use at ambient temperatures between +16°C and +32°C (climate class N). Humidity should not exceed 70%.

Can I use electrical appliances inside the refrigerator?

No. Do not use electrical appliances inside the food storage compartments, as per the safety warnings.

How do I replace the interior light bulb?

Press the dome light cover clip to the right and pull down to remove. Replace with a 15 W E14 bulb. Reassemble and reconnect power.

What should I do if the door gasket comes off?

Insert the gasket back into the groove by pressing the inner part. If contaminated with oily liquids, clean both gasket and groove with dishwashing agent, wipe dry, then refit.

USER MANUAL ZRC328WO ZANUSSI

Important

The appliance must be equipped with effective grounding. The power cord/plug therefore has a special grounding contact. If the outlets in the local network do not have a grounding option, the appliance must be equipped with a separate ground conductor by an authorized electrician according to current safety regulations.

Oslo: Electrolux Household Appliances A/S,

Stavanger: Electrolux Household Appliances A/S,

Overlege Cappelengst 3, 4011 Stavanger

Service/Spare parts, tel.: [phone]

fax: [phone]

Trondheim: Electrolux Household

Appliances A/S,

Ranheimsvn. 5 7044 Trondheim

Service/Spare parts, tel.: [phone]

fax: [phone]

Tromsø: Electrolux Household

Appliances A/S,

Solstrandvn. 25, 9020 Tromsdalen

Service/Reservedeler, tel.: [phone]

fax: [phone]

Bergen: Electrolux Household Appliances A/S

Important

Zanussi

S-105 45 Stockholm

IMPORTANT SAFETY INFORMATION

Interior cleaning

Warranty

Safety instructions

Refrigerator is a compressor based refrigerator designed for short-term storage of chilled products. This class "N" version of the refrigerator is intended to be used for normal domestic purposes only in accordance with the manufacturer's instructions.

At ambient temperature of +16 °C to +32°C and air moisture not higher than 70 % the manufacturer guarantees its trouble-free operation. The refrigerator complies with all current requirements for household refrigerators and electrical devices.

The refrigerant blowing agent is environmentally friendly - it has no ozone layer depleting materials.

All preventive maintenance operations and repairs should be carried out by an authorised service engineer.

Since efforts are continually made to improve the reliability and performance of the product, minor changes may be introduced without special notice in these instruction.

This instruction book contains information which will help to minimize environmental impact.

IMPORTANT NOTE: REMOVAL OF TRANSIT PACKAGING

BEFORE USING FOR THE FIRST TIME, REMOVE BLANKING PLUG "A", TAKE OFF ALL PACKING PIECES "B", AND THEN REPLACE IN HOLE "C"

Preparation for use

The transport packaging is made from expanded polystyrene. Strip off the adhesive tapes from the sides, lift the refrigerator up and remove the board.

Strip off the adhesive tapes and open the door. Remove the insert from above the door. Slightly tilt the freezer backwards in order to keep the door closed while adjusting the feet. It is very important that the appliance is properly leveled. Should you need to move the appliance, lift it from its location to ensure the feet do not drag on the floor.

Take two supports 1 from the pack and insert them into the guides 2 in the back part of the table top.

Safety precautions

Prior to connecting the refrigerator to the mains, make sure that the power cord is not damaged.

This refrigerator is supplied with a special supply cord. It should only be exchanged for an identical special supply cord, and this replacement should only be carried out by a qualified electrician or competent person.

The plug of the refrigerator should be connected to a properly fixed stationary socket providing good contact. The socket must have a reliable earth connection.

Keep the rear of the refrigerator free from dust using a dry brush or a vacuum cleaner at least once a year.

WARNING!

- Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction.

• Do not use mechanical devices or other means to accelerate the defrosting process.

- Do not damage the refrigerant circuit.

• Do not use electrical appliances inside the food storage compartments of the appliance.

• After switching the appliance off (e.g. for cleaning, relocating etc.) it can be switched on again only after 15 mins.

• Do not touch the plug pins after switching the appliance off.

- The refrigerator should only be transported in the vertical position.

- Secure the refrigerator during transit in order to avoid damage.

Do not place vessels containing liquid on the top of the refrigerator as these could spill onto the electrical components.

Do not place electrical heating appliances (e.g. electric stoves, irons, grills etc.) on the top cover of the refrigerator.

Protect plastic surfaces of the food storage compartment from fat, oils, sauces etc. as they can cause damage to the compartment. In case of unintended spill immediately clean the surface with warm water to which a little washing up liquid has been added.

While defrosting or cleaning the inside of the refrigerator, do not forget to disconnect it from the mains.

Information:

Leave the doors of refrigerator open if it is switched off for a long time;

If selling or transferring this refrigerator inform the new user, that it contains insulation - cyclopentane (foaming agent C5H10), and refrigerant - R600a.

How to reverse the door:

For this there is the set of plugs in the polythene bag

IMPORTANT: Do not lay the appliance on the floor while reversing the door.

- remove the bottom cover 10;

• unscrew two screws 7 and remove the bottom bracket 8 together with the washers 6 on the axle and the spacer 5;
• remove the door 4;
• unscrew the axle 2 together with the nut 1 and the washers 3 from the upper bracket and screw all this set on the left side of the door;
• move the plug 14 to the right side;
• hang the door on the axle 2;
• prior to unscrewing the bracket 11 and exchanging it with the bottom bracket 8 (together with the set of washers and spacers), insert the bracket axle into the door;
• the brackets 9 which are under the brackets 11 and 8 remain in their places;
• replace the bottom cover 10.

In case you do not want to carry out the door reversal operation yourself, you can contact your local Service Force centre. The engineer will carry out the door reversal at your cost.

Construction of the refrigerator

1-5 Top cover with controls 11 Insert
6 Shelf 12 Drain channel cleaner
7	Shelf 13 Condenser
8	Tray 14 Compressor
9 Door shelf Instruction Manual
10	Door shelf		package

Control devices and signal lights

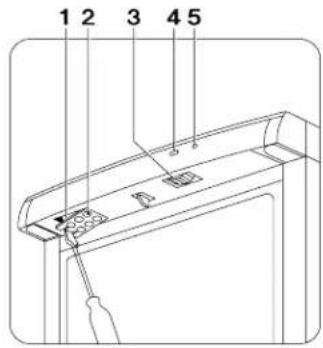

1 - Lamp; 2 - Dome light; 3 - Temperature control knob; 4 - Temperature control scale - (thermoregulator); 5 - Green light - (electrical system).

Replacing the lamp

Press the dome light cover clip to the right and pull it downwards to remove the cover. Replace the lamp. Lamp type - 15 W, lamp holder - E 14; Reverse removal to replace the cover. Reconnect the refrigerator to the mains.

Overall space required in use of the refrigerator

NOMINAL TECHNICAL DATA

Model	ZRC 328 WO ZRA 324 W
Net volume, L 275
Width (mm)	600
Height (mm) 1450
Depth (mm) 600
Energy efficiency class in accordance with directive 94/2 EC	A
Energy consumption: kWh/24 h kWh/per year	0,46 168
Weight, kg 52
The amount of compressors 1
The refrigerant R600a

Refrigerator position

The refrigerator should be placed in a dry, well-ventilated room.

The refrigerator must be kept from exposure to direct sunlight. It is not advisable to locate it near heat sources (e.g., boilers, radiators, etc.). If it is impossible to find an alternative location,

use an insulating panel. The appliance must not touch heating, gas, or other pipes or heating devices.

Ventilation

IMPORTANT! Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction.

If the door does not close properly, it is necessary to change the door gasket.

If the door does not close correctly, the temperature in the refrigerator rises and energy consumption increases.

Warning! Do not cover the openings at the back of the top cover!

CONTROLS AND WARNING LIGHTS

A green light 5 indicates that the refrigerator has been connected to the mains.

The temperature in the refrigerator is adjusted by turning the temperature control knob.

The temperature controller is switched off when the knob 3 shows a "0" mark in the

temperature control scale 4. If the temperature control knob is turned clockwise, the temperature in the chamber is reduced.

Storage of the cooled food-stuffs

The temperature in the refrigerator is affected by the ambient temperature, the position of the temperature control knob, and the volume of food to be stored.

Initially set the temperature control knob to position "3". If the food is too cold, reduce the setting; if it is not cold enough, decrease the temperature by turning the knob to a higher position than "3".

If the thermostat knob is in position "5" and frost forms on the back wall, turn the knob to a lower position.

Liquids and foods with strong odours or which easily take on smells must be stored in closed containers. Foods should only be placed into the refrigerator when they have been cooled to room temperature.

Defrosting

In order to avoid odours in the refrigerator, clean it at least once a month. Wash it with warm water and a little washing-up liquid.

When cleaning the refrigerator or disconnecting it for any period of time, perform the following procedures:

• disconnect the refrigerator from the mains; • take the foods out of the refrigerator;
• leave the door open.

After cleaning, the refrigerator must be wiped and ventilated.

Clean the drain channel and trough using a long flexible wire or the tool provided.

Caution. Do not use mechanical or other devices, which are not recommended in the user manual, to remove frost or ice.

Note!

Do not clean with liquids containing alcohol.

Refrigerators produced from stainless steel should be cleaned only with appropriate cleaners.

WHAT TO DO IF...

If the appliance is not working correctly, please check the following before contacting the engineer:

Problems Possible reasons and likely solutions
The refrigerator is connected to the mains but the green lamp does not light up.	There is no voltage in the mains or no contact between the plug and the socket.Check plug fuse, try an alternative socket.
Increased noise	Check if the appliance- stands level on a smooth and firm base;- doesn’t touch any other electrical devices or furniture next to it.
While opening the door the gasket comes off.	Insert the gasket into position by pressing the inner part of the gasket. If the gasket has been contaminated with oily liquids, it is necessary before inserting to clean the gasket and the groove in the door with dish washing agent and wipe it dry before refitting.
High temperature in the appliance.	A lot of warm foodstuffs loaded; doors have been opened for a long time or too often.
Condensation forms on the surface of the appliance.	High relative humidity (over 70 %).

If after the above checks, your appliance still does not operate correctly, contact your local Service Force centre. Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls.

In-guarantee customers should ensure that the above checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

WARNING!

When requesting a repair to your appliance, always quote the information given on the rating plate shown below.

The symbol

on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your waste disposal service or the shop where you purchased the product.

Service and Spare Parts

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Service Force Centre by telephoning:- 08705 929 929

Your telephone call will be automatically routed to the Service Force Centre covering your post code area. For the address of your local Service Force Centre and further information about Service Force, please visit the website at www.serviceforce.co.uk

Before calling out an engineer, please ensure you have read the details under the heading "Something Not Working."

When you contact the Service Force Centre you will need to give the following details:

1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the appliance (found on the rating plate)
5. The purchase date

Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls.

Customer Care Department

For general enquiries concerning your Electrolux appliance or for further information on Electrolux products, please contact our Customer Care Department by letter or telephone at the address below or visit our website at www.electrolux.co.uk

Customer Care Department

Electrolux Major Appliances

Addington Way

Luton

Bedfordshire

LU4 9QQ

08705 950950 (*)

*calls to this number may be recorded for training purposes.

Guarantee Conditions

We, Zanussi-Electrolux, undertake that if within 12 months of the date of purchase this ELECTROLUX appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, the company will, at our option, repair or replace the same FREE OF CHARGE for labour, materials, or carriage on condition that:

The appliance has been correctly installed and used only on the electrical supply stated on the rating plate. The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's instructions.

The appliance has not been serviced, maintained, repaired, taken apart, or tampered with by any person not authorised by us. All service work under this guarantee must be undertaken by a Service Force Centre. Any appliance or defective part replaced shall

become the Company's property. Home visits are made between 8.30am and 5.30pm

Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.

EXCLUSIONS

This Guarantee does not cover:

• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic
• Costs incurred for calls to put right an appliance improperly installed or calls to appliances outside the United Kingdom
• Appliances found to be in use within a commercial environment, plus those which are the subject of rental agreements.
• Products of Electrolux manufacture which are not marketed by Electrolux.

The guarantee is in addition to your statutory and legal rights.

EUROPEAN GUARANTEE

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

The guarantee starts from the date you first purchased your product. The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products.

This guarantee relates to you and cannot be transferred to another user.

Your new home is within the European Community (EC) or European Free Trade Area.

The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household. The product is installed taking into account regulations in your new country. Before you move, please contact your nearest Customer Care Centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.
