USER MANUAL WEL98HEBU WHIRLPOOL

USING THE BUILT-IN TROUBLESHOOTING FEATURE.........14

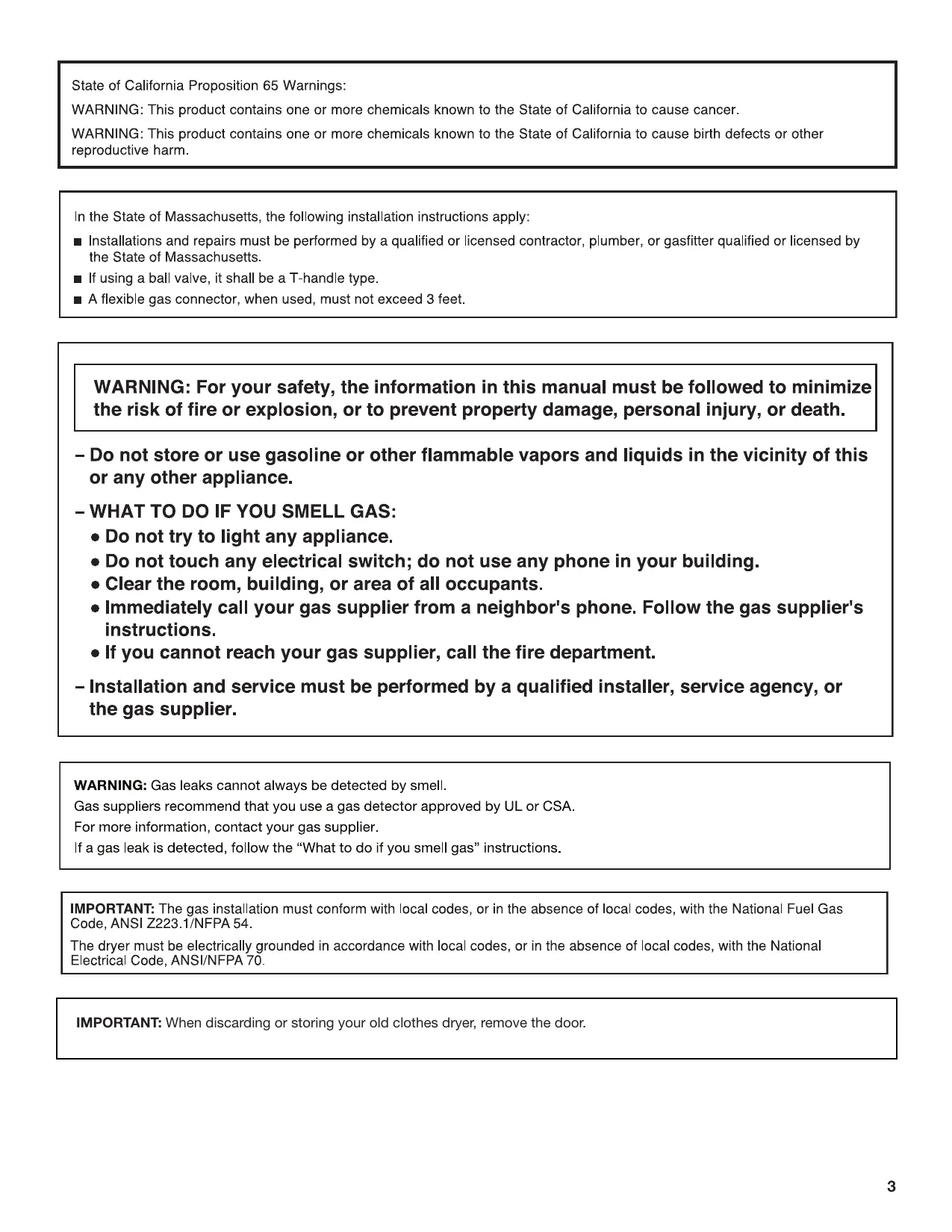

IMPORTANT: When discarding or storing your old clothes dryer, remove the door.

ACCESSORIES Enhance your new washer and dryer with the following genuine Whirlpool accessories. For more information on options and ordering, call 1-800-442-9991, or visit us at: www.whirlpool.com/accessories. In Canada, call 1-800-807-6777 or visit us at www.whirlpoolparts.ca. 15" Pedestal Color-matched pedestals raise the washer and dryer to a more comfortable working height. The large drawer provides convenient storage. Stack Kit If space is at a premium, the stack kit allows the dryer to be installed on top of the washer.

Worksurface The worksurface bridges the washer and dryer, and provides a convenient working and storage area. CHECK YOUR VENT SYSTEM FOR GOOD AIR FLOW Maintain good air flow by: n Cleaning your lint screen before each load. n Replace plastic or foil vent material with 4" (102 mm) diameter heavy, rigid vent material. n Use the shortest length of vent possible. n Use no more than four 90° elbows in a vent system; each bend and curve reduces air flow. Good Better Good air flow Along with heat, dryers require good air flow to efficiently dry laundry. Proper venting will reduce your drying times and improve your energy savings. See “Installation Instructions”. The venting system attached to the dryer plays a big role in good air flow. Service calls caused by improper venting are not covered by the warranty and will be paid by the customer, regardless of who installed the dryer. n Remove lint and debris from the exhaust hood. n Remove lint from the entire length of the vent system at least every 2 years. When cleaning is complete, be sure to follow the Installation Instructions supplied with your dryer for final product check. n Clear away items from in front of the dryer. Use Auto cycles for better fabric care and energy savings Use the Auto Cycles to provide the most energy savings and enhanced fabric care from the dryer. During Automatic Cycles, drying air temperature and moisture level are sensed in the load. This sensing occurs throughout the drying cycle and the dryer shuts off when the load reaches the selected dryness. Use the NORMAL DRY dryness level to provide optimal energy savings. With Timed Dry, the dryer runs the amount of time set and sometimes results in shrinkage, wrinkling, and static due to over-drying. Use Timed Dry for the occasional damp load that needs a little more drying time or when using the drying rack. Tips for getting the best performance from your steam dryer n Results may vary depending on fabric. 100% cotton garments with wrinkle-free finish may yield better results than those without. 100% cotton items may require additional touching up after the Steam Cycle. n Use of a fabric softener sheet is not recommended with Steam Cycles. It may cause temporary staining on clothes. n It is not recommended to use Steam Cycles for items that have been starched. Wash any starched or new garments prior to using a Steam Cycle. n The Quick Refresh Cycle is best for smoothing out wrinkles and reducing odors from loads consisting of one to 12 dry items of wrinkle-free cotton, cotton-polyester blend, common knits, and synthetic garments. n The Enhanced Touch Up Cycle is best for smoothing out wrinkles from clothes that have been left in the dryer too long. For best results, do not overload the dryer.

QUICK REFRESH Steam Cycles Select number of Garments

WRINKLE SHIELD™ with Steam Option

Press to turn the dryer on and off. Press to stop/cancel a cycle at any time. NOTE: When the dryer is turned on for the first time after being plugged in or after a power outage, please allow a minute or so for the dryer display to start up.

ECOBOOST™ BUTTON Press and hold to start a cycle, or press once while a cycle is in process to pause it. Press to activate the Wrinkle Shield™ with Steam option. This will tumble clothes periodically and, if the Steam option is activated, add a short steam refresh cycle after an hour to help avoid wrinkles when you can’t remove clothes from the dryer immediately. Steam is available with High, Medium-High, and Medium temperatures only.

COLOR LCD DISPLAY SCREEN

This screen will display current options and settings, cycle information, and estimated time remaining. You can also use the navigation buttons below and on either side of the screen to access helpful laundry and troubleshooting tips, as well as other information.

SYSTEM SETTINGS The System Settings button allows you to adjust the LCD display settings, including brightness and other preferences. Under System Settings, you can access the following functions: Remote Start (model WEL98 only) Allows you to start your dryer remotely using the Smartappliances app. Control Lock Allows you to disable all controls except the power button to avoid unauthorized use or changes to running cycles. End of Cycle Adjusts the volume of the End of Cycle signal, or turns it off. Button Sound Adjusts the volume of the button sounds, or turns them off. Brightness Adjusts the brightness of the LCD screen. Language Displays information in English, French, or Spanish. Themes Select between two different display color and background themes. Use these buttons to select options displayed in the LCD screen, and to navigate through options. BACK Press the BACK button to go back to the previous screen without accepting any changes made on the current screen. Press and hold for 1 second to return to the start-up screen for the selected cycle. MORE INFO Press to get more information on a setting or option. Press MORE INFO again to return to the previous screen. t and u BUTTONS t Button Press the t button when the arrow is lit to go back to the previous set of options or settings. u Button Many screens have more than 4 selections. Press the u button when the arrow is lit to show additional options or settings. SELECTION BUTTONS Use the four selection buttons to choose options or settings displayed on the LCD screen. The EcoBoost™ option improves energy savings. You may notice the cycle time increases when the EcoBoost™ option is selected. Saving energy through slightly lower temperatures requires slightly more drying time for best drying results. Overall, you are saving more energy when using the EcoBoost™ feature. NOTE: Press and hold the EcoBoost™ button for 3 seconds to turn the drum light on or off.

Use your dryer’s cycle control knob to select available cycles on your dryer. Turn the knob to select a cycle for your laundry load. See “Cycle Guide” for detailed descriptions of cycles. Press to add the Static Reduce option to an Auto cycle. The dryer will automatically tumble, pause, and introduce a small amount of moisture into the load to help reduce static. This option adds approximately 8 minutes to the total cycle time.

Press to activate the Smart Grid option (see “Smart Feature Sheet”).

CYCLE GUIDE — AUTO CYCLES

For additional cycle details and options, refer to the LCD display. Settings and options shown in bold are default settings for that cycle. Not all features and cycles are available on all models. Not all options and settings are available with each cycle. Use Auto Cycles for better fabric care and energy savings The dryer senses moisture in the load or air temperature and shuts off when the load reaches the selected dryness level. Use the NORMAL dryness level to provide optimal energy savings. Items to dry: Cycle: Drying Temperature: Dryness Level: Default Time: Available Options: Cycle Details: Heavyweight items Heavy High More Damp Dry Signal such as towels or Duty Normal Wrinkle Shield™† heavy work clothes Less Static Reduce EcoBoost™ Offers stepped drying starting with High heat followed by Medium heat for enhanced fabric care and energy savings. Work clothes, casual Normal Medium More Damp Dry Signal wear, mixed cottons, Normal Wrinkle Shield™† sheets, corduroys Less Static Reduce EcoBoost™ Uses Medium heat to dry large loads of mixed fabrics and items. Normal is the preferred energy cycle. Jeans and denims Jeans Medium-High More Damp Dry Signal Normal Wrinkle Shield™† Less Static Reduce EcoBoost™ Stepped drying uses High heat initially, followed by Medium heat to drive moisture from jeans and denims. Jackets, comforters, Bulky Medium More Damp Dry Signal pillows Items Normal Wrinkle Shield™† Less Static Reduce EcoBoost™

Use for drying large, bulky items; do not overfill dryer drum. Partway through the cycle, the signal will sound for 2 minutes to indicate when it is time to rearrange items for optimal drying. Shirts, blouses, Casual Low More Damp Dry Signal permanent press, Normal Wrinkle Shield™ synthetics, Less Static Reduce lightweight items EcoBoost™ Uses a stepped drying temperature from Medium to Low for improved moisture removal and enhanced fabric care. Undergarments, Delicate Extra Low More Damp Dry Signal Uses Extra Low heat to gently blouses, lingerie, Normal Wrinkle Shield™ dry delicate items. performance wear Less Static Reduce EcoBoost™ Large loads of cotton Towels High Normal Wrinkle Shield™ towels, heavyweight items

This is a long cycle with high heat, which has been proven to reduce household bacteria. This cycle is not recommended for all fabrics. Use for large loads of heavyweight fabrics such as cotton towels. Sportswear Specialty Varies by cycle. See the “My Cycle and Specialty Kidswear Cycles Cycle” section of this guide. Wool Sweaters Business Wear Intimates Pillows Sheets/Linens Blankets/Comforters Specialty Cycles provide custom drying cycles for tackling common household cleaning tasks. Refer to the on-screen description for the individual cycles for additional details and available settings. Custom My Cycle Custom

Save your favorite cycle/setting combinations. See the “My Cycle and Specialty Cycle” section of this guide. † Wrinkle Shield™ with Steam option is available only with High, Medium-High, and Medium Drying Temperature settings. Load Size Recommendations For best results, follow the wet load size recommendations noted for each cycle. Small load: Fill the dryer drum with 3-4 items, not more than 1/4 full. Medium load: Fill the dryer drum up to about 1/2 full. Large load: Fill the dryer drum up to about 3/4 full. Do not overload. Items need to tumble freely.

Settings and options shown in bold are default settings for that cycle. Not all features and cycles are available on all models. Not all settings and options are available on each cycle. Adjusting drying time on Manual Cycles Selecting the Drying Temperature A High heat setting may be used for drying heavyweight items such as towels and work clothes. A Low to Medium heat setting may be used for drying medium-weight items such as sheets, blouses, dresses, underwear, permanent press fabrics, and some knits. Use a no heat (air dry) setting for foam, rubber, plastic, or heat-sensitive fabrics. Line dry bonded or laminated fabrics. NOTE: If you have questions about drying temperatures for various loads, refer to the care label directions. When you select a Manual Cycle, the default time appears in the display. Use the LCD controls to increase or decrease the time in 1 minute increments. Press and hold to change the time in 5 minute increments. The maximum dry time is 100 minutes. Items to dry: Cycle: Drying Temperature: Small loads and Quick Dry High sportswear Medium-High Medium Low Extra Low Air Only Any load Timed Dry NOTE: Select Air Only to dry foam, rubber, plastic, or heat-sensitive fabrics. Default Time:

High Wrinkle Shield™† Medium-High Medium Low Extra Low Air Only Cycle Details: For small loads of 3-4 items. Use to dry items to a damp level for items that do not require an entire drying cycle, or to finish drying slightly damp items. Select a drying temperature based on the type of fabrics in your load. If you are unsure of the temperature to select for a load, select the lower setting rather than the higher setting. † Wrinkle Shield™ with Steam option is available only with High, Medium-High, and Medium Drying Temperature settings.

CYCLE GUIDE — STEAM CYCLES

Your dryer has been connected directly to the water line with a hose behind the dryer. This is used for bringing in water for the steam cycles. Settings and options shown in bold are default settings for that cycle. Not all settings and options are available on each cycle. Steam cycles are designed for use with dry loads to loosen wrinkles, remove odors, and refresh fabrics. Items to refresh: Cycle: Drying Temperature: Default Time: Available Options: Cycle Details: Shirts, blouses, Quick Refresh Medium-High Wrinkle Shield and slacks with Steam Static Reduce

Use to remove odors and reduce light wrinkles. Select the number of garments to be refreshed (on some models). Do not add dryer sheets. Enhanced High Wrinkle Shield™† Touch Up Medium-High Static Reduce Medium

Use to remove wrinkles, including from loads left in the dryer too long. Dry time will automatically adjust when the load size is sensed. Cycle run time cannot be manually adjusted, but Temperature is selectable. Do not add dryer sheets.

Mixed Loads † Wrinkle Shield™ with Steam option is available only with High, Medium-High, and Medium Drying Temperature settings. Load Size Recommendations For best results, follow the wet load size recommendations noted for each cycle. Small load: Fill the dryer drum with 3-4 items, not more than 1/4 full.

Medium load: Fill the dryer drum up to about 1/2 full. Large load: Fill the dryer drum up to about 3/4 full. Do not overload. Items need to tumble freely.

WARNING: To reduce the risk of fire, electric shock, or injury to

persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this dryer.

1. Clean the lint screen

Clean the lint screen before each load. Pull the lint screen straight up. Roll lint off the screen with your fingers. Do not rinse or wash screen to remove lint. Wet lint is hard to remove. Push the lint screen firmly back into place. For additional cleaning information, see “Dryer Care”.

Open the door by pulling on the handle. Place laundry in the dryer. Add a dryer sheet to wet load, if desired. Close the door. IMPORTANT: Do not overload the dryer. Items need to tumble freely. Overloading can lead to poor drying performance and may increase wrinkling and tangling.

Press the POWER button to turn on the dryer.

4. Select the desired cycle

CASUAL NORMAL Changing the Auto Cycle settings to increase drying time BULKY ITEMS DELICATE JEANS Eco Auto Cycles TIMED DRY HEAVY DUTY QUICK DRY TOWELS If all your loads on all Auto Cycles are consistently not as dry as you would like, you may change the default settings to increase the default dryness level. Your automatic drying settings can be adjusted to adapt to different installations, environmental conditions, or personal preference. This change is saved in memory and will affect all of your Automatic cycles, not just the current cycle/load. Manual Cycles ENHANCED TOUCH UP SPECIALTY CYCLES MY CYCLE QUICK REFRESH Steam Cycles Select number of Garments Select the desired cycle for your load. See the “Cycle Guide” or the display for more information about each cycle. If selecting Timed Dry, use LCD control buttons to adjust the length of the cycle.

5. Set any cycle settings

There are 3 drying settings: Factory preset dryness level. Slightly drier clothes, 15% more drying time. Much drier clothes, 30% more drying time. To change the drying settings: NOTE: The settings cannot be changed while the dryer is running or paused. The dryer must be in standby mode (the power button is off) to adjust the default settings. The default cycle settings will be displayed on the LCD screen. You may adjust different settings, depending on whether you have selected an Auto Cycle, Manual Cycle, or Steam Cycle. See the “Cycle Guide” for detailed information. NOTE: Not all options and settings are available with all cycles. Not all cycles are on all models. Auto Cycles: You can select a different dryness level, depending on your load, by pressing the button for More, Normal, or Less. Selecting More, Normal, or Less automatically adjusts the dryness level at which the dryer will shut off. Once a dryness level is set, it cannot be changed without stopping the cycle. Automatic cycles give the best drying in the shortest time. Drying time varies based on fabric type, load size, and dryness setting. Manual Cycles: When you select a Manual Cycle, the default time is displayed. Use the LCD control buttons to increase or decrease the time in 1 minute increments. Press and hold to change the time in 5 minute increments. The default temperature may be changed by pressing the Temperature button until the desired dry temperature is selected. Quick Refresh with Steam: Select the number of garments in the load. The dryer will automatically set the drying time and temperature.

1. Before starting an Auto cycle, press and hold the LCD

control button for Dryness Level for 6 seconds. The LCD will briefly display the regular Dryness Level options, then change to show the default setting options.

2. Press the LCD control button for the desired setting.

3. Press the BACK button to return to the main screen

for the selected cycle.

6. Select any additional options

(options vary by model) Add additional options such as Static Reduce, Smart Grid, Wrinkle Shield™ with Steam, and/or EcoBoost™ by pressing the button for that option. NOTE: n Not all options and settings are available with all cycles, and not all features and cycles are available on all models. n On model WEL98 only, see the “Smart Feature Sheet” for information about setting up Smart functionality, turning it on and off, receiving important notifications, and taking advantage of available features. Remote Start (model WEL98 only) Remote Start

MY CYCLE AND SPECIALTY CYCLES

MY CYCLE You may store up to 7 frequently used custom cycles in My Cycle for quick access. Remote Start Remote Start allows you to start your dryer remotely using the Smartappliances app. Make this selection last using the System Settings button and the LCD control button. Make sure that your dryer remains closed and the cycle is not adjusted until you start the cycle.

1. Select the desired cycle and features.

2. Press the System Settings button.

3. Press the LCD control button for Remote Start.

4. Press the LCD control button for the desired setting.

5. Make sure the dryer remains on. If the dryer is turned off,

the Remote Start feature will turn off.

7. Press and hold START/PAUSE

to begin cycle To save a custom cycle:

1. Select My Cycle with the Cycle Control knob.

2. Follow the on-screen prompts.

If you try to add another custom cycle and all 7 custom storage spaces are filled, you will need to delete a saved custom cycle before saving the new one. To retrieve a custom cycle using My Cycle:

1. Select My Cycle with the Cycle Control knob.

2. Use the t and u arrow keys to scroll through the saved

custom cycles until the desired cycle is displayed.

3. Press the selector button under the desired cycle.

SPECIALTY CYCLES Specialty cycles are designed for a specific purpose, such as washing pillows or comforters. To select a specialty cycle, turn the Cycle Control knob to Specialty, then select the desired cycle from the display screen using the selection buttons. Press and hold the START/PAUSE button to begin the cycle.

8. Remove garments promptly

after cycle is finished Promptly remove garments after cycle has completed to reduce wrinkling. If you will be unable to remove the load promptly, press the Wrinkle Shield™ with Steam button and select the desired Wrinkle Shield™ option before pressing START/PAUSE. Specialty Cycles include: Blankets/Comforters – Cotton Blanket Blankets/Comforters – Synthetic Blanket Blankets/Comforters – Comforter Pillows – Feather Pillows – Fiberfill Pillows – Decorative Sheets/Linens – Cotton Sheets/Linens – Synthetics Wool Sweaters Kidswear Sportswear Intimates Business Wear

CLEANING THE DRYER LOCATION

To obtain a drying rack for your dryer, follow the instructions included in your dryer drum. Remove and discard any packing material before use. Use the Drying Rack for items that you do not want to tumble dry, such as sweaters and tennis shoes. When you use the drying rack, the drum continues to turn, but the rack remains stationary. The drying rack is intended for use with the Manual Dry/ Timed Dry cycles only. The drying rack cannot be used with Automatic cycles. Keep dryer area clear and free from items that would block the air flow for proper dryer operation. This includes clearing piles of laundry in front of the dryer. To use the drying rack: IMPORTANT: Do not remove the lint screen.

1. Open the dryer door.

CLEANING THE DRYER INTERIOR

2. Align the two hooks on the front of the drying rack with

the holes in the dryer door opening and press down fully into holes. Rest the rear support on the dryer back ledge.

3. Place wet items on top of the drying rack. Allow space

around items for air to circulate. The drying rack does not move, but the drum will rotate; be sure to leave adequate clearance between items and the inside of the dryer drum. Make sure items do not hang over the edges or between the drying rack grille.

5. Select a Timed Dry/Air Only, or Low Temperature cycle.

Items containing foam, rubber, or plastic must be dried on a clothesline or by using the Air Only setting.

6. When the cycle is selected, the Estimated Time

Remaining display shows the default time. You can change the actual time in the cycle by increasing or decreasing the cycle time.

NOTE: Check the lint screen and remove any lint accumulated from items dried on the drying rack after the cycle is finished.

1. Use a mild hand dish detergent mixed at a low

concentration with very warm water, and rub with a soft cloth.

2. Rinse well with a wet sponge or towel.

3. Tumble a load of clean clothes or towels to dry drum

se a microfiber cloth and hot water in a spray bottle to clean the drum and a second microfiber towel to dry. NOTE: Garments that contain unstable dyes, such as denim blue jeans or brightly colored cotton items, may discolor the rear of the dryer interior. These stains are not harmful to your dryer and will not stain future loads of clothes. Dry unstable dye items inside out to avoid transfer of dye.

REMOVING ACCUMULATED LINT

From Inside the Dryer Cabinet Lint should be removed every 2 years, or more often, depending on dryer usage. Cleaning should be done by a qualified servicer or ventilation system cleaner. From the Exhaust Vent Lint should be removed every 2 years, or more often, depending on dryer usage.

CLEANING THE LINT SCREEN

Every load cleaning The lint screen is located in the door opening of the dryer. A screen blocked by lint can increase drying time. To clean:

1. Pull the lint screen straight up. Roll lint off the screen

with your fingers. Do not rinse or wash screen to remove lint. Wet lint is hard to remove.

2. Push the lint screen firmly back into place.

IMPORTANT: n Do not run the dryer with the lint screen loose, damaged, blocked, or missing. Doing so can cause overheating and damage to both the dryer and fabrics. n If lint falls off the screen into the dryer during removal, check the exhaust hood and remove the lint. See “Venting Requirements” in the Installation Instructions. As needed cleaning Laundry detergent and fabric softener residue can build up on the lint screen. This buildup can cause longer drying times for your clothes, or cause the dryer to stop before your load is completely dry. The screen is probably clogged if lint falls off while the screen is in the dryer. Clean the lint screen with a nylon brush every 6 months, or more frequently, if it becomes clogged due to a residue buildup.

NON-USE, STORAGE, AND MOVING CARE

Install and store your dryer where it will not freeze. Because some water may stay in the hose, freezing can damage your dryer. If storing or moving your dryer during freezing weather, winterize it. Non-Use or Storage Care Operate your dryer only when you are at home. If you will be on vacation or not using your dryer for an extended period of time, you should:

1. Unplug dryer or disconnect power.

2. Clean lint screen. See “Cleaning the Lint Screen.”

3. Turn off the water supply to the dryer. This helps to

avoid unintended flooding (due to a water pressure surge) while you are away. Moving Care For power supply cord-connected dryers:

1. Unplug the power supply cord.

2. Gas models only: Close shutoff valve in gas supply line.

3. Gas models only: Disconnect gas supply line pipe and

remove fittings attached to dryer pipe.

4. Gas models only: Cap the open fuel supply line.

5. Steam models only: Shut off water faucet.

6. Disconnect the water inlet hose from faucet, then drain

the hose. Transport hose separately.

7. Make sure leveling legs are secure in dryer base.

8. Use tape to secure dryer door.

1. Roll lint off the screen with your fingers.

2. Wet both sides of lint screen with hot water.

3. Wet a nylon brush with hot water and liquid detergent.

Scrub lint screen with the brush to remove residue buildup.

4. Rinse screen with hot water.

5. Thoroughly dry lint screen with a clean towel.

Reinstall screen in dryer. For direct-wired dryers:

1. Disconnect power.

2. Disconnect wiring.

3. Steam models only: Shut off water faucet.

4. Steam models only: Disconnect the water inlet hose from

faucet, then drain the hose. Transport hose separately.

5. Make sure leveling legs are secure in dryer base.

6. Use tape to secure dryer door.

Reinstalling the Dryer Follow the “Installation Instructions” to locate, level, and connect the dryer.

Water Inlet Hose Replace inlet hose and hose screen after 5 years of use to reduce the risk of hose failure. Periodically inspect and replace inlet hose if bulges, kinks, cuts, wear, or leaks are found. When replacing your inlet hose, record the date of replacement. To Winterize the Dryer

1. Unplug dryer or disconnect power.

2. Shut off water faucet.

3. Disconnect water inlet hose from faucet and drain.

To Use the Dryer Again

1. Flush water pipes. Reconnect water inlet hose to faucet.

Turn on water faucet.

2. Plug in dryer or reconnect power as described in the

Installation Instructions.

USING THE BUILT-IN TROUBLESHOOTING FEATURE

With the dryer on, press MORE INFO to access the built-in HELP feature.

2. Select TROUBLESHOOT

Use the LCD control buttons to select TROUBLESHOOT. Then use the LCD control buttons to select the HELP topic. The t and u buttons can be used to advance through the different options. TROUBLESHOOTING First try the solutions suggested here or visit our website at www.whirlpool.com/product_help In Canada www.whirlpool.ca for assistance and to possibly avoid a service call. If you experience Solution Possible Causes Dryer Operation Dryer will not run Door not closed completely. Make sure the dryer door is closed completely. START/PAUSE button not pressed firmly or held long enough. Press and hold the START/PAUSE button 2-5 seconds. Household fuse is blown or circuit breaker has tripped. There may be 2 household fuses or circuit breakers for the dryer. Check that both fuses are intact and tight, or that both circuit breakers have not tripped. Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. Incorrect power supply. Electric dryers require 240-volt power supply. Check with a qualified electrician. Wrong type of fuse. Use a time-delay fuse. Lint screen is clogged with lint. Clean lint screen before each load. The exhaust vent or outside exhaust hood is clogged with lint, restricting air movement. Run the dryer for 5-10 minutes. Hold your hand under the outside exhaust hood to check air movement. If you do not feel air movement, clean exhaust system of lint or replace exhaust vent with heavy metal or flexible metal vent. See “Installation Instructions”. The exhaust vent is not the correct length. Check that the exhaust vent is not too long or has too many turns. Long venting will increase drying times. See “Installation Instructions”. The exhaust vent diameter is not the correct size. Use 4" (102 mm) diameter vent material. The dryer is not level. Clothes not contacting the moisture sensors during Automatic cycles. See “Level the Dryer” in the Installation Instructions. The Air Only temperature setting has been selected. Select the correct temperature for the types of garments being dried. See “Cycle Guide”. The load is too large and heavy to dry quickly. Separate the load to tumble freely. Fabric softener sheets are blocking the grille. The air outlet grille is just inside the door, behind the lint screen. Check that it is not blocked by a fabric softener sheet. Use only one fabric softener sheet, and use it only once. The dryer is located in a room with temperature below 40ºF (4ºC). Proper operation of dryer cycles requires temperatures above 40ºF (4ºC). The dryer is located in a closet. Closet doors must have ventilation openings at the top and bottom of the door. The front of the dryer requires a minimum of 1" (25 mm) of airspace, and, for most installations, the rear of the dryer requires 5" (127 mm). See “Installation Instructions”. Refer to the built-in troubleshooting feature on the dryer. See the instructions above to access the built-in troubleshooting menus using the MORE INFO button. Dryer Results Clothes are not drying satisfactorily or drying times are too long Other Issues Other performance or operation issues

LIMITED WARRANTY For one year from the date of purchase, when this major appliance is installed, operated, and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for Factory Specified Replacement Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover: 1. Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is used in a manner that is inconsistent to published user or operator instructions and/or installation instructions. 2. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing. 3. Service calls to repair or replace appliance light bulbs, air filters, or water filters. Consumable parts are excluded from warranty coverage. 4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by Whirlpool. 5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase.

6. Pick up and delivery. This major appliance is intended to be repaired in your home.

7. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

8. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized Whirlpool servicer is not available. 9. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with Whirlpool published installation instructions. 10. Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered, or cannot be easily determined. The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Whirlpool makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this Warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Whirlpool or your retailer about buying an extended warranty. LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province. If outside the 50 United States and Canada, contact your authorized Whirlpool dealer to determine if another warranty applies. If you think you need repair service, first see the “Troubleshooting” section of the Use & Care Guide. If you are unable to resolve the problem after checking “Troubleshooting,” additional help can be found by checking the “Assistance or Service” section or by calling Whirlpool. In the U.S.A., call 1­-800­-253-1301. In Canada, call 1-800­-807-­6777. 10/11 Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service. Write down the following information about your major appliance to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label located on the product.

QUICK REFRESH Steam Cycles Select number of Garments

Before calling for assistance or service, please check “Troubleshooting” or visit www.whirlpool.com/help. It may save you the cost of a service call. If you still need help, follow the instructions below. When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request. If you need replacement parts or to order accessories We recommend that you use only FSP® used to build every new WHIRLPOOL® appliance. To locate FSP® replacement parts, assistance in your area, or accessories: Whirlpool Canada LP Customer eXperience Centre Whirlpool Corporation Customer eXperience Center 1-800-253-1301 www.whirlpool.com 1-800-807-6777 1-800-442-9991 (Accessories) www.whirlpool.ca www.whirlpool.com/accessories or call your nearest designated service center or refer to your Yellow Pages telephone directory. Our consultants provide assistance with In the U.S.A.

In the U.S.A. and Canada Use and maintenance procedures. ■ Accessory and repair parts sales. ■ Referrals to local dealers, repair parts distributors, and service companies. Whirlpool designated service

Installation information. Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.). and provide after-warranty service, anywhere in the United States and Canada. You can write with any questions or concerns at: Whirlpool Corporation Customer eXperience Centre Customer eXperience Center Whirlpool Canada LP 553 Benson Road Unit 200-6750 Century Ave Benton Harbor, MI 49022-2692 Mississauga, Ontario L5N 0B7 Please include a daytime phone number in your correspondence.

ASSISTANCE OU SERVICE
