Product Type	Dishwasher
Brand	Concept
Model	MNV4260
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Net Weight	45 kg
Power Supply	220-240 V, 50 Hz, 10 A
Energy Class	A+
Number of Place Settings	12
Noise Level	49 dB(A)
Water Consumption per Cycle	9.5 L
Annual Energy Consumption	294 kWh/annum
Programs	Eco, Intensive, Quick, Glass, Pre-rinse
Temperature Settings	45°C - 70°C
Delay Start	1-24 hours
Child Lock	Yes
Salt and Rinse Aid Indicators	Yes
Adjustable Upper Basket	Yes
Cutlery Basket	Yes
Overflow Protection	Yes
Self-Cleaning Filter	Yes
Spare Parts Availability	At least 7 years after end of production
Repairability Index	8.2/10

Frequently Asked Questions - MNV4260 Concept

What is the capacity of the Concept MNV4260 dishwasher?

The Concept MNV4260 has a capacity of 12 place settings.

How do I install the dishwasher?

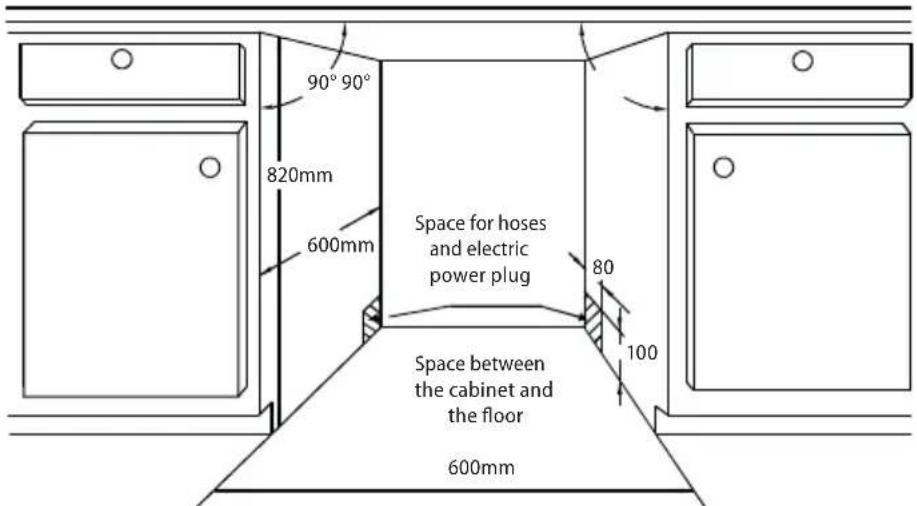

Installation requires a standard 60 cm cabinet opening. Ensure water supply and drain connections are properly made. Refer to the manual for detailed steps.

What programs are available on the MNV4260?

Programs include Eco, Intensive, Quick, Glass, and Pre-rinse. Each is optimized for different soil levels.

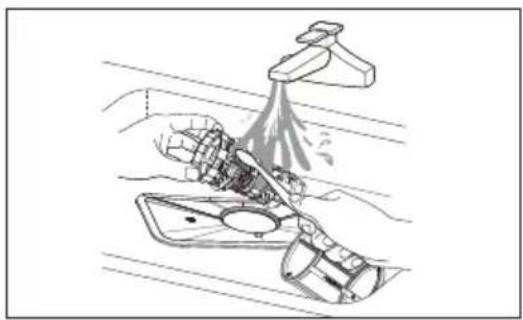

How do I clean the dishwasher filter?

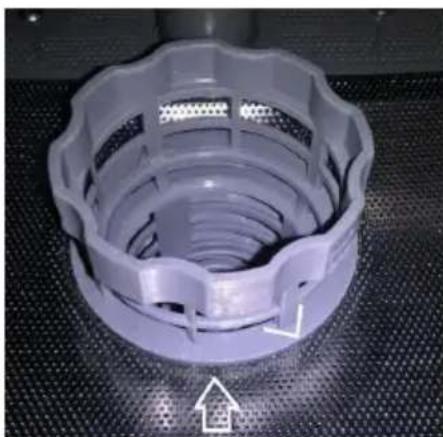

The self-cleaning filter requires monthly cleaning. Remove the lower basket, twist and lift the filter assembly, rinse under running water.

Why is my dishwasher not starting?

Check that the door is fully closed, the power cord is plugged in, and the child lock is disabled. If the issue persists, consult the error code in the manual.

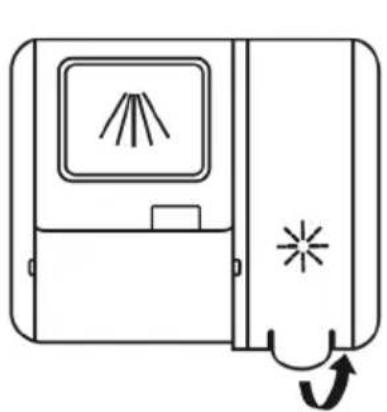

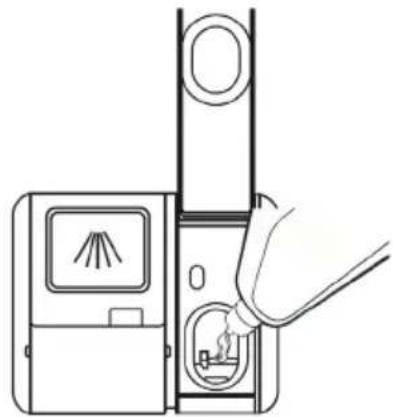

How do I adjust the rinse aid dosage?

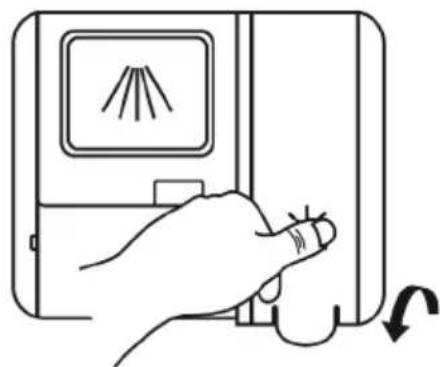

Turn the rinse aid dispenser cap to adjust the dosage between 1 (low) and 4 (high). Typically, setting 2 is recommended for hard water.

What is the noise level of this dishwasher?

The noise level is 49 dB(A), which is quiet enough for open-plan living.

How long does the Eco program take?

The Eco program typically runs for 210 minutes at 50°C, ensuring energy efficiency and effective cleaning.

How do I activate the child lock?

Press and hold the 'Start' button for 3 seconds until the indicator lights up. To deactivate, repeat the process.

What spare parts are available and for how long?

Essential spare parts such as filters, spray arms, and seals are available for at least 7 years after the end of production.

USER MANUAL MNV4260 Concept

Cutaway view of a white kitchen appliance showing internal compartments and base stations (no text or symbols on the main diagram)

PODĚKOVÁNÍ

concept

POPIS JEDNOTLIVÝCH TLAČÍTEK OVLÁDACÍHO PANELU

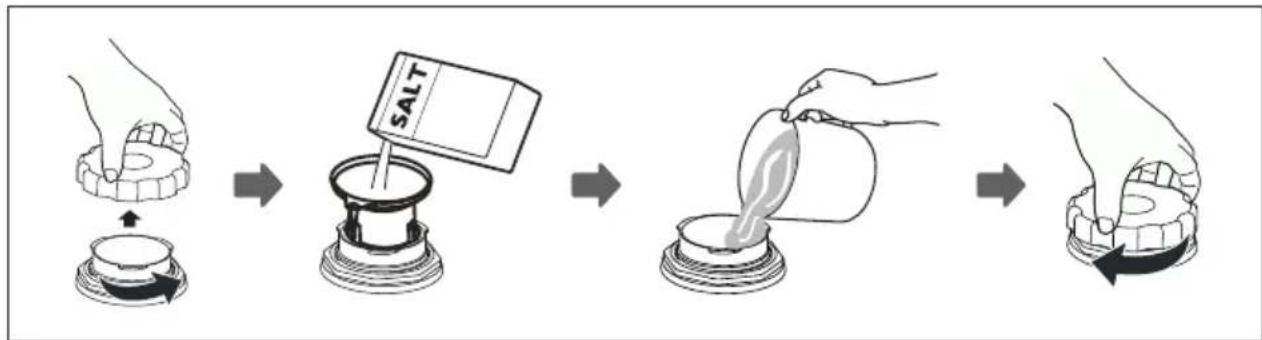


Obr. 1

Poznámka:

Obr. 3 Obr. 4 Obr. 5

Obr. 7 Obr. 8

Diagram of a door with a tray, vent, and starburst symbol (no text or labels)

3D technical illustration of a mechanical assembly with rollers and a threaded component, enclosed in a green grid frame (no text or symbols)

Přední stěna koše

Technical line drawing of a mechanical assembly with hands operating it (no text or symbols)

Etažér

Close-up of a mechanical structure with curved and straight lines, possibly a ladder or tower frame (no visible text or symbols)

Technical line drawing of a mechanical component or bracket (no visible text or symbols)

Obr. 9

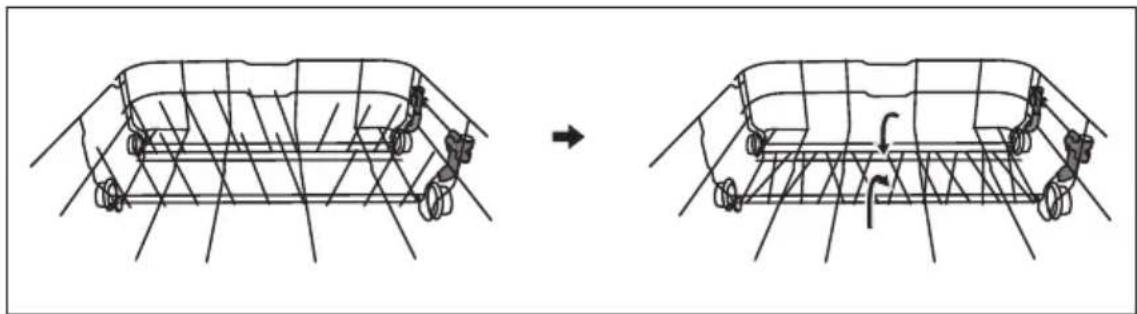

Dolní koš

Diagram showing structural change of a vehicle chassis before and after rebar installation (no text or symbols)

Obr. 10

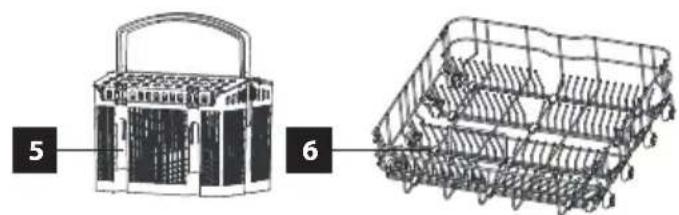

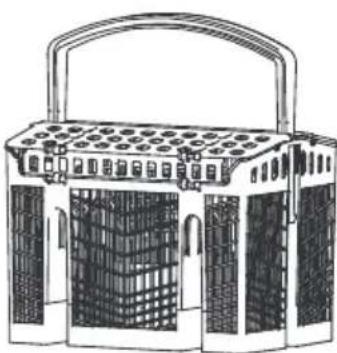

Koš na příbory

Line drawing of a multi-compartment container with mesh patterns and a handle (no text or symbols)

Obr. 11

Vyndávání nádobí

Simple line drawing of a fence with diagonal bracing and a cross symbol below (no text or labels)

PŘEHLED MYCÍCH PROGRAMŮ

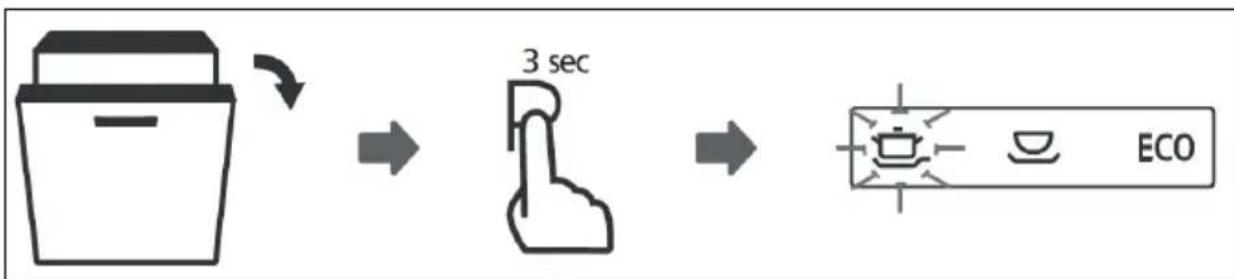


Poznámka:

Diagram of a car interior with exhaust pipe and dashboard components (no text or labels)

Diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

Poznámka:

Technical line drawing of an early biplane with rotor blades and fuselage, showing structural components and a close-up inset (no text or symbols)

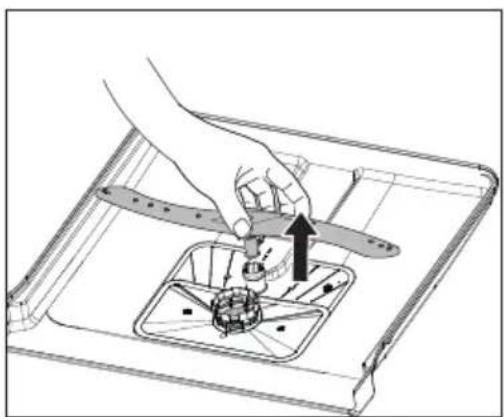

Diagram of a hand operating a propeller inside a tray, with an arrow indicating the component (no text or symbols present)

Line drawing of a kitchen sink with hand cleaning the surface and a faucet spraying water (no text or symbols)

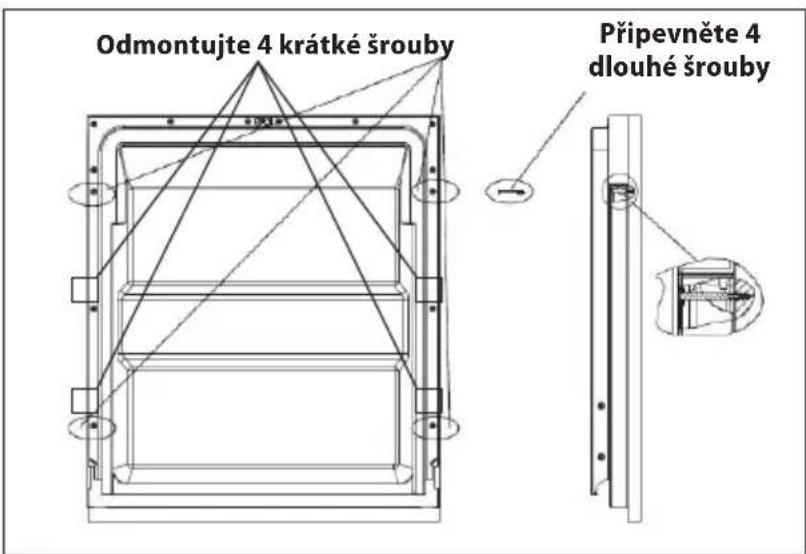

UPOZORNĚNÍ!

Close-up of a white plastic cylindrical component with a textured outer ring and a small arrow pointing to it, placed on a perforated surface (no text or symbols visible)

Close-up of a mechanical component with a textured circular base and internal grooves, no visible text or symbols.

Close-up of a mechanical component with a white cylindrical housing and a directional arrow pointing to a textured surface (no text or symbols visible)

[Non-Text]

Technical line drawing of a mechanical assembly with no visible text or symbols

Obr. 14a Obr. 14b

Technical line drawing of a washing machine with an inset showing the internal mechanism of a screwdriver (no text or symbols present)

Obr. 15

Dolní koš

Technical line drawing of two different types of woven baskets, one with handle and one with mesh structure (no text or symbols)

POPIS OVLÁDACIEHO PANELU

Obr. 1

Poznámka:

Obr. 3 Obr. 4 Obr. 5

Obr. 7 Obr. 8

Diagram of a device with a slide and fan, showing airflow direction (no text or symbols)

Line drawing of a mechanical assembly with gears and a handle, no text or symbols present

Technical illustration of a mechanical assembly with two circular insets showing component details (no text or symbols)

Etažér

Close-up of a mechanical structure with visible springs and beams (no text or symbols)

Technical illustration of a mechanical component with internal channels and mounting brackets (no text or symbols)

Obr.9

Dolný kôš

Diagram showing a vehicle chassis before and after assembly, with no visible text or symbols

Obr. 10

Kôš na príbor

Line drawing of a mechanical device with a handle and grid-patterned body (no text or symbols)

Circular diagram with vertical grid lines and a figure on top, no text or symbols present

PREHŁAD ČISTIACICH PROGRAMOV


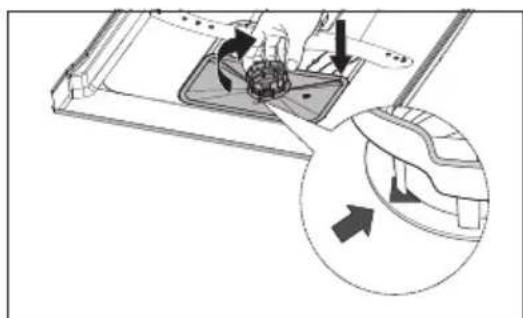

POZOR!

Technical line drawing of a mechanical assembly with spray and housing (no text or symbols)

Mechanical assembly diagram showing a component with directional arrows and a magnified inset view (no text or symbols)

Poznámka:

Technical line drawing of an aircraft fuselage with internal components and a magnified inset showing the blade assembly (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component inside a tray (no text or symbols visible)

Illustration of a kitchen sink with a hand cleaning a toothbrush and a faucet (no text or symbols)

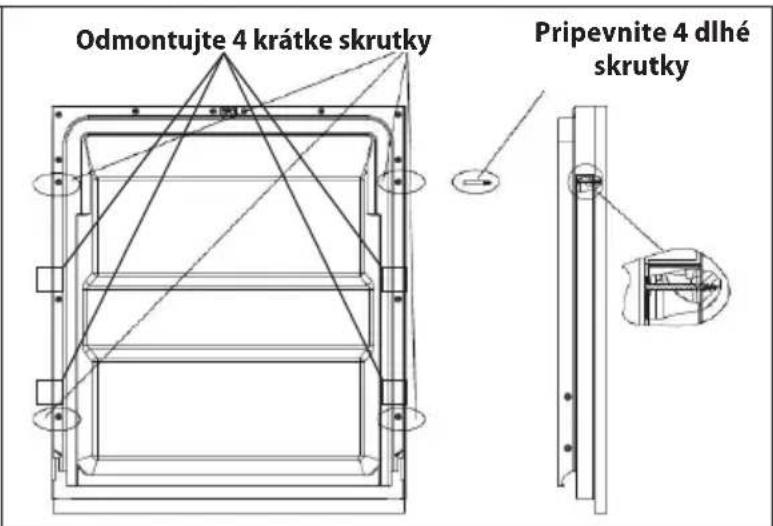

UPOZORNENIE!

Close-up of a 3D-printed plastic component with scalloped edges and internal grooves, placed on a textured surface (no text or symbols visible)

Close-up of a mechanical component with a circular housing and internal structure, no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a washing machine with an inset showing the internal mechanism of a tool (no text or symbols present)

Horný kôš

Dolný kôš

Technical line drawings of two mechanical components, one labeled 5 and the other labeled 6, with no visible text or symbols.

OPIS PANELU STEROWANIA

Rys. 1

Pamiętaj:

Simple line drawing of a device with a screen and starburst symbol, no text or labels present

Rys. 3 Rys. 4

Line drawing of a hand inserting a device into a device with a screen and fan (no text or symbols)

Line drawing of a hand pressing down on a device with a screen and scroll (no text or symbols)

Rys. 5

Rys. 7 Rys. 8

Diagram of a door with a window and ceiling-mounted fan, showing no text or symbols

3D technical illustration of a mechanical assembly with rollers and a central hub, surrounded by green grid lines (no text or symbols)

Technical line drawing of a mechanical assembly or housing with no visible text or symbols

Etażerka

Structural steel framework with curved beams and supports (no visible text or symbols)

Mechanical component diagram showing internal structure with no visible text or symbols

Rys. 9

Dolny kosz

Diagram showing a structural change before and after rebar installation, with no visible text or symbols

Rys. 10

Kosz na sztućce

Line drawing of a multi-compartment container with mesh patterns and handle (no text or symbols)

Wyjmowanie naczyń

Circular diagram with intersecting lines and a central grid pattern, no text or symbols present

PRZEGLĄD PROGRAMÓW MYCIA

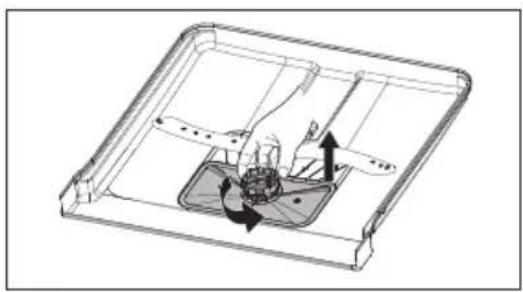

Technical line drawing of a mechanical component with internal components and directional arrows (no text or symbols)

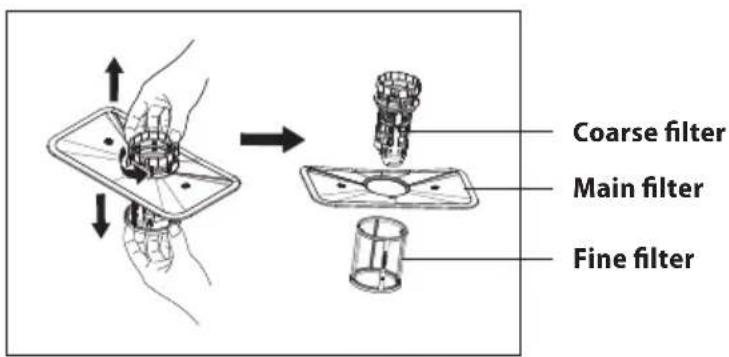

Filtr zgrubny

Filtr główny

Filtr drobny

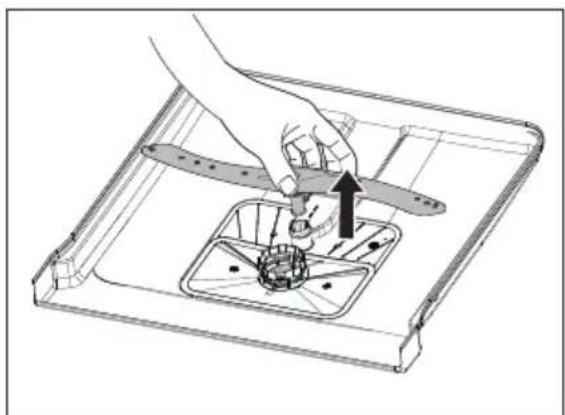

Diagram of a mechanical device with a lever and handle, showing internal components and motion (no text or symbols)

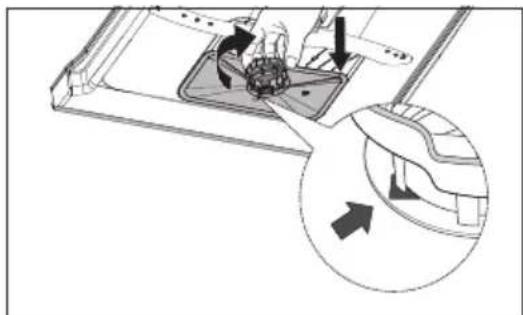

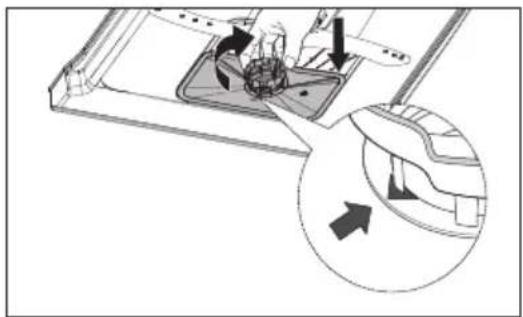

Technical diagram showing a mechanical assembly with directional arrows indicating movement or force (no text or symbols present)

Pamiętaj:

Technical diagram of an aircraft fuselage with internal components and a magnified inset showing the blade assembly (no text or labels)

Technical line drawing of a mechanical assembly with a hand operating a propeller (no text or symbols present)

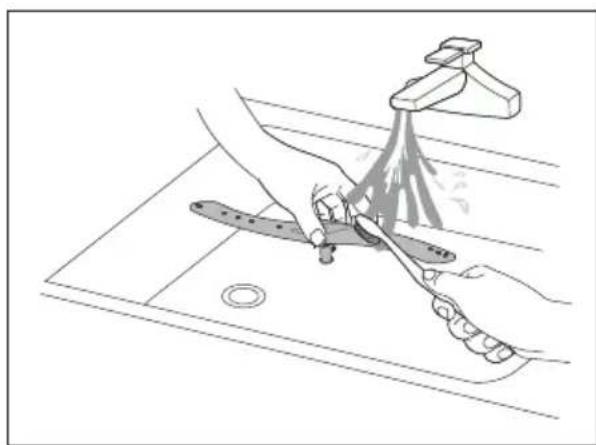

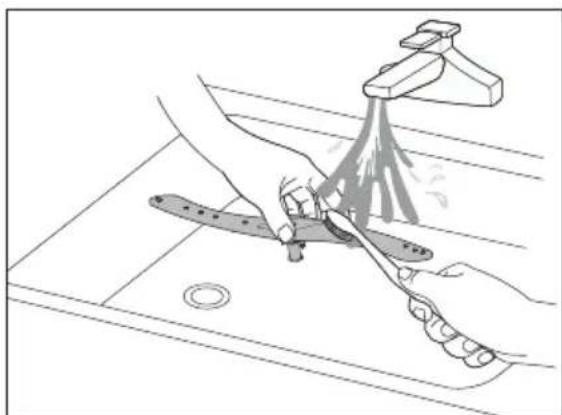

Line drawing of a kitchen sink with hand cleaning the surface and a faucet (no text or symbols)

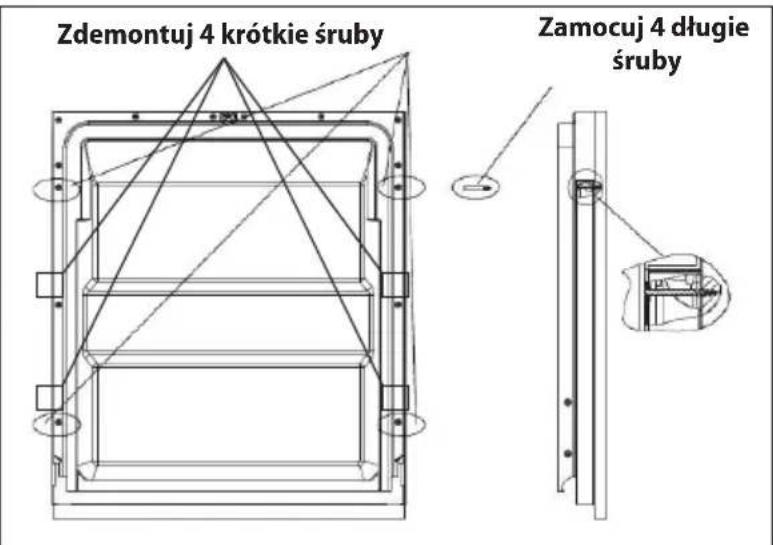

PRZESTROGA!

Close-up of a white plastic mechanical component with a circular recessed ring and a small arrow pointing to it, placed on a textured surface (no text or symbols visible)

Close-up of a white plastic mechanical component with a textured surface and directional arrows indicating features (no text or symbols visible)

Close-up of a purple plastic mechanical component with a circular top and central slot, no visible text or symbols.

ny filtr

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a washing machine with an inset showing the internal mechanism of a screwdriver (no text or symbols present)

Górny kosz

Dolny kosz

Black silhouette of various kitchen utensils and a square base (no text or symbols)

Etażerka

Kosz na sztućce

OCHRONA ŚRODOWISKA

Illustration of two different types of woven baskets, one with a handle and the other with a mesh basket (no text or symbols)

VADIBAS PANELA APRAKSTS

ATSEVIŠKU VADĪBAS PANELA TAUSTIŅU APRAKSTS

1.att.

Piezime:

Simple line drawing of a door with a screen and starburst symbol, no text or labels present

Line drawing of a hand inserting a device into a device with a screen and plug (no text or symbols)

Line drawing of a hand pressing down on a device with a screen showing light rays (no text or symbols)

Diagram of a door with a window and indicator lights, no text or symbols present

3D technical illustration of a mechanical assembly with rollers and housing (no text or symbols)

Line drawing of a mechanical assembly with gears and a handle (no text or symbols)

Plauktiņš

Structural diagram of a multi-story industrial building with visible structural beams and ladder (no text or labels)

Technical illustration of a mechanical component with internal channels and mounting brackets (no text or symbols)

Apakšējais grozs

Diagram showing structural deformation of a vehicle chassis, with no text or symbols present

1. att.

Galda piederumu grozs

Line drawing of a multi-tiered mechanical device with a handle and internal grid structure (no text or symbols)

1. att.

Trauku iznemšana

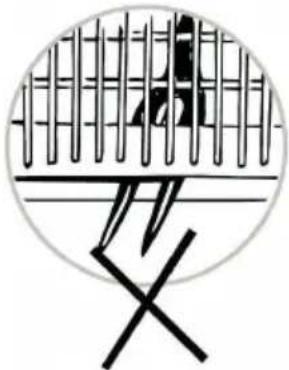

Circular diagram with grid lines and a crossed X symbol, no readable text or labels

MAZGĀŠANAS PROGRAMMU PĀRSKATS

Line drawing of a mechanical device with a spray bottle pouring liquid into a housing (no text or symbols)

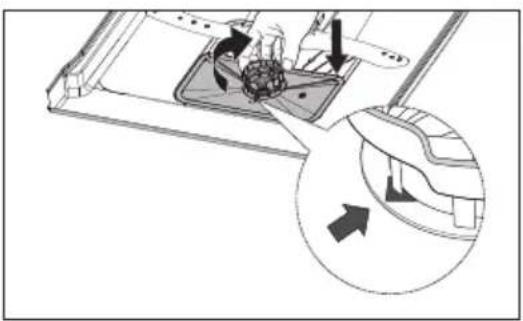

Diagram showing a mechanical assembly with an inset close-up of a component, no visible text or symbols

Piezime:

Technical line drawing of an aircraft fuselage with internal components and a magnified inset showing the blade structure (no text or symbols)

Diagram of a hand operating a propeller inside a tray with a mechanical component (no text or symbols visible)

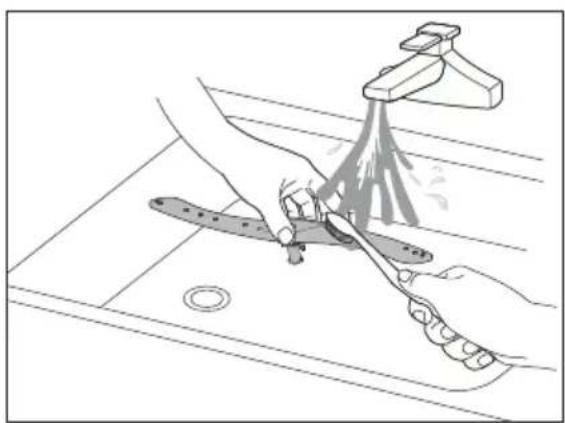

Line drawing of a kitchen sink with hand cleaning the surface and a tool on the drain (no text or symbols)

BRĪDINĀJUMS!

Close-up of a white plastic mechanical component with a textured base and internal ridges, no visible text or symbols.

Close-up of a plastic mechanical component with internal grooves and a textured surface (no visible text or symbols)

Close-up of a mechanical component with a circular housing and internal structure, showing a white arrow pointing to a specific area (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a washing machine with an inset showing the internal mechanism (no text or symbols present)

1. att.

Augšējais grozs

Apakšējais grozs

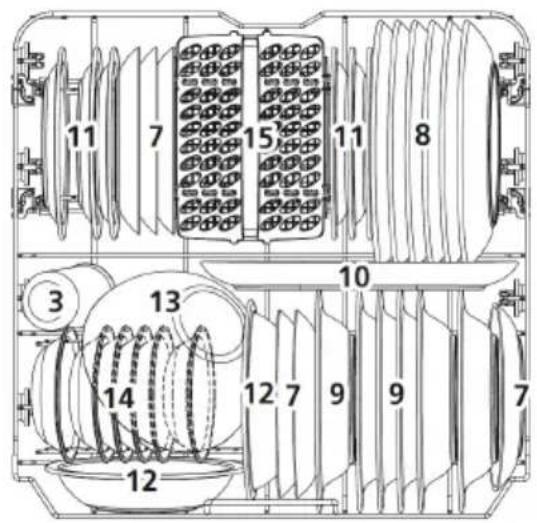

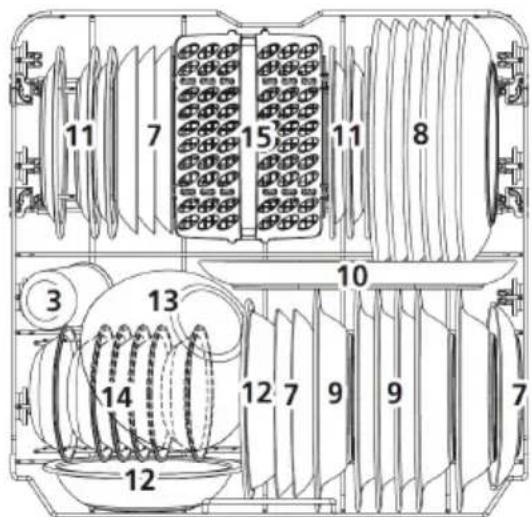

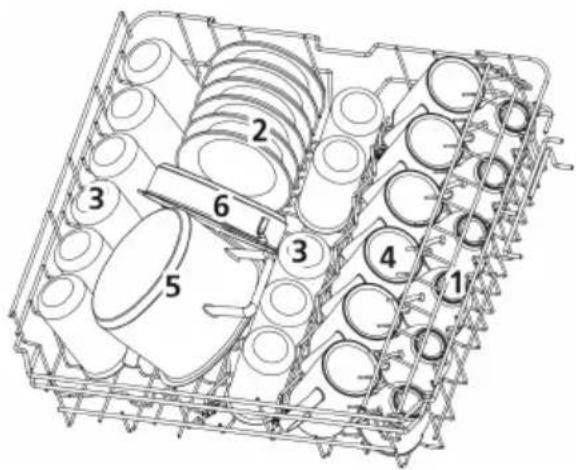

Numurs	Pozicija	Numurs	Pozicija	Numurs	Pozicija
1	Glazes	6	Cepamais katls	11	Plastmasas plaksnes
2	Plaksnes	7	Deserta škivji	12	plastmasas trauki
3	Brilles	8	seklas plaksnes	13	Stikla trauks
4	Krūzes	9	dzilas plaksnes	14	Deserta škivji
5	mazs pods	10	Servēšanas plaksne	15	Galda piederumu grozs

Thank you for purchasing the Concept product. We want you to be satisfied with everything we make every day you use it.

Please read the instructions carefully before initial use. You should retain them for future reference. Ensure that anyone using the warming drawer is familiarized with the instructions.

TABLE OF CONTENTS

Technical specifications	Washing programs overview
Important safety information	Putting the appliance into operation
Product description	Cleaning and maintenance
Control panel description	Installation of the appliance
User manual	Troubleshooting
Loading the regenerating salt	Error message
Loading the rinse aid	Dimensions
Detergents	Example of loading dishware
Unsuitable dishware	Environmental protection
Loading dishware

Technical specifications
Energy class (a) E EEI		(a)	55,9
Cleaning performance index (a)	1,13 Drying performance index (a)		1,07
Energy consumption (kWh/cycle) (1)	0,923	Water consumption (l/cycle) (2)	11,0
Program duration (h:min) (a)	3:40 Off-mode 0,49 W
Delay start 1,0 W Noise level		(a)	49 dB (A)
Airborne acoustical noise emission class (a)	C Height 815 mm
Width 448 mm Depth (closed door) 550 mm
Depth (open door)	1150 mm	Capacity (a)	12 dishware sets
Type	Built-in	Charging/frequency	230 V ~ 50 Hz
Water pressure	0.04 – 1 MPa	Weight	35 kg

Additional information:

(a) pro program ECO

(1) based on the eco programme using cold water fill. Actual energy consumption will depend on how the appliance is used
(2) based on the eco program. Actual water consumption will depend on how the appliance is used and on the hardness of the water

The manufacturer reserves the right to make potential technical changes, typographical errors and any differences in the representation without prior notice.

IMPORTANT SAFETY INFORMATION

Upon delivery of the dishwasher

• Immediately after delivery, check the package for any damage during shipping.
• Caution! Caution! Some edges of this appliance that are hidden after installation are sharp! Be careful not to get cut when handling an uninstalled unit.
• Do not install the appliance if it has been damaged. Contact the store where you purchased it immediately.
• Remove all the packaging and marketing materials before first use.
• Keep the packaging materials away from children or dispose of them properly.

During installation

• Do not use the appliance in any way other than as described in this manual.
  • This appliance can be used in households and similar places like:

• Kitchen cabinets in shops, offices and other workplaces.
  • Appliances used in agriculture.

• Appliances used by guests in hotels and other areas in a hotel environment.
• Appliances used in a Bed and Breakfast environment.

- Do not touch the appliance with wet hands.

- Load sharp knives with the handles up or horizontally to reduce the risk of cut-type injuries.

- Use the dishwasher only for household purposes and only for washing kitchen utensils.

- Do not store anything inside the appliance.

- Do not stand or sit on the open door of the appliance.

• Water from the washing area is not drinkable.

- Do not use any solvents in the dishwasher (danger of explosion).

- Use only the products suitable for dishwashers.

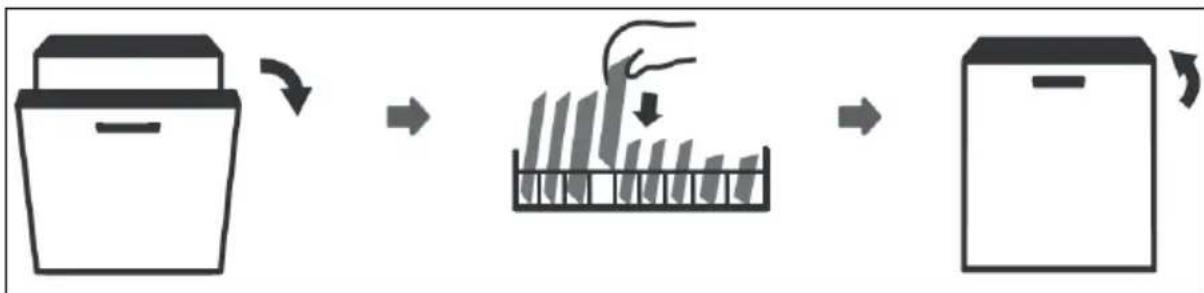

- During the running washing program always open the dishwasher door very carefully, water may spurt out.

- Follow the instructions for safety and use on the packaging of the cleaning agents.

- Do not touch hot surfaces and heating elements during use or shortly after use.

- Do not allow children or unauthorized people to handle the appliance, use it out of their reach.

• Children should not play with the appliance.
- Pay extra attention if the appliance is used near children.
- Do not allow the appliance to be used as a toy.

- This appliance can be used by children aged 8 years and over. Persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, should be supervised or familiarized with the instructions for use of the appliance in a safe way and have been made aware of the risks involved.

- Caution! A large amount of steam may be released from the appliance when you open the door. Be careful. Risk of scalding!

- If a malfunction occurs, turn off the appliance and unplug it from the wall outlet.

- When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.

- Do not immerse the power cord or the plug in water or any other liquid.

- Check the appliance and the power cord for damage regularly.

- Do not switch on the appliance if it has been damaged.

- Do not use the appliance if the door or the door seals are damaged. Call the authorised service centre.

- Do not use the appliance without properly installed covers and without a front plate.

- The appliance is designed for washing dishware suitable for washing in the dishwasher. Avoid contact of plastic dishware with the heating elements of the appliance.

- Do not use any accessories other than those recommended by the manufacturer.

- Do not use accessories with damaged surface treatment or if it has been worn out or has other defects.

• Before cleaning of the appliance, leave it for at least 30 minutes to cool down.

- Children should not clean and maintain the appliance unless they are at least 8 years old and under supervision.

- Keep the detergents and rinse aids from children.

- Keep children away from the open dishwasher, there could still be detergent residues.

CAUTION!

To avoid injury open the door only for a short period of time to load or unload dishware. Children may lock themselves inside the appliance (risk of suffocation) or be exposed to other dangers.

Possible defects

• Only qualified service technicians should repair or perform maintenance to this appliance.
• During the repairs the appliance must be disconnected from the power. Switch off the circuit breaker or remove the plug from the wall outlet.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.

If you fail to follow these instructions, any possible repair cannot be recognized as a warranty repair.

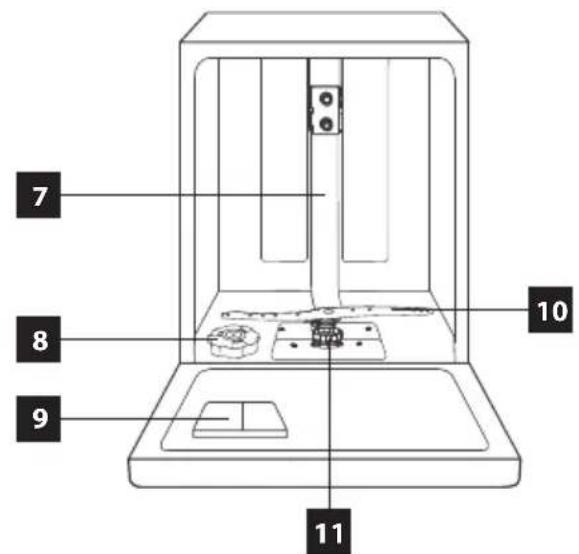

PRODUCT DESCRIPTION

1 Upper basket

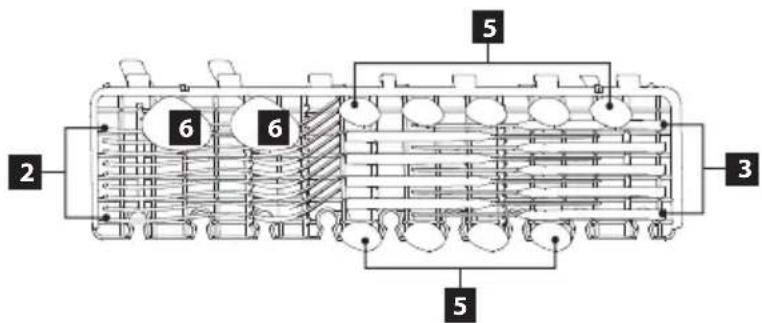

2 Cutlery rack
3 Upper spray arm
4 Cup rack
5 Cutlery basket
6 Lower basket
7 Inner pipe
8 Regenerating salt container
9 Detergent and rinse aid dispenser
10 Lower spray arm

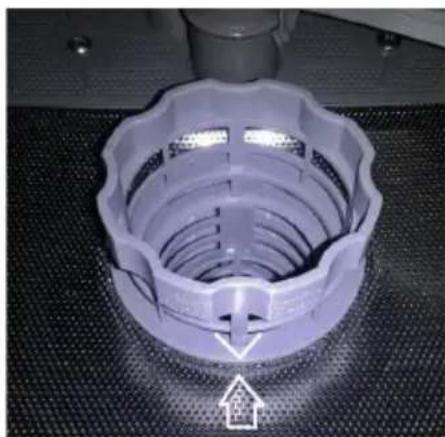

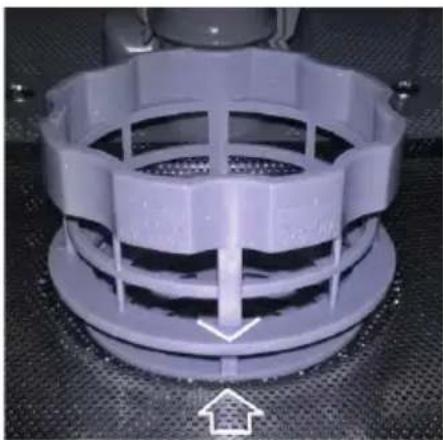

11 Filter assembly
12 Water supply connector
13 Drain hose

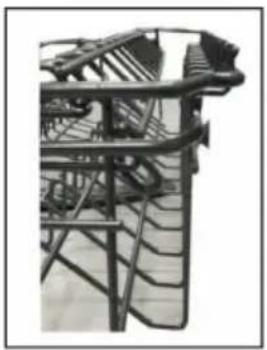

Close-up of a curved cable or wire inside a rectangular frame, labeled 'Rear view' and marked with number 12 (no other text or symbols)

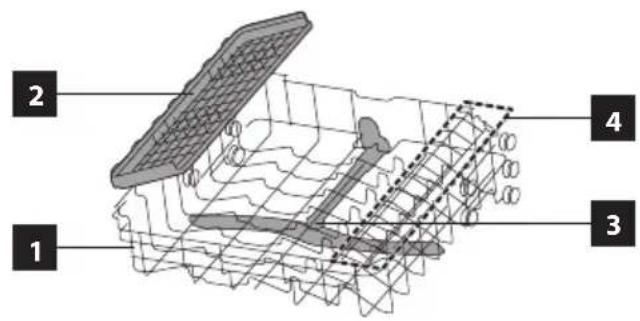

Technical line drawings of two mechanical baskets, one open and one closed, with no visible text or symbols.

CONTROL PANEL DESCRIPTION

1 On/Off button and Operation indicator
2 Rinse Aid and Regeneration Salt level indicator
3 Program button
4 Selected washing program indicator

5 Half Load button and indicator
6 Delayed start function button
7 Selected delay start indicators (3h, 6h, 9h, 12h)

concept

DESCRIPTION OF INDIVIDUAL BUTTONS OF THE CONTROL PANEL

Washing program selection buttons

• Press the button to select desired washing program.
• You can choose from following washing programs: Intensive, ECO, 90 Min and Rapid.
• The selected washing program is indicated by the diodes placed next to the corresponding washing programs.

Delayed start function button

- Delayed starting can be set on 3, 6, 9 and 12 hours.

Half load function button

• This function is intended for a maximum of 6 sets of dishes.
- This function reduces the water and power consumption; it can be used only for following washing programs: INTENSIVE, ECO and 90 Min.

Status indicator

- If the LED status indicator lights up, it is needed to add the appropriate detergents.

Symbol Status indicator
	Rinse aid
	Salt

USER'S MANUAL

Before first use

1. Set the appliance according to hardness of the water (see below).
2. Pour the regenerating salt into the salt container.
3. Pour the rinse aid into the rinse aid dispenser.
4. Pour the detergent or put the tablet into the detergent dispenser.

Water softeners

Soft water is required for efficient washing (water with low calcium content), otherwise limescale is created on the dishes and in the interior of the dishwasher. Tap water which exceeds the given level of water hardness must be softened before being used for washing purposes (meaning free of calcium). This is achieved by regenerating salt in the softening unit of the dishwasher. Setting the unit and the required amount of salt depend on the hardness of tap water.

Water hardness is measured in equivalent degrees of hardness, German degrees °dH, French degrees °fH, British degrees °Clarke and mmol/l (millimoles per litre - international unit for the hardness of water).

The softening unit should be set according to the hardness of the water used for the appliance. Contact your local water utility company for information about the water hardness in your area. Set the dosage regulator manually according to the table.

Setting the appliance according to the water hardness

1. Open the appliance door and use the on/off button (1) to turn the appliance on.
2. Press and hold the program button (3) over 5 seconds. After a certain time the indicators of salt and water softener will start flashing alternately.
3. If the indicators of salt and softener flash alternately, you can press the button (3) to set the water hardness.
4. Press the button (3) to set the water hardness according to the quality of water in your area (H1-H6).
5. To store the setting wait a few seconds.

Water-hardness				Value	Salt consumption (g/washing cycle)
°dH °fH °Clarke mmol/l
0~5	0~9	0~6	0~0,94	H1 (Rapid)	0
6–11	10–20	7–14	1.0–2.0	H2 (90 Min)	9
12–17	21–30	15–21	2.1–3.0	H3 (Rapid, 90 Min)	12
18–22	31–40	22–28	3.1–4.0	H4 (ECO)	20
23–24	41–60	29–42	4.1–6.0	H5 (Rapid, ECO)	30
35–55	61–98	43–69	6.1–9.8	H6 (90 Min, ECO)	60

Note:

This appliance is factory preset to H3.

1^ = 1.25^ = 1.78^ = 0.178mmol / l
°dH German degrees
°fH French degrees
°Clark British degrees

LOADING THE REGENERATION SALT

The effects of salt

During the washing cycle the salt goes automatically from the container to the softening unit where it dissolves the calcium content. Dissolved calcium is washed away from the dishwasher. The softening unit is then ready again for further action. This regeneration process works only if the salt is dissolved in water.

1. Open the appliance door, remove the lower basket and proceed as shown in Fig. 1 below.
2. Remove the regenerating salt container lid.
3. Place the funnel (included in the package) on the opening of the regenerating salt container and slowly fill the container with the salt. The capacity of the empty container is about 1.5 kg.
4. Fill the rest of the container with water before first use. It is normal for a small amount of water to flow out of the container during filling.
5. Close the regenerating salt container after filling.

Fig. 1

Note:

• The regenerating salt container is located under the lower rack.
• The regenerating salt container can be refilled only when the salt status indicator is on.
  • After refilling the indicator goes off.
• If there is a spillage of regenerating salt, run a short washing cycle to wash away the salt.

Caution!

• Load the regenerating salt before running the short washing cycle to wash away any spilled salt residues and prevent the risk of corrosion of the appliance interior.
• Always use regenerating salt designed for use in dishwashers. Never use table salt!
• Never pour detergents into the regenerating salt container. Detergents can destroy the softening unit!

In the event of damage caused by improper use of salt, the manufacturer assumes no responsibility or liability for any caused damage.

LOADING THE RINSE AID

The rinse aid is used in the last stage of rinsing to prevent the drops of water from staying and drying out on the dishes leaving undesirable stains on the dishes.

1. Open the appliance door.

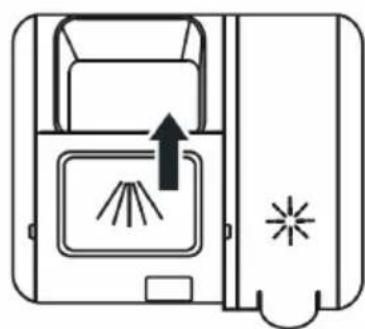

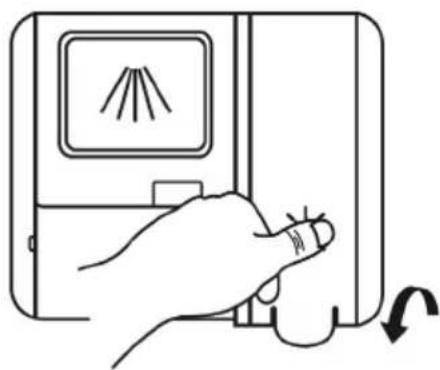

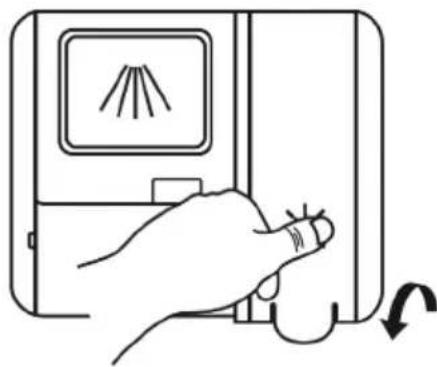

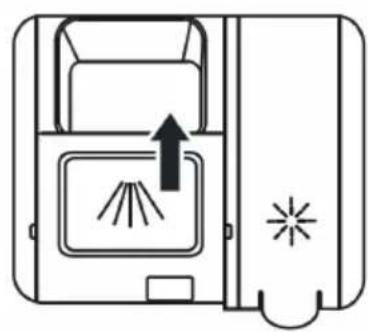

2. Open the rinse aid dispenser as shown in Pic.3.

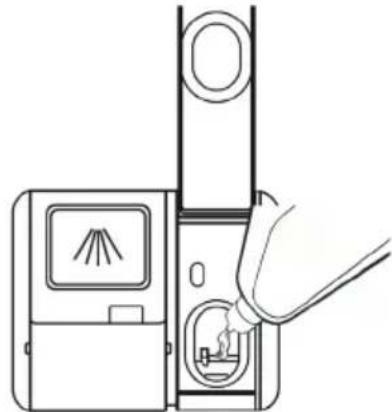

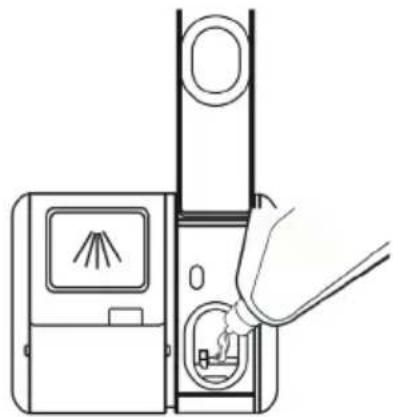

3. Slowly pour the rinse aid into the dispenser (Pic. 4). The capacity of the empty dispenser is about 140 ml.

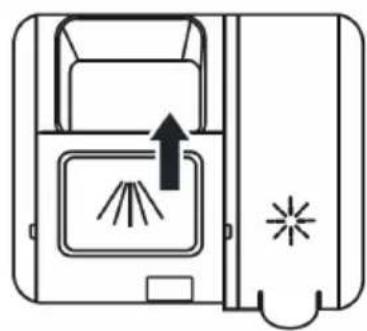

4. After filling close the rinse aid dispenser cover and tighten it (Pic. 5).

Simple line drawing of a refrigerator with a window and starburst symbol, no text or labels present

Line drawing of a hand inserting a device into a device with a lamp and screen (no text or symbols)

Line drawing of a hand pressing down on a device with a screen showing a flame symbol (no text or labels)

If the indicator of the amount of the rinse aid lights up, you must refill the dispenser before starting a new washing cycle!

Note:

• The rinse aid dispenser is located on the door next to the detergent dispenser.
• The appliance is designed to be used only with liquid rinse aids.
• If there is a spillage of the rinse aid, wipe it out using an absorbent cloth or run a short washing cycle to wash it away.

Caution!

• Use only rinse aids designed for use in dishwashers. Never pour detergents into the rinse aid dispenser.
• Load the rinse aid before running the short washing cycle to wash away any spilled rinse aid residues and prevent the risk of corrosion of the appliance interior.

Setting the dosage of the rinse aid

For better drying results with a limited amount of rinse aid, the dishwasher is designed to adjust consumption according to user settings. Follow the steps below.

1. Close the door and switch on the dishwasher by plugging it into an electrical outlet.
2. Within 60 seconds after step 1, press the "Program" button [3] for more than 5 seconds and then press the Delayed Start" button [6] to enter one of the pre-set options, the rinse aid status indicator flashes once per second.
3. Press the "Program" button [3] to select the most appropriate setting to match your habits, the settings will change in the following order: D1->D2->D3->D4->D5->D1. The higher the number, the more rinse aid the dishwasher uses.
4. Without reaction within 5 seconds or by pressing the "On/Off" button [1], you finish the setting, the setting is completed successfully.

Amount of polish Selector position
D1 The Rapid indicator lights up
D2 The 90min indicator lights up
D3 The 90min and Rapid indicators light up at the sametime
D4 The ECO indicator lights up
D5 The ECO and Rapid indicators light up at the same time

If you only use a detergent with the integrated rinse aid, decrease the dosage of the rinse aid to minimum.

DETERGENTS

Detergents can be divided into four groups according to the form:

a) Loose,
b) Liquid,
c) Tablets,
d) Combined detergents (e.g. 3 in 1 tablets).

Detergents can be divided into two groups according to the chemical composition:

a) Alkaline,
b) With natural enzymes.

They can be also divided into:

a) phosphate and chlorine,
b) phosphate and chlorine-free,
c) phosphate-free and chlorine-free.

• When using phosphate-free detergents with hard water, a white film can be created in the appliance interior.
• Increasing the dose of detergent will prevent the sediment and get better washing results.
• Chlorine-free detergents have less bleaching effect. This may lead to enhancement of tea residue stains or colouring of plastic dishes. In this case, use a stronger washing program, increase the dose of detergent or use a chlorine detergent.

Detergents - Tablets

• The tablets from different manufacturers dissolve at different rates.
• Some detergent tablets cannot dissolve completely therefore they are less efficient while running short programs.
- For this reason, we recommend selecting longer washing programs to ensure the complete dissolution of the detergent tablets.

Detergent dispenser

The detergent dispenser must be refilled before every washing cycle. For regular use one tablespoon of detergent is plenty. If the dishes are heavily soiled, add more detergent. Add the detergent just before starting the washing program. If the detergent stays in the dispenser, it may get wet and it may not dissolve completely when starting a new cycle.

Loading the detergent

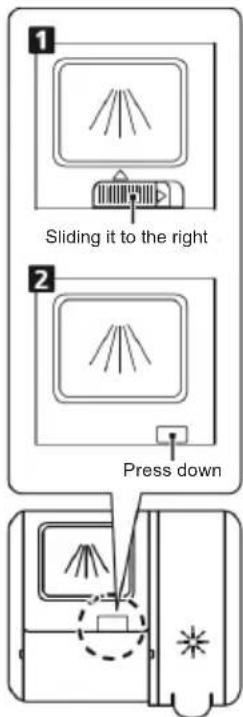

1. Choose how to open the dispenser lid according to the actual design.

- Method 1: Slide the release latch to open the lid - Method 2: Open the lid by pushing the release latch. (Fig. 6).

1. Add detergent to the dispenser main chamber (A) just before the washing cycle (Fig. 7). For better cleaning results, especially if you have very dirty dishes, pour a small amount of detergent directly onto the inner door recess (B). The detergent thus added is already activated during the pre-wash phase.

2. Finally, close the flap by sliding it to the left (Fig. 8).

Fig.6 Fig.7 Fig.8

Diagram of a device with a tray, vent, and door, showing internal components and directional arrows (no text or symbols)

Tip how to save detergents

- When the dishes are soiled lightly, simply use a smaller amount of detergent than recommended.

Note:

• Add the detergent just before starting the washing program.
• Use a commercially available liquid or powder branded detergent or tablets.
• Never use detergents designed for manual washing!
• When using tablet detergents read the manufacturer's recommendations, where the tablets should be placed (detergent dispenser, cutlery basket, etc.).
• Make sure the cover of the detergent dispenser is closed, even if tablets are used.

Caution!

• Use only detergents designed for use in dishwashers.
• Keep the detergents in a dry place and out of reach of children.
• Do not leave the detergent in the detergent dispenser when the dishwasher is not intended to be used for some time.

UNSUITABLE COOKWARE

• Cutlery and dishware with wooden parts.
- Plastic dishware and dishware with glued parts that are not heat resistant.
• Glued items, cutlery or plates.
• Tin or copper dishware.
- Crystal glass.
• Steel items prone to rusting.
- Wooden bowls.
- Objects made of synthetic fibres.

Some aluminium and silver parts may change colour or fade. Certain types of glass can tarnish after several washing cycles.

Note:

• Do not put absorbent materials such as sponges and cloths in the dishwasher.
• Use detergents which are labelled by a manufacturer as gentle to dishes.
• Wash only the dishes confirmed to be suitable for washing in dishwashers.
• Do not wash dishes soiled with ash, wax, grease or paint in the dishwasher!

LOADING DISHWARE

Placing dishware

Remove large food residues from the dishes. Rinsing dishes under the tap before washing in the dishwasher is not necessary.

Load the dishes in the following manner:

• Place cups, glasses, pots, pans, etc. upside down.
• Place the dishes with hollows diagonally to allow excess water to drain and for best results of drying.
• Dishware must be loaded securely to avoid falling.
• Loaded dishes must not impede the spray arms to rotate freely.
• Dishware and cutlery should not lie on one another or cover each other.
  • Glasses should not touch each other to avoid possible damage.
• Load pots and larger dishes in the lower rack.

• The upper rack is designed for loading of smaller and lighter dishware (glasses, cups, etc.).

• Long-bladed knives placed upright are very dangerous! Be careful, risk of injury!

• Long and sharp cutlery (carving knives) must be placed horizontally in the upper rack.
• Do not wash very small items in the dishwasher as they can easily slip out of the racks.
• Do not overload the dishwasher!

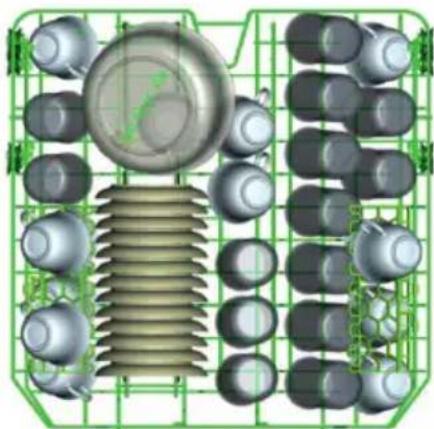

Upper rack

The upper rack is suitable for:

• glasses,
  • coffee and tea cups,
• saucers,
• small bowls and plates,
• shallow pans.

Back side of the rack

3D technical illustration of a mechanical assembly with gears and shafts arranged in a grid (no text or symbols)

Front side of the rack

Make sure that the loaded dishware cannot be overturned by running water from the spray arms.

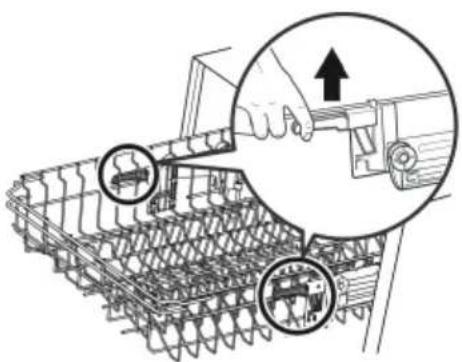

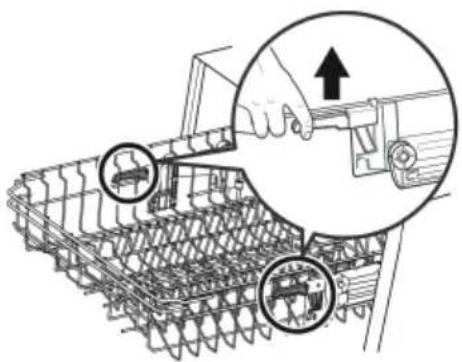

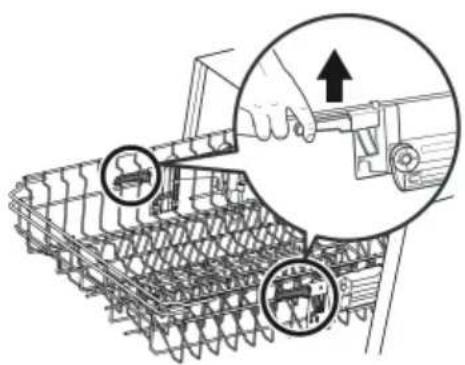

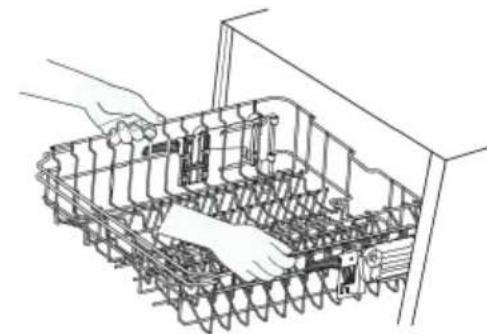

Adjusting the height of the upper rack

1. To adjust the height of the upper basket, grasp the upper basket in the centre of each side and simply lift it until it clicks into place in the upper position. It is not necessary to raise the adjustment handle

2. To lower the upper basket, raise the adjustment handles on both sides to release the basket and lower it to the lower position.

Line drawing of a mechanical assembly with gears and housing (no text or symbols)

Stand

• Glasses and tall glasses lean on the edge of the stand (not on other dishware).
- Do not put any long items, serving and salad cutlery, ladles and kitchen knives in a way that they could impede the rotation of the spray arms.
- You can tilt the stand and adjust it in height (Fig 9).

Close-up of a mechanical structure with curved and straight lines, possibly a tower or ladder assembly (no visible text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Fig.9

Lower rack

The lower rack is suitable for:

• pots,
  • pans,
• lids,
  • large bowls and plates.

Make sure that the loaded dishware cannot impede the rotation of the spray arms.

For washing larger items (pots, pans, etc.) tilt the plate holders in the lower rack (Fig. 10).

Diagram showing structural deformation of a vehicle chassis, with no text or symbols present

Fig.10

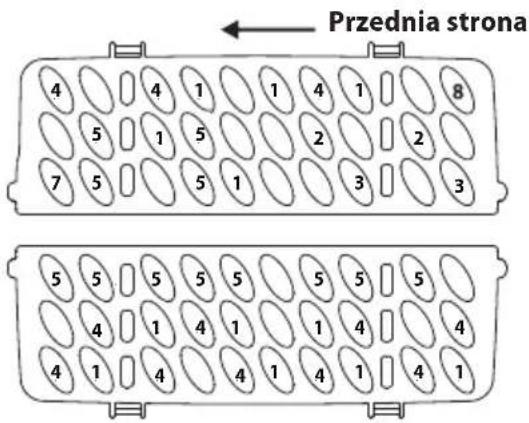

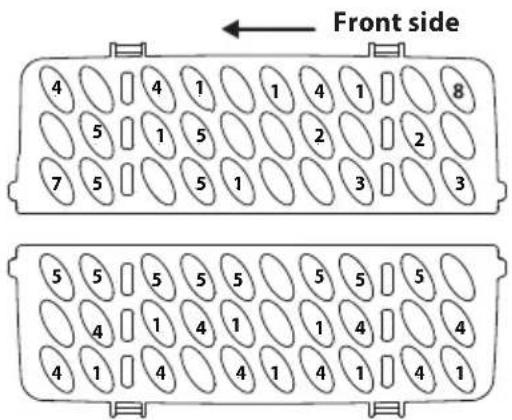

Cutlery basket

• Load cutlery in the cutlery basket (blades of knives pointing downwards).
• Load the cutlery (forks, spoons, teaspoons) in a way the bent parts point the same direction (to achieve better washing results), (Fig.11).
• If they do not fit in the basket, you can put them on the stand in the upper rack.

Line drawing of a portable box with handle and internal grid structure (no text or symbols)

Fig.11

Unloading dishware

We recommend unloading the lower rack first to prevent any excess water from the upper rack from flowing down onto the dishware in the lower rack.

Caution!

Make sure that cutlery with sharp parts or spikes do not protrude out of the basket. Risk of injury! Always put the knives with blades down!

Simple line drawing of a folding chair with a circular frame and vertical bars (no text or symbols)

WASHING PROGRAMS OVERVIEW

Program	Information about the washing program	Description of the washing cycle	Amount of detergent Previous/ main	Wash cycle time [min]	Power consumption [kWh]	Water consumption [L]	Rinse aid
Intensive	Heavily soiled dishes, dirty pots, pans, etc., dried food	Pre-wash (50°C) Washing (65°C) Rinsing Rinsing Rinsing (65°C) Drying	4/16 g Or a tablet	205 1.62	17.8 YES
ECO	The standard program is suitable for less dirty dishes	Washing (45°C) Rinsing Rinsing (60°C) Drying	4/16 g Or a tablet	220 0.9	23 11 YES
90 min.	Normal dirty dishes that need quick rinsing	Washing (60°C) Rinsing Rinsing (65°C) Drying	20 g Or a tablet	90 1.35	11.7 YES
Rapid	Short washing for lightly soiled dishes; no drying needed	Washing (50°C) Rinsing Rinsing (55°C)	20 g Or a tablet	30 0.75	11.2 NO

Note:

• If the display does not show the temperature during the running washing program, it means that phase of the program does not heat up the water.
• If you do not press the On/Of button (1) within 30 minutes after the washing is done, the appliance will shut down automatically.

PUTTING THE APPLIANCE INTO OPERATION

Starting the washing program

1. Open the appliance door.
2. Check the amount of the regenerating salt and refill if needed.

3. One by one pull out the upper and lower rack, load the dishes and then slide the racks back. We recommend loading the lower rack first and then the upper rack (see „Loading dishware“).

4. Make sure that the water tap is open.

5. Press button (1) to turn the appliance on.

6. Press button (3) repeatedly to select the desired program. The selected washing program is indicated by the diodes placed next to the corresponding washing programs. The wash program runs in the following order: Intensive – ECO – 90 Min – Rapid.

7. If you require a delayed start, press the delayed start function button (6) repeatedly. The delayed start can be set up on 3, 6, 9 and 12 hours.

8. If the dishwasher is only half loaded with dishes, press button (5) to launch the half load option function. Washing is performed in both (upper and lower) racks, the water consumption is reduced and the length of the program is shortened.

9. After selecting the program and adjusting, close the door of the appliance. The washing program or the countdown of the delayed start will start.

10. You will hear an eight-fold beep sound after the washing program is done.

11. Open the appliance door and press button (1) to turn the appliance off. Caution! Be careful while opening the door of the appliance, a large amount of water vapour can be released or hot water can spurt. There is a danger of scalding!

12. Hot dishes are very fragile. We recommend leaving the dishes to cool down for about 15 minutes before unloading.

13. Unload the lower rack first and then the upper rack to prevent the excess water from the upper rack flowing down on the dishes in the lower rack.

Changing the program during the running washing program

If you decide to change the currently running program, make sure there is enough detergent in the dispenser, or whether it was used and it is needed to be refilled before starting a new washing program (see „Loading the detergent“).

1. Open the door slightly to pause the running washing program. Wait until the spray arms are completely stationary.
2. Press and hold button (3) for more than 3 seconds. The appliance will switch to standby mode in which you can change the washing program setting.
3. Close the door after you are done resetting. The washing cycle will continue after a few seconds.

Note:

• If you open the appliance door during the running wash program, the program will be paused.
• A beep sound occurs every minute to warn the door is open during the running program.

Adding dishes to the dishwasher during the running washing program

1. Open the door slightly to pause the running washing program. Wait until the spray arms are completely stationary.
2. Add the dishes into the dishwasher and close the door. The washing cycle will continue after a few seconds.

Caution!

Be careful while opening the door of the appliance, a large amount of water vapour can be released or hot water can spurt. Hot water with the detergent can be of a chemically aggressive nature and may have detrimental effects on your skin or furniture.

Tips for best drying results

• The drying effect will be always less effective on the dishes made of unsuitable material (e.g. plastic) than on other dishes.
  • Always place the dishes in a way that water cannot stay in the hollows of the dishes.
• Larger amounts of water remaining in such hollows cannot be dried properly.

CLEANING AND MAINTENANCE

Regular maintenance and inspection prevent malfunctions. To maintain a perfect appearance of the interior of the dishwasher, we recommend using a special dishwasher cleaner once every 4–6 months.

• Check the spray arms and make sure there are no deposits of fat and lime. If deposits occur, fill the detergent dispenser with the detergent and start the washing program on the highest set temperature.
• Wipe the door sealing with a damp cloth regularly to remove any deposits.
• Check the indicator of the amount of the regenerating salt and refill the container if needed.
• Check the indicator of the amount of the rinse aid and refill the container if needed.

Filter system

The filtration system at the bottom of the dishwasher retains coarse dirt from the washing cycle. The accumulated coarse residues may cause clogging of the filters. Check the filters regularly and clean them under running water if necessary. Follow the steps below to clean the dishwasher filters:

1. Grasp the coarse filter and unlock it by turning it counter-clockwise. Pull the filter upwards.

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

1. The fine filter can be pulled from the bottom of the filter assembly. Separate the coarse filter from the main filter by gently pressing the tabs at the top and pulling it out.

1. Larger food residues can be cleaned by rinsing the filter under running water. Use a soft cleaning brush for more thorough cleaning.

Line drawing of a kitchen sink with a hand spraying water from a bucket (no text or symbols)

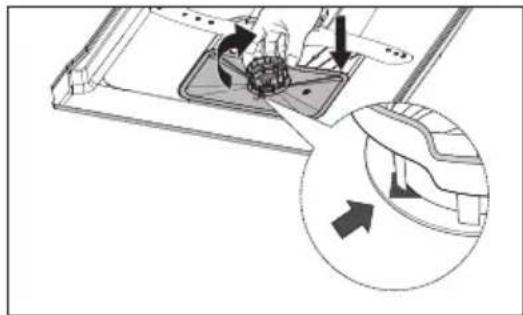

1. Then reassemble the filters. Proceed in the reverse order to their disassembly. Put the filter assembly back into the dishwasher and turn it clockwise. Check that the filter is properly closed by the position of the arrow for closed filter.

Technical diagram showing a mechanical assembly with directional arrows and a magnified inset view of internal components (no text or symbols)

Note:

• For best results clean the filter regularly. We recommend cleaning the filter after each washing cycle.
  • Take out the filter, remove any food residues and run it under the tap.
• Put the filter back in its place after cleaning.

Caution!

Never use the appliance without the filter system inserted properly. Improper placement of the filters can lead to reduction of the washing effectiveness and may cause damage to dishware and cutlery.

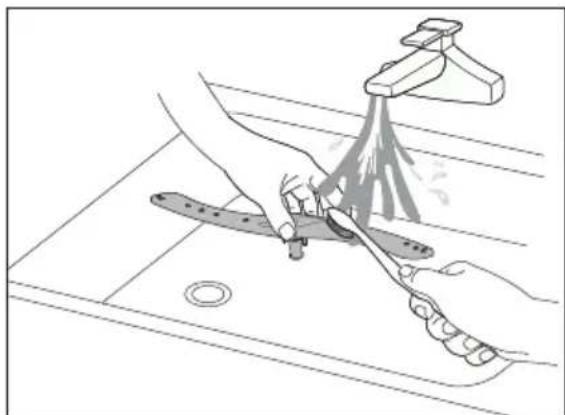

Cleaning the spray arms

It is necessary to clean the spray arms regularly. Calcium and dirt may block nozzles and bearings of the spray arms.

• Check the outlet nozzle of the spray arms whether they are blocked by food residues or not.
• If it is necessary, unscrew and remove the spray arms.
• Wash them under running water and then place them back.

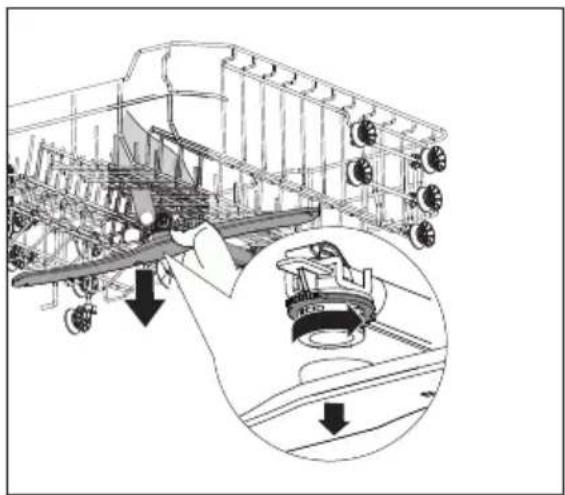

• To dismantle the upper arm, hold the nut, turn the arm clockwise and remove it.

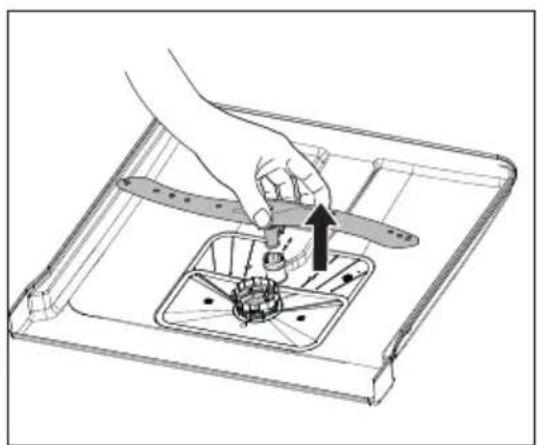

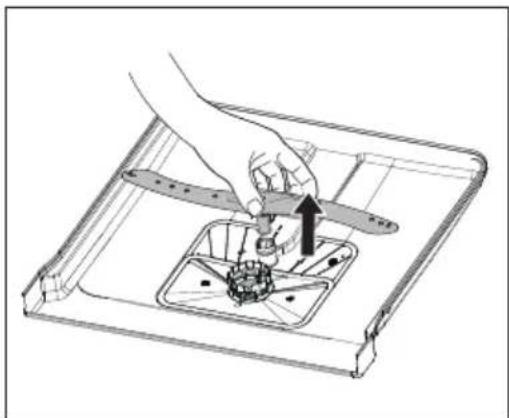

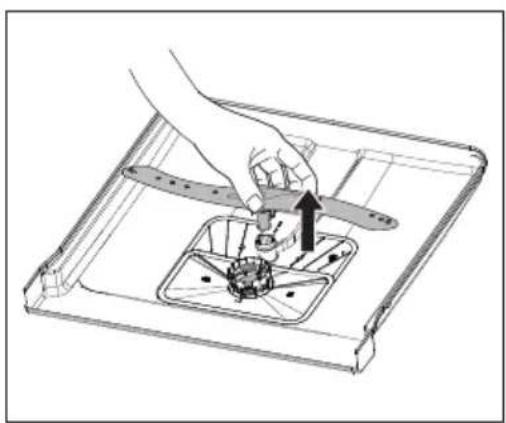

• To dismantle the lower arm, remove the arm by lifting it upwards.

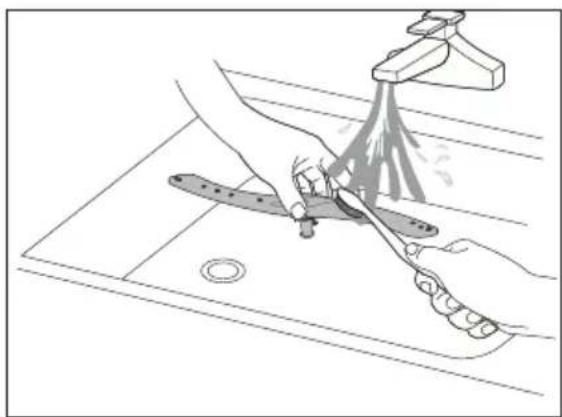

• Wash each spray arm in warm soapy water. To clean the nozzles use a fine brush.
  • Install the arms back after cleaning.

Technical line drawing of an aircraft carrier with internal components and a magnified inset showing the structural details (no text or symbols present)

Technical line drawing of a mechanical assembly with a hand operating a component (no text or symbols)

Illustration of hands cleaning a kitchen sink with a tool and drain (no text or symbols)

CAUTION!

One of the most common malfunctions is clogged spray arms. The filter is not properly inserted. Make sure the filter system is locked properly after cleaning!

Close-up of a white plastic mechanical component with a textured base and internal grooves, no visible text or symbols.

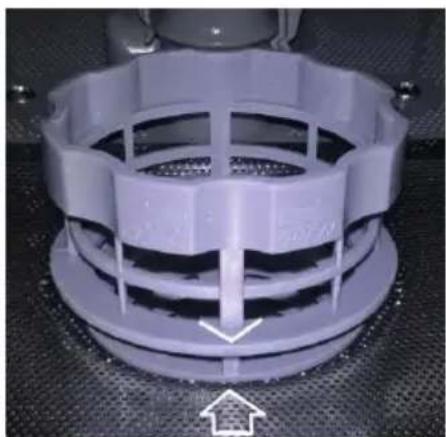

Properly secured filter P

Close-up of a white plastic mechanical component with ribbed structure and mounting holes (no text or symbols visible)

Poorly secured filter

Close-up of a mechanical component with concentric rings and a central slot, no visible text or symbols

Cleaning the control panel and the surface of appliance

• Use only a soft damp cloth for cleaning.
• Do not use rough and sharp objects (e.g. steel wool) or aggressive detergents.
• Do not allow water to come in contact with the door lock of the appliance.
• To clean the control panel do not use a spray cleaner. It may cause damage to the door lock and electrical parts of the appliance.
• Some paper towels can scratch the stainless steel of the control panel.

Cleaning the door of the appliance

• To clean the edges around the door, use only a soft damp cloth.
- Do not use any spray cleaners, they may damage the door lock and electrical parts of the appliance.

Frost protection

If you are not going to use the appliance for a longer period of time or to place the appliance in places with low temperatures, it is necessary to follow these steps:

1. Unplug the appliance from the mains.
2. Close and disconnect the water inlet hose from the water supply.
3. Dismantle the inlet hose and drain water from the hose and the dishwasher. To capture the water, you can use a shallow container e.g. basin.
4. Reconnect the inlet hose to the dishwasher.
5. Remove the filter system and drain/wipe the remaining water (using for example a sponge).

Note:

- If there is ice and the dishwasher cannot be turned on, contact the service centre.

Tips for maintaining

• After each washing cycle, close the water supply and leave the dishwasher door slightly open to prevent accumulation of moisture and odour.
- Before cleaning and maintenance, disconnect the power cord from the wall outlet.
- Do not use any coarse (e.g. steel wool, rough part of sponges) and sharp objects or aggressive cleaning agents, they may scratch the surface of the appliance.
- For cleaning use a damp cloth dipped in water and detergent.
- If you intend not using the dishwasher for a longer period of time, run a washing program without dishware. After each washing cycle, disconnect the power cord from the wall outlet and leave the dishwasher door slightly open to prevent accumulation of moisture and odour. Leaving the door slightly open prolongs the life of the seal.
- Keep the appliance in an upright position when manipulating. If this is not possible, lay the appliance and transport it on its back.
- Deposits on the seal are one of the sources of odours. Clean the seal to prevent that.

INSTALLATION OF THE APPLIANCE

Caution!

Risk of electric shock! Before installation, disconnect the power cord from the wall outlet. Otherwise there is a risk of death or electric shock.

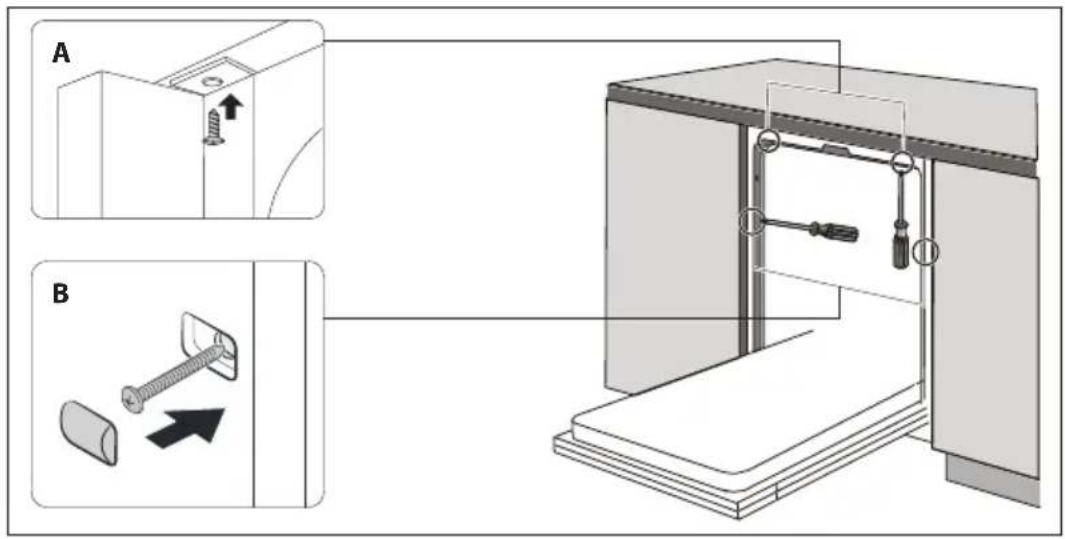

Built-in dishwashers installed as a free-standing appliance must be secured against overturning. They must be for example screwed to the wall or placed under a worktop which is screwed to adjacent cabinets.

For safe operation the dishwasher must be installed by a qualified professional. Figures for the inflow and outflow of water and electrical grid parameters must match with the figures listed in the technical specifications or in the installation instructions.

• Defects caused by improper installation are not covered by the warranty.
  • Installation is the responsibility of the customer not the manufacturer.
• The manufacturer bears no responsibility for damage caused to people, animals or property due to incorrect installation.

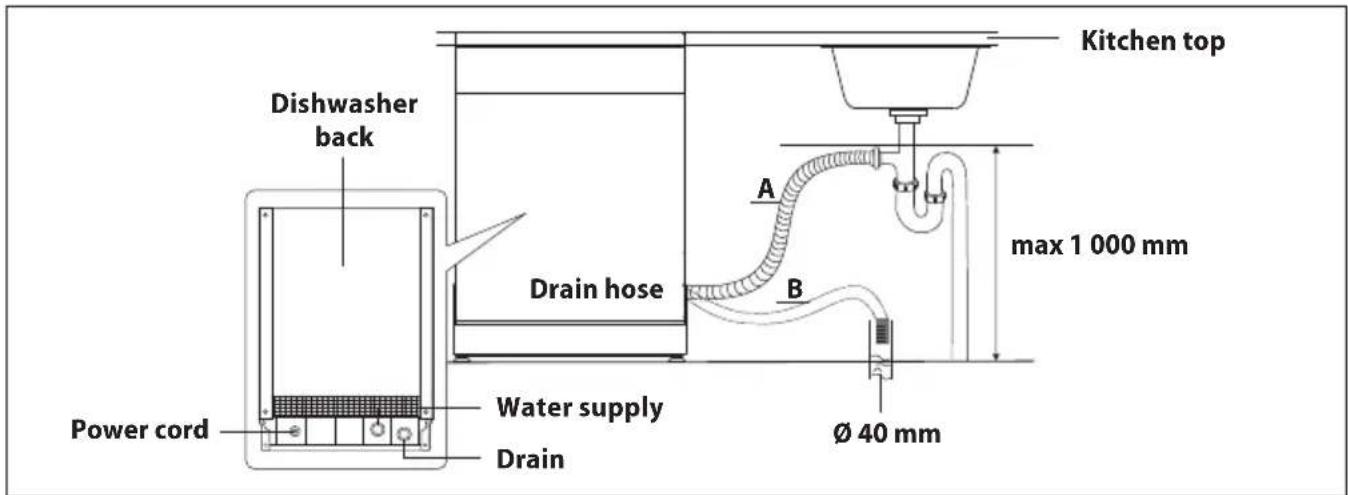

• The dishwasher should be placed near the wall outlet, water supply and waste.
• There should be a space for inlet and drain hose on one side of the lower cabinet.
  • Dimensions for mounting the appliance are shown in Fig. 12.

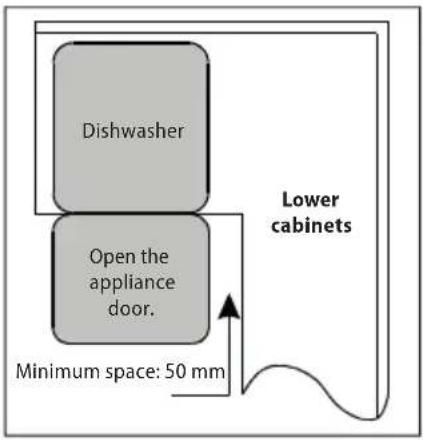

• If the dishwasher is installed in a corner of the lower cabinets, make sure there is a free space around the open dishwasher door 50 mm (Fig. 13).

Fig. 12 Fig. 13

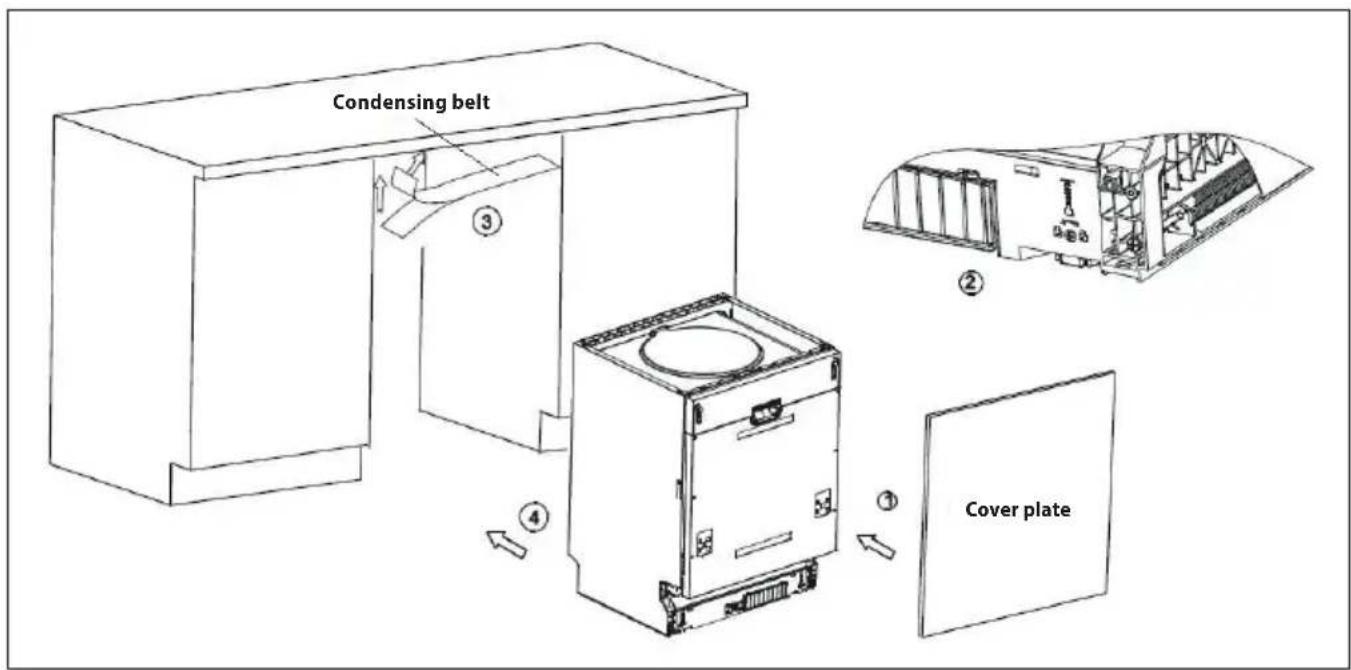

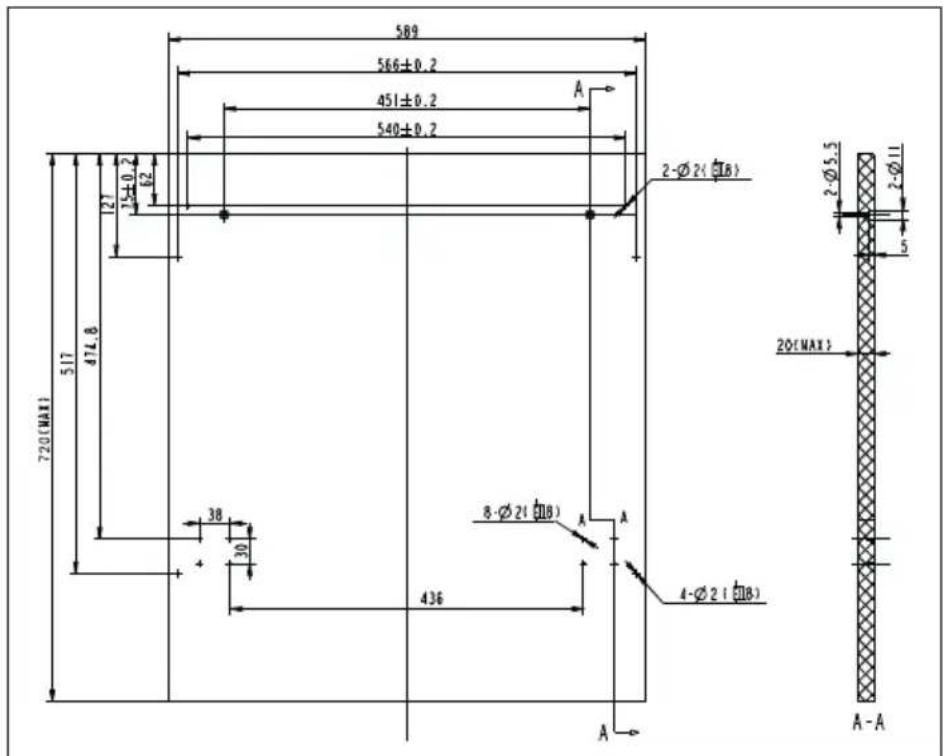

Dimensions and fastening of the cover plate on the door of the dishwasher

• The dimensions and location of holes on the cover plate are shown in Fig. 14. The dimensions are given in mm.

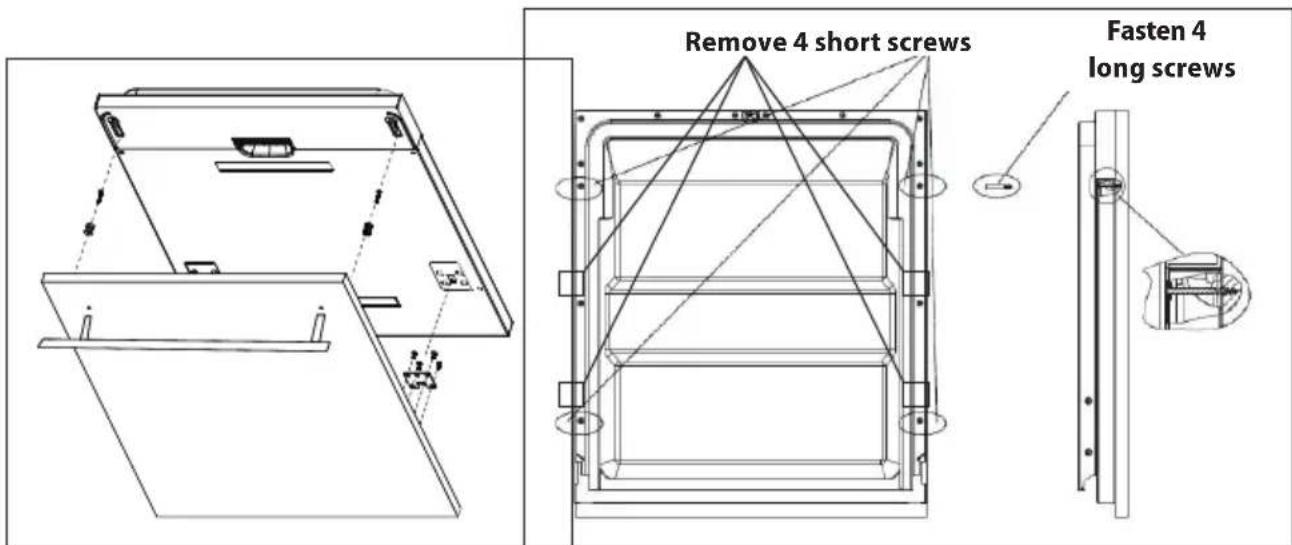

- Put the cover plate on the door of the dishwasher (Fig. 14a).
- Fasten the cover plate using the screws (Fig. 14b).
- Unscrew the four short screws from the inner side of the door (Fig. 14b).
- Screw the four long screws instead of the short ones. Now the cover plate is fastened to the appliance door

Fig. 14

Fig. 14a Fig. 14b

Note:

1. In the upper part of the illustration for the installation of the top plate it is shown how many spacer bars and which screws must be used for installing the spacer bars to the control panel of the dishwasher.
2. The spacer bars are put together; the side without the „pins“ shall be attached to the bottom side of the dishwasher control panel.

3. The „pins“ on the bottom side of the bars must be removed (cut off). This step must be done otherwise the top plate would not fit properly.

4. After removing the "pins", attach the spacer bars with the included screws to the bottom side of the dishwasher control panel.

5. In the upper part of the illustration for the installation of the top plate it is shown which screws must be used for the number of spacer bars.
6. After attaching the spacer bars to the bottom side of the dishwasher control panel, the head of the screw must be at the same level (it must not stick out) as the bottom side of the spacer bar.

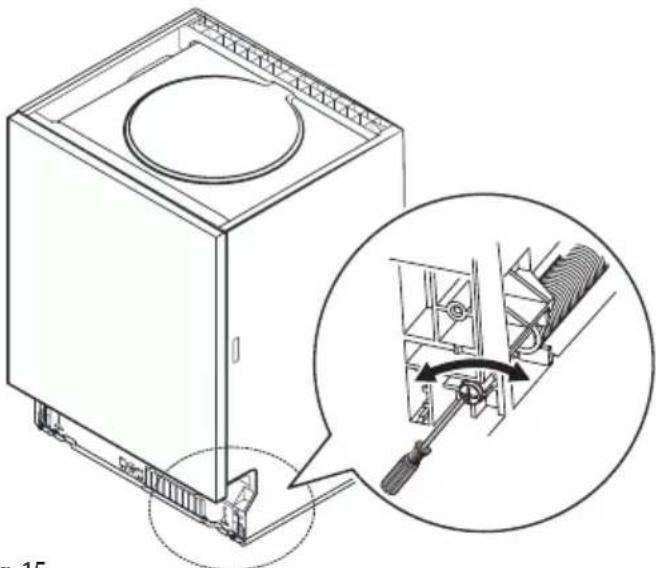

Adjusting door spring strength

• The spring strength is preset only for the appliance door itself. After attaching the cover plate the weight of the door changes.
• You adjust the strength of the springs using the screws located on the bottom part of the front of the dishwasher (Fig. 15).
• Setting of the springs is correct when the open door stays in the position and does not fall down.

Technical line drawing of a washing machine with an inset showing a mechanical assembly (no text or symbols)

Fig. 15

When installing the appliance, follow these steps:

1. Remove all the packaging and marketing materials before first use.
2. Fasten the cover plate to the appliance door. Use the fastening screws and brackets.
3. You adjust the strength of the springs (left and right) using the screws located on the bottom part of the front of the dishwasher (Fig. 15). To increase the strength turn clockwise. To decrease the strength turn counter clockwise.
4. Connect the inlet hose to the water supply according to Fig. 17.
5. Connect the drain hose according to Fig. 18.
6. Stick the condensation belt under the kitchen top (step 3). Make sure that the condensation belt is stuck alongside the edge of the kitchen top.
7. Place the dishwasher into the prepared space.
8. Use the feet at the front and back of the appliance to level it to a horizontal position. Adjust the back feet by turning the screw on the bottom of the front side of the appliance (step 5). Adjust the front feet by turning screws located near the feet themselves (step 5B). Use a spirit level Fig. 16).
9. Plug the power cord in the wall outlet.
10. The appliance must be secured after placing and levelling it. Securing the appliance can be done in two ways:

A – Attaching to a standard kitchen top:

Place the installation hook into the hole located on the top of the appliance.

Screw the installation hook to the kitchen top (step 6).

B - Attaching to a marble or granite work top:

Screw the sides of the dishwasher to the cabinets (step 7).

Aligning the appliance in a horizontal position

1. Place the dishwasher into the prepared space.

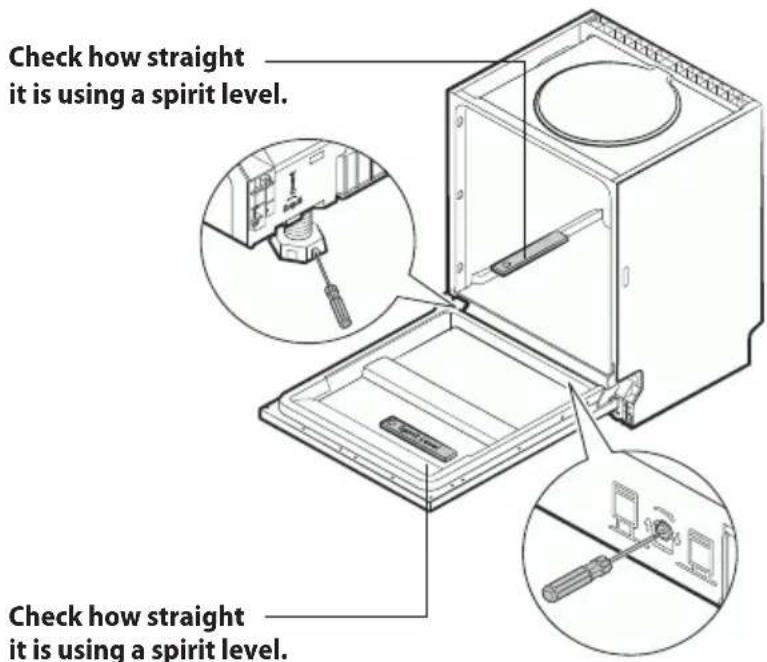

2. Place a spirit level on the fully opened door and in the interior of the appliance (Fig. 16). Make sure the dishwasher is in a horizontal position.
3. Use the adjustable feet to align the dishwasher to a horizontal position.

Note:

Maximum adjustable height of the feet is 70 mm.

Fig. 16

Connection to the mains

• Make sure the mains voltage and current protection correspond to the values on the rating plate of the appliance. We recommend using a separate outlet with a 10A circuit breaker.
- Only use grounded sockets.
- Do not use multiple sockets, plugs and extension cords. There is a risk of overheating.
- The plug of the power cord on the appliance must be freely accessible even after the installation.
- Changes in a connection may only be performed by a qualified professional.
- Electrical safety of the appliance can be guaranteed only if the protective terminal of the appliance is connected to the protective conductor of the mains.
- The manufacturer bears no responsibility for damage to persons or property as a result of missing or bad protective connection.

Connection of the water supply

• Before connecting the inlet hose to the water supply, make sure that the water pressure is in the range of 0.04 to 1.00 MPa. When water pressure is higher, you must install a pressure reducing valve.

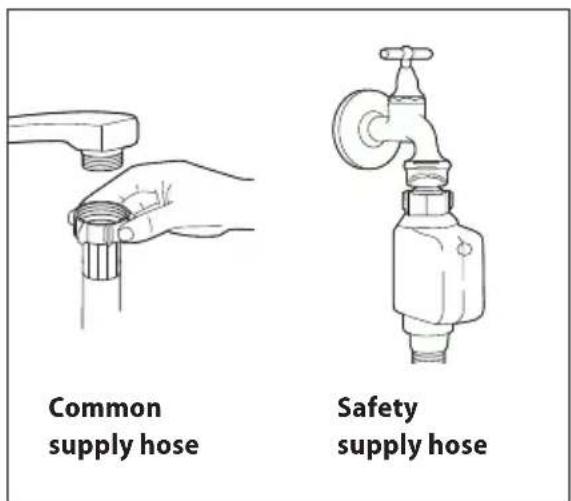

• Connect the inlet hose to the tap with 3/4" thread (Fig. 17). Make sure that the inlet hose is not bent, crushed or entangled.
• When replacing the appliance always use a new inlet hose!
• If the water pipes are new or they have not been used for a longer period of time, run off a sufficient amount of water before connecting the inlet hose to rinse the pipes and wash away any impurities.
• If these safety instructions are not observed, it may lead to blockage and damage to the appliance.

Fig. 17

Connecting the drain hose

Connect the drain hose to the waste pipe with a minimum diameter: 40 mm (Fig. 18). Make sure the drain hose is not bent or squeezed to prevent slowing down or stopping of the water flow.

The height of the waste pipe must be less than 1,000 mm (Pic. 18) and the drain hose should not be submerged in water. Secure the drain hose properly to prevent unwanted loosing from the waste pipe.

Fig. 18

Extension of the drain hose

The distance between the connection of the drain hose with the waste pipe and the bottom of the appliance should not be bigger than 1,000 mm. If you need to extend the drain hose, make sure to use the same one. The total length of the drain hose must not be longer than 4 m, otherwise it will reduce the cleaning effectiveness of the appliance.

Disassembling

If you disassemble the appliance, it is important to follow the steps in the correct order:

1. First, unplug the power cord from the mains (pull the plug or switch off the circuit breaker).
2. Close the water supply.
3. Loosen the drain and inlet hoses.
4. Loosen the fastening screws.
5. If the dishwasher is attached to the base plate, remove it.
6. Pull the dishwasher out while gently pulling the drain and inlet hoses and the power cord.

Disconnection of the water supply

1. Close the water supply (the tap).
2. Press the button to release the water pressure in the inlet hose. Water cannot accidentally spurt out when the water pressure is low.
3. Unscrew the inlet hose from the tap.

Draining excess water from hoses

If the drain hose is connected to the waste pipe at the maximum allowable height, the excess water cannot be drained completely. It is necessary to disconnect the drain hose and lay it as low as possible. To capture the water, you can use a shallow container e.g. a basin.

TROUBLESHOOTING

You can remove most of the minor malfunctions by yourself, there is no need to call the service centre. The following overview will help you find the causes of occurring errors.

Defect description Possible cause Solution
The appliance does not work	Faulty circuit breaker	Check the circuit breaker in the switchboard if it is in working condition. Unplug all other appliances that are connected to the same circuit.
	The power cord plug is not plugged in the wall outlet.	Make sure the appliance is switched on and the door is closed.Check the connection of the cord.
	Low water pressure	Make sure the water supply is open and the inlet hose is tightly connected to the water supply tap or the hose is not bent.
	Door is not closed properly. Make sure that the door is closed tightly.
Water is not pumped out of the appliance.	Broken drain hose Check the drain hose.
	Filter is clogged	Check the coarse filter (see „Cleaning the filter system“)
	Drainage is clogged	Check the drainage. If the drainage is clogged, clean it.Before contacting a qualified electrician disconnect the drain hose from the drainage and make sure water flows out of the drain hose. To catch water from the drain hose use e.g. a bucket or some other larger container.
Soapy water in the appliance interior	Unsuitable detergent or spilled rinse aid.	Use only detergent designed for use in dishwashers. If there is a soapy foam in the interior, leave the appliance open to let the foam evaporate. Pour 4.5 litres of cold water into the washing area, close the appliance and then pump out the water. Repeat the process if needed. Spilled rinse aid always wipe off as soon as possible.
	Spilled rinse aid	Spilled rinse aid always wipe off as soon as possible.
Stains in the washing area	Coloured detergent has been used	Do not use detergents with dye.
White film on the inner surface of the dishwasher.	Sedimentary minerals	Use a damp sponge with a cleaning agent and put on rubber gloves. Never use any other cleaning agents than for dishwashers.
Stains on cutlery	Used cutlery is not corrosion resistant
	The appliance was not turned on after the salt was added in the dishwasher. Pieces of salt got in the washing cycle	After adding salt, always run a quick wash cycle without dishware loaded.
	Loose cover of the softener container	Check the softener container cover and make sure it is properly tightened.
Knocking sound in the interior of the appliance during running washing program	The lower or upper spray arm is blocked by dishes or food remains	Pause the program, check the arrangement of dishes or rearrange the dishes and if necessary, clean the spray arm.
Rattling sound in the interior of the appliance during running washing program	During the running washing program Dishes move freely inside the appliance	Pause the program and rearrange the dishes to avoid spontaneous releasing of the dishes during the washing program.
Knocking noise in water pipes	It may be caused by the cross-section of the pipes.	The knocking noise does not influence the dishwasher. If you have doubts, consult it with a qualified professional.
The detergent dispenser cover cannot be closed	The dispenser is overfilled. Remove the excess amount of detergent.
	The mechanism is blocked by the detergent residues.	Clean the closing mechanism of the detergent dispenser.
Dishes are dirty	The dishes were not arranged properly	See "Loading dishware".
	The selected washing program was not strong enough	Select more intensive washing program.
	Insufficient amount of detergent	Use more detergent.
	The arm is blocked by dishes or food remains.	Check the dishes and clean the spray arm if needed.
	It is possible the filter is inserted improperly. Blockage of the arms may occur.	Clean or insert the filter properly. Clean the spray arms (see "Cleaning the spray arms").
Stains on glass	Combination of soft water and too much of detergents.	Use smaller amount of detergent and for washing glasses select the shortest washing cycle if water in your area is soft.
Black or grey stains on the dishes	Aluminium cutlery has touched the dishes during the washing cycle.	Use a gentle abrasive agent to clean such stains. Do not put this agent into the dishwasher!!!
Dishes are moist	Dishes were loaded improperly	See „Loading dishware“.
	Insufficient amount of rinse aid	Use more rinse aid.
	You unload the dishes too soon.	Do not unload the dishes immediately after the washing program is done. Open the door slightly to allow the excess steam to escape. Start unloading when the dishes are almost cold to the touch. Always unload the lower rack first and then the upper rack to prevent the excess water from the upper rack flowing down onto the dishes in the lower rack.
	Wrong washing program was selected	The short washing program is less effective than the long programs and the temperature is also lower. Select longer washing program.
	Cutlery with wooden handle	Draining water from these is more difficult. This type of cutlery is not suitable for washing in the dishwasher.

ERROR MASSAGE

In the event of a fault, the warning lights will blink next to the wash programs.

Code Description of error Possible cause
The Rapid light flicker fleetly	Longer inlet time.	Faucets is not opened, or water intake is restricted, or water pressure is too low.
The Rapid and 90 min light flicker fleetly	Not reaching required temperature.	Malfunction of heating element.
The ECO light flicker fleetly	Overflow.	Some element of dishwasher leaks.
The Intensive, ECO and Rapid light	Failure of communication between main PCB with display pcb.	Open circuit or break wiring for the communication.

Note:

• In case of overflowing turn off the main water supply and then contact the service.
- Before restarting the appliance, remove the excess water from the interior of the appliance.

DIMENSIONS

Height (H) 815 mm
Width (W) 598 mm
Depth (D1) 550 mm (with door closed)
Depth (D2) 1 150 mm (with door open up to 90 °)

EXAMPLE OF LOADING DISHWARE

Upper rack

Lower rack

Number	Item	Number	Item	Number	Item
1	Cups	6	Oven pot	11	Melamine dessert plates
2	Saucers	7	Dessert plates	12	Melamine bowls
3	Glasses	8	Dinner plates	13	Glass bowl
4	Mugs	9	Soup plates	14	Dessert bowls
5	Small pot	10	Oval platter	15	Cutlery basket

Number Item
1 Tablespoons
2 Forks
3 Knives
4 Teaspoons
5 Dessert spoons
6 Serving spoons
7 Serving forks
8 Sauce spoons

Silhouette of various kitchen utensils and kitchenware arranged in rows, with numbers 12, 45, 78 below each item (no text or symbols on the items themselves)

Stand

Cutlery basket

ENVIRONMENTAL PROTECTION

• Prefer recycling of packaging materials and old appliances.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or its packaging indicates that this product may not be treated as household waste. It is necessary to take it to a container park for the recycling of electrical and electronic equipment. By ensuring the correct disposal of this appliance you will help prevent potential negative consequences to the environment and human health, which could otherwise result from inappropriate disposal of this product. Disposal must be performed in accordance to the regulations for waste disposal. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

concept

POLSKA sp. z o.o. 30

53-238 Wrocław [phone]

CONCEPT POLSKA sp. z o.o.
