FRMA 36/2 B1 - Lawn mower FLORABEST - Free user manual and instructions

Product Type	Cordless Lawn Mower
Model	FRMA 36/2 B1
Motor Voltage	36 V
Idling Speed	3100 min^-1
Cutting Circle	370 mm
Cutting Height	6 positions: 25/35/45/55/65/75 mm
Grass Box Volume	40 L
Weight (without battery and charger)	13.2 kg
Protection Class	III
Protection Type	IPX1
Sound Pressure Level	82 dB(A); K_pA = 3 dB
Sound Power Level (measured)	93.9 dB(A); K_WA = 1.88 dB
Sound Power Level (guaranteed)	96 dB(A)
Vibration Emission	2.5 m/s^2; K=1.5 m/s^2
Battery Model	FAP 36 A1 (Li-Ion)
Battery Capacity	2600 mAh / 93.6 Wh
Charging Time	Approx. 1 hour
Charger Model	40LFC15
Number of Battery Cells	20
Handle Folding	Yes, for compact storage
Cut Height Adjustment	Central lever, 6 positions
Grass Box Level Gauge	Yes, on side
Safety Features	Ignition key, release button, start lever, collision guard
Blade Type	Rotating blade, replaceable
Warranty	3 years

Frequently Asked Questions - FRMA 36/2 B1 FLORABEST

How do I start the lawn mower?

Insert the charged battery, then insert the ignition key. Press and hold the release button while pressing the start lever to start. Release the release button once running.

What should I do if the mower doesn't start?

Check if the battery is charged and properly inserted. Ensure the ignition key is in place. If still not starting, possible causes include a defective release button or start lever, worn carbon brushes, or a defective motor. Contact customer service.

How do I adjust the cutting height?

Hold the carrying handle and lift or press the device. Grip the lever for cutting height adjustment and move it to one of the 6 positions (25, 35, 45, 55, 65, 75 mm).

How do I charge the battery?

Remove the battery from the mower. Slide it onto the charger until it clicks. Plug the charger into a mains socket. The green LED flashes during charging and becomes steady when fully charged (approx. 1 hour).

Can I use the mower in the rain?

No. The mower is rated IPX1 (protection against dripping water) but should not be used in rain or wet conditions. Avoid damp environments.

How do I replace the blade?

Switch off, remove ignition key and battery. Wear gloves. Turn the mower over. Hold the blade and unscrew the blade screw anticlockwise. Install the new blade with the correct orientation and tighten the screw firmly.

What does the level gauge on the grass box indicate?

The level gauge flap is open when the grass box is empty and closed when full. Empty the grass box when the flap is closed.

How do I fold the handle for storage?

Release the tightening levers on the upper and lower handles. Fold the handles together, ensuring not to pinch the cables. This reduces storage space.

What maintenance is required?

Clean the mower after each use with a brush or cloth (no water jet). Check for loose nuts/bolts. Sharpen or replace the blade when blunt. Store in a dry place.

What is the warranty period and coverage?

The mower has a 3-year warranty from purchase date. It covers material and manufacturing defects. Normal wear parts (blade, battery) are excluded. Misuse or unauthorized repair voids warranty.

USER MANUAL FRMA 36/2 B1 FLORABEST

AKKU-RASENMÄHER FRMA 36 / 2 B1

DE AT CH

AKKU-RASENMÄHER

Translation of the original instructions

IANTr r r sp

DE | AT | CH

Beforereading|unfold|thelpagelcontaining|thelillustrationsland|familiariselyourselflwithlalllll functionslofltheldevice.

Akku (Li-Ion) ......FAP 36 A1

Intended purpose ......25

General description ......26

Extent of the delivery 26

Function description ......26

Overview 26

Technical specifications ......27

Symbols and icons ......27

Safety precautions ......29

General notes on safety 29

Assembly 35

Mounting the lower handle .....35

Mounting the upper handle .....35

Mounting the grass box ....36

Operation 36

Hanging on/removing the grass box 36

Level gauge 36

Adjusting the cut height 36

Switching On and Off 37

Charging the battery 37

Insert/remove rechargeable battery ..37

Recharging the battery 38

Checking the charge status of the rechargeable battery ....38

Used batteries 38

Working with the appliance .....38

Cleaning/maintenance ....39

General cleaning and maintenance work ....39

Changing the blade 39

Storage 40

Waste Disposal/Environmental

Protection 40

Spare Parts/Accessories .....41

Trouble Shooting 42

Guarantee 43

Repair Service ....44

Service-Center 44

Importer 44

Translation of the original

EC declaration of conformity .....47

Exploded Drawing ......49

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

The equipment is designed only for mowing domestic lawns and grass areas.

Any other use that is not expressly per- mitted in these instructions may result in damage to the equipment and represent a serious risk to the user.

The equipment is intended for use by adults. It is not to be used by children or people who are unfamiliar with these instructions. The use of the equipment is prohibited in the rain or a damp environment. The manufacturer will not be liable for damages caused by use other than for the intended purpose or by incorrect operation.

This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.

General description

See the front fold-out pages for illustrations.

Extent of the delivery

Carefully remove the equipment from the packaging and check whether the following parts are complete:

• Cordless lawnmower and upper handle
• Lower handle
• Grass box (in three parts)
• 2 cable holders
• 2 tightening levers with washers for fastening the lower handle
• 2 tightening levers with washers and screws for fastening the upper handle
• 2 Rechargeable batteries
• Charger
• Instruction for use

Dispose of the packaging material correctly.

Function description

The cordless lawnmower has a cutting tool, which turns parallel to the cutting level. It is equipped with a high performance electric motor, robust plastic housing, safety switch, collision guard, and grass box. Additionally, the equipment is height adjustable to six levels and has smooth-running wheels. For the function of the operating parts, please refer to the descriptions below.

Overview

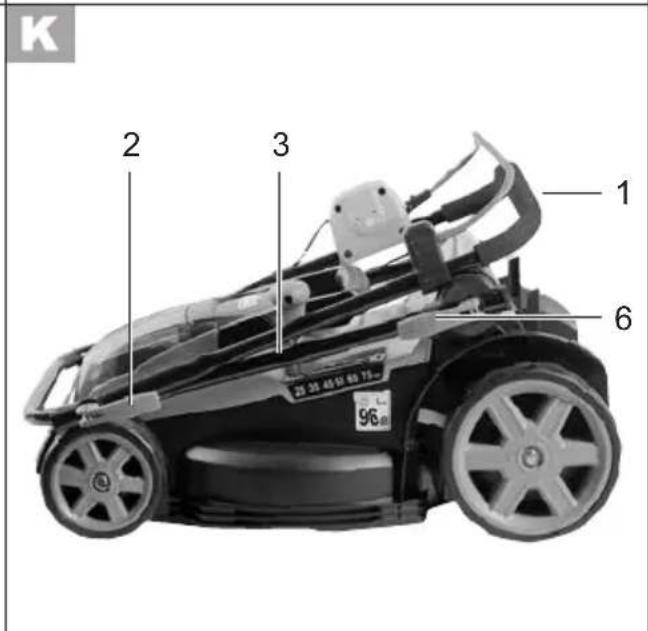

1 Upper bar

2 Tightening levers for fastening the upper handle

3 Lower bar

4 Grass box

5 Collision guard

6 Tightening levers for fastening the lower handle

7 Wheels

8 Housing

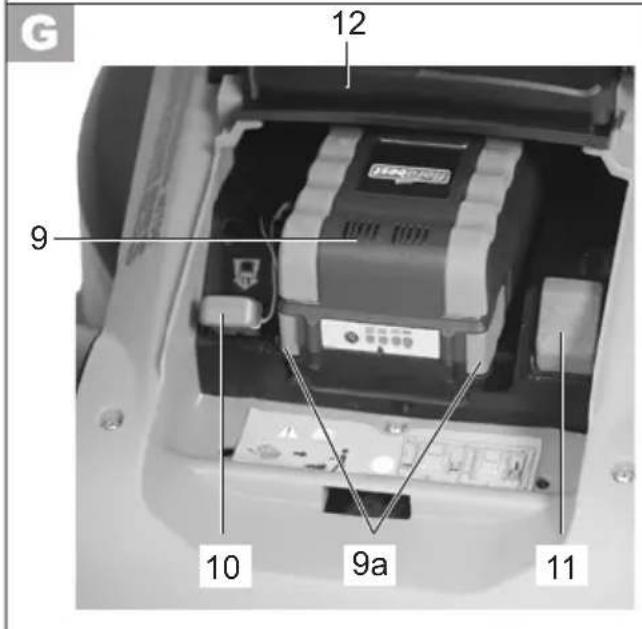

9 Rechargeable battery

10 Ignition key

11 Eject button

12 Cover

13 Lever for cutting height adjustment

14 Carrying handle

15 Cable holders

16 Device cable

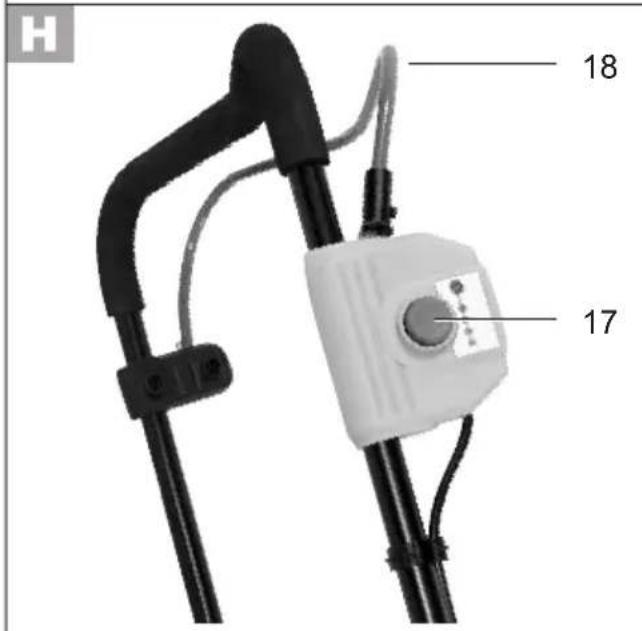

17 Release button

18 Start lever

19 Charger

20 Blade

21 Blade screw

22 Motor spindle

Technical specifications

Appliance ...... FRMA 36/2 B1

Motor voltage 36 V=

Idling speed n_0 3100 min ^-1

Cutting circle 370 mm

Cut height .....25/35/45/55/65/75 mm

Protection class ....III

Protection type ......IPX1

Weight (without battery and charger) 13.2 kg

Grass box volume 40 l

Sound pressure level (L_pA) ..... 82 dB(A); K_pA = 3 dB

Sound power level (LWA) measured .... 93.9 dB(A); K_WA = 1.88 dB guaranteed .... 96 dB(A)

Vibration ( q_n ) .....2.5 m/s ^2 ; K=1.5 m/s ^2

Battery (Li-Ion) ......FAP 36 A1

Number of battery cells....20

Nominal voltage 36 V=

Capacity 2600 mAh

Energy 93.6 Wh

Charging time .... approx. 1 h

Charger 40LFC15

Voltage input .....220-240 V\~, 50 Hz, 1 A

Voltage output ....40 V == 3 A

Protection class .... □ II

Protection type IPXO

Noise and vibration values have been determined according to the standards and regulations mentioned in the declaration of conformity.

Technical and optical changes may be undertaken in the course of further development without notice. All dimensions, references and information in this instruction manual are therefore not guaranteed. Legal claims made on the basis of the instruction manual can therefore not be considered as valid.

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another.

The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.

Safety precautions aimed at protecting the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be considered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle).

Symbols and icons

Symbols in the manual:

Warning symbols with information on damage and injury prevention.

Instruction symbols (the instruction is explained at the place of the exclamation mark) with information on preventing damage.

Help symbols with information on improving tool handling.

GB IE

Symbols on the equipment:

Caution!

Read the operating instructions carefully.

Risk of injury from parts being thrown up.

Keep nearby people away from the appliance.

Caution – sharp cutting bladder Keep feet and hands away. Risk of injury!

Switch off the motor and remove the ignition key before carrying out adjustments or cleaning work.

Wear ear and eye protection.

Do not expose the unit to rain.

Symbols on the battery:

Do not dispose of batteries in household waste, fire or water.

Do not subject the battery to strong sunlight over long periods and do not leave it on a heater (max.45 °C).

Take batteries to an old battery collection point where they will be recycled in an environmentally friendly manner.

Battery charge level indicator

Symbols on the recharger:

Caution!

Read the operating instructions before charging.

The recharger is for indoor use only.

Safety precautions

This section covers the basic safety regulations when working with the apparatus.

General notes on safety

This equipment may cause serious injury in the case of improper use. In order to avoid injury to people and damage to property, the following safety information must be observed and users must familiarise themselves with all operating parts.

Preparation:

• Do not allow the use of this equipment by children or others who are unfamiliar with these operating instructions. Local regulations may specify the minimum age of the operator.
• Do not use the equipment when people and particularly children or pets are nearby. Children must not play with the device.
• The operator or user is responsible for accidents, injuries to other people or damage to the property of others.
• Check the terrain on which the equipment is to be used and remove stones, sticks, wires and

other foreign objects that could become caught and thrown up.

- Wear suitable work clothing such as stable shoes with non-slip soles and robust, long trousers. Do not use the equipment when barefoot or when wearing open sandals. Avoid wearing loose clothing or clothing with hanging cords or belts.

- Before each use, carry out a visual inspection of the equipment. Do not use the equipment if protective devices (e.g. collision guard or grass bag), parts of the cutting device or bolts are missing, worn or damaged. To avoid imbalance, damaged tools and bolts are to be replaced only in sets.

• Take care with equipment that has several cutting tools, as the movement of one blade may result in the rotation of the other blades.

- Use only spare parts and accessories supplied and recommended by the manufacturer. The use of non-original parts will immediately invalidate the guarantee.

- Worn or damaged information signs must be replaced.

Working with the Equipment:

Do not place feet or hands near or under rotating parts when working. Risk of injury!

• Switch on the motor according to the instructions and only when your feet are at a safe distance from the cutting tools.
• Do not use the equipment in the rain, in poor weather, in a damp environment, or on wet grass. Work only in daylight or with good lighting.
• Do not work with the equipment when tired, lacking concentration or under the influence of alcohol or drugs. Always take breaks in good time. Take a sensible approach to the work.
• When working, ensure a firm stance, particularly on slopes. Always work across the slope, never upwards or downwards. Take particular care when changing the direction of travel on the slope. Do not work on excessively steep slopes.
• Run the equipment only at a walking pace. Take particular care when turning the equipment around, pulling it towards you or going backwards.
• Switch on the equipment carefully and in accordance with the directions in these instruc-

tions. Ensure sufficient distance between feet and the rotating blades.

- Do not tilt the equipment when starting other than if it is necessary to do so when starting up in long grass. In this case, tilt the equipment by pressing down the handle bar such that the front wheels of the equipment are raised. Always check that both hands are in the working position before returning the equipment to the ground.

- Do not work without the grass box or collision guard. Keep away from the ejection hole at all times.

- Do not start the motor when standing in front of the discharge chute.

Caution! Danger! The blade continues to run after switching off. There is a risk of injury.

- The equipment is not to be lifted or transported while the motor is running. Switch off the equipment if it has to be tilted in transit, when crossing surfaces other than grass, and when the equipment is being transported to and from the surfaces to be mowed.

• Always keep the grass ejection hole clean and clear. Remove cut material only when the equipment is stopped.

- Do not leave the equipment unattended in the workplace.

- Do not work with equipment that is damaged, incomplete, or has been modified without the authorisation of the manufacturer. Do not use the equipment with damaged safety devices or screens or with missing safety equipment such as deflection and/or grass collection devices.

- Do not overload the equipment. Work only within the specified power range and do not change the regulator settings on the motor. Do not use low-powered machines for heavy work. Do not use your equipment for purposes other than those for which it is designed.

- Do not use the equipment near inflammable liquids or gases. Non-observance will result in a risk of fire or explosion.

- Do not lift or carry the equipment when the motor is running.

- Switch the device off, remove the safety key and take out the battery. Make sure that all movable parts are stationary:

- whenever you leave the apparatus unattended and when it is not being used,

- before removing obstructions or loosening blockages from the discharge chute,

- before checking or cleaning the apparatus or performing any work on it,

- when a foreign object has been hit by the apparatus. Check for damage to the apparatus and carry out the necessary repairs before switching it on again and working with it,

- if the apparatus starts to vibrate excessively, an immediate check is required.

- make sure that all nuts, bolts and screws are properly tightened.

- inspect the apparatus for any damage.

- have any necessary repairs carried out to damaged parts.

- Do not place feet or hands near or under rotating parts. Do not stand in front of the grass ejection hole during sickle mowing.

• Always pull the circuit breaker/ignition key if:

- you leave the apparatus unattended, before clearing blockages,

- if you check or clean the apparatus or work on it,

- after a collision with a foreign object. Immediately

examine the device for damage and, if necessary, have it repaired,

- if the apparatus starts to vibrate in an unusual way (check immediately!).

Maintenance and Storage:

• Allow the motor to cool before storing the equipment in a confined space.
• During maintenance of the cutting blades, be aware of the fact that even if the power supply is switched off, the cutting blades can be set into motion.
• When servicing the cutting blade on it that even if the voltage source is switched off, the cutting blade can be moved.
• Ensure that all nuts, bolts and screws are tightened firmly and the equipment is in safe working condition.
• Do not attempt to repair the equipment yourself unless you have been trained to do so. Any work not specified in these instructions is to be carried out only by customer service centres that we have authorised.

• Keep the equipment in a dry location and out of reach of children.

• Handle the equipment with care. Keep tools sharp and clean, in order to facilitate better and safer work. Follow the maintenance instructions.

• Wear protective gloves when changing the cutting device.
• Regularly check the grass collection device for wear and strains. For safety reasons, replace worn or damaged parts. When adjusting the blades, take particular care to avoid fingers being trapped between the rotating blades and fixed parts of the machine.
• Check that only replacement tools authorised by the manufacturer are used.

Electrical Safety:

- The plug of the charger must fit into the socket. The plug must not be modified in any way. Do not use any adapter plugs together with electric tools that have a protective earth. Unmodified plugs and matching sockets reduce the risk of electric shock.

- Avoid body contact with earthed surfaces such as pipes, radiators, cookers and refrigerators. There is an increased risk of electric shock if your body is earthed.

- Do not expose electric tools to rain or wet conditions. The penetration of water into an electric tool increases the risk of electric shock.

Careful handling an use of battery devices:

- Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.

- In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.

- Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or fire.

- If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns.

Special safety directions for battery-operated tools:

- Ensure that the device is switched off before inserting the battery. Inserting a battery into a power tool that is switched on may result in accidents.

- Recharge the batteries indoors only because the battery charger is designed for indoor use only. Risk of electric shock.

- To reduce the electric shock hazard, unplug the battery charger from the mains before cleaning the charger.

- Do not subject the battery to strong sunlight over long periods and do not leave it on a heater. Heat damages the battery and there is a risk of explosion.

- Allow a hot battery to cool before charging.

- Do not open up the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted that irritate the respiratory tract. Ensure fresh air and seek medical assistance in the event of discomfort.

- Do not use non-rechargeable batteries. This could damage the appliance.

Correct handling of the battery charger:

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- To charge the battery, use only the charger supplied. Risk of fire and explosion. This ensures that the safety of the device is maintained.

- Before each use, check the charger, cable and plug and have them repaired by qualified professionals and only with original parts. Do not use a defective charger and do not open it up yourself. This ensures that the safety of the device is maintained.

- Connect the charger only to a socket with an earth. Ensure that the mains voltage matches the specifications on the charger rating plate. Risk of electric shock.

• Disconnect the charger from the mains before closing or opening connection to the battery / power tool / device. This ensures that the battery and charger are not damaged.
• Keep the charger clean and away from wet and rain. Do not use the charger outdoors. Dirt and the entry of water increase the risk of electric shock.
• Operate the charger only with the appropriate original batteries. Charging other batteries may result in injuries and risk of fire.
• Avoid mechanical damage to the charger. This can result in internal short circuits.
• Do not operate the charger on a combustible surface (e.g. paper, textiles). Risk of fire due to heating during charging.
• If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.
• Do not charge non-rechargeable batteries in the charger. This could damage the appliance.

Assembly

• Only carry out work that you know you are capable of.
• If in doubt, consult an expert or our service centre directly.

Mounting the lower handle

1. Attach one end of the lower handle (3) to the screw thread on the apparatus housing.

2. Pull the ends of the lower handle (3) slightly apart and put the other end of the screw thread on the apparatus housing.

The lug indicating the angular position (3a) must face inwards.

You can lock the low handle in 3 angular positions (steep/medium/shallow).

1. Place the enclosed washers (6a) in position. The curved sides face the handle.
2. Turn the lower tightening levers (6) clockwise.
3. Lock the tightening levers (6) by pressing them in the direction of the lower handle (3). The tightening levers must be pulled tight and then positioned against the handle so that tightening can be carried out with medium force. If this fails, continue to turn the tightening lever clockwise, or loosen it by turning anti-clockwise (see small image).

Mounting the upper handle

1. Fasten the upper handle (1) with the enclosed screws (2b), the washers (2a) and the upper tightening levers (2) on the right and left of the lower handle (3). The release button (17) must be located on the right in the mowing direction.

Two positions are possible.

1. Turn the tightening levers (2) clockwise.
2. Lock the tightening levers (2) by pressing them in the direction of the handle (3). The tightening levers must be positioned against the handle such that tightening can be carried out with medium force.

If this fails, continue to turn the tightening lever clockwise, or loosen it by turning anti-clockwise (see small image).

1. Clipping in the cable holders:

Clip in the cable holders (15) on the upper (1) and lower handle (3) and use them to fix the device cable (16) in position. At the end of the bottom handle (3) you can insert the device cable (16) into an existing cable holder.

Release the tightening lever (2+6) and fold the bow-type handle (1) and the lower handle (3) together so that the device takes up less space. Make sure not to pinch the machine cables while doing this.

Mounting the grass box

Wear gloves when mounting the grass box (4), to avoid risk of injury.

See also the enclosed information for installation of the grass box.

1. Assemble the two parts of the lower section (4a) of the grass box.

2. Place the upper section (4b) of the grass box on the lower section (4a). It then locks into place in the recesses provided for this purpose in the upper section.

Operation

The apparatus must only be adjusted when the motor is switched off and the blades are stationary. There is a risk of personal injury.

Switch off the apparatus, remove the ignition key (A 10) and wait for the blades to come to a standstill.

Hanging on/removing the grass box

1. To hang on the grass box (4), lift the collision guard (5) and hang on the grass box using both supports.

2. Fold the collision guard (5) onto the grass box (4). It holds the grass box in the correct position.

3. To remove the grass box (4), lift the collision guard (5) and detach the grass box. Fold the collision guard (5) back onto the mower housing (8).

Do not operate the appliance without the collision guard or the grass box. Risk of injury!

Level gauge

The level gauge (4c) is located on the side of the grass box (D 4).

Level gauge flap open: Grass box empty.

Level gauge flap closed: Grass box full.

Adjusting the cut height

The apparatus has 6 positions for adjusting the cutting height:

35 mm/25 mm - Short cutting height
55 mm/45 mm - Medium cutting height
75 mm/65 mm - Tall cutting height

1. Hold the carrying handle (14) and lift the device or press the device down.

2. Grip the lever (13) for adjusting the cutting height and move it past the ratchet mechanism to the desired cutting height.

The correct height is around 25 – 45 mm for a decorative lawn and around 45 – 65 mm for a used lawn.

A higher cut height should be selected for the first cut of the season.

Switching On and Off

1. Place the apparatus on a level surface.

2. Lift the cover (12) of the apparatus housing and insert the charged battery (9) along the guide rail into the apparatus. You should be able to hear the rechargeable battery lock into place.

3. Insert the ignition key (10) into the opening provided for it next to the battery (9).
4. Before switching the apparatus on, make sure that it is not touching any objects.

1. To switch the apparatus on, press the release

button (17) and hold it down while pressing the starting lever (18). Let go of the release button.

1. To switch the apparatus off, let go of the starting lever (18).

Due to the intelligent energy management system, the motor starts after a delay.

After switching off the equipment, the blade continues to turn for several seconds. Do not touch the moving blade. There is a risk of injury.

Charging the battery

Do not expose the battery to extreme conditions such as heat or impact. Risk of injury from escaping electrolytic solution! After eye/skin contact,

rinse the affected areas with water or a neutraliser and consult a doctor.

Charge the battery in a dry room only. Prior to attaching the charger, check that the battery's outer surface is clean and dry. There is a risk of injury due to electric shock.

Only use the charger from the package to charge the battery.

• Charge the battery before the first time of use. Do not briefly charge the battery several time in a row.
• If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an OEM spare battery available from our Customer Service.
• Always take heed of the applicable safety instructions as well as the environmental protection regulations and information.
• The warranty excludes all defects caused by improper handling.

Insert/remove rechargeable battery

Switch off the apparatus, remove the ignition key (A 10) and wait for the blades to come to a standstill.

1. To insert the battery (9) push the battery along the guide rail into the appliance. It locks into place audibly.

2. To remove the battery (9) from the appliance, press the release button (9a) and pull the battery out.

Recharging the battery

Switch off the apparatus, remove the ignition key (A 10) and wait for the blades to come to a standstill.

Allow a freshly charged battery (9) to cool down for approx. 15 minutes before inserting it into the battery charger (19).

1. Remove the battery (9) from the appliance.

2. Slide the rechargeable battery (9) onto the charger (19). It locks into place audibly.

3. Plug the charger (19) into an electrical outlet.
4. After the charging process, disconnect the charger (19) from the mains supply.
5. Press the release buttons (9a) on the battery (9) and pull the battery (9) out of the charger (19).

LED control indicators:

• The red LED indicator (19a) of the charger (19)
• displays a steady red light when the charger is connected to the mains supply. It goes off when a battery is inserted.
• flashes in the case of complications (e.g. battery too hot).

- The green LED indicator (19b) of the charger (19)

• flashes during charging.
• displays a steady green light when the battery is being charged.

Checking the charge status of the rechargeable battery

You can check the charge status:

directly on the battery (9) or

on the release button (A 17).

• Press the button
  The number of illuminated LEDs shows the charge status of the battery (A 9):

All LEDs are lit: battery is fully charged.

1 LED is lit: battery is empty, please charge.

Used batteries

• If a fully recharged battery lasts for considerably shorter operating times, the battery (A 9) is used up and needs to be replaced. Only use an OEM battery pack replacement available from our Customer Service.
• Always take heed of the applicable safety instructions as well as the environmental protection regulations and information (see "Waste Disposal and Environmental Protection").

Working with the appliance

Observe the noise protection and local regulations.

Regular mowing encourages increased foliation of the grass and kills off weeds at the same time. Therefore, not only does each mowing increase the density of the lawn, it also produces an evenly resilient lawn.

The first cut is to be made in around April, at a growth height of 70 – 80 mm. In the main vegetation period, the lawn is to be mowed at least once a week.

• Run the equipment at a walking pace, in tracks that are as even as possible. For gap-free mowing, the tracks should always overlap by a few centimetres.
• Adjust the cut height so the equipment is not overloaded. Otherwise, the motor may be damaged.
• On slopes, always work across the slope. Take particular care when going backwards and pulling the equipment.
• Clean the equipment after each use, as described in the chapter on "Cleaning, Maintenance and Storage".

After switching off the equipment, the blade continues to turn for several seconds. Do not touch the moving blade. There is a risk of injury.

Cleaning/maintenance

Have work that is not described in these instructions carried out by a customer service centre that we have authorised. Use only original parts.

Wear gloves when handling the blade.

Switch off the apparatus, remove the ignition key (A 10) and wait for the blades to come to a standstill.

General cleaning and maintenance work

Do not jet water onto the appliance. This would result in the danger of an electric shock.

• Always keep the equipment clean. To clean, use a brush or cloth but no detergent or solvent.
- After mowing, use a piece of wood or plastic to remove adherent plant remains from the wheels, ventilation holes, ejection hole and blade area. Do not use hard or pointed objects, as these may damage the blade.
- Before each use, check the apparatus for obvious defects such as loose, worn or damaged parts. Check that all nuts, bolts and screws are sitting firmly.
- Check the covers and protective devices for damage and check that they are sitting correctly. Replace them if necessary.

Changing the blade

If the blade is blunt, it can be sharpened by a specialist workshop. If the blade is damaged or showing signs of imbalance, it must be replaced (see chapter on "Spare Parts").

1. Turn the equipment over.

2. Use sturdy gloves and hold the blade (20) firmly. Turn the blade screw (21) anticlockwise off of the motor spindle (22) using a screwdriver (A/F width 13).

3. Install the new blade (20) in the reverse order. Ensure that the blade (20) is positioned correctly (see ill.) and the blade screw (21) tightened firmly.

Storage

Release the tightening lever (2+6) and fold the bow-type handle (1) and the lower handle (3) together so that the device takes up less space. Make sure not to pinch the machine cables while doing this.

• Keep the equipment dry and out of reach of children.
• Allow the motor to cool before storing the equipment in a confined space.
• Remove the battery before storing the unit for longer periods of time (e.g. hibernation).
• Store the battery only in a partially charged state. The state of charge should be 40 – 60 % over a longer storage period (two LED lights of the charge status indicator (19b) light up).
• During a longer storage period, check the state of charge of the battery and recharge if necessary roughly every 3 months.
• Store the equipment between 10°C and 25°C. During storage, avoid extreme cold or heat so the battery does not lose power.

We will not be liable for damages caused by our equipment where these are caused by improper repair or the use of non-original parts or by use other than for the intended purpose.

Waste Disposal/ Environmental Protection

Remove the battery from the device and take the device, battery, accessories and packaging for environmentally friendly recycling.

Electric units do not belong with domestic waste.

Do not dispose of batteries in household waste, fire (risk of explosion) or water. Damaged batteries may damage the environment and your health if toxic fumes or liquids leak out.

• Return the unit and the recharger to a recycling centre. The plastic and metal parts employed can be separated out and thus recycled use can be implemented. Ask our Service-Center for details.
• Dispose of batteries in discharged condition. We recommend covering the pole with adhesive tape to prevent a short circuit. Do not open up the battery.
• Dispose of batteries in accordance with the local regulations. Take batteries to an old battery collection point where they will be recycled in an environmentally friendly manner. For information about this, ask your local waste management company or our service centre.
• Defective units returned to us will be disposed of for free.
• Throw cut grass in the dustbin, but run it to the composting or distribute it as a mulch layer under shrubs and trees.

Spare Parts/Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you do not have internet access, please contact the Service Centre via telephone (see "Service-Center" Page 44). Please have the order number mentioned below ready.

Position Position Description Order No. instruction exploded manual drawing

A 1 1.2 Upper handle			91104405
A 2 21 Tightening levers for fastening the upper handle (set)			91104410
A 3	22	Lower handle	91104412
A 4	2	Grass box	91104406
A 6		Tightening levers for fastening the lower handle
	4	Set left	91104407
	17	Set right	91104411
A 7		Wheels
	12	Front wheel set	91104408
	16	Back wheel set	91104409
A 9	24	Rechargeable battery 36 V	80001203
I 19	25	Charger EU	80001201
J 20	9	Blade set	13700228

Trouble Shooting

Problem Possible Cause	Fault Fixing
Appliance doesn't start	Rechargeable battery (A 9) discharged	Check the charge status, charge rechargeable battery
	Rechargeable battery (A 9) not inserted	Insert rechargeable battery
	Defective release button (A 17) or start lever (A 18)	Repair by customer services
	Worn carbon brushes
	Defective motor
	Grass too long	Set a greater cut height. Lift the front wheels slightly by pressing down on the bow-type handle (A 1).
Motor stops Blockage by foreign object Remove the foreign object
Result unsatisfactory or motor labours	Cut height too low Set a higher cut height
	Blade (J 20) blunt	Have the blade sharpened or replace it
	Blade area blocked Clean the equipment
	Blade (J 20) assembled incorrectly	Install the blade correctly
Blade fails to turn	Blade (J 20) blocked by grass	Remove the grass
	Blade screw (J 21) loose	Tighten the blade screw
Strange noises, rattling or vibrations	Blade screw (J 21) loose	Tighten the blade screw
	Blade (J 20) damaged	Replace the blade

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase.

In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. blade, blade screw, battery) or to cover damage to breakable parts (e.g. switches). This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure quick handling of you issue, please follow the following directions:

- Please have the receipt and item number (IAN 282231) ready as proof of purchase for all enquiries.

- Please find the item number on the rating plate.

- Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

GBIE

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

IAN 282231

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

GB	Translation of the original EC declaration of conformity
We declare that the unitCordless lawnmowermodel FRMA 36/2 B1Serial number:201611000001-201702003936conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2014/30/EU • 2000/14/EC • 2005/88/EC • 2011/65/EU*
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 55014-1:2006/A2:2011 • EN 55014-2:1997/A2:2008EN 60335-1:2012/A11:2014 • EN 60335-2-77:2010 • EN 62233:2008EN 61000-3-2:2014 • EN 61000-3-3:2013 • EN 60335-2-29:2004/A2:2010
We additionally confirm the following in accordance with the 2000/14/EC emissions guideline:Sound power levelGuaranteed: 96 dB(A)Measured: 93.9 dB(A)The conformity evaluation procedure employed is compliant with appendix VI of 2000/14/EC.
This declaration of conformity is issued under the sole responsibility of the manufacturer:
Grizzly Tools GmbH & Co. KGStockstädter Straße 2063762 Großostheim,GERMANY28.02.2017	Volker Lappas (Documentation Representative )

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

2016-12-19-rev02-op

informativ, informative

GRIZZLY TOOLS GMBH & CO. KG
