IDV2260 - Cooker Concept - Free user manual and instructions

Product Type	Built-in induction hob
Brand	Concept
Model	IDV2260
Voltage	220-240 V ~ 50/60 Hz
Max Input Power	7000 W
Cooking Zones	4 zones: Left front ø160 mm, 1200 W; Left rear ø210 mm, 2300 W; Right rear ø160 mm, 1200 W; Right front ø210 mm, 2300 W
External Dimensions (W x D x H)	590 x 520 x 60 mm
Installation Dimensions (W x D x H)	560 x 490 x 56 mm
Weight	9.5 kg
Fan Sound Power Level	< 60 dB(A)
Control Type	Touch control with 9 power levels
Child Lock	Yes, lockable via control panel
Residual Heat Indicator	Yes, displays "H" when zone is hot
Safety Switch-Off	Automatic: 8 hours (levels 1-3), 4 hours (levels 4-6), 2 hours (levels 7-9)
Power Booster Function	Yes, POWERBOOSTER button
Timer	Yes, programmable timer for each zone
Suitable Cookware	Induction-compatible (magnetic base); recommended flat bottom, correct size
Cleaning Instructions	Use special ceramic glass cleaner; avoid abrasive sponges or aggressive cleaners
Installation Requirements	Built-in; worktop thickness min. 38-40 mm; ventilation gap of 5 mm under worktop; min. 50 mm space to adjacent cabinets
Environmental Compliance	WEEE Directive 2012/19/EU

Frequently Asked Questions - IDV2260 Concept

What type of cookware is suitable for the Concept IDV2260 induction hob?

Only cookware with a magnetic base (e.g., iron or steel) is suitable. You can test with a magnet. Avoid pure stainless steel, aluminum, copper, glass, or ceramic cookware. The bottom must be flat and the diameter should match the cooking zone.

How do I activate the child lock?

Press and hold the child lock symbol (4) on the control panel until you hear a beep. 'Lo' will appear on the display, locking all controls except the ON/OFF button. To unlock, press and hold the same symbol again.

What does the 'H' symbol mean on the display?

The 'H' indicates residual heat. The cooking zone is still hot and could cause burns. Do not touch it. The symbol disappears once the zone cools to a safe temperature.

Why does the hob turn off automatically during cooking?

The hob has a safety switch-off feature. Cooking times are limited: 8 hours for levels 1-3, 4 hours for levels 4-6, and 2 hours for levels 7-9. Additionally, if no operation is detected for 1 minute after power-on, the hob auto-switches off. Press ON/OFF to restart.

How do I clean the ceramic glass hob?

Use a special ceramic glass cleaner and a soft cloth. For stubborn residues, use a glass scraper at an acute angle. Never use abrasive sponges, aggressive cleaners, or steam cleaners. Wipe dry after cleaning.

What should I do if the 'U' symbol appears on the display?

The 'U' symbol means the cookware is unsuitable (not magnetic or too small) for induction. Check that the cookware bottom is magnetic and its diameter matches the zone. If using correct cookware, allow it to cool and restart the hob.

Can I use all four cooking zones at maximum power simultaneously?

No, in single-phase connection (230 V) the hob automatically reduces power to avoid overloading. The maximum total power is 7000 W, but individual zones may be limited. Refer to the manual for power distribution.

How do I set the timer on the hob?

Press the timer button (3) then select the cooking zone. Use the '+' and '-' buttons to set the desired time. The hob will switch off the zone automatically when the time elapses.

What are the electrical requirements for installation?

The hob requires a 220-240 V ~ 50/60 Hz supply. Use a dedicated circuit with the appropriate breaker. The mains cable must be connected by a qualified electrician. For single-phase, use a 3-core cable (min 4 mm² wires); for three-phase, use a 4-core cable (min 2.5 mm² wires).

What does error code 'E1' or 'E2' mean?

Error E1 or E2 indicates incorrect rated voltage. Check that the mains voltage matches the rating plate (220-240 V). If the voltage is correct but the error persists, contact an authorized service center.

USER MANUAL IDV2260 Concept

Built-in induction plate

ENLVPLSKCZ

Poděkování

POPIS OVLÁDACÍHO PANELU

Simple line drawing of a coiled spring inside a rounded square frame (no text or symbols)

Obr. 1 Obr. 2

Simple line drawing of a cooking pot with a coiled tube attached (no text or symbols)

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

Simple line drawing of a cooking pot with crossed X marks (no text or symbols)

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

Obr. 3

Simple line drawing of a cooking pot with crossed-out X mark (no text or symbols)

Simple line drawing of a cooking pot with X-shaped mark and flames (no text or symbols)

Simple line drawing of a cooking pot with crossed-out X mark (no text or symbols)

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

Obr. 4

Two cooking pots with crossed arrows indicating opposing pressure, one with a cross symbol and the other with bidirectional arrows (no text or labels)

Obr. 5

POPIS OVLÁDACIEHO PANELU

Simple line drawing of a coiled spring inside a rounded square frame (no text or symbols)

Obr. 1

Simple line drawing of a cooking pot with a U-shaped tube attached to the side (no text or symbols)

Obr. 2

Simple line drawing of a cooking pot with crossed X marks (no text or symbols)

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

Simple line drawing of a cooking pot on a surface (no text or symbols)

Obr. 3

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

Simple line drawing of a cooking pot with X-shaped marks and flames, no text or symbols present.

Simple line drawing of a cooking pot with crossed-out X mark (no text or symbols)

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

Obr. 4

OPIS PANELU STEROWANIA

Simple line drawing of a coiled spring inside a rounded square frame (no text or symbols)

Rys. 1 Rys. 2

Simple line drawing of a cooking pot with a U-shaped tube attached to its side (no text or symbols)

Simple line drawing of a cooking pot with crossed X marks (no text or symbols)

Simple line drawing of a cooking pot with crossed X marks, no text or symbols present

Simple line drawing of a cooking pot on a stove (no text or symbols)

Rys. 3

Simple line drawing of a cooking pot with crossed-out X symbol (no text or labels)

Simple line drawing of a cooking pot with crossed X-shaped bands and no text or symbols

Simple line drawing of a cooking pot with crossed-out X mark (no text or symbols)

Simple line drawing of a cooking pot on a surface (no text or symbols)

Rys. 4

Two cooking pots with directional arrows indicating heating or cooling (no text or symbols)

Rys. 5

Simple line drawing of a coiled spring inside a rounded square frame (no text or symbols)

1. att. 2. att.

Simple line drawing of a cooking pot with a U-shaped tube attached to its side (no text or symbols)

Simple line drawing of a cooking pot with crossed X marks (no text or symbols)

Simple line drawing of a cooking pot with crossed X marks, no text or symbols present

Simple line drawing of a cooking pot on a stove (no text or symbols)

1. att.

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

Simple line drawing of a cooking pot with X-shaped crossed arms and heat lines (no text or symbols)

Simple line drawing of a cooking pot with crossed-out X mark (no text or symbols)

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

Two cooking pots with directional arrows indicating heating or cooling (no text or symbols)

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

TABLE OF CONTENTS

Acknowledgements

Technical specifications

Important safety information

Product description

Control panel layout

Examples of cooking application

Cooking tips

Energy saving tips

Operating instructions

Advanced features

Care and cleaning

Installation instructions

Troubleshooting

Error message

Environmental concerns

TECHNICAL SPECIFICATIONS
Voltage 220–240 V ~ 50/60 Hz
Max. input power 7000 W
Left front cooking zone diameter and input ø 160 mm, 1200 W
Left rear cooking zone diameter and input ø 210 mm, 2300 W
Right rear cooking zone diameter and input ø 160 mm, 1200 W
Right front cooking zone diameter and input ø 210 mm, 2300 W
External dimensions (W x D x H) 590 x 520 x 60 mm

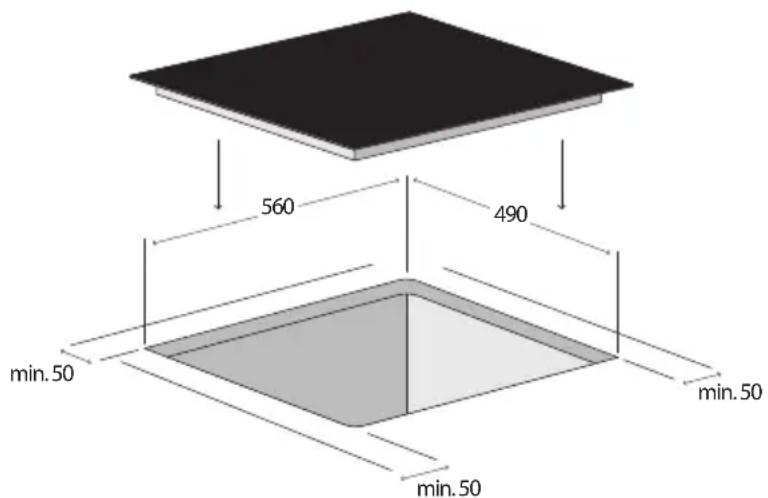

Dimensions for installation (W x D x H) 560 x 490 x 56 mm
Weight 9.5 kg
Fan sound power level < 60 dB (A)

The manufacturer reserves the right to make any technical changes, printing errors and differences in the illustration without prior notice.

IMPORTANT SAFETY INFORMATION

Delivery

• Check the package and unit immediately after the delivery for any damage that may have occurred during shipping.
• CAUTION! Some corners and edges of this appliance that will be hidden after installation can be sharp! Take care to avoid injury!
• If the unit is damaged, do not operate it. Contact the supplier as soon as possible.
• Remove all the covering and marketing materials from the appliance before the first use.
• Keep all packaging away from children and dispose of it appropriately.
• This appliance must be installed in accordance with the regulations in force and should only be used in a well-ventilated area. Read the manuals before installing and using the appliance.

Installation

• The appliance is intended for assembly into correct built-in units and workspaces that align to the standards.
• The sealant on the edges of the appliance protects the cut surfaces of the worktop against moisture.
• Use the unit only as described in this instruction manual.
• The appliance has to be disconnected from the power supply during installation.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the main power supply. Use only correct electricity mains cable that is earthed.
  • This appliance can be used in households and similar areas such as:
• Kitchen areas in shops, offices and other workplaces.
  • Appliances used in agriculture.
• Appliances used by guests in hotels and other areas in a hotel environment.
• Appliances used in a Bed and Breakfast environment.
• Make sure the mains cables of other electrical appliances do not touch the hot cooking zones. Otherwise both the insulation of the cables and the hob may be damaged.
• Never touch hot cooking zones. Risk of burns!
• The indicator of residual heat "H" shows that the cooking zones are still hot. Keep children away from the appliance. Risk of serious burns!
• Do not touch the hot surfaces when using the appliance or shortly after.
• Do not operate the appliance with wet or damp hands.
• Do not operate the appliance when it has contact with water.
• If there is a drawer under the appliance, do not keep flammable or inflammable objects, aluminium foil or sprays in it. Risk of fire or explosion!
• Use the appliance out of reach of children and do not allow the children and unauthorised individuals to operate the appliance.
• Do not let children play with the appliance.
• Care should be taken when using the appliance near children.

• Do not use the appliance as a toy.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

• In case of any failure turn off the appliance and disconnect it from the mains outlet or switch off the circuit breaker from the power supply.
• Do not immerse the mains cable in water or any other liquid.
• Check the appliance and the mains cable for damage regularly.
• Never switch on a damaged appliance.
• Make sure that all controls are in the OFF position when the appliance is not in use.
• Do not use cookware with bulging or irregular bottoms or with a smaller diameter than recommended. Otherwise the cooking effectiveness could be reduced.
• If there is water between the cookware bottom and the cooking zone, vapour pressure may arise. The vapour pressure could make the cookware jump up. CAUTION! Risk of injury!
  • Make sure that the cooking zones and cookware bottom are dry.
• Do not use cookware with cracked enamel. High temperaturé occurs in the point of enamel damage, which heats the corresponding spot on the hob. Risk of damage to the hob!
• Do not put cookware on the control panel or the frame or edge of the hob. Risk of damage to the hob!
• Never use plastic or aluminium foil cookware on the appliance.
• Do not lay 'flammable things on the hob. Risk of fire!
• Do not lay any metal objects on the induction hob. If the appliance has been switched on accidentally, these objects could heat up very quickly and cause burns!
• Do not use the appliance as a work surface or as a storage surface!
• Keep the appliance clean at all times. Food remnants could ignite during operation and cause fire!
• Food such as soups, sauces or beverages may heat up and overflow very quickly during cooking. Proceed carefully, use the appropriate settings and stir the food as often as necessary.
• While deep frying or frying food observe this it at all times. In the case of oil overheating, there is a risk of fire!
• Never heat up grease or oil unattended. Overheated oil or grease may ignite rapidly. Risk of fire!
• Never try to extinguish a fire with water. Immediately cover the flame in the cookware with a lid or a plate. Switch off the appliance and let the cookware cool down.
• Use manufacturer-recommended accessories only.
• Do not use accessories which have a damaged surface, are worn or have other defects.
• Do not use any corrosive cleaning agent for cleaning. With regular maintenance and cleaning you extend the lifetime of the appliance.
  • Children aged under 8 years shall not carry out cleaning and user maintenance of the appliance without supervision.

WARNING!

• This appliance complies with the directive of safety and electromagnetic compatibility; nevertheless, individuals with an implanted pacemaker should keep away from the appliance. In some other devices, such as hearing aids, etc., malfunction may occur.
• If the unit is switched on, do not bring magnet sensitive things (e.g. credit cards, USB, hard discs, etc.) near it.

Possible malfunctions

• Only an authorised service technician can install, connect or repair this appliance.
• Disconnect the appliance from the mains supply before maintenance or repair. Turn off the relevant circuit breaker.
• If the mains cable is damaged, contact an authorized service centre.

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

PRODUCT DESCRIPTION

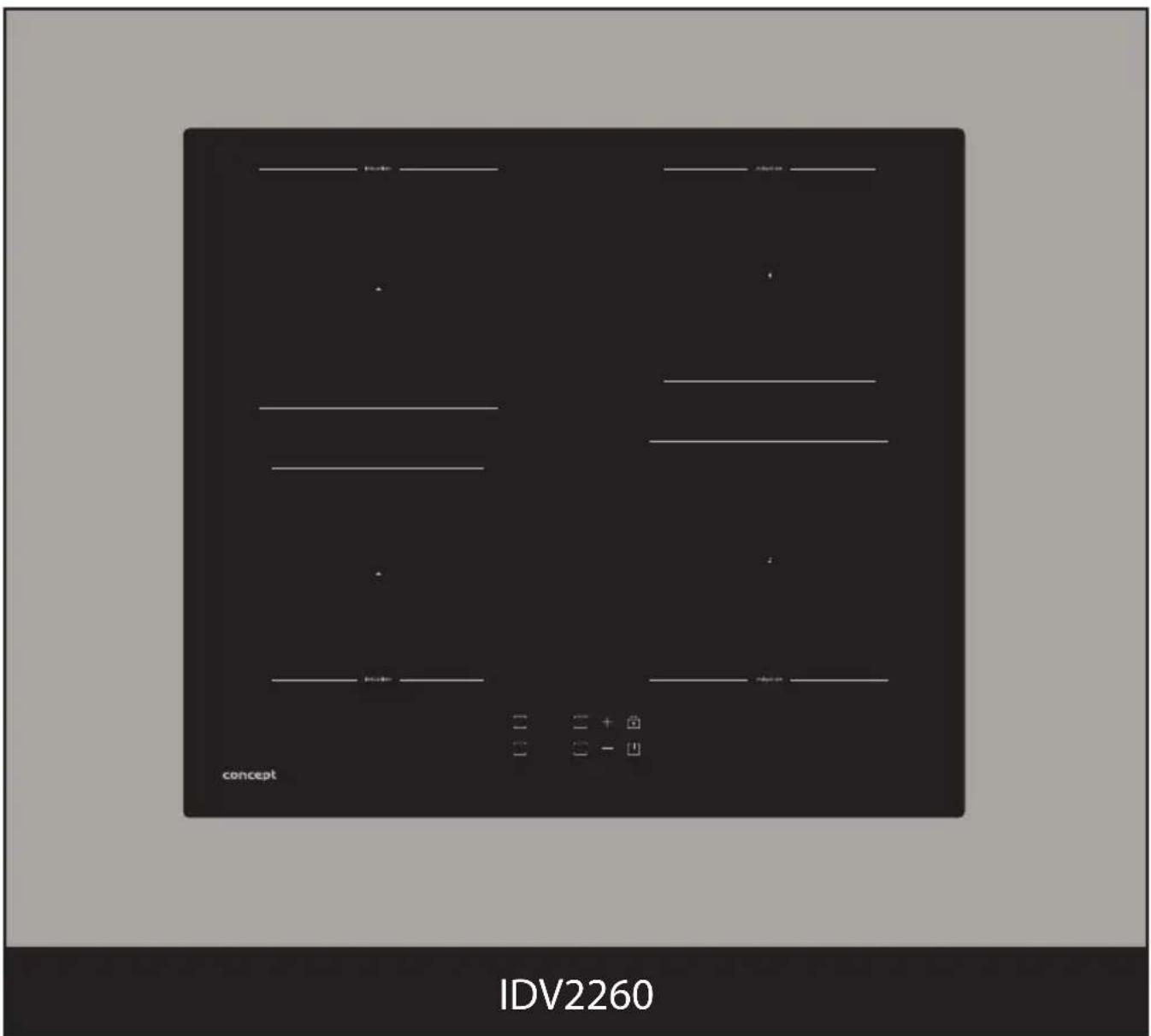

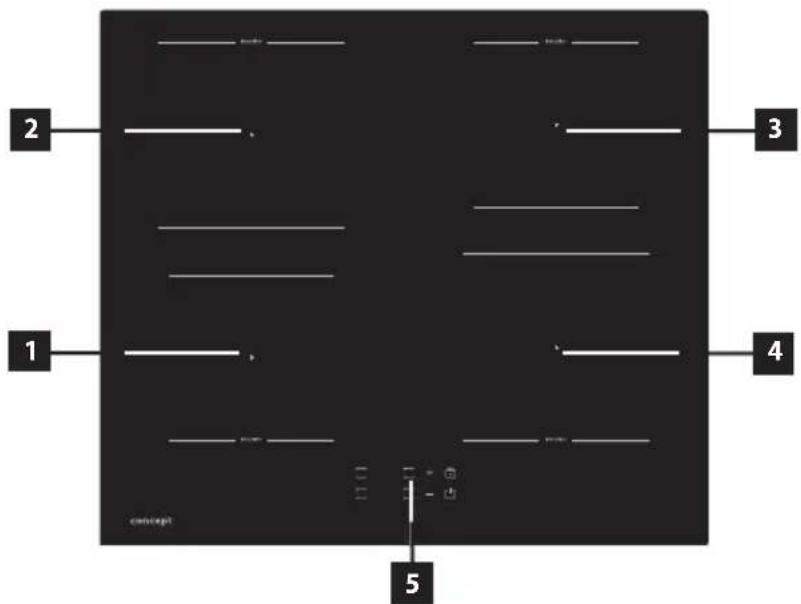

1 Left rear cooking zone (ø 210 mm)
2 Left front cooking zone (ø 160 mm)
3 Right rear cooking zone (ø 160 mm)
4 Right front cooking zone (ø 210 mm)
5 Ceramic glass hob
6 Control panel

CONTROL PANEL LAYOUT

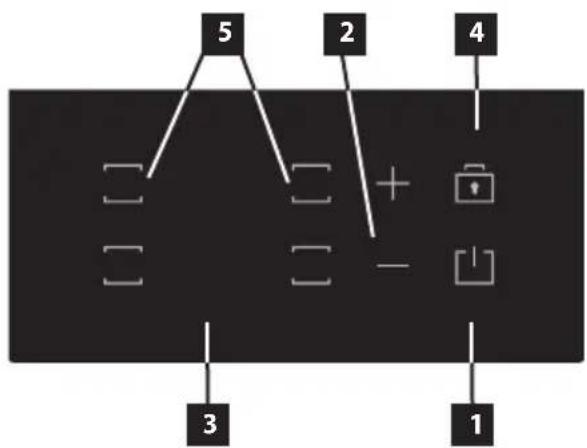

1 Symbol for activation/deactivation of the child lock
2 Heat setting button
3 Timer setting button
4 POWERBOOSTER function button
5 ON/OFF button

EXAMPLES OF COOKING APPLICATION

What does cooking with an induction hob mean?

Cooking on an induction hob is based on a completely different principle than the usual ways of heating. The heat is created directly in the cookware, whilst the cooking zone remains cold. This method of heating has many advantages in comparison with others:

1. Time saving during cooking and baking

The cookware is heated directly, not the ceramic glass hob. There are no big heat losses so the effectiveness is higher than other heating methods.

2. Energy saving

It is established that cooking on an induction hob consumes less electric power than other cooking methods.

3. Controlled supply of heat and more safety

The cooking zone transfers heat or interrupts its supply immediately after setting the power. As soon as you take the cookware off the cooking zone, heat is interrupted without the need of switching off the cooking zone. After cooking, only residual heat coming from the cookware remains on the cooking zone. Nevertheless, we do not recommend leaving anything on the hob without attendance.

Note:

As to prevent unwanted heating up, e.g. in case of laying metal instruments on the hob, the system activates only if the bottom of the utensil is of a specific dimension or bigger.

COOKING TIPS

The power level settings described below are just examples. The correct setting of power levels depends on several factors, including the cookware used and the amount of food you cook. Experiment with the induction hob, and gradually determine which power level settings are most suitable for you.

Some examples of power level settings:

a) Level 1–2 can be used for:

• Keeping liquids simmering,
• Moderate and slow heating without the risk of burning,
• Melting butter or chocolate, etc.
• Defrosting,
• Boiling a small quantity of liquid.

b) Level 3–4 can be used for:

• Intensive boiling,
• Keeping a larger quantity of liquid boiling,
• Stewing.

c) Level 5–6 can be used for:

- Pancakes.

d) Level 7–8 can be used for:

- Cooking pasta.

e) Level 9 can be used for:

• Cooking food requiring fast heating and high temperature (beef steaks, schnitzels, fried potatoes, etc.),
• Boiling water or soup,
  • Heating food before switching over to a lower level.

ENERGY SAVING TIPS

Cooking on an induction hob is based on the generation of heat utilising the magnetic properties of the cookware. That is why the cookware material must contain iron. Check this by looking for a symbol for induction cooking on the bottom of the cookware (Fig. 1) or by using a magnet, whether the cookware is magnetic (Fig. 2).

Simple line drawing of a coiled spring inside a rounded square frame (no text or symbols)

Fig. 1 Fig. 2

Simple line drawing of a cooking pot with a U-shaped tube attached to its side (no text or symbols)

If you do not have the possibility to check the bottom of the cookware with a magnet:

1. Put some water into the cookware you want to check.
2. If the "U" symbol is not displayed on the control panel, and the water in the cookware is simmering, the cookware is of suitable material for induction cooking.

The following cookware material is unsuitable for an induction hob:

• pure stainless steel,
• aluminium or copper,
  • without a magnetic substrate,
• glass, wood, stone,
• porcelain, ceramics, etc.

- Do not use cookware with bulging or irregular bottoms (Fig. 3) or otherwise the cooking effectiveness could be reduced and may result in extension of the cooking time.

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

Simple line drawing of a cooking pot with crossed X marks (no text or symbols)

Simple line drawing of a cooking pot on a stove (no text or symbols)

Fig. 3

- For each cooking zone, use the correct cookware size. The diameter of the cookware bottom should correspond to the size of the cooking zone (Fig. 4).

Simple line drawing of a cooking pot with crossed-out X symbol (no text or labels)

Simple line drawing of a cooking pot with X-shaped marks and flames, no text or symbols present.

Simple line drawing of a cooking pot with crossed-out X mark (no text or symbols)

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

Fig. 4

• Use small cookware for small amount of food. A big and only partially filled up cookware requires a lot of energy.
  • Always cover the cookware with a suitable lid. When cooking without a lid, you consume much more energy.
• Always cook food with a small amount of water or fat. You save energy. This way vitamins and minerals will be preserved when cooking vegetables.
• At the beginning of the cooking, set the cooking zone to the highest power level and reduce the cooking zone power level after it is heated up.

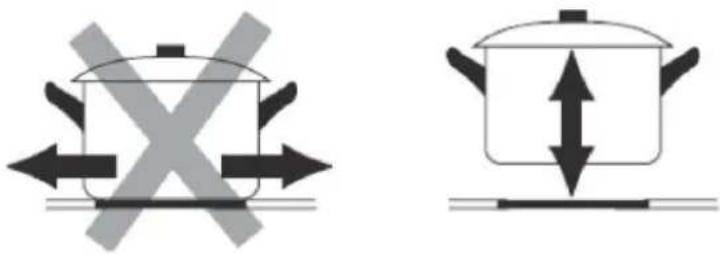

Examples of possible damage

- Coarse bottoms of cookware could scratch the ceramic glass plate. Check the cookware bottom regularly. Cookware with coarse bottom can cause scratches of the hob. Always lift these objects up when you have to move them on the cooking surface (Fig. 5), To protect the hob from being scratched.

Two cooking pots with directional arrows indicating heating or cooling (no text or symbols)

Fig. 5

• Salt, sugar and sand grains (e.g. from cleaning vegetables) can scratch the hob. Do not use the appliance as a work surface or as a storage surface!
• Sugar, as well as food with high sugar content, damages the hob when in contact with it. Immediately remove the overcooked food of this kind using a glass scraper.

CAUTION! The ceramic glass scraper is sharp and can cause injuries!

- The following damages do not negatively affect the function or performance of the hob.

Stains

Burnt remains of sugar or food with high sugar content.

Colouring

Metallic-gloss colouring caused by the use of unsuitable cleaning agents or abrasions from the cookware bottom.

Scratches

Scratches caused by grains of salt, sugar or sand or by the coarse cookware bottom.

Wear of the decoration

Wear caused by the use of unsuitable cleaning agents.

- This damage has been caused by inappropriate maintenance of the hob and hence is not subject to warranty. These are not technical problems with the appliance.

OPERATING INSTRUCTIONS

• Areas designed only for cooking – electrical hotzones – are indicated on the heating plate. The diameters of the hotzones are derived from the usual dimensions of cooking utensils.
• Only the surface inside the indicated diameter is heated; other surfaces remain relatively cold and can be used as lay-aside areas.
• The temperature limiter prevents hotzones under the glass-ceramic plate from overheating.
• The shining "H" symbols on the indicator position of the input levels signal increased temperature of the hotzone after switching off. The hot area can be energetically utilised. The symbol will go off as soon as the hotzone has cooled down to such a temperature that there is no longer any risk of burning.
• The inputs of hotzones are controlled within the range of 9 levels, which can be selected by pressing the touch symbols with respective indicators on the control panel. At each pressing of a symbol a beep can be heard. The response time for pressing a symbol is 1 second, for which period it is necessary to hold your finger on the symbol.

WARNING!

• The touch control is activated by placing a finger on the required symbol on the glass-ceramic plate. Therefore, keep the control panel clean and dry.
• The sensors do not respond to matte, dark colours (do not use black gloves). Do not place anything on the control panel of the heating plate.
  • Make sure the unit is prevented from being accidentally switched on, e.g. by a pet.
• When the heating plate is disconnected from the mains, the set parameters are reset and the heating plate control is locked.
• In monophase connection (see Connection of the terminal box) all the hotzones cannot be used at maximum power. To prevent power overload of the respective circuit breaker, the unit automatically reduces the input of individual hotzones.

Before first use

Prior to the start of use of a new unit, wipe it with a wet and then a dry cloth.

Switching on the heating plate

To switch on the heating plate, press the ON/OFF symbol (1). If you do not make a further selection within 1 minute, the heating plate automatically switches off.

Switching off a hotzone

1. Press the symbol for hotzone selection (5) to activate the hotzone. "0" symbol is blinking for the selected hotzone on the display (3).
2. Press the "+" or "-" symbol (2) repeatedly to set the required power level to a value of 1 through 9. If you do not set the power level within 5 seconds, the heating plate returns to the hotzone selection mode.

Note: If the "U" symbol is shining on the display (3), the cooking utensil's bottom diameter is too small or it is made of an unsuitable material. Use a smaller hotzone or utensil with a larger bottom diameter or a utensil made of another material.

Switching off a hotzone

1. Press the symbol for hotzone selection (5) to activate the hotzone (number of the selected hotzone is blinking).
2. Set the power level to "0" gradually by repeatedly pressing the "-" symbol, or switch the hotzone off by simultaneously pressing both the symbols "+" and "-"
3. After the hotzone has been switched off, its display may show the "H" symbol indicating that the zone is hot and there is a risk of burning. This residual heat can be utilised.

Child lock function

This function prevents unwanted operation of the heating plate. Procedure:

a) Locking

Press and hold the symbol for activation/deactivation of the child lock (4) until a beep is heard. The "Lo" symbol (locked) will be illuminated on the display (3). Thus the control panel of the heating plate is locked except for the ON/OFF symbol (1).

b) Unlocking

Press and hold the symbol for activation/deactivation of the child lock (4) until a beep is heard. "Lo" symbol will go off.

Switch-off of the heating plate

a) Manual switch-off

Press the ON/OFF symbol (1). The entire heating plate switches off and its setting is reset. After the switch-off of the heating plate, the displays of the hotzones remaining hot display the "H" symbol (hot). Do not touch the hot hotzones; there is a danger of burning!

b) Automatic switch-off

If you switch off all hotzones, the entire heating plate switches off automatically within 1 minute.

c) Safety switch-off

The cooking time on individual hotzones is limited to 8 hours for safety reasons (power level 1-3), 4 hours (power level 4-6) or 2 hours (power level 7-9).

Residual heat indicators

After the switching off of a hotzone the display shows the „H“ symbol (hot), which signals increased temperature of the hotzone's surface.

This signalling reduces the risk of burning on a switched off hotzone. The hot area can be energetically utilised.

COOKING TIPS

Some examples of setting of input levels:

a) Level 1-3 is designed for

• keeping liquids simmering,
  • moderate and slow heating without the risk of burning,
  • melting of butter or chocolate,
• defrosting,
  • boiling a small quantity of liquid.

b) Level 4-6 can be used for

- intensive boiling,

- keeping a larger quantity of liquid boiling,

- stewing.

c) Level 7-9 can be used for

- cooking food requiring fast heating and high temperature (beef steaks, schnitzels, fried potatoes etc.),

• heating food before switching over to a lower level.

ENERGY SAVING TIPS

- Flat bottom of utensil

Use pots and pans with thick flat bottoms. Uneven bottoms result in extension of the cooking time.

• Proper size of utensil

Use the proper size of the cooking utensil for each hotzone. The diameter of the bottom of a pot or pan should be smaller than or the same as the hotzone size.

Note: Take into account that manufacturers often state the upper diameter of a cooking utensil, which is usually larger than its bottom diameter.

- Adequate size of utensil

For small quantity of food use a little pot. Large and only partially filled pot needs too much energy.

• Covering by a lid

Always cover pots and pans with suitable lids. Cooking without a lid implies the consumption of much more energy.

• Cooking with a little quantity of water

Cook food with a little quantity of water. Thus you save energy. Vitamins and mineral matters will remain preserved when cooking vegetables.

- Switching over to a lower power level

Switch over to a lower power level on time.

CARE AND CLEANING

The hob itself does not warm up, so no food remains should get burnt on it. Therefore, you do not have to wait until it cools down to clean the hob.

Do not use a steam cleaner or high-pressure cleaner to clean the appliance. Risk of damage to the hob!

• Clean the hob with a protective and preservation agent specially designed for ceramic glass surfaces.
• For removal of food remains and other dirt, apply dirt repellent to the hob, which will facilitate cleaning of the hob surface.
• Use only agents and repellents specially designed for ceramic glass surfaces.
• Never use coarse sponges, abrasive agents or aggressive cleaners (e.g. spray for cleaning ovens) or stain removers.
• Keep the control panel clean! Make sure the panel is always clean and dry.
• Food and water residues negatively affect the operation of the control panel; therefore it may not be fully functional.
• Clean the hob after each cooking session. It will prevent the remains of food from burning during the next cooking session.
• For cleaning the lukewarm hob use a cleaning agent and a paper towel. Then wipe the hob with a damp cloth and wipe it dry using a soft cloth.
• If the hob is cleaned while hot, stains could appear on it.
• Never leave residues of the cleaning agent on the hob; it could stain the glass surface.
  • Metallic-gloss colouring appears after the use of unsuitable cleaners or abrasion of the cookware bottom.
• Its removal is very difficult. Use cleaning agents specially designed for ceramic glass surfaces.
• For the removal of food remains and a layer of grease use a special scraper for the glass.
• Clean the hob by placing the scraper at an acute angle and move the blade on the surface. Never use the handle for cleaning the glass surface. Risk of scratches!
• WARNING! The glass scraper is very sharp! Risk of injury! If the edge is damaged, replace it immediately.
  • After cleaning, secure the scraper again and keep it out of the reach of children.

INSTALLATION INSTRUCTIONS

• The warranty does not cover damages caused by incorrect installation.
• The responsibility for installing the appliance lies with the buyer, not the manufacturer.
• The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation.
• To ensure the correct function of the appliance, place it in a suitable furniture.
• The appliance should be assembled into correct built-in units and work surfaces that align to the standards and have dimensions shown in Fig. 7.
• The kitchen furniture must be made of sufficiently heat-resistant material, at least 120 °C. The materials and adhesives used must be resistant to heat from the appliance as according to the CSN EN 60335-2-6 standard. Materials and adhesives that do not meet the stated standard may deform or peel-off.

Fig. 7

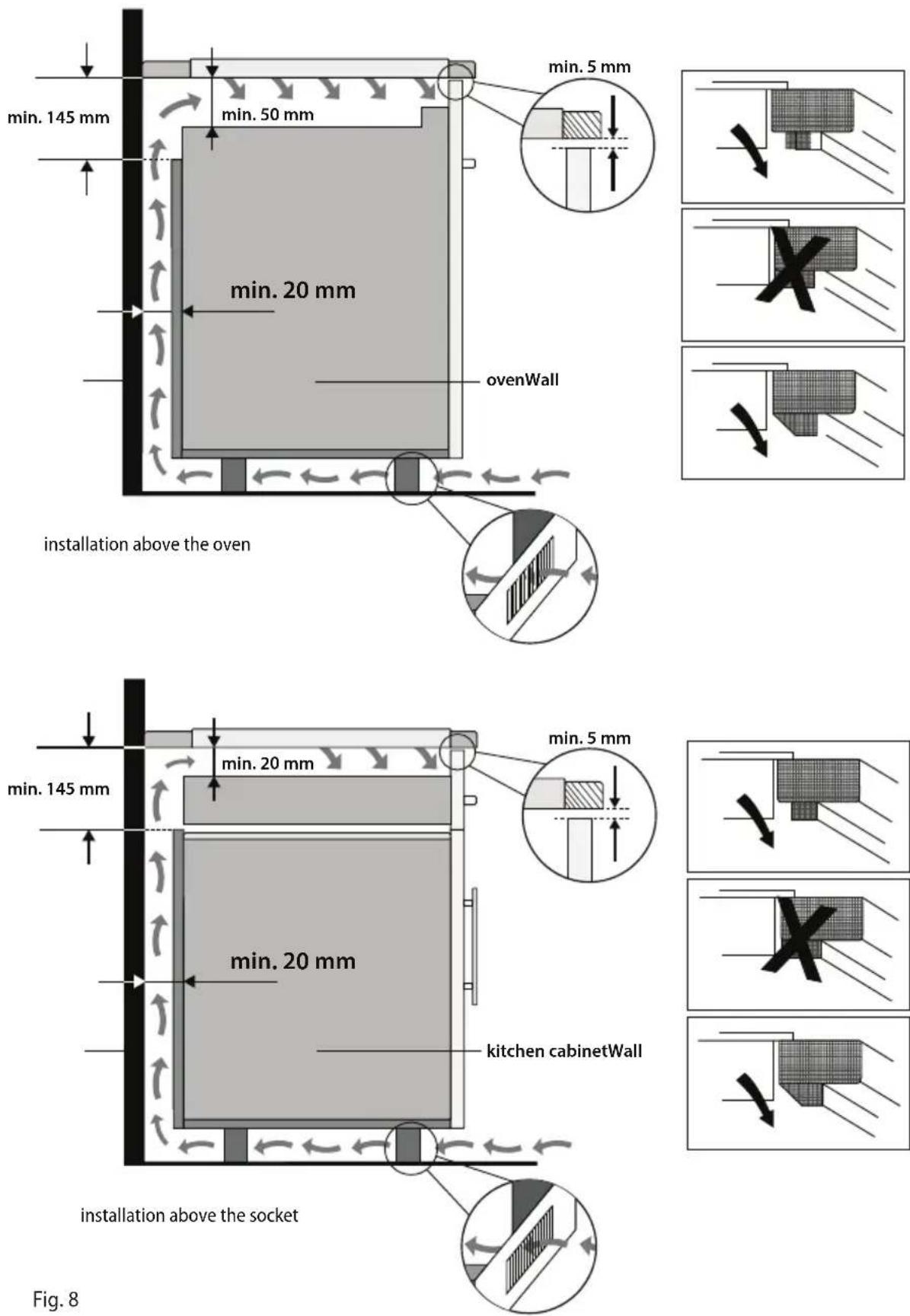

Follow the following instruction during installation:

1. Remove all the covering and marketing materials from the appliance before the first use.
2. The required dimensions of the built-in space in the worktop made of heat-resistant material of a minimum thickness of 38–40 mm are on Fig. 7.
3. Leave min. 50 mm space for the adjacent cabinets on the sides. Leave at least 50 mm free space behind the hob.
4. We recommend installing a cook hood above the hob. The cooking hood should be at least 600 mm above the hob - according to the type of hood.
5. A separate cabinet without a cooking hood should be at least 760 mm above the hob.
6. For sufficient air circulation the appliance needs to be installed as shown in Fig. 8 and the cabinet must be designed so that the air can flow at the bottom - we recommend placing a ventilation grille in the lower plinth. Make sure that the ventilation space of 20 mm, between the drawer, the rear wall and 50 mm between the drawer and the hob, is free and under the worktop there must be a ventilation gap of min. 5mm, ideally if the design of the cabinet allows it, even more (Fig. 8).
7. Make sure that the ventilation space of 50 mm, between the hob and the top of the below unit, is free.
8. If the appliance is installed above drawers make sure that the space, between the bottom of the appliance and the upper drawer, is 50 mm.
9. Position the appliance onto the edge of the worktop and pass the mains cable through the opening so that the plug or terminals remain accessible after installation.
10. Push the appliance carefully into place. Make sure not to cause damage to the mains plug or to the mains cable.

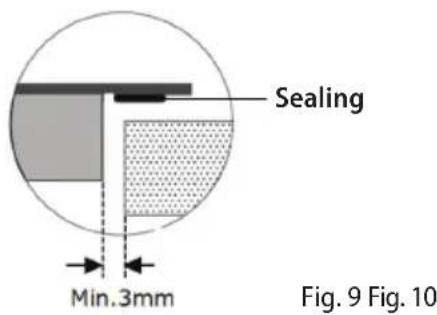

11. The bottom of the hob base is fitted with a sealant to prevent it from moisture and leakage of liquids. After installation the space between the edge of the hob and the worktops should be min. 3 mm (Fig. 9).
12. Secure the hob in the required position from the bottom to the worktop with the supplied retaining clips (Fig. 10).
13. Connect the supply cable to the terminal box and then turn on the appropriate circuit breaker on.

Removal

To uninstall the unit, it is important to proceed correctly:

1. First, switch off the circuit breaker and unplug the mains cable from the socket.

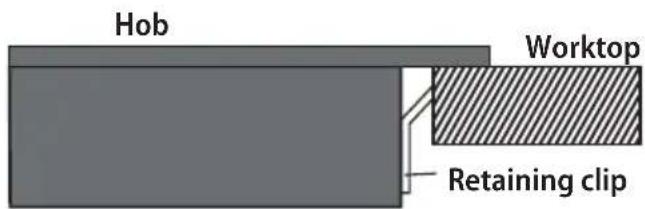

2. Remove the retaining clips.

3. Take out the hob and at the same time pull out the mains cable carefully.

Connecting to the mains power

• Only a qualified person can install this appliance!
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the main power supply.
• Make sure that the parameters on the rating plate are compatible with the mains voltage and the current protection. Otherwise the installed electric circuit could be overloaded, especially in the case of single-phase connection (230 V).
• If the hob is connected to the mains power in a single phase (see Connection of the terminal box of the appliance), all cooking zones cannot be used for maximum performance. The hob automatically reduces the power consumption of individual cooking zones to avoid overloading of the circuit breaker.
• We recommend using a self-contained electrical circuit to connect to the mains.
• Use solely electric power distribution with PE protective conductor.
• Do not use multi-plug adapters, connectors and extension cables. Risk of fire due to overheating!
  • Make sure that there is access to the mains plug or the circuit breaker after the installation.
• The electrical safety of the appliance can only be guaranteed if the protective terminal of the unit is connected to the protective conductor of the mains.
• The manufacturer is not responsible for any injuries or damages that are the result of incorrect or missing protective installation.
• Make sure the mains cable or plug does not touch the hot appliance or hot cookware, to prevent it from becoming deformed and excessively bent.
• In the event of disconnecting the hob from the mains power, all set parameters will be reset and the hob control panel will be locked.

Connection of the terminal box of the appliance

• The hob is already supplied with a mains cable. In case it is necessary to replace the mains cable due to damage, Fig. 11 or Fig. 12, shows the wiring of the terminal box.
  • The mains cable must be replaced with the same type of cable with the corresponding wire cross section.
• After connecting the new mains cable to the terminal box, secure the cable from being pulled out from the terminal box.
• Follow the same procedure as described above when installing the appliance into the worktop cut-out and connecting it to the mains power.

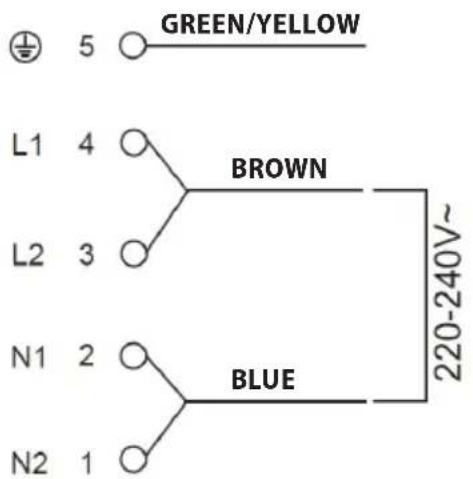

Connecting the hob by a 3-core mains cable (230 V)

Use a cable with wires of a diameter of at least 4 mm ^2 .

Fig. 11

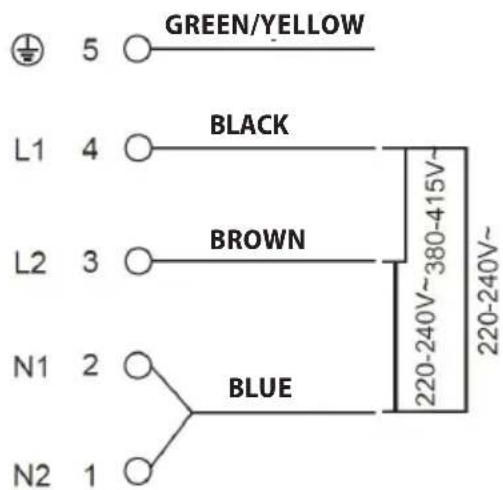

Connecting the hob by a 4-core mains cable (400 V)

Use a cable with wires of a diameter of at least 2.5 mm ^4 .

Problem Possible cause Remedy
When the hob is switched on the household wiring protection reacts.	The current load is too high for household wiring.	Check that the input of all switched-on units does not exceed the maximum load of the household wiring. Make sure that the parameters on the rating plate are compatible with the mains voltage and the current protection.
After pressing the ON/OFF button of the hob, the hob turns on, but the display for each cooking zone does not work	Power electronics malfunction	Replacement of power electronics required. Contact an authorized service centre.
	Control panel electronics malfunction	Replacement of control panel electronics required. Contact an authorized service centre.
After setting the power level of the cooking zone, the cooking zone does not work	Overheating of the cooking zone	The temperature of the cooking zone is too high. Check that the cooling fan located at the bottom of the hob functions well. If the fan is working, contact an authorised service centre.
	Cooling fan malfunction	Cooling fan replacement required. Contact an authorized service centre.
	Power electronics malfunction	Replacement of power electronics required. Contact an authorized service centre.
The cooking zone is hot but the control panel does not work	Control panel or power electronics malfunction	Press the ON/OFF button on the hob again and re-set the cooking zones.
The hob switches off during cooking	The ON/OFF button has been pressed accidentally	Press the ON/OFF button on the hob again and re-set the cooking zones.
After the cookware is placed on the cooking zone, the „U“ symbol is displayed (and the cooking zone does not heat up).	The cookware used is not suitable for induction cooking	Check that the cookware used is suitable for induction cooking – by placing a magnet to the cookware bottom.
	The diameter of the cookware bottom is smaller than the cooking zone	Check that the cookware bottom is not smaller than the cooking zone.
	Overheating of the cookware	Allow the cookware to cool down. Then place it on the cooking zone and continue cooking. If the "U" symbol is still on the display of the cooking zone even after switching the cooking zone on and off again, turn off the hob completely, wait for 20 seconds and turn on the hob again.
	Main electronics malfunction	Main electronics replacement required. Contact an authorized service centre.
Cracks or tears in the ceramic glass hob	Cookware has been dropped on the hob, which damaged the ceramic glass hob.	Disconnect the appliance immediately from the power supply by pressing the ON/OFF button or the appropriate circuit breaker. Contact an authorized service centre.

Operation sounds of the appliance

The induction heating technology is based on specific parameters of metal materials, when under the influence of high frequency waves. Under special circumstances these vibrations can manifest themselves by weak acoustic sounds, which do not signal any fault. These include:

Deep hum such as at a transformer	This sound accompanies cooking at high power level. It is caused by the big amount of energy which is transferred from the cooking zone to the cookware. This sound will disappear or weaken as soon as the cooking zone is switched to lower level.
Beeping	This sound usually appears in case of an empty cookware. It will disappear when you pour water or put food in the cookware.
High beeping sounds	These sounds appear mainly with cookware consisting of several layers of various materials, when they are in operation at the maximum heating power. This effect does not influence the result of cooking. The beeping disappears or weakens as soon as the power is reduced.
Cracking	This sound appears with cookware consisting of several layers of various materials. It is caused by vibrations on the connecting areas of respective layers. The sound depends on the cookware. It may change depending on the quantity and type of food being cooked in the cookware.
Sound of the fan	For good operation of the electronics it is necessary that it works at a permanently controlled temperature. That is why the hob is equipped with a fan which can be set to various power levels according to the measured temperature. The fan may work even after the hob has been switched off, if the measured temperature is still too high.

ERROR MESSAGE

Code	Problem description Possible cause
E1	Incorrect rated voltage. Check that the electrical ratings of the main power supply corresponds to the parameters on the rating plate.
E2	Incorrect rated voltage.
E3	Hob temperature sensor too high. Check the type of the cookware used. Wait until the temperature of the cooking zone drops. Press the ON/OFF button to restart the hob.
E4	Hob temperature sensor too high.
E5	Cooking zone temperature too high. “Wait until the temperature of the cooking zone drops. Press the ON/OFF button to restart the hob. Check that the fan works. If the fan does not work, contact an authorised service centre.”
E6	Cooking zone temperature too high.
F3/F6	Hob temperature sensor malfunction.	Temperature sensor replacement required. Contact an authorized service centre.
F4/F7	Hob temperature sensor malfunction.	Temperature sensor replacement required. Contact an authorized service centre.
F5/F8	Hob temperature sensor malfunction.	Temperature sensor replacement required. Contact an authorized service centre.
F9/FA	Cooking zone temperature sensor malfunction.	Power electronics replacement required. Contact an authorized service centre.
FC/FD	Cooking zone temperature sensor malfunction.	Power electronics replacement required. Contact an authorized service centre.

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
• Packaging materials may be disposed of as sorted waste.
• Dispose of the plastic bags made of polyethylene (PE) as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance conforms the European Union Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE Directive). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material must be performed in accordance to the regulations of waste disposal. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

CONCEPT POLSKA sp. z o.o.
