X-bee drone 1.0 - Drone Overmax - Free user manual and instructions

Product Type	Drone
Brand	Overmax
Model	X-bee Drone 1.0
Battery Type	Rechargeable Lithium-Polymer
Battery Capacity	150mAh
Battery Voltage	3.7V
Flight Time	Up to 6 minutes
Charging Time	Approx. 30 minutes
Charger Input	5V, 350mA
Controller Battery	4 x AAA (1.5V) non-rechargeable
Controller Operation Time	18 hours
Speed Modes	3 (slow, normal, fast)
Headless Mode	Yes
Stunt Mode	360° flips
Propeller Types	A (clockwise) and B (counterclockwise)
Recommended Age	14+ years
Recommended Use	Indoor and outdoor
Certifications	CE, RoHS

Frequently Asked Questions - X-bee drone 1.0 Overmax

How do I charge the drone battery?

Use only the included charger. Connect the battery to the charger, and plug the charger into a USB port (5V). The LED indicator turns red during charging and turns off when charging is complete. Charging time is approximately 30 minutes. Always charge under adult supervision.

What batteries does the controller use?

The controller requires 4 AAA batteries (non-rechargeable). Install them with correct polarity (+ -) and do not mix battery types. Remove batteries if not using for a long time.

How do I synchronize the transmitter and drone?

Place the drone on a flat surface. Move the left stick to the lower right corner and the right stick to the lower left corner. Hold for 10 seconds. The drone's LEDs will blink then glow steadily, indicating successful synchronization.

What is headless mode and how do I activate it?

Headless mode makes the drone's forward direction relative to the pilot, not the drone's orientation. To activate, place the drone on a flat surface, move the left stick to lower left and right stick to lower right. LEDs blink to confirm. Repeat the same action to deactivate.

How do I perform 360-degree flips?

Press the Flip mode button to enter stunt mode (a beep sounds). Then move the direction stick forward, backward, left, or right to flip the drone. Ensure enough space before performing stunts.

How do I change the flight speed?

Press the flight speed button to cycle through three modes: slow (one beep), normal (two beeps), and fast (three beeps). Use slow mode for beginners.

How do I replace the propellers?

Pull the propeller upward to remove it. Attach the new propeller according to the labeling: propeller A (clockwise) and propeller B (counterclockwise). Ensure they match the correct motors.

What safety precautions should I take?

Do not operate near power lines or water. Keep a safe distance from people and animals. Always supervise children under 18. Do not charge batteries overnight or use damaged batteries. Dispose of batteries properly.

Can I fly the drone in rain?

No. The drone and controller are not waterproof. Avoid rain, moisture, and water exposure to prevent damage or malfunction.

What is the maximum flight time?

The drone can fly up to 6 minutes per full charge. Actual flight time may vary based on flying conditions and battery health.

USER MANUAL X-bee drone 1.0 Overmax

** The product is designed for people aged 14 and up**● We suggest those, who are just getting started to operate drones, to contact a person with more experience in this field. The users under 18 years of age can operate the product under adult supervision only.● The purpose of the safety notes is to protect both the product and its users as well as bystanders and their property.● Improper operation of the product can cause injuries and property damage.

SPECIALLY DESIGNED FOR INDOOR AND OUTDOOR USE● The product has been designed in a way so that it can be used both indoors and outdoors.Before using the product, make sure that the area you chose is free from obstacles. Also, when operating the product always keep a safe distance from people and animals.● Do not operate the product near power lines.

PREVENT THE PRODUCT FROM GETTING WETBoth the drone and the controller are composed of many precision electronic components. Therefore, they must be prevented from getting wet. Exposure to water or moisture in any form can cause their malfunction or damage.DO NOT OPERATE OR EXPOSE THE PRODUCT TO RAIN OR MOISTURE

BATTERY INSTRUCTIONSTo avoid a potential fire hazard, please do not short circuit, puncture or reverse the polarity of batteries.Battery charging should always be done under adult supervision, and at a location out of the reach of children.● DO NOT MIX NI-CAD AND ALKALINE BATTERIES

SAFETY NOTES FOR NI-MH BATTERIES● Make sure the batteries are properly installed observing correct polarity (+ -).DO NOT MIX NI-CAD AND ALKALINE BATTERIES● If you plan not to use the quadcopter for extended period of time, remove the batteries from the controller to avoid their leakage, which may damage the transmitter.PLEASE DISPOSE USED BATTERIES ACCORDING TO LOCAL REGULATIONS IN SPECIAL RECYCLE SPOTS.

SAFETY NOTES FOR LI-POLYMER BATTERIES● Li-Polymer batteries have higher operational risks when compared to ones of other types. Therefore, using them, it is imperative to follow proper operational guidelines. The manufacturer and dealers assume no liability for any damage caused by improper usage.In order to avoid potential fire or explosion do not use any other charger except the one included with the product. DO NOT crush, disassemble, burn, or reverse the polarity of the batteries.To avoid short circuits, do not allow the metal parts to touch the battery terminals. NEVER PUNCTURE BATTERIES; OTHERWISE IT COULD CAUSE POTENTIAL FIRE HAZARD.● Battery charging should always be done under adult supervision, and at a location out of the reach of children.● In case of unnatural excessive heating of the batteries please stop using or charging them immediately. Otherwise, it may cause their swelling, deformation or explosion thereby increasing the risk of fire.**PLEASE DISPOSE USED BATTERIES ACCORDING TO LOCAL REGULATIONS IN SPECIAL RECYCLE SPOTS. DO NOT DISPOSE OF OLD BATTERIES IN THE HOUSEHOLD TRASHDO NOT CHARGE BATTERIES OVERNIGHT

KEEP AWAY FROM HEATR/C models are made from various forms of plastic that is very susceptible to damage or deformation due to extremely high and low temperatures. Therefore, the product should not be used or stored in places where it would be exposed to extreme temperatures.

OBTAIN THE ASSISTANCE OF AN EXPERIENCED PILOT Although the product can be treated as a toy, it is not intended for those under fourteen years of age. Those, who are inexperienced in piloting remote-controlled drones, must know that there will be a slight learning curve until you become a skilled pilot. In order to make it easier to gain this skill we recommend exercises under the supervision of professional drone pilots.

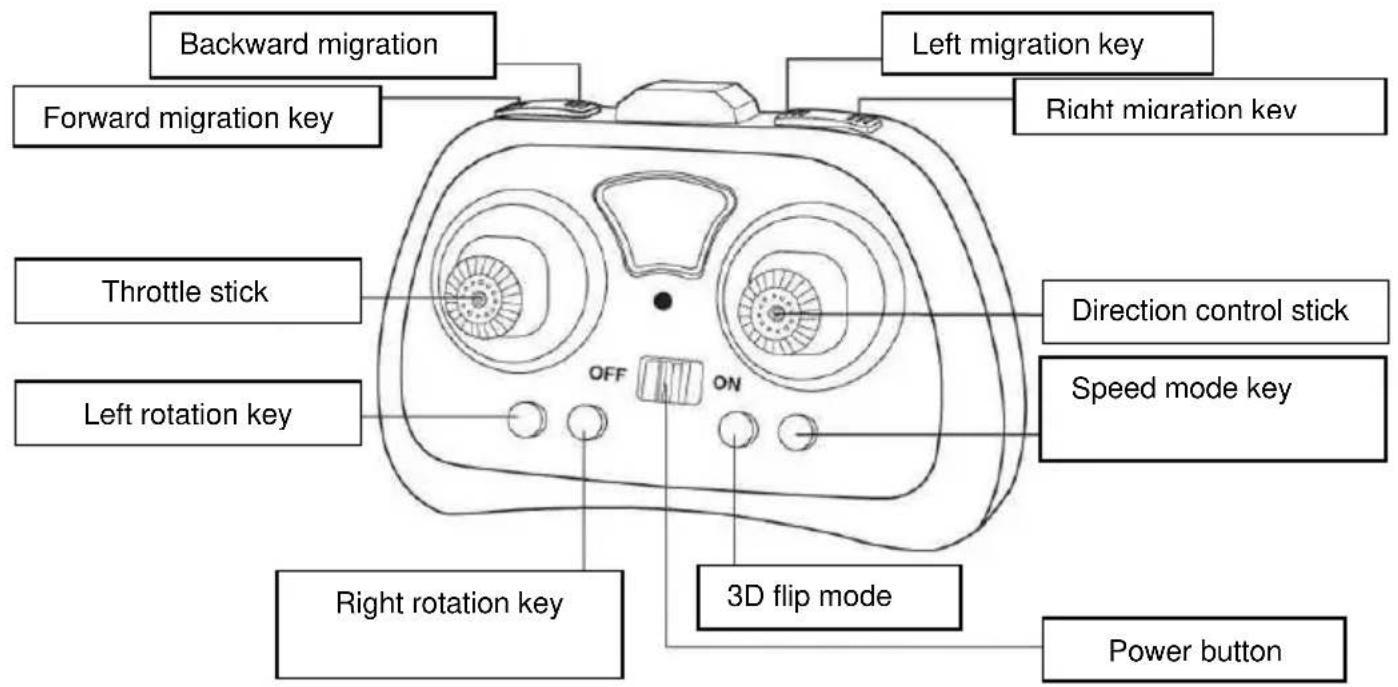

2. CONTROLLER (TRANSMITTER) DIAGRAM

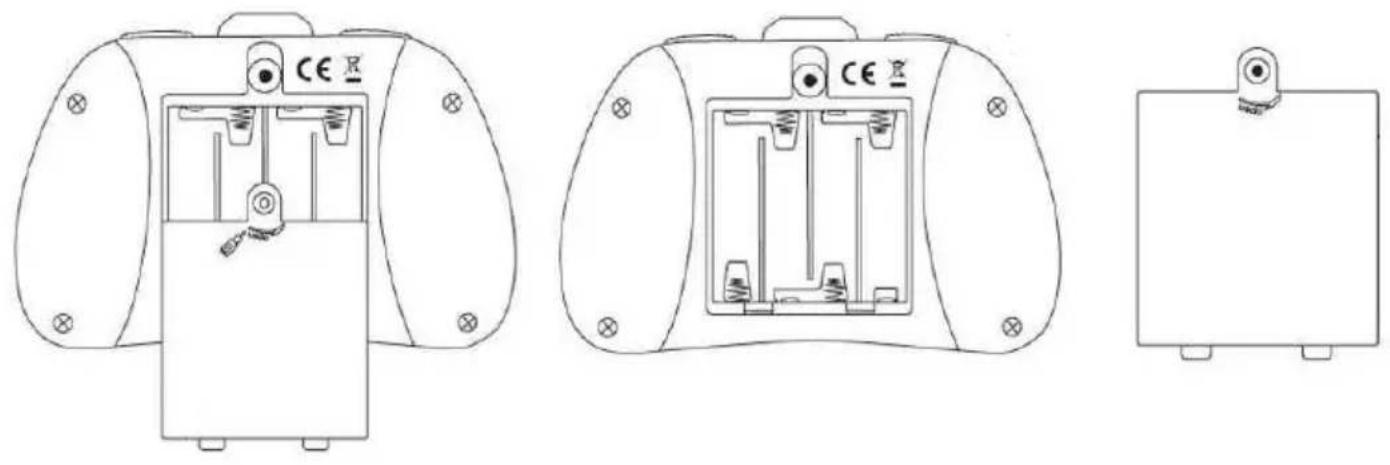

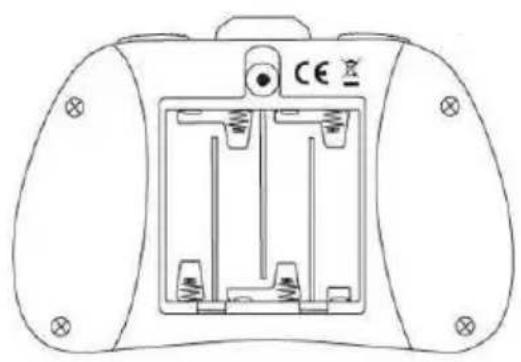

3. CONTROLLER (TRANSMITTER) BATTERY INSTALLATION

Use a screwdriver to open the battery cover.

Place 4 AAA batteries in the battery compartment. Make sure the batteries are properly installed according to correct polarity (+ -). DO NOT MIX THE BATTERIES OF DIFFERENT TYPES Close the cover.

Technical line drawings of three different electronic device modules with mounting holes and internal components (no text or symbols)

4. CHARGING THE BATTERIES

Use the included charger to charge the battery of the drone.

** Use ONLY the supplied charger for charging. Battery charging should always be done under adult supervision.

LED indicator

Red - on	Red - off
Charging completed	Charging...

Charger specifications

Input	Charging current	Maximum voltage
5V	350mAh	4.2 ± 0.03V

Battery usage and charge duration reference

Battery type	Battery specification	Single charge working time	Charging time
Rechargeable lithium - polymer battery (Li-Poly)	3,7V 150mAh	Drone flight time: up to 6 minutes	About 30 minutes (charging current approx. 350mAh)
Zinc -carbon battery (Non rechargeable)	1.5V (GP 15G R4P)	Controller (transmitter) operation time: 18 hours	Non rechargeable (do not charge)

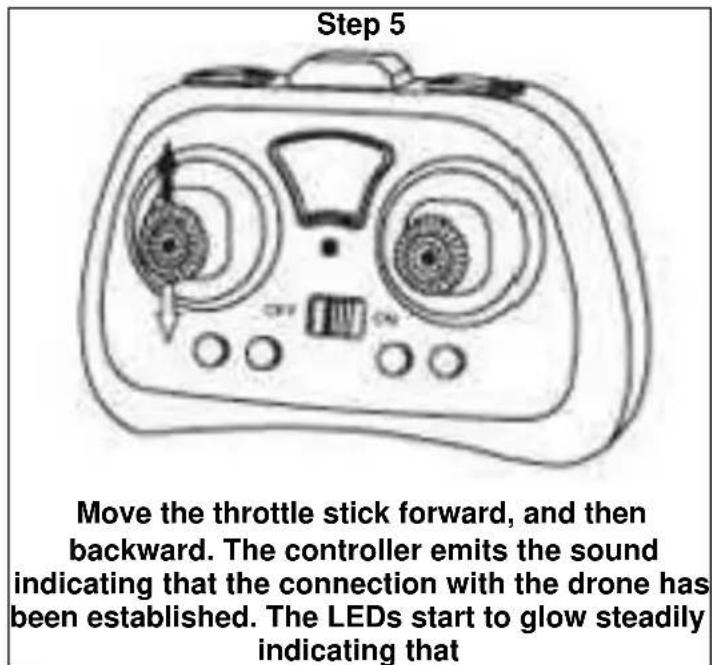

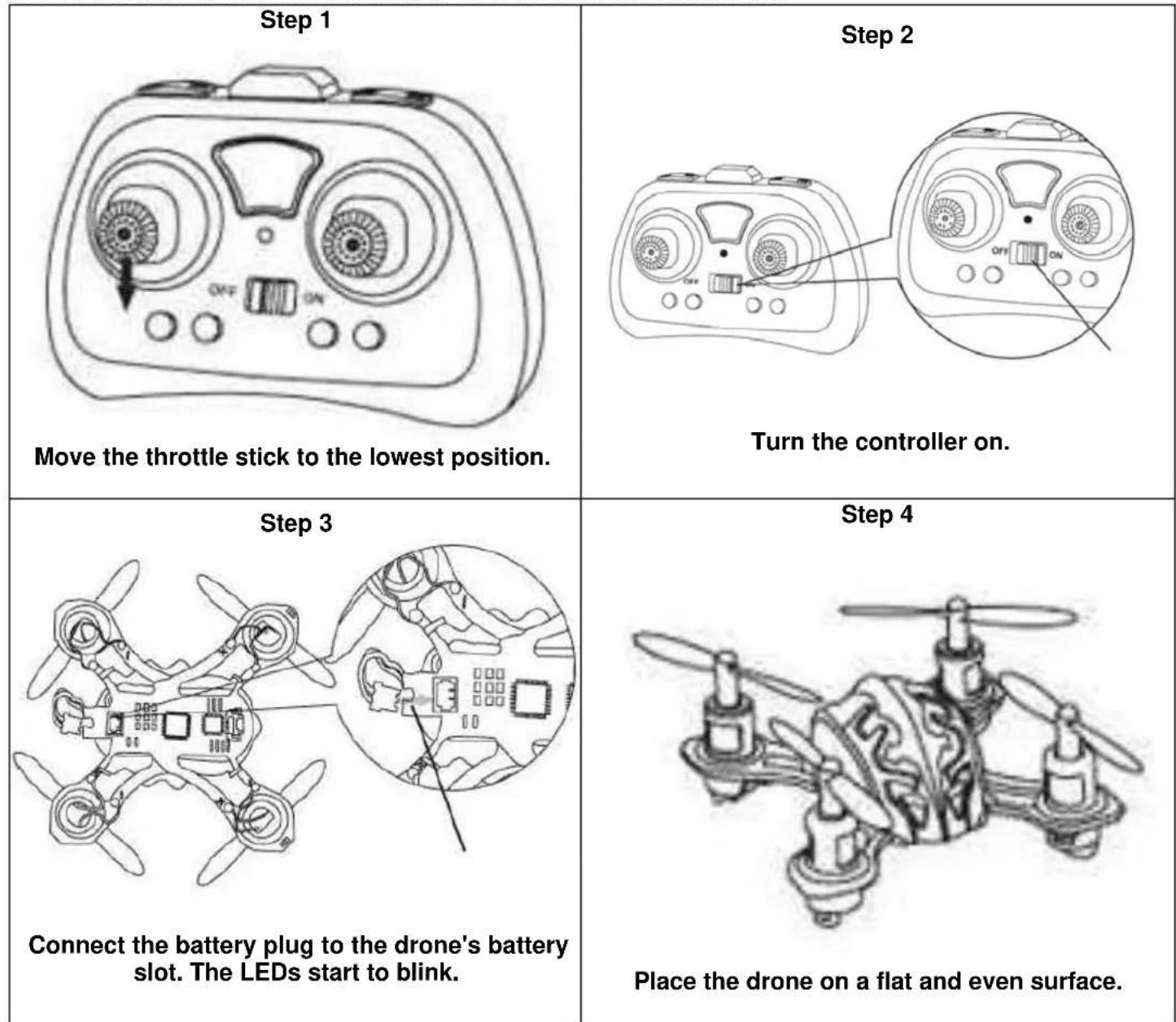

5. TRANSMITTER AND RECEIVER SYNCHRONIZATION

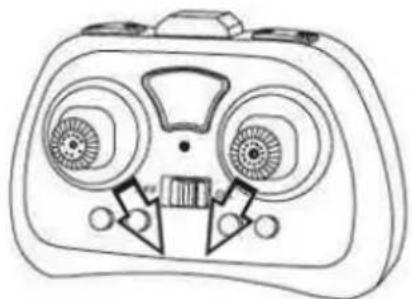

Auto-calibration

Place the drone on a flat and even surface. Move the left stick to the lower right corner, and the right stick to the lower left corner, as shown in the picture. Hold these positions for 10 seconds. The drone's LEDs will blink several times, and then they will start to glow steadily. Now, you can release the sticks - the drone is ready to fly.

Line drawing of a vintage-style electronic device with two circular fans and a central button (no text or symbols)

6. FLIGHT CONTROL

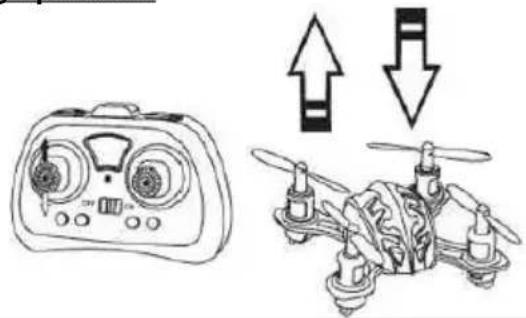

Flying up / down	Move the throttle stick forward to fly the drone up.Move the throttle stick backward to fly the drone down.

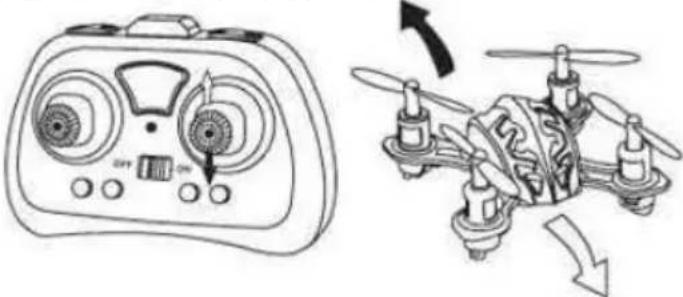

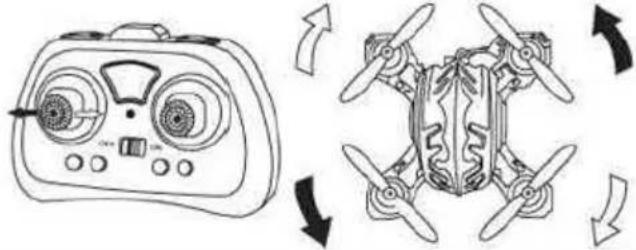

Rotating left/ right	Move the throttle stick left / right to rotate the drone in a given direction.

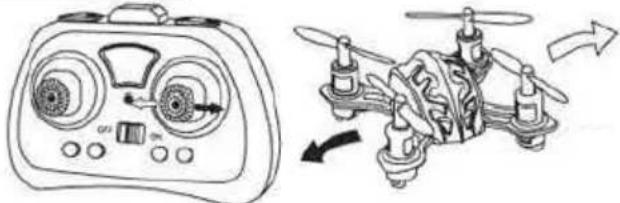

Flying left/right	Move the direction control stick left / right to fly the drone in a given direction.
Flying forward and backward	Move the direction control stick forward / backward to fly the drone in a given direction.

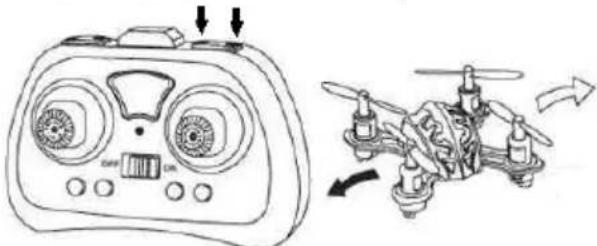

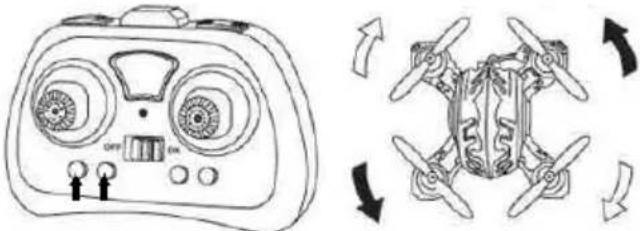

Left/right rotate calibration	Press the "Left rotation" key if the drone automatically rotates clockwise. Press the "Right rotation" key if the drone automatically rotates counterclockwise.

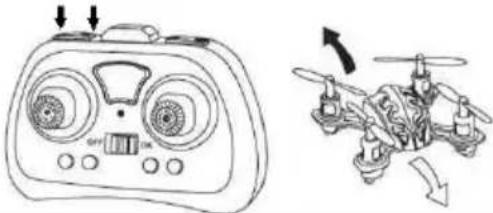

Left/right migration calibration	Press the "Left migration" key if the drone automatically migrates to the right. Press the "Right migration" key if the drone automatically migrates to the left.
Forward/backward migration calibration	Press the "Forward migration" key if the drone automatically migrates backwards. Press the "Backward migration" key if the drone automatically migrates forwards.

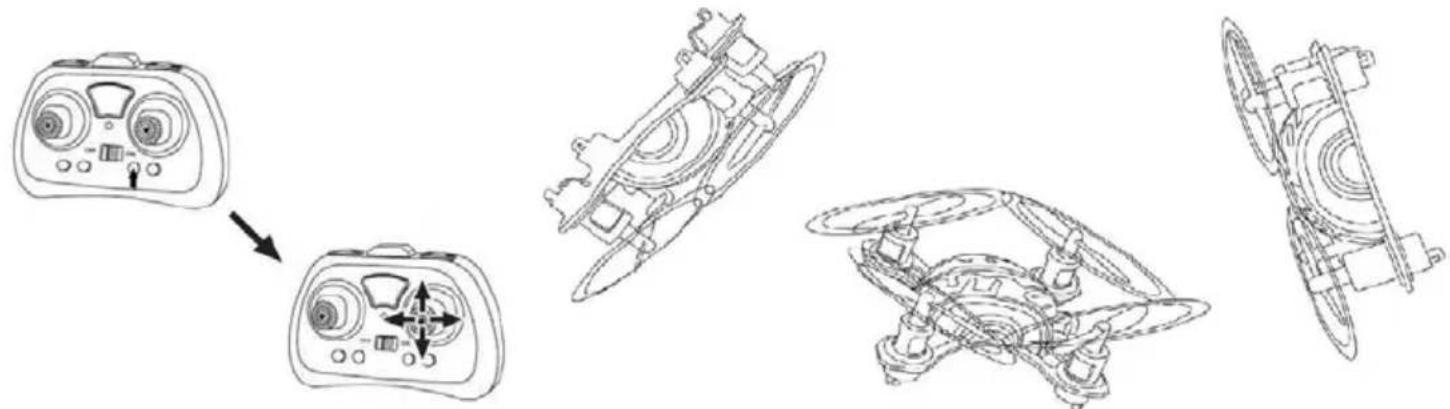

360-degree stunts

When you press the Flip mode button the controller emits a beep sound indicating that the drone is in 3D flip mode.

When in 3D flip mode, move the direction stick forward, backward, left or right to flip the drone in the chosen direction.

Technical line drawings of a helicopter's internal components, showing front, side, and top views (no text or labels)

Note: Before you start doing stunts make sure that there is enough space in the area.

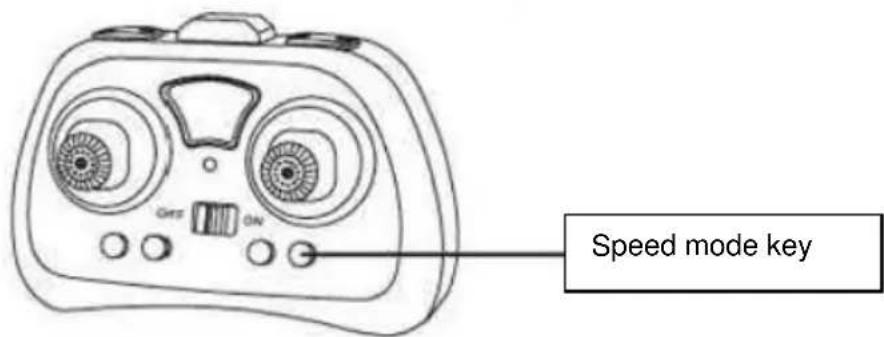

Speed modes

The device supports three flight speed modes. Press the flight speed button to switch between slow, normal and fast mode. The current speed mode is indicated by a number of the beep sounds. Mode 1 - slow mode - one beep; Mode 2 - normal mode - two beeps; Mode 3 - fast mode - three beeps.

7. HEADLESS MODE (beginner's mode)

How to turn on/off the headless mode?

Place the drone on a flat and even surface. Move the left stick to the lower left corner, and the right stick to the lower right corner, as shown in the picture. The drone's LEDs start to blink indicating that the drone is in the HEADLESS mode.

If you want to switch your drone back to the normal control mode, move the sticks the same way again. The drone's LEDs stop blinking indicating that the drone is in the normal mode.

Line drawing of a vintage-style analog device with dual fans and buttons (no text or symbols)

In this mode, to make the operation of the drone easier, the forward flight direction is set regardless of the drone position.

If you want to set the front side of the drone anew, you must turn the device off and configure it again.

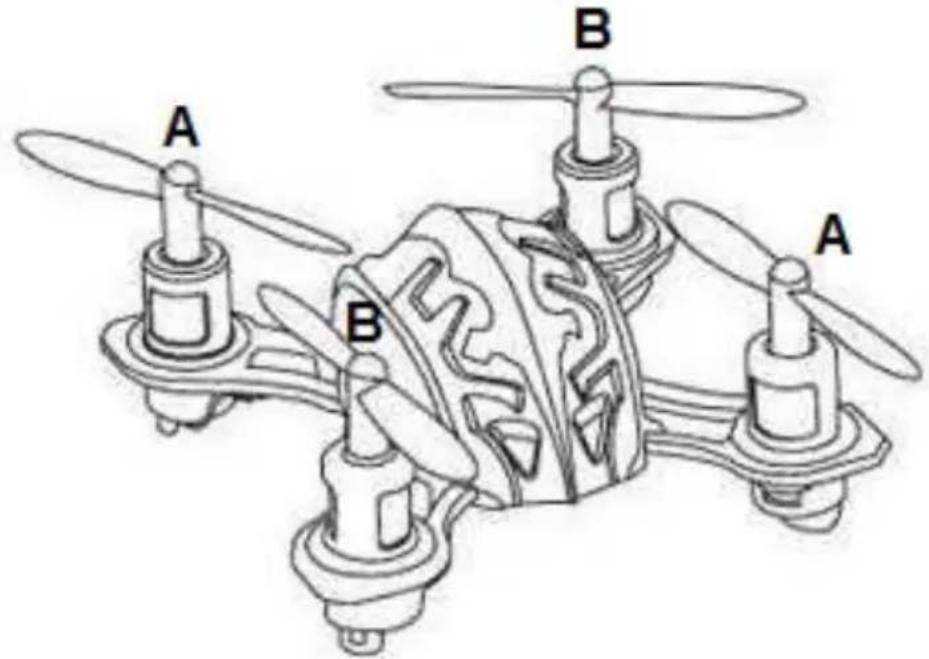

8. PROPELLER REPLACEMENT

Pull up the propeller to remove it. Then, attach the new one according to the following schedule:

Line drawing of a quadcopter drone with three propellers labeled A, B, and a central gear mechanism (no text or symbols beyond labels)

Polski

1. INFORMACJE ODNOŚNIE BEZPIECZEŃSTWA UŻYTKOWANIA

Technical line drawing of a mechanical device with mounting flanges and internal components (no text or symbols)

Technical line drawing of a device casing with internal components and mounting holes (no text or symbols)

Simple line drawing of a blank rectangular frame with a small circular top and two side supports at the bottom (no text or symbols)

ŁADOWANIE AKUMULATORÓW

Line drawing of a vintage-style electronic device with two circular fans and a central button (no text or symbols)

6. KONTROLA LOTU

Technical line drawings of a helicopter cockpit assembly, showing front, side, and top views (no text or labels)

Line drawing of a vintage portable radio device with two fans and control buttons (no text or symbols)

Line drawing of a portable radio device with dual dials and buttons (no text or symbols)

Line drawing of a drone with three propellers labeled A, B, and a central gear-like structure (no text or symbols beyond labels)

Česky

1. BEZPEČNOSTNÍ POZNÁMKY

Technical line drawings of three different electronic device modules with mounting holes and internal components (no text or symbols)

4. NABÍJENÍ BATERIÍ

Diagram showing a cable being connected to a drone via a cable (no text or symbols present)

Line drawing of a vintage-style cassette tape device with two circular dials and a central connector (no text or symbols)

6. OVLÁDÁNÍ LETU

Technical line drawings of various mechanical components and control panels (no text or symbols)

Line drawing of a vintage portable radio device with two fans and control buttons (no text or symbols)

Line drawing of a vintage-style analog device with dual dials and control buttons (no text or symbols)

Line drawing of a drone with labeled propellers (A and B) and no visible text or symbols

Slovenský

1. BEZPEČNOSTNÉ POZNÁMKY

Technical line drawings of three different electronic device modules with mounting holes and internal components (no text or symbols)

4. NABÍJANIE BATÉRIÍ

Diagram showing a drone being connected to a cable via a sensor device (no text or symbols present)

Line drawing of a vintage-style cassette tape device with two circular dials and a central connector (no text or symbols)

6. OVLÁDANIE LETU

Technical line drawings of various mechanical components and control panels (no text or symbols)

Line drawing of a vintage-style radio device with two dials and buttons (no text or symbols)

V tomto režime je prevádzka dronu l'ahšia, let dopredu je nastavený bez ohl'adu na pozíciu dronu.

Line drawing of a three-blade quadcopter drone with labeled propellers (A, B) and no text or symbols beyond labels

Romana

1. SAFETY NOTES

Technical line drawings of three different electronic device modules with mounting holes and internal components (no text or symbols)

4. INCARCAREA BATERIILOR

Diagram of a drone with attached sensor and cable, showing a connected device (no text or symbols)

Line drawing of a vintage-style analog device with two circular fans and a central button (no text or symbols)

6. CONTROLUL ZBORULUI

Technical line drawings of a helicopter's internal components, showing front, side, and top views (no text or labels)

Nota: Inainte de a incepe sa faceti cascadorii asigurati-va ca aveti suficient spatiu liber in zona.

Moduri viteza

Line drawing of a vintage portable radio device with dual dials and buttons (no text or symbols)

Line drawing of a drone with three propellers labeled A, B, and a central gear-like structure (no text or symbols beyond labels)

Magyar

1. SAFETY NOTES

Technical line drawings of three different electronic device modules with mounting holes and internal components (no text or symbols)

4. ELEMEK TÖLTÉSE

Diagram showing a drone connected to a cable via a cable to a control unit (no text or symbols present)

LED jelzőfény

Line drawing of a vintage-style electronic device with two circular fans and a central button (no text or symbols)

Technical line drawings of various mechanical components and parts, including control panels and motors (no text or labels)

Line drawing of a vintage portable radio with two dials and buttons (no text or symbols)

Line drawing of a drone with three propellers labeled A, B, and a central mechanical component (no text or symbols beyond labels)

Eesti

1. TURVALISUS

Technical line drawings of three different electronic device modules with mounting holes and internal components (no text or symbols)

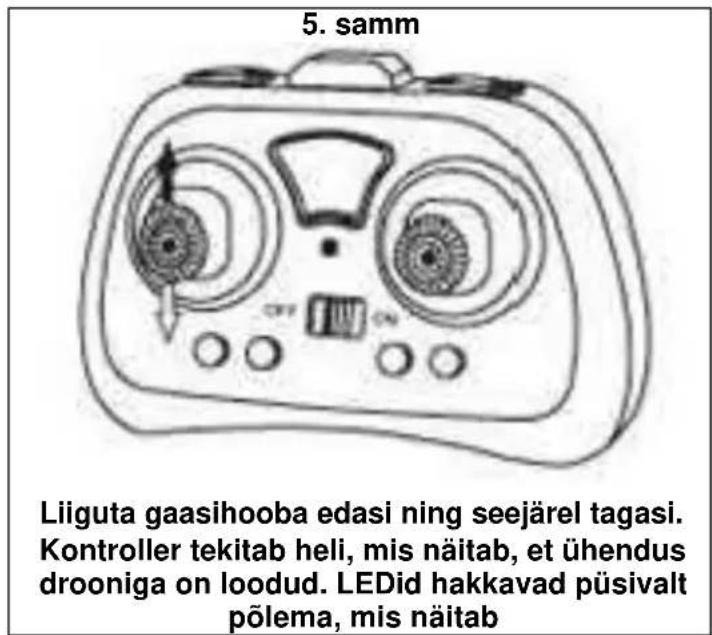

4. Akude laadimine

Diagram showing a drone connected to a cable via a cable to a control unit (no text or symbols present)

Line drawing of a vintage-style analog device with two circular gauges and control buttons (no text or symbols)

Lülita kontroller sisse.

1. samm


Top-down line drawing of a drone with visible internal components and a close-up inset showing a close-up of its interior circuit board (no text or symbols)

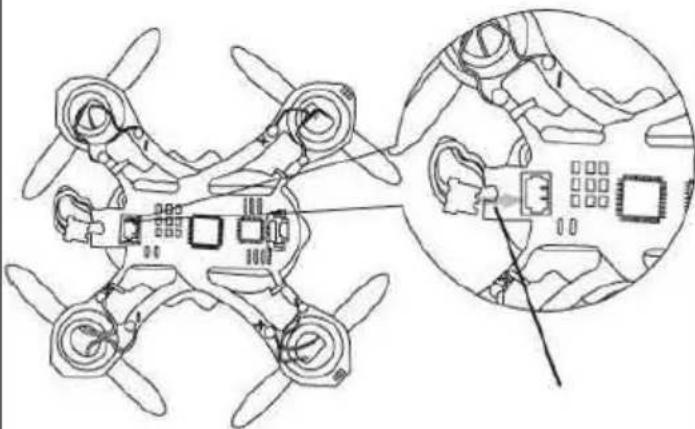

Ühenda aku otsad drooni akupesaga. LEDid hakkavad vilkuma.

1. samm


Line drawing of a quadcopter drone with propellers and control panels (no text or symbols)

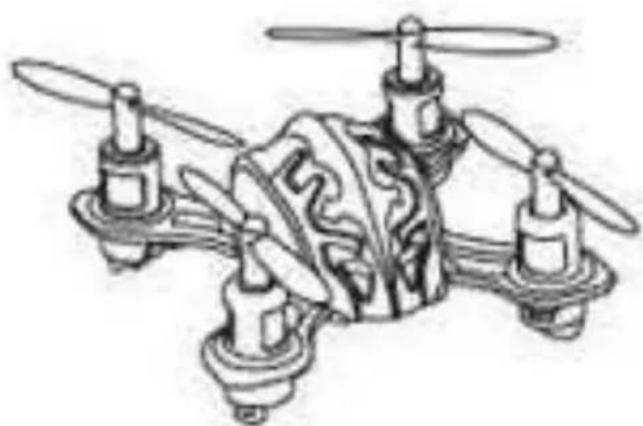

Aseta droon tasasele pinnale.

Line drawing of a vintage-style electronic device with two circular fans and a central button (no text or symbols)

6. LENNU JUHTIMINE

Technical line drawings of five different mechanical components or systems, including a control panel and fan assembly (no text or symbols present)

Line drawing of a vintage portable radio with two dials and buttons (no text or symbols)

Line drawing of a three-blade quadcopter drone with labeled propellers (A, B) and no text or symbols on the body itself.

Declaration of Conformity

Product details

For the following

Product : Drone

Model(s) : OV-X-Bee Drone 1.0

Declaration & Applicable standards

We, Overmax Polska Sp. z o.o. Sp. K., hereby declare under our sole responsibility that the of the above referenced product complies the following directives:

R&TTE Directive	1999/5/EC
EMC Directive	2004/108/EC
Low Voltage Directive	2006/95/EC
RoHS Directive	2011/65/EU

The following harmonized standards have been applied:

Safety and Health:

EN 62479: 2010

EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013

EMC:

EN 301 489-1 V 1.9.2 (2011-09)

EN 301 489-17 V 2.2.1 (2012-09)

RF Spectrum Efficiency:

EN 300 328 V1.8.1 (2012-06)

Representative

Overmax Polska Sp. z o.o. Sp. K.
