CMLF135EV - Washing machine Calex - Free user manual and instructions

Product Type	Front-loading washing machine
Model	CMLF135EV
Brand	Calex
Capacity	8 kg
Maximum Spin Speed	1350 rpm
Energy Class	A+++
Voltage / Frequency	220-240 V, 50/60 Hz
Water Consumption	50 L per cycle (Eco program)
Noise Level (Wash/Spin)	52 dB / 76 dB
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Weight	70 kg
Number of Programs	15
Key Programs	Cotton, Synthetics, Delicates, Quick 30 min, Eco, Rinse & Spin, Drum Clean
Safety Features	Child lock, Overflow protection, Unbalanced load detection
Maintenance	Clean pump filter monthly, Clean detergent drawer, Run drum clean cycle
Spare Parts Availability	Up to 10 years after purchase

Frequently Asked Questions - CMLF135EV Calex

How do I clean the pump filter on the Calex CMLF135EV?

Open the lower front panel, place a cloth underneath, unscrew the filter cap slowly to drain water, then remove and rinse the filter. Reinstall and close the panel.

What should I do if the washing machine does not drain?

Check the drain hose for kinks, clean the pump filter, and ensure the drain pipe is not blocked. If the problem persists, contact customer service.

Can I install the Calex CMLF135EV under a counter?

Yes, the machine can be built under a counter. The worktop can be removed, but ensure proper ventilation. Dimensions are 85x60x60 cm.

What does error code E10 mean on the CMLF135EV?

E10 indicates a water supply problem. Check that the taps are open and the inlet hose is not kinked or blocked.

How much detergent should I use for a full load?

Follow the detergent manufacturer's instructions. Typically, for an 8 kg load, use about 50-80 ml of liquid detergent or 100-150 g of powder.

Is the drum light included in this model?

The Calex CMLF135EV does not have a drum light. You may use a flashlight to check the drum.

How do I transport the washing machine?

Use the transit bolts that were removed during installation. Reinstall them to secure the drum. Drain any remaining water and disconnect hoses.

What is the recommended maintenance for the rubber door seal?

Wipe the rubber seal regularly to remove moisture and debris. Leave the door open after use to prevent mold and odor.

Can I wash a duvet in the Calex CMLF135EV?

It depends on the size and weight. For a 8 kg capacity, a king-size duvet may be too heavy. Use a bulky program and ensure it fits without overloading.

How do I reset the washing machine?

Unplug the machine for 10 minutes, then plug it back in. If the issue persists, call customer support for the CMLF135EV.

USER MANUAL CMLF135EV Calex

Cartoon illustration of a distressed computer with smoke and flames, no text or symbols present

Cartoon illustration of a smiling computer monitor with a character and a phone, no text or symbols present

Illustration of a person working at a desk with steam rising (no text or symbols)

Cartoon illustration of a person shouting with arms raised, surrounded by smoke and debris (no text or symbols)

Cartoon illustration of a car with a large speedometer and a clock, no text or symbols present

Cartoon illustration of a smiling car with a person standing nearby (no text or symbols)

Illustration of a person in a suit with a large object, possibly a device or machine, surrounded by abstract patterns (no text or symbols)

Cartoon illustration of a car with a large snake and a smiling face, no text or symbols present

Diagram of a mechanical assembly with arrows indicating movement or force, no text or symbols present

Simple line drawing of a hand holding a small object near a window (no text or symbols)

Hand holding a tool near a window with a curved arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a pipe, with no visible text or symbols.

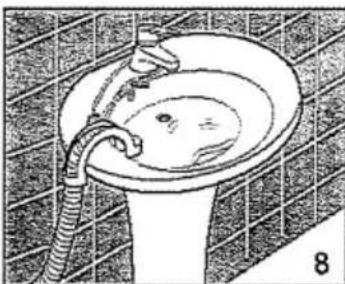

Illustration of a bathroom sink with a hand holding a tool, no text or symbols present

FR

INSTALLATION DE LA MACHINE

BRANCHEMENT ÉLECTRIQUE

Hand holding a plug inserted into an electrical socket, with a ground symbol below (no text or labels)

Illustration of a hand using a tool to lift a circular object, with arrows indicating motion (no text or symbols)

EMPLOI DE LA MACHINE À LAVER LE LINGE

UTILISATION DES DÉTERGENTS

Technical line drawing of a mechanical device with no visible text or symbols

FR

EMPLOI DE LA MACHINE À LAVER LE LINGE

COMMENT ÉLIMINER CERTAINES TACHES

Line drawing of a mechanical assembly with gears and a handle, no text or symbols present

Illustration of a hand washing a tooth on a circular surface, no text or symbols present

Line drawing of hands assembling a mechanical component with a tool, labeled 'A' (no text or symbols on the diagram itself)

Line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)
