| Product Type | Freestanding washing machine |
| Model | WDIE14106 |
| Brand | Freggia |
| Load Capacity | 8 kg |
| Maximum Spin Speed | 1400 rpm |
| Energy Class | A+++ |
| Water Consumption per Cycle | 48 L |
| Noise Level (Wash/Spin) | 52 dB / 74 dB |
| Dimensions (H x W x D) | 85 x 60 x 60 cm |
| Weight | 72 kg |
| Power Supply | 230 V, 50 Hz |
| Wash Programs | Cotton, Synthetics, Delicates, Quick Wash, Eco, Wool, and more |
| Additional Functions | Delay start, Child lock, Rinse hold, Extra rinse |
| Drum Type | Stainless steel |
| Display Type | LED digital display |
| Door Opening | Left hinged |
| Installation Type | Freestanding |
| Maintenance | Clean filter regularly; descale every 3 months |
| Safety Features | Child lock, overfill protection, unbalanced load detection |
| Spare Parts Availability | Spare parts available for at least 10 years |
| Repairability Index | 8.2 / 10 |
Frequently Asked Questions - WDIE14106 Freggia
How do I install the washing machine?

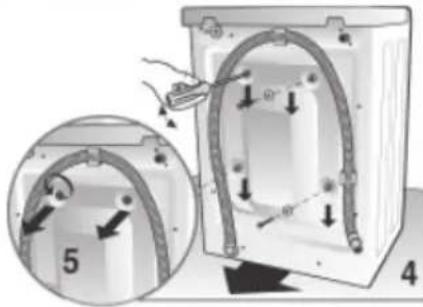

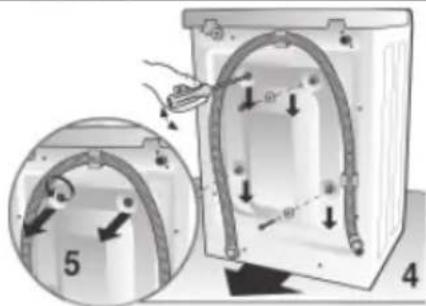

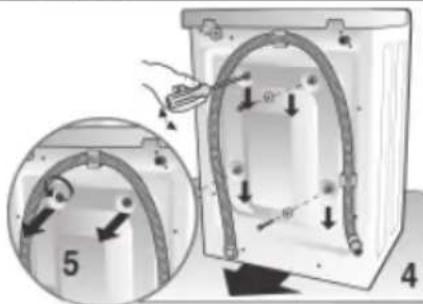

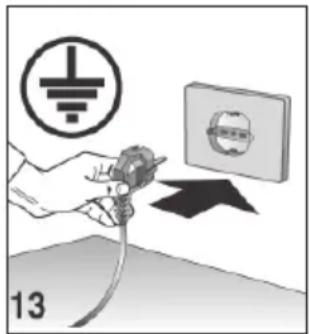

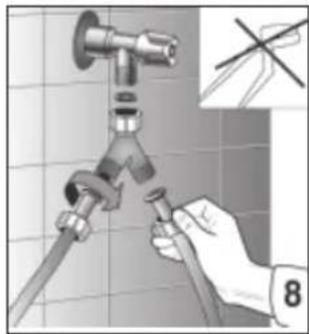

Ensure the machine is on a level surface. Remove all transport bolts and packing materials. Connect the water inlet hose to a cold water tap with a 3/4 inch thread. Insert the drain hose into a standpipe or sink. Plug the power cord into a grounded outlet. For detailed steps, refer to the installation section of the manual.
How often should I clean the filter?
Clean the filter every 2-3 months to prevent clogs. Turn off the machine and unplug it. Open the filter cover, drain any water using the emergency drain hose, remove the filter, clean it under running water, and replace it securely.
What does error code E10 mean?

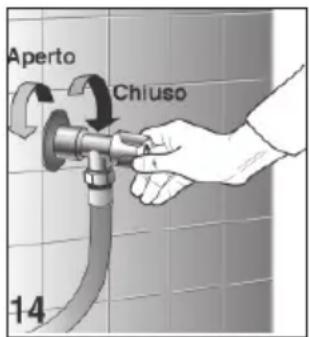

Error code E10 indicates a water supply issue. Check that the water tap is fully open, the inlet hose is not kinked, and the filter in the water inlet valve is not blocked. Also ensure water pressure is adequate.
Can I use a longer drain hose?
Yes, but the total length must not exceed 4 meters. Use a genuine extension hose with a maximum diameter of 22 mm. Ensure the hose is not elevated more than 100 cm above the floor to avoid drainage problems.
How do I activate the child lock?
Press and hold the 'Child Lock' button (usually marked with a padlock icon) for 3-5 seconds until the symbol appears on the display. To deactivate, repeat the same process. This prevents accidental changes during operation.
What is the maximum load for a quick wash?
For the Quick Wash program, the maximum load is 2 kg. Overloading may result in poor cleaning performance. For larger loads, use the Cotton or Synthetics program.
How do I descale the washing machine?
Use a proprietary descaling agent or a mixture of 100 ml of white vinegar and 500 ml of water. Pour into the detergent drawer and run a hot wash cycle (90°C) without laundry. Repeat every 3 months.
Why is the machine vibrating excessively?
Check that all transport bolts have been removed. Ensure the machine is level (adjust feet). Distribute laundry evenly in the drum. Avoid washing heavy items like rugs alone. Also check that the floor is solid.

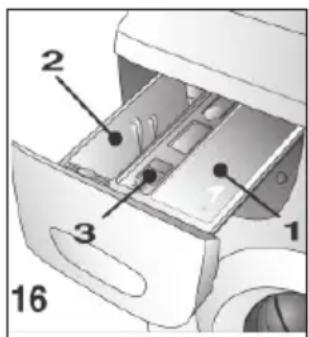

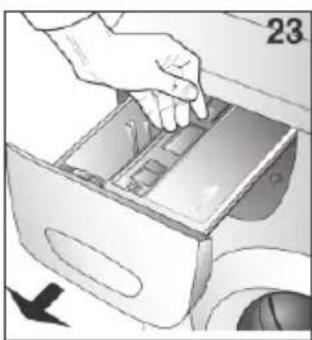

What detergent should I use?
Use a high-quality low-sudsing detergent suitable for front-loaders. For colored fabrics, use color detergent. For whites, use a bleach-based detergent. Avoid using too much detergent as it can cause residue.
Where can I purchase spare parts?
Spare parts can be ordered from the Freggia official website or authorized service centers. Common parts like filters, hoses, and door seals are widely available. Provide the model number WDIE14106 when ordering.
