Product Type	Snow Blower (Single Stage)
Brand	Texas
Model	ST1302
Power Source	Electric (Corded)
Motor Power	2400 W (13 A)
Clearing Width	24 inches (61 cm)
Clearing Depth	13 inches (33 cm)
Throwing Distance	Up to 33 ft (10 m)
Impeller/Auger Material	Metal
Chute Control	Manual (crank handle)
Wheel Size	10 inches (25 cm)
Weight	40 lbs (18 kg)
Dimensions (L x W x H)	32 x 24 x 26 inches (81 x 61 x 66 cm)
Cord Length	Not included (use extension cord suitable for outdoor use)
Safety Features	Safety switch, automatic shut-off when handle released
Maintenance	Clean auger and chute after use; lubricate moving parts; check cord for damage
Spare Parts Availability	Contact Texas customer service or authorized dealers
Intended Use	Residential driveways and sidewalks
Included Accessories	User manual
Warranty	2 years (subject to terms)

Frequently Asked Questions - ST1302 Texas

How do I start the Texas ST1302 snow blower?

Ensure the safety switch is in the OFF position. Plug the power cord into a grounded outlet. Press the safety lock button and squeeze the start lever to begin. Release the lock button once the motor runs.

What type of extension cord should I use?

Use a heavy-duty outdoor extension cord rated for at least 13 A and 2400 W. Keep the cord length as short as possible and avoid using multiple extensions. Always check cord for damage before use.

How do I adjust the throwing direction?

Turn the chute crank handle (located on the handlebar) to rotate the chute left or right. Adjust the deflector flap to change the height of the snow stream.

What should I do if the auger does not turn?

First, unplug the machine. Check if the auger shear pins are broken or if debris is jammed. If the shear pin is broken, replace it with an identical pin. Clear any obstructions from the auger housing.

How often should I lubricate the snow blower?

Lubricate the auger shaft bearings and chute rotation mechanism once per season or after every 25 hours of use. Use a light machine oil or silicone spray.

Can I use the snow blower on gravel driveways?

Set the skid shoes to a higher position (e.g., 1/2 inch above ground) to prevent gravel pickup. Adjust them by loosening the nuts, setting the height, and retightening.

How do I store the snow blower after winter?

Clean the unit thoroughly, dry it, and apply a light coat of oil to metal parts to prevent rust. Store in a dry, covered area away from moisture. Coil the power cord loosely.

Why does the motor stop suddenly while operating?

This may be due to thermal overload protection. Allow the motor to cool for 10-15 minutes. Check for blockages in the auger or chute. Ensure the extension cord is not overheating.

Where can I find replacement parts?

Contact Texas customer service or visit their website for an authorized dealer. Common parts include shear pins, belts, and scraper blades. Have your model number (ST1302) ready.

Is the Texas ST1302 suitable for heavy wet snow?

The ST1302 is designed for light to moderate snow (up to 8 inches depth). For heavy wet snow, clear in layers and reduce speed. Avoid forcing the machine to prevent motor strain.

USER MANUAL ST1302 Texas

DK "Original brugsanvisning"

GB "Original instructions"

Safety instructions....11

Assembling....12

Starting....13

Maintenance and Storage 14

Troubleshooting 14

The Environment, Recycling and Disposal....15

Technical Data 15

Pattern A – Cxema A
Pattern B – Cxema B

Pictograph illustration and explanation

1. Caution! Read the instruction manual and follow the warning and safety instructions!
2. Always switch off the appliance, disconnect the power and wait till the machine comes to a standstill prior to maintenance, cleaning or repair work!
3. Caution! Blades do not stop immediately after switching off.
4. Danger! Objects may be thrown out at high speed when motor is running. Keep people, pets and domestic animals out of the danger area.
5. Keep the mains cable free from the tines or blades. Tines or blades may damage the cables and cause contact with live parts.
6. Caution! Unplug immediately if the power cord or plug becomes damaged!
7. Danger! Keep hands and feet away from the cutting equipment!
8. Caution! Always wear eye and ear protection.
9. Do not use the machine in wet weather conditions!
10. Wear safe, sturdy, nonskid footwear!

Safety instructions

Read the operating instructions and act accordingly. Keep it for general use. Comply with the safety information and the warning on the appliance.

● The appliance must be assembled correctly before use.
- Before inserting the plug in the mains socket, make sure that the socket ratings are correct and correspond to those indicated on the rating label on the appliance.
- Never move the appliance by pulling at the cables.
● Always disconnect the appliance from the mains supply before transporting it to other places.
● Always switch off the appliance before disconnecting any plug and socket connector or extension cables.
- Keep children and pets away. All onlookers should be kept a safe distance away from the appliance when it is in use.

● The user is responsible for third parties while working with the appliance.

● Be careful never to throw snow towards people or cars, and never allow anyone in front of your snow thrower.

- People not acquainted with the operating instructions, children, juveniles who have not yet reached the minimum age for using this appliance, and people under the influence of alcohol, drugs or medication are not allowed to use the appliance.

- Only use the appliance for its designed purposes.

● Always use the appliance with the discharge chute attached.

- Keep hands and feet away from all rotating and moving parts.

- Never put your hand in the discharge chute or near the auguer to remove snow, sticks or other debris. Blocked auguer can "spring back" when cleared and may cause personal injury, even with the appliance stopped. Always use an object such as a long stick or shovel handle to clear blockages.

● Wear safe, sturdy, nonskid footwear. Ensure that you have a good a stand, especially on slopes.

- Wear safety glasses, and avoid any loose-fitting clothing that could get caught in moving parts. Be careful of long hair.

- Only work in daylight or sufficiently good artificial light.

- In order to start the appliance, the auguer must be completely free to move.

● The use of the appliance is only permitted if the safety distance provided by the guide bar is complied with.

● Always hold the handle bar firmly and walk, never run.

- Do not overload the appliance by attempting to clear snow at too fast a rate.

- Slow down and turn corners slowly.

- Caution! Auguer does not stop immediately after switching off.

● Always switch off the appliance, disconnect the plug and wait until the auguer stops before carrying out maintenance or cleaning work.

- Use caution when cleaning or performing maintenance on the appliance. DANGER! Watch your fingers! Wear gloves!

- It is forbidden to move or modify any of the electrical and mechanical safety devices.

- The snow can sometimes hide objects that might clog the chute, or otherwise cause damage. Clear the area of doormats, sleds, boards, wires and other debris.

• If the appliance strikes a foreign body, examine the appliance for signs of damage and carry out any necessary repairs before restarting and continuing to work.
• If the appliance should start to vibrate abnormally, switch off the motor and check for the cause immediately. Vibration is generally a warning of trouble.
• The appliance should be checked carefully before use. You should only work with an appliance that is in good condition. If you notice any defect on the machine that may cause danger to the operator, do not operate the appliance until defects are rectified.
• Replace worn or damaged parts for safety. Use only original spare parts. Parts not produced by manufacturer may cause poor fit and possible injury.

Electrical safety

• Design of the connection cable according to IEC 60245 (H 07RN-F) with a core cross-profile section of at least
• 1.5 mm ² for cable lengths up to 25 m
• 2.5 mm ² for cable lengths over 25 m
• Long and thin connection lines result in a potential drop. The motor does not reach any longer its maximal power; the function of the device is reduced.
• Plugs and coupler outlets on connection cables must be made of rubber, non-rigid PVC or other thermoplastic material of same mechanical stability or be covered with this material.
  ● The connector of the connection cable must be splash-proof.
• When running the connection line observe that it does not interfere, is not squeezed, bended and the plug connection does not get wet.
  ● Wind off completely the cable when using a cable drum.
• Do not drive the device across the extension cable. Make sure that it is behind you in a secure position. Place the cable on a path or area that has already been thatched.
• Do not use the cable for purposes for which it is not meant. Protect the cable against heat, oil and sharp edges. Do not use the cable to pull the plug from the socket.
• Protect yourself against electric shocks. Avoid touching earthed parts with your body (e.g. pipes, heating apparatus, cookers, fridges etc.).
  ● Regularly check the extension cables and replace them if they are damaged.
• Do never connect a damaged cable to the mains. Do not touch a damaged cable before it is disconnected from the mains. A damaged cable may cause contact with live parts.
• Do not use any defective connection cables.
• When working outdoors, only use extension cables especially approved and appropriately labeled for outdoor use.
• Do not set up any provisional electrical connections.
  ● Never bypass protective devices or deactivate them.
• Only hook up the machine by means of a fault-current circuit breaker (30 mA).

The electrical connection or repairs to electrical parts of the machine must be carried out by a certified electrician or one of our customer service points. Local regulations - especially regarding protective measures - must be observed. Damaged mains leads must be replaced by the manufacturer or one of their service workshops or a similar qualified person to prevent dangers.

Repairs to other parts of the machine must be carried out by the manufacturer or one of his customer service points. Use only original spare parts, accessories and special accessory parts. Accidents can arise for the user through the use of other spare parts. The manufacturer is not liable for any damage or injury resulting from such action.

Description (Fig. 1)

1. Main plug
2. Lock off button
3. Switch trigger
4. Handle
5. Front handle
6. Guide bar lower section
7. Discharge chute
8. Auguer
9. Motor housing

Assembling

Guide bar (Fig. 1)

Slide the lower section (6) into the up tube (4).

Line up holes on each tube, and make sure that the internal cable (A) does not pass the mounting holes.

Fix two sections firmly with the supplied screw and swing nut.

Motor housing (Fig. 1)

• Connect socket (B) to the plug on the motor housing.
  ● Fasten the housing by supplied 4 screws.

Front handle

Loosen the knob and lift up the handle bar to the operation position. (Fig. 2)

Adjust the height of the handle to a safe and comfortable position and fix it by the knob.

Connection the mains (Fig. 3)

Loop the extension cord and feed it through the rear handle. Rest the cord around the cord hook. This will help prevent you from disconnecting the extension cord from the product during operation.

Warning! Do not handle the plug or the appliance with wet hands or while standing in water.

DANGER! Electric shock causes series injury and death!

Starting

Intend use

This appliance is only intended for sweeping of snow on steps, patios and decks in private domestic and hobby gardens.

It is not designed for use in public areas, parks, sports areas, and in agriculture and forestry.

Using the application only on hard, flat surfaces free of sad, stone and debris, wires and any other objects.

For any other purpose is considered incorrect and unapproved. The manufacturer is not liable for any damage or injury resulting from such use. The user is entirely responsible for any associated risks.

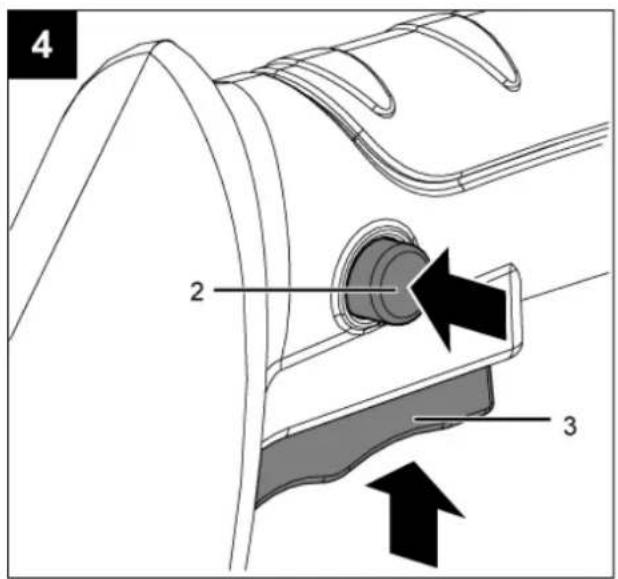

On/Off switch (Fig. 4)

Warning! The auger starts rotation immediately after switch on! Keep hands and feet away from auger.

To switch ON, hold the appliance firmly with two hands and press the Safety lock off button (2) while press the On/Off switch trigger (3).

Keep the switch trigger hold while release the button.

To stop the appliance, release the switch trigger and it automatically returns to its start position.

Removing snow

● Before starting work, make sure that the area to be clear is free of stones, debris, wires and any other objects.

● Make sure all fasteners (screws, nuts, etc.) are always fully tightened so that you can work safely with the appliance.

- Check the auguer for wear and tear at regular intervals.

- Position discharge chute in safe direction and angle, away from operator and bystanders.

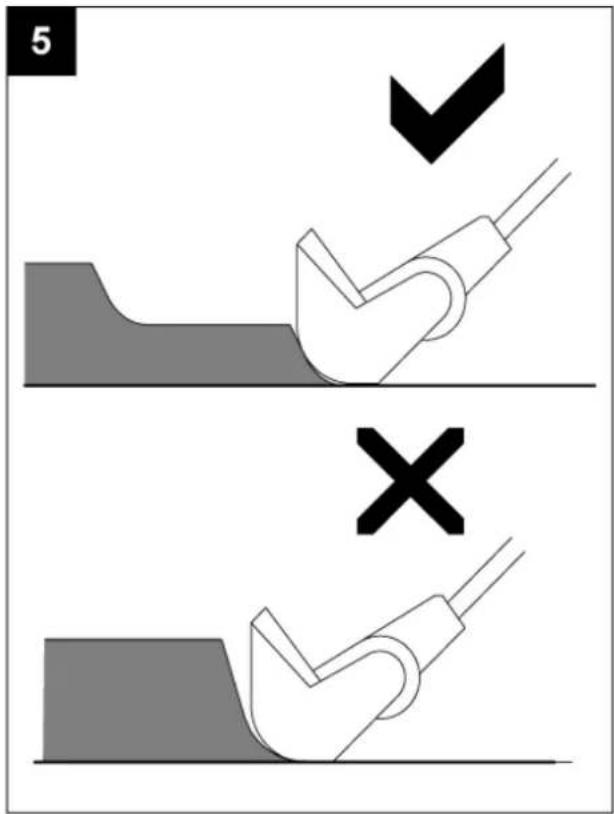

● Clearing snowfall often, before it gets too deep. Snow is best removed as soon as possible after snow falls.

- Lift the auguer off surface slightly before switch on.

- Switch on and tilt the appliance forward until the scraper blade contacts the ground. Push the appliance forward at a comfortable rate of speed, yet slow enough to clear the path completely. The width and depth of the snow determines your forward speed.

- Direct the snow to the right or to the left by holding the appliance at a slight angle. For the most efficient snow removal, throw the snow downwind, and slightly overlap each swath.

- The appliance can remove snow up to 12 cm deep in one pass. When clearing deeper drifts, hold the appliance by the upper and lower handles and use a swinging or sweeping motion. Shaving off the top layer and making multiple passes (Fig. 5).

For large areas, a definite pattern of operation is required to thoroughly clean an area of snow. These patterns will avoid throwing snow in unwanted places as well as eliminating a second removal of snow. (Fig. 6)

Pattern A: Throw the snow to the right or left side where it is possible, as on a long driveway it is advantage to start in the middle. Plow from one end to the other, throwing snow to both sides.

Pattern B: If the snow can only be thrown to one side of the driveway or sidewalk (above), start on the opposite side.

- Scraping the snow all the way down to the pavement will wear out the scraper and auger. To spare the machinery, one or two inches of snow can be left behind, to be handled with de-icing salt or a shovel.

- After clearing the snow, let the motor run for a few minutes so that the ice doesn't freeze any moving parts. Then switch off the motor, wait for all moving parts to stop, and wipe the ice and snow off the appliance.

Warning! To avoid serious personal injury, do not use hands or feet to unclog chute.

Before carrying out any maintenance operations, cut off the electric power supply by disconnecting the plug from the extension cable.

● Regular cleaning and maintenance of your appliance will ensure efficiency and prolong the life of your appliance.
- After each operation, take apart and clean out the ice and debris from the ventilator and its slot, auger and housings.
- Only use a cloth soaked with hot water and a soft brush to clean the application. Never wet or spray water on the machine!
- Do not use detergents or solvents as these could cause irreparable damage to your appliance. Chemicals can destroy the plastic parts.
- To protect the application from corrosion when storing for a longer period, treat the metal parts with harmless oil to the environment.
- Store the appliance in a dry room out reach of kids.

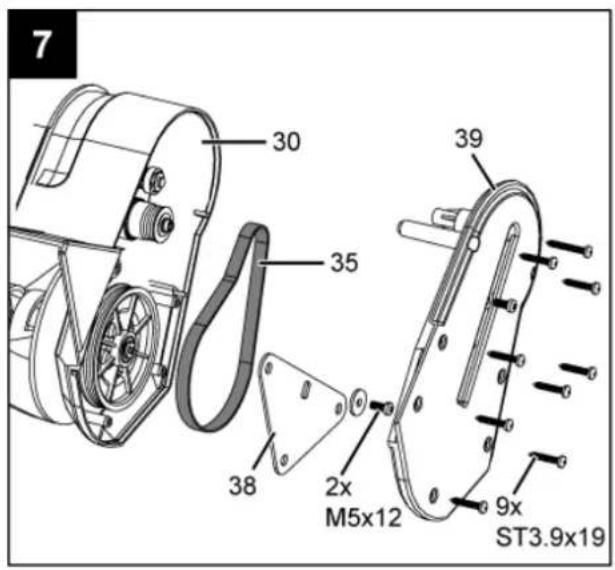

Change of belt (Fig. 7, 8)

The drive belts (34) and (35) need to be replaced depends on wear and tear. Drive belt (35)

• Undo screws and take off the cover (39).
• Remove screw, washer and pulley frame (38), and the belt (35) from the pulleys.
  ● Install the new belt in the same pathway as the old one. Drive belt (34), small
• Loosen the nut and take the pulley (24) off with the belt (34) off the shaft.
• Remove the retaining ring (21), washer and pulley (33) if necessary.
  ● Reinstall belt (35), pulley frame (38) and the cover.

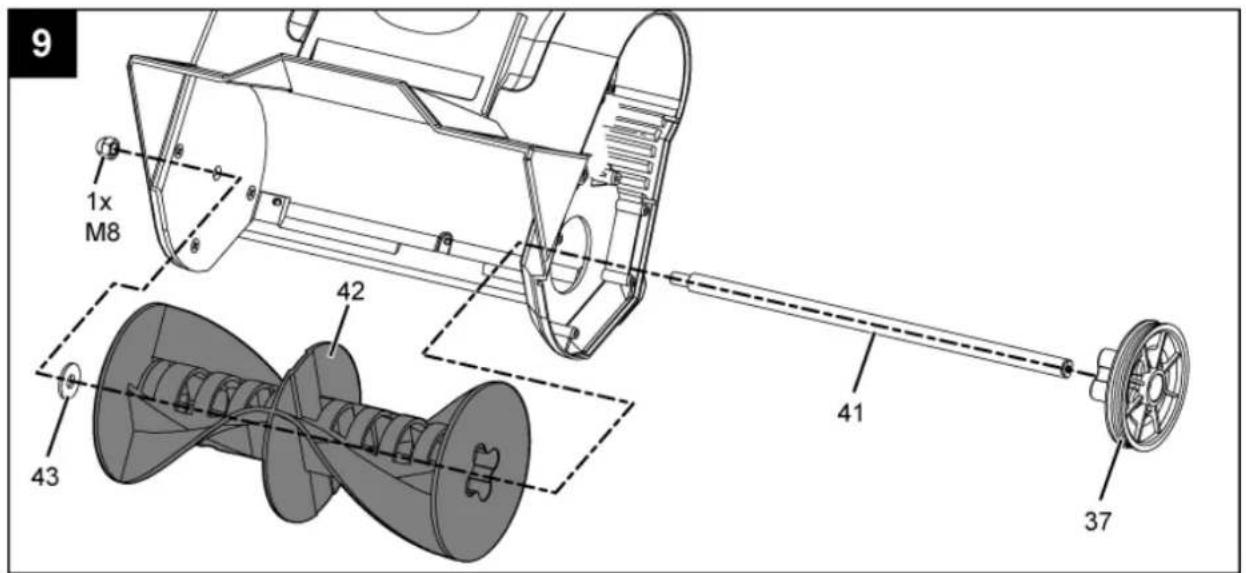

Auger (Fig. 9)

Caution! Check fasteners before each operation. Loosen auger result extra vibration and damage to the appliance.

To change the auger:

• Remove cover (39), pulley frame (38) and belt (35).
  ● Loosen the nut from other side of auger (42) and dismount the pulley (37) and auger axle (41).
• Replace the auger with a new one.

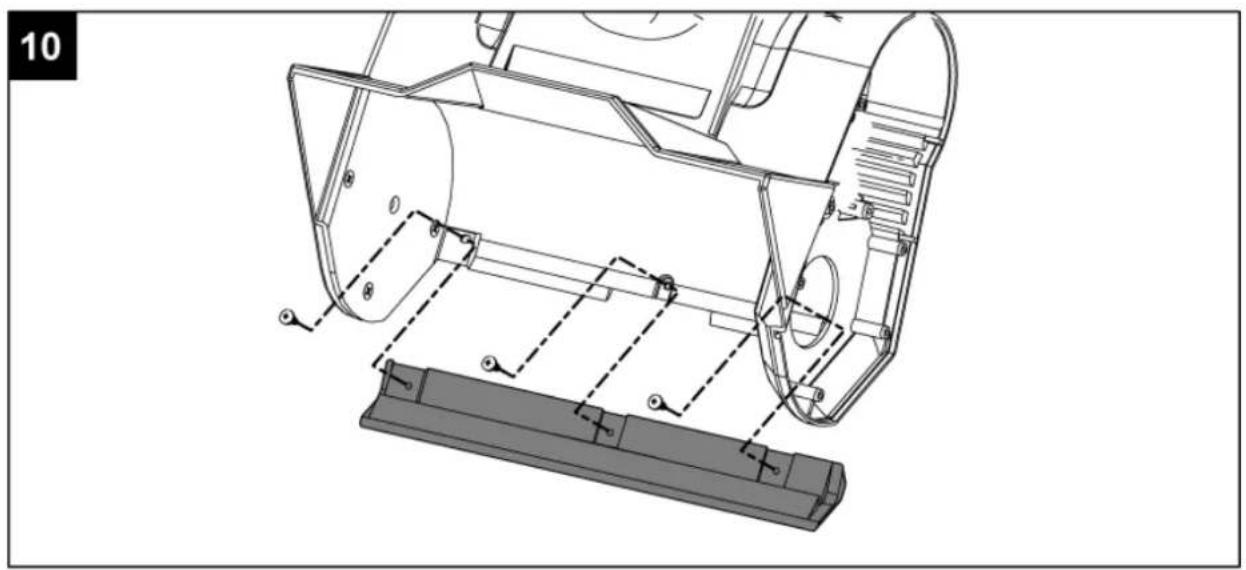

Scraper blade (Fig. 10)

Scraper blade is a wear item and should be replaced when necessary. Wear scraper blade invite extremely vibration and damage of auger.

• Undo 3 screws.
• Replace with a new one.

Troubleshooting

Warning! Before any maintenance work, first switch off the appliance and unplug from the mains.

• Motor does not start
  Mains failure. Check the mains if the same as described in the technical data. Connections problem. Check electrical connection and make sure the operation of the switch is turned on correctly.

● Poor snow throws

Drive belt worn or damaged. Replace the drive belt. Auguer worn or damaged. Replace the auguer, check the tighten of screws and nuts. Blocked discharge. Switch off the appliance and clean the discharge.

- Abnormal vibrations

Drive belt worn or damaged. Replace the drive belt. Auguer worn or damaged. Replace the auguer, check the tighten of screws and nuts. Scarper blade worn or damaged. Replace the scarper blade, check the tighten of screws.

The Environment, Recycling and Disposal

Electrical devices do not go into the domestic rubbish. Give devices, accessories and packaging to an ecofriendly recycling.

According to the European Directive 2002/96/EC on electrical and electronic scrap, electrical devices that are no longer serviceable must be separately collected and brought to a facility for an environmentally compatible recycling.

Technical Data

Power supply voltage 230V\~50Hz

Power consumption 1300 W

Idle Speed 4000 min

Sweep width 260 mm

Maximum clearing depth 120 mm

Maximum throwing distance 9 m

Isolation class II

Weight: 5 kg

Noise power level L_WA 98.6 dB(A)

Noise pressure level L_PA 84.3 dB(A)

Acceleration handle under load 4.9 m/s ²

Spare parts

Spare part drawings for the specific product can be found

on our website www.texas.dk

If you find the part numbers yourself, this will facilitate more rapid service.

For purchase of spare parts, please contact your dealer.

You will find a list of dealers on the Texas website.

Výstraha!

2006/42/EC - 2004/108/EC - 2000/14/EC - 2006/95/EC

Responsible person for documentation Johnny Lolk

Verner Hansen Managing Director •
